Sunrise Medical T45 User Manual
User
Instruction
Manual &
Warranty
Quickie T45
SUPPLIER:
THIS MANUAL MUST BE GIVEN TO THE RIDER OF THIS
WHEELCHAIR.
RIDER:
BEFORE USING THIS WHEELCHAIR READ THIS ENTIRE
MANUAL AND SAVE FOR FUTURE REFERENCE.
3
930356 Rev. B
I. INTRODUCTION
SUNRISE LISTENS
Thank you for choosing a Quickie wheelchair. We want to hear your questions
or comments about this manual, the safety and reliability of your chair, and the
service you receive from your supplier. Please feel free to write or call us at the
address and telephone number below:
Sunrise Healthcare Group
Mobility Products Division
Customer Service Department
7477 East Dry Creek Parkway
Longmont, CO 80503
(303) 218-4500
Let us know your address. This will allow us to keep you up to date with information about safety, new products and options to increase your use and enjoyment of
this wheelchair.
FOR ANSWERS TO YOUR QUESTIONS
Your authorized supplier knows your wheelchair best, and can answer most of
your questions about chair safety, use and maintenance. For future reference, fill
in the following:
Supplier: ______________________________________________________________________________
Address: ______________________________________________________________________________
______________________________________________________________________________________
Telephone: ____________________________________________________________________________
Serial #: _____________________________________ Date/Purchased: ________________________
4
5
930356 Rev. B930356 Rev. B
II. TABLE OF CONTENTS II. TABLE OF CONTENTS
1. INTRODUCTION .............................................................................. 3
a. Sunrise Listens ...................................................................................... 3
11. TABLE OF CONTENTS .................................................................. 4
III. YOUR CHAIR AND ITS PARTS ................................................ 6
IV. NOTICE - READ BEFORE USE .................................................. 8
a. Choose the Right Chair & Safety Option ...................................... 8
b. Review this Manual Often ................................................................ 8
c. Warnings ................................................................................................ 8
V. GENERAL WARNINGS.................................................................... 9
a. Weight Limit ........................................................................................ 9
b. Weight Training .................................................................................... 9
c. Getting to Know Your Chair ............................................................ 9
d. To Reduce The Risk of an Accident ................................................ 9
e. Safety Checklist .................................................................................. 10
f. Changes & Adjustments .................................................................... 10
g. Environmental Conditions ................................................................ 10
h. Terrain .................................................................................................... 11
i. Street Use ............................................................................................ 11
j. Motor Vehicle Safety .......................................................................... 11
k. When You Need Help ........................................................................ 12
VI. WARNINGS: FALLS & TIP-OVERS .......................................... 13
a. Center of Balance .............................................................................. 13
b. Dressing or Changing Clothes ........................................................ 13
c. Wheelies .............................................................................................. 14
d. Obstacles .............................................................................................. 14
e. Reaching or Leaning .......................................................................... 15
f. Moving Backward ................................................................................ 15
g. Ramps, Slopes & Side Hills ................................................................ 16
h. Transfers ................................................................................................ 17
i. Curbs & Steps ...................................................................................... 17
j. Stairs ...................................................................................................... 18
k. Escalators .............................................................................................. 18
VII. WARNINGS: FOR SAFE USE ...................................................... 19
a. Learning to do a “Wheelie” ............................................................ 19
b. Descending a Curb or Single Step .................................................. 19
c. Climbing a Curb or Single Step ...................................................... 20
d. Climbing Stairs .................................................................................... 20
e. Descending Stairs ................................................................................ 20
f. Maintenance .......................................................................................... 21
VIII. WARNINGS: COMPONENTS & OPTIONS ........................ 22
a. Anti-Tip Tubes ...................................................................................... 22
b. Armrests .............................................................................................. 22
c. Cushion & Sling Seats ........................................................................ 22
d. Fasteners .............................................................................................. 23
e. Footrests ................................................................................................ 23
f. Pneumatic Tires .................................................................................. 23
g. Positioning Belts .................................................................................. 24
h. Power Drive ........................................................................................ 24
i. Push Handles ........................................................................................ 24
j. Quick-Release Axles .......................................................................... 25
k. Rear Axles ............................................................................................ 25
l. Rear Wheel Locks .............................................................................. 25
m.Modified Seat Systems ...................................................................... 26
n. Upholstery Fabric .............................................................................. 26
IX. SET-UP AND ADJUSTMENTS .................................................... 27

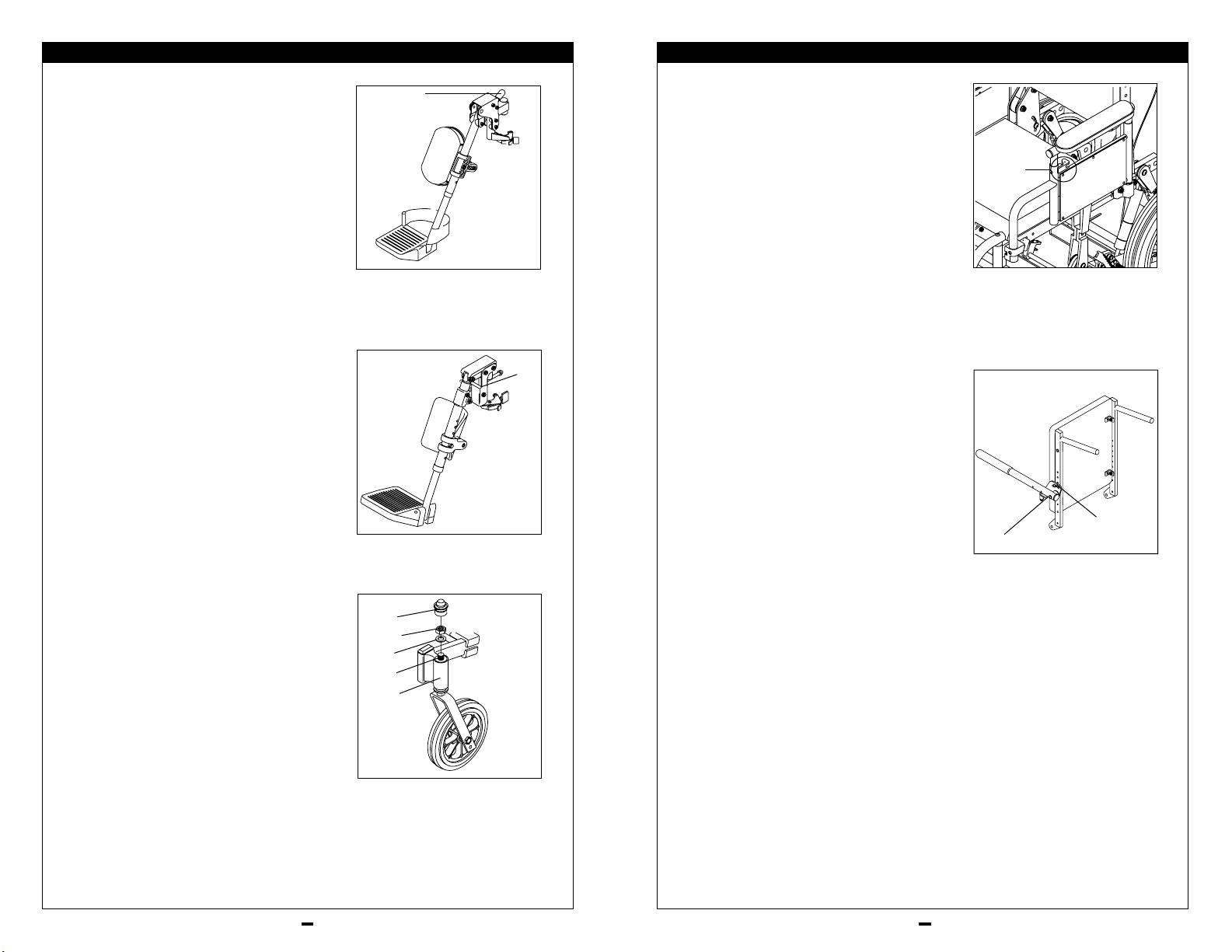

a. Swing-Away Footrests.......................................................................... 27
b. Heavy-Duty, Lift-Off Footrests (Optional)...................................... 27
c. Articulating Legrest (Optional) .......................................................... 28
d. Elevating Legrest (Optional) .............................................................. 28
e. Casters .................................................................................................. 28
f. Dual-Post, Height Adjustable Armrests .......................................... 29
g.Adjustable Locking Flip-up Armrests (Optional) .......................... 29
h.Anti-Tip Tubes ...................................................................................... 30

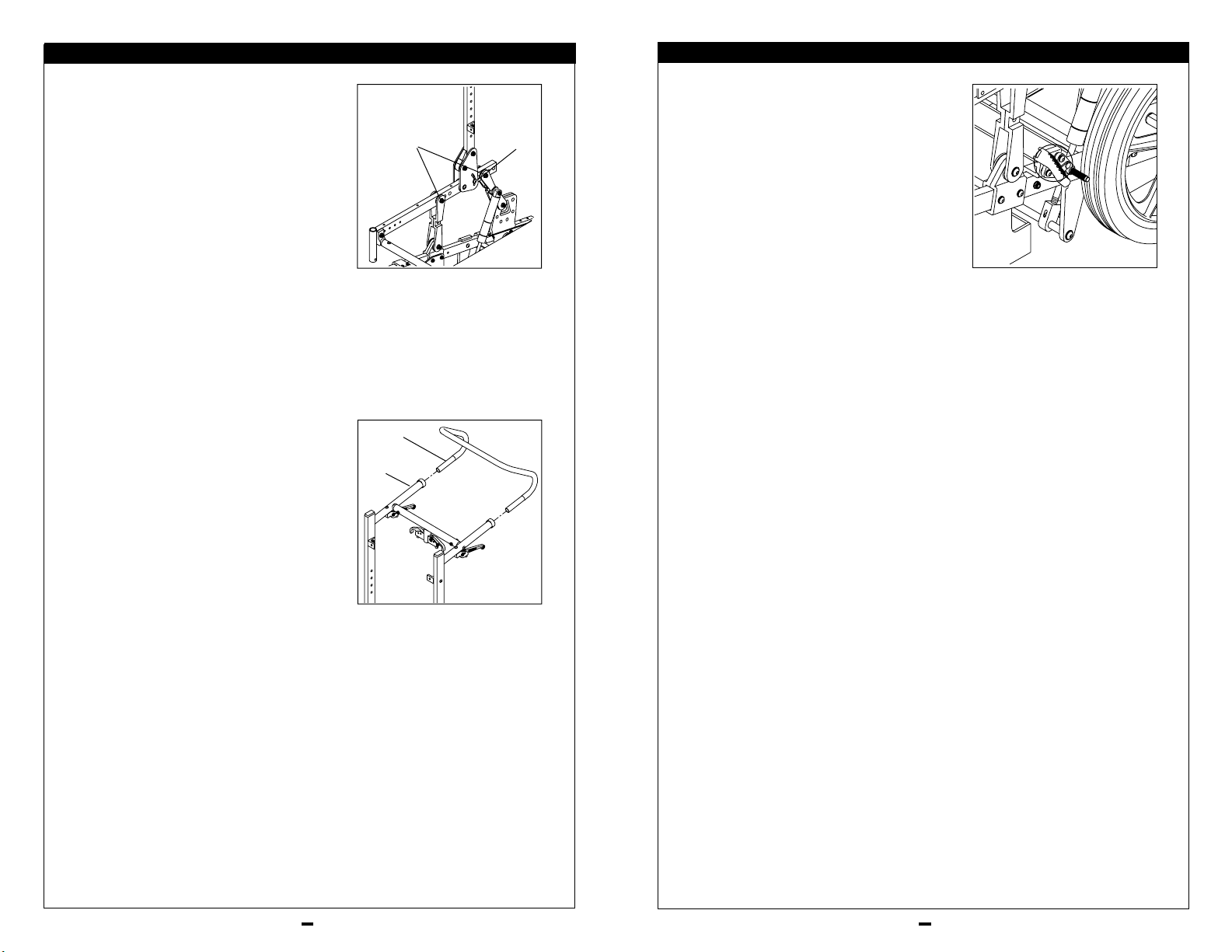

i.Tilt-in Space Mechanism ...................................................................... 31
j. Dual Trigger Reclining Mechanism .................................................... 31
k. Fixed/Adjustable Backrest ................................................................ 32
l. Stroller Handles (Optional) ................................................................ 32
m.Wheel Locks ........................................................................................ 33
n. Check Out ............................................................................................ 33
X. TROUBLESHOOTING .................................................................... 34
X1. MAINTENANCE ................................................................................ 35
XII. SUNRISE LIMITED WARRANTY .............................................. 37
6
7
930356 Rev. B930356 Rev. B
Weight
75 lbs.
Frame Dimensions
Frame width: 14”-20”
Seat depth: regular frame (15”17”), long frame (18”-20”)
Cushion: Opt - 2”, 3”, 4”
Seat
Std - seat pan
Tilt Mechanism
Std - std (90 pound assist)
Opt - heavy-duty (135 pound assist)
Solid Back/Seat
24” back height
Backrest
Std: fixed/adjustable
Opt: reclining, stroller handles
Vent Tray
Opt - vent tray with battery box
Footrests
Hanger type:
Std - 60º, 70º swing-away
Opt -70º, 80º heavy duty, articulating or elevating legrest
Impact guards: plastic or neoprene
Footplates:
Std - composite
Opt - angle-adjustable, extended,
heel loops, toe loops
Footrest extension tubes:
Std - short, medium, long
Opt - Extensions: 2”, 4”
Casters
Std - 8” pneumatic
Opt - 8” polyurethane, 8”x2”
pneumatic, 8”x2” w/airless insert,
aluminum caster rims
Armrests
Opt - dual-post, height-adjustable,
adjustable locking flip-up
Rear Wheels
Type: Std - mag
Sizes: Std - 16”, Opt - 20”
Tires: Std - pneumatic
Opt - 20” pneumatic with airless
insert, full-profile polyurethane
Wheel Locks
Std - wheel locks
All features may not be available with
some chair setups or in conjunction with
another chair feature. Please consult
your authorized supplier for more information. Your authorized supplier can
also provide you with more information
on accessories and clothing.
III. YOUR CHAIR AND ITS PARTS
III. YOUR CHAIR AND ITS PARTS
Quickie T45
1. Backrest
2. Dual-post, height-adjustable armrest
3. Backrest pivot plate
4. Cushion
5. Swing-away footrest
6. Heel loop
7. Composite footplate
8. Push handle
9. Tilt-in-space mechanism release lever
10. 16” rear wheel
11. Anti-tip tube
12. Vent tray
13. Wheel lock
14. Swing-away release latch
15. Battery tray
16. Caster tire
17. Caster fork
1
2
3
10
4
12
11
13
6
14
9
8
5
7
15
16
17
8 9
930356 Rev. B
930356 Rev. B
IV. NOTICE—READ BEFORE USE
V. GENERAL WARNINGS
A. WEIGHT LIMIT
NEVER exceed the weight limit of 250 pounds (113.6 kilograms), for combined
weight of rider and items carried. If you do exceed the limit, damage to your
chair, a fall, tip-over or loss of control may occur and cause severe injury to the
rider or others.
B. WEIGHT TRAINING
NEVER use this chair for weight training if total weight (rider plus equipment) exceeds 250 pounds. If you do exceed the limit, damage to your chair,
a fall, tip-over or loss of control may occur and cause severe injury to the
rider or others.
C. GETTING TO KNOW YOUR CHAIR
Every wheelchair is different.Take the time to learn the feel of this chair
before you begin riding. Start slowly, with easy, smooth strokes. If you are
used to a different chair, you may use too much force and tip over. If you use
too much force, damage to your chair, a fall, tip-over or loss of control may
occur and cause severe injury to the rider or others.
D. TO REDUCE THE RISK OF AN ACCIDENT
1. BEFORE riding, you should be trained in the safe use of this chair by your
health care advisor.
2. Practice bending, reaching and transfers until you know the limit of your
ability. Have someone help you until you know what can cause a fall or
tip-over and how to avoid doing so.
3. Be aware that you must develop your own methods for safe use best
suited to your level of function and ability.
4. NEVER try a new maneuver on your own until you are sure you can
do it safely.
5. Get to know the areas where you plan to use your chair. Look for
hazards and learn how to avoid them.
6. Use anti-tip tubes unless you are a skilled rider of this chair and are sure
you are not at risk to tip over.
If you fail to heed these warnings damage to your chair, a fall, tip-over or loss of
control may occur and cause severe injury to the rider or others.
A. CHOOSE THE RIGHT CHAIR & SAFETY OPTIONS
Sunrise provides a choice of many wheelchair styles to meet the needs of the
wheelchair rider. However, final selection of the type of wheelchair, options and
adjustments rests solely with you and your health care advisor. Choosing the
best chair and set-up for your safety depends on such things as:
1. Your disability, strength, balance and coordination.
2. The types of hazards you must overcome in daily use (where you live and
work, and other places you are likely to use your chair).
3. The need for options for your safety and comfort (such as anti-tip tubes,
positioning belts, or special seating systems).
B. REVIEW THIS MANUAL OFTEN
Before using this chair you, and each person who may assist you, should
read this entire manual and make sure to follow all instructions. Review the
warnings often, until they are second nature to you.
C. WARNINGS
The word “WARNING” refers to a hazard or unsafe practice that may
cause severe injury or death to you or to other persons.The “Warnings”
are in four main sections, as follows:
1. V — GENERAL WARNINGS
Here you will find a safety checklist and a summary of risks you need to be
aware of before you ride this chair.
2. VI — WARNINGS — FALLS & TIP-OVERS
Here you will learn how to avoid a fall or tip-over while you perform daily
activities in your chair.
3. VII — WARNINGS — FOR SAFE USE
Here you will learn about practices for the safe use of your chair
4. VIII — WARNINGS — COMPONENTS & OPTIONS
Here you will learn about the components of your chair and options you can
select for safety. Consult your authorized supplier and your health care advisor
to help you choose the best set-up and options for safe use.
Note: Where they apply, you will also find “Warnings” in other sections of this manual.
Heed all warnings in this section. If you fail to do so a fall, tip-over or loss of control may
occur and cause severe injury to the rider or others.
10
V. GENERAL WARNINGS
E. SAFETY CHECKLIST
Before Each Use Of Your Chair:
1. Make sure the chair rolls easily and that all parts work smoothly. Check
for noise, vibration, or a change in ease of use. (They may indicate low tire
pressure, loose fasteners, or damage to your chair).
2. Repair any problem.Your authorized supplier can help you find and correct the problem.
3. Check to see that both quick-release rear axles are locked.When locked,
the axle button will “pop out” fully. If not locked, the wheel may come off
and cause you to fall.
4. If your chair has anti-tip tubes, lock them in place.
Note: See “Anti-Tip Tubes” (Section VIII) for times you should not use them.
If you fail to heed these warnings damage to your chair, a fall, tip-over or loss
of control may occur and cause severe injury to the rider or others.
F. CHANGES & ADJUSTMENTS
1. If you modify or adjust this chair, it may increase the risk of a tip-over UNLESS
you make other changes as well.
2. Consult your authorized supplier BEFORE you modify or adjust your chair.
3. We recommend that you use anti-tip tubes until you adapt to the change, and
are sure you are not at risk to tip over.
4. Unauthorized modifications or use of parts not supplied or approved by
Sunrise may change the chair structure.This will void the warranty and may
cause a safety hazard.
If you fail to heed these warnings damage to your chair, a fall, tip-over or loss of
control may occur and cause severe injury to the rider or others.
G. ENVIRONMENTAL CONDITIONS
1. Use extra care if you must ride your chair on a wet or slick surface. If you are
in doubt, ask for help.
2. Contact with water or excess moisture may cause your chair to rust or
corrode.This could cause your chair to fail.
a. Do not use your chair in a shower, pool or other body of water. The chair
tubing and parts are not water-tight and may rust or corrode from the inside.
b. Avoid excess moisture (for example, do not leave your chair in a damp
bathroom while taking a shower).
c. Dry your chair as soon as you can if it gets wet, or if you use water to
clean it.
If you fail to heed these warnings damage to your chair, a fall, tip-over or loss of
control may occur and cause severe injury to the rider or others.
11
930356 Rev. B
930356 Rev. B
V. GENERAL WARNINGS
H. TERRAIN
1. Your chair is designed for use on firm, even surfaces such as concrete,
asphalt and indoor floors and carpeting.
2. Do not operate your chair in sand, loose soil or over rough terrain.
This may damage wheels or axles, or loosen fasteners of your chair.
If you fail to heed these warnings damage to your chair, a fall, tip-over or loss of
control may occur and cause severe injury to the rider or others.
I. STREET USE
In most states, wheelchairs are not legal for use on public roads. Be alert to the
danger of motor vehicles on roads or in parking lots.
1. At night, or when lighting is poor, use reflective tape on your chair
and clothing.
2. Due to your low position, it may be hard for drivers to see you. Make eye
contact with drivers before you go forward.When in doubt, yield until you
are sure it is safe.
If you fail to heed these warnings damage to your chair, a fall, tip-over or loss of
control may occur and cause severe injury to the rider or others.
J. MOTOR VEHICLE SAFETY
Quickie wheelchairs do not meet federal standards for motor vehicle seating.
1. NEVER let anyone sit in this chair while in a moving vehicle.
a. ALWAYS move the rider to an approved vehicle seat.
b. ALWAYS secure the rider with proper motor vehicle restraints.
2. In an accident or sudden stop the rider may be thrown from the chair.
Wheelchair seat belts will not prevent this, and further injury may result
from the belts or straps.
3. NEVER transport this chair in the front seat of a vehicle. It may shift and
interfere with the driver.
4. ALWAYS secure this chair so that it cannot roll or shift.
5. Do not use any chair that has been involved in a motor vehicle accident.
If you fail to heed these warnings damage to your chair, a fall, tip-over or loss of
control may occur and cause severe injury to the rider or others.
12
13
930356 Rev. B930356 Rev. B
V. GENERAL WARNINGS
K. WHEN YOU NEED HELP
For The Rider:
Make sure that each person who helps you reads and follows all warnings and
instructions that apply.
For Attendants:
1. Work with the rider’s doctor, nurse or therapist to learn safe methods
best suited to your abilities and those of the rider.
2. Tell the rider what you plan to do, and explain what you expect the rider to
do.This will put the rider at ease and reduce the risk of an accident.
3. Make sure the chair has push handles.They provide secure points for you
to hold the rear of the chair to prevent a fall or tip-over. Check to make
sure push handle grips will not rotate or slip off.
4. To prevent injury to your back, use good posture and proper body mechanics.When you lift or support the rider or tilt the chair, bend your knees
slightly and keep your back as upright and straight as you can.
5. Remind the rider to lean back when you tilt the chair backward.
6. When you descend a curb or single step, slowly lower the chair in one
easy movement. Do not let the chair drop the last few inches to the
ground.This may damage the chair or injure the rider.
7. To avoid tripping, unlock and rotate anti-tip tubes up, out of the way.
ALWAYS lock the rear wheels and lock anti-tip tubes in place if you must
leave the rider alone, even for a moment.This will reduce the risk of a tip
over or loss of control of the chair.
If you fail to heed these warnings damage to your chair, a fall, tip-over or loss of
control may occur and cause severe injury to the rider or others.
VI. WARNINGS: FALLS & TIP-OVERS
A. CENTER OF BALANCE
The point where this chair will tip forward, back, or to the side depends on its
center of balance and stability. How your chair is set up, the options you select
and the changes you make may affect the risk of a fall or tip-over.
1. The Most Important Adjustments Are:
a. The position of the rear wheels.The more you move the rear wheels
forward, the more likely your chair will tip over backward.
2. The Center Of Balance Is Also Affected By:
a. A change in the set-up of your chair, including:
• The distance between the rear wheels.
• The amount of rear wheel camber.
• The seat height and seat angle.
• Backrest angle.
b. A change in your body position, posture or weight distribution.
c. Riding your chair on a ramp or slope.
d. The use of a back pack or other options, and the amount of added weight.
3. To Reduce The Risk Of An Accident:
a. Consult your doctor, nurse or therapist to find out what axle and
caster position is best for you.
b. Consult your authorized supplier BEFORE you modify or adjust this chair.
Be aware that you may need to make other changes
to correct the center of balance.
c. Have someone help you until you know the balance points of your chair
and how to avoid a tip-over.
d. Use anti-tip tubes.
If you fail to heed these warnings damage to your chair, a fall, tip-over or loss of
control may occur and cause severe injury to the rider or others.
B. DRESSING OR CHANGING CLOTHES
Your weight may shift if you dress or change clothes while seated in this chair.
To reduce the risk of a fall or tip-over:
1. Rotate the front casters until they are as far forward as possible.
This makes the chair more stable.
2. Lock anti-tip tubes in place. (If your chair does not have anti-tip tubes, back
it up against a wall and lock both rear wheels).
If you fail to heed these warnings damage to your chair, a fall, tip-over or loss of
control may occur and cause severe injury to the rider or others.
Loading...
