Page 1
247750
Switch-It
Proximity Head Array
Owner's Manual
Page 2
Dealer signature and stamp
Thank you for choosing a Switch-It Product. We want to
hear your questions or comments about this manual, the
safety and reliability of your system, and the service you
receive from your Authorized Dealer. Please feel free to
write or call us at the address and telephone number below:
Sunrise Medical (US) LLC
Customer Service Department
2842 N. Business Park Ave
Fresno, CA 93727 USA
(800) 333-4000
Be sure to return your warranty card, and let us know if you
change your address. This will allow us to keep you up to
date with information about safety, new products, and
options to increase your use and enjoyment of this base
system.
You can also register your product at:
www.sunrisemedical.com/register
FOR ANSWERS TO YOUR QUESTIONS
Your Authorized Dealer knows your wheelchair best, and can
answer most of your questions about system safety, use and
maintenance. For future reference, fill in the following:
Supplier: __________________________________________
Address: __________________________________________
_________________________________________________
Telephone: ________________________________________
Serial #:______________ Date/Purchased:_______________
INFORMATION YOU SHOULD KNOW
No component of this system was made with Natural Rubber Latex.
www.sunrisemedical.com /register
DISPOSAL AND RECYCLING INFORMATION
When this product reaches the end of its life, please take
it to an approved collection or recycling point designated
by your local or state government. This Seating system is
manufactured using a variety of materials, Your product
should not be disposed of as ordinary household waste.
You should dispose of your system properly, according to
local laws and regulations. Most materials that are used
in the construction of this product are fully recyclable.
The separate collection and recycling of your product at
the time of disposal will help conserve natural resources
and ensure that it is disposed in a manner that protects
the environment.
Ensure you are the legal owner of the product prior to
arranging for the product disposal in accordance with the
above recommendations.
247750 Rev. A
2
Page 3
WARNING
This device can be affected by Electro-Magnetic Interference (EMI) and Radio Frequency
Interference (RFI).
- Radio wave sources, such as radio stations, TV stations, amateur radio (HAM) transmitters, two-way
radios, and
cellular phones can affect powered control.
-
If unintended movement or brake release occurs, turn the power wheelchair OFF and do not
operate until inspected, repaired, and/or replaced.
-
If the chair acts in an erratic manner, turn the power wheelchair OFF and do not operate until
inspected, repaired, and/or replaced.
-
If the joystick stem is damaged, it can cause the chair to operate erratically, turn the power
wheelchair OFF and do not operate until inspected, repaired, and/or replaced.
-
If any of the device cabling becomes frayed, cut, or disconnected in any way, t
urn the power OFF
and do not operate until inspected, repaired, and/or replaced.
NOTE: Check all parts for shipping damage. In case of damage DO NOT use. Contact Carrier/
Sunrise Medical for further instructions.
DO NOT install this equipment without first reading and understanding this manual. If you are
unable to understand the Warnings, Cautions, and Instructions, contact a qualified clinician or
supplier - otherwise injury or damage may occur.
WARNING
3
247750 Rev. A
Page 4
User information
Congratulations on choosing a Switch-It product. Sunrise
Medical’s high-quality mobility products are designed to
enhance independence and make your everyday life easier.
As a part of our ongoing product improvement initiative,
Sunrise Medical reserves the right to change specifications
and design without notice.
This user manual
This user manual will help you to use and maintain your
product safely.
If you are visually impaired,
this document can be viewed
in PDF format at
www.SunriseMedical.com
AB FG
D
CE
44
247750 Rev. A
Page 5
A.
Product Description:

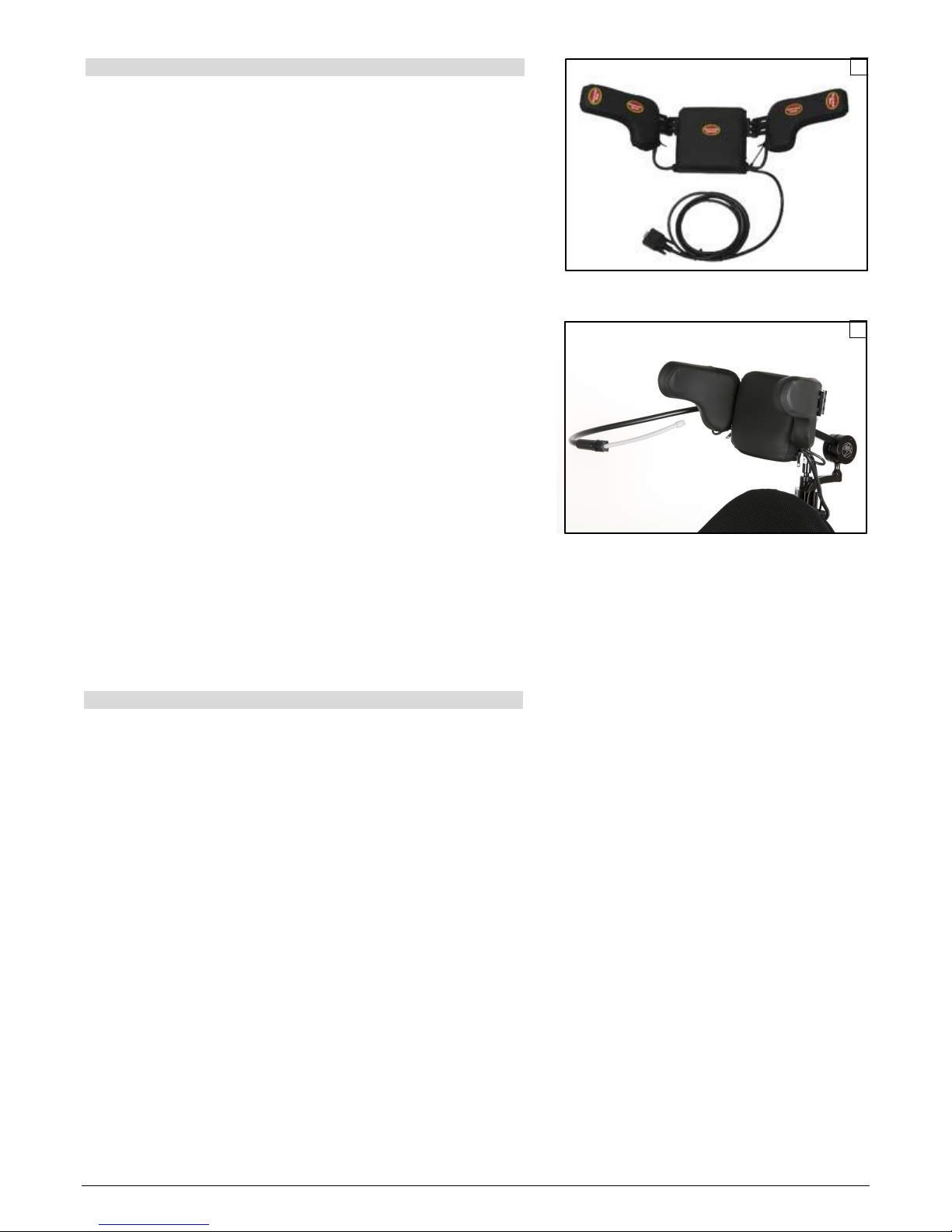

Switch-It Proximity Head Arrays use proximity sensors (also called
zero or near touch) which are specifically designed for wheelchair
application. This means Switch-It proximity sensors are less
susceptible to interference from Electro-Magnetic Fields (EMF)
generated by power wheelchairs than other available proximity
sensors.
Switch-It proximity sensors have the versatility to utilize 3, 4, or 5
proximity sensors built as an array to control the power wheelchair.
These arrays may be built with the sensors separate from the
headrest for custom placement at any activation point convenient
to the user (item Flex Array, HDR-FA-5), or embedded into the pads
of the comfortable headrest. Switch-It head array users may
choose from short or long and flat or curved side pads for
additional customization (see technical information for side pad
dimensions).
The Flex Array system is specifically designed for clients that may
have changing conditions and require different switch access
locations as their condition changes. The Flex Array system includes
5 Switch-It proximity sensors; each sensor cable is built with a heavy
duty quick disconnecter and the system also comes with two
additional sensor cable extensions, and a Switch-It headrest
configured with pads of the user’s choosing. The quick disconnects
allow each sensor to be removed from the system for transfers or
other reasons. The Flex Array proximity sensors can be placed in
the headrest, adductor/abductor pads, or any other possible
switch site.
Switch-It also makes a Sip N’ Puff Combo Head Array, Figure 2. This
special configuration allows the user to drive left and right with
sensors embedded in the side pads, and forward and reverse with
use of the Sip N’ Puff.
B.
Technical Information:
•
Alternative Control Type: Switched/Digital
•
Activation Type: Proximity
•
Activation Surface: 2” x 1” (50mm x 25mm)
•
Activating Force: None required
•
Sensing Distance: 10mm
•
Feedback: Power wheelchair movement
•
Connector Type: D-Sub 9 connection to wheelchair
display
•
Center/Back Pad Dimensions: 5” x 5”
•
Side Pad Dimensions:
o Short-Curved (-SC): 4" x 5”
o Short-Straight (-SS): 4" x 5.25”
o Long-Curved (-LC): 4" x 5”
o Long-Straight (-LS): 4" x 6.25” (only available
option for HDR5)
1
5
247750 Rev. A
2
Page 6
247750 Rev. A
6
D.
Key Features:
Within the back pad of each head array (under the back
cover) is a small panel of dip switches which allows each
sensor to be on or off. This is particularly useful in training
environments as the user gets familiar with the head array
and comfortable with driving their power wheelchair.
Flexibility of sensor placement with the Flex Array system
allows for customization to fit the needs of each user.
HDR3 and HDR4 Head Arrays come with an 1/8” monojack
port which works with common mechanical switches with a
monoplug output (i.e. egg switch, micro lite switch, etc).

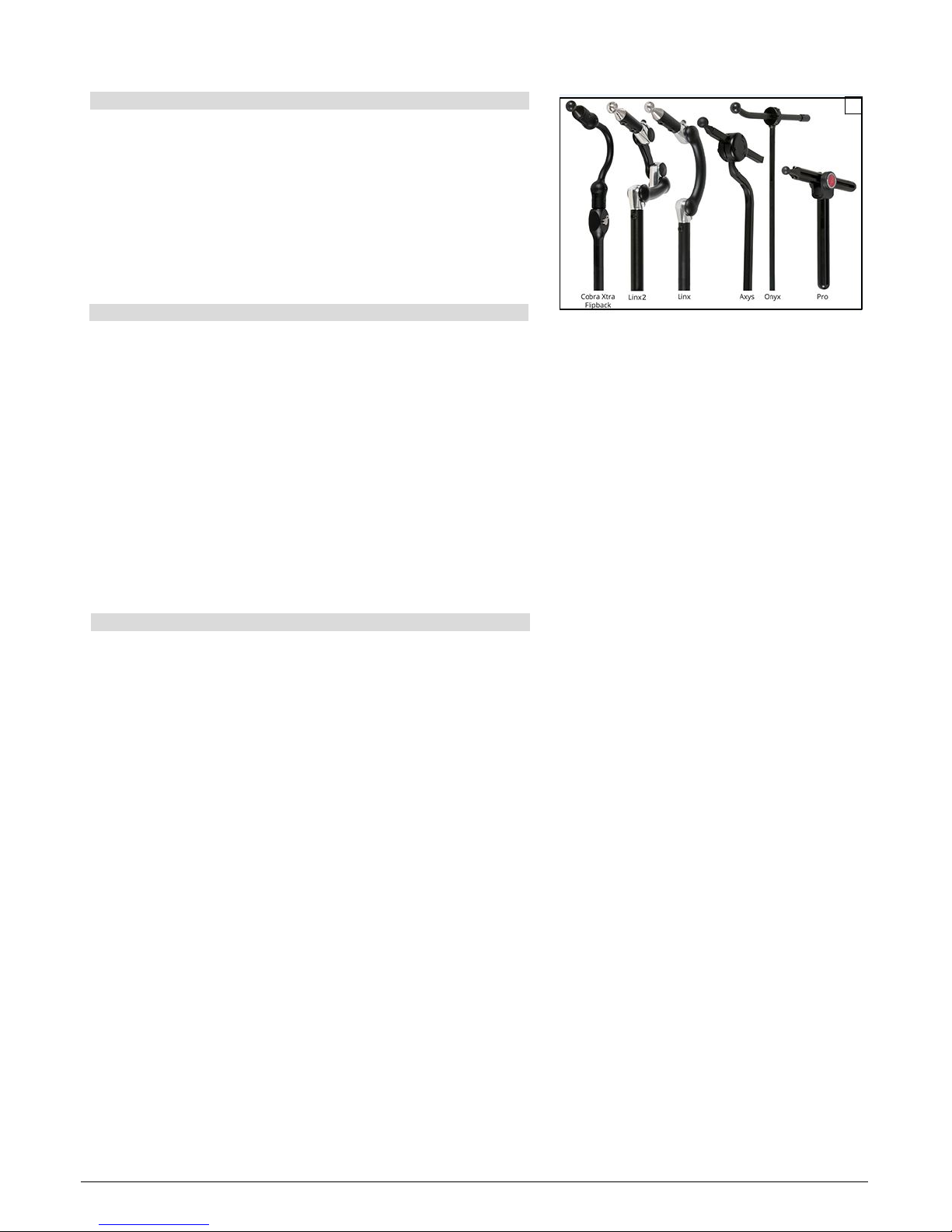

Switch-It Proximity Head Arrays are available with either
Switch-It 1/2" square or Whitmyer headrest mounting
hardware, Figure 3.
E
.
Troubleshooting
Call Sunrise Technical Support at 1.800.333.4000.
3
• Penny & Giles R-Net Electronics: Omni is required
• Curtis Electronics Enable 50: Enhanced Display is
required
• Dynamic Controls DX2: Switch It DX Dongle (DXD) is
required
• Invacare Electronics: Invacare MK6 Sip N’ Puff Module
(SNPMK6) is required. MicroPilot for Invacare (MP-I)
version must be requested at time of order.
C.
Compatibility:
Page 7
7
247750 Rev. A
7
•
All
electronic components are covered under warranty for twelve (12) months from the date
of shipment, provided normal use, unless modified or damaged.
•
All
mounting hardware is covered under warranty for twelve (12) months from the date of
shipment, provided normal use, unless modified or damaged
•
All wearable items (covers, pads, etc.) are covered under warranty for three (3) months from
the date of shipment, provided normal use, unless modified or damaged.
WARRANTY
Each Switch-It device is carefully inspected and tested to provide peak performance. Every
Switch-It device is covered under a limited, express warranty.
Warranty claims should be processed through the nearest authorized supplier or dealer. A Return
Authorization number must be obtained prior to returning the item for evaluation, along with
details of the issue.
Items returned for warranty claim must be evaluated by Switch-It before warranty determination is
made. Should a defect in materials or workmanship occur during the warranty period, and the
item has not been modified or damaged, Switch-It will, at its option, rework or replace it without
charge.
Except for express warranties made herein, all other warranties, including implied warranties of
merchantability and warranties of fitness for a particular purpose are excluded. There is no implied
warranty beyond what is contained herein. Remedies for breach of express warranties herein are
limited to rework or replacement of the goods. In no event shall damages for breach of any
warranty include any consequential damages or exceed the cost of non-conforming goods sold.
Page 8
Customer Service: 800.333.4000
Fax: 303.928.5495
In Canada: 800.263.3390
Sunrise Medical
2842 N. Business Park Ave.
Fresno, CA 93727 • USA
©2018 Sunrise Medical (US) LLC
1.18
247750 Rev. A
Website Addresses:
[email protected]
www.SunriseMedical.com
www.switchit-inc.com
