Sunrise Medical ST-DT User Manual
User
Instruction
Manual &
Warranty
Quickie ST/DT
SUPPLIER:
THIS MANUAL MUST BE GIVEN TO THE RIDER OF THIS
WHEELCHAIR.
RIDER:
BEFORE USING THIS WHEELCHAIR READ THIS ENTIRE
MANUAL AND SAVE FOR FUTURE REFERENCE
QUICKIE LISTENS
Thank you for choosing a Quickie wheelchair. We want to hear your questions or
comments about this manual,the safety and reliability of your chair,and the service
you receive from your Quickie supplier. Please feel free to write or call us at the
address and telephone number below:
Sunrise Medical
Customer Service Department
7477 East Dry Creek Parkway
Longmont,CO 80503
(303) 218-4500
Be sure to return your warranty card,and let us know if you change your address.
This will allow us to keep you up to date with information about safety,new products and options to increase your use and enjoyment of this wheelchair. You will
also receive a free subscription to Quickie Chronicles,a newsletter just for Quickie
users. If you lose your warranty card,call or write and we will gladly send you a
new one.
FOR ANSWERS T O YOUR QUESTIONS
Your authorized Quickie supplier knows your wheelchair best, and can answer
most of your questions about chair safety,use and maintenance. For future reference, fill in the following:
Quickie Supplier: ______________________________________________________________________
Address: ______________________________________________________________________________
______________________________________________________________________________________
Telephone:____________________________________________________________________________
Serial #: _____________________________________ Date/Purchased: ________________________
I.INTRODUCTION
1
2
1. INTRODUCTION .............................................................................. 1
a.Quickie Listens...................................................................................... 1
11. TABLE OF CONTENTS.................................................................. 2
III. YOUR CHAIR AND ITS PARTS ................................................ 4
IV. NOTICE - READ BEFORE USE .................................................. 6
a. Choose the Right Chair & Safety Option...................................... 6
b. Review this Manual Often ................................................................ 6
c.Warnings.................................................................................................. 6
V . GENERAL W ARNINGS.................................................................... 7
a. Weight Limit ........................................................................................ 7
b. W eight T raining .................................................................................... 7
c. Getting to Know Your Chair ............................................................ 7
d. To Reduce The Risk of an Accident ................................................ 7
e. Safety Checklist .................................................................................. 8
f. Changes & Adjustments .................................................................... 8
g. Environmental Conditions ................................................................ 8
h. Terrain .................................................................................................... 8
i. Street Use ............................................................................................ 8
j. Motor V ehicle Safety .......................................................................... 9
k. When You Need Help ........................................................................ 9
VI. WARNINGS: FALLS & TIP-OVERS .......................................... 10
a. Center of Balance .............................................................................. 10
b. Dressing or Changing Clothes ........................................................ 10
c. Wheelies .............................................................................................. 11
d. Obstacles .............................................................................................. 11
e. Reaching or Leaning .......................................................................... 11
f. Moving Forward .................................................................................. 12
g. Ramps, Slopes & Side Hills ................................................................ 12
h. Transfers ................................................................................................ 13
i. Curbs & Steps ...................................................................................... 14
j. Stairs ...................................................................................................... 14
k. Escalators .............................................................................................. 14
VII. WARNINGS: COMPONENTS & OPTIONS ........................ 15
a. Amputee or “Extended” Axle Plates .............................................. 15
b. Anti-Tip Tubes ...................................................................................... 15
c. Armrests .............................................................................................. 15
d. Cushion & Sling Seats ........................................................................ 15
e. Fasteners .............................................................................................. 16
f. Footrests ................................................................................................ 16
g. Pneumatic Tires .................................................................................. 16
h. Positioning Belts .................................................................................. 16
II. TABLE OF CONTENTS
i. Power Drive ........................................................................................ 17
j. Quick-Release Axles .......................................................................... 17
k. Rear Axles ............................................................................................ 17
l. Rear Wheel Locks .............................................................................. 17
m.Modified Seat Systems ...................................................................... 18
n. Upholstery Fabric .............................................................................. 18
VIII. TIPS FOR ATTENDANTS ............................................................ 19
a. Learning to do a “Wheelie” ............................................................ 19
b. Descending a Curb or Single Step .................................................. 19
c. Climbing a Curb or Single Step ...................................................... 20
d. Climbing Stairs .................................................................................... 20
e. Descending Stairs ................................................................................ 20
IX. CHAIR BASICS .................................................................................. 21

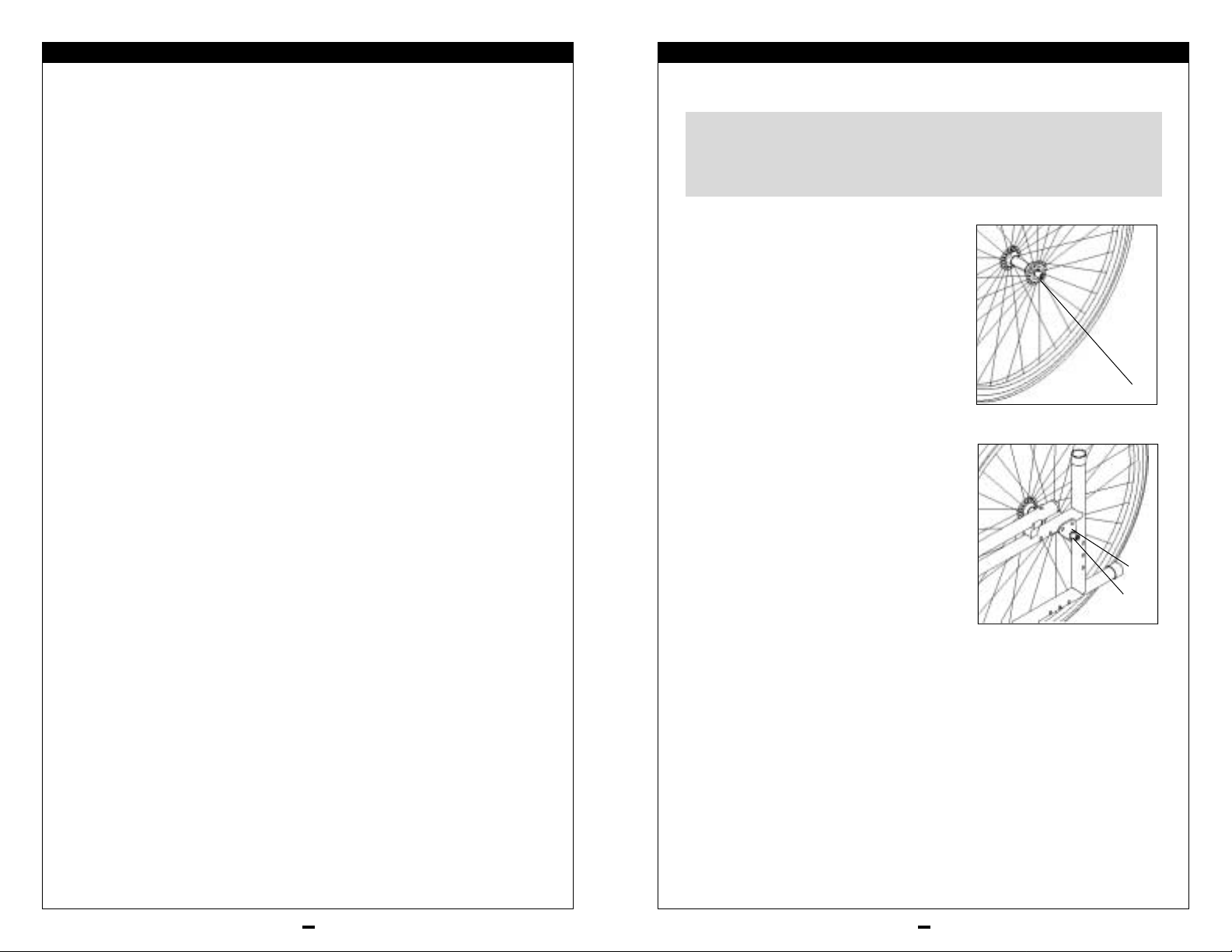

a. To Mount & Remove Rear Wheels ................................................ 21
X. SET-UP AND ADJUSTMENTS .................................................... 22
a. Wheels .................................................................................................... 22
b.Wheel Locks ........................................................................................ 22
c.Armrests (Optional) ............................................................................ 23
d.Anti-Tip T ubes (Optional) .................................................................. 23
e. Height Adjustable Armrest (Optional) .......................................... 24
f.Folding Backrest .................................................................................... 24
g.Back Angle Adjustable (Folding Backrest) ...................................... 24
h.Camber T ube ........................................................................................ 25
i. Wheel Locks .......................................................................................... 26
j. Footrest .................................................................................................. 27
k.Anti-Tip T ubes (Optional) .................................................................. 27
XI. TROUBLESHOOTING .................................................................... 26
X11. MAINTENANCE ................................................................................ 27
XIII. QUICKIE LIMITED WARRANTY .............................................. 29
II. TABLE OF CONTENTS
3
1. Backrest
2. Pneumatic tire
3. Seat cushion
4. Seat sling (not shown)
5. Scissor wheel lock
6. Leg strap
7. Footrest
8. Aluminum handrim
9. Spokes
10. Rear wheel hub
11. Quick-release axle
12. Aluminum wheel rim
13. Caster housing
14. Caster fork
15. Caster wheel
4
III. YOUR CHAIR AND ITS PARTS
Quickie Shadow ST/DT
Weight
22 lbs.with steel rear axles
20.5 lbs.with titanium rear axles and
performance wheels
Adjustments
1” vertical caster adjustment with
2-hole fork
2” wheelbase width adjustment
6oseat angle adjustment
Colors
Blue, Black, Red, Midnight Purple,Teal
Pearl Pink,Lavender,Forest Green
Burgundy,Yellow,Blue Green, Candy
Teal, Candy Razzberr y,Candy Purple
Chair Parts
Std - Black
Frame Dimensions
Frame width: Std - 12”-20”
Sling depth: 12”-19”
Cushion: 2”, 3”, 4”
Backrest
Folding - adjustable height: 11”-14”,
15”-18”
Backrest options: push handles,
adjustable upholstery
Footrests
Std - Rigid (Shadow ST)
Std - Platform (Shadow DT)
Opt - Adaptive,adjustable
Impact guards - neoprene
Casters
Std - 5”,low-profile polyurethane
Opt - 3” micros,(may require different forks,stems or spacers)
Armrests
Opt - height-adjustable
Camber T ubes
0o,3o,6o,9o,12o,15
o
Axles
Std - stainless steel
Opt - titanium,quad-release axle
nuts
Standard Rear Wheels
Std - spoke
Opt - mountain
Quickie Performance Wheels
Opt - tennis,basketball,heat-treated
tennis,heat-treated basketball
Tire Size
Std - 24”
Opt - 22”,26”
All features may not be available with
some chair set-ups or in conjunction
with another chair feature. Please
consult your Quickie Sports Center
for more information.
5
III. YOUR CHAIR AND ITS PARTS
1
2
3
5
6
8
9
10
11
12
13
19
7
14
15
6
A. CHOOSE THE RIGHT CHAIR & SAFETY OPTIONS
Quickie provides a choice of many wheelchair styles to meet the needs of the
wheelchair rider. However, final selection of the type of wheelchair,options
and adjustments rests solely with you and your health care advisor. Choosing
the best chair and set-up for your safety depends on such things as:
1. Your disability,strength,balance and coordination.
2. The types of hazards you must overcome in daily use (where you live and
work,and other places you are likely to use your chair).
3. The need for options for your safety and comfort (such as anti-tip tubes,
positioning belts,or special seating systems).
B. REVIEW THIS MANUAL OFTEN
Before using this chair you,and each person who may assist you,should read
this entire manual and make sure to follow all instructions. Review the warnings often,until they are second nature to you.
C. WARNINGS
The word "WARNING" refers to a hazard or unsafe practice that may cause
severe injury or death to you or to other persons. The "Warnings" are in
three main sections,as follows:
1. V — GENERAL WARNINGS
Here you will find a safety checklist and a summary of risks you need to be
aware of before you ride this chair.
2. VI — WARNINGS — FALLS & TIP-OVERS
Here you will learn how to avoid a fall or tip-over while you perform daily
activities in your chair.
3. VII — WARNINGS — COMPONENTS & OPTIONS
Here you will learn about the components of your chair and options you can
select for safety. Consult your authorized Quickie supplier and your health
care advisor to help you choose the best set-up and options for
safe use.
Note: Where they apply,you will also find "Warnings" in other sections of this Manual.
IV. NOTICE—READ BEFORE USE
7
A.WEIGHT LIMIT
NEVER exceed the weight limit of 250 pounds (113.6 kilograms) for
combined weight of rider and items carried. This may cause the chair to fail.
B. WEIGHT TRAINING
NEVER use this chair for weight training if total weight (rider plus equipment)
exceeds 250 pounds. This is likely to damage seat,frame and fasteners and will
void the warranty.
C. GETTING TO KNOW YOUR CHAIR
Every wheelchair is different. Take the time to learn the feel of this chair
before you begin riding. Start slowly,with easy, smooth strokes. If you are
used to a different chair,you may use too much force and tip over.
D. TO REDUCE THE RISK OF AN ACCIDENT
1. BEFORE riding,you should be trained in the safe use of this chair by your
health care advisor.
2. Practice bending,reaching and transfers until you know the limit of your
ability. Have someone help you until you know what can cause a fall or
tip-over and how to avoid doing so.
3. Be aware that you must develop your own methods for safe use best
suited to your level of function and ability.
4. NEVER try a new maneuver on your own until you are sure you can do it
safely.
5. Get to know the areas where you plan to use your chair. Look for hazards
and learn how to avoid them.
6. Use anti-tip tubes unless you are a skilled rider of this chair and are sure
you are not at risk to tip over.
E. SAFETY CHECKLIST
Before Each Use Of Your Chair:
1. Make sure the chair rolls easily and that all parts work smoothly. Check
for noise, vibration, or a change in ease of use. (They may indicate low tire
pressure,loose fasteners,or damage to your chair.)
2. Repair any problem. Your authorized Quickie supplier can help you find
and correct the problem.
3. Check to see that both quick-release rear axles are locked. When locked,
the axle button will "pop out" fully. (See p. 21) If not locked, the wheel
may come off and cause you to fall.
4. If your chair has anti-tip tubes,lock them in place.
Note: See p.21 for times you should not use them.
V. GENERAL WARNINGS
▲
!
Heed all warnings in this section. If you fail to do so a fall,tip-over or loss
of control may occur and cause severe injury to the rider or others.
▲
!
WARNINGS
8 9
3. NEVER transport this chair in the front seat of a vehicle. It may shift and
interfere with the driver.
4. ALWAYS secure this chair so that it cannot roll or shift.
K. WHEN YOU NEED HELP
For The Rider:
Make sure that each person who helps you reads and follows all warnings and
instructions that apply.
For Attendants:
1.Work with the rider's doctor,nurse or therapist to learn safe methods best
suited to your abilities and those of the rider.
2.Tell the rider what you plan to do, and explain what you expect the rider to
do. This will put the rider at ease and reduce the risk of an accident.
3.Make sure the chair has push handles. They provide secure points for you
to hold the rear of the chair to prevent a fall or tip-over.
•Check to make sure push handle grips will not rotate or slip off.
4.To prevent injury to your back, use good posture and proper body mecha-
nics. When you lift or support the rider or tilt the chair,bend your knees
slightly and keep your back as upright and straight as you can.
5. Remind the rider to lean back when you tilt the chair backward.
6.When you descend a curb or single step, slowly lower the chair
in one easy movement.
• Do not let the chair drop the last few inches to the ground.
This may damage the chair or injure the rider.
7.To avoid tripping, unlock and rotate anti-tip tubes up,out of the way.
8. ALWAYS lock the rear wheels and lock anti-tip tubes in place if you must
leave the rider alone,even for a moment. This will reduce the risk of a tip
over or loss of control of the chair.
V. GENERAL WARNINGS
▲
!
F. CHANGES & ADJUSTMENTS
If you modify or adjust this chair,it may increase the risk of a tip-over UNLESS
you make other changes as well.
1. Consult your authorized Quickie supplier BEFORE you modify or adjust
your chair.
2. We recommend that you use anti-tip tubes until you adapt to the change,
and are sure you are not at risk to tip over.
G. ENVIRONMENTAL CONDITIONS
1. Use extra care if you must ride your chair on a wet or slick surface. If you
are in doubt,ask for help.
2. Contact with water or excess moisture may cause your chair to rust or
corrode. This could cause your chair to fail.
a. Do not use your chair in a shower,pool or other body of water. The
chair tubing and parts are not water-tight and may rust or corrode from
the inside.
b. Avoid excess moisture (for example,do not leave your chair in a damp
bathroom while taking a shower).
c. Dry your chair as soon as you can if it gets wet,or if you use water to
clean it.
H.TERRAIN
1. Your chair is designed for use on firm, even surfaces such as concrete,
asphalt and indoor floors and carpeting.
2. Do not operate your chair in sand,loose soil or over rough terrain.
This may damage wheels or axles,or loosen fasteners of your chair.
I. STREET USE
In most states,wheelchairs are not legal for use on public roads. Be alert
to the danger of motor vehicles on roads or in parking lots.
1. At night,or when lighting is poor,use reflective tape on your chair and
clothing.
2. Due to your low position,it may be hard for drivers to see you. Make eye
contact with drivers before you go forward. When in doubt, yield until you
are sure it is safe.
J. MOT OR VEHICLE SAFETY
Quickie wheelchairs do not meet federal standards for motor vehicle seating.
1. NEVER let anyone sit in this chair while in a moving vehicle.
a. ALWAYS move the rider to an approved vehicle seat.
b. ALWAYS secure the rider with proper motor vehicle restraints.
2. In an accident or sudden stop the rider may be thrown from the chair.
Wheelchair seat belts will not prevent this,and further injur y may result
from the belts or straps.
V. GENERAL WARNINGS
▲
!
Loading...
