I. INTRODUCTION

SUNRISE LISTENS

Thank you for choosing a Guardian wheelchair/scooter. We want to hear your questions or comments about this manual, the safety and reliability of your chair/scooter, and the service you receive from your Sunrise supplier. Please feel free to write or call us at the address and telephone number below:

SUNRISE MEDICAL

Customer Service Department

7477 East Dry Creek Parkway

Longmont, Colorado 80503

(800) 333-4000 or (303) 218-4500

Be sure to return your warranty card, and let us know if you change your address. This will allow us to keep you up to date with information about safety, new products and options to increase your use and enjoyment of this wheelchair/scooter. If you lose your warranty card, call or write and we will gladly send you a new one.

I. Introduction

FOR ANSWERS TO YOUR QUESTIONS

Your authorized supplier knows your wheelchair/scooter best and can answer most of your questions about chair/scooter safety, use and maintenance. For future reference, fill in the following:

Supplier: ______________________________________________________________________________

Address: _______________________________________________________________________________

______________________________________________________________________________________

Telephone:_____________________________________________________________________________

Serial #: _______________________________________ Date/Purchased: ________________________

930705 Rev. B

II. Table of Contents

II. TABLE OF CONTENTS

I. INTRODUCTION .............................................................................. 2

II. TABLE OF CONTENTS ....................................................................... 3

III. YOUR CHAIR/SCOOTER AND ITS PARTS.............................................. 5

IV. NOTICE - READ BEFORE USE............................................................. 6

V. EMI (ELECTROMAGNETIC INTERFERENCE) .......................................... 7

A.What is EMI ................................................................................ 7

B.What Effect Can EMI Have ............................................................. 7

C.Sources of EMI............................................................................. 7

D.Distance From the Source.............................................................. 8

E.Immunity Level............................................................................ 8

F. Report All Suspected EMI Incidents ................................................ 8

VI. GENERAL WARNINGS ...................................................................... 9

A.Notice to Rider ............................................................................ 9

B.Notice to Attendants .................................................................... 9

C.Weight Limit ............................................................................... 9

D.Controller Settings ....................................................................... 9

E.EMI............................................................................................ 10

F. Safety Check-List ......................................................................... 10

G.Changes & Adjustments................................................................. 10

H.When Seated in a Parked Wheelchair/scooter ................................... 10

I. Environmental Conditions.............................................................. 10

J. Terrain........................................................................................ 11

K.Street Use................................................................................... 11

L. Motor Vehicle Safety..................................................................... 11

M.Center of Balance......................................................................... 11

N.Transfers..................................................................................... 12

O.Reaching or Leaning..................................................................... 12

P. Dressing or Changing Clothes......................................................... 13

Q.Obstacles .................................................................................... 13

R.Driving in Reverse........................................................................ 13

S.Ramps, Slopes & Sidehills.............................................................. 13

T To Reduce the Risk of Falls, Tip-over or Loss of Control ..................... 14

U.Ramps at Home & Work................................................................. 14

V. Wheelchair Lifts........................................................................... 14

W.Curbs & Single Steps .................................................................... 15

X.Stairs ......................................................................................... 15

Y. Escalators ................................................................................... 15

VII. WARNINGS: COMPONENTS & OPTIONS............................................... 16

A.Armrests ..................................................................................... 16

B.Batteries..................................................................................... 16

C.Cushions..................................................................................... 16

D.Fasteners .................................................................................... 16

E.Footplate & Footrests ................................................................... 16

F. Motor Locks ................................................................................ 17

G.On/Off Switch.............................................................................. 17

H.Positioning Belts (Optional) .......................................................... 17

I. Seating Systems........................................................................... 17

J. Upholstery Fabric ......................................................................... 18

K.Wiring........................................................................................ 18

English

930705 Rev. B

English

VIII. TIPS FOR ATTENDANTS .................................................................... 19

A.To Climb a Curb or Single Step....................................................... 19

B.To Descend a Curb or Single Step ................................................... 19

IX. SET UP, ADJUSTMENT & USE ............................................................ 20

Notes ............................................................................................ 20

Tools You Will Need......................................................................... 20

Check Out ...................................................................................... 20

A.Battery Removal .......................................................................... 21

B.Footplate Angle Adjustment........................................................... 21

C.Integral Joystick.......................................................................... 21

D.Armrest Width Adjustment............................................................. 21

E.Tiller Adjustment ......................................................................... 22

F. Backrest ..................................................................................... 22

G.Seat Height Adjustment ................................................................ 23

H.Seat Removal .............................................................................. 23

I. Check-Out ................................................................................... 23

X. OPERATING GUIDE.......................................................................... 24

A.Performance Control Settings ......................................................... 24

B.QTRONIX Programmer Pad (Optional)............................................... 24

C.Thermal Roll-Back ........................................................................ 24

D.Circuit Breakers............................................................................ 25

E.Joystick Assembly ........................................................................ 25

F. Tiller Control Functions ................................................................. 26

G.Motor Locks ................................................................................ 27

XI. BATTERIES ..................................................................................... 28

A.Introduction................................................................................ 28

B.Battery Charger............................................................................ 28

C.Acid Burns .................................................................................. 29

D.Connecting Batteries in Battery Well............................................... 29

E.Charging Batteries........................................................................ 29

F. Disposing of Batteries................................................................... 30

XII. MAINTENANCE ............................................................................... 31

A.Notes ......................................................................................... 31

B.Cleaning ..................................................................................... 31

C.Storage Tips ................................................................................ 31

D.Battery Maintenance..................................................................... 31

E.To Repair or Replace a Tire............................................................ 32

F. Motor Brushes ............................................................................. 32

G.Ordering Parts.............................................................................. 32

H.Maintenance Chart ....................................................................... 32

XIII. SUNRISE LIMITED WARRANTY .......................................................... 33

II. Table of Contents

930705 Rev. B

III. Your Chair/Scooter and Its Parts

III. YOUR CHAIR/SCOOTER AND ITS PARTS

Garnet

English

Garnet

1. Basket

2. Tiller adjustment

3. Tires

4. Freewheel lever (not shown)

5. Battery pack

6. Seat

7. Width adjustable armrests

8. Control pod

Ruby

Weight

Garnet– 51 lbs (base

10 lbs (seat) 16 lbs (battery)

Ruby– 45 lbs (base),

19 lbs (seat) 21 lbs (battery pack)

Ruby 11– 50 lbs (base),

32 lbs (seat) 22 lbs (battery pack)

Drive Wheels

8" Mag: Std, airless insert

Joystick

Standard - integral (right-hand or left-hand mount)

Ruby 11

GUARDIAN MICROLITE

Batteries

2 X 12 AH battery pack

Battery Charger

off board 1.5 AMP

Seats, Upholstery and Style

Ruby– Fish-on Ruby 11– High back Material: vinyl Color: grey Width: 17, 18 Depth: 17, 18

Footrest

Standard - Foot platform

1. Flip back/down armrest

2. Integral controller joystick– programmable

3. Fish-on/High back seat

4. Front caster 5"

5. Rear anti-tip

6. Single plate foot platform

7. Fold down seat back

8. Battery pack

9. 8" drive wheels

10. Freewheel release

11. Caster Fork (front)

12. Basket

Ruby & Ruby 11

Casters (front)

Standard - 5" solid

Armrests

Flip back 10" arm pad

All features may not be available with some chair/scooter setups or in conjunction with another chair/scooter feature. Please consult your supplier for more information. Your authorized supplier can also provide you with more information on accessories.

930705 Rev. B

English

IV. NOTICE– READ BEFORE USE

A. CHOOSE THE RIGHT CHAIR/SCOOTER & SAFETY OPTIONS

Sunrise provides a choice of many power mobility devices to meet the needs of the rider. However, final selection of a wheelchair/scooter rests solely with you and your health care professional. Choosing the best chair/scooter for you depends on such things as:

1. Your size, disability, strength, balance and coordination.

2. Your intended use, and your level of activity.

3. The types of hazards you must overcome in daily use (in areas where you are likely to use your chair/scooter).

4. The need for options for your safety and comfort (such as positioning belts or special seat systems).

B. ADJUST CHAIR/SCOOTER TO YOUR ABILITY

You need to work with your doctor, nurse or therapist, and your supplier, to fit this chair/scooter and adjust the controller settings for your level of function and ability.

C. REVIEW THIS MANUAL OFTEN

Before using this chair/scooter you, and each person who may assist you, should read this entire Manual and make sure to follow all instructions. Review the warnings often, until they are second nature to you.

IV. Notice– Read Before Use

D. WARNINGS

The word “WARNING” refers to a hazard or unsafe practice that may cause severe injury or death to you or to other persons. The “Warnings” are in four main sections, as follows:

1. V — EMI

Here you will learn about electromagnetic interference and how it can affect your chair/scooter.

2. VI — GENERAL WARNINGS

Here you will find a safety checklist and a summary of risks you need to be aware of before you ride this chair/scooter.

3. VII — WARNINGS — COMPONENTS & OPTIONS

Here you will learn about your chair/scooter. Consult your supplier and your health care professional to help you choose the best set-up and options for your safety.

4. XI — BATTERIES

Here you will learn about battery and charger safety, and how to avoid injury.

NOTE– Where they apply, you will also find “Warnings” in other sections of this Manual.

930705 Rev. B

V. EMI (Electromagnetic Interference)

V. EMI (ELECTROMAGNETIC INTERFERENCE)

Heed all warnings to reduce the risk of unintended brake release or chair/scooter movement:

1. Beware of the danger from hand-held transceivers. Never turn on or use a hand-held transceiver while power to your chair/scooter is on. Use extra care if you believe that such a device may be in use near your chair/scooter.

2. Be aware of nearby radio or TV stations, and avoid coming close to them.

3. If unintended movement occurs, turn your chair/scooter off as soon as it is safe to do so.

A. WHAT IS EMI?

1. EMI means: electromagnetic (EM) interference (I). EMI comes from radio wave sources such as radio transmitters and transceivers. (A “transceiver” is a device that both sends and receives radio wave signals).

2. There are a number of sources of intense EMI in your daily environment. Some of these are obvious and easy to avoid. Others are not, and you may not be able to avoid them.

3. Powered wheelchair/scooters may be susceptible to electromagnetic interference (EMI) emitted from sources such as radio stations, TV stations, amateur radio (HAM) transmitters, two way radios, and cellular phones.

4. EMI can also be produced by conducted sources or electro-static discharge (ESD).

English

B. WHAT EFFECT CAN EMI HAVE?

1. EMI can cause your chair/scooter, without warning, to:

• Release its brakes

• Move by itself

• Move in unintended directions

If any of these occurs, it could result in severe injury to you or others.

2. EMI can damage the control system of your chair/scooter. This could create a safety hazard, and lead to costly repairs.

C. SOURCES OF EMI

The sources of EMI fall into three broad types:

1. Hand-Held Transceivers:

The antenna is usually mounted directly on the unit. These include:

• Citizens band (CB) radios

• “Walkie-talkies”

• Security, fire and police radios

• Cellular phones

• Lap-top computers with phone or fax

• Other personal communication devices

NOTE– These devices can transmit signals while they are on, even if not in use.

2. Medium-Range Mobile Transceivers:

These include two-way radios used in police cars, fire trucks, ambulances and taxi cabs. The antenna is usually mounted on the outside of the vehicle.

3. Long-Range Transceivers:

These include commercial radio and TV broadcast antenna towers and amateur (HAM) radios. Note: The following are not likely to cause EMI problems: Lap-top computers (without phone or fax), Cordless phones, TV sets or AM/FM radios, CD or tape players.

930705 Rev. B

English

V. EMI (Electromagnetic Interference)

D. DISTANCE FROM THE SOURCE

EM energy rapidly becomes more intense as you get closer to the source. For this reason, EMI from hand-held devices is of special concern. (See C.1) A person using one of these devices can bring high levels of EM energy very close to your chair/scooter without you knowing it.

E. IMMUNITY LEVEL

1. The level of EM energy is measured in volts per meter (V/m). Every power wheelchair/scooter can resist EMI up to a certain level. This is called its “immunity level”.

2. The higher the immunity level, the less the risk of EMI. It is believed that a 20 V/m immunity level will protect the power wheelchair/scooter user from the more common sources of radio waves.

3. The configurations tested and found to be immune to at least 20 V/m are: a. Guardian Ruby power wheelchair with a right-hand mounted Penny & Giles VSI

integral controller, fish-on seat, flip-down armrests, solid flip-up footplate and 12AH battery pack.

b. Guardian Ruby 11 power wheelchair with a right-hand mounted Penny & Giles VSI

integral controller, highback seat, flip-back armrests, solid flip-up footplate and 12AH battery pack.

c. Guardian Garnet with a control pod, fish-on seat and 10AH battery pack.

Individuals with physical limitations requiring the use of a specialty control input device known not to be immune to 20V/m, or not known, should exercise extra care around known sources of EMI.

There is no way to know the effect on EMI if you add accessories or modify this chair/scooter. Any change to your chair/scooter may increase the risk of EMI. Parts from other suppliers have unknown EMI properties.

F. REPORT ALL SUSPECTED EMI INCIDENTS

You should promptly report any unintended movement or brake release. Be sure to indicate whether there was a radio wave source near your chair/scooter at the time. Contact: Sunrise Medical Customer Service Department at (800) 333-4000.

930705 Rev. B

VI. General Warnings

VI. GENERAL WARNINGS

Heed all warnings in this section. If you fail to do so a fall, tip-over or loss of control may occur and cause severe injury to you or others.

A. NOTICE TO RIDER

1. Before using this chair/scooter, you should be trained in its safe use by your health care professional.

2. Every wheelchair/scooter is different. Take the time to learn the feel of this chair/scooter before you begin riding.

3. Be aware that you must develop your own methods for the safe use of this chair/scooter that are best suited to your level of function and ability.

4. Have someone help you practice bending, reaching and transferring until you learn how to do them safely.

5. Never try a new maneuver on your own unless you are sure it is safe.

6. Get to know the areas where you plan to use your chair/scooter. Look for hazards and learn how to avoid them.

7. Do not allow additional riders on the chair/scooter, armrests or chassis. Doing so may result in injury or damage.

English

B. NOTICE TO ATTENDANTS

Make sure you heed all warnings and follow all instructions in each section of this manual. (Be aware that warnings that apply to the rider also apply to you).

Notes:

1. You need to work with the rider and the rider’s doctor, nurse or therapist, to develop safe methods best suited to your abilities and those of the rider.

2. To manually push the chair/scooter you must release the motor locks.

• Make sure you have full control over the chair/scooter when you release the motor locks. When you do so the chair/scooter will not have brakes.

3. Propel this chair/scooter by the armrest supports only. If using a seat frame, propel the chair/scooter by the push handles on the top of the backrest posts. They provide secure points for you to hold the rear of the chair/scooter to prevent a fall or tip-over.

C. WEIGHT LIMIT

1. Never exceed a total weight of 225 lbs/102.2 kg (Ruby/Garnet) or 250 lbs/113.6 kg (Ruby 11) for rider plus items carried.

2. Never use this chair/scooter for weight training if the total weight (rider plus additional weights) exceeds 225 lbs/102.2 kg (Ruby/Garnet) or 250 lbs/113.6 kg (Ruby 11).

3. Exceeding the weight limit is likely to damage the seat, frame, or fasteners and may cause severe injury to you or others from chair/scooter failure.

4. Exceeding the weight limit will void the warranty.

D. CONTROLLER SETTINGS

Be aware that you may need to adjust the controller settings of your chair/scooter to reduce the risk of a collision, fall or tip-over.

1. Check and adjust the settings every six to twelve months (or more often, if needed).

2. Consult your supplier to adjust the control settings immediately if you notice any change in your ability to:

•Control the joystick, tiller or control pod.

•Hold your torso erect.

•Avoid running into objects.

930705 Rev. B

English

E. EMI

Read Section V to learn about EMI. To reduce the risk of unintended brake release or chair/scooter movement:

1. Never turn on or use a hand-held transceiver while power to your chair/scooter is on. Use extra care if you believe that such a device may be in use near your chair/scooter.

2. Be aware of nearby radio or TV stations, and avoid coming close to them.

3. If unintended movement or brake release occurs, turn your chair/scooter off as soon as it is safe.

F. SAFETY CHECK-LIST

Before each use of this chair/scooter:

1. Make sure the chair/scooter operates smoothly. Check for noise, vibration, or a change in ease of use. (They may indicate low tire pressure, loose fasteners, or damage to your chair/scooter). If you detect a problem, make sure to repair or adjust the chair/scooter. Deferring repair or adjustment could increase the risk for injury. Your supplier can help you find and correct the problem.

2. Make sure batteries are charged. Green lights on charge indicator will light up (or charge indicator wil indicate a full charge) when charge is full. Yellow lights indicate battery charge level is getting low. Red lights indicate batteries are in immediate need of charging.

VI. General Warnings

G. CHANGES & ADJUSTMENTS

Never use non-Guardian parts or make changes to your chair/scooter unless authorized by Sunrise. (Doing so will void the Warranty and may create a safety hazard).

1. If you modify or adjust this chair/scooter it may increase the risk of a fall or tip-over.

2. Modifications unauthorized by Sunrise constitutes remanufacturing of the wheelchair/scooter. This voids the warranty. The rider then assumes all future liability for the wheelchair/scooter.

H. WHEN SEATED IN A PARKED WHEELCHAIR/SCOOTER

1. Always turn off all power to your chair/scooter when you are parked, even for a moment. This will prevent:

•Accidental movement from contact with the joystick by you or others.

•Unintended brake release or movement from EMI sources. (See Section V)

2. Make sure that persons who help you (for example, store clerks) are aware of the joystick and do not touch it. If they do, your chair/scooter may move suddenly when you do not expect it.

I. ENVIRONMENTAL CONDITIONS

Your chair/scooter is not designed for use in a heavy rain storm, or in snowy or icy conditions.

1. Contact with water or excessive moisture can cause an electrical malfunction. The frame, motors and other chair/scooter parts are not watertight and may rust or corrode from the inside. To avoid a chair/scooter failure:

• Minimize exposure of your chair/scooter to a rain storm or very wet conditions.

• Never take your chair/scooter into a shower, tub, pool or sauna.

• Do not use your chair/scooter in fresh or salt water (such as at the edge of a

stream, lake, or ocean).

• Make sure shroud cover and deck lid are secure.

• Replace joystick boot if it becomes torn or cracked.

• Make sure all electrical connections are secure.

• Dry the chair/scooter as soon as you can if it gets wet, or if you use water to

clean it.

930705 Rev. B

VI. General Warnings

2. Proceed slowly and use extra care if you must operate your chair/scooter on a wet or slick surface.

• Do so only if you are sure it is safe.

• Stop if one or both main wheels lose traction. If this occurs, you may lose control

of your chair/scooter or fall.

• Never operate your chair/scooter on a slope or ramp if there is snow, ice, water or

oil film present.

• When in doubt, have someone help you.

3. When not in use, keep your chair/scooter in a clean, dry place.

Extra caution should be used when employing the disc switch or the proximity head array as control devices. These two devices are susceptible to malfunction when wet.

J. TERRAIN

1. This chair/scooter is designed for use on firm, even surfaces such as concrete, asphalt and indoor flooring.

2. Do not operate your chair/scooter in sand, loose soil or over rough terrain. Doing so may damage wheels, bearings, axles or motors, or loosen fasteners.

English

K. STREET USE

In most states, power chair/scooters are not legal for use on public roads. Be alert to the danger of motor vehicles on roads or in parking lots.

1. At night, or when it is hard to see, use reflective tape on your chair/scooter and clothing.

2. It may be hard for drivers to see you. Make eye contact with drivers before you proceed. When in doubt, yield until you are sure it is safe.

L. MOTOR VEHICLE SAFETY

To date, the U.S. Department of Transportation has not approved any tie down system for transporting a wheelchair/scooter in a motor vehicle.

1. Never sit in this chair/scooter while in a moving vehicle. In an accident or sudden stop you may be thrown from the chair/scooter.

• Wheelchair/scooter belts are designed to position the rider only and will not

protect you in an accident; further injury may result from the belts.

2. Always move to an approved vehicle seat. You must be secured with proper motor vehicle restraints.

3. Never transport this chair/scooter in the front seat of a vehicle. It may shift and interfere with the driver.

4. Always secure this chair/scooter so that it cannot roll or shift.

M. CENTER OF BALANCE

The point where this chair/scooter will tip forward, back or to the side depends on its center of balance and stability.

The Center Of Balance Is Affected By:

1. The seat height and seat angle.

2. A change in your body position, posture or weight distribution.

3. Using this chair/scooter on a ramp or slope.

4. The use of a back pack or other options, and the amount of added weight.

930705 Rev. B

To Reduce The Risk Of A Fall Or Tip-Over:

1. Consult your supplier for information on modifications authorized by Sunrise before you modify or adjust this chair/scooter.

NOTE– You may need to make additional changes to correct the center of balance.

2. Use extreme care until you know the balance points of this chair/scooter and how to avoid a fall or tip-over.

English

N. TRANSFERS

It is dangerous to transfer on your own. It requires good balance and agility. Be aware that there is a point during every transfer when the wheelchair/scooter seat is not below you. To avoid a fall:

1. Always turn off power before you transfer to or from your chair/scooter. If you fail to do so you may touch the joystick/control pod and cause your chair/scooter to move when you do not expect it.

2. Make sure motor locks are engaged. This keeps the chair/scooter from moving when you transfer.

3. Work with your health care professional to learn safe methods.

• Learn how to position your body and how to support yourself during a transfer.

• Have someone help you until you are sure you can do a safe transfer on your own.

4. Move your chair/scooter as close as you can to the seat you are transferring to. If possible, use a transfer board.

5. Rotate the front casters/wheels until they are as far forward as possible.

6. (Ruby/Ruby 11 only) Be careful of the foot platform. If you can, remove or swing it out of the way.

• Never stand on footrests when you transfer. Doing so may damage them or cause

your chair/scooter to tip.

• Make sure your feet do not “hang up” or get caught in the space between the

footrests.

7. Make sure armrests do not interfere.

8. Transfer as far back onto the seat surface as you can. This will reduce the risk that you will miss the seat or fall.

VI. General Warnings

O. REACHING OR LEANING

Reaching or leaning affects the center of balance of your chair/scooter. If done improperly, a fall or tip-over is likely. When in doubt, ask for help or use a device to extend your reach.

To Reduce the Risk of Injury and/or Damage to the Chair/Scooter:

1. Never reach or lean if you must shift your weight sideways or rise up off the seat.

2. Never reach or lean if you must move forward in your seat to do so. Always keep your buttocks in contact with the backrest.

3. Never reach with both hands (you may not be able to catch yourself to prevent a fall if you lose your balance).

4. Never try to pick up an object from the floor by reaching down between your knees.

5. Never put pressure on the foot platform while reaching. This may cause the chair/scooter to tip if you lean too far.

6. Never reach or lean over the top of the seat back. This may damage the backrest and cause you to fall.

IF YOU MUST REACH OR LEAN, DO SO AT YOUR OWN RISK.

Remember to:

1. Move your chair/scooter as close as you can to the object you wish to reach.

2. Rotate the front casters until they are as far forward as possible. This makes the chair/scooter more stable.

NOTE– To do this: Move your chair/scooter past the object you want to reach, then back up alongside

it. Backing up will rotate the casters forward.

930705 Rev. B

VI. General Warnings

3. Turn off all power to your chair/scooter. If you fail to do so, you may touch the joystick and cause your chair/scooter to move when you do not expect it.

4. Firmly grasp an armrest with one hand. This will help to prevent a fall if the chair/scooter tips.

P. DRESSING OR CHANGING CLOTHES

Be aware that your weight will shift if you dress or change clothes while seated in this chair/scooter. To make the chair/scooter more stable, rotate the front casters until they are forward.

Q. OBSTACLES

Obstacles you may have to overcome in daily use include door thresholds, lifts, ramps and hazards such as potholes and broken pavement. These can damage your chair/scooter and may cause a fall, tip-over or loss of control.

1. Be aware that thresholds are very dangerous. (Even a small change in height may stop a caster wheel and cause your chair/scooter to tip). You may need to:

• Remove or cover threshold strips between rooms.

• Install a ramp at entry or exit doors.

2. Keep your eyes moving when you ride; scan the area well ahead of your chair/scooter.

3. Make sure the floor areas where you use this chair/scooter are level and free of obstacles.

4. To help correct your center of balance:

• Lean your upper body forward slightly as you go up over an obstacle.

• Press your upper body backward as you go down from a higher to a lower level.

English

R. DRIVING IN REVERSE

Use extra care when you drive your chair/scooter in reverse. You may lose control or fall if one of the rear wheels hits an object.

1. Operate your chair/scooter slowly and at an even speed.

2. Stop often and check to make sure your path is clear of obstacles.

S. RAMPS, SLOPES & SIDEHILLS

The center of balance of your chair/scooter changes when you are on a slope.

NOTE– “Slope” includes a ramp or sidehill. Your chair/scooter is less stable when it is at an angle.

Never use this chair/scooter on a slope unless you are sure it is safe. When in doubt, have someone help you.

Beware Of:

1. Steep slopes. Do Not use this chair/scooter on a slope steeper than 10%. (A 10% slope means: One foot in elevation for every ten feet of slope length).

2. Wet or slippery surfaces (such as when ice, snow, water or oil film is present). A loss of traction may cause a fall or tip-over.

3. A change in grade on a slope (or a lip, bump or depression). These may cause a fall or tip-over.

4. A drop-off at the bottom of a slope. (A drop-off of as small as 3/4 inch can stop a front caster and cause the chair/scooter to tip forward).

930705 Rev. B

English

T. TO REDUCE THE RISK OF A FALL, TIP-OVER OR LOSS OF CONTROL

1. Never use your chair/scooter on a slope unless you are sure you can do so without losing traction.

2. Always go as straight up and as straight down as you can.

• Do not “cut the corner” on a slope or ramp.

• Do not turn or change direction on a slope.

3. Always stay in the center of the ramp. Make sure ramp is wide enough that you are not at risk that a wheel may roll off the side.

4. Lean or press your body uphill. This will help adjust for a change in the center of balance caused by the slope. (Figure 1)

5. Keep your chair/scooter moving at a slow, steady speed. Keep control over the chair/scooter at all times.

• On a descent, do not let your chair/scooter accelerate beyond its normal speed.

• If the chair/scooter picks up speed, center the joystick to slow down or stop.

NOTE– The solid state controller of your chair (Ruby/Ruby 11 only) has a logic system that will help

control your speed when driving on a slope or uphill.

• If you stop, re-start slowly.

U. RAMPS AT HOME & WORK

VI. General Warnings

Figure 1

Make sure ramps meet all Building Codes for your area.

1. For your safety, have a licensed contractor build or remodel ramp to meet all standards.

NOTE– The proper design will vary, depending on such things as: the length and height of the ramp; the need for an intermediate platform; landing size; doors and the direction of swing; and whether the ramp includes a turn or angle.

At A Minimum:

1. Open sides of ramp must have side rails to prevent your chair/scooter from going over the edge.

2. Slope must not be steeper than one inch in height for every one foot of slope length.

3. Ramp surface must be even, and have a non-skid surface.

4. You may need to add a section at the top or bottom to avoid a lip or drop-off.

5. Ramp must be sturdy. Add bracing if needed, so ramp does not “bow” when you ride on it.

V. WHEELCHAIR/SCOOTER LIFTS

Wheelchair/Scooter lifts are used in vans, buses, and buildings to help you move from one level to another.

1. Always turn off all power to your chair/scooter when you are on a lift. If you fail to do so, you may touch the joystick by accident and cause your chair/scooter to drive off the platform. (Be aware that a “roll-stop” at the end of the platform may not prevent this).

2. Make sure there is not a lip or drop-off at the top or bottom of the platform. These may cause a fall or tip-over. When in doubt, have someone help you.

3. Always secure the rider with a positioning belt to help prevent falls during transfers.

4. Avoid moving forward if a wheel is “hung up” on the lip of the ramp. Backup, reposition the caster for a more direct approach and slowly try again.

930705 Rev. B

VI. General Warnings

W. CURBS & SINGLE STEPS

1. Your chair/scooter is not designed to drive up or down a curb or step more than 1/2 inch high. Doing so may:

• Result in a fall or tip-over.

• Damage the frame, wheels, axles or other chair/scooter parts, or loosen fasteners.

2. To prevent a fall or tip-over, use wheelchair/scooter access ramps or have someone help you.

3. If you must climb or descend a curb or step alone do so at your own risk and use extreme care.

• Go as straight up or straight down as you can. Never turn or climb or descend at

an angle as a fall or tip-over is likely.

• Proceed slowly, at a steady speed.

4. Make sure that persons who assist you review the “Tips For Attendants” and heed all warnings.

5. Avoid driving along curb edges and drop-offs. A minimum distance from the edge of 18” is recommended.

X. STAIRS

Never use this chair/scooter to go up or down stairs, even with an attendant. Doing so is likely to cause a fall or tip-over.

English

Y. ESCALATORS

Never take this chair/scooter on an escalator, even with an attendant. Doing so is likely to cause a fall or tip-over.

930705 Rev. B

English

VII. Warnings: Components & Options

VII. WARNINGS: COMPONENTS & OPTIONS

Note: If you use parts or make changes not authorized by Sunrise it may create a safety hazard and will void the Warranty.

A. ARMRESTS

Armrests flip back/down and cannot be used to lift chair/scooter or the seat.

1. Never lift this chair/scooter by its armrests.

2. Lift this chair/scooter only by non-detachable parts of the main frame.

B. BATTERIES

1. Only an approved battery case should be used in this device.

2. To prevent an acid spill, always keep battery case upright. (wet cell batteries only)

3. Never smoke or hold an open flame near battery case. They are a known explosion hazard.

4. Read all of section XI Batteries before attempting to change or charge batteries.

5. Always remove batteries using straps or handle provided. Pinched fingers may occur if the batteries are removed by grasping the battery casings.

C. CUSHIONS

1. Guardian seats are designed for comfort, not specifically for the relief of pressure.

2. If you suffer from pressure sores, or if you are at risk that they will occur, you may need a special seat system such as can be provided by the Seat Frame, or a device to control your posture.

• Consult your doctor, nurse or therapist to find out if you need such a device for

your well-being.

D. FASTENERS

Many of the screws, bolts and nuts on this chair/scooter are special high-strength fasteners. Use of improper fasteners may cause your chair/scooter to fail.

1. Only use fasteners provided by Sunrise.

2. If fasteners become loose, tighten them as soon as you can.

3. Over- or under-tightened fasteners may fail or cause damage to chair/scooter parts.

• See Section IX, “Set-Up, Adjustment & Use”, for proper torque settings.

E. FOOTPLATE & FOOTRESTS

1. At the lowest point, the foot platform and footrests should be at least 1.0" off the ground. If set too LOW, it may “hang up” on obstacles you can expect to find in normal use. This may cause the chair/scooter to stop suddenly and tip forward.

2. To avoid a trip or fall when you transfer:

• Make sure your feet do not “hang up” or get caught in the space surrounding or

in between the footrests.

• Avoid putting weight on the footplate or footrests, as the chair/scooter may

tip forward.

• Flip the footplate back or swing the footrests out of the way, if possible.

3. Never lift this chair/scooter by the footplate or footrests. Footrests fold or detach and will not bear the weight of this chair/scooter. Lift this chair/scooter only by non-detachable parts of the main frame.

930705 Rev. B

VII. Warnings: Components & Options

F. MOTOR LOCKS

1. Do not engage or disengage motor locks unless power to the chair/scooter is off.

2. Be aware that the chair/scooter will not have brakes when motor locks are in the free-wheel position.

3. Make sure that the person pushing the chair/scooter has full control when motor locks are disengaged.

G. ON/OFF SWITCH

1. Never use the ON/OFF switch to stop the chair/scooter except in an emergency. This will result in an abrupt stop and may cause you to fall.

2. To slow your chair/scooter to a stop, return the joystick to neutral.

H. POSITIONING BELTS (OPTIONAL)

Use a positioning belt only to help support your posture. Improper use of such belts may cause severe injury or death.

1. Make sure you are not at risk to slide down in the wheelchair/scooter seat. If this occurs, you may suffer chest compression or suffocate due to pressure from the belt.

2. A pelvic wedge or a similar device can help you from sliding down in the seat. Consult your health care professional to find out if you need such a device.

3. The belt must be snug, but must not be so tight that it interferes with breathing. You should be able to slide your open hand, flat, between the belt and your stomach.

4. Make sure you can easily remove the belt in an emergency.

5. Never use a positioning belt:

• In place of a motor vehicle seat belt. In an accident or sudden stop you may be

thrown from the chair/scooter. A positioning belt will not prevent this, and further injury may result from the belt.

• As a restraint. A restraint requires a doctor’s order.

• On a rider who is comatose or agitated.

English

I. SEATING SYSTEMS

1. Use of a seating system not approved by Sunrise may alter the center of balance of this chair/scooter. This may cause a fall or tip-over.

2. Never change the seating system of your chair/scooter unless you consult your supplier first.

930705 Rev. B

English

VII. Warnings: Components & Options

J. UPHOLSTERY FABRIC

1. Replace worn or torn fabric of the seat as soon as you can. If you fail to do so, the seat may fail and cause you to fall. Worn fabrics may increase the potential for a fire hazard.

2. Fabric will deteriorate with age and use. Look for fraying, thin spots, or stretching of fabric at rivet holes. Replace fabric as required.

3. Be aware that washing may reduce flame retardation of the fabric.

K. WIRING

Never pull on cables directly. This can result in wires breaking inside the connector or harness. To remove a plug or connector, always grasp the plug or connector itself.

930705 Rev. B

VIII. Tips For Attendants

VIII. TIPS FOR ATTENDANTS

1. Persons who help a rider do one of the following tasks should review and heed the warnings “Notice to Attendants” and all warnings in this Manual for that task.

2. The “Tips” that follow are suggestions only. Be aware that you will need to learn safe methods best suited to the rider and to your abilities. Consult your health care professional for instructions.

A. TO CLIMB A CURB OR SINGLE STEP

The following is one way to safely help a rider climb a curb or single step going FORWARD:

1. Stay behind the chair.

2. Face the curb and tilt the chair up on the rear wheels so that the front casters clear the curb or step.

3. Move forward, placing the front casters on the upper level as soon as you are sure they are past the edge.

4. Continue forward until the rear wheels contact the face of the curb or step. Lift and roll the rear wheels to the upper level.

English

B. TO DESCEND A CURB OR SINGLE STEP

The following is one way to safely help a rider descend a curb or single step going BACKWARD:

1. Stay at the rear of the chair.

2. Several feet before you reach the edge of the curb or step, turn the chair around and pull it backward.

3. Proceed carefully. Look over your shoulder and carefully step back until you are off the curb or stair and standing on the lower level.

4. Pull the chair toward you until the rear wheels reach the edge of the curb or step. Then allow the rear wheels to slowly roll down onto the lower level.

5. When the rear wheels are safely on the lower level, tilt the chair back to its balance point. This will lift the front casters off the curb or step.

6. Keep the chair in balance and take small steps backward. Be sure to look where you are going. Turn the chair around and gently lower front casters to the ground.

930705 Rev. B

English

IX. SET-UP, ADJUSTMENT & USE

NOTES:

1. Work Surface For Set-Up:

Use a flat surface, such as a table, to assemble, adjust and check your chair/scooter. This makes the steps easier and helps ensure a correct set-up.

2. Fasteners:

• Many of the screws and bolts on this chair/scooter are special high-strength fasteners and may have special coatings.

• Many nuts are of the Nylock type. They have a plastic insert to help prevent loosening.

1. Use of improper fasteners may cause the chair/scooter to fail.

2. Over- or under-tightened fasteners may fail or cause damage to parts.

3. If bolts or screws become loose, tighten them as soon as you can. Loose bolts or screws can cause damage to other parts causing them to fail.

3. Washers & Spacers:

• Note the position of washers and spacers before disassembly.

• To avoid damage to the frame, replace all washers and spacers when you reassemble parts.

4. Torque Settings:

• A torque setting is the optimal tightening for a particular fastener. Use a torque wrench that measures 120 inch-pounds to secure screws, nuts and bolts on this chair/scooter.

NOTE– Unless otherwise noted, use a torque setting of 120 inch-pounds for all fasteners.

IX. Set-Up, Adjustment & Use

TOOLS YOU WILL NEED

1. Basic Tool Kit:

To set-up, adjust and maintain your chair/scooter you will need the following tools:

• 3mm Allen Wrench

• 5mm Allen Wrench

• 6mm Allen Wrench

• 8mm Allen Wrench

• 13mm Open-end Wrench

• Phillips screwdriver #2

• 17mm Socket Wrench

You can obtain a multi-purpose tool kit from Sunrise, or buy the tools you need from a hardware store.

2. Torque Wrench:

If you plan to adjust and maintain this chair/scooter yourself, Sunrise recommends that you use a torque wrench.

NOTE– The wrench must measure inch-pounds. You can buy a torque wrench and proper sockets from a

hardware store.

CHECK-OUT (Ruby/Ruby 11 only)

Be sure this chair/scooter performs to your chosen operational settings. If it does not, turn the chair/scooter off immediately and reprogram with the Quickie QTRONIX Programmer. if you do not own a Quickie QTRONIX Programmer have your supplier reprogram your wheelchair/scooter as needed. Or, you can order a Quickie QTRONIX Pad for your own use, from your supplier.

NOTE– Repeat this procedure until the chair/scooter performs to your specifications.

930705 Rev. B

When properly set up, this chair/scooter will operate smoothly. Check to see that all components work properly. If you detect a problem, be sure to correct it before use.

IX. Set-Up, Adjustment & Use

English

A. BATTERY CASE REMOVAL (Figures 1 & 2)

To remove the batteries for transporting or servicing:

1. Remove Battery Case

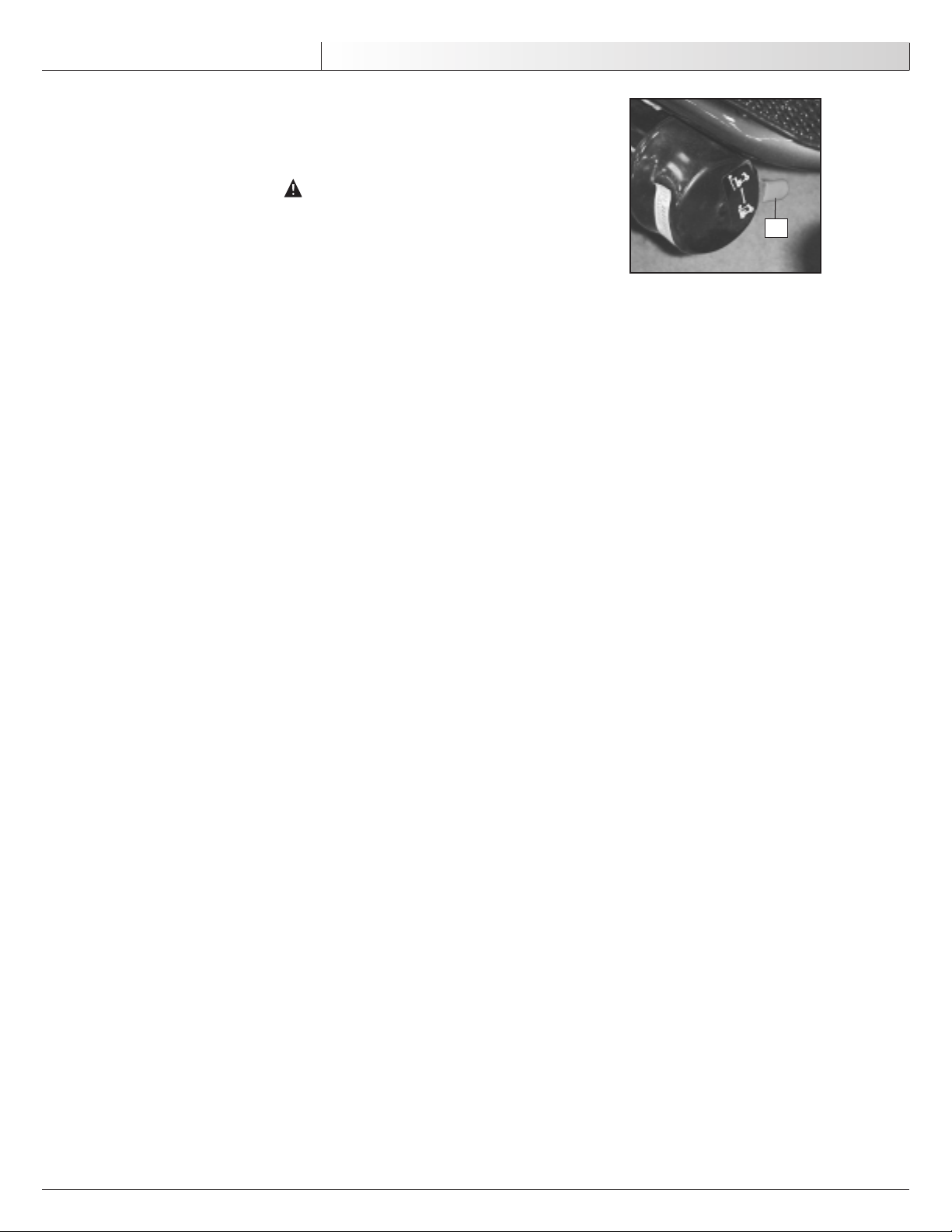

a. Pull red battery pack release (A) forward. d. To remove battery pack, lift up on battery pack handle (B).

2. Battery Installation

See Section XI. Batteries, D for installation and wiring diagram.

Batteries may weigh up to 55 lbs. Care must be taken to avoid injury when lifting up on battery straps.

B. FOOTPLATE ANGLE ADJUSTMENT (Ruby/Ruby 11 only) (Figure 3)

Adjust bolt (C) until desired angle is reached.

Avoid opening doors with footplate or legrests. Damage or injury may result.

C. INTEGRAL JOYSTICK (Ruby/Ruby 11 only)

(Figure 4)

1. To Connect

a. Line up receptacle on large rectangular connector (Beau Connector) located behind

the seat with the pins on the connecter located on the joystick harness.

b. Push in firmly.

2. To Disconnect

Pull up on beau connector until it disconnects from the frame mounted receptacle, located behind the seat.

D. ARMRESTS WIDTH ADJUSTMENT (Figure 5)

a. Insert armrest support inside of 1" square tube (D) located on back of the seat. b. Repeat for other side of seat. c. Position armrest at appropriate width. d. Tighten knob screws (E) on square tube.

Avoid pinching fingers in the flip-back armrest.

930705 Rev. B

English

IX. Set-Up, Adjustment & Use

E. TILLER ADJUSTMENT (Garnet only)

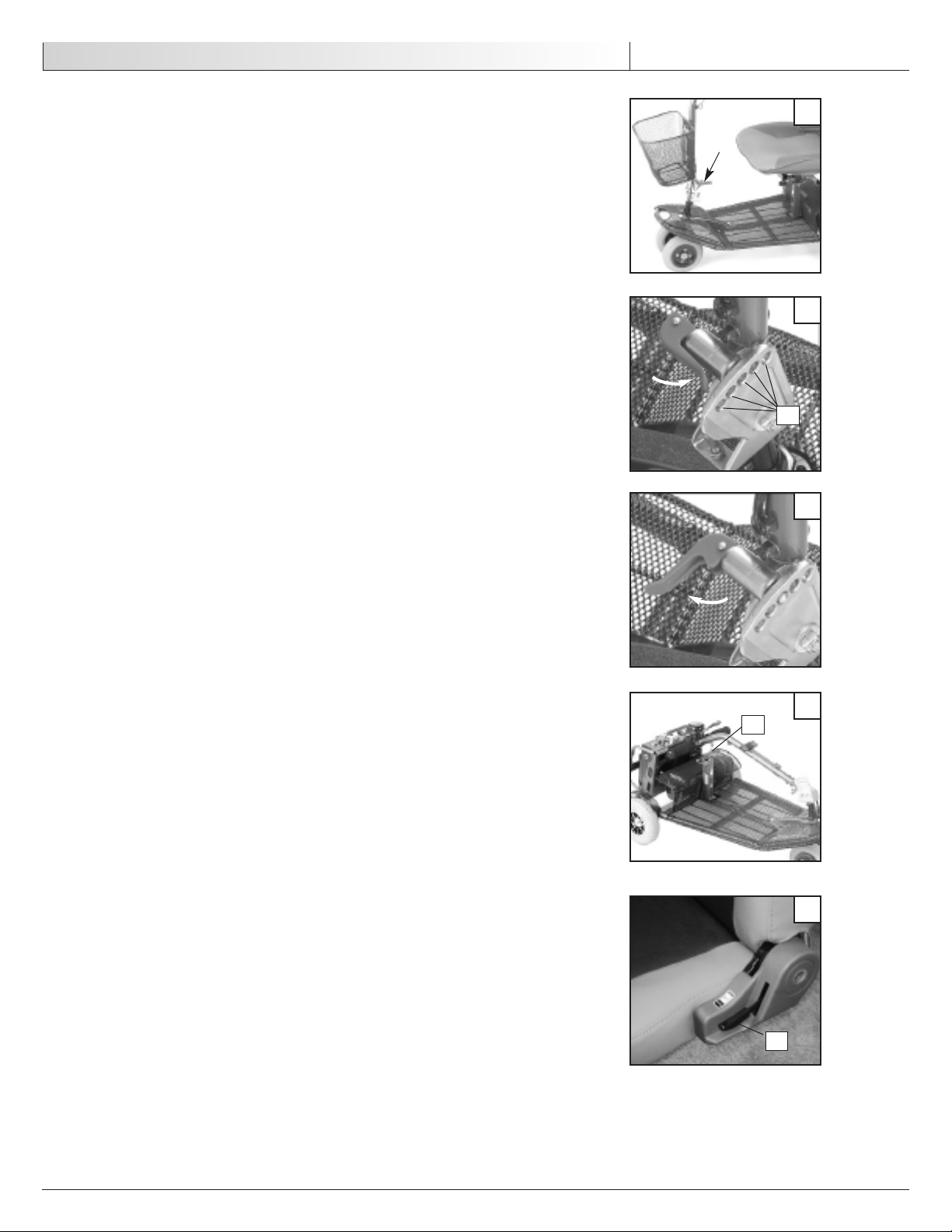

The scooter features an adjustable tiller which allows you to lock the tiller in the most comfortable driving position. This feature also lets you fold the tiller down fully, for transportation and stowage.

There are five (5) angle-adjustable positions. The tiller release lever is located on the lower left side of the tiller (Figure 6).

1. Support the tiller with your right hand.

2. Push the release lever in, towards the tiller, to release the tiller for adjustment (Figure 7).

3. Move the tiller to the desired locating hole (A).

4. Pull the release lever away from the adjustment plate (Figure 8).

5. Carefully rock the tiller back and forth to ensure that it is securely engaged into the locking mechanism. An audible “click” is heard as the mechanism locks.

Locking Tiller for Transportation

Using a locking hook (B) that snaps to the tiller arm, the tiller arm is secured to the base frame (Figure 9).

F. BACKREST

A backrest angle-adjustment is standard on the High Back Seat.

Adjustment for the High Back Contour Seat

(Figure 10) a. Pull lever (C) upwards. b. Lean back to desired position. c. Release lever (C).

CAUTION– Backrest latches must be locked into place before operating wheelchair/scooter.

930705 Rev. B

IX. Set-Up, Adjustment & Use

English

G. SEAT HEIGHT ADJUSTMENT

(Figure 11)

1. Remove pins from seat mount post.

2. Unscrew set screw.

3. Select the desired seat height (rear seat mount should never be more then one position lower then the front).

4. Reinsert the pins.

5. Tighten set screw.

H. SEAT REMOVAL

1. Remove Seat

a. Unplug controller connections at the back of the seat. b. Loosen seat mount screw. c. Pull the seat forward and remove. d. When replacing the seat into the mounts, ensure you do not pinch your fingers.

Always replace the safety lock-out pin to prevent inadvertent release of the seat.

2. Seat Post Storage (Garnet only)

(Figure 12) During transportation the seat adjustment post can be removed from the seat receiver (A)

and stored in a transportation receiver (B).

I. CHECK-OUT

Once the wheelchair/scooter is assembled and adjusted, it should roll smoothly and easily. All accessories should also perform smoothly.

After the wheelchair/scooter has been set up be sure the chair/scooter performs to your specified operational settings (see Operating Guide). If the chair/scooter does not perform to specifications, turn the wheelchair/scooter OFF immediately and reprogram operational specifications using the QTRONIX Programming Pad.

Repeat this procedure until the wheelchair/scooter performs to specifications before attempting active use of the wheelchair/scooter.

If you have any problems, follow these procedures:

1. Review the Set-up, Adjustment & Use section and Operating Guide to make sure chair/scooter was properly prepared.

2. If your problem persists, contact your authorized supplier. If you still have a problem after contacting your authorized supplier, contact Sunrise customer service. See the introduction page for details on how to contact your authorized supplier or Sunrise customer service.

930705 Rev. B

English

X. OPERATING GUIDE

A. PERFORMANCE CONTROL SETTINGS

1. It is vital to match control settings to your level of function and ability.

2. Consult your health care professional and your supplier to select the best control settings for you.

3. Check and adjust the settings every six to twelve months (or more often, if needed).

4. Adjust the control settings immediately if you notice any change in your ability to:

•Control the joystick.

•Hold your torso erect.

•Avoid running into objects.

5. Control Settings are adjusted through the use of the Quickie QTRONIX Programming Pad. See your supplier if you do not own a Quickie QTRONIX Programming Pad.

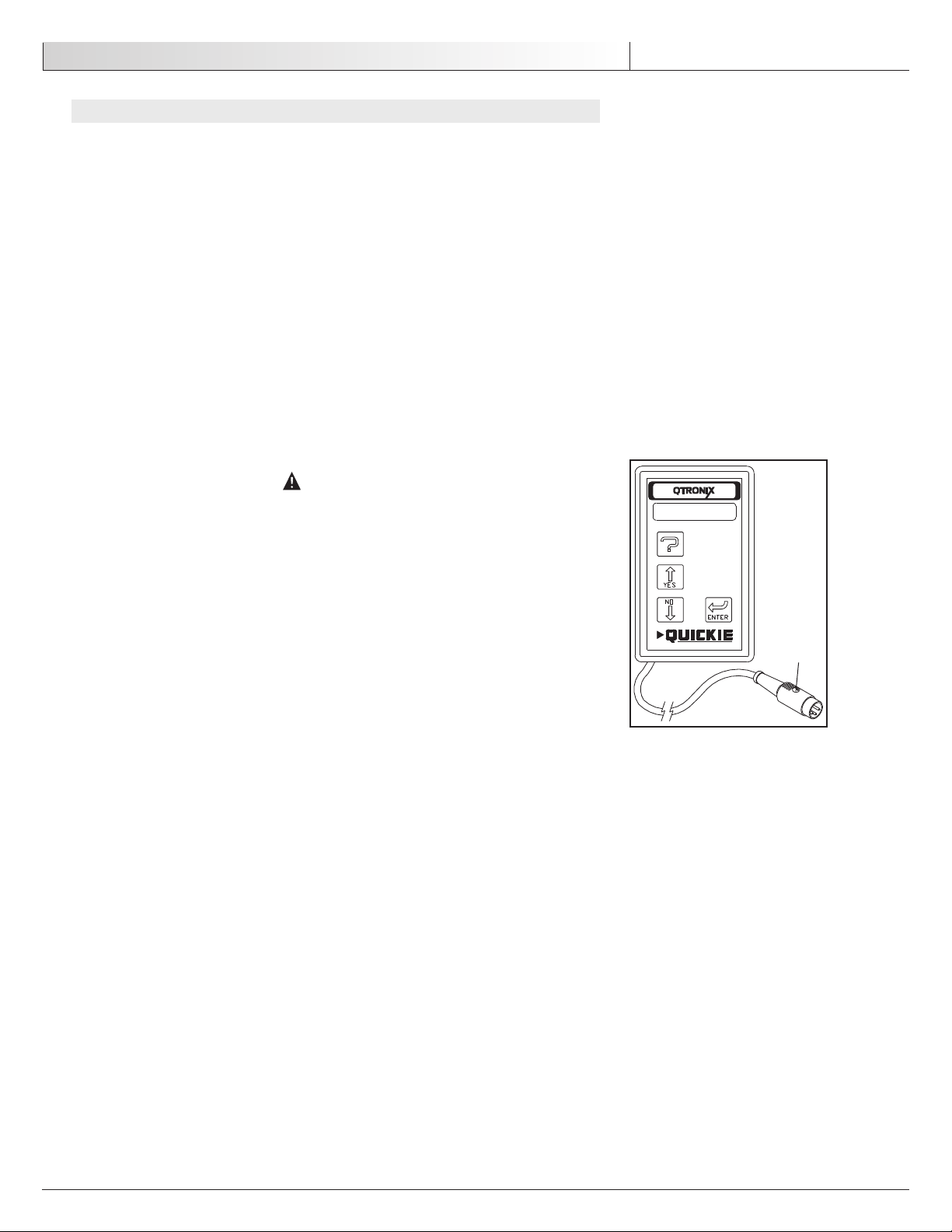

B. QUICKIE QTRONIX PROGRAMMER PAD (Ruby/Ruby 11 only) (OPTIONAL)

Program settings beyond the ability of the rider can result in serious injury. Consult your health care advisor before you alter settings.

1. Notes:

The Quickie QTRONIX Programmer lets you adjust the performance control settings of the Aspire. You can customize a program for yourself or select the standard program.

• acceleration rate

• deceleration rate

• turn acceleration

• turn deceleration

• forward speed (max & min)

• reverse speed (max & min)

• turn speed (max & min)

• steer correct

Remote systems

• 4-axis joystick throw

• sleep timer

• profile number

• read timer

2. To Program Your Chair:

a. Turn off power to the chair. b. Insert Quickie QTRONIX Programmer plug (A) into the programmer/charger socket on

the front of the joystick.

c. Turn on power to the chair; program as needed. d. Remove plug and cycle ON/OFF switch to drive chair.

NOTE– Review the Quickie QTRONIX Programmer Owner’s Manual for more details on how to program

your chair.

NOTE– Program settings that are not matched for the capabilities of the rider can result in serious

injury. Do not alter settings without the advice of your health care professional.

X. Operating Guide

C. THERMAL ROLL-BACK

Your chair has a thermal roll back circuit. This protects the controller from damage due to overheating. In extreme conditions (such as repetitive hill climbing) the circuit will decrease the power to your motors. This allows the chair to operate at a reduced speed. When the controller cools, the chair will return to normal speed.

930705 Rev. B

X. Operating Guide

D. CIRCUIT BREAKERS

1. Notes:

Your Guardian Microlite has a circuit breaker on the battery case.

• In the unlikely event of a short circuit or heavy overload, all power to your chair/scooter will be shut off.

• To reset your chair/scooter, depress the circuit breaker button located at the rear corner of the chair/scooter. A few minutes wait is required before the circuit breaker will reset.

2. Repeated Shutdown:

If the chair/scooter continues to shut down after resetting, have it serviced by a supplier.

E. JOYSTICK ASSEMBLY (Ruby/Ruby 11 only)

The standard integral joystick controls the chair’s performance. It consists of the following parts:

1. Speed Control or Drive Mode Selection Buttons (A and B)

To decrease the speed level depress button A. Or, when 1- 5 Drive modes are programmed, depress button A to activate lower drive mode(s).

To increase speed level, depress button B. Or, when 1- 5 Drive modes are programmed, depress button B to activate higher drive mode(s).

English

Circuit

Breaker

Speed level active, or Drive Mode selected, is indicated on display (C) by a series of five lights. One light indicates slowest level/mode currently active, while five lights indicates highest level/mode currently active.

2. Battery Charge Indicator (D)

• Green lights indicate that batteries are fully charged.

• Yellow lights indicate that batteries need recharging.

• When the lights stay in the red band, the batteries must be recharged.

3. On/Off Button (E)

Turning the chair on or off is accomplished by depressing button E.

4. Horn (F)

5. Joystick (G)

The joystick controls the direction and speed of your chair. Turn the chair on and move the joystick in the direction you want to go.

• Moving the joystick from the neutral (center) position disengages the motor locks, allowing the chair to move.

• The chair will move faster the more you move the joystick away from neutral.

NOTE– If your speed becomes hard to manage, release the Joystick and the chair will come to a com-

plete stop.

• When you release the joystick it will return to neutral; the chair will slow to a stop and the motor locks will reengage.

• We recommend that you switch the chair off if you stop for any length of time. This will conserve battery power.

NOTE– Once the chair stops, switching the chair off will not affect the motor locks.

Integral Joystick

6. Joystick Boot (H)

Make sure the boot is not torn or cracked (this could allow debris, water or moisture to enter). If the boot is torn or cracked, replace it as soon as you can.

930705 Rev. B

English

X. Operating Guide

F. TILLER CONTROL FUNCTIONS (Garnet only)

1. Hand Controls

All of the drive controls for the scooter are to be found on the Tiller Control Box (Figures 1 & 2).

2. The Pre-Set Speed Knob (A)

Turning the knob to the left reduces your available maximum speed. Turning it to the right increases the available maximum speed.

3. The Battery Gauge (B)

This gives an approximation of battery charge.

The gauge is marked from “E” empty to “F” full. For extra clarity there is a colored graduated scale rangiing from RED (Empty) through YELLOW to GREEN (Full).

As the scooter moves over differing terrain, the battery gauge will dip up and down. This is normal. For a more accurate indication, stop the scooter and note the reading.

GREEN indicates ready for use. YELLOW indicates batteries to be charged as soon as possible. RED indicates charge batteries immediately.

NOTE– If you find that your battery gauge has gone into the red while you are out and about, you can

increase the remaining range of your scooter by reducing your maximum available speed, but you MUST charge your scooter as soon as you can.

4. Throttle Lever (C)

The throttle lever offers finger-tip control of your scooter (Figure 5). It controls the speed as well as forward and reverse motion. Pulling the right-hand side of the lever towards you moves the scooter forwards. Pulling the left-hand side of the lever towards you moves the scooter in reverse and sounds a reversing beeper. The more you move the lever the more your speed increases up to its pre-set maximum. It is possible to operate your scooter using one side of the throttle lever. To do this you must PUSH and PULL on the chosen side of the throttle lever.

NOTE– One-hand operaion requires carefull concentration and is more tiring than normal operation.

5. Horn Button (D)

Pressing the yellow horn button operates an audible buzzer. Use this function to warn pedestrians of your presence when necessary.

6. On-Off Switch (E)

The on-off switch is illuminated when in the ON position. Make sure that this switch is in the OFF position BEFORE getting on or off the scooter. Switching this switch to OFF while driving will cause the scooter to stop very abruptly. This is not recommended.

930705 Rev. B

X. Operating Guide

G. MOTOR LOCKS

Disconnect the motor locks when you need to manually push the chair/scooter. (For example, in an emergency, or if batteries fail).

1. Do not disengage motor locks unless power to the chair/scooter is off.

2. With either one or both brakes released, the chair/scooter will not operate and the battery charge indicator will flash 9 bars rapidly (if power to the chair/scooter is on.)

3. Be aware that the chair/scooter will not have brakes in the free-wheel position.

4. Make sure that the person pushing the chair/scooter has full control when motor locks are disengaged.

1. Release Motor Locks

a. Underneath the chair/scooter you will find two levers marked in red. b. Push the brake releases upward.

2. Engage Motor Locks

a. Underneath the chair/scooter you will find two levers marked in red. b. Push the brake releases down. (A).

English

930705 Rev. B

English

XI. BATTERIES

A. INTRODUCTION

1. Notes:

• Batteries supply the power for your chair/scooter. They contain a finite amount of energy and have limits on how long they can store and supply energy.

• You can charge batteries only a certain number of times before they will fail and no longer hold a charge.

• For answers to questions about batteries, consult your supplier.

2. Use Proper Battery Case:

Your chair/scooter operates on two 12/10 A batteries in a battery case.

• Only use a battery case.

3. Breaking In:

• A battery requires “breaking-in” for the first 6 to 12 charges. It will not accept a full charge for this period.

• It is best to limit the length of your trips until you break the batteries in and you know the range of your chair/scooter.

4. Discharged Batteries:

• Never allow a battery to completely discharge. If you operate your wheelchair/scooter until it has almost stopped, you will greatly reduce the life of your batteries.

•

Never let a battery sit in a discharged condition. Give unused or stored batteries a full charge once per month.

•

Always fully charge the batteries. Avoid “topping off” with frequent charges.

XI. Batteries

Never connect a life support or auxiliary device to a wheelchair/scooter battery. The electrical system may fail and result in severe injury to or death of rider.

B. BATTERY CHARGER

A battery charger produces a direct current (DC). When applied to a discharged battery, this reverses the chemical reaction that led to its discharge.

1. Charge Rate. How fast a battery will charge depends on:

• Its electrical capacity, state of charge, electrolyte temperature, and internal condition.

• The DC output of the charger. (The charge rate will vary if the alternating current (AC) supply is higher or lower than 110 volts).

2. CAUTION– To Avoid Damage to the Charger

• Never expose charger to rain or snow.

•

Never unplug charger by pulling on the electrical cord. This will damage the cord.

•

Never open a charger or attempt to repair it yourself. Return charger to Sunrise or have repairs made only by a qualified person.

• Keep cord out of the way, where it will not be stepped on, tripped over, or damaged.

3. CAUTION– To Avoid Damage to the Battery

• Make sure you use the correct setting for sealed (gel) batteries (located on the offboard charger).

•

Never charge a frozen battery. A fully charged battery will rarely freeze, but the fluid in a discharged battery can freeze at 16 degrees Fahrenheit (minus 9 degrees Centigrade). If you suspect a battery is frozen, thaw it before charging.

930705 Rev. B

Lead acid batteries generate explosive gas while charging. Completely read and follow all warnings about the batteries in this user instruction manual and any labels applied to the product. Failure to do so could result in fire, explosion, injury and/or death.

XI. Batteries

C. ACID BURNS (UNSEALED WET CELL BATTERIES)

1. Use extreme care not to spill acid when you handle wet cell batteries. Keep batteries upright.

2. Avoid contact of acid with bare skin or clothing.

3. Always wear rubber gloves and safety glasses when you handle batteries.

4. If acid contacts your skin or clothing, wash immediately with soap and water.

5. If acid contacts your eyes, immediately flood eyes with cold running water for at least 15 minutes. Seek medical attention immediately.

Sunrise Medical does not recommend the use of wet cell batteries on this chair/scooter.

D. CONNECTING BATTERIES IN BATTERY WELL

1. Each battery weighs up to 22 lbs. Take care to avoid injury when lifting.

2. Keep batteries upright. Take care not to spill acid (wet cell batteries).

3. Always wear rubber gloves and safety glasses when you handle batteries.

4. Before working around batteries, remove all metal personal effects, such as necklaces, rings, watches, pins, and other metal jewelry that might contact battery terminal and cause a short.

English

Never make direct contact across both battery terminals, as an explosion may occur. A spark may result in an explosion and/or fire resulting in severe injury or death.

E. CHARGING BATTERIES

To avoid the risk of severe injury or death from electrical shock, fire or explosion while charging:

1. Never connect charger to a 240 volt source. The main input voltage is 110 volts.

Never touch the charger after it is connected to an electrical outlet. This may cause electrical shock.

•

Never connect or disconnect charger from battery while there is power to the charger.

Never use an extension cord. Use of an improper cord could damage the charger or cause a fire or electrical shock.

4. A battery emits explosive hydrogen gas during charging. To reduce the risk of fire or explosion:

• Make sure area is well vented. Never charge battery in a closed-in area.

• Never smoke or allow a spark, flame or high heat near battery during charging.

• Never allow metal tools or chair/scooter parts to make direct contact across both

battery terminals.

5. Never look directly into cells when charging battery (wet cell batteries).

ALWAYS:

1. Use the charger that comes with your wheelchair/scooter. Read and follow all instructions and warnings.

2. Make sure room is well ventilated.

3. Turn off all power to your chair/scooter.

4. Connect and disconnect battery cables with caution.

5. Make sure to allow enough time to fully charge batteries.

NOTE– Batteries should never be left for long periods in the discharged state. Unused or stored batter-

ies should be given a charge once per month.

6. Or, use the off-board charger by plugging it into the integral controller.

Ruby/Ruby 11 only

Off-board charger port

930705 Rev. B

English

F. DISPOSING OF BATTERIES

1. All batteries once they have reached the end of their useful life are deemed to be hazardous waste.

2. For further information on handling and recycling contact your local recycling authority.

3. Always dispose of product through a recognized agent.

XI. Batteries

930705 Rev. B

+ 70 hidden pages
