Sunrise Medical Quickie Revolution User Manual

SUPPLIER:
THIS MANUAL MUST BE GIVEN TO THE
RIDER OF THIS WHEELCHAIR.

RIDER:
BEFORE USING THIS WHEELCHAIR
READ THIS ENTIRE MANUAL AND
SAVE FOR FUTURE REFERENCE.

User

Instruction

Manual &

Warranty

Quickie Revolution

3

930354 Rev. B

I. INTRODUCTION

SUNRISE LISTENS

Thank you for choosing a Quickie wheelchair.We want to hear your questions
or comments about this manual, the safety and reliability of your chair, and the
service you receive from your Sunrise supplier. Please feel free to write or call
us at the address and telephone number below:

SUNRISE HOME HEALTHCARE GROUP
MOBILITY PRODUCTS DIVISION

Customer Service Department
7477 East Dry Creek Parkway
Longmont, Colorado 80503
[phone] or [phone]

Be sure to return your warranty card, and let us know if you change your
address.This will allow us to keep you up to date with information about safety,
new products and options to increase your use and enjoyment of this wheel­chair. If you lose your warranty card, call or write and we will gladly send you a
new one.

FOR ANSWERS TO YOUR QUESTIONS

Your authorized supplier knows your wheelchair best, and can answer most of
your questions about chair safety, use and maintenance. For future reference, fill in
the following:

Supplier: ______________________________________________________________________________

Address: ______________________________________________________________________________

______________________________________________________________________________________

Telephone: ____________________________________________________________________________

Serial #:______________________________________ Date/Purchased: ________________________

4

5

930354 Rev. B

930354 Rev. B

II. YOUR CHAIR AND ITS PARTS

Weight

23 lbs. with steel rear axles

21.5 lbs. with titanium rear axles and
performance wheels

Adjustments

1" vertical caster adjustment with
2-hole fork
2" wheelbase width adjustment
3" horizontal axle adjustment
1 1/2" vertical axle adjustment
Rear wheel camber adjustment
10º (± 5º ) back angle adjustment

Colors

Blue, black, red, midnight purple, teal,
pearl pink, lavender, forest green,
burgundy, yellow, blue green, candy teal,
candy razzberry, candy purple

Chair Parts

Standard - Black

Frame Dimensions

Frame width: 14"-20"
(seat width 1/2" narrower)
Sling depth: 14"-18" Cushion: 2", 3", 4"

Backrest

Folding-adjustable height: 12"-16", 16"-20"
Folding-with push handles: 12"-16", 16"-20"
Backrest options: folding aluminum side
guards, fabric side guards regular, plastic
side guards kids, plastic side guards regular,
adjustable upholstery, omit back upholstery

Footrests Specifications

Footrest length: standard (14"-17 3/4"),
long (16 1/4"- 20")
Footrest: Rigid-platform, legstrap

Casters

Standard - 5", low-profile polyurethane
Option - 3" micros, 6" pneumatic, 6"
polyurethane, aluminum caster rims,
3/4" longer fork stem bolt, 1 1/2"
longer fork stem bolt, caster pin locks,
quick-release caster stems

Armrests

Option - Padded swing-away, height­adjustable with standard pad, height­adjustable with full-length pad

Axle Plates

Standard - Quickie Revolution
Option - +3/4" spacer, + 1 1/2" spacer
Camber: 0º, 4º, 8º, 12º

Axles

Standard - Stainless steel
Option - Titanium, quad-release axle
nuts

Standard Rear Wheels

Standard - Spoke Option - Mag

Quickie Performance Wheels

Option - Tennis, basketball, heat-treated
tennis, heat-treated basketball

Tire Size

Standard - 24" Option - 22", 26"

Tire types

Standard - Pneumatic
Option - Full-profile polyurethane (22"­24" only), airless insert (22"-24" only),
low-profile polyurethane (24" only),
Kevlar (24" only), high-pressure clinchers,

(24", 26" only), latex tubular (24", 26"

only), turbo tread (24", 26" only)

Handrims

Standard - Aluminum
Option - Plastic-coated, long tabs

Projections

Option - Vertical, oblique, 6, 8, 10, 12

Wheel Locks

Standard-High-scissor, Option-Omit,do
not mount
All features may not be available with
some chair setups or in conjunction with
another chair feature. Please consult your
authorized supplier for more information.
Your authorized supplier can also provide
you with more information on acces­sories and clothing.

QUICKIE REVOLUTION

II. YOUR CHAIR AND ITS PARTS

1. Backrest

2. Tire

3. Seat cushion

4. Seat sling

5. Platform footrest

6. Handrim

7. Spokes

8. Rear wheel hub

9. Quick-release axle

10. Wheel rim

11. Axle sleeve

12. Caster plate

13. Caster housing

14. Caster fork

15. Caster wheel

QUICKIE REVOLUTION

2

4

3

5

6

7

8

9

10

11

15

14

13

12

1

6

7

930354 Rev. B

930354 Rev. B

III. TABLE OF CONTENTS

f. Pneumatic Tires .................................................................................. 23

g. Positioning Belts (Optional) .............................................................. 24

h. Power Drive ........................................................................................ 24

i. Push Handles (Optional) .................................................................... 24

j. Quick-Release Axles .......................................................................... 25

k. Rear Axles ............................................................................................ 25

l. Rear Wheel Locks .............................................................................. 25

m.Modified Seat Systems ...................................................................... 26

n. Upholstery Fabric .............................................................................. 26

IX. CHAIR BASICS .................................................................................. 27

a.To Mount & Remove Rear Wheels (Optional) ............................ 27

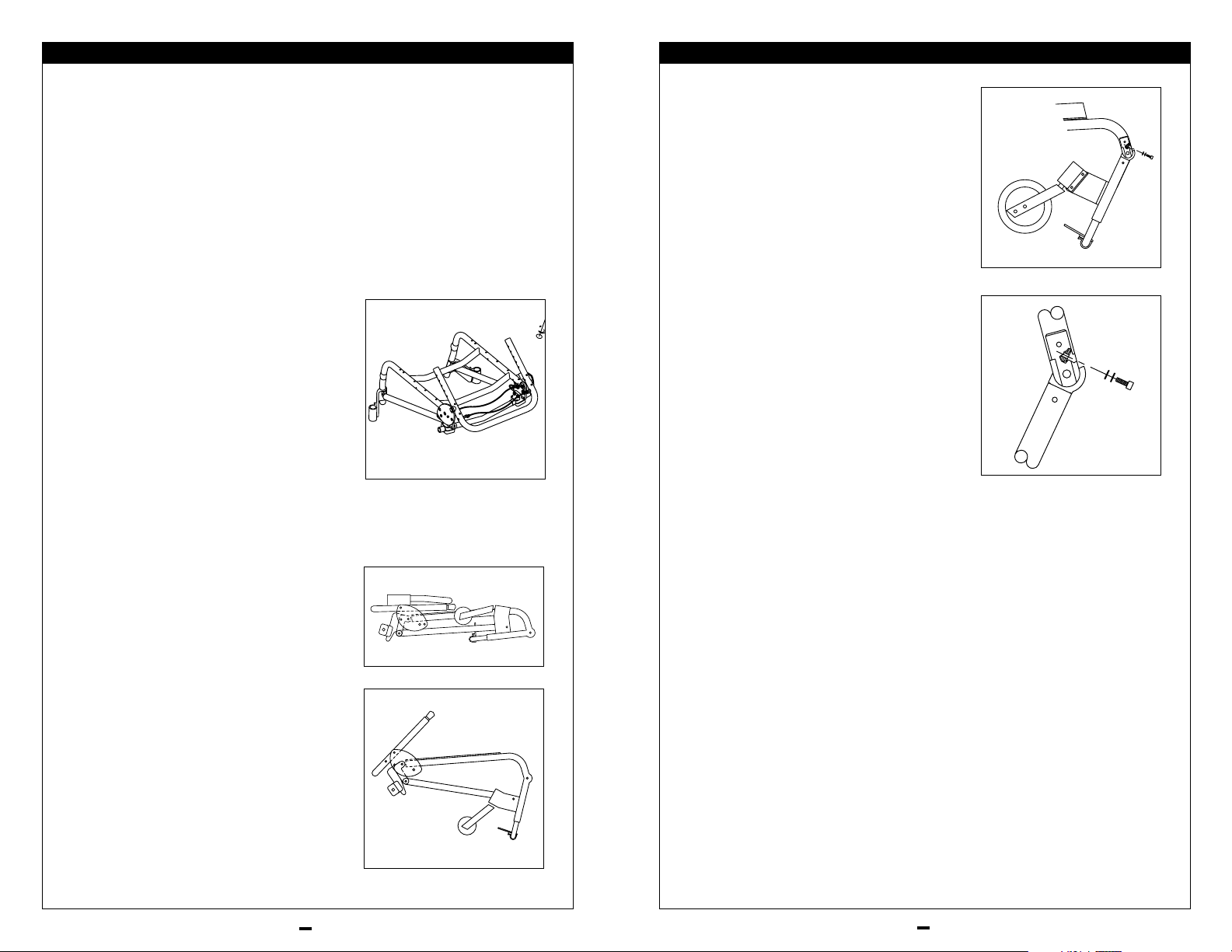

b.To Fold & Unfold Chair ...................................................................... 28

X. SET-UP AND ADJUSTMENTS .................................................... 29

a. Wheel .................................................................................................... 29

b. Swing-Away Adjustable Armrest (Optional) ................................ 29

c. Height-Adjustable Armrest (Optional)............................................ 29

d. Backrest .................................................................................................. 30

e. Seat Sling ................................................................................................ 31

f. Cushion (Optional).............................................................................. 31

g. Rear Axles .............................................................................................. 31

h. Caster Forks.......................................................................................... 33

i. Caster Plates ........................................................................................ 33

j. Castor Mounting ................................................................................ 33

k. Footrest .................................................................................................. 34

l. Wheel Locks ........................................................................................ 34

m.Anti-Tip Tubes (Optional) .................................................................. 35

n. Folding And Unfolding ........................................................................ 36

o. Adjusting Lock-Out Tension .............................................................. 37

p. Check-Out ............................................................................................ 37

XI. TROUBLESHOOTING .................................................................... 38

X1. MAINTENANCE ................................................................................ 39

a. Introduction .......................................................................................... 39

b. Maintenance Chart ............................................................................ 39

c. Maintenance Tips .................................................................................. 40

d. Cleaning .................................................................................................. 40

e. Storage Tips .......................................................................................... 40

XII. SUNRISE LIMITED WARRANTY .............................................. 41

a. For Lifetime .......................................................................................... 41

b. For 2 Years ............................................................................................ 41

c. Limitations ............................................................................................ 41

d. What We Will Do ................................................................................ 41

e. What You Must Do ............................................................................ 41

f. Notice to Consumers ........................................................................ 41

III. TABLE OF CONTENTS

1. INTRODUCTION .............................................................................. 3

a. Sunrise Listens ...................................................................................... 3

II. YOUR CHAIR AND ITS PARTS ................................................4 - 5

I11. TABLE OF CONTENTS .............................................................. 6 - 7

IV. NOTICE - READ BEFORE USE .................................................. 8

a. Choose the Right Chair & Safety Options .................................. 8

b. Review This Manual Often ................................................................ 8

c. Warnings .............................................................................................. 8

V. GENERAL WARNINGS.................................................................... 9

a. Weight Limit ........................................................................................ 9

b. Weight Training .................................................................................... 9

c. Getting to Know Your Chair ............................................................ 9

d. To Reduce The Risk of an Accident ................................................ 9

e. Safety Checklist .................................................................................. 10

f. Changes & Adjustments .................................................................... 10

g. Environmental Conditions ................................................................ 10

h. Terrain .................................................................................................... 11

i. Street Use ............................................................................................ 11

j. Motor Vehicle Safety .......................................................................... 11

k. When You Need Help ........................................................................ 12

VI. WARNINGS: FALLS & TIP-OVERS .......................................... 13

a. Center of Balance .............................................................................. 13

b. Dressing or Changing Clothes ........................................................ 13

c. Wheelies .............................................................................................. 14

d. Obstacles .............................................................................................. 14

e. Reaching or Leaning .......................................................................... 15

f. Moving Backward ................................................................................ 15

g. Ramps, Slopes & Side Hills ................................................................ 16

h. Transfers ................................................................................................ 17

i. Curbs & Steps ...................................................................................... 17

j. Stairs ...................................................................................................... 18

k. Escalators .............................................................................................. 18

VII. WARNINGS: FOR SAFE USE ...................................................... 19

a. Learning To Do A “Wheelie” ............................................................ 19

b. Descending A Curb or Single Step ................................................ 20

c. Climbing A Curb or Single Step ...................................................... 20

d. Climbing Stairs .................................................................................... 20

e. Descending Stairs ................................................................................ 20

f. Maintenance ........................................................................................ 21

VIII. WARNINGS: COMPONENTS & OPTIONS ........................ 22

a. Anti-Tip Tubes (Optional) .................................................................. 22

b. Armrests .............................................................................................. 22

c. Cushion & Sling Seats ........................................................................ 22

d. Fasteners .............................................................................................. 23

e. Footrests ................................................................................................ 23

8

9

930354 Rev. B

930354 Rev. B

V.GENERAL WARNINGS

A. WEIGHT LIMIT

NEVER exceed the weight limit of 250 pounds (113.6 kilograms), for combined
weight of rider and items carried. If you do exceed the limit, damage to your
chair, a fall, tip-over or loss of control may occur and cause severe injury to the
rider or others.

B. WEIGHT TRAINING

NEVER use this chair for weight training if total weight (rider plus equip­ment) exceeds 250 pounds. If you do exceed the limit, damage to your chair,
a fall, tip-over or loss of control may occur and cause severe injury to the
rider or others.

C. GETTING TO KNOW YOUR CHAIR

Every wheelchair is different.Take the time to learn the feel of this chair before
you begin riding. Start slowly, with easy, smooth strokes. If you are used to a
different chair, you may use too much force and tip over. If you use too much
force, damage to your chair, a fall, tip-over or loss of control may occur and
cause severe injury to the rider or others.

D. TO REDUCE THE RISK OF AN ACCIDENT

1. BEFORE riding, you should be trained in the safe use of this chair by your
health care advisor.

2. Practice bending, reaching and transfers until you know the limit of your
ability. Have someone help you until you know what can cause a fall or
tip-over and how to avoid doing so.

3. Be aware that you must develop your own methods for safe use best
suited to your level of function and ability.

4. NEVER try a new maneuver on your own until you are sure you can
do it safely.

5. Get to know the areas where you plan to use your chair. Look for
hazards and learn how to avoid them.

6. Use anti-tip tubes unless you are a skilled rider of this chair and are sure
you are not at risk to tip over.

If you fail to heed these warnings damage to your chair, a fall, tip-over or loss of
control may occur and cause severe injury to the rider or others.

IV. NOTICE—READ BEFORE USE

A. CHOOSE THE RIGHT CHAIR & SAFETY OPTIONS

Sunrise provides a choice of many wheelchair styles to meet the needs of the
wheelchair rider. However, final selection of the type of wheelchair, options
and adjustments rests solely with you and your health care advisor. Choosing
the best chair and set-up for your safety depends on such things as:

1. Your disability, strength, balance and coordination.

2. The types of hazards you must overcome in daily use (where you live and
work, and other places you are likely to use your chair).

3. The need for options for your safety and comfort (such as anti-tip tubes,
positioning belts, or special seating systems).

B. REVIEW THIS MANUAL OFTEN

Before using this chair you, and each person who may assist you, should
read this entire manual and make sure to follow all instructions. Review the
warnings often, until they are second nature to you.

C. WARNINGS

The word “WARNING” refers to a hazard or unsafe practice that may
cause severe injury or death to you or to other persons.The “Warnings”
are in three main sections, as follows:

1. V — GENERAL WARNINGS

Here you will find a safety checklist and a summary of risks you need to be
aware of before you ride this chair.

2. VI — WARNINGS — FALLS & TIP-OVERS

Here you will learn how to avoid a fall or tip-over while you perform daily
activities in your chair.

3. VII — WARNINGS — FOR SAFE USE

Here you will learn about practices for the safe use of your chair

4. VIII — WARNINGS — COMPONENTS & OPTIONS

Here you will learn about the components of your chair and options you can
select for safety. Consult your authorized supplier and your health care advi­sor to help you choose the best set-up and options for safe use.

Note: Where they apply, you will also find “Warnings” in other sections of this manual.

Heed all warnings in this section. If you fail to do so a fall, tip-over or loss of control

may occur and cause severe injury to the rider or others.

10

11

930354 Rev. B

930354 Rev. B

V.GENERAL WARNINGS

H. TERRAIN

1. Your chair is designed for use on firm, even surfaces such as concrete,
asphalt and indoor floors and carpeting.

2. Do not operate your chair in sand, loose soil or over rough terrain.
This may damage wheels or axles, or loosen fasteners of your chair.

If you fail to heed these warnings damage to your chair, a fall, tip-over or loss of
control may occur and cause severe injury to the rider or others.

I. STREET USE

In most states, wheelchairs are not legal for use on public roads. Be alert to the
danger of motor vehicles on roads or in parking lots.

1. At night, or when lighting is poor, use reflective tape on your chair and clothing.

2. Due to your low position, it may be hard for drivers to see you. Make eye
contact with drivers before you go forward.When in doubt, yield until you are
sure it is safe.

If you fail to heed these warnings damage to your chair, a fall, tip-over or loss of
control may occur and cause severe injury to the rider or others.

J. MOTOR VEHICLE SAFETY

Quickie wheelchairs do not meet federal standards for motor vehicle seating.

1. NEVER let anyone sit in this chair while in a moving vehicle.

a. ALWAYS move the rider to an approved vehicle seat.
b. ALWAYS secure the rider with proper motor vehicle restraints.

2. In an accident or sudden stop the rider may be thrown from the chair.

Wheelchair seat belts will not prevent this, and further injury may result
from the belts or straps.

3. NEVER transport this chair in the front seat of a vehicle. It may shift and

interfere with the driver.

4. ALWAYS secure this chair so that it cannot roll or shift.

5. Do not use any chair that has been involved in a motor vehicle accident.

If you fail to heed these warnings damage to your chair, a fall, tip-over or loss of
control may occur and cause severe injury to the rider or others.

V.GENERAL WARNINGS

E. SAFETY CHECKLIST

Before Each Use Of Your Chair:

1. Make sure the chair rolls easily and that all parts work smoothly. Check
for noise, vibration, or a change in ease of use. (They may indicate low tire
pressure, loose fasteners, or damage to your chair).

2. Repair any problem.Your authorized supplier can help you find and cor­rect the problem.

3. Check to see that both quick-release rear axles are locked.When locked,
the axle button will “pop out” fully. If not locked, the wheel may come off
and cause you to fall.

4. If your chair has anti-tip tubes, lock them in place.

Note: See “Anti-Tip Tubes” (Section VIII) for times you should not use them.

If you fail to heed these warnings damage to your chair, a fall, tip-over or loss
of control may occur and cause severe injury to the rider or others.

F. CHANGES & ADJUSTMENTS

1. If you modify or adjust this chair, it may increase the risk of a tip-over
UNLESS you make other changes as well.

2. Consult your authorized supplier BEFORE you modify or adjust your chair.

3. We recommend that you use anti-tip tubes until you adapt to the change, and
are sure you are not at risk to tip over.

4. Unauthorized modifications or use of parts not supplied or approved by
Sunrise may change the chair structure.This will void the warranty and may
cause a safety hazard.

If you fail to heed these warnings damage to your chair, a fall, tip-over or loss of
control may occur and cause severe injury to the rider or others.

G. ENVIRONMENTAL CONDITIONS

1. Use extra care if you must ride your chair on a wet or slick surface. If you are
in doubt, ask for help.

2. Contact with water or excess moisture may cause your chair to rust or
corrode.This could cause your chair to fail.

a. Do not use your chair in a shower, pool or other body of water. The chair

tubing and parts are not water-tight and may rust or corrode from the inside.

b. Avoid excess moisture (for example, do not leave your chair in a damp

bathroom while taking a shower).

c. Dry your chair as soon as you can if it gets wet, or if you use water to

clean it.
If you fail to heed these warnings damage to your chair, a fall, tip-over or loss of
control may occur and cause severe injury to the rider or others.

12

13

930354 Rev. B

930354 Rev. B

VI. WARNINGS: FALLS & TIP-OVERS

A. CENTER OF BALANCE

The point where this chair will tip forward, back, or to the side depends on its
center of balance and stability. How your chair is set up, the options you select
and the changes you make may affect the risk of a fall or tip-over.

1. The Most Important Adjustments Are:
a. The position of the rear wheels.The more you move the rear wheels

forward, the more likely your chair will tip over backward.

2. The Center Of Balance Is Also Affected By:

a. A change in the set-up of your chair, including:

• The distance between the rear wheels.

• The amount of rear wheel camber.

• The seat height and seat angle.

• Backrest angle.
b. A change in your body position, posture or weight distribution.
c. Riding your chair on a ramp or slope.
d. The use of a back pack or other options, and the amount of added weight.

3. To Reduce The Risk Of An Accident:
a. Consult your doctor, nurse or therapist to find out what axle and

caster position is best for you.

b. Consult your authorized supplier BEFORE you modify or adjust this

chair. Be aware that you may need to make other changes
to correct the center of balance.

c. Have someone help you until you know the balance points of your

chair and how to avoid a tip-over.

d. Use anti-tip tubes.

If you fail to heed these warnings damage to your chair, a fall, tip-over or loss
of control may occur and cause severe injury to the rider or others.

B. DRESSING OR CHANGING CLOTHES

Your weight may shift if you dress or change clothes while seated in this chair.
To reduce the risk of a fall or tip-over:

1. Rotate the front casters until they are as far forward as possible.

This makes the chair more stable.

2. Lock anti-tip tubes in place. (If your chair does not have anti-tip tubes,

back it up against a wall and lock both rear wheels).
If you fail to heed these warnings damage to your chair, a fall, tip-over or loss of
control may occur and cause severe injury to the rider or others.

K. WHEN YOU NEED HELP

For The Rider:

Make sure that each person who helps you reads and follows all warnings and
instructions that apply.

For Attendants:

1. Work with the rider’s doctor, nurse or therapist to learn safe methods
best suited to your abilities and those of the rider.

2. Tell the rider what you plan to do, and explain what you expect the rider
to do.This will put the rider at ease and reduce the risk of an accident.

3. Make sure the chair has push handles.They provide secure points for you
to hold the rear of the chair to prevent a fall or tip-over. Check to make
sure push handle grips will not rotate or slip off.

4. To prevent injury to your back, use good posture and proper body
mechanics.When you lift or support the rider or tilt the chair, bend your
knees slightly and keep your back as upright and straight as you can.

5. Remind the rider to lean back when you tilt the chair backward.

6. When you descend a curb or single step, slowly lower the chair in one
easy movement. Do not let the chair drop the last few inches to the
ground.This may damage the chair or injure the rider.

7. To avoid tripping, unlock and rotate anti-tip tubes up, out of the way.
ALWAYS lock the rear wheels and lock anti-tip tubes in place if you must
leave the rider alone, even for a moment.This will reduce the risk of a tip
over or loss of control of the chair.

If you fail to heed these warnings damage to your chair, a fall, tip-over or loss
of control may occur and cause severe injury to the rider or others.

V.GENERAL WARNINGS

14

15

930354 Rev. B

930354 Rev. B

VI. WARNINGS: FALLS & TIP-OVERS

E. REACHING OR LEANING

If you reach or lean it will affect the center of balance of your chair. This may
cause you to fall or tip over. When in doubt, ask for help or use a device to
extend your reach.

1. NEVER reach or lean if you must shift your weight sideways or rise up
off the seat.

2. NEVER reach or lean if you must move forward in your seat to do so.
Always keep your buttocks in contact with the backrest.

3. NEVER reach with both hands (you may not be able to catch yourself
to prevent a fall if the chair tips).

4. NEVER reach or lean to the rear unless your chair has anti-tip tubes
locked in place.

5. DO NOT reach or lean over the top of the seat back.This may damage
one or both backrest tubes and cause you to fall.

6. If You Must Reach Or Lean:
a. Do not lock the rear wheels.This creates a tip point and makes a fall

or tip-over more likely.

b. Do not put pressure on the footrests.

Note: Leaning forward puts pressure on the footrests and may cause the chair to tip if
you lean too far.

c. Move your chair as close as you can to the object you wish to reach.
d. Do not try to pick up an object from the floor by reaching down

between your knees.You are less likely to tip if you reach to the side
of your chair.

e. Rotate the front casters until they are as far forward as possible.This

makes the chair more stable.

Note: To do this: Move your chair past the object you want to reach, then back up
alongside it. Backing up will rotate the casters forward.

f. Firmly grasp a rear wheel or an armrest with one hand. This will help

to prevent a fall if the chair tips.
If you fail to heed these warnings damage to your chair, a fall, tip-over or loss of control
may occur and cause severe injury to the rider or others.

F. MOVING BACKWARD

Use extra care when you move your chair backward.Your chair is most stable
when you propel yourself forward.You may lose control or tip over if one of
the rear wheels hits an object and stops rolling.

1. Propel your chair slowly and smoothly.

2. If your chair has anti-tip tubes, make sure to lock them in place.

3. Stop often and check to be sure your path is clear.

If you fail to heed these warnings damage to your chair, a fall, tip-over or loss of

control may occur and cause severe injury to the rider or others.

VI. WARNINGS: FALLS & TIP-OVERS

C. WHEELIES

Doing a “wheelie” means: balancing on the rear wheels of your chair, while
the front casters are in the air. It is dangerous to do a "wheelie" as a fall or
tip-over may occur. However, if you do it safely, a “wheelie” can help you
overcome curbs and obstacles.

1. Consult your doctor, nurse or therapist to find out if you are a good
candidate to learn to do a “wheelie.”

2. Do not attempt a “wheelie” UNLESS you are a skilled rider of this chair,
or you have help.

Note: See p. 19 for steps to learn to do a “wheelie.”

If you fail to heed these warnings damage to your chair, a fall, tip-over or loss of
control may occur and cause severe injury to the rider or others.

D. OBSTACLES

Obstacles and road hazards (such as potholes and broken pavement) can
damage your chair and may cause a fall, tip-over or loss of control.
To avoid these risks:

1. Keep a lookout for danger – scan the area well ahead of your chair
as you ride.

2. Make sure the floor areas where you live and work are level and
free of obstacles.

3. Remove or cover threshold strips between rooms.

4. Install a ramp at entry or exit doors. Make sure there is not a drop off at
the bottom of the ramp.

5. To Help Correct Your Center Of Balance:
a. Lean your upper body FORWARD slightly as you go UP over an obstacle.
b. Press your upper body BACKWARD as you go DOWN from a higher

to a lower level.

6. If your chair has anti-tip tubes, lock them in place before you go UP
over an obstacle.

7. Keep both of your hands on the handrims as you go over an obstacle.

8. Never push or pull on an object (such as furniture or a doorjamb) to
propel your chair.

If you fail to heed these warnings damage to your chair, a fall, tip-over or loss of
control may occur and cause severe injury to the rider or others.

16

17

930354 Rev. B

930354 Rev. B

H. TRANSFER

It is dangerous to transfer on your own. It requires good balance and agility.
Be aware that there is a point during every transfer when the wheelchair seat
is not below you.To Avoid A Fall:

1. Work with your health care advisor to learn safe methods.
a. Learn how to position your body and how to support yourself during

a transfer.

b. Have someone help you until you know how to do a safe transfer on

your own.

2. Lock the rear wheels before you transfer. This keeps the rear wheels
from rolling.

Note: This will NOT keep your chair from sliding away from you or tipping.

3. Make sure to keep pneumatic tires properly inflated. Low tire pressure

may allow the rear wheel locks to slip.

4. Move your chair as close as you can to the seat you are transferring to.

If possible, use a transfer board.

5. Rotate the front casters until they are as far forward as possible.

6. If you can, remove or swing footrests out of the way.

a. Make sure your feet do not catch in the space between the footrests.
b. Avoid putting weight on the footrests as this may cause the chair to tip.

7. Make sure armrests are out of the way and do not interfere.

8. Transfer as far back onto the seat surface as you can. This will reduce the

risk that the chair will tip or move away from you.
If you fail to heed these warnings damage to your chair, a fall, tip-over or loss of
control may occur and cause severe injury to the rider or others.

I. CURBS & STEPS

1. Each person who helps you should read and follow the warnings “For Safe
Use” (Section VII).

2. Do not try to climb or descend a curb or step alone UNLESS you are a
skilled rider of this chair and:

a. You can safely do a “wheelie”; and
b. You are sure you have the strength and balance to do so.

3. Unlock and rotate anti-tip tubes up, out of the way, so they do not interfere.

4. Do not try to climb a high curb or step (more than 4 inches high) UNLESS
you have help. Doing so may cause your chair to exceed its balance point
and tip over.

5. Go straight up and straight down a curb or step. If you climb or descend
at an angle, a fall or tip-over is likely.

6. Be aware that the impact of dropping down from a curb or step can damage
your chair or loosen fasteners.

If you fail to heed these warnings damage to your chair, a fall, tip-over or loss of
control may occur and cause severe injury to the rider or others.

VI. WARNINGS: FALLS & TIP-OVERS

G. RAMPS, SLOPES & SIDE HILLS

Riding on a slope, which includes a ramp or side hill, will change the center of
balance of your chair.Your chair is less stable when it is at an angle.Anti-tip tubes
may not prevent a fall or tip-over.

1. Do not use your chair on a slope steeper than 10%. (A 10% slope means: one
foot in elevation for every ten feet of slope length.)

2. Always go as straight up and as straight down as you can. (Do not “cut the
corner” on a slope or ramp.)

3. Do not turn or change direction on a slope.

4. Always stay in the CENTER of the ramp. Make sure ramp is wide enough that
you are not at risk that a wheel may fall over the edge.

5. Do not stop on a steep slope. If you stop, you may lose control of your chair.

6. NEVER use rear wheel locks to try to slow or stop your chair.This is likely to
cause your chair to veer out of control.

7. Beware Of:

a. Wet or slippery surfaces.
b. A change in grade on a slope (or a lip, bump or depression).These may

cause a fall or tip-over.

c. A drop-off at the bottom of a slope. A drop-off of as small as 3/4 inch can

stop a front caster and cause the chair to tip forward.

8. To Reduce The Risk Of A Fall Or Tip-Over:

a. Lean or press your body UPHILL.This will help adjust for the change in

the center of balance caused by the slope or side hill.

b. Keep pressure on the handrims to control your speed on a down slope.

If you go too fast you may lose control.

c. Ask for help any time you are in doubt.

9. Ramps At Home & Work - For your safety, ramps at home and work must meet
all legal requirements for your area. We recommend:
a. Width. At least four feet wide.
b. Guardrails.To reduce the risk of a fall, sides of ramp must have guardrails

(or raised borders at least three inches high).
c. Slope. Not more than a 10% grade.
d. Surface. Flat and even, with a thin carpet or other non-skid material.

(Make sure there is no lip, bump or depression.)
e. Bracing. Ramp must be STURDY.You may need bracing so ramp does not

“bow” when you ride on it.
f. Avoid A Drop Off.You may need a section at the top or bottom to

smooth out the transition.

If you fail to heed these warnings damage to your chair, a fall, tip-over or loss of
control may occur and cause severe injury to the rider or others.

VI. WARNINGS: FALLS & TIP-OVERS

18

19

930354 Rev. B

930354 Rev. B

VII. WARNINGS: FOR SAFE USE

Before you assist a rider, be sure to read the warnings “For Attendants”
(p. 12) and follow all instructions that apply. Be aware that you will need
to learn safe methods best suited to your abilities.

A. LEARNING TO DO A “WHEELIE”

Follow these steps to help the rider learn to do a “wheelie”:

1. Read and follow the warnings for “WHEELIES.” (See p. 14)

2. Stand at the rear of the chair.You must be able to move with the chair to
prevent a tip-over.

3. Keep your hands BENEATH the push handles, ready to catch the rider if the
chair tips back.

4. When you are ready, have the rider place his or her hands on the forward part
of the handrims.

5. Have the rider make a quick BACKWARD movement of the rear wheels,
quickly followed by a hard FORWARD thrust. (This will tilt the chair up on the
balance point of the rear wheels.)

6. Have the rider make small movements of the handrims to stay in balance.

If you fail to heed these warnings damage to your chair, a fall, tip-over or loss of
control may occur and cause severe injury to the rider or others.

B. DESCENDING A CURB OR SINGLE STEP

Follow these steps to help a rider descend a curb or single step going BACKWARD:

1. Stay at the rear of the chair.

2. Several feet before your reach the edge of the curb or step, turn the chair
around and pull it backward.

3. While looking over your shoulder, carefully step back until you are off the curb
or stair and standing on the lower level.

4. Pull the chair toward you until the rear wheels reach the edge of the curb or
step.Then allow the rear wheels to slowly roll down onto the lower level.

5. When the rear wheels are safely on the lower level, tilt the chair back to its
balance point.This will lift the front casters off the curb or step.

6. Keep the chair in balance and take small steps backward.Turn the chair around
and gently lower front casters to the ground.

If you fail to heed these warnings damage to your chair, a fall, tip-over or loss of
control may occur and cause severe injury to the rider or others.

J. STAIRS

1. NEVER use this chair on stairs UNLESS you have someone to help you.
Doing so is likely to cause a fall or tip-over.

2. Persons who help you should read and follow the warnings “For
Attendants” (p. 12), and the “For Safe Use” (Section VII).

If you fail to heed these warnings damage to your chair, a fall, tip-over or loss of
control may occur and cause severe injury to the rider or others.

K. ESCALATORS

NEVER use this chair on an escalator, even with an attendant. If you do, a fall

or tip-over is likely.
If you fail to heed these warnings damage to your chair, a fall, tip-over or loss of
control may occur and cause severe injury to the rider or others.

VI. WARNINGS: FALLS & TIP-OVERS

20

21

930354 Rev. B

930354 Rev. B

F. MAINTENANCE

1. Inspect and maintain this chair strictly per chart.

2. If you detect a problem, make sure to service or repair the chair before use.

3. At least once a year, have a complete inspection, safety check and service of
your chair made by an authorized supplier.

If you fail to heed these warnings damage to your chair, a fall, tip-over or loss of
control may occur and cause severe injury to the rider or others. For additional
maintenance information see Section XII: Maintenance.

VII. WARNINGS: FOR SAFE USE

C. CLIMBING A CURB OR SINGLE STEP

Follow these steps to help the rider climb a curb or single step going FORWARD:

1. Stay behind the chair.

2. Face the curb and tilt the chair up on the rear wheels so that the front casters
clear the curb or step.

3. Move forward, placing the front casters on the upper level as soon as you are
sure they are past the edge.

4. Continue forward until the rear wheels contact the face of the curb or step.
Lift and roll the rear wheels to the upper level.

If you fail to heed these warnings damage to your chair, a fall, tip-over or loss of

control may occur and cause severe injury to the rider or others.

D. CLIMBING STAIRS

1. Use at least two attendants to move a chair and rider up stairs.

2. Move the chair and rider BACKWARD up the stairs.

3. The person at the rear is in control. He or she tilts the chair back to its
balance point.

4. A second attendant at the front firmly grasps a non-detachable part of the
front frame and lifts the chair up and over one stair at a time.

5. The attendants move to the next stair up. Repeat for each stair, until you
reach the landing.

If you fail to heed these warnings damage to your chair, a fall, tip-over or loss of
control may occur and cause severe injury to the rider or others.

E. DESCENDING STAIRS

1. Use at least two attendants to move a chair and rider down stairs.

2. Move the chair and rider FORWARD down the stairs.

3. The person at the rear is in control. He or she tilts the chair to the balance
point of the rear wheels and rolls it to the edge of the top step.

4. A second attendant stands on the third step from the top and grasps the chair
frame. He or she lowers the chair one step at a time by letting the rear
wheels roll over the stair edge.

5. The attendants move to the next stair down. Repeat for each stair, until you
reach the landing.

If you fail to heed these warnings damage to your chair, a fall, tip-over or loss of

control may occur and cause severe injury to the rider or others.

VII. WARNINGS: FOR SAFE USE

22

23

930354 Rev. B

930354 Rev. B

D. FASTENERS

Many of the screws, bolts and nuts on this chair are special high-strength fasteners.
Use of improper fasteners may cause your chair to fail.

1. ONLY use fasteners provided by an authorized supplier (or ones of the same
type and strength, as indicated by the markings on the heads).

2. Over- or under-tightened fasteners may fail or cause damage to chair parts.

3. If bolts or screws become loose, tighten them as soon as you can.If you fail to
heed these warnings damage to your chair, a fall, tip-over or loss of control
may occur and cause severe injury to the rider or others.

If you fail to heed these warnings damage to your chair, a fall, tip-over or loss of
control may occur and cause severe injury to the rider or others.

E. FOOTRESTS

1. At the lowest point, footrests should be AT LEAST 2 1/2 INCHES off the
ground. If set too LOW, they may “hang up” on obstacles you can expect to
find in normal use.This may cause the chair to stop suddenly and tip forward.

2. To Avoid A Trip Or Fall When You Transfer:
a. Make sure your feet do not “hang up” or get caught in the space between

the footrests.

b. Avoid putting weight on the footrests,as the chair may tip forward.

3. NEVER lift this chair by the footrests. Footrests detach and will not bear the
weight of this chair. Lift this chair only by non-detachable parts of the main frame.

If you fail to heed these warnings damage to your chair, a fall, tip-over or loss of
control may occur and cause severe injury to the rider or others.

F. PNEUMATIC TIRES

Proper inflation extends the life of your tires and makes your chair easier to use.

1. Do not use this chair if any of the tires is under- or over-inflated. Check
weekly for proper inflation level, as listed on the tire sidewall.

2. Low pressure in a rear tire may cause the wheel lock on that side to slip and
allow the wheel to turn when you do not expect it.

3. Low pressure in any of the tires may cause the chair to veer to one side and
result in a loss of control.

4. Over-inflated tires may burst.

If you fail to heed these warnings damage to your chair, a fall, tip-over or loss of
control may occur and cause severe injury to the rider or others.

VIII. WARNINGS: COMPONENTS & OPTIONS

A. ANTI-TIP TUBES (OPTIONAL)

Anti-tip tubes can help keep your chair from tipping over backward in most
normal conditions.

1. Sunrise Recommends Use Of Anti-Tip Tubes:
a. UNLESS you are a skilled rider of this chair and are sure you are not at

risk to tip over.

b. Each time you modify or adjust your chair.The change may make it easier

to tip backward. Use anti-tip tubes until you adapt to the change, and are
sure you are not at risk to tip over.

2. When locked in place (in the “down” position) anti-tip tubes should be

BETWEEN 1 1/2 to 2 inches off the ground.

a. If set too HIGH, they may not prevent a tip-over.
b. If set too LOW, they may “hang up” on obstacles you can expect in normal

use. If this occurs, you may fall or your chair may tip over.

3. Keep Anti-Tip Tubes Locked In Place UNLESS:
a. You have an attendant; or
b. You have to climb or descend a curb, or overcome an obstacle, and can

safely do so without them. At these times, make sure anti-tip tubes are

up, out of the way.
If you fail to heed these warnings damage to your chair, a fall, tip-over or loss of
control may occur and cause severe injury to the rider or others.

B. ARMRESTS

Armrests detach and will not bear the weight of this chair.

1. NEVER lift this chair by its armrests.They may come loose or break.

2. Lift this chair only by non-detachable parts of the main frame.
If you fail to heed these warnings damage to your chair, a fall, tip-over or loss of
control may occur and cause severe injury to the rider or others.

C. CUSHIONS & SLING SEATS

1. Quickie sling seats and standard foam cushions are not designed for the relief

of pressure.

2. If you suffer from pressure sores, or if you are at risk that they will occur, you

may need a special seat system or a device to control your posture. Consult
your doctor, nurse or therapist to find out if you need such a device for your

well-being.
If you fail to heed these warnings damage to your chair, a fall, tip-over or loss of
control may occur and cause severe injury to the rider or others.

VIII. WARNINGS: COMPONENTS & OPTIONS

24

25

930354 Rev. B

930354 Rev. B

J. QUICK-RELEASE AXLES

1. Do not use this chair UNLESS you are sure that both quick-release rear axles
are locked. An unlocked axle may come off during use and cause a fall.

2. An axle is not locked until the quick-release button pops out fully.An unlocked
axle may come off during use, resulting in a fall, tip-over or loss of control and
cause severe injury to the rider or others.

If you fail to heed these warnings damage to your chair, a fall, tip-over or loss of
control may occur and cause severe injury to the rider or others.

K. REAR WHEELS

A change in set-up of the rear wheels will affect the center of balance of your chair.

1. The farther you move the rear axles FORWARD, the more likely it is that
your chair will tip over backward.

2. Consult your doctor, nurse or therapist to find the best rear axle set-up for
your chair. Do not change the set-up UNLESS you are sure you are not at
risk to tip over.

3. Adjust the rear wheel locks after you make any change to the rear axles.

a. If you fail to do so, the locks may not work.

b. Make sure lock arms embed in tires at least 1/8 inch when locked.
If you fail to heed these warnings damage to your chair, a fall, tip-over or loss of
control may occur and cause severe injury to the rider or others.

L. REAR WHEEL LOCKS

Rear wheel locks are NOT designed to slow or stop a moving wheelchair.Use the
only to keep the rear wheels from rolling when your chair is at a complete stop.

1. NEVER use rear wheel locks to try to slow or stop your chair when it is

moving. Doing so may cause you to veer out of control.

2. To keep the rear wheels from rolling, always set both rear wheel locks when

you transfer to or from your chair.

3. Low pressure in a rear tire may cause the wheel lock on that side to slip and

may allow the wheel to turn when you do not expect it.

4. Make sure lock arms embed in tires at least 3/8 inch when locked. If you fail

to do so, the locks may not work.
If you fail to heed these warnings damage to your chair, a fall, tip-over or loss of
control may occur and cause severe injury to the rider or others.

VIII. WARNINGS: COMPONENTS & OPTIONS

G. POSITIONING BELTS (OPTIONAL)

Use positioning belts ONLY to help support the rider’s posture. Improper use of
these belts may cause severe injury to or death of the rider.

1. Make sure the rider does not slide down in the wheelchair seat. If this occurs, the
rider may suffer chest compression or suffocate due to pressure from the belts.

2. The belts must be snug, but must not be so tight that they interfere with
breathing.You should be able to slide your open hand, flat, between the belt
and the rider.

3. A pelvic wedge or a similar device can help keep the rider from sliding down
in the seat. Consult with the rider’s doctor, nurse or therapist to find out if
the rider needs such a device.

4. Use positioning belts only with a rider who can cooperate. Make sure the
rider can easily remove the belts in an emergency.

5. NEVER Use Positioning Belts:

a. As a patient restraint. A restraint requires a doctor’s order.
b. On a rider who is comatose or agitated.
c. As a motor vehicle restraint. In an accident or sudden stop the rider may

be thrown from the chair. Wheelchair seat belts will not prevent this, and

further injury may result from the belts or straps.
If you fail to heed these warnings damage to your chair, a fall, tip-over or loss of
control may occur and cause severe injury to the rider or others.

H. POWER DRIVE

Do not install a power drive on any Quickie wheelchair. If you do:

1. It will affect the center of balance of your chair and may cause a fall or tip-over.

2. It will alter the frame and void the warranty.
If you fail to heed these warnings damage to your chair, a fall, tip-over or loss of
control may occur and cause severe injury to the rider or others.

I. PUSH HANDLES (OPTIONAL)

When you have a attendant, make sure that this chair has push handles.

1. Push handles provide secure points for an attendant to hold the rear of this

chair, to prevent a fall or tip-over. Make sure to use push handles when you
have an attendant.

2. Check to make sure push handle grips will not rotate or slip off.
If you fail to heed these warnings damage to your chair, a fall, tip-over or loss of
control may occur and cause severe injury to the rider or others.

VIII. WARNINGS: COMPONENTS & OPTIONS

26

27

930354 Rev. B

930354 Rev. B

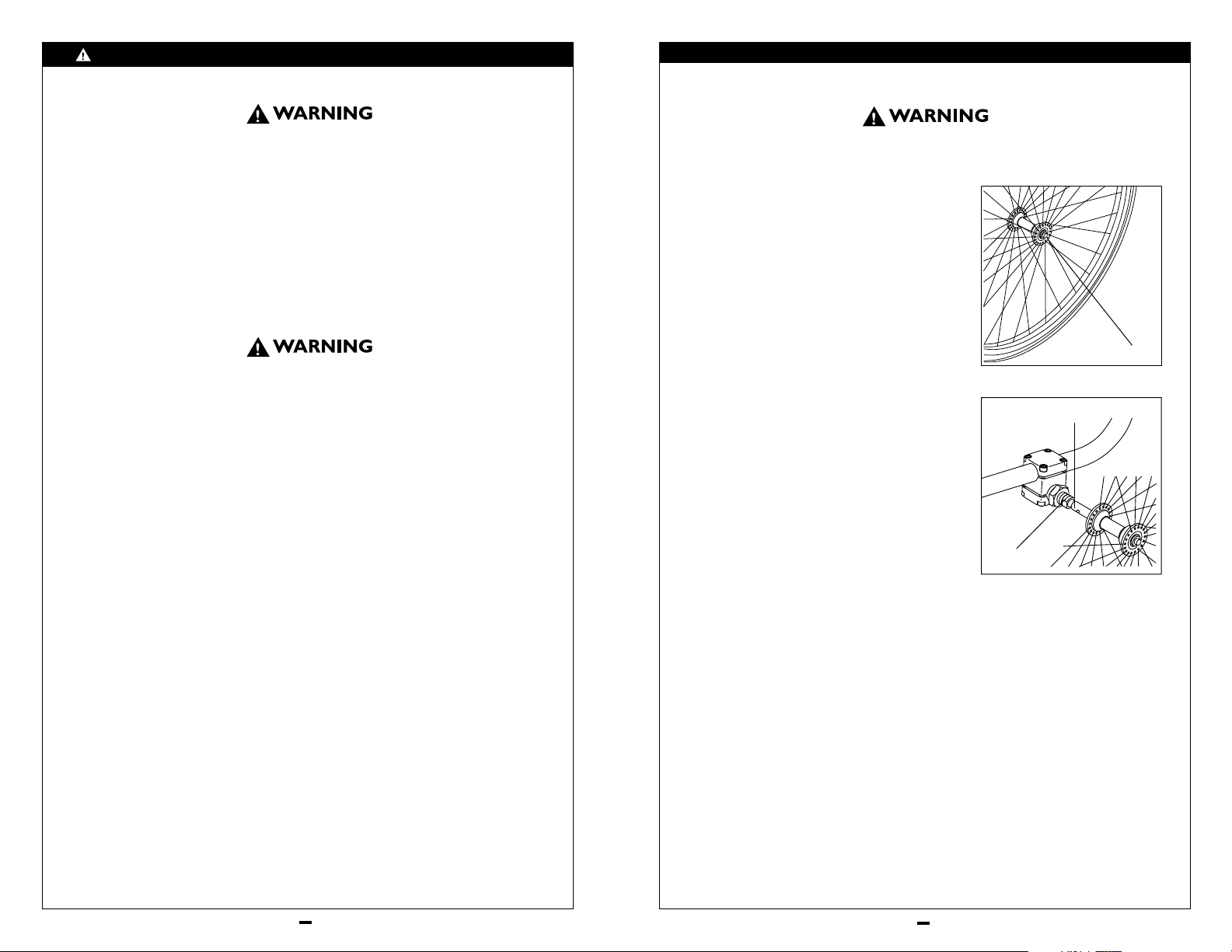

A. TO MOUNT & REMOVE REAR WHEELS (OPTIONAL)

Do not use this chair UNLESS you are sure both quick-release axles are locked. An unlocked

axle may come off during use and cause a fall.

IX. CHAIR BASICS

Note: Axle is not locked until:

a. The quick-release button pops out

fully. (Fig. A)

b. The ball bearings are fully visible on

the outside of the sleeve. (Fig. A)

1. To Install Wheel:

a. Depress quick-release button (1) fully.

This will release tension on ball bear-

ings at other end.
b. Insert axle through hub of rear wheel.
c. Keep pressure on button (1) as you

slide axle (2) into axle sleeve (3).
d. Release button to lock axle in sleeve.

Adjust axle if it does not lock.
e. Repeat steps on other side.

2. To Remove Wheel:

a. Depress quick-release button (1) fully.
b. Remove wheel by sliding axle out of

axle sleeve (2).
c. Repeat steps on other side.

1. Quick-Release Button

Figure A

M. MODIFIED SEAT SYSTEMS

Use of a seat system not approved by Sunrise may alter the center of balance of
this chair.This may cause the chair to tip over.

1. Do not change the seat system of your chair UNLESS you consult your
authorized supplier first.

2. Use of a seat system not approved by Sunrise may affect the folding mechanism
of this chair.

3. Use of a seating system not provided by Sunrise is prohibited for transit use.

If you fail to heed these warnings damage to your chair, a fall, tip-over or loss of
control may occur and cause severe injury to the rider or others.

N. UPHOLSTERY FABRIC

1. Replace worn or torn fabric of seat and seat back as soon as you can. If you
fail to do so, the seat may fail.

2. Sling fabric will weaken with age and use. Look for fraying or thin spots, or
stretching of fabrics at rivet holes.

3. “Dropping down” into your chair will weaken fabric and result in the need to
inspect and replace the seat more often.

4. Be aware that laundering or excess moisture will reduce flame retardation of
the fabric.

If you fail to heed these warnings damage to your chair, a fall, tip-over or loss of
control may occur and cause severe injury to the rider or others.

VIII. WARNINGS: COMPONENTS & OPTIONS

2.Axle

3.Axle Sleeve

29

930354 Rev. B

X. SET UP & ADJUSTMENT

Note: Setting the wheelchair on a table or
on a flat surface, such as a table or on a flat
surface, such as a workbench, helps make these
procedures easier.
Note on Torque Setting: A torque setting is
the optimum tightening which should be made
on a particular fastener.A torque wrench
which measures in./lbs. Should be used when
tightening fasteners on Quickie wheelchairs.
Unless otherwise noted, use a torque setting
of 60 in./lbs.When setting up this wheelchair.

A. WHEEL

Depress the quick-release button on the
axle. Slide it into the axle sleeve until it locks.

B. SWING-AWAY ADJUSTABLE

ARMRESTS (OPTIONAL)

1. Installation

a) Slide armrest into receiver on rear

frame tube.

2. Swinging Away

a) Push armrest to the side and out of

the way when transferring.

3. Removing Armrest

a) Pull armrest straight out of bracket.

C. HEIGHT-ADJUSTABLE

ARMRESTS (OPTIONAL)

1. Installation

a) Slide the outer armpost into the receiver

mounted to the wheelchair frame.

b) The armrest will automatically lock

into place.

2. Height Adjustment

a) Rotate release lever to second stop.
b) Slide armrest pad up or down to

desired height.

c) Return lever to locked position

against armpost.

d) Push arm pad until upper armpost

locks firmly into place.

3. Removing Armrest

a) Rotate release lever to first stop and

remove the armrest.

Height-Adjustable
Armrest Key

1. Outer armpost

2. Standard receiver

3. Release lever

4. Armrest pad

5. Transfer bar

6. Side panel

7. Outer armpost tension
adjustment set screws

8. Inner armpost

9. Receiver adjustment bolts

1

6

7

8

4

3

5

9

2

Quick­Release
Button

B. TO FOLD & UNFOLD CHAIR

Note: You can remove quick-release wheels before you fold chair (and re-mount
them before you unfold chair).

1. To Fold Chair:

a. Move sure footrests are out of the way before you fold chair.

(Swing-away, flip up or remove footrests.)
b. Remove cushion (if any).
c. Grasp center of seat sling and lift sharply until chair folds.

2. To Unfold Chair:

a. Stand to one side of chair. Check to make sure footrests do not interfere.
b. Tilt chair toward you far enough to take the weight off the opposite wheel.
c. Push down on the seat rail closest to you until chair opens fully.
d. Make sure seat rail tubes snap into frame saddles.

IX. CHAIR BASICS

28

930354 Rev. B

30

31

930354 Rev. B

930354 Rev. B

E. SEAT SLING

The seat sling can be adjusted through the
use of VELCRO

®

- style retaining material

beneath the seat.

1. Adjustment

a) Remove the screws retaining the left

side seat sling.

b) Readjust VELCRO

®

- style material to

increase the tension in the seat sling.
c) Replace screws.
d) If there is any difficulty in reattaching

the screws, try using a probe to help

line up the holes.

F. CUSHION (OPTIONAL)

1. Installation

a) Place cushion on seat sling with VELCRO

®

side down.The beveled edge of the

cushion should be in front.
b) Press firmly into place.

G. REAR AXLES

The most important adjustment on your
Quickie wheelchair is the position of the
rear axle.The center of gravity, wheel
camber and wheelbase are all determined
by the axle adjustment.
Use a torque setting of 100 in.-lbs. when
adjusting rear axle.

1. Center of Gravity

Moving the center of gravity to the front
will lighten the force required to turn the
chair.The further back the axle, the more
stable the chair becomes.
The center of gravity is adjusted by moving
the rear axle forward or backward on the
frame. Moving the axle forward will
increase your turning speed and lighten
the front end.

2. Wheel Camber

The wheel camber adjustment provides
greater side-to-side stability due to the
increased width and angle of the wheel­base.The wheel camber adjustment also
allows for quicker turning and greater
access to the top of the handrims.
Wheel camber is determined by the axle
tube.Tubes are available from your autho­rized supplier in 0º, 4º, 8º, 12º angles.

X. SET UP & ADJUSTMENT

X. SET UP & ADJUSTMENT

4. Replacing Armrest

a) Slide armrest back into receiver.
b) Return release lever to locked position

against armpost.

5. Adjusting Armrest Receiver Fit

To tighten or loosen the fit of the outer

armpost in the receiver:
a) Loosen the four bolts on the sides of

the receiver.

b) With the armrest in the receiver,

squeeze the receiver to achieve the
desired fit.

c) Tighten the four bolts.

6. Adjusting Inner Armpost Fit

a) Two set screws are installed in the

outer armpost.

b) Turn the set screws in or out until the

desired fit is achieved.

D. BACKREST

The backrest comes standard with a

4" height adjustment.

1. Height Adjustment

a) Remove the backrest upholstery from

the frame.

b) You will see the backrest tube which

telescopes into the frame and is secured
by a screw on the side of the frame.

c) There are five holes, 1 inch apart, you

may choose from to set the back height.

d) After selecting the proper height, slide

the backrest upholstery back on with
the overlap portion unattached.

e) Secure VELCRO

®

style material on side

tubes and attach the excess overlap.

2. Back Angle Adjustment

An 10º (±5º) angle adjustment is standard

on this Quickie wheelchair.
a) Turning the eccentric bolt on the

backrest hinge plate will increase or
decrease the back angle.

b) The adjustment on each side of the

chair must be exactly equal.

32

33

930354 Rev. B

930354 Rev. B

X. SET UP & ADJUSTMENT

6. Rear Wheel Axle Sleeve Adjustment

Tight axle sleeves should be maintained

for proper performance of the wheelchair.
a) To adjust the axle you will need a 3/4"

wrench to turn the outside axle nuts.

b) You will also need a 1/2" wrench to

lodge the ball bearings, on the opposite

end of the axle, and prevent the axle

from turning.

c) Turn the outside axle nut counter-

clockwise to tighten.

d) There should only be zero to ten

thousandths of an inch (.010") of play.

H. CASTER FORKS

Two-hole caster forks allow interchanging

3", 5" and 6" casters and adjusting seat height.

1. Caster Fork Adjustment

a) Loosen the bolt and remove the caster.
b) Either change caster size and/or position

caster upward or downward in predrilled

holes (1 inch apart) on caster fork.

c) Replace bolt and tighten securely.
d) Repeat with other caster.

I. CASTER PLATES

1. Angle Adjustment

a) Loosen the two eccentric bolts that

secure the caster assembly. Do not

remove the clevis pin.

b) Place a large right triangle against the

table surface and the front surface of

the caster bearing housing.This will

align the caster stem rotational axis

perpendicular to the floor surface.

c) When alignment is satisfactory,

retighten the two eccentric bolts.

d) Repeat the process for the other caster.

J. CASTER MOUNTING

1. Forward or Rearward Placement

a) Remove caster housing cover.
b) Remove the two eccentric bolts from

each caster.

c) Move left-side caster to right-side.
d) Move right-side caster to left-side.
e) Remount casters to caster bracket.
f) Tighten the eccentric bolts.
g) Replace caster housing cover.

3.Toe-In and Toe-Out

Toe-in and Toe-out terms are terms that
relate to how well the rear wheels of the
chair are aligned.This will affect how well
the chair will roll. Drag or resistance
occurs in a wheelchair when the rear
wheels are not properly aligned.
Toe-in can be slightly adjusted for setting
the axle adjustment bracket to be parallel
with the ground.To make this adjustment:

a) Remove side plate.
b) Turn eccentric bolt until axle adjustment

bracket is exactly parallel to the ground.
c) Reinstall side plate.
d) The axle should protrude equal

amounts on both sides of the chair.

4. Wheelbase Width Adjustment

Adjusting the wheelbase width allows the
rider the option to move the wheels closer
or further away from the hips. It also
compensates for camber adjustment
and gives the proper wheel spacing to
maximize pushing efficiency.

Adjust the wheelbase by:

a) Loosening the nut and repositioning

the axle sleeve by screwing in or out

of camber tube.
b) Retighten nuts.
c) Repeat on other side of chair.
d) The axle should protrude equal

amounts on both sides of the chair.

5. Seat Height Adjustment (angle)

The benefit of the seat height adjustment
is that it allows the rider to adjust the
seat height for environment, body and
mechanical efficiency. There may be times
when it is advantageous to have an angled
seat such as when playing basketball or
tennis.Whenever the set angle changes,
the front caster stem must be realigned
to a 90º angle.

Seat height can be adjusted by:

a) Adding a 3/4" or 1 1/2" spacer.

Spacers are available from your

authorized supplier.
b) This adjustment should only be made

by an authorized supplier.

X. SET UP & ADJUSTMENT

34

35

930354 Rev. B

930354 Rev. B

M. ANTI-TIP TUBES (OPTIONAL)

Quickie Designs recommends anti-tip

tubes for all wheelchairs.

Use a torque setting of 100 in.-lbs. when

setting up the anti-tip tubes.

1. Inserting Anti-Tip Tubes Into Receiver

a) Press the rear anti-tip release lever on

the anti-tip tube so that both release

pins are drawn inside.
b) Insert into the anti-tip tube receiver.
c) Turn the anti-tip tube down until

release pin is through the receiver

mounting hole.
d) Insert second anti-tip tube the same way.

2. Adjusting Anti-Tip Receiver

a) Remove anti-tip tubes from

anti-tip receivers.
b) Remove button head bolt from

anti-tip tube receiver.
c) Reposition bracket to desired height.
d) Reinsert button-head bolt and tighten.
e) Repeat with second anti-tip tube

receiver. Both brackets should be at

exactly the same height.
f) Press the rear anti-tip release lever on

the anti-tip tube, so that both release

pins are drawn inside.
g) Insert it into the anti-tip tube receiver.
h) Turn the anti-tip tube down until

release pin is through the receiver

mounting hole.
i) Insert second anti-tip tube the same way.

3. Adjusting Anti-Tip Tube Wheel

The anti-tip tube wheels may have to

be raised or lowered to achieve proper
clearance 1 1/2" to 2".
a) Press the anti-tip wheel release

button so that both release pins

are drawn inside.
b) Raise or lower to one of the three

predrilled holes.
c) Release button.
d) Adjust the second anti-tip tube wheel

the same way. Both wheels should be

at exactly the same height.

X. SET UP & ADJUSTMENT

X. SET UP & ADJUSTMENT

2. Inside or Outside Placement

a) Remove caster housing casters.
b) Remove the two eccentric bolts from

each caster.
c) Move left-side caster to right side.
d) Move right-side caster to left side.
e) Remount casters to caster bracket.
f) Tighten the eccentric bolts.
g) Replace caster housing covers.

K. FOOTREST

Use a torque of 100 in.-lbs. when
adjusting footplate.

1. Height Adjustment

a) Remove bolts on both sides of

footrest and loosen footplate.
b) Remove footrest tubes and slide plug

up or down inside tube to correct

position.
c) The end of the plug is tapped so a

3" - 1/4"x20 bolt (included with chair)

may be used to help position the plug

at the correct hole.
d) Align predrilled holes in footrest and

reinsert bolts.Tighten.

2. Footplate Angle Adjustment

a) Loosen flathead screws.
b) Reposition footplate to desired angle

and retighten screws.

L. WHEEL LOCKS

Quickie Revolution wheelchairs are
shipped with one of two types of high­mount wheel locks.Wheel locks are
installed at the factory unless you have
requested otherwise.
Use a torque setting of 100 in.-lbs. when
setting up wheel locks.

1. High-Mount Scissor Wheel Locks:

a) Loosen the screws on the top of

each clamp.
b) Slide assembly toward rear wheel until

clamp embeds into tire to prevent wheel

movement, when in locked position.
c) Adjust angle position.
d) Tighten screws.

36

37

930354 Rev. B

930354 Rev. B

O. ADJUSTING LOCK-OUT TENSION

Over a long period of use of a folding
wheelchair, there will be a certain amount
of wear in the folding mechanism. Use the
following method of adjusting the front­frame hinge to improve long-term rigidity
in the frame.

a) Adjust hinges by tightening the

hinge bolts.

b) Make sure the adjustment is made

evenly in both sides of the frame.
Eventually an adjustment may need to be
made to the front frame hinge stop.

a) Remove the front hinge bolt.
b) Remove the knee cap.
c) Remove the adjustment screw.
d) Add a #10 lock washer.
e) Reinstall adjustment screw.
f) Reassemble the front hinge bolt and

knee cap.

g) Repeat process on other side of chair.
h) Test the folding of the chair.
i) Washers can be added or subtracted

to adjust the tightness of the chair.

j) Make sure any adjustments are made

equally on both sides of the chair.

P. CHECK-OUT

After the wheelchair is assembled and
adjusted, it should roll smoothly and easily.
All accessories should also perform smoothly.
If you have any problems, follow these
procedures:

1) Review the set-up and check-out
section and operating guide to make
sure chair was properly prepared.

2) Review troubleshooting guide.

3) If your problem persists, contact
your authorized supplier.
If you still have a problem after
contacting your authorized supplier,
contact Sunrise customer service.
See the introduction page for details
on how to contact your authorized
supplier or Sunrise customer service.

X. SET UP & ADJUSTMENT

4.Turning Anti-Tip Tubes Up

Turn anti-tip tubes up when being pushed
by attendant, overcoming obstacles or
climbing curbs.

a) Press the rear anti-tip tube release lever.
b) Hold lever in and turn anti-tip tube up.
c) Release lever.
d) Repeat with second anti-tip tube.
e) Remember to return anti-tip tubes to

down position after completing
maneuver.

N. FOLDING AND UNFOLDING

1. Folding Chair

a) Remove wheels

i) Depress quick-release axle.
ii) Remove wheel by sliding out quick-

release axle from axle bracket.

iii) Repeat with other wheel.

b) Fold backrest

i) Locate backrest release cable.
ii) Pull release cable an push

backrest down.

c) Fold frame

i) Locate axle release cable.
ii) Set footrest on ground.
iii) Reach under the camber tube and

pull axle release cable.

iv) Allow chair to collapse upon itself

or lift chair and fold footrest up.
Important Note: DO NOT force chair
to fold. Let pins release BEFORE moving
backrest or axle.

2. Unfolding Chair

a) Push footrest out and away from frame.
b) Hold backrest tube with one hand and

push axle forward with the other hand.

c) Push axle until it rests against seat

frame and locking pins engage.
d) Push backrest up until locking pins engage.
e) Replace wheel by depressing the

quick-release button the the axle.
f) Slide it into the axle sleeve until it locks.
g) Repeat with other wheel.

Important Note: Cables may need to
be pulled to smoothly unfold chair.

X. SET UP & ADJUSTMENT

38

39

930354 Rev. B

930354 Rev. B

XII. MAINTENANCE

A. INTRODUCTION

1. Proper maintenance will improve performance and extend the useful life
of your chair.

2. Clean your chair regularly.This will help you find loose or worn parts
and make your chair easier to use.

3. Repair or replace loose, worn, bent or damaged parts before using
this chair.

4. To protect your investment, have all major maintenance and repair work
done by your authorized supplier.

If you fail to heed these warnings your chair may fail and cause severe
injury to the rider or others.

1. Inspect and maintain this chair strictly per chart.

2. If you detect a problem, make sure to service or repair the chair
before use.

3. At least once a year, have a complete inspection, safety check and
service of your chair made by an authorized supplier.

B. MAINTENANCE CHART

Tire inflation level

Wheel locks

All fasteners for wear and tightness

Armrests

Axle and axle sleeves

Wheels, tires and spokes

Casters

Anti-tip tubes

Frame

Upholstery

Service by Authorized Supplier

CHECK...

✓
✓

✓

✓
✓

✓
✓
✓

✓

✓

✓

Annually

6 Months

3 Months

Weekly

Quick-Release Axles

✓

You will need to adjust your chair from time to time for best performance
(especially if you alter the original settings).This chart gives you a first solution,
then a second and a third if needed.You may need to look farther to find the best
solution for a specific problem.

Note: To keep track of your progress, make only ONE change at a time.

Left Turn In Chair

Right Turn In Chair

Looseness In Chair

Sluggish Turning

Squeaks And Rattles

Caster Flutter

Add a spacer washer between the plastic saddle and the caster plate
on the top of the left caster plate.

Make sure tire pressure is correct and equal in both rear tires and
front caster tires, if pneumatic.

Make sure all nuts and bolts are snug.

Make sure all spokes and nipples are tight on radial spoke wheels.

Use Tri-Flow Lubricant (Teflon®-based) between all modular frame
connections and parts.

Check for proper caster plate adjustment. See instructions for
caster plate adjustment.

SYMPTOMS

SOLUTIONS

✓✓✓✓

✓✓✓✓✓

✓

✓✓✓
✓✓

✓

✓

Add a spacer washer between the plastic saddle and the caster plate
on the top of the right caster plate.

Add a spacer washer between the plastic saddle and the caster plate
on the bottom right caster plate retaining bolts.

Add a spacer washer between the plastic saddle and the caster plate
on the bottom right caster plate retaining bolts.

✓

Make sure there is an equal number of camber washers on each axle
plate.

Make sure both front casters touch the ground simultaneously. If
they do not, add the proper spacers between the bottom bearing of
the caster plate and fork stem nut until they do. Make sure you
check for this problem on a flat surface.

✓✓

✓

✓

✓

✓

✓

XI. TROUBLESHOOTING

40

41

930354 Rev. B

930354 Rev. B

XIII. SUNRISE LIMITED WARRANTY

A. FOR LIFETIME

Sunrise warrants the frame and quick-release axles of this wheelchair against
defects in materials and workmanship for the life of the original purchaser.
The expected life of this frame is five years.

B. FOR TWO (2) YEARS

We warrant all Sunrise-made parts and components of this wheelchair against
defects in materials and workmanship for two years from the date of first
consumer purchase.

C. LIMITATIONS

1. We do not warrant:

• Tires and tubes, upholstery, armrests and push-handle grips.

• Damage from neglect, misuse, or from improper installation or repair.

• Damage from exceeding weight limit of 250 pounds.

2. This warranty is VOID if the original chair serial number tag is removed
or altered.

3. This warranty applies in the USA only. Check with your supplier to find
out if international warranties apply.

D. WHAT WE WILL DO

1. Our sole liability is to repair or replace covered parts.This is the exclusive
remedy for consequential damages.

E. WHAT YOU MUST DO

1. Obtain from us, while this warranty is in effect, prior approval for return
or repair of covered parts.

2. Return the wheelchair or part(s), freight pre-paid, to Sunrise Mobility
Products Division at: 2842 Business Park Avenue, Fresno, CA 93727-1328.

3. Pay the cost of labor to repair, remove or install parts.

F. NOTICE TO CONSUMER

1. If allowed by law, this warranty is in place of any other warranty (written
or oral, express or implied, including a warranty of merchantability, or
fitness for a particular purpose).

2. This warranty gives you certain legal rights.You may also have other
rights that vary from state to state.

Record your serial number here for future reference:

___________________________________________

C. MAINTENANCE TIPS

1. Axles & Axle Sleeves:

Check axles and axle sleeves every six months to make sure they are tight.
Loose sleeves will damage the axle plate and will affect performance.

2. Tire Air Pressure:

Check air pressure in pneumatic tires at least ONCE A WEEK.The wheel
locks will not grip properly if you fail to maintain the air pressure shown on
tire sidewall.

D. CLEANING

1. Paint Finish

a. Clean the paint finish with mild soap at least once a month.
b. Protect the paint with a coat of non-abrasive auto wax every three months.

2. Axles and Moving Parts

a. Clean around axles and moving parts WEEKLY with a slightly damp

(not wet) cloth.
b. Wipe off or blow away any fluff, dust, or dirt on axles or moving parts.
c. Note: You do not need to grease or oil the chair.

3. Upholstery

a. Hand-wash (machine washing may damage fabric).
b. Drip-dry only. DO NOT machine dry as heat will damage fabric.

E. STORAGE TIPS

1. Store your chair in a clean, dry area. If you fail to do so, parts may rust

or corrode.

2. Before using your chair, make sure it is in proper working order. Inspect

and service all items on the “Maintenance Chart”. (See p. 39)

3. If stored for more than three months, have your chair inspected by an

authorized supplier before use.

XII. MAINTENANCE

42

43

930354 Rev. B

930354 Rev. B

NOTES

NOTES

Sunrise Home Healthcare Group

Mobility Products Division

7477 East Dry Creek Parkway • Longmont, Colorado • 80503 USA

[phone] • [phone]

In Canada [phone]

© 1998, Sunrise Medical 2.98

930354 Rev. B
