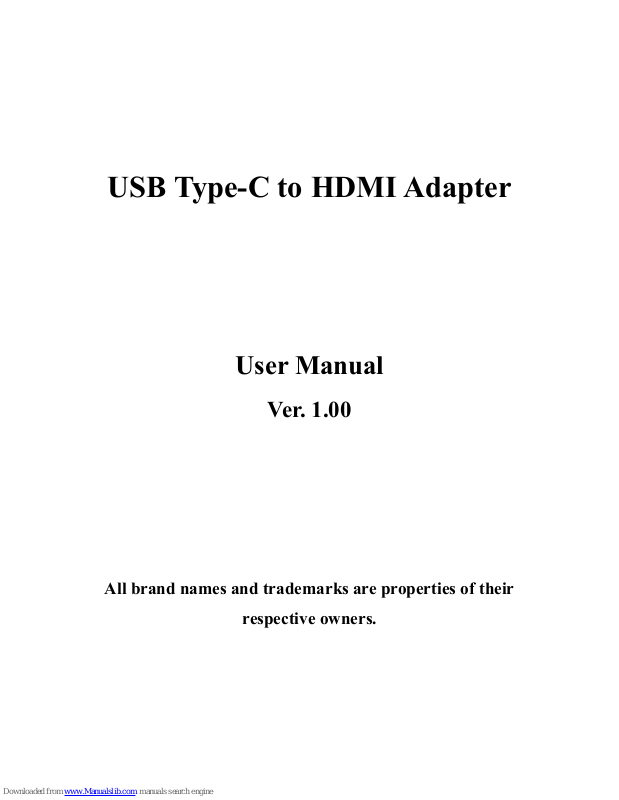

USB Type-C to HDMI Adapter
User Manual
Ver. 1.00
All brand names and trademarks are properties of their
respective owners.
Contents:
Chapter 1: Introduction ...................................................... 3
1.1 Product Introduction .................................................... 3
1.2 Features ........................................................................ 3
1.3 System Requirements .................................................. 4
1.4 Package Contents ......................................................... 4
Chapter 2: Getting Started ................................................. 4
2.1 Driver Installation ........................................................ 4
2.1.1 Installation for Windows ....................................... 4
2.1.2 Installation for Mac OS X ..................................... 6
Page 2
Chapter 1: Introduction
1.1 Product Introduction
This USB Type-C to HDMI Adapter lets you to connect your MacBook
with USB-C port to a HDMI Display. Simply connect the adapter to
the USB-C port on your MacBook and then to your TV or project via a
HDMI cable.
1.2 Features
Compliant with USB specification, revision 2.0
Supports suspend and wake-up modes
Functionality: primary, extended or mirror
Resolution: up to 1920 x 1080 @ 32-bit color
HDMI output
Cable port: USB Type-C / HDMI (19 pin)
Allows multiple connection in a single PC
Audio output through HDMI
Bus Powered – no external power supply needed
Page 3
1.3 System Requirements
Windows® 7/8 (32/64 bit); Mac OS X 10.6 or above
Available USB Type-C port
1.4 Package Contents
1 x US B Type-C to HDMI Adapter
1 x Driver CD
1 x User Manual
Chapter 2: Getting Started
2.1 Driver Installation
2.1.1 Installation for Windows
1. Insert the provided CD into your disk drive. The CD-ROM will
start automatically. The following screen will show up and please
click “Install Driver”.
Page 4
*Note: Actual image may vary
Note: If the install program doesn’t run automatically, please
locate and double-click on the Autorun.exe file in the CD to
launch the install program.
2. Please click “USB 2.0 to HDMI”.
*Note: Actual image may vary
3. Follow the instructions on screen to install the driver.
Page 5
2.1.2 Installation for Mac OS X
1. Insert the provided CD into your CD-ROM drive.
2. Double-click the “USB Graphics” disc icon, double-click
“Drivers” folder.
*Note: Actual image may vary
3. Double-click “USB 2.0/3.0 to HDMI Adapter” folder, and then
double click “Mountain Lion & Lion & Snow Leopard
Installer” file to launch the installer.
Page 6
*Note: Actual image may vary
4. Follow the instructions on screen to install the driver. After driver
installation is complete, you must restart your computer.
