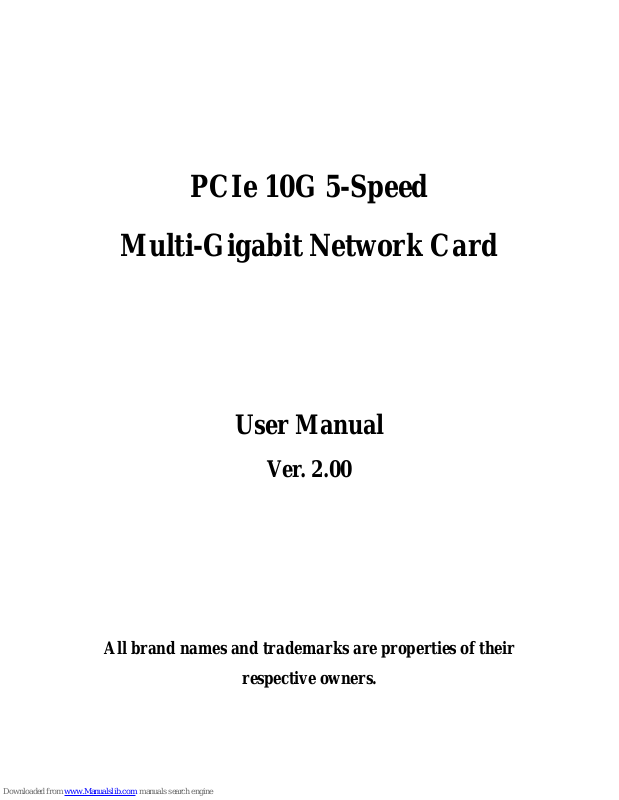

SUNRICH TECHNOLOGY N-480, PCIe 10G 5-Speed User Manual

PCIe 10G 5-Speed

Multi-Gigabit Network Card

User Manual

Ver. 2.00

All brand names and trademarks are properties of their

respective owners.

MN7000000097 Page 2

Contents:

Chapter 1: Introduction ...................................................... 3

1.1 Product Introduction .................................................... 3

1.2 Features ........................................................................ 4

1.3 Requirements ............................................................... 4

1.4 Package Contents ......................................................... 5

Chapter 2: Getting Started ................................................. 6

2.1 Hardware Layout ......................................................... 6

2.2 Hardware Installation .................................................. 7

2.3 Driver Installation ........................................................ 7

2.3.1 Installation for Windows ....................................... 8

2.3.2 Installation for Linux ............................................ 9

2.4 Verifying the installation ............................................ 10

2.4.1 Verifying for Windows........................................ 10

2.4.2 Verifying for Linux ............................................. 11

MN7000000097 Page 3

Chapter 1: Introduction

1.1 Product Introduction

This card is a Multi-Gigabit network adapter that’s runs on a high
speed PCIe x4 host bus interface.
This card hosts the Tehuti’s new 3rd generation TN4010 controller, and
optimized 10 Gigabit Ethernet MAC designed for low-power, low-cost,
single-port connectivity required by Application Servers and
Workstations. The TN4010 MAC is paired with Marvell® Alaska®
88X3310P transceiver, a low-power, high-performance 10 Gigabit
Ethernet PHY, to enable five-speed connectivity (10GBase-T,
5GBase-T 2.5GBase-T 1000Base-T, and 100Base-TX) over low-cost
standard CAT-6a Ethernet cabling, up to 100m (Cat-5e and CAT-6 are
supported compliant to Link Segment specifications). This
combination creates a new gateway to cost-conscious consumer
applications, as well as to intensive data environments.

MN7000000097 Page 4

1.2 Features

 Support 5-Speed 10Gb/5Gb/2.5Gb/1Gb/100Mb auto negotiation
 Runs up to 10G at 100m Cat 6A cable and 5G at 100m Cat

5e/Cat 6 cable

 Backward compatibility with 1000Base-T, 100Base-T Networks
 PCI Express Gen-2 x4 host bus interface
 EEE (Energy Efficient Ethernet)
 9K Jumbo Frames
 IP, TCP, UDP checksum offloading
 IEEE 802.1Q VLAN
 Virtual NIC support
 Reduced CPU utilization and improved throughput

1.3 Requirements

Hardware
The following system specs are recommended minimum

 PCIe slot: Available 4-Lanes PCI-Express slot gen 2.0 or later
 Processor: Quad Core 3.0GHz or higher
 RAM: 4GB memory or higher
