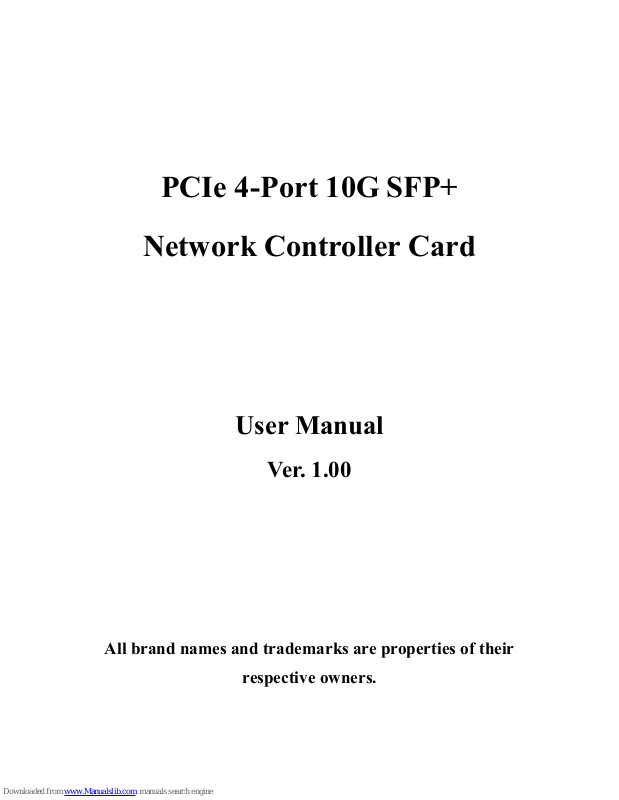

PCIe 4-Port 10G SFP+
Network Controller Card
User Manual
Ver. 1.00
All brand names and trademarks are properties of their
respective owners.
Contents:
Chapter 1: Introduction ...................................................... 3
1.1 Product Introduction .................................................... 3
1.2 Features ........................................................................ 3
1.3 Requirements ............................................................... 4
1.4 Package Contents ......................................................... 5
Chapter 2: Getting Started ................................................. 5
2.1 Hardware Installation .................................................. 5
2.2 Driver Installation ........................................................ 5
2.2.1 Installation for Windows ....................................... 6
Page 2
Chapter 1: Introduction
1.1 Product Introduction
This PCIe 10G SPF+ Network Card is a cost-effective solution that
delivers fast and reliable 10 Gbps network access at longer distances
than copper-based networks. Using the SPP+ transceiver of your
choice, you can connect your PCI Express-based server or workstation
directly to your 10G fiber optic network.
1.2 Features
Quad port full height 10GbE adapter
Supports common 10GbE SFP+ optical and Direct Attached
Copper modules
EEE (Energy Efficient Ethernet)
Up to 9K Jumbo Frames
IP, TCP and UPD checksum offloading (IPv4, IPv6) capabilities
Designed to meet PCI Express Specification Revision 3.0
Eight lane (x8) PCI Express compatible with x8 and x16 PCI
Express slots
Page 3
IEEE 802.1Q Tagged VLAN
Intel PROSet Utility for Microsoft Device Manager
1.3 Requirements
Hardware
The following system specs are recommended minimum
PCIe slot: Available 8-Lanes PCI-Express slot gen 2.0 or later
Processor: Quad Core 3.0GHz or higher
RAM: 4GB memory or higher
Software
Operating systems supported (64 bits only)
Windows 7
Windows Server 2008 R2
Windows Server 2012
Windows 8.1
Windows Server 2012 R2
Windows 10
Linux 3.16 or later
Page 4
1.4 Package Contents
1 x PCIe 10G SFP+ Network Card
1 x Driver CD
1 x User Manual
Chapter 2: Getting Started
2.1 Hardware Installation
1. Turn off the power to your computer.
2. Unplug the power cord and remove your computer’s cover.
3. Remove the slot bracket from an available PCIe slot.
4. To install the card, carefully align the card’s bus connector with
the selected PCIe slot on the motherboard. Push the board down
fi r mly.
5. Replace the slot bracket’s holding screw to secure the card.
6. Secure the computer cover and reconnect the power cord.
2.2 Driver Installation
The following section shows you how to install PCIe 10G SFP+
Network Card driver on different operating systems.
Page 5
2.2.1 Installation for Windows
Insert the provided CD into your disk drive. The CD-ROM
will start automatically. The following screen will show up and
please click “Install Driver”.
*Note: Actual image may vary
Note: If the install program doesn’t run automatically, please
locate and double-click on the Autorun.exe file in the CD to
launch the install program.
Please click “PCIe 10G” to start the installation.
Page 6
*Note: Actual image may vary
Follow the instructions on screen to install the driver.
