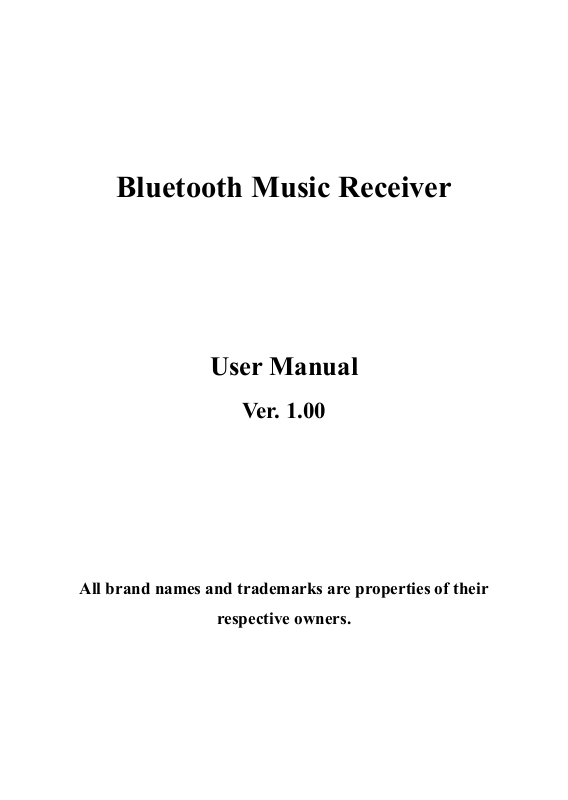

Ver. 1.00
Bluetooth Music Receiver
User Manual
All brand names and trademarks are properties of their
respective owners.
Contents:
Chapter 1: Introduction ...................................................... 3
1.1 Product Introduction .................................................... 3
1.2 Features ........................................................................ 3
1.3 Package Contents ......................................................... 3
1.4 Hardware Description .................................................. 4
Chapter 2: Getting Started ................................................. 7
2.1 Setting up the Bluetooth Music Receiver .................... 7
2.2 Pairing the Bluetooth Music Receiver ......................... 7
2.3 Changing Connected Device ....................................... 8
MN4000000070 Page 2
Chapter 1: Introduction
Pod touch, or other device enabled with
1.1 Product Introduction
This Bluetooth Music Receiver can be connected to your stereo
receiver or Hi-Fi. You can play music wirelessly from your Bluetooth
audio player or Bluetooth enabled mobile phone.
1.2 Features
Play your iPhone, i
Bluetooth technology wireless through your home stereo
Control you music directly from your Bluetooth audio player or
Bluetooth enabled mobile phone
1.3 Package Contents
1 x Bluetooth Music Receiver
1 x User Manual
1 x 3.5 mm stereo audio cable
1 x USB Power Cable
1 x Power Adapter (optional)
MN4000000070 Page 3
Note: Contents may vary depending on country/market.
1.4 Hardware Description
1. Power/Function button:
-Power On: Press button
-Power Off: Press and hold the button for approximately 6-7
seconds.
-Enter pairing mode: Press and hold the button for
MN4000000070 Page 4
approximately 3 seconds to clear pairing list
2. Headphone: Connect a stereo receiver.
3. DC Input: Connect a power adapter.
4. Battery compartment door: Install 1 x AAA battery
5. Volume Up: Increase audio output volume
6. Volume Down: Decrease audio output volume\
MN4000000070 Page 5
7. LED: To show the receiver status
Power On
Press “Power/Function”
Green LED is on
seconds
Function Operation LED Indicator
button
Power Off Press and hold
“Power/Function” button
for 1 second
Green LED is on
for 1 second
for approximately 6-7
seconds
Clearing
pairing list
Press and hold
“Power/Function” &
“Volume Up" button for
Green LED will
flash twice every
2 seconds
approximately 3 seconds
Enter
Pairing
mode
Press and hold
“Power/Function” button
for approximately 3
Amber LED will
keep flash
MN4000000070 Page 6
Chapter 2: Getting Started
2.1 Setting up the Bluetooth Music Receiver
1. Connect one 3.5mm end of the included audio cable to the
headphone jack of the Bluetooth Music Receiver.
2. Connect the other end to an audio input on your home stereo
system.
3. Connect the AC power adapter cable to the Bluetooth Music
Receiver’s DC input jack, and plug the AC power adapter into a
wall power outlet. (Or you can push and slide out the battery
compartment door and then install 1 x AAA battery)
4. Press power button to power on the Bluetooth Music Receiver.
The green LED light will flash one to indicate the unit is powered
and it now ready to be paired to your Bluetooth device.
2.2 Pairing the Bluetooth Music Receiver
Before pairing, please make sure your Bluetooth stereo receiver
MN4000000070 Page 7
supports Bluetooth A2DP profile. After the Bluetooth Music Receiver
has connected to your stereo receiver, you may enjoy your music
wirelessly.
To pair, please follow the instructions below:
1. Press and hold the power button of the Bluetooth Music Receiver
for approximately 2-3 seconds and do not release it until the
amber LED flash. At this time, the Bluetooth Music Receiver has
entered pairing mode.
2. Go to the Bluetooth Manager of your Bluetooth device and then
search Bluetooth device.
3. Enter “0000” when the player asks for the PIN code. This will
allow the Bluetooth device to pair with the Bluetooth Music
Receiver.
4. Once paired, the blue LED light on the Bluetooth Music Receiver
will flash once and it now ready to be paired to your Bluetooth
device.
2.3 Changing Connected Device
If you want to switch from one device to another, follow these steps:
MN4000000070 Page 8
1. End the existing Bluetooth connection with the connected device.
Access the Bluetooth Manager and disable the Bluetooth function
of the Bluetooth device.
2. The Bluetooth Music Receiver can now be connected to a
different Bluetooth device.
3. Follow the directions in “Paring the Bluetooth Music Receiver” to
connect a different device.
MN4000000070 Page 9
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including
interference that may cause undesired operation.
Note: This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to Part 15 of the FCC
Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and,
if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined
by turning the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following measures:
MN4000000070 Page 10
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
Warning: Changes or modifications to this unit not expressly
approved by the part responsible for compliance could void the user’s
authority to operate the equipment.
