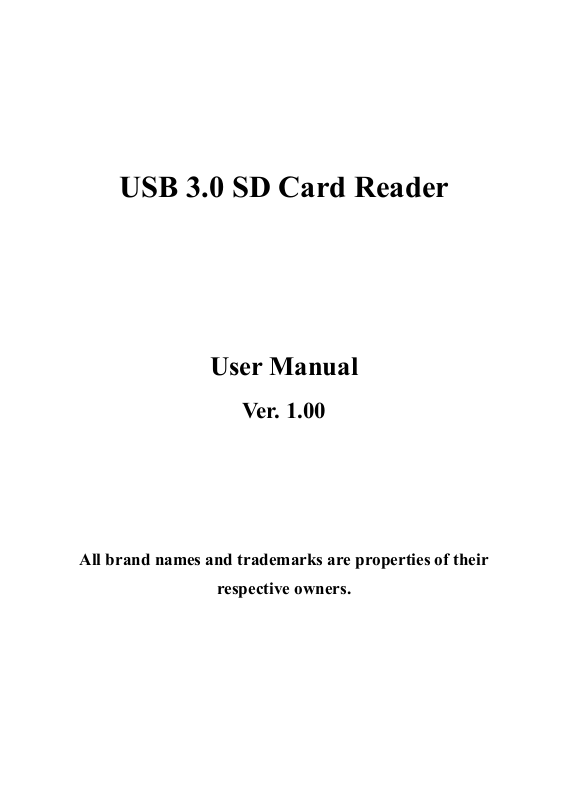

USB 3.0 SD Card Reader
Ver. 1.00
User Manual
All brand names and trademarks are properties of their
respective owners.
Contents:
Chapter 1: Introduction ............................. 3
1.1 Product Introduction .................................................... 3
1.2 Features ........................................................................ 3
1.3 System Requirements .................................................. 4
1.4 Package Contents ......................................................... 5
1.5 Hardware Layout ......................................................... 5
Chapter 2: Getting Started ......................... 7
2.1 Hardware Installation .................................................. 7
MN3000000092 Page 2
Chapter 1: Introduction
1.1 Product Introduction
The USB 3.0 SD Memory Card Reader/Writer combines style with
functionality. Easily backup, transfer, copy files from your Micro SD,
SD, MiniSD, SDHC, MiniSDHC, SDXC, MicroSD, MicroSDHC,
MicroSDXC memory cards to your computer. Integrated with the latest
USB 3.0 technology, performance is increased by 10 fold offering
maximum speeds of up to 5 Gbps. No drivers are required which
makes it practically a simple plug & play device that enables you to
read and write your memory card with ease.
1.2 Features
USB 3.0 SuperSpeed data transfer rate up to 5Gbps
Dedicated slots for SD and MicroSD
Supports one logical drive of either SD or MicroSD at a time
Support Secure Ditigal™ v1.0/v1.1/v2.0/SDHC/SDXC (capacity
up to 2TB)
MN3000000092 Page 3
Support Secure Digital™ v3.0 UHS-I (Ultra High Speed)
SDR12/SDR25/SDR50/DDR50/SDR104
Compact design for easy mobility
USB Powered – No external power adapter required
Card Supported:
SD
MiniSD (Card adapter is needed)
SDHC
MiniSDHC (Card adapter is needed)
SDXC
MicroSD
MicroSDHC
MicroSDXC
LED activity light lets you know when transfer is complete
1.3 System Requirements
Windows® XP/Vista/7/8 (32/64 bit); Mac OS 10.x or higher
Available USB port (USB 3.0 recommended)
MN3000000092 Page 4
1.4 Package Contents
1 x USB 3.0 SD Card Reader
1 x User Manual
1.5 Hardware Layout
MN3000000092 Page 5
LED Activity Light
The reader’s LED activity light was specifically designed to safeguard
the files stored on your memory card, prevent interrupted file transfers,
and reduce the risk of data loss or card damage. The light acts as a
status indicator to help ensure proper use of the reader.
LED Indicators:
• LED off:
The reader is plugged into the computer but does not have a card
inserted.
• LED on:
The reader is plugged into the computer and has recognized that a
memory card has been inserted. This also means that no data is being
transferred.
• LED blinks twice on initial card insertion:
The reader has detected the memory card.
• LED blinks continuously:
The reader is transferring data between the memory card and computer.
Once it stops blinking, the data transfer is complete.
MN3000000092 Page 6
Chapter 2: Getting Started
2.1 Hardware Installation
To connect the reader to your computer
1. Connect the reader’s USB end into an available USB port
(Recommend USB 3.0 port) on your computer.
Important: Do not insert or remove any cards when the USB 3.0 SD
Card Reader was plugged into USB port of PC.
To open the reader
1. Hold the reader in the palm of your hand with the reader facing
forward, slide the cover.
MN3000000092 Page 7
To Insert Cards:
• To insert MicroSD Memory Card:
Gently insert a MicroSD memory card, with the label side facing
up, into the MicroSD card slot.
• To insert SD Memory Card:
Gently insert a SD memory card, gold contact up, into the SD
card slot.
MN3000000092 Page 8
To Remove Cards:
• After the LED activity light stops blinking, disconnect the reader
from the USB port. Now it is safe to remove the card. Gently
press in on the memory card until it is partially ejected then
carefully remove it from the memory card slot
Note:
This USB 3.0 SD Card Reader does support one logical drive only. If
SD and MicroSD were installed at the same time, the SD card takes
higher priority and will be accessed.
MN3000000092 Page 9
