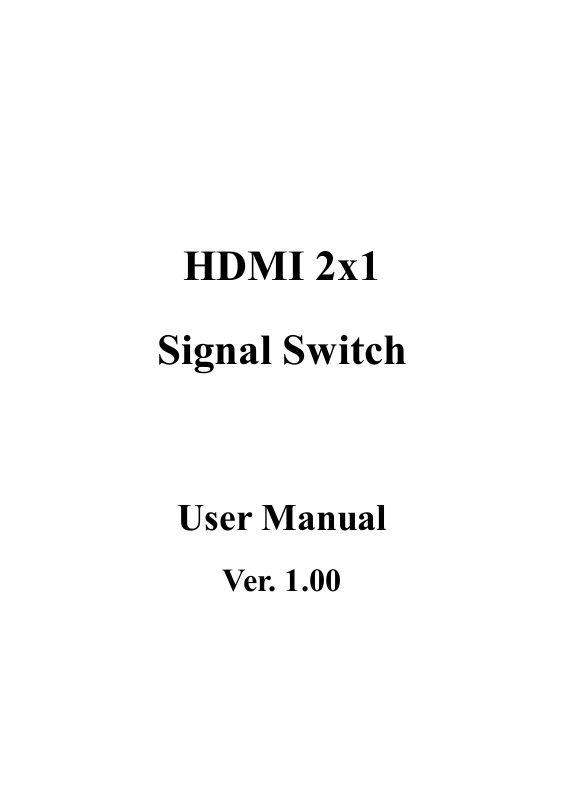

Ver. 1.00
HDMI 2x1
Signal Switch
User Manual
Contents:
Chapter 1: Introduction .................... 3
1.1 Product Introduction .................. 3
1.2 Features ..................................... 3
1.3 System Requirements ................ 4
1.4 Package Contents ...................... 5
Chapter 2: Getting Started ............... 5
2.1 Hardware Layout ....................... 6
2.2 Hardware Installation ................ 8
2.3 Installation Diagram .................. 9
MNA000100003 2
Chapter 1: Introduction
1.1 Product Introduction
With two HDMI A/V input ports, the HDMI
2x1 Signal Switch that allows you to connect
two HDMI devices (such as an HD camcorder
or satellite box, HD-DVD player, Blu-ray
player) to your HDMI monitor, display,
project or TV at the same time.
1.2 Features
Two HDMI input devices (source) share
one output device (sink)
MNA000100003 3
Allows you to switch HDTV between
receiver with an
two HDMI sources
Supports resolution up to 1080p
Support 3D
Passes both video and audio signals
No power required
1.3 System Requirements
Source Device(s)
HDMI Type A output connector(s)
Display Device
A display device or
HDMI Type A input connector
MNA000100003 4
1.4 Package Contents
1 x HDMI 2x1 Signal Switch
1 x User Manual
Chapter 2: Getting Started
MNA000100003 5
2.1 Hardware Layout
Figure 1: HDMI 2x1 Signal Switch
MNA000100003 6
No. Component Description
The cables from the
plug into any of two
1 Port Selection
Pushbuttons
Pressing a Port Selection
Pushbutton routes the
A/V source from the
corresponding input port
to the output port for
display
2 HDMI In
HDMI source device can
available ports
3 HDMI Out The cable from the
MNA000100003 7
HDMI display device
plugs in here
2.2 Hardware Installation
Installation of the HDMI 2x1 Signal Switch is
simply a matter of plugging the appropriate
cables.
To install the switch, refer to the installation
diagram on page 10 as you perform the
following two steps:
1. Use an HDMI cable to connect the
HDMI input port on the video display
MNA000100003 8
device to the HDMI output of the HDMI
2x1 Switch.
2. Use HDMI cables to connect the HDMI
output ports on the source device(s) to
the HDMI input port on the HDMI 2x1
Signal Switch.
2.3 Installation Diagram
MNA000100003 9
MNA000100003 10
