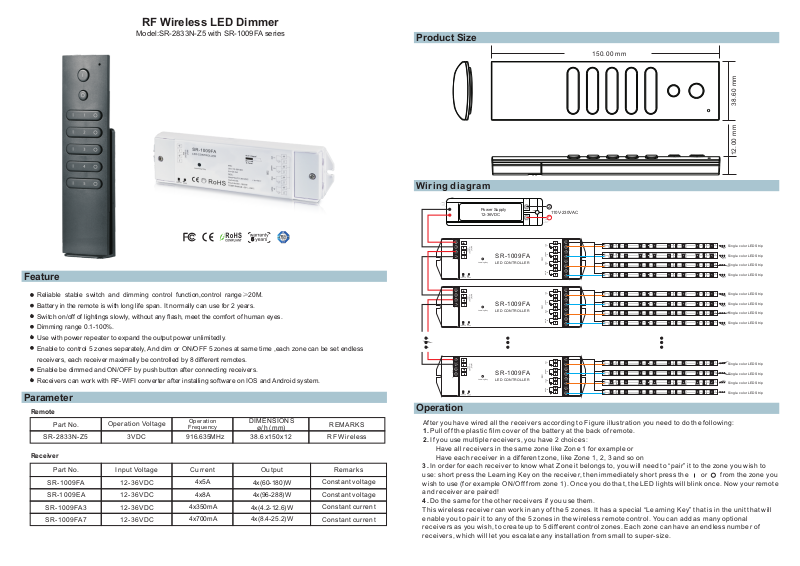

RF Wireless LED Dimmer
Model:SR-2833N-Z5 with SR-1009FA series
Product Size
150.00 mm
38.60 mm
12.00 mm
Wiring diagram
5
Feature
Reliable stable switch and dimming control function,control range≥20M.
Battery in the remote is with long life span. It normally can use for 2 years.
Switch on/off of lightings slowly, without any flash, meet the comfort of human eyes.
Dimming range 0.1-100%.
Use with power repeater to expand the output power unlimitedly.
Enable to control 5 zones separately, And dim or ON/OFF 5 zones at same time ,each zone can be set endless
receivers, each receiver maximally be controlled by 8 different remotes.
Enable be dimmed and ON/OFF by push button after connecting receivers.
Receivers can work with RF-WIFI converter after installing software on IOS and Android system.
Parameter
Remote
Part No.
Operation Voltage
SR-2833N-Z5 3VDC
Receiver
Part No.
Input Voltage
SR-1009FA 12-36VDC
SR-1009EA 12-36VDC
SR-1009FA3 12-36VDC
SR-1009FA7 12- 36 VD C
Ope ra ti on
Fre qu en cy
916.635MHz
Current
4x5A
4x350mA
DIMENSIONS
ø/h (mm)
38.6x150x12
Output
4x(60-180)W
4x(96-288)W4x8A
4x(4.2-12.6)W
4x(8.4-25.2)W4x700mA
REMARKS
RF Wireless
Const an t volta ge
Const an t volta ge
Const an t curre nt
Const an t curre nt
Remarks
Power Supply
12-36VDC
Learning K ey
Learning K ey
Learning K ey
SR-10 09 FA
LED CO NTROL LER
SR-10 09 FA
LED CO NTROL LER
SR-10 09 FA
LED CO NTROL LER
110V-230VAC
LN
1234
white
1234
white
1234
white
Sing le colo r LED Str ip
Sing le colo r LED Str ip
Sing le colo r LED Str ip
Sing le colo r LED Str ip
Sing le colo r LED Str ip
Sing le colo r LED Str ip
Sing le colo r LED Str ip
Sing le colo r LED Str ip
Sing le colo r LED Str ip
Sing le colo r LED Str ip
Sing le colo r LED Str ip
Sing le colo r LED Str ip
Operation
After you have wired all the receivers according to Figure illustration you need to do the following:
1. Pull off t he p la st ic f il m co ve r of t he b at te ry a t th e ba ck o f re mo te .
2. If you use multiple receivers, you have 2 choices:
Have all receivers in the same zone like Zone 1 for example or
Have each receiver in a diffe re nt z on e, l ik e Zo ne 1 , 2, 3 a nd s o on
3. In order for each receiver to know what Zone it belongs to, you will need to “pair” it to the zone you wish to
use: short press the Learning Key on the receiver, then immediately short press the or from the zone you
wish to use (for example ON/Off f ro m zo ne 1 ). O nc e yo u do t ha t, t he L ED l ig ht s wi ll b li nk o nc e. N ow y ou r re mo te
and receiver are paired!
4. Do the same for the other receivers if you use them.
This wireless receiver can work in any of the 5 zones. It has a special “Learning Key” that is in the unit that will
enable you to pair it to any of the 5 zones in the wireless remote control. You can add as many optional
receivers as you wish, to create up to 5 diff er en t co nt ro l zo ne s. E ac h zo ne c an h av e an e nd le ss n um be r of
receivers, which will let you escalate any installation from small to super-size.
Brief introduc tion of but tons
All lights :on/up
All lights :off /d ow n
Zone 1 :off /d ow nZone 1 :on/up
Zone 2 :off /d ow nZone 2 :on/up
Zone 3 :off /d ow nZone 3 :on/up
Zone 4 :off /d ow nZone 4 :on/up
Zone 5 :off /d ow nZone 5 :on/up
Warranty Agreement
1) We provide lifelong technical assistance with this product:
5-year warranty. We print date on every products, for example :1125 means year 2011,week 25.The
warranty is for free repair or replacement and covers manufacturing faults only.
For faults beyond the 5-year warranty we reserve the right to charge for time and parts.
2) Limited Warrenty
Any defects caused by wrong operation.
Any damages caused by unauthorized removal, maintenance, modifying, incorrect connection and
replacement of chips.
Any damages due to transportation, vibration etc. after purchase.
Any damages caused by earthquake, fire, lightning, pollution and abnormal voltage.
Any damages caused by negligence, inappropriate storing at high temperatures and humidity or near
harmful chemicals.
Product has been updated
3) Repair or replacement as provided under this warranty is the exclusive remedy to the customer.
Safety & Warnings
1) The product shall be installed and serviced by a qualified person.
2) IP20.Please avoid the sun and rain. When installed outdoors, please ensure it is mounted in a water proof
enclosure.
3) Always be sure to mount this unit in an area with proper ventilation to avoid overheating.
4) Please check if the output voltage of any LED power supplies used comply with the working voltage of the
product.
5) Never connect any cables while power is on and always assure correct connections to avoid short circuits
before switching on.
6)
Please ensure that the cable is secured tightly in the connector
7) For update information please consult your supplier.
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Caution: Any changes or modifications to this device not explicitly approved by
manufacturer could void your authority to operate this equipment.
This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may
cause undesired operation.
