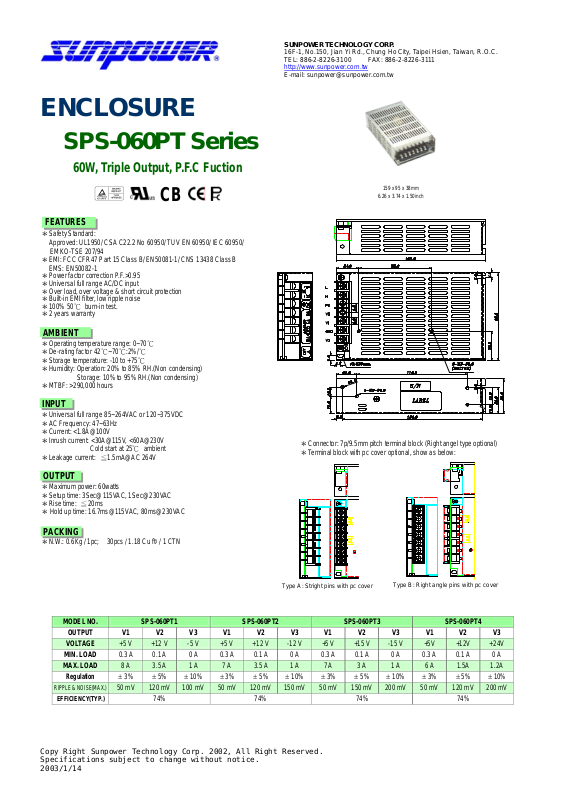

SunPower Technologies SPS-060PT Series Specification

ENCLOSURE
SPS-060PT Series
SUNPOWER TECHNOLOGY CORP.
16F-1, No.150, Jian Yi Rd., Chung Ho City, Taipei Hsien, T aiw an, R.O.C. TEL: 886-2-8226-3100 FAX: 886-2-8226-3111
http://www.sunpower.com.tw
E-mail: sunpower@sunpower.com.tw
60W, Triple Output, P.F.C Fuction
CB
FEATURES
Safety Standard: Approved: UL1950/ CSA C22.2 No 60950/ TUV EN 60950/ IEC 60950/
EMKO-TSE 207/94 EMI: FCC CFR47 Part 15 Class B/ EN50081-1/ CNS 13438 Class B EMS: EN50082-1
Power factor correction P.F .>0.95 Universal full range AC/DC input Over load, over voltage & short circuit protection Built-in EMI filter, low ripple noise 100% 50 burn-in test. 2 years warranty
AMBIENT
*Operating temperature range: 0~70℃ *De-rating factor 42℃~70℃:2%/℃ *Storage temperature: -10 to +75℃ *Humidity: Operation: 20% to 85% RH.(Non condensing)
MTBF: >290,000 hours
INPUT
Universal full range 85~264VAC or 120~375VDC AC Frequency: 47~63Hz Current: <1.8A@100V Inrush current: <30A@115V, <60A@230V Cold start at 25 ambient Leakage current: 1.5mA@AC 264V
OUTPUT
Maximum power: 60watts Setup time: 3Sec@115VAC, 1Sec@230VAC Rise time: 20ms Hold up time: 16.7ms@115VAC, 80ms@230VAC
PACKING
N.W.: 0.6Kg / 1pc; 30pcs / 1.18 Cu ft
Storage: 10% to 95% RH.(Non condensing)
3
/ 1 CTN
159 x 95 x 38mm
6.26 x 3.74 x 1.50inch
Connector: 7p/9.5mm pitch terminal block (Right angel type optional) Terminal block with pc cover optional, show as below:
Type A: Stright pins with pc cover
MODEL NO. SPS-060PT1 SPS-060PT2 SPS-060PT3 SPS-060PT4
OUTPUT V1 V2 V3 V1 V2 V3 V1 V2 V3 V1 V2 V3
VOLTAGE +5 V +12 V -5 V +5 V +12 V -12 V +5 V +15 V -15 V +5V +12V +24V
MIN. LOAD 0.3 A 0.1 A 0 A 0.3 A 0.1 A 0 A 0.3 A 0.1 A 0 A 0.3 A 0.1 A 0 A
MAX. LOAD 8 A 3.5 A 1 A 7 A 3.5 A 1 A 7 A 3 A 1 A 6 A 1.5A 1.2A
Regulation
RIPPLE & NOISE(MAX.)
EFFICIENCY(TYP.) 74% 74% 74% 74%
± 3% ± 5% ± 10% ± 3% ± 5% ± 10% ± 3% ± 5% ± 10% ± 3% ± 5% ± 10%
50 mV 120 mV 100 mV 50 mV 120 mV 150 mV 50 mV 150 mV 200 mV 50 mV 120 mV 200 mV
Type B: Right angle pins with pc cover
Copy Right Sunpower Technology Corp. 2002, All Right Reserved. Specifications subject to change without notice. 2003/1/14
SUNPOWER TECHNOLOGY CORP.
16F-1, No.150, Jian Yi Rd., Chung Ho City, Taipei Hsien, T aiw an, R.O.C. TEL: 886-2-8226-3100 FAX: 886-2-8226-3111
http://www.sunpower.com.tw
E-mail: sunpower@sunpower.com.tw
Copy Right Sunpower Technology Corp. 2002, All Right Reserved. Specifications subject to change without notice. 2003/1/14
SUNPOWER TECHNOLOGY CORP.
SPECIFICATIONS OF SWITCHING POWER SUPPLY
RS020400
MODEL NO.:
SPS-060PT1 REV.: 1.2 SPS-060PT2 SPS-060PT3 SPS-060PT4
(UL/cUL/TUV APPROVED)
STAMP APPROVED CHECK PREPARE
\QR0405 REV.:1.3
MODEL NO.: SPS-060PT SER. REV.:1.2 UL/cUL/TUV APPROVED RS020400
1. AC INPUT:
1-1.VOLTAGE:
AC: 85V (MIN.) - - - 264V (MAX.) DC: 120V (MIN.) - - - 375V (MAX.)
UNIVERSAL FULL RANGE. 1-2. FREQUENCY: 47--------63Hz. 1-3. CURRENT:
1.8A MAX. AT 100V AC INPUT, FULL LOAD CONDITION.
1-4. INRUSH CURRENT: 30A MAX. AT 115V AC INPUT, FULL LOAD CONDITION. 60A MAX. AT 230V AC INPUT, FULL LOAD CONDITION.
* COLD START, AT 25℃AMBIENT. 1-5. LEAKAGE CURRENT:
1.5mA MAX. AT 264V AC INPUT.
1-6 POWER FACTOR CORRECTION CIRCUIT. MEET IEC 1000-3-2 CLASS A STANDARD.
2. DC OUTPUT:
MODEL NO.:
OUTPUT
VOLTAGE
MIN. LOAD
*MAX. LOAD
**REGULATION
RIPPLE & NOISE (MAX.)
OVP
EFFICIENCY (TYP.)
MODEL NO.:
OUTPUT
VOLTAGE
MIN. LOAD
*MAX. LOAD
SPS-060PT1 SPS-060PT2
V1 V2 V3 V1 V2 V3
+ 5 V + 12 V - 5 V + 5 V + 12 V - 12 V
0.3 A 0.1 A 0 A 0.3 A 0.1 A 0 A 8 A 3.5 A 1 A 7 A 3.5 A 1 A
± 3 % ± 5 % ± 10 % ± 3 % ± 5 % ± 10 %
50 mV 120 mV 100 mV 50 mV 120 mV 150 mV
+5.8V~+7.0V - - - - - - +5.8V~+7.0V - - - - - -
74 %
SPS-060PT3 SPS-060PT4
V1 V2 V3 V1 V2 V3
+ 5 V + 15 V - 15 V + 5 V + 12 V + 24 V
0.3 A 0.1 A 0 A 0.3 A 0.1 A 0 A 7 A 3 A 1 A 6 A 1.5 A 1.2 A
**REGULATION
RIPPLE & NOISE (MAX.)
OVP
EFFICIENCY (TYP.)
± 3 % ± 5 % ± 10 % ± 3 % ± 5 % ± 10 %
50 mV 150 mV 200 mV 50 mV 120 mV 200 mV
+5.8V~+7.0V - - - - - - +5.8V~+7.0V - - - - - -
74 %
2/2 2003/01/07
MODEL NO.: SPS-060PT SER. REV.:1.2 UL/cUL/TUV APPROVED RS020400
* TOTAL OUTPUT MAXIMUM 60 WATTS. ** THE OUTPUT VOLTAGE LOAD REGULATION IS LESS THAN THE VALUES IN THE ABOVE TABLE BY CHANGING EACH OUTPUT LOAD ±40% FROM 60% RATED OF LOAD, AND KEEP THE OTHER OUTPUTS AT 60% OF RATED LOAD.
3. ELECTRONIC CHARACTERISTICS:
3-1. RISE TIME: 20mS MAX. 3-2. HOLD UP TIME:
16.7mS MIN, TEST CONDITION AT 115V/60Hz AC INPUT, AC OFF POINT AT 0 DEGREE. 80mS MIN, TEST CONDITION AT 230V/50Hz AC INPUT, AC OFF POINT AT 0 DEGREE.
3-3. SETUP TIME:
3Sec MAX. TEST CONDITION AT 115V AC INPUT.
1Sec MAX. TEST CONDITION AT 230V AC INPUT. 3-4. OVER LOAD PROTECTION: WHEN OUTPUT POWER OVER 105% TO 180% OF RATED LOAD, THE POWER SUPPLY WILL SHUTDOWN AND AUTO RECOVERY WHEN FAULT CONDITION HAS BEEN REMOVED. 3-5. SHORT CIRCUIT PROTECTION: WHEN OUTPUT SHORT TO GROUND, THE POWER SUPPLY WILL SHUTDOWN AND AUTO RECOVERY WHEN SHORT CIRCUIT CONDITION HAS BEEN REMOVED.
4. MECHANICAL DATA:
OUTLINE DIMENSION : W 95 ×D 159 ×H 38 mm
5.COOLING:
NATURAL COOLING.
6. SAFETY:
THIS PRODUCT IS DESIGN TO COMPLY WITH THE FOLLOWING STANDARDS: 6-1. UL 1950 3rd EDITION (1998) APPROVED. (E 129733) 6-2. CSA C22.2 NO.950-95 3rd EDITION (1998) APPROVED BY UL. 6-3. TUV EN 60950: 1992+A1+A2+A3+A4+A11 (1997) APPROVED. (R 3-50003815) 6-4. IEC 60950:1991+A1+A2+A3+A4 (1996) APPROVED. 6-5. EMKO-TSE (74-SEC) 207/94 APPROVED.
3/3 2003/01/07
MODEL NO.: SPS-060PT SER. REV.:1.2 UL/cUL/TUV APPROVED RS020400
7. EMC:
THIS PRODUCT IS DESIGN TO COMPLY WITH THE FOLLOWING STANDARDS:
7-1. EMI (1). FCC CFR 47 PART 15 SUBPART J, CLASS B LIMIT (2). EN 50081-1:1997 EMISSION STANDARD
EN 55022: 1997 CLASS B LIMIT
EN 61000-3-2: 1995 CLASS A
EN 61000-3-3: 1995
(3). CNS 13438 CLASS B. 7-2. EMS (1). EN 50082-1 (1997) IMMUNITY STANDARD:
EN 61000-4-2: 1995 ELECTROSTATIC DISCHARGE STANDARD. EN 61000-4-3: 1996 RADIATED RF STANDARD. EN 61000-4-4: 1995 FAST TRANSIENT/BURST STANDARD. EN 61000-4-5: 1995 LIGHTNING SURGE STANDARD. EN 61000-4-6: 1996 CONDUCTED RF STANDARD. EN 61000-4-8: 1993 POWER FREQ. MAG. FILELD STANDARD.
EN 61000-4-11:1994 VOLTAGE DIP & INTERRUPT STANDARD.
8. PHYSICAL ENVIRONMENT (AMBIENT):
8-1. TEMPERATURE RANGE:
OPERATING TEMPERATURE RANGE : 0 ~ 70 DERATING FACTOR 42 ~ 70℃ : 2.0%/℃ STORAGE -10 TO +75
8-2. HUMIDITY: OPERATION 20% TO 85% RH. (NON CONDENSING) STORAGE AND SHIPPING 10% TO 95% RH. (NON CONDENSING)
9.M.T.B.F.:
290K HOURS APPROXIMATELY, ACCORDING TO MIL-HDBK-217F AT 25 ENVIRONMENT.
10. WARRANTY:
2 YEARS.
4/4 2003/01/07
SPS-060 (3.3V, 5V) / SPS-060P (3.3V, 5V) SPS-070 / SPS-070P / SPS-075 SDS-060
Series User’s Menu
Please read this user's guide carefully before setup.
Input:
1. Input range:
SPS-060 (3.3V, 5V) / SPS-060P (3.3V, 5V) / SPS-070 / SPS-070P:
Universal full range AC 85V ~ 264V or DC 120V ~ 375V
SPS-075: 85V ~ 132V or 170 ~ 264V select by switch.
SDS-060A: 9.5 ~ 18VDC / SDS-060B: 18 ~ 36VDC / SDS-060C: 36 ~ 72VDC
2. Inrush current: When turn on input power, there is peak current (inrush current) running through filter capacitor. During operating, it is important not to turn off power SW and then immediately turn on it again, otherwise, it may cut power supply’s life. In general, inrush current could be several to tens times of the normal current. It is important to make sure input wiring, fuse and power SW are able to carry inrush current.
3. For input specification, please refer to the label on the product or visit
www.sunpower.com.tw
for newly update data.
Output:
1. The output voltage adjustable range is ±10% of rated output voltage. As output
power is V
x A0, when adjusting V0 to a higher value, should decrease A0 as well,
0
ex.: For SPS-060-05, the rated output voltage is 5V, max output current is 12A: If adjusting output voltage to 5.5V, should decrease max output current to 10.9A as well; and even if adjusting output voltage to 4.5V, max output should not be over 12A.
2. For output specification, please refer to the label on the product or visit
www.sunpower.com.tw
for newly update data.
Protection:
1. Short circuit protection: When short circuit occurs, power supply will shutdown. After fault condition has been removed, it will recover automatically.
2. Over load protection: When over loaded, power supply will shutdown. After fault
condition has been removed, it will recover automatically.
3. Over voltage protection: When output voltage exceeds normal condition, power
supply will shutdown. After fault condition has been removed, it will recover automatically.
4. Input polarity reverse protection: Dc input models only.
To Parallel Switching Power Supplies
a. Adjusting output voltage of each power supply to a same level, and then
serialize a diode after the positive pole of each power supply. The diode must be equipped with a proper heat sink, and its current rating should be higher than rated output current.
LOAD
2
To Serialize Switching Power Supplies:
a. To up rise output voltage:
Power Supply
INPUT
INPUT
Power Supply
12V
(1)
LOAD
12V
(2)
b. To generate both positive and negative output voltage.
Power Supply
INPUT
INPUT
Power Supply
12V
12V
LOAD
LOAD
(1)
(2)
Wiring:
1. Output wiring must be thick and short enough to carry loading. The shorter and thicker the wire, the less voltage it drops (less wire loss).
Load
V+ V-
Wire loss
2. Connecting the GND of power supply to system’s chassis with a short-thick wir e can reduce noise and prevent electric shock.
3. Reference data for wires:
AWG
Area
NO.
(mm
30 0.051 7/0.102 358 0.12 --­28 0.081 7/0.127 222 0.15 0.2 26 0.129 7/0.16 140 0.35 0.5 24 0.205 11/0.16 88.9 0.7 1.0 22 0.326 17/0.16 57.5 1.4 2.0 20 0.517 26/0.16 37.6 2.8 4.0 18 0.823 43/0.16 22.8 4.2 6.0 16 1.309 54/0.18 14.9 5.6 8.0 14 2.081 41/0.26 9.5 --- 12.0 12 3.309 65/0.26 6.0 --- 22.0 10 5.262 104/0.26 3.8 --- 35.0
Constitution
2
(Wire/mm)
)
Vol. Drop/1A
mV/m
Max. Load Current (A)
U1007
(300V 80℃)
U1015
(600V 105℃)
Mounting:
1. Each power supply is enclosed with a set of screws. It is suggested to use enclosed screws to setup the power supply, otherwise, make sure its length must not be too long (refer to drawing of next page) to cause electric short.
2. The input wiring should be separated from output wiring to avoid noise interfere.
3. When multiple power supplies operate together, be sure to keep proper dist ance between power supply & power supply as well as power supply and the environment for good air convection. Add cooling fans if needed.
A. Directly mount to system chassis:
C. Mounting holes dimension:
System chassis
2- M3x(4+t) t = thickness of chassis
System chassis
2- M3x(6+t) t = thickness of chassis
B. Din rail mounting: (contact your dealer to buy Din Rail brackets if needed)
60-475-076
2- M3x6
60-475-080
3- M3x6
Safety terms:
1. The Y capacitor inside power supply could deliver leakage current. When multiple power supplies work in parallel or in series, the leakage current will increase to cause the possibility of getting electric shock. Make sure ground wire is thick enough to prevent the danger.
2. For AC input switching power supplies, the voltage running through primary circuit could up to 2~4 times of AC input voltage. It is forbidden for non-technicians to open the case. Contact your local dealer for technical support if needed.
3. The temperature inside power supply may exceed 85 during full loading, so it is dangerous to touch power supply at this time. Be sure to keep a proper distance between power supply and combustible material.
Trouble Shooting:
If power supply couldn't work properly, please turn off input power SW, and check the following steps:
1. Check all the connections (pin in/out correct? polarity correct? etc.)
2. Does terminal well connected? If not, reconnect it, and then turn on input power
again.
3. Check load current. If over loaded, decrease loading, and then turn on power
switch again. (Rated load current show on label)
4. When a sudden interruption of output occurs during adjusting VR, please turn VR
to middle value, and then turn on AC power again.
5. If there is a temporary work followed by power supply shut down, it may cause by a
higher inrush current requirement of the system. Replace a higher output power supply to meet the system’s requirement.
6. If environmental temperature gets too low or too high?
(1) If the environmental temperature lower than 10, take either of the following
steps:
a. Use heater to warm up the environment; or, b. Reduce loading.
(2) If environmental temperature higher than a certain degree, add cooling fan to
force air convection, or reduce loading. (Refer to related specification)
7. When the fuse inside power supply melted, there must be something function abnormally. Find out the abnormal cause and remove it; and then replace a new fuse. Make sure the new fuse’s spec must be same as the original.
If all of the above items were checked and power supply still cannot function normally, please cont act your local dealer for support or e-mail us:
service@sunpower.com.tw.
SUNPOWER TECHNOLOGY CORP. operates a policy of contin uous dev elop ment. Ther efor e, we reserve the right to make changes and improvements to any of the products described in this guide without prior notice. © SUNPOWER TECHNOLOGY CORP. All right reserved.
URL: http://www.sunpower.com.tw
April 24, 2003 V0.2 84-200-010
