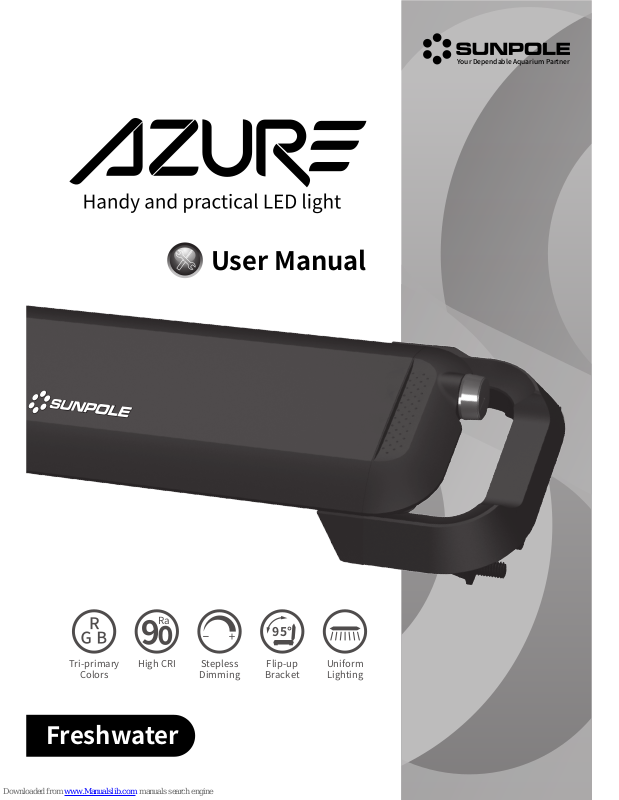

Your Dependable Aquarium Partner
User Manual
Tri-primary
Colors
Uniform
Lighting
Stepless
Dimming
Flip-up
Bracket
95°
High CRI
Ra
Freshwater
W
L
H
5100K
ALLF-044D01
3500
Ra90
117°
110-230 VAC / 50-60 Hz
IPX4 (Near Water Surface)、IPX2 (Body Surface)
L900×W129×H50
44
1.36±0.1
Lumen (lm)
Color Temperature
Wattage (W)
Dimensions (mm)
885-930Fits Aquarium (mm)
Weight (Kg)
CRI
Beam Angle
Operating Voltage
Waterproof
Type ALLF-033D01
2620
L600×W129×H50
33
1.07±0.1
585-630
63 84
ALLF-058D01
4660
L1200×W129×H50
58
1.65±0.1
1185-1230
112LEDs
User Manual
Product Specifications
Package Content
01
02
03
04
05
AZURE LED Light
AC/DC Adapter
Power Cord
Hexagon Key
User Manual
01
02
03
04
05
※ The AC / DC adapters used depending on the product type and may different from the image.
01
Sliding the adjustable brackets on the side
of the fixture to match the length of your
aquarium.
◎ Each bracket can be extended 25mm.
02
Tighten the twist lock series by supplied
mounting tool.
◎ Suit for thickness less than ≤ 12mm.
03
Locate the adapter in a location that is not
exposed to moisture. Keep dry!
Connect the light fixture housing cord to
the adapter cord.
04
Plug the adapter power cord into an AC
outlet.
◎ One manual knob make it easy to stepless
adjusts the light output.
◎ The brackets offer up to 95° side to side
rotation to convenient daily aquarium
tank care.
Handy and practical LED light
Quick Installation Process
Basic Operation
READ ALL SAFETY INSTRUCTIONS BEFORE USE.
To avoid possible electric shock, special care should be taken since
water is employed in the use of aquarium equipment.
◎ The appliance should be mounted on a fish tank with a suitable drain or water intercep
tion mechanism.
◎ Remove any protective covering film before using the appliance.
◎ Use the supplied mounting tool to mount the appliance over aquarium.
◎ Make sure an appliance mounted on a tank is securely installed before operating it.
◎ Carefully examine the appliance after installation. It should not be plugged in if there is
water on parts not intended to be wet.
◎ For safety, the appliance must be properly connected to appropriate AC/DC adapter
and receptacle.
◎ DO NOT use an appliance for other than intended use. The use of attachments not
recommended or sold by the appliance manufacturer may cause an unsafe condition.
◎ If the appliance falls into the water, DO NOT reach for it! First unplug it and then
retrieve it.
◎ If electrical components of the appliance get wet, unplug the appliance immediately.
◎ To avoid the possibility of the appliance plug or receptacle getting wet, position
aquarium stand and tank to one side of a wall-mounted receptacle to prevent water
from dripping onto the receptacle or plug. A “drip loop," shown in the figure below,
should be arranged by the user for each cord connecting an aquarium appliance to a
receptacle. The “drip loop" is that part of the cord below the level of the receptacle, or
the connector if an extension cord is used, to prevent water traveling along the cord
and coming in contact with the receptacle. If the plug or receptacle does get wet,
DO NOT unplug the cord. Disconnect the fuse or circuit breaker that supplies power to
the appliance. Then, unplug and examine for presence of water in the receptacle.
User Manual
Warning
Drip loop
◎ DO NOT operate any appliance if it has a damaged cord or plug, or if it is malfunction ing or if it is dropped or damaged in any manner.
◎ Always unplug an appliance from an outlet when not in use, before putting on or taking
off parts, and before cleaning. Never yank cord to pull plug from outlet. Grasp the plug
and pull to disconnect.
◎ DO NOT pull or drag the cables which connected with the appliance and adapter.
◎ Children are not allowed to operate or use the appliance without adult supervision.
◎ If an extension cord is necessary, a cord with a proper rating should be used. A cord
rated for less amperes or watts than the appliance rating may overheat. Care should be
taken to arrange the cord so that it will not be tripped over or pulled.
◎ The appliance can't be cleaned and maintained unless disconnect the power.
◎ DO NOT place anything on top of the appliance.
◎ DO NOT stare into the LEDs.
◎ DO NOT install or store the appliance where it will be exposed to the weather or to
temperatures below freezing.
◎ This appliance is intended FOR INDOOR USE ONLY.
Every AZURE LED light has a serial number on it. If you need to have after sale service or
technical support, you might need to show your S/N no. to your local retailers or distributors, as well as your purchasing evidence, like sales invoice or warranty card.
If the AC/DC adaptor is not working, please contact your retailers and ask for a new
replacement with your appliance still in Warranty.
※ Please do not dispose this product as unsorted municipal waste.
Handy and practical LED light
The AZURE LED light is guaranteed for a period of 24 months from date of purchase for
material or manufacturing defects.
The warranty is valid only when the warranty card is properly completed, and upon
presentation of the proof of purchase consisting of original invoice or sales slip indicating
the date of purchase, retailer's name, type and serial number of the product.
If the warranty card is not available, the AZURE LED light is guaranteed only for a period
of
13 months from manufacture date.
If a defect is shown, this warranty is limited to the repair or replacement of the product at
the discretion of the manufacturer. No cash refunds will be made. This warranty is
provided solely to the original consumer purchaser of the product and may not be
transferred or assigned.
This limited warranty does not cover any damage to this product that results
from below specific conditions.
◎ Malfunction of products results from improper installation accident, natural disaster,
and artificial operation.
◎ Un-authorized disassembly, repair or modification of the product or accessories.
◎ Warranty card or identification information has been altered, obliterated or removed.
◎ Serial number of product does not match or be damaged or not clear enough to
identify.
◎ Products gave been sold not through authorized agent, direct distributors, and
resellers as well.
◎ Using any other thing than the specified consumables.
◎ The warranty excludes normal depletion of consumable parts unless failure has
occurred due to a defect in materials or workmanship.
◎ Failure or damage caused during transport or fall after the purchase.
◎ Failure and damage occurred after the warranty period.
User Manual
LIMITED WARRANTY
Handy and practical LED light
Declaration of the Presence Condition of the Restricted Substances Marking
Note 1. “Exceeding 0.1 wt%” and “exceeding 0.01 wt %”indicate that the percentage content of
the restricted substance exceeds the reference percentage value of presence condition.
Note 2. “○”indicates that the percentage content of the restricted substance does not
exceed the percentage of reference value of presence.
Note 3. The “─”indicates that the restricted substance corresponds to exemption.
Equipment Name： LED Aquarium Lighting Fixture
Unit
Aluminum
Housing
Lens
Cover
Connector PCB
Board
LED
Cable Screws Driver
ALLF-033D01、ALLF-044D01、ALLF-058D01
Lead (Pb)
Polybrominated
biphenyls (PBB)
Polybrominated
diphenyl ethers
(PBDE)
Bis(2-ethylhexyl)
phthalate (DEHP)
Butyl benzyl
phthalate (BBP)
Dibutyl phthalate
(DBP)
Diisobutyl phthalate
(DIBP)
Mercury (Hg)
Cadmium (Cd)
Hexavalent
Chromium (Cr+6)
Type designation
(Type)
Restricted
substances
and its chemical
symbols
Customer’s Record
Name ：
Email ：
Address ：
Phone No. ：
Purchase Info.
Type
Serial No.
Distributor
Retailer
Date of Purchase
Retailer’s Seal
Welcome to register your product online at
www.SUNPOLE.com.tw
Follow us on Facebook
www.facebook.com/SUNPOLE.Aquarium
Handy and practical LED light
