CPU6502
Instruction Manual
59 pgs606.05 Kb0

SunPlus CPU6502 Instruction Manual

Download
Page 1
S
u
n
p
l
u
s
I
T
o
n
f
i
d
e
n
t
i
a
l
F
o
r
A
I
n
t
e
r
n
a
t
i
o
n
a
l
L
i
m
i
t
e
d
s
e
O
n
l
y

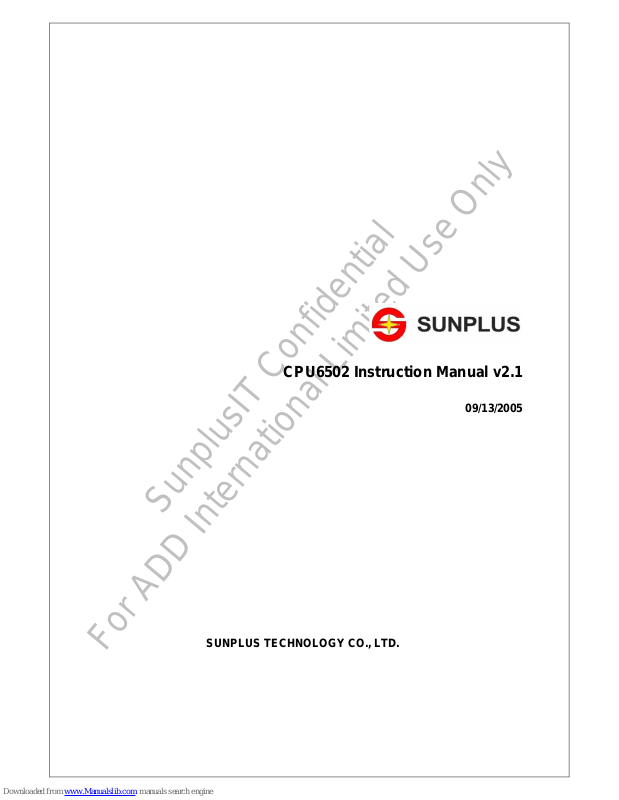

CPU6502 Instruction Manual v2.1
09/13/2005
SUNPLUS TECHNOLOGY CO., LTD.
Page 2
S
u
n
p
l
u
s
I
T
o
n
f
i
d
e
n
t
i
a
l
F
o
r
A
I
n
t
e
r
n
a
t
i
o
n
a
l
L
i
m
i
t
e
d
s
e
O
n
l
y
CPU6502 Instruction Manual v2.1
Sunplus reserves the rights to change this documentation without prior notice. 09/13/2005
2
CPU6502 Instruction Manual v2.1
©2005 Sunplus Technology, Co., Ltd.
ALL RIGHTS RESERVED
Sunplus Technology reserves the right to change this documentation without prior notice. Information provided by Sunplus Technology is believed to be accurate and reliable. However, Sunplus Technology makes no warranty for any errors which may appear in this document. Contact Sunplus Technology to obtain the latest version of device specifications before placing your order.
No responsibility is assumed by Sunplus Technology for any infringement of patent or other rights of third parties which may result from its use. In addition, Sunplus products are not authorized for use as critical components in life support devices/ systems or aviation devices/systems, where a malfunction or failure of the product may reasonably be expected to result in significant injury to the user, without the express written approval of Sunplus.
If you have suggestions on this documentation which can better serve your needs, please contact:
Sunplus Technology No. 19, Innovation Road 1, Science-Based Industrial Park, Hsin-Chu, Taiwan, R.O.C. FAX: 886-3-578-4418
Page 3
S
u
n
p
l
u
s
I
T
o
n
f
i
d
e
n
t
i
a
l
F
o
r
A
I
n
t
e
r
n
a
t
i
o
n
a
l
L
i
m
i
t
e
d
s
e
O
n
l
y
CPU6502 Instruction Manual v2.1
Sunplus reserves the rights to change this documentation without prior notice. 09/13/2005
3
CONTENT
Revision History.............................................................................................................5
General Description.......................................................................................................7
Register .........................................................................................................................8
Status Register (P) .................................................................................................9
Stack.....................................................................................................................10
Stack Pointer (SP)................................................................................................11
Addressing Mode.........................................................................................................12
Immediate addressing mode ................................................................................12
Absolute addressing mode...................................................................................13
Absolute indexed addressing mode......................................................................14
Zero Page Addressing Mode................................................................................15
Zero Page Indexed addressing Mode...................................................................16
Implied addressing mode......................................................................................17
Accumulator addressing mode .............................................................................17
Indexed indirect addressing mode........................................................................18
Indirect addressing mode .....................................................................................19
Indirect Indexed addressing mode........................................................................20
Relative addressing mode....................................................................................21
Format of Assembly Language Instruction...................................................................22
Instructions ..................................................................................................................23
ADC......................................................................................................................23
AND......................................................................................................................24
ASL.......................................................................................................................25
BCC/BCS/BEQ/BMI/BNE/BPL/BVC/BVS.............................................................26
BIT........................................................................................................................27
CLC ......................................................................................................................28
CLD ......................................................................................................................28
CLI........................................................................................................................28
CLR ......................................................................................................................28
CLV.......................................................................................................................30
CMP......................................................................................................................30
CPX......................................................................................................................31
CPY......................................................................................................................31
DEC......................................................................................................................32
DEX......................................................................................................................32
DEY......................................................................................................................33
EOR......................................................................................................................33
Page 4
S
u
n
p
l
u
s
I
T
o
n
f
i
d
e
n
t
i
a
l
F
o
r
A
I
n
t
e
r
n
a
t
i
o
n
a
l
L
i
m
i
t
e
d
s
e
O
n
l
y
CPU6502 Instruction Manual v2.1
Sunplus reserves the rights to change this documentation without prior notice. 09/13/2005
4
INC .......................................................................................................................34
INV........................................................................................................................34
INX........................................................................................................................35
INY........................................................................................................................36
JMP ......................................................................................................................36
JSR.......................................................................................................................37
LDA.......................................................................................................................37
LDX.......................................................................................................................37
LDY.......................................................................................................................38
LSR.......................................................................................................................39
NOP......................................................................................................................39
ORA......................................................................................................................40
PHA......................................................................................................................40
PHP......................................................................................................................41
PLA.......................................................................................................................41
PLP.......................................................................................................................41
ROL......................................................................................................................42
ROR......................................................................................................................43
RTI........................................................................................................................43
RTS ......................................................................................................................43
SBC......................................................................................................................44
SEC......................................................................................................................45
SED......................................................................................................................45
SEI........................................................................................................................45
SET.......................................................................................................................45
STA.......................................................................................................................47
STX.......................................................................................................................47
STY.......................................................................................................................48
TAX.......................................................................................................................48
TAY.......................................................................................................................49
TST.......................................................................................................................49
TSX.......................................................................................................................49
TXA.......................................................................................................................50
TXS.......................................................................................................................50
TYA.......................................................................................................................50
Summary of Available Instruction set for each CPU Type ...........................................52
Page 5
S
u
n
p
l
u
s
I
T
o
n
f
i
d
e
n
t
i
a
l
F
o
r
A
I
n
t
e
r
n
a
t
i
o
n
a
l
L
i
m
i
t
e
d
s
e
O
n
l
y
CPU6502 Instruction Manual v2.1
Sunplus reserves the rights to change this documentation without prior notice. 09/13/2005
5
Revision History
Revision Date By Remark
V2.1 09/13/2005 Joe Chuang 1. Added SPCP bodies in the 65N02 and CPU12 body lists (page.7)
2. Changed the name “Sunplus code＂ to “CPU12＂ in the tables of the Instructions
V2.0 12/08/2004 Bean Wang Page 9: Remove B Flag of status register(P)
Was: P: {N,V,X,B,D,I,Z,C}. (X: Not Used) Now: P: {N,V,X,X,D,I,Z,C}. (X: Not Used) Page 27: Remove BRK instruction Page 23~57: Add 65b02 instruction. Page 25: ASL aaaa, X Modify: No. Cycle of 65n02 from 7 to 6*. Page 36: JMP(aaaa) Modify: No. Cycle of 65n02, 65r02, 65s02, Sunplus Code from 3 to 6. Page 39: LSR aaaa, X Modify: No. Cycle of 65n02 from 7 to 6*. Page 42: ROL aaaa, X Modify: No. Cycle of 65n02 from 7 to 6*. Page 43: ROR aaaa, X Modify: No. Cycle of 65n02 from 7 to 6*.
V1.9 02/06/2004 J. K. Chen Page 30: CMP
Was: C: Set if a “borrow” not occurred. (A > M) Now: C: Set if a “borrow” not occurred. (A > = M) Page 31: CPX Was: C: Set if a “borrow” occurred (data > X). Now: C: Set if a “borrow” not occurred. (X > = data) Page 31: CPY Was: C: Set if a “borrow” occurred (data > Y). Now: C: Set if a “borrow” not occurred. (Y > = data) Page 7: remove the CPU type table Page 38: LDX Zero Page, (
LDX aa, Y), Sunplus Opcode changed from E9H to B9H.
Page 38: 65r02 and Sunplus Code supports LDX aaaa. Page 44: SBC Was: C: Set if there is no “borrow” occurred. (M > A). Now: C: Set if there is no “borrow” occurred. (A > M).
V1.8 12/25/2002 Michael Lin Page 27: BIT:
Set if the bit7 of the result is 1 Æ set if the memory bit7 of the result is 1. Set if the bit6 of the result is 1 Æ set if the memory bit6 of the result is 1. Correct the STA, STX, STY, TXS to no effect on status register
V1.7 01/07/2002 Michael Lin Page 41
Origin: “PLA” takes no effect on any status flag Modified: “PLA” affect the “N” and “Z” flags. Origin: “PLP” takes no effect on any status flag. Modified: “PLP” affects all status flags.
V1.6 08/30/2001 Michael Lin Page 31
Modify: From: C: Set if a “borrow” occurred. (M > A) To: C: Set if a “borrow” not occurred (A > M)
Page 6
S
u
n
p
l
u
s
I
T
o
n
f
i
d
e
n
t
i
a
l
F
o
r
A
I
n
t
e
r
n
a
t
i
o
n
a
l
L
i
m
i
t
e
d
s
e
O
n
l
y
CPU6502 Instruction Manual v2.1
Sunplus reserves the rights to change this documentation without prior notice. 09/13/2005
6
Revision Date By Remark
V1.5 03/19/2001 Michael Lin Modify:
From: ADC (aa), Y: 6502 Opcode = 1EH To: ADC (aa), Y: 6502 Opcode = 71H
V1.4 12/12/2000 Michael Lin Page 44, SBC
Origin: C: Set if there is a “borrow” occurred. (M > A). Modify to: C: Set if there is no “borrow” occurred. (M > A).
V1.3 09/08/2000 Michael Lin Page 7
Update the CPU type of IC. The X2s.,exe is updated to v2.78, 09/08/2000
V1.2 07/18/2000 Michael Lin Page 44
Origin: SBC: (A-M -C) Æ A, C Modify to:
SBC: (A-M -
C ) Æ A, C
Page 7
S
u
n
p
l
u
s
I
T
o
n
f
i
d
e
n
t
i
a
l
F
o
r
A
I
n
t
e
r
n
a
t
i
o
n
a
l
L
i
m
i
t
e
d
s
e
O
n
l
y
CPU6502 Instruction Manual v2.1
Sunplus reserves the rights to change this documentation without prior notice. 09/13/2005
7
General Description
This manual intends to guide users through the 6502 Instruction sets. All 6502 instructions are listed in alphabetical order. However, not all 6502 instructions or addressing modes are available in all SUNPLUS CPUs. To list the types of SUNPLUS CPU, please obtain a tool, named x2s.exe, and apply the following syntax in a DOS command line:
C:\>x2s /s Patch-up Tool CopyRight(c) Sep 08 2000 by SUNPLUS. 2500AD Object Code Convert Program Ver 2.78 The corresponding Instruction Set to each body is:
65B02 (Full Set): SPMC652,ECMC653
65N02 (Full Set): (see note.2) SPL61A,SPL130A,SPL191A,
SPDC256A,SPDC512A,SPDC512B, SPDC1000A,SPDC1000B SPLB10A, SPCP05A, SPCP06A, SPCP08A, SPCP16A, SPCP18A, SPCP25A, SPCP26A, SPCP825A, SPCP826A, SPCP835A
65R02 (Reduce+BIT+TXA+TAX): SPF02A,SPL02C,SPL02D, SPL03B,SPL03C, SPL05A,SPL05B, SPL06A,SPL06B, SPLB20A,SPLB20A1, SPLB21A,SPLB22A, SPLB23A,SPLB24A, SPLB25A, SPLB26A SPL128A,SPLG01
65S02 (Only Reduce Set): SPF06A1,SPF18A1,SPF20A, SPF30A1,SPF30B, SPL02A
CPU12 / CPU8: (Reduced instructions+BIT+TXA+TAX)
SPCxxx,SPCRxx,SPMCxx, SPFA64A,SPFA120A, SPL08A,SPL08A1,SPL081A, SPL10A,SPL15A,SPL15B, SPL25B,SPL25C,SPL30A, SPL31A,SPL60A,SPL190A, SPCP02A
Note:
1. Since x2s.exe is updated from time to time, be sure to use the newest version of x2s.exe
2. The CPU type 65N02 has two kinds of body, the one uses standard 6502 OP code, the
other one uses Sunplus OP code. Please refer to the programming guide of the individule body.
Page 8
S
u
n
p
l
u
s
I
T
o
n
f
i
d
e
n
t
i
a
l
F
o
r
A
I
n
t
e
r
n
a
t
i
o
n
a
l
L
i
m
i
t
e
d
s
e
O
n
l
y
CPU6502 Instruction Manual v2.1
Sunplus reserves the rights to change this documentation without prior notice. 09/13/2005
8
Register
7 0
A
Accumulator
7 0
X
Index Register X
7 0
Y
Index Register Y
15 8 7 0
PCH PCL
Program Counter
7 0
SP
Stack Pointer
7 0
P
Status Register
Register Size Description
Accumulator (A) 8 Bit Accumulator is the only register that can be used for arithmetic or
logic operation such as ADD, SUB, AND, OR and EOR and store the result in it.
Index Register X 8 Bit X is an index register which can be used as a memory buffer, a
offset, or a counter.
Index Register Y 8 Bit Y is an index register which can be used as a memory buffer, a
offset, or a counter.
Program
Counter(PC)
16 Bit PC is a 16-bit register. Program Counter points to an address
location where an instruction is held and waits to be executed by CPU next. When CPU fetches one instruction to execute, PC is incremented to the next location in memory from which the next instruction to be executed will be taken unless a branch is occurred that will lead PC points to the specified address location.
Stack Pointer(SP) 8 Bit Stack Pointer is an 8-bit register. Normally, SP is used for
storing return address, data of status register or temporary data.
Status Register (P) 8 Bit Status Register usually offers information on result of previous
instruction executed.
Page 9
S
u
n
p
l
u
s
I
T
o
n
f
i
d
e
n
t
i
a
l
F
o
r
A
I
n
t
e
r
n
a
t
i
o
n
a
l
L
i
m
i
t
e
d
s
e
O
n
l
y
CPU6502 Instruction Manual v2.1
Sunplus reserves the rights to change this documentation without prior notice. 09/13/2005
9

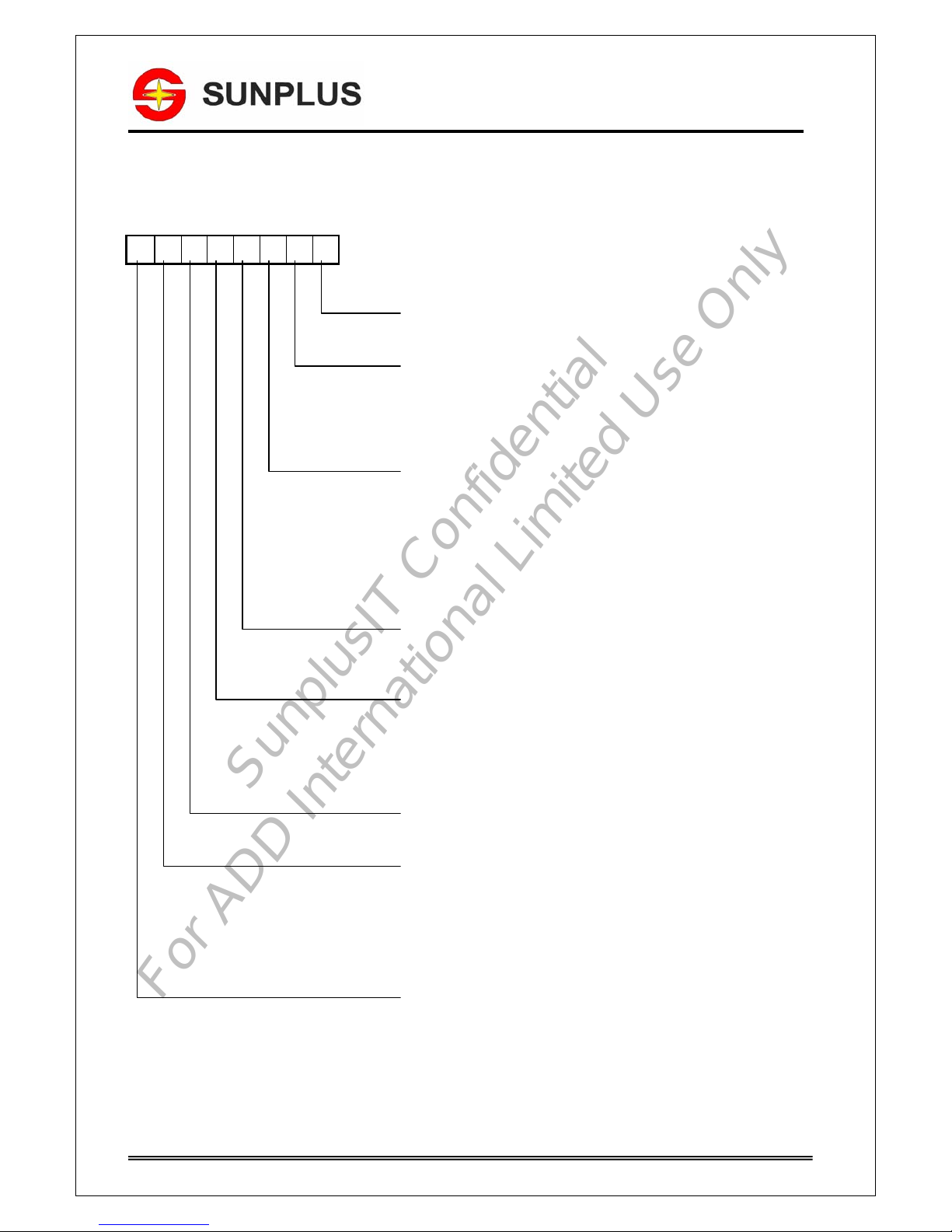

Status Register (P)
7 6 5 4 3 2 1 0
N V D I Z C
Carry Flag, If Carry flag is set, C=1
Zero Flag, If arithmetic or logic operation results to zero, Z is set to 1; otherwise, Z=0
Interrupt Disable Flag If interrupt disable flag is set, I=1, CPU will ignore interrupt signal. If interrupt disable flag is clear, I=0, CPU will accept interrupt signal.
In CPU6502, this is Decimal Mode Flag
In CPU12, this bit is not used.
Not Used
Not Used
OverFlow Flag If OverFlow is set, V=1 If OverFlow is clear, V=0
Negative Flag
If arithmetic or logic operation results to negative, N is
set to 1. otherwise, N=0. * Note: Not all instructions affect Status Register. A detailed instruction description will be discussed in later section.
Page 10
S
u
n
p
l
u
s
I
T
o
n
f
i
d
e
n
t
i
a
l
F
o
r
A
I
n
t
e
r
n
a
t
i
o
n
a
l
L
i
m
i
t
e
d
s
e
O
n
l
y
CPU6502 Instruction Manual v2.1
Sunplus reserves the rights to change this documentation without prior notice. 09/13/2005
10
Stack
In normal use, stack can be used as storing return address, temporary data or register‘s content. A stack has the property that the last item placed on the stack will be the first item removed. This property is commonly referred to as last in, first out, or simply LIFO. A diagram is shown as follows:
In push activity, a value of 30 is pushed first. Then, a value of 40 is pushed. Thus, the value of 40 is now stored on the top on stack. After all values stored in the stack, the value order is 60, 50, 40, 30. Now, in pop activity, the value of 60 will be popped out first. Second, the value of 50 will be popped. Then, 40 and 30 will be popped out in order. Stack is empty after all the values are popped.
50
50
40 40
40
30
30
30 30
Stack (Push)
Push 30 Push 40 Push 50 Push 60
60
50 40
40
30
30 30
Stack (Pop)
POP 60 POP 50 POP 40 POP 30
Page 11
S
u
n
p
l
u
s
I
T
o
n
f
i
d
e
n
t
i
a
l
F
o
r
A
I
n
t
e
r
n
a
t
i
o
n
a
l
L
i
m
i
t
e
d
s
e
O
n
l
y
CPU6502 Instruction Manual v2.1
Sunplus reserves the rights to change this documentation without prior notice. 09/13/2005
11
Stack Pointer (SP)
Stack Pointer is a pointer which usually points to an available location where can be stored pushed data. Normally, stack pointer is extended from FF to 00 in CPU 12. When data is pushed onto stack, stack pointer will decrease by 1. When data is pulled (popped) from stack, stack pointer is increased by 1.
First of all, a data 0ABH is pushed onto stack; then, the stack pointer points to the address location $FE. Second, a data of 0CDH is pushed onto stack and the stack pointer then points to the address location $FD. Third, a data of 0EFH is pushed onto stack and the stack pointer is now pointing to the address location $FC.
In the pop activity, the stack pointer will be increased by 1 first; then stack pops the value of 0EFH. The stack pointer is now pointing to the address location $FD. When pop acts again, stack pointer will be increased by 1 again; then pops the value of 0CDH. At this moment, the stack pointer is pointing to the address location $FE. Finally, the stack pointer is increased by 1 and pops the value of 0ABH. Now, the stack pointer is pointing to the original address location $FF. Note that if stack now pops again, the stack pointer will point to location $00. This is an illegal stack activity since the bottom of stack is $FF.
SP-->FC
SP-->$FD EF
SP-->$FE
CD CD
AB
AB
AB
Stack Pointer, Push
Push AB Push CD Push EF
SP-->$FD
CD
SP-->$FE
AB SP-->$FF
Stack Pointer, Pop
POP EF POP CD POP AB
AB
Page 12
S
u
n
p
l
u
s
I
T
o
n
f
i
d
e
n
t
i
a
l
F
o
r
A
I
n
t
e
r
n
a
t
i
o
n
a
l
L
i
m
i
t
e
d
s
e
O
n
l
y
CPU6502 Instruction Manual v2.1
Sunplus reserves the rights to change this documentation without prior notice. 09/13/2005
12

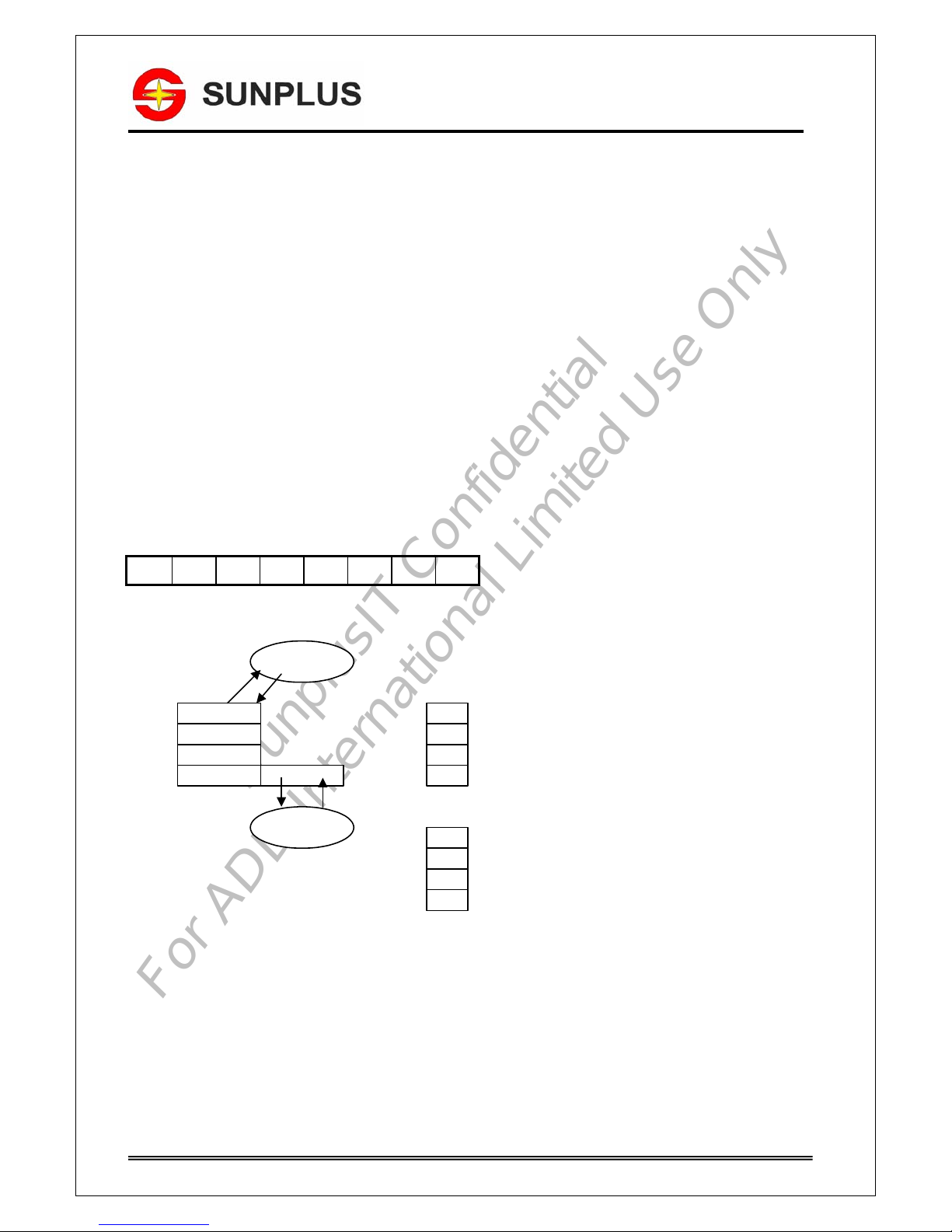

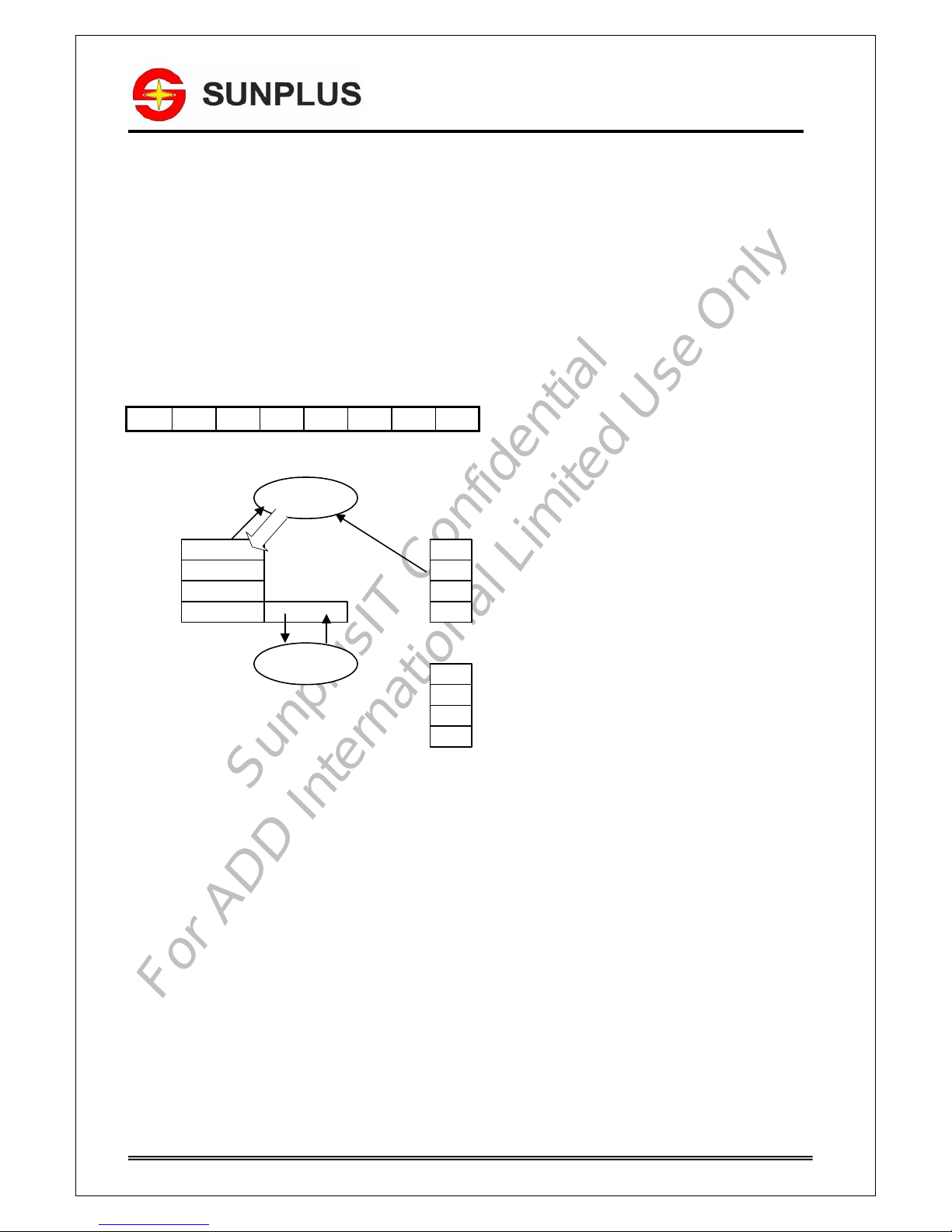

Addressing Mode
Immediate addressing mode
There is one byte in an immediate addressing mode.
Operation: OP-code #dd
where #dd can be : binary: #%00000001 or #00000001B decimal: #01 or #01D hexdecimal: #01H or #$01
Example:
AND #$08
N V D I Z C
! - - - ! -
Example: Given: A=7EH
AND #88H
Result: 88 AND 7E Î 08H 08H Æ A (08H stored in A)
xx
mm mm
A
SP
X
PC
mmmm+2
xx AND 08
Data Memory
5408mmmm
mmmm+1 mmmm+2
Program Memory
Page 13
S
u
n
p
l
u
s
I
T
o
n
f
i
d
e
n
t
i
a
l
F
o
r
A
I
n
t
e
r
n
a
t
i
o
n
a
l
L
i
m
i
t
e
d
s
e
O
n
l
y
CPU6502 Instruction Manual v2.1
Sunplus reserves the rights to change this documentation without prior notice. 09/13/2005
13

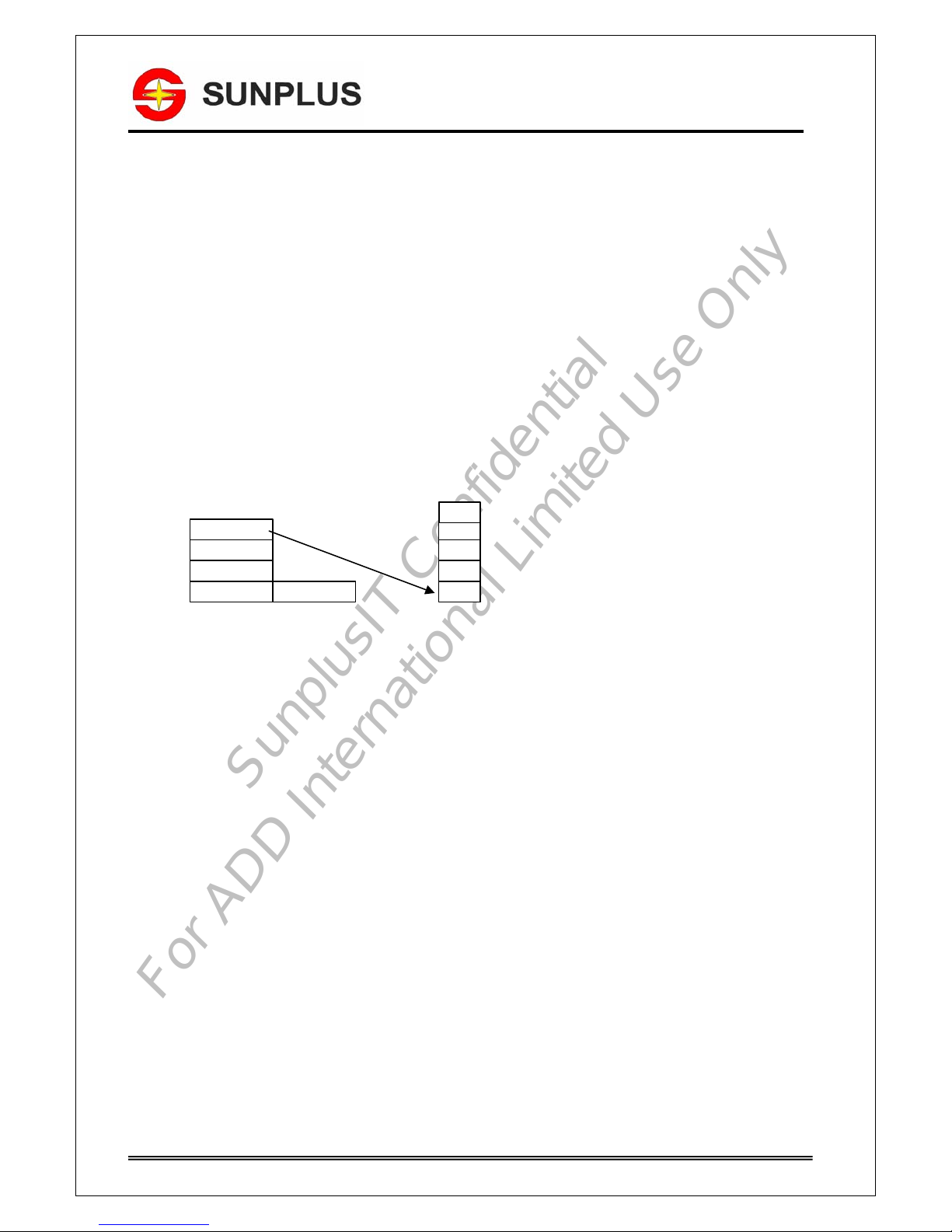

Absolute addressing mode
The absolute addressing mode uses two bytes (adr 16) to specify a memory address. The adr 16 may be the address of a byte of data or the beginning address for the next instruction.
Operation: OP-code Adr16
Example: AND $0030
N V D I Z C
! - - - ! -
xx
mm mm
A
SP
X
PC
mmmm+2
xx AND yy
yy
Data Memory
15 30
mmmm
mmmm+1 mmmm+2
Program Memory
0030
Page 14
S
u
n
p
l
u
s
I
T
o
n
f
i
d
e
n
t
i
a
l
F
o
r
A
I
n
t
e
r
n
a
t
i
o
n
a
l
L
i
m
i
t
e
d
s
e
O
n
l
y
CPU6502 Instruction Manual v2.1
Sunplus reserves the rights to change this documentation without prior notice. 09/13/2005
14
Absolute indexed addressing mode
The absolute indexed addressing mode uses two-part (adr 16 and X) to specify a memory address.
Operation : OP-code Adr 16, X
Example: LDA $0500,X
N V D I Z C
! - - - ! -
The new address is $500 + $02 = $502. This operation will copy the data of $502 to Accumulator. Therefore, Accumulator contains A8.
A8
02
mm mm
A
SP
X
PC
mmmm+3
$500 + $02
A8
Data Memory
0502
Page 15
S
u
n
p
l
u
s
I
T
o
n
f
i
d
e
n
t
i
a
l
F
o
r
A
I
n
t
e
r
n
a
t
i
o
n
a
l
L
i
m
i
t
e
d
s
e
O
n
l
y
CPU6502 Instruction Manual v2.1
Sunplus reserves the rights to change this documentation without prior notice. 09/13/2005
15
Zero Page Addressing Mode
The zero page addressing mode uses the low-order byte of the address in page zero (adr 08) to specify a memory address.
Operation: OP-Code Adr 08
Example:
LDA $28
N V D I Z C
! - - - ! -
Copy data from location $28 to Accumulator.
B6
02
mm mm
A
SP
X
PC
B6
Data Memory
0028
Page 16
S
u
n
p
l
u
s
I
T
o
n
f
i
d
e
n
t
i
a
l
F
o
r
A
I
n
t
e
r
n
a
t
i
o
n
a
l
L
i
m
i
t
e
d
s
e
O
n
l
y
CPU6502 Instruction Manual v2.1
Sunplus reserves the rights to change this documentation without prior notice. 09/13/2005
16
Zero Page Indexed addressing Mode
The zero page indexed addressing mode uses two-part (adr 08 and X) to specify a memory address.
Operation: OP-Code Adr 08, X
Example:
LDX #$20 LDA #$77 STA $60, X
The new address = $60 + $20 = $80 Store #77H into $80.
77 02
mm mm
A
SP
X
PC
77
B6
Data Memory
0060
0080
36
$20 + $60 = $80
Page 17
S
u
n
p
l
u
s
I
T
o
n
f
i
d
e
n
t
i
a
l
F
o
r
A
I
n
t
e
r
n
a
t
i
o
n
a
l
L
i
m
i
t
e
d
s
e
O
n
l
y
CPU6502 Instruction Manual v2.1
Sunplus reserves the rights to change this documentation without prior notice. 09/13/2005
17
Implied addressing mode
The implied addressing mode does not have any address.
Operation: OP-Code
Example:
TAX ; To transfer data from accumulator to register X. CLC ; To clear carry

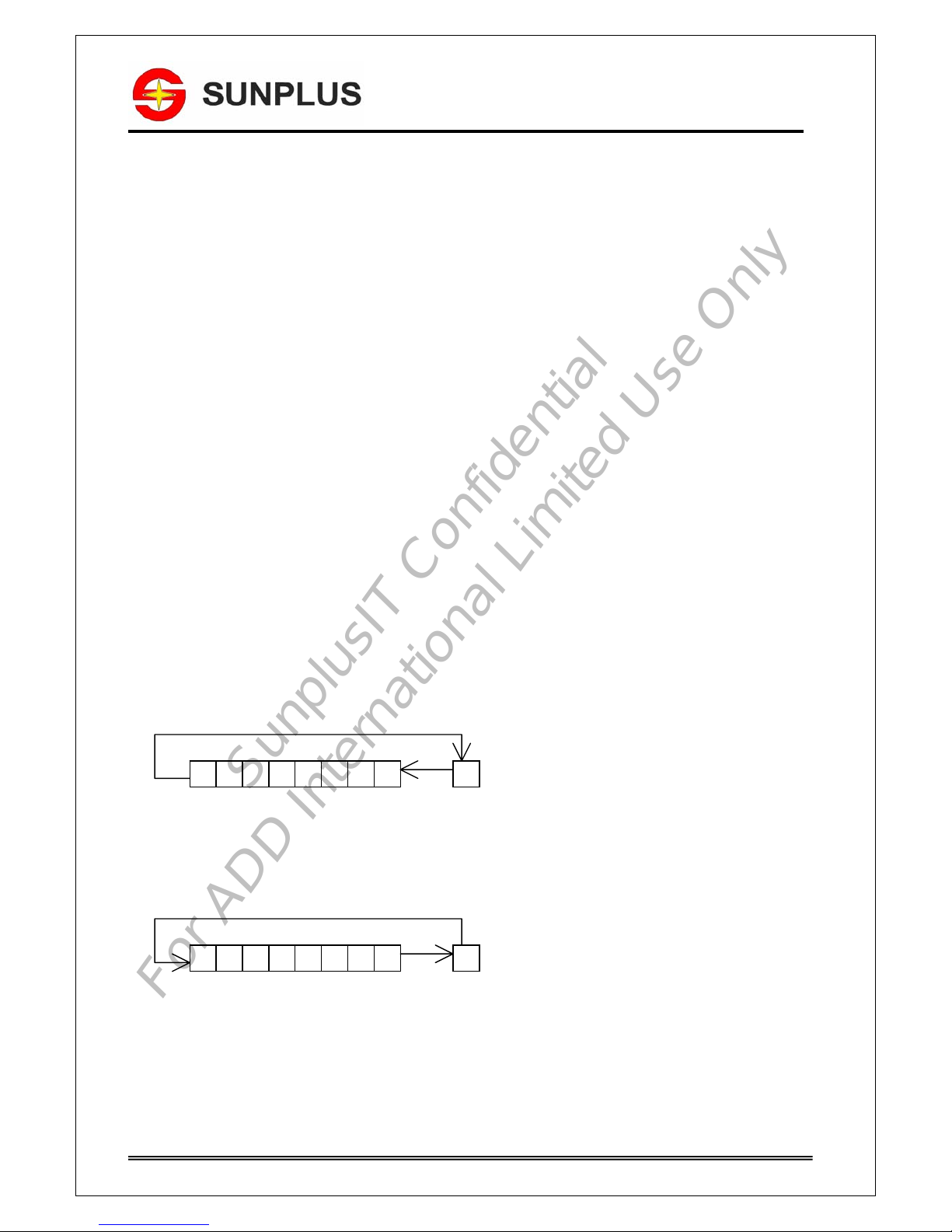

Accumulator addressing mode
The accumulator addressing mode does not have any address. The instruction operates on the data in the accumulator.
Operation: OP-Code
Example:
ROL Rotate Left with Carry ROR Rotate Right with Carry
7 6 5 4 3 2 1 0 C ROL
7 6 5 4 3 2 1 0 C ROR
Page 18
S
u
n
p
l
u
s
I
T
o
n
f
i
d
e
n
t
i
a
l
F
o
r
A
I
n
t
e
r
n
a
t
i
o
n
a
l
L
i
m
i
t
e
d
s
e
O
n
l
y
CPU6502 Instruction Manual v2.1
Sunplus reserves the rights to change this documentation without prior notice. 09/13/2005
18

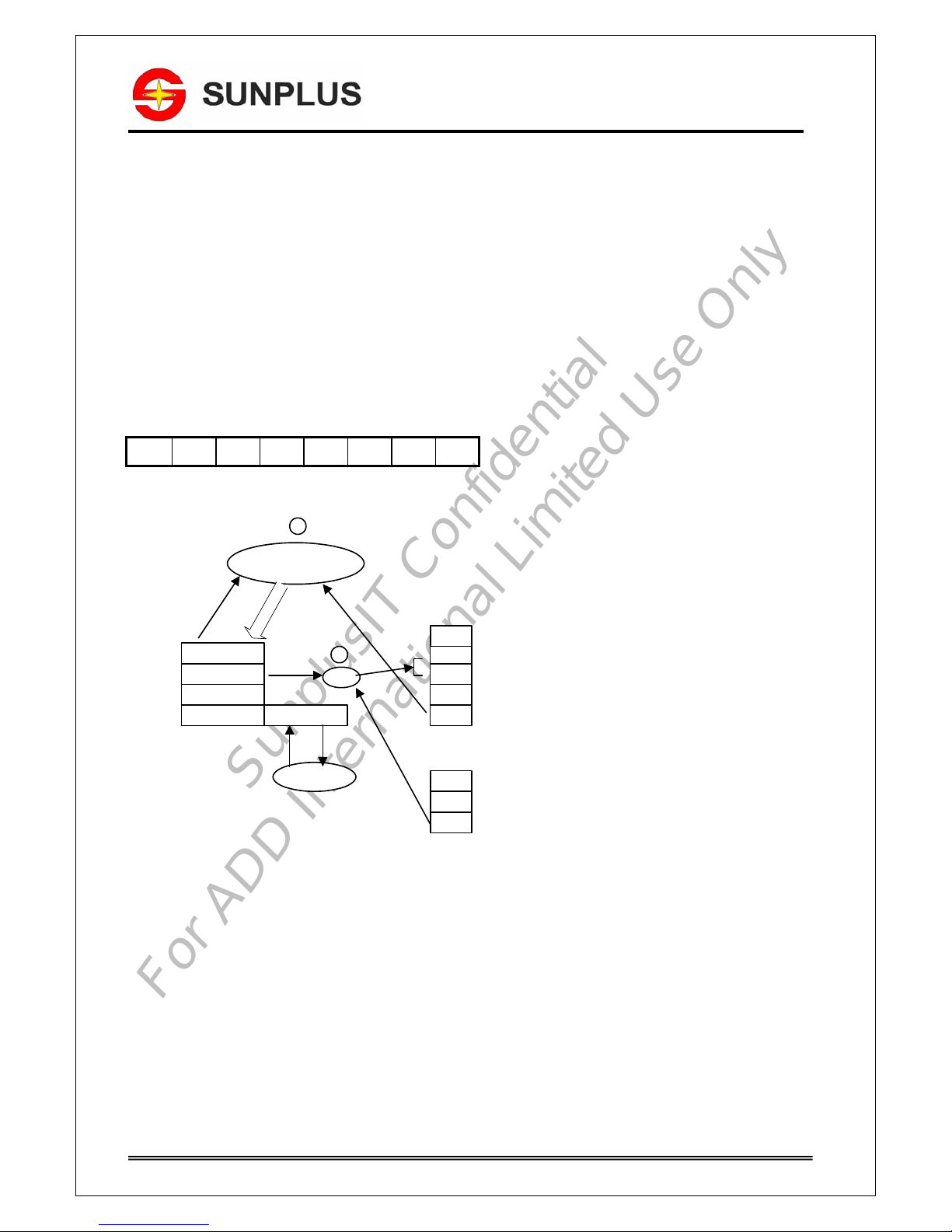

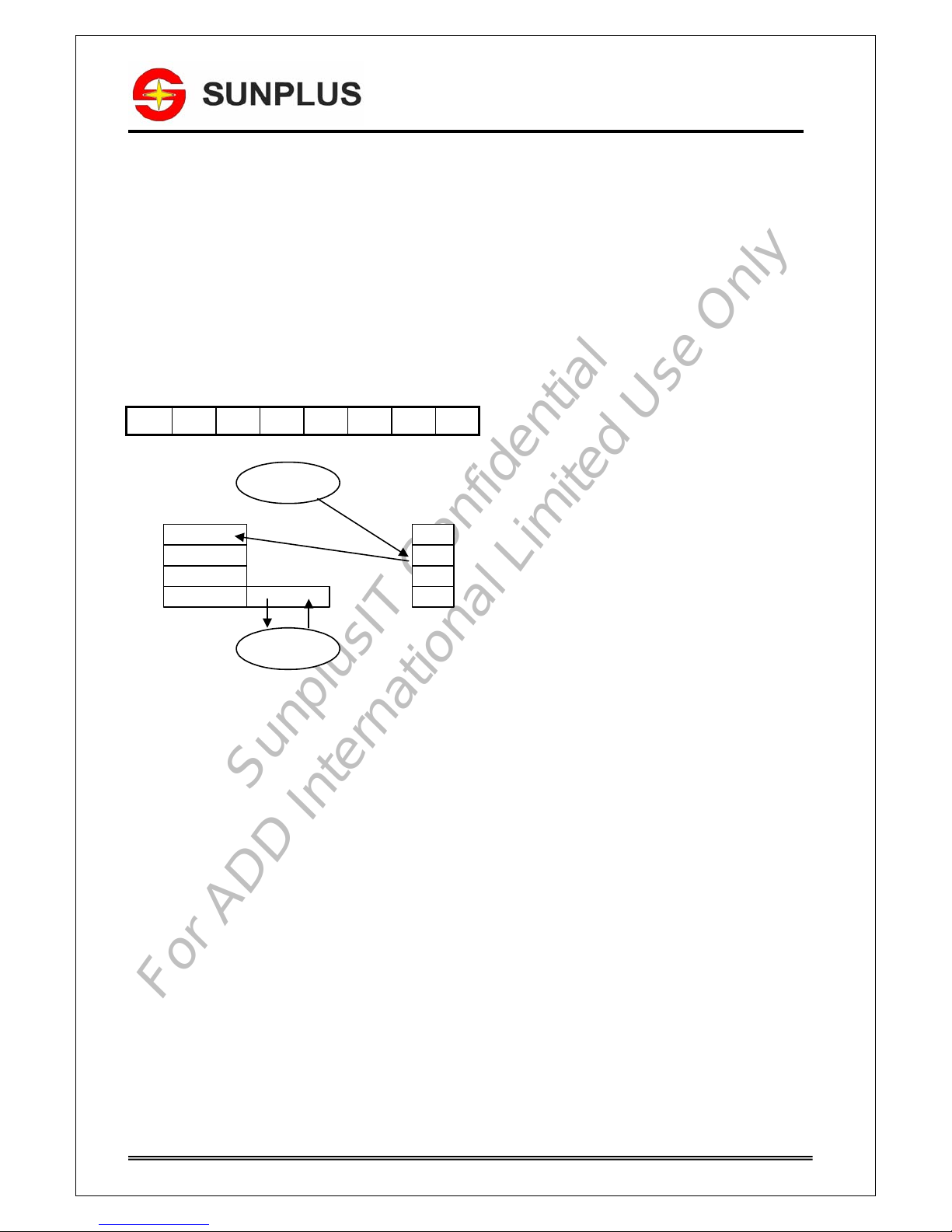

Indexed indirect addressing mode
The pre-indexed indirect addressing mode uses “ (adr 08 and X)” to specify a memory address. Only register X can be used in this mode. The pre-indexed indirect address is a zero-page indexed direct address. Thus, the valid address must be on page zero.
Operation : OP-Code (Adr 08, X)
Example: AND ($20, X)
N V D I Z C
! - - - ! -
xx
rr
mm mm
A
SP
X
PC
qq
yy
pp
Data Memory
ppqq
00rr+20 00rr+21
xx AND yy
+
20
21
mmmm+1
mmmm+2
mmmm+2
1
2
Program Memory
Page 19
S
u
n
p
l
u
s
I
T
o
n
f
i
d
e
n
t
i
a
l
F
o
r
A
I
n
t
e
r
n
a
t
i
o
n
a
l
L
i
m
i
t
e
d
s
e
O
n
l
y
CPU6502 Instruction Manual v2.1
Sunplus reserves the rights to change this documentation without prior notice. 09/13/2005
19
Indirect addressing mode
Index addressing mode can only use JMP instruction.
Operation: JMP (Adr)
Example:
JMP ($31FE)
PC=ppqq
xx
rr
pp qq
A
SP
X
PC
pp
77
B6
Data Memory
31FE
31FF
qq
Page 20
S
u
n
p
l
u
s
I
T
o
n
f
i
d
e
n
t
i
a
l
F
o
r
A
I
n
t
e
r
n
a
t
i
o
n
a
l
L
i
m
i
t
e
d
s
e
O
n
l
y
CPU6502 Instruction Manual v2.1
Sunplus reserves the rights to change this documentation without prior notice. 09/13/2005
20

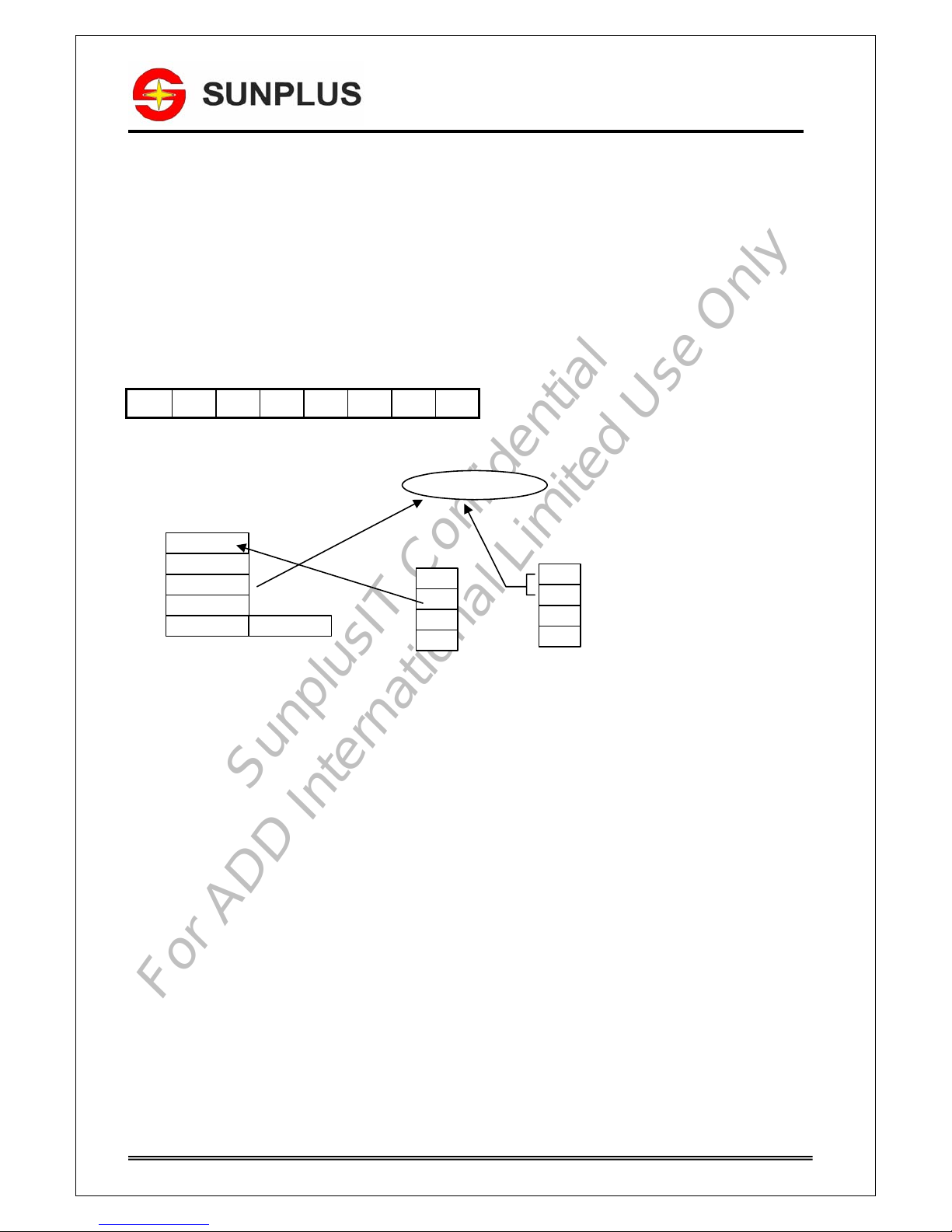

Indirect Indexed addressing mode
Indirect Indexed addressing mode can only be applied for Y index register.
Operation: Opcode (aa), Y
Example:
LDA ($20), Y
N V D I Z C
! - - - ! -
B6
01
02
mm mm
A
SP
X
PC
B6
Data Memory
0713
Y
12
07
0020 0021
0712 + 01 = 0713
Page 21
S
u
n
p
l
u
s
I
T
o
n
f
i
d
e
n
t
i
a
l
F
o
r
A
I
n
t
e
r
n
a
t
i
o
n
a
l
L
i
m
i
t
e
d
s
e
O
n
l
y
CPU6502 Instruction Manual v2.1
Sunplus reserves the rights to change this documentation without prior notice. 09/13/2005
21

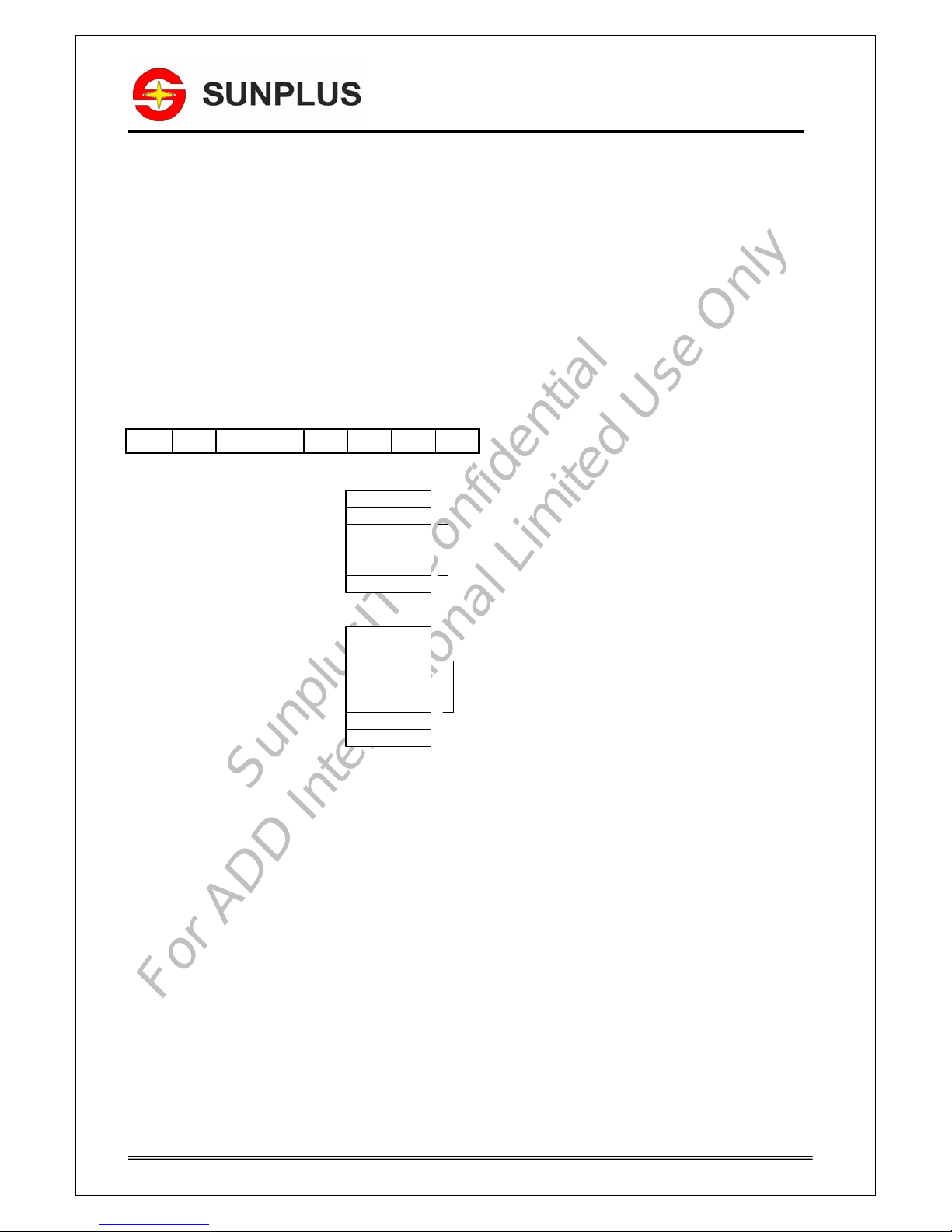

Relative addressing mode
The relative addressing mode uses (adr 08) to specify a memory address. The relative addressing mode only uses with the branch instructions. The maximum branch forward is 127 bytes and the maximum branch backward is 128 bytes.
Operation: OP-Code Adr 08
Example:
N V D I Z C
- - - - - -
LDA
$20
BCC
127 Bytes
M127: LDA #$20
. . .
BCC M127
P128
BCC
LDA
$30
BCC P128
. . .
P128: LDA #$30
128 Bytes
Page 22
S
u
n
p
l
u
s
I
T
o
n
f
i
d
e
n
t
i
a
l
F
o
r
A
I
n
t
e
r
n
a
t
i
o
n
a
l
L
i
m
i
t
e
d
s
e
O
n
l
y
CPU6502 Instruction Manual v2.1
Sunplus reserves the rights to change this documentation without prior notice. 09/13/2005
22
Format of Assembly Language Instruction
There are four parts of assembly language instruction.
[ label : ] OP-code [ operand ] [ ; comment ] [ ] : represents optional item.
Label field
It labels an instruction. Programmers are able to use the label as an address. Some rules should be applied:
• Start in column 1 or use a colon (:) at the end of a label.
• Start with a letter.
• Do not use the name of OP-code or register.
• 1 to 32 characters
• Avoid special symbols
OP-Code field
It is an instruction field.
Operand field
It can be data or addresses used in the program. When OP-Code is a single byte, operand field is omitted. When the address mode is immediate, it is a byte of data. It is a symbol for a location where a byte of data is found. It is a label when it refers to a program address.
Comment field
The comment field will increase the program‘s readability. A semicolon (;) should be placed at the beginning of comment. For example: LDA #00 ; load data 00 to A STA Counter ; load value of A into Counter
Note: A space is needed between two fields.
Page 23
S
u
n
p
l
u
s
I
T
o
n
f
i
d
e
n
t
i
a
l
F
o
r
A
I
n
t
e
r
n
a
t
i
o
n
a
l
L
i
m
i
t
e
d
s
e
O
n
l
y
CPU6502 Instruction Manual v2.1
Sunplus reserves the rights to change this documentation without prior notice. 09/13/2005
23
Instructions
ADC
Add to Accumulator with Carry, (A+M+C) Æ A, C
Available Instruction
& No. Cycles
Addressing
mode
Assembly Language
Form
6502
Opcode
Sunplus
Opcode
No.
Bytes
65b02 65n02 65r02 65s02 CPU12
Immediate ADC #dd 69H 56H 2 2 2 2 2 2 Zero Page ADC aa 65H 17H 2 3 3 3 3 3
Zero Page, X ADC aa, X 75H 1FH 2 4 4 X X X
Absolute ADC aaaa 6DH 57H 3 4 4 X X X Absolute, X ADC aaaa, X 7DH 5FH 3 4 4* X X X Absolute, Y ADC aaaa, Y 79H 5EH 3 4 4* X X X (Indirect, X) ADC (aa, X) 61H 16H 2 6 6 X X X (Indirect), Y ADC (aa), Y 71H 1EH 2 6 5* X X X
* Add 1 clock cycle if page boundary is crossed. X: Not available.
N V D I Z C
! ! * - ! !
N: Set if result is negative V: Set if arithmetic overflow occurs. Z: Set if result is 0 C: Set if there is a carry from the most significant bit of the result. D: * if set to 1, the ADC performs decimal operation.
Page 24
S
u
n
p
l
u
s
I
T
o
n
f
i
d
e
n
t
i
a
l
F
o
r
A
I
n
t
e
r
n
a
t
i
o
n
a
l
L
i
m
i
t
e
d
s
e
O
n
l
y
CPU6502 Instruction Manual v2.1
Sunplus reserves the rights to change this documentation without prior notice. 09/13/2005
24
AND
AND memory data with Accumulator, (A^M) Æ A
Available Instruction
& No. Cycles
Addressing
mode
Assembly Language
Form
6502
Opcode
Sunplus
Opcode
No.
Bytes
65b02 65n02 65r02 65s02
CPU12
Immediate AND #dd 29H 54H 2 2 2 2 2 2 Zero Page AND aa 25H 15H 2 3 3 3 3 3
Zero Page, X AND aa, X 35H 1DH 2 4 4 X X X
Absolute AND aaaa 2DH 55H 3 4 4 X X X Absolute, X AND aaaa, X 3DH 5DH 3 4 4* X X X Absolute, Y AND aaaa, Y 39H 5CH 3 4 4* X X X (Indirect, X) AND (aa, X) 21H 14H 2 6 6 X X X (Indirect), Y AND (aa), Y 31H 1CH 2 6 5* X X X
* Add 1 clock cycle if page boundary is crossed. X: Not available.
N V D I Z C
! - - - ! -
N: Set if result is negative Z: Set if result is 0
Page 25
S
u
n
p
l
u
s
I
T
o
n
f
i
d
e
n
t
i
a
l
F
o
r
A
I
n
t
e
r
n
a
t
i
o
n
a
l
L
i
m
i
t
e
d
s
e
O
n
l
y
CPU6502 Instruction Manual v2.1
Sunplus reserves the rights to change this documentation without prior notice. 09/13/2005
25

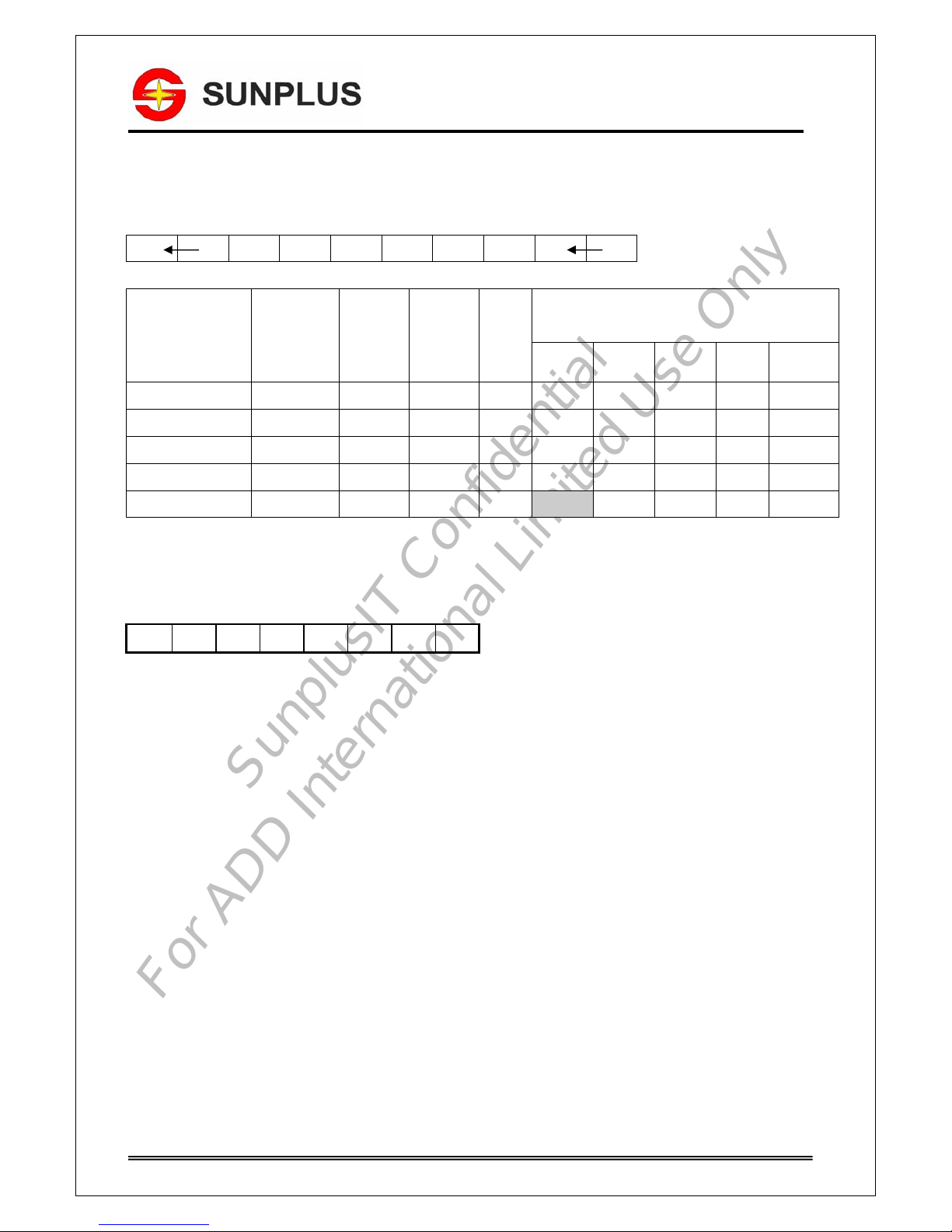

ASL
Accumulator Shift Left
7 6 5 4 3 2 1 0
C 0
Available Instruction
& No. Cycles
Addressing
mode
Assembly Language
Form
6502
Opcode
Sunplus
Opcode
No.
Bytes
65b02 65n02 65r02 65s02
CPU12
Accumulator ASL A 0AH C0H 1 2 2 X X X
Zero Page ASL aa 06H 81H 2 5 5 X X X
Zero Page, X ASL aa, X 16H 89H 2 6 6 X X X
Absolute ASL aaaa 0EH C1H 3 6 6 X X X Absolute, X ASL aaaa, X 1EH C9H 3 6 6* X X X
* Add 1 clock cycle if page boundary is crossed. X: Not available.
N V D I Z C
! - - - ! !
N: Set if result is negative Z: Set if result is 0 C: Set if the bit shifted from the most significant bit is 1 .
Page 26
S
u
n
p
l
u
s
I
T
o
n
f
i
d
e
n
t
i
a
l
F
o
r
A
I
n
t
e
r
n
a
t
i
o
n
a
l
L
i
m
i
t
e
d
s
e
O
n
l
y
CPU6502 Instruction Manual v2.1
Sunplus reserves the rights to change this documentation without prior notice. 09/13/2005
26
BCC/BCS/BEQ/BMI/BNE/BPL/BVC/BVS
Branch to aa if condition is true. The range of relative addressing is –128 (backward) and +127 (forward) bytes.
Available Instruction
& No. Cycles
Assembly Language
Form
Condition 6502
Opcode
Sunplus
Opcode
No.
Bytes
65b02 65n02 65r02 65s02
CPU12
BCC aa C=0 90H 28H 2 2*** 2** 2** 2** 2** BCS aa C=1 B0H 38H 2 2*** 2** 2** 2** 2** BEQ aa Z=1 F0H 3AH 2 2*** 2** 2** 2** 2**
BMI aa N=1 30H 18H 2 2*** 2** 2** 2** 2**
BNE aa Z=0 D0H 2AH 2 2*** 2** 2** 2** 2**
BPL aa N=0 10H 08H 2 2*** 2** 2** 2** 2**
BVC aa V=0 50H 0AH 2 2*** 2** 2** 2** 2** BVS aa V=1 70H 1AH 2 2*** 2** 2** 2** 2**
** Add 1 clock cycle if branch occurs to the same page.
Add 2 clock cycles if branch occurs to different page.
*** Add 1 clock cycle if branch occurs.
N V D I Z C
- - - - - -
Page 27
S
u
n
p
l
u
s
I
T
o
n
f
i
d
e
n
t
i
a
l
F
o
r
A
I
n
t
e
r
n
a
t
i
o
n
a
l
L
i
m
i
t
e
d
s
e
O
n
l
y
CPU6502 Instruction Manual v2.1
Sunplus reserves the rights to change this documentation without prior notice. 09/13/2005
27
BIT
Test bit in memory with Accumulator
Available Instruction
& No. Cycles
Addressing
mode
Assembly Language
Form
6502
Opcode
Sunplus Opcode
No.
Bytes
65b02 65n02 65r02 65s02
CPU12
Zero Page BIT aa 24H 11H 2 3 3 3 X 3
Absolute BIT aaaa 2CH 51H 3 4 4 4 X 4
X: Not available.
N V D I Z C
! ! - - ! -
N: Set if memory bit7 of the result is 1 V: Set if memory bit 6 of the result is 1. Z: Set if result is 0
Page 28
S
u
n
p
l
u
s
I
T
o
n
f
i
d
e
n
t
i
a
l
F
o
r
A
I
n
t
e
r
n
a
t
i
o
n
a
l
L
i
m
i
t
e
d
s
e
O
n
l
y
CPU6502 Instruction Manual v2.1
Sunplus reserves the rights to change this documentation without prior notice. 09/13/2005
28
CLC
Clear Carry flag
Available Instruction
& No. Cycles
Addressing
mode
Assembly Language
Form
6502
Opcode
Sunplus Opcode
No.
Bytes
65b02 65n02 65r02 65s02
CPU12
Implied CLC 18H 48H 1 2 2 2 2 2
N V D I Z C
- - - - - !
C: Unconditionally cleared.
CLD
Clear Decimal mode
Available Instruction
& No. Cycles
Addressing
mode
Assembly Language
Form
6502
Opcode
Sunplus
Opcode
No.
Bytes
65b02 65n02 65r02 65s02
CPU12
Implied CLD D8H 6AH 1 2 2 X X X
X: Not available.
N V D I Z C
- - ! - - -
D: Unconditionally cleared.
CLI
Clear Interrupt mask. (enable interrupt)
Available Instruction
& No. Cycles
Addressing
mode
Assembly Language
Form
6502
Opcode
Sunplus
Opcode
No.
Bytes
65b02 65n02 65r02 65s02
CPU12
Implied CLI 58H 4AH 1 2 2 2 2 2
N V D I Z C
- - - ! - -
I: Unconditionally cleared.
CLR
Bit Clear.
Page 29
S
u
n
p
l
u
s
I
T
o
n
f
i
d
e
n
t
i
a
l
F
o
r
A
I
n
t
e
r
n
a
t
i
o
n
a
l
L
i
m
i
t
e
d
s
e
O
n
l
y
CPU6502 Instruction Manual v2.1
Sunplus reserves the rights to change this documentation without prior notice. 09/13/2005
29
Clear BITn of $aa as “0”.
Available Instruction
& No. Cycles
Addressing
mode
Assembly Language
Form
6502
Opcode
Sunplus
Opcode
No.
Bytes
65b02 65n02 65r02 65s02
CPU12
Zero Page CLR aa, 0 0FH C5H 2 5 X X X X Zero Page CLR aa, 1 1FH CDH 2 5 X X X X Zero Page CLR aa, 2 2FH D5H 2 5 X X X X Zero Page CLR aa, 3 3FH DDH 2 5 X X X X Zero Page CLR aa, 4 4FH C7H 2 5 X X X X Zero Page CLR aa, 5 5FH CFH 2 5 X X X X Zero Page CLR aa, 6 6FH D7H 2 5 X X X X Zero Page CLR aa, 7 7FH DFH 2 5 X X X X
X: Not available.
N V D I Z C
- - - - - -
Page 30
S
u
n
p
l
u
s
I
T
o
n
f
i
d
e
n
t
i
a
l
F
o
r
A
I
n
t
e
r
n
a
t
i
o
n
a
l
L
i
m
i
t
e
d
s
e
O
n
l
y
CPU6502 Instruction Manual v2.1
Sunplus reserves the rights to change this documentation without prior notice. 09/13/2005
30
CLV
Clear overflow
Available Instruction
& No. Cycles
Addressing
mode
Assembly Language
Form
6502
Opcode
Sunplus
Opcode
No.
Bytes
65b02 65n02 65r02 65s02
CPU12
Implied CLV B8H 78H 1 2 2 2 2 2
N V D I Z C
- ! - - - -
V: Unconditionally cleared.
CMP
Compare memory data with Accumulator, A - M
Available Instruction
& No. Cycles
Addressing
mode
Assembly Language
Form
6502
Opcode
Sunplus
Opcode
No.
Bytes
65b02 65n02 65r02 65s02
CPU12
Immediate CMP #dd C9H 66H 2 2 2 2 2 2 Zero Page CMP aa C5H 27H 2 3 3 3 3 3
Zero Page, X CMP aa, X D5H 2FH 2 4 4 4 4 4
Absolute CMP aaaa CDH 67H 3 4 4 X X X Absolute, X CMP aaaa, X DDH 6FH 3 4 4* X X X Absolute, Y CMP aaaa, Y D9H 6EH 3 4 4* X X X (Indirect, X) CMP (aa, X) C1H 26H 2 6 6 X X X (Indirect), Y CMP (aa), Y D1H 2EH 2 6 5* X X X
* Add 1 clock cycle if page boundary is crossed. X: Not available.
N V D I Z C
! - - - ! !
N: Set if result is negative Z: Set if result is 0 C: Set if a “borrow” not occurred. (A > = M)
Page 31
S
u
n
p
l
u
s
I
T
o
n
f
i
d
e
n
t
i
a
l
F
o
r
A
I
n
t
e
r
n
a
t
i
o
n
a
l
L
i
m
i
t
e
d
s
e
O
n
l
y
CPU6502 Instruction Manual v2.1
Sunplus reserves the rights to change this documentation without prior notice. 09/13/2005
31
CPX
Compare memory data with Register X, X - data
Available Instruction
& No. Cycles
Addressing
mode
Assembly Language
Form
6502
Opcode
Sunplus Opcode
No.
Bytes
65b02 65n02 65r02 65s02
CPU12
Immediate CPX #dd E0H 32H 2 2 2 2 2 2 Zero Page CPX aa E4H 33H 2 3 3 3 3 3
Absolute CPX aaaa ECH 73H 3 4 4 X X X
X: Not available.
N V D I Z C
! - - - ! !
N: Set if result is negative Z: Set if result is 0 C: Set if a “borrow” not occurred. (X > = data)
CPY
Compare memory data with Register Y, Y - data
Available Instruction
& No. Cycles
Addressing
mode
Assembly Language
Form
6502
Opcode
Sunplus
Opcode
No.
Bytes
65b02 65n02 65r02 65s02
CPU12
Immediate CPY #dd C0H 22H 2 2 2 X X X Zero Page CPY aa C4H 23H 2 3 3 X X X
Absolute CPY aaaa CCH 63H 3 4 4 X X X
X: Not available.
N V D I Z C
! - - - ! !
N: Set if result is negative Z: Set if result is 0 C: Set if a “borrow” not occurred (Y > = data)
Page 32
S
u
n
p
l
u
s
I
T
o
n
f
i
d
e
n
t
i
a
l
F
o
r
A
I
n
t
e
r
n
a
t
i
o
n
a
l
L
i
m
i
t
e
d
s
e
O
n
l
y
CPU6502 Instruction Manual v2.1
Sunplus reserves the rights to change this documentation without prior notice. 09/13/2005
32
DEC
Decrement memory by one
Available Instruction
& No. Cycles
Addressing
mode
Assembly Language
Form
6502
Opcode
Sunplus
Opcode
No.
Bytes
65b02 65n02 65r02 65s02
CPU12
Zero Page DEC aa C6H A3H 2 5 5 5 5 5
Zero Page, X DEC aa, X D6H ABH 2 6 6 6 X 6
Absolute DEC aaaa CEH E3H 3 6 6 X X X Absolute, X DEC aaaa, X DEH EBH 3 6 7 X X X
X: Not available.
N V D I Z C
! - - - ! -
N: Set if result is negative Z: Set if result is 0
DEX
Decrement Register X by one
Available Instruction
& No. Cycles
Addressing
mode
Assembly Language
Form
6502
Opcode
Sunplus
Opcode
No.
Bytes
65b02 65n02 65r02 65s02
CPU12
Implied DEX CAH E2H 1 2 2 2 2 2
N V D I Z C
! - - - ! -
N: Set if result is negative Z: Set if result is 0
Page 33
S
u
n
p
l
u
s
I
T
o
n
f
i
d
e
n
t
i
a
l
F
o
r
A
I
n
t
e
r
n
a
t
i
o
n
a
l
L
i
m
i
t
e
d
s
e
O
n
l
y
CPU6502 Instruction Manual v2.1
Sunplus reserves the rights to change this documentation without prior notice. 09/13/2005
33
DEY
Decrement Register Y by one
Available Instruction
& No. Cycles
Addressing
mode
Assembly Language
Form
6502
Opcode
Sunplus Opcode
No.
Bytes
65b02 65n02 65r02 65s02
CPU12
Implied DEY 88H 60H 1 2 2 X X X
X: Not available.
N V D I Z C
! - - - ! -
N: Set if result is negative Z: Set if result is 0
EOR
Exclusive-OR memory with Accumulator, A Å A XOR memory
Available Instruction
& No. Cycles
Addressing
mode
Assembly Language
Form
6502
Opcode
Sunplus Opcode
No.
Bytes
65b02 65n02 65r02 65s02
CPU12
Immediate EOR #dd 49H 46H 2 2 2 2 2 2 Zero Page EOR aa 45H 07H 2 3 3 3 3 3
Zero Page, X EOR aa, X 55H 0FH 2 4 4 4 X 4
Absolute EOR aaaa 4DH 47H 3 4 4 X X X Absolute, X EOR aaaa, X 5DH 4FH 3 4 4* X X X Absolute, Y EOR aaaa, Y 59H 4EH 3 4 4* X X X
(Indirect, X) EOR (aa, X) 41H 06H 2 6 6 X X X (Indirect), Y EOR (aa), Y 51H 0EH 2 6 5* X X X
* Add 1 clock cycle if page boundary is crossed. X: Not available.
N V D I Z C
! - - - ! -
N: Set if result is negative Z: Set if result is 0
Page 34
S
u
n
p
l
u
s
I
T
o
n
f
i
d
e
n
t
i
a
l
F
o
r
A
I
n
t
e
r
n
a
t
i
o
n
a
l
L
i
m
i
t
e
d
s
e
O
n
l
y
CPU6502 Instruction Manual v2.1
Sunplus reserves the rights to change this documentation without prior notice. 09/13/2005
34
INC
Increment memory by one
Available Instruction
& No. Cycles
Addressing
mode
Assembly Language
Form
6502
Opcode
Sunplus Opcode
No.
Bytes
65b02 65n02 65r02 65s02
CPU12
Zero Page INC aa E6H B3H 2 5 5 5 5 5
Zero Page, X INC aa, X F6H BBH 2 6 6 X X X
Absolute INC aaaa EEH F3H 3 6 6 X X X Absolute, X INC aaaa, X FEH FBH 3 6 7 X X X
X: Not available.
N V D I Z C
! - - - ! -
N: Set if result is negative Z: Set if result is 0
INV
Page 35
S
u
n
p
l
u
s
I
T
o
n
f
i
d
e
n
t
i
a
l
F
o
r
A
I
n
t
e
r
n
a
t
i
o
n
a
l
L
i
m
i
t
e
d
s
e
O
n
l
y
CPU6502 Instruction Manual v2.1
Sunplus reserves the rights to change this documentation without prior notice. 09/13/2005
35
Bit Inverse. Toggle BITn of $aa.
Available Instruction
& No. Cycles
Addressing
mode
Assembly Language
Form
6502
Opcode
Sunplus
Opcode
No.
Bytes
65b02 65n02 65r02 65s02
CPU12
Zero Page INV aa, 0 87H A5H 2 5 X X X X Zero Page INV aa, 1 97H ADH 2 5 X X X X Zero Page INV aa, 2 A7H B5H 2 5 X X X X Zero Page INV aa, 3 B7H BDH 2 5 X X X X Zero Page INV aa, 4 C7H A7H 2 5 X X X X Zero Page INV aa, 5 D7H AFH 2 5 X X X X Zero Page INV aa, 6 E7H B7H 2 5 X X X X Zero Page INV aa, 7 F7H BFH 2 5 X X X X
X: Not available.
N V D I Z C
- - - - - -
INX
Increment Register X by one
Available Instruction
& No. Cycles
Addressing
mode
Assembly Language
Form
6502
Opcode
Sunplus Opcode
No.
Bytes
65b02 65n02 65r02 65s02
CPU12
Implied INX E8H 72H 1 2 2 2 2 2
N V D I Z C
! - - - ! -
N: Set if result is negative Z: Set if result is 0
Page 36
S
u
n
p
l
u
s
I
T
o
n
f
i
d
e
n
t
i
a
l
F
o
r
A
I
n
t
e
r
n
a
t
i
o
n
a
l
L
i
m
i
t
e
d
s
e
O
n
l
y
CPU6502 Instruction Manual v2.1
Sunplus reserves the rights to change this documentation without prior notice. 09/13/2005
36
INY
Increment Register Y by one
Available Instruction
& No. Cycles
Addressing
mode
Assembly Language
Form
6502
Opcode
Sunplus
Opcode
No.
Bytes
65b02 65n02 65r02 65s02
CPU12
Implied INY C8H 62H 1 2 2 X X X
X: Not available.
N V D I Z C
! - - - ! -
N: Set if result is negative Z: Set if result is 0
JMP
Jump to specified location
Available Instruction
& No. Cycles
Addressing
mode
Assembly Language
Form
6502
Opcode
Sunplus
Opcode
No.
Bytes
65b02 65n02 65r02 65s02
CPU12
Absolute JMP aaaa 4CH 43H 3 3 3 3 3 3
Indirect JMP (aaaa) 6CH 53H 3 5 6 6 6 6
N V D I Z C
- - - - - -
Page 37
S
u
n
p
l
u
s
I
T
o
n
f
i
d
e
n
t
i
a
l
F
o
r
A
I
n
t
e
r
n
a
t
i
o
n
a
l
L
i
m
i
t
e
d
s
e
O
n
l
y
CPU6502 Instruction Manual v2.1
Sunplus reserves the rights to change this documentation without prior notice. 09/13/2005
37
JSR
Jump to subroutine
Available Instruction
& No. Cycles
Addressing
mode
Assembly Language
Form
6502
Opcode
Sunplus
Opcode
No.
Bytes
65b02 65n02 65r02 65s02
CPU12
Absolute JSR aaaa 20H 10H 3 6 6 6 6 6
With JSR instruction, the current address will be pushed on stack and then jumps to the specified subroutine. At the end of subroutine procedure, the RTS (return from subroutine) instruction can be used to return to the original program flow by popping saved address from stack.
N V D I Z C
- - - - - -
LDA
Load memory data or data into Accumulator, A Å data
Available Instruction
& No. Cycles
Addressing
mode
Assembly Language
Form
6502
Opcode
Sunplus
Opcode
No.
Bytes
65b02 65n02 65r02 65s02
CPU12
Immediate LDA #dd A9H 74H 2 2 2 2 2 2 Zero Page LDA aa A5H 35H 2 3 3 3 3 3
Zero Page, X LDA aa, X B5H 3DH 2 4 4 4 4 4
Absolute LDA aaaa ADH 75H 3 4 4 4 4 4 Absolute, X LDA aaaa, X BDH 7DH 3 4 4* 4* 4* 4* Absolute, Y LDA aaaa, Y B9H 7CH 3 4 4* X X X (Indirect, X) LDA (aa, X) A1H 34H 2 6 6 6 6 6 (Indirect), Y LDA (aa), Y B1H 3CH 2 6 5* X X X
* Add 1 clock cycle if page boundary is crossed. X: Not available.
N V D I Z C
! - - - ! -
N: Set if result is negative Z: Set if result is 0
LDX
Page 38
S
u
n
p
l
u
s
I
T
o
n
f
i
d
e
n
t
i
a
l
F
o
r
A
I
n
t
e
r
n
a
t
i
o
n
a
l
L
i
m
i
t
e
d
s
e
O
n
l
y
CPU6502 Instruction Manual v2.1
Sunplus reserves the rights to change this documentation without prior notice. 09/13/2005
38
Load memory data or data into Register X, X Å data
Available Instruction
& No. Cycles
Addressing
mode
Assembly Language
Form
6502
Opcode
Sunplus
Opcode
No.
Bytes
65b02 65n02 65r02 65s02
CPU12
Immediate LDX #dd A2H B0H 2 2 2 2 2 2 Zero Page LDX aa A6H B1H 2 3 3 3 3 3
Zero Page, Y LDX aa, Y B6H B9H 2 4 4 X X X
Absolute LDX aaaa AEH F1H 3 4 4 4 X 4 Absolute, Y LDX aaaa, Y BEH F9H 3 4 4* X X X
* Add 1 clock cycle if page boundary is crossed. X: Not available.
N V D I Z C
! - - - ! -
N: Set if result is negative Z: Set if result is 0
LDY
Load memory data or data into Register Y, Y Å data
Available Instruction
& No. Cycles
Addressing
mode
Assembly Language
Form
6502
Opcode
Sunplus
Opcode
No.
Bytes
65b02 65n02 65r02 65s02
CPU12
Immediate LDY #dd A0H 30H 2 2 2 X X X Zero Page LDY aa A4H 31H 2 3 3 X X X
Zero Page, X LDY aa, X B4H 39H 2 4 4 X X X
Absolute LDY aaaa ACH 71H 3 4 4 X X X Absolute, X LDY aaaa, X BCH 79H 3 4 4* X X X
* Add 1 clock cycle if page boundary is crossed. X: Not available.
N V D I Z C
! - - - ! -
N: Set if result is negative Z: Set if result is 0
Page 39
S
u
n
p
l
u
s
I
T
o
n
f
i
d
e
n
t
i
a
l
F
o
r
A
I
n
t
e
r
n
a
t
i
o
n
a
l
L
i
m
i
t
e
d
s
e
O
n
l
y
CPU6502 Instruction Manual v2.1
Sunplus reserves the rights to change this documentation without prior notice. 09/13/2005
39
LSR
Local Shift Right
7 6 5 4 3 2 1 0
0 C
Available Instruction
& No. Cycles
Addressing
mode
Assembly Language
Form
6502
Opcode
Sunplus
Opcode
No.
Bytes
65b02 65n02 65r02 65s02
CPU12
Accumulator LSR A 4AH C2H 1 2 2 X X X
Zero Page LSR aa 46H 83H 2 5 5 X X X
Zero Page, X LSR aa, X 56H 8BH 2 6 6 X X X
Absolute LSR aaaa 4EH C3H 3 6 6 X X X Absolute, X LSR aaaa, X 5EH CBH 3 6 6* X X X
* Add 1 clock cycle if page boundary is crossed. X: Not available.
N V D I Z C
! - - - ! !
N: Set if result is negative Z: Set if result is 0 C: Set if the bit shifted from the least significant bit is 1.
NOP
No operation
Available Instruction
& No. Cycles
Addressing
mode
Assembly Language
Form
6502
Opcode
Sunplus
Opcode
No.
Bytes
65b02 65n02 65r02 65s02
CPU12
Implied NOP EAH F2H 1 2 2 2 2 2
N V D I Z C
- - - - - -
Page 40
S
u
n
p
l
u
s
I
T
o
n
f
i
d
e
n
t
i
a
l
F
o
r
A
I
n
t
e
r
n
a
t
i
o
n
a
l
L
i
m
i
t
e
d
s
e
O
n
l
y
CPU6502 Instruction Manual v2.1
Sunplus reserves the rights to change this documentation without prior notice. 09/13/2005
40
ORA
OR memory with Accumulator, A Å A OR memory
Available Instruction
& No. Cycles
Addressing
mode
Assembly Language
Form
6502
Opcode
Sunplus Opcode
No.
Bytes
65b02 65n02 65r02 65s02
CPU12
Immediate ORA #dd 09H 44H 2 2 2 2 2 2 Zero Page ORA aa 05H 05H 2 3 3 3 3 3
Zero Page, X ORA aa, X 15H 0DH 2 4 4 X X X
Absolute ORA aaaa 0DH 45H 3 4 4 X X X Absolute, X ORA aaaa, X 1DH 4DH 3 4 4* X X X Absolute, Y ORA aaaa, Y 19H 4CH 3 4 4* X X X (Indirect, X) ORA (aa, X) 01H 04H 2 6 6 X X X (Indirect), Y ORA (aa), Y 11H 0CH 2 6 5* X X X
* Add 1 clock cycle if page boundary is crossed. X: Not available.
N V D I Z C
! - - - ! -
N: Set if result is negative Z: Set if result is 0
PHA
Push Accumulator on Stack
Available Instruction
& No. Cycles
Addressing
mode
Assembly Language
Form
6502
Opcode
Sunplus
Opcode
No.
Bytes
65b02 65n02 65r02 65s02
CPU12
Implied PHA 48H 42H 1 3 3 3 3 3
N V D I Z C
- - - - - -
Page 41
S
u
n
p
l
u
s
I
T
o
n
f
i
d
e
n
t
i
a
l
F
o
r
A
I
n
t
e
r
n
a
t
i
o
n
a
l
L
i
m
i
t
e
d
s
e
O
n
l
y
CPU6502 Instruction Manual v2.1
Sunplus reserves the rights to change this documentation without prior notice. 09/13/2005
41
PHP
Push Status Flag on Stack
Available Instruction
& No. Cycles
Addressing
mode
Assembly Language
Form
6502
Opcode
Sunplus Opcode
No.
Bytes
65b02 65n02 65r02 65s02
CPU12
Implied PHP 08H 40H 1 3 3 3 3 3
N V D I Z C
- - - - - -
PLA
Pull Accumulator from Stack
Available Instruction
& No. Cycles
Addressing
mode
Assembly Language
Form
6502
Opcode
Sunplus Opcode
No.
Bytes
65b02 65n02 65r02 65s02
CPU12
Implied PLA 68H 52H 1 4 4 4 4 4
N V D I Z C
! - - - ! -
PLP
Pull Status Flag from Stack
Available Instruction
& No. Cycles
Addressing
mode
Assembly Language
Form
6502
Opcode
Sunplus Opcode
No.
Bytes
65b02 65n02 65r02 65s02
CPU12
Implied PLP 28H 50H 1 4 4 4 4 4
N V D I Z C
! ! ! ! ! !
Page 42
S
u
n
p
l
u
s
I
T
o
n
f
i
d
e
n
t
i
a
l
F
o
r
A
I
n
t
e
r
n
a
t
i
o
n
a
l
L
i
m
i
t
e
d
s
e
O
n
l
y
CPU6502 Instruction Manual v2.1
Sunplus reserves the rights to change this documentation without prior notice. 09/13/2005
42

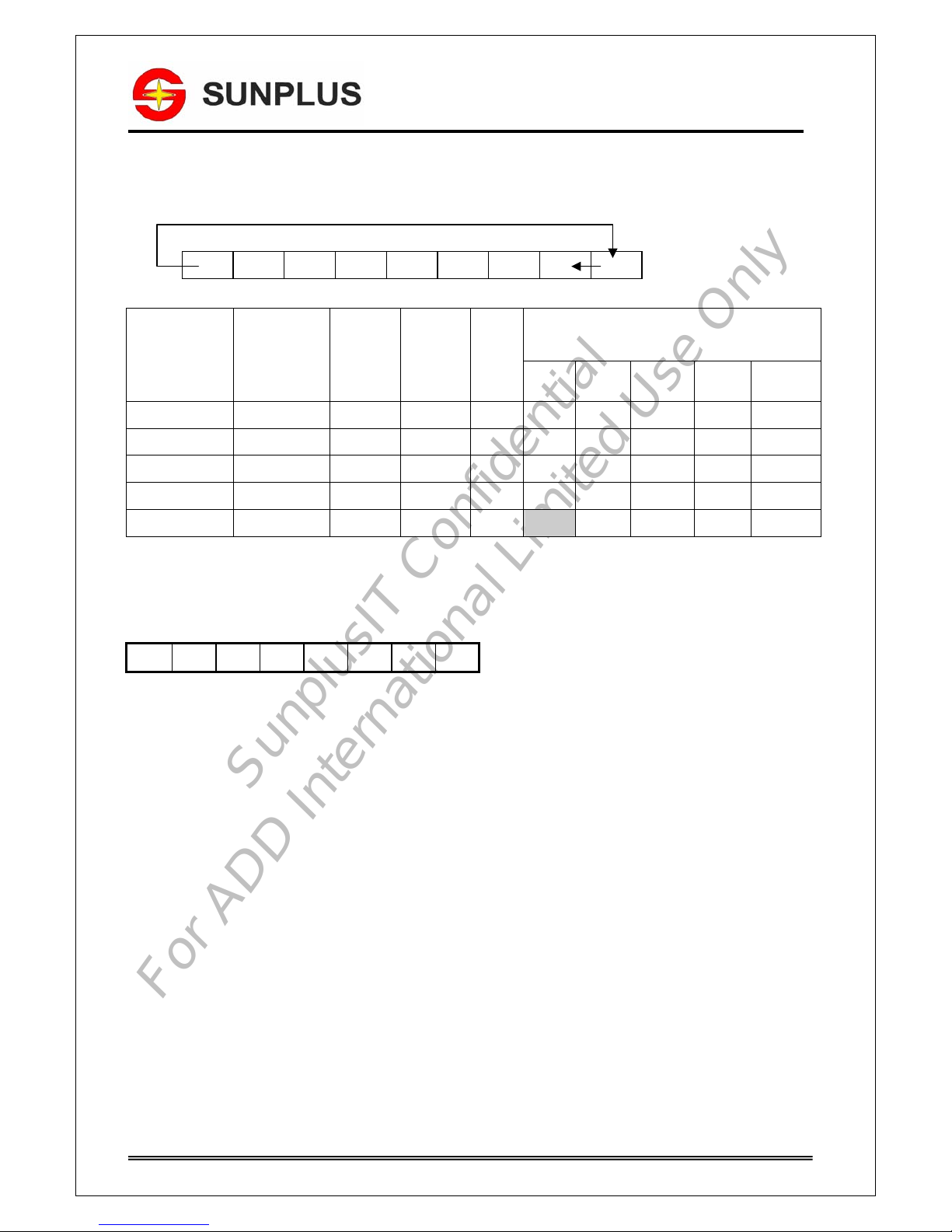

ROL
Rotate Left
Available Instruction
& No. Cycles
Addressing
mode
Assembly Language
Form
6502
Opcode
Sunplus Opcode
No.
Bytes
65b02 65n02 65r02 65s02
CPU12
Accumulator ROL A 2AH D0H 1 2 2 2 2 2
Zero Page ROL aa 26H 91H 2 5 5 5 5 5
Zero Page, X ROL aa, X 36H 99H 2 6 6 X X X
Absolute ROL aaaa 2EH D1H 3 6 6 X X X
Absolute, X ROL aaaa, X 3EH D9H 3 6 6* X X X
* Add 1 clock cycle if page boundary is crossed. X: Not available.
N V D I Z C
! - - - ! !
N: Set if result is negative Z: Set if result is 0 C: Set if the bit shifted from the most significant bit position is 1.
76543210
C
Page 43
S
u
n
p
l
u
s
I
T
o
n
f
i
d
e
n
t
i
a
l
F
o
r
A
I
n
t
e
r
n
a
t
i
o
n
a
l
L
i
m
i
t
e
d
s
e
O
n
l
y
CPU6502 Instruction Manual v2.1
Sunplus reserves the rights to change this documentation without prior notice. 09/13/2005
43

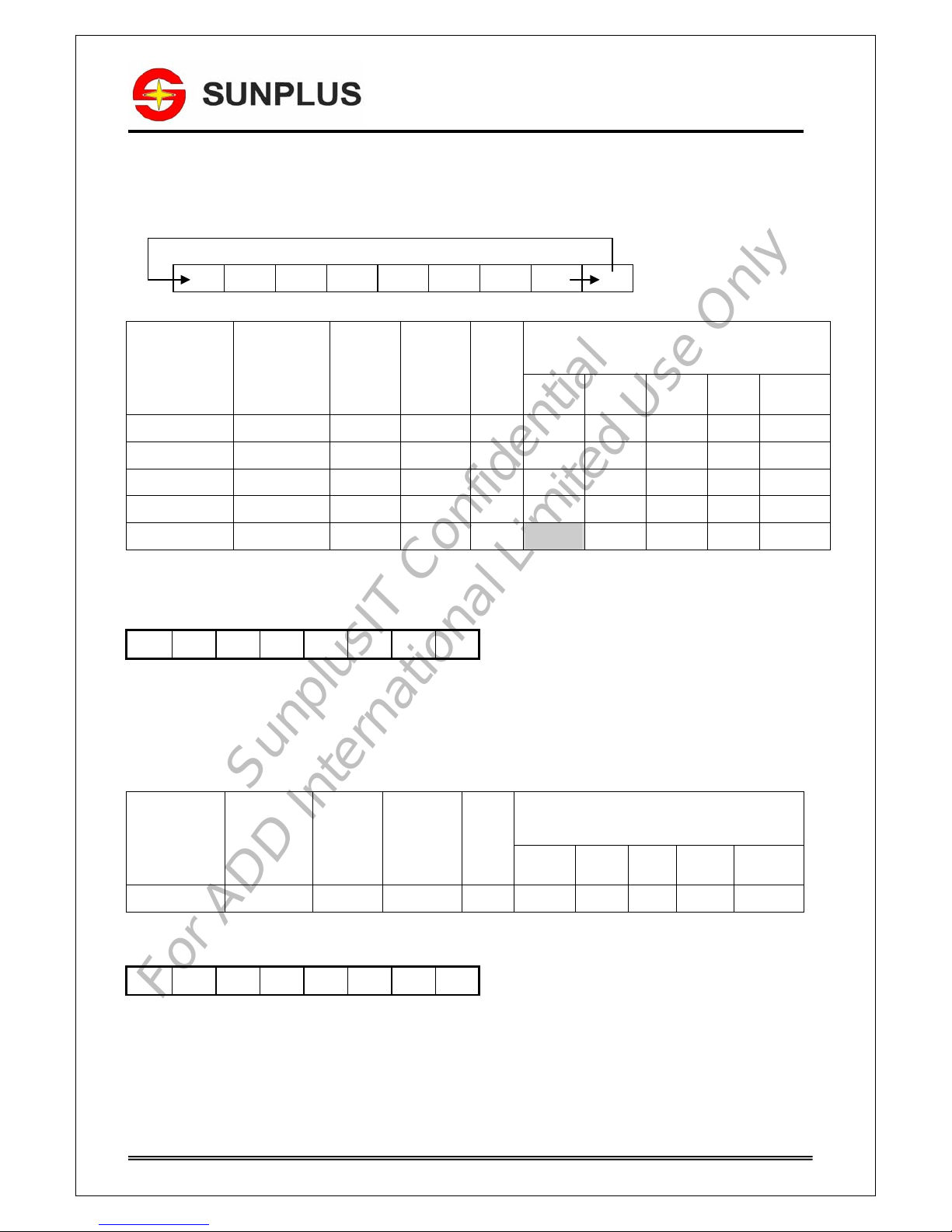

ROR
Rotate Right
Available Instruction
& No. Cycles
Addressing
mode
Assembly Language
Form
6502
Opcode
Sunplus Opcode
No.
Bytes
65b02 65n02 65r02 65s02
CPU12
Accumulator ROR A 6AH D2H 1 2 2 2 2 2
Zero Page ROR aa 66H 93H 2 5 5 5 5 5
Zero Page, X ROR aa, X 76H 9BH 2 6 6 X X X
Absolute ROR aaaa 6EH D3H 3 6 6 X X X
Absolute, X ROR aaaa, X 7EH DBH 3 6 6* X X X
* Add 1 clock cycle if page boundary is crossed. X: Not available.
N V D I Z C
! - - - ! !
N: Set if result is negative Z: Set if result is 0 C: Set if the bit shifted from the least significant bit position is 1.
RTI
Return from Interrupt
Available Instruction
& No. Cycles
Addressing
mode
Assembly Language
Form
6502
Opcode
Sunplus
Opcode
No.
Bytes
65b02 65n02 65r02 65s02
CPU12
Implied RTI 40H 02H 1 6 6 6 6 6
N V D I Z C
N: Restored from stack V: Restored from stack D, I: Restored from stack Z: Restored from stack C: Restored from stack
RTS
76543210
C
Page 44
S
u
n
p
l
u
s
I
T
o
n
f
i
d
e
n
t
i
a
l
F
o
r
A
I
n
t
e
r
n
a
t
i
o
n
a
l
L
i
m
i
t
e
d
s
e
O
n
l
y
CPU6502 Instruction Manual v2.1
Sunplus reserves the rights to change this documentation without prior notice. 09/13/2005
44
Return from Subroutine
Available Instruction
& No. Cycles
Addressing
mode
Assembly Language
Form
6502
Opcode
Sunplus Opcode
No.
Bytes
65b02 65n02 65r02 65s02
CPU12
Implied RTS 60H 12H 1 6 6 6 6 6
N V D I Z C
- - - - - -
SBC
Subtract from Accumulator with Carry’s complement, (A-M - C ) Æ A, C
Available Instruction
& No. Cycles
Addressing
mode
Assembly Language
Form
6502
Opcode
Sunplus Opcode
No.
Bytes
65b02 65n02 65r02 65s02
CPU12
Immediate SBC #dd E9H 76H 2 2 2 2 2 2 Zero Page SBC aa E5H 37H 2 3 3 3 3 3
Zero Page, X SBC aa, X F5H 3FH 2 4 4 X X X
Absolute SBC aaaa EDH 77H 3 4 4 X X X Absolute, X SBC aaaa, X FDH 7FH 3 4 4* X X X Absolute, Y SBC aaaa, Y F9H 7EH 3 4 4* X X X (Indirect, X) SBC (aa, X) E1H 36H 2 6 6 X X X (Indirect), Y SBC (aa), Y F1H 3EH 2 6 5* X X X
* Add 1 clock cycle if page boundary is crossed. X: Not available.
N V D I Z C
! ! * - ! !
N: Set if result is negative V: Set if arithmetic overflow occurs. Z: Set if result is 0 C: Set if there is no “borrow” occurred. (A > M). D: * if set to 1, the ADC performs decimal operation.
Page 45
S
u
n
p
l
u
s
I
T
o
n
f
i
d
e
n
t
i
a
l
F
o
r
A
I
n
t
e
r
n
a
t
i
o
n
a
l
L
i
m
i
t
e
d
s
e
O
n
l
y
CPU6502 Instruction Manual v2.1
Sunplus reserves the rights to change this documentation without prior notice. 09/13/2005
45
SEC
Set Carry Flag to 1, C Å1
Available Instruction
& No. Cycles
Addressing
mode
Assembly Language
Form
6502
Opcode
Sunplus
Opcode
No.
Bytes
65b02 65n02 65r02 65s02
CPU12
Implied SEC 38H 58H 1 2 2 2 2 2
N V D I Z C
- - - - - !
C: Unconditionally Set
SED
Set Decimal Mode to 1, D Å1
Available Instruction
& No. Cycles
Addressing
mode
Assembly Language
Form
6502
Opcode
Sunplus
Opcode
No.
Bytes
65b02 65n02 65r02 65s02
CPU12
Implied SED F8H 7AH 1 2 2 X X X
X: Not available.
N V D I Z C
- - ! - - -
D: Unconditionally Set
SEI
Set Interrupt Disable flag to 1, I Å1 (Disable Interrupt)
Available Instruction
& No. Cycles
Addressing
mode
Assembly Language
Form
6502
Opcode
Sunplus
Opcode
No.
Bytes
65b02 65n02 65r02 65s02
CPU12
Implied SEI 78H 5AH 1 2 2 2 2 2
N V D I Z C
- - - ! - -
I: Unconditionally Set
SET
Bit Set.
Page 46
S
u
n
p
l
u
s
I
T
o
n
f
i
d
e
n
t
i
a
l
F
o
r
A
I
n
t
e
r
n
a
t
i
o
n
a
l
L
i
m
i
t
e
d
s
e
O
n
l
y
CPU6502 Instruction Manual v2.1
Sunplus reserves the rights to change this documentation without prior notice. 09/13/2005
46
Set BITn of $aa as “1”.
Available Instruction
& No. Cycles
Addressing
mode
Assembly Language
Form
6502
Opcode
Sunplus
Opcode
No.
Bytes
65b02 65n02 65r02 65s02
CPU12
Zero Page SET aa, 0 8FH E5H 2 5 X X X X Zero Page SET aa, 1 9FH EDH 2 5 X X X X Zero Page SET aa, 2 AFH F5H 2 5 X X X X Zero Page SET aa, 3 BFH FDH 2 5 X X X X Zero Page SET aa, 4 CFH E7H 2 5 X X X X Zero Page SET aa, 5 DFH EFH 2 5 X X X X Zero Page SET aa, 6 EFH F7H 2 5 X X X X Zero Page SET aa, 7 FFH FFH 2 5 X X X X
X: Not available.
N V D I Z C
- - - - - -
Page 47
S
u
n
p
l
u
s
I
T
o
n
f
i
d
e
n
t
i
a
l
F
o
r
A
I
n
t
e
r
n
a
t
i
o
n
a
l
L
i
m
i
t
e
d
s
e
O
n
l
y
CPU6502 Instruction Manual v2.1
Sunplus reserves the rights to change this documentation without prior notice. 09/13/2005
47
STA
Store Accumulator in memory, M Å A
Available Instruction
& No. Cycles
Addressing
mode
Assembly Language
Form
6502
Opcode
Sunplus
Opcode
No.
Bytes
65b02 65n02 65r02 65s02
CPU12
Zero Page STA aa 85H 25H 2 3 3 3 3 3
Zero Page, X STA aa, X 95H 2DH 2 4 4 4 4 4
Absolute STA aaaa 8DH 65H 3 4 4 X X X Absolute, X STA aaaa, X 9DH 6DH 3 4 5 X X X Absolute, Y STA aaaa, Y 99H 6CH 3 4 5 X X X (Indirect, X) STA (aa, X) 81H 24H 2 6 6 6 6 6 (Indirect), Y STA (aa), Y 91H 2CH 2 6 6 X X X
X: Not available.
N V D I Z C
- - - - - -
STX
Store Register X in memory, M Å X
Available Instruction
& No. Cycles
Addressing
mode
Assembly Language
Form
6502
Opcode
Sunplus
Opcode
No.
Bytes
65b02 65n02 65r02 65s02
CPU12
Zero Page STX aa 86H A1H 2 3 3 3 3 3
Zero Page, Y STX aa, Y 96H A9H 2 4 4 X X X
Absolute STX aaaa 8EH E1H 3 4 4 4 4 4
X: Not available.
N V D I Z C
- - - - - -
Page 48
S
u
n
p
l
u
s
I
T
o
n
f
i
d
e
n
t
i
a
l
F
o
r
A
I
n
t
e
r
n
a
t
i
o
n
a
l
L
i
m
i
t
e
d
s
e
O
n
l
y
CPU6502 Instruction Manual v2.1
Sunplus reserves the rights to change this documentation without prior notice. 09/13/2005
48
STY
Store Register Y in memory, M Å Y
Available Instruction
& No. Cycles
Addressing
mode
Assembly Language
Form
6502
Opcode
Sunplus
Opcode
No.
Bytes
65b02 65n02 65r02 65s02
CPU12
Zero Page STY aa 84H 21H 2 3 3 X X X
Zero Page, X STY aa, X 94H 29H 2 4 4 X X X
Absolute STY aaaa 8CH 61H 3 4 4 X X X
X: Not available.
N V D I Z C
- - - - - -
TAX
Transfer Accumulator to Index X, X Å A
Available Instruction
& No. Cycles
Addressing
mode
Assembly Language
Form
6502
Opcode
Sunplus
Opcode
No.
Bytes
65b02 65n02 65r02 65s02
CPU12
Implied TAX AAH F0H 1 2 2 2 X 2
X: Not available.
N V D I Z C
! - - - ! -
N: Set if the result is negative Z: Set if the result is 0
Page 49
S
u
n
p
l
u
s
I
T
o
n
f
i
d
e
n
t
i
a
l
F
o
r
A
I
n
t
e
r
n
a
t
i
o
n
a
l
L
i
m
i
t
e
d
s
e
O
n
l
y
CPU6502 Instruction Manual v2.1
Sunplus reserves the rights to change this documentation without prior notice. 09/13/2005
49
TAY
Transfer Accumulator to Index Y, Y Å A
Available Instruction
& No. Cycles
Addressing
mode
Assembly Language
Form
6502
Opcode
Sunplus
Opcode
No.
Bytes
65b02 65n02 65r02 65s02
CPU12
Implied TAY A8H 70H 1 2 2 X X X
X: Not available.
N V D I Z C
! - - - ! -
N: Set if the result is negative Z: Set if the result is 0
TST
Bit Test. Read and judge BITn of $aa.
Available Instruction
& No. Cycles
Addressing
mode
Assembly Language
Form
6502
Opcode
Sunplus
Opcode
No.
Bytes
65b02 65n02 65r02 65s02
CPU12
Zero Page TST aa, 0 07H 85H 2 3 X X X X Zero Page TST aa, 1 17H 8DH 2 3 X X X X Zero Page TST aa, 2 27H 95H 2 3 X X X X Zero Page TST aa, 3 37H 9DH 2 3 X X X X Zero Page TST aa, 4 47H 87H 2 3 X X X X Zero Page TST aa, 5 57H 8FH 2 3 X X X X Zero Page TST aa, 6 67H 97H 2 3 X X X X Zero Page TST aa, 7 77H 9FH 2 3 X X X X
X: Not available.
N V D I Z C
- - - - ! -
Z: Set if BITn of $aa is 0.
TSX
Page 50
S
u
n
p
l
u
s
I
T
o
n
f
i
d
e
n
t
i
a
l
F
o
r
A
I
n
t
e
r
n
a
t
i
o
n
a
l
L
i
m
i
t
e
d
s
e
O
n
l
y
CPU6502 Instruction Manual v2.1
Sunplus reserves the rights to change this documentation without prior notice. 09/13/2005
50
Transfer Stack to Index X, X Å S
Available Instruction
& No. Cycles
Addressing
mode
Assembly Language
Form
6502
Opcode
Sunplus
Opcode
No.
Bytes
65b02 65n02 65r02 65s02
CPU12
Implied TSX BAH F8H 1 2 2 2 2 2
N V D I Z C
! - - - ! -
N: Set if the result is negative Z: Set if the result is 0
TXA
Transfer Register X to Accumulator, A Å X
Available Instruction
& No. Cycles
Addressing
mode
Assembly Language
Form
6502
Opcode
Sunplus
Opcode
No.
Bytes
65b02 65n02 65r02 65s02
CPU12
Implied TXA 8AH E0H 1 2 2 2 X 2
X: Not available.
N V D I Z C
! - - - ! -
N: Set if the result is negative Z: Set if the result is 0
TXS
Transfer Register X to Stack, S Å X
Available Instruction
& No. Cycles
Addressing
mode
Assembly Language
Form
6502
Opcode
Sunplus Opcode
No.
Bytes
65b02 65n02 65r02 65s02
CPU12
Implied TXS 9AH E8H 1 2 2 2 2 2
N V D I Z C
- - - - - -
TYA
Transfer Register Y to Accumulator, A Å Y
Page 51
S
u
n
p
l
u
s
I
T
o
n
f
i
d
e
n
t
i
a
l
F
o
r
A
I
n
t
e
r
n
a
t
i
o
n
a
l
L
i
m
i
t
e
d
s
e
O
n
l
y
CPU6502 Instruction Manual v2.1
Sunplus reserves the rights to change this documentation without prior notice. 09/13/2005
51
Available Instruction
& No. Cycles
Addressing
mode
Assembly Language
Form
6502
Opcode
Sunplus Opcode
No.
Bytes
65b02 65n02 65r02 65s02
CPU12
Implied TYA 98H 68H 1 2 2 X X X
X: Not available.
N V D I Z C
! - - - ! -
N: Set if the result is negative Z: Set if the result is 0
Page 52
S
u
n
p
l
u
s
I
T
o
n
f
i
d
e
n
t
i
a
l
F
o
r
A
I
n
t
e
r
n
a
t
i
o
n
a
l
L
i
m
i
t
e
d
s
e
O
n
l
y
CPU6502 Instruction Manual v2.1
Sunplus reserves the rights to change this documentation without prior notice. 09/13/2005
52
Summary of Available Instruction set for each CPU Type
No. Instruction Address Mode 65b02 65n02 65r02 65s02 CPU12
1. ADC #dd Immediate
√ √ √ √ √
2. ADC aa Zero page
√ √ √ √ √
3. ADC aa, X Zero page Indexed X
√ √
4. ADC aaaa Absolute
√ √
5. ADC aaaa,X Absolute Indexed X
√ √
6. ADC aaaa,Y Absolute Indexed Y
√ √
7. ADC (aa,X) Indexed Indirect X
√ √
8. ADC (aa), Y Indirect Indexed Y
√ √
9. AND #dd Immediate
√ √ √ √ √
10. AND aa Zero page
√ √ √ √ √
11. AND aa, X Zero page Indexed X
√ √
12. AND aaaa Absolute
√ √
13. AND aaaa,X Absolute Indexed X
√ √
14. AND aaaa,Y Absolute Indexed Y
√ √
15. AND (aa,X) Indexed Indirect X
√ √
16. AND (aa), Y Indirect Indexed Y
√ √
17. ASL A accumulator
√ √
18. ASL aa Zero page
√ √
19. ASL aa,X Zero page Indexed x
√ √
20. ASL aaaa Absolute
√ √
21. ASL aaaa,X Absolute Indexed x
√ √
22. BCC ?? Relative
√√√√ √
Page 53
S
u
n
p
l
u
s
I
T
o
n
f
i
d
e
n
t
i
a
l
F
o
r
A
I
n
t
e
r
n
a
t
i
o
n
a
l
L
i
m
i
t
e
d
s
e
O
n
l
y
CPU6502 Instruction Manual v2.1
Sunplus reserves the rights to change this documentation without prior notice. 09/13/2005
53
No. Instruction Address Mode 65b02 65n02 65r02 65s02 CPU12
23. BCS ?? Relative
√ √ √ √ √
24. BEQ ?? Relative
√ √ √ √ √
25. BIT aa Zero page
√ √ √
√
26. BIT aaaa Absolute
√ √ √
√
27. BMI ?? Relative
√ √ √ √ √
28. BNE ?? Relative
√ √ √ √ √
29. BPL ?? Relative
√ √ √ √ √
30. BRK Implied
√ √ √ √ √
31. BVC ?? Relative
√ √ √ √ √
32. BVS ?? Relative
√ √ √ √ √
33. CLC Implied
√ √ √ √ √
34. CLD Implied
√ √
35. CLI Implied
√ √ √ √ √
36. CLR aa, BITn Zero page
√
37. CLV Implied
√ √ √ √ √
38. CMP #dd Immediate
√ √ √ √ √
39. CMP aa Zero page
√ √ √ √ √
40. CMP aa, X Zero page Indexed X
√ √ √ √ √
41. CMP aaaa Absolute
√ √
42. CMP aaaa,X Absolute Indexed X
√ √
43. CMP aaaa,Y Absolute Indexed Y
√ √
44. CMP (aa,X) Indexed Indirect X
√ √
45. CMP (aa), Y Indirect Indexed Y
√ √
46. CPX #dd Immediate
√ √ √ √ √
47. CPX aa Zero page
√ √ √ √ √
48. CPX aaaa Absolute
√ √
49. CPY #dd Immediate
√ √
50. CPY aa Zero page
√ √
51. CPY aaaa Absolute
√ √
52. DEC aa Zero page
√√√√ √
Page 54
S
u
n
p
l
u
s
I
T
o
n
f
i
d
e
n
t
i
a
l
F
o
r
A
I
n
t
e
r
n
a
t
i
o
n
a
l
L
i
m
i
t
e
d
s
e
O
n
l
y
CPU6502 Instruction Manual v2.1
Sunplus reserves the rights to change this documentation without prior notice. 09/13/2005
54
No. Instruction Address Mode 65b02 65n02 65r02 65s02 CPU12
53. DEC aa, X Zero page Indexed X
√ √ √
√
54. DEC aaaa Absolute
√ √
55. DEC aaaa,X Absolute Indexed X
√ √
56. DEX Implied
√ √ √ √ √
57. DEY Implied
√ √
58. EOR #dd Immediate
√ √ √ √ √
59. EOR aa Zero page
√ √ √ √ √
60. EOR aa, X Zero page Indexed X
√ √ √
√
61. EOR aaaa Absolute
√ √
62. EOR aaaa,X Absolute Indexed X
√ √
63. EOR aaaa,Y Absolute Indexed Y
√ √
64. EOR (aa,X) Indexed Indirect X
√ √
65. EOR (aa), Y Indirect Indexed Y
√ √
66. INC aa Zero page
√ √ √ √ √
67. INC aa, X Zero page Indexed X
√ √
68. INC aaaa Absolute
√ √
69. INC aaaa,X Absolute Indexed X
√ √
70. INV aa, BITn Zero page
√
71. INX Implied
√ √ √ √ √
72. INY Implied
√ √
73. JMP aaaa Absolute
√ √ √ √ √
74. JMP (aaaa) Indirect absolute
√ √ √ √ √
75. JSR aaaa Absolute
√ √ √ √ √
76. LDA #dd Immediate
√ √ √ √ √
77. LDA aa Zero page
√ √ √ √ √
78. LDA aa, X Zero page Indexed X
√ √ √ √ √
Page 55
S
u
n
p
l
u
s
I
T
o
n
f
i
d
e
n
t
i
a
l
F
o
r
A
I
n
t
e
r
n
a
t
i
o
n
a
l
L
i
m
i
t
e
d
s
e
O
n
l
y
CPU6502 Instruction Manual v2.1
Sunplus reserves the rights to change this documentation without prior notice. 09/13/2005
55
No. Instruction Address Mode 65b02 65n02 65r02 65s02 CPU12
79. LDA aaaa Absolute
√ √ √ √ √
80. LDA aaaa,X Absolute Indexed X
√ √ √ √ √
81. LDA aaaa,Y Absolute Indexed Y
√ √
82. LDA (aa,X) Indexed Indirect X
√ √ √ √ √
83. LDA (aa), Y Indirect Indexed Y
√ √
84. LDX #dd Immediate
√ √ √ √ √
85. LDX aa Zero page
√ √ √ √ √
86. LDX aa, Y Zero page Indexed Y
√ √
87. LDX aaaa Absolute
√ √ √
√
88. LDX aaaa,Y Absolute Indexed Y
√ √
89. LDY #dd Immediate
√ √
90. LDY aa Zero page
√ √
91. LDY aa, X Zero page Indexed X
√ √
92. LDY aaaa Absolute
√ √
93. LDY aaaa,X Absolute Indexed X
√ √
94. LSR A Accumulator
√ √
95. LSR aa Zero page
√ √
96. LSR aa, X Zero page Indexed X
√ √
97. LSR aaaa Absolute
√ √
98. LSR aaaa,X Absolute Indexed X
√ √
99. NOP Implied
√ √ √ √ √
100. ORA #dd Immediate
√ √ √ √ √
101. ORA aa Zero page
√ √ √ √ √
102. ORA aa, X Zero page Indexed X
√ √
103. ORA aaaa
A
bsolute
√
√
Page 56
S
u
n
p
l
u
s
I
T
o
n
f
i
d
e
n
t
i
a
l
F
o
r
A
I
n
t
e
r
n
a
t
i
o
n
a
l
L
i
m
i
t
e
d
s
e
O
n
l
y
CPU6502 Instruction Manual v2.1
Sunplus reserves the rights to change this documentation without prior notice. 09/13/2005
56
No. Instruction Address Mode 65b02 65n02 65r02 65s02 CPU12
104. ORA aaaa,X Absolute Indexed X
√ √
105. ORA aaaa,Y Absolute Indexed Y
√ √
106. ORA (aa,X) Indexed Indirect X
√ √
107. ORA (aa), Y Indirect Indexed Y
√ √
108. PHA Implied
√ √ √ √ √
109. PHP Implied
√ √ √ √ √
110. PLA Implied
√ √ √ √ √
111. PLP Implied
√ √ √ √ √
112. ROL A Accumulator
√ √ √ √ √
113. ROL aa Zero page
√ √ √ √ √
114. ROL aa, X Zero page Indexed X
√ √
115. ROL aaaa Absolute
√ √
116. ROL aaaa,X Absolute Indexed X
√ √
117. ROR A Accumulator
√ √ √ √ √
118. ROR aa Zero page
√ √ √ √ √
119. ROR aa, X Zero page Indexed X
√ √
120. ROR aaaa Absolute
√ √
121. ROR aaaa,X Absolute Indexed X
√ √
122. RTI Implied
√ √ √ √ √
123. RTS Implied
√ √ √ √ √
124. SBC #dd Immediate
√ √ √ √ √
125. SBC aa Zero page
√ √ √ √ √
126. SBC aa, X Zero page Indexed X
√ √
127. SBC aaaa Absolute
√ √
128. SBC aaaa,X Absolute Indexed X
√ √
Page 57
S
u
n
p
l
u
s
I
T
o
n
f
i
d
e
n
t
i
a
l
F
o
r
A
I
n
t
e
r
n
a
t
i
o
n
a
l
L
i
m
i
t
e
d
s
e
O
n
l
y
CPU6502 Instruction Manual v2.1
Sunplus reserves the rights to change this documentation without prior notice. 09/13/2005
57
No. Instruction Address Mode 65b02 65n02 65r02 65s02 CPU12
129. SBC aaaa,Y Absolute Indexed Y
√ √
130. SBC (aa,X) Indexed Indirect X
√ √
131. SBC (aa), Y Indirect Indexed Y
√ √
132. SEC Implied
√ √ √ √ √
133. SED Implied
√ √
134. SEI Implied
√ √ √ √ √
135. SET aa, BITn Zero page
√
136. STA aa Zero page
√ √ √ √ √
137. STA aa, X Zero page Indexed X
√ √ √ √ √
138. STA aaaa Absolute
√ √
139. STA aaaa,X Absolute Indexed X
√ √
140. STA aaaa,Y Absolute Indexed Y
√ √
141. STA (aa,X) Indexed Indirect X
√ √ √ √ √
142. STA (aa), Y Indirect Indexed Y
√ √
143. STX aa Zero page
√ √ √ √ √
144. STX aa, Y Zero page Indexed Y
√ √
145. STX aaaa Absolute
√ √ √ √ √
146. STY aa Zero page
√ √
147. STY aa, X Zero page Indexed X
√ √
148. STY aaaa Absolute
√ √
149. TAX Implied
√ √ √
√
150. TAY Implied
√ √
151. TST aa, BITn Zero page
√
152. TSX Implied
√ √ √ √ √
153. TXA Implied
√ √ √
√
154. TXS Implied
√√√√ √
Page 58
S
u
n
p
l
u
s
I
T
o
n
f
i
d
e
n
t
i
a
l
F
o
r
A
I
n
t
e
r
n
a
t
i
o
n
a
l
L
i
m
i
t
e
d
s
e
O
n
l
y
CPU6502 Instruction Manual v2.1
Sunplus reserves the rights to change this documentation without prior notice. 09/13/2005
58
No. Instruction Address Mode 65b02 65n02 65r02 65s02 CPU12
155. TYA Implied
√ √
Page 59
