Page 1

This document contains preliminary information and subject to change without notice.

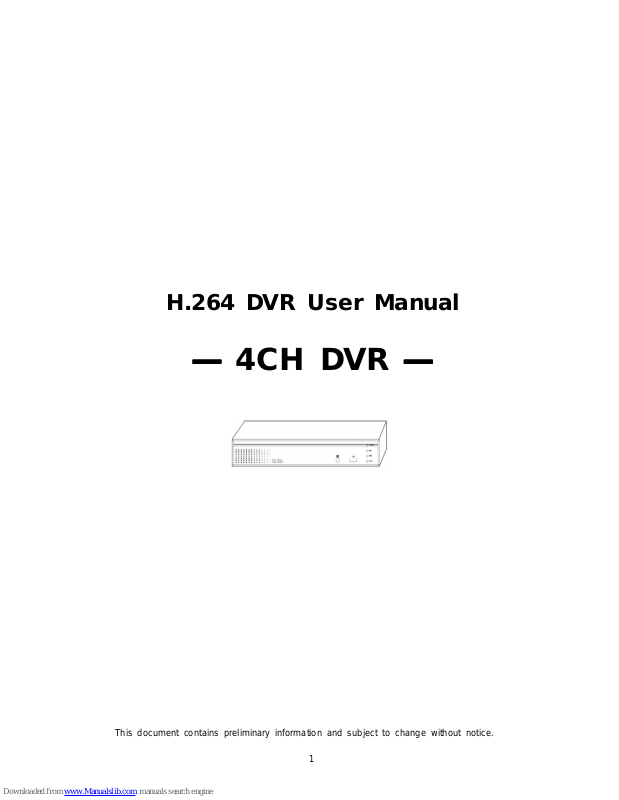

H.264 DVR User Manual

━ 4CH DVR ━

Page 2

This symbol is intended to alert the user to the presence of unprotected “Dangerous voltage" within the product's enclosure that may be strong enough to cause a risk of electric shock.

This symbol is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

WARNING

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

NOTE: This equipment has been tested and found to comply with the limits for a class digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his expense.

Disposal of Old Electrical & Electronic Equipment (Applicable in the European Union and other European countries with separate collection systems)

This symbol on the product or on its packaging indicates that this product shall not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. The recycling of materials will help to conserve natural resources. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

Page 3

Conents

CHAPTER 1 PACKING DETAIL AND INSTALLATION …………………. 6

1-1 Packing ………………………………………………………………………………... 6

CHAPTER 2 P ANEL LOCATION ………………………………………....... 7

2-1 Front Panel Controls ………………………………………………………………… 7 2-2 Rear Panel Connectors ……………………………………………………………… 7

CHAPTER 3 SPECIFICATIONS ……………………………………………. 8

CHAPTER 4 LIVE, PLAYBACK AND PTZ OPERATIONS ….................. 10

4-1 Live Mode …………………………………………………………………………….. 10

4-1.1 Remote Controller …………………………………………………………….. 11 4-2 Playback Mode ……………………………………………………………………….. 13 4-3 PTZ Mode …………………………………………………………………………….. 14

CHAPTER 5 MAIN MENU SETUP… ……………………………………… 16

5-1 Record Setup …………………………………………………………………........... 17

5-1.1 Quality & Frame Rate Setup …………………………………………………. 18 5-2 Event Setup …………………………………………………………………………... 18

5-2.1 Motion Setup …………………………………………………………………... 19

5-2.1.1 Motion Area Setup …………………………………………………… 20

5-2.2 Sensor Setup ………………………………………………………………….. 20

5-3 Schedule Setup ………………………………………………………………........... 21

5-3.1 Schedule Record Setup ……………………………………………………… 22

5-3.2 Holiday Setup …………………………………………………………………. 22 5-4 Camera Setup ………………………………………………………………………... 23 5-5 Account Setup ………………………………………………………………………... 24

5-5.1 Permission Setup ……………………………………………………………… 25 5-6 Networking Setup ……………………………………………………………………. 25

5-6.1 Networking Setup ……………………………………………………………... 26

5-6.1.1 DHCP …………………………………………………………………. 26 5-6.1.2 LAN ……………………………………………………………………. 26

5-6.1.3 ADSL …………………………………………………………….......... 27

5-6.2 HTTP Setup ……………………………………………………………………. 27 5-6.3 DDNS Setup …………………………………………………………………… 28 5-6.4 Mail Setup ……………………………………………………………………… 28

5-7 PTZ & RS485 Setup …………………………………………………………………. 29 5-8 System Setup ………………………………………………………………………… 30

5-8.1 Display Setup ………………………………………………………………….. 31 5-8.2 Date/Time Setup ………………………………………………………………. 31

Page 4

5-8.2.1 Change Date & Time ………………………………………………… 32

5-8.2.2 Time Zone Setup …………………………………………………….. 32

5-8.2.3 Internet Time Setup ………………………………………………….. 32 5-8.3 Buzzer & Relay Setup ………………………………………………………… 33

5-8.4 SPOT Setup ……………………………………………………………........... 34

5-9 Utility Setup …………………………………………………………………………… 35 5-10 Diagnostic …………………………………………………………………………… 36

CHAPTER 6 BACKUP & SEARCH ………………………………………... 37

6-1 Backup Setup ………………………………………………………………………… 37

6-2 Search Setup …………………………………………………………………............ 38

6-2.1 Event Search ………………………………………………………………….. 39

6-2.1.1 Criteria Setup For Event Search ……………………………………. 40

6-2.2 Time Search ……………………………………………………………........... 41

CHAPTER 7 NETWORK SURVEILLANCE ………………………………. 42

7-1 IE Setup ……………….……………………………………………………………… 42

7-2 AP Software Installation and Setup ……………………………………….............. 44

7-3 AP Software Operation ……………………………………………………………… 46

CHAPTER 8 MOBILE APPLICATION INSTALLATION AND USAGE…. 47

8-1 Mobile Application Installation and Operation for Symbian System……..……… 47

8-1.1 Mobile Application Installation …………………………………………......... 47

8-1.2 Mobile Application Operation ………………………………………………… 47

8-1.2.1 Add New Login DVR …………………………………………………. 47

8-1.2.2 Logging Onto the DVR ………………………………………………. 48

8-1.2.3 Modify the Login Information of DVR ………………………………. 48

8-1.2.4 Delete the Login Information of DVR ………………………………. 49 8-1.3 Live Monitoring Operation ……………………………………………………. 49

8-1.3.1 Scroll the Image ……………………………………………………… 49

8-1.3.2 Image Quality Setup …………………………………………............ 50

8-1.3.3 Channel Display………………………………………………………. 50

8-1.3.4 Size of Image …………………………………………………........... 50

8-1.3.5 Rotate the Image …………………………………………………….. 51

8-1.3.6 Alarm ………………………………………………………………….. 51

8-2 Mobile Application Installation and Operation for Windows Mobile System….... 51

8-2.1 Mobile Application Installation ……………………………………………….. 52 8-2.2 Mobile Application Operation ………………………………………………… 52 8-2.3 Operation Under The Live Monitoring….……………………………………. 53

8-2.3.1 Operation Under The LIVE Monitoring For Jrviewer……………… 54

8-2.3.2 Operation Under The LIVE Monitoring For H264 Pocket….…….. 55

Page 5

CHAPTER 9 CMS INSTALLATION AND USAGE GUIDE ………………. 56

9-1 CMS Installation ……………………………………………………………………… 56 9-2 CMS Login and Environment ……………………………………………………….. 58 9-3 DVRs, Groups & Events …………………………………………………………….. 58

9-3.1 View DVR╱Group List ………………………………………………………..

9-3.2 View Event Logs ……..……………………………………………………….. 59

9-4 Local PC Information and Control ………………………………………………….. 60 9-5 Main Display ………………………………………………………………………….. 61

9-5.1 Audio Control ………………………………………………………………….. 61 9-5.2 eMAP Display ………………………………………………………………….. 62 9-5.3 PTZ Control ……...…………………………………………………………….. 62

9-6 Operation Bar ………………………………………………………………………… 63

9-6.1 User Administration …………………………………………………………… 64 9-6.2 DVR Administration …………………………………………………………… 64 9-6.3 Group Administration …………………………………………………………. 65 9-6.4 eMAP Administratio n ….………………………………………………………. 66 9-6.5 Remote Play …………………………………………………………………... 66 9-6.6 HDD Playback...……………………………………………………………….. 67 9-6.7 File Playback ………………………………………………………………….. 68 9-6.8 Event Playback………………………………………………………………… 68 9-6.9 Snapshot Data .………………………………………………………………... 70 9-6.10 Recording Data……………………………………………………………….. 70

APPENDIX I HARD DISK INSTALLATION ……………………………….. 71

I-1 Hard Disk Installation ………………………………………………………………… 71

Page 6

CHAPTER 1 PACKING DETAIL AND INSTALLATION

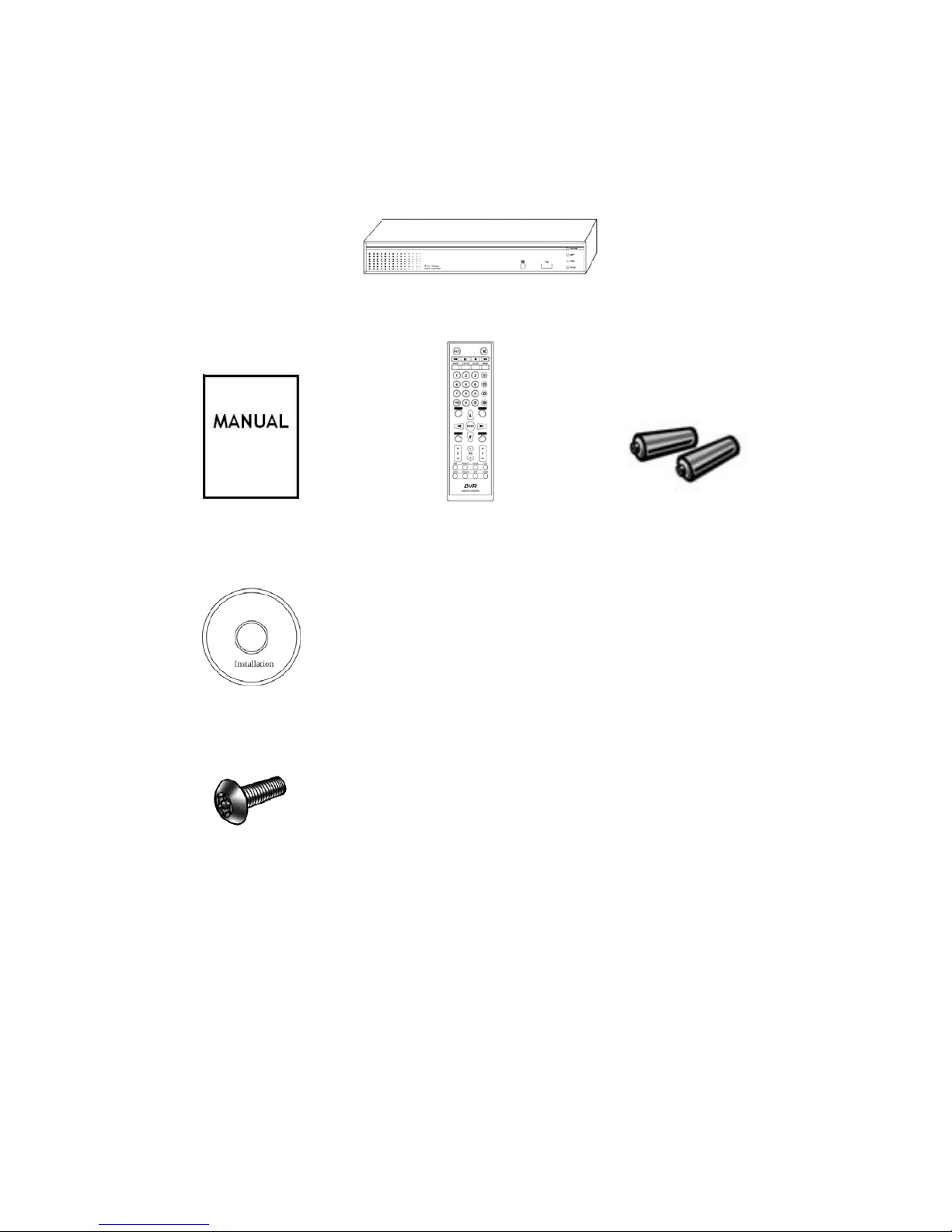

1-1 PACKING

1. DVR

2. User Manual 3. IR Remote Control 4. Batteries x 2

5. CD 6. Power Adapter 7. Power Cord

8. HDD Screws x 4

Page 7

① ② ③ ⑤ ⑥

⑪ ⑩ ④ ⑨ ⑧ ⑦

①

③ ②

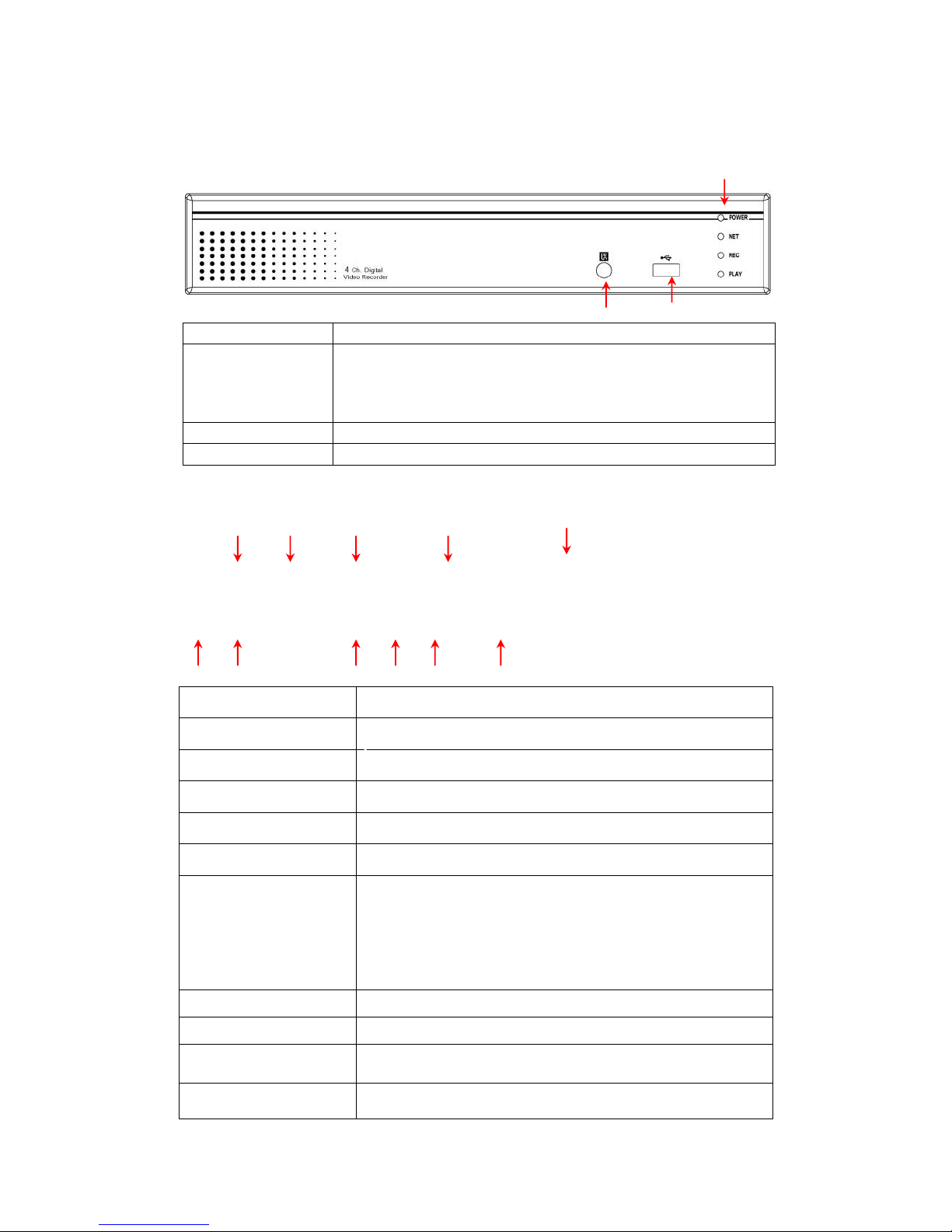

CHAPTER 2 PANEL LOCATION

2-1 FRONT PANEL CONTROLS

Control Keys Description

① LED DISPLAY

POWER：Power is on. NET：Remote user logged in. REC：Recording. PLAY：Playing back.

② USB 2.0 PORT

Port for USB external devices.

③ IR SENSOR

Input sensor for the remote control.

2-2 REAR PANEL CONNECTORS

① VIDEO OUT (MAIN)

BNC output port for the main monitor.

② VIDEO IN

BNC input ports for cameras.

③ AUDIO IN

RCA input port for audio signal.

④ AUDIO OUT

RCA output for audio signal.

⑤ VGA

VGA port.

⑥ e-SATA

External SATA hard disks port.

⑦ FUNCTION

1：RS-485 A 2：RS-485 B 3：RELAY NO 4：RELAY COM 5：RELAY NC

6：ALARM IN GND 7：ALAMR IN CH1 8：ALARM IN CH2 9：ALARM IN CH3 10：ALARM IN CH4

⑧ LAN

Network port.

⑨ NTSC／P AL SWITCH

Switch between NTSC and PAL format.

⑩ SPOT MONITOR

BNC port to display full screen image of all installed cameras in sequence.

⑪ DC 12V

Socket for a DC 12V input.

Page 8

CHAPTER 3 SPECIFICAITONS

1. VIDEO

Input Level

1.0 Vp-p±10% Composite, 75Ω Balanced

NTSC 120fps (4CH)

Display Speed

PAL 100fps (4CH) NTSC 720 x 480

Display Resolution

PAL 720 x 576

Monitor Output

2Vp-p Composite, 75Ω Balanced

2. RECORDING Compression Method H.264 Recording Speed Refer to table 3-1

NTSC 720 x 480, 720 x 240, 352 x 240

Recording Resolution

PAL 720 x 576, 720 x 288, 352 x 288

Quality

Independent for each channel

Lowest/ Low/ Normal/ High/ Highest

Schedule Setup by “minute” as unit

Mode

Manual∕Event (Motion, Sensor)∕Schedule

Method

By resolution, fps and quality Setup fps and quality separately for normal and

event recording

3. SATA DEVICE Capacity Internal Storage 1HDD Type

SATA∕SATA compatibleⅡ

External Bay Interface E-SATA

4. AL AR M Sensor Input 4 (4CH)

Motion Detection Available per each camera/Multi-detection level

5. CONNECTIONS

Video Input BNC 4 ports (4CH) Video Output

BNC 1port；VGA 1 port (Option)

Audio Input RCA 1CH

Audio Output RCA 1 CH

USB 2.0 USB memory stick, USB Mouse, USB Touch Panel Remote Standard remote control

External I/O 1 RS-4 85, 4 (4CH) sensor input, 1 Relay Output Ethernet 1 RJ45 connector, 10/100 Mbps

6. ELECTRICAL Power Source DC 12V⁄3A above

Page 9

7. ENVIRONMENTAL

Operation Temperature 5 ~ + 40℃℃ Humidity Less than 90%

8. PHYSICAL

Dimension 95 (W) x 440 (D) x 280(H) mm Weight 2.6kg

9. BACKUP

USB Stick Video Data, Audio

BACKUP

Network Video Data, Audio

10. SEARCHING & PLAYBACK

Searching Method

Event∕Time

11. MULTI-REMOTE SURVEILLANCE

Monitoring Environment

Web∕Client Software (CMS)

Max. client Supporting multi-client (5 clients accessible)

12. OTHERS

OS Embedded Linux

Multi Task Pentaplex

Live、Record、Playback、Network、Data transfer

Control Device

Front Keys∕Remote Control Virtual Keyboard∕Mouse∕AP Software

PC Viewer Direct viewing of DVR’s HDD on PC

Numbers of event list 9999

Table 3-1

352 x 240

120fps∕4CH

720 x 240

60fps∕4CH

NTSC

720 x 480

30fps∕4CH

352 x 288

100fps∕4CH

720 x 288

50fps∕4CH

Recording Speed

(Independent setting for each channel)

PAL

720 x 576

25fps∕4CH

Compression Method

H.264

Page 10

CHAPTER 4 LIVE, PLAYBACK AND PTZ OPERATIONS

The IR remote control and mouse operate differently under each mode; this chapter describes the functions of them under three different modes: LIVE, PLAYBACK and PTZ.

4-1 LIVE MODE

You can monitor all the channels, listen to audio signal and have some related operations under LIVE mode. This paragraph describes the IR remote control, mouse operation and on screen graphical icons under LIVE mode.

Page 11

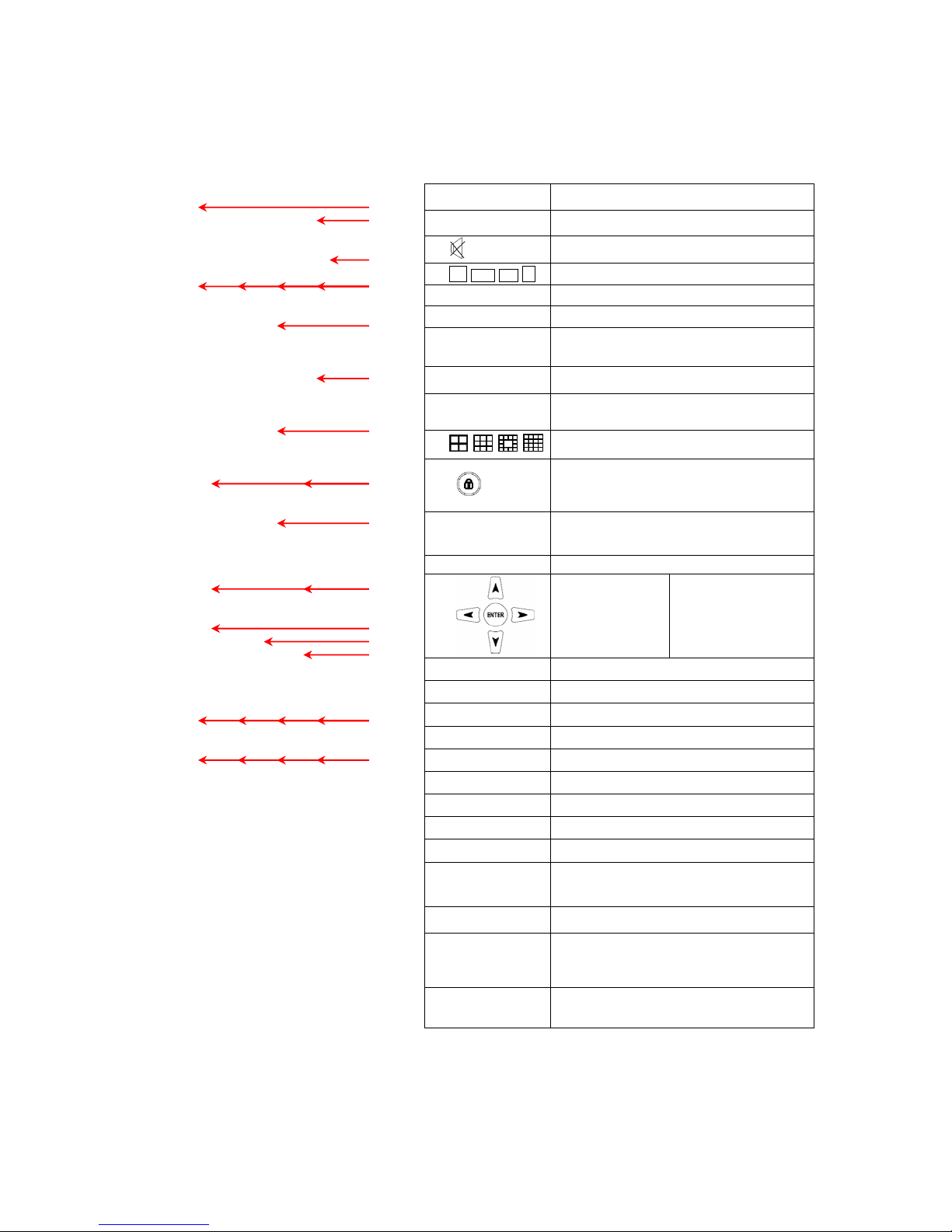

4-1.1 REMOTE CONTROLLER

Table 4-1.1 Remote control functions under the LIVE mode

1 2

4⁄5 6

⁄7

11 12

14 15

16 17 18

19⁄20 21⁄22

23⁄24 25⁄26

Button Name Description

1. REC

Start/Stop recording.

Audio

3. ◀◀ ▌▌ ■ ▶▶

Fast forward；Pause；Stop；Fast rewind

4. BK-UP

Display backup menu.

5. STATUS

Display status.

6. SLOW

Press this button to slow-down playback speed

7. MODE

8. 1,2…7,8,9, +10

Select the channel to monitor in full screen from 1 to 16

Switch to Quad∕9∕13∕16 channel display

10. LOCK

Enable/Disable the keypad function on the front panel, the remote control and the mouse.

11. PLAY

Start playing back the most recently recorded segment.

12. T-SRH

Display search menu.

13.

i：

j：

Down

g：

Left

h：

Right

ENTER

Direction and ENTER buttons.

14. MEMU

Display setup menu.

15. ESC

Return to the previous mode.

16. Z+∕Z-

PTZ zoom-in∕out.

17. IRIS +∕-

PTZ iris-open∕close.

18. F+∕-

PTZ focus-in∕out.

19. OSD

Turn on∕off the screen display.

20. PRESET

21. TOUR

Activate PTZ pre-set tour.

22. PTZ

Start/Stop PTZ control.

23. AUTO

In AUTO mode, all available channels will be cycled through in full screen.

24. FREEZE

Turn on/off screen freeze function

25. PIP

Turn on picture-in-picture format. Click on the channel name can switch to other channels.

26. ZOOM

Enable/Disable double screen size display.

Page 12

T able 4 -1.2 Graphical icons that appeared after right-clicked on the mouse under LIVE mode.

Icon Description Icon Description

Setup

Pause

Main Menu

PIP, picture in picture

Search Setup

ZOOM, double the screen size

Backup

Auto-Sequence

PTZ Control

LOCK, activate the key lock.

Record On∕Off

Full Screen

Playback

Quad Display

Display Setup

T able 4 -1.3 Descriptio n of on screen graphical icons in LIVE mode

Icon Description Icon Description

Recording is on

Remote user currently logging into DVR

Audio is on

Audio is off

Timer recording is on Red：Timer is set and recording has

been started

White：Timer is set but recording

has not yet been started

Motion detected on the channel

Auto-Seq is on

Sensor triggered on the channel

2X zoom in is on

Video loss detected on the channel

Pause is on, screen is frozen

USB device detected

Lock is on

DVD burner is detected

PTZ control is on

Page 13

4-2 PLAYBACK MODE

Switch to PLAYBACK mode by pressing “PLAY” under the LIVE mode, the graphical icon will show up on the upper center of the screen and the operation panel (see below picture) will show up at right lower corner of the screen. You can drag the panel by mouse to place it on any location of your screen.

T able 4-2.1 Remote control functions under the PLAYBACK mode

Button Description

ENTER∕MODE

Switch to full screen, quad display.

MENU∕▌▌ Turn on∕off PAUSE. PLAY

Play back at normal speed.

▲∕SLOW

Play back at slower speed. The speed will be slowed to 1/2, 1/4, 1/8, 1/16 by each pressing of the button till the slowest limitation of 1/16 of the normal speed. Current playback speed is shown in the upper center of the screen.

▶▶∕▶

Fast rewind. Each press increases the speed to the next level. There are six speeds: 2x, 4X, 8X, 16X, 32X and 64X.

◀◀∕◀

Fast forward. Each press increases the speed to the next level. There are six speeds: 2x, 4X, 8X, 16X, 32X and 64X.

▼∕■

Stop playback.

T able 4-2.2 Mouse operation under the PLAYBACK mode.

Icon Description Icon Description

「◀◀／◀」Fast rewind

「▼／■」, Stop playback

「▶▶／▶」Fast forward

Playback channel by channel with snap shot display

／

Play／Pause

Full screen display

「▲／SLOW」, Slow playback

Quad display

Page 14

4-3 PTZ MODE

Switch to the PTZ mode by pressing “PTZ” button under the LIVE mode. The PTZ icon

will appear on upper left of the screen but it can be re-located on any place of your screen by dragging the mouse.

T able 4 -3.1 Remote Co ntrol functions under the PTZ mode

Button Description

▲／SLOW

Move PTZ up.

▼／■

Move PTZ down.

◀◀／◀

Move PTZ to the left.

▶▶／▶

Move PTZ to the right.

ZOOM +

PTZ zoom-in.

ZOOM -

PTZ zoom-out.

FOCUS +

PTZ focus-in.

FOCUS -

PTZ focus-out.

IRIS +

PTZ iris-open.

IRIS -

PTZ iris-close.

TOUR

Activate PTZ pre-set tour.

PRESET+ NUMBER

Setup the Preset location; Press “PRESET” key first then two-digit number; DVR will set the current PTZ location at entered preset number.

PLAY+ NUMBER

Go to Preset location; Press “PLAY” key first then two-digit number, PTZ will go to the correspondent preset number location.

PIP Set current PTZ location as the start of line-scan. AUTO Activate AUTO line-scan. ZOOM Set current PTZ location as the end of line-scan

Page 15

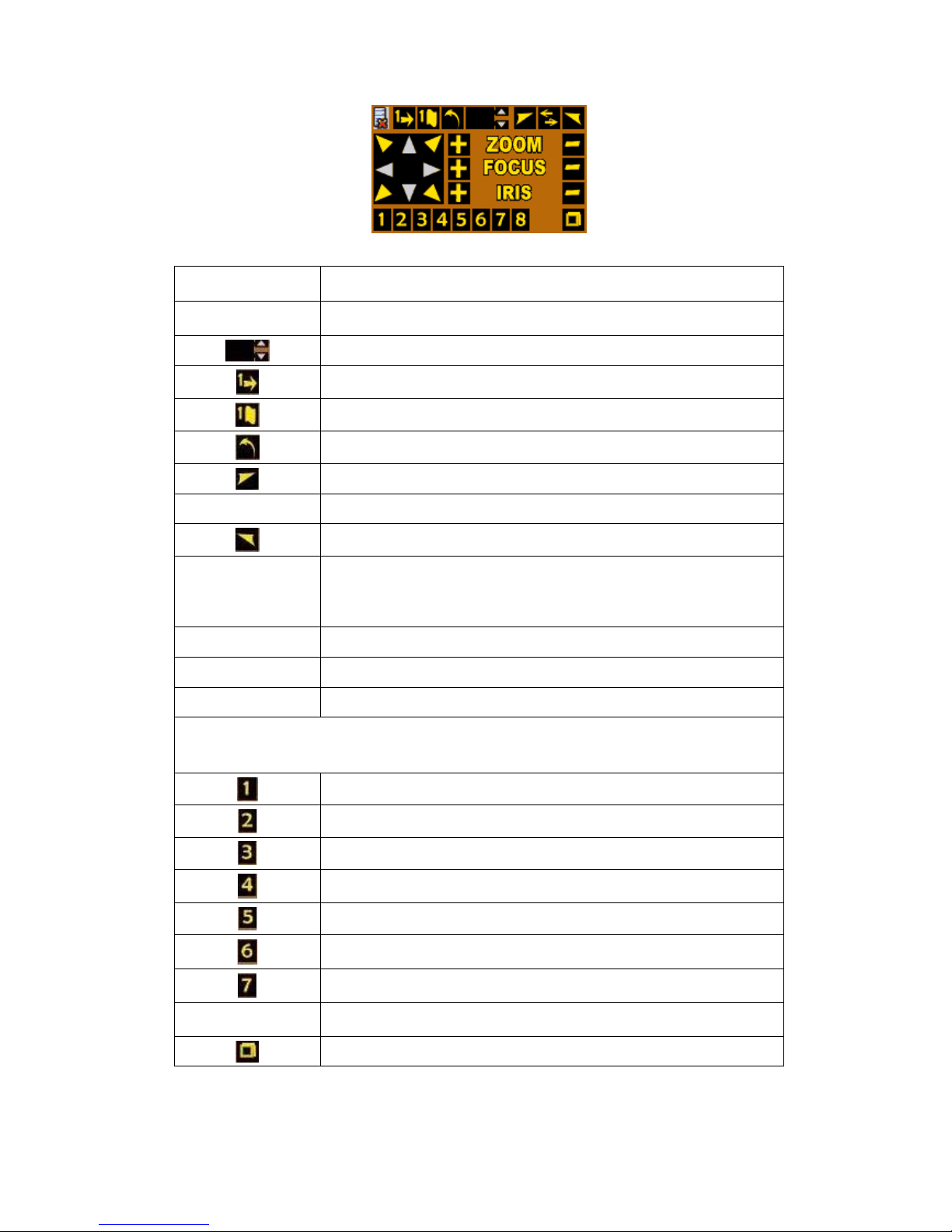

T able 4 -3.2 Mouse operation under the PTZ mode

Icon Description

Leave PTZ Mode, back to the LIVE mode. Pre-set number N. (1~64). Go to pre-set number N. Set current PTZ location at pre-set number N.

「TOUR」, press to activate pre-set tour. 「PIP」, Set current PTZ location as the start of the line-scan.

「FREEZE」, Activate line-scan. 「ZOOM」, Set current PTZ location as the end of the line-scan.

To move PTZ in 360°.

PTZ zoom in; PTZ zoom out. PTZ focus in; PTZ focus out. PTZ IRIS open, PTZ IRIS close.

Below functions need support from specific PTZ manufacturer. Please check user manual of your PTZ for more detail.

AUX 1, 「AUTO」key + Number Key「1」 AUX 2, 「AUTO」key + Number Key「2」 AUX 3, 「AUTO」key + Number Key「3」 AUX 4, 「AUTO」key + Number Key「4」 AUX 5, 「AUTO」key + Number Key「5」 AUX 6, 「AUTO」key + Number Key「6」

AUX 7, 「AUTO」key + Number Key「7」 AUX 8, 「AUTO」key + Number Key「8」

「Backup」, Customized function.

Page 16

CHAPTER 5 MAIN MENU SETUP

To enter the main menu and set up DVR, log-in account and user password are required. The default password of the administrator is “123456”. Please check the “ACCOUNT SETUP” for related setup of other log-in users.

T able 5 -0.1 Definition of the virtual keyboard.

Item Description

Switch between capital and small letters.

Switch between numbers and letters.

Press to cancel the setup, and re-choose the login account.

Delete the last character. Enter to identify the password. It will enter the setup menu, if the

password is verified.

Page 17

T able 5 -0.2 The operation of remote control under the setting menu

Item Description

W X

Switch to different options under one item.

Switch to different items. MENU Save setup and back to LIVE mode. BK-UP∕ESC Back to Upper level of menu without saving. ENTER Enter the menu, or display virtual keyboard.

5-1 RECORD SETUP

Item Description

HDD FULL

Select STOP to stop recording or OVERWRITE to reuse the HDD when HDD is full

「STOP」：Stop Recording 「OVERWRITE」：Start to overwrite that begin from the oldest

data of HDD, and continue to record.

RECORD NORMAL

Enable∕Disable normal recording

RECORD MOTION

Enable∕Disable recording while Motion is detected

RECORD SENSOR

Enable∕Disable recording while Sensor is triggered

PRE ALARM RECORD

Enable∕Disable pre-event recording while motion or sensor is triggered but not in the recording mode. The pre-recording time is approximate at 10 seconds (16 MB).

AUDIO RECORD

Enable∕Disable Audio recording.

QUALITY & FRAME RA TE SETUP

Setup the quality and frame rate for each channel under normal recording and event recording type.

Page 18

5-1.1 QUALITY & FRAME RATE SETUP

Item Description

RESOLUTION

Choose record resolution from：CIF∕HD1 (2CIF)∕D1.

RECORD TYPE

You can setup quality and FPS separately for record type.

NO.

Check∕uncheck the box will enable∕disable recording of that channel.

QUALITY

Choose from Lowest∕Low∕Normal∕High∕Highest.

FPS

Choose recording frame rate.

5-2 EVENT SETUP

Item Description

ALARM DURATION (SECONDS)

Set up alarm duration in seconds. Drag the white bar or press W X to adjust value.

MOTION SETUP Enter to set up motion detection. SENSOR SETUP Enter to set up sensor detection.

Page 19

5-2.1 MOTION SETUP

Item Description

MOTION DETECTION

Check the box to Enable∕Disable Motion Detection for all channels.

MOTION POPUP

Check the box to Enable∕Disable popup screen function for all channels. When motion is detected in LIVE mode, the detected channel image will pop up in full screen display.

1~4

You can setup independently for each channel.

SELECTED CHANNEL TURN

Check the box to Enable∕Disable motion detection for each channel.

OBJECT SIZE

Drag the white bar or press W X to set up Object Size from value 1 to 15 for each channel. The lower value you set the higher sensitivity it will be. V alue set up as 1, the motion will be detected easiest.

SENSITIVITY

Drag the white bar or press W X to set up Sensitivity from value 1 to 15 for each channel. The lower value you set the higher sensitivity it will be

MOTION AREA SETUP

Enter to setup motion detection area

Page 20

5-2.1.1 MOTION AREA SETUP

The motion area setup allows users to select multiple areas where camera should watch for motion detection. The default area is entire screen. Click and drag the cursor without lifting to mark your selected motion detection area.

Item Description

LOCK∕ZOOM Press LOCK∕ZOOM to select entire screen as detection area. MUTE∕PIP Press MUTE∕PIP to deselect entire screen as detection area. ST ATUS

Switch between “SELECT” and “DESELECT” for cursor-dragging function.

ENTER

Press to function on the selected area with assigned status.

Press to save the setup and leave.

ESC

Press to cancel the setup and leave.

5-2.2 SENSOR SETUP

Page 21

Item Description

SENSOR DETECTION

Check the box to Enable∕Disable sensor detection for all channels.

SENSOR POPUP

Check the box to Enable∕Disable popup screen function for all channels. When Sensor is detected in LIVE mode, the detected channel image will pop up in full screen display.

SENSOR POLARITY

Click or press ▼ to select between HIGH, LOW voltage for triggering sensor detection or OFF to turn off polarity for each channel LOW Polarity：Sensor has not been triggered. When connected,

sensor will be turned on.

HIGH Polarity：Sensor has been triggered. When connected,

sensor status will be turned off.

OFF：Sensor is deactivated, and will not be turned on∕off.

5-3 SCHEDULE SETUP

Except from starting recording manually, you can also setup the recording time by weeks and schedule including normal, motion detect, and sensor detect recording type.

Item Description

PAGE

Click or press ▼ to select Page. Each page provides 10 schedules for setup. 5 pages in total.

HOLIDAY SETUP Enter to setup holiday, up to 50 days, other than weekends.

VIEW EVENT SETUP View Normal∕Motion∕Sensor Setup.

Page 22

5-3.1 SCHEDULE RECORD SETUP

Click on the time on the left side. The setup menu will be displayed. You can have detail setup by Dates, Time and Event.

5-3.2 HOLIDAY SETUP

Since holidays are different by different country and region, you can setup the holiday of your location accordingly.

Page 23

5-4 CAMERA SETUP

Item Description

1~4 You can setup independently for each channel.

MASK

Check the box to Enable∕Disable mask function for LIVE mode

BRIGHTNESS

Drag the white bar or press W X to adjust Brightness of your camera from value 1 to 255. The default value is 128.

CONTRAST

Drag the white bar or press W X to adjust Contrast of your camera from value 1 to 255. The default value is 128.

SATURATION

Drag the white bar or press W X to adjust Saturation of your camera from value 1 to 255. The default value is 128.

HUE

Drag the white bar or press W X to adjust Hue of your camera from value 1 to 255. The default value is 128. (This function doesn’t support at PAL system.)

NAME Set up name of each channel

VOLUME

Select to adjust Volume in live mode for CH1 to CH 4 under LIVE mode and recording mode.

Page 24

5-5 ACCOUNT SETUP

The Account Setup menu is used to provide role-based permission independently setting for each user (maximum of 4 users) to access DVR over network. The default admin account is 「admin」and password is “123456”.

Item Description

Function

Setting

Auto Logout Key Lock

Key lock

○ ○

Key unlock

○ X

AUTO LOCK

Disable

X X

NO. Check to activate the user’s account.

P ASSWORD

Enter to set up password for each user. Password can be set up to 8 characters mixed by letters and numbers with case-sensitive.

PERMISSIONS Enter to set up Permissions for each user. CHANGE ADMIN

P ASSWORD

Enter to change administrator’s password

P.s.1：When logged out automatically, you will have to operate in limited authority such as

operations like: Freeze the screen, Picture in picture, Zoom in∕out, switch between channels…etc. If you need to enter the Setup menu, Search menu, backup menu,

Record…etc, user’s account and password are required.

P.s.2：When the key lock automatically , remote control and mouse can’t function before entering

verified password.

P.s.3：「○」: Enable the function, 「X」: Disable the function

Page 25

5-5.1 PERMISSION SETUP

The Account Setup is set to provide individual user (maximum of 4 users) role-based permissions, including access to Setup menu, Network operation, PTZ function, Playback, Utility, Backup and Mask on specific channels while playing back.

5-6 NETWORKING SETUP

Item Description

CONNECT TYPE

Setup mode for network connection：DHCP、LAN、ADSL. HTTP SETUP Enter to set up HTTP for remote access into DVR. DDNS SETUP Enter to Enable∕Disable DDNS function and set up.

MAIL SETUP

Enter to enable∕disable Email notification and setup. There are up to

10 email addresses can be notified with different event options.

Page 26

5-6.1 NETWORKING SETUP

The DVR supports DHCP, LAN and ADSL accesses for network connection. If the settings are subsequently changed, pressing “PLAY” button to drive new settings for re-connection is required.

5-6.1.1 DHCP

If the DHCP option is used for DVR network connection, an IP address is assigned by the DHCP server automatically.

5-6.1.2 LAN

Select LAN for network connection, the following information is required.

Item Description

IP ADDRESS Enter IP address provided by ISP SUBNET MASK Enter IP address of Subnet Mask provided by ISP GATEWAY Enter IP address of Gate way provided by ISP

DNS

Enter DNS address provided by ISP. (Note：The correct DNS address must be entered for DDNS function).

Page 27

5-6.1.3 ADSL

Select ADSL for network connection, the following information is required.

Item Description

USER NAME Enter user name provided by ISP

P ASSWORD Enter password provided by ISP

5-6.2 HTTP SETUP

Item Description

ENABLE HTTP SERVER

Check to enable HTTP server. Users can remotely access into the

DVR over the network if the HTTP function is activated.

PORT Enter a valid port value from 1 up to 65000. The default value is 80.

Page 28

5-6.3 DDNS SETUP

Item Description

ENABLE DDNS

Check∕Uncheck to enable∕disable DDNS function.

DDNS SERVER

Enter the registered SMTP Server： DYNDNS.ORG、NO-IP.ORG、CUSTOM.COM

SMTP SERVER Enter the registered SMTP Server. USER NAME Enter user name. PASSWORD Enter password.

5-6.4 MAIL SETUP

E-mail can be used as a form of notification when an event occurs (VLOSS, MOTION, and SENSOR).

Page 29

Item Description

ENABLE E-MAIL NOTIFICATION

Check the box to enable∕disable E-mal Notification function.

SMTP SERVER Enter to set up SMTP Serve name. USER NAME Enter to set up User Name. P ASSWORD Enter to set up Password. SENDER E-MAIL Enter to set up e-mail address of sender. E-MAIL ADDRESS Enter to set up e-mail addresses for up to 10 receivers individually.

TRIGGER EVENT

Enter to select events to send out E-mail notifications when below circumstances happen：Motion, Sensor and Vloss (Video Loss).

5-7 PTZ & RS485 SETUP

The DVR allows users to control PTZ functions of your camera. To enable PTZ function, the 485 cable should be connected to the RS-485 port of DVR.

Item Description

ENABLE PTZ Click the box to Enable∕Disable PTZ function for each channel.

PROTOCOL

Set up the protocol of PTZ cam. The supported protocol are

PELCO-P, PELCO-D, KND, LI-LIN.

PTZ ID

Click or press W X to set up PTZ ID. The valid ID value is from 1 to

64.

BAUD RATE

Select Baud Rate for PTZ from 2400、4800、9600

Page 30

5-8 SYSTEM SETUP

Item Description

DVR NAME The name of DVR will be shown when users login from remote access.

DVR LOCATION

The location of DVR will be shown when users login from remote access.

LANGUAGE

Click or press ▼ to select OSD language from English, Chinese, Greek, Italian, Japanese, Portuguese, Spanish, German, French, Russian or Polish.

AUTO-SEQ. INTERVAL ( SECONDS)

Click or press W X to setup duration time in seconds for the interval between channels under Auto-Seq. mode.

REMOTE ID

The default Remote ID is 0, when DVR is controlled by standard remote controller.

DISPLAY SETUP Enter to setup Display

DATE/TIME SETUP Enter to setup Date/Time

BUZZER & RELAY SETUP

Enter to setup Buzzer & Relay

SPOT SETUP Enter to setup Spot

Page 31

5-8.1 DISPLAY SETUP

Item Description

OSD

Turn On∕Off OSD display

DVR ST ATUS

Turn On∕Off DVR illustration and record status display

DATE/TIME

Turn On∕Off date and time display

MESSAGE

Turn On∕Off message display

CHANNEL NAME

Turn On∕Off channel name display

BORDER SET

Set up the color of border in LIVE1, PLAYBACK mode.（black、dark grey、light grey、white）

5-8.2 DATE/TIME SETUP

Page 32

Item Description

HOUR FORMAT

12HOURS∕24HOURS

DATE FORMAT

MM-DD-YY∕DD-MM-YY∕YY-MM-DD DATE/TIME POSITION Choose the position of Time and Date display CHANGE DATE & TIME Setup time and date of DVR TIME ZONE SETUP Setup GMT and Daylight Saving Time. INTERNET TIME SETUP Setup automatic synchronization with internet server

5-8.2.1 CHANGE DATE & TIME

Users are allowed to setup date and time of DVR manually according to your local time.

5-8.2.2 TIME ZONE SETUP

In time zone setup, users can change your time zone and activate Daylight Saving Time function according to your DVR location.

Item Description

SELECT TIME ZONE Enter to modify GMT from GMT- 13 to GMT+ 13 DAYLIGHT SAVING TIME

Turn on∕off Daylight Saving Time

5-8.2.3 INTERNET TIME SETUP

Synchronize your DVR time with internet time server.

Page 33

Item Description

AUTOMATIC SYNCHRONIZATION

Check to enable DVR automatic synchronization function. Effective by this option selected, DVR will automatically synchronize the time upon rebooting or by every 24 hours after booting.

UPDATE NOW

Effectively, Date and Time show on DVR will immediately correspond with those in internet server.

5-8.3 BUZZER & RELAY SETUP

Item Description

KEY TONE

Enable∕Disable keystrokes.

RELAY SWITCH CONNECTION

Set relay signal to be Normal Close (N.C.) or Normal Open (N.O.).

BUZZER DURATION Set up the duration from 1~999 seconds.

ALARM BUZZER

Enable∕Disable buzzer operation when the alarm is triggered for sensor, motion and Vloss (Video Loss).

ALARM RELA Y

Enable∕Disable the signal to be sent to the RELAY OUT blocks when the alarm is triggered for sensor , motion and Vloss.

Page 34

5-8.4 SPOT SETUP

The DVR has two modes of video output; one is main video output, the other is spot video output. SPOT setup is for controlling the order of channels the system cycles through in SPOT mode. User can monitor every channel in the SPOT mode.

Item Description

SPOT MODE

Channels display in spot for three different modes： MANUAL：Select channels to display manually. SEQUENCE：Auto-sequence for all channels in order. EVENT：Display channels with event occurred.

INTERVAL (SECONDS)

The duration time in seconds for the interval between channels under SPOT mode.

SKIP VIDEO LOSS CHANNEL

Whether to skip channels without video signal.

Page 35

5-9 UTILITY SETUP

Item Description

HDD INITIALIZATION

Select to enter initialize hard disk menu. Please stop recording before entering this menu. Enter the menu, system will show all the data (model, volume) of HDD that installed in DVR. Check the HDD you’d like to initialize then press “START”. HDD initialization is succeeded when the status shows “SUCCEED”

USB INITIALIZATION

Clean up all data on USB. Enter USB initialization and press YES to clean up all data on your USB. The initialization is done when it’s showed “SUCCEED”.

SYSTEM RECOVERY Restore system default values RESET SYSTEM EVENTS Reset all the recording events in DVR.

COPY SETUP T O USB

Copy configuration to a USB device. There will be a file named “sdvr.config ” on your USB.

DOWNLOAD SETUP FROM USB

Download configuration from a USB device into DVR.

UPGRADE

Upgrade DVR through USB. Please stop recording and backup setup configuration before upgrading. System will reboot automatically when the upgrade is completed.

Notice！DO NOT TURN OFF POWER OR UNPLUG USB DEVICE DURING THE UPGRADE as it

may cause incomplete firmware upgrade and damage to the DVR.

Page 36

5-10 DIAGNOSTIC

Item Description

VERSION The current firmware version of DVR

IP ADDRESS

The connected IP address of DVR. If disconnected from network, the screen will display “NETWORK DISCONNECT”.

MAC ADDRESS MAC Address of DVR HDD VOLUME The capacity of HDD HDD USED RATE

Percentage of space used on HDD.

HDD STATUS

Shows HDD status. USING means the HDD is being used for recording now GOOD/BAD means the HDD has a known/unknown format for

the DVR. (Note: Please initialize your newly-installed HDD before using it, otherwise it can be recognized as BAD by DVR.)

FORMAT TIME The latest format time of HDD

Page 37

CHAPTER 6 BACKUP & SEARCH

6-1 BACKUP SETUP

User can backup any segment of recorded data in a specified time frame. To do so, either a Remote Network or storage device, like USB, must be connected to the DVR. The format of backup file is IRF file that can be played by “DVRemoteDesktop.exe” or “iCMS”

Item Description

FROM The start time of backup file TO The end time of backup file DEVICE Select USB or Remote Network as the backup device FREE SPACE The available spa ce in you r backu p device REFRESH Recalculate the available space of backup device CALCULATE Calculate the size of backup file

START

Start backup operation. Be sure to calculate the size of backup file BEFORE operating backup.

Notice！Do not unplug the USB device or turn off the DVR during the backup process to

avoid unrecoverable error.

Page 38

6-2 SEARCH SETUP

Item Description

EVENT SEARCH Press to enter event search menu TIME SEARCH Press to enter time search menu

Page 39

6-2.1 EVENT SEARCH

The DVR automatically records events with type, time and channel information included. If there is recording data for an event, the recording signal

will be shown on the left side of time information. Rest your cursor under the line and press “ENTER”, or left click your mouse to playback the recording data.

Item Description

CRITERIA Setup conditions of event search PAGE Convert pages of events DATE/TIME Date/time when event occurred.

Event type, defined as following

VLOSS

Video Loss

MOTION

Motion Detected

SENSOR

Sensor Detected

REMOTEIN

user log-in over the network

REMOTEOUT

user log-out over the network

POWER ON

System Rebooting

KEY LOCK

System key are locked

KEY UNLOCK

System key are unlocked

EVENT TYPE

HDD FULL

HDD is FULL

CHANNEL

The channel where event occurred.

Page 40

6-2.1.1 CRITERIA SETUP FOR EVE NT SEARCH

The amount of events can be numerous. Therefore, you can facilitate event sorting by setting up “CRITERIA”. Setup “START TIME” and “END TIME” for event search, then the search result will be limited to this specific period of time. Only checked events and channels will be sorted in event search as well.

Page 41

6-2.2 TIME SEARCH

TIME SEARCH can search for the specific time of recording dat a to playba ck. To specify a date, use ◀ or ▶ to move the cursor up and down, use ▲▼ or roll the mouse to change dates. Press “ENTER” or left click on the desired date to playback. Note that dates with recording data are marked with a red square “ □ “ System will start playing back according to the date you selected. Calendar will be shown by using mouse to click on “YEAR” and “MONTH”.

Click “DATE” to display recording time of that specific date with time bar. You can change time (hour∕minute∕second) or click on a specific time of time bar by mouse then press “YES”. DVR will playback the selected recording data.

Page 42

CHAPTER 7 NETWORK SURVEILLANCE

7-1 IE SETUP

Step One：Enter the IP address of DVR in IE browser. Here you may choose to setup IE remote

or download the AP software.

Step Two：Click OK when window prompts to install a n ActiveX for IE remote. After Please enter

the user name and password. Default user name is admin and pa ssword is 123456. Other related setup about user account and password, please check “5-5 ACCOUNT SETUP. “

Page 43

Step Three：Please enter information of login DVR: IP, Port, Username and Password, or

choose “PLAY RECORDED FILE” to open backup files in your PC.

Step Four：You’ve logged into the DVR

Page 44

7-2 AP SOFTWARE INSTALLATION AND SETUP

AP software:「DVR Remote Desktop」can allow you to remotely access and control the DVR from PC.

Step One：Enter the IP address of DVR in IE browser.

Note：This IP is only for reference. Please setup your local IP.

Step Two：Below windows will be shown up. Please enter the user name and password. Default

user name is admin and password is 123456. Other related setup about user account and password, please check “5-5 ACCOUNT SETUP. “

Step Three：Click on the link to start downloading the AP software.

Page 45

Step Four：Run or Save our AP software.

Step F ive：If you choose to run the software, Start window will be shown up. Please enter

information of login DVR: IP, Port, Username and Password, or choose “PLAY RECORDED FILE” to open backup files in your PC.

Step Six：You’ve logged into the DVR

Page 46

7-3 AP SOFTWARE OPERATION

Open the file “DVRemoteDesktop.exe”; enter the information of DVR “IP ADDRESS”, “PORT” “USERNAME” and “PASSWORD” and click “OK”. You should be able to login DVR successfully and start to use the software. The default username and password is 「admin/123456」

The operation of AP software remains the same as local DVR; furthermore, it provides some exclusive functions for remote users. Please check Table 7-3.1 for detail information and Table

7-3.2 for system requirements for AP software.

T able 7 -3.1 Toolbar of AP software

FILE - RECORD TO LOCAL

Record data to your PC, including LIVE and Playback.

FILE - PLAY RECORDED FILES Play recorded files “.irf” FILE – EXIT∕ALT + F4

Close the AP software.

EDIT - CHANNEL NAME∕F2

Edit channel name of your DVR including font, size

italic, and boldface of characters. EDIT - RESET CHANNEL NAME Reset channel name back to default. VIEW - HIDE CAPTION & MENU∕F9

Hide the Caption and Menu. VIEW - DISABLE RESIZING∕F10

Disable resizing the window. VIEW - FULL SCREEN∕F11

Switch it to full screen. HELP – ABOUT Show information about software and information.

T able 7 -3.2 System Req uirements for AP software

CPU Intel Pentium 4 above OS

Microsoft Windows Vista、Windows XP SP2 above RAM 512M above OTHERS DirectX 9.0 above

Page 47

CHAPTER 8 MOBILE APPLICATION INSTALLATION AND USAGE

You can remotely monitor all channels of DVR through your mobile device. The required mobile application is from DVR manufacturer and it supports mobile OS for both Windows mobile 5.0 above and Symbian.

Please confirm network function of DVR has been activated before mobile connection： Main menu Æ Network Setup Æ HTTP Setup Æ Check the “ENABLE HTTP SER VER”

8-1 MOBILE APPLICATION INSTALLATION & OPERATION FOR SYMBIAN SYSTEM

Mobile Device：

Nokia, SonyEricsson…etc.

System requirement：

¾ GPRS/3G must be provided from your telecom service. ¾ Mobile device should be support GPRS/3G protocol and Java cldc1 . 0/midp 2.0 environment.

8-1.1 MOBILE APPLICATION INSTALLATION

Please follow the steps cited below to perform the mobile device surveillance function. Step 1 ：The application can be downloaded directly from the manufacturer’s website to your

mobile OR; alternatively, it can be transferred to your mobile device from the CD that packed with DVR through Bluetooth or USB cable.

Step 2：Install the application sof twa re in your mobile device. It might be inst alled automatically

after downloading; otherwise, select it from the downloading file for installation.

8-1.2 MOBILE APPLICATION OPERATION

After the installation, enter the Program Files menu in your mobile device to run a file called “H.264 MIDlet”.

Select “MENU” at the right lower corner of your mobile screen, 4 commands, Login Add Modify and Delete, will show up.

8-1.2.1 ADD NEW LOGIN DVR

To log into the DVR, you need to enter the logging-in DVR information. Find “ADD” under the “MENU” then enter logging-in DVR’s IP address, Port numbe r, account name and password. Press “ADD” to save this information after entering.

Page 48

8-1.2.2 LOGGING ONTO THE DVR

Use the Login command to log onto a DVR and monitor live images. If multiple DVRs have been added to the mobile application, they will be listed by name, you can select one to log onto.

A confirmation message might show up for network charge before connection. The fee rate will depend on the telecom company and package fee you go with.

Network connectivity will take some time. It’ll be affected by networking environment and bandwidth flow. Live image will show up after a successful connection.

PS. The Live cannot be displayed in your mobile

when the recording is off in local DVR.

8-1.2.3 MODIFY THE LOGIN INFORMATION OF DVR

You can use the “MODIFY” command to change the login information of DVR. The dialogue is identical to that of the “ADD” command.

Page 49

8-1.2.4 DELETE THE LOGIN INFORMATION OF DVR

“DELETE” command can be used to remove the DVR information if it is no longer useful. Select the DVR on the name list then choose “DELETE”

8-1.3 LIVE MONITORING OPERATION

This paragraph describes some operation under the LIVE monitoring mode in your mobile device.

8-1.3.1 SCROLL THE IMAGE

You can use the keypad on your mobile device to scroll the image if it’s oversized.

KEY ACTION

2 Scroll Up 4 Scroll Left 6 Scroll Right 8 Scroll Down

Page 50

8-1.3.2 IMAGE QUALITY SETUP

Select “QUALITY” under the “MENU”

There will be 5 levels for your to choose： Low、Normal、Middle、High and Highest.

8-1.3.3 CHANNEL DISPLAY

You can choose single or quad channel display for live monitoring.

Select “SINGLE” under the “MENU”, there will be all channels of your DVR in list for you to choose.

PS. The Live cannot be displayed in your mobile

when the recording is off in local DVR.

8-1.3.4 SIZE OF IMAGE

The screen size of different mobile device can be really different. You can select “SIZE” under the “MENU” to choose from “ORIGINAL” or “FIT SCREEN” to resize the display image.

Item Description

ORIGINAL

The image will be shown in

original size.

FIT SCREEN

The image will be shown to fit the

screen.

Page 51

8-1.3.5 ROTATE THE IMAGE

The Live image can be displayed in normal or rotate to 90 degrees. Select “ROTATE” under the “MENU” for this operation.

8-1.3.6 ALARM

This application not only allows you to remotely monitor through mobile device but receive the alarm that has been triggered by events such as Motion Detected, Sensor Triggered and Vloss.

Graphical icons below will be shown on the status：

：Motion detected

：Sensor triggered

：Video loss

Select the “ALARM” under the “MENU” to switch this function on or off.

8-2 MOBILE APPLICATION INSTALLATION & OPERATION FOR WINDOWS

MOBILE SYSTEM

There are two kinds of applications for Window Mobile OS: JPEG compression and H.264 compression. The one for H.264 compression can transfer both audio and video signal to your mobile device.

System Requirement：

¾ Mobile device OS：Windows mobile system 5.0 above. ¾ Mobile device need to support internet: GPRS／3G／Wifi… etc.

Page 52

8-2.1 MOBILE APPLICATION INSTALLATION

Please follow the steps cited below to perform the mobile device surveillance function on your mobile device (mobile phone, PDA...etc).

Step 1：The mobile application called “Jrviewer”

and “H264Pocket.CAB” need to be installed in your mobile device. The application can be downloaded directly from the manufacturer’s website to your mobile or; alternatively, it can be transferred to your mobile device from the CD that packed with DVR through Bluetooth or USB cable.

Step 2：Install the application software “Jrviewer”

and “H264Pocket.CAB” in your mobile device, two folders named ”Jrviewer” and “H264Pocket” will be created. It might be installed automatically after downloading; otherwise, select it from the downloading file for installation.

8-2.2 MOBILE APPLICATION OPERATION

After the installation, enter the Program Files menu in your mobile device to run files named “Jrviewer” and “H264Pocket”.

This application allows you to remotely logon and monitor DVR. Press “OK” to bring up the operation menu; see below chart to further information.

Page 53

Item Function Description

ADD Add login DVR

Enter DVR’s name, IP address, Port, Account user, Password then press “OK”

 Choose the DVR that you’d like to log on, then press “OK”.  PS. The Live cannot be displayed in your mobile

when the recoding is off.

 PS. Network connectivity will be affected by networking

environment and bandwidth flow . The fe e rate will depend on the telecom company and package fee you go with.

MODIFY

Modify Login DVR

Choose DVR, press “MODIFY”, and press ”OK” to save change.

DELETE

Delete Login DVR

Choose DVR and press ”DELETE” to delete the DVR info.

8-2.3 OPERATION UNDER THE LIVE MONITORING

After successful logon the DVR, press “VIEW” to bring up operation menu. You can choose the channel, resize the image, choose the quality, and turn on/off the status bar, alarm, full screen display….etc.

The Operation of Jrviewe

The Operation of H.264Pocket

Page 54

8-2.3.1 OPERATION UNDER THE LIVE MONITORING FOR JRVIEWER

Item Function Description

CHANNEL 1~4 Display for CH 1~4 Choose from CH1~4 to display

SCREEN Size of image

Original：image size as original Stretch：stretch the size as full screen Fit：resize the image to fit the screen

QUALITY Quality

Change the quality of image. Please note the better quality, the slower data transfer rate.

ST ATUS BAR Status Bar

Graphical icons indicated below will be shown on the status bar if there is event such as motion detected, sensor triggered and video loss to be detected on any channel. You can also uncheck the “ST ATUS BAR” to inactivate this function.

Icon Description

Motion Detect Sensor Trigger V-Loss

ALARM Alarm

Alarm through your mobile device can be triggered if there is event to be detected. You can also uncheck the “ALARM” under the “VIEW” to inactivate this function.

Page 55

8-2.3.2 OPERATION UNDER THE LIVE MONITORING FOR H.264 POCKET

Item Function Description

CHANEEL 1~4 Display for CH 1~4

Choose from CH1~4 to display. CH1~4 can receive audio signal.

ST ATUS BAR Status Bar

Icon Description

Motion Detect Sensor Trigger V-Loss

ALARM Alarm

Alarm through your mobile device can be triggered if there is event to be detected. You can also uncheck the “ALARM” under the “VIEW” to inactivate this function.

FULL SCREEN Full screen display

You can choose one channel to display in full screen by check this function.

Page 56

CHAPTER 9 CMS INSTALLATION AND USAGE GUIDE

9-1 CMS INSTALLATION

System Requirement

：

¾ Intel Pentium 4 processor or equivalent. ¾ Microsoft Windows Vist a、Windows XP、Windows 2003 Server.

¾ 512MB memory above. (500M requested for group DVR connection and 180M for single

DVR)

¾ 20MB HD space. Recording and image capturing require extra space for storage.

Installation

：

1. Connect to the manufacturer’s website and download the CMS software.

2. Decompress and execute “SETUP.EXE”.

3. Select “NEXT”

4. Select “BROWSE” to change installation path if needed. To check available space on hard disk, please select “DISK COST” then please select “NEXT” to the next step.

Page 57

5.”CONFIRM INSTALLATION” window shows. Select ‘’EXT” then the installation starts.

6.Select “CLOSE” To finish installation when the “INSTALLATION COMPLETE” window shows.

Page 58

9-2 CMS LOGIN AND ENVIRONMENT

To enter CMS, the administrator’s user name and password are entered. The defaults are ‘‘admin’’ and ‘‘123456’’.

After successful login, the following image shows on your screen:

① DVRS, GROUPS &

EVENTS

Information about DVRs, groups and events. See “9-3 DVRS, G ROUPS & EVENTS” for detail.

② PC INFORMATION

AND CONTROL

Information about local PC’s hard disk, volume, recording...etc. See “9-4 LOCAL PC INFORMATION AND CONTROL” for more detail.

③ MAIN DISPLAY

Live image display area. See “9-5 MAIN DISPLAY” for detail.

④ DISPLAY MODES

Display modes supported by CMS.

⑤ OPERATION BAR

A set of 10 operations are provided by CMS. See “9-6 OPERATION BAR” for detail.

9-3 DVRS, GROUPS & EVENTS

Icon Description

View list of logged in DVR／Group.

View Logs

①

②

③

④ ⑤

Page 59

9-3.1 VIEW DVR／GROUP LIST

Single left click on ‘‘DVR’’ or ‘‘GROUP’’ will expand/collapse the entire DVRs and groups list.

On the DVR list, double left click on a

connected DVR will show its image in the main display. See “9-6.2 DVR

ADMINISTRATION” for further information.

On the Group list, double left click on a

group will show live image from the channels of the group in the main display. See “9-6.3 GROUP ADMINISTRATION” for further information.

Left-clicking on a connected DVR will expand/collapse status of its all channels as below：

Icon Description

Video Loss Motion Detected Sensor Triggered

9-3.2 VIEW EVENT LOGS

Under this page, all the events of a DVR can be expanded/collapsed in the order of Remote in/Remote out, Video Loss, Motion, Sensor, Others (Power Reset, Key Lock, Key Unlock, HD Full).

Page 60

9-4 LOCAL PC INFORMATION AND CONTROL

Located at the left lower corner of the screen, please see the chart below：

Icon Function Description

HDD INFO

Shows the ratio of available space∕HDD size of the C:\ drive (where CMS is installed).

VOLUME PC volume or playback volume control bar.

RECORDING

Record live image to local PC storage. To view locally stored data, use “RECORD” under the operation bar. Also see “9-6.6 HDD PLAYBACK” for detail.

SNAPSHOT

Take snapshot to save in local PC storage. To view all the snapshot you’ve taken, please go to ”SNAPSHOT” under the operation bar. See “9-6.5 REMOTE PLAY ” for detail.

Page 61

9-5 MAIN DISPLAY

The main display area is where the live image of DVR is shown. You can drag to change the location of screen for each channel and turn on∕off audio signal with mouse-click.

9-5.1 AUDIO CONTROL

In live mode, you can turn on/off the audio signal of CH1~CH4：

「

」：Audio signal is On

「

」：Audio signal is Off

Turn on ∕off by clicking on the graphical icon, please note there can allow only one channel’s audio signal to be on at one time.

Page 62

9-5.2 eMAP DISPLAY

In Live mode, pressing

will bring the e-MAP drag-down menu. If the channel has been set up to use e-MAP, the menu will show all the e-MAP titles that have been entitled to this channel; otherwise, “NO eMAPS” will be shown. Please check “9-6.4 eMAP ADMINISTRATION” for setup information.

9-5.3 PTZ CONTROL

In the main display, right click on the channel will bring up PTZ control panel as below.

Icon Description

8 DIRECTION KEY Rotate the PTZ

ZOOM+：Zoom-in

ZOOM-：Zoom-out

Page 63

9-6 OPERATION BAR

10 Operations to be listed as below：

Table 9-6.1 Description of 10 operations：

Icon Description

User Administration. Please see “9-6.1 USER ADMINISTRATION”

DVR Administration. Please see “9-6.2 DVR ADMINISTRATION”

Group Administration. Plea se see “9-6.3 GROUP ADMINISTRATION”

eMap Administration. Plea se see “9-6.4 eMAP ADMINISTRATION”.

Remote Playback. Please see “9-6.5 REMOTE PLAY”.

HDD Playback. Please see “9-6.6 HDD PLAYBACK”

File Playback. Please see “9-6.7 FILE PLAYBACK”

Event Playback. Please see “9-6.8 EVENT PLAYBACK”

Snapshot Data. Please see “9-6.9 SNAPSHOT DATA”

Recording Data. Please see “9-6.10 RECORDING DATA”

Page 64

9-6.1 USER ADMINISTRATION

Before the CMS can be used on a PC, user accounts should be added with proper authority. Each user should also be assigned a password and optionally a description. If a user does not have certain authority assigned, he/she will not be able to operate the corresponding function on the Operation Bar. The default is none of the authority is assigned. The administrator sho uld assign proper authority to each user. These user accounts can be deleted or edited later on.

Select “OK” to save the setup.

Icon Description

Add a user account. The default authority is with none permission. Delete a user account.

9-6.2 DVR ADMINISTRATION

DVR connections can be added to or deleted from the CMS and their information can be edited. DVR’s channel names can be entered here or downloaded from the DVR by pressing ‘‘FROM DVR’’. Select “OK” to save the information.

Page 65

9-6.3 GROUP ADMINISTRATION

A ‘‘GROUP’’ means a set of video channels from one or many DVRs, which means, user can organize channels from different DVRs to be set in a group. This function allows you to monitor and manager channels from multiple DVRs easily and flexible.

Steps：

1. Add a new group and set its name and description.

2. Click ‘’SELECT’’ which will bring up a new window.

3. Check the specific channels that you’d like them to be included in the group. To include all

channels of a DVR, just check the DVR.

4. Click “OK” to return to the previous window.

5. Select a display mode.

6. Drag a channel from the lower left panel into the main display to a preferred location. Or,

change the channel location in the main display by mouse dragging.

7. You can ‘’SELECT’’ again to add other channels, but the un-saved channel locations will be

lost.

8. Click “OK” to save the setup.

Page 66

9-6.4 eMap ADMINISTRATION

If geographical locations are relevant, or if it is desired to use a picture as the background, eMap can be used for the purpose. With eMap, the background picture can be picked by the user and channels from multiple DVRs can be placed and dragged around on t he picture.

Steps to follow：

1. Click

and a path for the picture will be prompted.

2. Select a picture, click OK and the picture will show in the right panel.

3. Drag channels in the left lower corner onto the picture to any position.

4. To delete a channel already on the picture, right click the channel and click ‘‘REMOVE’’.

5. Click OK to save.

9-6.5 REMOTE PLAY

Video images recorded on a DVR can be displayed on a remote CMS. With Remote Play function, select a DVR and a display mode on top of the screen. After the recorded segments are listed below, double click on one to show its image on the right.

Page 67

Icon Description

Start playing. Pause. Fast forward. Fast rewind.

9-6.6 HDD PLAYBACK

You can directly play the recording data in the HDD that’s uninstalled from DVR by CMS. See the picture below, the left part of screen is recording data in list that’s separated by hour and the right part is main display. You can change the display modes and play files fast forward or rewind.

Page 68

9-6.7 FILE PLAYBACK

You can play the recorded .IRF files by “FILE PLAY” in CMS. It allows you to change the displ ay mode, forward or rewind the file and drag the time bar.

Icon Description

Start Playback. Pause. Stop playback. Fast forward. Fast rewind.

9-6.8 EVENT PLAYBACK

Event recordings on the DVR can be played back in CMS. Steps to follow：

1. Select a DVR and a display mode.

2. Select a date.

3. Double click an event and play back the images on the right. Use buttons at the bottom to control the playback.

Page 69

Page 70

9-6.9 SNAPSHOT DATA

It can display all the snapshots you’ve taken in line in “SNAPSHOT DATA”. You can review, delete or save as other files here.

9-6.10 RECORDING DATA

It can play all the recording files you’ve recorded in line in “RECORDING DATA”. You can play or delete them here.

Steps：

1. Choose the recording time at upper left corner, it will be played on the main display.

2. You can choose the display mode.

3. Time bar will be shown at right lower corner, please drag the time bar to specify the

recording time you’d like to play.

Page 71

APPENDIX I HARD DISK INSTALLATION

I-1 HARD DISK INSTALLATION

Step 1) Check the screws in the package for the screw hole.

Step 2) Put the HDD on the HDD plate and screw it as indicated.

Step 3) Screw the bottom of the DVR as indicated to fix the HDD.

Page 72

Step 4) Connect the power and the SATA cables as indicated.
