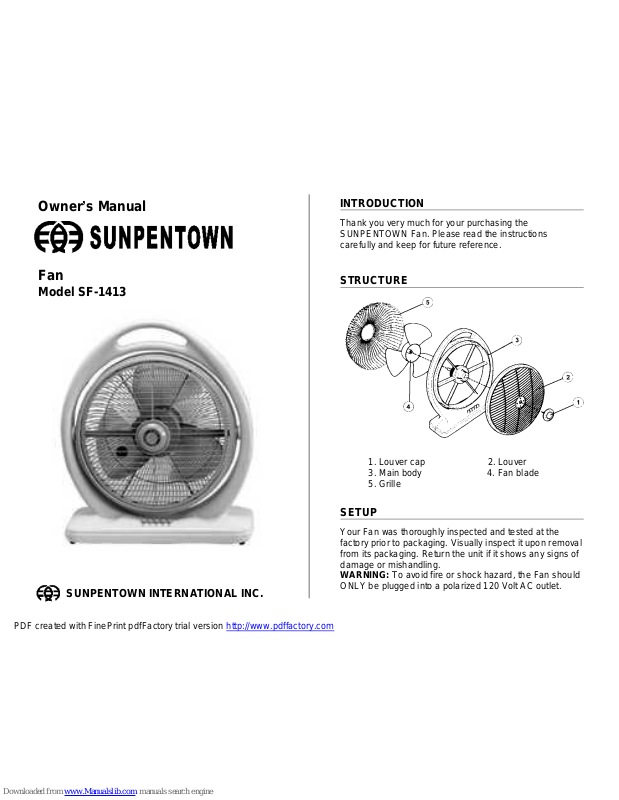

Sunpentown SF-1413 Owner's Manual

Fan

Model SF

-

1413

INTRODUCTION

Thank you very much for your purchasing the
SUNPENTOWN Fan. Please read the instructions
carefully and keep for future reference.

SETUP

Your Fan was thoroughly inspected and tested at the

factory prior to packaging. Visually inspect it upon removal

from its packaging. Return the unit if it shows any signs of
damage or mishandling.
WARNING: To avoid fire or shock hazard, the Fan

should

ONLY be plugged into a polarized 120 Volt AC outlet.

Owner’s Manual

SUNPENTOWN INTERNATIONAL INC.

STRUCTURE

1. Louver cap 2. Louver

3. Main body 4. Fan blade

5. Grille

PDF created with FinePrint pdfFactory trial version http://www.pdffactory.com

IMPORTANT SAFETY INSTRUCTIONS

Please read all instructions before using this product.
Save these instructions for easy reference. When using

electrical appliances, basic precautions should always be

followed to reduce breakage, risk of fire, electric shock
and injury to persons including the following:

l Do not use the fan outdoors.
l Never use the fan unless it is fully assembled.
l Do not use the fan under the following conditions: 1)

High temperature of over 104F. 2) High humidity. 3)
Steam filled room.

l Do not push finger or any object through the louver or

grille and do not touch the fan blade during use;

especially be aware children and infants around during

use.

l Take care that curtains or other objects are not

sucked

into the fan during operation.

l Do not spray the fan with insecticide, which will

damage the surface of the fan.

l The fan has a polarized plug (one blade is wider than

the other). To reduce risk of shock, this plug is
intended to fit in a polarized outlet only one way. If the
plug does not fit fully in the outlet, reverse the plug.

Do

not attempt to defeat this safety feature.

l Unplug from wall outlet before servicing.

OPERATION

The control buttons are marked as follows:

0 = OFF
1 = Low fan speed
2 = Medium fan speed
3 = High fan speed

=

Louver

rotation

CLEANING THE UNIT

1. Turn Fan OFF and unplug from power outlet.

2. Turn the Louver cap counter-clockwise. You will now
be able to remove the cap.

3. Remove the four (4) screws that secure the louver.

4. Remove the three (3) screws that secure the grille.

5. Clean unit with a moistened soft cloth only. DO NOT
pour or splash water on the unit or use any abrasive
cleaners. Clean all external surfaces, especially the
louver, grille and fan blade.

6. Reassemble the fan completely. Never use the fan

unless it is fully assembled.

TECHNICAL SPECIFICATIONS

CUSTOMER ASSISTANCE LINE

If you experience a problem, please see the warranty for
information. Please DO NOT attempt to repair this unit
yourself. Doing so will void your warranty and could cause
damage to the fan or personal injury to yourself. If you
have any questions concerning this appliance, please call:

1-626-581-1818

Length 7.9 inch

Width 18.5 inch
Height 22.1 inch
Weight 9.3 lb

Input voltage 120 volts AC, 60Hz
