Dishwasher Use & Care Manual
Dishwasher
Use & Care Manual
SD-6502SS & SD-6502W
Table of Contents
Important Safety Instructions-----------------------2
Features of your new dishwasher--------------3-5
Operating Instructions-----------------------------6-8
Preparing and loading dishes------------------9-14
Care & cleaning----------------------------------15-17
Troubleshooting----------------------------------18-19
1
WARNING
Important safety instruction
For your sa fety, please fo llow the i nforma tion in th is manua l to minim ize
the risk of f ire, exp losion , electr ic shock , and to hel p preven t proper ty
damage or personal injury.
Proper installation
Please install your dishwasher properly, follow the installation guide.
Water supply inlet temperature should be between 120℉ and 149℉.
Dispose of the discarded appliance and packing material properly.
The dishwash
PERMANENTLY CONNECTED and CORD-CONNECTED are both allowed.
If there is any damage to the Dishwasher, please contact to your Dealer, do not to attempt to
repair or replace any part by yourself.
Basic precaution before use
The manual does not cover every possible condition and situation that may occur.
Read all instructions before using the dishwasher.
The manual does not cover every possible
condition and situation that may occur .
Use the dishwasher only for intended function as
described in this manual.
When loading items to be washed:
-Load sharp items and knives so that they are not
likely to damage the door seal and tub.
-Load sharp items and knives with the handles up
to reduce the risk of injury.
Do not wash plastic items unless they are marked
dishwasher safe, if not marked, check with
manufacture for recommendation, items that are
not dishwasher safe may melt and create a
potential fire hazard.
If the dishwasher drains in to a food disposer,
make sure disposer is completely empty before
running dishwasher.
Do not tamper with controls.
Do not operate your dishwasher unless all
enclosure panels are in the properly place.
Do not touch the heating element during or
immediately after use, especially if the sanitize
option has been selected.
To reduce the risk of injury, do not allow children
to play in or on a dishwasher.
er must be properly grounded, or it can result in a risk of electric shock.
Do not let children abuse, sit, or stand on door or
racks of the dishwasher.
Under certain conditions, hydrogen gas may be
produced in a hot water system that has not been
used for two weeks or more. Hydrogen GAS IS
EXPLOSIVE. If the hot water system has not been
used for such a period, before using dishwasher,
turn on all hot water faucets and let water flow
from each for several minutes. This will release
any accumulated hydrogen gas. Hydrogen gas is
flammable. Do not smoke or use an open flame
during this time.
Do not store or use combustible materials,
gasoline or other flammable vapors and liquids in
the vicinity of this or any other appliance.
Use only detergents or rinse agents
recommended for use in a dishwasher and keep
them out of the reach of children.
Keep young children and infants away from
dishwasher when it is operating.
Do not use the dishwasher if it has a damaged
power line or plug, and do not plug the dishwasher
into a damaged outlet. Failure to observe these
instructions may result in electrical shock.
Remove the door to the washing compartment
when removing an old dishwasher from service or
discarding It.
SAVE THESE INSTRUCTIONS
2
Specification
Capacity
Dimension
Power Supply
Rated power usage
Water Feed Pressure
Features of your new dishwasher
14 place settings
23.89 x 25.6 x 33.74 inches W x D H ( x )
12 0 vo lts, 6 0 H z
Wash motor 50 W Heater 840 W
20 ~ 120 psi (138 ~ 828kPa)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
Top light
1
Upper Spray Arm
2
Middle Spray Arm
3
8
Top Rack
Cup Shelf
9
Adjustable Upper Rack
10
Vortex wash arm (Located on the left side of tub)
4
Low Spray Arm
5
Detergent Dispenser
6
Rinse Aid Dispenser
7
3
11
Tub Gasket
12
Silverware Basket
13
Bottom Rack
Heating Element
14
Features of your new dishwasher
Features

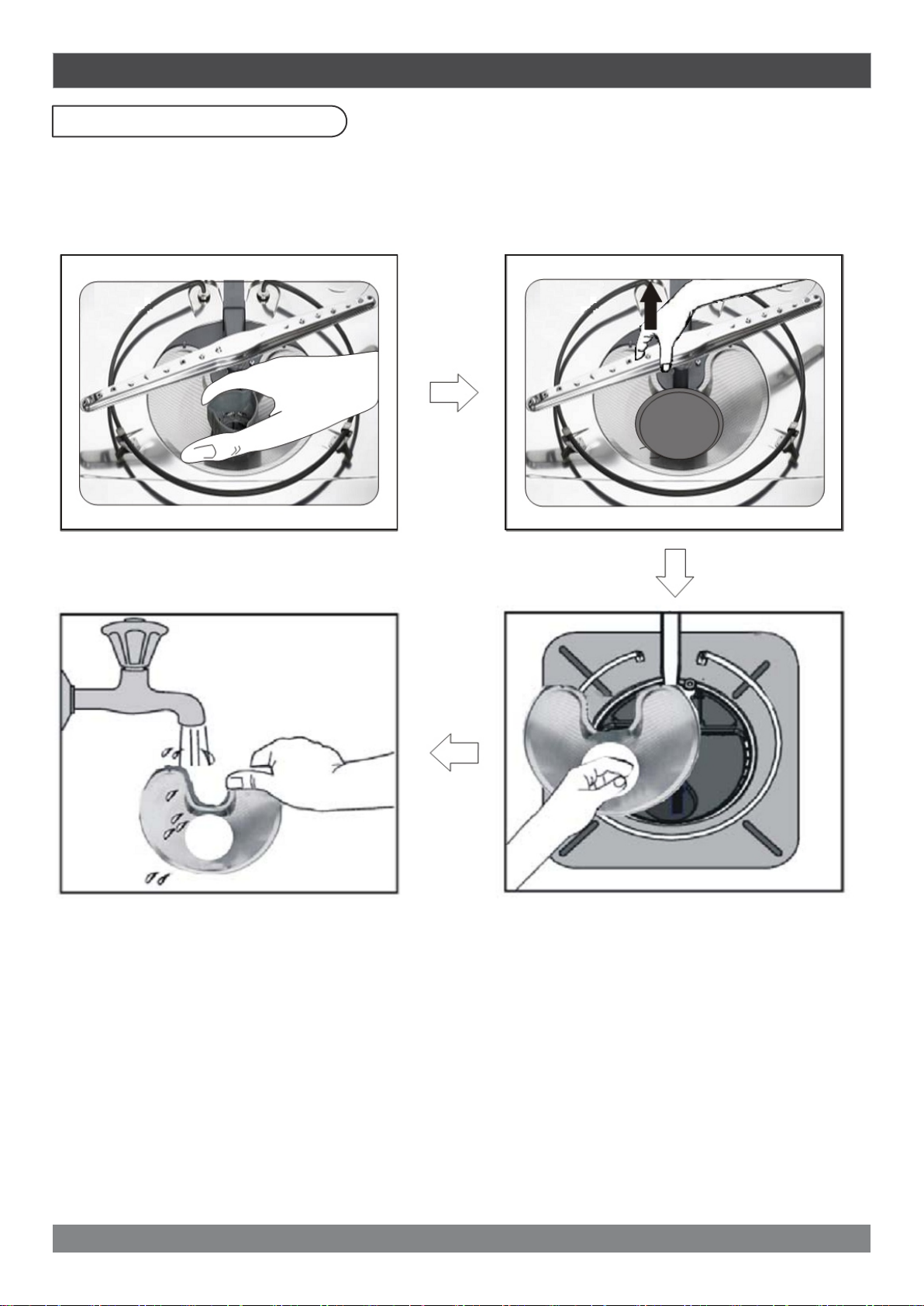

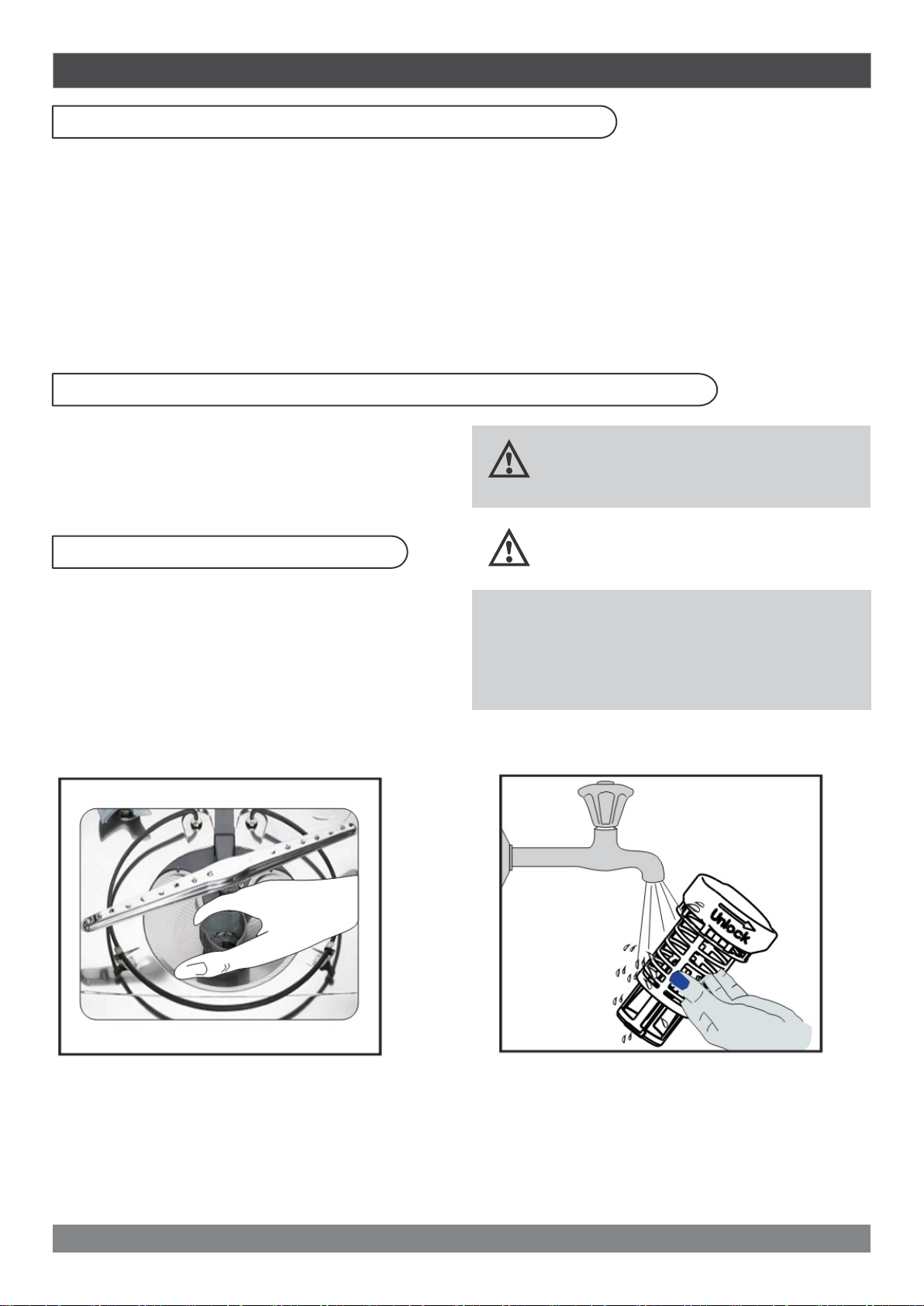

Filter System
Your dishwasher has a multiple Filter
System. In the System there are four
filter-meshes. It can separate soiled water
and clean water in different chambers.
The multiple filter system helps your
dishwasher to get better performance
with less water and less energy.
Adjustable Upper Rack
The Upper Rack can be raised or lowered to
accommodate loading taller dishes in either
rack. The Upper Rack clearance height H1
goes from 8" to 10". The Bottom Rack
clearance height H2 is 11" to 13".
Smart Wash System
Your dishwasher has Smart Wash System.
When a partial load of lightly soiled dishes
is placed in the unit, a wash cycle similar to
a short wash will automatically be performed.
When a full load of heavily soiled dishes is
placed in the unit, a heavy wash cycle will
automatically be performed. it can determine
the type of cycle required to clean the dishes
and will clean more efficiently every time.
4
Features of your new dishwasher
How your dishwasher cleans
Your dishwasher cleans by spraying a
mixture of hot water and detergent through
the spray arms against soiled surfaces.
The dishwasher fills with water covering the
filer area. Water is then pumped through the
multiple filter and spray arms. Separated soil
particles go down the drain as the water is
pumped out and replaced with clean water.
The number of water fills will vary with the
cycle being used.
Getting Started
1.Load dishwasher (See preparing and loading
dishes).
2.Add detergent (See Fill detergent to the
dispenser).
3.Add rinse aid, if needed (See Fill rinse aid
dispenser).
4.Select desired CYCLE (See Cycle Chart). The
indicator light beside the pad will glow when
selected.
5.Select desired FUNCTIONS, the indicator light
beside the pad will glow when selected.
6.To start, press Start/Cancel (See Start/Cancel)
pad.
7.Close the door, then the machine will start to
work.
NOTE
1. Your dishwasher has the top control panel.
The door should be opened first if you want
to operate the machine.
2. To start a cycle, the door must be closed
within 4s after press Start/Cancel.
Wash Cycle Selections
Cycle times are an estimation and will vary with
different options. Water temperature is important
to activate the dishwasher detergent and melt fatty
food soils. An automatic sensor will check the
incoming water temperature. If the water is not
hot enough, timer will be delayed for the water to
be heated to the desired temperature. Even when
HI-TEMP is selected, often times, water still need
to be heated more to handle heavier soil loads.
5
Control panel
HEAVY
WASH
1
NOTE
2
DELICATE
WASH
3
4
5
This model is built-in models, all the
buttons can only be operated in the
open state.
Wash Cycle Selections
1
Heavy Wash
This cycle is for hard-to-clean, heavily
soiled dishes, pots and dishes.
2
Normal wash
This cycle is for regularly soiled dinner
dishes or silverware.
3
Delicate Wash
This cycle is for lightly soiled china and
crystal.
4
Quick wash
This cycle is for lightly soiled and
pre-rinsed dishes and silverware.
5
Rinse only
This cycle is for pre-rinsing dishes or
glasses. This is only a rinse that keeps
food from drying on your dishes and
reduces odor buildup in your dishwasher
until you are ready to wash a full load.
Do not use detergent.
6
ENERGY SAVER
For light solied or pre-rinsed dishes and
silverware.
6
7
8
Steam wash
8
10
9
11
12
13
For use with heavily soiled items, this
STEAM option adds 30 minutes t o the
cycle time. The option is available with
the cycles of “HEAVY WASH” and
“Normal wash”.
9
Child lock
You can lock all controls to prevent children
from accidently changing the dishwasher
cycle or starting the dishwasher.
Press the “Steam wash” and the “Vortex
wash” simultaneity to select or cancel the
function. After the function is selected and
the corresponding indicator light will turn on.
10
Votex wash
Use this option when you want to wash pots
and pans, durable serving bowls, and other
large, very dirty, hard to clean dishes. Touse
use Vortex wash, place the dishes face down
in the lower rack directly above the vortex
wash arm in the back left corner.
11
Heating Dry
When the “Heating Dry” function is selected,
the heater will work during the drying process.
12
Sanitize
To sanitize your dishes and glassware, select
the Sanitize option. When he “Sanitize”
function is selected, the temperature of water
will be maintained at 70 ℃ (158℉) max.
Certified residential dishwashers are not
intended for licensed food establishments.
The sanitize cycle is NSF certified.
Functions
7
Air exchange
Select the “Air exchange function, the
dishwasher will exchange the air every 6
hours to keep the air in the dishwasher
fresh.
with " Heavy Wash " " NORMAL WASH"
and " ENERGY SAVER" cycles.
Warning: The sanitize option is available
13
Hi Temp Wash
When the “Hi Temp wash” function is
selected, the temperature of water will
be maintained at 60 ℃ (140℉) max.
6
Operating dishwasher
17
18
19
16
Start/Cancel
-
Open the door
14
, select a wash cycle you
15
desired, the indicator light will turn on. Press
the Start/Cancel button and close the door
within 4 seconds, then the selected program
light begins to blink and the cycle progress
indicator in control panel will light on, the
washing cycle is running.
-
If you close the door more than 4seconds
after pressed the Start/Cancel button, the
cycle will pause and not run.
-
To cancel a running cycle, open the door
you can press the Start/Cancel button for
3 seconds, then the dishwasher will drain
the water for 60 seconds and the screen will
display the time "60", after the drain you can
select the desired cycle.
-
When you want to load more dishes or pause
the dishwasher while it is already running,
make sure to open the door slowly and
carefully as there is a possibility of injury
by hot steam from inside the dishwasher.
-
You can add more dishes before the main
wash starts. Open the door and check the
detergent dispenser. If the detergent
dispenser is still closed, you can add items.
To achieve best washing effect, it’s strongly
recommended that all dishes will be loaded
before washing program begins.
16
14
Delay
To delay the start of a selected cycle, open the
door, press the Delay Start pad until the desired
delay time shows in the LED display screen, it
allows you to start your dishwasher for 1 to 24
hours delay. Press the Start/Cancel pad once,
after that, you should close the door within 4
seconds, then the delay is running.
-
If you open the door during the delay is running,
you should press the Start/Cancel pad, then
close the door within 4 seconds, the delay will
run again.
To cancel the Delay Start option and begin the
cycle, before the delay period is over press the
Start/Cancel pad for 3 seconds.
15
Display window
To display the remaining hours and minutes of the
running cycle, delay hours and error codes etc.
17
Rinse aid indicator light
Need to add rinse aid to the dishwasher.
18
Sanitized indicator light
If a cycle with the sanitize function is finished,
the sanitized indicator light turns on. If you open
the door, it will turn off after 30 seconds.
19
Clean indicator light
Turns on after a cycle finished. If you open
the door, it will turn off after 30 seconds.
Cycle progress indicator
Located on ride side of the front of the dishwasher, these lights indicate how far along is the current
wash cycle while the dishwasher is running.
3
lights will turn off
1
2
DRY
3
CLEAN
WASH
1 2
When the dishwasher is in a wash or rinse portion of a cycle, the Wash light is
illuminated.
When the dishwasher is in a drying portion of a cycle, the Wash and Dry lights
are illuminated.
After the dishwasher has completed all portions of a cycle, all indicator lights
are illuminated.
If you open the door when the Cleaning lights are illuminated, all the
after 30 seconds.
7
Operating dishwasher
Status Window
H:01-H:24
If the Delay Start option is selected, the
number of delay start hours shows in the
Status Window.
2:15-0:00
After the machine works, the remaining time
of the cycle that have been selected will be
showed in the Status Window.
NOTE
The remaining time could suddenly increase
or drop several minutes. This means the
Smart Sensor has checked the soil level and
adjusted for the appropriate water level.
Error indication
In certain situations which are critical to the
machines function and safe operation, the
control shall shut down and indicate an error
code (See Error Codes on page 18).
If Error codes are displayed, contact the dealer or
servicer. They will be able to provide assistance
in trouble shooting the problem and or locate an
authorized service technician if needed.
Cycle Chart
Program Description of Cycle
Pre Wash
Pre Wash
Wash(48°C)
HEAVY WASH 22.8 140
NORMAL WASH 10.8~23.0 105~135
DELICATE WASH 19.3 120
QUICK WASH 15.5 60
RINSE ONLY Rinse Only 8 20
ENERGY SAVER 19.3 105
Rinse
Rinse
Rinse(58°C)
Drying
Pre Wash
Auto(42~48°C)
Rinse(50~58°C)
Drying
Pre Wash
Pre Wash
Wash(48°C)
Rinse
Rinse(58°C)
Drying
Pre Wash
Wash(40°C)
Rinse(50°C)
Drying
Pre Wash
Pre Wash
Wash(40°C)
Rinse
Rinse(50°C)
Drying
Water (L)
Cycle time (min)
8
Preparing and loading dishes
Adjustable Upper Rack
The upper rack height can be easily adjusted
to accommodate loading taller dishes in either
rack. To accommodate taller dishes in the
bottom rack, there are 2 positions available:
1. Lift the rack for upper position
The upper rack in the upper position
Upper rack
2. Up press the handle to lower the rack
The upper rack in the lower position
Lower rack
Dish Preparation
Scrape away large pieces of food, bones, pits,
toothpicks, etc. The continuous filtered wash
system will remove the remaining food particles.
Burned-on foods should be loosened before
loading. Empty liquids from glasses and cups.
Foods such as mustard, mayonnaise, vinegar,
lemon juice and tomato based products may
cause discoloration of stainless steel and plastics
if allowed to sit for a long period of time. Unless
the dishwasher is to be opertated at once, it is
best to rinse off these food soils.
If the dishwasher drains into a food disposer, be
sure disposer is completely empty before
starting dishwasher.
Height should be adjusted without dishes in the racks.
9
Preparing and loading dishes
Loading the Upper Rack
The upper rack is designed for cups, glasses,
small plates, bowls and plastic items marked
safe etc.
For best results, place the bowls, cups,
glasses, sauce pans with soiled surface
facing down or toward the center. Tilt slightly
for better drainage.
Make sure the loaded dishes do
not interfere with the rotation of
the middle spray arm, which is
located at the bottom of the upper
rack. (Check this by rotating
the middle spray arm by hand.)
Loading the Bottom Rack
The bottom rack is designed to load plates, soup
bowls, plates, saucers and cookware. The
adjustable rack space will allow you to load
maximum 13 inch items.
Large items should be placed along the
edge so they do not interfere with the
middle spray arm rotation, and make
sure they not prevent the detergent
dispenser from opening.
Large items should be turned so that
the inside faces downward, and make
sure these items do not interfere with
the lower spray arm rotation.
The fold-down tines in the bottom rack make it
easy to load those extra large and hard-to-fit
items. The tines may be left up for normal use or
folded down for more flexible loading. Fold down
for more space to load large pots or pans.
Upper Rack 8 place settings Upper Rack 12 place settings Upper Rack 14 place settings
Bottom Rack 8 place settings Bottom Rack 12 place settings Bottom Rack 14 place settings
10
PREPARING AND LOADING DISHES

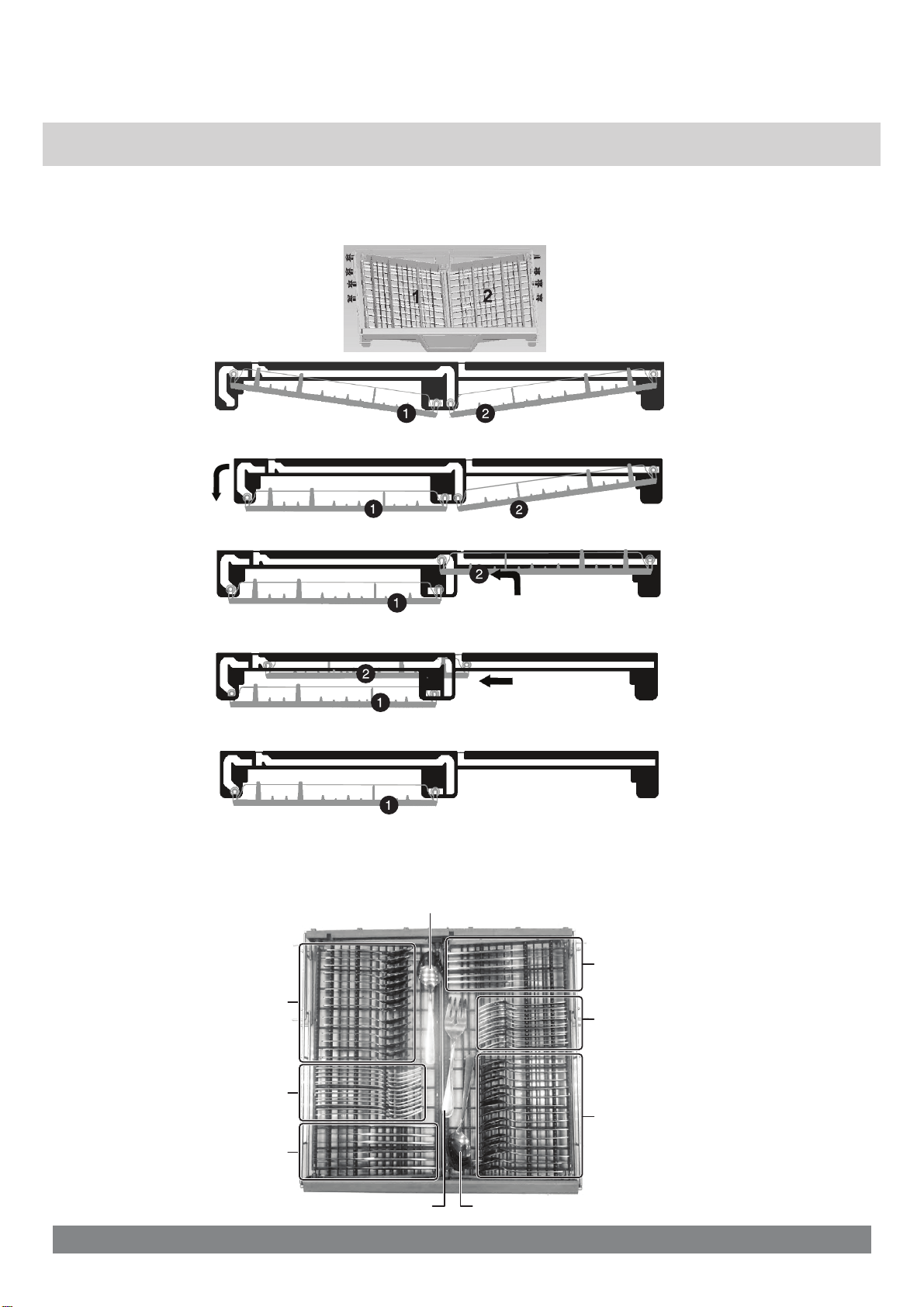

Adjusting the top rack
This dishwasher has a convenient top rack for silverware, cutlery, and
small items. This rack can be adjusted to accommodate varying loads, as
shown below.
Left and right racks aligned
Left rack adjusted to lower position and right rack angled
Left rack adjusted to lower position and right rack to upper position
Left rack adjusted to lower position and right rack moved to the left
Left rack adjusted to lower position and right rack removed
Loading the top rack
You can place the items in the top rack randomly or in an orderly fashion.
The image below shows how to load the top rack for 16 place settings:
Large spoons
Small spoons
Knives
Small forks
Forks
Knives
Large forks
Spoons
Large spoons
11
Preparing and loading dishes

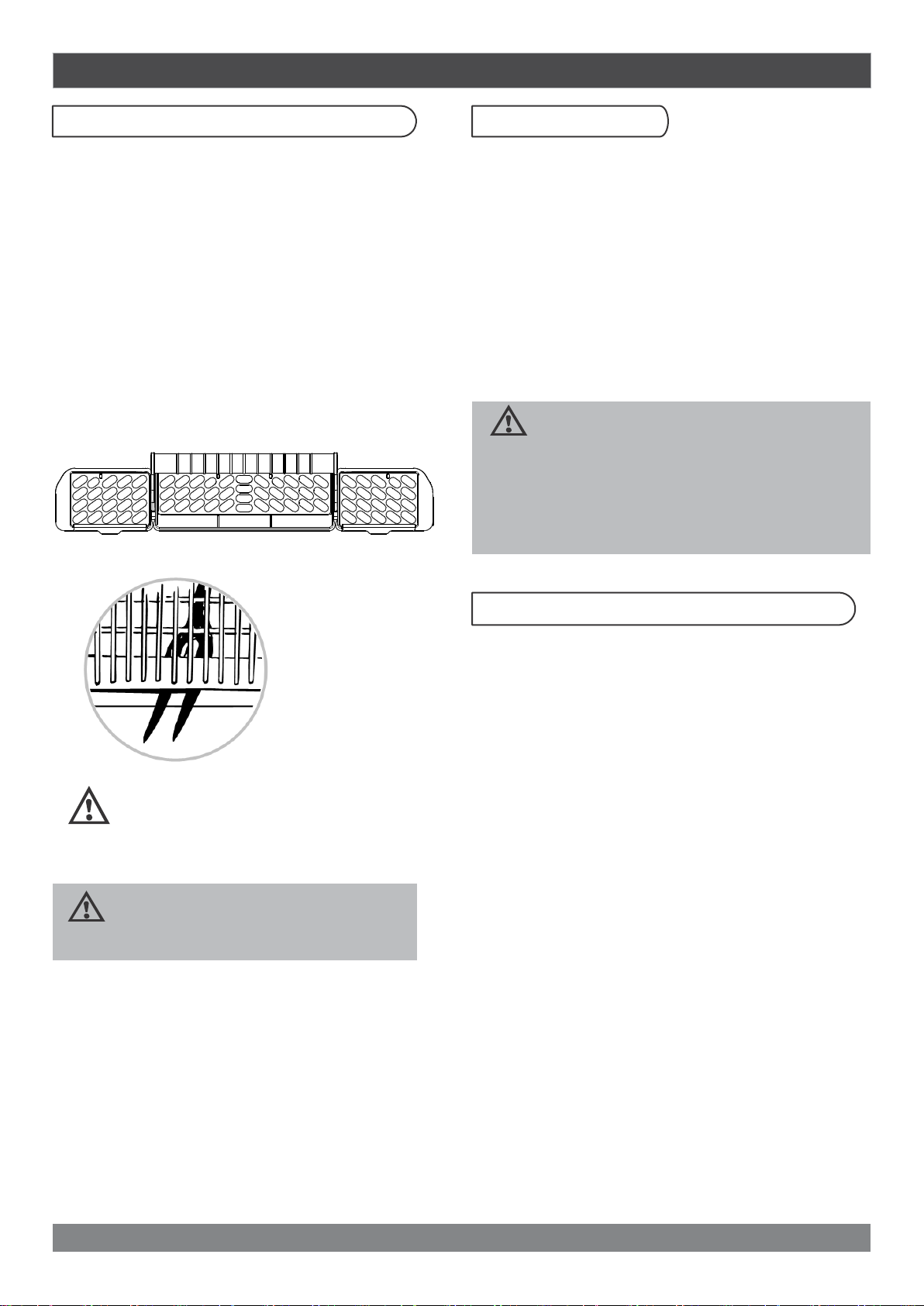

Loading the Silverware Basket
The silverware basket could be divided into
three separate modules that can be used in
both upper and lower racks.
1. Spoons
2. Knives
3. Salad forks
4. Forks
5. Large spoons
6. Large forks
2
4
3
4
1
2
4
3
2
222
4
4
3
3
4
3
3
111
1
1
1
1
6
1
111
1
5
1
1
1
1
1
6
4
3
1
1
4
3
3
1
111
3
3
3
Adding A Dish
To add or remove items after wash cycle starts:
1. Open door slightly and wait a few seconds
until wash action stops before completely opening.
2. Add the item.
3. Press the Start/Pause pad, then close the door
latch firmly within 4 seconds, the cycle will
automatically resume.
If you close the door more than 4 seconds after
pressed the Start/Cancel pad, the cycle will
pause and not run.
CAUTION
TO AVOID BURN INJURY: Slightly open
2
4
4
2
2
4
2
22
4
door and wait until spray arms and wash
action stop. Hot water may splash out of
dishwasher. Failure to do so may result
in injury.
WARNING
Do not let any item extend through bottom.
Be sure nothing protrudes though
bottom of the basket or rack to
block the lower spray arm.
Filling the rinse aid dispenser
Rinse aid greatly improves drying and reduces
water spots and filming. Without rinse aid your
dishes and dishwasher interior will have excessive
moisture. The Heated Dry option will not perform
as well without rinse aid. The rinse aid dispenser,
located next to the Detergent cup, automatically
releases a measured amount of rinse aid during
the last rinse.
If spotting and poor drying is a problem, increase
the amount of rinse aid dispensed by rotating the
dial to a higher number. The dial is located under
the dispenser cap.
If the rinse aid is low, the Rinse Aid light is
illuminated at the beginning and end of the
cycle indicating that it is time to refill.
12
Filling the rinse aid dispenser
Your dishwasher is designed to use a liquid rinse aid. The use of rinse aid greatly
improves drying performance after the final rinse. Do not use a solid or bar-type
rinse aid. Under normal conditions, the rinse aid will last approximately one
month, try to keep it full,but do not over fill.
Preparing and loading dishes
1. Open the door, turn the dispenser cap to
left and lift it out.
2. Add rinse aid until the indicator point to
max.
3. You can adjust the amount of the rinse aid
released during the rinse operation, the greater
number indicates the larger amount of rinse aid
released.
4.Replace the dispenser cap.
Filling the detergent dispenser
1.Push the dispenser cover latch downwards
and open it.
open cup
2. Add the detergent to the main wash
compartment.
13
Preparing and loading dishes
3. Close the dispenser cover.
14
Care & cleaning
Cleaning the exterior door and panel
1. Stainless steel panel 2.Control panel
Clean the stainless steel door and handle
regularly to remove the debris with cleaning
soft cloth.
Do not use appliance wax, polish, bleach or
products containing chlorine to clean the
stainless steel door.
Clean the Stainless Steel Inner Door and Tub
The tub is made of Stainless Steel, it will not
rust or corrode if the dishwasher should be
scratched or dented.
Clean the Cylinder Filter
The Cylinder Filter is designed to collect
some big items such as broken glass, bones
and pits. The Cylinder Filter needs to be
cleaned to maximize wash performance.
Remove the bottom rack, rotate the cylinder
filter as shown, lift it out, empty and clean it
by holding it under running water and replace.
Clean the control panel with a lightly dampened
cloth, clean it gently.
Clean the spots on the steel inner door
and tub with a damp nonabrasive cloth.
WARNING
Allow heating element to cool before cleaning
the interior.
Failure to do so can result in burns.
Burn Hazard
15
Care & cleaning
Clean the Fine Filter
Take out the Cylinder Filter and remove the Fine Filter from the dishwasher tub bottom. To
remove the Fine Filter you must first remove the bottom spray arm as shown below.
Flush the Fine Filter by holding it under running water and replace.
16
Clean the door gasket
Clean the door gasket with a damp cloth to
remove food particles regularly.
Inside
Care & cleaning
The inside of the dishwasher is self-cleaning
with normal use. If needed, clean the tub
gasket with a damp cloth and use a brush
similar to the ones shown below to clean the
opening in the end of the gasket.
Air gap
If there is an air gap installed with your
dishwasher, make sure it is clean so the
dishwasher will drain properly.
Air gap is not part of your dishwasher.
Before you clean the air gap, turn off the
dishwasher firstly and lift off the cover
Remove the plastic cap and clean with a
toothpick.
Protect against freezing
Your dishwasher should be protected from
freezing properly if it was left in an unheated
place. Have a qualified person do the following:
To Disconnect Service:
1.Turn off electrical power to the dishwasher at
the supply source by moving fuses or tripping
circuit breaker.
2. Turn off the water supply.
3. Place a pan under the inlet valve. Disconnect
water line from inlet valve and drain into pan.
4.Disconnect drain line from pump and drain
water into pan.
To Restore Service:
1.Reconnect the water, drain and electrical
power supply.
2.Turn on water and electrical power supply.
3.Fill both detergent cups and run dishwasher
through a Heated-Washcycle.
4.Check connections to make sure they do not
leak.
17
Troubleshooting
Before calling for service
Problem
Dishwasher won't start
Dishwasher beeps at the
end of the cycle
Rinse Aid light on
Dishwasher operates too
long
Dishes are not clean
enough
Dishes not drying enough
Spots and filming on
dishes
Etching
Detergent left in
dispenser cup
Door may not be closed properly
Power supply or power line is not connected
Delay Start option has been selected
Child Lock activated
It indicates the wash cycle finished, the
dishwasher will beep
The rinse aid level is low
The dishwasher is connected to cold water
The cycle time will vary due to the soil
The sanitize option is selected
Water pressure is temporarily low
The inlet water is low
Dishes are loaded too close together
improper use of detergent
The selected cycle is not suitable for food
soil condition
Spay arms is blocked by some items
Detergent dispenser is empty
Improper loading of dishes
The cycle you chose did not included
the drying.
Water hardness is too high
Improper loading of dishes
Old or damp powder rinse aid is used
Rinse dispenser empty
Using too much detergent
The inlet water temperature exceeds 150 ℉
Detergent may be too old
Spray arm is blocked
Po iblss e cause
18
Shut the door completely make sure it is
latched Check and connect the power supply
Refer in this manual to rese
Deactivate the child lock, refer to child lock
section in this manual
Solution
Add rinse aid
Check the dishwasher, make sure it
connected to the hot water supply
When heavy soil is detected, the auto,
normal, Heavy Wash cycle will
automatically increase the cycle time
When sanitize option is selected, the cycle
time will be increase to meet the sanitized
temperature request
Use you dishwasher when the water
pressure is normal
Make sure the dishwasher is connected to
the hot water supply
Try not use your dishwasher when hot water
is being used elsewhere in the house
Load the dishes again as the manual introduced
Add detergent depending on the water hardness
and the cycle you chose. Use fresh detergent.
Choose anther cycle for longer washing time
Make sure the spay arm is rotated fluently
Fill rinse aid dispenser or increase the
amount of rinse aid.
Load the dishes again as the manual indicates
Choose the proper cycle with drying
For extremely hard water install
a water softener
Load the dishes again as the manual indicates
Use fresh rinse aid
Add rinse aid to the dispenser
Use less detergent if you have soft water Etching
Lower the inlet water temperature
Use fresh detergent
Load the dishes, making sure the spray
arms are not blocked.
Troubleshooting
Problem
Detergent dispenser
will not shut
Water remains in the
dishwasher
Dishwasher does not
drain properly
Suds in the tub
Dishwasher leaks
Black or gray marks
on dishes
Stained tub interior
Noises
Improper operation of the detergent cover
Previous cycle has not finished or has been
interrupted
Drain is clogged
Drain hose is kinked
Improper detergent is used
Excessive suds caused by using the improper
detergent
Dishwasher is not level
Aluminum utensils have rubbed against dishes
Coffee and tea soil
Reddish stain
Detergent cup opening\Drain pump sound
A hard object has entered the wash module. When
the object is ground up, the sound should stop.
Possible cause
Solution
Add the detergent and rinse aid as
indicated by the manual
Select the proper cycle as introduced by
the manual
Check the air gap if you have
Make sure the disposer is empty if the
dishwasher is connected to the disposer
Make sure the drain hose is properly
connected to the sink
Make sure to use only the automatic
dishwasher detergent
Make sure to use only the automatic
dishwasher detergent
Leveling the dishwasher (see the
installation manual)
Chose a higher cycle
Make sure the inlet water is no less than 120℉
Using a spot cleaner to remove the soil
Some tomato food will cause this,use of
the rinse only cycle right after loading this
will decrease the staining
This is normal
If the noise persists after a complete cycle,
call for service.
Dishwasher won't fil
Water valve is turn off
Door latch may not be properly seated
Check if the water valve is turn on
Make sure the door is closed
Error Codes
When some malfunctions come on, the appliance will display error codes to warn you:
Meanings
Longer inlet time.
Overflow.
Improper
Keep touching a button more than 30 seconds.
of orientation of distributary valve.
If overflow occurs, turn off the main water supply before calling
If there is water in the base pan because of an overfill or small leak,
the water should be removed before restarting the dishwasher.
19
Possible Causes
Faucets is not opened, or water intake is
restricted, or water pressure is too low.
Some element of dishwasher leaks.
Open circuit or break of distributary valve.
Water or something on the button.
Codes
E1
E4
E8
E9
WARNING
service.
INSTALLATION INSTRUCTIONS
Read the installation instructions clearly, and futher more, pay attention to the following lists:
1. The power-supply receptacle for the appliance shall be installed in a cabinet or on a wall
adjacent to the undercounter space in which the appliance is to be installed.
2. There shall be an opening through the partition between the compartments specified in
(a) that is large enough for the attachment plug to pass through. The longest dimension of
the opening shall not be more than 38 mm (1.5 in).
3. The edges of the opening specified in (b) shall, if the partition is wood, be smooth and
rounded, or, if the partition is metal, be covered with an edge protector provided for this
purpose by the manufacturer.
4. Care shall be exercised, when the appliance is installed or removed, to reduce the
likelihood of damage to the power-supply cord.
NOTE: A hose that attaches to a sink spray can burst if it is installed on the same water line as the dishwasher.
If your sink has one, it is recommended that the hose be disconnected and the hole plugged.
20
Your Guarantee
If this product is found to be faulty as a result of faulty materials or workmanship within one year from date of
purchase, it will be repaired free of charge.
This guarantee is subject to the following terms:
Sunpentown must be notified of the fault.
Proof of purchase must be presented to Sunpentown’s nominated representative.
The warranty will be void if the product is modified, misused or repaired by an unauthorized person.
The warranty after repair will not be extended beyond the original one-year period.
All replacement parts will be new or reconditioned.
Parts, which are replaced, become the property of Sunpentown.
The warranty applies for the use of the product in the USA only.
What is NOT COVERED:
Warranty does not include freight charges.
Damage due to installation error, product abuse and/or misuse.
Incidental or consequential damage caused by possible defects with this product.
Labor cost incurred for the installation and/or removal of a possible defective unit.
Damage to product caused by improper power supply voltage, accident, fire, floods or acts of nature.
Failure of product resulting from unauthorized modifications to the product.
Improper installation or failure to perform the necessary maintenance.
Normal wear and tear on parts or replacement of parts designed to be replaced.
Damage to personal property from use of product.
Replacement or repair of household fuses, circuit breakers, wiring or plumbing.
This GUARANTEE is in addition to your Statutory Rights
SUNPENTOWN INTERNATIONAL INC.
14625 Clark Ave. City of Industry, CA 91745
Tel: 800-330-0388
service@sunpentown.com
www.sunpentown.com
Loading...
