Sunpentown RF-320B Installation Manual

Please read OPERATING instructions carefully for correct
operation

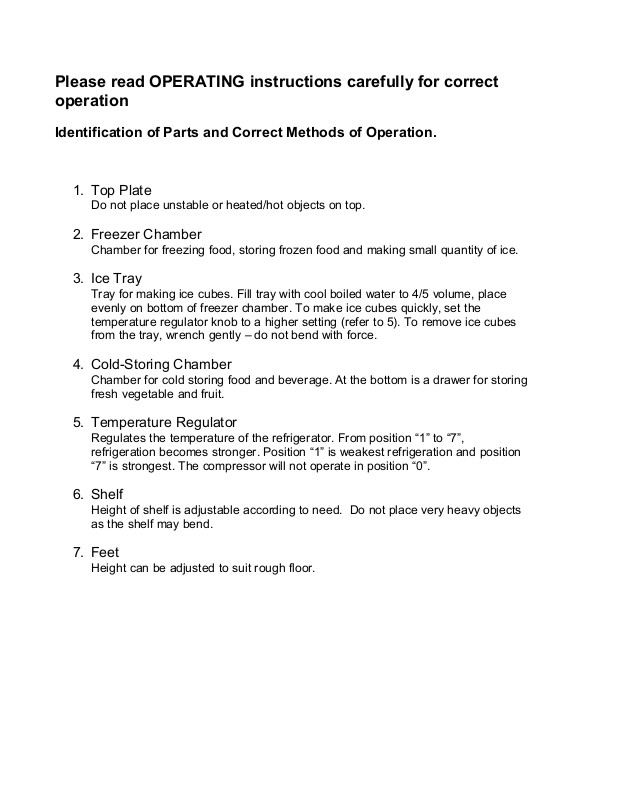

Identification of Parts and Correct Methods of Operation.

1. Top Plate

Do not place unstable or heated/hot objects on top.

2. Freezer Chamber

Chamber for freezing food, storing frozen food and making small quantity of ice.

3. Ice Tray

Tray for making ice cubes. Fill tray with cool boiled water to 4/5 volume, place
evenly on bottom of freezer chamber. To make ice cubes quickly, set the
temperature regulator knob to a higher setting (refer to 5). To remove ice cubes
from the tray, wrench gently – do not bend with force.

4. Cold-Storing Chamber

Chamber for cold storing food and beverage. At the bottom is a drawer for storing
fresh vegetable and fruit.

5. Temperature Regulator

Regulates the temperature of the refrigerator. From position “1” to “7”,
refrigeration becomes stronger. Position “1” is weakest refrigeration and position
“7” is strongest. The compressor will not operate in position “0”.

6. Shelf

Height of shelf is adjustable according to need. Do not place very heavy objects
as the shelf may bend.

7. Feet

Height can be adjusted to suit rough floor.

Correct Positioning

For this purpose, sufficient clear space should

The heat from the compressor may deactivate

For purpose of safety, reliance, low power consumption and
durability of your fridge, please pay close attention to the
followings.

Well Ventilation

Good ventilation is needed around the fridge
for easy dissipation of heat, higher efficiency
of refrigeration and low power consumption.

be kept around the unit. The back should
have at least 100mm of space from the wall,
the sides with 200mm and the top with
300mm. Room should be left to allow the

door to open to 160.

Power Line Cord

Do not lengthen or fold the cord into coil
during operation. More importantly, keep cord
away from the compressor during operation.

the insulation or cause leakage of electricity.

Power Supply

The fridge is only applied with single-phase
power supply with alternating current of 115V,
60Hz. If fluctuation of voltage exceeds the
above, for safety sake, apply A.C. automatic
voltage regulator of more than 350W. The unit
must employ a special power socket instead of
the common one with other appliances.
THE PLUG MUST MATCH THE SOCKED
