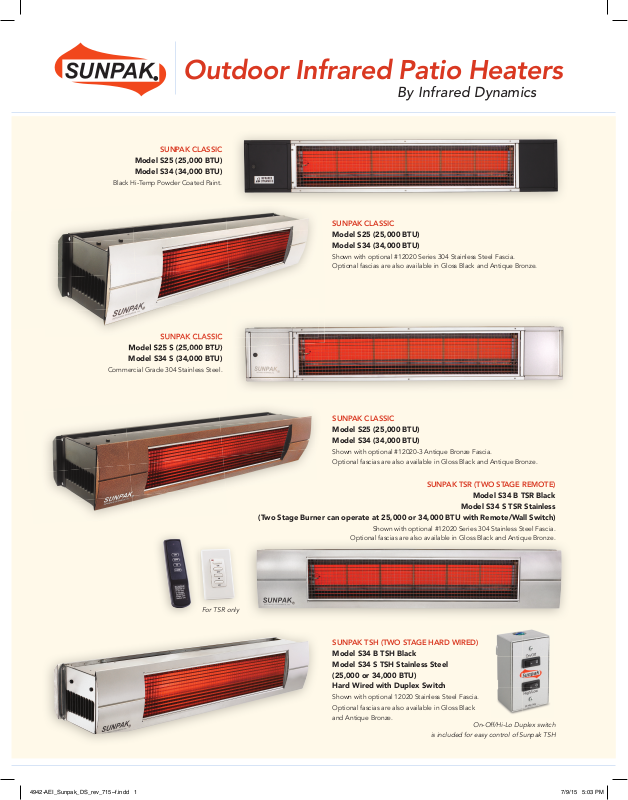

Sunpak S25S User Manual

Outdoor Infrared Patio Heaters

SUNPAK CLASSIC

Model S25 S (25,000 BTU)

SUNPAK CLASSIC

Model S25 (25,000 BTU)
Model S34 (34,000 BTU)

Black Hi-Temp Powder Coated Paint.

SUNPAK CLASSIC

Model S25 S (25,000 BTU)
Model S34 S (34,000 BTU)

Commercial Grade 304 Stainless Steel.

By Infrared Dynamics

SUNPAK CLASSIC

Model S25 (25,000 BTU)
Model S34 (34,000 BTU)

Shown with optional #12020 Series 304 Stainless Steel Fascia.
Optional fascias are also available in Gloss Black and Antique Bronze.

For TSR only

SUNPAK CLASSIC

Model S25 (25,000 BTU)
Model S34 (34,000 BTU)

Shown with optional #12020-3 Antique Bronze Fascia.
Optional fascias are also available in Gloss Black and Antique Bronze.

SUNPAK TSR (TWO STAGE REMOTE)

Model S34 B TSR Black

Model S34 S TSR Stainless

(Two Stage Burner can operate at 25,000 or 34,000 BTU with Remote/Wall Switch)

Shown with optional #12020 Series 304 Stainless Steel Fascia.

Optional fascias are also available in Gloss Black and Antique Bronze.

SUNPAK TSH (TWO STAGE HARD WIRED)

Model S34 B TSH Black
Model S34 S TSH Stainless Steel
(25,000 or 34,000 BTU)

Hard Wired with Duplex Switch

Shown with optional 12020 Stainless Steel Fascia.

Optional fascias are also available in Gloss Black
and Antique Bronze.

On-Off/Hi-Lo Duplex switch

is included for easy control of Sunpak TSH

4942-AEI_Sunpak_DS_rev_715~f.indd 1 7/9/15 5:03 PM

Outdoor Infrared Patio Heaters

By Infrared Dynamics

Just because the sun goes down or the weather unexpectedly turns chilly doesn’t mean your outdoor dining, entertaining, or

outdoor event has to stop. You can comfortably and efciently warm your outdoor dining and entertaining areas and extend your

outdoor entertaining season for several months with our great line-up of Sunpak Patio Heaters. Sunpak Outdoor Infrared patio
heaters are produced by Infrared Dynamics, the recognized leader in the outdoor comfort heating industry. Produced with Pride
in the USA, Since 1966.

Sunpak heaters are simple to operate and use draft free and highly energy efcient infrared radiant energy just like the sun’s
warming rays. Sunpak heaters warm objects rather than trying to inefciently heat the air. Each heater will heat about a 12ft x 12ft
area depending primarily on wind conditions. Sunpak heaters have been installed world-wide in thousands of discerning residential
and premium commercial installations.

Sunpak heaters come with either a single stage output which can be controlled with a standard wall switch (S25 and S34) or dual
stage output controlled with a hand held remote or “On-Off-Hi-Low” wireless wall control (Model TSR Only). Our newest Model
TSH (Twin Stage Hard Wired) unit can be hard wired with two stage duplex control (included). All Sunpak heaters are CSA Design
Certied and are equipped for clean burning, cost effective, and highly efcient Natural Gas or Propane fuels.
Please consult your local building codes for proper installation and safety requirements. Sunpak heaters are design certied for
outdoor use and outdoor installations only.

• Fully Automatic On/Off Control System

• High Efciency Ceramic Infrared Burner System

• Direct Spark Ignition with Auto Re-light & Flame Sensor System

• Sunpaks can be ceiling or wall mounted

• Available in 25,000 or 34,000 BTU Models or Dual Stage “TSR” Remote Controlled Units & “TSH” Hard Wired Units

• Available in High Temp Powder Coated Aluminized Steel (Black) or “Series 304” Commercial Grade Stainless Steel

• Optional Gloss Black, Antique Bronze, or Stainless Steel Fascia trims for all models

• Produced with Pride in Yorba Linda, California, USA

Specications:

Measurements: 48” L x 8” H x 8” D
Mounting Options: Ceiling or Wall
Approx. Coverage: 12’ x 12’ with minimal wind and at sea level
Clearances: All Models Side Rear Ceiling Below
Horizontal: 24” 17” 13” 48”
30 Deg Max 24” 8” 18” 48”

Mounting Angles: From Horizontal to a maximum 30 Degrees (Except S25 LP Models)
Shipping Weight: S25 & S34 - 55 Lbs. / TSR - 51 Lbs. / TSH 51 Lbs.
Fuel Types: Please Specify Propane or Natural Gas. Minimum Inlet Gas Pressure 6.0” W.C. for Natural Gas and

11.0” W.C. For Propane (LP)

Certications: CSA (Canadian Standards Association for US & Canada)

Available Models: S25 Black 25,000 BTU S25 Stainless Steel 25,000 BTU 24VAC Off/On Control
S34 Black 34,000 BTU S34 Stainless Steel 34,000 BTU 24VAC Off/On Control

S25 & S34 Includes Mounting Brackets and Transformer

S34 TSH Dual Stage 25,000 and 34,000 BTU input

All TSH Models include mounting brackets, 24V transformer, and Duplex Wall switch

S34 TSR Dual Stage 25,000 and 34,000 BTU Input
Includes Mounting Brackets, Power Adapter (120 VAC to 7.5 VDC), pre-programmed hand held remote and

pre-programmed Wireless Wall Mounted “ON-OFF-HI-LO” wall switch included.

Warranty: 1 Year Parts & 3 Years Ceramic Burners-Residential

1 Year Commercial Parts Warranty
Country of Origin: USA
