Sun Ray 3i Client
Getting Started Guide
Congratulations! Your Sun Ray 3i Client combines enhanced security, increased flexibility, and extreme
performance with low power consumption and maintenance costs.

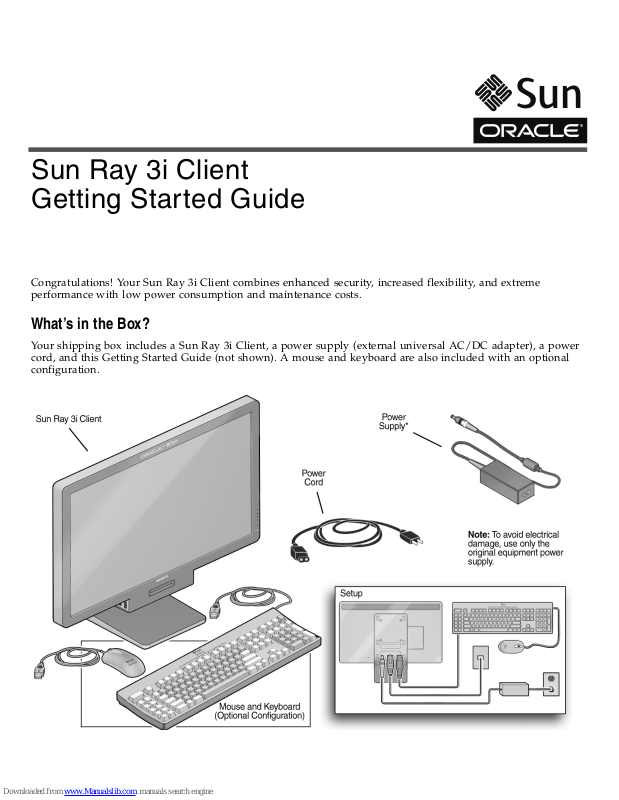

What’s in the Box?
Your shipping box includes a Sun Ray 3i Client, a power supply (external universal AC/DC adapter), a power
cord, and this Getting Started Guide (not shown). A mouse and keyboard are also included with an optional
configuration.
Ports and Cables
The cables are not supplied with this unit.
Preparations for Using VESA-Compliant Wall Mount
Note: Lay the monitor face-down on a flat surface with a cushion beneath it to protect the screen.
Operation
When the Sun Ray 3i Client is first plugged in, it turns on automatically. To save energy, the unit turns off
automatically when idle for 30 minutes. To turn the unit back on, touch the power button or insert a smart card.
Diagnostics
State LED Status Meaning
Off The unit is not plugged in or not powered on. Note: Turning the unit off or
removing a smart card does not affect the current session.
Green The unit is powered on and is functioning normally.
Amber The LED lights for 2-3 seconds or less at power-on while the unit performs
diagnostic tests.
If the LED remains amber, or becomes amber at any other time, the unit is
inoperable. Contact your system administrator to replace the unit.
Smart Card LED Status Meaning
Off No smart card is inserted or detected.
On The smart card has been inserted correctly.
Contacting Us
■ To find additional Sun Ray 3i Client documentation, including the latest release notes, see the Sun Ray
Hardware Information Center: http://wikis.sun.com/display/sunray
■ To submit comments or feedback about this document, leave a comment on the Information Center site.
■ To contact technical support for this product, see http://www.sun.com/service/contacting
Specifications
Specification Detail
Power Supply Manufacturer
and Model Number
• Delta Electronics, Inc.
Model ADP-65JH AB
• FSP Group Inc.
FSP065-RAC
Power Supply AC Input 100-240vac, 1.5A, 50-60Hz
Power Supply DC Output 19V, 3.42A
Screen Size and Resolution 21.5 inches, 1920x1080 at 60 Hz
Operating Altitude 9,843 feet (3000 meters) (Max)
Operating Temperature 0˚ to 40˚ C
Weight (with base) 12.06 lb (5.47 kg)
Mounting Capability Rear VESA 100x100mm
mounting pattern
Spécifications
Spécification Détail
Fabricant du module
d'alimentation et numéro
de modèle
• Delta Electronics, Inc.
Modèle ADP-65JH AB
• FSP Group Inc.
FSP065-RAC
Entrée en c.a. du module
d'alimentation
Sortie en c.c. 19 V, 3,42 A
Taille et résolution de l'écran 21,5 pouces, 1920x1080 à 60 Hz
Altitude de fonctionnement 3 000 mètres (9 843 pieds)
Température de
fonctionnement
Poids (avec la base) 5,47 kg (12,06 lb)
Capacité de montage Modèle de montage arrière
100-240 V c.a., 1,5A, 50-60 Hz
(Max)
0 ˚C à 40 ˚C
VESA 100x100 mm
Specifiche
Specifica Dettaglio
Produttore e numero di
modello dell'alimentatore
Input alimentatore CA 100-240 V ca, 1,5 A, 50-60 Hz
Output alimentatore CC 19 V, 3,42 A
Dimensioni dello schermo
e risoluzione
Altitudine operativa 3.000 metri (9.843 piedi) (max)
• Delta Electronics, Inc.
Modello ADP-65JH AB
• FSP Group Inc.
FSP065-RAC
21,5 pollici, 1920x1080 at 60 Hz
Specifica Dettaglio
Temperatura operativa Da 0 ˚C a 40 ˚C
Spessore (con base) 5,47 kg (12,06 lb)
Capacità di montaggio Percorso di montaggio
posteriore VESA 100x100 mm
Spezifikationen
Spezifikation Technisches Detail
Netzteilhersteller und
Modellnummer
• Delta Electronics, Inc.
Modell ADP-65JH AB
• FSP Group Inc.
FSP065-RAC
AC-Eingang des Netzteils 100-240 V AC, 1,5A, 50-60 Hz
DC-Ausgang des Netzteils 19 V, 3,42 A
Bildschirmgröße
und Auflösung
Betriebshöhe max. 3000 Meter
Betriebstemperatur 0 ˚C bis 40 ˚C
Gewicht (mit Basis) 5,47 kg
Montagefähigkeit VESA-Montagemuster
21,5 Zoll, 1920x1080 bei 60 Hz
100 x 100 mm an der Rückseite
Especificaciones
Especificación Detalle
Fabricante de la fuente
de alimentación y número
de modelo
Entrada CA de fuente
alimentación
Salida CC de fuente
de alimentación
Tamaño y resolución
de pantalla
Altitud de funcionamiento 3.000 metros (9.843 pies) (Máx)
Temperatura
de funcionamiento
Peso (con base) 5,47 kg (12,06 libras)
Capacidad de montaje Patrón de montaje trasero
* Fuente de Alimentacion
Utilice solo adaptadores con las siguientes caracteristicas electricas y
que esten debidamente certificados de acuerdo a la legislacion vigente.
El uso de otros adaptadores podria danar el dispositivo y anular la
garantia ademas de provocar riesgos al usuario.
Entrada AC: 100 a 240 VAC, 50 o 60 Hz, 1.5 A max
Salida DC: 19 V, 3.42 A.
• Delta Electronics, Inc.
Modelo ADP-65JH AB
• FSP Group Inc.
FSP065-RAC
100-240 V ca, 1,5 A, 50-60 Hz
19 V, 3,42 A
21,5 pulgadas, 1920x1080
a60Hz
0 ˚C a 40 ˚C
VESA 100 x 100 mm
