Preface

The Sun Storage 7000 Unied Storage System Installation Guide contains installation, cabling
and initial conguration documentation for the Sun Storage 7000 Unied Storage System series
of NAS appliances.

This documentation is also available while using the appliance Browser User Interface,
accessible via the Help button. The appliance documentation may be updated using the System
Upgrade procedure documented in the System Service Manual.

Who Should Use This Book

These notes are for users and system administrators who install and use the Sun Storage 7000
server appliances.

Related Documentation

Refer to the following documentation for installation instructions, hardware overviews, service
procedures and software update notes.

■

Administration Guide and Service Manual (http://wikis.sun.com/display/fishworks/
documentation/)

■

Release Notes (http://wikis.sun.com/display/fishworks/software+updates)

Third-Party Web Site References

Third-party URLs are referenced in this document and provide additional, related information.

5

Note – Sun is not responsible for the availability of third-party Web sites mentioned in this

document. Sun does not endorse and is not responsible or liable for any content, advertising,
products, or other materials that are available on or through such sites or resources. Sun will not
be responsible or liable for any actual or alleged damage or loss caused by or in connection with
the use of or reliance on any such content, goods, or services that are available on or through
such sites or resources.

Documentation, Support, and Training

The Sun web site provides information about the following additional resources:

■

Documentation (http://www.sun.com/documentation/)

■

Support (http://www.sun.com/support/)

■

Training (http://www.sun.com/training/)

Typographic Conventions

The following table describes the typographic conventions that are used in this book.

TABLE P–1 Typographic Conventions

Typeface Meaning Example

AaBbCc123 The names of commands, les, and directories,

and onscreen computer output

Use the help command to show
available actions.

Last login: Mon Oct 13 15:43:05

2008 from kiowa

AaBbCc123 What you type, contrasted with onscreen

computer output

caji console login: root

Password:

aabbcc123 Placeholder: replace with a real name or value To view an individual property, use

get propertyname.

AaBbCc123 Book titles, new terms, and terms to be

emphasized

Read Chapter 6 in the User's Guide.

A cache is a copy that is stored
locally.

Do not save the le.

Note: Some emphasized items
appear bold online.

Preface

Sun Storage 7000 Unied Storage System Installation Guide • February 20106

CLI Prompts in Command Examples

The following table shows the default Command Line Interface prompts for the appliance.

TABLE P–2 CLI Prompts

Type Prompt

Appliance CLI machine_name:>

Preface

7

8

Introduction

Overview

Introduction

The Sun Storage 7000 Unied Storage family of products provide ecient le and block data
services to clients over a network, and a rich set of data services that can be applied to the data
stored on the system.

Platforms

■

Sun Storage 7110

■

Sun Storage 7210

■

Sun Storage 7310

■

Sun Storage 7410

■

Sun Disk Shelf J4400/J4410/J4500

Protocols

The Unied Storage products include support for a variety of industry-standard client
protocols, including:

■

CIFS

■

NFS

■

HTTP and HTTPS

1

CHAPTER 1

9

■

WebDAV

■

iSCSI

■

FC

■

FTP

■

SFTP

Key Features

Your Sun Storage system also includes new technologies to deliver the best storage
price/performance and unprecedented observability of your workloads in production,
including:

■

Analytics, a system for dynamically observing the behavior of your system in real-time and

viewing data graphically

■

The ZFS Hybrid Storage Pool, composed of optional Flash-memory devices for acceleration
of reads and writes, low-power, high-capacity disks, and DRAM memory, all managed
transparently as a single data hierarchy

Data Services

To manage the data that you export using these protocols, you can congure your Sun Storage
system using the built-in collection of advanced data services, including:

■

RAID-Z (RAID-5 and RAID-6), mirrored, and striped disk congurations

■

Unlimited read-only and read-write snapshots, with snapshot schedules

■

Data deduplication

■

Built-in data compression

■

Remote replication of data for disaster recovery

■

Active-active clustering for high availability (7310 and 7410)

■

Thin provisioning of iSCSI LUNs

■

Virus scanning and quarantine

■

NDMP backup and restore

Availability

To maximize the availability of your data in production, the Sun Storage products include a
complete end-to-end architecture for data integrity, including redundancies at every level of the
stack. Key features include:

■

Predictive Self-Healing and diagnosis of all system hardware failures: CPUs, DRAM, I/O
cards, disks, fans, power supplies

■

ZFS end-to-end data checksums of all data and metadata, protecting data throughout the
stack

■

RAID-6 (DP) and optional RAID-6 across disk shelves

■

Active-active clustering for high availability (7310 and 7410)

Overview

Sun Storage 7000 Unied Storage System Installation Guide • February 201010

■

Link aggregations and IP multipathing for network failure protection

■

I/O Multipathing between the controller and disk shelves

■

Integrated software restart of all system software services

■

Phone-Home of telemetry for all software and hardware Issues

■

Lights-out Management of each system for remote power control and console access

Browser User Interface (BUI)

The browser user interface

The BUI is the graphical tool for administration of the appliance. The BUI provides an intuitive
environment for administration tasks, visualizing concepts, and analyzing performance data.

The management software is designed to be fully featured and functional on the following
supported web browsers: Firefox 2.x and 3.x, Internet Explorer 7 and 8, Safari 3.1 or later, and
WebKit 525.13 or later.

Direct your browser to the system using either the IP address or host name you assigned to the
NET0 port as follows: https://ipaddress:215 or https://hostname:215. The login screen appears.

Overview

Chapter 1 • Introduction 11

Command Line Interface (CLI)

The CLI is designed to mirror the capabilities of the BUI, while also providing a powerful
scripting environment for performing repetitive tasks. The following sections describe details of
the CLI. When navigating through the CLI, there are two principles to be aware of:

■

Tab completion is used extensively - if you are not sure what to type in any given context,
pressing the Tab key will provide you with possible options. Throughout the
documentation, pressing Tab is presented as the word "tab" in bold italics.

■

Help is always available - the help command provides context-specic help. Help on a
particular topic is available by specifying the topic as an argument to help, for example help
commands. Available topics are displayed by tab-completing the help command, or by
typing help topics.

You can combine these two principles, as follows:

dory:> help tab
builtins commands general help properties script

Overview

Sun Storage 7000 Unied Storage System Installation Guide • February 201012

Installation

Installation

Introduction

This section addresses how to physically install the system chassis into a rack, connect
controllers in a cluster, and expand storage. The following topics are described.

■

Controller Installation

■

Disk Shelf Installation

■

Cabling

■

Power on and Conguration

Controller

Controller Installation Overview

This section describes how to install any Sun Storage Unied Storage 7000 controller model
into a rack using the rail assembly in the bolt-on rackmount kit. Note that if your rack mount kit
shipped with installation instructions, use those instructions instead.

Observe the following cautions:

2

CHAPTER 2

13

■

Always load equipment into a rack from the bottom up so that it will not become top-heavy
and tip over. Deploy the anti-tip bar to the prevent the rack from tipping during equipment
installation.

■

Ensure that the temperature in the rack does not exceed the controller's maximum ambient
rated temperatures. Consider the total airow requirements of all equipment installed in the
rack to ensure that the equipment is operated within its specied temperature range.

■

For best results, only qualied Sun service personnel should perform cluster installation and
conguration. Contact Sun Service for assistance.

Prerequisites

Refer to the poster that shipped with the product or the following hardware service sections
located on

http://wikis.sun.com/display/shworks (http://wikis.sun.com/display/

fishworks)

for an overview of your system controller.

■

7110 Overview - view component diagrams and specications

■

7210 Overview - view component diagrams and specications

■

7310 Overview - view component diagrams, specications, and cluster options

■

7410 Overview - view component diagrams, specications, and cluster options

If you intend to install disk shelves into the same rack, refer to the

Disk Shelf Installation section

(applies to J4400 and J4500) for how to install them into the bottom of your rack.

Check that your rack is compatible with the slide rail and cable management assembly options
as follows:

■

The structure is a four-post rack with mounting at both front and back. Two-post racks are
not compatible.

■

The horizontal opening and unit vertical pitch conforms to ANSI/EIA 310-D-1992 or IEC
60927 standards.

■

The distance between the front and back mounting planes is between 24 inches and 36
inches (610 mm to 915 mm).

■

The distance to the front cabinet door, providing clearance depth in front of the front
mounting plane, is at least 1 inch (25.4 mm).

■

The distance to the back cabinet door, providing clearance depth behind the front mounting
plane, is at least 31.5 inches (800 mm) with the cable management assembly, or 27.5 inches
(700 mm) without the cable management assembly.

■

The distance between structural supports and cable troughs, providing clearance width
between the front and back mounting planes, is at least 18 inches (456 mm).

Controller

Sun Storage 7000 Unied Storage System Installation Guide • February 201014

Tasks

The following are installation tasks with enumerated steps.

ControllerTasks

▼

Installing Mounting Brackets on the Chassis

If the mounting brackets are shipped inside the slide rails, you must remove them before
beginning this procedure, as follows.

■

Unpack the slide rails and locate the slide rail lock at the front of the assembly.

■

Squeeze and hold the tabs at top and bottom of the lock while you pull the mounting bracket
out to the stop.

■

Push the mounting bracket release button toward the front of the mounting bracket while
withdrawing the bracket from the assembly.

The following graphic illustrates the 7110, 7310, and 7410 rail kit.

Controller

Chapter 2 • Installation 15

The following graphic illustrates the 7210 rail kit.

Position a mounting bracket against the chassis so that the slide rail lock is at the front of the
chassis, and the keyedopenings on the mounting bracket are aligned with the locating pins on
the side of the chassis.

1

Controller

Sun Storage 7000 Unied Storage System Installation Guide • February 201016

The following graphic illustrates the 7110, 7310, and 7410 mounting brackets.

The following

graphic illustrates the 7210 mounting brackets.

2

Controller

Chapter 2 • Installation 17

With the heads of the four chassis locating pins protruding though the four keyedopenings in
the mounting bracket, pull the mounting-bracket toward the front of the chassis until the
mounting-bracket clip locks into place with an audible click.

Verify that all mounting pins are securely fastened to the chassis.

Repeat to install the remaining mounting bracket on the other side of the chassis.

▼

Installing the Chassis into the Rack Slide Rails

This procedure requires a minimum of two people because of the weight of the chassis.
Attempting this procedure alone could result in equipment damage or personal injury. Always
load equipment into rack from the bottom up.

If you are using a universal 19-inch cabinet, snap an M6 square cage nut into the top and bottom
holes of the location where you will be installing the rail plate as shown in the followinggraphic.

Position a slide rail assembly in your rack so that the brackets at each end of the slide rail
assembly are on the outside of the front and back rack posts. The following graphic illustrates

3

4

5

1

2

Controller

Sun Storage 7000 Unied Storage System Installation Guide • February 201018

the 7110, 7310, and 7410 rail assembly brackets.

Attach each slide rail assembly to the rack posts, but do not tighten the screws completely.3

Controller

Chapter 2 • Installation 19

From the front of the rack, set the proper width of the rails with the rail-width spacer.

Tighten the screws on the brackets.

Remove the spacer and conrm that the rails are attached tightly to the rack.

4

5

6

Controller

Sun Storage 7000 Unied Storage System Installation Guide • February 201020

If your rack includes an anti-tip foot, extend it from the bottom of the rack.

If you are installing a 7110, 7310, or 7410, push the slide rails into the slide rail assemblies in the
rack as far as possible. If you are installing a 7210, pull the middle rail ball bearing retainers to
the front of both slide rails, securing them with the green latch.

Raise the chassis so that the back ends of the mounting brackets are aligned with the slide rail
assemblies that are mounted in the equipment rack.

Insert the chassis with mounting bracketsinto the slide rails, then push the chassis into the rack
slowly,until the mounting brackets meet the slide rail stops (approximately 12 inches, or 30
cm).

7

8

9

10

Controller

Chapter 2 • Installation 21

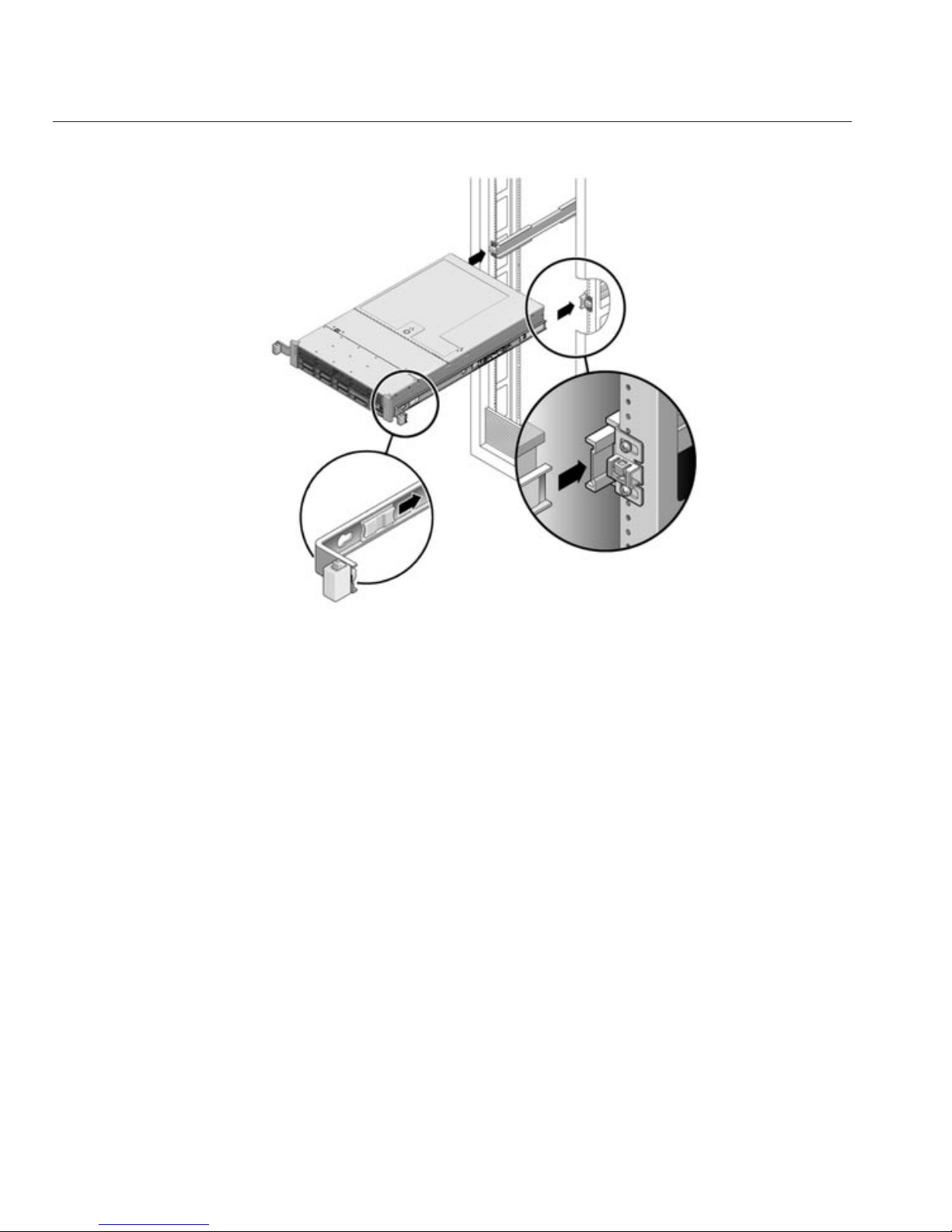

The following graphic illustrates 7110, 7310, and 7410 chassis insertion.11

Controller

Sun Storage 7000 Unied Storage System Installation Guide • February 201022

The following graphic illustrates 7210 chassis insertion.

Simultaneously push and hold the slide rail release buttons on each mounting bracket while
you push the chassis into the rack. When the slide rail locks on the front of the
mounting-brackets engage with the slide rail assemblies, you will hear an audible click.

▼

Installing the Cable Management Assembly (CMA)

This procedure is completed from the back of the equipment rack.

12

13

Controller

Chapter 2 • Installation 23

Attach the CMA rail extension to the left slide rail until the extension locks into place.1

Controller

Sun Storage 7000 Unied Storage System Installation Guide • February 201024

Insert the CMA mounting bracket connector into the right slide rail until the connector locks

into place.

2

Controller

Chapter 2 • Installation 25

Insert the right CMA slide rail connector into the right slide rail assembly until the connector

locks into place.

3

Controller

Sun Storage 7000 Unied Storage System Installation Guide • February 201026

Insert the left CMA slide rail connector into the rail extension on the left slide rail assembly until
the connector locks into place.

4

Controller

Chapter 2 • Installation 27

After you install and route the cables through the assembly, attach the hook and loop straps to
secure the cables. Then attach the right and left outer latches to support the assembly.

Shelf

Disk Shelf Installation

This section describes how to install the J4400, J4500 or Sun Disk Shelf-24x3.5" SAS-2 into a
rack using the rail assembly in the bolt-on rack mount kit. Note that if your rack mount kit
shipped with installation instructions, use those instructions instead.

Observe the following cautions:

■

Always load equipment into a rack from the bottom up so that it will not become top-heavy
and tip over. Deploy the anti-tip bar to the prevent the rack from tipping during equipment
installation.

5

Shelf

Sun Storage 7000 Unied Storage System Installation Guide • February 201028

■

Ensure that the temperature in the rack does not exceed the controller's maximum ambient
rated temperatures. Consider the total airow requirements of all equipment installed in the
rack to ensure that the equipment is operated within its specied temperature range.

Prerequisites

Refer to the poster that shipped with the product or the System Service Manual located on

http://wikis.sun.com/display/shworks (http://wikis.sun.com/display/fishworks) for an

overview of your disk shelf.

■

Disk Shelf Overview - view component diagrams and specications

Use one of the following racks for the J4400 or Sun Disk Shelf.

■

Sun Rack 900/1000 cabinet

■

Sun Fire cabinet

■

Sun StorEdge Expansion cabinet

■

Sun Rack II 1042/1242 cabinet (Sun Disk Shelf-24x3.5" SAS-2 only)

■

Any 19-inch wide, 4-post, EIA-compatible rack or cabinet with a front-to-back depth
between vertical cabinet rails of 61 cm to 91 cm (24 in. to 36 in.). The cabinet can have
threaded or unthreaded cabinet rails.

Use a rack that meets the following standards for the J4500.

■

Four-post structure (mounting at both front and rear). Note that two-post racks and
two-post racks converted to four-post racks are not compatible.

■

Rack horizontal opening and unit vertical pitch conforming to ANSI/EIA 310-D- 1992 or
IEC 60927 standards.

■

Distance between front and rear mounting planes between 23 and 34 inches (580 mm and
870 mm).

■

Minimum clearance depth (to front cabinet door) in front of front rack mounting plane:

1.85 inches (47 mm).

■

Minimum clearance depth (to rear cabinet door) behind front rack mounting plane: 33.5
inches (851 mm) without cable management arm (a cable management arm is not included
or supported with this product). The Sun Storage J4500 shelf ts best in 1000 mm racks. Sun
recommends using the Sun Rack 1000-42 and Sun Rack 1000-38.

■

Minimum clearance width between the structural supports and cable troughs: 19inches (483
mm).

■

Minimum clearance width (not between structural supports and cable troughs) between
front and rear mounting planes: 18 inches (456 mm).

Position the rack next to the rack where the controller is installed, if separate. Stabilize the
cabinet and lock the casters.

Shelf

Chapter 2 • Installation 29

Tasks

Shelf Tasks

▼

Installing the Disk Shelf into the Rack Slide Rails

You will need a No. 2 Phillips head screwdriver that is a minimum of 4-inches in length.

A mechanical lift is highly recommended for the J4500 and Sun Disk Shelf because either shelf
can weigh between 91 to 170 pounds (42-77kg). At least three people are required, two to install
the shelf and one spotter to engage the rails. If a mechanical lift is not available, remove the
power supplies, SIM boards and hard disk drives to reduce the weight, see Disk Shelf
Maintenance Procedures for instructions included in the System Service Manual on

http://wikis.sun.com/display/shworks. (http://wikis.sun.com/display/fishworks.)

Starting at the bottom of the cabinet, locate the appropriate rack unit (RU) height. The J4400,
J4500 and Sun Disk Shelf require four standard mounting units (4RU) of vertical space in the
cabinet.

If you are installing a J4500, you will need to rst attach the J4500 mounting brackets.

1

2

Shelf

Sun Storage 7000 Unied Storage System Installation Guide • February 201030

If you are using a universal 19-inch or Sun Rack II cabinet, snap an M6 square cage nut into the
4U location where you will be installing the system. For J4400/Sun Disk Shelf, install in top and
bottom holes. For J4500, install in bottom hole and fourth hole up from the bottom.

For J4400/Sun Disk Shelf, install appropriaterail plates in four locations on the rack (2 front and
2 back) by aligning the two pins on the rail platewith holes on the cabinet rails.

3

4

Shelf

Chapter 2 • Installation 31

For J4400/Sun Disk Shelf, insert M6 screws in the top and bottom holes of each rail plate and

tighten (8 total places).

For J4500, attach the slide-rail assembly, making sure you havesix holes of free space above the

bracket.

For J4400/Sun Disk Shelf, install each rail by rst aligning the front pins of the rack adapter
plates with corresponding holes in the front of the rail, then adjust the rail to t the rack and
insert the pins from the rear rack adapter plates into the corresponding holes of the rail.

5

6

7

Shelf

Sun Storage 7000 Unied Storage System Installation Guide • February 201032

For J4400/Sun Disk Shelf, install 4 8-32 screws into the 4 remaining holes front and rear of each

rack rail (16 total).

For J4500, install 4 screws at front and back to mount each rail assembly.

For J4400/Sun Disk Shelf, using a mechanical lift or two people, one at each side of the shelf,
carefully lift and rest the shelf on the bottom ledge of the left and right rails. The following

8

9

10

Shelf

Chapter 2 • Installation 33

graphic illustrates the Sun Disk Shelf chassis insertion.

Shelf

Sun Storage 7000 Unied Storage System Installation Guide • February 201034

The following graphic illustrates J4500 chassis insertion.

Carefully slide the shelf into the cabinet until the front anges of the shelf touch the vertical
face of the rack.

11

12

Shelf

Chapter 2 • Installation 35

For the J4400/Sun Disk Shelf,tighten the captive screws on each side of the front of the shelf to
secure the shelf to the rack. The following graphic illustratesthe J4400 screws.

13

Shelf

Sun Storage 7000 Unied Storage System Installation Guide • February 201036

For the J4400/Sun Disk Shelf,at the back, slide a system locking clip onto each lower corner of

the chassis.

See Also

■

Controller Installation

■

7210 Cabling Diagrams

■

7310 Cabling Diagrams

■

7410 Cabling Diagrams

Cabling

Cabling Diagrams

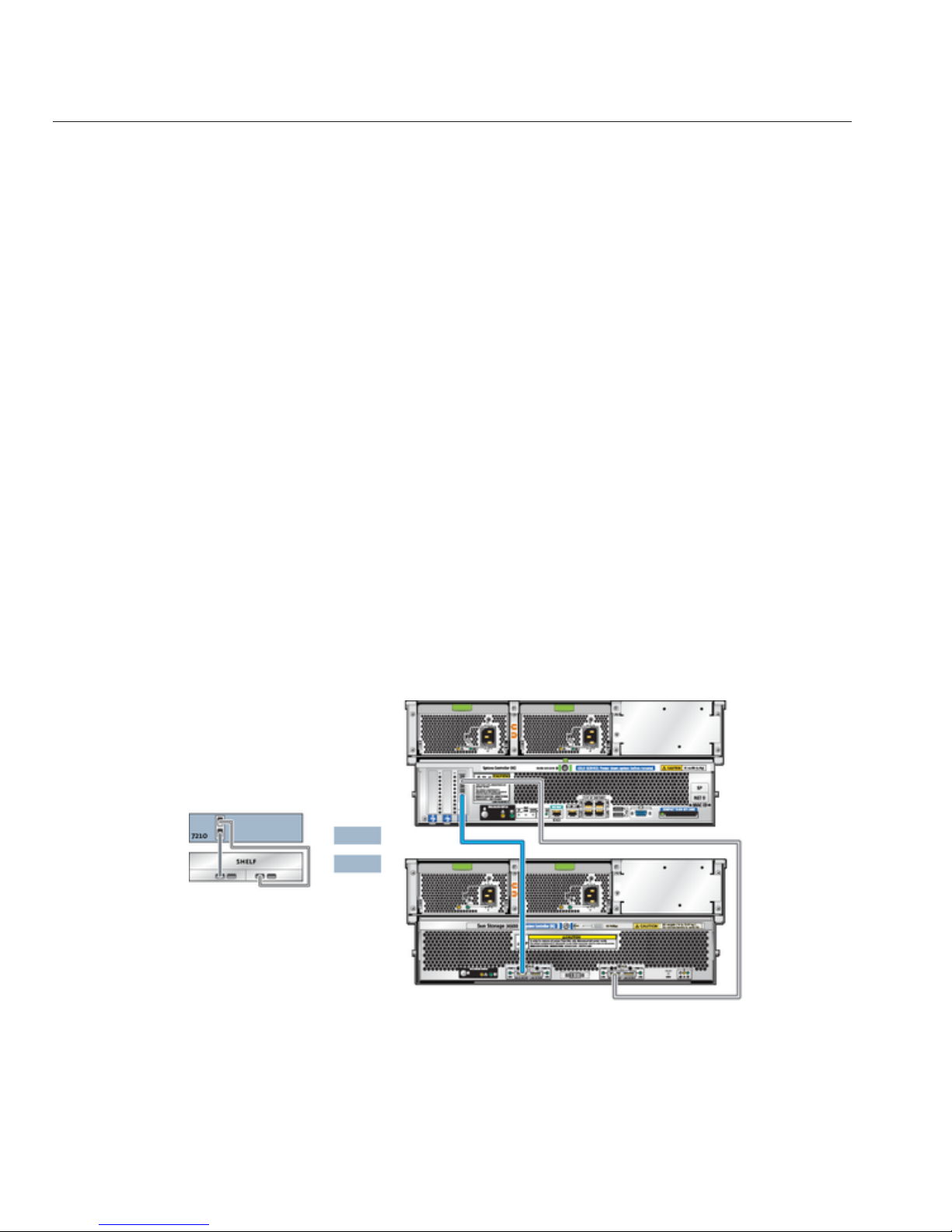

The diagrams in the sections that follow illustrate how to properly connect storage controllers,
either in standalone or clustered congurations, to one or more disk shelves for storage
expansion. Use the images as a key to understanding how the abstracted diagrams correspond
to actual hardware:

14

Cabling

Chapter 2 • Installation 37

■

Connecting Expansion Storage to the 7210

■

Connecting Expansion Storage to the 7310

■

Connecting Expansion Storage to the 7310 Cluster

■

Connecting Expansion Storage to the 7410 (2 HBAs)

■

Connecting Expansion Storage to the 7410 (3 HBAs)

■

Connecting Expansion Storage to the 7410 Cluster (2 HBAs)

■

Connecting Expansion Storage to the 7410 Cluster (3 HBAs)

7210 Cabling

Connecting Expansion Storage to the Sun Storage
7210

The Sun Unied Storage 7210 can support up to two J4500 disk shelves. The gures below show
the complete set of supported congurations, as well as steps to migrate from one state to
another.

Sun Unied Storage 7210

NOTE: Cabling diagrams are not representative of proper slot location for HBAs.

Cabling Diagrams

7210 Cabling

Sun Storage 7000 Unied Storage System Installation Guide • February 201038

fig.1 Sun Unied Storage 7210 system with one J4500 disk shelf

7210 Cabling

Chapter 2 • Installation 39

fig.2 Sun Unied Storage 7210 system with two J4500 disk shelves

7310 Cabling

Connecting Expansion Storage to the Sun Storage
7310

The Sun Unied Storage 7310 can support up to four J4400/Sun Disk shelves. The gures below
show the complete set of supported congurations, as well as steps to migrate from one state to
another.

NOTE: Cabling diagrams are not representative of proper slot location for HBAs.

Cabling Diagrams

7310 Cabling

Sun Storage 7000 Unied Storage System Installation Guide • February 201040

fig.1 Sun Unied Storage 7310 with one J4400/Sun Disk shelf

7310 Cabling

Chapter 2 • Installation 41

fig.2 Sun Unied Storage 7310 with two J4400/Sun Disk shelves

fig.3 Sun Unied Storage 7310 with three J4400/Sun Disk shelves

fig.4 Sun Unied Storage 7310 with four J4400/Sun Disk shelves

7310 Cabling

Sun Storage 7000 Unied Storage System Installation Guide • February 201042

7310 Cluster Cabling

Connecting Expansion Storage to the Sun Storage
7310 Cluster

The Sun Unied Storage 7310 cluster can support up to four J4400/Sun Disk shelves. The
gures below show the complete set of supported redundant cluster congurations, as well as
steps to migrate from one state to another.

NOTE: Cabling diagrams are not representative of proper slot location for HBAs.

Cabling Diagrams

fig.1 Sun Unied Storage 7310 cluster with one J4400/Sun Disk shelf

7310 Cluster Cabling

Chapter 2 • Installation 43

fig.2 Sun Unied Storage 7310 cluster with two J4400/Sun Disk shelves

7310 Cluster Cabling

Sun Storage 7000 Unied Storage System Installation Guide • February 201044

fig.3 Sun Unied Storage 7310 cluster with three J4400/Sun Disk shelves

fig.4 Sun Unied Storage 7310 cluster with four J4400/Sun Disk shelves

7310 Cluster Cabling

Chapter 2 • Installation 45

7410 Cabling pt.1

Connecting Expansion Storage to the Sun Storage
7410

The Sun Unied Storage 7410 is available with either two or three HBA cards installed, each of
which can support up to four J4400/Sun Disk shelves. The gures below show a representative
sample of stable, balanced congurations with two HBAs, as well as steps to migrate from one
state to another.

NOTE: Diagrams below are not representative of proper slot location for HBAs.

Cabling Diagrams

fig.1 Sun Unied Storage 7410 with two HBAs and one J4400/Sun Disk shelf

7410 Cabling pt.1

Sun Storage 7000 Unied Storage System Installation Guide • February 201046

fig.2 Sun Unied Storage 7410 two HBAs and with two J4400/Sun Disk shelves

7410 Cabling pt.1

Chapter 2 • Installation 47

fig.3 Sun Unied Storage 7410 with two HBAs and three J4400/Sun Disk shelves

fig.4 Sun Unied Storage 7410 with two HBAs and four J4400/Sun Disk shelves

fig.5 Sun Unied Storage 7410 with two HBAs and six J4400/Sun Disk shelves

7410 Cabling pt.1

Sun Storage 7000 Unied Storage System Installation Guide • February 201048

fig.6 Sun Unied Storage 7410 with two HBAs and eight J4400/Sun Disk shelves

7410 Cabling pt.2

Connecting Expansion Storage to the Sun Storage
7410 (cont.)

The Sun Unied Storage 7410 is available with either two or three HBA cards installed, each of
which can support up to four J4400/Sun Disk shelves. The gures below show a representative
sample of stable, balanced congurations with three HBAs, as well as steps to migrate from one
state to another.

NOTE: Diagrams below are not representative of proper slot location for HBAs.

7410 Cabling pt.2

Chapter 2 • Installation 49

Cabling Diagrams

fig.1 Sun Unied Storage 7410 with three HBAs and one J4400/Sun Disk shelf

fig.2 Sun Unied Storage 7410 with three HBAs and two J4400/Sun Disk shelves

fig.3 Sun Unied Storage 7410 with three HBAs and three J4400/Sun Disk shelves

7410 Cabling pt.2

Sun Storage 7000 Unied Storage System Installation Guide • February 201050

7410 Cabling pt.2

Chapter 2 • Installation 51

fig.4 Sun Unied Storage 7410 with three HBAs and four J4400/Sun Disk shelves

fig.5 Sun Unied Storage 7410 with three HBAs and six J4400/Sun Disk shelves

fig.6 Sun Unied Storage 7410 with three HBAs and nine J4400/Sun Disk shelves

7410 Cabling pt.2

Sun Storage 7000 Unied Storage System Installation Guide • February 201052

fig.7 Sun Unied Storage 7410 with three HBAs and twelve J4400/Sun Disk shelves

7410 Cluster Cabling pt.1

Connecting expansion storage to the Sun Storage
7410 Cluster

The Sun Unied Storage 7410 cluster is available with either two or three HBA cards installed,
each of which can support up to four J4400/Sun Disk shelves. The gures below show a
representative sample of stable, balanced and redundant cluster congurations with two HBAs,
as well as steps to migrate from one state to another.

NOTE: Diagrams below are not representative of proper slot location for HBAs.

7410 Cluster Cabling pt.1

Chapter 2 • Installation 53

Cabling Diagrams

fig.1 Sun Unied Storage 7410 cluster with two HBAs and one J4400/Sun Disk shelf

fig.2 Sun Unied Storage 7410 cluster with two HBAs and two J4400/Sun Disk shelves

7410 Cluster Cabling pt.1

Sun Storage 7000 Unied Storage System Installation Guide • February 201054

7410 Cluster Cabling pt.1

Chapter 2 • Installation 55

fig.3 Sun Unied Storage 7410 cluster with two HBAs and three J4400/Sun Disk shelves

fig.4 Sun Unied Storage 7410 cluster with two HBAs and four J4400/Sun Disk shelves

7410 Cluster Cabling pt.1

Sun Storage 7000 Unied Storage System Installation Guide • February 201056

fig.5 Sun Unied Storage 7410 cluster with two HBAs and six J4400/Sun Disk shelves

fig.6 Sun Unied Storage 7410 cluster with two HBAs and eight J4400/Sun Disk shelves

7410 Cluster Cabling pt.1

Chapter 2 • Installation 57

7410 Cluster Cabling pt.2

Connecting Expansion Storage to the Sun Storage
7410 Cluster (cont.)

The Sun Unied Storage 7410 cluster is available with either two or three HBA cards installed,
each of which can support up to four J4400/Sun Disk shelves. The gures below show a
representative sample of stable, balanced and redundant cluster congurations with three
HBAs, as well as steps to migrate from one state to another.

NOTE: Diagrams below are not representative of proper slot location for HBAs.

Cabling Diagrams

7410 Cluster Cabling pt.2

Sun Storage 7000 Unied Storage System Installation Guide • February 201058

fig.1 Sun Unied Storage 7410 cluster with three HBAs and one J4400/Sun Disk shelf

fig.2 Sun Unied Storage 7410 cluster with three HBAs and two J4400/Sun Disk shelves

fig.3 Sun Unied Storage 7410 cluster with three HBAs and three J4400/Sun Disk shelves

7410 Cluster Cabling pt.2

Chapter 2 • Installation 59

7410 Cluster Cabling pt.2

Sun Storage 7000 Unied Storage System Installation Guide • February 201060

fig.4 Sun Unied Storage 7410 cluster with three HBAs and four J4400/Sun Disk shelves

fig.5 Sun Unied Storage 7410 cluster with three HBAs and six J4400/Sun Disk shelves

7410 Cluster Cabling pt.2

Chapter 2 • Installation 61

fig.6 Sun Unied Storage 7410 cluster with three HBAs and nine J4400/Sun Disk shelves

fig.7 Sun Unied Storage 7410 cluster with three HBAs and twelve J4400/Sun Disk shelves

7410 Cluster Cabling pt.2

Sun Storage 7000 Unied Storage System Installation Guide • February 201062

Power

Powering On and Conguring the Appliance

This section provides instructions for conguring the primary network interface using the
preinstalled Unied Storage System command line interface (CLI). After you congure the
primary interface, congure the remaining system parameters using the browser user interface
(BUI) from any client on the same network.

Prerequisites

Refer to the Disk Shelf Installation and Controller Installation pages for detailed instructions to
install your system in the rack. Complete the system cabling according to the

Cabling Diagrams

section.

Gather the following information in preparation for conguring an Ethernet interface on the
storage controller.

■

IP address

■

IP netmask

■

Host name

■

Domain Name Server (DNS) domain name

■

DNS server IP address

■

Default router IP address

■

Password

If you will access the appliance through an administrative client, congure the administrative
client with the following settings:

■

8N1: eight data bits, no parity, one stop bit

■

9600 baud

■

Disable hardware ow control (CTS/RTS)

■

Disable software ow control (XON/XOFF)

Refer to the poster that shipped with the product or the following sections in the System Service
Manual located on

http://wikis.sun.com/display/shworks (http://wikis.sun.com/display/

fishworks)

for an overview of your system controller.

■

7110 Overview

■

7210 Overview

■

7310 Overview

■

7410 Overview

Power

Chapter 2 • Installation 63

Tasks

Power Tasks

▼

Powering On the Appliance

You can access the system by connecting an administrative client to the serial management port
on the controller. Alternatively, if there is a Dynamic Host Conguration Protocol (DHCP)
server on the network, you can access the system by connecting the network management port
to your network.

Note that if you are installing a cluster, congure only one controller initially. The software
propagates the conguration to the peer controller during cluster initialization. After the cluster
is initialized, you can administer the system from either storage controller. However, do not
attempt initial conguration on both controllers independently. Refer to the Cluster
documentation in the System Administration Guide located on

http://wikis.sun.com/display/

shworks (http://wikis.sun.com/display/fishworks)

for more information.

If you are using an administrative client to accessthe appliance, connect a serial cable from the
SER MGT port on the back panel of the controller to the serial port on the administrative client.
Use the DB9 to RJ45 adapter if necessary.

If you are using the network to access the appliance, connect an Ethernet cable from the NET
MGT port on the back panel of the controller to your network.

Connect an Ethernet cable from your network to the NET0 port on the back panel of the
controller.

Poweron any disk shelves attached to the storage system by plugging the two power cords into
the universal power connectors, connecting the cords to the external power source and turning
on the disk shelf power switches. Wait several minutes until the power indicators are lit a steady
green.

Connect power cables to power supply 0 and power supply 1 on the storage controller(s) and
wait until the Power/OK LED on the front panel next to the Power button lights and remains lit
(approximatelytwo minutes).

Open a terminal window or terminal emulator and issue either the telnet or ssh command, as
follows:

For serial port concentrator, use root as the user name and replace serial-concentrator
portnumber with the appropriate value: telnet serial-concentrator portnumber

1

2

3

4

5

6

7

Power

Sun Storage 7000 Unied Storage System Installation Guide • February 201064

For network connection, use root as the user name and determine the IP address by accessing
your DHCP server for the address assigned to the SP MAC address: ssh root@192.168.128.256

Typethe passwordchangeme when prompted.

At the command prompt, type start /SP/console.

Typey to conrm that you want to start the console.

Press any key to begin conguring the appliance. The shell interface conguration screen
appears. NET-0 at the top of the screen should be underlined.

Verify the information on the screen, or enter values that do not appear.

Apply the values by pressing ESC-1 or the F1 key or by pressing Enter after conrming the
password.The nal shell conguration screen appears, conrming that your appliance is ready
for further congurationusing the BUI.

▼

Completing Conguration

Congure the remaining system parameters through a browser running on any client on the
same network as the initial interface. The management software is designed to be fully featured
and functional on the following supported web browsers: Firefox 2.x and 3.x, Internet Explorer
7, Internet Explorer 8, Safari 3.1 or later, and WebKit 525.13 or later.

Direct your browser to the system using either the IP address or host name you assigned to the
NET0 port as follows: https://ipaddress:215 or https://hostname:215. The login screen appears.

Typeroot into the Username eld and the administrative password that you entered into the
appliance shell kit interface and press the Enter key.The Welcomescreen appears.

To begin conguring the system, click Start on the Welcome screen.Youare guided through the
Initial Conguration of the remaining network interfaces, DNS, time settings, directory service
and storage.

Next Steps

■

Initial Conguration

8

9

10

11

12

13

14

1

2

3

Power

Chapter 2 • Installation 65

Initial

Initial Conguration

The initial conguration consists of six conguration steps.

1. Network

2. DNS

3. Time

4. Name Services (NIS, LDAP, Active Directory)

5. Storage

6. Registration & Support

Prerequisites

The initial conguration of the system is conducted after powering it on for the rst time and
establishing a connection, as documented in the

Installation section, also available as a PDF on
http://wikis.sun.com/display/shworks/Documentation. (http://wikis.sun.com/display/
fishworks/Documentation.)

Note that the option to perform initial conguration of a cluster is only available in the BUI. If
electing this option, read the clustering documentation before beginning initial conguration
for detailed additional steps that are required for successful cluster setup. Alternatively,
cluster-capable appliances may be initially congured for standalone operation using the
following procedure and re-congured for cluster operation at a later time.

Summary

This procedure will congure networking connectivity, several client network services, and the
layout of the storage pool for standalone operation. When completed, the appliance is ready for
use - but may not have any shares congured for remote clients to access. See the Shares section
for how to create shares. Refer to the Conguration section for other available settings and to
revisit those from the initial conguration. See

http://wikis.sun.com/display/shworks

(http://wikis.sun.com/display/fishworks)

for the Shares and Conguration sections of
the System Administration Guide.

This procedure may be repeated at a later time by clicking the "INITIAL SETUP" button on the
System screen or by entering the maintenance system setup context in the CLI.

Initial

Sun Storage 7000 Unied Storage System Installation Guide • February 201066

BUI

The BUI initial conguration wizard provides a screen for each of the initial conguration
steps. Click "COMMIT" to save the conguration and go to the next screen. Arrows beneath the
COMMIT button can be used to revisit previous steps, and change the conguration if desired.

CLI

Alternatively, use the CLI to step through the initial conguration sections. Each step begins by
printing its help, which can be reprinted by typing help. Use the done command to complete
each step.

Performing Initial Conguration with the CLI

Login using the password you provided during Installation:

caji console login: root
Password:
Last login: Sun Oct 19 02:55:31 on console

To setup your system, you will be taken through a series of steps; as the setup
process advances to each step, the help message for that step will be
displayed.

Press any key to begin initial configuration ...

Congure networking. In this example, the existing settings are checked (which were from
DHCP), and accepted by typing done. To customize them at this point, enter each context
(datalinks, devices and interfaces) and type help to see available actions for that context. See the
Network page for additional documentation or refer to the System Administration Guide at

http://wikis.sun.com/display/shworks. (http://wikis.sun.com/display/fishworks.)

aksh: starting configuration with "net" ...

Configure Networking. Configure the appliance network interfaces. The first
network interface has been configured for you, using the settings you provided
at the serial console.

Subcommands that are valid in this context:

datalinks => Manage datalinks

devices => Manage devices

interfaces => Manage interfaces

Initial

Chapter 2 • Installation 67

help [topic] => Get context-sensitive help. If [topic] is specified,

it must be one of "builtins", "commands", "general",
"help" or "script".

show => Show information pertinent to the current context

abort => Abort this task (potentially resulting in a

misconfigured system)

done => Finish operating on "net"

caji:maintenance system setup net> devices show
Devices:

DEVICE UP MAC SPEED

nge0 true 0:14:4f:8d:59:aa 1000 Mbit/s
nge1 false 0:14:4f:8d:59:ab 0 Mbit/s
nge2 false 0:14:4f:8d:59:ac 0 Mbit/s
nge3 false 0:14:4f:8d:59:ad 0 Mbit/s

caji:maintenance system setup net> datalinks show
Datalinks:

DATALINK CLASS LINKS LABEL

nge0 device nge0 Untitled Datalink

caji:maintenance system setup net> interfaces show
Interfaces:

INTERFACE STATE CLASS LINKS ADDRS LABEL

nge0 up ip nge0 192.168.2.80/22 Untitled Interface

caji:maintenance system setup net> done

Congure DNS. See the DNS page for additional documentation or refer to the System
Administration Guide at

http://wikis.sun.com/display/shworks. (http://wikis.sun.com/

display/fishworks.)

Configure DNS. Configure the Domain Name Service.

Subcommands that are valid in this context:

help [topic] => Get context-sensitive help. If [topic] is specified,

it must be one of "builtins", "commands", "general",
"help", "script" or "properties".

show => Show information pertinent to the current context

Initial

Sun Storage 7000 Unied Storage System Installation Guide • February 201068

commit => Commit current state, including any changes

abort => Abort this task (potentially resulting in a

misconfigured system)

done => Finish operating on "dns"

get [prop] => Get value for property [prop]. ("help properties"

for valid properties.) If [prop] is not specified,
returns values for all properties.

set [prop] => Set property [prop] to [value]. ("help properties"

for valid properties.) For properties taking list
values, [value] should be a comma-separated list of
values.

caji:maintenance system setup dns> show
Properties:

<status> = online

domain = sun.com

servers = 192.168.1.4

caji:maintenance system setup dns> set domain=sf.fishworks.com

domain = sf.fishworks.com (uncommitted)

caji:maintenance system setup dns> set servers=192.168.1.5

servers = 192.168.1.5 (uncommitted)

caji:maintenance system setup dns> commit
caji:maintenance system setup dns> done
aksh: done with "dns", advancing configuration to "ntp" ...

Congure NTP - how the appliance synchronizes its time. See the NTP page for additional
documentation or refer to the System Administration Guide at

http://wikis.sun.com/display/

shworks. (http://wikis.sun.com/display/fishworks.)

Configure Time. Configure the Network Time Protocol.

Subcommands that are valid in this context:

help [topic] => Get context-sensitive help. If [topic] is specified,

it must be one of "builtins", "commands", "general",
"help", "script" or "properties".

show => Show information pertinent to the current context

commit => Commit current state, including any changes

abort => Abort this task (potentially resulting in a

Initial

Chapter 2 • Installation 69

misconfigured system)

done => Finish operating on "ntp"

enable => Enable the ntp service

disable => Disable the ntp service

get [prop] => Get value for property [prop]. ("help properties"

for valid properties.) If [prop] is not specified,

returns values for all properties.

set [prop] => Set property [prop] to [value]. ("help properties"

for valid properties.) For properties taking list
values, [value] should be a comma-separated list of
values.

caji:maintenance system setup ntp> set servers=0.pool.ntp.org

servers = 0.pool.ntp.org (uncommitted)

caji:maintenance system setup ntp> commit
caji:maintenance system setup ntp> done
aksh: done with "ntp", advancing configuration to "directory" ...

Congure NIS, LDAP and Active Directory. For additional documentation, see: NIS, LDAP and
Active Directory or refer to the System Administration Guide at

http://wikis.sun.com/display/

shworks. (http://wikis.sun.com/display/fishworks.)

Configure Name Services. Configure directory services for users and groups. You
can configure and enable each directory service independently, and you can
configure more than one directory service.

Subcommands that are valid in this context:

nis => Configure NIS

ldap => Configure LDAP

ad => Configure Active Directory

help [topic] => Get context-sensitive help. If [topic] is specified,

it must be one of "builtins", "commands", "general",
"help" or "script".

show => Show information pertinent to the current context

abort => Abort this task (potentially resulting in a

misconfigured system)

Initial

Sun Storage 7000 Unied Storage System Installation Guide • February 201070

done => Finish operating on "directory"

caji:maintenance system setup directory> nis
caji:maintenance system setup directory nis> show
Properties:

<status> = online

domain = sun.com
broadcast = true
ypservers =

caji:maintenance system setup directory nis> set domain=fishworks

domain = fishworks (uncommitted)

caji:maintenance system setup directory nis> commit
caji:maintenance system setup directory nis> done
caji:maintenance system setup directory> done
aksh: done with "directory", advancing configuration to "support" ...

Congure the storage pool. See the Storage section for additional documentation.

Configure Storage.

Subcommands that are valid in this context:

help [topic] => Get context-sensitive help. If [topic] is specified,

it must be one of "builtins", "commands", "general",
"help", "script" or "properties".

show => Show information pertinent to the current context

commit => Commit current state, including any changes

done => Finish operating on "storage"

config <pool> => Configure the storage pool

unconfig => Unconfigure the storage pool

add => Add additional storage to the storage pool

import => Search for existing or destroyed pools to import

scrub <start|stop> => Start or stop a scrub

get [prop] => Get value for property [prop]. ("help properties"

for valid properties.) If [prop] is not specified,
returns values for all properties.

set pool=[pool] => Change current pool

Initial

Chapter 2 • Installation 71

caji:maintenance system setup storage> show
Properties:

pool = pool-0

status = online

profile = mirror

log_profile = -

cache_profile = -

caji:maintenance system setup storage> done
aksh: done with "storage", advancing configuration to "support" ...

Congure Remote Support. Refer to (Phone Home) for additional documentation.

Remote Support. Register your appliance and configure remote monitoring.

Subcommands that are valid in this context:

tags => Configure service tags

scrk => Configure phone home

help [topic] => Get context-sensitive help. If [topic] is specified,

it must be one of "builtins", "commands", "general",
"help" or "script".

show => Show information pertinent to the current context

abort => Abort this task (potentially resulting in a

misconfigured system)

done => Finish operating on "support"

caji:maintenance system setup support> done
aksh: initial configuration complete!

Initial

Sun Storage 7000 Unied Storage System Installation Guide • February 201072
