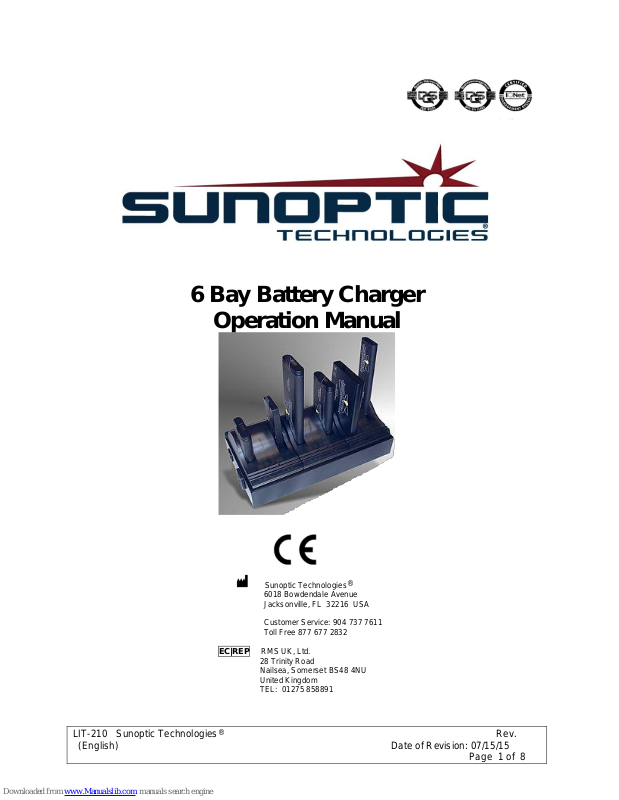

Sunoptic Technologies LIT-210 Operation Manual
6 Bay Battery Charger
Operation Manual
6018 Bowdendale Avenue
Sunoptic Technologies
Jacksonville, FL 32216 USA
Customer Service: 904 737 7611
Toll Free 877 677 2832
EC|REP RMS UK, Ltd.
28 Trinity Road
Nailsea, Somerset BS48 4NU
United Kingdom
TEL: 01275 858891
®
LIT-210 Sunoptic Technologies
(English) Date of Revision: 07/15/15
Page 1 of 8
®
Rev.
1.
INTENDED USE
2.
GENERAL WARNINGS
3.
BATTERY HANDLING RECOMMENDATIONS
4.
BATTERY CHARGING INSTRUCTIONS
5.
LED INDICATION
6.
BATTERY RECALIBRATION INSTRUCTIONS
7.
CLEANING INSTRUCTIONS
8.
STORAGE AND TRANSPORTATION CONDITION
9.
DISPOSAL/RECYCLE
10.
11.
TROUBLESHOOTING GUIDE
SYMBOLOGY
TABLE OF CONTENTS
LIT-210 Sunoptic Technologies
(English) Date of Revision: 07/15/15
Page 2 of 8
®
Rev.
1. INTENDED USE
The battery and charger are intended for use with the LED Headlight System which is
intended to deliver illumination from a high intensity LED for surgical site illumination.
2. WARNINGS
Upon initial receipt and before each use inspect each Battery and Charger for damage.
Do not use any Battery if it appears to be damaged. Do not use a Battery pack that gives
off an odor, generates heat, becomes discolored, or leaks. Do not use the Charger if the
cord and/or plug appear to be damaged, such as cuts, bent pins or contact, and/or cracks.
Do not expose the Battery or Charger to heat, fire, or mechanical shock. Do not heat
the Battery above 80°C (176° F).
Exposure to elevated temperatures may reduce Battery capacity and performance. Do
not expose the Battery or Charger to heat sources or sunlight. Warm environments can
cause the calibration to fail. Place the Charger in a cool spot, away from external heat
sources.
Do not cover the fan exhaust or obstruct the airflow. This will cause overheating.
Do not use this equipment in the presence of a mixture containing a flammable
anesthetic and/or air or oxygen or nitrous oxide.
Do not sterilize, immerse, or expose the Battery, Charger, or Power Supply to water,
solvents, lubricants, or other chemicals to clean the Charger unless otherwise directed.
Do not allow water to collect in the modules or on top of the Charger. Do not allow water
to enter the power connection on the back of the Charger. Keep clean and dry.
Do not short-circuit, crush, open, shred, incinerate, or dismantle the Battery, Charger,
or Power Supply case. Do not store cells or Batteries haphazardly in a box or drawer
where they may short-circuit each other or be short-circuited by other metal objects.
Damage increases the risk of chemical burns from electrolyte leakage, fire or explosion.
The Charger does not have serviceable parts. Please contact Cuda Surgical for
replacement instructions.
Do not modify or change the Charger Power Cord. The Power Cord should be plugged
into a hospital grade outlet.
Use only the Battery, Charger, and Charger accessories in the application for which
they are intended.
Do not operate the Charger at a different voltage than what is listed on the unit and in
the Instructions For Use.
3. BATTERY HANDLING RECOMMENDATIONS
Do not remove a Battery from its original packaging until required for use.
Observe the plus (+) and minus (–) marks on the Battery and ensure correct
orientation.
After extended periods of storage, it may be necessary to charge and discharge the
Battery several times to obtain maximum performance.
Dispose Battery and Charger per Disposal/Recycle section of this Instructions For Use.
Rechargeable Batteries give the best performance when they are operated at normal
room temperature, 20 °C ± 5 °C (68°F ±10°F).
Retain the original product literature for future reference.
LIT-210 Sunoptic Technologies
(English) Date of Revision: 07/15/15
Page 3 of 8
®
Rev.
