SUNON SP100A-1123B Datasheet

2013.07.15

D.C.C.

SUNON

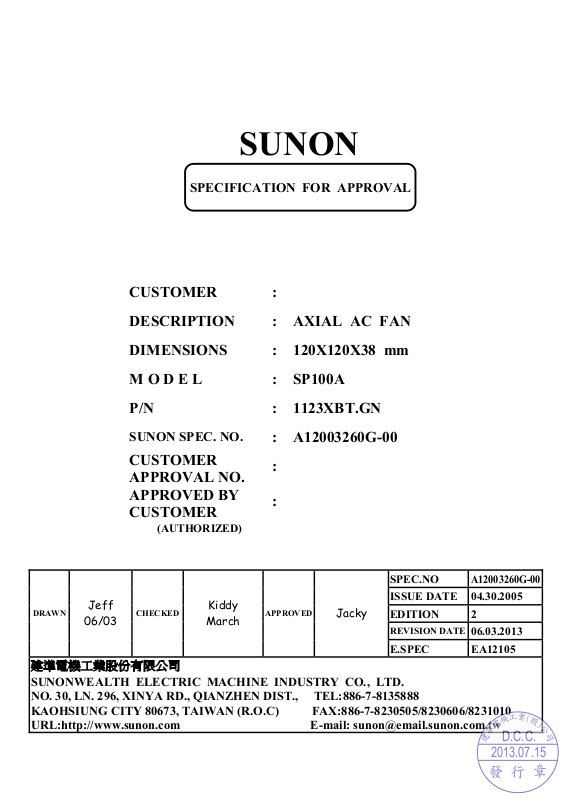

SPECIFICATION FOR APPROVAL

CUSTOMER :

DESCRIPTION : AXIAL AC FAN

DIMENSIONS : 120X120X38 mm

M O D E L : SP100A

P/N : 1123XBT.GN

SUNON SPEC. NO.

CUSTOMER

: A12003260G-00

:

APPROVAL NO.
APPROVED BY

:

CUSTOMER

(AUTHORIZED)

SPEC.NO

DRAWN

建準電機工業股份有限公司

SUNONWEALTH ELECTRIC MACHINE INDUSTRY CO., LTD.
NO. 30, LN. 296, XINYA RD., QIANZHEN DIST., TEL:[phone]
KAOHSIUNG CITY 80673, TAIWAN (R.O.C)
URL:http://www.sunon.com

Jeff

06/03

CHECKED

Kiddy

March

APPROVED

Jacky

FAX:[phone]

E-mail: [e-mail]

ISSUE DATE 04.30.2005

EDITION 2

REVISION DATE

E.SPEC EA12105

A12003260G-00

06.03.2013

SUNON

2013.07.15

D.C.C.

AXIAL AC FAN

MODEL : SP100A

P/N : 1123XBT.GN

CHARACTERISTICS

1. Motor Design : Reliable Shaded-Pole Motor Construction.

2. Insulation Resistance : 500Megohms minimum at 500 VDC.

3. Dielectric Strength : 1800 VAC for one second.

4. Motor Protection : Impedance protected.

5. Noise Level : Measured in a semi-anechoic chamber

with background noise level below 15

dB(A). The fan is running in free air with

microphone at a distance of one meter

from the fan intake.

6. Tolerance :

7. Air Performance : Measured by a double chamber. The values

are recorded when the fan speed has stabilized

15% on rated power and current.

±

at rated voltage.

建準電機工業股份有限公司

SUNONWEALTH ELECTRIC
MACHINE INDUSTRY CO., LTD

SPEC. NO.

ISSUE DATE 04. 30. 2005 E D I T I O N 2

P A G E 2 OF 9

A12003260G-00 REVISION DATE

06.03.2013

SUNON

2013.07.15

D.C.C.

SPECIFICATIONS

MODEL: SP100A

P/N

1-1. Rated Voltage : 115 VAC 50/60 Hz

1-2. Operating Voltage Range : 85-125 VAC

1-3. Starting Voltage : 85 VAC (25 deg. C POWER ON/OFF)

1-4. Rated Speed : 2850/3150 RPM ± 10%

1-5. Air Delivery : 97/117 CFM

1-6. Static Pressure : 0.34/0.39 Inch-H2O

1-7. Rated Current : 0.26/0.24 AMP

1-8. Input Power : 22/20 WATTS

1-9. Noise Level : 45/50 dB(A)

1-10. Direction of Rotation : Counter-clockwise viewed front fan blade

1-11. Operating Temperature : -10 to +70 deg. C

1-12. Storage Temperature : -40 to +70 deg. C

1-13. Bearing System : Precision ball bearing system

1-14. Weight : 550g

1-15. Safety : UL/CSA/TUV/CE Approvals

1-16. Protection : □Automatic Restart Capability

: 1123XBT.GN

Note: In a situation where the fan is locked by an external force
while the electricity is on, an increase in coil temperature will be
prevented by temporarily turning off the electrical power to the
motor. The fan will automatically restart when the locked rotor
condition is released.

□

Polarity Protection

建準電機工業股份有限公司

SUNONWEALTH ELECTRIC
MACHINE INDUSTRY CO., LTD

SPEC. NO.

ISSUE DATE 04. 30. 2005 E D I T I O N 2

P A G E 3 OF 9

A12003260G-00 REVISION DATE

06.03.2013

2013.07.15

D.C.C.

MODEL : SP100A

SUNON

P/N

: 1123XBT.GN

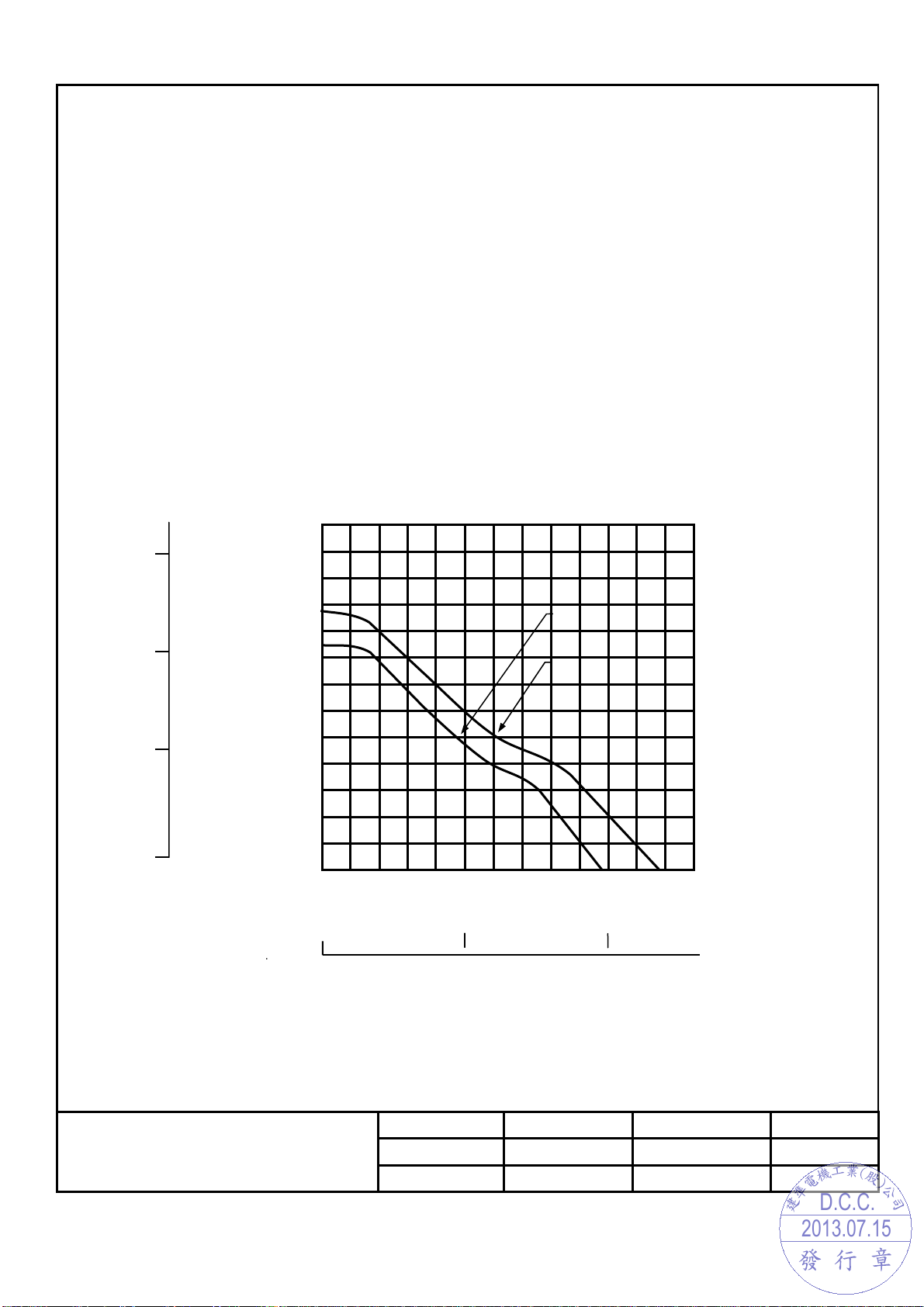

PERFORMANCE CURVES

STATIC
PRESSURE

mm-H

O Inch-H2O

2

12

8

4

0.40

0.20

50 HZ

60 HZ

0

建準電機工業股份有限公司

SUNONWEALTH ELECTRIC
MACHINE INDUSTRY CO., LTD

0 50 100

0 1.42 2.84

SPEC. NO.

ISSUE DATE 04. 30. 2005 E D I T I O N 2

P A G E 4 OF 9

A12003260G-00 REVISION DATE

CFM

m3/min

06.03.2013

2013.07.15

D.C.C.

SUNON

MATERIAL

2. Material

2-1. Frame : DIE-CAST ALUMINUM

2-2. Impeller : Thermoplastic PBT of UL 94V-0

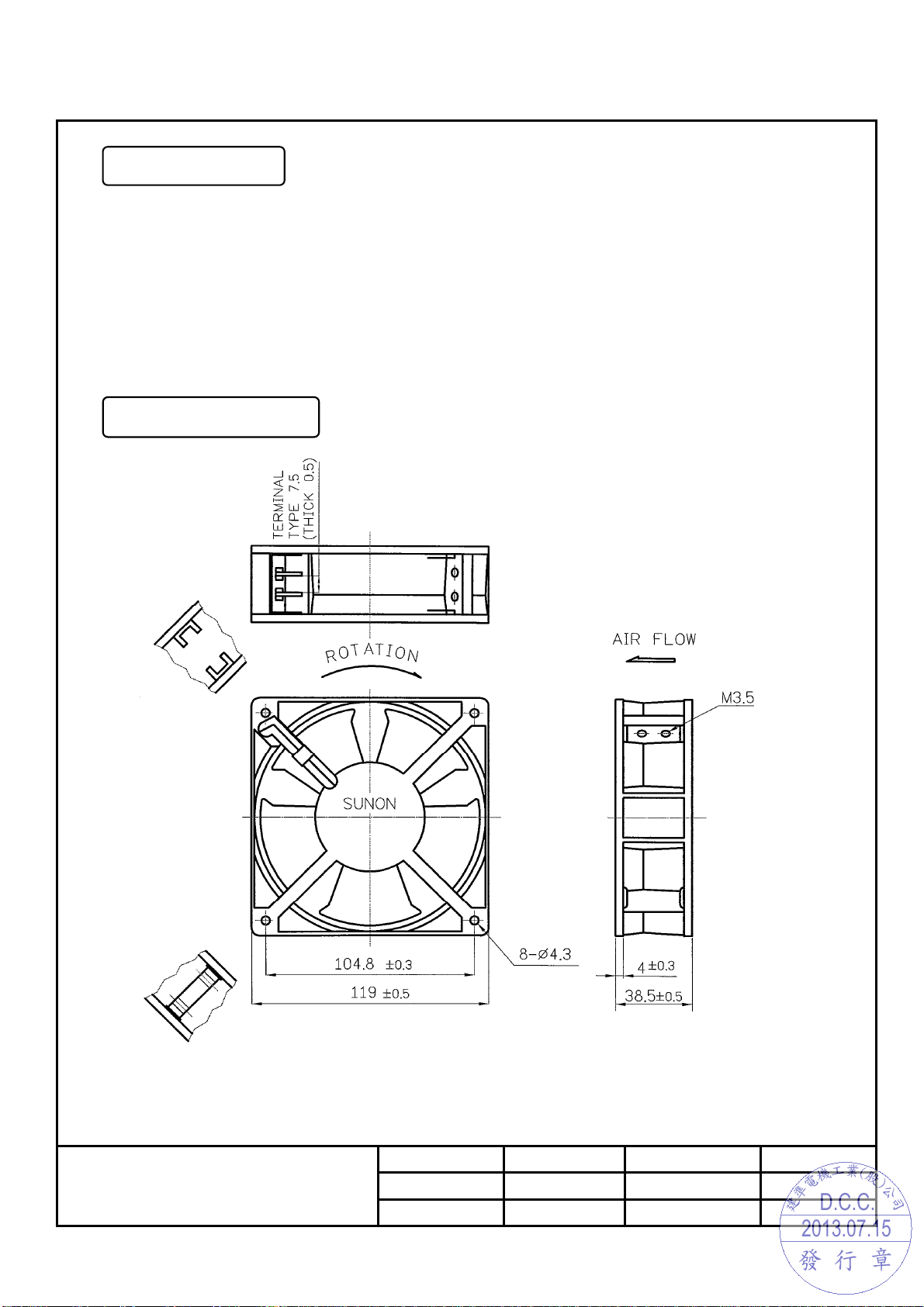

DIMENSIONS

1. Air Flow Direction: Toward label side.

2. Best Mounting Direction: Any orientation.

建準電機工業股份有限公司

SUNONWEALTH ELECTRIC
MACHINE INDUSTRY CO., LTD

UNITS:mm

SPEC. NO.

ISSUE DATE 04. 30. 2005 E D I T I O N 2

P A G E 5 OF 9

A12003260G-00 REVISION DATE

06.03.2013

SUNON

2013.07.15

D.C.C.

Notes

Ⅰ.

SAFETY

1. DO NOT use or operate this fan in excess of the limitations set forth in this
specification. SUNON is not responsible for the non-performance of this fan
and/or any damages resulting from its use, if it is not used or operated in
accordance with the specifications.

2. SUNON recommends adding a protection circuit to the product or application in
which this fan is installed, such as a thermo-fuse, or current-fuse or thermo­protector. The failure to use such a device may result in smoke, fire, electric
shock by insulation degradation in cases of motor lock, motor lead short circuit,
overload, or over voltage, and/or other failure.

3. SUNON recommends installing a protection device to the product or application
in which this fan is installed if there is a possibility of reverse-connection between
VDC (+) and GND (-). The failure to install such a device may result in smoke,
fire, and/or destruction, although these conditions may not manifest immediately.

4. This fan must be installed and used in compliance with all applicable safety
standards and regulations.

5. Use proper care when handling and/or installing this fan. Improper handling or
installation of this fan may cause damage that could result in unsafe conditions.

6. Use proper care during installation and/or wiring. Failure to use proper care
may cause damage to certain components of the fan including, but not limited to,
the coil and lead wires, which could result in smoke and/or fire.

7. DO NOT use power or ground PWM to control the fan speed. If the fan speed
needs to be adjusted, please contact SUNON to customize the product design for
your application.

For critical or extreme environments, including non stop operation, please

8.
contact SUNON and we will gladly provide assistance with your product
selection to ensure an appropriate cooling product for your application.

建準電機工業股份有限公司

SUNONWEALTH ELECTRIC
MACHINE INDUSTRY CO., LTD.

SPEC.NO A12003260G-00

ISSUE DATE 04. 30. 2005 E D I T I O N 2

P A G E 6 OF 9

REVISION DATE

06.03.2013

SUNON

2013.07.15

D.C.C.

Notes

II. SPECIFICATION MODIFICATION

1. SUNON offers engineering assistance on fan installation and cooling system
design.

2. All changes, modifications and/or revisions to the specifications, if any, are
incorporated in the attached specifications.

3. No changes, modifications and/or revisions to these specifications are effective
absent agreement, by both SUNON and the customer, in writing.

4. This fan will be shipped in accordance with the attached specification unless
SUNON and the customer have agreed otherwise, in writing, as specified in
Paragraph 3, above.

III. OTHER

1. When building your device, please examine thoroughly any variation of EMC,
temperature rise, life data, quality, etc. of this product by shock/drop/vibration
testing, etc. If there are any problems or accidents in connection with this
product, it should be mutually discussed and examined.

2. Use proper care when handling this fan. Components such as fan holders or
bearings may be damaged, if touched with fingers or other objects. Additionally,
static electricity (ESD) may damage the internal circuits of the fan.

3. DO NOT operate this fan in proximity to hazardous materials such as organic
silicon, cyanogens, formalin, phenol, or corrosive gas environments including,
but not limited to, H

4. SUNON recommends that you protect this fan from exposure to outside elements
such as dust, condensation, humidity or insects. Exposure of this fan to outside
elements such as dust, condensation, humidity or insects may affect its
performance and may cause safety hazards. SUNON does not warrant against
damage to the product caused by outside elements.

S, SO2, NO2, or Cl2.

2

建準電機工業股份有限公司

SUNONWEALTH ELECTRIC
MACHINE INDUSTRY CO., LTD.

SPEC.NO A12003260G-00

ISSUE DATE 04. 30. 2005 E D I T I O N 2

P A G E 7 OF 9

REVISION DATE

06.03.2013

2013.07.15

D.C.C.

SUNON

Notes

5. This fan must be installed properly and securely. Improper mounting may cause
harsh resonance, vibration, and noise.

6. Fan guards may prevent injury during handling or installation of the fan and are
available for sale with this fan.

7. Unless otherwise noted, all testing of this fan is conducted at 25°C ambient
temperature and sixty-five percent (65%) relative humidity.

8. DO NOT store this fan in an environment with high humidity. This fan must be
stored in accordance with the attached specifications regarding storage
temperature. If this fan is stored for more than 6 months, SUNON recommends
functional testing before using.

9. SUNON reserves the right to use components from multiple sources at its
discretion. The use of components from other sources will not affect the
specifications as described herein.

10. The “Life Expectancy” of this fan has not been evaluated for use in combination
with any end application. Therefore, the Life Expectancy Test Reports (L10 and
MTTF Report) that relate to this fan are only for reference.

VI. WARRANTY

This fan is warranted against all defects which are proved to be fault in our
workmanship and material for one year from the date of our delivery. The sole
responsibility under the warranty shall be limited to the repair of the fan or the
replacement thereof, at SUNON’s sole discretion. SUNON will not be responsible
for the failures of its fans due to improper handing, misuse or the failure to follow
specifications or instructions for use. In the event of warranty claim, the customer
shall immediately notify SUNON for verification. SUNON will not be responsible
for any consequential damage to the customer’s equipment as a result of any fans
proven to be defective.

建準電機工業股份有限公司

SUNONWEALTH ELECTRIC
MACHINE INDUSTRY CO., LTD.

SPEC.NO A12003260G-00

ISSUE DATE 04. 30. 2005 E D I T I O N 2

P A G E 8 OF 9

REVISION DATE

06.03.2013

SUNON

2013.07.15

D.C.C.

Declaration of RoHS

Control declaration of environment- related substances/ materials

1. In accordance with the Restriction of Hazardous Substances (RoHS) Directive

2011/65/EU, SUNON product have complied with law and discipline not to employ
the forbidden substances, and restrict the allowable concentration of some limited
substances deliberately in our components.

No Substance Criteria

1 CFCs & HCFCs (ozone depleting substances)

2 Chlorinated Organic Solvent

Plastic (Frame, Impeller, wire harness, etc.)

Solder

3 Lead and its compounds

4 Cadmium and its compounds

5 PBBs and PBDEs

6 PCB and PCT

7 CP, Short-chain Chlorinated paraffins C10-13, Cl ≥48 wt%

8 Mirex

9 PCN

10 Hexavalent Chromium compounds

11 Mercury and its compounds

12 Asbestos

13 Organic Tin compounds

14 Azo compounds

15 TBBP-A in external case plastic parts of products (PCB is exempted)

16

Nickel in external case parts, which are likely to result in prolonged skin exposure

17 Hexabromocyclododecane (HBCDD)

18 Di-butyl Phthalate (DBP)

19 Benzyl butyl Phthalate (BBP)

20 Di-ethylhexyl Phthalate (DEHP)

21 Di-isobutyl Phthalate (DIBP)

Steel alloy

Aluminium alloy

Copper alloy

Solder

Parts composed of metals containing zinc
(e.g. brass, zinc for die casting)

Plastic

Forbidden

Forbidden

<100ppm

<1000ppm

<3500ppm

<4000ppm

<4wt%

<20ppm

<100ppm

<5ppm

Forbidden

Forbidden

Forbidden

Forbidden

Forbidden

<100ppm

Forbidden

Forbidden

Forbidden

Forbidden

<1000ppm

<1000ppm

<1000ppm

<1000ppm

<1000ppm

<1000ppm

<1000ppm
