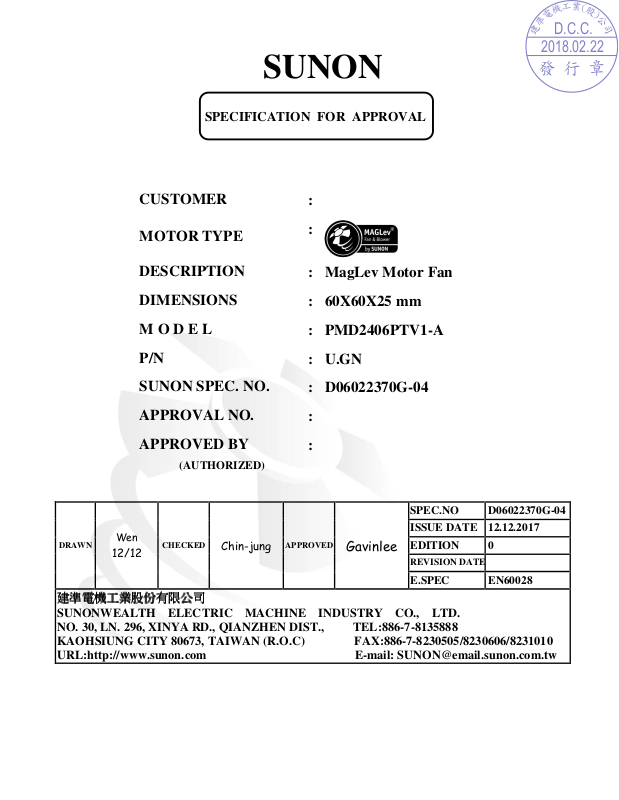

SUNON PMD2406PTV1-A Specification

(AUTHORIZED)

REVISION DATE

2018.02.22

D.C.C.

CUSTOMER

MOTOR TYPE

DESCRIPTION

DIMENSIONS

M O D E L

P/N

SUNON

SPECIFICATION FOR APPROVAL

:

:

: MagLev Motor Fan

:

60X60X25 mm

: PMD2406PTV1-A

: U.GN

SUNON SPEC. NO.

APPROVAL NO.

APPROVED BY

: D06022370G-04

:

:

SPEC.NO D06022370G-04

DRAWN

建準電機工業股份有限公司

建準電機工業股份有限公司

建準電機工業股份有限公司建準電機工業股份有限公司

SUNONWEALTH ELECTRIC MACHINE INDUSTRY CO., LTD.
NO. 30, LN. 296, XINYA RD., QIANZHEN DIST., TEL:[phone]
KAOHSIUNG CITY 80673, TAIWAN (R.O.C) FAX:[phone]
URL:http://www.sunon.com E-mail: [e-mail]

Wen

12/12

CHECKED

Chin-jung

APPROVED

Gavinlee

ISSUE DATE 12.12.2017

EDITION 0

E.SPEC EN60028

SUNON

MODEL

2018.02.22

D.C.C.

DC BRUSHLESS FAN

: PMD2406PTV1-A

P/N : U.GN

CHARACTERISTICS

1. Motor Design : 2 phases, 4-poles Brushless DC motor.

2. Insulation Resistance : More than 10M ohm between internal stator and

lead wire(+) measured at DC 500V.

3. Dielectric Strength : Applied AC 500V for one minute or AC 600V for

2 seconds between housing and lead wire(+)

4. Noise Level : Measured in a semi-anechoic chamber

with background noise level below 15

dB(A). The fan is running in free air with the

microphone at a distance of one meter

from the fan intake.

5. Input Power, Current & Speed : Measured after continuous 10 minute

operation at rated voltage in clean air, and

at ambient temperature of 25 degrees C.

6. Tolerance :

7. Air Performance : Measured by a double chamber. The values

are recorded when the fan speed has stabilized

at rated voltage.

15% on rated power and current.

±

建準電機工業股份有限公司

建準電機工業股份有限公司

建準電機工業股份有限公司建準電機工業股份有限公司

SUNONWEALTH ELECTRIC

SPEC.NO D06022370G-04

ISSUE DATE

MACHINE INDUSTRY CO., LTD.

REVISION DATE

12.12.2017 E D I T I O N 0

P A G E 2 OF 9

SUNON

SPECIFICATIONS

1-1. Rated Voltage

: 24

VDC

1-2. Operating Voltage Range

:

10~27.6

VDC

1-3. Starting Voltage

: 10

VDC (25 deg. C POWER ON/OFF)

1-4. Rated Speed

:

6900

RPM

±

10%

1-5. Air Delivery

:

36.0 CFM

1-6. Static Pressure

:

0.54

Inch

-

H2O

1-7. Rated Current

:

181 mA

1-8. Rated Power

:

4.3 WAT

TS

1-9. Noise Level

: 43

dB(A)

1-10. Direction of Rotation

:

Counter

-

clockwise viewed from front of fan blade

1-11. Operating Temperature

: -10 to +70

d

eg. C

1-12. Storage Temperature

: -40 to +70

d

eg. C

1-13. Bearing System

:

Vapo

bearing system

1-14. Weight

: 75 g

1-15. Safety

:

UL/CUR/TUV/CE Approvals

1-16. Protection

:

Automatic Restart

Polarity Protection

2018.02.22

D.C.C.

MODEL : PMD2406PTV1-A
P/N

: U.GN

建準電機工業股份有限公司

建準電機工業股份有限公司

建準電機工業股份有限公司建準電機工業股份有限公司

SUNONWEALTH ELECTRIC
MACHINE INDUSTRY CO., LTD.



Note: In a situation where the fan is locked by an external
force while the electricity is on, an increase in coil
temperature will be prevented by temporarily turning off the
electrical power to the motor. The fan will automatically
restart when the locked rotor condition is released.



SPEC.NO D06022370G-04

ISSUE DATE

P A G E 3 OF 9

12.12.2017 E D I T I O N 0

REVISION DATE

24 VDC

2018.02.22

D.C.C.

MODEL : PMD2406PTV1-A

SUNON

P/N

: U.GN

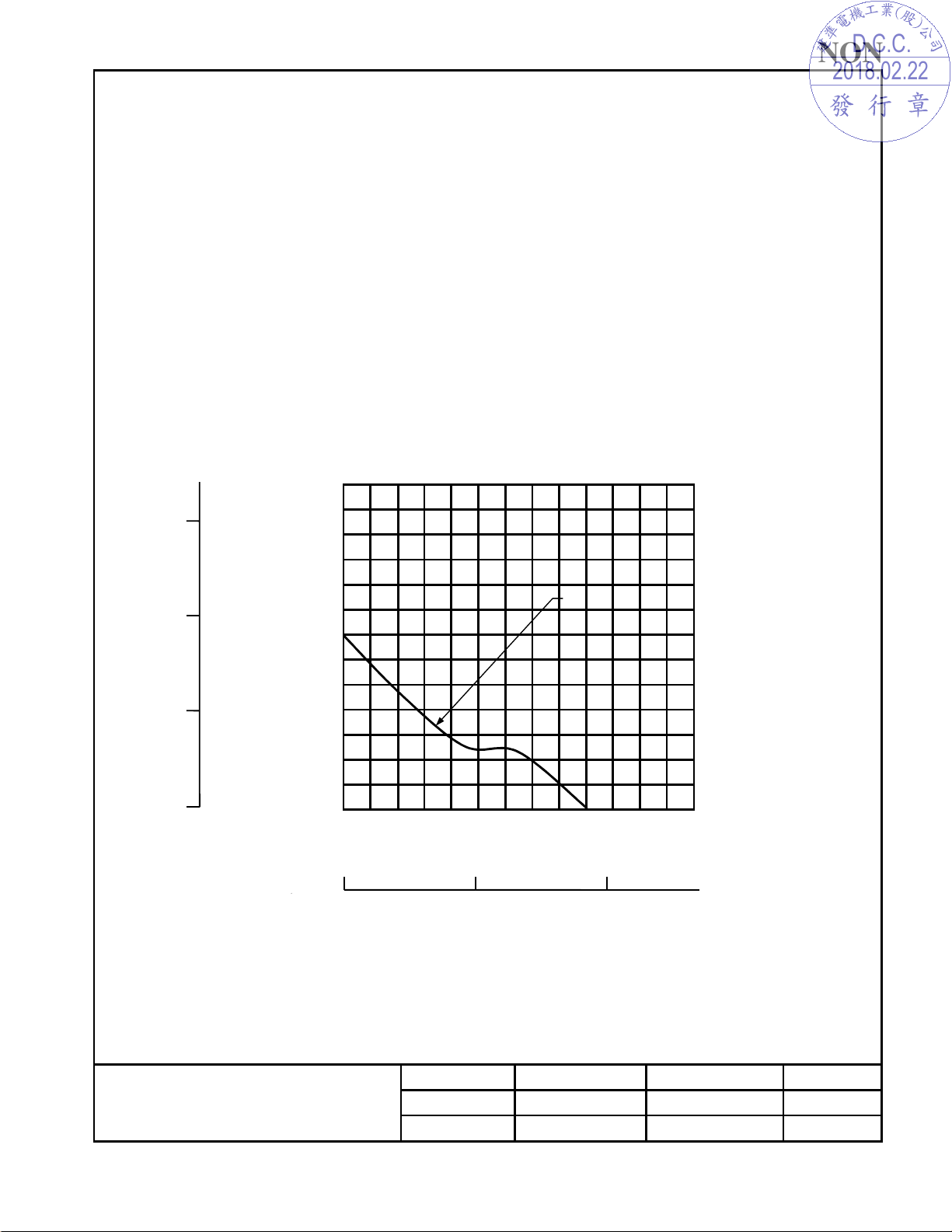

PERFORMANCE CURVES

TATIC

S
PRESSURE

mm-H2O Inch-H2O

24

16

8

0.80

0.40

0

0 20 40

0 0.56 1.12

建準電機工業股份有限公司

建準電機工業股份有限公司

建準電機工業股份有限公司建準電機工業股份有限公司

SUNONWEALTH ELECTRIC
MACHINE INDUSTRY CO., LTD.

CFM

m3/min

SPEC.NO D06022370G-04

ISSUE DATE

12.12.2017 E D I T I O N 0

P A G E 4 OF 9

REVISION DATE

SUNON

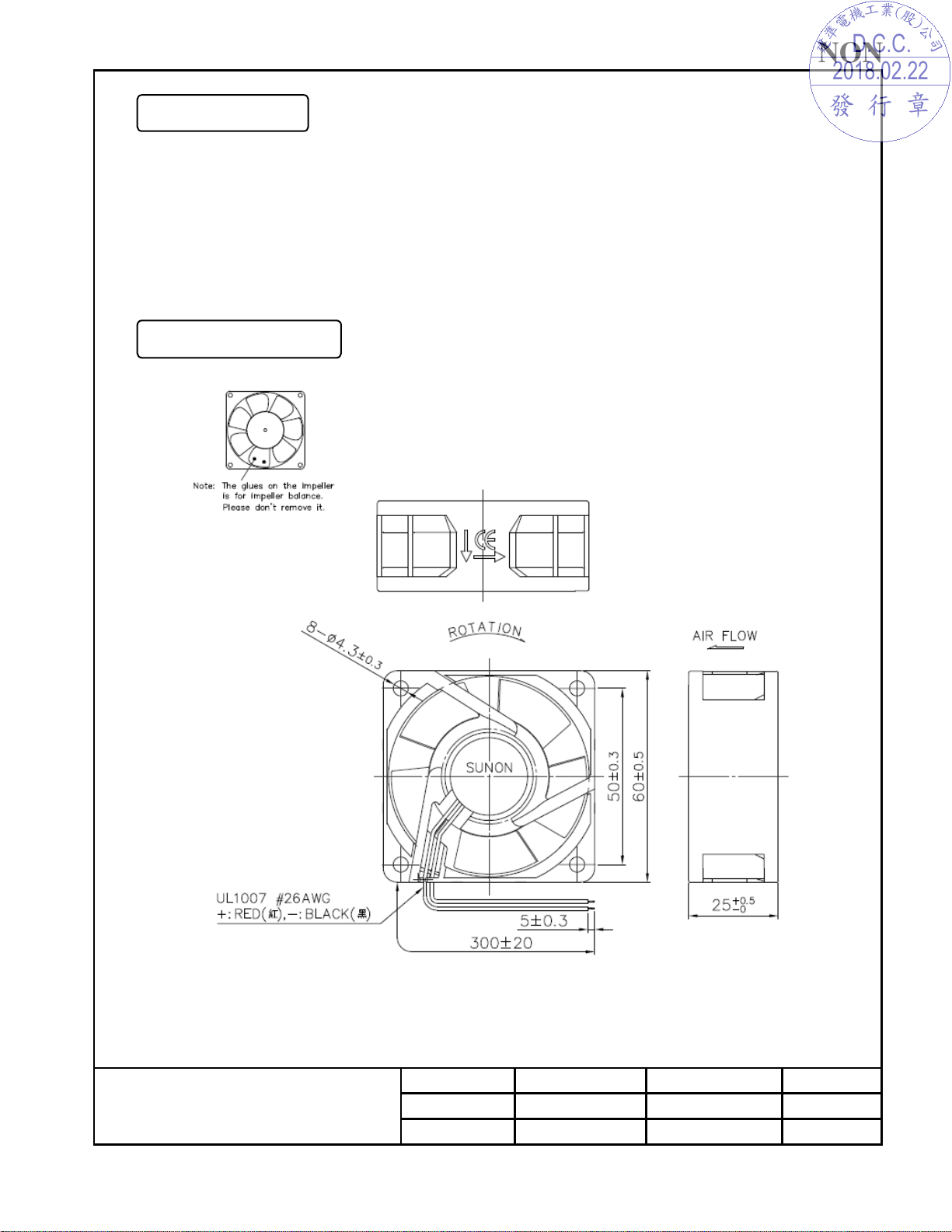

DIMENSIONS

2018.02.22

D.C.C.

MATERIAL

2-1. Frame : Thermoplastic PBT of UL 94V-0

2-2. Impeller : Thermoplastic PBT of UL 94V-0

2-3. Lead Wire : UL1007,26 awg,+RED,-BLACK

1. Air Flow Direction: Toward label side.

2. Best Mounting Direction: Any orientation.

建準電機工業股份有限公司

建準電機工業股份有限公司

建準電機工業股份有限公司建準電機工業股份有限公司

SUNONWEALTH ELECTRIC
MACHINE INDUSTRY CO., LTD.

UNIT

SPEC.NO D06022370G-04

ISSUE DATE

P A G E 5 OF 9

12.12.2017 E D I T I O N 0

REVISION DATE

::::

mm

SUNON

2018.02.22

D.C.C.

Notes

ⅠⅠⅠⅠ....

建準電機工業股份有限公司

建準電機工業股份有限公司

建準電機工業股份有限公司建準電機工業股份有限公司

SUNONWEALTH ELECTRIC
MACHINE INDUSTRY CO., LTD.

SAFETY

1. DO NOT use or operate this fan in excess of the limitations set forth in this
specification. SUNON is not responsible for the non-performance of this fan
and/or any damages resulting from its use, if it is not used or operated in
accordance with the specifications.

2. SUNON recommends adding a protection circuit to the product or application
in which this fan is installed, such as a thermo-fuse, or current-fuse or
thermo-protector. The failure to use such a device may result in smoke, fire,
electric shock by insulation degradation in cases of motor lead short circuit,
overload, or over voltage, and/or other failure.

3. SUNON recommends installing a protection device to the product or
application in which this fan is installed if there is a possibility of
reverse-connection between VDC (+) and GND (-). The failure to install such
a device may result in smoke, fire, and/or destruction, although these
conditions may not manifest immediately.

4. This fan must be installed and used in compliance with all applicable safety
standards and regulations.

5. Use proper care when handling and/or installing this fan. Improper
handling or installation of this fan may cause damage that could result in
unsafe conditions.

6. Use proper care during installation and/or wiring. Failure to use proper care
may cause damage to certain components of the fan including, but not limited
to, the coil and lead wires, which could result in smoke and/or fire.

7. DO NOT use power or ground PWM to control the fan speed. If the fan
speed needs to be adjusted, please contact SUNON to customize the product
design for your application.

8. For critical or extreme environments, including non stop operation, please
contact SUNON and we will gladly provide assistance with your product
selection
to ensure an appropriate cooling product for your application.

SPEC.NO D06022370G-04

ISSUE DATE

P A G E 6 OF 9

12.12.2017 E D I T I O N 0

REVISION DATE

SUNON

2018.02.22

D.C.C.

Notes

II. SPECIFICATION MODIFICATION

1. SUNON offers engineering assistance on fan installation and cooling system
design.

2. All changes, modifications and/or revisions to the specifications, if any, are
incorporated in the attached specifications.

3. No changes, modifications and/or revisions to these specifications are effective
absent agreement, by both SUNON and the customer, in writing.

4. This fan will be shipped in accordance with the attached specification unless
SUNON and the customer have agreed otherwise, in writing, as specified in
Paragraph 3, above.

III. OTHER

1. When building your device, please examine thoroughly any variation of EMC,
temperature rise, life data, quality, etc. of this product by shock/drop/vibration
testing, etc. If there are any problems or accidents in connection with this
product, it should be mutually discussed and examined.

2.

Use proper care when handling this fan. Components such as fan holders or
bearings may be damaged, if touched with fingers or other objects.
Additionally, static electricity (ESD) may damage the internal circuits of the fan.

3.

DO NOT operate this fan in proximity to hazardous materials such as organic
silicon, cyanogens, formalin, phenol, or corrosive gas environments including, but
not limited to, H2S, SO2, NO2, or Cl2.

4. SUNON recommends that you protect this fan from exposure to outside elements
such as dust, condensation, humidity or insects. Exposure of this fan to outside
elements such as dust, condensation, humidity or insects may affect its
performance and may cause safety hazards. SUNON does not warrant against
damage to the product caused by outside elements.

建準電機工業股份有限公司

建準電機工業股份有限公司

建準電機工業股份有限公司建準電機工業股份有限公司

SUNONWEALTH ELECTRIC
MACHINE INDUSTRY CO., LTD.

SPEC.NO D06022370G-04

ISSUE DATE 12.12.2017 E D I T I O N 0

P A G E 7 OF 9

REVISION DATE

SUNON

2018.02.22

D.C.C.

Notes

5. This fan must be installed properly and securely. Improper mounting may
cause harsh resonance, vibration, and noise.

6. Fan guards may prevent injury during handling or installation of the fan and
are available for sale with this fan.

7. Unless otherwise noted, all testing of this fan is conducted at 25°C ambient
temperature and sixty-five percent (65%) relative humidity.

8. DO NOT store this fan in an environment with high humidity. This fan must
be stored in accordance with the attached specifications regarding storage
temperature. If this fan is stored for more than 6 months, SUNON
recommends functional testing before using.

9. SUNON reserves the right to use components from multiple sources at its
discretion. The use of components from other sources will not affect the
specifications as described herein.

10.

The “Life Expectancy” of this fan has not been evaluated for use in combination
with any end application. Therefore, the Life Expectancy Test Reports (L10 and
MTTF Report) that relate to this fan are only for reference.

VI. WARRANTY

This fan is warranted against all defects which are
workmanship and material for one year from the date of our delivery. The sole
responsibility under the warranty shall be limited to the repair of the fan or the
replacement thereof, at SUNON’s sole discretion. SUNON will not be responsible
for the failures of its fans due to improper handing, misuse or the failure to follow
specifications or instructions for use. In the event of warranty claim, the customer
shall immediately notify SUNON for verification. SUNON will not be responsible
for any consequential damage to the customer’s equipment as a result of any fans
proven to be defective.

proved to be fault in our

建準電機工業股份有限公司

建準電機工業股份有限公司

建準電機工業股份有限公司建準電機工業股份有限公司

SUNONWEALTH ELECTRIC
MACHINE INDUSTRY CO., LTD.

SPEC.NO D06022370G-04

ISSUE DATE 12.12.2017 E D I T I O N 0

P A G E 8 OF 9

REVISION DATE

SUNON

2018.02.22

D.C.C.

Declaration of RoHS

Control declaration of environment- related substances/ materials

1. In accordance with the Restriction of Hazardous Substances (RoHS) Directive
2011/65/EU, SUNON product P/N: GN models have complied with law and
discipline not to employ the forbidden substances, and restrict the allowable
concentration of some limited substances deliberately in our components.

No

Substance Criteria

1 CFCs & HCFCs (ozone depleting substances)
2 Chlorinated Organic Solvent

Plastic (Frame, Impeller, wire harness, etc.)
Solder

3 Lead and its compounds

Steel alloy
Aluminium alloy
Copper alloy
Solder

4 Cadmium and its compounds

Parts composed of metals containing zinc
(e.g. brass, zinc for die casting)
Plastic

5 PBBs and PBDEs

6 PCB and PCT
7 CP, Short-chain Chlorinated paraffins C10-13, Cl ≥48 wt%
8 Mirex

9 PCN
10 Hexavalent Chromium compounds
11 Mercury and its compounds
12 Asbestos
13 Organic Tin compounds
14 Azo compounds
15 TBBP-A in external case plastic parts of products (PCB is exempted)
16

Nickel in external case parts, which are likely to result in prolonged skin exposure

17 Hexabromocyclododecane (HBCDD)

18 Di-butyl Phthalate (DBP)

19 Benzyl butyl Phthalate (BBP)

20 Di-ethylhexyl Phthalate (DEHP)
21 Di-isobutyl Phthalate (DIBP)

建準電機工業股份有限公司

建準電機工業股份有限公司

建準電機工業股份有限公司建準電機工業股份有限公司

SUNONWEALTH ELECTRIC
MACHINE INDUSTRY CO., LTD.

SPEC.NO D06022370G-04

ISSUE DATE 12.12.2017 E D I T I O N 0

P A G E 9 OF 9

Forbidden
Forbidden
<100ppm
<1000ppm
<3500ppm
<4000ppm
<4wt%
<20ppm

<100ppm

<5ppm

Forbidden

Forbidden
Forbidden
Forbidden
Forbidden
<100ppm
Forbidden
Forbidden
Forbidden
Forbidden
<1000ppm
<1000ppm

<1000ppm

<1000ppm

<1000ppm

<1000ppm
<1000ppm

REVISION DATE
