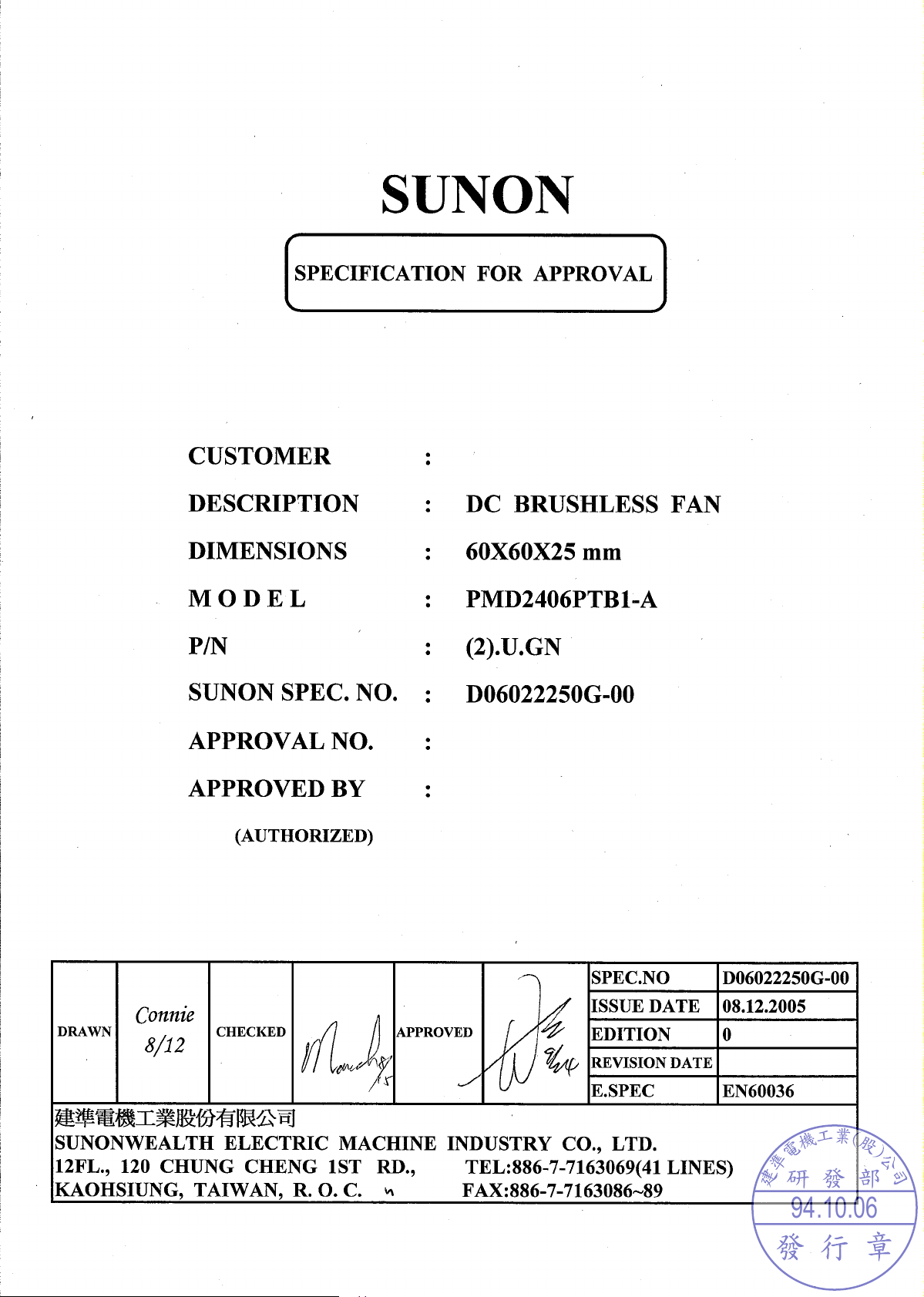

Page 1
94.10.06

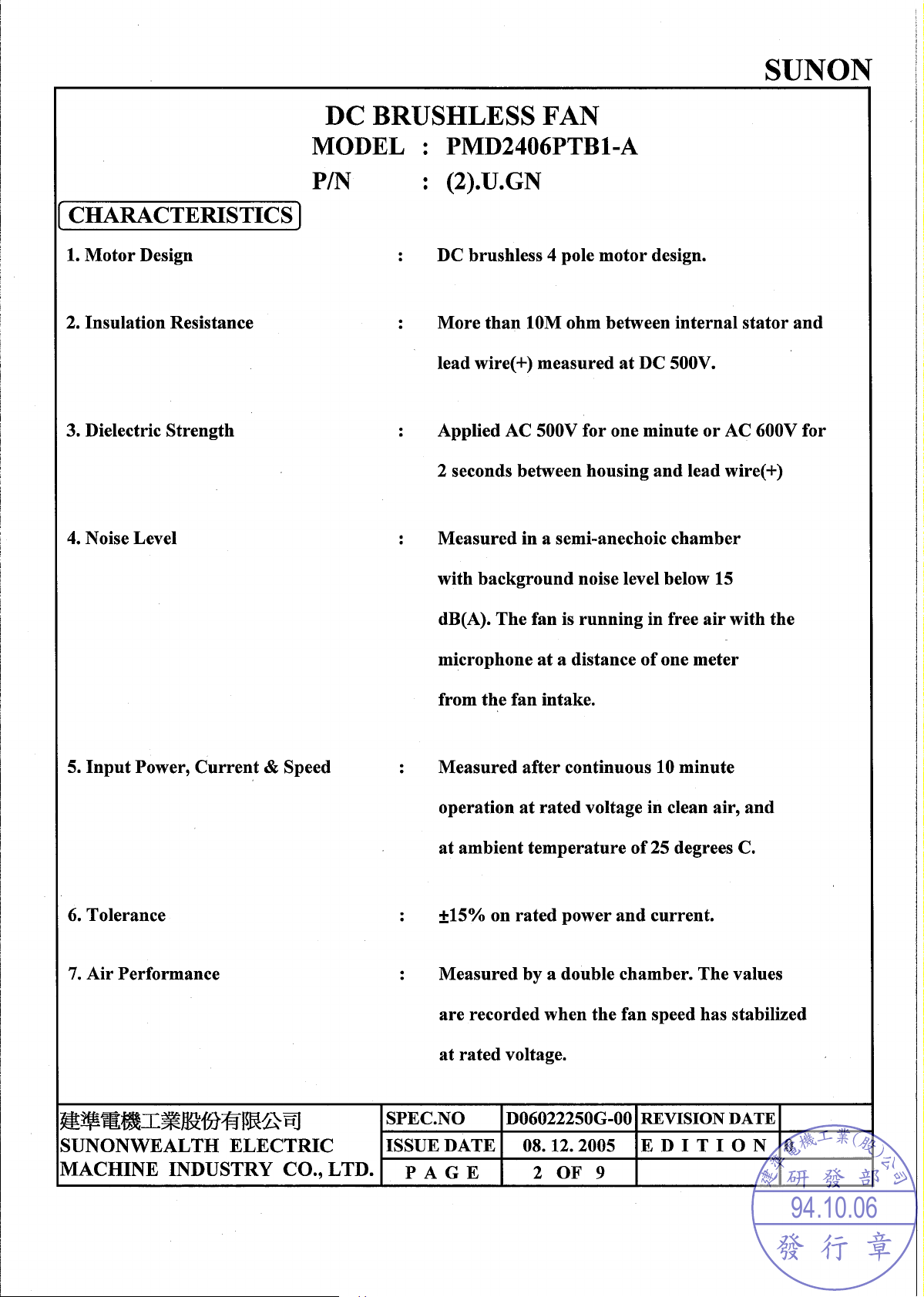

Page 2
94.10.06

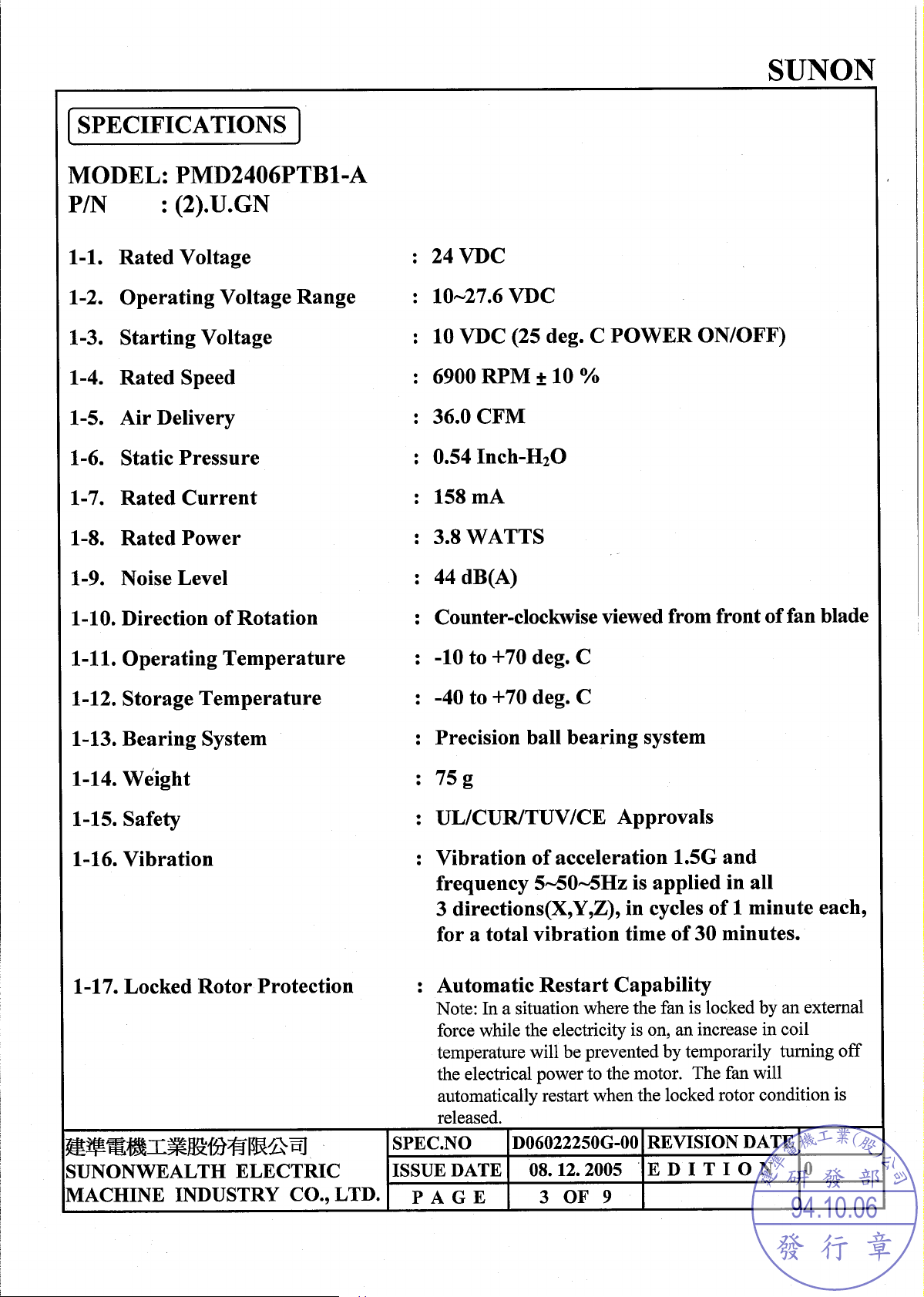

Page 3
94.10.06

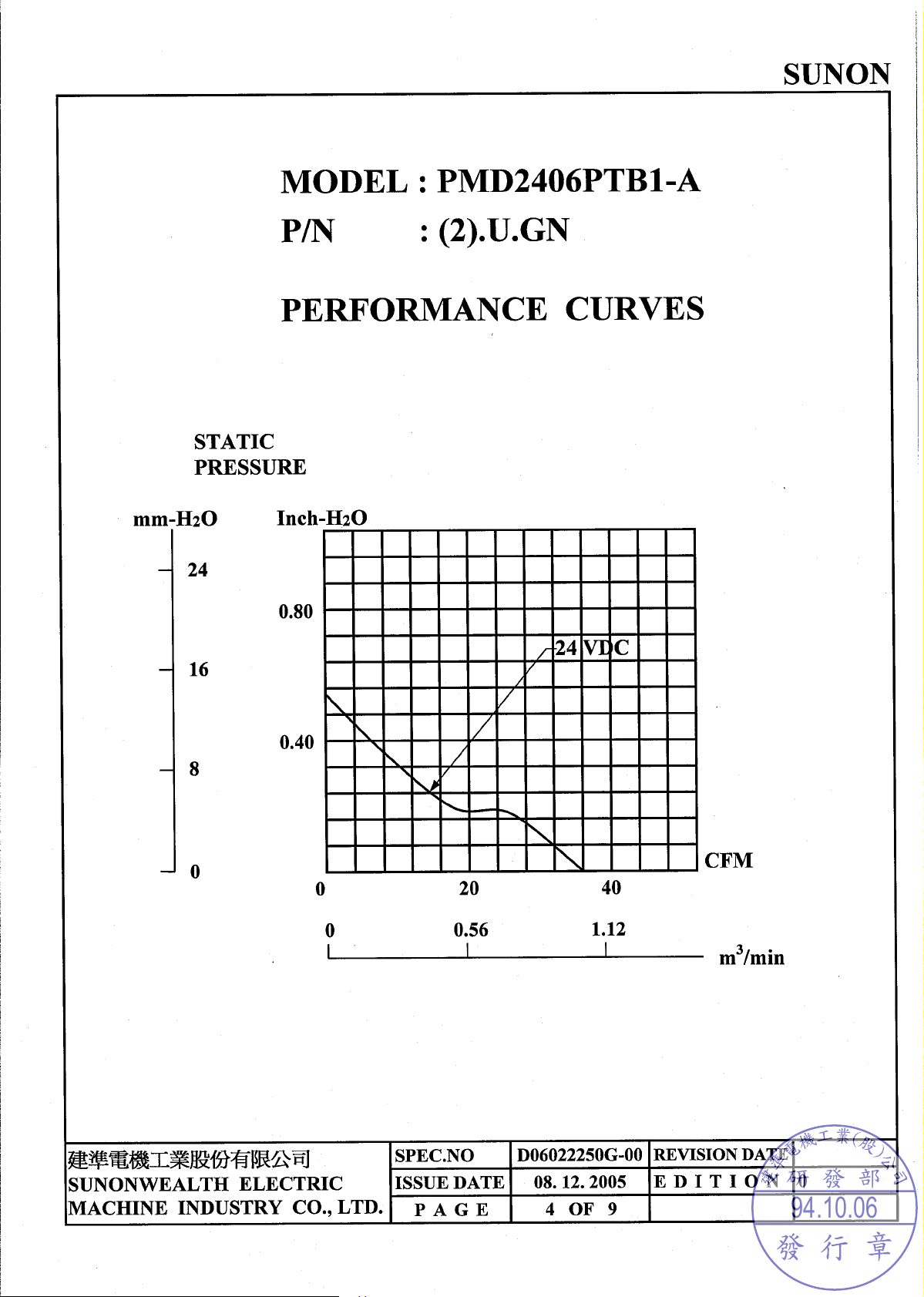

Page 4
94.10.06

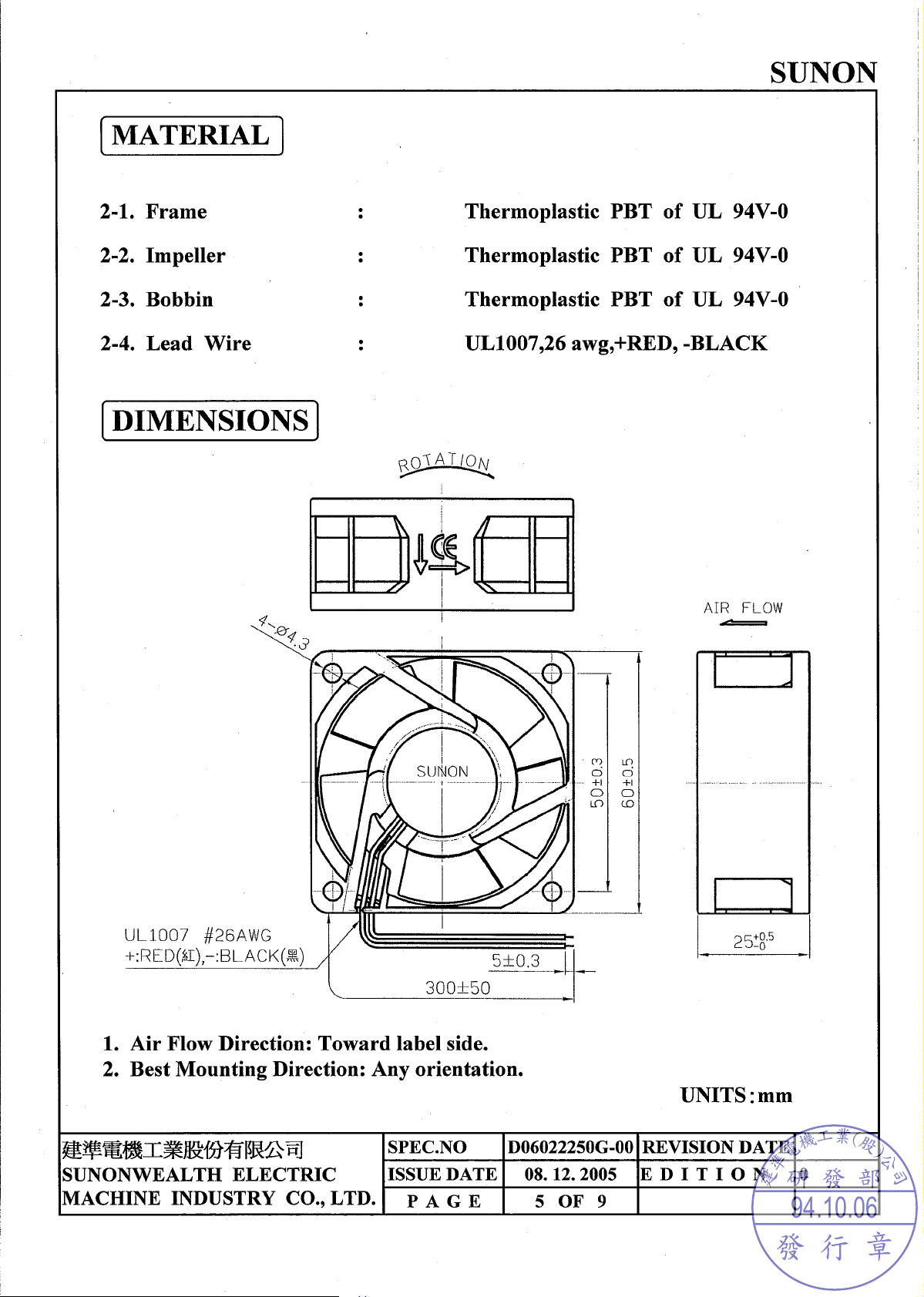

Page 5
94.10.06
Page 6
SUNON
94.10.06
N
otes
Ⅰ
Ⅰ....
Ⅰ
Ⅰ
SAFETY
1. DO NOT use or operate this fan in excess of the limitations set forth in this
specification. SUNON is not be responsible for the non-performance of this
fan and/or any damages resulting from its use, if it is not used or operated in
accordance with the specifications.
2. SUNON recommends adding a protection circuit to the product or application
in which this fan is installed, such as a thermo-fuse, or current-fuse or thermoprotector. The failure to use such a device may result in smoke, fire, electric
shock by insulation degradation in cases of motor lead short circuit, overload,
or over voltage, and/or other failure.
3. SUNON recommends installing a protection device to the product or
application in which this fan is installed if there is a possibility of reverseconnection between VDC (+) and GND (-). The failure to install such a device
may result in smoke, fire, and/or destruction, although these conditions may
not manifest immediately.
4. This fan must be installed and used in compliance with all applicable safety
standards and regulations.
5. Use proper care when handling and/or installing this fan. Improper handling
or installation of this fan may cause damage that could result in unsafe
conditions.
6. Use proper care during installation and/or wiring. Failure to use proper care
may cause damage to certain components of the fan including, but not limited
to, the coil and lead wires, which could result in smoke and/or fire.
7. DO NOT use power or ground PWM to control the fan speed. If the fan speed
needs to be adjusted, please contact Sunon to customize the product design for
your application.
8. For critical or extreme environments, including non stop operation, please contact
Sunon and we will gladly provide assistance with your product selection to ensure
an appropriate cooling product for your application.
建準電機工業股份有限公司
建準電機工業股份有限公司
建
準電機工業股份有限公司建準電機工業股份有限公司
SUNONWEALTH ELECTRIC
MACHINE INDUSTRY CO., LTD.
SPEC.NO D06022250G-00
ISSUE DATE 08. 12. 2005 E D I T I O N 0
P A G E 6 OF 9
REVISION DATE
Page 7
SUNON
94.10.06
N
otes
I
I. SPECIFICATION MODIFICATION
1. SUNON offers engineering assistance on fan installation and cooling system
design.
2. All changes, modifications and/or revisions to the specifications, if any, are
incorporated in the attached specifications.
3. No changes, modifications and/or revisions to these specifications are effective
absent agreement, by both Sunon and the customer, in writing.
4. This fan will be shipped in accordance with the attached specification unless
SUNON and the customer have agreed otherwise, in writing, as specficied in
Paragraph 3, above.
III. OTHER
1. When building your device, please examine thoroughly any variation of EMC,
temperature rise, life data, quality, etc. of this product by shock/drop/vibration
testing, etc. If there are any problems or accidents in connection with this
product, it should be mutually discussed and examined.
2. Use proper care when handling this fan. Components such as fan holders or
bearings may be damaged, if touched with fingers or other objects. Additionally,
static electricity (ESD) may damage the internal circuits of the fan.
3. DO NOT operate this fan in proximity to hazardous materials such as organic
silicon, cyanogens, formalin, phenol, or corrosive gas environments including,
but not limited to, H2S, SO2, NO2, or Cl2.
4. SUNON recommends that you protect this fan from exposure to outside elements
such as dust, condensation, humidity or insects. Exposure of this fan to outside
elements such as dust, condensation, humidity or insects may affect its
performance and may cause safety hazards. SUNON does not warrant against
damage to the product caused by outside elements
建準電機工業股份有限
建準電機工業股份有限公司
建
準電機工業股份有限建準電機工業股份有限
SUNONWEALTH ELECTRIC
MACHINE INDUSTRY CO., LTD.
公司
公司公司
SPEC.NO D06022250G-00
ISSUE DATE 08. 12. 2005 E D I T I O N 0
P A G E 7 OF 9
REVISION DATE
Page 8
SUNON
94.10.06
No
tes
5
. This fan must be installed properly and securely. Improper mounting may
cause harsh resonance, vibration, and noise.
6. Fan guards may prevent injury during handling or installation of the fan and
are available for sale with this fan.
7. Unless otherwise noted, all testing of this fan is conducted at 25°C ambient
temperature and sixty-five percent (65%) relative humidity.
8. DO NOT store this fan in an environment with high humidity. This fan must be
stored in accordance with the attached specifications regarding storage
temperature. If this fan is stored for more than 6 months, SUNON recommends
functional testing before using.
9. SUNON reserves the right to use components from multiple sources at its
discretion. The use of components from other sources will not affect the
specfications as described herein.
10. The “Life Expectancy” of this fan has not been evaluated for use in combination
with any end application. Therefore, the Life Expectancy Test Reports (L10 and
MTTF Report) that relate to this fan are only for reference.
VI. WARRANTY
This fan is warranted against all defects which are proved to be fault in our
workmanship and material for one year from the date of our delivery. The sole
responsibility under the warranty shall be limited to the repair of the fan or the
replacement thereof, at SUNON’s sole discretion. SUNON will not be responsible
for the failures of its fans due to improper handing, misuse or the failure to follow
specifications or instructions for use. In the event of warranty claim, the customer
shall immediately notify SUNON for verification. SUNON will not be responsible
for any consequential damage to the customer’s equipment as a result of any fans
proven to be defective.
建準電機工業股份有限公司
建準電機工業股份有限公司
建
準電機工業股份有限公司建準電機工業股份有限公司
SUNONWEALTH ELECTRIC
MACHINE INDUSTRY CO., LTD.
SPEC.NO D06022250G-00
ISSUE DATE 08. 12. 2005 E D I T I O N 0
P A G E 8 OF 9
REVISION DATE
Page 9
SUNON
94.10.06
Declaration of RoHS
Co
ntrol declaration of environment-related substances/materials
1.In accordance with the Restriction of Hazardous Substances (RoHS) Directive,
Sunon product with P/N: GN models have complied with law and discipline not to
employ the forbidden substances, and restrict the allowable concentration of some
limited substances deliberately in our components.
No
1
1
11
CFCs & HCFCs (ozone depleting substances) Forbidden
2
2
22
Chlorinated Organic Solvent Forbidden
Substance Criteria
Plastic (Frame, Impeller, wire harness, etc.) <100ppm
Solder <1000p
pm
3
3
33
Lead and its compounds
4
4
44
Cadmium and its compounds
5
5
55
PBBs and PBDEs Forbidden
6
6
66
PCB and PCT Forbidden
7
7
77
CP, Short-chain Chlorinated paraffins C10-13, Cl ≥48 wt% Forbidden
8
8
88
Mirex Forbidden
9
9
99
PCN Forbidden
10
10
1
010
Hexavalent Chromium compouns <100p
11
11
1
111
Mercury and its compounds F
12
12
1
212
Asbestos F
13
13
1
313
Organic Tin compounds F
14
14
1
414
Azo compounds F
1
5
1
11555
TBBP-A in external case plastic parts of products (PCB is exempted) <1000ppm
Steel alloy <3500p
Aluminium alloy <4000p
Copper alloy <4wt%
Solder <20p
Parts composed of metals containing zinc
(
e.g. brass, zinc for die casting)
Plastic <5ppm
pm
pm
pm
<100ppm
pm
orbidden
orbidden
orbidden
orbidden
1
6
1
11666
Nickel in external case parts, which are likely to result in prolonged skin exposure <1000ppm
建準電機工業股份有限公司
建準電機工業股份有限公司
建
準電機工業股份有限公司建準電機工業股份有限公司
SUNONWEALTH ELECTRIC
MACHINE INDUSTRY CO., LTD.
SPEC.NO D06022250G-00
ISSUE DATE 08. 12. 2005 E D I T I O N 0
P A G E 9 OF 9
REVISION DATE
