SUNON MF60251V1-1 Datasheet

SUNON

2018.01.16

D.C.C.

SPECIFICATION FOR APPROVAL

CUSTOMER

MOTOR TYPE

DESCRIPTION

DIMENSIONS :

M O D E L

SUNON SPEC. NO.

CUSTOMER
APPROVAL NO.
APPROVED BY
CUSTOMER

:

:

:

MagLev Motor Fan

60X60X25 mm

: MF60251V1-1000U-A99

: D06077210G-02

:

:

(AUTHORIZED)

SPEC.NO D06077210G-02

ISSUE DATE 08.02.2017

DRAWN

建準電機工業股份有限公司

SUNONWEALTH ELECTRIC MACHINE INDUSTRY CO., LTD.

NO. 30, LN. 296, XINYA RD., QIANZHEN DIST.,

KAOHSIUNG

URL:http://www.suno

Yo-kung

01/09

CHECKED

CITY 80673, TAIWAN (R.O.C)

n.co

m

Cindy

APPROVED

準 電 機

建

SUNONWEALTH

Page 1 of 14

EDITION 1

Gavinlee

TEL:[phone]

FAX:[phone]

E-mail: [e-mail]

REVISION DATE

E.SPEC E11400136

01.09.2018

I. MODEL NUMBERING SYSTEM

2018.01.16

D.C.C.

MF

Series Code

60 25

1

Voltage

0: 5VDC
1: 12VDC
2: 24VDC
3: 36VDC
4: 48VDC

Thickness Size

V

1

Bearing

V: Vapo
B: 2 Ball
O: 1Ball
S: Sleeve

-

Speed

X:Super High
1: High
2: Medium
3: Low
4: Extra Low

1000U

-

Customer Code

A99

Function Code

(mm)

編碼

01~09 01~09 A0~A9 100~109 K0~K9 200~209 V0~V9 300~309
10~19 10~19 B0~B9 110~119 L0~L9 210~219 W0~W9 310~319
20~29 20~29 C0~C9 120~129 M0~M9 220~229 X0~X9 320~329
30~39 30~39 D0~D9 130~139 N0~N9 230~239 Y0~Y9 330~339
40~49 40~49 E0~E9 140~149 P0~P9 240~249 Z0~Z9 340~349
50~59 50~59 F0~F9 150~159 Q0~Q9 250~259
60~69 60~69 G0~G9 160~169 R0~R9 260~269
70~79 70~79 H0~H9 170~179 S0~S9 270~279
80~89 80~89 I0~I9 180~189 T0~T9 280~289
90~99 90~99 J0~J9 190~199 U0~U9 290~299

尺寸

編碼

尺寸

(mm)

編碼

尺寸

(mm)

編碼

尺寸

(mm)

建 準 電 機

SUNONWEALTH

Page 2 of 14

II. SPECIFICATION

2018.01.16

D.C.C.

1. MECHANICAL CHARACTERISTIC

MOTOR DESIGN

BEARING SYSTEM

DIMENSIONS

MATERIALS OF FRAME

MATERIALS OF FAN BLADE

DIRECTION OF ROTATION

MOUNTING HOLES

WEIGHT

Single phase, 4-poles Brushless DC motor

Precise Vapo bearing system

See Page 6

Thermoplastic PBT of UL 94V-0

Thermoplastic PBT of UL 94V-0

Counter-clockwise viewed from front of fan blade

Diameter 4.3 mm in 8 holes

45 g

2. ELECTRIC CHARACTERISTIC

RATED VOLTAGE

RATED CURRENT

RATED POWER CONSUMPTION

SAFETY POWER CONSUMPTION

OPERATING VOLTAGE RANGE

STARTING VOLTAGE

OPERATING TEMPERATURE RANGE

STORAGE TEMPERATURE RANGE

12 VDC

75 mA / Max. 87 mA

0.90 WATTS / Max. 1.05 WATTS

0.96 WATTS

4.5~13.8 VDC

4.5 VDC (25 deg. C POWER ON/OFF)

-10 to + 70 deg. C

-40 to + 70 deg. C

建 準 電 機

SUNONWEALTH

Page 3 of 14

3. PERFORMANCE CHARACTERISTIC

2018.01.16

D.C.C.

RATED SPEED 4500 RPM ± 15% at rated voltage

AIR FLOW

STATIC PRESSURE

ACOUSTIC NOISE

AIR FLOW V.S. PRESSURE See Page 5

INSULATION CLASS UL Class A

INSULATION RESISTANCE

PLASTIC HOUSING

DIELECTRIC STRENGTH Applied AC 500 V for one minute or AC 600 V for 2

LIFE EXPECTANCY 70,000 hours at 40 deg. C, 65% humidity, 90% CL.

PROTECTION

23.5 CFM

0.21 Inch-H2O

27.0 dB(A)

10M ohm at 500 VDC between internal stator and
Lead wire (+)

Seconds between housing and lead wire (+)

Automatic Restart

Note: In a situation where the fan is locked by an external
force while the electricity is on, an increase in coil
temperature will be prevented by temporarily turning off the
electrical power to the motor. The fan will automatically
restart when the locked rotor condition is released.

Polarity Protection

4. SAFETY

SAFETY UL CUR TUV CE

NO. E77551 E77551

 

建 準 電 機

SUNONWEALTH

Page 4 of 14

MODEL : MF60251V1-1000U-A99

2018.01.16

D.C.C.

O)

2

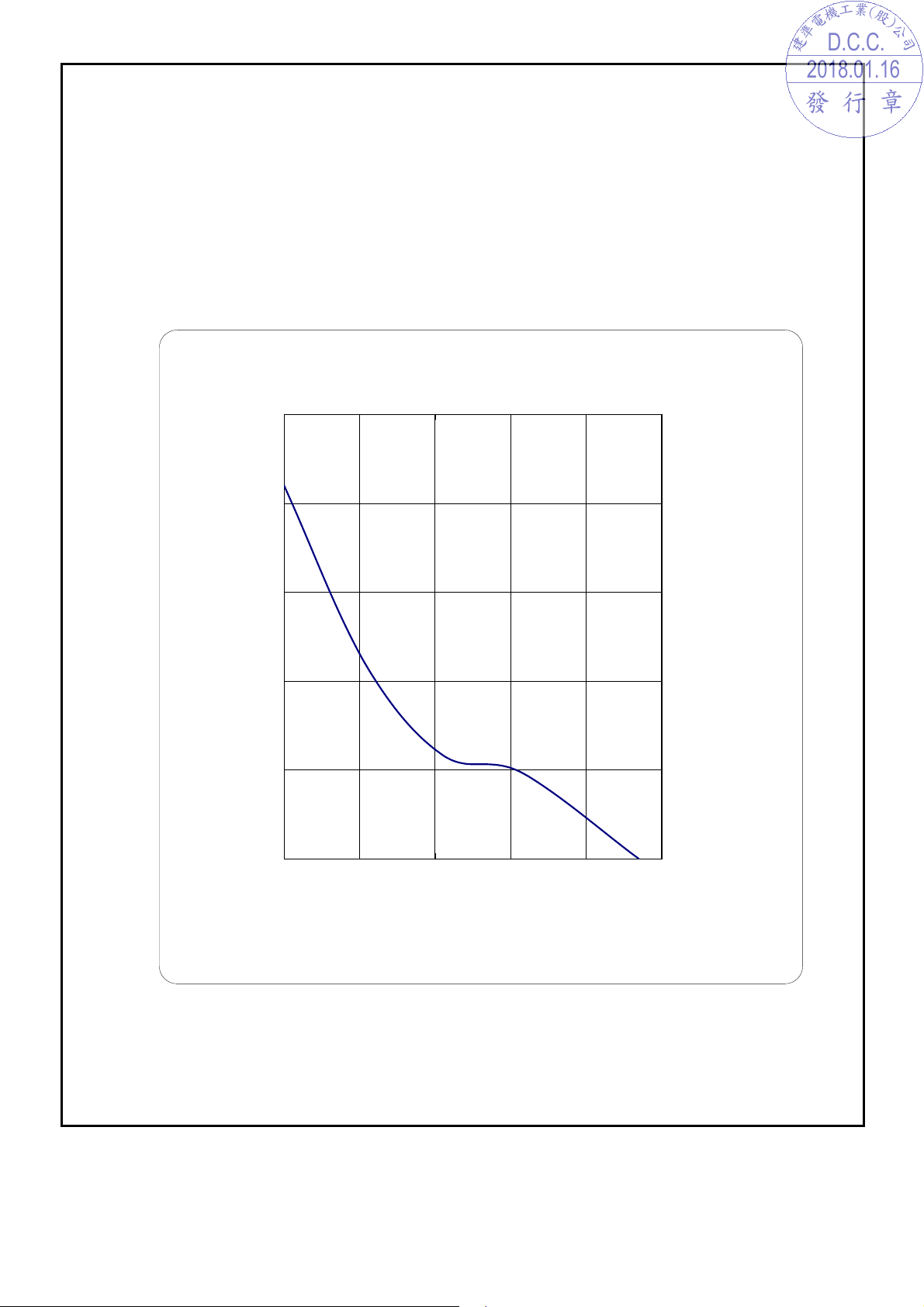

PERFORMANCE CURVES

0 0.15 0.3 0.45 0.6 0.75

0.25

0.2

0.15

0.1

m3/min

6.5

5.2

3.9

2.6

O

2

mm-H

Static Pressure (Inch-H

0.05

0

0 5 10 15 20 25

Air Flow-CFM

建 準 電 機

SUNONWEALTH

Page 5 of 14

1.3

0

DIMENSIONS

2018.01.16

D.C.C.

Screw Type

(Pan head)

Machine screw

Self-tapping screw

Note: SUNON recommends the screw and torque as above. Please contact SUNON, if any

new requirement is requested.

Torque

3～4 Kgf-cm

5～6 Kgf-cm ∮5.0

Size Standard

M4.0 JIS B1111-1974

Screw Spec

JIS B1122 Type 2

UNIT：mm

建 準 電 機

SUNONWEALTH

Page 6 of 14

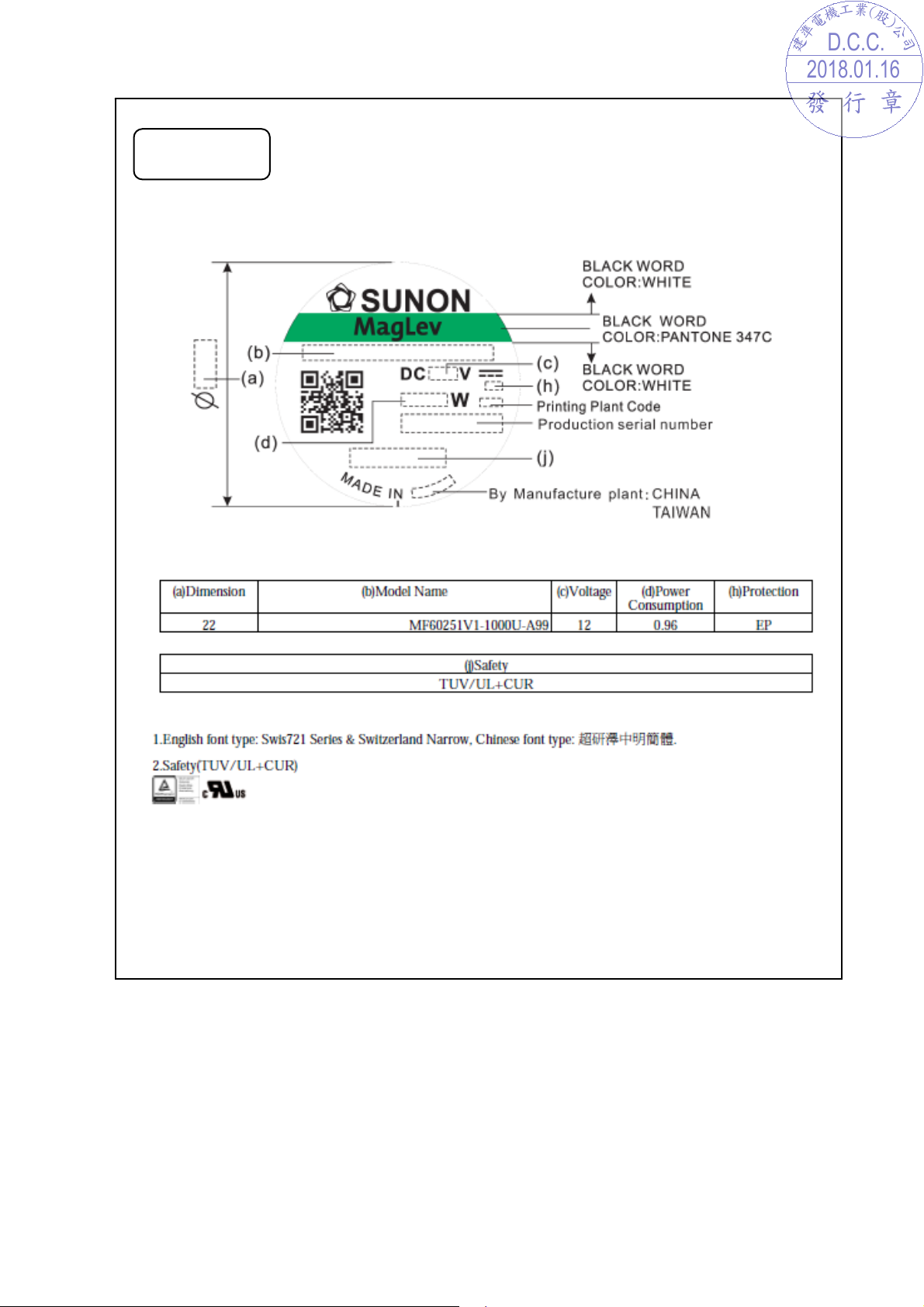

LABEL

2018.01.16

D.C.C.

建 準 電 機

SUNONWEALTH

Page 7 of 14

III. OTHER SPECIFIED TESTING

2018.01.16

D.C.C.

The following is a general description of certain tests that are performed on
representative SUNON fans. Nothing in this document is intended to suggest that these
tests are performed on every model of SUNON fan. Moreover, the descriptions that
follow each test are meant only to provide a general explanation of each test. If you
would like a more detailed explanation as to any test identified in this Section, SUNON
can provide such an explanation upon request.

1. DROP PROOF TEST

Fans are packaged in a standard size shipping box and are dropped to the ground from
certain heights and angles depending on the weight of the particular box.

2. HUMIDITY PROOF TEST

The fan is operated for 96 continuous hours in an environment with humidity of 90% to
95% RH at 60°C  2°C.

3. VIBRATION PROOF TEST

Vibration with an amplitude 2mm and a frequency of 5-55-5hz is applied in all 3
directions (X,Y,Z), in cycles of 1 hour each, for a total vibration time of 3hours.

4. THERMAL CYCLING TEST

The fan is operated in a testing chamber for 50 cycles. In each cycle, the temperature is
gradually increased from -10°C to 70°C for 90 minutes, and subsequently operated at
70°C for 120 minutes. The temperature is then gradually decreased from 70°C to -10°C
for 90 minutes, and subsequently operated at -10°C for 120 minutes.

5. SHOCK PROOF TEST

100G of force is applied in the 3 directions (X,Y, and Z) for 2 milliseconds each.

6. LIFE EXPECTANCY

The “Life Expectancy” of SUNON fans is determined in SUNON’s reliability test
laboratory by using temperature chambers. The “Life Expectancy” of this fan has not
been evaluated for use in combination with any end application. Therefore, the Life
Expectancy Test Reports (L10 and MTTF Report) that relate to this fan are only for
reference.

建 準 電 機

SUNONWEALTH

Page 8 of 14

IV. CHARACTERISTIC DEFINITION

2018.01.16

D.C.C.

The following is a general description of certain tests that are performed on
representative SUNON fans in order to determine the specifications of the fan. Nothing
in this document is intended to suggest that these tests are performed on every model of
SUNON fan. Moreover, the descriptions that follow each test are meant only to provide
a general explanation of each test. If you would like a more detailed explanation as to
any test identified in this Section, SUNON can provide such an explanation upon
request.

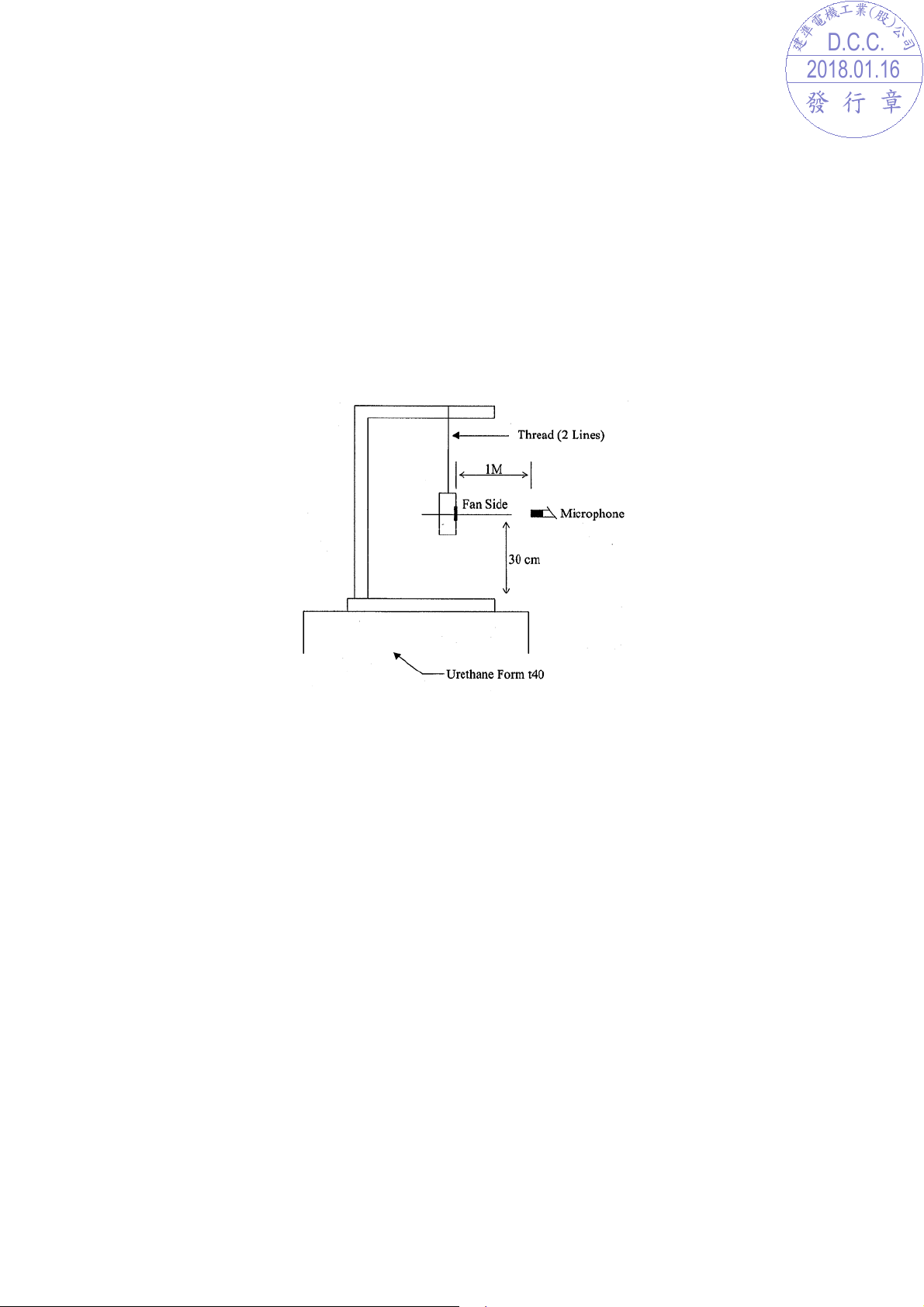

1. ACOUSTICAL NOISE

Measured in a semi-anechoic chamber with background noise level below 15dB(A).

1 METER FROM MICROPHONE TO FAN INTAKE

The fan is running in free air under shaft horizontal condition with the microphone at
distance of one meter from the fan intake.

2. INPUT POWER

Measured after continuous 10 minute operation at rated voltage in clean air
( STATIC PRESSURE=0), and at ambient temperature of 25 degrees C under shaft
horizontal condition.

3. RATED CURRENT

Measured after continuous 10 minute operation at rated voltage in clean air
( STATIC PRESSURE=0), and at ambient temperature of 25 degrees C under shaft
horizontal condition.

建 準 電 機

SUNONWEALTH

Page 9 of 14

4. RATED SPEED

2018.01.16

D.C.C.

Measured after continuous 10 minute operation at rated voltage in clean air
( STATIC PRESSURE=0), and at ambient temperature of 25 degrees C under shaft
horizontal condition.

5. STARTING VOLTAGE

Measured the voltage which enables to start the fan in the clean air (static pressure = 0 )
by switching on at the voltage under shaft horizontal condition. It is not at continuously
increasing voltage adjustment.

6. LOCKED ROTOR CURRENT

Measured immediately after the fan blade is locked.

7. AIR FLOW AND STATIC PRESSURE

The performance specification of air flow and static pressure shown in this specification for
approval is measured using the exhaust method. A double chamber is used in accordance
with AMCA 210 standard or DIN 24163 specification . The values are recorded when the
fan speed has stabilized at rated voltage.

8. INSULATION RESISTANCE

1. PLASTIC HOUSING:
(1) Measured between internal stator and lead wire(+).
(2) Measured between housing and lead wire(+).

2. ALUMINIUM HOUSING:
Measured between internal stator and lead wire(+).

9. DIELECTRIC STRENGTH

Measure between housing and lead wire(+).

建 準 電 機

SUNONWEALTH

Page 10 of 14

V. NOTE

2018.01.16

D.C.C.

Ⅰ

.SAFETY

1. DO NOT use or operate this fan in excess of the limitations set forth in this
specification. SUNON is not responsible for the non-performance of this fan and/or
any damages resulting from its use, if it is not used or operated in accordance with
the specifications.

2. SUNON recommends adding a protection circuit to the product or application in
which this fan is installed, such as a thermo-fuse, or current-fuse or thermo-protector.
The failure to use such a device may result in smoke, fire, electric shock by
insulation degradation in cases of motor lead short circuit, overload, or over voltage,
and/or other failure.

3. SUNON recommends installing a protection device to the product or application in
which this fan is installed if there is a possibility of reverse-connection between
VDC (+) and GND (-). The failure to install such a device may result in smoke, fire,
and/or destruction, although these conditions may not manifest immediately.

4. This fan must be installed and used in compliance with all applicable safety
standards and regulations.

5. Use proper care when handling and/or installing this fan. Improper handling or
installation of this fan may cause damage that could result in unsafe conditions.

6. Use proper care during installation and/or wiring. Failure to use proper care may
cause damage to certain components of the fan including, but not limited to, the coil
and lead wires, which could result in smoke and/or fire.

7. DO NOT use power or ground PWM to control the fan speed. If the fan speed needs
to be adjusted, please contact SUNON to customize the product design for your
application.

8. For critical or extreme environments, including non stop operation, please contact
SUNON and we will gladly provide assistance with your product selection to ensure
an appropriate cooling product for your application.

建 準 電 機

SUNONWEALTH

Page 11 of 14

II. SPECIFICATION MODIFICATION

2018.01.16

D.C.C.

1. SUNON offers engineering assistance on fan installation and cooling system design.

2. All changes, modifications and/or revisions to the specifications, if any, are
incorporated in the attached specifications.

3. No changes, modifications and/or revisions to these specifications are effective
absent agreement, by both SUNON and the customer, in writing.

4. This fan will be shipped in accordance with the attached specification unless
SUNON and the customer have agreed otherwise, in writing, as specified in
Paragraph 3, above.

III. OTHER

1. When building your device, please examine thoroughly any variation of EMC,
temperature rise, life data, quality, etc. of this product by shock/drop/vibration
testing, etc. If there are any problems or accidents in connection with this product, it
should be mutually discussed and examined.

2. Use proper care when handling this fan. Components such as fan holders or bearings
may be damaged, if touched with fingers or other objects. Additionally, static
electricity (ESD) may damage the internal circuits of the fan.

3. DO NOT operate this fan in proximity to hazardous materials such as

organic silicon,
cyanogens, formalin, phenol, or corrosive gas environments including, but not
limited to, H2S, SO2, NO2, or Cl2.

4. SUNON recommends that you protect this fan from exposure to outside elements
such as dust, condensation, humidity or insects. Exposure of this fan to outside
elements such as dust, condensation, humidity or insects may affect its performance
and may cause safety hazards. SUNON does not warrant against damage to the
product caused by outside elements.

5. This fan must be installed properly and securely. Improper mounting may cause
harsh resonance, vibration, and noise.

建 準 電 機

SUNONWEALTH

Page 12 of 14

6. Fan guards may prevent injury during handling or installation of the fan and are

2018.01.16

D.C.C.

available for sale with this fan.

7. Unless otherwise noted, all testing of this fan is conducted at 25°C ambient
temperature and sixty-five percent (65%) relative humidity.

8. DO NOT store this fan in an environment with high humidity. This fan must be
stored in accordance with the attached specifications regarding storage temperature.
If this fan is stored for more than 6 months, SUNON recommends functional testing
before using.

9. SUNON reserves the right to use components from multiple sources at its discretion.
The use of components from other sources will not affect the specifications as
described herein.

10. The “Life Expectancy” of this fan has not been evaluated for use in combination
with any end application. Therefore, the Life Expectancy Test Reports (L10 and
MTTF Report) that relate to this fan are only for reference.

VI. WARRANTY

This fan is warranted against all defects which are proved to be fault in our
workmanship and material for one year from the date of our delivery. The sole
responsibility under the warranty shall be limited to the repair of the fan or the
replacement thereof, at SUNON’s sole discretion. SUNON will not be responsible for
the failures of its fans due to improper handing, misuse or the failure to follow
specifications or instructions for use. In the event of warranty claim, the customer shall
immediately notify SUNON for verification. SUNON will not be responsible for any
consequential damage to the customer’s equipment as a result of any fans proven to be
defective.

建 準 電 機

SUNONWEALTH

Page 13 of 14

Declaration of RoHS

2018.01.16

D.C.C.

Control declaration of environment-related substances/materials

1. In accordance with the Restriction of Hazardous Substances (RoHS) Directive
2011/65/EU, SUNON product have complied w
the forbidden substances, and restrict the
substances deliberately in our components.

No Substance Criteria

1 CFCs & HCFCs (ozone depleting substances) Forbidden

2 Chlorinated Organic Solvent Forbidden

Plastic (Frame, Impeller, wire harness, etc.) <100ppm

Solder <1000ppm

ith law

allowa

and discipline not to employ

ble concentration of some limited

3 Lead and its compounds

4 Cadmium and its compounds

5 PBBs and PBDEs Forbidden

6 PCB and PCT Forbidden

7 CP, Short-chain Chlorinated paraffins C10-13, Cl ≥48 wt% Forbidden

8 Mirex Forbidden

9 PCN Forbidden

10 Hexavalent Chromium compounds <100ppm

11 Mercury and its compounds Forbidden

12 Asbestos Forbidden

13 Organic Tin compounds Forbidden

Steel alloy <3500ppm

Aluminium alloy <4000ppm

Copper alloy <4wt%

Solder <20ppm

Parts composed of metals containing zinc
(e.g. brass, zinc for die casting)

Plastic <5ppm

<100ppm

14 Azo compounds Forbidden

15 TBBP-A in external case plastic parts of products (PCB is exempted) <1000ppm

16

17 Hexabromocyclododecane (HBCDD) <1000ppm

18 Di-butyl Phthalate (DBP) <1000ppm

19 Benzyl butyl Phthalate (BBP) <1000ppm

20 Di-ethylhexyl Phthalate (DEHP) <1000ppm

21 Di-isobutyl Phthalate (DIBP) <1000ppm

Nickel in external case parts, which are likely to result in prolonged skin exposure

建 準 電 機

SUNONWEALTH

Page 14 of 14

<1000ppm
