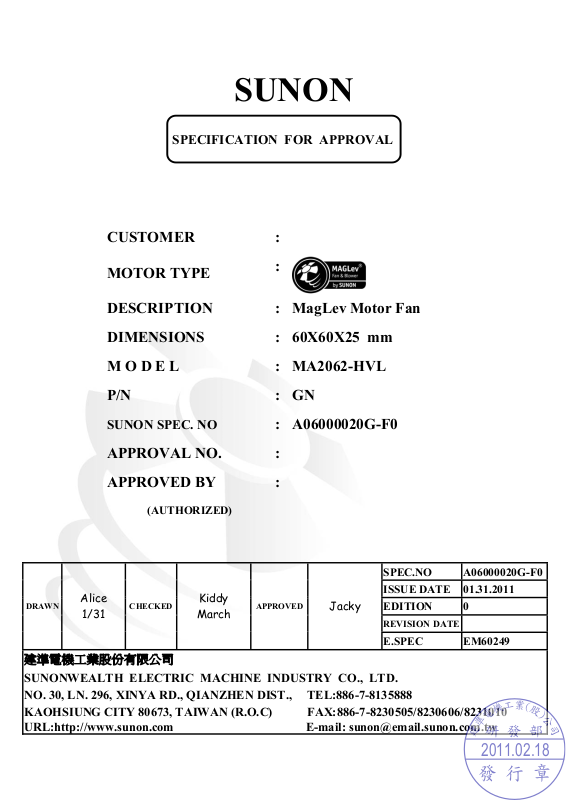

SUNON MA2062-HVL Specification

2011.02.18

CUSTOMER :

MOTOR TYPE

DESCRIPTION : MagLev Motor Fan

DIMENSIONS :

M O D E L : MA2062-HVL

SUNON

SPECIFICATION FOR APPROVAL

:

60X60X25 mm

P/N : GN

SUNON SPEC. NO

APPROVAL NO. :

APPROVED BY :

(AUTHORIZED)

DRAWN

建準電機工業股份有限公司

Alice

1/31

CHECKED

Kiddy

March

: A06000020G-F0

APPROVED

Jacky

SPEC.NO A06000020G-F0

ISSUE DATE 01.31.2011

EDITION 0

REVISION DATE

E.SPEC EM60249

SUNONWEALTH ELECTRIC MACHINE INDUSTRY CO., LTD.

NO. 30, LN. 296, XINYA RD., QIANZHEN DIST., TEL:[phone]

KAOHSIUNG CITY 80673, TAIWAN (R.O.C)
URL:http://www.sunon.com

FAX:[phone]

E-mail: [e-mail]

SUNON

2011.02.18

AXIAL AC FAN

MODEL : MA2062-HVL

: GN

CHARACTERISTICS

P/N

1. Motor Design : 2 phases, 4-poles Brushless DC motor.

2. Insulation Resistance

3. Dielectric Strength

4. Motor Protection

5. Noise Level

10Megohms mininmum at 500 VDC.

:

:

1500 VAC for one second.

:

Impedance protected.

:

Measured in a semi-anechoic chamber with

background noise level below 15 dB(A) . The fan

6.Tolerance

7. Air Performance

建準電機工業股份有限公司

SUNONWEALTH ELECTRIC
MACHINE INDUSTRY CO., LTD.

is running in free air with the microphone at a

distance of one meter from the fan intake.

:

15% on rated power and current.

±

:

Measured by a double chamber. The values are

recorded when the fan speed has stabilized at rated

voltage.

SPEC.NO A06000020G-F0 REVISION DATE

ISSUE DATE 01. 31. 2011 E D I T I O N 0

P A G E 2 OF 9

SUNON

2011.02.18

SPECIFICATIONS

MODEL:

P/N : GN

MA2062-HVL

1-1. Rated Voltage : 220-240 VAC 50 HZ 220-240 VAC 60 HZ

1-2. Operating Voltage Range : 150~250 VAC

1-3. Starting Voltage : 150 VAC (25 deg. C POWER ON/OFF)

1-4. Rated Speed : 4100 RPM ± 20% 4200 RPM ± 20%

1-5. Air Delivery : 17.5 CFM 18 CFM

1-6. Static Pressure : 0.19 Inch-H2O 0.20 Inch-H2O

1-7. Rated Current : 198 mA 211 mA

1-8. Input Power : 4.1 WATTS 4.4 WATTS

1-9. Noise Level : 30 dB(A) 31 dB(A)

1-10. Direction of Rotation : Counter-clockwis viewed from front of fan blade

1-11. Operating Temperature : -10 to +70 deg. C

1-12. Storage Temperature : -40 to +70 deg. C

1-13. Bearing System : Vapo bearing system

1-14. Weight : 81 g

1-15. Safety : UL/CUR/TUV/CE Approvals

1-16. Protection :Automatic Restart Capability

Note: In a situation where the fan is locked by an external force while the
electricity is on, an increase in coil temperature will be prevented by
temporarily turning off the electrical power to the motor. The fan will
automatically restart when the locked rotor condition is released.

Polarity Protection



建準電機工業股份有限公司

SUNONWEALTH ELECTRIC
MACHINE INDUSTRY CO., LTD.

SPEC.NO A06000020G-F0 REVISION DATE

ISSUE DATE 01. 31. 2011 E D I T I O N 0

P A G E 3 OF 9

SUNON

2011.02.18

MODEL : MA2062-HVL

P/N

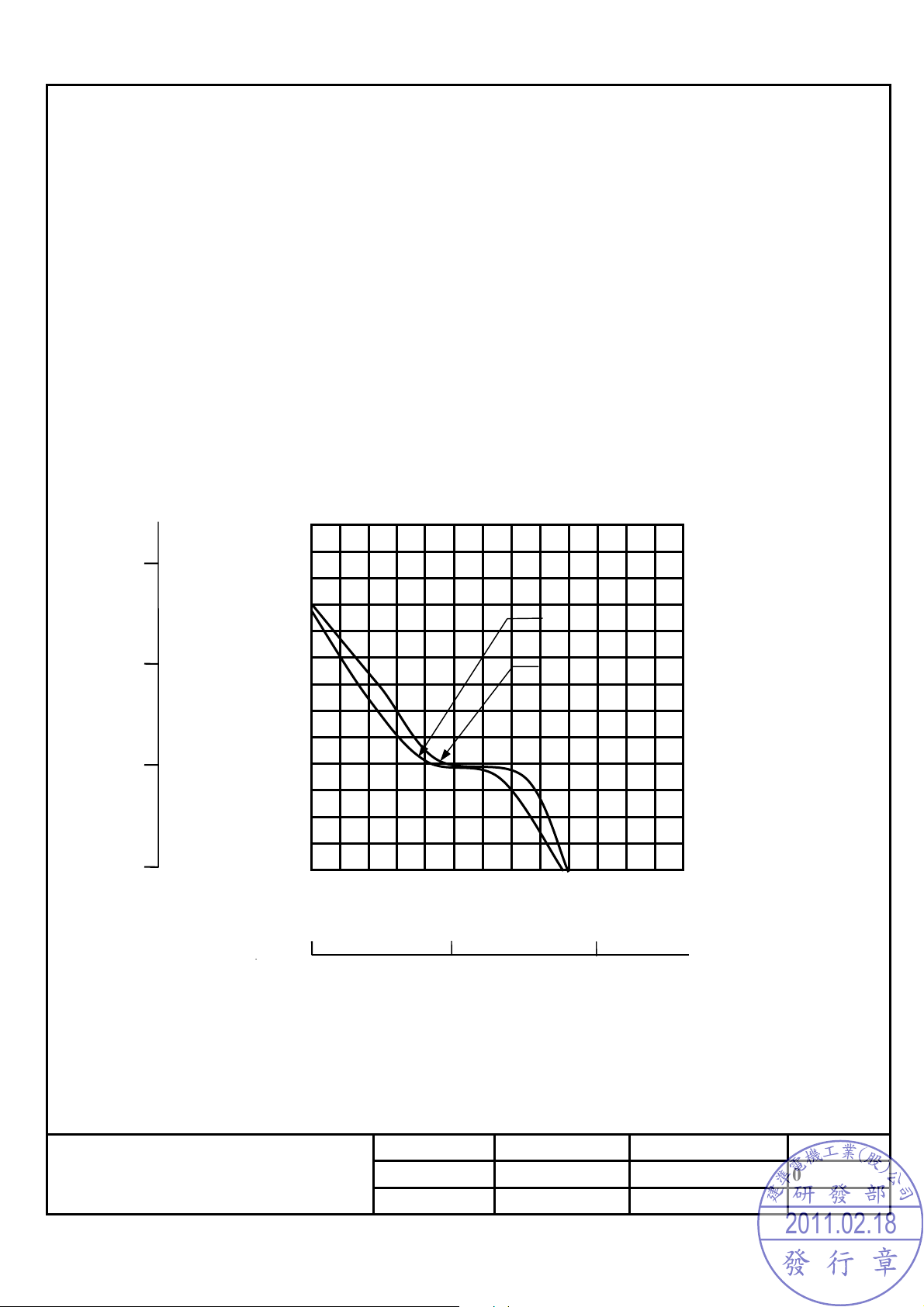

PERFORMANCE CURVES

STATIC
PRESSURE

mm-H2O Inch-H2O

6

4

2

0.20

0.10

: GN

50 HZ

60 HZ

0

0 10 20

0 0.28 0.57

建準電機工業股份有限公司

SUNONWEALTH ELECTRIC
MACHINE INDUSTRY CO., LTD.

CFM

SPEC.NO A06000020G-F0 REVISION DATE

ISSUE DATE 01. 31. 2011 E D I T I O N 0

P A G E 4 OF 9

m3/min

SUNON

2011.02.18

MATERIAL

2. Material

2-1. Frame : Thermoplastic PBT of UL 94V-0

2-2. Impeller : Thermoplastic PBT of UL 94V-0

2-3. Lead Wire : UL3266, 24 awg, GRAY

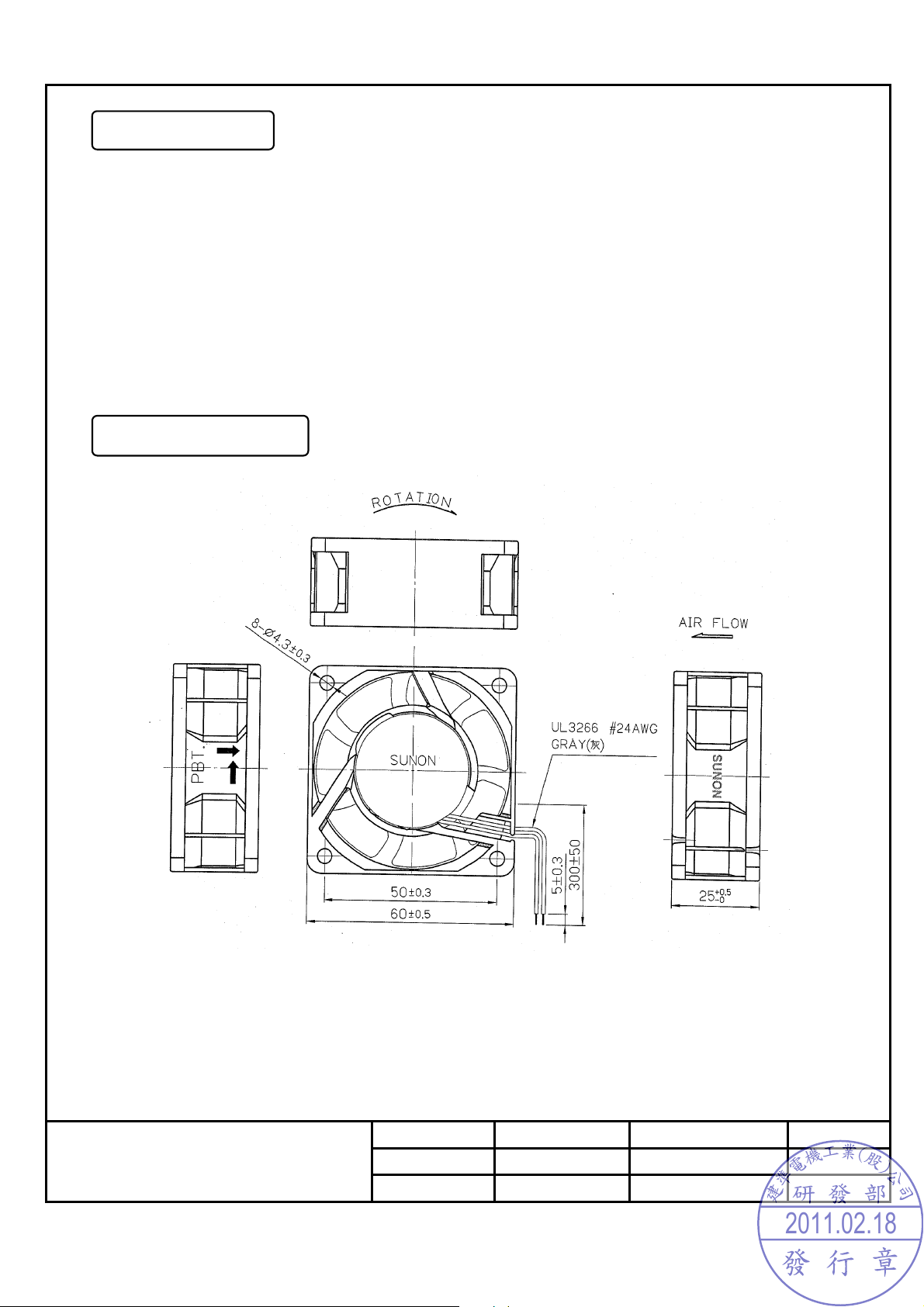

DIMENSIONS

1. Air Flow Direction: Label side.

2. Best Mounting Direction: Any orientation.

建準電機工業股份有限公司

SUNONWEALTH ELECTRIC
MACHINE INDUSTRY CO., LTD.

UNITS：mm

SPEC.NO A06000020G-F0 REVISION DATE

ISSUE DATE 01. 31. 2011 E D I T I O N 0

P A G E 5 OF 9

SUNON

.

2011.02.18

Notes

Ⅰ.

SAFETY

1. DO NOT use or operate this fan in excess of the limitations set forth in this
specification. SUNON is not be responsible for the non-performance of this fan
and/or any damages resulting from its use, if it is not used or operated in
accordance with the specifications.

2. SUNON recommends adding a protection circuit to the product or application
in which this fan is installed, such as a thermo-fuse, or current-fuse or thermo­protector. The failure to use such a device may result in smoke, fire, electric
shock by insulation degradation in cases of motor lock, motor lead short
circuit, overload, or over voltage, and/or other failure.

3. SUNON recommends installing a protection device to the product or
application in which this fan is installed if there is a possibility of reverse­connection between VDC (+) and GND (-). The failure to install such a device
may result in smoke, fire, and/or destruction, although these conditions may
not manifest immediately.

4. This fan must be installed and used in compliance with all applicable safety
standards and regulations.

5. Use proper care when handling and/or installing this fan. Improper handling
or installation of this fan may cause damage that could result in unsafe
conditions.

6. Use proper care during installation and/or wiring. Failure to use proper care
may cause damage to certain components of the fan including, but not limited
to, the coil and lead wires, which could result in smoke and/or fire.

7. DO NOT use power or ground PWM to control the fan speed. If the fan speed
needs to be adjusted, please contact Sunon to customize the product design for
your application.

8. For critical or extreme environments, including non stop operation, please contact
Sunon and we will gladly provide assistance with your product selection to ensure
an appropriate cooling product for your application.

建準電機工業股份有限公司

SUNONWEALTH ELECTRIC
MACHINE INDUSTRY CO., LTD

SPEC.NO A06000020G-F0 REVISION DATE

ISSUE DATE 01. 31. 2011 E D I T I O N 0

P A G E 6 OF 9

SUNON

2011.02.18

Notes

II. SPECIFICATION MODIFICATION

1. SUNON offers engineering assistance on fan installation and cooling system design.

2. All changes, modifications and/or revisions to the specifications, if any, are
incorporated in the attached specifications.

3. No changes, modifications and/or revisions to these specifications are effective
absent agreement, by both Sunon and the customer, in writing.

4. This fan will be shipped in accordance with the attached specification unless
SUNON and the customer have agreed otherwise, in writing, as specficied in
Paragraph 3, above.

III. OTHER

1. When building your device, please examine thoroughly any variation of EMC,
temperature rise, life data, quality, etc. of this product by shock/drop/vibration
testing, etc. If there are any problems or accidents in connection with this
product, it should be mutually discussed and examined.

2. Use proper care when handling this fan. Components such as fan holders or
bearings may be damaged, if touched with fingers or other objects. Additionally,
static electricity (ESD) may damage the internal circuits of the fan.

3. DO NOT operate this fan in proximity to hazardous materials such as organic
silicon, cyanogens, formalin, phenol, or corrosive gas environments including, but
not limited to, H

4. SUNON recommends that you protect this fan from exposure to outside elements
such as dust, condensation, humidity or insects. Exposure of this fan to outside
elements such as dust, condensation, humidity or insects may affect its
performance and may cause safety hazards. SUNON does not warrant against
damage to the product caused by outside elements.

S, SO2, NO2, or Cl2.

2

建準電機工業股份有限公司

SUNONWEALTH ELECTRIC
MACHINE INDUSTRY CO., LTD.

SPEC.NO A06000020G-F0 REVISION DATE

ISSUE DATE 01. 31. 2011 E D I T I O N 0

P A G E 7 OF 9

SUNON

.

2011.02.18

Notes

5. This fan must be installed properly and securely. Improper mounting may cause
harsh resonance, vibration, and noise.

6. Fan guards may prevent injury during handling or installation of the fan and are
available for sale with this fan.

7. Unless otherwise noted, all testing of this fan is conducted at 25°C ambient
temperature and sixty-five percent (65%) relative humidity.

8. DO NOT store this fan in an environment with high humidity. This fan must be
stored in accordance with the attached specifications regarding storage
temperature. If this fan is stored for more than 6 months, SUNON recommends
functional testing before using.

9. SUNON reserves the right to use components from multiple sources at its
discretion. The use of components from other sources will not affect the
specfications as described herein.

10. The “Life Expectancy” of this fan has not been evaluated for use in combination
with any end application. Therefore, the Life Expectancy Test Reports (L10 and
MTTF Report) that relate to this fan are only for reference.

VI. WARRANTY

This fan is warranted against all defects which are proved to be fault in our
workmanship and material for one year from the date of our delivery. The sole
responsibility under the warranty shall be limited to the repair of the fan or the
replacement thereof, at SUNON’s sole discretion. SUNON will not be responsible for
the failures of its fans due to improper handing, misuse or the failure to follow
specifications or instructions for use. In the event of warranty claim, the customer
shall immediately notify SUNON for verification. SUNON will not be responsible for
any consequential damage to the customer’s equipment as a result of any fans
proven to be defective.

建準電機工業股份有限公司

SUNONWEALTH ELECTRIC
MACHINE INDUSTRY CO., LTD

SPEC.NO A06000020G-F0 REVISION DATE

ISSUE DATE 01. 31. 2011 E D I T I O N 0

P A G E 8 OF 9

SUNON

.

2011.02.18

Declaration of RoHS

Control declaration of environment-related substances/materials

1. In accordance with the Restriction of Hazardous Substances (RoHS) Directive,
Sunon product with P/N: GN models have complied with law and discipline not to
employ the forbidden substances, and restrict the allowable concentration of some
limited substances deliberately in our components.

No Substance Criteria

1

CFCs & HCFCs (ozone depleting substances) Forbidden

2

Chlorinated Organic Solvent Forbidden

Plastic (Frame, Impeller, wire harness, etc.) <100ppm

Solder <1000ppm

3

Lead and its compounds

4

Cadmium and its compounds

5

PBBs and PBDEs Forbidden

6

PCB and PCT Forbidden

7

CP, Short-chain Chlorinated paraffins C10-13, Cl ≥48 wt% Forbidden

8

Mirex Forbidden

9

PCN Forbidden

10

Hexavalent Chromium compounds <100ppm

11

Mercury and its compounds Forbidden

12

Asbestos Forbidden

13

Organic Tin compounds Forbidden

14

Azo compounds Forbidden

15

TBBP-A in external case plastic parts of products (PCB is exempted) <1000ppm

Steel alloy <3500ppm

Aluminium alloy <4000ppm

Copper alloy <4wt%

Solder <20ppm

Parts composed of metals containing zinc
(e.g. brass, zinc for die casting)

Plastic <5ppm

<100ppm

16

Nickel in external case parts, which are likely to result in prolonged skin exposure <1000ppm
