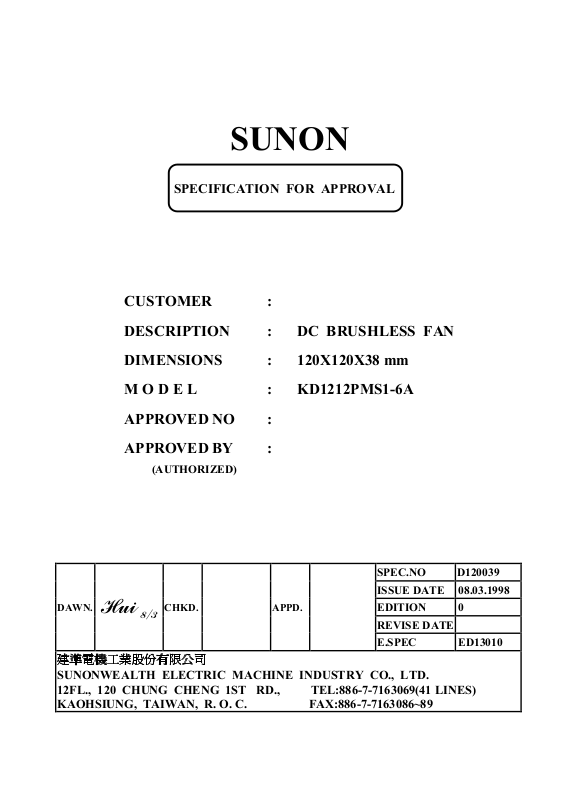

SUNON KD1212PMS1-6A Specification

SUNON

SPECIFICATION FOR APPROVAL

CUSTOMER :

DESCRIPTION : DC BRUSHLESS FAN

DIMENSIONS : 120X120X38 mm

M O D E L : KD1212PMS1-6A

APPROVED NO :

APPROVED BY :

(AUTHORIZED)

SPEC.NO D120039

ISSUE DATE 08.03.1998

DAWN.

建準電機工業股份有限公司

建準電機工業股份有限公司

建準電機工業股份有限公司建準電機工業股份有限公司

SUNONWEALTH ELECTRIC MACHINE INDUSTRY CO., LTD.
12FL., 120 CHUNG CHENG 1ST RD., TEL:[phone](41 LINES)
KAOHSIUNG, TAIWAN, R. O. C.

Hui

CHKD. APPD.

8/3

EDITION 0

REVISE DATE

E.SPEC ED13010

FAX:[phone]~89

SUNON

DC BRUSHLESS FAN

MODEL: KD1212PMS1-6A

CHARACTERISTICS

1. Motor Design : Patented single-coil DC brushless 6 poles motor

design.

2. Insulation Resistance : More than 500M ohm between internal stator and

lead wire(+) measured by DC 500V.

3. Dielectric Strength : Applied AC 500V for one minute or AC 600V for

2 seconds between housing and lead wire(+)

4. Noise Level : Measured in an semi-anechoic chamber

with background noise level below 15

dB(A). The fan is running in free air with

microphone at a distance of one meter

from the fan intake.

5. Input power, Current & Speed : Measured after continuous 30 minutes

operation at rated voltage in clean air

at ambient temperature of 25 degrees C.

6. Tolerances : ±15% on rated power and current.

7. Motor Protection : Polarity protected & Locked rotor protected.

8. Air Performance : Measured by a double chamber. The value

are recorded when the fan speed is stabilized

at rated voltage.

建準電機工業股份有限公司

建準電機工業股份有限公司

建準電機工業股份有限公司建準電機工業股份有限公司

SUNONWEALTH ELECTRIC
MACHINE INDUSTRY CO., LTD.

SPEC.NO D120039 REVISE DATE

ISSUE DATE 08. 03. 1998 E D I T I O N 0

P A G E 2 OF 6

SPECIFICATIONS

MODEL: KD1212PMS1-6A

1-1. Rated Voltage : 12 VDC

1-2. Operating Voltage Range : 10.2-13.8 VDC

1-3. Starting Voltage : 8 VDC

1-4. Rated Speed : 3000 RPM ± 250 RPM

1-5. Air Delivery : 107 CFM

1-6. Static Pressure : 0.30 Inch-H2O

SUNON

1-7. Rated Current : 0.57 AMP

1-8. Rated Power : 6.8 WATTS

1-9. Noise Level : 41 dB(A)

1-10. Direction of Rotation : Counter-clockwise viewed front fan blade

1-11. Operating Temperature : -10 to +70 Deg.C

1-12. Storage Temperature : -40 to +70 Deg.C

1-13. Bearing System : Lubricated sleeve bearing system

1-14. Weight : 323g

1-15. Safety : UL/CUR/TUV Approvals

1-16. Vibration : Vibration of acceleration 1.5G and

Frequency 5~50~5Hz is applied in the
3 directions(X,Y,Z) for 30 minutes, each
Direction at the cycle of 1 minute.

1-17. Locked Rotor Protection : Automatic Restart Capability

建準電機工業股份有限公司

建準電機工業股份有限公司

建準電機工業股份有限公司建準電機工業股份有限公司

SUNONWEALTH ELECTRIC
MACHINE INDUSTRY CO., LTD.

SPEC.NO D120039 REVISE DATE

ISSUE DATE 08. 03. 1998 E D I T I O N 0

P A G E 3 OF 6

MODEL : KD1212PMS1-6A

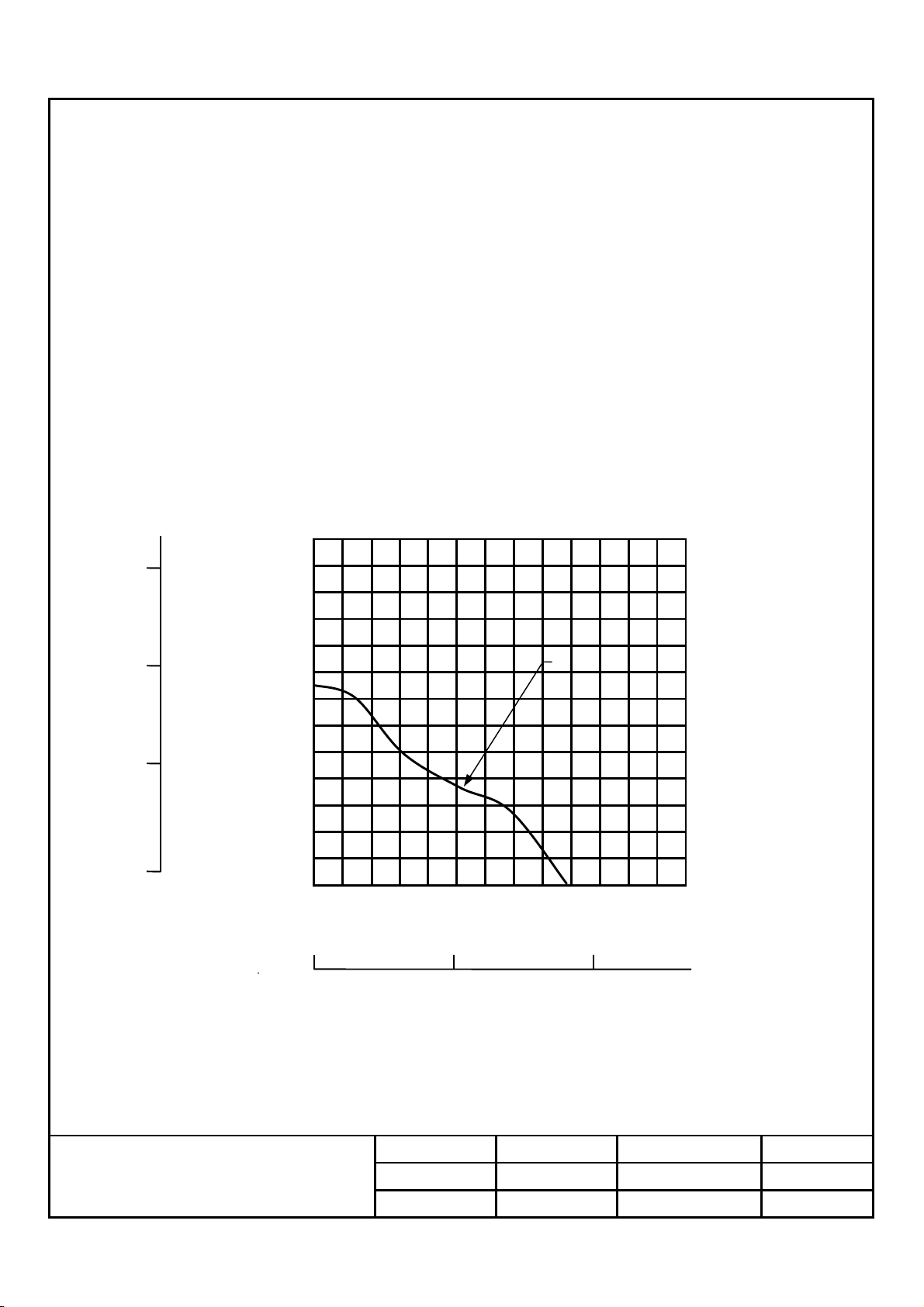

PERFORMANCE CURVES

STATIC
PRESSURE

SUNON

mm-H

O Inch-H2O

2

12

0.40

8

4

0

0.20

0 60 120

0 1.70 3.40

12 VDC

CFM

m3/min

建準電機工業股份有限公司

建準電機工業股份有限公司

建準電機工業股份有限公司建準電機工業股份有限公司

SUNONWEALTH ELECTRIC
MACHINE INDUSTRY CO., LTD.

SPEC.NO D120039 REVISE DATE

ISSUE DATE 08. 03. 1998 E D I T I O N 0

P A G E 4 OF 6

SUNON

MATERIAL

2-1. Frame : Thermoplastic PBT of UL 94V-0

2-2. Impeller : Thermoplastic PBT of UL 94V-0

2-3. Bobbin : Thermoplastic PBT of UL 94V-0

2-4. Lead Wire : UL1007,24AWG,+RED;-BLACK

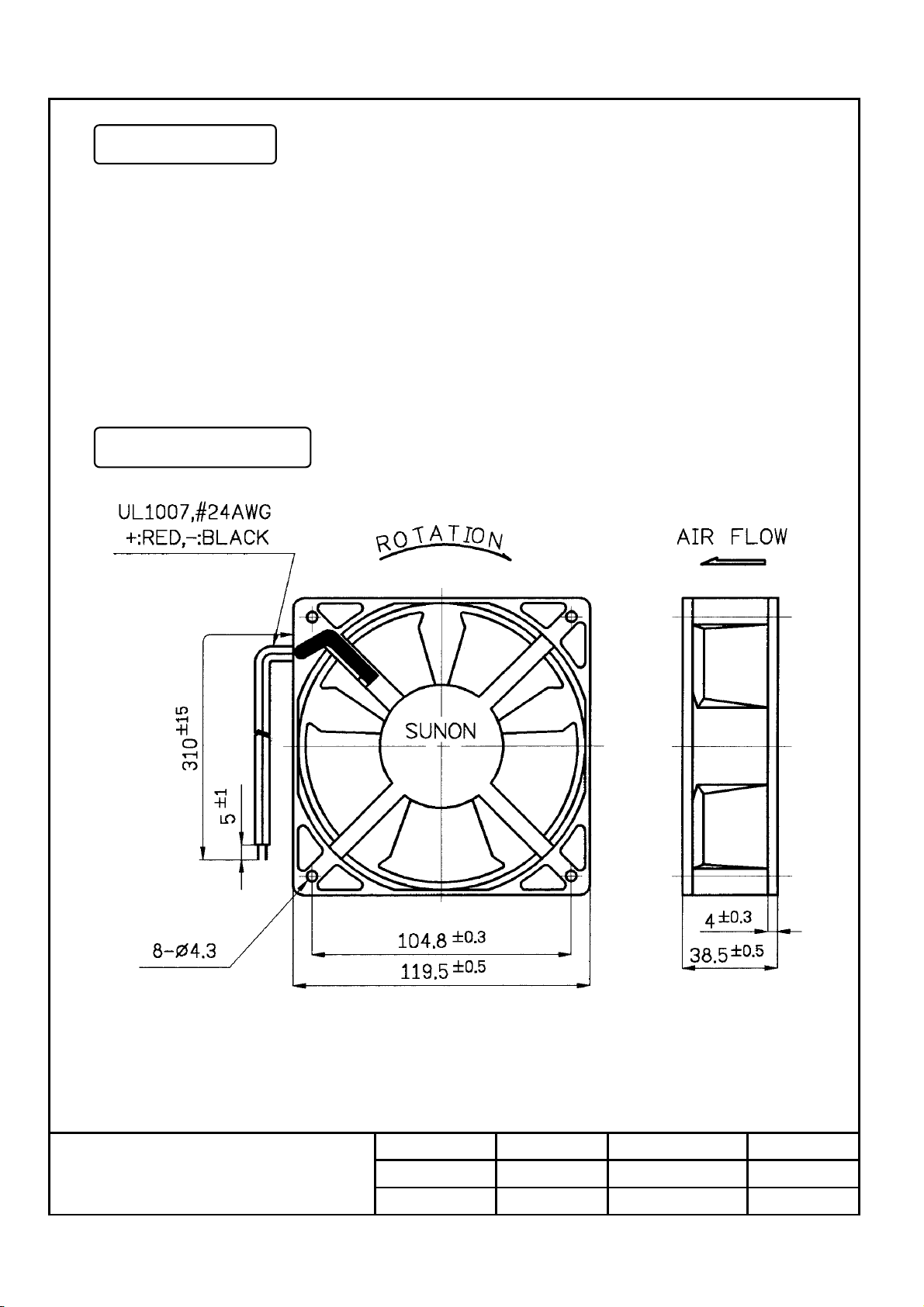

DIMENSIONS

Air Flow Direction: Label side.

建準電機工業股份有限公司

建準電機工業股份有限公司

建準電機工業股份有限公司建準電機工業股份有限公司

SUNONWEALTH ELECTRIC
MACHINE INDUSTRY CO., LTD.

UNITS

SPEC.NO D120039 REVISE DATE

ISSUE DATE 08. 03. 1998 E D I T I O N 0

P A G E 5 OF 6

：：：：

mm

SUNON

Notes

1. SUNON will not guarantee the products if the application of our products is exceeded

the limitation which is specified on this specification.

2. In case of change of the specification specified on this document, a written notice is
requested in advance.

3. Please do not touch the impeller with pressure and never bring the fan with lead wire.
The bearings and lead wire may be damaged.

4. No guarantee on the products against the safety problem or failure caused by powder
dust, drop of water or insect.

5. If there is any data or related documentation different from this data sheet, this data

sheet is the principal reference.

6. For the purpose of MIS, please indicate SPEC No. on every order.

7. In case of the fan has no polarity protection function, wires with same color (electrode)
must be connected together during the assembly. (i.e. red + red, black + black)
or the fan will be damaged immediately.

8. Please do not use the fan in the environment of corrosive gas or liquid or any detrimental
gas.

9. Please do not store the fan in the environment of high / low temperature, high humidity

or any detrimental gas. Please store the fan within 6 months, every 6 months, there
shall be a linkage of electric current to the fan, even though the fan is stored in room
temperature.

10.While the fan is in operation, please do not lock the fan intentionally for a long period of
time, since the continuous stoppage will result in over-heat and thus burn-out of the fan.

11.During the installation of the fan, please pay substantial attention to possible noise
cause by resonance vibration and vibration.

12.During the testing of the fan, please be sure to use finger guard to insure safety.
