SUNON DP202A21 Datasheet

2018.12.13

D.C.C.

CUSTOMER :

DESCRIPTION : AXIAL AC FAN

DIMENSIONS : 120X120X38 mm

M O D E L : DP202A

SUNON

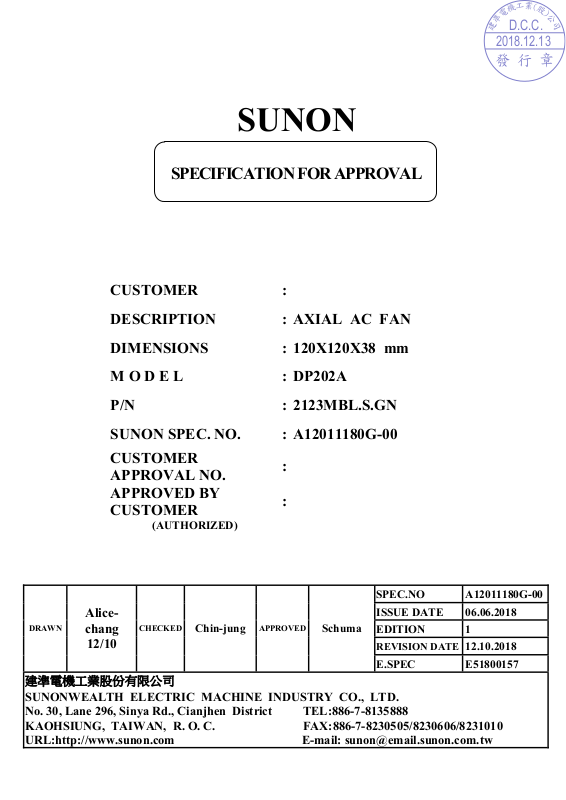

SPECIFICATION FOR APPROVAL

P/N : 2123MBL.S.GN

SUNON SPEC. NO. : A12011180G-00

CUSTOMER

:

APPROVAL NO.
APPROVED BY

:

CUSTOMER

(AUTHORIZED)

SPEC.NO A12011180G-00

Alice-

DRAWN

chang

12/10

建準電機工業股份有限公司

SUNONWEALTH ELECTRIC MACHINE INDUSTRY CO., LTD.
No. 30, Lane 296, Sinya Rd., Cianjhen District TEL:[phone]
KAOHSIUNG, TAIWAN, R. O. C.
URL:http://www.sunon.com

CHECKED

Chin-jung

APPROVED

Schuma

FAX:[phone]

E-mail: [e-mail]

ISSUE DATE 06.06.2018

EDITION 1

REVISION DATE

E.SPEC E51800157

12.10.2018

SUNON

2018.12.13

D.C.C.

AXIAL AC FAN

MODEL : DP202A

P/N : 2123MBL.S.GN

CHARACTERISTICS

1. Motor Design : Reliable Shaded-Pole Motor Construction.

2. Insulation Resistance : 500 Megohms minimum at 500 VDC.

3. Dielectric Strength : 1800 VAC for one second .

4. Motor Protection : Impedance protected.

5. Noise Level : Measured in a semi-anechoic chamber

with background noise level below 15

dB(A). The fan is running in free air with the

microphone at a distance of one meter

from the fan intake.

6. Tolerance :

15% on rated power and current.

±

7. Air Performance : Measured by a double chamber. The values

are recorded when the fan speed has stabilized

at rated voltage.

建準電機工業股份有限公司

SUNONWEALTH ELECTRIC
MACHINE INDUSTRY CO., LTD.

SPEC.NO A12011180G-00 REVISION DATE 12.10.2018

ISSUE DATE 06.06.2018 E D I T I O N 1

P A G E 2 OF 8

2018.12.13

D.C.C.

SPECIFICATIONS

MODEL: DP202A

P/N

1-1. Rated Voltage : 220-240 VAC 50/60 Hz

1-2. Operating Voltage Range : 185-240 VAC

1-3. Starting Voltage : 185 VAC (25 deg. C POWER ON/OFF)

1-4. Rated Speed : 2400/1950 RPM ± 10%

1-5. Air Delivery : 79.0/68.0 CFM

1-6. Static Pressure : 0.14/0.08 Inch-H2O

1-7. Rated Current : 0.057/0.056 AMP

1-8. Safety Current : 0.066/0.065 AMP

1-9. Input Power : 9.90/9.60 WATTS

1-10. Safety Watts : 13.1/12.7 WATTS

1-11. Noise Level : 42.0/38.0 dB(A)

1-12. Direction of Rotation : Counter-clockwise viewed front fan blade

1-13. Operating Temperature : -10 to +70 deg. C

1-14. Storage Temperature : -40 to +70 deg. C

1-15. Bearing System : Precision ball bearing system

1-16. Weight : 480g

1-17. Safety : UL/CUR/TUV/CE Approvals

1-18. Protection : □Automatic Restart Capability

□Polarity Protection

建準電機工業股份有限公司

SUNONWEALTH ELECTRIC
MACHINE INDUSTRY CO., LTD

: 2123MBL.S.GN

SUNON

Note: In a situation where the fan is locked by an external force
while the electricity is on, an increase in coil temperature will be
prevented by temporarily turning off the electrical power to the
motor. The fan will automatically restart when the locked rotor
condition is released.

SPEC.NO A12011180G-00 REVISION DATE 12.10.2018

ISSUE DATE 06.06.2018 E D I T I O N 1

P A G E 3 OF 9

SUNON

2018.12.13

D.C.C.

MODEL : DP202A

P/N : 2123MBL.S.GN

PERFORMANCE CURVES

0 0.7 1.4 2.1 2.8

0.2

CMM

5.08

0.16

0.12

0.08

0.04

4.064

60Hz

50Hz

3.048

2.032

1.016

Static Pressure(Inch-H2O )

0

0 25 50 75 100

Air Flow-CFM

0

mm

建準電機工業股份有限公司

SUNONWEALTH ELECTRIC
MACHINE INDUSTRY CO., LTD.

SPEC.NO A12011180G-00 REVISION DATE 12.10.2018

ISSUE DATE 06.06.2018 E D I T I O N 1

P A G E 4 OF 9

SUNON

2018.12.13

D.C.C.

MATERIAL

2. Material

2-1. Frame : DIE-CAST ALUMINUM

2-2. Impeller : Thermoplastic PBT of UL 94V-0

2-3. Lead Wire : UL3266, 24 awg, GRAY

DIMENSIONS

1. Air Flow Direction: Toward label side.

2. Best Mounting Direction: Any orientation.

建準電機工業股份有限公司

SUNONWEALTH ELECTRIC
MACHINE INDUSTRY CO., LTD.

4

G

8

UNIT:mm

SPEC.NO A12011180G-00 REVISION DATE 12.10.2018

ISSUE DATE 06.06.2018 E D I T I O N 1

P A G E 5 OF 8

2018.12.13

D.C.C.

Notes

Ⅰ.

SAFETY

1. DO NOT use or operate this fan in excess of the limitations set forth in this
specification. SUNON is not responsible for the non-performance of this fan
and/or any damages resulting from its use, if it is not used or operated in
accordance with the specifications.

2. SUNON recommends adding a protection circuit to the product or application
in which this fan is installed, such as a thermo-fuse, or current-fuse or thermo­protector. The failure to use such a device may result in smoke, fire, electric
shock by insulation degradation in cases of motor lock, motor lead short circuit,
overload, or over voltage, and/or other failure.

3. SUNON recommends installing a protection device to the product or
application in which this fan is installed if there is a possibility of reverse­connection between VDC (+) and GND (-). The failure to install such a device
may result in smoke, fire, and/or destruction, although these conditions may
not manifest immediately.

4. This fan must be installed and used in compliance with all applicable safety
standards and regulations.

5. Use proper care when handling and/or installing this fan. Improper handling
or installation of this fan may cause damage that could result in unsafe
conditions.

6. Use proper care during installation and/or wiring. Failure to use proper care
may cause damage to certain components of the fan including, but not limited
to, the coil and lead wires, which could result in smoke and/or fire.

7. DO NOT use power or ground PWM to control the fan speed. If the fan speed
needs to be adjusted, please contact SUNON to customize the product design
for your application.

8. For critical or extreme environments, including non stop operation, please
contact SUNON and we will gladly provide assistance with your product
selection to ensure an appropriate cooling product for your application.

SUNON

建準電機工業股份有限公司

SUNONWEALTH ELECTRIC
MACHINE INDUSTRY CO., LTD.

SPEC.NO A12011180G-00 REVISION DATE 12.10.2018

ISSUE DATE 06.06.2018 E D I T I O N 1

P A G E 6 OF 9

SUNON

2018.12.13

D.C.C.

Notes

II. SPECIFICATION MODIFICATION

1. SUNON offers engineering assistance on fan installation and cooling system design.

2. All changes, modifications and/or revisions to the specifications, if any, are

incorporated in the attached specifications.

No changes, modifications and/or revisions to these specifications are effective

3.

absent agreement, by both SUNON and the customer, in writing.

This fan will be shipped in accordance with the attached specification unless

4.

SUNON and the customer have agreed otherwise, in writing, as specified in
Paragraph 3, above.

III. OTHER

1. When building your device, please examine thoroughly any variation of EMC,
temperature rise, life data, quality, etc. of this product by shock/drop/vibration
testing, etc. If there are any problems or accidents in connection with this
product, it should be mutually discussed and examined.

2. Use proper care when handling this fan. Components such as fan holders or
bearings may be damaged, if touched with fingers or other objects. Additionally,
static electricity (ESD) may damage the internal circuits of the fan.

3. DO NOT operate this fan in proximity to hazardous materials such as organic
silicon, cyanogens, formalin, phenol, or corrosive gas environments including, but

S, SO2, NO2, or Cl2.

2

not limited to, H

4. SUNON recommends that you protect this fan from exposure to outside elements
such as dust, condensation, humidity or insects. Exposure of this fan to outside
elements such as dust, condensation, humidity or insects may affect its
performance and may cause safety hazards. SUNON does not warrant against
damage to the product caused by outside elements.
Re: The term can be excluded, if the fan has been with IP design and
meets customer's IP requirement.

建準電機工業股份有限公司

SUNONWEALTH ELECTRIC
MACHINE INDUSTRY CO., LTD.

SPEC.NO A12011180G-00 REVISION DATE 12.10.2018

ISSUE DATE 06.06.2018 E D I T I O N 1

P A G E 7 OF 9

SUNON

2018.12.13

D.C.C.

Notes

5. This fan must be installed properly and securely. Improper mounting may
cause harsh resonance, vibration, and noise.

6. Fan guards may prevent injury during handling or installation of the fan and
are available for sale with this fan.

7. Unless otherwise noted, all testing of this fan is conducted at 25°C ambient
temperature and sixty-five percent (65%) relative humidity.

8. DO NOT store this fan in an environment with high humidity. This fan must
be stored in accordance with the attached specifications regarding storage
temperature. If this fan is stored for more than 6 months, SUNON
recommends functional testing before using.

9. SUNON reserves the right to use components from multiple sources at its
discretion. The use of components from other sources will not affect the
specfications as described herein.

10.The “Life Expectancy” of this fan has not been evaluated for use in
combination with any end application. Therefore, the Life Expectancy Test
Reports (L10 and MTTF Report) that relate to this fan are only for
reference.

VI. WARRANTY

This fan is warranted against all defects which are proved to be fault in our
workmanship and material for one year from the date of our delivery. The sole
responsibility under the warranty shall be limited to the repair of the fan or the
replacement thereof, at SUNON’s sole discretion. SUNON will not be responsible
for the failures of its fans due to improper handing, misuse or the failure to follow
specifications or instructions for use. In the event of warranty claim, the customer
shall immediately notify SUNON for verification. SUNON will not be responsible
for any consequential damage to the customer’s equipment as a result of any fans
proven to be defective.

建準電機工業股份有限公司

SUNONWEALTH ELECTRIC
MACHINE INDUSTRY CO., LTD.

SPEC.NO A12011180G-00 REVISION DATE 12.10.2018

ISSUE DATE 06.06.2018 E D I T I O N 1

P A G E 8 OF 9

SUNON

2018.12.13

D.C.C.

Declaration of RoHS

Control declaration of environment- related substances/ materials

1. In accordance with the Restriction of Hazardous Substances (RoHS) Directive

2011/65/EU, SUNON product have complied with law and discipline not to employ
the forbidden substances, and restrict the allowable concentration of some limited
substances deliberately in our components.

No Substance Criteria

1 CFCs & HCFCs (ozone depleting substances)

2 Chlorinated Organic Solvent

Plastic (Frame, Impeller, wire harness, etc.)

Solder

3 Lead and its compounds

4 Cadmium and its compounds

5 PBBs and PBDEs

6 PCB and PCT

7 CP, Short-chain Chlorinated paraffins C10-13, Cl ≥48 wt%

8 Mirex

9 PCN

10 Hexavalent Chromium compounds

11 Mercury and its compounds

12 Asbestos

13 Organic Tin compounds

14 Azo compounds

15 TBBP-A in external case plastic parts of products (PCB is exempted)

16

Nickel in external case parts, which are likely to result in prolonged skin exposure

17 Hexabromocyclododecane (HBCDD)

18 Di-butyl Phthalate (DBP)

19 Benzyl butyl Phthalate (BBP)

20 Di-ethylhexyl Phthalate (DEHP)

21 Di-isobutyl Phthalate (DIBP)

Steel alloy

Aluminium alloy

Copper alloy

Solder

Parts composed of metals containing zinc
(e.g. brass, zinc for die casting)

Plastic

Forbidden

Forbidden

<100ppm

<1000ppm

<3500ppm

<4000ppm

<4wt%

<20ppm

<100ppm

<5ppm

Forbidden

Forbidden

Forbidden

Forbidden

Forbidden

<100ppm

Forbidden

Forbidden

Forbidden

Forbidden

<1000ppm

<1000ppm

<1000ppm

<1000ppm

<1000ppm

<1000ppm

<1000ppm

建準電機工業股份有限公司

SUNONWEALTH ELECTRIC
MACHINE INDUSTRY CO., LTD.

SPEC.NO A12011180G-00 REVISION DATE 12.10.2018

ISSUE DATE 06.06.2018 E D I T I O N 1

P A G E 9 OF 9
