Sunny SF-T7635 User Manual

SF-T7635 TREADMILL

USER MANUAL

IMPORTANT: Read all instructions carefully before using this product.
Retain owner’s manual for future reference. For customer service, please
contact: [e-mail]

IMPORTANT SAFETY INSTRUCTIONS

When using an electrical appliance, basic precautions should always be followed, including
the following:

Read all instructions before using this treadmill.

DANGER – To reduce the risk of electrical shock:

1. Always unplug this appliance from the electrical outlet immediately after using and before
cleaning.

WARNING – To reduce the risk of burns, fire, electric shock, or injury to persons:

1. The treadmill should never be left unattended when plugged in. Unplug from outlet when
not in use and before putting on or taking off parts.

2. Use this treadmill only for its intended use as described in this manual. Do not use
attachments not recommended by the manufacturer.

3. Never operate this treadmill if it has a damaged cord or plug, is not working properly, has
been dropped or damaged.

4. Keep the cord away from heated surfaces.

5. Never operate the treadmill with the air openings blocked. Keep the air openings free of
lint, hair, and the like.

6. Never drop or insert any object into any opening.

7. Do not use outdoors.

8. Do not operate where aerosol (spray) products are being used or where oxygen is being
administered.

9. To disconnect, turn the treadmill off, then remove plug from outlet.

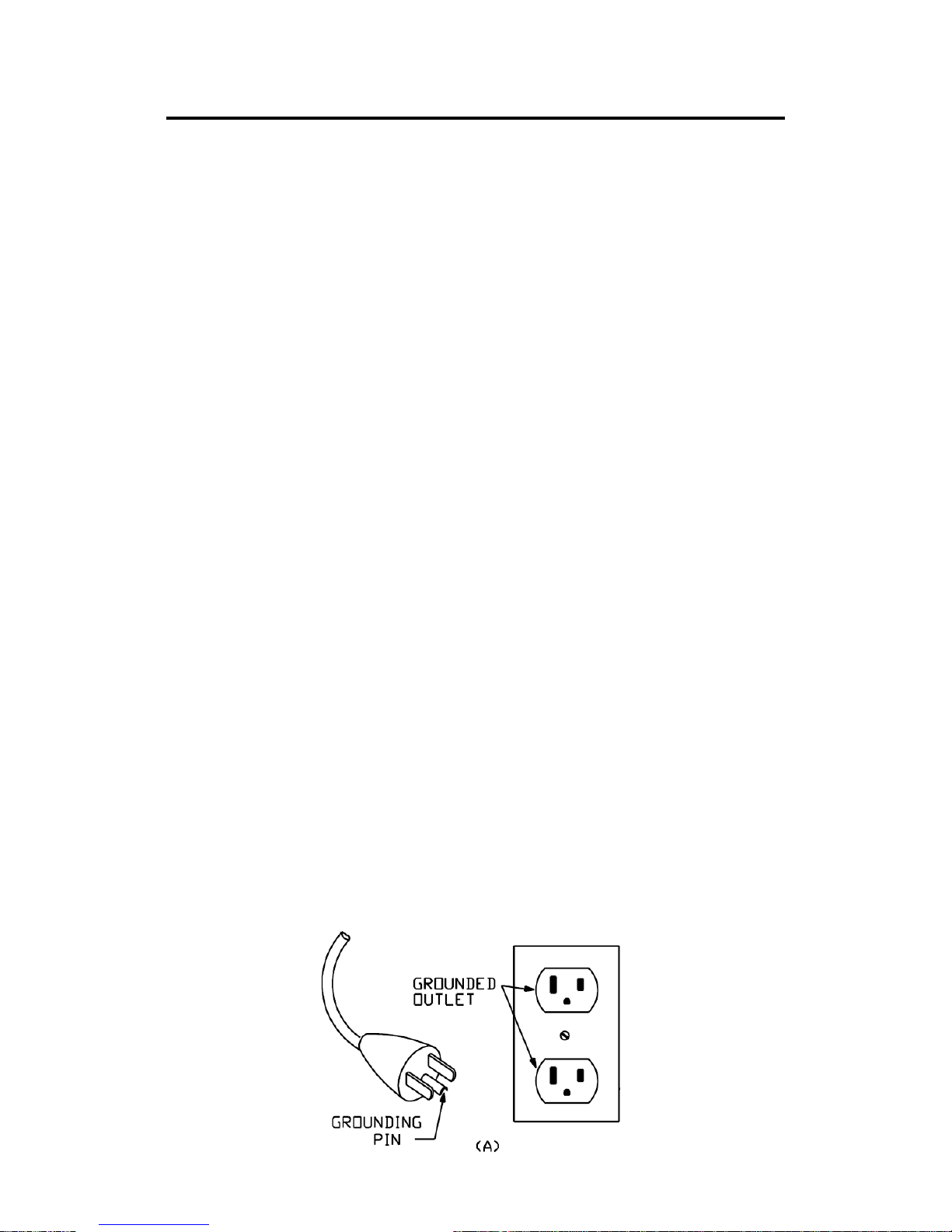

10. Connect this treadmill to a properly grounded outlet only. See grounding instructions.

CAUTION: Risk of Injury to Persons:

To avoid injury, use extreme caution when stepping onto or off of a moving belt. Read
Instruction Manual Before Using.

SAVE THESE INSTRUCTIONS

1

IMPORTANT SAFETY INFORMATION

We thank you for choosing our product. It is important to read this entire manual before
assembling and using the equipment. It is your responsibility to ensure that all users of the
equipment are informed of all warnings and precautions.

1. Before starting any exercise program you should consult your physician to determine if
you have any medical or physical conditions that could put your health and safety at risk or

prevent you from using the equipment properly. Your physician’s advice is essential if you

are taking any medication that may affect your heart rate, blood pressure, or cholesterol
level.

2. Be aware of your body’s signals. Incorrect or excessive exercise can damage your health.
Stop exercising if you experience any of the following symptoms: pain, tightness in your
chest, irregular heartbeat, shortness of breath, lightheadedness, dizziness, or nausea. If
you do experience any of these conditions, consult your physician before continuing with
your exercise program.

3. Keep children and pets away from the equipment. The equipment is designed for adult use
only.

4. Use the equipment on a solid, flat level surface with a protective cover for your floor or
carpet. To ensure safety, the equipment should have at least 4 feet of free space all around
it.

5. Ensure that all nuts and bolts are securely tightened before using the equipment. Check
equipment regularly for damage and/or wear and tear.

6. We recommend that you lubricate all moving parts monthly.

7. Always use the equipment as indicated. If you find any defective components while
assembling or checking the equipment, or if you hear any unusual noises coming from the
equipment during exercise, stop using the equipment immediately and don’t use the
equipment until the problem has been rectified.

8. Wear suitable clothing while using the equipment. Avoid wearing loose clothing that may
become entangled in the equipment.

9. Do not place fingers or objects into the moving parts of the equipment.

10. The maximum weight capacity of this unit is 265 pounds.

11. This equipment is not suitable for therapeutic use.

12. Move with caution when lifting and moving the equipment. Always use proper lifting
technique and seek assistance if necessary.

13. Your product is intended for use in cool, dry conditions. You should avoid storage in
extreme cold, hot, or damp areas as this may lead to corrosion and other related
problems.

14. This equipment is designed for indoor household use only! It is not intended for
commercial use!

2

IMPORTANT OPERATING INSTRUCTIONS

1. Insert the power plug directly into the socket.

2. Read the manual before operating the equipment.

3. Changes in speed do not occur immediately. Set your desired speed using the

adjustment keys on the main console. The speed will increase gradually.

4. While on the treadmill, move with caution as distractions may cause you to lose

balance and stray from walking in the center of the belt which may result in serious
injury.

5. This unit starts at a very low speed. To begin use, hold onto the handrails and stand

on the side rails while it starts up, then step onto the belt once it’s in motion.

6. Always hold the handrail when making changing settings.

7. A safety key is provided for emergency use. The machine will function only if the

safety key is inserted into the computer console. In case of emergency, remove the
safety key to immediately stop the belt and shut off the treadmill. The display screen
will reset once the safety key is reinserted.

8. The console control keys are precisely set and require very little finger pressure to use.

To avoid damaging these keys, do not use excessive pressure when operating these
controls.

9. This equipment is designed for adult use only! Children should not be allowed to use

or play near this equipment. When present, children should be supervised at all
times by an adult.

10. Women who are pregnant or nursing should consult a physician before attempting to
begin any exercise program.

11. Always stay hydrated during and after exercise.

IMPORTANT NOTE:

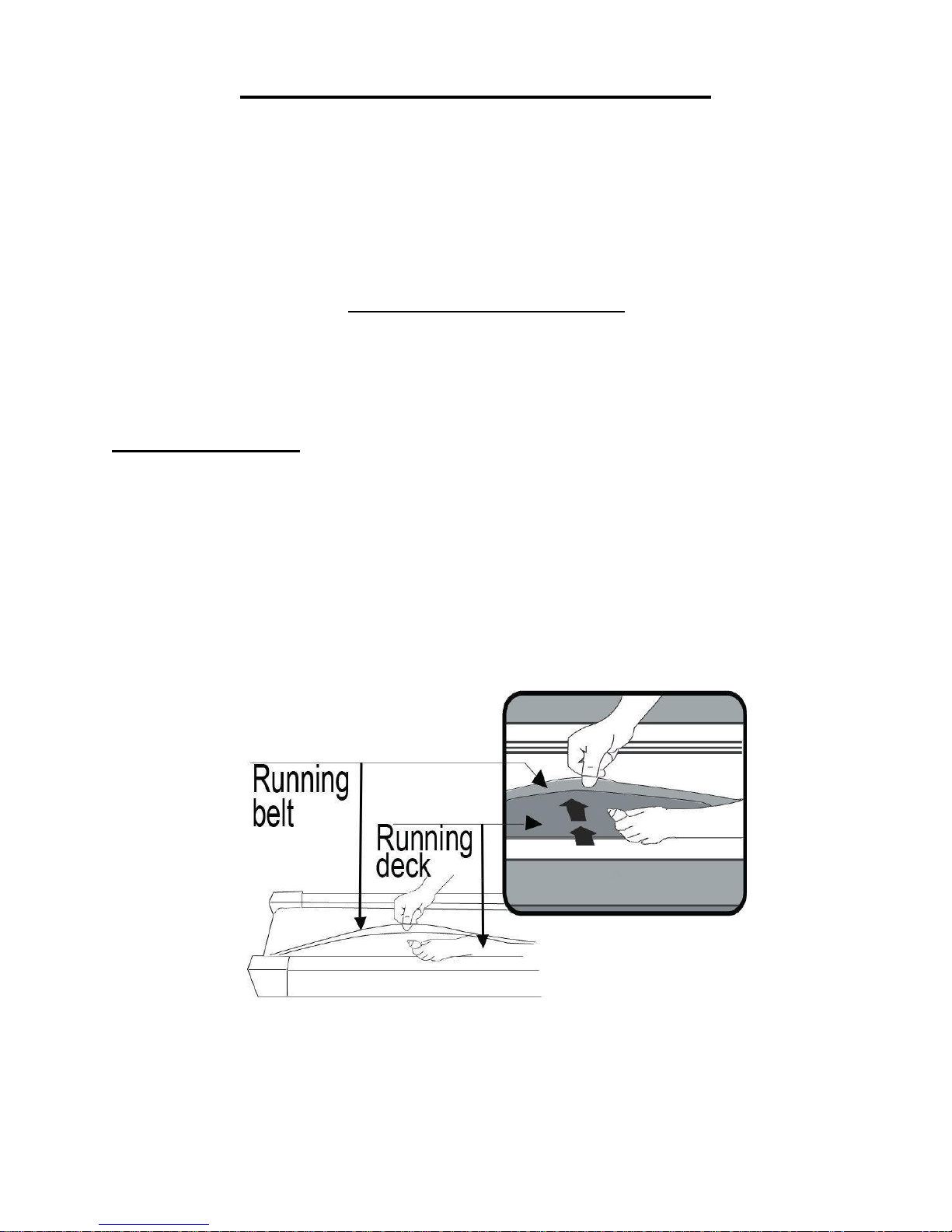

The belt must be lubricated before the first use! Please see Page 12 for
instructions on how to properly apply lubricant.

3

EXPLODED DRAWING

4

PARTS LIST

No.

Description

Specification

Qty

No.

Description

Specification

Qty

A01

Base Frame

1 D07

Speed Buttons W/ Hand Pulse

1

A02

Main Frame

1 D08

Speed Sensor

1 A03

Computer Bracket

1 D09

Safety Key

1 A04

Left Upright

1 D10

Magnet Ring

1 A05

Right Upright

1 D11

Magnet Core

1 A06

Motor Bracket

1 D12

Running Board

1 B01

Front Roller

1 D13

AC Single Wire

200mm brown

2

B02

Rear Roller

1 D14

AC Single Wire

200mm blue

1

B03

Air Pressure Cylinder

1 D15

Power Wire

1 B04

Turning Bushing

2 D16

DC Motor

1 B05

Fixing Pin

2 D17

Square Switch

1 B06

Spanner w/ screw driver

S=13,14,15

1

D18

Overload Protector

1 B07

Allen Wrench

5mm

1

D19

Console Overlay Sticker

1

B08

Safety Block

1 D20

Metal Sheet

2 C01

Console Top Cover

1 E01

Nut

M6 2 C02

Console Panel

1 E02

Nut

M8 6 C03

Motor Top Cover

1 E03

Bolt

M8*30

5

C04

Motor Bottom Cover

1 E04

Bolt

M8*35

1

C05

Plastic Pad

1 E05

Bolt

M8*15

12

C06

Left Rear Cover

1 E06

Bolt

M8*25 L15

2

C07

Right Rear Cover

1 E07

Bolt

M8*30 L15

1

C08

Side Rail

2 E08

Bolt

M8*40 L20

6

C09

Running Belt

1 E09

Bolt

M8*45 L20

3

C10

Silicone Pad

4 E10

Bolt

M10*55

2

C11

Square Cushion

4 E11

Bolt

M6*55

3

C12

Blue Cushion

2 E12

Bolt

M6*35

6

C13

Motor Belt

1 E13

Bolt

M5*16

2

C14

Adjustable Foot Pad

2 E14

Bolt

M5*8

6

C15

Wheel Protecting Cover

2 E15

Screw

ST3.5*12

2

C16

Moving Wheel

2 E16

Screw

ST2.9*6.0

15

C17

Foot Pad

4 E17

Screw

ST2.9*8

2

C18

Power Wire Buckle

1 E18

Screw

ST4.2*12

4

C19

Ring Protecting Wire Plug

2 E19

Screw

ST4.2*12

16

C20

Plastic Holder

1 E20

Screw

ST4.2*20

6

C21

Foam 2

E21

Screw

ST4.2*55

2

C22

Round Plug

2 E22

Washer

φ6 3 C23

Plastic Cushion

2 E23

Washer

φ8

14

C24

Rubber Pad

2 E24

Spring Washer

φ8

6

C25

Round Inner Plug

2 E25

Flat Washer

φ8 5 C26

Safety Key Socket

1 E26

Bolt

M5*12

10

C27

Left Upright Tube Cover

1 E27

Nut

M8 4 C28

Right Upright Tube Cover

1 E28

Screw

ST2.6*8

3

5

D01

Console

1 E29

Screw

ST4.2*25

4

D02

Control Board

1 E30

Washer

φ50*φ25.5*1.5

2

D03

Top Signal Wire

1 F01

Filter 1

D04

Middle Signal Wire

1 F02

Grounding Wire

1 D05

Bottom Signal Wire

1 F03

AC Single Wire

2

D06

On/Off Buttons W/ Hand Pulse

1 F04

Screw

ST4.2*12

2

6

Description

Specification

Qty

No.

Description

Specification

Qty

A

Main Frame

1

D09

Safety Key

1

B06

Spanner w/ screw Driver

S=13,14,15

1

E05

Bolt

M8*15

10

B07

Allen Wrench

5mm

1

E23

Washer

8

10

C27

Left Upright Tube Cover

1

E26

Bolt

M8*12

6

C28

Right Upright Tube Cover

1

F05

Lubricant Oil

1

CARTON CONTENTS:

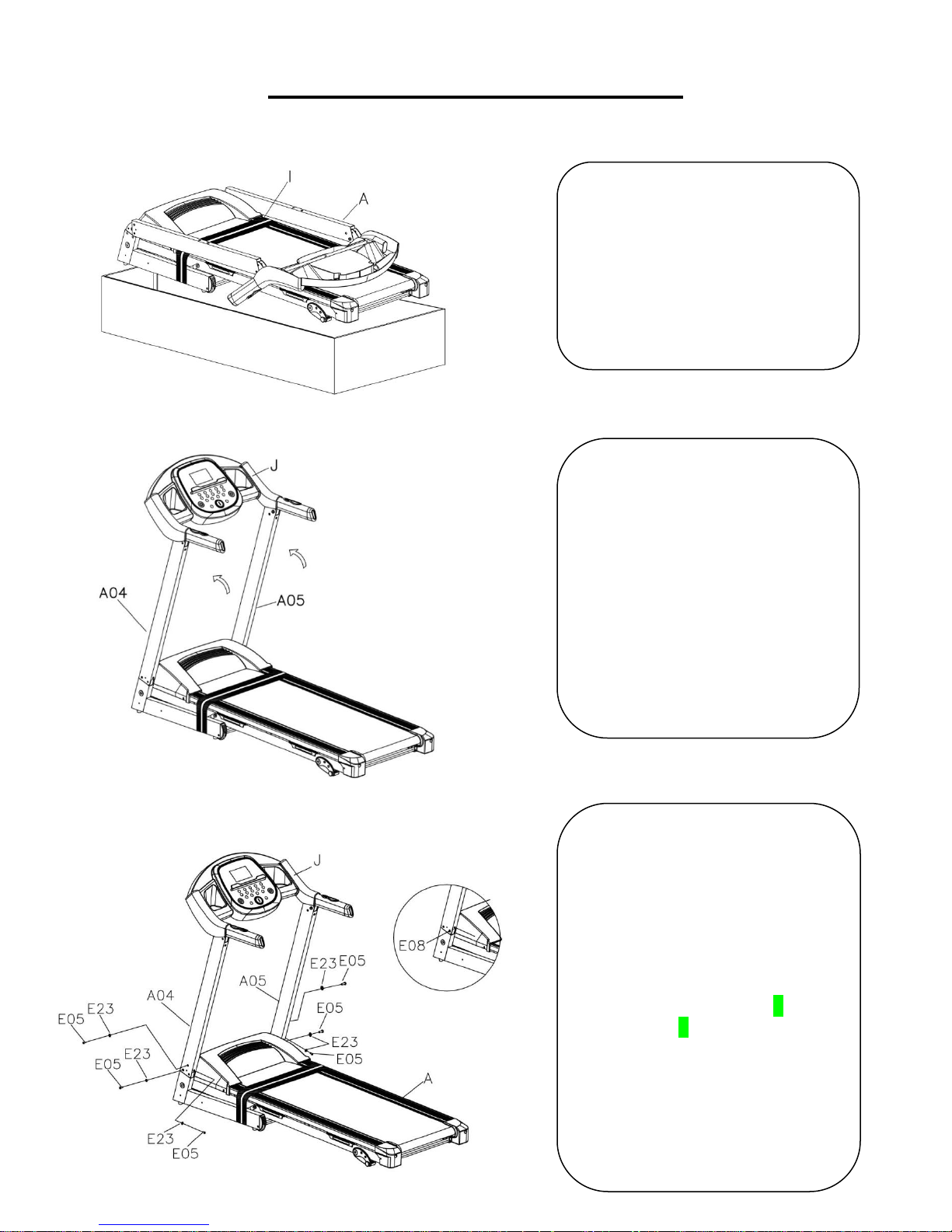

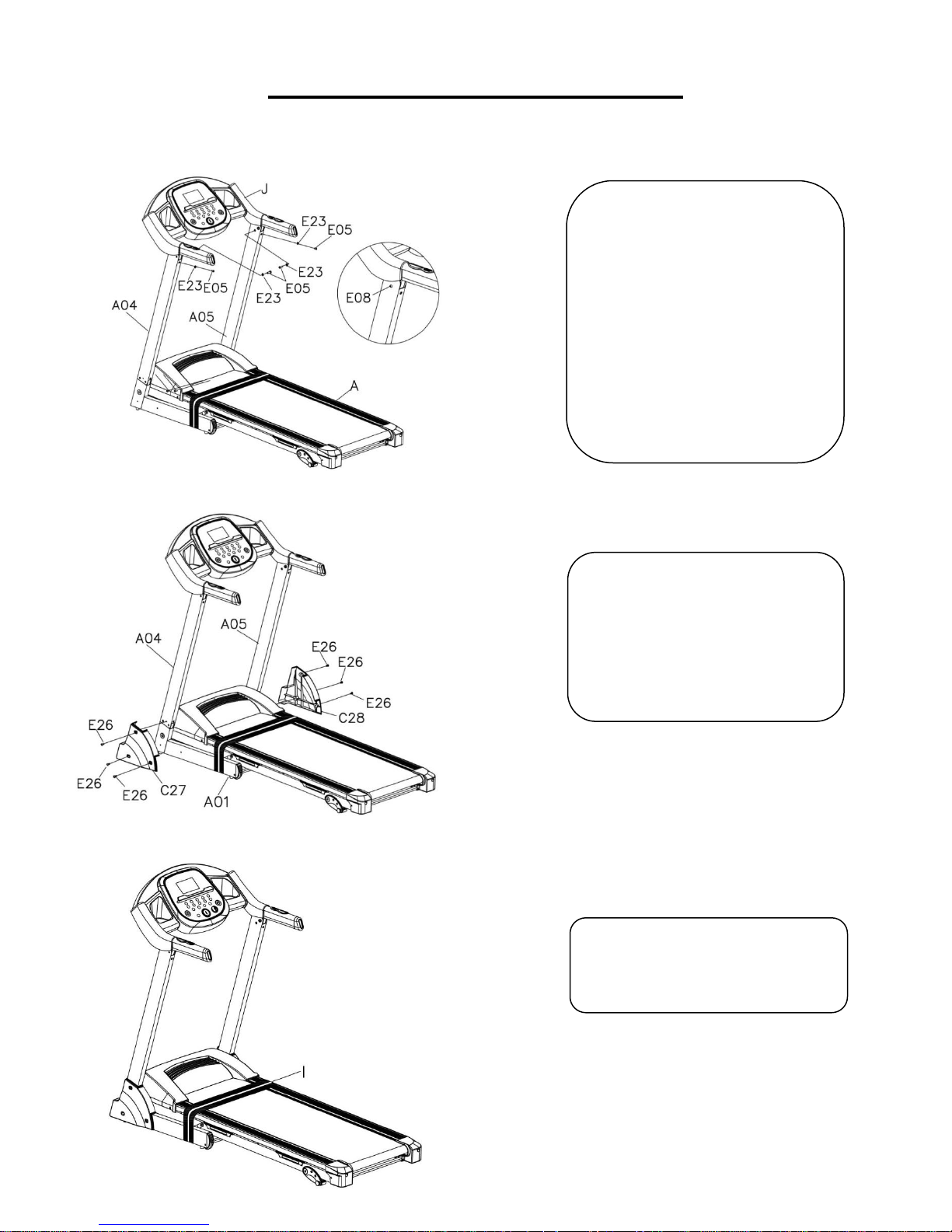

ASSEMBLY HARDWARE

Spanner with Screw Driver (S=13, 14, 15) – 1PC

We recommend having two people do the assembly.

ASSEMBLY TOOLS

Allen Wrench (5mm) – 1PC

7
