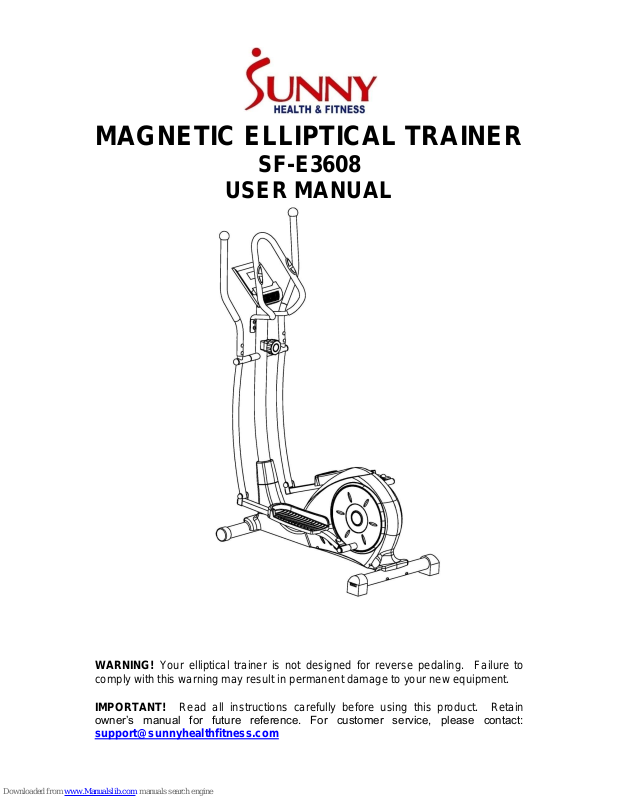

Sunny SF-E3608 User Manual
MAGNETIC ELLIPTICAL TRAINER
SF-E3608
USER MANUAL
WARNING! Your elliptical trainer is not designed for reverse pedaling. Failure to
comply with this warning may result in permanent damage to your new equipment.
IMPORTANT! Read all instructions carefully before using this product. Retain
owner’s manual for future reference. For customer service, please contact:
support@sunnyhealthfitness.com
IMPORTANT SAFETY INFORMATION
We thank you for choosing our product. To ensure your safety and health, please use this
equipment correctly. It is important to read this entire manual before assembling and using
the equipment. Safe and effective use can only be assured if the equipment is assembled,
maintained, and used properly. It is your responsibility to ensure that all users of the
equipment are informed of all warnings and precautions.
1. Before starting any exercise program you should consult your physician to
determine if you have any medical or physical conditions that could put your
health and safety at risk or prevent you from using the equipment properly. Your
physician’s advice is essential if you are taking any medication that may affect
your heart rate, blood pressure, or cholesterol level.
2. Be aware of your body’s signals. Incorrect or excessive exercise can damage
your health. Stop exercising if you experience any of the following symptoms:
pain, tightness in your chest, irregular heartbeat, shortness of breath,
lightheadedness, dizziness, or feelings of nausea. If you do experience any of
these conditions, you should consult your physician before continuing with your
exercise program.
3. Keep children and pets away from the equipment. The equipment is designed for
adult use only.
4. Use the equipment on a solid, flat level surface with a protective cover for your
floor or carpet. To ensure safety, the equipment should have at least 2 feet of
free space all around it.
5. Ensure that all nuts and bolts are securely tightened before using the equipment.
The safety of the equipment can only be maintained if it is regularly examined for
damage and/or wear and tear.
6. It is recommended that you lubricate all moving parts on a monthly basis.
7. Always use the equipment as indicated. If you find any defective components
while assembling or checking the equipment, or if you hear any unusual noises
coming from the equipment during exercise, stop using the equipment
immediately and don’t use the equipment until the problem has been rectified.
8. Wear suitable clothing while using the equipment. Avoid wearing loose clothing
that may become entangled in the equipment.
9. Do not place fingers or objects into the moving parts of the equipment.
10. The maximum weight capacity of this unit is 220 pounds.
11. This equipment is not suitable for therapeutic use.
12. Move with caution when lifting and moving the equipment. Always use proper
lifting technique and seek assistance if necessary.
13. Your product is intended for use in cool, dry conditions. You should avoid
storage in extreme cold, hot, or damp areas as this may lead to corrosion and
other related problems.
14. This equipment is designed for indoor use only! It is not intended for commercial
use!
1
EXPLODED DRAWING
2
PARTS LIST
NO.
DESCRIPTION
QTY
NO.
DESCRIPTION
QTY
1
Main frame
1
28
Hex bolt
4
2
Handlebar Post
1
29
Round cap
2
3
Front stabilizer
1
30
Round cap
4
4
Rear stabilizer
1
31
Hex bolt
2
5L/R
Pedal tube
1 set
32
Flat washer
6
6L/R
Swing tube
1 set
33
Nylon nut
6
7L/R
Handlebar
1 set
34
Hex bolt
4
8
Handrail
1
35
Round cap
4
9
Computer
1
36
Hex bolt
2
10L/R
Pedal
1 set
37
Thin nylon nut
2
11
Flat washer
2
38
Round cap
2
12
Inner hexagon bolt
4
39
Long axle
1
13
Arc washer
10
40
Nut 8 14
Rear End Cap
2
41
Arch washer
12
15
Cross pan head screw
4
42
Carriage bolt
4
16
Inner hexagon bolt
6
43
Foam grip
2
17
Sensor wire
1
44
Cap 2 18
Tension connecting wire
1
45
Round cap
2
19
Front Cover
1
46
Pulse sensor wire
2
20
Extension wire
1
47
Inner hexagon bolt
4
21L/R
Crank
1 set
48
Handrail foam grip
1
22
Spacer
2
49
Cross pan head screw
4
23
Spring washer
4
50
Cross pan head screw
1
24
Axle sleeve
10
51
Arc washer
1
25
Connecting joint
2
52
Tension controller
1
26
Flat washer
4
53
Front End Cap
2
27
Spring washer
4
NOTE: Most of the listed assembly hardware have been packaged separately, but
some hardware pats have been preassembled on the equipment. In these
instances, simply remove and reinstall the hardware as required.
3
