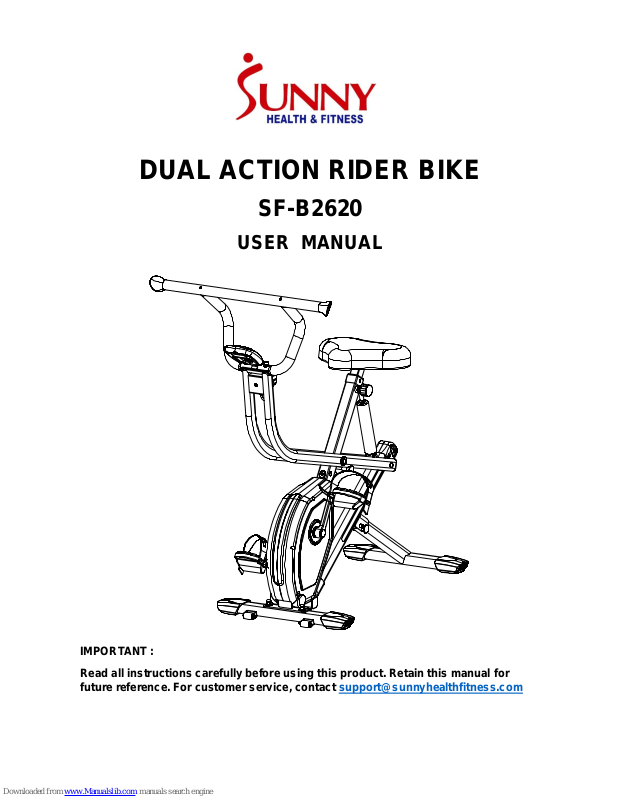

Sunny SF-B2620 User Manual

DUAL ACTION RIDER BIKE
SF-B2620
USER MANUAL
IMPORTANT : Read all instructions carefully before using this product. Retain this manual for
future reference. For customer service, contact support@sunnyhealthfitness.com
1
PRECAUTIONS
IMPORTANT! Before exercising, please read this manual first and always remember these safety warnings.
1.
Before starting any exercise program, you should consult your physician to determine if you have any medical or physical conditions that could put your health and safety at risk or prevent you from using the equipment properly. Your physician’s advice is essential if you are taking any medication that may affect your heart rate, blood pressure, or cholesterol level.
2.
Be aware of your body’s signals. Incorrect or excessive exercise can damage your health.
Stop exercising if you experience any of the following symptoms: pain, tightness in your chest, irregular heartbeat, shortness of breath, lightheadedness, dizziness, or feelings of nausea. If you experience any of these conditions, you should consult your physician before continuing with your exercise program.
3.
Keep children and animals away from the equipment. The equipment is designed for adult use only.
4.
This equipment is not suitable for therapeutic use.
5.
Always use the equipment as indicated. If you find any defective components while assembling or checking the equipment, or if you hear any unusual noises coming from the
equipment during exercise, stop using the equipment immediately and don’t use the equipment
until the problem has been rectified.
6.
Batteries can be extremely dangerous if swallowed. Keep batteries away from the reach of children. If a battery has been swallowed, seek medical help immediately.
7.
Keep packaging material away from children or pets. There is a danger of suffocation.
8.
Do not use the product if it is damaged or defective.
9.
Make sure that no more than one person is using the product at the same time.
10.
Use the product only on a flat level and non-slipping surface. Never use it near water and keep at least 4 feet of space around it clear when in use.
11.
Take care when lifting and moving the equipment. Always use proper lifting technique and seek assistance if necessary.
12.
Protect the product against splashes, humidity, high temperature and direct sunlight.
13.
The high speed rotating pedal may cause damage Do not take your feet out of the pedals or dismount the bike until the pedals rotating.
14.
When adjusting the seat height, do not exceed the "Max" line. Make sure that the knob is tightened.
15.
The maximum user weight is 240 lbs.
2
EXPLODED VIEW
3
PARTS LIST
NO.
DESCRIPTION
Q'TY
NO.
DESCRIPTION
Q'TY
A
BOLT M8x45
2
25
PLASTICS COVER (LEFT)
1
B
WASHER Φ8.5*Φ22.0*T1.5
6
26
PLASTICS COVER (RIGHT)
1
C
NUT M8
2
27
END CAP
2
D
WRENCH S13-14-15
1
28
LID 2 E
BOLT M8x45
3
29
RUBBER BLOCK
2
F
SPRING WASHER Φ8.4*Φ13.5*T2.5
3
30
CUSHION
1
G
NUT M8
4
31
END CAP
4
H
KNOB 1 32
CRANK (LEFT)
1
I
PIN Φ8*90
1
33
CRANK (RIGHT)
1
J
WRENCH S6
1
34
MAGNET
6
K
ARC WASHER Φ8.4*Φ19.0*T1.5
2
35
SEAT POST BUSHING
1
L
PIN Φ8*36
1
36
END CAP
2
1
MAGNET SET
1
37
BUSHING
2
2
DRIVING WHEEL
1
38
END CAP
2
3
CONNECTING FRAME
1
39
LINE PLUG
3
4
SLIDING TUBE
1
40
BELT 230PJ3
1
5
MAIN FRAME
1
41
BELT 235PJ3
1
6
HANDLE BAR SUPPORTING POST
1
42
WHEEL
2
7
REAR STABILIZER
1
43
RUBBER CUSHION
1
8
HANDLE BAR
1
44
SENSOR BASE
1
9
SEAT POST
1
45
SENSOR
1
10
FRONT STABILIZER
1
46
COMPUTER
1
11
FOAM GRIP
1
47
WASHER Φ8.5*Φ16.0*T1.5
3
12
WHEEL
2
48
TENSION KNOB AND CABLE
1
13
AXLE
1
49
SPRING WASHER Φ8.0xΦ7.4xT0.8
2
14
SPRING
1
50
SPRING WASHER Φ8.4*Φ13.5*T2.5
1
15
PU WHEEL AXLE
2
51
PULLEY(6200)
1
16
SLEEVE
1
52
PEDALLEFT
1
17
CONNECTING AXLE
1
53
PEDALRIGHT
1
18
BUSHING
6
54
CYLINDER
1
19
CONNECTING AXLE
1
55
FOAM GRIP
2
20
MAGNET BASE AXLE
1
56
HANDLE BAR
1
21
BIG WASHER
2
57
SADDLE
1
22
MAGNET BASE
1
58
BOLT M8x45
2
23
COVER(LEFT)
1
59
SPRING WASHER Φ10.2*Φ16.6*T3.0
2
24
COVER (RIGHT)
1
60
BOLT M6x30
1
4
NO.
DESCRIPTION
Q'TY
61
NUT M6
3
62
NUT M8 3 63
NUT M10 1 64
NUT M10x1.25
2
65
SCREW ST4.2x13.0
8
66
SCREW M4x12
5
67
BOLT M6x45 2 68
WASHER Φ10.5*Φ22.0*T1.4
3
69
BOLT M8x20 2 70
BOLT M8x30 2 71
BOLT M8x35 2 72
WASHER Φ8.0*Φ25.0*T2.0
2
73
SPRING WASHER Φ10.0xΦ9.3xT1.0
1
74
BOLT M8x60 1 75
BOLT M10x20
2
76
WASHER Φ6.5*Φ16.0*T1.0
2
77
BOLT M6x12 9 78
BOLT M6x15 2 79
BOLT M6x20 2 80
SCREW ST4.2x15.0
2
81
ARC WASHER Φ8.4*Φ19.0*T1.5
2
5
ASSEMBLY
NO.
DESCRIPTION
Q'TY
5
MAIN FRAME
1
6
HANDLE BAR SUPPORTING POST
1
7
REAR STABILIZER
1
8
HANDLE BAR
1
9
SEAT POST
1
10
FRONT STABILIZER
1
46
COMPUTER
1
52
PEDALLEFT
1
53
PEDALRIGHT
1
57
SADDLE
1
·Read this manual before assembly.
·Check the parts first.
·Check the hardware.
·Ensure that you have the right tools.
·Prepare an area to assemble.
·Follow the instructions carefully.
·Never force the joints.
·Periodically tighten the joints.
·Keep this manual for future
reference.
