1028/1029 Radon Monitor User’s Guide

ACCURATE • RELIABLE • ECONOMICAL

1028

1029

Rn

RADON

s
u
n

User’s Guide, Radon Monitor

© Copyright, 2006-2010 by Sun Nuclear Corporation. All rights reserved.

The information contained in this technical manual and the accompanying soft­ware program are copyrighted and all rights are reserved by Sun Nuclear
Corporation. No part of this manual may be translated, reproduced, sold, or oth­erwise distributed without the prior written consent of Sun Nuclear Corporation.

Any changes or modifications not expressly approved by Sun Nuclear Corpora­tion could void the user’s authority to operate this equipment.

Sun Nuclear Corporation reserves the right to make periodic modifications of this
product without obligation to notify any person or entity of such revision.

The Model 1028 and 1029 Radon Monitors are protected by U.S. Patent
#4,871,914

This guide is written for:

PC software: version 2.2.0
Embedded firmware: version 106

To stay current on the accessories, applications, and software for the Radon mon­itor, please visit Sun Nuclear’s agent .

Document 1028011, Rev E, 13 January 2010

ii

Contents

Preface . . . . . . . . . . . . . . . . . . . . . . . v

What’s New . . . . . . . . . . . . . . . . . . . . .v

Software Changes . . . . . . . . . . . . . . v

Firmware Changes . . . . . . . . . . . . . vii

Conventions . . . . . . . . . . . . . . . . . . . . vii

Button Name or Entry . . . . . . . . . . vii

Menu Options . . . . . . . . . . . . . . . . vii

User Messages/Cross

References . . . . . . . . . . . . . . . . vii

Screen Messages . . . . . . . . . . . . . vii

Window/Dialog Box Names . . . . . . vii

Sun Nuclear Corporation Symbols . .viii

Operating Information . . . . . . . . . . . . ix

Cables . . . . . . . . . . . . . . . . . . . . . . ix

Water . . . . . . . . . . . . . . . . . . . . . . . ix

Inspect Before Use . . . . . . . . . . . . ix

Do Not Use Near Explosive

Gases . . . . . . . . . . . . . . . . . . . . ix

Operator and Data Evaluation . . . . . . ix

Sources of Information . . . . . . . . . . . ix

User’s Guide . . . . . . . . . . . . . . . . . ix

Online Help . . . . . . . . . . . . . . . . . . . x

About Radon . . . . . . . . . . . . . . . . . . . . x

Introduction . . . . . . . . . . . . . . . . . . 1

Description . . . . . . . . . . . . . . . . . . . . . .1

Typical Application . . . . . . . . . . . . . . . .2

Connections . . . . . . . . . . . . . . . . . . . . . 3

Controls . . . . . . . . . . . . . . . . . . . . . . . .4

Unpacking . . . . . . . . . . . . . . . . . . . . . .5

Standalone Operation . . . . . . . . . . 6

Positioning the Monitor . . . . . . . . . . . . 6

Connecting Power . . . . . . . . . . . . . . . .6

Battery . . . . . . . . . . . . . . . . . . . . . . .6

AC Adapter . . . . . . . . . . . . . . . . . . . .7

Turning on the Display . . . . . . . . . . . . . 8

Starting a Test . . . . . . . . . . . . . . . . . .10

Interrupting a Test . . . . . . . . . . . . . . .10

Displaying Average and Current . . . .11

AVG or CUR During a Test . . . . . . .11

AVG or CUR After Test . . . . . . . . .12

Clearing Memory . . . . . . . . . . . . . . . .12

Checking Unit Status . . . . . . . . . . . . .13

Setting Up Parameters . . . . . . . . . . .13

Character Set . . . . . . . . . . . . . . . . . . . 15

Display Turns Off Automatically . . . . 16

Changing the 9V Battery . . . . . . . . . . 16

Low Battery with AC Connected . . 16

Low Battery Without AC Power . . 16

Replacing the Battery . . . . . . . . . . 17

Clearing a Reset . . . . . . . . . . . . . . 17

Storage Under Power . . . . . . . . . . . . 18

Portable Printer (Optional) . . . . . 19

Printer - Parts . . . . . . . . . . . . . . . . . . 19

Printer - Description . . . . . . . . . . . . . 19

Printer Connection and Controls . . . 20

Loading the Paper . . . . . . . . . . . . . . 21

Printing a Report . . . . . . . . . . . . . . . . 22

Typical Printer Report . . . . . . . . . . . . 23

Movement . . . . . . . . . . . . . . . . . . 24

Temperature, Humidity,

Pressure . . . . . . . . . . . . . . . . . 24

Printer Battery Pack . . . . . . . . . . . . . 24

Inserting the Battery Pack . . . . . . 24

Removing the Battery Pack . . . . . 24

Charging the Battery Pack . . . . . . 25

Low Printer Battery Indication . . . 25
Efficient Use of Printer Battery . . . 25

Printer Switch Settings . . . . . . . . . . . 26

Computer Operation . . . . . . . . . . 29

About the Software . . . . . . . . . . . . . 29

Computer/Software Requirements . 29

Installing Software . . . . . . . . . . . . . . 29

Connecting Radon Monitor to

Computer . . . . . . . . . . . . . . . . . . 30

Launching the Software . . . . . . . . . . 31

Using Software to Retrieve

Data from Monitor . . . . . . . . . 31

Closing Software . . . . . . . . . . . . . . . 31

About the Main Screen . . . . . . . . . . . 32

Main Screen - Inspection Tab . . . . . . 32

Inspection Tab Details . . . . . . . . . 33

Main Screen - Chart Tab . . . . . . . . . . 35

Chart Tab Details . . . . . . . . . . . . . 35

Zooming In and Out . . . . . . . . . . . 36

Moving the Chart . . . . . . . . . . . . . 36

Main Screen - Pictures Tab . . . . . . . 37

Main Screen - Checklist Tab . . . . . . . 38

Menu Bar and Toolbar Functions . . . 39

Data to/from Text File . . . . . . . . . . 40

Changing Monitor Settings . . . . . . . 41

Preferences Screen - Monitor

Settings Tab Details . . . . . . . . 42

Changing the Report (Print)

Preferences . . . . . . . . . . . . . . . . . 44

iii

Preferences Screen - Print Tab

Details . . . . . . . . . . . . . . . . . . . .45

Printing Reports . . . . . . . . . . . . . . . . .47

Specifications . . . . . . . . . . . . . . . . 49

Model 1028/1029 Radon Monitor . . .49

Maintenance . . . . . . . . . . . . . . . . . 51

Maintaining Hardware . . . . . . . . . . . .51

Parts and Repairs . . . . . . . . . . . . . .51

Accessories . . . . . . . . . . . . . . . . . .51

Storage . . . . . . . . . . . . . . . . . . . . .52

Cleaning . . . . . . . . . . . . . . . . . . . . .52

Disposing and Recycling . . . . . . . . 52

Battery Life . . . . . . . . . . . . . . . . . .52

Maintaining Software . . . . . . . . . . . . 52

Verifying Software Version . . . . . . 52

Removing Software . . . . . . . . . . . 53

Multiple Software Installations . . . 53

Service and Calibration . . . . . . . . . . . 53

Optional Serial Connection . . . . . . . . 53

Connecting with a Serial Cable . . 53

Serial Port Setup . . . . . . . . . . . . . . 54

Port Selection . . . . . . . . . . . . . . . . 54

Solving User Problems . . . . . . . . . . . 55

Radon Monitor Troubleshooting . 55

System Errors . . . . . . . . . . . . . . . . 55

Contacting Customer Support . . . . . 56

Index . . . . . . . . . . . . . . . . . . . . . . . 57

iv

Preface

What’s New

Software Changes

Version 2.2.0 of the radon monitor software interface includes the following new
features:

• Report Cover Page: A Create Cover Page checkbox has been added to the
print preferences. If this checkbox is selected, the report cover page will
include a selectable image and general information about the test site and
inspection company. For more information, see “Changing the Report (Print)
Preferences” on page 44.

• Report Shows if Mitigation System Installed: A Mitigation System
Installed checkbox has been added to the Print Preferences. If this checkbox
is selected, the printed report will indicate that a Radon mitigation system
was installed at the test site. The user can also display on the report whether
the mitigation system was working or not working at the time the test was
conducted. For additional information, see “Changing the Report (Print) Pref­erences” on page 44.

• Report Header Image: A Select Header Image option has been added to the
Print Preferences. If a header image is selected, it will appear at the top of
the first page of the report (not the cover page or other report pages). The
header can be aligned to the left, center, or right of the page. For more infor­mation, see “Changing the Report (Print) Preferences” on page 44.

• Report Images (Last Page and Cover): A Pictures tab has been added to the
main software screen. Up to six images can be selected for printing on the
last page of the report. If the cover page option is enabled, one of the images
can also be printed on the cover page of the report. For details about adding
images, see “Main Screen - Pictures Tab” on page 37.

• Report - Signature on First Page: If an image of the inspector’s signature is
selected, the user can also choose the Print Signature on First Page check­box in the Print Preferences to print the signature on both the first and last
pages of the report. For details about this option, see “Changing the Report
(Print) Preferences” on page 44.

• Report - Terminology Changes: In the report, the term “Elapsed Time” has
been changed to “Exposure Time” per EPA protocols. Also, % has been
added to the humidity label on the Model 1029 report page.

• Report - Page Numbers: Page numbers are now printed at the bottom of
each report page (except the cover page).

• Report - Time Display: The time is now displayed correctly in the printed
report (Hrs:mins).

v

• Report - Signature: The signature image is now correctly positioned in the
printed report.

• Report - Print Radon Information: The main software screen displays infor­mation about Radon Risk and how to understand time-sensitive testing
protocols. If desired, these information panels can be included in the printed
report. For details, see “Changing the Report (Print) Preferences” on page 44.

• Other Terminology Changes: The software screens and printed report now
display “Inspection Company” instead of “Inspector Info”.

• License Field Enhanced: The ‘License Number’ field now supports up to 100
characters. Multiple license numbers can be separated with any character,
such as comma, dash, colon, etc. For details, see “Changing Monitor Set­tings” on page 41.

• Chart Enhancements: The chart that is displayed on-screen and in the report
has been improved for easier reading.

• The chart title now includes the monitor model number and serial

number.

• The horizontal screen now displays the date in single-day increments

instead of the a date and time stamp to reduce clutter.

• The Action Level line (red, horizontal) is always displayed, even if the

maximum radiation count is less than the action level.

• The Action Level line can be hidden by deselecting a checkbox in the

chart legend panel.

• The chart now displays the overall overage (or EPA overall average)

above the legend panel as well as the words ‘Motion Detected’ if a
motion event is recorded in the chart. Additionally, if a Model 1029 is
connected, the chart will also display the Average Temperature, Average
Pressure, and Average Humidity above the legend panel.

• If a Model 1028 is connected, the chart will no longer show blank entries

for temperature, pressure or humidity. These values are only displayed
when a Model 1029 monitor is connected.

For details about these changes, see “Main Screen - Chart Tab” on page 35.

• Checklist: The software now provides a checklist that the inspector can use
to verify that best practice actions were completed prior to staring the test.
For details, see “Main Screen - Checklist Tab” on page 38.

• Retrieve Data from Text File: Data that is saved to a text file can be opened
directly from the software. When a text file is opened, the file data populates
the screen options and chart data. For details, see “Data to/from Text File” on
page 40.

• Site Address: The software now includes entries for both Billing Address
and Site Address. If the Billing Address is the same as the Site Address, the
information can be copied so the user does not have to retype the address.
The Site Address and Billing Address are both displayed in the printed report.
For details, see “Main Screen - Inspection Tab” on page 32.

vi

• Documents on CD: The CD that is distributed with the Radon Monitor now
includes three documents that the inspector can provide to the homeowner.

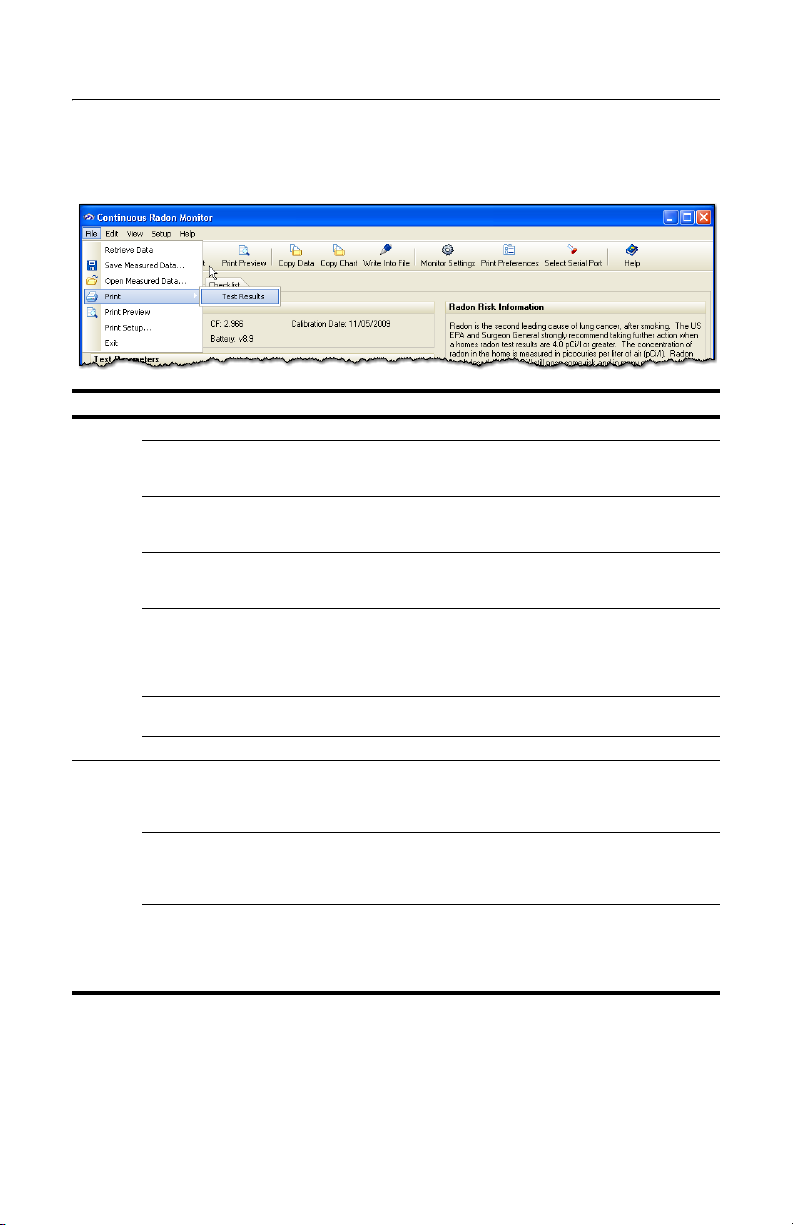

The main screen in the software lists the documents for easy reference. For
details, see “Main Screen - Inspection Tab” on page 32.

• Clear Screen button: The Clear Screen button in the software interface
clears all data that has been retrieved from the monitor and removes the pre­vious data from the screen. This provides a a visual cue for the user that all
existing data has been cleared and new data can be retrieved from the mon­itor. For additional information, see “Inspection Tab Details” on page 33.

• USB Drivers Installed Automatically: The software installation routine now
installs the USB drivers automatically. A separate driver installation proce­dure is no longer required. See “Installing Software” on page 29.

• Support for Windows 7 and 64-bit Operating Systems: The Radon Monitor
software can now be installed on computers that are running Windows 7 and
other Windows 64-bit operating systems. See “Computer/Software Require­ments” on page 29.

Firmware Changes

If the radon monitor has embedded (firmware) code V106 or higher, the delay
parameter selections now include 24 hours and 48 hours. For details, see “Setting
Up Parameters” on page 13.

Conventions

Button Name or Entry

Bold typeface indicates an action or selection, for example:

• A button name (such as, ”press the Avg button”), OR

• A screen selection (such as, “click Next to continue”).

Menu Options

Bold italicized typeface indicates the path to a directory or a menu selection, such
as, “select File > Print from the menu”.

User Messages/Cross References

Text within double quotes indicates a cross referenced subsection, such as,
“...see “Typical Printer Report” on page...”.

Screen Messages

Italicized typeface within double quotes indicates a message that is displayed on
the screen, (such as, “Listening for data on Com X...”).

Window/Dialog Box Names

Text within single quotes indicates a window or dialog box name, such as, “the
‘Information Setup’ dialog box is displayed.”).

vii

Sun Nuclear Corporation Symbols

!

!

The following symbols are used in this document and in Sun Nuclear Corpora­tion’s product labels.

WARNING: Risk of electric shock.

WARNING: Possible impact to personal safety.

CAUTION: Cautionary statement.

Note: Important or supporting information.

Manufacturer’s Identification (name and address).

Date of Manufacture.

Serial Number.

Catalog Number.

Consult instructions for use.

viii

Operating Information

!

Cables

• To protect insulation, never pull on a cable to disconnect it. Always grasp the
plug or connector.

• Do not use any cable that is damaged or has broken insulation. Replace the
cable immediately.

Water

• Do not permit water or any other liquids to spill onto the instrument.

Inspect Before Use

• Inspect all cables periodically for damage. If any mechanical or electrical
degradation is suspected, contact Sun Nuclear Corporation for repair or
replacement.

• Inspect the device periodically for damage. If measurement errors or device
damage are suspected, contact Sun Nuclear Corporation.

Do Not Use Near Explosive Gases

WARNING: Never use the radon monitor in an area that could
contain explosive gases. A spark from inside the radon moni­tor could ignite an explosion.

The radon monitor should never be used in environments that could contain
explosive gases. Circuits are exposed to ambient air so that an accidental spark
from the internal circuits could ignite an explosion.

Operator and Data Evaluation

This manual is intended for an operator who is experienced with the use of radon
detection devices. The device and its accessories must not be used for any other
purpose than described in this manual. Violation may result in loss of warranty.

Sources of Information

User’s Guide

The radon monitor User’s Guide (this manual) is available as an electronic docu­ment (PDF) on the distribution

. The User’s Guide contains detailed information

about the radon monitor including step-by-step operating procedures.

ix

Online Help

Online help is available by selecting Help > Contents from the menu bar of the
radon monitor software. The Online Help contains the same information included
in the radon monitor User’s Guide.

About Radon

The U.S. Environmental Protection Agency (EPA) maintains a comprehensive web
site on radon at: http://www.epa.gov/radon/index.html where you can find PDF
and HTML-ready versions of all of EPA's documents, brochures, and publications
relating to radon.

Below are descriptions of three of the more common EPA publications on radon,
copied from site http://www.epa.gov/radon/pubs/index.html.

A Citizen's Guide to Radon — The guide to protecting yourself and your family
from radon.

This recently revised guidance offers strategies for testing your home for radon
and discussions of what steps to take after you have tested, as well as
discussions about the risk of radon and radon myths. EPA 402/K-09/001, January

2009. (http://www.epa.gov/radon/pubs/citguide.html)

Home Buyer's and Seller's Guide to Radon

This booklet is intended for anyone who is buying or selling a home, real estate
and relocation professionals, home inspectors and others. EPA 402/K-09/002,
January 2009. (http://www.epa.gov/radon/pubs/hmbyguid.html)

Consumer's Guide to Radon Reduction — How to Reduce Radon Levels in Your

Home...

This recently revised booklet is for people who have tested their home for radon
and confirmed that they have elevated radon levels. This booklet can help you:
select a qualified contractor to reduce the radon levels in your home, determine
an appropriate radon reduction method, and maintain your radon reduction
system. EPA 402-K-06-094, December 2006.

http://www.epa.gov/radon/pubs/consguid.html)

(

x

Introduction

Description

The Continuous Radon Monitor (Figure 1) is a patented detection device to
measure the concentration of radon gas. The unit is designed for professional
inspectors to use in homes and buildings.

Figure 1. Continuous Radon Monitors, Models 1028 and 1029

This guide covers both the Models 1028 and 1029. Model 1029 has greater
sensitivity plus temperature, pressure, and humidity sensors.

The radon monitor requires a standard 9V battery. It can be operated on an
alkaline battery alone for up to 100 hours or use an AC adaptor and use the battery
as a backup power source. A lithium-ion battery will provide about 300 hours of
operation.

A 16-character display shows instructions and radon readings. By pushing the
buttons below the display, the user can enter data, set parameters, and print
reports on an optional portable printer.

The radon monitor connects to a computer via a USB or serial cable. The
Windows software on the provided CD can be used to download measurements,
set parameters, and print reports on a printer connected to your computer. See
“Computer Operation” on page 29.

The Continuous radon monitor has been EPA verified and radon proficiency pro­grams approved.

1

Typical Application

In a typical test, place the radon monitor in a building or structure to be
monitored, connect power, and leave it unattended for the required test period.
Ambient room air, laden with radon, diffuses into the radon monitor’s detection
chambers. Gaps between the base and the cover allow air to freely pass into the
radon monitor. Radon decay by-products emit alpha particles which are detected
by the photo diodes and then counted. During a test, the number of counts
produced by the alpha particles is stored in memory and converted into radon
concentration (pCi/l) using the stored calibration factor.

At the end of the test period, the results can be viewed on the radon monitor
display, on the computer screen, or in a printed report.

After viewing or printing the report data, clear the memory. A new test cannot be
started until memory is cleared. The instrument is completely reusable and
requires no supplies except line power and/or a 9V battery.

The radon monitor can be moved from the test site, and the report printed later.

2

Connections

1

2

3

6

5

4

No Description Function

USB PC PORT (front)

1

Serial PC PORT (front) Serial port (RS-232); for connection to a computer

2

PRINTER PORT (front)

3

Power connection (back)

4

IrDA port (back) Infrared port for future application.

5

Battery compartment (back)

6

USB port (USB 1.1 or 2.0); for connection to a
computer

Serial port (RS-232); for connection to the optional
printer.

Power connector; connects to the power supply
when using AC power.

Insert and connect a 9V battery for either backup or
primary power. A fresh alkaline battery will operate
the radon monitor for approximately 100 hours while
a lithium battery will provide about 300 hours of
operation.

Figure 2. Connections

3

Controls

Description Function

Display 16-digit LCD display shows messages to guide the operation.

Six push buttons have different functions, depending on mode. Press

Buttons

STATUS Selects the Status mode, which scrolls through the Status settings.

SETUP

AVG

CUR

ON

ALT For future use.
PIN Press to enter PIN (personal identification number), if used.
SAVE Saves the Setup mode values that were entered.
EDIT Allows editing of the Setup mode entries.
Right arrow Scrolls ahead during Setup or Status
Left arrow Scrolls backward during Setup or Status.

Clear

Print Sends report data to optional printer in Print/Clear mode.

Mode light

keys to operate. Top row of labels lists main functions. Bottom row of
labels are for Setup. Print and Clear functions are used after measure­ment. Numbers are for PIN entry and Setup.

Selects the Setup mode, which is used to enter setup values from the
keypad.

Displays the measured cumulative average radon gas concentration in
pCi/l or Bq/m

Displays the measured short-term radon gas concentration, a rolling
average of the most recent 12 hours.

Press to turn on the display. There is no OFF switch. To save power, the
display turns off automatically after a few minutes of inactivity.

Clears the test memory in Print/Clear mode. Memory must be cleared
before starting a new test.

The green light between EDIT and SAVE has the following meaning:

• Blinks once during power up, indicating that the startup test is in prog­ress.

• Blinks when radon is detected.

3

since the memory was last cleared.

Figure 3. Controls

4

Unpacking

1

2

4

3

Unpack the radon monitor and verify that the parts described below are included
in the package.

No. Part Number Description

1028300 or 1029300 Model 1028 or Model 1029 Radon Monitor

1

1029030 CD, software and reference information

2

700050* Power converter, 120VAC to 12VDC, 200MA, 60Hz

3

801041 Cable, USB, 2 m

4

1028011 User’s Guide (not shown)

---

1028012 Getting Started Guide (not shown)

---

Figure 4. Parts Furnished with 1028/1029 Radon Monitor

*Power converter P/N 700050 is only included with Model 1028/1029 Radon Monitors that
are shipped within the United States. International shipments will include the power supply
and power cord shown in the table below.

Part

Number

801008

Line power cord, detachable, 1.8 m, IEC Plug to
USA style.

Description

741008

Power converter, 100-240 VAC to 18 VDC, 1A, 50-60 Hz.

Figure 5. Power Converter and Cord for International Shipments

Note: Save the packing material so it can be used when sending the
radon monitor to Sun Nuclear Corporation for annual re-calibration.

5

Standalone Operation

!

!

Positioning the Monitor

1 Place the radon monitor in the desired position in the area to be monitored

for radon gas. The radon monitor does not need to be level.

2 To use a tripod, thread the standard tripod screw (1/4-20UNC) into the

threaded fitting on the bottom of the case (Figure 6).

Figure 6. Using a Tripod

Connecting Power

The radon monitor can be operated on battery power or it can be connected to
AC power. When the radon monitor is connected to AC power, the battery pro­vides back-up power.

Battery

CAUTION: A 9V battery must always be installed in the radon monitor
for back-up power, even when the unit is connected to AC power.

With the radon monitor disconnected from AC power, a fresh alkaline battery will
operate the radon monitor for about 100 hours. A lithium-ion battery will operate
the radon monitor for about 300 hours.

CAUTION: High humidity may shorten battery life. Connect the AC
power adapter when using the radon monitor in areas with high
humidity.

6

The battery is located in a small compartment on the back of the radon monitor

!

(Figure 7). To install a new battery, see “Changing the 9V Battery” on page 16.

A replacement 9V battery can be purchased from Sun Nuclear or any retail
source.

Figure 7. Inserting a Battery

AC Adapter

CAUTION: A 9V battery must always be installed in the radon monitor
for back-up power, even when the unit is connected to AC power.

1 Connect the power cable to the power connector on the rear panel of the

radon monitor (Figure 8).

7

Figure 8. Connecting Power to the Radon Monitor

2 Plug one end of the power cord into the adaptor and the other end into a 100

to 240 VAC, 50-60 Hz wall outlet.

Turning on the Display

To conserve power, the 16-digit display is always off until the user presses the ON
button. If no buttons are pressed for 2 to 3 minutes, the display will turn off
automatically.

To turn the display on, press the ON button (5). After a few seconds, the display
turns on (Figure 9) and shows the message “Battery OK.”

Figure 9. Turning on the Display

8

If a Personal Identification Number (PIN) is set up, the display will prompt the user
to enter it. Then, the company name is displayed momentarily (if set up) followed
by the message “Checking Memory.” If there is data in memory, the message
“Data in Memory!” appears. The data can be printed before clearing the memory.
When the display shows “Start Test = 5,” the user may start a new test, check
AVG, check CUR, check STATUS, or change SETUP.

The table below (Table 1) summarizes the steps to turn on the display.

Note: In the table below, the “Press…” column indicates which button
to press. A dash indicates that no button press is required. The “Dis­play Shows…” column indicates the message that is displayed. The
“Comment” column provides more information about the step.

Press… Display Shows… Comment

The display is always off until the user presses the
ON key (5). “Battery OK” means there is enough

Battery OK

–

Enter PIN

nnnn

NNNN

Company Name

–

Checking Memory

–

Start Test = 5

power for 60 hours of operation (delay plus test).
“Low/No Battery!” means that the battery has less
than 60 hours operating life or there is no battery
installed.

This prompt only appears if a Personal Identification
Number has been set up.

Enter the PIN using digits 1 through 4 (digits 5
through 6 not supported; there are no buttons for 7
through 9). The numbers entered are displayed.

Press PIN button (5). If the correct PIN was entered,
the radon monitor will display the company name (if
set up. If the wrong PIN was entered, the message
“Shutting down...” appears briefly and then the dis­play turns off.

If data is in memory, the messages “Data in Mem-
ory!” and “Print and Clear” are displayed. Print and
Clear the memory before starting a new test. See
“Clearing Memory” on page 12.

With the display reading “Start Test = 5,” the user
can press a button to:

• Start a test. See “Starting a Test” on page 10.

• Check AVG or CUR. See “Displaying Average and
Current” on page 11.

• Check STATUS. See “Checking Unit Status” on
page 13.

• SETUP the unit. See “Setting Up Parameters” on
page 13.

After a few minutes of inactivity, the display turns
off automatically to save power.

Table 1. Turning on the Display

9

Starting a Test

When the “Start Test = 5” prompt appears, press the 5 button to start a new test
(Table 2).

.

Press… Display Shows… Comment

–

Start Test = 5

Checking Memory

–

Delay 0 hr

–

Interval 1 hr

–

Duration 12 hr

–

Test in Progress

A new test can be started.

Memory is rechecked. If data is found, memory
must be cleared before starting a new test. See
“Clearing Memory” on page 12.

Displays the time delay defined in Setup.

Displays the measurement interval defined in
Setup.

Displays the test duration defined in Setup.

The test has started and will be finished after the
duration defined in Setup (plus delay). The display
turns off after a few minutes and remains off until
the test is interrupted or the display is turned on.

Table 2. Starting a Test

Interrupting a Test

A test in progress can be interrupted. During the interruption, the user may
display the average or current readings. After the interruption, the test can be
terminated or continued.

Press… Display Shows… Comment

Battery OK

–

Enter PIN

nnnn

NNNN

–

End Test Y=5 N=2

Confirm Y=5 N=2

Test Complete

–

Start Test = 5

Table 3. Interrupting a Test in Progress

Display turns on and battery is checked.

This prompt only appears if a Personal Identification
Number was set up.

Enter the PIN using only digits 1 through 4.

PIN number is displayed. Press PIN button (5) to
check PIN. If the wrong PIN is entered, the mes­sage “Shutting down...” is displayed.

Press 5 to end a test prematurely or 2 to continue.
Pressing 2 will turn off the display and continue the
test.

Note, When this message is displayed, the user
also has the option to press AVG (3) or CUR (4) to
display the average or current readings. See “AVG
or CUR During a Test” on page 11.

Press 5 to confirm or 2 to disconfirm.

The test is terminated.

A new test may be started. If there is partial test
data in memory, it must be cleared before starting
a new test. See “Clearing Memory” on page 12.

10

Note: A completed test cannot be interrupted. After a test is com­pleted, pressing ON displays the normal start sequence. See “Turning
on the Display” on page 8.

Displaying Average and Current

AVG or CUR During a Test

The average (AVG) or current (CUR) radon values can be displayed during a test.
Turn ON the display (see “Interrupting a Test” on page 10), and note the button
press options in the table below.

Note: AVG is the average radon concentration over the total monitor­ing period; CUR is the average radon concentration over the last 12­hour period.

Press… Display Shows… Comment

–

End Test Y=5 N=2

Hold 3&4 Prt/Clr

or

–

Average 1.2

–

Current 1.2

–

Shutting down...

Table 4. Displaying AVG and CUR During a Test

When the display shows this message, press
AVG (3) or CUR (4) to access those functions.

This message only appears for a moment after
pressing 3 or 4. If the test was just started, the
message “Not Enough Data” is displayed.

If AVG (3) was pressed, radon monitor displays
the average radon concentration over the total
monitoring period.

If CUR (4) was pressed, radon monitor displays
the radon concentration in the current 12-hour
period.

After displaying AVG or CUR, monitor shuts
down to resume test.

11

AVG or CUR After Test

The average (AVG) and current (CUR) radon values can also be displayed after a
test is completed. Turn ON the display (see “Turning on the Display” on page 8),
and note the button press options in the table below.

Press… Display Shows… Comment

Start Test = 5

Hold 3&4 Prt/Clr

–

Average 1.2

Hold 3&4 Prt/Clr

–

Current 1.2

–

Start Test = 5

Press AVG (3) or CUR (4).

This message only appears for a moment after
pressing AVG (3).

Displays the average radon concentration over
the total monitoring period.

This message only appears for a moment after
pressing CUR (4).

Displays the radon concentration in the current
12-hour period.

AVG or CUR reading is complete. The data for the
test remains in memory and must be cleared
before starting a new test. See “Starting a Test”
on page 10.

Table 5. Displaying AVG or CUR After a Test

Clearing Memory

After printing the report, clear the memory using the key press options in the
table below.

Press… Display Shows… Comment

–

Start Test = 5

Prt=3 Cl=4 Ex=5

+

Confirm Y=5 N=2

Clearing Memory

It is recommended to print a report before clear­ing data.

When the “Start Test = 5” message appears,
press and hold 3 and 4. Keep holding until the
“Prt=3 Cl=4 Ex=5” message appears. Press 4 to
clear (or 5 to exit).

Press 5 to confirm the clear memory command.

The memory is cleared in a few seconds.

Table 6. Clearing Memory

12

Checking Unit Status

Before starting a new test, it is recommended to scroll through the status items
to confirm they are correct (Table 7).

Press… Display Shows… Comment

–

Start Test = 5

Status Menu

–

DELAY nn hr

–

INTERVAL nn hr

–

DURATION nnn hr

–

BATTERY Ok

–

TIME nn:nn PM

–

DATE MM DD YY

–

CAL MM/DD/YYYY

–

SNC MODEL 1028

–

CODE VER nnnn

–

S/N nnnnnnnnnnn

–

Status Menu Done

Table 7. Viewing Unit Status

The status menu can be selected when the display
shows “Start Test = 5.”

Press the (1) button to select the status menu. The
status of each item will scroll through automati­cally. Each item displays for about 2 seconds.

The delay time selected.

The measurement interval selected.

The duration of the test.

Battery status.

Current time.

Current date

Date of last calibration.

Model number (1028 or 1029).

Embedded code (firmware) version number.

Serial number.

End of the menu. Display returns to “Start Test =
5”.

Status items can also be displayed during a test by pressing the (1) button while
the display shows “End Test Y=5 N=2.”

Setting Up Parameters

Note: If there is any test data in the radon monitor, parameters cannot
be entered. Clear test data before changing parameters.

Parameter data can be entered using a computer or by entering the characters
with the front panel keys on the radon monitor. Using a computer is the faster of
the two methods.

For instructions to enter parameter data using a computer, see “Printing Reports”
on page 47.

The steps to enter parameter data using the front panel keys on the radon monitor
are as follows.

• Turn on the unit.

• Press “Setup” (button 2).

13

• Advance through the list by pressing “Save” (4).

• Stop on an item to change it.

• Press “Edit” (3) to edit the item.

• Press the arrow keys to scroll through a list of available characters and stop
when the desired character appears. Press and hold arrow key for fast scroll.

• When a desired character to change appears, press “Edit” (3) again to
change it.

• When all the characters are changed, press “Edit” to complete the item.

• Press “Save” and advance to the next item.

The following table (Table 8) shows the parameter key press options.

Press… Display Shows… Comment

Parameters can be changed at any time before
starting a test.

Entering the setup menu.

Checking memory for data.

Shows the current delay settings.

Press arrow buttons to change value.

• If the monitor firmware version is 106 or higher,
the delay options are 0.0 hours,12 hours, 24
hours, or 48 hours.

• If the monitor firmware version is 105 or lower,
the delay options are 0.0 hours or 12 hours.

For the steps to check firmware version on a
standalone monitor (not connected to a com­puter), see “Checking Unit Status” on page 13.
For the steps to check the firmware version from
the computer, see “Changing Monitor Settings”
on page 41. The serial number and firmware ver­sion of the unit are displayed on the right side of
the Monitor Settings screen.

Press SAVE; saves the Delay setting and
advances to Interval.

Press arrow keys to scroll through selection of
intervals, 0.5 (model 1029 only), 1.0, 2.0, 4.0, 8.0,
12,16, 20, or 24 hours.

Press SAVE; saves the setting and advances to
the next item.

Press arrow keys to scroll through test duration
times: 1.0, 12, 24, 36, 48, 60, 72, 84, 96, 100, or
999 hours.

Press SAVE; saves the setting and advances to
the next.

The EDIT key (3) lets you begin to edit the first
character.

Press the arrow keys to scroll through the avail­able characters. See “Character Set” on page 15
for a list of characters. Press and hold for rapid
scroll.

or

or

or

or

–

Start Test = 5

Setup Menu

–

Checking Memory

–

Delay 0.0 hr

Delay 12 hr

Interval 1.0 hr

Interval 4.0 hr

Duration 1.0 hr

Duration 48 hr

COMPANY Company

COMPANY Company

COMPANY Mompany

Table 8. Setting up Parameters

14

Press… Display Shows… Comment

Press EDIT key (3) and scroll to the next and sub­sequent characters. Press EDIT (3) again to enter
the next character. Continue character by charac­ter until the company name is entered (up to 30
characters.)

Press SAVE (4); saves the setting and advances to
the next item.

The EDIT key (3) allows editing beginning with the
first character. Enter up to 30 characters for the
first address line using the same procedure as for
Company name.

Press SAVE (4); saves the setting and advances to
the next item.

If a second address line is not needed, leave it
blank. The EDIT key (3) will allow editing begin­ning with the first character. Enter up to 30
characters for the second address line using the
same procedure as for Company name.

Press SAVE (4); saves the setting and advances to
the next item.

Enter city (20 characters) and SAVE (4) (same as
above).

Enter state (10 characters) and SAVE (4) (same as
above).

Enter zip code (10 characters) and SAVE (4) (same
as above).

Enter phone number (20 characters) and SAVE (4)
(same as above).

Enter license number (10 characters) and SAVE (4)
(same as above).

Enter current time (4 numbers plus AM or PM)
and SAVE (4) (same as above).

Enter current date in the format MMDDYY (6
numbers) and SAVE (4) (same as above).

Select units, pCi/l or Bq/m3 (edit, select with
arrows, and SAVE (4)).

Enter a PIN number if desired in the range of 1111
to 4444 and SAVE. The number 1111 is equivalent
to no PIN. To clear a PIN, enter 1111.

End of setup menu.

and

and

and

and

and

and

and

and

and

COMPANY My Comp

ADDRESS1 none

ADDRESS1 9one

ADDRESS2 none

ADDRESS2 none

City none

City none

STATE none

ZIPCODE

PHONE

LICENSE

TIME

DATE

UNITS pC/l

PIN NUM 1111

Setup Menu Done

Table 8. Setting up Parameters (Continued)

Character Set

The available character set includes the following in the sequence shown:

(space) ! “ # $ % & ‘ ( ) * + , - . / 0 1 2 3 4 5 6 7 8 9 : ; < = > ? @ A B C D E
F G H I J K L M N O P Q R S T U V W X Y Z [ \ ] ^ _ ‘ a b c d e f g h i j k l m n
o p q r s t u b w x y z

15

Display Turns Off Automatically

The display turns off automatically after a period of inactivity of about 2-3 min­utes. There is no OFF switch or key sequence.

Changing the 9V Battery

A 9V battery must always be installed, even when using an external power supply.
When the battery is low or needs to be replaced, a message will be displayed on
the radon monitor. Below are the messages that may be displayed:

Low Battery with AC Connected

If the battery is low, and the AC power adapter is connected, a message will
appear when key 5 is pressed (Table 9):

Press… Display Shows… Comment

Low/No Battery!

–

Replace Battery!

–

Shutting down...

Table 9. Low Battery Indication With AC Power Connected

Replace the 9V battery as soon as the test is complete.

Low Battery Without AC Power

If the battery is low, and the AC power adapter is not connected, a message will
appear when attempting to power on (Table 10).

Battery is checked. Does not have enough power
for a 60-hour test.

Replace the 9V alkaline battery as soon as conve­nient. Current test can continue until complete if AC
power is reliable.

The system shuts down to save power.

Press… Display Shows… Comment

Low Battery!

–

No Extern. Power

–

Shutting down...

Battery is checked. Does not have enough power
for a 60-hour test.

Indicates AC power should be connected to con­tinue the test in progress. At the conclusion of the
test, replace the battery.

The display shuts down to save power.

Table 10. Low Battery Indication Without External Power

Connect the AC adapter to continue the test or perform any other operation.
Replace the 9V battery as soon as possible.

16

Replacing the Battery

!

!

CAUTION: Never replace the battery during a test.

1 If a test is in progress, wait for it to be completed.

CAUTION: Always connect to AC power first before replacing the
battery. Otherwise, the time/date clock may be reset and the “Cur­rent” value may be erased.

2 Connect the radon monitor to AC power using the AC adapter. See “AC

Adapter” on page 7.

3 Open the battery compartment door (Figure 7) on the rear panel of the unit.

4 Remove the old battery and unsnap the connector.

5 Connect a fresh 9V alkaline battery to the connector, insert the battery into

the battery compartment, and close the battery compartment door.

Clearing a Reset

1 Turn on the radon monitor to check the battery. If the system is accidentally

reset, clear the reset as follows (Table 11):

Press… Display Shows… Comment

Battery OK

–

System has reset

–

Check Date/Time

Clear Reset? Y=5

–

Shutting down...

Battery is checked.

System has been reset.

An alert to check the date and time and re-enter
them.

Sets the system back to operational mode.

System shuts down.

Table 11. Clearing a Reset

2 Start the radon monitor again. See “Turning on the Display” on page 8.

3 In Setup, change the date and time. See “Setting Up Parameters” on

page 13.

Note: A reset does not clear or change any test data stored in memory.

17

Storage Under Power

Important! For long-term storage, always install a 9V battery
or connect AC power to prevent loss of the internal battery.

Always store the radon monitor with a 9V battery installed or connected to AC
power. This additional power is required to prevent discharge of a small lithium
battery located inside the unit. If the internal battery is discharged, it must be
replaced in the factory. See “Contacting Customer Support” on page 56.

18

Portable Printer (Optional)

Printer - Parts

The following parts are included with the optional portable printer, P/N 1028050.

Part Number Description

022005 Power supply, 6VDC out, 2.1mm plug
750052 Rechargeable battery pack, 4.8V Ni-MH
801008 Line power cord for printer, detachable, IEC Plug to USA style,

801032 Cable, RS-232 (serial), DB9M to DB9F, 6 ft.
850040 Thermal printer
850043 Thermal printer paper (roll)

Table 12. Parts included with the Optional Printer, P/N 1028050

Printer - Description

An optional portable printer, P/N 1028050 (Figure 10), prints reports directly from
the radon monitor. It can be connected to AC power or used as a portable printer
by switching to battery power. See “Printer Battery Pack” on page 24.

1.8 m.

Figure 10. Optional Portable Printer

The printer is not used to print reports from the computer. For computer reports,
see “Printing Reports” on page 47.

19

Printer Connection and Controls

Power LED

Power Switch

ONLINE/OFFLINE

Button

ONLINE/OFFLINE

LEDs

1 Connect the printer cable to the PRINTER PORT on the radon monitor and

the serial port on the printer’s rear panel (Figure 11).

Figure 11. Connecting the Printer Cable

2 To operate the printer on AC power, plug the power supply (P/N 022005) into

the power connector at the back of the printer. Then, plug the detachable
power cord (P/N 801008) into the power supply and into a power source that
matches the ratings on the power supply.

• Alternately, the printer can be operated from the rechargeable battery.

3 Slide the Power switch (on the side of the printer) to the On (I) position.

Figure 12. Printer Controls

• The Power LED (green) will illuminate and blink once every second. If the
rechargeable battery pack is low, the Power LED will blink once every 1/2
second.

20

4 To feed paper, press the ONLINE/OFFLINE button to select off line mode

!

(red LED illuminated), then press the FEED button. It is only possible to feed
paper when the printer is OFFLINE.

5 When complete, press the ONLINE/OFFLINE button to select on line mode

(green LED illuminated).

• The green ONLINE LED will blink if there is data in the buffer memory
when you toggle the switch to off line mode.

• The red OFFLINE light indicates the printer is off line.

• The red OFFLINE light flashes if the paper is not set or has run out.

• Both the ONLINE and OFFLINE lights flash if there is an error.

CAUTION: Do not press and hold the ONLINE/OFFLINE button and the
FEED button simultaneously for 30 seconds or more. This resets the
printer’s internal switches and prevents use of the printer.

Loading the Paper

Note: Load the paper in an area protected from direct sunlight.

1 Unwrap the roll of thermal paper (P/N 850043) and, if necessary, cut the

leading edge straight across.

2 Open the paper cover on the printer and place the roll of thermal paper, edge

down, in the cover (Figure 13). (Printing surface is on the inside of the roll.)

Figure 13. Loading the Paper

21

3 Press the ONLINE/OFFLINE button to select off line mode (red LED

illuminated).

4 Push the edge of the paper into the inlet slot at the bottom of the paper

holder until the auto-loader catches and feeds about 10 cm of paper through
the paper cutter.

Note: If the paper is set correctly, the OFFLINE (red) LED will stop
flashing and stay on to indicate the printer is still in off line mode.

5 If necessary, keep pressing the paper FEED button until the paper feeds

straight and smoothly.

Printing a Report

After a test has been performed, it is recommended to print a report before clear­ing the data from memory. If there is data in memory when the display is powered
on, the “Data in Memory!” and “Print and Clear ” messages will appear. Print a
report using the key press options in the table below:

Press… Display Shows… Comment

Printing can be initiated when the display shows
“Start Test = 5.”

Press and hold 3 and 4. Keep holding until the
“Prt=3 Cl=4 Ex=5” message appears.

Press 3 to print (or 5 to exit without printing)
(1029 only).

Press 5 for compact printout; press 2 for stan­dard printout.

Press 5 to print the bar graph; press 2 to exclude
it. Data is sent to the portable printer.

Printing is complete. A new test can be started.
The data for the test remains in memory and
must be cleared before starting a new test. See
“Clearing Memory” on page 12.

+

or

or

–

Start Test = 5

Prt=3 Cl=4 Ex=5

Compact? Y=5 N=2

Graph? Y=5 N=2

Printing...

–

Start Test = 5

Table 13. Printing to Optional Printer

22

Typical Printer Report

HEADER DATA: Prints information

about the inspector and the
instrument.

TABULAR DATA: Average radon gas
concentration during each

measurement interval is printed in

sequential order; reading in rows
from one to a maximum of 720
measurement intervals.

TIME: Shows the time of each
measurement.

CNT: Shows radon measurement

count in either picocuries per liter

(English units) or becquerels per cubic

meter (metric units) depending on
which units are selected.

OVERALL AVERAGE: Long term
average since last memory CLEAR.

EPA AVERAGE: Long term average
less the first 4 hours of data.

Information to be filled in by the
testing professional.

MEASUREMENT GRAPH: Each radon
concentration value is graphically
represented in the same order as the

tabular printout. Scale is automatically

adjusted to show maximum value.

“M” (movement): Indicates that
movement occurred during the
measurement. The unit may have
been moved during the test.

TEMPERATURE, HUMIDITY, &
PRESSURE (model 1029 only): Show
the effect of changing weather
conditions, ventilation, or detector

interference that may alter test results.

Temperature and pressure units are
English or metric (F or C, inHG or kPa)
corresponding to the type of radon
units.

Figure 14. Typical Printer Report

23

Movement

The movement indicator (M) indicates if the unit was moved during the displayed
time period. The movement indicator is sensitive and can be triggered by
bumping or minor shifting. It could also mean that the unit was moved to a
different location during the test, invalidating the test.

Temperature, Humidity, Pressure

Model 1029 contains additional temperature, humidity, and pressure sensors.
Changes recorded by these sensors may help to determine if the unit was moved
or the area ventilated during the test period.

Printer Battery Pack

The rechargeable battery pack (P/N 750052) allows the user to print reports
without connecting the printer to AC power. The battery pack is automatically re­charged when AC power is connected to the printer.

Inserting the Battery Pack

1 Move the power switch to the OFF (0) position.

2 Turn the printer over and slide the battery cover away from the battery pack

enclosure (Figure 15).

Figure 15. Inserting and Removing the Battery Pack

3 Connect the battery pack wires to the connector.

4 Turn the battery pack so the label is visible, insert it in the printer, and close

the battery cover.

Removing the Battery Pack

1 Move the power switch to the OFF (0) position.

2 Turn the printer over and slide the battery cover away from the battery pack

enclosure.

24

3 Pull out the battery pack, grasp the connector between your thumb and index

finger, and then pull gently to remove.

4 Close the battery cover.

Charging the Battery Pack

1 Turn the power switch to the OFF (0) position.

2 Connect the AC adapter to the printer. The Power LED will blink once every

second while the battery is charging. It takes about 10 hours to completely
recharge the battery. When the battery is fully charged, the Power LED stops
blinking and turns off.

3 Disconnect the AC adapter.

Note: Always charge the battery in a location that is 5 to 40 °C (41 to
104 °F) to avoid degradation of the battery pack.

Low Printer Battery Indication

When the Power LED blinks once every 1/2 second and the printer goes into off
line mode, connect the AC adapter. If there is data left in the memory buffer when
this happens, connect the AC adapter as quickly as possible and push the
ONLINE button.

Efficient Use of Printer Battery

Battery efficiency decreases if the battery is recharged more than necessary.
Confirm whether the Power LED is blinking and battery charge is low before
recharging the battery.

When using the rechargeable battery, turn off the power switch after use. Leaving
the power switch on will consume battery power and eventually run the battery
down.

When the AC adapter is connected, please note that the battery gradually
recharges whether or not the printer is on or off. It takes about 15 hours to charge
the battery with the power on. Battery charging is temporarily disrupted while the
printer is printing and resumes automatically when printing is completed. If the
printer is not in use, move the power switch to the OFF position and then unplug
the AC adapter.

25

Printer Switch Settings

The thermal printer (P/N 1028050) has internal DIP switches that are set at the fac­tory. For proper operation, these switches must be set as shown (Figure 16).

To check and set the switches, perform the following steps:

1 Slide the power switch to the OFF (0) position.

2 Slide the power switch to the ON (I) position while pressing and holding the

ONLINE/OFFLINE button.

3 Release the ONLINE/OFFLINE button after a list of the current settings (Fig-

ure 16) begins to print. When the list of settings is complete, the following
prompt appears at the bottom of the printout:

“Continue? : Push On-line SW”
“Write? : Push Paper feed SW”

4 To leave the switch setting the same, push the FEED button.

5 To change any switch settings, push the ONLINE/OFFLINE button. The

prompt “Dip SW-1” appears on the printout below the current settings.

Note: All eight switches in SW-1 must bet set to ‘on’ or ‘off’ before
exiting.

26

Figure 16. DIP Switch Settings for Printer

!

6 Set each of the eight switches in Dip SW-1 by pressing the

ONLINE/OFFLINE button=”on” or FEED button=”off”. As ON or OFF is
selected for each switch, the printer prints the selection. When switch 8 is
set, the printer once again prompts to “Continue?” or “Write.” Press the
ONLINE/OFFLINE button to continue to SW-2.

CAUTION: Never turn the printer off while writing the switch set­tings to memory. When “Dip SW setting complete” is printed, power
may be turned off.

27

7 In the same manner, set the switches for SW-2 and SW-3.

8 When SW-3 is finished, press the FEED button to select “Write.” The

changes are written to printer memory, and then the printer returns to on line
mode.

28

Computer Operation

About the Software

The provided CD contains a Windows program called “1028/1029 Radon
Monitor.” The software can be used to:

• Enter and download setup parameters into the radon monitor

• Upload report data from the radon monitor into the computer

•Add customer information and test conditions to the report

• Print reports on any available printer

Computer/Software Requirements

The software can operate on most Windows operating systems (Windows 7
(32-bit and 64-bit), Vista, XP, 2000, etc.)

Approximately 10 MB of disk space and 128 MB of RAM are required.

Installing Software

Note: The drivers for USB connection are installed automatically dur­ing this procedure.

1 Insert the CD in the CD drive.

2 When the copyright screen is displayed, click Accept to continue. A menu

(Figure 17) appears.

Figure 17. Software Installation Menu

3 Click “Software” under “1028/1029 Radon Monitor.”

29

4 Follow the on-screen directions to install the software. Accept all default

folders and file locations.

5 When the ‘Device Driver Installation Wizard’ is displayed, click Next. The

device drivers are installed and then the driver status (‘Ready to use’) is
displayed.

6 Click Finish to close the window. The ‘Installation Completed’ window is

displayed.

7 Click Finish to close the ‘Installation Completed’ window.

8 Click Exit to close the software installation menu and then remove the CD.

Connecting Radon Monitor to Computer

The radon monitor can be connected to a computer using a USB cable (furnished
with the radon monitor).

If the computer does not have a USB port, a serial cable can be used to connect
the radon monitor to the computer. See “Optional Serial Connection” on page 53.

1 Ensure that the radon monitor software has been installed on the computer.

2 Connect the USB cable to the computer and the radon monitor (Figure 18).

Figure 18. USB Connection to a Computer

3 If desired, plug the power supply cord into a 100 to 240 VAC, 1-phase, 50-60

Hz power source.

30

Launching the Software

1 Ensure that the radon monitor is connected to the computer via a USB or

serial cable.

2 Launch the software application by double-clicking the Radon Monitor

desktop shortcut or by selecting Start > Programs > SNC Group >

Radon Monitor.

3 If the ‘Select Port’ window is displayed, select the port and then save it. See

“Port Selection” on page 54.

Note: If the software does not detect the port, select it manually by
selecting Setup > Select Serial Port from the on-screen menu. See
“Serial Port Setup” on page 54.

Using Software to Retrieve Data from Monitor

1 After launching the software, turn on the radon monitor by pressing the ON

key (5).

2 If prompted, enter the PIN.

3 When the display shows “Start Test = 5”, click the Retrieve Data from

Monitor button at the bottom of the Inspection tab on the main screen. The
connection is maintained until software is closed.

USB Cable Connection/Disconnection

If the USB cable is connected after software is already launched, the computer
will detect the port and display a message (Figure 19). Click Yes to connect. A
similar message appears if the cable is disconnected while software is running.

Figure 19. Port Detection Message

Closing Software

To close the radon monitor software, click the Close button in the Inspection tab
or select File > Exit from the menu.

31

About the Main Screen

Menu bar Toolbar (if

displayed)

Tabs

Status bar

(if displayed)

The main screen has a menu bar, toolbar buttons, a status bar, and four tabs
(Inspection, Chart, Pictures, and Checklist). The toolbar and status bar can be
displayed, as shown below, or hidden.

The appearance of the main screen will change depending on the tab that is
selected.

Figure 20. Main Screen, Inspection Tab Shown

Main Screen - Inspection Tab

The Inspection tab (Figure 20) shows:

• Information about the Radon Monitor.

• Test parameters

• Customer information

• Inspection company information

• Radon risk information (EPA information about Radon)

• Testing protocols (information to help interpret test results)

• A list of documents that the inspector can provide to the homeowner

32

Inspection Tab Details

Group Item Description

Continuous
Radon Moni­tor (from
factory)

Tes t P a r a me ­ters (from
monitor)

Model Number Model number, 1028 or 1029.
Serial Number Serial number of this unit.
CF Calibration factor—determined during calibration.
Battery Battery voltage.
Calibration Date Date the unit was last calibrated.
Start Time Time the test started.
Hours Delayed Time delay before starting test.
Test Duration Length of the test in hours.
Measurement

Interval
Number of

Measurements
Overall Average Average radon level detected during the entire test.

EPA Average

Hourly interval between measurements.

Total number of measurements in this test.

The average radon level detected during the dura­tion of the test minus the first 4 hours. Removing
the first 4 hours permits the test environment to
stabilize.

Figure 21. Inspection Tab Details

33

Group Item Description

Customer
Information

(usually
entered after
retrieving test
data from the
monitor)

Inspection
Company

Radon Risk
Information

Understand­ing Time
Sensitive
Te st i n g
Protocols

Documents
Provided

Retrieve Data
From M oni­tor button

Clear Screen
button

Close button Closes the Radon Monitor software program.

Name Enter customer name to appear on printed report.
Address 1 Enter address line 1.
Address 2 Enter address line 2 (if applicable).
City Enter city.
State/Province Enter state or province.
Zip Enter zip or postal code.
Phone Number Enter phone number.
Double arrow button

N/A The “Inspection Company” information is entered in

If Site Address and Billing Address are the same,
click the double arrow to copy the information.

the Monitor Settings tab in the Preferences screen.
See “Changing Monitor Settings” on page 41..

Radon risk information (EPA information about
Radon). This information can also be included in the
printed report. See “Changing the Report (Print)
Preferences” on page 44.

Testing protocols (information to help the inspector
interpret test results). This information can also be
included in the printed report. See “Changing the
Report (Print) Preferences” on page 44.

A list of documents that the inspector can provide to
the homeowner. These documents are copied to the
computer during the Radon software installation,
and are saved in the

C:\Program Files\SNC\Radon10281029\Radon­Documents directory.

Retrieves data from the connected radon monitor.
This function can also be performed from the Moni­tor Settings tab.

Clears all data from the left side of the Inspection
tab (monitor information, test parameters, customer
information, inspection company information). This
provides a visual cue that all data has been cleared
from the software and that new data is downloaded
when the user clicks the ‘Retrieve Data from Moni­tor’ button.

Figure 21. Inspection Tab Details (Continued)

34

Main Screen - Chart Tab

The Chart tab (Figure 22) shows a chart (graph) of the test results. The graph is
included in the printed report.

Chart Tab Details

Group Item Description

The chart title includes the model number and serial num­ber of the radon monitor.

The left vertical scale of the chart shows the Radon con­centration in the units selected, pCi/l or Bq/m

(Model 1029 only; for Model 1028 the right vertical scale
is blank). The right vertical scale is for temperature, pres­sure, and % humidity. The units for temperature and
pressure are the units selected.

The horizontal scale shows the date in one-day
increments.

If checked in the Legend Panel, the Radon graph line con­nects the values of the periodic measurements during
the test. The overall average (or EPA average) is displayed
above the Legend panel.

Chart

Chart Title

Left vertical scale

Right vertical
scale

Horizontal scale

Radon (units)
graph

Figure 22. Chart (graph) Details

35

3

.

Group Item Description

If checked in the Legend Panel, and if motion was
detected during the test, a vertical line with a red circle
indicates each motion event. Also, the text ‘Motion
Detected’ is displayed above the Legend Panel.

If checked in the Legend Panel, the Action Level horizon­tal, red line is displayed. The line will be drawn on the
graph at the selected radon concentration above which
mitigation action is necessary. Normally the level is

4 pCi/l or 148 Bq/m
When the radon level line does not exceed the action

level, the action level line is always visible on the chart for
easy comparison.

(Model 1029 only) If checked in the Legend Panel, tem­perature recorded during the test is shown as a red
dotted line. The average temperature is displayed above
the Legend Panel.

(Model 1029 only) If checked in the Legend Panel, the
pressure recorded during the test is shown as a dotted
green line. The average pressure is displayed above the
Legend Panel.

(Model 1029 only) If checked in the Legend Panel, the
percent relative humidity recorded during the test is
shown as a blue dotted line. The average relative humid­ity is displayed above the Legend Panel.

Select this checkbox to display vertical Motion Error
line(s).

Select this checkbox to display the horizontal, red Action
Level graph line.

(Model 1029 only) Select this checkbox to display the
Temperature graph line.

(Model 1029 only) Select this checkbox to display the
Pressure graph line.

(Model 1029 only) Select this checkbox to display the Rel­ative Humidity graph line.

3

.

Chart
(Continued)

Legend
Panel

Motion Errors

Action Level

Temp (units)

Pressure (units)

Rel % Humidity

Radon (units) Select this checkbox to display the Radon graph line.

Motion Errors

Action Level

Temp (units)

Pressure (units)

Rel % Humidity

Figure 22. Chart (graph) Details (Continued)

Zooming In and Out

• To zoom in on the chart, drag a bounding box down and to the right around
the area to be examined more closely. When the mouse button is released
the view will zoom in to the selected area.

• To zoom out, drag the cursor up and to the left. The original view is restored.

Moving the Chart

• To move the chart on the page, position the cursor over the chart, press and
hold the right mouse button, and then move the mouse.

• To restore the original view, position the cursor over the chart, click the left
mouse button, and then drag the cursor up and to the left.

36

Main Screen - Pictures Tab

The Pictures tab is used to select up to six pictures that can be printed in the
report. The pictures may consist of setup photos, before and after, etc.

The Print Picture checkbox above each picture allows the user to select which
images will be displayed in the report. The selected images are displayed on the
last page of the report, except for the top, left image (labeled ‘Cover Page Pic­ture’), which can be displayed on the cover page as well as the last page of the
report. Note that the report will only contain a cover page if the ‘Create Cover
Page’ checkbox is selected in the Preferences ‘Print Tab’ screen.

A title or comment may be entered in the Comments box below each picture (up
to 50 characters). If the ‘Print Picture’ checkbox is selected, both the picture and
comment are printed in the report. If the Comments box is blank, no comment
will be included with this picture in the report.

The Select Picture button below each picture is used to browse to the directory
where pictures are stored and select a picture.

Figure 23. Main Screen - Pictures Tab

37

Main Screen - Checklist Tab

The Checklist tab provides a checklist that the inspector can use to verify that
best practice actions were completed prior to starting the test (such as locating
the radon monitor where it will not be disturbed, not locating it near drafts, etc.).

Figure 24. Main Screen, Checklist Tab

38

Menu Bar and Toolbar Functions

The menu bar contains commands for operating the program (Figure 25). The
toolbar (if displayed) is just beneath it. All of the toolbar commands can also be
selected from the menu.

Group Item Description

File Retrieve Data Retrieves data from the connected radon monitor.

Allows measured data to be saved in text (.txt) format. This
menu command has the same function as the Save toolbar
button.

Opens a previously saved text file with measured data. This
menu command has the same function as the Open toolbar
button.

Prints the selected test results to the default system printer.
This menu command has the same function as the Print tool­bar button.

Opens a preview window to view the report to be printed.
From the preview window, the user can scroll through a
multi-page report, print it, or print the report to a PDF file.This
menu command has the same function as the Print Preview
toolbar button.

Opens the Windows printer setup dialog box to change
printers or printer characteristics.

Copies raw test data to the Windows clipboard. Then the
data can be pasted into another application, such as a word
processor or spreadsheet.This menu command has the
same function as the Copy Data toolbar button.

Copies the chart for the test to the Windows clipboard. Then
the chart can be pasted into another application, such as a
word processor or spreadsheet. This menu command has
the same function as the Copy Chart toolbar button.

Writes raw test data to a text (.txt) file that can be opened
with a text editor, spreadsheet, or word processor. Raw data
does not contain file header information, such as customer
name, etc. This menu command has the same function as
the Write Into File toolbar button.

Figure 25. Menu Bar Commands

Edit

Save Measured
Data

Open Measured
Data*

Print > Test
Results

Print Preview

Print Setup

Exit Exits the radon monitor program.

Copy Raw Data

Copy Chart

Write Raw Data

39

Group Item Description

View Toolbar When checked, displays the toolbar below the menu.

Toolbar Label

Status Bar

View Notices

Setup

Monitor Settings

Preferences

Select Serial Port

Help* Contents Opens the on-line help viewer.

About

When checked, displays labels beneath the tools on the
toolbar.

When checked, displays the status bar at the bottom of the
main screen.

Displays a screen that can be used to show all notices from
the monitor, clear notices, or save notices to a log.

Displays the ‘Preferences’ screen with the Monitor Settings
tab selected. This tab is used to update information about
the Inspection Company or the radon monitor. Note that
monitor data must be cleared before updating monitor infor­mation. For details, see “Preferences Screen - Monitor
Settings Tab Details” on page 42. This menu command has
the same function as the Monitor Settings toolbar button.

Displays the ‘Preferences’ screen with the Print tab selected
so the user can update print preferences. For details, see
“Preferences Screen - Print Tab Details” on page 45. This
menu command has the same function as the Print Prefer­ences toolbar button.

Opens a ‘Select Port’ dialog box to select the COM port num­ber for connection to the radon monitor. This menu
command has the same function as the Select Serial Port
toolbar button.

Displays information about the program including version
number.

Figure 25. Menu Bar Commands

Data to/from Text File

Save Data to File

1 Retrieve data from the monitor.

2 Click the Save toolbar button or select File > Save Measured Data from the

menu.

3 When the ‘Save As’ window is displayed, browse to the directory where the

file will be saved, enter a file name, and then click Save.

Open Data from File

1 Launch the monitor software and then click the Open toolbar button or

select File > Open Measured Data from the menu.

2 When the ‘Load Measured Data’ window is displayed, navigate to the direc-

tory where the text files are stored, select the desired file, and then click
Open. The data is populated on the screen.

40

Changing Monitor Settings

The software can be used to send basic parameters to the radon monitor.
Although this can also be done using the keypad on the radon monitor, it may be
quicker and easier to perform from the software, especially when several radon
monitors are being updated.

Note: Some test parameters, such as Delay, Test Duration, and Mea­surement Interval, can only be changed on the radon monitor.

1 Connect the radon monitor to the computer and launch the software.

2 Turn on the radon monitor display by pressing the ON button (5).

3 When the display shows “Start Test = 5,” click the Monitor Settings button

in the toolbar or select Setup > Monitor Settings from the menu. The
‘Preferences’ screen opens with the Monitor Settings tab options displayed.

Note: A pop-up window warns if there is data in memory. The Monitor
Settings options cannot be edited if there is data in memory.

Figure 26. Monitor Settings

4 In the Monitor Settings tab, click the Retrieve Data From Radon Monitor

button to retrieve the data stored in the radon monitor.

41

5 Edit the Inspection Company and Radon Monitor information, as needed. For

details about the screen options, see “Preferences Screen - Monitor Settings
Tab Details” on page 42.

6 Set the date, time, pin number and Radon units. If the Set Monitor Time

checkbox is selected, the software automatically updates the time and date
to the computer’s system clock.

7 Click the Send Data to Monitor button. The changed parameters are stored

in the radon monitor’s internal memory.

Preferences Screen - Monitor Settings Tab Details

The Monitor Settings tab is used to enter details that will be transferred to the
radon monitor’s memory.

Group Item Description

Retrieve Data
from Monitor
button

N/A

When Start Test = 5 is displayed on the monitor, click
this button to retrieve the parameters and test results
stored in the radon monitor.

Note that radon monitor data cannot be updated if
there is test data in memory.

Figure 27. Monitor Settings Tab Details

42

Group Item Description

Inspection
Company

Radon Monitor

Send Data to
Monitor button

Name Enter inspector name for the report.
Company Name Enter the name of the inspection company.
Address 1 Enter the inspection company’s address line 1.
Address 2 Enter the inspection company’s address line 2.
City Enter the city.
State/Province Enter the state or province.
Postal Enter the zip.
Phone Number Enter the inspection company’s telephone number.

Enter the inspection company’s radon inspection

License Number

Date/Time

Set Monitor Time

PIN

Radon Units

Pressure units

Temperature
units

Serial number Factory set unit serial number.
Firmware version Version number of the firmware.

license number. The field allows up to 100 characters.
The separator character (between license numbers),
can be a comma, dash, period, or any other character.

Date and time of the radon monitor’s clock when
retrieve button is pressed. Time is not continuously
updated.

Click checkbox to set monitor time to be the same as
the computer’s system time.

Enter a PIN number if desired. Pin numbers are 4 digits
ranging from 1112 to 4444. PIN 1111 is the same as
“no PIN.”

Select radon units from the drop-down list. Units are:

• picocuries per liter (pC/l) (English units), or

• becquerels per cubic meter (Bq/m
(Model 1029 only) Units of pressure selected automat-

ically depending on whether metric or English radon
units are selected.

• metric = kilo Pascals (kPa)

• English = inches of mercury (inHg)
(Model 1029 only) Units of temperature selected auto-

matically depending on whether metric or English
radon units are selected.

• metric = degrees Celsius (centigrade)

• English = degrees Fahrenheit

Sends updated parameters to the Radon Monitor.

Figure 27. Monitor Settings Tab Details

3

) (metric units).

43

Changing the Report (Print) Preferences

1 Connect the radon monitor to the computer and launch the software.

2 Turn on the radon monitor by pressing the ON button (5).

3 When the display shows “Start Test = 5,” click the Print Preferences button

in the toolbar or select Setup > Print Preferences from the menu. The ‘Pref­erences’ screen opens with the Print tab displayed.

4 Select or enter the desired information. For details about the Print Tab

options, see “Preferences Screen - Print Tab Details” on page 45.

5 If the report will be printed on company letterhead, select the amount of

space that should be left at the top of the paper so that the report will not
overprint the letterhead.

6 Select if the report will display EPA Average, Overall Average, or both.

7 If a signature image file is available, select it. The signature image is

displayed on the last page of the printed report, above the ‘Signature’ line.

Click the file folder button ; the file selection window appears.

a.
b.

Browse to the directory where the pictures are stored.

c.

Click on a picture (.gif, .bmp, or .jpg.) to highlight it.

• The image is displayed on the right side of the screen and the image
size is displayed in the upper right of the screen.

• The preferred image size for the signature file is 200 x 60 or smaller
(width=200 pixels, height=60 pixels). The preferred image size for
the header image is 250 x 60 or smaller (width=250 pixels,
height=60 pixels). Any size can be used and the image will be
scaled; however some distortion may occur if the image does not
have the same aspect ratio.

Click the

d.

8 If a header image file is available, select it (see the signature image substeps

above). The header image will be displayed on the first page of the report (not
the cover page or other report pages).

9 The Chart Action Level setting draws a line on the graph to show where the

radon level exceeds the local standard and requires the owner to take
remediation action.

• If the units are picocuries/liter (pC/l), set the action level required in your
region. For example, USA action level for pC/l is 4.

• If the units are Bq/m
example, USA action level for Bq/m

• Units can be converted by multiplying pC/l x 37 = Bq/m
4pC/l x 37 = 148 Bq/m

Open

button.

3

, set the action level required in your region. For

3

.

3

is 148.

3

; for example,

44

Preferences Screen - Print Tab Details

The Print tab in the ‘Preferences’ screen is used to select options for the printed
report.

Group Item Default

Printing
Preferences

Atmospheric
Conditions*

Wind
Direction/Speed*

Year Built*

Sq. Ft.*

Structure Type*

Monitor
Location*

Letter Head
Space

Selected
(checked)

Selected
(checked)

Selected
(checked)

Selected
(checked)

Selected
(checked)

Selected
(checked)

0.00 inches

*Optional - select with checkboxes.

Figure 28. Print Tab Details

Value

45

Description

Select atmospheric conditions at test
site from drop-down list.

Select wind direction and speed at test
site from drop-down list.

Year construction was completed.

Approximate area of the room that was
monitored.

Type of construction or other descrip­tive information.

Location of the radon monitor in the
house, building, or mine.

Extra space in inches to be added at the
top of a report to provide room for
inspector’s preprinted letterhead.

Group Item Default

Printing Prefer­ences
(Continued)

Select Signature

Select Header

File Folder

button

Clear Image

button
Header Image

Alignment

Create Cover
Page

Print Signature on
First Page

Print EPA Average

Print Overall
Average

Print Radon Risk
Information

Print Understand­ing Testing
Protocols

Mitigation Sys­tem Installed

Mitigation Sys­tem Working
Properly

Blank

Blank

N/A

N/A Clears the image selection.

Center
Aligned

Not Selected
(unchecked)

Not Selected
(unchecked)

Selected
(checked)

Selected
(checked)

Not Selected
(unchecked)

Not Selected
(unchecked)

Not Selected
(unchecked)

N/A

*Optional - select with checkboxes.

Figure 28. Print Tab Details (Continued)

Value

Description

If selected, the signature image will
appear on the last page of the report
above the ‘Inspector Signature’ line.
The header image will appear at the top
of the first page of the report (not the
cover page or other report pages). Use
the Print Preview function to see the
image and verify alignment.

Opens a file selection window so the
user can browse to and select the file.
The right panel of the file selection win­dow displays the selected image and
the image size.

Select if the header image will be left­aligned, center-aligned, or right-aligned.

Selecting this checkbox adds a cover
page to the printed report and prints the
image selected in the ‘Cover Page Pic­ture’ box in the Pictures tab. See “Main
Screen - Pictures Tab” on page 37.

The cover page will also display the site
address, inspection date, inspection
company information, and inspector
license number.

Certain US states, such as Ohio, require
the inspector’s signature to appear on
the first page of the report. If this is
requirement in the local inspection
area, select this checkbox. An Inspector
Signature is added to the first page of
the report (not the cover page).

Print the EPA Average radon concentra­tion on the printed report.

Print the Overall Average radon concen­tration average on the printed report.

If selected, the Radon Risk Information
(from the Inspection tab) is printed in
the report.

If selected, the Understanding Testing
Protocols information (from the Inspec­tion tab) is printed in the report.

Select this checkbox if a Radon mitiga­tion system was installed at the site. If
checked, the report will show that a
Radon mitigation system was installed.

If the Mitigation System Installed
checkbox is selected, choose the
appropriate radio button to note in the
report if the mitigation system was
“Installed and working” or “Installed
(but not working).”.

46

Group Item Default

Continuous Radon Monitor

Model Number:

1029

Serial Number: 4778405

Calibration Date:

01/10/2009

CF: 2.57, 2.57

Monitor Time:

1/8/2010 8:47

Inspection Company

Billing Information

Site Information

Sun Nuclear Corp
425 A Pineda Court
Test
Melbourne, FL-32940
Phone Number: 3212596862
License Number: 1234, 5678

Site & Condition

Wind:

NA

Atmospheric Condition:

NA

Year Built:

NA

Structure Type:

NA

Mitigation System:

Not Installed

Monitor Location:

NA

SqFt:

NA

Test Summary

Start Time:

12/15/2009 16:53

Overall Avg:

0.6 pCi/l

End Time:

12/17/2009 09:53

EPA Avg:

0.6 pCi/l

Measurement Interval(hr):

1.0

Exposure Time: 1 Days 17 hrs

1

Description

Value

Enter the action level required by the
country or state for the maximum allow­able level of Radon concentration
before mitigation action is required.
See Step 9 in “Changing the Report
(Print) Preferences” on page 44.

The Action Level appears as a red, hori­zontal line on the graph.

General
Preferences

Chart Action
Level

4.00 pC/l

If this checkbox is selected, the Overall
Display Average
Data on Chart

Not Selected
(unchecked)

Average (or EPA Average) is displayed

in the Chart tab above the Legend

panel.

*Optional - select with checkboxes.

Figure 28. Print Tab Details (Continued)

Printing Reports

1 To print a standard, formatted report, open the Radon Monitor software,

retrieve data from the monitor, and then click File > Print > Test Results. A
formatted report (Figure 29) is printed on the default printer. The first page of
the report will display the same graph as the Chart tab.

Action
Level

5

4.8

4.6

4.4

4.2

4

3.8

3.6

3.4

3.2

3

2.8

2.6

2.4

Radon

2.2

2

1.8

1.6

1.4

1.2

1

0.8

0.6

0.4

0.2

0

Continuous Radon Monitor Model 1029 S/N: 4778405

Overall Avg: 0.6

Motion Detected

Radon pCi/l

gfedcb

Motion Errors

gfedcb

70

60

Temperature, Pressure, % Humidity

50

40

30

20

10

Avg Temp: 75 F

Action Level

gfedcb

gfedcb

12/17/200912/16/2009

Avg Press: 30 inHg

Temp F

Avg Humd: 40 %

Press inHg

gfedcb

gfedcb

0

Rel % Humidity

Figure 29. Printed Report (First Page)

47

2 To see a preview of the report before printing, click the Print Preview toolbar

button or select File > Print Preview from the menu. From the ‘Print Pre­view’ window (Figure 30), the user can print the report, save it to a PDF file,
or view it page-by-page by clicking the buttons at the top of the screen.

Figure 30. Print Preview Screen

3 To save the report as an Adobe PDF file, open the ‘Print Preview’ window

then click the Print to PDF button at the top of the screen. In the file window,
select a file name and directory where the file will be stored. Click Save.

4 To change the printer or printer setup, click File > Print Setup. The standard

Windows printer dialog box opens.

5 To extract data to insert it in a report, use one of the following options:

•Click the Copy Data toolbar button or select Edit > Copy Raw Data
from the menu. The current data is copied to the Windows clipboard and
can be pasted into another application, such as MS Word or MS Excel.

•Click the Copy Chart toolbar button or select Edit > Copy Chart from
the menu. The current chart is copied to the Windows clipboardand can
be pasted into another application, such as MS Word or MS Excel.

•Click the Write Into File toolbar button or select Edit > Write Raw Data
from the menu. The raw data is saved to a text (.txt) file. Raw data does
not contain header data, such as customer information. The saved text
file can be opened in any program that supports .txt files.

48

Specifications

Model 1028/1029 Radon Monitor

Description Value

Measurement Range

Accuracy ±25% or 1 pCi/l, whichever is greater after 24 hours

Detector

Measurement Interval

Tes t D ur a t i on

Sensitivity

Display 16-digit reflective LCD display
Status Light Green LED (light emitting diode) indicates radon detections
Keypad 6-digit membrane switches with multiple functions
Disturbance Sensor Inertial switch

Environmental sensors
(1029 only)

Operating Environment

Storage Environment

Printer Data Port

Serial Data Port

USB Data Port USB-A connector allows two-way communication with PC

Power Supply

Battery Power/Backup

0.1 to 9999 picocuries/liter (pCi/l) or 1 becquerels per cubic
meter (Bq/m3) to 99.99 kilo becquerels per cubic meter
(kBq/m3)

Diffused-junction photodiode

• Model 1028—quantity 1

• Model 1029—quantity 2

Active volume—9.4 cm

Dome volume—63 cm

0.5 (1029 only), 1, 2, 4, 8, 12, 16, 20 or 24-hour intervals,
selectable by user

1, 12, 24, 36, 48, 60, 72, 84, 96, 100, 999 hours, selectable by
user (maximum of 720 measurements)

• 1028—3 counts per hour per picocurie per liter (cph/pCi/l)

• 1029—6 counts per hour per picocurie per liter (cph/pCi/l)

• Temperature—0 to 120 ± 2 degrees F

• Pressure—10 to 15 ± 0.5 psi

• Humidity—20 to 90% relative humidity ± 5%

• 45 to 95° F (7 to 35° C)

• 20 to 80% relative humidity, non-condensing

• –22 to 122° F (–30 to 50° C)

• 10 to 90% relative humidity, non-condensing
RS-232, 9-pin, D-connector allows printer data to be sent to

optional thermal printer
RS-232, 9-pin, D-connector allows two-way communication

with PC

Domestic: Transformer converts 120 VAC to 12 VDC,
200 mA, 60 Hz

International: Transformer converts 100-240 VAC to 18 VDC, 1
A, 50-60 Hz

One fresh 9V alkaline battery supplies approximately 100
hours of operation while a lithium-ion battery supplies about
300 hours of operation. “Battery OK” message indicates bat­tery OK for 60 hours of operation.

3

3

Table 14. Technical Specifications

49

Description Value

Tripod threaded fitting Standard 1/4-20 UNC threaded fitting on bottom of case
Handle Integrated handle for carrying or for use with cable lock
Weight 2 lbs (0.91 kg)
Dimensions 9.3W x 4.8D x 2.9H inches (236 x 122 x 74 mm)

Table 14. Technical Specifications (Continued)

50

Maintenance

Maintaining Hardware

Parts and Repairs

Order accessories and replacement parts from the Sun Nuclear Sales: E-Mail:
[e-mail]; telephone: [phone]; fax: [phone]-

7979. For part numbers, see “Unpacking” on page 5. For accessory part numbers,
See “Accessories” below.

There are no user-serviceable parts inside the radon monitor. If there are prob­lems with the device, please contact

Accessories

Contact Sun Nuclear Corporation to order any of the following accessories:

Part Number Description

1028050 Printer, thermal, 80 column, Sieko DPU-414.
022005 Power supply for printer, 6 VDC. Used with P/N 801008.

750052

801008 Line power cord for printer or for Radon Monitors shipped outside of

801032

850043

750004 Battery, alkaline, 9V, for radon monitor.
1029030 Radon Monitor CD, software and reference information.

700050

741008

801041 USB cable for Radon Monitor, 2 m.
1028011 Radon Monitor User’s Guide.
1028012 Radon Monitor Getting Started Guide.
1028000-SC Carrying case, single radon monitor.
1028000-SPC Carrying case, single radon monitor plus printer.
1028000-DC Carrying case, dual (holds two radon monitors, printer, cables).
102378 Sign, self-adhesive, “Warning, Closed Building Procedure”.
102379 Sign, plastic, hanging, “Caution, Radon Test in Progress”.
1028130 Sign, vinyl static cling, “Warning, Closed Building Procedure”.

Rechargeable battery pack for printer (furnished with P/N1028050 or
can be ordered separately).

the United States. Detachable, IEC Plug to USA style, 1.8 m.
Serial cable for printer, 9-pin, D-connector, M/F (furnished with

P/N1028050 or can be ordered separately).
Thermal paper for printer (furnished with P/N1028050 or can be

ordered separately).

Power converter for Radon Monitors shipped within the United States,
120 VAC to 12 VDC, 200 MA, 60 Hz.

Power converter for Radon Monitors shipped outside of the United
States, 100-240 VAC to 18 VDC, 1A, 50-60 Hz. Used with P/N 801008.

Table 15. Radon Monitor Accessories

51

Storage

!

CAUTION: Always leave a good 9V battery in the unit to keep the
small internal battery from running down.

Store the radon monitor in an indoor, protected environment. Do not store the
radon monitor in the trunk of a car for extended periods. Keep the unit dry. For
long term storage, store in a cool, dry place and leave a 9V battery in the unit to
protect the internal battery. Periodically inspect the 9V battery and replace if
leakage or corrosion are found.

Cleaning

Clean the unit with a soft dry cloth. Do not use liquid cleaners, solvents, or
abrasives.

Disposing and Recycling

Do not discard unit as waste; the circuit board contains small amounts of lead.
Recycle the components in accordance with local regulations.

Battery Life

Any 9V battery will operate the radon monitor, but an alkaline battery (ANSI­1604A; IEC-6LR61) provides a good balance between long life and cost. Since
battery capacity varies widely between types of batteries and even between
individual batteries of the same type, the predicted battery life of 100 hours using
a fresh alkaline battery (or 300 hours using a fresh lithium-ion battery) is only an
estimate. An individual unit may have longer or shorter life.

Maintaining Software

The radon monitor has Windows software that is installed on a computer.
Although the distribution CD contained the latest released software version when
the unit was shipped, upgrades or patches may be available later. These changes
to the software add features, improve operation, fix problems, or adapt to
operating system changes.

These upgrades, when available, can be downloaded from the Sun Nuclear web
site, http://www.sunnuclear.com. Navigate to “Support,” then either “Download”
or “Software Upgrades.”

Verifying Software Version

The version of software may be verified as follows:

1 Launch the Radon Monitor application.

2 Connect to the radon monitor.

3 Select Help > About from the menu. The About Radon Monitor message

displays the version number of the Windows PC software.

52

Removing Software

!

To remove the radon monitor software from the computer, open the Control
Panel and then select Add or Remove Programs. In the list of programs, select
Radon Monitor and then click Remove. This will remove all of the radon monitor

program files.

Multiple Software Installations

Two or More Radon Monitor Units

The Radon Monitor software only needs to be installed on a computer one time,
regardless of the number of radon monitor units being used with that computer.

When connecting to a radon monitor, the software identifies the serial number of
the connected radon monitor and creates a unique serial number directory for
each radon monitor instrument. During measurement, the setup template
includes the serial number, which is validated against the radon monitor
instrument communicating data to the PC.

Two or More Computers

If you have more than one computer, the radon monitor software may be installed
on each one.

Service and Calibration

WARNING: The unit contains high-voltage circuits. Do not
open the case. There are no user-serviceable parts inside the
unit.

For service or calibration, return the unit to Sun Nuclear Corporation as instructed
in the Warranty statement on the inside back cover of the User’s Guide.

The manufacturer’s recommended calibration frequency for the model 1028 or
1029 radon monitor is one year. See your state or Proficiency listings for
requirements.

Optional Serial Connection

Connecting with a Serial Cable

If the computer does not have a USB port, the radon monitor can be connected
using a serial cable as follows:

1 Connect an optional serial cable between the computers 9-pin COM port and

the 9-pin PC PORT connector (Figure 31) on the radon monitor. For serial

53

cable part number, see “Accessories” on page 51. Serial cable can also be
used with optional printer.

2 If desired, plug the power supply into an AC outlet with 110 to 240 VAC,

single phase, 50-60 Hz.

Figure 31. Optional Serial Connection to a Computer

Serial Port Setup

Serial or USB port setup is automatic, unless there is a hardware conflict. When
the radon monitor software is launched and the monitor is plugged in, the
software automatically detects the unit on an available COM port. If the software
does not detect the radon monitor automatically, it may be necessary to select a
specific port.

Port Selection

Normally the software tries to connect to the radon monitor on COM 1. But if
COM 1 is in use, select another COM port as follows:

1 Click the Select Serial Port toolbar button or select Setup > Serial Port from

the menu. The ‘Setup Port’ dialog box opens.

Figure 32. Setup Port Dialog Box

54

2 Click the Ports drop-down list then select the desired port (usually the last

port in the list).

3 Click Save. When the program is opened again, the selected COM port will

be used.

Solving User Problems

Radon Monitor Troubleshooting

Indication Probable Cause Recommended Action

Unit will not turn on

Unit will not turn on with
power or good battery
connected

Time/Date entries lost
when changing battery

System error message in
format “ERR=XX XX XX XX”
displayed

Error message “RS232
communications have
been lost“ when trying to
connect to PC

Display showed “Motion
Detected” but motion not
recorded on report

Monitor displays an AVER­AGE value, but no
CURRENT value

Table 16. Radon Monitor Troubleshooting

Power not connected and 9V
battery missing or
discharged.

Internal 3V battery
discharged.

Reset occurred. Reenter settings.

Monitor has experienced an
abnormal condition.

Radon monitor is turned off or
has turned off automatically

Wrong COM port selected for
serial or USB connection

Test interrupted before being
completed. Motion occurred
as test was terminated.

The monitor lost power
recently, which cleared the
CURRENT value. However the
AVERAGE is maintained.

Connect power and/or
replace 9V battery.

Contact Sun Nuclear Cus­tomer Support. Unit will need
to be returned to the factory
for internal battery replace­ment. The user should not
attempt to replace this
battery.

See “System Errors” below.

Turn on radon monitor by
pressing “5” and entering PIN.

Click Setup > Select Serial Port.
Select a different COM port
from the pull-down list.

Print results and count num­ber of measurements. If less
than expected, test was pre­maturely terminated. Rerun
test.

Run test with a good 9V
battery.

System Errors

If an error message appears on the screen in the format “ERR=XX XX XX XX,” the
radon monitor experienced an unusual system error. Normally this indicates a
hardware or firmware failure. Make a note of the 8-digit error code.

Contact a Sun Nuclear Customer Support representative for assistance.

Note: Firmware version 0102 can cause a date error of 00 00 00 40
when attempting to print a report with a graph when no data is in the
radon monitor. If this occurs, please call Sun Nuclear Customer
Support.

55

Contacting Customer Support

56

Numerics

9V battery 6

changing 16

A

AC adapter
accessories, parts
ALT button (keypad) 4
application 2
AVG (average), display from monitor
AVG button (keypad) 4

B

battery

9V 6
9V, changing
compartment 3

inserting 7
battery life, 9-Volt
battery pack

printer 24

printer battery, using efficiently

printer, low battery 25
buttons, keypad 4

C

calibration or service 53
caution

a 9V battery must always be installed in

always connect to AC power before re-

always leave a good 9V battery in the

do not press and hold ONLINE/OF-

high humidity may shorten battery life

never replace the battery during a test.

never turn the printer off while writing

changing 9V battery
character set, keypad
chart

moving

zooming in and out
chart tab

7

51

16

52

the radon monitor for bckup power
6, 7

placing the battery.

unit to keep the small internal bat­tery from running down

FLINE button and FEED button si­multaneously for 30 seconds or
more.

21

17

the DIP switch settings to memory
27

17

52

16

15

36

35

36

Index

checking unit status, from keypad 13
checklist tab 38
cleaning
clear button (keypad) 4
clearing memory, from keypad 12
clearing reset, from keypad
closing software 31

11

25

computer

connecting

connection, serial
connections 3
controls 4
conventions
CUR (current), display from monitor 11
CUR button (keypad) 4
customer support, contacting

D

data

description, radon monitor 1
DIP switch settings, printer 26
display

disposing and recycling 52

E

6

EDIT button (keypad) 4
errors, system 55
extracing data 48

G

graph description 35

H

humidity (1029) 1, 24
humidity, affects battery

I

infrared port
inserting a battery

details

35

52

17

operation
requirements 29
retrieving data from monitor 31
two or more

computer to radon monitor 30
or disconnecting, USB cable
power to the radon monitor 6, 8
printer 20

extracting 48
open from text file 40
save to text file

monitor
turning off 16
turning on

29

53

31

53

vii

56

40

4

8

6

3

7

57

inspection tab 32

details 33
installing, software
intended user ix
interrupting a test 10
introduction, radon monitor

K

keypad, buttons 4

L

LED (monitor) 4
left arrow button (keypad) 4
long-term storage 18
low battery

AC power connected

AC power not connected 16

M

main screen

chart tab

checklist tab 38

inspection tab 32

pictures tab

software, about 32
maintaining

hardware 51

software
menu bar, software 39
mode light (monitor) 4
modifications to equipment
monitor

display 4

positioning

two or more 53
monitor settings tab

details
monitor settings, changing 41
motion, during test 24
moving, chart
multiple software installations 53

O

ON button (keypad) 4
online help x
operating information
operation, standalone 6
operator and data evaluation ix
optional portable printer

P

paper, printer 21
part numbers 5
parts and repairs 51
parts, accessories
pictures tab
PIN button (keypad)

42

29

1

16

35

37

52

x

6

36

ix

19

51

37

4

54

port selection
port setup, serial 54
positioning the monitor
power

AC to monitor 8
connecting
connector 3

power supply

domestic shipments

international shipments 5
preface v
preferences

monitor settings

print settings 44
pressure (1029)
print button (keypad) 4
print preview 48
print settings, changing
print tab

details 45
print to PDF
printer

battery low 25

battery pack

battery pack, using efficiently 25

connecting 20

connection and controls

controls 20

description 19

OFFLINE LED

ONLINE LED 21

paper, loading 21

parts

port 3

switch settings 26

typical report

printing

preferences

report from computer 47

report, from keypad 22

Q

quality and regulatory systems x

R

radon monitor troubleshooting 55
recycling and disposing
removing software 53
repairs and parts 51
report

from computer

from portable printer
reset, clearing from keypad

6

6

5

41

1,

24

44

48

24

21

19

from portable printer

45

52

47

23

20

17

23

58

right arrow button (keypad) 4

S

SAVE button (keypad)
serial

connection
port 3

port, setup 54
service and calibration
setting up parameters

from computer 41

from keypad
SETUP button (keypad) 4
setup, serial port 54
software

about

29
chart tab 35
chart tab details
checklist tab 38
closing 31
inspection tab
inspection tab details 33
installing 29
launching
main screen, about 32
menu bar 39
monitor settings tab, details
multiple installations 53
pictures tab 37
print tab, details
removing 53
requirements 29
retrieving data from monitor
toolbar 39
verifyting version 52

solving user problems
specifications, technical 49
standalone operation 6
starting a test
STATUS button (keypad) 4
status, checking from keypad 13

31

10

53

4

53

13

35

32

45

55

storage

long-term 18

must be powered
switches, DIP, printer 26
symbol legend viii
system errors

T

temperature (1029) 1, 24
test

interrupting 10

motion, movement

starting 10
text file

open data

save data 40
toolbar, software 39
tripod, using
troubleshooting, radon monitor 55
turning off the display 16
turning on the display
two or more

computers 53

radon monitors

U

42

31

unpacking 5
USB cable, connecting/disconnecting 31
USB port 3
user problems, solving
user’s guide ix
using a tripod 6

V

verifing software version 52

W

warning

the unit contains high-voltage circuits.

Z

zooming in and out, chart 36

Do not open the case.

18,

52

55

24

40

6

8

53

55

53

59

This page is intentionally left blank.

60

Warranty

1 Instrumentation

a. This instrument and its accessories, excluding those listed in 1.D. below, are war-

ranted by SUN NUCLEAR CORPORATION, against defects in materials and
workmanship for a period of one year from the date of original purchase from
SUN NUCLEAR CORPORATION. During the warranty period, SUN NUCLEAR
CORPORATION will repair, or at its option, replace an instrument found to have
such defect, at no charge to the customer.

THERE ARE NO WARRANTIES, EXPRESSED OR IMPLIED, INCLUDING WITHOUT
LIMITATION, ANY IMPLIED WARRANTY OF MERCHANTABILITY OF FITNESS,
WHICH EXTEND BEYOND THE DESCRIPTION ON THE FACE HEREOF. THIS
EXPRESSED WARRANTY EXCLUDES COVERAGE OF AND DOES NOT PROVIDE
RELIEF FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES OF ANY KIND OR
NATURE, INCLUDING BUT NOT LIMITED TO LOSS OF USE, LOSS OF SALES, OR
INCONVENIENCE. THE EXCLUSIVE REMEDY OF THE PURCHASER IS LIMITED
TO REPAIR, RECALIBRATION, OR REPLACEMENT OF THE INSTRUMENT AT THE
OPTION OF SUN NUCLEAR CORPORATION.

b. This warranty does not apply if the product, as determined by SUN NUCLEAR

CORPORATION, is defective due to either abuse, misuse, or modification or ser­vice performed by someone other than a SUN NUCLEAR CORPORATION
authorized repair and calibration facility. Misuse and abuse include, but are not
limited to, subjecting the instrument to environmental conditions outside the
specified limits or allowing the instrument to become contaminated by radioac­tive materials.

c. In order to obtain warranty repair service, the instrument must be returned,

freight prepaid, to the facility cited in 3.b. below. The purchase date, vendor
invoice, or customer purchase order should be included, along with a statement
of the problem. Instruments will be returned transportation prepaid to points
within the United States.

d. Because the original manufacturer’s warranty applies, the following items are

specifically excluded from this warranty: photomultiplier, Geiger-Mueller, and
proportional tubes; batteries; ancillary devices, including, but not limited to, print­ers, computers, display devices, etc.; and other components as may be specified
in this manual.

2 Calibration

a. This instrument is warranted to be within its specified accuracy at the time of

shipment. If a question arises and SUN NUCLEAR CORPORATION determines
that the initial calibration is in error, the instrument will be re-calibrated by SUN
NUCLEAR CORPORATION at no charge. SUN NUCLEAR CORPORATION is not
responsible for calibrations performed by independent laboratories, nor any cali­bration fees incurred prior to or subsequent to SUN NUCLEAR CORPORATION
warranty service.

b. The return policy is as stated in 1.c. above.

3 Non-warranty Service

a. Repairs and/or replacements not covered by this warranty may be performed by

SUN NUCLEAR CORPORATION or a factory authorized service location. Esti­mates of repair charges may be requested; however, a charge for estimate
preparation may apply if the repair is later not authorized by the customer.

The cost of transportation into and out of the service location will be the respon­sibility of the customer. The instrument should be shipped to:

SUN NUCLEAR CORPORATION

425-A Pineda Court
Melbourne, FL 32940 U.S.A

Phone: [phone]
Fax: [phone]

Corporate Headquarters
425A Pineda Court
Melbourne, Florida 32940-7508
tel: [phone]
