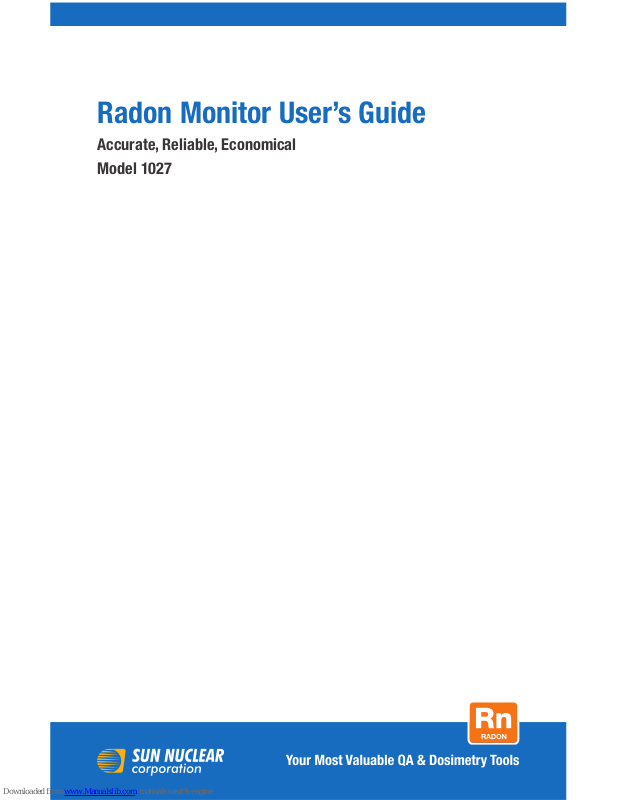

Radon Monitor User’s Guide
Accurate, Reliable, Economical
Model 1027
ii
User’s Guide, Continuous Radon Monitor
© Copyright 2016 by Sun Nuclear Corporation. All rights reserved.
The information contained in this manual is copyrighted and all rights reserved by
Sun Nuclear Corporation. Copying, duplicating, selling, or otherwise distributing
any part of this product without the prior written consent of Sun Nuclear Corporation is prohibited.
Sun Nuclear Corporation reserves the right to make periodic modifications to this
document without obligation to notify any person or entity of such revision.
This manual is written for:
Software version: 1.0.0.1
Continuous Radon Monitor™ is a trademark of Sun Nuclear Corporation. Other
trademarks or trade names are the property of their respective owners.
Document 102711, Rev F-1, 08 September 2016
Corporate Headquarters
3275 Suntree Boulevard
Melbourne, FL 32940 USA
+1 321-259-6862
www.sunnuclear.com
iii
Preface
Application
The Continuous Radon Monitor, Model 1027, is intended for use in indoor
applications of radon gas sampling. In a typical test the user locates the Model
1027 in the home to be monitored, connects power, and leaves the Model 1027
unattended for a period of two or more days. Ambient room air diffuses into the
Model 1027’s detection chamber. Radon decay by-products emit alpha particles
which are detected by the photodiode.
At the end of the monitoring period, the results are available in any of three forms:
numerical display on the control panel, printed report on the optional printer, or
computer display. Once data is downloaded to the computer, a report can be
printed using standard programs.
After obtaining report data, the memory can be cleared and a new test can begin.
The instrument is completely reusable and requires no supplies except power
and an optional backup battery.
The printer need not be present during testing. The Model 1027 can be moved
from the test site, and the report printed later. If multiple tests must be run
simultaneously, a single printer or computer can support many radon monitors.
Health and Safety Instructions
To protect Continuous Radon Monitor performance and cable insulation, never
pull on a cable to disconnect it. Always grasp the plug or connector.
Inspect all cables periodically for damage. Do not use any cable that is damaged
or has broken insulation. Replace the cable immediately. If any mechanical or
electrical degradation is suspected, contact Sun Nuclear Corporation for repair or
replacement.
Check for physical damage prior to and after each use.
WARNING: To avoid risk of electric shock, this device must only be
connected to a supply mains with protective earth (ground).
WARNING: Never use the radon monitor in an area that could contain
explosive gases. A spark from inside the device could ignite an
explosion.
This equipment must be used in accordance with the instructions in
this manual. Read all instructions and safety labels before use.
iv
Do not permit water or any other liquids to spill onto the instrument.
Inspect the device periodically for damage. If measurement errors or device
damage are suspected, contact Sun Nuclear Corporation.
The device is not intended to be used in an oxygen rich environment.
For instructions to report health or safety related concerns, see Reporting Health
or Safety Related Issues or Concerns on page 38.
Regulatory Information
For a definition of the symbols used throughout this document and additional
information related to user and device safety, see Regulatory Supplement on
page 37. Review this information thoroughly before setting up and using the
device.
Document Conventions
• Bold typeface indicates a button name or an entry that the user must type.
• Italicized typeface indicates the title of a manual, a cross-referenced
subsection in this manual, or introduces a new term or phrase.
• Bold italicized typeface indicates a menu option.
• “Text in double quotes” indicates a message that is displayed to the user.
• ‘Text in single quotes’ indicates the name of a window or dialog box.
• The Z suffix in a part number indicates a RoHS2 compliant part.
v
Preface . . . . . . . . . . . . . . . . . . . . . . iii
Application . . . . . . . . . . . . . . . . . .iii
Health and Safety Instructions . . .iii
Regulatory Information . . . . . . . .iv
Document Conventions . . . . . . . .iv
Introduction. . . . . . . . . . . . . . . . . . . 1
Description . . . . . . . . . . . . . . . . . . 1
Features . . . . . . . . . . . . . . . . . . . . 1
Parts . . . . . . . . . . . . . . . . . . . . . . . 2
Options and Accessories . . . . . 2
Setup . . . . . . . . . . . . . . . . . . . . . . . . 4
Unpack . . . . . . . . . . . . . . . . . . . . . 4
Set Up Hardware . . . . . . . . . . . . . 4
Set Up Thermal Printer . . . . . . . 4
Set Up Software . . . . . . . . . . . . . . 6
Prerequisites . . . . . . . . . . . . . . . 6
Install Software . . . . . . . . . . . . . 6
Set Up Communication . . . . . . . . 6
Using Serial Port . . . . . . . . . . . . 7
Using USB to Serial Adapter . . 8
Operation. . . . . . . . . . . . . . . . . . . . 13
Set Up . . . . . . . . . . . . . . . . . . . . 13
Clear Memory . . . . . . . . . . . . . . 14
Conduct Test . . . . . . . . . . . . . . . 14
Display Results . . . . . . . . . . . . . 14
Delayed Results . . . . . . . . . . . 15
Interpreting Results . . . . . . . . . . 15
Shutting Down . . . . . . . . . . . . . . 16
Reports. . . . . . . . . . . . . . . . . . . . . . 17
Thermal Printer Reports . . . . . . . 17
Computer Reports . . . . . . . . . . . 18
Prerequisites . . . . . . . . . . . . . . 18
Set Up Report Information . . . 18
Transfer Data . . . . . . . . . . . . . 19
Edit and Print Reports . . . . . . 20
Save Reports . . . . . . . . . . . . . 20
Support and Maintenance . . . . . . 21
Parts . . . . . . . . . . . . . . . . . . . . 21
Repairs . . . . . . . . . . . . . . . . . . 21
Storage . . . . . . . . . . . . . . . . . 21
Cleaning . . . . . . . . . . . . . . . . . 21
Disposing and Recycling . . . . 21
Service and Calibration . . . . . 21
Change Backup Battery . . . . . 22
Thermal Printer Maintenance . . 22
Rechargeable Battery Pack . . 22
Efficient Printer Battery Use . 23
Printer DIP Switch Settings . . 23
Troubleshooting . . . . . . . . . . . . 25
Troubleshooting Model 1027 25
Troubleshooting Thermal
Printer . . . . . . . . . . . . . . . . 26
Troubleshooting USB to Serial
Adapter . . . . . . . . . . . . . . . 26
Contacting Sun Nuclear Support 29
Support Website . . . . . . . . . . 29
Warranty . . . . . . . . . . . . . . . . . . 29
Reference. . . . . . . . . . . . . . . . . . . . 30
Hardware Reference . . . . . . . . . 30
Model 1027 . . . . . . . . . . . . . . 30
Thermal Printer . . . . . . . . . . . 32
Software Reference . . . . . . . . . 33
Radon Reference . . . . . . . . . . . . 34
Specifications . . . . . . . . . . . . . . . . 35
Recommended System
Requirements . . . . . . . . . . . . 35
Model 1027 Specifications . . . . 35
Regulatory Supplement . . . . . . . 37
Sun Nuclear Corporation
Symbols . . . . . . . . . . . . . . . . . 37
Operator Responsibility . . . . . . . 38
Reporting Health or Safety
Related Issues or Concerns . . 38
Modifications to Equipment . . . 38
Interaction with Other
Electrical Equipment . . . . . . . 38
Contents
vi
This page is intentionally left blank.
1
1 Introduction
Description
The Model 1027 Professional Continuous Radon Monitor is an electronic device
that uses a diffused-junction photodiode sensor to measure the concentration of
radon gas.
The unit is operated using mains power and includes a 9-volt battery for backup
power. A numerical display shows the average radon gas concentration.
The Model 1027 has been evaluated and accepted by:
• National Radon Safety Board (NRSB); Device code: 31807; Group Code: CR.
• National Environmental Health Association National Radon Proficiency
Program (NEHA-NRPP); Device Code: 223; Group Code: 4.
Features
• Simple 2 button (print/clear) operation
• 3 digit LED display readout
• 90 data point storage
• 2.7 cph per pCi/L sensitivity
The Model 1027 can complete a professional report on-site with the optional
compact thermal printer, or at a later time with the included Radon Monitor
software application.
The Model 1027 includes the Radon Monitor software application. When installed
on a laptop or personal computer, the application is used to:
• Print reports from any printer connected to the computer.
• Apply headers, footers, dates, and serial numbers to reports.
• Annotate and edit reports.
• Store reports as text files.
• Store reports in a format that can be imported into a spreadsheet.
The latest released software and the Radon Monitor User’s Guide can be
downloaded from the Sun Nuclear Support website for Radon monitor products,
https://support.sunnuclear.com/radon/
. Software upgrades or patches may
become available later and they are available for download on the Support
website.
2
Parts
The following parts are shipped with Continuous Radon Monitor, Model 1027.
Options and Accessories
The following accessories can be used with the Model 1027.
Part Number Qty Description
102730 1 Professional Continuous Radon Monitor, Model 1027
741011 1 Power supply, 18 VDC, 0.3A,100-240 VAC (not shown)
801032Z 1 Cable, RS-232 (serial), DB9M to DB9F, 6 ft. (not shown)
102713 1 Technical Bulletin 12-09, USB Port Troubleshooting (not shown)
0200014 1 Customer Support site introduction letter (not shown)

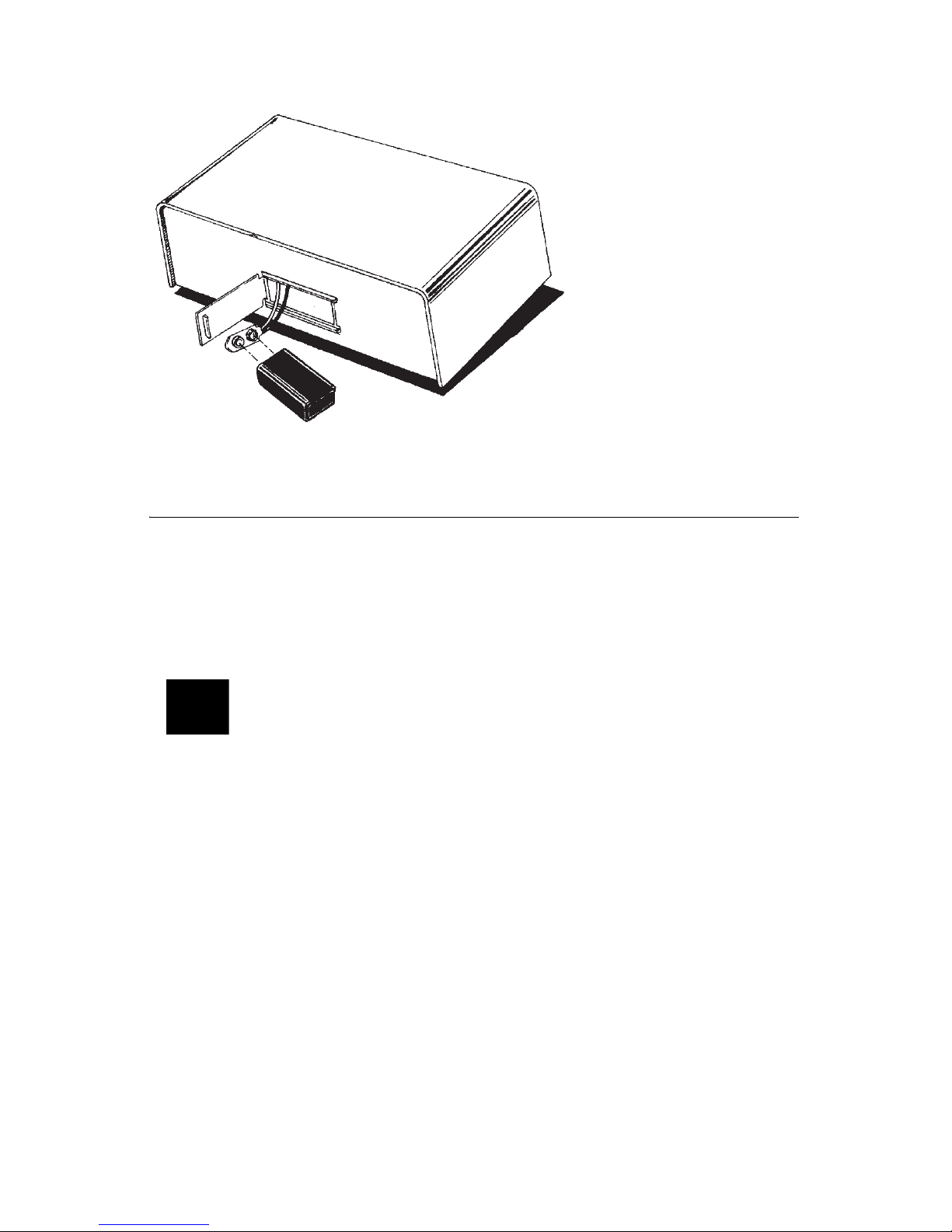

Figure 1-1. Parts Furnished with P/N 102700-0
Table 1. Model 1027 Options and Accessories
Part Number Description
102750 Portable thermal printer (see Thermal Printer on page 3)
850029 USB to Serial Adapter
741012 International blade kit for power supply P/N 741011
102377 Report, Radon Gas Measurement, blank
102378 Sign, self-adhesive, “Warning, Closed Building Procedure”
102379 Sign, plastic, hanging, “Caution, Radon Test in Progress”
1028130 Sign, vinyl static cling, “Warning, Closed Building Procedure”
3
Thermal Printer
The optional portable thermal printer, P/N 102750, is used to print reports after
measurements. The following parts are included.
Figure 1-2. Optional Portable Thermal Printer, P/N 102750
WARNING: Use only accessories that are specifically authorized by
Sun Nuclear for use with Model 1027.
Number Description
850040(Z)* Thermal printer, 40 column
022005(Z) Power supply, 6VDC, 2.1 mm plug (not shown)
801008(Z) Mains power cord for power supply, 2.3 m, 125V 5-15 P C13 (IEC
Plug to USA style; not shown)
750052 Rechargeable battery pack, 4.8V Ni-MH
780374 Connector, gender changer-mini 9 M-M (not shown)
801032(Z) Cable, RS-232 (serial), DB9M to DB9F, 6 ft. (not shown)
850043(Z) Thermal printer paper roll (see Figure 2-2 on page 5)
*(Z) indicates a RoHS2 compliant part is available.
Note: The impact printer (P/N 020030) offered with earlier Model
1027 Radon Monitors is no longer available. The replacement is the
thermal printer described in Figure 1-2.
4
2 Setup
Unpack
Unpack the shipping box and identify the parts. See Parts on page 2.
Set Up Hardware
Before collecting data with Model 1027, decide how you want to print reports.
• Using the optional thermal printer, P/N 102750. See Set Up Thermal Printer
below.
• Using a printer connected to a laptop or personal computer. This option
requires the Radon Monitor software application. See Set Up Software on
page 6.
Set Up Thermal Printer
1 Connect gender changer (P/N 780374) to printer serial port.
2 Connect RS-232 (serial) printer cable (P/N 801032(Z)) to Model 1027 DATA
PORT and to printer gender changer.
3 To operate printer on AC power, plug power supply (P/N 022005(Z)) into
printer power connector. Then, plug detachable power cord (P/N 801008(Z))
into printer power supply and into a mains power source that matches
ratings on power supply.
Alternately, operate printer from its rechargeable battery.
Figure 2-1. Printer Controls and Indicators
Note: Save the packing material if you plan to return the Model 1027
for periodic re-calibrations. See Thermal Printer Maintenance on
page 22.
FEED
ON LINE/OFF LINE
Power
switch
Power
indicator
5
4 Slide Power switch (on side of printer) to On (I) position (Figure 2-1). Green
power indicator turns on and flashes once every second. If battery is low,
indicator flashes once every 1/2 second.
5 To feed printer paper, toggle ON LINE button to OFF LINE position (red
indicator), then press FEED button. It is only possible to feed paper when
printer is OFF LINE. See Load Printer Paper below.
6 When printer paper is in position, toggle ON LINE button to ON LINE
position (green indicator).
See Table 2 on page 32 for a description of thermal printer indicators.
Load Printer Paper
1
Unwrap roll of thermal printer paper (P/N 850043(Z)) and, if necessary, cut
leading edge straight across.
Figure 2-2. Loading Printer Paper
WARNING: Do not press and hold ON LINE button and FEED button
simultaneously for 30 seconds or more. This resets internal switches
and prevents use of the printer.
Note: Load thermal printer paper in an area protected from direct
sunlight.
6
2 Open printer paper cover and place roll of thermal paper, edge down, in
cover. Printing surface is on inside of roll.
3 Turn on power, then push edge of paper into inlet slot at bottom of paper
holder until auto-loader catches paper and feeds about 10 cm through paper
cutter. If necessary, keep pressing paper FEED button until paper feeds
straight and smoothly.
Low Printer Battery Indication
When POWER (green) indicator starts flashing once every 0.5 seconds and
printer goes OFF LINE (red indicator), connect AC adapter.
If any data is in the memory buffer when POWER indicator starts flashing,
connect the AC adapter as quickly as possible to prevent data loss, then push ON
LINE button.
Set Up Software
Prerequisites
• Ensure the computer meets the system requirements in Recommended
System Requirements on page 35.
• Administrative rights may be required to install and use the software, and to
set up communication between the computer and the Radon Monitor.
Install Software
1 Download the 1027 Radon Monitor software from the Radon Support
website, https://support.sunnuclear.com/radon/ an d s ave it t o y ou r c omp ute r
or laptop.
2 Run the executable file, Radon1027_v<X>.exe and follow the on-screen
instructions to install the software.
Radon 1027 icon appears on the desktop.
Set Up Communication
Model 1027 ships with an RS-232 cable (P/N 801032(Z)) that connects to a
computer’s serial (COM) port. This connection allows data transfer from Model
1027 to a computer, where you can view, edit, and print reports.
Newer computers have USB ports instead of serial ports. In this case, an optional
“USB to Serial Adapter” cable is used to connect Model 1027 to the computer. A
typical adapter has a short cable with a serial connector on one end, a USB
connector on the other end, and a small circuit board molded to the connector.
Note: When paper is loaded correctly, red OFF LINE indicator stops
flashing and stays on to indicate printer is still in OFF LINE mode.
7
• To connect Model 1027 to a computer using a serial port and the RS-232 data
cable, see Using Serial Port below.
• To connect Model 1027 to a computer using a USB port, see Using USB to
Serial Adapter on page 8.
Using Serial Port
1 Connect one end of RS-232 data cable to Model 1027’s DATA PORT and
other end to computer’s serial (9-pin) COM port (Figure 2-3).
Figure 2-3. Connecting Radon Monitor to Computer with RS-232 Serial Cable
2 Double-click the Radon 1027 desktop icon to start the application.
If the icon is not visible:
•Click Start > Programs > SNC Group > Radon 1027 or
• Navigate to the folder where the program is installed (for example,
C:\Radon) and double-click the Radon.exe file.
Application opens with a blank screen (Figure 2-4 on page 8).
On menu bar, Get Data menu option is dimmed because a Com Port has not
been selected. Model 1027 can use Com port 1, 2, 3, or 4.
DATA PORT
COM port
RS-232
data cable
8

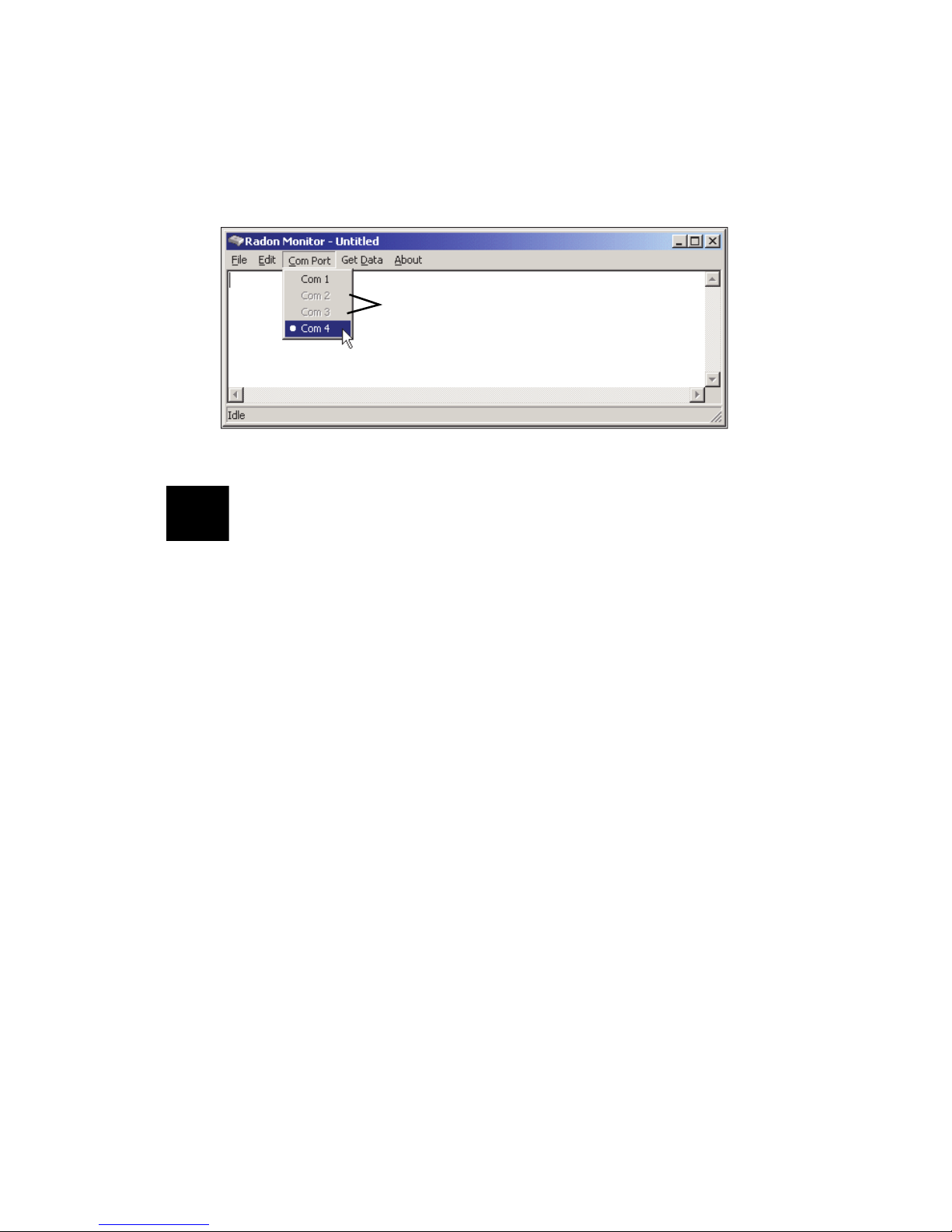

Figure 2-4. Application Opens With Blank Screen
3 On computer where RS-232 cable is connected, check connector to identify
Com port number.
4 Click Com Port on menu to display available Com Ports. Unavailable Com
Ports are dimmed.
5 Select Com Port on computer to which RS-232 cable is connected. A bullet
appears next to selected port (Figure 2-5).

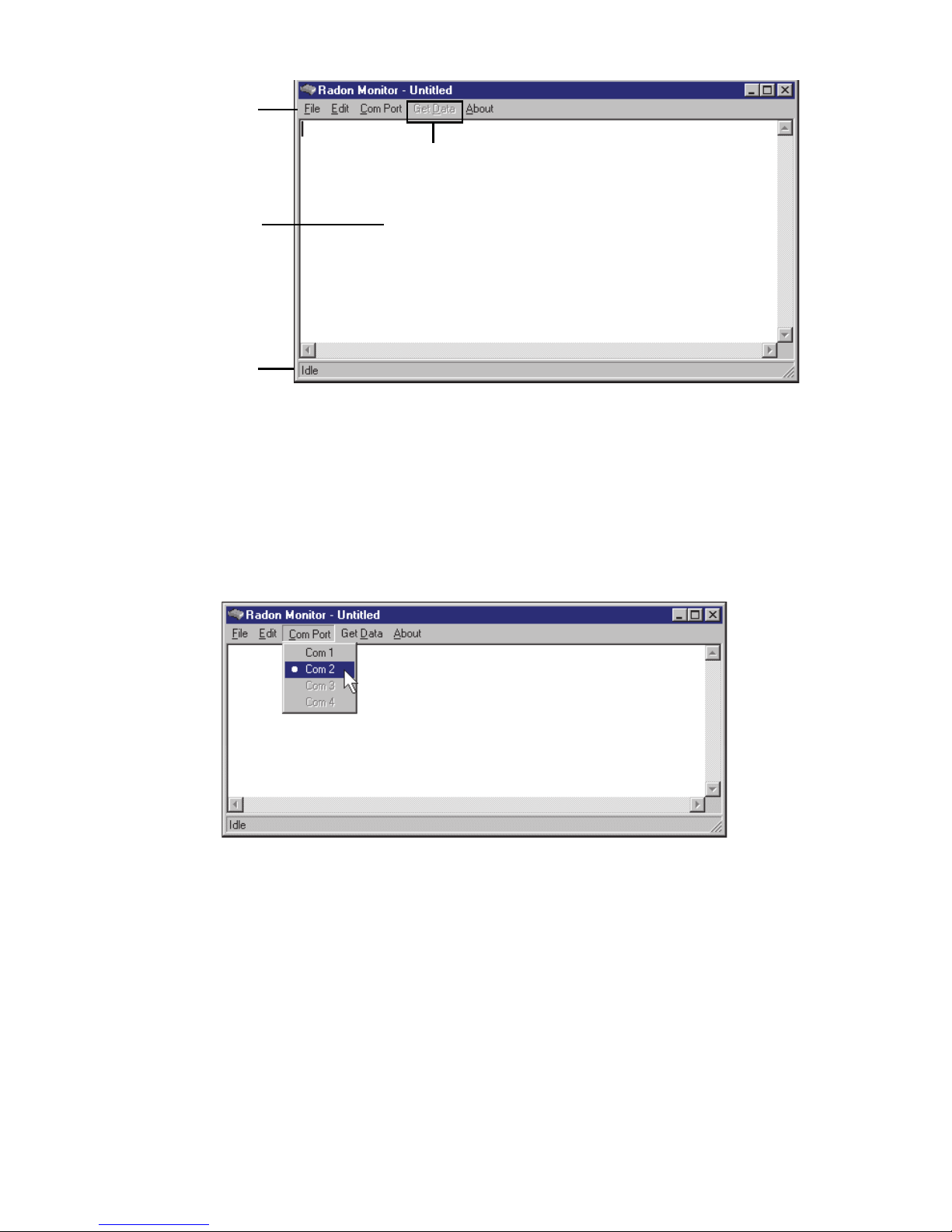

Figure 2-5. Select the Desired Com Port
If you accidentally selected the wrong port, select the correct port.
Using USB to Serial Adapter
Sun Nuclear has tested and approved the IOGEAR Model GUC232A USB to Serial
Adapter (Figure 2-6 on page 9). This adapter can be purchased directly from Sun
Nuclear by ordering P/N 850029, or can be purchased at a computer store, office
supply store, or from an internet supplier.
Menu bar
Editing area
Message area
Dimmed until
Com Port selected
9
Figure 2-6. IOGEAR Model GUC232A USB to Serial Adapter, P/N 850029
Although it is possible to use a different USB to Serial Adapter, doing so is not
recommended because other USB to Serial Adapter installations have not been
tested. USB to Serial Adapters require special installation procedures, and each
manufacturer supplies specific instructions.
System Requirements
• The IOGEAR Model GUC232A USB to Serial adapter can be used with a
computer running any of the supported operating systems for the Radon
Monitor. See Recommended System Requirements on page 35.
• Administrative rights may be required to install the adapter drivers.
Adapter Installation
The following items are required to perform this procedure:
• IOGEAR Model GUC232A USB to Serial Adapter.
• CD and manufacturer’s instructions provided with USB to Serial Adapter.
Updated adapter drivers can also be downloaded from the IOGEAR
website. See Updating USB to Serial Adapter Drivers on page 26.
• RS-232 cable included with Model 1027.
1 Connect RS-232 cable from Model 1027 DATA PORT to serial connector on
USB to Serial Adapter (Figure 2-7).
2 Plug USB connector on other end of USB to Serial Adapter into a USB port
on computer.
CAUTION: Sun Nuclear will only provide technical support for the
IOGEAR Model GUC232A adapter.
CAUTION: Retain CD and manufacturer’s instructions for adapter. CD
and instructions are needed to install of adapter drivers.
10
Figure 2-7. Connecting Model 1027 with USB to Serial Adapter
3 Insert manufacturer’s CD into computer’s CD drive, or open downloaded
driver file, and follow the manufacturer’s on-screen instructions.
Normally a CD drive is set for Autostart and the installation program opens
automatically. If it does not, use My Computer or Windows Explorer to
navigate to the CD and manually start the program following the
manufacturer’s instructions.
Verify Driver Installation
1
To verify USB to Serial Adapter drivers were installed correctly, follow the
instructions in the table below to open ‘Device Manager’ on your computer
and check the COM port connection.
2 In ‘Device Manager’ window, expand Ports (COM & LPT) to see a list of
connected ports (Figure 2-8 on page 11).
Windows 7 Windows 8.1
1. On the desktop, right-click My Computer
then select Properties to display the
'System Properties' window.
2. Click the Hardware tab, then Device
Manager.
3.Type a password or provide confirmation if
prompted to do so.
Or, click Start > Control Panel > Device
Manager
.
1. On the desktop, right-click This PC, then
select Properties to display the 'System'
window.
2. Click Device Manager to display a list of
devices.
Or, right-click Control Panel, and in the
’Control Panel’ window, click Hardware and
Sound, then Device Manager to display a
list of devices.
USB port
DATA
PORT
RS-232 cable
GU232A cable
Adapter serial
connector
11
Figure 2-8. Checking USB to Serial Port in Device Manager
3 In Ports list, look for a port labeled ATEN USB to Serial Bridge (COM#) if
using recommended IOGEAR USB to Serial adapter. (Look for something
similar to USB Serial Port (COM#) if using a different adapter.)
4 Verify port is correct by disconnecting and reconnecting USB end of cable
from computer. Port should disappear from list and then reappear.
If no port disappears and reappears when you disconnect and reconnect the
cable, computer does not recognize the USB to Serial Adapter. Reinstall
drivers provided with USB to Serial Adapter, and then try this procedure
again. (See also, Troubleshooting USB to Serial Adapter on page 26.)
5 Make note of serial port number (COM port) of USB to Serial adapter. You
will need this to set the Radon Monitor application to connect to this port.
12
Set COM Port in Radon Monitor Software
1
After USB to Serial Adapter is successfully installed, power up Model 1027
and launch Radon Monitor application.
2 On menu, click Com Port and select Com port number set up in previous
section for USB to Serial Adapter.
Figure 2-9. Selecting Adapter Com Port in Radon Monitor Application
Note: Radon Monitor application only recognizes Com ports 1, 2, 3,
or 4. Ports dimmed on menu are not available.
Dimmed ports
not available
Select Com Port for
adapter (example)
13
3 Operation
Set Up
1 Unpack Model 1027 and place in position within space to be monitored for
radon gas. The device does not need to be level.
2 Avoid using switch-controlled outlets. Plug power adapter into power input
jack on Model 1027 (Figure 3-1), then plug power adapter into a mains power
wall outlet that matches power ratings printed on power supply.

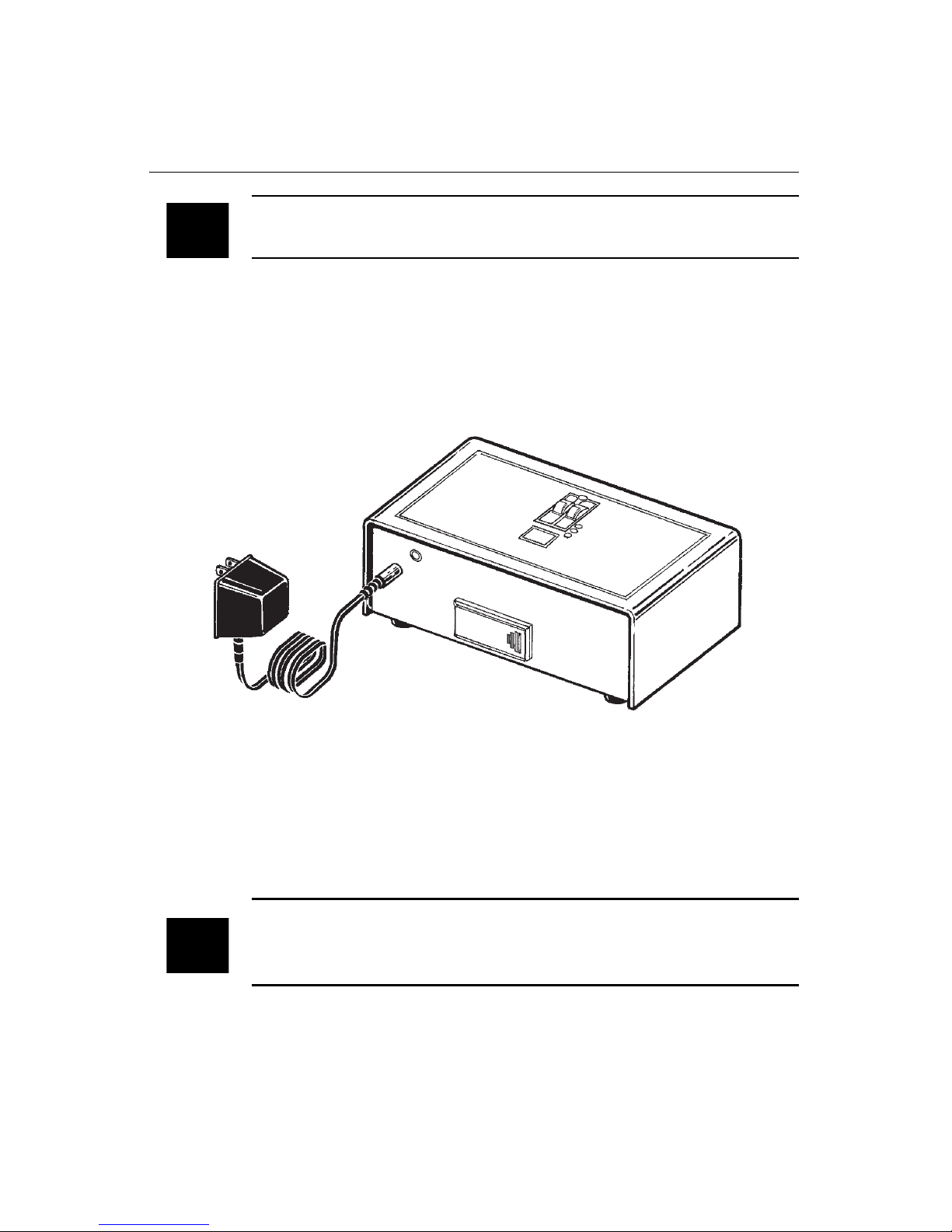

Figure 3-1. Connecting Power to Model 1027
• Green POWER LED turns on.
• Yellow LED flashes twice followed by a single flash to indicate Model
1027 has performed all internal diagnostics and is functioning properly.
3 Insert TOP PANEL key and turn to ENABLE position to activate top panel
controls.
4 Press AVG but ton. If me mory is clear, thre e decimal points appear in display.
If memory is not clear, long term average radon concentration is displayed.
In this case, you must clear memory before collecting measurements.
CAUTION: Do not use in outdoor environments. Humidity and
extreme temperatures will cause measurement errors.
CAUTION: Clear memory before starting a new measurement. If
memory is not cleared, new measurements will be averaged with the
old measurements still in memory.
14
Clear Memory
1 Press and hold both buttons on top of Model 1027 until yellow LED turns on,
then release both buttons. Yellow LED flashes.
2 While yellow LED is flashing, press and hold CLEAR button. Yellow LED
initially turns off; then turns on solid, not flashing.
3 Release CLEAR button when yellow LED turns on solid.
4 When yellow LED and display LEDs flash, followed by a single flash of yellow
LED, memory is cleared.
Conduct Test
1 If desired, switch on backup battery. A fresh battery provides about 20 hours
of back-up operation.
2 Turn TOP PANEL switch to DISABLE, then remove key.
3 At end of monitoring period, insert TOP PANEL key and turn to ENABLE.
Display Results
1 Press AVG to display the average radon concentration in pCi/l over the total
monitoring period.
2 Press CUR to display the radon concentration in the current 12-hour period.
3 To print results, review Delayed Results below before proceeding to Reports
on page 17. Or, record results on a piece of paper for a handwritten report.
Note: When Model 1027 is powered on, a tamper sensor is always
active except for a 15-second period immediately following a CLEAR
memory procedure. To avoid a tamper notation on the first reading,
do not move Model 1027 once the tamper sensor is active.
Note: To test tamper sensor, CLEAR memory and conduct a test for
several hours. During the test, try lifting or sliding Model 1027. In the
printed results, a “T” should appear in the interval when the
disturbance was made.
Note: The AVG and CUR display values continue to update during the
entire test, even if the test period exceeds the maximum storage of
90 intervals. The interval storage stops updating after 90 intervals until
the next memory clear.
15
Delayed Results
Test results can be displayed, printed, or downloaded later or at another location,
provided you understand the following differences:
• When power is disconnected, the value of the latest partial interval and the
CUR value are lost from temporary memory.
• When power is on (including battery power) Model 1027 continues to
operate, providing values that are averaged into the result.
•If you take an AVG reading, disconnect power, restore power later and take
a second reading, the second AVG reading may be slightly different from the
first reading. This is because the first AVG reading includes the value for the
partial one hour interval in process. This partial value is stored in temporary
memory and is lost when power is disconnected.
This second AVG value is calculated using only completed intervals stored
in non-volatile memory.
Interpreting Results
The Model 1027 radon monitor is calibrated by setting internal switches to
determine the calibration J-factor, which provides the conversion between counts
per hour and pCi/L for that Model 1027. A separate calibration factor is also
calculated and printed on the calibration report.
The Model 1027 automatically multiplies the hourly measurements by the
J-factor to yield the actual pCi/L to within 5%, and then displays these results on
the printed report.
To improve accuracy, the user can manually multiply the measurement results by
the calibration factor that is listed on the calibration report for the Model 1027.
The measurement results on the printed report are calculated as follows:
• The hourly measurements are the number of counts recorded during that
hour, times the J-factor, rounded to the nearest 0.1 pCi/L.
• The Overall Average is the number of total counts, divided by the number of
hours, times the J-factor, then rounded to the nearest 0.1 pCi/L.
• The EPA Protocol Average is calculated the same as the Overall Average,
excluding the first four hours of measurements.
Note that the average of the displayed hourly measurements and the reported
averages may not be the same. This is due to differences in the rounding. As
described above, the displayed hourly measurements are rounded each hour,
while each average is only rounded once. The reported average is thus a more
accurate measurement than averaging the displayed hourly measurements.
If the EPA Protocol Average is close enough to the 4.0 pCi/L EPA threshold that
rounding is a possible issue, additional radon measurements should help to
determine the actual radon level.
16
Shutting Down
1 Unplug power adapter from mains power.
2 Switch off backup battery to avoid measurement interference with
completed test and to prevent battery depletion.
CAUTION: Switch off backup battery. When backup battery is on,
Model 1027 continues to operate.
17
4 Reports
Thermal Printer Reports
Figure 4-1 shows measurement results displayed in a sample typical thermal
printer report.

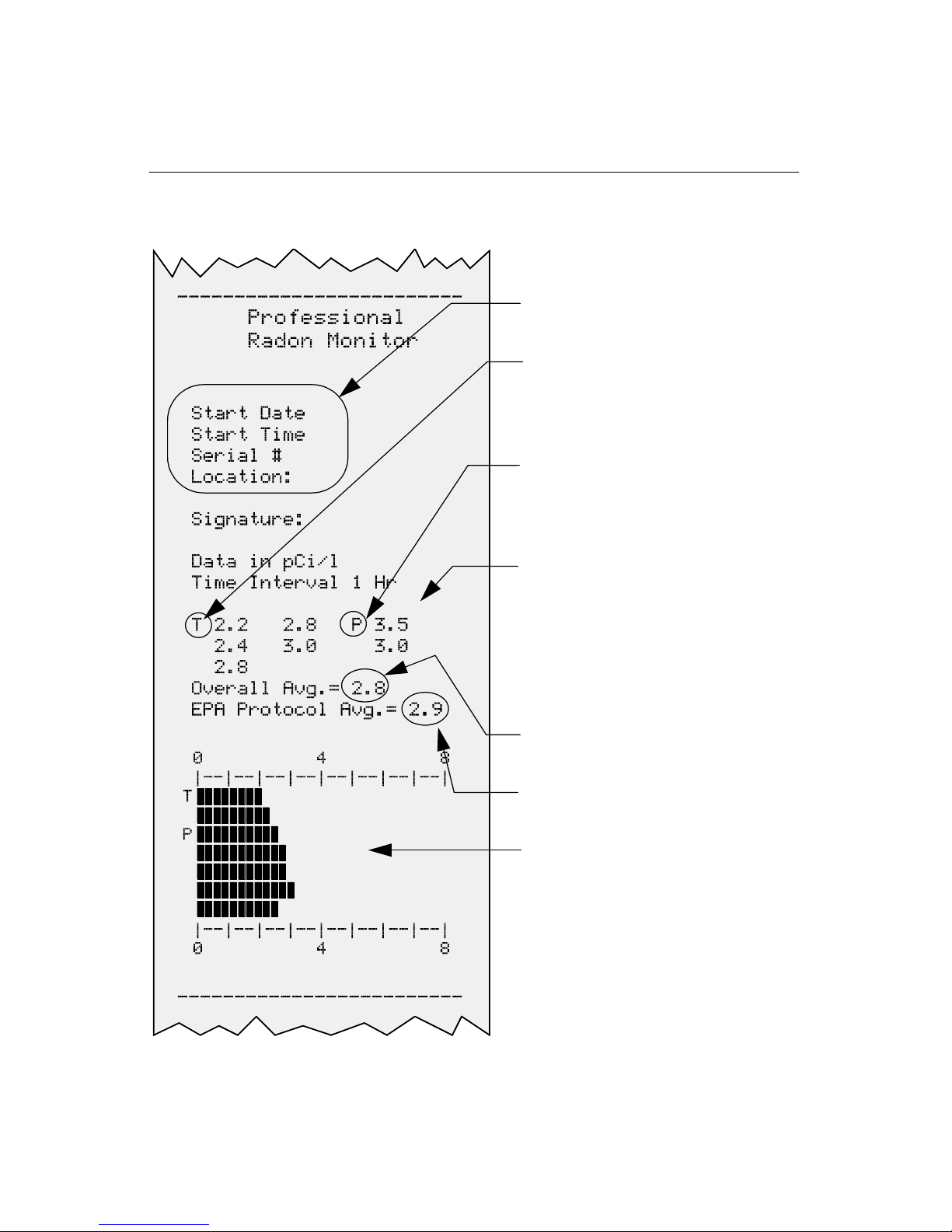

Figure 4-1. Example Thermal Printer Report
Information to be filled in by
testing professional.
“T” (tamper) - Indicates
movement occurred during this
interval. The unit may have been
moved during the test.
“P” (power) - Indicates power
interrupt during this interval. The
unit may have been moved during
the test.
TABULAR DATA - Average radon
gas concentration during each
measurement interval is printed
in sequential order; reading in
rows from left to right up to a
maximum of 90, 1-hour
measurement intervals.
Overall Avg. - Long term average
since last memory CLEAR.
EPA Protocol Avg. - Long term
average less the first 4 hours of
data.
Measurement Graph - Each
radon concentration value is
graphically represented in the
same order as the tabular
printout. Scale is automatically
adjusted to show maximum value
in pCi/l.
18
To print a thermal printer report:
1 Ensure Model 1027 and printer are powered up and connected (see Set Up
Thermal Printer on page 4), and a minimum of three hours of data has been
collected.
2 Press and hold both buttons on top of Model 1027 until yellow LED turns on
solid, then release buttons. Yellow LED flashes.
3 While yellow LED is flashing, press and hold PRINT button until yellow LED
turns on solid, not flashing.
4 Release PRINT button. Printer begins printing paper report.
5 When yellow LED flashes once, data transfer is complete.
Computer Reports
Prerequisites
Before creating or printing reports with a computer:
• Communication between Model 1027 and the computer must be set up. See
Set Up Hardware on page 4.
• Radon Monitor software application must be installed. See Set Up Software
on page 6.
Set Up Report Information
If desired, before transferring data from Model 1027 to a computer, configure
header and footer information to be automatically added to each report. This
information must be entered before data is transferred.
1 Launch Radon Monitor application, then select Edit > Info to open ‘Informa-
tion Setup’ dialog box (Figure 4-2).

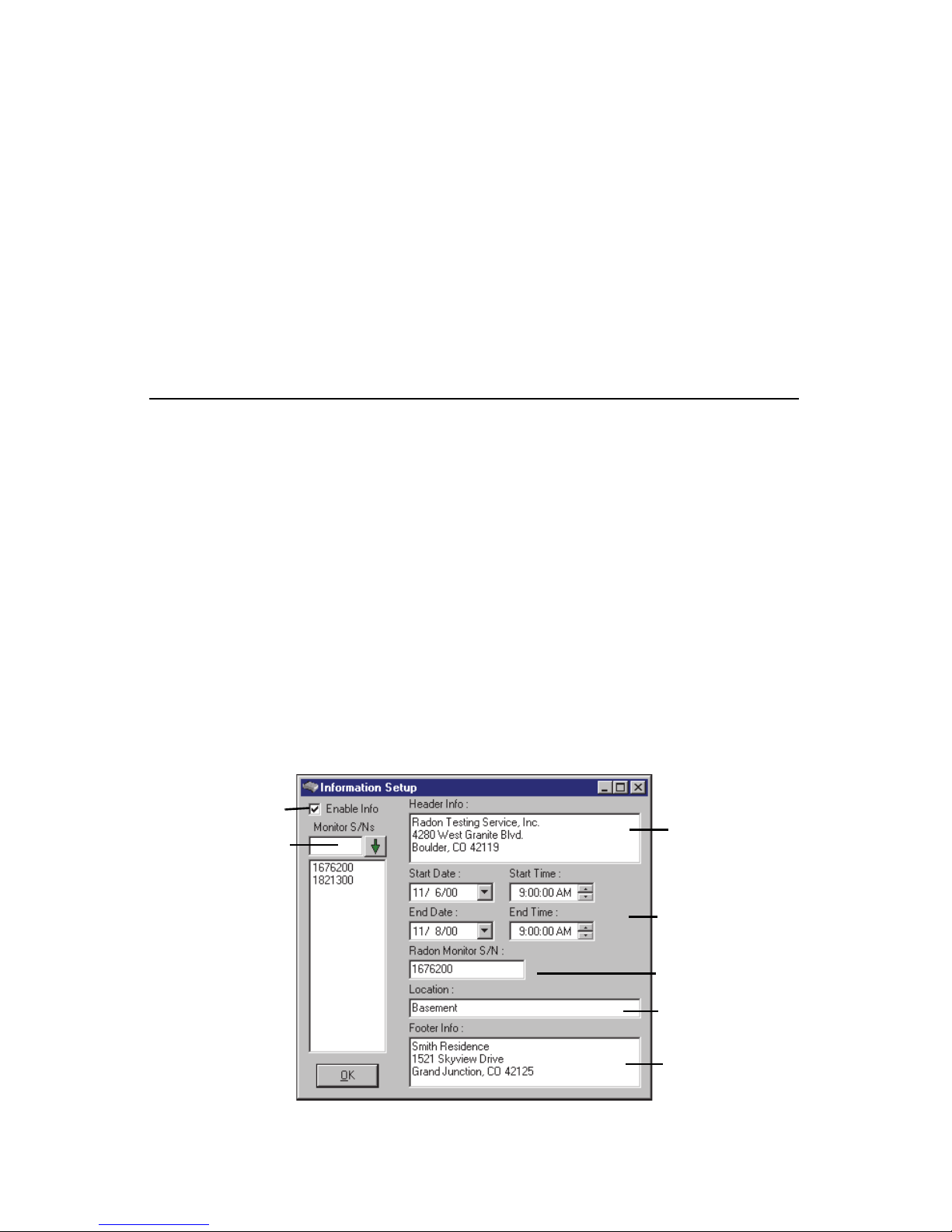

Figure 4-2. Information Setup Dialog Box
Enter S/N and click
arrow to add to list
Mark checkbox to
add info to report
Info added to
report header
Test Start and End
dates and times
Info added to
report footer
S/N of Model 1027
used in test
Test location
19
2 Mark Enable Info checkbox, then enter desired information.
See Table 3, Radon Monitor Report Information, on page 33 for additional
instructions on completing the fields.
3 Click OK, then proceed to Transfer Data below.
Transfer Data
1 Ensure Model 1027 is powered on and connected to computer. (See Using
Serial Port on page 7 or Using USB to Serial Adapter on page 8.)
2 Launch Radon Monitor application.
3 Verify proper Com port is selected. (See Set COM Port in Radon Monitor
Software on page 12.)
4 Optionally, add report information. (See Set Up Report Information on
page 18.)
5 Click Get Data.
Message “Listening for data on Com X...” displays at bottom of screen.
6 On top of Model 1027, press and hold both buttons until yellow LED lights
solid, then release both buttons. Yellow LED flashes.
7 With yellow LED flashing, press and release Print button to transmit data.
Message at bottom of screen displays “Acquiring data on Com X, please
wait...”.
8 When data transfer is complete, report displays (Figure 4-3).

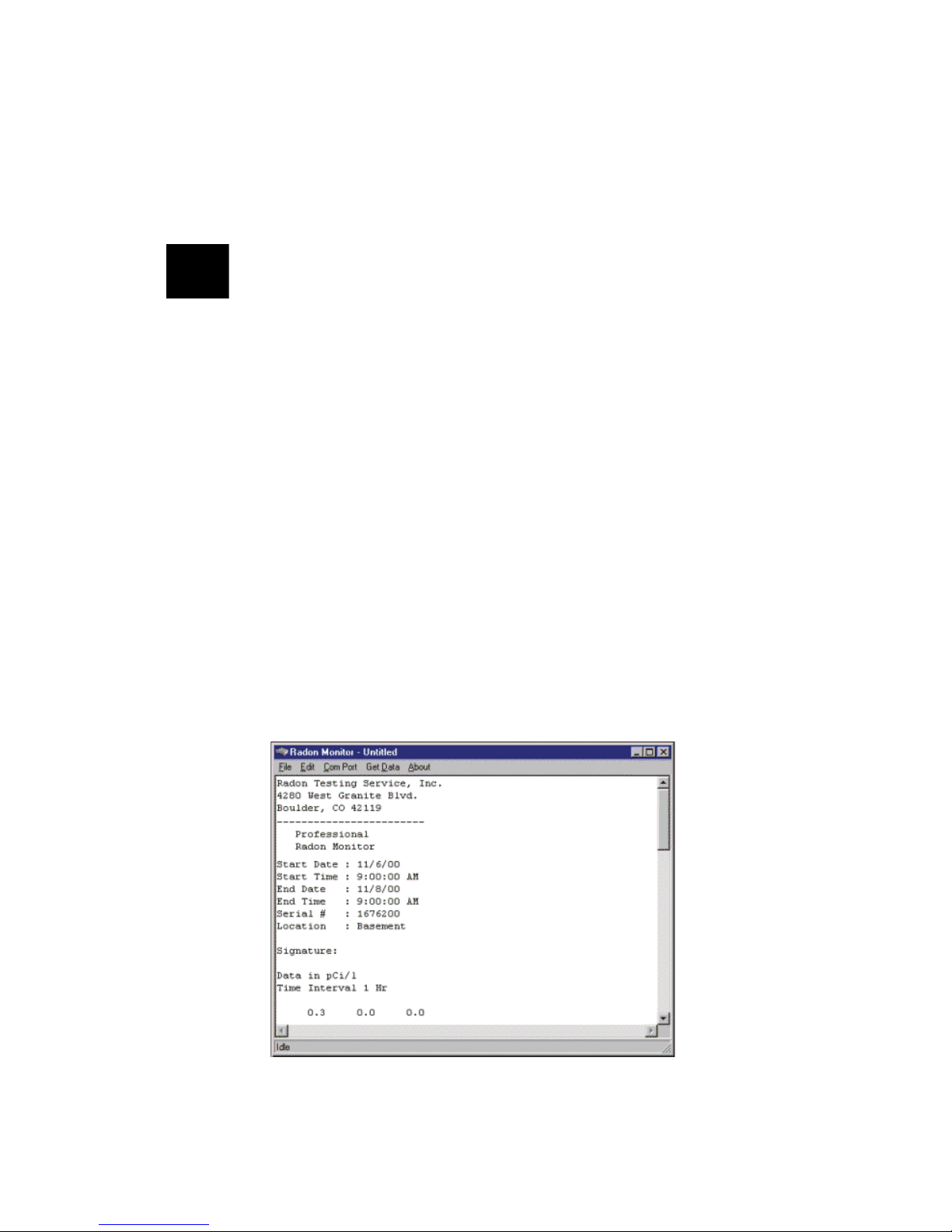

Figure 4-3. Report Displayed in Editing Screen
Note: At least three hours of data should be accumulated before
transferring data.
20
• ‘Acquiring Data...’ message indicates computer is able to communicate
with Model 1027 via selected Com port.
• If “Index out of bounds” message is displayed after pressing Print
button, Model 1027 does not have sufficient test data.
Edit and Print Reports
The central part of the Radon Monitor application screen is an editing window.
Text can be added, deleted, or changed in any part of the report using standard
Windows keystrokes to enter or delete characters. Use scroll bars to view other
parts of report.
•On the Edit menu, use Cut, Copy, and Paste to make changes.
• To interpret report results, see Figure 4-1 on page 17. Data between the
header and footer in the editing screen is the same as is printed on thermal
printer paper.
• To print the report, select File > Print and in the dialog box, click OK.
Save Reports
Reports can be saved in two formats:
• ASCII text format (“Text Files”). The suffix “_t” is appended to the file name.
• Tab-delimited format suitable for importing into a spreadsheet, such as
Microsoft Excel. The suffix “_s” is appended to the file name. In this format,
numerical values are placed in individual cells, which allows the use of
graphing functions and other spreadsheet tools.
1 On File menu, click Save As. ‘Save As’ dialog box opens (Figure 4-4). By
default, files are saved in C:\Radon\Data subdirectory. You can save files
here, or select a different folder.

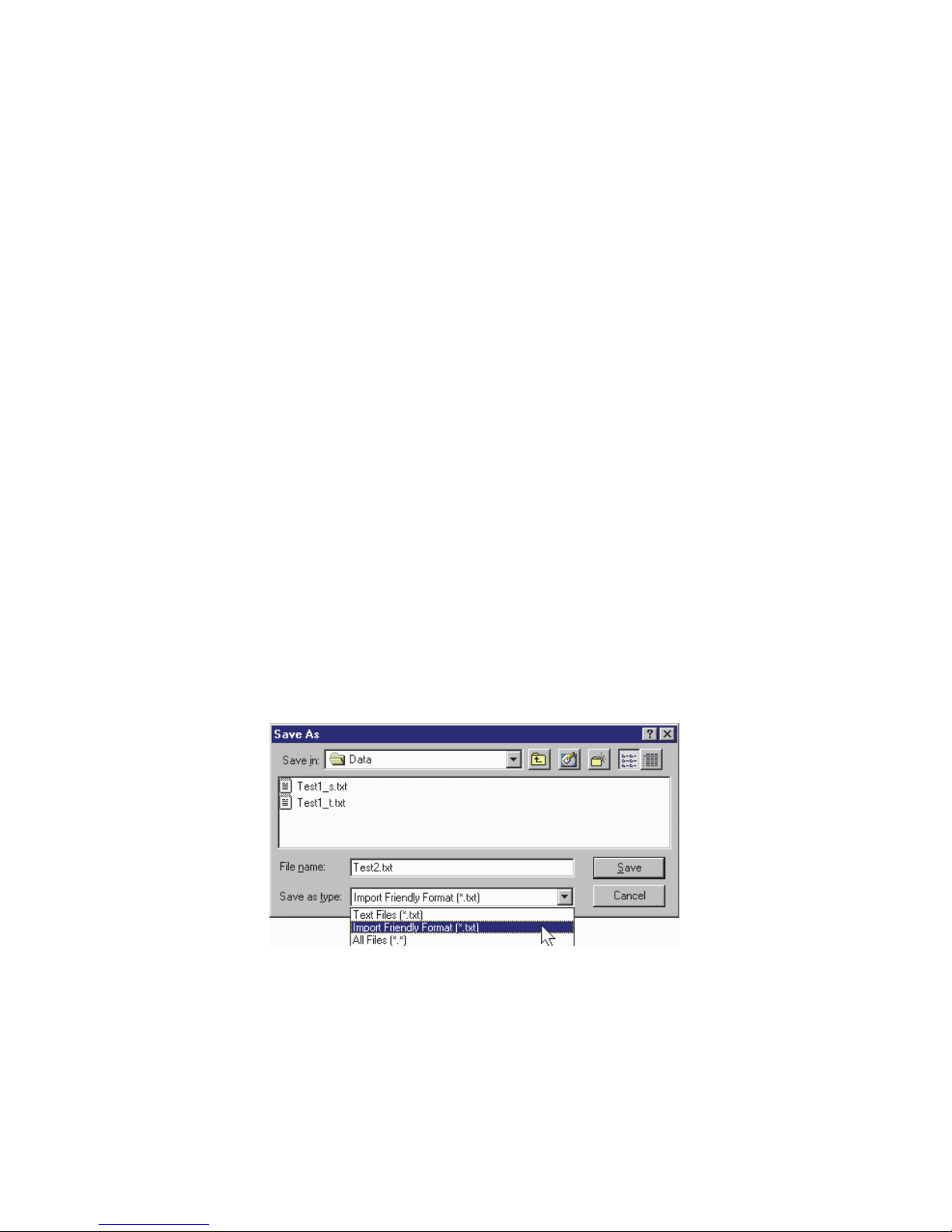

Figure 4-4. Save As Dialog Box
2 Use Save as Type drop-down list and select format type.
3 Enter a File Name. Use a naming scheme suitable to your purpose, such as
client name, address, date, serial number, or some combination. The
appropriate suffix is added automatically depending on the selected file type.
4 Click Save.
21
5 Support and Maintenance
Maintaining Hardware
Parts
Order accessories and replacement parts from Sun Nuclear Sales. For part
numbers, see Parts on page 2. For accessory part numbers, see Options and
Accessories on page 2.
Repairs
There are no user-serviceable parts inside the Radon Monitor. If there are
problems with the device, please contact Sun Nuclear Support. See Contacting
Sun Nuclear Support on page 29.
Storage
Store the Radon Monitor in an indoor, protected environment. Do not store the
device in the trunk of a car for extended periods. Keep the device dry.
Cleaning
Clean the unit with a soft dry cloth. Do not use liquid cleaners, solvents, or
abrasives.
Disposing and Recycling
The instrument contains electrical components. In some countries the disposal
of electrical components is subject to special requirements. When the
components are no longer functional or are otherwise ready to be discarded,
recycle or dispose of them according to local waste management or recycling
regulations.
Service and Calibration
The recommended calibration frequency for Model 1027 is one year. For service
or calibration, the Model 1027 must be returned to Sun Nuclear Corporation. See
Contacting Sun Nuclear Support on page 29.
Do not throw in trash; dispose of in an environmentally friendly way.
WARNING: Model 1027 contains high-voltage circuits. Do not open
the case. There are no user-serviceable parts inside the device.
22
Change Backup Battery
To change Model 1027
backup battery:
1 Pull out on one end of
hinged battery compartment door (Figure 5-1).
2 Remove battery from
connector, install a new 9V
alkaline battery, and close
battery compartment door.
Figure 5-1. Changing Model 1027 9V Backup Battery
Thermal Printer Maintenance
Rechargeable Battery Pack
The thermal printer’s battery pack (P/N 750052) allows report printing without AC
power. The battery pack is automatically recharged when AC power is connected.
Charging Battery Pack
1
Turn power off.
2 Connect AC adapter to printer. POWER light flashes once every second while
battery is charging. It takes about 10 hours to completely recharge.
3 When POWER light stops flashing and turns off, battery is fully charged.
Disconnect AC adapter.
Inserting Battery Pack
1
Turn printer over and slide battery cover away from battery pack enclosure.
See Figure 5-2 on page 23.
2 Connect battery pack connector to printer connector.
3 Turn battery pack so label is visible, insert in printer, and close battery cover.
Note: Always charge the battery in 5 to 40 °C (41 to 104 °F)
temperature range, to avoid degrading battery pack.
23
Figure 5-2. Inserting and Removing Battery Pack
Removing Battery Pack
1
Turn printer over and slide battery cover away from battery pack enclosure.
2 Pull out battery pack, grasp connector with thumb and index finger, and
disconnect battery pack.
3 Close battery cover.
Efficient Printer Battery Use
Battery efficiency decreases if the battery is recharged more than necessary.
Confirm whether POWER light is flashing and battery charge has decreased
before recharging battery.
When using the rechargeable battery, turn off the power switch after use. Leaving
the power switch on will consume battery and eventually run the battery down.
When using the AC adapter, note that the battery gradually recharges whether the
printer is on or off. It takes about 15 hours to charge the battery with the power
on. Battery charging is temporarily disrupted while the printer is printing and
resumes when printing is completed. When not using the printer, turn off the
power switch and unplug the AC adapter.
Printer DIP Switch Settings
The thermal printer (P/N 850040(Z)) has internal DIP switches set by the
manufacturer. For proper operation, these switches must be set as shown (Figure
5-3). Check and, if necessary, set the switches as follows:
24

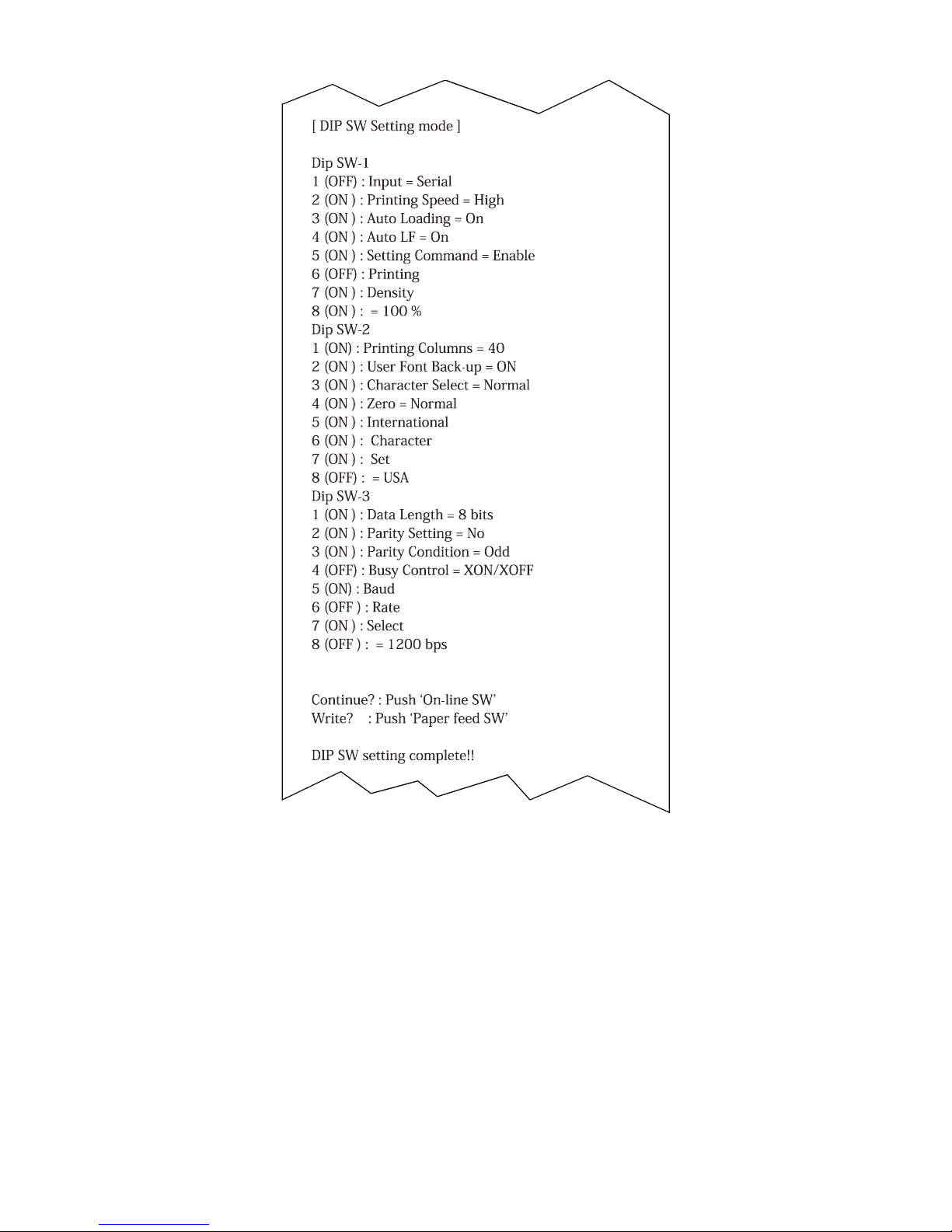

Figure 5-3. DIP Switch Settings for Printer
1 Slide power switch to OFF position (0), then slide power switch to ON posi-
tion (I) while pressing and holding ON LINE button.
2 Release ON LINE button after list of current DIP switch settings (Figure 5-3)
begins to print. When list of settings is complete, a prompt appears at the
bottom of the printout:
“Continue? : Push On-line SW”
“Write? : Push Paper feed SW”
3 To leave DIP switch settings the same, push FEED button.
4 To change any DIP switch settings, push ON LINE button. The prompt “Dip
SW-1” appears on the printout below the current settings.
25
5 Set each of the eight switches in DIP SW-1 by pressing either ON LINE for
”on” or FEED for ”off”. As each switch is set to ON or OFF, printer prints the
selection. When switch 8 is set, printer once again prompts with “Continue?”
or “Write.” Press ON LINE switch to “Continue to SW-2.”
6 In same manner, set DIP switches for SW-2 and SW-3.
7 When SW-3 is finished, press FEED to select “Write.” Changes are written to
printer memory, and printer returns to ON LINE mode.
Troubleshooting
Troubleshooting Model 1027
Note: All eight SW-1 switches must be set to on or off before exiting.
Do not exit in the middle.
CAUTION: Never turn the printer power off while writing the new
settings to memory. When “Dip SW setting complete” is printed, turn
the power off.
Problem Probable Cause Recommended Action
Average measured
value is higher or
lower than
expected and a
change in hourly
readings occurred
mid-report
Count number of hourly measurements and
compare with number of hours Model 1027
was deployed. If number of hourly
measurements is greater than number of
hours deployed, memory was not properly
cleared before testing. Previous
measurements are being averaged in with
data from current test.
CLEAR memory and retest. See Set Up on
page 13.
Model 1027 has an
AVERAGE value,
but no CURRENT
value
Model 1027 has lost power recently, which
cleared CURRENT value. However
AVERAGE is maintained until it is
deliberately CLEARED.
Re-test.
“Index out of
bounds” message
displays after
pressing PRINT
Not enough data collected. Accumulate at least
three hours of data
before transferring to
computer.
Battery is dead Battery switch was left on when mains
power was removed and Model 1027
continued to monitor until battery was
depleted.
Replace battery.
Report states “NO
DATA” after a test
Model 1027 did not have power. • Re-test in location
with known reliable
power.
• Ensure battery is
fresh, battery switch
is ON, and POWER
LED is ON.
26
Troubleshooting Thermal Printer
Troubleshooting USB to Serial Adapter
Updating USB to Serial Adapter Drivers
If the CD included with the USB to Serial adapter does not provide the correct
drivers for your operating system, or to check whether newer drivers are
available, visit the adapter manufacturer’s website and download the latest
drivers for your operating system.
For the recommended USB to Serial RS-232 Adapter (IOGEAR Model GUC232A,
Sun Nuclear P/N 850029), go to the IOGEAR website (www.iogear.com) and
download the latest drivers using the following steps.
1 Click Support link and then select Drivers/Manuals.
2 In ‘Search for your product’ box, select Driver radio button and type
GUC232A in text box. A link to driver is displayed.
Yellow LED flashing
continuously
Model 1027 has failed. Contact Sun Nuclear.
HV OFF LED on
continuously
High Voltage supply is off. Model 1027 has
failed.
Contact Sun Nuclear.
Problem Probable Cause Recommended Action
Printed report has
only a partial report
Printer was not READY when PRINT button
was pressed.
Re-print report.
Printed report too
light
Thermal printer paper is too old or exposed
to sunlight.
Replace thermal
printer paper.
Indication Probable Cause Remedy
Can’t find manufacturer’s
CD or drivers
Lost or discarded Download from manufacturer’s
website
Yellow exclamation point
or question mark next to
USB to Serial Adapter in
Device Manager
Incorrect installation Reinstall drivers per manufacturer’s
recommendations.
Warning message that
Com port is in use
Conflict with another
serial device
Disconnect the other serial device;
disable HotSync or ActiveSync;
reinstall USB to Serial Adapter.
Installation assigns Com
port to number higher than
4
Other serial devices
installed
Un-install one serial device installed in
Com ports 1 through 4 and reinstall
USB to Serial Adapter.
Radon Monitor software
does not download data
Wrong Com port
selected
Select correct Com port.
Data not sent from
Model 1027
Select Get Data on menu, press AVG
and CUR buttons on Model 1027
simultaneously, release when yellow
LED solid; press PRINT button when
LED is flashing.
Problem Probable Cause Recommended Action
27
3 Click link below search box to display a list of available drivers, then click
Download link for your operating system.
4 In ‘File Download window,’ click Save, and save file to your hard drive. If
downloaded file is compressed (*.zip or *.rar format), use an unzip utility to
extract contents. Make note of where file is saved/extracted.
5 Disconnect and then reconnect USB end of adapter from computer. ‘Found
New Hardware Wizard’ is displayed.
6 Click Locate and install driver software (recommended). If Windows
requests permission to continue, click Continue. Windows may search for
drivers online and install them if it finds them. Otherwise, continue.
7 If ‘Insert the disc’ dialog box opens, click I don’t have the disc. Show me
other options.
8 If Windows can’t find the driver software, click Browse my computer for
driver software (advanced).
9 When prompted for driver location, click Browse and navigate to directory
where you saved/extracted driver files. If files are in subfolders for several
operating systems, choose correct subfolder for your operating system.
10 Click Next to install driver. When driver is installed, screen shows that the
software for the USB to Serial Adapter was successfully installed.
11 Click Close.
Troubleshooting Data Download Issues
The steps in this section are for users who have already followed the procedures
in Using USB to Serial Adapter on page 8 and have 1) already connected a USB to
Serial adapter, 2) installed drivers for the adapter following the cable
manufacturer’s instructions, and 3) are still unable to download data from Model
1027 to the computer.
Typically, the inability to download data from Model 1027 is caused by the Com
port number assigned to the adapter. The Radon Monitor software only
recognizes Com ports 1 through 4, so if the cable uses Com port 5 or higher the
software will not recognize the cable. Perform this procedure to change the Com
port assignment to 4 or lower.
1 Turn Model 1027 OFF and exit Radon Monitor software.
Note: Vista 64-bit drivers are not supported by Radon Monitor.
Note: To use this procedure you may need to be logged in to the
computer as an administrator.
28
2 Open ‘Device Manager’ and in ‘Device Manager’ window, expand PORTS.
(For instructions see Verify Driver Installation on page 10.)
3 In Ports list, if using recommended IOGEAR USB to Serial Adapter look for
port labeled ATEN USB to Serial Bridge (com#). Look for something similar
to USB Serial Port (com#) if using a different USB to Serial Adapter cable.
4 Verify this is correct port by disconnecting and then reconnecting USB end
of cable from computer. Port should disappear from Ports list and then
reappear. If none of ports disappear and reappear with above test, computer
does not recognize USB to Serial Adapter. Reinstall drivers provided with
adapter and then try this procedure again. See Adapter Installation on page 9.
5 Double-click Port to open Com Port Properties.
6 Click Port Settings tab, then Advanced to display 'Advanced Settings’.
7 Click drop-down list with Com port number in it. Ports that are not available
are labeled “in use”.
8 Select available port 1, 2, 3, or 4.
9 Click OK to Com port selection then close Advanced Settings window.
10 In Com Port properties window, click OK.
11 Close all other windows opened using ’Device Manager’.
12 Return to Set COM Port in Radon Monitor Software procedure on page 12
and select the same Com Port number you selected in Step 7 of this
procedure.
Removing USB to Serial Adapter Drivers
To reinstall the drivers or to change to a different device, it may be possible to
remove the installed drivers via a software process. Refer to the manufacturer’s
instructions for details.
CAUTION: If ports 1 through 4 are labeled “in use”, all ports may be
assigned to a connected device OR to software for a device
(reserved for use when device is connected). Although it may be
possible to successfully connect via a port marked “in use”, this
might cause a device or software program to malfunction – proceed
at your own risk! Sun Nuclear is not responsible for any damage to
your computer as a result of selecting a com port labeled “in use”.
29
Contacting Sun Nuclear Support
Visit the Sun Nuclear Radon website, http://support.sunnuclear.com/radon for
links to product information, including instructional videos and Radon FAQs,
Calibration and Repair services, online RMA form, Support, Downloads and
useful links.
To view product information or to download product assets, click the links under
Radon Downloads.
If you need additional assistance, you may request support in two ways:
•Customers without a current support/maintenance agreement can submit a
support request using our online form, or visit our FAQ’s page on the same
website, http://support.sunnuclear.com/radon
.
•Customers with a current support/maintenance agreement also have the
option to contact the Sun Nuclear Support team by telephone:
+1 321-259-6862.
Support Website
Visit the Sun Nuclear Support website to request support via an online form.
1 Open an internet browser and navigate to
https://support.sunnuclear.com/radon.
2 In the left panel, click Contact Support.
3 To open a new support case, click the New Case form link, enter your email
address and the serial number of any Sun Nuclear instrument used at your
facility, then click Log in to open the Support Dashboard.
Warranty
The Sun Nuclear Product Warranty can be found on the Sun Nuclear Radon
Support website, https://support.sunnuclear.com/radon. Under the links.in the
left panel, click Sun Nuclear Warranty.
30
6 Reference
Hardware Reference
Model 1027

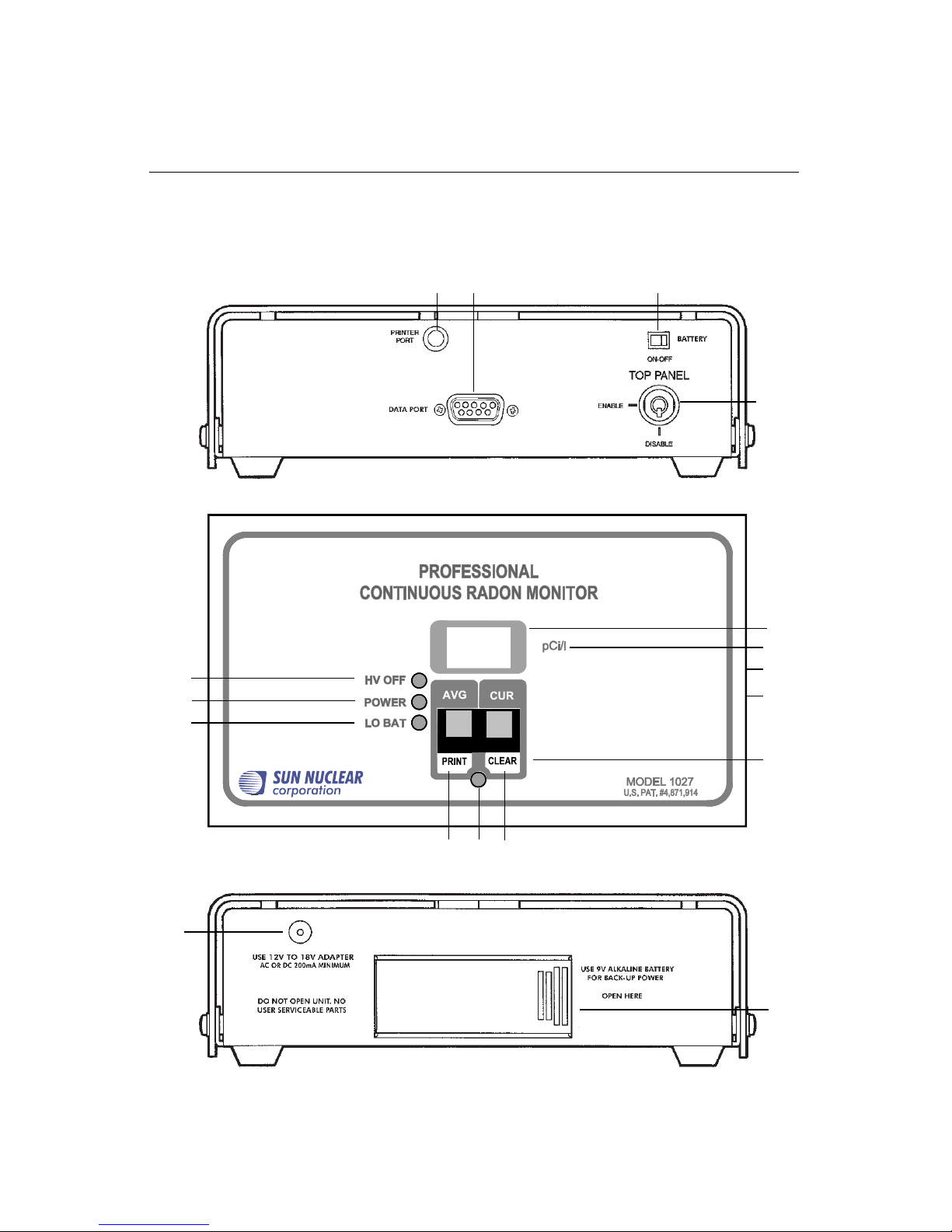

Figure 6-1 describes the Model 1027 connectors, controls and indicators.
12
4
10
11
12
3
16
17
13
15
14
5
6
8
9
7
Connector Panel
Power supply panel
Top panel
31
No. Description Function
1 PRINTER PORT Port is for legacy printer (Model 020030), an accessory for early
Model 1027 radon monitors. Current printer connects to DATA
port.
2 DATA PORT RS-232 data port provides a way to transfer information from
Model 1027 to a laptop or personal computer. The information
transferred is identical to that sent through the printer port. (See
Set Up Communication on page 6.)
3 BATTERY
ON-OFF
Switch connects and disconnects the battery. When ON, the
battery powers Model 1027 whenever mains power is not
available. When OFF, the battery does not power Model 1027
when mains power is disconnected. Switch should be in the
OFF position when Model 1027 is not deployed for a test. This
is important for two reasons: first, battery life will be reduced,
and second, Model 1027 will continue acquiring measurements
as long as battery power is available, which could inadvertently
affect the results of a recent test. A fresh battery provides about
20 hours of backup power if mains power fails.
4 TOP PANEL-
ENABLE/
DISABLE
Key switch enables and disables digital display and buttons on
Model 1027 top panel. When in DISABLE position, Model
1027’s measurement performance is not affected. Model 1027
will function effectively in either key position. This feature is
designed to mitigate the temptation to tamper with a test.
5 DISPLAY 3-digit LED display. Three decimal points display when AVG or
CUR is pressed after memory is cleared.
6 pCi/l Picocuries per liter – the units of radon gas concentration shown
on the display.
7 AVG When pressed, the measured long-term average radon gas
concentration in pCi/l is displayed on the 3-digit display. This is
the cumulative average of the entire period since the memory
was last cleared. This value is not lost if the Model 1027 loses
all power.
8 CUR When pressed, the measured short-term radon gas
concentration is displayed. This is a rolling average of the most
recent 12 hours. This value is lost if the Model 1027 loses
power.
9 PRINT or
CLEAR
Function as PRINT and CLEAR buttons only when yellow LED is
flashing. To access this mode, hold both buttons down until
yellow LED turns on. Then release buttons, and yellow LED
begins to flash.
10 CLEAR Yellow LED must be flashing: When pressed, yellow LED turns
off. Hold down until yellow LED turns on again; then release.
Yellow LED and display LEDs flash once followed by a single
flash of yellow LED. Model 1027 memory is cleared.
Disturbance switch is inactive for the next 15 seconds.
11 PRINT Yellow LED must be flashing: When pressed, Model 1027
sends a report of the data contained in memory to PRINTER and
DATA ports. When button is pressed, yellow LED turns on.
When released, LED turns off and data transfer begins. When
data transfer is complete, yellow LED flashes once.
32
Figure 6-1. Connectors, Controls, and Indicators
Thermal Printer
12 Yellow LED Function indicator. Normally off. When Model 1027 is powered
up, LED flashes twice, followed by a single flash, indicating
startup test is complete and unit is functioning normally. During
monitoring, yellow LED flashes each time an alpha particle is
detected. Flashes rapidly if Model 1027 fails during monitoring.
When buttons are in PRINT/CLEAR mode, yellow LED is
flashing. In this mode:
• When PRINT is pressed, yellow LED turns on. When PRINT is
released, LED turns off and data transfer begins. When data
transfer is complete, yellow LED flashes once.
• When CLEAR is pressed, yellow LED turns off. Hold down until yellow LED turns on again; then release. Yellow LED and
display LEDs flash once followed by a single flash of yellow
LED. Model 1027 memory is cleared.
13 LO BAT When red LED is on, battery has about two hours of life
remaining. Power adapter must be unplugged for LO BAT test.
14 POWER Green LED is on continuously when Model 1027 is powered by
mains power; flashes when powered by batteries only; off
when LO BAT is on.
15 HV OFF Red LED is normally off. When on, High Voltage circuit is off,
indicating Model 1027 has failed. See Thermal Printer
Maintenance on page 22.
16 Battery
compartment
A single 9-volt alkaline battery is used for Model 1027 power
backup. Battery is NOT recharged by Model 1027. A fresh
battery will operate Model 1027 for approximately 20 hours.
17 Power
connector
Power adapter should be plugged into Model 1027 BEFORE
adapter is plugged into mains power.
Table 2. Thermal Printer Indicators
Indicator Means
Green POWER • Flashing 1x/sec. – power on.
• Flashing 1x/.5 sec.– battery low.
Green ON LINE • Flashing – there is data in buffer memory when switch is tog-
gled to OFF LINE.
Red OFF LINE • On steady – Paper feed possible.
• Flashing – paper is not set or has run out.
Green ON LINE
Red OFF LINE
Both flashing – there is an error.
No. Description Function
33
Software Reference
Figure 6-2. Information Setup Calendar Feature
Table 3. Radon Monitor Report Information
Parameter Description
Enable Info • Mark this checkbox if you want the information to appear in
the report.
• Clear this checkbox if you want none of the information to appear in the report.
Monitor S/Ns Enter the serial number for each Model 1027 you are using, and
click the down arrow to place the serial number in the list.
• Prior to transferring a report to your computer, double-click the
serial number you want to appear in the Radon Monitor S/N
box.
• To remove a serial number from the list, click on it and then
click Delete.
Header Info Enter text to appear at top of report.
Start Date/Start Time Select date and time test started.
End Date/End Time Select date and time test ended.
Radon Monitor S/N In S/N list, double-click serial number of Model 1027 used in test
to select it.
Location Enter location of Model 1027 during the test.
Footer Info Enter text to appear at bottom of report.
Date boxes (Figure 6-2) • Use drop down arrow to open a calendar, then scroll to de-
sired month and double-click desired date. Selected date appears in Date box.
• Alternately, type date directly in box, or highlight month, day
or year and increment or decrement value using up/down arrow keys.
Time boxes • Type in times desired, or
• Highlight hours, minutes, or seconds and click arrows to increment or decrement selected value.
34
Radon Reference
The U.S. Environmental Protection Agency (EPA) maintains a comprehensive
website on radon at https://www.epa.gov/radon
where you can find EPA
documents, brochures, and publications relating to radon.
Below are descriptions of three EPA publications on radon, listed on the EPA’s
publications website, https://www.epa.gov/radon/publications-about-radon
.
• A Citizen's Guide to Radon: The Guide to Protecting Yourself and Your Family
from Radon
This guidance offers strategies for testing your home for radon and
discussions of what steps to take after you have tested, as well as
discussions about the risk of radon and radon myths.
• Consumer's Guide to Radon Reduction: How to Fix Your Home
This booklet is for people who have tested their home for radon and
confirmed that they have elevated radon levels. This booklet can help with
selecting a qualified contractor to reduce the radon levels in the home,
determining an appropriate radon reduction method, and maintaining a
radon reduction system.
• Home Buyer's and Seller's Guide to Radon
This booklet is intended for anyone who is buying or selling a home, real
estate and relocation professionals, home inspectors and others.
35
7 Specifications
Recommended System Requirements
Model 1027 Specifications
Characteristic Details
Operating System Windows 8.1, Windows 7, or Windows XP (32-bit or 64-bit)
Note: Windows XP is not recommended since Microsoft and
Sun Nuclear no longer support it.
Computer Minimum
• Processor: x486
• Total RAM: 32 MB
•Hard disk space: 5 MB
•USB port: one
• Display resolution: 1024 x 768
• Color depth: 32-bit
Description Value
Power Supply Converter, 120 VAC to 12 VDC, 200 mA, 60 Hz
Measurement Range
(pCi/l)
0.1 to 999
Accuracy ±25% or 1 pCi/l, whichever is greater after 24 hours
Disturbance Sensor Inertial switch
Data Port RS-232, 9-pin, D-connector allows printer data to be sent to PC
Detector Diffused-junction photodiode
Measurement Interval 1 hour (4, 8, or 24-hour intervals available by special order)
Sensitivity
(counts per hour/pCi/l)
2.5
Display 3-digit display LED
Battery Backup One 9V alkaline battery supplies approximately 20 hours of
operation. LED indicates low battery.
Weight (kg / lbs.) 0.91 (2.0)
Dimensions (mm / in.) 203 x 119 x 63.5 (8 x 4.7 x 2.5)
Operating Environment • 7 to 35 °C (45 to 95 °F)
• 20 to 80% relative humidity, non-condensing
Storage Environment • –30 to 50 °C –22 to 122 °F ()
• 10 to 90% relative humidity, non-condensing
Regulatory Evaluation • National Radon Safety Board (NRSB); Device code: 31807;
Group Code: CR.
• National Environmental Health Association National Radon
Proficiency Program (NEHA-NRPP); Device Code 223; Group
Code 4.
36
This page is intentionally left blank.
37
Appendix A: Regulatory Supplement
In addition to the regulatory information contained in the body of this manual, the
following supplemental regulatory information is provided.
Sun Nuclear Corporation Symbols
The following symbols are used in this guide and in Sun Nuclear Corporation’s
product labels.
WARNING: This symbol indicates a risk of electric shock.
WARNING: This symbol indicates a hazard that could result in major
injury or equipment damage.
CAUTION: This symbol indicates a potential hazard that could result in a
minor injury or equipment damage.
Important or supporting information.
Manufacturer’s Identification (name and address).
Date of Manufacture.
Serial Number.
Catalog Number.
Consult instructions for use.
Do not throw in trash; dispose of in an environmentally friendly way.
38
Operator Responsibility
This guide is intended for an operator who is experienced with the use of radon
detection devices. The operator of the device bears the full responsibility for
validating measurement results. The device and its accessories must not be used
for any other purpose than described in this guide. Violation will result in loss of
warranty.
Reporting Health or Safety Related Issues or Concerns
Should the need arise to report any safety or health related issues or concerns
regarding the use of Sun Nuclear products, contact Sun Nuclear Support. See
Contacting Sun Nuclear Support on page 29.
Modifications to Equipment
Any changes or modifications to the instrument that are not expressly approved
by Sun Nuclear Corporation could void your warranty.
Interaction with Other Electrical Equipment
The instrument can only be connected to external computer equipment that is
compliant with IEC 60950-1, Safety of Information Technology Equipment.
Corporate Headquarters
3275 Suntree Boulevard
Melbourne, FL 32940 USA
+1 321 259 6862
sunnuclear.com
Loading...
