Sunn 112 Quick Manual

P/N 055836 REV A

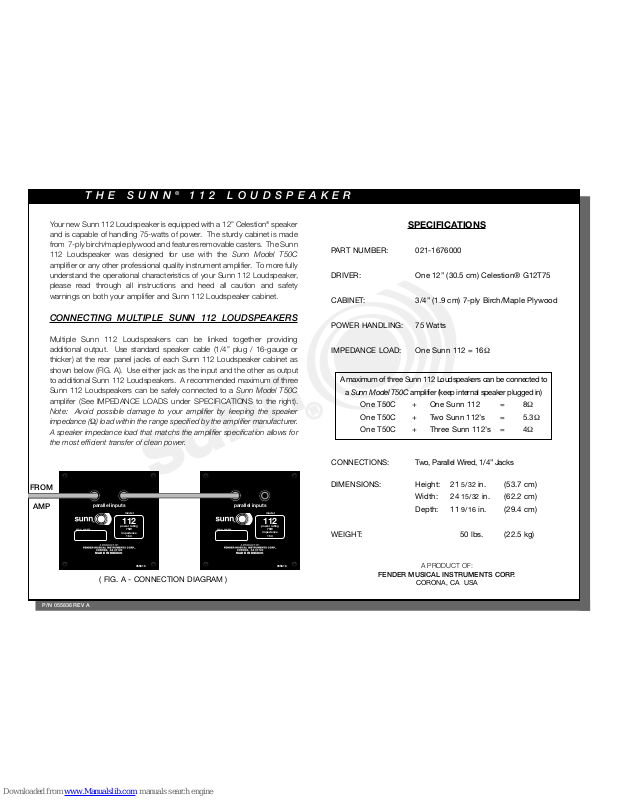

THE SUNN®112 LOUDSPEAKER

R

Your new Sunn 112 Loudspeaker is equipped with a 12” Celestion®speaker
and is capable of handling 75-watts of power. The sturdy cabinet is made
from 7-ply birch/maple plywood and features removable casters. The Sunn
112 Loudspeaker was designed for use with the Sunn Model T50C
amplifier or any other professional quality instrument amplifier. To more fully
understand the operational characteristics of your Sunn 112 Loudspeaker,
please read through all instructions and heed all caution and safety
warnings on both your amplifier and Sunn 112 Loudspeaker cabinet.

CONNECTING MUL

TIPLE SUNN 112 LOUDSPEAKERS

Multiple Sunn 112 Loudspeakers can be linked together providing
additional output. Use standard speaker cable (1/4” plug / 16-gauge or
thicker) at the rear panel jacks of each Sunn 112 Loudspeaker cabinet as
shown below (FIG. A). Use either jack as the input and the other as output
to additional Sunn 112 Loudspeakers. A recommended maximum of three
Sunn 112 Loudspeakers can be safely connected to a Sunn Model T50C
amplifer (See IMPEDANCE LOADS under SPECIFICATIONS to the right).

Note: Avoid possible damage to your amplifier by keeping the speaker
impedance (Ω) load within the range specified by the amplifier manufacturer.
A speaker impedance load that matchs the amplifier specification allows for
the most efficient transfer of clean power.

SPECIFICATIONS

PART NUMBER: 021-1676000

DRIVER: One 12” (30.5 cm) Celestion® G12T75

CABINET: 3/4” (1.9 cm) 7-ply Birch/Maple Plywood

POWER HANDLING: 75 Watts

IMPEDANCE LOAD: One Sunn 112 = 16Ω

CONNECTIONS: Two, Parallel Wired, 1/4” Jacks

DIMENSIONS: Height: 21 5/32 in. (53.7 cm)

Width: 24 15/32 in. (62.2 cm)

Depth: 11

9/16 in. (29.4 cm)

WEIGHT: 50 lbs. (22.5 kg)

A PRODUCT OF:

FENDER MUSICAL INSTRUMENTS CORP.

CORONA, CA USA

A maximum of three Sunn 112 Loudspeakers can be connected to

a Sunn Model T50C amplifier (keep internal speaker plugged in)

One T50C + One Sunn 112 = 8Ω

One T50C + Two Sunn 112’s = 5.3Ω

One T50C + Three Sunn 112’s = 4Ω

R

parallel inputs

055816

model

75W

112

power rating

impedence

16Ω

MADE IN MEXICO

SERIAL NUMBER

R

parallel inputs

055816

model

75W

112

power rating

impedence

16Ω

MADE IN MEXICO

SERIAL NUMBER

FROM

AMP

( FIG. A - CONNECTION DIAGRAM )
