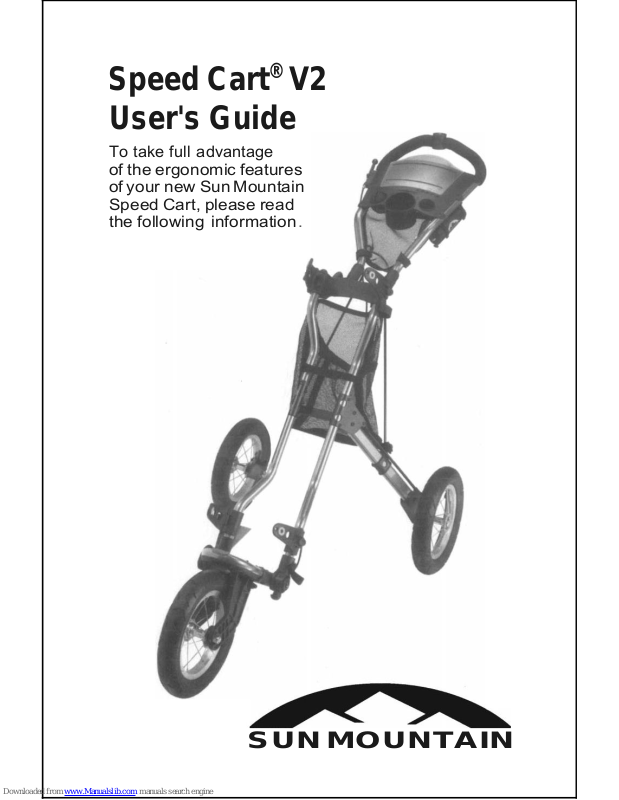

Sun Mountain Speed Cart V2 User Manual

Speed Cart

®

V2

User's Guide

To take full advantage of the ergonomic features of your new Sun Mountain Speed Cart, please read the following information.

SUN MOUNTAIN

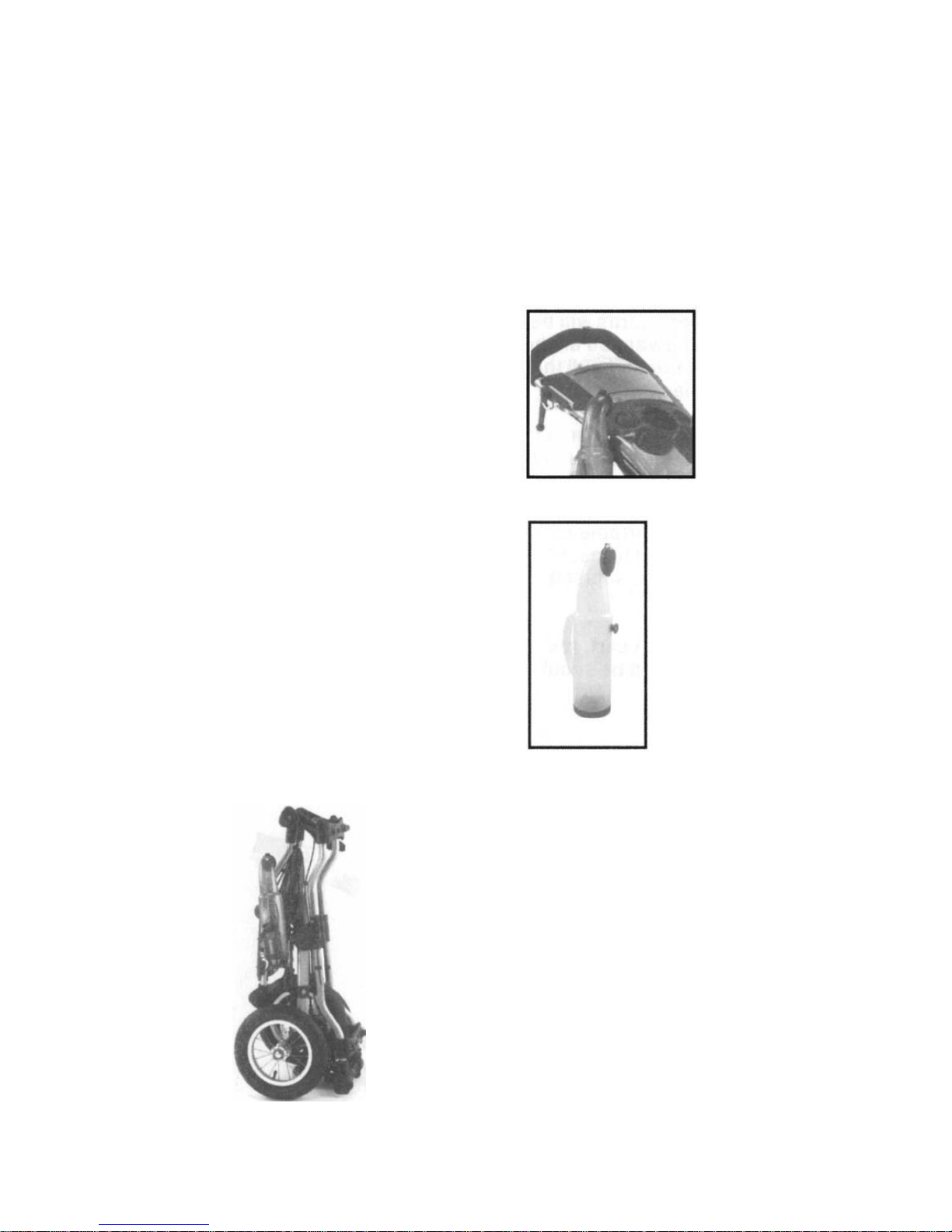

Your Speed Cart V2 has several innovative features designed for convenience, easy access and use.

A padded valuables box, magnetic lid and ball alignment marker

Sand and Seed Bottle

Folds down in seconds to fit in your trunk.

1

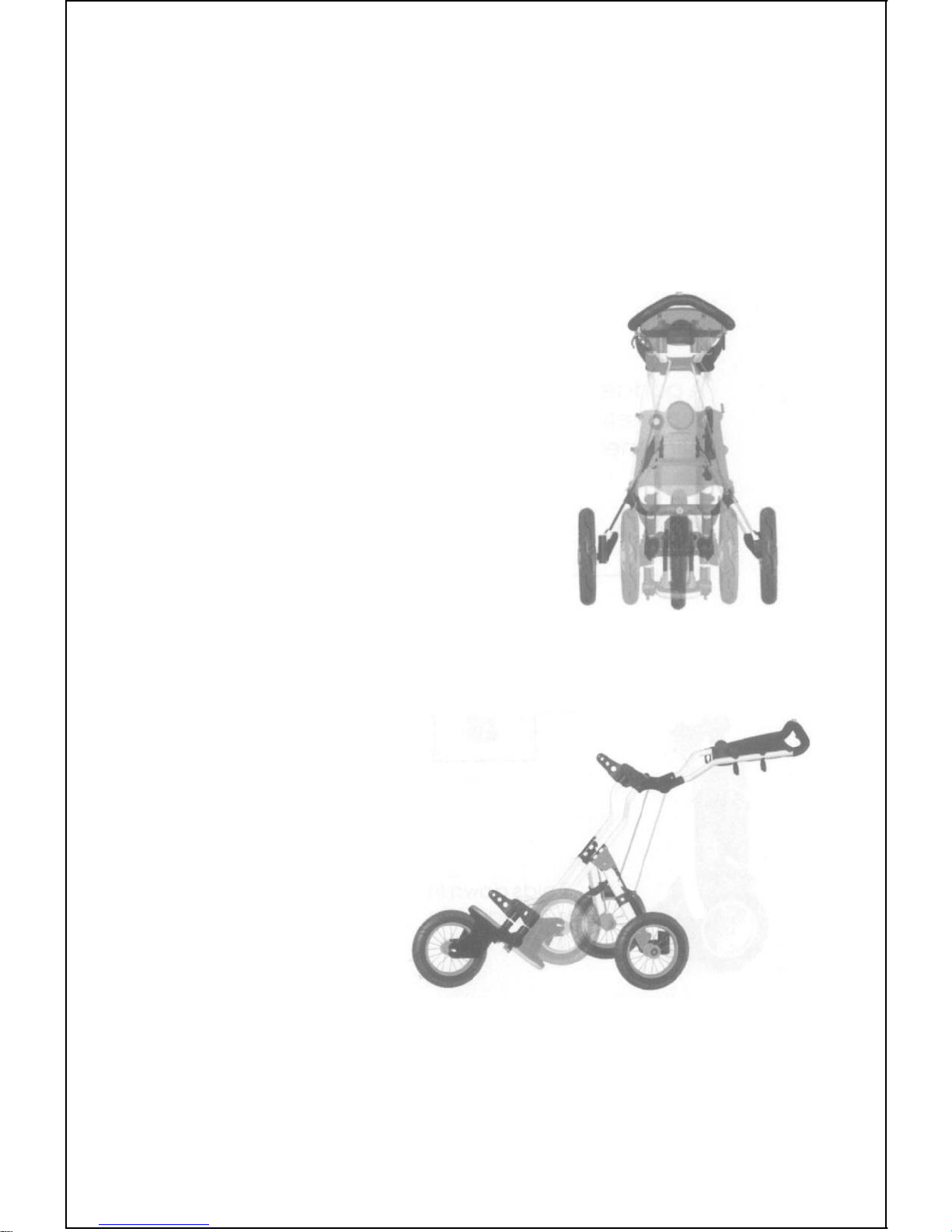

INSTRUCTIONS FOR OPERATION OF THE SPEED CART V2

STEP ONE: UNFOLDING YOUR CART

1.

To open and adjust your cart’s steering handle, unscrew the black triangle twist knob at the base of the handle (several turns will be sufficient), tilt the cart forward so all the weight rests on the front tire and pull the handle out to extend the back wheels.

2.

To unfold the cart's front wheel, loosen the black triangular twist knob located on the side of the front wheel so the wheel can pivot freely. Then fully extend the front wheel and securely tighten the twist knob to lock the front wheel in position.

Tips:

1.

The height of the handle can be adjusted at any time to a height that is comfortable for you. To do so, loosen the handle twist knob several turns, tilt the cart forward to take weight off the back wheels, adjust the handle height and retighten the twist knob.

2.

To unfold the cart,

reverse steps one and two above. Both twist knobs should be securely tightened when the cart is folded.

2

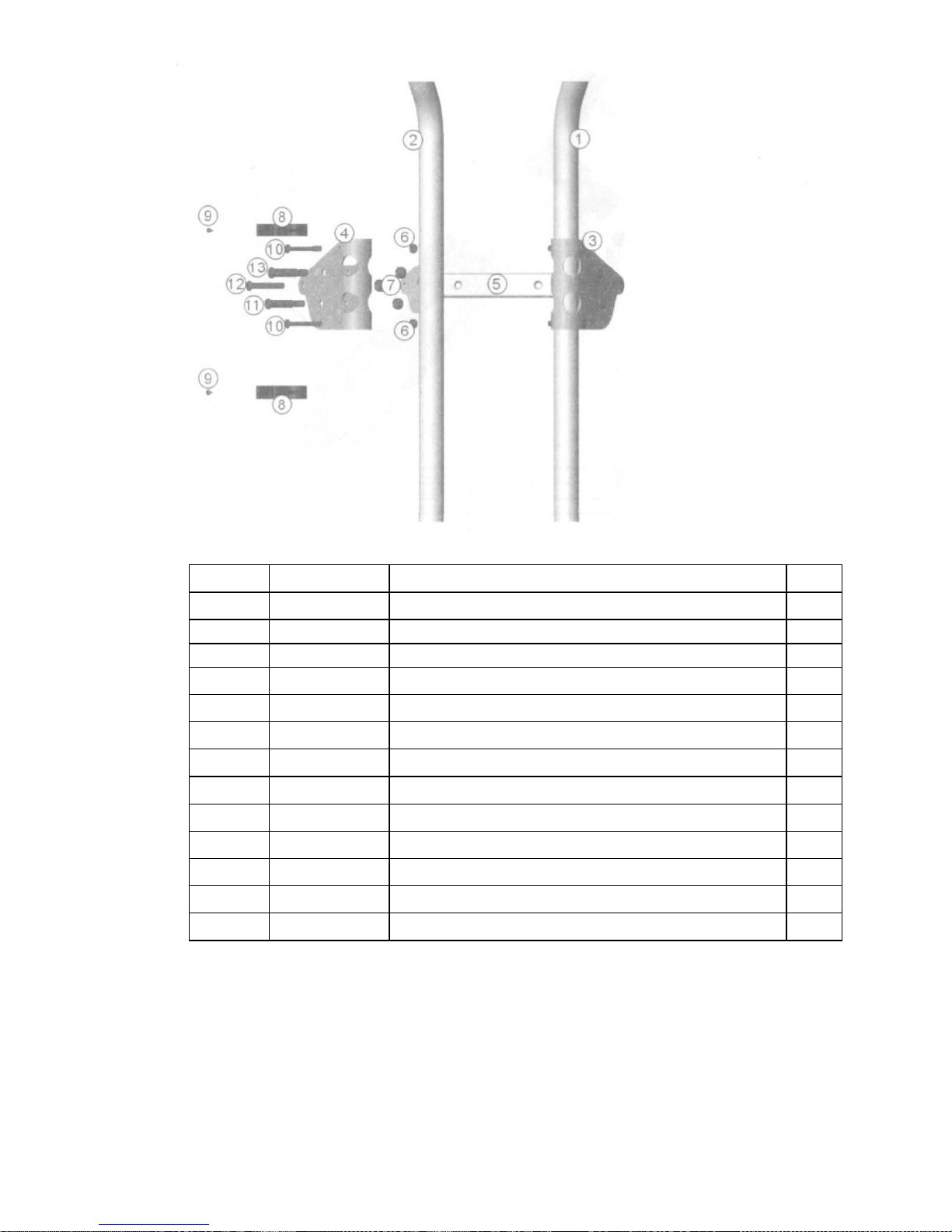

STEP TWO: LOADING YOUR GOLF BAG ON THE CART

Unfold the upper and lower bag brackets, loosen the four thumb screws on the side of the brackets, place your golf bag on the cart and retighten the thumb screws until the brackets fit the size of your bag. This adjustment only needs to be made once. The bottom of your golf bag should be resting on the U-shaped bag support.

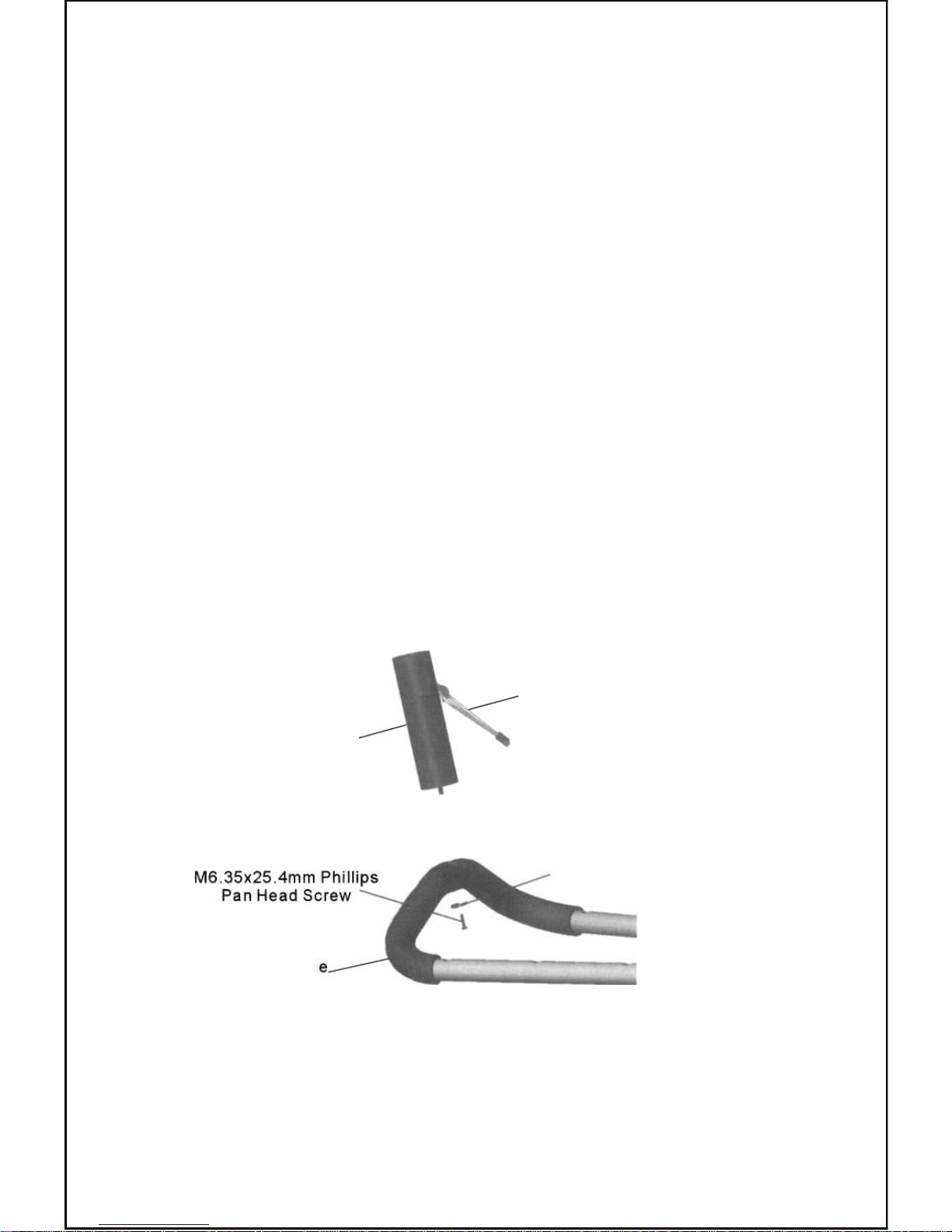

USING YOUR UMBRELLA HOLDER AND UMBRELLA STORAGE LOOPS:

The Speed Cart V2 comes with an umbrella holder that is clipped on the side of the handle tube and an umbrella holder mount that is located on the handle grip. To use your umbrella, screw the umbrella holder clockwise onto the umbrella holder mount. Then place your umbrella handle inside the holder. If you are using a Sun Mountain umbrella you can use the bungee cord to secure the umbrella handle in the holder.

When you are not using your umbrella you may store your umbrella in the loops attached to the side of the cart. Insert the tip of your umbrella into the web loop behind the lower bag bracket and secure the top of the umbrella with the Velcro® web loop near the upper bag bracket.

Umbrella

Holder

Umbrella Holder

Bungee

w/

Clasp

Mount

6.4mm Washer

HandI

Tube

3

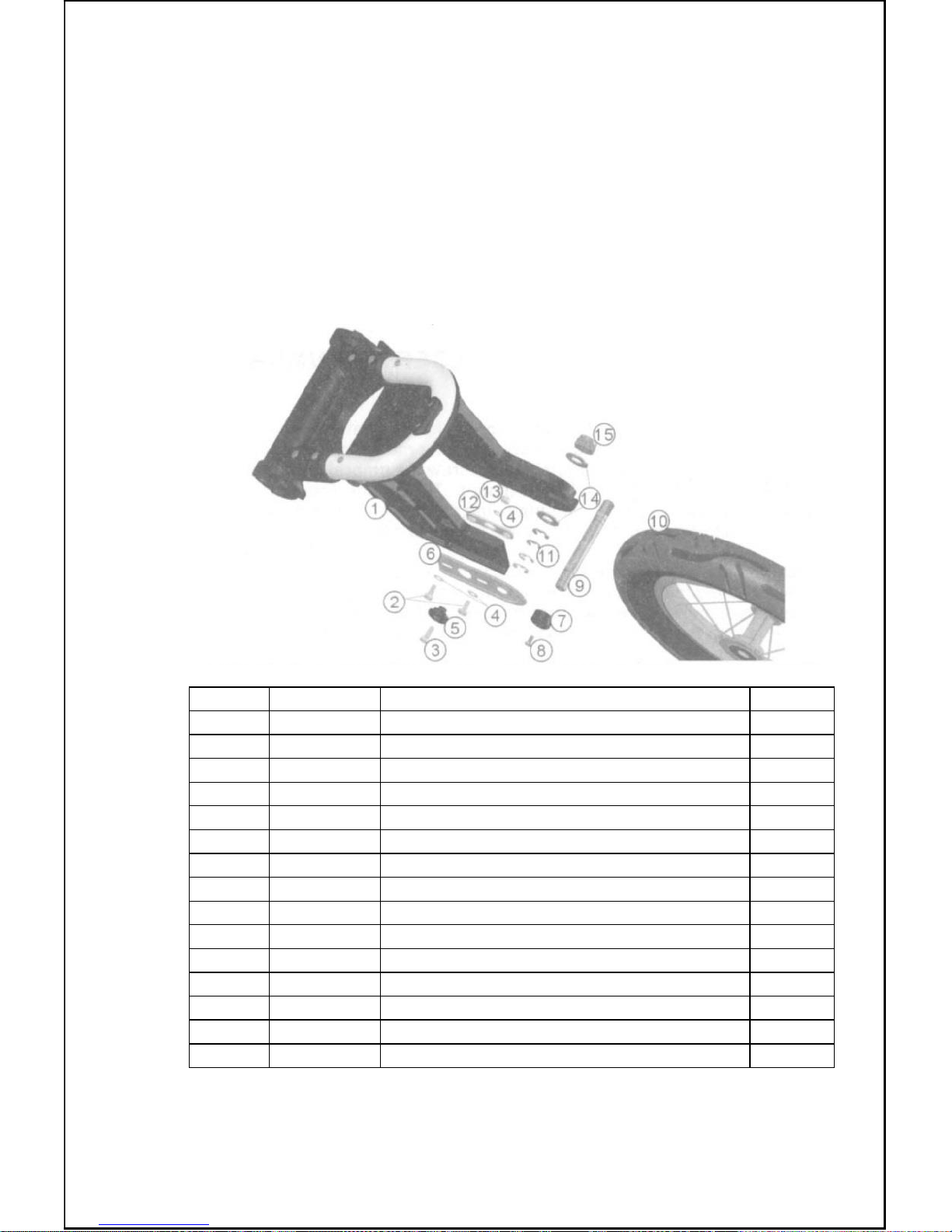

ADJUSTING THE ALIGNMENT:

All Speed Carts go through alignment testing before they are shipped. However, if your cart is not rolling straight you can adjust the alignment with the adjustment knob. First, loosen the two screws beside the adjustment knob. If your cart goes right, turn the knob clockwise. Conversely, if your cart goes left, turn the knob counter-clockwise. When you are satisfied with the alignment, tighten the screws to set the wheel’s position.

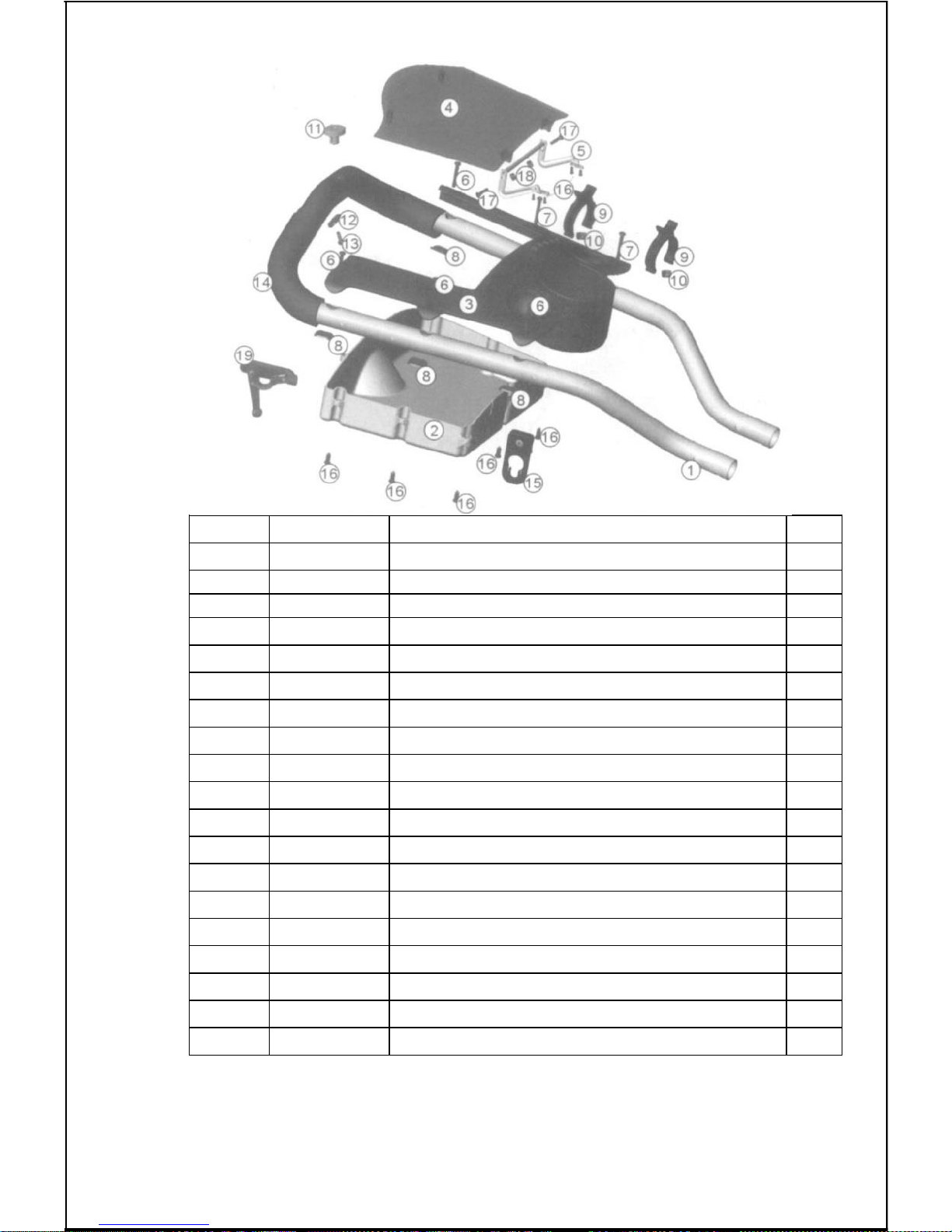

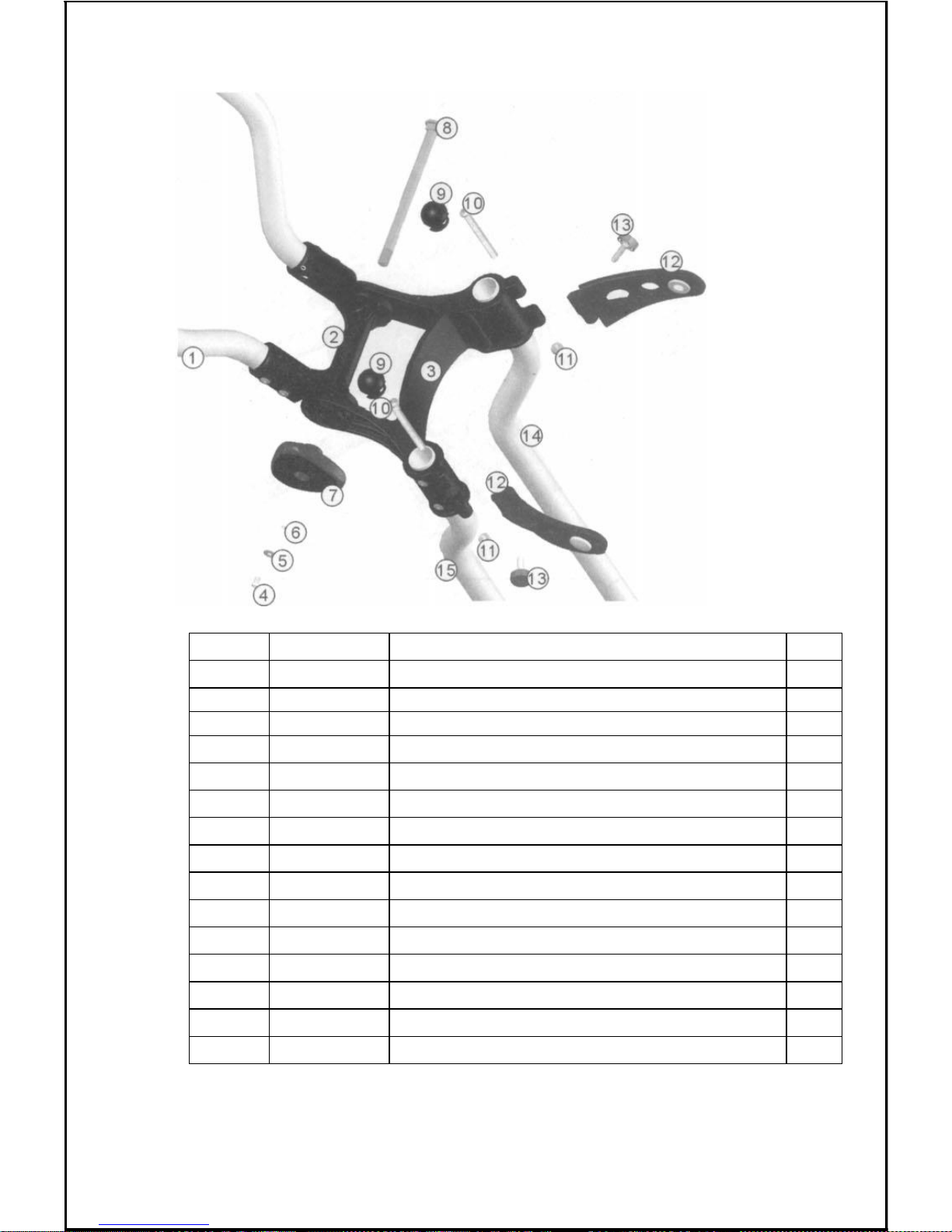

Item #

Part #

Description

Qty

1

006-001

Fork (includes tracking hardware)

1

2

005-101

M5-0.8x12mm Hex Screw

2

3

005-123

M5-0.8x15mm Hex Screw

1

4

005-102

5mm Flat Washer

3 5 005-099

Adjustment Knob

1 6 007-098

Axle Adjustment Plate

1 7 005-105

Axle Retainer Cap (color specific)

1

8

005-118

M5-0.8x8mm Phillips Pan Head Screw

1

9

005-100

Front Axle

1

10

009-505S

Foam Tire Wheel Assembly (silver rim)

1

11

MC1-233

9mm E-clip

4

12

005-106

M5 Nut Plate

1

13

SV1-221

M5-0.8 Nylock Nut

1

14

005-021a

12mm Flat Washer

2

15

005-031

M12-1.75 Nylock Nut

1

4

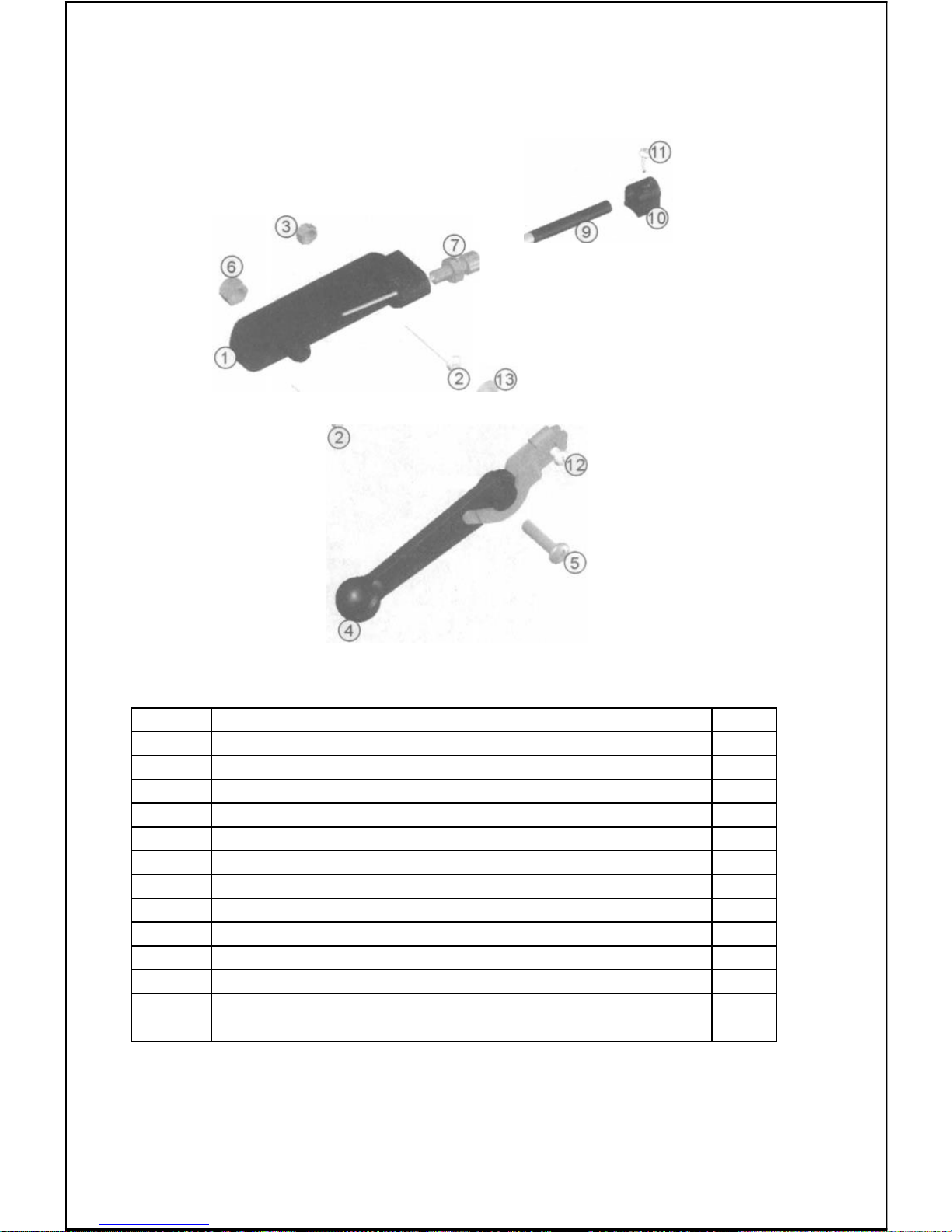

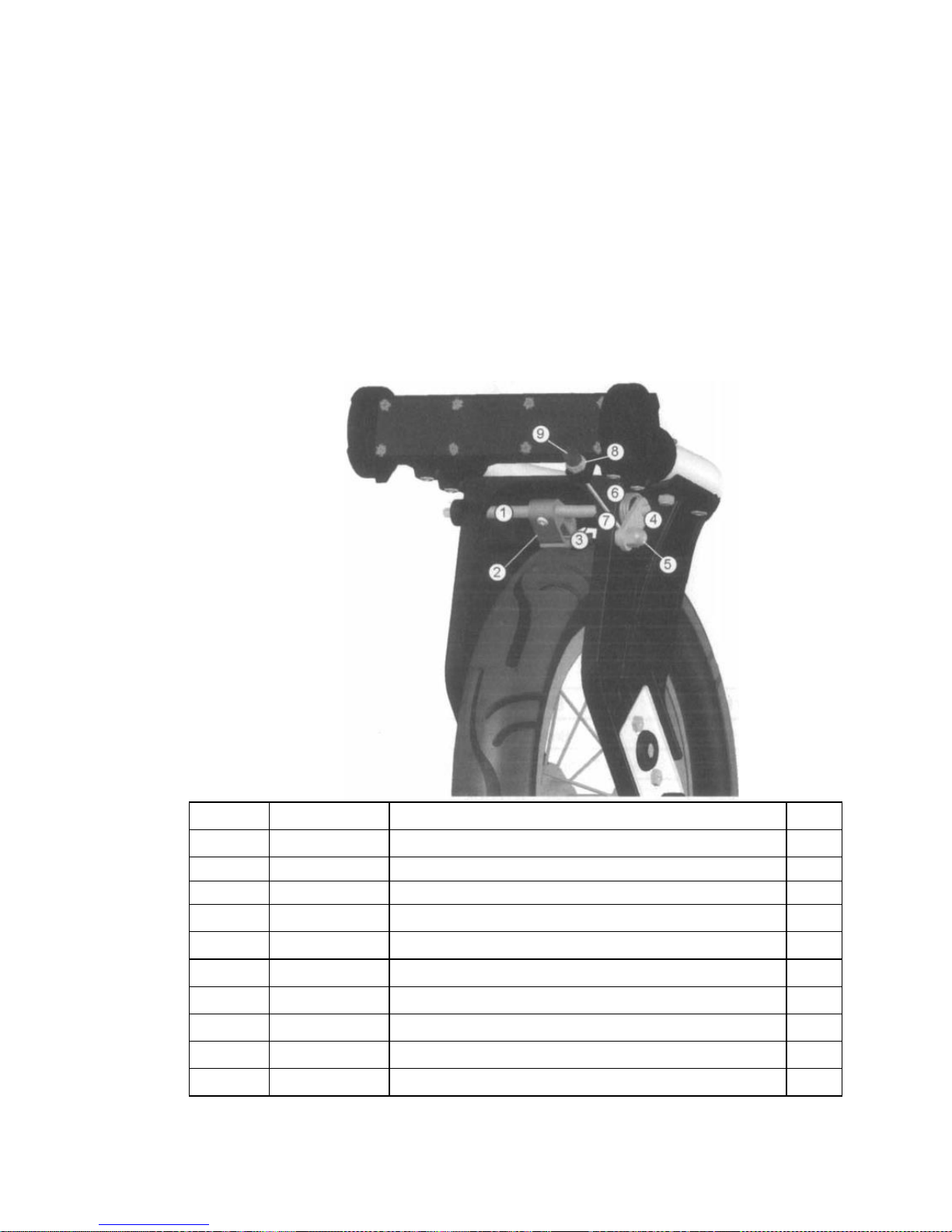

BRAKE PARTS:

®

Item #

Part #

Description

Qty

1

MC1-338

Brake Lever Mount

1 2 MC1-268

M4-0.7x35mm Phillips Pan Head Screw

2 3 SV1-225

M4-0.7 Nylock Nut

2 4 MC1-902

Brake Lever with Linkage

1

5

MC1-270

M6-1.0x22mm Phillips Pan Head Screw

1

6

SV1-202

M6-1.0 Nylock Nut

1

7

MC1-903

Brake Cable Adjustment Stud and Nut

1

8

005-420

Brake Cable Kit and Hardware

1

9

Refer to 8

Brake Cable Sheathing

1

10

SV1-306

Brake Cable Sheathing Clip

6

11

MC1-273

3x10mm Phillips Pan Head ST Screw

6

12

MC1-274

M4x5mm Phillips Pan Head Screw

1

13

MC1-275

Brake Cable Stud

1

5

The hand brake is set to hold a 50-pound load on a 25% grade. If you find your manual brake is not holding, first check the tire pressure on the front tire to make sure it is at 30 PSI. If the tire pressure is correct and the brake is not holding, you may need to tighten the brake cable. To tighten, set the brake lever to the down position, remove slack from the cable by turning the cable adjustment bolt (item 8) counter-clockwise, then setting the nut to hold it in place.

If all of the slack is already pulled out of the cable (the cable adjustment bolt is turned as far counterclockwise as possible) loosen the nut on the cable clamp bolt, turn the cable adjustment bolt clockwise until all threads are all the way in, press the brake cam against the tire, pull all the slack out of the cable and tighten the cable clamp bolt. You should now have sufficient adjustment in the cable adjustment bolt/nut to properly set the brake.

Item #

Part #

Description

Qty

ALL

007-404

V2 Full Brake Kit

1

Refer to kit

Brake Shaft (kit required)

1

2

007-202

Brake Cam

1

3

Refer to kit

Brake Shaft Bushing (kit required)

1 4 Refer to kit

Brake Throw (kit required)

1

5

Refer to kit

Brake Throw Bolt (kit required)

1

6

Refer to kit

Brake Cable (kit required)

1 7 Refer to kit

Brake Spring (kit required)

1 8 Refer to kit

Brake Cable Mount (kit required)

1 9 Refer to kit

Brake Throw (kit required)

1

6

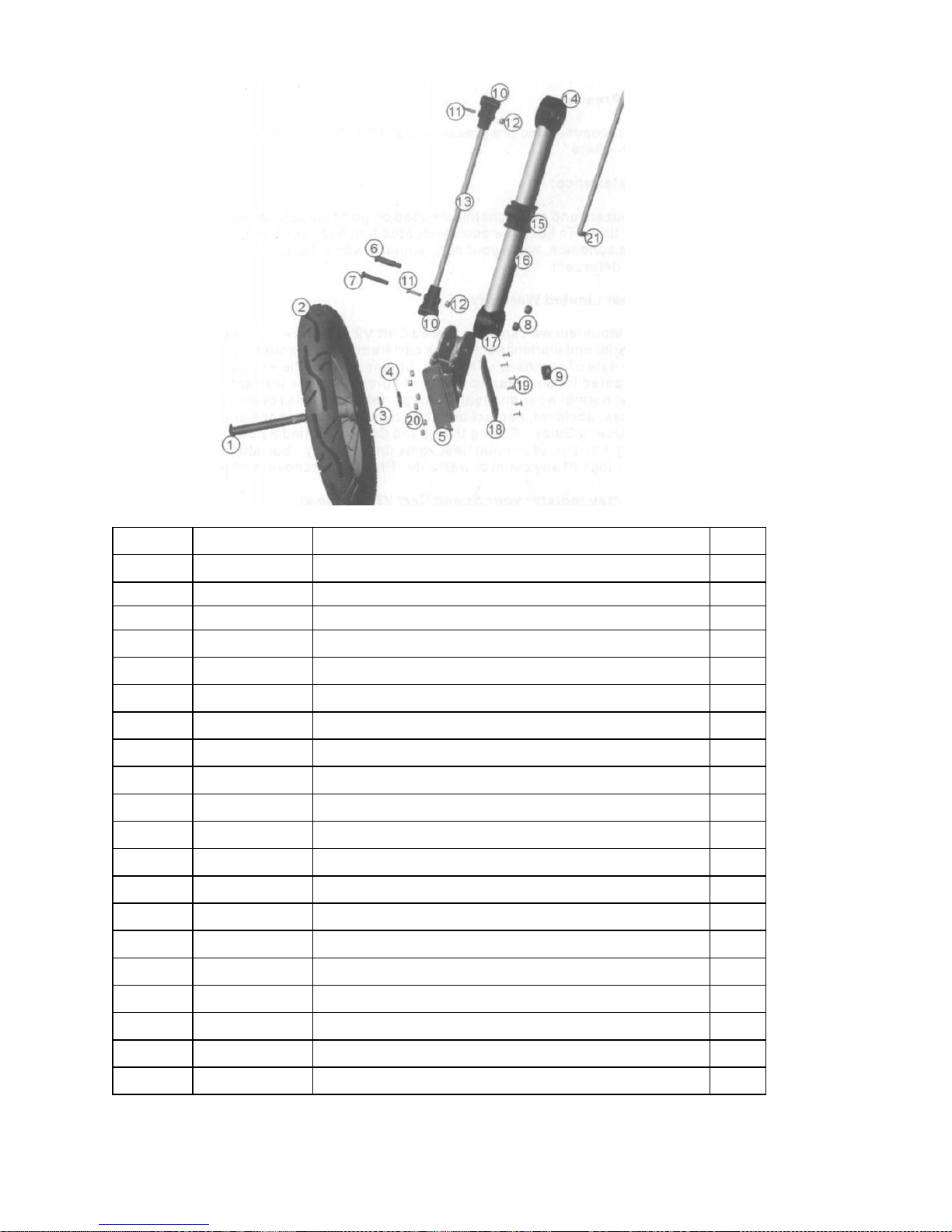

Item #

Part #

Description

Qty 1 006-004_

Handle Tube (color specific)

1

2

007-402L

Full Accessory Tray

1

3

007-402L

Full Accessory Tray

1

4

007-005

Accessory Tray Lid Kit

1

5

007-005

Accessory Tray Lid Kit

1

6

007-006

M4x28mm Phillips Pan Head Screw

4

7

007-007

M4x32mm Phillips Pan Head Screw

2

8

007-008

M4 Nut Plate

4 9 SV1-903B

Umbrella Holder Clip Kit

1

10

SV1-225

M4-0.7 Nylock Nut

2

11

007-011

Umbrella Holder Mount

1

12

SV1-209

6.4mm Washer

1

13

007-013

M6.35x25.4mm Phillips Pan Head Screw

1

14

009-128

Foam Handle

1

15

005-126

Grass Seed Clip and Screw

1

16

007-019

4X10mm Phillips Pan Head Screw

11

17

007-020

M3x8mm Phillips Pan Head Screw

2

18

007-021

M3 Nylock Nut

2

19

MC1-902

Brake Lever Assembly

1

7

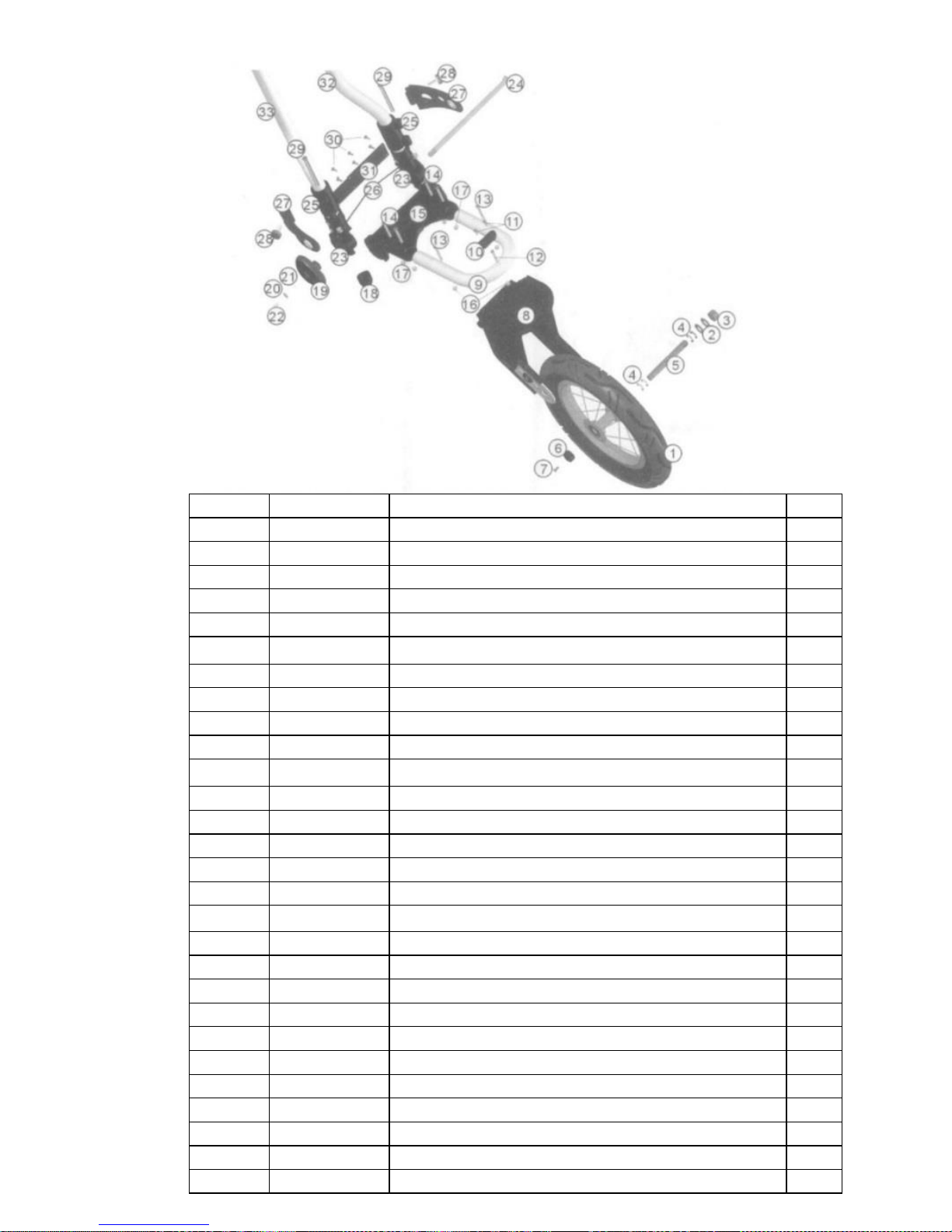

Item #

Part #

Description

Qty 1 006-004_

Handle Tube (color specific)

1

2

006-066

Handle Pivot

1 3 006-007

Upper Pivot Fitting

1

4

005-408C
