Quick start
1
Indicator Lamp
Used for indicating the steps for swiping card.
2
Power Key
Short press: to activate the screen backlight or lock the screen.
Long press: to power on by long pressing for 2~3s under the
power-off status；
to power off or restart/reboot by pressing and holding for 2~3s
under the power-on status.
to restart/reboot automatically by long pressing for 11s under the
system crash status.
3
Function Key
Set by using software and used as Code Scanning Key, Volume
Key or to perform other functions.
4
IC Card Socket
Used for inserting the bank chip card.
5
NFC Card Reader
Used for sensing Quick Pass Card.
6
Camera
Supports photographing and 1D/2D code quick scanning.
7
Magnetic Card Reader
Used for reading the information stored in the magnetic stripe of
bank card.
8
1D Code Scanner (optional)
The 1D Code Scanner is used for reading product bar codes and
mobile payment code.
9
Removable Card Holder
Pull out the Card Holder to take out the SIM Card.
Table for Names and Content Identification of Toxic and
Hazardous Substances in this Product
Part Name
Circuit Board Component
Structural Component
Packaging Component
indicates that the content of the toxic and hazardous substance in all
：
homogeneous materials of the component is below the limit specified
in SJ/T 11363-2006.
indicates that the content of the toxic and hazardous substance in at
：
least one homogeneous material of the component exceeds the limit
stipulated in SJ/T 11363-2006. However, as for the reason, because there
is no mature and replaceable technology in the industry at present.
The products that have reached or exceeded environmental protection
service life should be recycled and reused according to the Regulations on
Control and Management of Electronic Information Products, and should
not be discarded randomly.
Toxic or Hazardous Substances and Elements
Pb Hg Cd
Cr(VII)
PBB PBDE
DEHP DBP BBP DIBP
Notices
Safety Warning
Connect the AC plug to the AC socket corresponding to the marked
input of the power adapter;
To avoid injury, unauthorized persons shall not open the power
adapter;
This is a Class A product. This product may cause radio interference
in living environments.
In that case, the user may be required to take adequate measures
against interference.
Battery replacement:
1.Explosion danger may arise if replacing with the wrong battery!
2.The replaced battery shall be disposed of by maintenance
personnel, and please do not throw it into fire!
Significant Safety Instructions
Do not install or use the device during lightning storms to avoid the
potential risks of lightning shock;
Please turn off the power immediately if you notice abnormal odor,
heat or smoke;
Suggestions
Do not use the terminal near water or moisture to prevent liquid from
falling into the terminal;
Do not use the terminal in extremely cold or hot environments, such
as near flames or lit cigarettes;
Do not drop, throw or bend the device;
Use the terminal in a clean and dust-free environment if possible to
prevent small items from falling into the terminal;
Please do not use the terminal near medical equipment without
permission.
Statements
The Company does not assume responsibilities for the following
actions:
Damages caused by use and maintenance without complying with
the conditions specified in this guide;
The Company will not assume any responsibilities for the damages or
problemscaused by optional items or consumables (rather than the
initial products or approvedproducts of the Company). The customer
is not entitled to change or modify the product without our consent.
The product’s operating system supports official systemupdates, but
if you change the operating system into a third party ROM system or
alter the system files by system cracking, it may cause system
instability and security risks and threats.
Disclaimer
As a result of product upgrading, some details in this document may
not match the product, and the actual product shall govern. The
Company reserves the right of interpretation of this document. The
Company also reserves the right toalter this specification without
prior notice.
CE certification information (SAR)
This device was tested for typical body-worn operations with the back of the
handset kept 5mm away. To maintain compliance with RF exposure requirements,
use accessories that maintain a 5mm separation distance between the user's body
and the back of the handset. The use of belt clips, holsters and similar accessories
should not contain metallic components in its assembly. The use of accessories that
do not satisfy these requirements may not comply with RF exposure requirements,
and should be avoided.
If you are using pacemaker, hearing aid, cochlear implant or other device, please
use the phone according to the doctor’s advice.
PRODUCT SAFETY WARNINGS
Use responsibly. Read all instructions and safety information before use to avoid
injury.The maximum operating ambient temperature of the equipment declared
by the manufacturer is 40°C.
Battery safety
Charge battery only at ambient temperatures ranging from 0°C to 40°C.
(1) CAUTION: Danger of explosion if battery is incorrectly replaced. Replace only
with the same or equivalent type of battery recommended by the manufacturer.
Dispose of used batteries according to battery manufacturer’s instructions.
(2) CAUTION: RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE.
DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS.
(3) CAUTION:Battery charging temperature upper limit is 40°C.
Adapter safety
When charging, please place the device in an environment that has a normal
room temperature and good ventilation. It is recommended to charge the device
in an environment with a temperature that ranges from 0°C~40°C.
For altitude 2km below use only
Camflash safety
LED is only used as indicating light.
Wi-Fi Safety
Turn Wi-Fi off in areas where Wi-Fi use is prohibited or when it may cause
interference or danger, such as in airplanes while flying.
Declaration of Conformity
Hereby, Shanghai Sunmi Technology Co., Ltd. declares that the smart
POS system(Model No.:T6800) is in compliance with the essential
requirements and other relevant provisions of RED 2014/53/EU.
CAUTION: The user has to turn off the 5GHz WiFi in outdoor
environment.
5.8G SRD receiver category：1
T6800 doesn't support hotspots fuction.
Technical features and characteristic
the product includes the following features and characteristics：
Operation Frequency
GSM900
GSM1800
WCDMA bandI
WCDMA bandVIII
LTE band1
LTE band3
LTE band7
LTE band20
LTE band38
LTE band40
BT
BLE
880MHz-915MHz
1710MHz-1785MHz
880MHz-915MHz
1920MHz-1980MHz
1920MHz-1980MHz
1710MHz-1785MHz
2500MHz-2570MHz
832MHz-862MHz
2570MHz-2620MHz
2300MHz-2400MHz
2402MHz-2480MHz
2402MHz-2480MHz
2412MHz-2462MHz
wifi
5150MHz-5250MHz
5250MHz-5350MHz
5725MHz-5850MHz
NFC
This product can be used across EU member states.
The full text of the EU declaration DOC is available at the following
internet address：www.sunmi.com
13.56MHz
Transmitted
33dBm
29dBm
22dBm
22.5dBm
23.5dBm
23dBm
21dBm
23.5dBm
23dBm
23dBm
9.79dBm EIRP
-1.38dBm EIRP
16.88dBm EIRP
14.5dBm EIRP
9.55dBm EIRP
13.414dBμA/m at 10m
This device complies with Part 15 of the FCC Rules. Operation is subject
to the following two conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference received, including
interference that may cause undesired operation.
FCC ID: 2AH25T6800
NOTE: Changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to operate the
equipment.
NOTE: This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment
generates uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on,
the user is encouraged to try to correct the interference by one or more
of the following measures:
---Reorient or relocate the receiving antenna.
---Increase the separation between the equipment and receiver.
---Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
---Consult the dealer or an experienced radio/TV technician for help.
This smart POS system meets the government's requirements for exposure
to radio waves. The guidelines are based on standards that were
developed by independent scientific organizations through periodic and
thorough evaluation of scientific studies. The standards include a
substantial safety margin designed to assure the safety of all persons
regardless of age or health.
FCC RF Exposure Information and Statement. The SAR limit of USA
(FCC) is 1.6W/kg averaged over one gram of tissue.
Device types: T6800 has also been tested against this SAR limit. The
highest SAR value reported under this standard during product certification
when properly worn on the body is 1.238W/kg（10gSAR， test
distance：0mm，limit 4W/kg）
This device was tested for body-worn
operations with the back of the handset kept 0mm from the
body. To maintain compliance with FCC RF exposure requirements, use
accessories that maintain a 0mm separation distance between
the user's body and the back of the handset. The use of belt clips,
holsters and similar accessories should not contain metallic components
in its assembly. The use of accessories that do not satisfy these
requirements may not comply with FCC RF exposure requirements, and
should be avoided.
Manufacture
Shanghai Sunmi Technology Co., Ltd.
Room 505, KIC Plaza, No.388 Song Hu Road, Yang Pu District,
Shanghai, China
系统预置软件列表
1
· 应用市场 · 推送服务 · 用户反馈 · 数据服务 · 启动器 · 硬件管家
· 音量键功能自定义 · BaseService · 定制服务(壁纸、开机动画)
· 开发者指南(调试小助手) · 使用指南 · 开机指导 · 远程协助 · OTA
2
3
3
9
4
以上软件详细信息查询方法：选择“设置->应用”，选择相应软件名称进行查看信息；
软件卸载方法：选择“设置->应用->管理应用->卸载”卸载应用；
或长按图标，拖曳到垃圾桶卸载。
注意事项
安全警告
请将电插头插入与配件电源适配器上标识输入相对应的交流电插座中；
此为A级产品。在生活环境中，该产品可能会造成无线电干扰。
在这种情况下，可能需要用户对于干扰采取切实可行的措施。
仅使用本机自带电池；
存在爆炸性气体时请勿更换电池；
请勿在危险场所充电。
快速入门指南
1
指示灯
用于提示刷卡业务步骤。
2
5
6
7
8
电源键
短按：点亮屏幕，锁定屏幕。
长按：关机状态下，长按2-3秒开机；
使用状态下，长按2-3秒，可选择关机或重启；
死机状态下，长按11秒，自动重启。
功能键
3
可通过软件进行配置成扫码键、音量键或其他功能。
4
IC卡槽
用于插入银行芯片卡。
5
NFC读卡器
用于感应闪付卡。
摄像头
6
支持拍照及1D/2D快速扫码。
7
磁卡读卡器
用于刷银行卡磁条信息。
8
一维码扫描头(选配)
一维条码扫描器用于读取商品条码和手机支付码。
(本扫描头仅支持扫描一维条码)
注意：禁止直视激光扫描头，避免对眼睛造成损伤。
9
取卡拉片
抠出拉片，可取出SIM卡。
重要安全说明
避免在雷电期间安装或使用，否则有被雷电电击的危险；
当您发现有异常气味，过热或烟雾情形下，请立刻切断电源。
建议
不要在靠近水或潮湿环境中使用，避免液体落入终端中；
不要在极端冷、热环境中使用，例如靠近火源或点燃的香烟；
不要摔、投掷或弯折；
尽量在清洁无尘环境中使用，避免细小物品落入终端中；
在未获允许的情况下，不要在医疗设备附近使用。
声明
本公司不对以下行为负责
不在本指南说明的条件下使用和维护所造成的损坏；
对于如何因选件或耗材(非本公司提供之最初产品或认可产品)造成的损坏或
问题，本公司将不承担任何责任。未经本公司同意，无权进行产品修改或变
动。
本产品的操作系统支持官方的系统更新，如果用户刷了第三方的ROM系统或
者采用破解方式修改了系统文件，可能会导致系统不稳定，以及带来安全风
险和安全威胁。
免责申明
由于产品的更新，此文档的某些细节可能与产品不符，请以实物为准，此文
档的解释权归本公司。保留不预先通知的情况下，修改本说明书的权利。
本产品有毒有害物质名称及含量标识表
有毒有害物质或元素
部件名称
电路板组件
结构件
○：表示该有毒有害物质在该部件所有均质材料中的含量均在SJ/T11363-2006规定的限量
要求以下。
×：表示该有毒有害物质至少在该部件的某一均质材料中的含量超出SJ/T11363-2006规定的
限量要求；但是上表中打“×”的部件，其含量超出是因为目前业界还没有成熟的可替代的技术。
对达到或超出环保使用年限的产品，应依据《电子信息产品控制管理办法》规定进行回收再
利用，不应随意丢弃。
铅
（Pb）汞(Hg)镉(Cd)
六价铬
(Cr(VII)
多溴联苯
(PBB)
多溴二苯醚
(PBDE)
产品保修卡
产品名称：
产品型号：
产品编号：
购买日期：
保修期限：自购买之日起，我公司提供 天保修服务。
以下情况恕不提供免费保修：
· 未经允许擅自拆卸修理的产品。
· 产品条码、易碎贴破损及保修卡涂改、残缺的。
· 未按照说明书的要求操作设备所引起的故障。
· 因进水或跌落而造成的故障、划伤或破损的人为损坏。
· 因不可抗拒因素造成的故障或损坏。
· 保修期限外。
联系方式：
· 公司地址：
· 联系电话：
产品合格证
检验合格
制造商：上海商米科技集团股份有限公司
地 址：上海市杨浦区淞沪路388号创智天地7号楼505室
防爆标志：Ex ic IIC T6 Gc

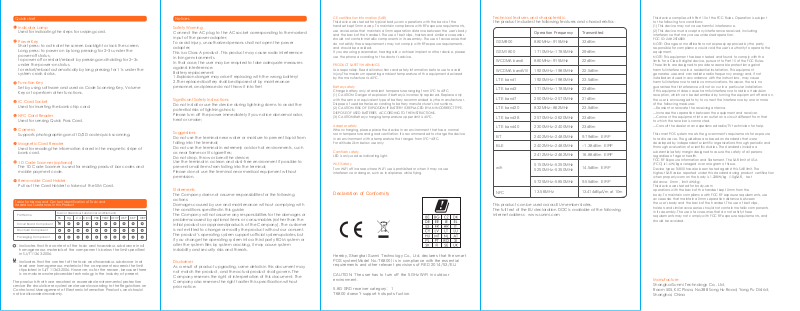

QUICK START GUIDE
T6800
T6800_CN_EU_US_02
PANTONE 165C PANTONE Orange 021CK
制作工艺说明
成品尺寸：85mm × 165mm
展开尺寸：425mm × 165mm
工艺：1色印刷+2专，5折页
材质：105g 雅粉纸
Loading...
