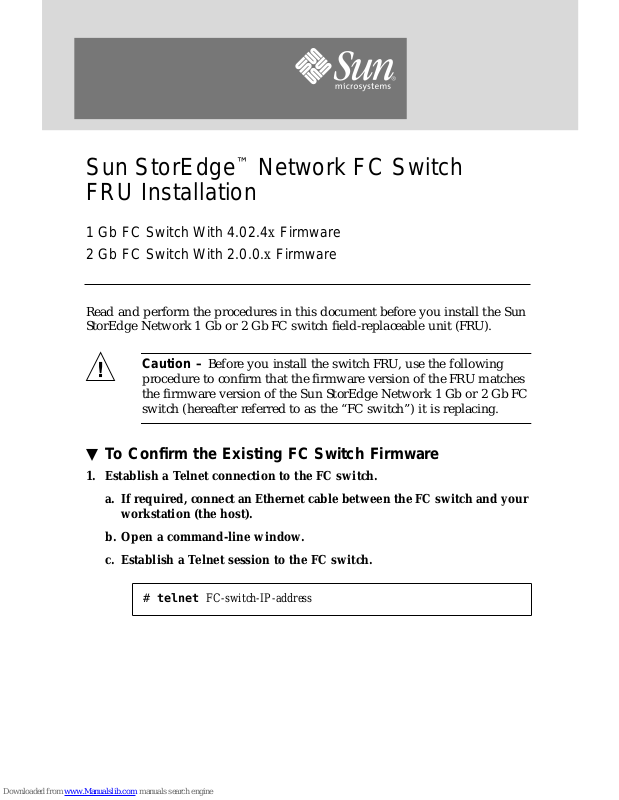

Sun StorEdge™ Network FC Switch
FRU Installation
1 Gb FC Switch With 4.02.4x Firmware
2 Gb FC Switch With 2.0.0.x Firmware
Read and perform the procedures in this document before you install the Sun
StorEdge Network 1 Gb or 2 Gb FC switch field-replaceable unit (FRU).
Caution – Before you install the switch FRU, use the following
procedure to confirm that the firmware version of the FRU matches
the firmware version of the Sun StorEdge Network 1 Gb or 2 Gb FC
switch (hereafter referred to as the “FC switch”) it is replacing.
▼ To Confirm the Existing FC Switch Firmware
1. Establish a Telnet connection to the FC switch.
a. If required, connect an Ethernet cable between the FC switch and your
workstation (the host).
b. Open a command-line window.
c. Establish a Telnet session to the FC switch.
# telnet FC-switch-IP-address
Page 2
d. Log in to the FC switch.
On a 1 Gb switch, type:
Username: root
Password: ma31_glw
On a 2 Gb switch, type:
Username: admin
Password: password
2. Use the show version command to display the firmware version.
In the following 2 Gb FC switch example, the firmware version is V2.0.0.x.
SANbox2 #> show version
*****************************************************
* *
* Command Line Interface SHell (CLISH) *
* *
*****************************************************
SystemDescription FC Switch
Eth0NetworkAddress 10.20.11.192 (use 'set setup
system' to update)
FCNetworkAddress 0.0.0.0 (use 'set setup system' to
update)
MACAddress 00:c0:dd:00:71:ee
WorldWideName 10:00:00:c0:dd:00:71:ed
SymbolicName SB211.192
ActiveSWVersion V2.0.0.x
ActiveTimestamp day month date time year
DiagnosticsStatus Passed
SecurityEnabled True
3. Compare the firmware version of the FC switch to the switch FRU
firmware.
If the two do not match, you must download the matching firmware to the
switch FRU. Refer to the Switch Management User’s Manual for your
product on the CD:
SANbox with E_Ports Switch Management User’s Manual, 816-7596
SANbox2-8c/16 Switch Management User’s Manual, 875-3264
SANbox2-64 Switch Management User’s Manual, 875-3409.
Page 3
▼ To Remove and Replace the FC Switch
Refer to the Switch Management User’s Manual for your product for
instructions about how to remove and replace the FC switch. These
manuals are listed in Step 3 of “To Confirm the Existing FC Switch
Firmware”.
Caution – Check and update the firmware version before you
!
connect the FC switch to the network.
▼ To Check the New FC Switch Firmware Version
1. Establish a Telnet session to the FC switch.
a. Connect an Ethernet cable between the new FC switch and the
workstation.
b. Open a command-line window.
c. Establish a Telnet connection to the default IP address for a new FC
switch.
# telnet 10.0.0.1
d. Log in to the FC switch.
On a 1 Gb switch, type:
Username: root
Password: ma31_glw
On a 2 Gb switch, type:
Username: admin
Password: password
2. Use the Show Version command to read the firmware version.
See step 2 under “To Confirm the Existing FC Switch Firmware”.
If the new FC switch firmware does not match that of the original,
download the appropriate firmware. Refer to the manual for your product
as listed in Step 3 of “To Confirm the Existing FC Switch Firmware”.
Page 4
Accessing Sun Documentation
You can view, print, or purchase a broad selection of Sun documentation,
including localized versions, at:
http://www.sun.com/documentation
Contacting Sun Technical Support
If you have technical questions about this product that are not answered in this
document, go to:
http://www.sun.com/service/contacting
Sun Welcomes Your Comments
Sun is interested in improving its documentation and welcomes your
comments and suggestions. You can submit your comments by going to:
http://www.sun.com/hwdocs/feedback
Please include the title and part number of your document with your feedback:
Sun StorEdge Network FC Switch FRU Installation, 1 Gb FC Switch with 4.02.4x
Firmware, 2 Gb FC Switch With 2.0.0.x Firmware, part number 817-3714-10
