CHAPTER

Initial Inspection of the Server

This chapter includes the following topics:

■ “Service Troubleshooting Flowchart” on page 1

■ “Gathering Service Information” on page 2

■ “System Inspection” on page 3

Service Troubleshooting Flowchart

Use the following flowchart as a guideline for using the subjects in this book to troubleshoot the server.

TABLE 1-1 Troubleshooting Flowchart

To perform this task Refer to this section

Gather initial service information. “Gathering Service Information” on page 2

Investigate any powering-on problems.

“Troubleshooting Power Problems” on page 3

Perform external visual inspection and internal visual inspection.

“Externally Inspecting the Server” on page 3

“Internally Inspecting the Server” on page 4

Chapter 3

View BIOS event logs and POST messages.

“Viewing Event Logs” on page 21

“Power-On Self-Test (POST)” on page 25

Page 12

2 Sun Fire X4140, X4240, and X4440 Servers Diagnostics Guide • August 2008

Gathering Service Information

The first step in determining the cause of a problem with the server is to gather information from the service-call paperwork or the onsite personnel. Use the following general guideline steps when you begin troubleshooting.

To gather service information:

1. Collect information about the following items:

■ Events that occurred prior to the failure

■ Whether any hardware or software was modified or installed

■ Whether the server was recently installed or moved

■ How long the server exhibited symptoms

■ The duration or frequency of the problem

2. Document the server settings before you make any changes.

If possible, make one change at a time in order to isolate potential problems. In this way, you can maintain a controlled environment and reduce the scope of troubleshooting.

3. Take note of the results of any change that you make. Include any errors or informational messages.

4. Check for potential device conflicts before you add a new device.

5. Check for version dependencies, especially with third-party software.

View service processor logs and sensor information...

“Using the ILOM Service Processor GUI to View System Information” on page 43

...or view service processor logs and sensor information.

“Using IPMItool to View System Information” on page 55

Run SunVTS diagnostics “Diagnosing Server Problems With the Bootable

Diagnostics CD” on page 8

TABLE 1-1 Troubleshooting Flowchart (Continued)

To perform this task Refer to this section

Page 13

Chapter 1 Initial Inspection of the Server 3

System Inspection

Controls that have been improperly set and cables that are loose or improperly connected are common causes of problems with hardware components.

Troubleshooting Power Problems

■ If the server will power on, skip this section and go to “Externally Inspecting the

Server” on page 3.

■ If the server will not power on, check the following:

1. Check that AC power cords are attached firmly to the server’s power supplies and to the AC sources.

2. Check that the main cover is firmly in place.

There is an intrusion switch on the motherboard that automatically shuts down the server power to standby mode when the cover is removed.

Externally Inspecting the Server

To perform a visual inspection of the external system:

1. Inspect the external status indicator LEDs, which can indicate component malfunction.

For the LED locations and descriptions of their behavior, see “External Status

Indicator LEDs” on page 37.

2. Verify that nothing in the server environment is blocking air flow or making a contact that could short out power.

3. If the problem is not evident, continue with the next section, “Internally

Inspecting the Server” on page 4.

Page 14

4 Sun Fire X4140, X4240, and X4440 Servers Diagnostics Guide • August 2008

Internally Inspecting the Server

To perform a visual inspection of the internal system:

1. Choose a method for shutting down the server from main power mode to standby power mode. See

FIGURE 1-1 and FIGURE 1-2.

■ Graceful shutdown – Use a ballpoint pen or other stylus to press and release

the Power button on the front panel. This causes Advanced Configuration and Power Interface (ACPI) enabled operating systems to perform an orderly shutdown of the operating system. Servers not running ACPI-enabled operating systems will shut down to standby power mode immediately.

■ Emergency shutdown – Use a ballpoint pen or other stylus to press and hold

the Power button for four seconds to force main power off and enter standby power mode.

Caution – Performing an emergency shutdown can cause open files to become

corrupt. Use an emergency shutdown only when necessary.

When main power is off, the Power/OK LED on the front panel will begin flashing, indicating that the server is in standby power mode.

Caution – When you use the Power button to enter standby power mode, power is

still directed to service processor and power supply fans, indicated when the Power/OK LED is flashing. To completely power off the server, you must disconnect the AC power cords from the back panel of the server.

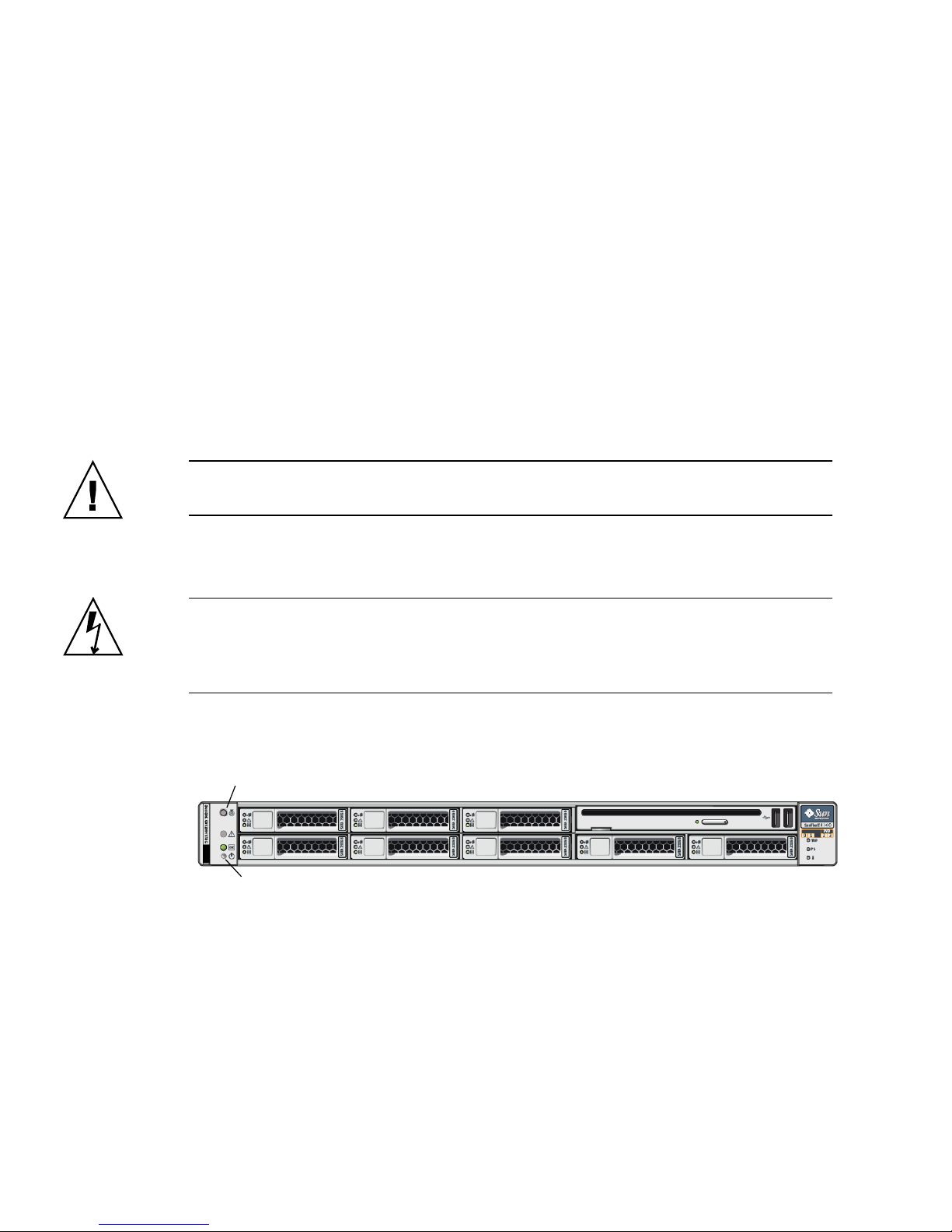

FIGURE 1-1 X4140 Server Front Panel

Locate Button/LED

PowerButton

Page 15

Chapter 1 Initial Inspection of the Server 5

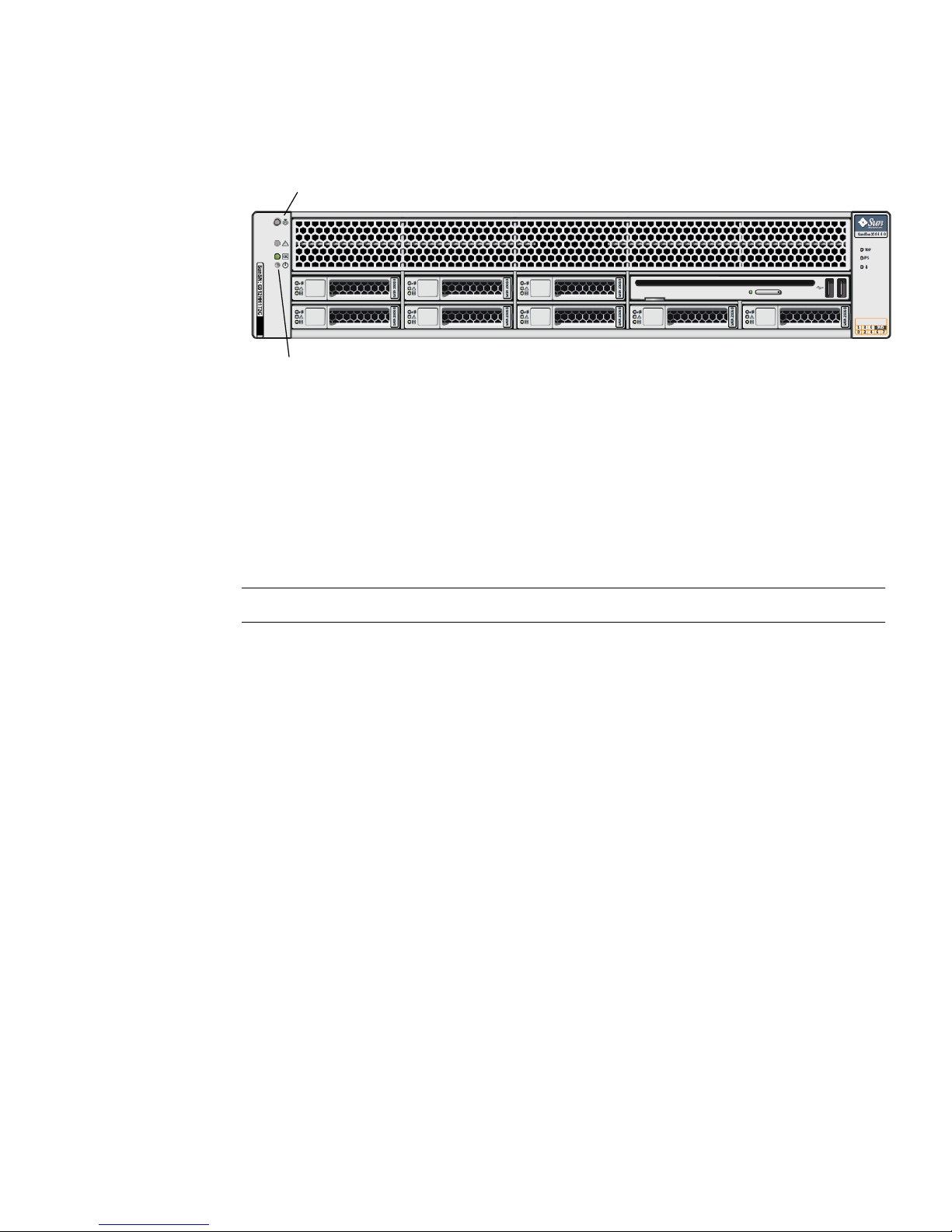

FIGURE 1-2 X4440 Server Front Panel

2. Remove the server cover.

For instructions on removing the server cover, refer to your server’s service manual.

3. Inspect the internal status indicator LEDs. These can indicate component malfunction.

For the LED locations and descriptions of their behavior, see “Internal Status

Indicator LEDs” on page 39.

Note – The server must be in standby power mode for viewing the internal LEDs.

You can hold down the Locate button on the server back panel or front panel for 5 seconds to initiate a “push-to-test” mode that illuminates all other LEDs both inside and outside of the chassis for 15 seconds.

4. Verify that there are no loose or improperly seated components.

5. Verify that all cable connectors inside the system are firmly and correctly attached to their appropriate connectors.

6. Verify that any after-factory components are qualified and supported.

For a list of supported PCI cards and DIMMs, refer to your server’s service manual.

7. Check that the installed DIMMs comply with the supported DIMM population rules and configurations, as described in “DIMM Population Rules” on page 11.

8. Replace the server cover.

9. To restore the server to main power mode (all components powered on), use a ballpoint pen or other stylus to press and release the Power button on the server front panel. See

FIGURE 1-1 and FIGURE 1-2.

When main power is applied to the full server, the Power/OK LED next to the Power button lights and remains lit.

Locate Button/LED

Power Button

Page 16

6 Sun Fire X4140, X4240, and X4440 Servers Diagnostics Guide • August 2008

10. If the problem with the server is not evident, you can obtain additional information by viewing the power-on self test (POST) messages and BIOS event logs during system startup. Continue with “Viewing Event Logs” on

page 21.

Page 17

CHAPTER

Using SunVTS Diagnostic Software

This chapter contains information about the SunVTS™ diagnostic software tool.

Running SunVTS Diagnostic Tests

The servers are shipped with a Bootable Diagnostics CD that contains the Sun Validation Test Suite (SunVTS) software.

SunVTS provides a comprehensive diagnostic tool that tests and validates Sun hardware by verifying the connectivity and functionality of most hardware controllers and devices on Sun platforms. SunVTS software can be tailored with modifiable test instances and processor affinity features.

The following tests are supported on x86 platforms:

■ CD DVD Test (cddvdtest)

■ CPU Test (cputest)

■ Cryptographics Test (cryptotest)

■ Disk and Diskette Drives Test (disktest)

■ Data Translation Look-aside Buffer (dtlbtest)

■ Emulex HBA Test (emlxtest)

■ Floating Point Unit Test (fputest)

■ InfiniBand Host Channel Adapter Test (ibhcatest)

■ Level 1 Data Cache Test (l1dcachetest)

■ Level 2 SRAM Test (l2sramtest)

■ Ethernet Loopback Test (netlbtest)

■ Network Hardware Test (nettest)

■ Physical Memory Test (pmemtest)

Page 18

8 Sun Fire X4140, X4240, and X4440 Servers Diagnostics Guide • August 2008

■ QLogic Host Bus Adapter Test (qlctest)

■ RAM Test (ramtest)

■ Serial Port Test (serialtest)

■ System Test (systest)

■ Tape Drive Test (tapetest)

■ Universal Serial Board Test (usbtest)

■ Virtual Memory Test (vmemtest)

SunVTS software has a sophisticated graphical user interface (GUI) that provides test configuration and status monitoring. The user interface can be run on one system to display the SunVTS testing of another system on the network. SunVTS software also provides a TTY-mode interface for situations in which running a GUI is not possible.

SunVTS Documentation

For the most up-to-date information on SunVTS software, go to:

http://docs.sun.com/app/docs/prod/test.validate

Diagnosing Server Problems With the Bootable Diagnostics CD

SunVTS 6.4 or later software is preinstalled on your server. The server is also shipped with the Bootable Diagnostics CD. This CD is designed so that the server will boot from the CD. This CD boots and starts SunVTS software. Diagnostic tests run and write output to log files that the service technician can use to determine the problem with the server.

Requirements

■ To use the diagnostics CD you must have a keyboard, mouse, and monitor

attached to the server on which you are performing diagnostics, or available through a remote KVM.

Page 19

Chapter 2 Using SunVTS Diagnostic Software 9

Using the Bootable Diagnostics CD

To use the diagnostics CD to perform diagnostics:

1. With the server powered on, insert the CD into the DVD-ROM drive.

2. Reboot the server, and press F2 during the start of the reboot so that you can change the BIOS setting for boot-device priority.

3. When the BIOS Main menu appears, navigate to the BIOS Boot menu.

Instructions for navigating within the BIOS screens appear on the BIOS screens.

4. On the BIOS Boot menu screen, select Boot Device Priority.

The Boot Device Priority screen appears.

5. Select the DVD-ROM drive to be the primary boot device.

6. Save and exit the BIOS screens.

7. Reboot the server.

When the server reboots from the CD in the DVD-ROM drive, the Solaris Operating System boots and SunVTS software starts and opens its first GUI window.

8. In the SunVTS GUI, press Enter or click the Start button when you are prompted to start the tests.

The test suite will run until it encounters an error or the test is completed.

Note – The CD will take approximately nine minutes to boot.

9. When SunVTS software completes the test, review the log files generated during the test.

SunVTS provides access to four different log files:

■ SunVTS test error log contains time-stamped SunVTS test error messages. The

log file path name is /var/opt/SUNWvts/logs/sunvts.err. This file is not created until a SunVTS test failure occurs.

■ SunVTS kernel error log contains time-stamped SunVTS kernel and SunVTS

probe errors. SunVTS kernel errors are errors that relate to running SunVTS, and not to testing of devices. The log file path name is /var/opt/SUNWvts/logs/vtsk.err. This file is not created until SunVTS reports a SunVTS kernel error.

■ SunVTS information log contains informative messages that are generated

when you start and stop the SunVTS test sessions. The log file path name is /var/opt/SUNWvts/logs/sunvts.info. This file is not created until a SunVTS test session runs.

Page 20

10 Sun Fire X4140, X4240, and X4440 Servers Diagnostics Guide • August 2008

■ Solaris system message log is a log of all the general Solaris events logged by

syslogd. The path name of this log file is /var/adm/messages.

a. Click the Log button.

The Log file window is displayed.

b. Specify the log file that you want to view by selecting it from the Log file

window.

The content of the selected log file is displayed in the window.

c. With the three lower buttons you can perform the following actions:

■ Print the log file – A dialog box appears for you to specify your printer

options and printer name.

■ Delete the log file – The file remains on the display, but it will not be

available the next time you try to display it.

■ Close the Log file window – The window is closed.

Note – If you want to save the log files: When you use the Bootable Diagnostics

CD, the server boots from the CD. Therefore, the test log files are not on the server’s hard disk drive and they will be deleted when you power cycle the server. To save the log files, you must save them to a removable media device or FTP them to another system.

Page 21

CHAPTER

Troubleshooting DIMM Problems

This chapter describes how to detect and correct problems with the server ’s Dual Inline Memory Modules (DIMM)s. It includes the following sections:

■ “DIMM Population Rules” on page 11

■ “DIMM Replacement Policy” on page 12

■ “How DIMM Errors Are Handled by the System” on page 12

■ “Isolating and Correcting DIMM ECC Errors” on page 18

DIMM Population Rules

The DIMM population rules for the server are as follows:

■ Each CPU can support a maximum of eight DIMMs.

■ The DIMM slots are paired and the DIMMs must be installed in pairs (0-1, 2-3, 4-

5, and 6-7). See

FIGURE 3-1 and FIGURE 3-2. The memory sockets are colored black

or white to indicate which slots are paired by matching colors.

■ DIMMs are populated starting from the outside (away from the CPU) and

working toward the inside.

■ CPUs with only a single pair of DIMMs must have those DIMMs installed in that

CPU’s outside white DIMM slots (6 and 7). See

FIGURE 3-1 and FIGURE 3-2.

■ Only DDR2 800 Mhz, 667Mhz, and 533Mhz DIMMs are supported.

■ Each pair of DIMMs must be identical (same manufacturer, size, and speed).

Page 22

12 Sun Fire X4140, X4240, and X4440 Servers Diagnostics Guide • August 2008

DIMM Replacement Policy

Replace a DIMM when one of the following events takes place:

■ The DIMM fails memory testing under BIOS due to Uncorrectable Memory Errors

(UCEs).

■ UCEs occur and investigation shows that the errors originated from memory.

In addition, a DIMM should be replaced whenever more than 24 Correctable Errors (CEs) originate in 24 hours from a single DIMM and no other DIMM is showing further CEs.

■ If more than one DIMM has experienced multiple CEs, other possible causes of

CEs have to be ruled out by a qualified Sun Support specialist before replacing any DIMMs.

Retain copies of the logs showing the memory errors per the above rules to send to Sun for verification prior to calling Sun.

How DIMM Errors Are Handled by the System

This section describes system behavior for the two types of DIMM errors: UCEs and CEs, and also describes BIOS DIMM error messages.

Uncorrectable DIMM Errors

For all operating systems (OS’s), the behavior is the same for UCEs:

1. When an UCE occurs, the memory controller causes an immediate reboot of the system.

2. During reboot, the BIOS checks the Machine Check registers and determines that the previous reboot was due to an UCE, then reports this in POST after the memtest stage:

A Hypertransport Sync Flood occurred on last boot

Page 23

Chapter 3 Troubleshooting DIMM Problems 13

3. BIOS reports this event in the service processor’s system event log (SEL) as shown in the sample IPMItool output below:

# ipmitool -H 10.6.77.249 -U root -P changeme -I lanplus sel list

8 | 09/25/2007 | 03:22:03 | System Boot Initiated #0x02 | Initiated by warm

2 DIMM 0 25 | 09/25/2007 | 03:22:16 | Memory | Memory Device Disabled | Asserted | CPU

2 DIMM 1

Page 24

14 Sun Fire X4140, X4240, and X4440 Servers Diagnostics Guide • August 2008

The lines in the display start with event numbers (in hex), followed by a description of the event.

TABLE 3-1 describes the contents of the display:

Correctable DIMM Errors

If a DIMM has 24 or more correctable errors in 24 hours, it is considered defective and should be replaced.

At this time, CEs are not logged in the server’s system event logs. They are reported or handled in the supported OS’s as follows:

■ Windows Server:

a. A Machine Check error-message bubble appears on the task bar.

b. The user must manually open Event Viewer to view errors. Access Event

Viewer through this menu path:

Start-->Administration Tools-->Event Viewer

c. The user can then view individual errors (by time) to see details of the error.

■ Solaris:

Solaris FMA reports and (sometimes) retires memory with correctable Error Correction Code (ECC) errors. See your Solaris Operating System documentation for details. Use the command:

fmdump -eV

TABLE 3-1 Lines in IPMI Output

Event (hex) Description

8 UCE caused a Hypertransport sync flood which lead to system's warm

reset. #0x02 refers to a reboot count maintained since the last AC power reset.

9 BIOS detected and initiated 4 processors in system.

a BIOS detected a Sync Flood caused this reboot.

b BIOS detected a hardware error caused the Sync Flood.

c to 1e BIOS retrieved and reported some hardware evidence, including all

processors' Machine Check Error registers (events 14 to 18).

1f After BIOS detected that a UCE had occurred, it located the DIMM and

reset. 0x03 refers to reboot count.

21 to 25 BIOS off-lined faulty DIMMs from system memory space and reported

them. Each DIMM of a pair is being reported, since hardware UCE evidence cannot lead BIOS any further than detection of a faulty pair.

Page 25

Chapter 3 Troubleshooting DIMM Problems 15

to view ECC errors

■ Linux:

The HERD utility can be used to manage DIMM errors in Linux. See the x64 Servers Utilities Reference Manual for details.

■ If HERD is installed, it copies messages from /dev/mcelog to

/var/log/messages.

■ If HERD is not installed, a program called mcelog copies messages from

/dev/mcelog to /var/log/mcelog.

The Bootable Diagnostics CD described in Chapter 2 also captures and logs CEs.

BIOS DIMM Error Messages

The BIOS displays and logs the following DIMM error messages:

NODE-n Memory Configuration Mismatch

The following conditions will cause this error message:

■ The DIMMs mode is not paired (running in 64-bit mode instead of 128-bit

mode).

■ The DIMMs’ speed is not same.

■ The DIMMs do not support ECC.

■ The DIMMs are not registered.

■ The MCT stopped due to errors in the DIMM.

■ The DIMM module type (buffer) is mismatched.

■ The DIMM generation (I or II) is mismatched.

■ The DIMM CL/T is mismatched.

■ The banks on a two-sided DIMM are mismatched.

■ The DIMM organization is mismatched (128-bit).

■ The SPD is missing Trc or Trfc information.

DIMM Fault LEDs

When you press the Press to See Fault button on the motherboard or the mezzanine board, LEDs next to the DIMMs flash to indicate that the system has detected 24 or more CEs in a 24-hour period on that DIMM.

Page 26

16 Sun Fire X4140, X4240, and X4440 Servers Diagnostics Guide • August 2008

Note – The DIMM Fault and Motherboard Fault LEDs operate on stored power for

up to a minute when the system is powered down, even after the AC power is disconnected, and the motherboard (or mezzanine board) is out of the system. The stored power lasts for about half an hour.

Note – Disconnecting the AC power removes the fault indication. To recover fault

information look in the SP SEL, as described in the Sun Integrated Lights Out Manager

2.0 User's Guide.

■ DIMM fault LED is off – The DIMM is operating properly.

■ DIMM fault LED is flashing (amber) – At least one of the DIMMs in this DIMM

pair has reported 24 CEs within a 24-hour period.

■ Motherboard Fault LED on mezzanine is on – There is a fault on the motherboard.

This LED is there because you cannot see the motherboard LEDs when the mezzanine board is present.

Note – The Motherboard Fault LED operates independently of the Press to See Fault

button, and does not operate on stored power.

See

FIGURE 3-1 for the locations of DIMMs and LEDs on the motherboard. See

FIGURE 3-2 for the locations of DIMMs and LEDs on the mezzanine board.

Page 27

Chapter 3 Troubleshooting DIMM Problems 17

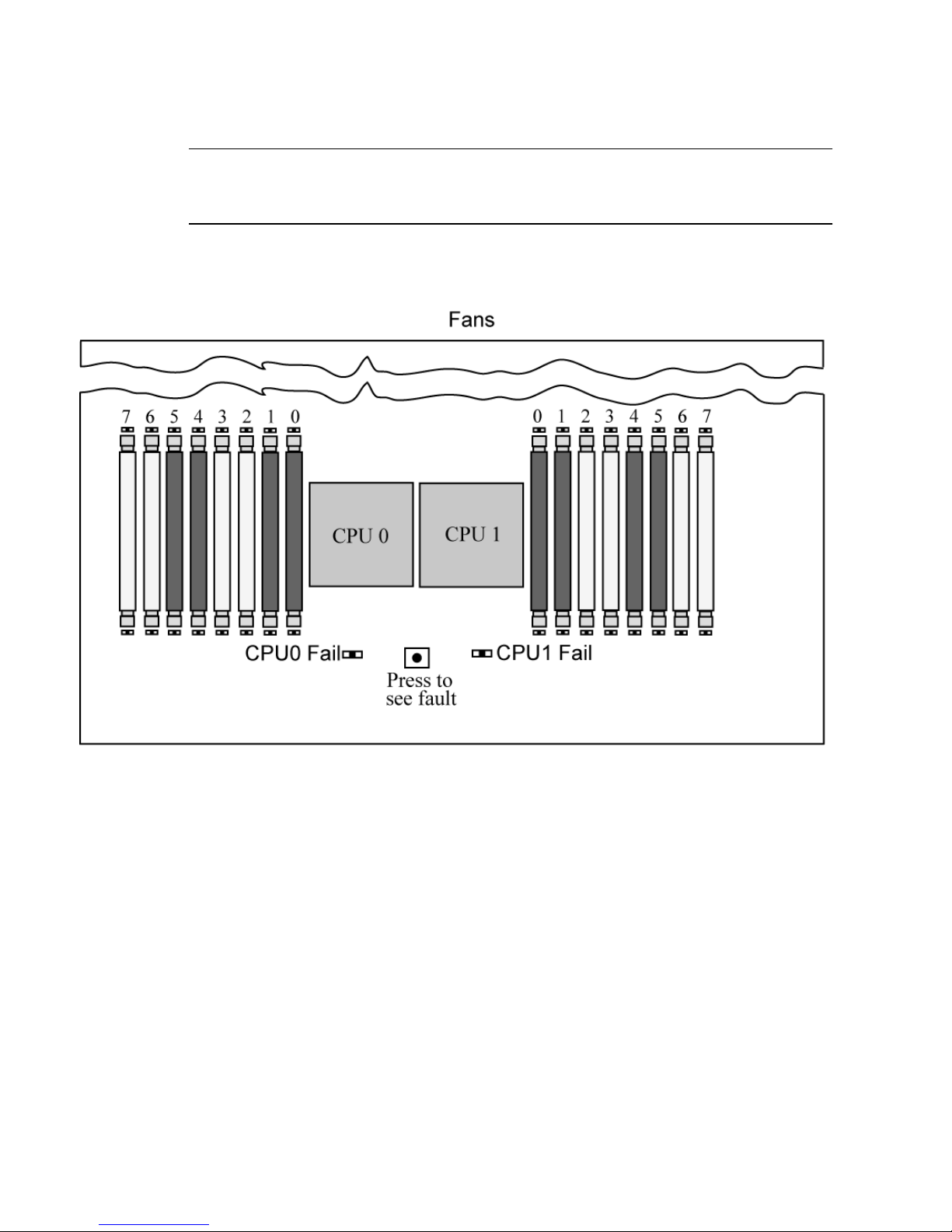

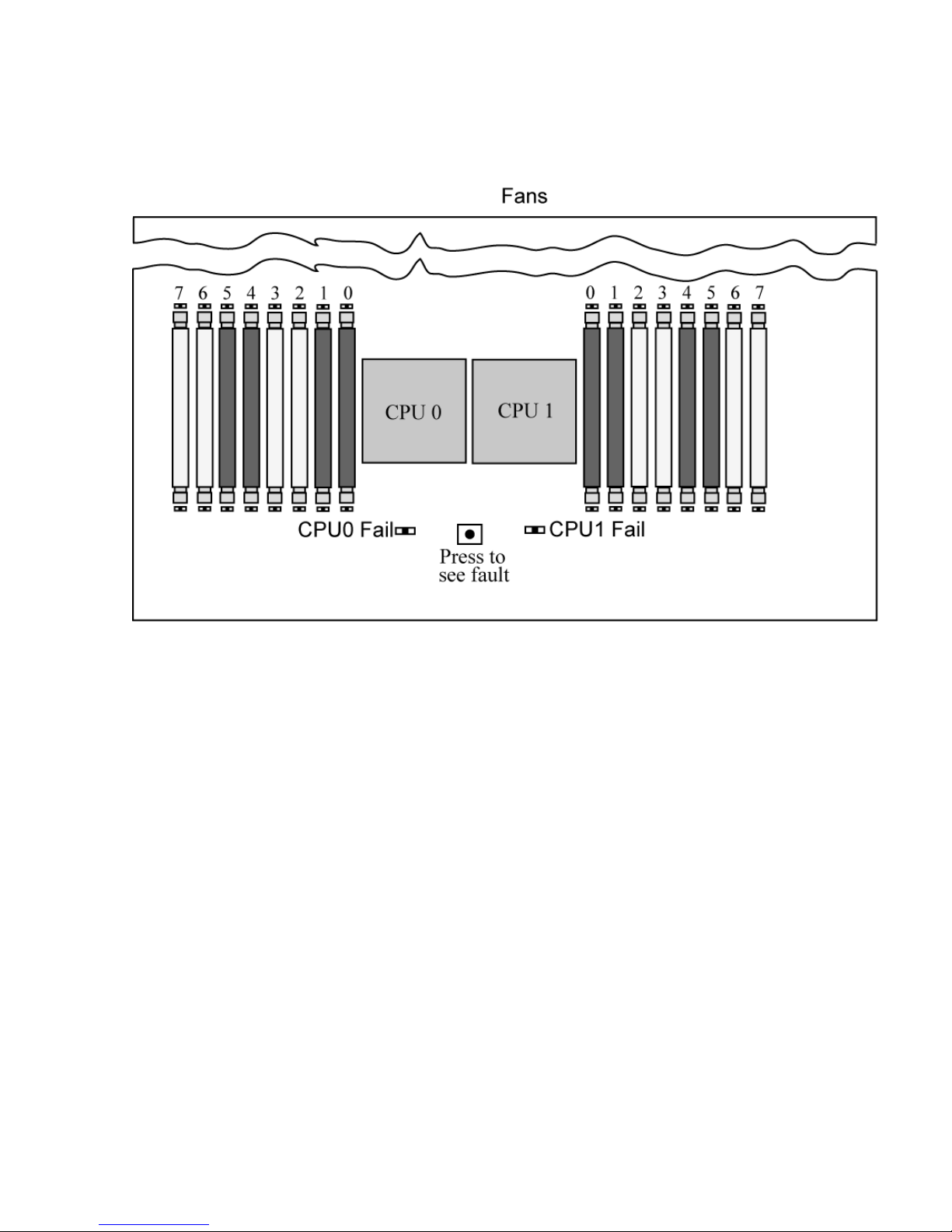

FIGURE 3-1 DIMMs and LEDs on Motherboard

Page 28

18 Sun Fire X4140, X4240, and X4440 Servers Diagnostics Guide • August 2008

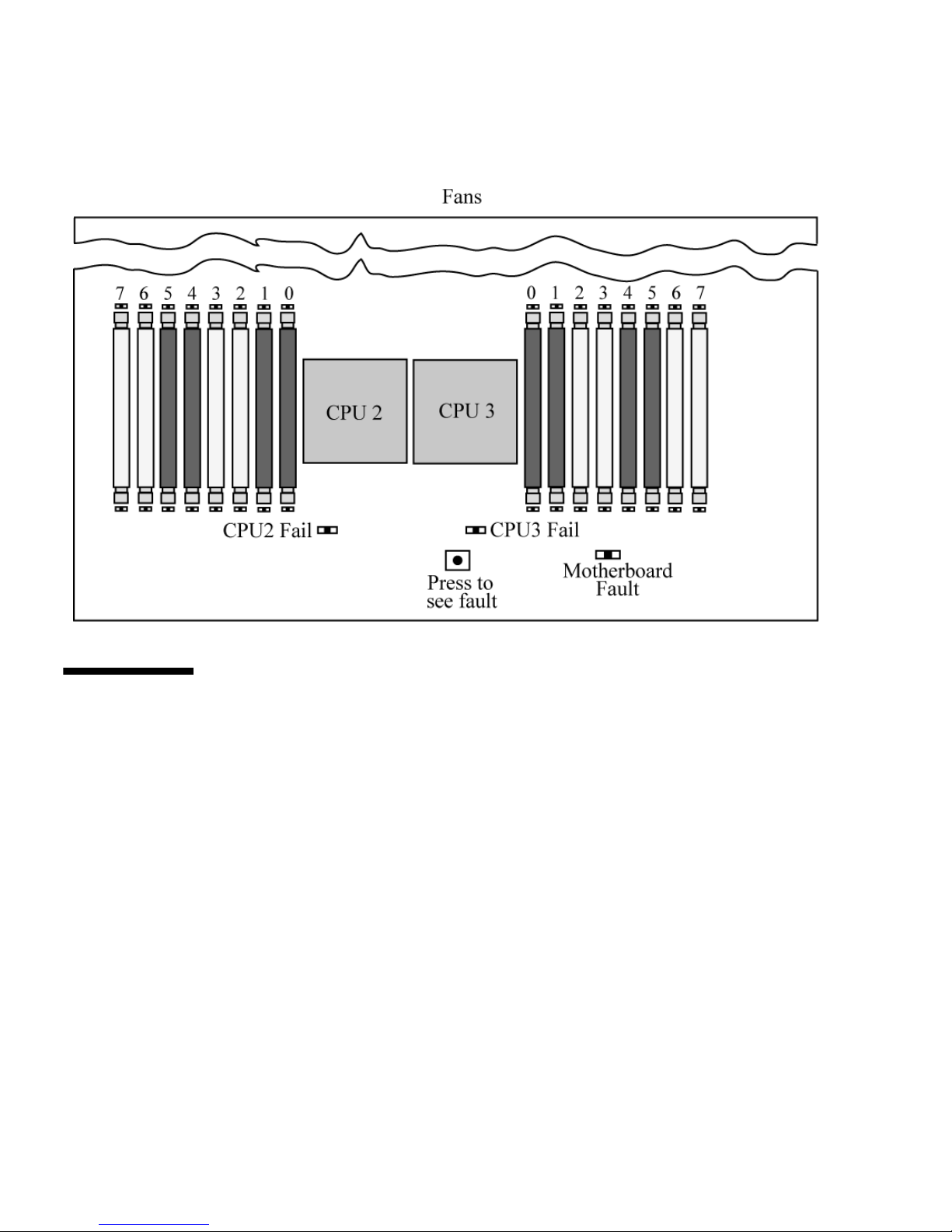

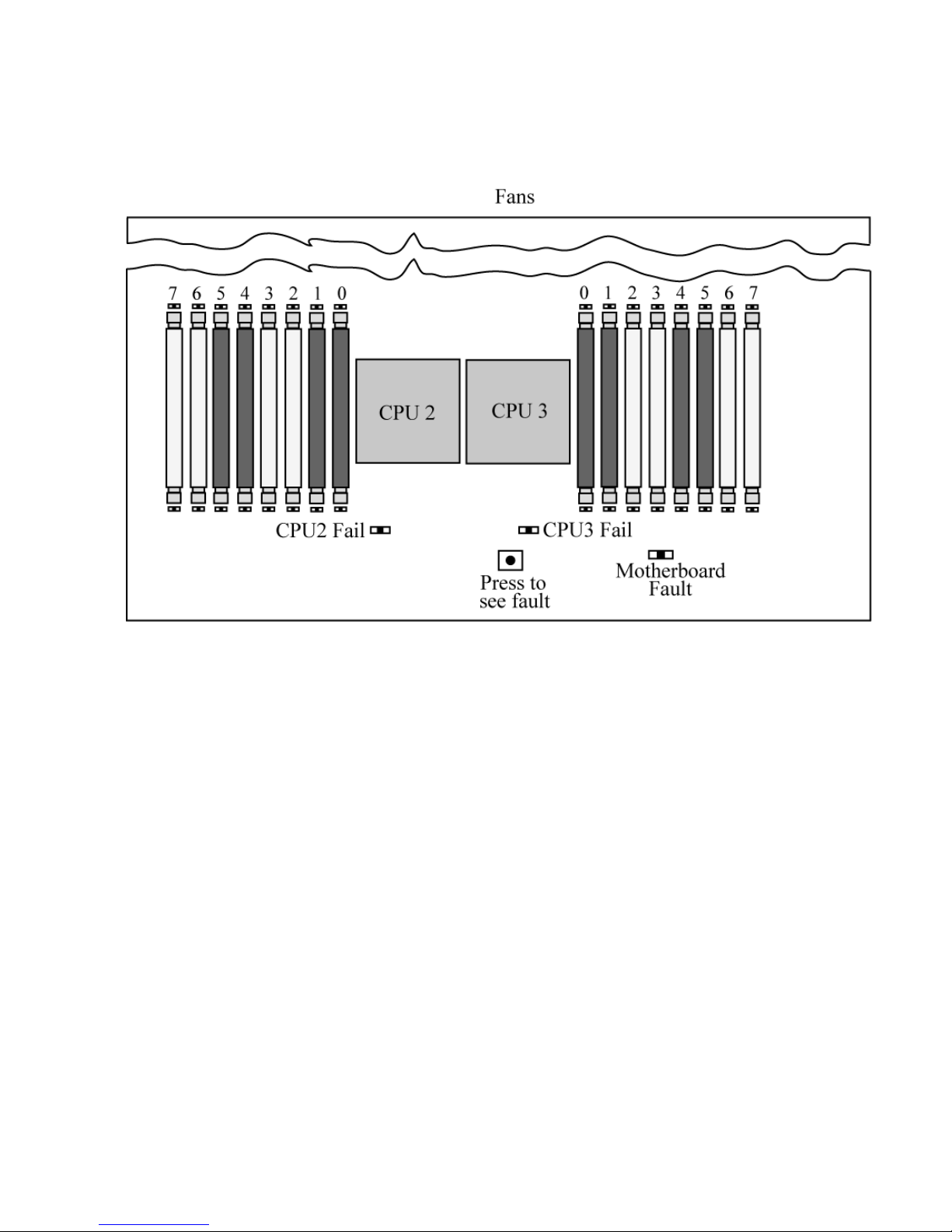

FIGURE 3-2 DIMMs and LEDs on Mezzanine Board

Isolating and Correcting DIMM ECC Errors

If your log files report an ECC error or a problem with a DIMM, complete the steps below until you can isolate the fault.

In this example, the log file reports an error with the DIMM in CPU0, slot 7. The fault LEDs on CPU0, slots 6 and 7 are on.

To isolate and correct DIMM ECC errors:

1. If you have not already done so, shut down your server to standby power mode and remove the cover.

2. Inspect the installed DIMMs to ensure that they comply with the “DIMM

Population Rules” on page 11.

Page 29

Chapter 3 Troubleshooting DIMM Problems 19

3. Press the PRESS TO SEE FAULT button, and inspect the DIMM fault LEDs. See

FIGURE 3-1 and FIGURE 3-2.

A flashing LED identifies a component with a fault.

■ For CEs, the LEDs correctly identify the DIMM where the errors were detected.

■ For UCEs, both LEDs in the pair flash if there is a problem with either DIMM

in the pair.

Note – If your server is equipped with a mezzanine board, the motherboard DIMMs

and LEDs will be hidden beneath it. However, the Motherboard Fault LED lights to indicate that there is a problem on the motherboard (only while AC power is still connected). If the Motherboard Fault LED on the mezzanine board lights, remove the mezzanine board as described in your server ’s service manual, and inspect the LEDs on the motherboard.

4. Disconnect the AC power cords from the server.

Caution – Before handling components, attach an ESD wrist strap to a chassis

ground (any unpainted metal surface). The system’s printed circuit boards and hard disk drives contain components that are extremely sensitive to static electricity.

Note – To recover fault information look in the SP SEL, as described in the Sun

Integrated Lights Out Manager 2.0 User's Guide.

5. Remove the DIMMs from the DIMM slots in the CPU.

Refer to your server ’s service manual for details.

6. Visually inspect the DIMMs for physical damage, dust, or any other contamination on the connector or circuits.

7. Visually inspect the DIMM slot for physical damage. Look for cracked or broken plastic on the slot.

8. Dust off the DIMMs, clean the contacts, and reseat them.

Caution – Use only compressed air to dust DIMMs.

9. If there is no obvious damage, replace any failed DIMMs.

For UCEs, if the LEDs indicate a fault with the pair, replace both DIMMs. Ensure that they are inserted correctly with ejector latches secured.

10. Reconnect AC power cords to the server.

Page 30

20 Sun Fire X4140, X4240, and X4440 Servers Diagnostics Guide • August 2008

11. Power on the server and run the diagnostics test again.

12. Review the log file.

If the tests identify the same error, the problem is in the CPU, not the DIMMs.

Page 31

APPENDIX

Event Logs and POST Codes

This appendix contains information about the BIOS event log, the BMC system event log, the power-on self-test (POST), and console redirection. It contains the following sections:

■ “Viewing Event Logs” on page 21

■ “Power-On Self-Test (POST)” on page 25

Viewing Event Logs

Use this procedure to view the BIOS event log and the BMC system event log.

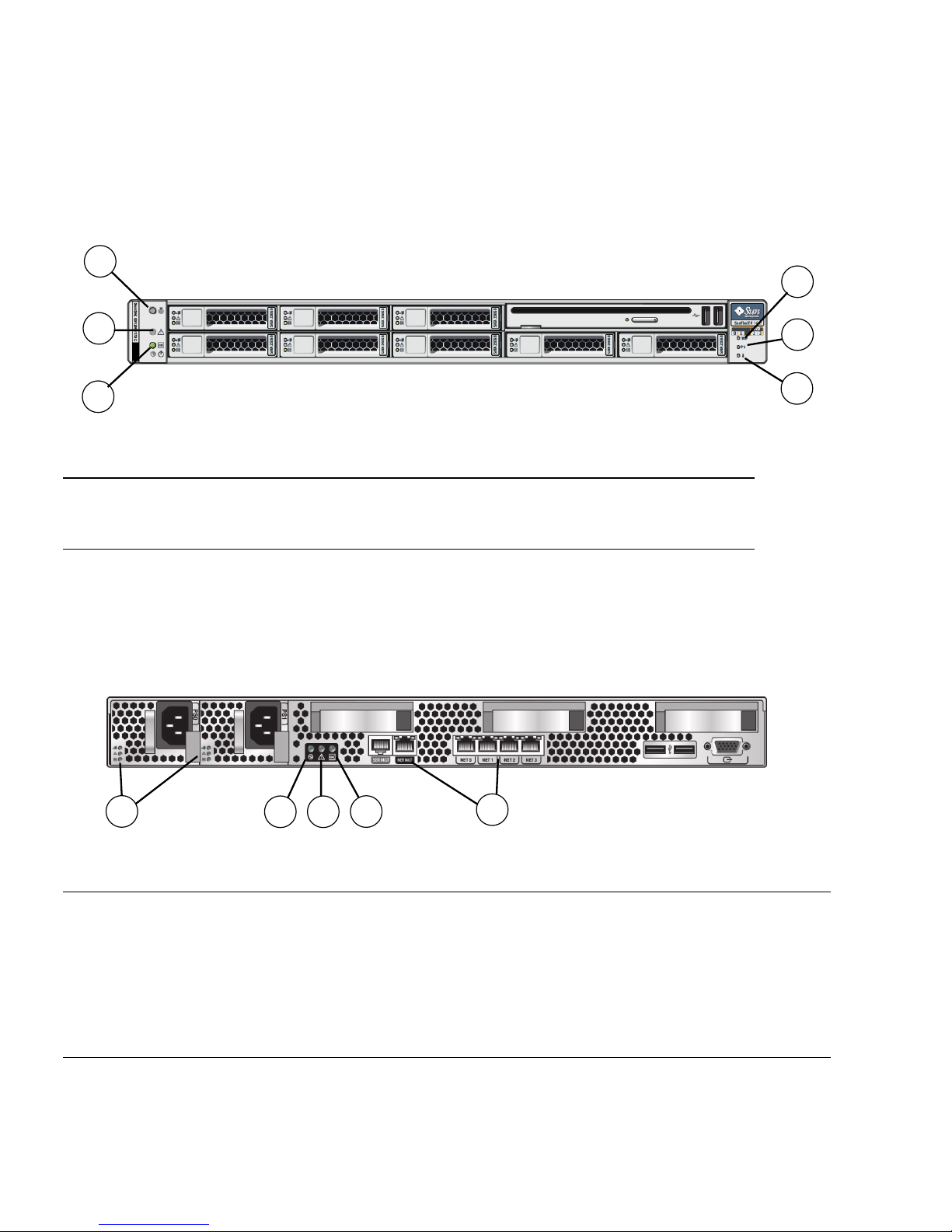

1. To turn on main power mode (all components powered on) if necessary, use a ball point pen or other stylus to press and release the Power button on the server front panel. See

FIGURE 1-1.

When main power is applied to the full server, the Power/OK LED next to the Power button lights and remains lit.

2. Enter the BIOS Setup utility by pressing the F2 key while the system is performing the power-on self-test (POST).

The BIOS Main menu screen is displayed.

3. View the BIOS event log.

a. From the BIOS Main Menu screen, select Advanced.

The Advanced Settings screen is displayed:

Page 32

22 Sun Fire X4140, X4240, and X4440 Servers Diagnostics Guide • August 2008

Main Advanced PCIPnP Boot Security Chipset Exit ****************************************************************************** * Advanced Settings * Configure CPU. * * *************************************************** * * * WARNING: Setting wrong values in below sections * * * may cause system to malfunction. * * *** * * CPU Configuration * * * * IDE Configuration * * * * Hyper Transport Configuration * * * * ACPI Configuration * * * * Event Log Configuration * * * * IPMI 2.0 Configuration * * * * MPS Configuration * * * * PCI Express Configuration * * Select Screen * * * Remote Access Configuration * ** Select Item * * * USB Configuration * Enter Go to Sub Screen * * * F1 General Help * * * F10 Save and Exit * * * ESC Exit * *** *** ****************************************************************************** v02.61 (C)Copyright 1985-2006, American Megatrends, Inc.

Page 33

Appendix A Event Logs and POST Codes 23

b. From the Advanced Settings screen, select Event Log Configuration.

The

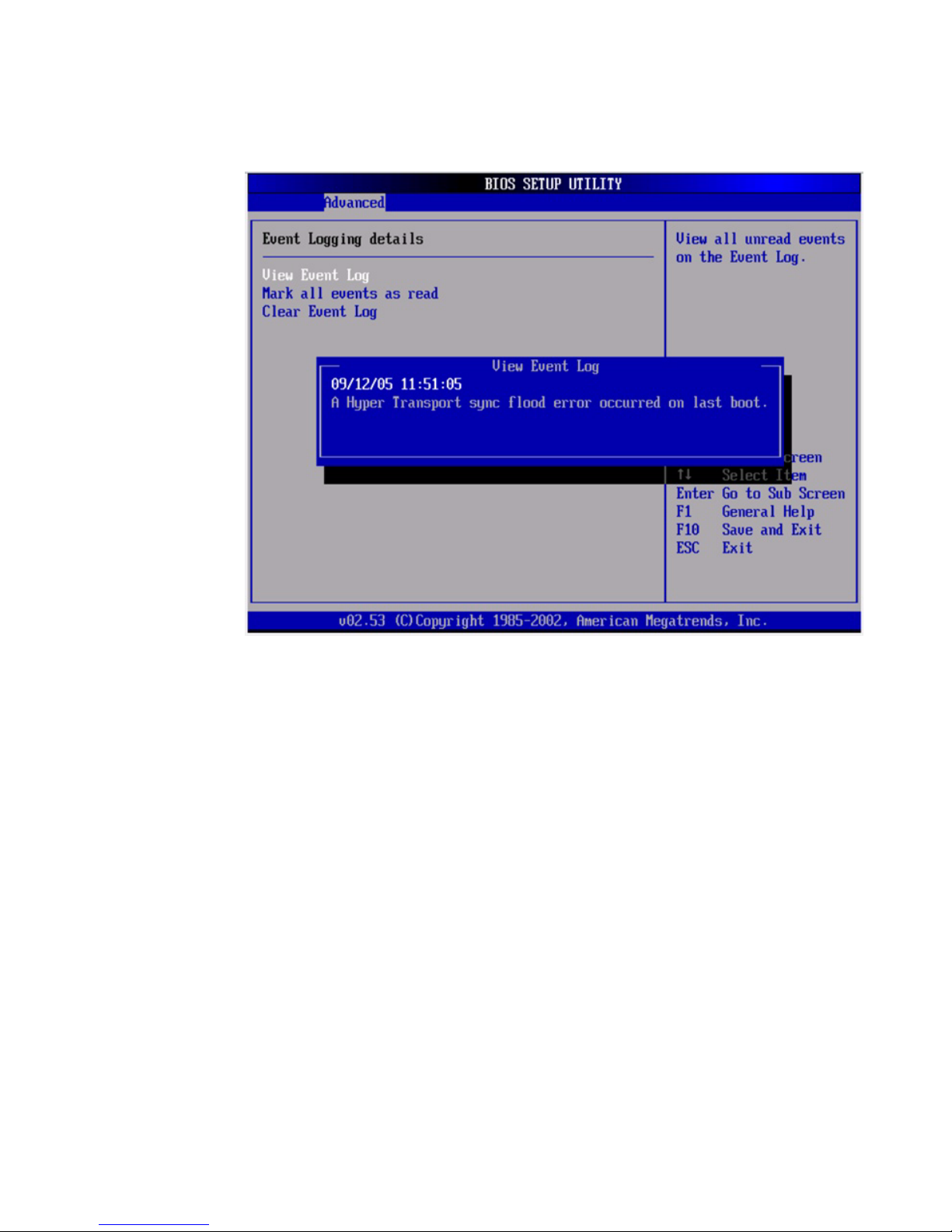

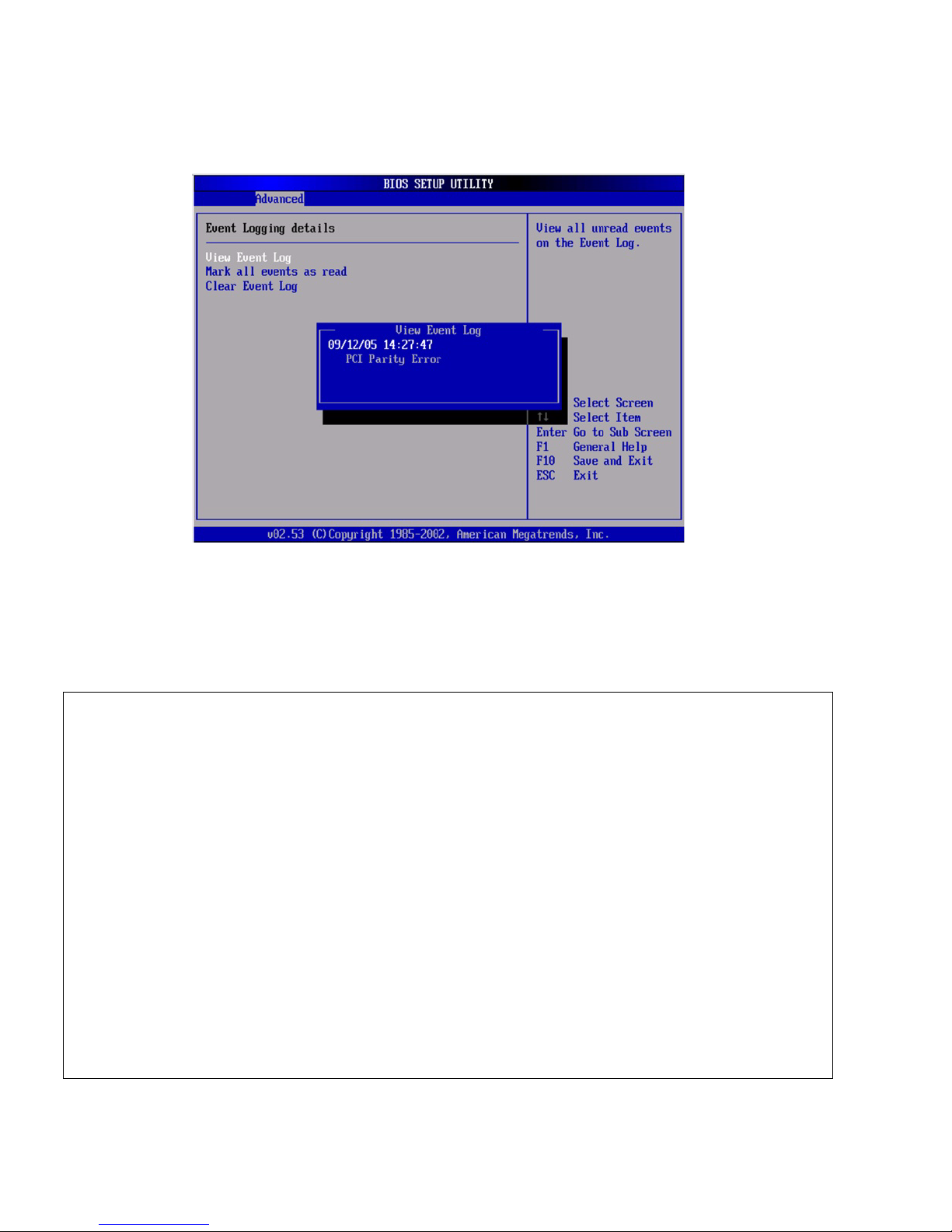

Advanced Menu Event Logging Details screen is displayed.

c. From the Event Logging Details screen, select View Event Log.

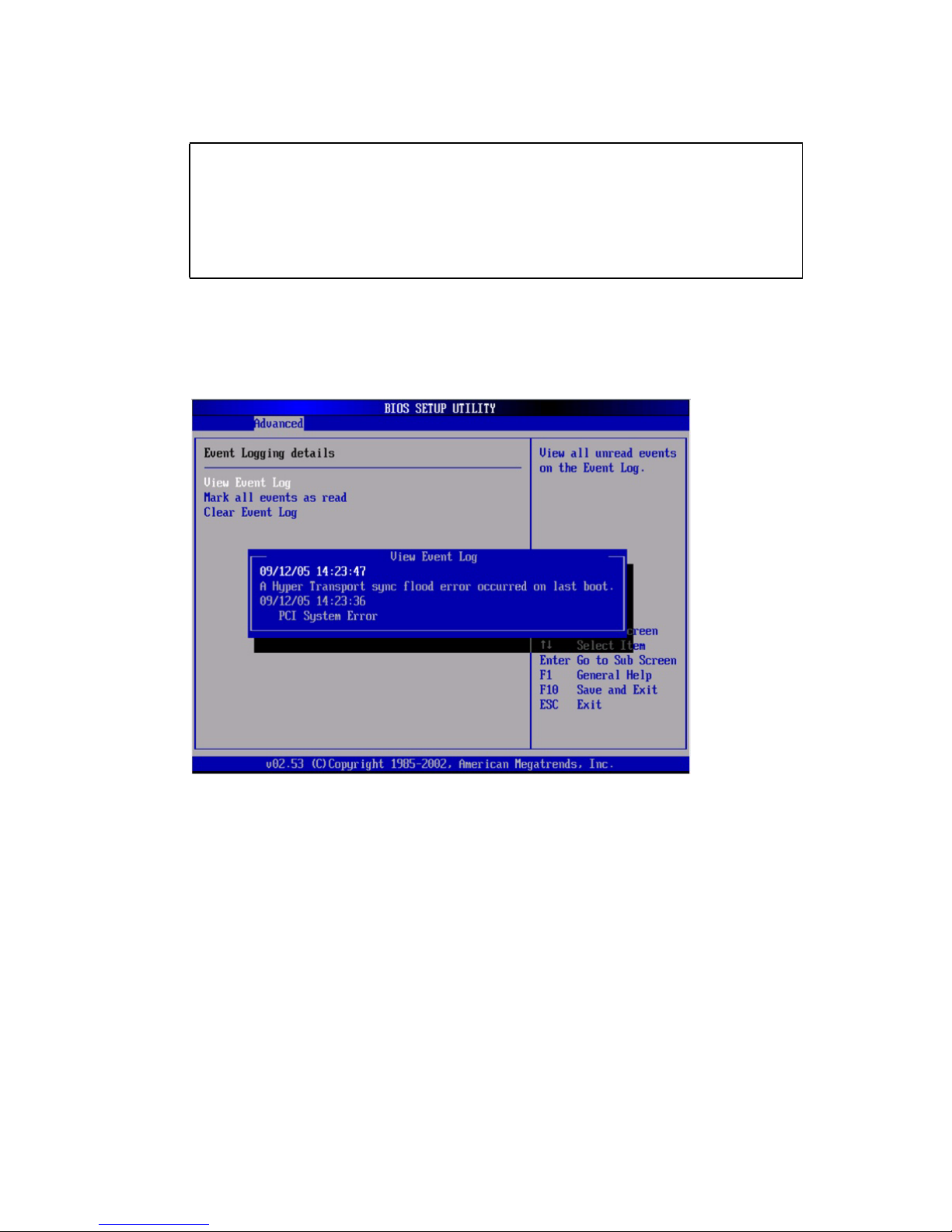

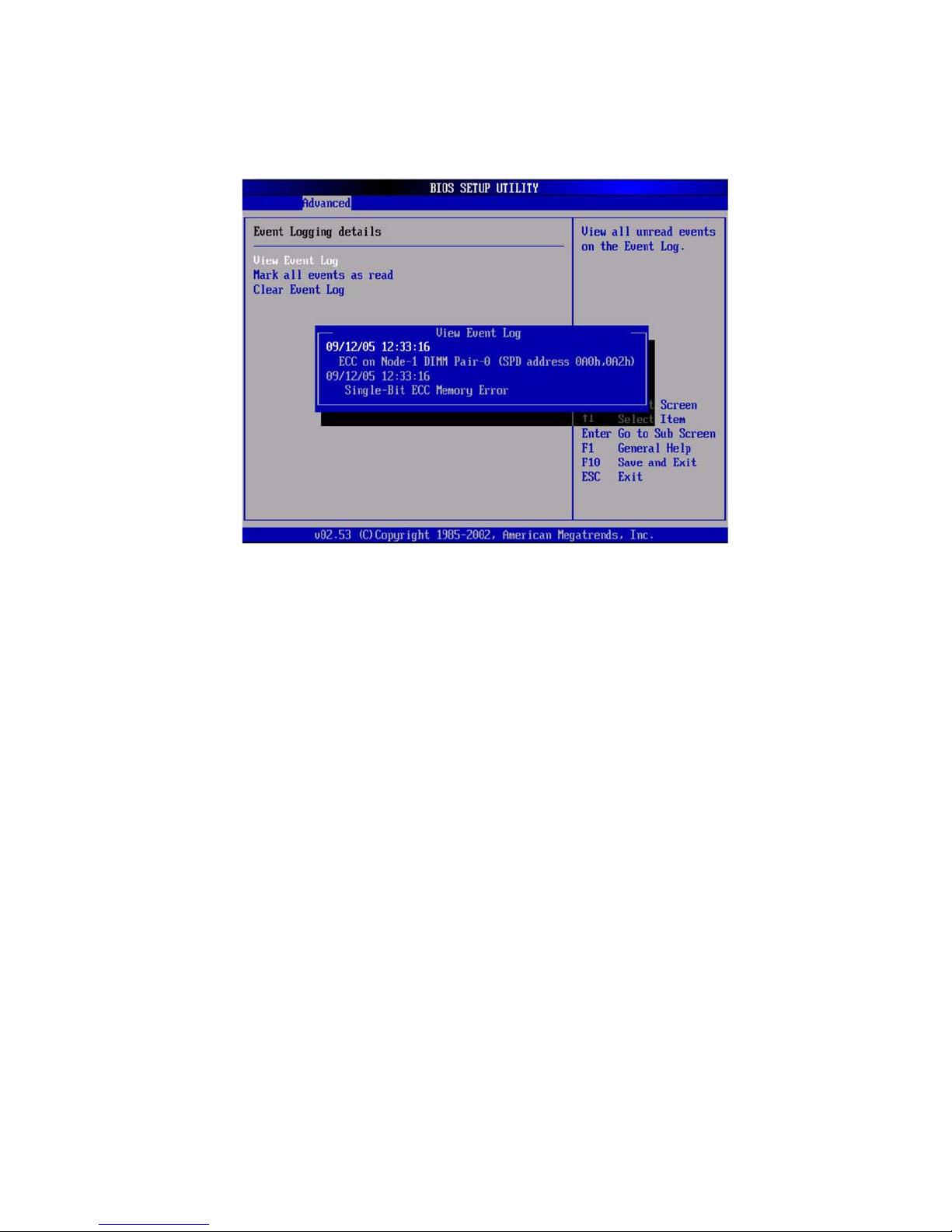

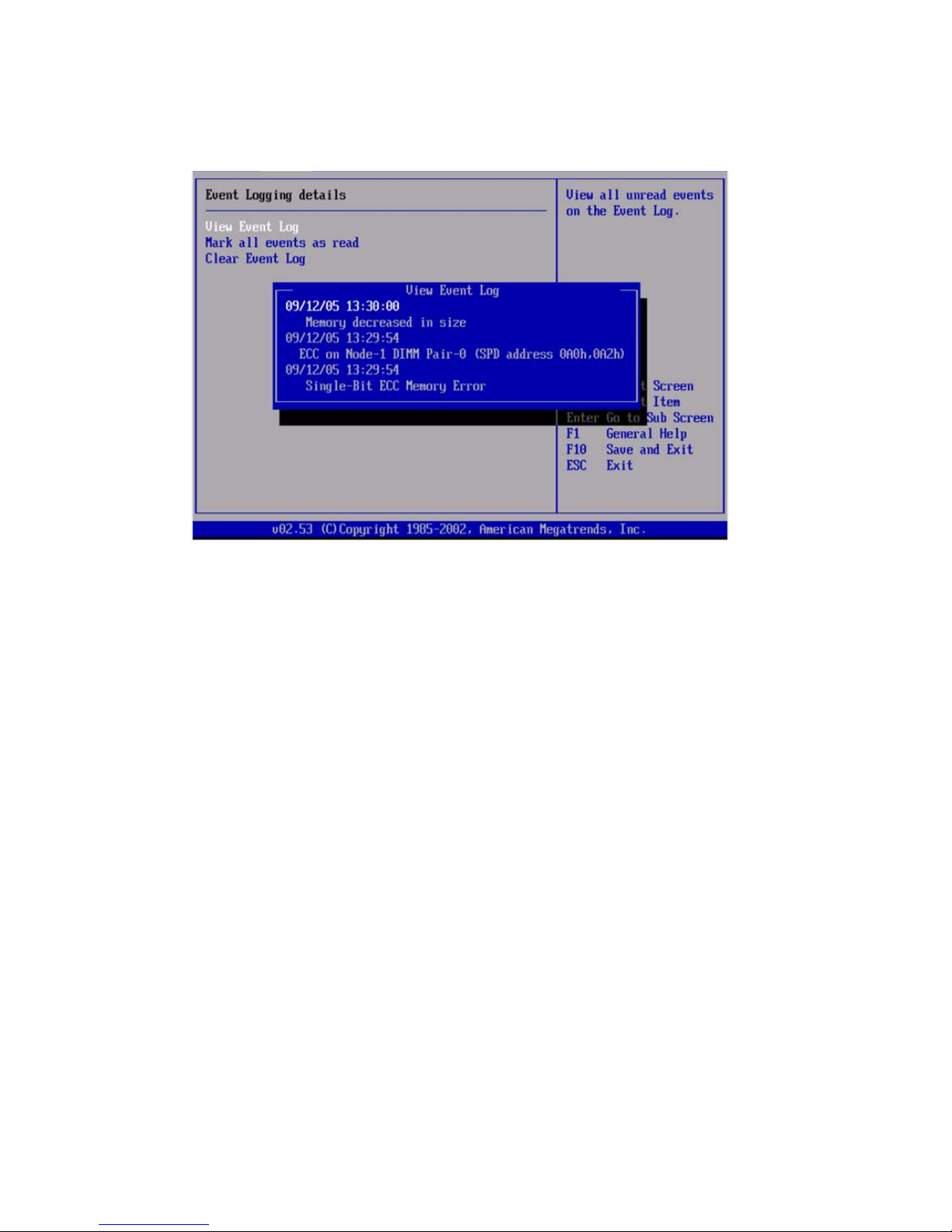

All unread events are displayed.

4. View the BMC system event log:

a. From the BIOS Main Menu screen, select Advanced.

The Advanced Settings screen is displayed.

b. From the Advanced Settings screen, select IPMI 2.0 Configuration.

The Advanced Menu IPMI 2.0 Configuration screen is displayed

Advanced ****************************************************************************** * Event Logging details * View all unread events * * *************************************************** * on the Event Log. * * View Event Log * * * Mark all events as read * * * Clear Event Log * * *** *** *** *** *** *** *** * * * Select Screen * * * ** Select Item * * * Enter Go to Sub Screen * * * F1 General Help * * * F10 Save and Exit * * * ESC Exit * *** *** ****************************************************************************** v02.61 (C)Copyright 1985-2006, American Megatrends, Inc.

Page 34

24 Sun Fire X4140, X4240, and X4440 Servers Diagnostics Guide • August 2008

c. From the IPMI 2.0 Configuration screen, select View BMC System Event Log.

The log takes about 60 seconds to generate, then it is displayed on the screen.

5. If the problem with the server is not evident, continue with “Using the ILOM

Service Processor GUI to View System Information” on page 43,or“Viewing ILOM SP Event Logs” on page 45.

Advanced ****************************************************************************** * IPMI 2.0 Configuration * View all events in the * * *************************************************** * BMC Event Log. * * Status Of BMC Working * * * * View BMC System Event Log * It will take up to * * Reload BMC System Event Log * 60 Seconds approx. * * Clear BMC System Event Log * to read all * * * LAN Configuration * BMC SEL records. * * * PEF Configuration * * * BMC Watch Dog Timer Action [Disabled] * * *** *** *** * * * Select Screen * * * ** Select Item * * * Enter Go to Sub Screen * * * F1 General Help * * * F10 Save and Exit * * * ESC Exit * *** *** ****************************************************************************** v02.61 (C)Copyright 1985-2006, American Megatrends, Inc.

Page 35

Appendix A Event Logs and POST Codes 25

Power-On Self-Test (POST)

The system BIOS provides a rudimentary power-on self-test. The basic devices required for the server to operate are checked, memory is tested, the LSI 1064 disk controller and attached disks are probed and enumerated, and the two Intel dual Gigabit Ethernet controllers are initialized.

The progress of the self-test is indicated by a series of POST codes. These codes are displayed at the bottom right corner of the system’s VGA screen (once the self-test has progressed far enough to initialize the system video). However, the codes are displayed as the self-test runs and scroll off of the screen too quickly to be read. An alternate method of displaying the POST codes is to redirect the output of the console to a serial port (see “Redirecting Console Output” on page 26).

How BIOS POST Memory Testing Works

The BIOS POST memory testing is performed as follows:

1. The first megabyte of DRAM is tested by the BIOS before the BIOS code is shadowed (that is, copied from ROM to DRAM).

2. Once executing out of DRAM, the BIOS performs a simple memory test (a write/read of every location with the pattern 55aa55aa).

Note – Enabling Quick Boot causes the BIOS to skip the memory test. See

“Changing POST Options” on page 28 for more information.

Note – Because the server can contain up to 64 MB of memory (128 MB for the

X4440), the memory test can take several minutes. You can cancel POST testing by pressing any key during POST.

3. The BIOS polls the memory controllers for both correctable and uncorrectable memory errors and logs those errors into the service processor.

Page 36

26 Sun Fire X4140, X4240, and X4440 Servers Diagnostics Guide • August 2008

Redirecting Console Output

Use the following instructions to access the service processor and redirect the console output so that the BIOS POST codes can be read.

1. Initialize the BIOS Setup utility by pressing the F2 key while the system is performing the power-on self-test (POST).

The BIOS Main menu screen is displayed.

2. Select the Advanced menu tab.

The Advanced Settings screen is displayed.

3. Select IPMI 2.0 Configuration.

The IPMI 2.0 Configuration screen is displayed.

4. Select the LAN Configuration menu item.

The LAN Configuration screen displays the service processor’s IP address.

5. To configure the service processor’s IP address (optional):

a. Select the IP Assignment option that you want to use (DHCP or Static).

■ If you choose DHCP, the server’s IP address is retrieved from your network’s

DHCP server and displayed using the following format:

Current IP address in BMC : xxx.xxx.xxx.xxx

■ If you choose Static to assign the IP address manually, perform the

following steps:

i. Type the IP address in the IP Address field.

You can also enter the subnet mask and default gateway settings in their respective fields.

ii. Select Commit and press Return to commit the changes.

iii. Select Refresh and press Return to see your new settings displayed in the

Current IP address in BMC field.

6. Start a web browser and type the service processor’s IP address in the browser’s URL field.

7. When you are prompted for a user name and password, type the following:

■ User Name: root

■ Password: changeme

The Sun Integrated Lights Out Manager main GUI screen is displayed.

8. Click the Remote Control tab.

9. Click the Redirection tab.

Page 37

Appendix A Event Logs and POST Codes 27

10. Set the color depth for the redirection console at either 6 or 8 bits.

11. Click the Start Redirection button.

12. When you are prompted for a user name and password, type the following:

■ User Name: root

■ Password: changeme

The current POST screen is displayed.

Page 38

28 Sun Fire X4140, X4240, and X4440 Servers Diagnostics Guide • August 2008

Changing POST Options

These instructions are optional, but you can use them to change the operations that the server performs during POST testing. To change POST options:

1. Initialize the BIOS Setup utility by pressing the F2 key while the system is performing the power-on self-test (POST).

The BIOS Main menu screen is displayed.

2. Select Boot.

The Boot Settings screen is displayed.

Main Advanced PCIPnP Boot Security Chipset Exit ****************************************************************************** * Boot Settings * Configure Settings * * *************************************************** * during System Boot. * * * Boot Settings Configuration * * *** * * Boot Device Priority * * * * Hard Disk Drives * * * * CD/DVD Drives * * *** *** * * * Select Screen * * * ** Select Item * * * Enter Go to Sub Screen * * * F1 General Help * * * F10 Save and Exit * * * ESC Exit * *** *** ****************************************************************************** v02.61 (C)Copyright 1985-2006, American Megatrends, Inc.

Page 39

Appendix A Event Logs and POST Codes 29

3. Select Boot Settings Configuration.

The Boot Settings Configuration screen is displayed.

4. On the Boot Settings Configuration screen, there are several options that you can enable or disable:

■ Quick Boot – This option is disabled by default. If you enable this, the BIOS

skips certain tests while booting, such as the extensive memory test. This decreases the time it takes for the system to boot.

■ Quiet Boot – This option is disabled by default. If you enable this, the Sun

Microsystems logo is displayed instead of POST codes.

■ Add On ROM Display Mode – This option is set to Force BIOS by default.

This option has effect only if you have also enabled the Quiet Boot option, but it controls whether output from the Option ROM is displayed. The two settings for this option are as follows:

■ Force BIOS – Remove the Sun logo and display Option ROM output.

■ Keep Current – Do not remove the Sun logo. The Option ROM output is not

displayed.

Boot ****************************************************************************** ** * Boot Settings Configuration * Allows BIOS to skip * * *************************************************** * certain tests while * * Quick Boot [Disabled] * booting. This will * * Quiet Boot [Disabled] * decrease the time * * AddOn ROM Display Mode [Force BIOS] * needed to boot the * * Bootup Num-Lock [On] * system. * * Wait For 'F1' If Error [Disabled] * * * Interrupt 19 Capture [Enabled] * * *** *** *** *** * * * Select Screen * * * ** Select Item * * * +- Change Option * * * F1 General Help * * * F10 Save and Exit * * * ESC Exit * *** *** ****************************************************************************** ** v02.61 (C)Copyright 1985-2006, American Megatrends, Inc.

Page 40

30 Sun Fire X4140, X4240, and X4440 Servers Diagnostics Guide • August 2008

■ Boot Num-Lock – This option is On by default (keyboard Num-Lock is turned

on during boot). If you set this to off, the keyboard Num-Lock is not turned on during boot.

■ Wait for F1 if Error – This option is disabled by default. If you enable this, the

system will pause if an error is found during POST and will only resume when you press the F1 key.

■ Interrupt 19 Capture – This option is reserved for future use. Do not change.

■ Default Boot Order – The letters in the brackets represent the boot devices. To

see the letters defined, position your cursor over the field and read the definition in the right side of the screen.

Page 41

Appendix A Event Logs and POST Codes 31

POST Codes

TABLE A-1 contains descriptions of each of the POST codes, listed in the same order

in which they are generated. These POST codes appear as a four-digit string that is a combination of two-digit output from primary I/O port 80 and two-digit output from secondary I/O port 81. In the POST codes listed in

TABLE A-1, the first two

digits are from port 81 and the last two digits are from port 80.

TABLE A-1 POST Codes

Post Code Description

00d0 Coming out of POR, PCI configuration space initialization, enabling 8111’s SMBus.

00d2 Disable cache, full memory sizing, and verify that flat mode is enabled.

00d3 Memory detections and sizing in boot block, cache disabled, IO APIC enabled.

01d4 Test base 512KB memory. Adjust policies and cache first 8MB.

01d5 Bootblock code is copied from ROM to lower RAM. BIOS is now executing out of RAM.

01d6 Key sequence and OEM specific method is checked to determine if BIOS recovery is

forced. If next code is E0, BIOS recovery is being executed. Main BIOS checksum is tested.

01d7 Restoring CPUID; moving bootblock-runtime interface module to RAM; determine

whether to execute serial flash.

01d8 Uncompressing runtime module into RAM. Storing CPUID information in memory.

01d9 Copying main BIOS into memory.

01da Giving control to BIOS POST.

0004 Check CMOS diagnostic byte to determine if battery power is OK and CMOS checksum is

OK. If the CMOS checksum is bad, update CMOS with power-on default values.

00c2 Set up boot strap processor for POST. This includes frequency calculation, loading BSP

microcode, and applying user requested value for GART Error Reporting setup question.

00c3 Errata workarounds applied to the BSP (#78 & #110).

00c6 Re-enable cache for boot strap processor, and apply workarounds in the BSP for errata

#106, #107, #69, and #63 if appropriate.

00c7 HT sets link frequencies and widths to their final values.

000a Initializing the 8042 compatible Keyboard Controller.

000c Detecting the presence of Keyboard in KBC port.

000e Testing and initialization of different Input Devices. Traps the INT09h vector, so that the

POST INT09h handler gets control for IRQ1.

8600 Preparing CPU for booting to OS by copying all of the context of the BSP to all application

processors present. NOTE: APs are left in the CLI HLT state.

Page 42

32 Sun Fire X4140, X4240, and X4440 Servers Diagnostics Guide • August 2008

de00 Preparing CPU for booting to OS by copying all of the context of the BSP to all application

processors present. NOTE: APs are left in the CLI HLT state.

8613 Initialize PM regs and PM PCI regs at Early-POST. Initialize multi-host bridge, if system

supports it. Setup ECC options before memory clearing. Enable PCI-X clock lines in the

8131.

0024 Uncompress and initialize any platform specific BIOS modules.

862a BBS ROM initialization.

002a Generic Device Initialization Manager (DIM) - Disable all devices.

042a ISA PnP devices - Disable all devices.

052a PCI devices - Disable all devices.

122a ISA devices - Static device initialization.

152a PCI devices - Static device initialization.

252a PCI devices - Output device initialization.

202c Initializing different devices. Detecting and initializing the video adapter installed in the

system that have optional ROMs.

002e Initializing all the output devices.

0033 Initializing the silent boot module. Set the window for displaying text information.

0037 Displaying sign-on message, CPU information, setup key message, and any OEM specific

information.

4538 PCI devices - IPL device initialization.

5538 PCI devices - General device initialization.

8600 Preparing CPU for booting to OS by copying all of the context of the BSP to all application

processors present. NOTE: APs are left in the CLI HLT state.

TABLE A-1 POST Codes (Continued)

Post Code Description

Page 43

Appendix A Event Logs and POST Codes 33

POST Code Checkpoints

The POST code checkpoints are the largest set of checkpoints during the BIOS preboot process.

TABLE A-2 describes the type of checkpoints that might occur during

the POST portion of the BIOS. These two-digit checkpoints are the output from primary I/O port 80.

TABLE A-2 POST Code Checkpoints

Post Code Description

03 Disable NMI, Parity, video for EGA, and DMA controllers. At this point, only ROM

accesses go to the GPNV. If BB size is 64K, turn on ROM Decode below FFFF0000h. It should allow USB to run in the E000 segment. The HT must program the NB specific initialization and OEM specific initialization, and can program if it need be at beginning of BIOS POST, similar to overriding the default values of kernel variables.

04 Check CMOS diagnostic byte to determine if battery power is OK and CMOS checksum is

OK. Verify CMOS checksum manually by reading storage area. If the CMOS checksum is bad, update CMOS with power-on default values and clear passwords. Initialize status register A. Initialize data variables that are based on CMOS setup questions. Initialize both the 8259-compatible PICs in the system.

05 Initialize the interrupt controlling hardware (generally PIC) and interrupt vector table.

06 Do R/W test to CH-2 count reg. Initialize CH-0 as system timer. Install the POSTINT1Ch

handler. Enable IRQ-0 in PIC for system timer interrupt. Traps INT1Ch vector to “POSTINT1ChHandlerBlock.”

C0 Early CPU Init Start--Disable Cache--Init Local APIC.

C1 Set up boot strap processor information.

C2 Set up boot strap processor for POST. This includes frequency calculation, loading BSP

microcode, and applying user requested value for GART Error Reporting setup question.

C3 Errata workarounds applied to the BSP (#78 & #110).

C5 Enumerate and set up application processors. This includes microcode loading and

workarounds for errata (#78, #110, #106, #107, #69, #63).

C6 Re-enable cache for boot strap processor, and apply workarounds in the BSP for errata

#106, #107, #69, and #63 if appropriate. In case of mixed CPU steppings, errors are sought and logged, and an appropriate frequency for all CPUs is found and applied. NOTE: APs are left in the CLI HLT state.

C7 The HT sets link frequencies and widths to their final values. This routine gets called after

CPU frequency has been calculated to prevent bad programming.

0A Initializes the 8042 compatible Keyboard Controller.

0B Detects the presence of PS/2 mouse.

0C Detects the presence of Keyboard in KBC port.

Page 44

34 Sun Fire X4140, X4240, and X4440 Servers Diagnostics Guide • August 2008

0E Testing and initialization of different Input Devices. Also, update the Kernel Variables.

Traps the INT09h vector, so that the POST INT09h handler gets control for IRQ1. Uncompress all available language, BIOS logo, and Silent logo modules.

13 Initialize PM regs and PM PCI regs at Early-POST, Initialize multi-host bridge, if system

will support it. Setup ECC options before memory clearing. REDIRECTION causes corrected data to written to RAM immediately. CHIPKILL provides 4 bit error det/corr of x4 type memory. Enable PCI-X clock lines in the 8131.

20 Relocate all the CPUs to a unique SMBASE address. The BSP will be set to have its entry

point at A000:0. If less than 5 CPU sockets are present on a board, subsequent CPUs entry points will be separated by 8000h bytes. If more than 4 CPU sockets are present, entry points are separated by 200h bytes. CPU module will be responsible for the relocation of the CPU to correct address. NOTE: APs are left in the INIT state.

24 Uncompress and initialize any platform-specific BIOS modules.

30 Initialize System Management Interrupt.

2A Initializes different devices through DIM.

2C Initializes different devices. Detects and initializes the video adapter installed in the

system that have optional ROMs.

2E Initializes all the output devices.

31 Allocate memory for ADM module and uncompress it. Give control to ADM module for

initialization. Initialize language and font modules for ADM. Activate ADM module.

33 Initializes the silent boot module. Set the window for displaying text information.

37 Displaying sign-on message, CPU information, setup key message, and any OEM specific

information.

38 Initializes different devices through DIM.

39 Initializes DMAC-1 and DMAC-2.

3A Initialize RTC date/time.

3B Test for total memory installed in the system. Also, Check for DEL or ESC keys to limit

memory test. Display total memory in the system.

3C By this point, RAM read/write test is completed, program memory holes or handle any

adjustments needed in RAM size with respect to NB. Test if HT Module found an error in BootBlock and CPU compatibility for MP environment.

40 Detect different devices (parallel ports, serial ports, and coprocessor in CPU,... etc.)

successfully installed in the system and update the BDA, EBDA,... etc.

50 Programming the memory hole or any kind of implementation that needs an adjustment

in system RAM size if required.

52 Updates CMOS memory size from memory found in memory test. Allocates memory for

Extended BIOS Data Area from base memory.

TABLE A-2 POST Code Checkpoints (Continued)

Post Code Description

Page 45

Appendix A Event Logs and POST Codes 35

60 Initializes NUM-LOCK status and programs the KBD typematic rate.

75 Initialize Int-13 and prepare for IPL detection.

78 Initializes IPL devices controlled by BIOS and option ROMs.

7A Initializes remaining option ROMs.

7C Generate and write contents of ESCD in NVRam.

84 Log errors encountered during POST.

85 Displays errors to the user and gets the user response for error.

87 Execute BIOS setup if needed/requested.

8C After all device initialization is done, program any user selectable parameters relating to

NB/SB, such as timing parameters, non-cacheable regions and the shadow RAM cacheability, and do any other NB/SB/PCIX/OEM specific programming needed during Late-POST. Background scrubbing for DRAM, and L1 and L2 caches are set up based on setup questions. Get the DRAM scrub limits from each node.

8D Build ACPI tables (if ACPI is supported).

8E Program the peripheral parameters. Enable/Disable NMI as selected.

90 Late POST initialization of system management interrupt.

A0 Check boot password if installed.

A1 Clean-up work needed before booting to OS.

A2 Takes care of runtime image preparation for different BIOS modules. Fills the free area in

F000h segment with 0FFh. Initializes the Microsoft IRQ Routing Table. Prepares the runtime language module. Disables the system configuration display if needed.

A4 Initialize runtime language module.

A7 Displays the system configuration screen if enabled. Initializes the CPUs before boot,

which includes the programming of the MTRRs.

A8 Prepare CPU for OS boot including final MTRR values.

A9 Wait for user input at configuration display if needed.

AA Uninstall POST INT1Ch vector and INT09h vector. Deinitializes the ADM module.

AB Prepare BBS for Int 19 boot.

AC Any kind of Chipsets (NB/SB) specific programming needed during End- POST, just

before giving control to runtime code booting to OS. Program the system BIOS (0F0000h shadow RAM) cacheability. Ported to handle any OEM specific programming needed during End-POST. Copy OEM specific data from POST_DSEG to RUN_CSEG.

TABLE A-2 POST Code Checkpoints (Continued)

Post Code Description

Page 46

36 Sun Fire X4140, X4240, and X4440 Servers Diagnostics Guide • August 2008

B1 Save system context for ACPI.

00 Prepares CPU for booting to OS by copying all of the context of the BSP to all application

processors present. NOTE: APs are left in the CLI HLT state.

61-70 OEM POST Error. This range is reserved for chipset vendors and system manufacturers.

The error associated with this value may be different from one platform to the next.

TABLE A-2 POST Code Checkpoints (Continued)

Post Code Description

Page 47

APPENDIX

Status Indicator LEDs

This appendix contains information about the locations and behavior of the LEDs on the server. It describes the external LEDs that can be viewed on the outside of the server and the internal LEDs that can be viewed only with the main cover removed.

External Status Indicator LEDs

See the following figures and tables for information about the LEDs that are viewable on the outside of the server.

■ FIGURE B-1 shows and describes the front panel LEDs.

■ FIGURE B-2 shows and describes the back panel LEDs.

■ FIGURE B-3 shows and describes the hard drive LEDs.

■ FIGURE B-4 and FIGURE B-5 show the location of the internal LEDs.

Page 48

38 Sun Fire X4140, X4240, and X4440 Servers Diagnostics Guide • August 2008

Front Panel LEDs

FIGURE B-1 Front Panel LEDs (X4140 shown)

Back Panel LEDs

FIGURE B-2 Back Panel LEDs (X4140 shown)

Figure Legend

1 Locator LED/Locator button: White 4 Rear PS LED: (Amber) Power supply fault

2 Service Required LED: Amber 5 System Over Temperature LED: (Amber)

3 Power/OK LED: Green 6 Top Fan LED: (Amber) Service action required on fan(s)

Figure Legend

1 Power Supply LEDs: 3 Service Required LED

Power Supply OK: Green 4 PowerOKLED

Power Supply Fail: Amber 5 Ethernet Port LEDs

AC OK: Green Left side: Green indicates link activity

2 Locator LED Button Right side:

Green indicates link activity

Amber indicates link is operating at less than maximum speed.

Page 49

Appendix B Status Indicator LEDs 39

Hard Drive LEDs

FIGURE B-3 Hard Drive LEDs

Internal Status Indicator LEDs

The server has internal status indicators on the motherboard, and on the mezzanine board. For motherboard locations, see

FIGURE B-4. For mezzanine board locations, see

FIGURE B-5.

■ The DIMM Fault LEDs indicate a problem with the corresponding DIMM. They

are located next to the DIMM ejector handles.

When you press the Press to See Fault button, if there is a problem with a DIMM, the corresponding DIMM Fault LED flashes. See “DIMM Fault LEDs” on page 15 for details.

■ The CPU Fault LEDs indicate a problem with the corresponding CPU.

When you press the Press to See Fault button, if there is a problem with a CPU, the corresponding CPU Fault LED flashes.

Note – The DIMM Fault and Motherboard Fault LEDs operate on stored power for

up to a minute when the system is powered down, even after the AC power is disconnected, and the motherboard (or mezzanine board) is out of the system. The stored power lasts for about half an hour.

■ The Motherboard Fault LED on the mezzanine board indicates that there is a

problem with the motherboard.

Figure Legend

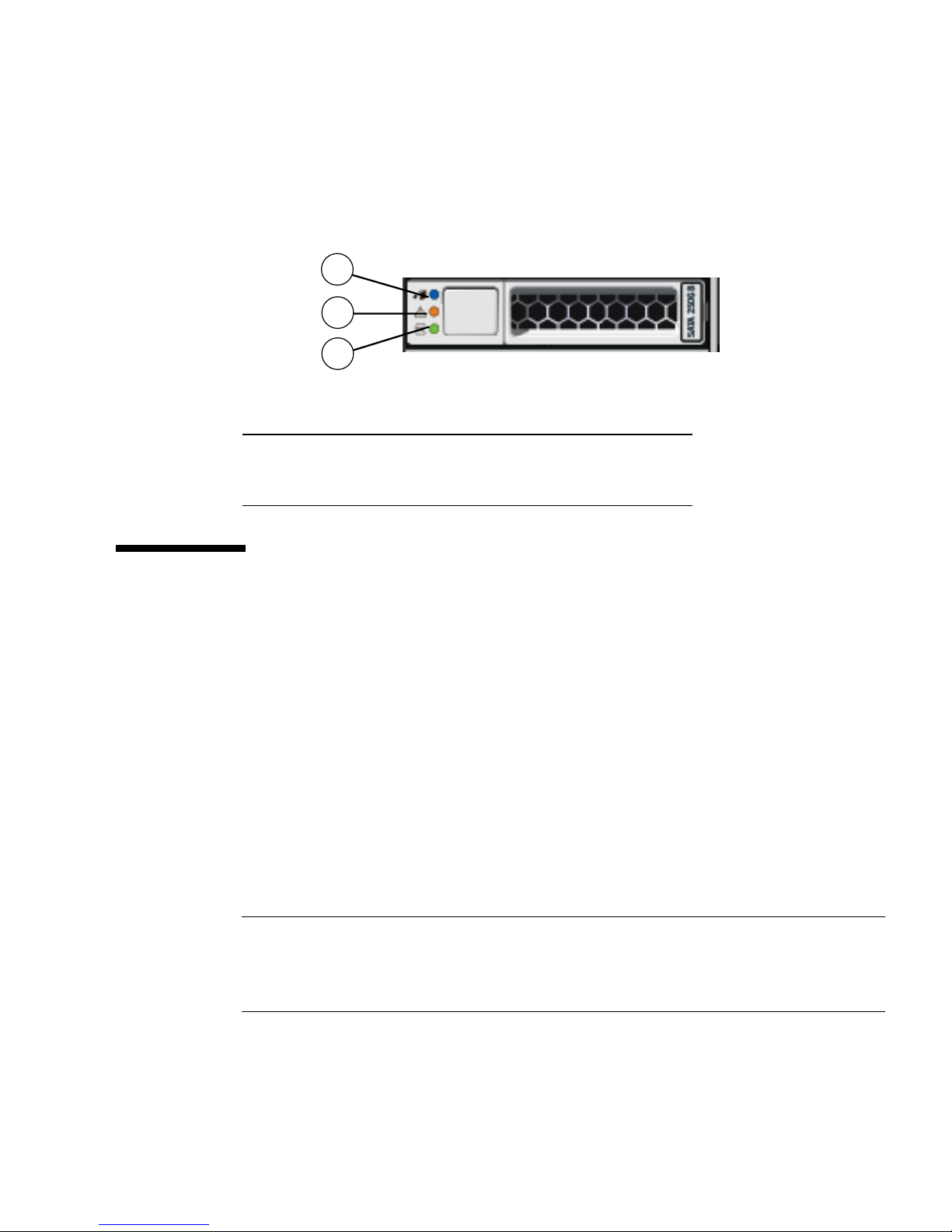

1 Ready to remove LED: Blue – Service action is allowed

2 Fault LED: Amber – Service action is required

3 Status LED: Green – Blinks when data is being transferred

Page 50

40 Sun Fire X4140, X4240, and X4440 Servers Diagnostics Guide • August 2008

Note – The mezzanine board, when present, obscures part of the motherboard,

including the LEDs. The Motherboard Fault LED indicates that one or more of the LEDs on the motherboard is active.

FIGURE B-4 DIMMs and LEDs on Motherboard

Page 51

Appendix B Status Indicator LEDs 41

FIGURE B-5 DIMMs and LEDs on Mezzanine Board

Page 52

42 Sun Fire X4140, X4240, and X4440 Servers Diagnostics Guide • August 2008

Page 53

APPENDIX

Using the ILOM Service Processor GUI to View System Information

This appendix contains information about using the Integrated Lights Out Manager (ILOM) Service processor (SP) GUI to view monitoring and maintenance information for your server.

■ “Making a Serial Connection to the SP” on page 44

■ “Viewing ILOM SP Event Logs” on page 45

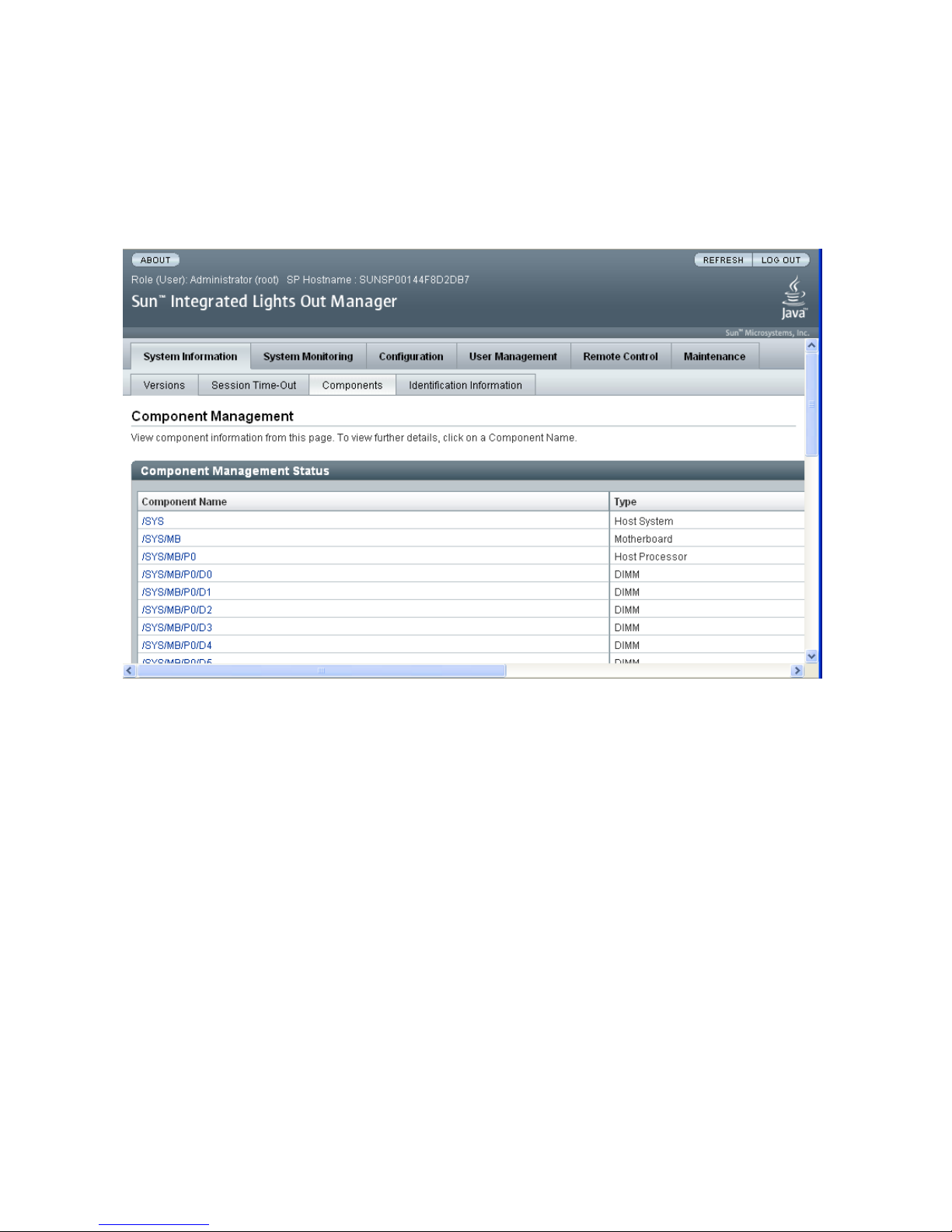

■ “Viewing Replaceable Component Information” on page 48

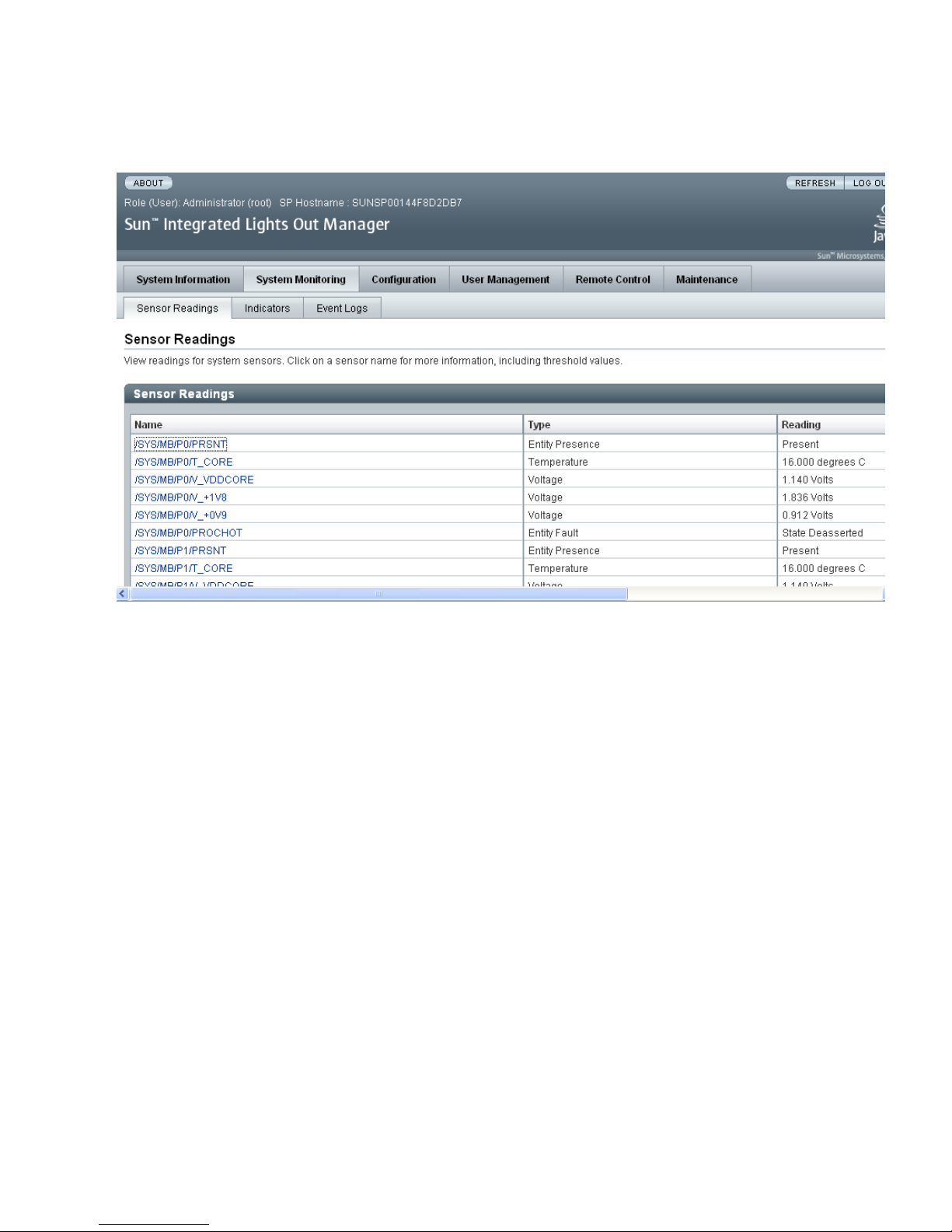

■ “Viewing Sensors” on page 50

For more information on using the ILOM SP GUI to maintain the server (for example, configuring alerts), refer to the Integrated Lights Out Manager Administration Guide.

■ If any of the logs or information screens indicate a DIMM error, see Chapter 3.

■ If the problem with the server is not evident after viewing ILOM SP logs and

information, continue with “Running SunVTS Diagnostic Tests” on page 7.

Page 54

44 Sun Fire X4140, X4240, and X4440 Servers Diagnostics Guide • August 2008

Making a Serial Connection to the SP

To make a serial connection to the SP:

1. Connect a serial cable from the RJ-45 Serial Management port on server to a terminal device.

2. Press ENTER on the terminal device to establish a connection between that terminal device and the ILOM SP.

Note – If you are connecting to the serial port on the SP before it has been powered

up or during its power-up sequence, you will see boot messages.

The service processor eventually displays a login prompt. For example:

SUNSP0003BA84D777 login:

The first string in the prompt is the default host name for the ILOM SP. It consists of the prefix SUNSP and the MAC address of the ILOM SP. The MAC address for each ILOM SP is unique.

3. Log in to the SP and type the default user name, root, with the default password, changeme.

Once you have successfully logged in to the SP, it displays its default command prompt.

4. To start the serial console, type the following commands:

cd /SP/console start

To exit console mode and return to the service processor, type

(escape/shift 9)

■ Continue with the following procedures:

■ “Viewing ILOM SP Event Logs” on page 45

■ “Viewing Replaceable Component Information” on page 48

■ “Viewing Sensors” on page 50

Page 55

Appendix C Using the ILOM Service Processor GUI to View System Information 45

Viewing ILOM SP Event Logs

Events are notifications that occur in response to some actions. The IPMI system event log (SEL) provides status information about the server’s hardware and software to the ILOM software, which displays the events in the ILOM web GUI. To view event logs:

1. Log in to the SP as Administrator or Operator to reach the ILOM web GUI:

a. Type the IP address of the server’s SP into your web browser.

The Sun Integrated Lights Out Manager Login screen is displayed.

b. Type your user name and password.

When you first try to access the ILOM SP, you are prompted to type the default user name and password. The default user name and password are:

Default user name: root Default password: changeme

2. From the System Monitoring tab, select Event Logs.

The System Event Logs page is displayed. See

FIGURE C-1 for a page that shows

sample information.

Page 56

46 Sun Fire X4140, X4240, and X4440 Servers Diagnostics Guide • August 2008

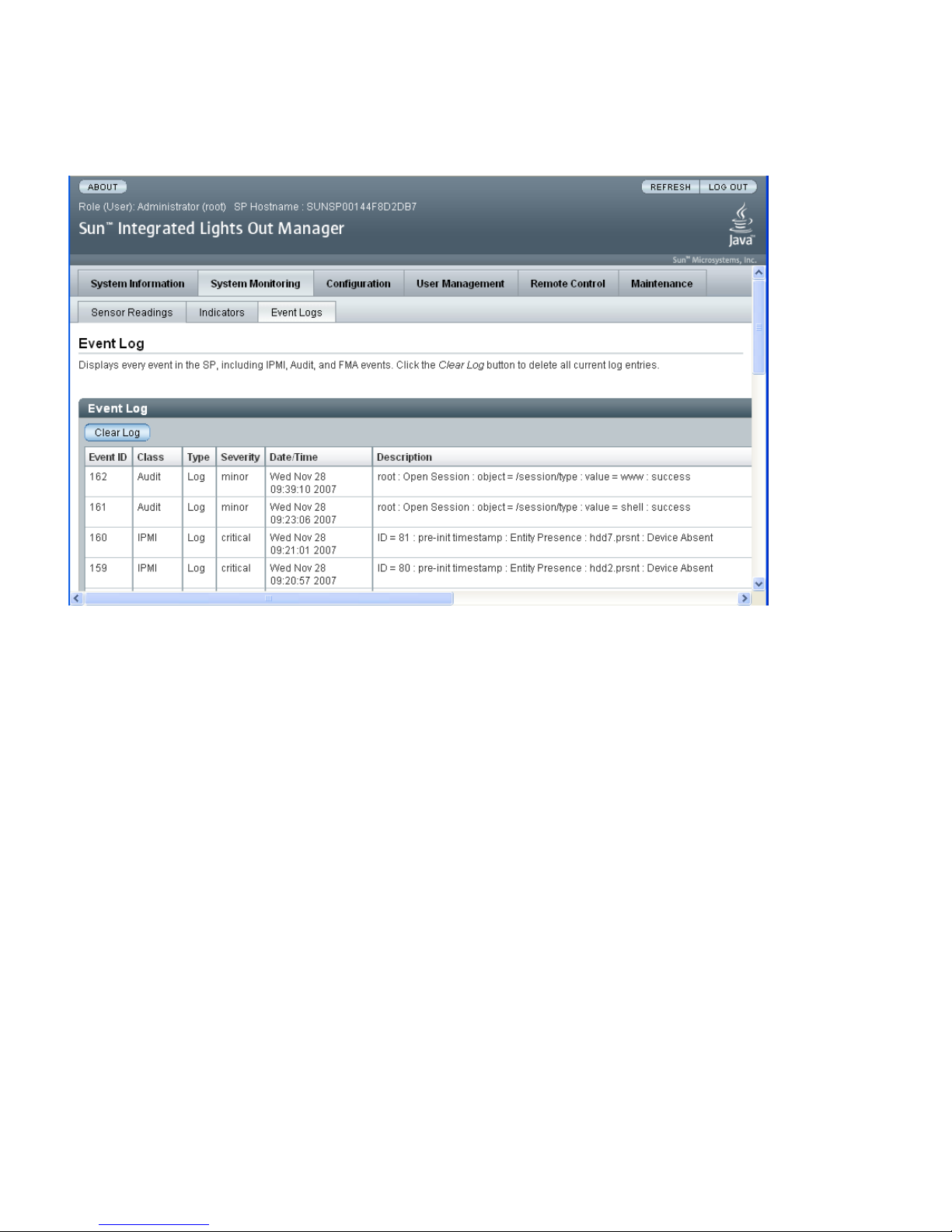

FIGURE C-1 System Event Logs Page

3. Select the category of event that you want to view in the log from the dropdown list box.

You can select from the following types of events:

■ Sensor-specific events. These events relate to a specific sensor for a component,

for example, a fan sensor or a power supply sensor.

■ BIOS-generated events. These events relate to error messages generated in the

BIOS.

■ System management software events. These events relate to events that occur

within the ILOM software.

Page 57

Appendix C Using the ILOM Service Processor GUI to View System Information 47

After you have selected a category of event, the Event Log table is updated with the specified events. The fields in the Event Log are described in

TABLE C-1.

4. To clear the event log, click the Clear Event Log button.

A confirmation dialog box is displayed.

5. Click OK to clear all entries in the log.

6. If the problem with the server is not evident after viewing ILOM SP logs and

information, continue with “Running SunVTS Diagnostic Tests” on page 7.

Interpreting Event Log Time Stamps

The system event log time stamps are related to the service processor clock settings. If the clock settings change, the change is reflected in the time stamps.

When the service processor reboots, the SP clock is set to Thu Jan 1 00:00:00 UTC

1970. The SP reboots as a result of the following:

■ A complete system unplug/replug power cycle

■ An IPMI command; for example, mc reset cold

■ A command-line interface (CLI) command; for example, reset /SP

TABLE C-1 Event Log Fields

Field Description

Event ID The number of the event, in sequence from number 1.

Time Stamp The day and time the event occurred. If the Network Time Protocol

(NTP) server is enabled to set the SP time, the SP clock will use Universal Coordinated Time (UTC). For more information about time stamps, see “Interpreting Event Log Time Stamps” on page 47.

Sensor Name The name of a component for which an event was recorded. The

sensor name abbreviations correspond to these components:

sys: System or chassis

• p0: Processor 0

• p1: Processor 1

• io: I/O board

• ps: Power supply

• fp: Front panel

• ft: Fan tray

• mb: Motherboard

Sensor Type The type of sensor for the specified event.

Description A description of the event.

Page 58

48 Sun Fire X4140, X4240, and X4440 Servers Diagnostics Guide • August 2008

■ ILOM web GUI operation; for example, from the Maintenance tab, selecting Reset

■ An SP firmware upgrade

After an SP reboot, the SP clock is changed by the following events:

■ When the host is booted. The host’s BIOS unconditionally sets the SP time to that

indicated by the host’s RTC. The host’s RTC is set by the following operations:

■ When the host’s CMOS is cleared as a result of changing the host’s RTC battery

or inserting the CMOS-clear jumper on the motherboard. The host’s RTC starts at Jan 1 00:01:00 2002.

■ When the host’s operating system sets the host’s RTC. The BIOS does not

consider time zones. Solaris and Linux software respect time zones and will set the system clock to UTC. Therefore, after the OS adjusts the RTC, the time set by the BIOS will be UTC.

■ When the user sets the RTC using the host BIOS Setup screen.

■ Continuously via NTP if NTP is enabled on the SP. NTP jumping is enabled to

recover quickly from an erroneous update from the BIOS or user. NTP servers provide UTC time. Therefore, if NTP is enabled on the SP, the SP clock will be in UTC.

■ Via the CLI, ILOM web GUI, and IPMI

Viewing Replaceable Component Information

Depending on the component you select, information about the manufacturer, component name, serial number, and part number can be displayed. To view replaceable component information:

1. Log in to the SP as Administrator or Operator to reach the ILOM web GUI:

a. Type the IP address of the server’s SP into your web browser.

The Sun Integrated Lights Out Manager Login screen is displayed.

b. Type your user name and password.

When you first try to access the ILOM Service Processor, you are prompted to type the default user name and password. The default user name and password are:

Default user name: root Default password: changeme

Page 59

Appendix C Using the ILOM Service Processor GUI to View System Information 49

2. From the System Information tab, select Components.

The Replaceable Component Information page is displayed. See

FIGURE C-2.

FIGURE C-2 Replaceable Component Information Page

3. Select a component from the drop-down list.

Information about the selected component is displayed.

4. If the problem with the server is not evident after viewing replaceable

component information, continue with “Running SunVTS Diagnostic Tests” on

page 7.

Page 60

50 Sun Fire X4140, X4240, and X4440 Servers Diagnostics Guide • August 2008

Viewing Sensors

This section describes how to view the server temperature, voltage, and fan sensor readings.

For a complete list of sensors, see Appendix D.

To view sensor readings:

1. Log in to the SP as Administrator or Operator to reach the ILOM web GUI:

a. Type the IP address of the server’s SP into your web browser.

The Sun Integrated Lights Out Manager Login screen is displayed.

b. Type your user name and password.

When you first try to access the ILOM Service Processor, you are prompted to type the default user name and password. The default user name and password are:

Default user name: root Default password: changeme

2. From the System Monitoring tab, select Sensor Readings.

The Sensor Readings page is displayed. See

FIGURE C-3.

Page 61

Appendix C Using the ILOM Service Processor GUI to View System Information 51

FIGURE C-3 Sensor Readings Page

3. Click the Refresh button to update the sensor readings to their current status.

4. Click a sensor to display its thresholds.

A display of properties and values appears. See the example in

FIGURE C-4.

Page 62

52 Sun Fire X4140, X4240, and X4440 Servers Diagnostics Guide • August 2008

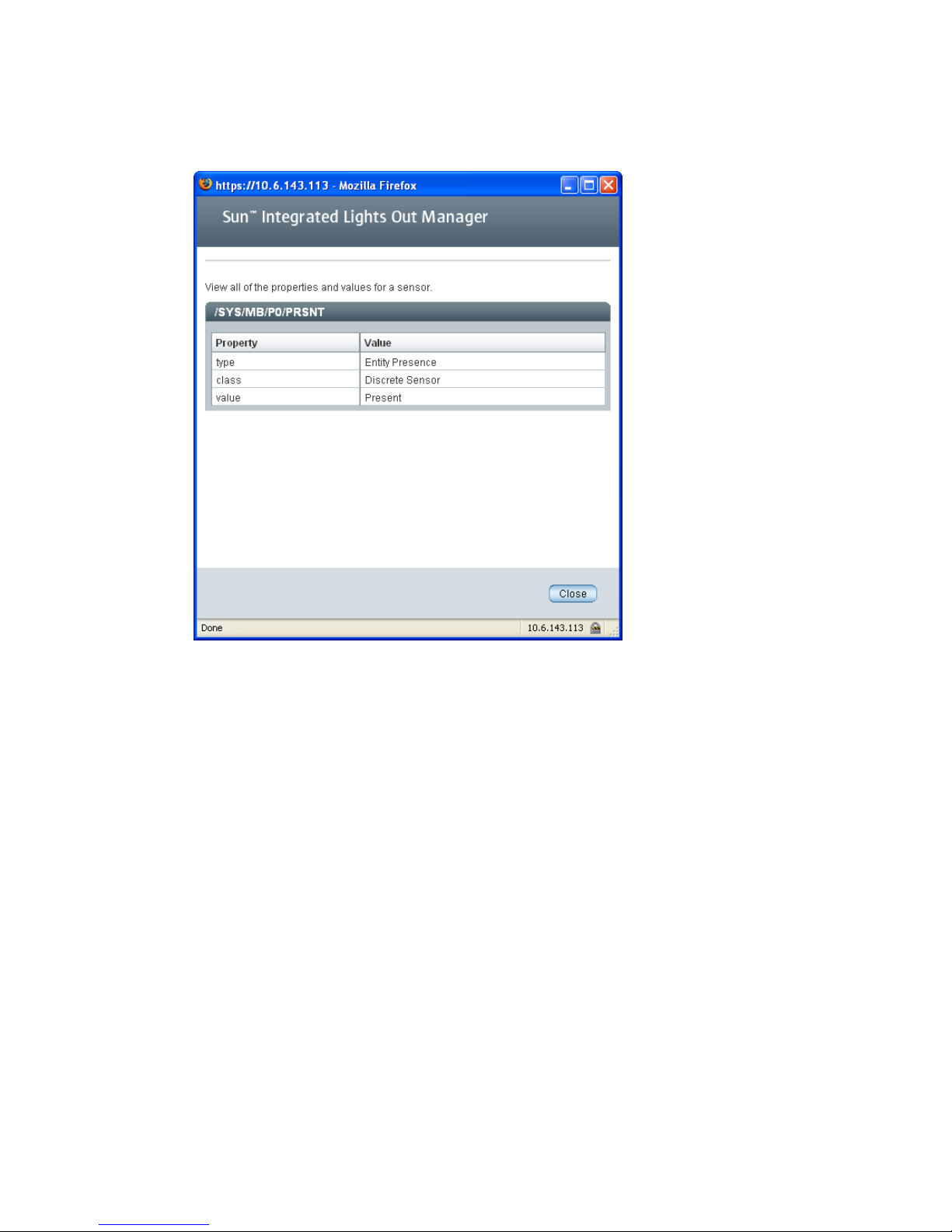

FIGURE C-4 Sensor Details Page

5. If the problem with the server is not evident after viewing sensor readings information, continue with “Running SunVTS Diagnostic Tests” on page 7.

Page 63

APPENDIX

Error Handling

This appendix contains information about how the servers process and log errors. See the following sections:

■ “Handling of Uncorrectable Errors” on page 53

■ “Handling of Correctable Errors” on page 56

■ “Handling of Parity Errors (PERR)” on page 59

■ “Handling of System Errors (SERR)” on page 61

■ “Handling Mismatching Processors” on page 63

■ “Hardware Error Handling Summary” on page 64

Handling of Uncorrectable Errors

This section lists facts and considerations about how the server handles uncorrectable errors.

Note – The BIOS ChipKill feature must be disabled if you are testing for failures of

multiple bits within a DRAM (ChipKill corrects for the failure of a four-bit wide DRAM).

■ The BIOS logs the error to the SP system event log (SEL) through the board

management controller (BMC).

■ The SP's SEL is updated with the failing DIMM pair's particular bank address.

■ The system reboots.

■ The BIOS logs the error in DMI.

Page 64

54 Sun Fire X4140, X4240, and X4440 Servers Diagnostics Guide • August 2008

Note – If the error is on low 1MB, the BIOS freezes after rebooting. Therefore, no

DMI log is recorded.

■ An example of the error reported by the SEL through IPMI 2.0 is as follows:

■ When low memory is erroneous, the BIOS is frozen on pre-boot low memory

test because the BIOS cannot decompress itself into faulty DRAM and execute the following items:

■ When the faulty DIMM is beyond the BIOS's low 1MB extraction space, proper

boot happens:

■ Note the following considerations for this revision:

■ Uncorrectable ECC Memory Error is not reported.

■ Multi-bit ECC errors are reported as Memory Device Disabled.

■ On first reboot, BIOS logs a HyperTransport Error in the DMI log.

■ The BIOS disables the DIMM.

■ The BIOS sends the SEL records to the BMC.

■ The BIOS reboots again.

■ The BIOS skips the faulty DIMM on the next POST memory test.

■ The BIOS reports available memory, excluding the faulty DIMM pair.

FIGURE D-1 shows an example of a DMI log screen from BIOS Setup Page.

ipmitool> sel list 100 | 08/26/2005 | 11:36:09 | OEM #0xfb | 200 | 08/26/2005 | 11:36:12 | System Firmware Error | No usable system memory 300 | 08/26/2005 | 11:36:12 | Memory | Memory Device Disabled | CPU 0 DIMM 0

ipmitool> sel list 100 | 08/26/2005 | 05:04:04 | OEM #0xfb | 200 | 08/26/2005 | 05:04:09 | Memory | Memory Device Disabled | CPU 0 DIMM 0

Page 65

Appendix D Error Handling 55

FIGURE D-1 DMI Log Screen, Uncorrectable Error

Page 66

56 Sun Fire X4140, X4240, and X4440 Servers Diagnostics Guide • August 2008

Handling of Correctable Errors

This section lists facts and considerations about how the server handles correctable errors.

■ During BIOS POST:

■ The BIOS polls the MCK registers.

■ The BIOS logs to DMI.

■ The BIOS logs to the SP SEL through the BMC.

■ The feature is turned off at OS boot time by default.

■ The following Linux versions report correctable ECC syndrome and memory fill

errors in /var/log, if kernel flag mce is indicated at boot time, or if mce is enabled through kernel compile or installation:

■ RH3 Update5 single core

■ RH4 Update1+

■ SLES9 SP1+

■ The Linux kernel (x86_64/kernel/mce.c) repeats a report every 30 seconds

until another error is encountered and an 8131 flag is reset.

■ Solaris support provides full self-healing and automated diagnosis for the CPU

and Memory subsystems.

■ FIGURE D-2 shows an example of a DMI log screen from BIOS Setup Page:

Page 67

Appendix D Error Handling 57

FIGURE D-2 DMI Log Screen, Correctable Error

■ If during any stage of memory testing the BIOS finds itself incapable of

reading/writing to the DIMM, it takes the following actions:

■ The BIOS disables the DIMM as indicated by the Memory Decreased message

in the example in

EXAMPLE D-1.

■ The BIOS logs an SEL record.

■ The BIOS logs an event in DMI.

Page 68

58 Sun Fire X4140, X4240, and X4440 Servers Diagnostics Guide • August 2008

EXAMPLE D-1 DMI Log Screen, Correctable Error, Memory Decreased

Page 69

Appendix D Error Handling 59

Handling of Parity Errors (PERR)

This section lists facts and considerations about how the server handles parity errors (PERR).

■ The handling of parity errors works through NMIs.

■ During BIOS POST, the NMI is logged in the DMI and the SP SEL. See the

following example command and output:

■ FIGURE D-3 shows an example of a DMI log screen from BIOS Setup Page, with a

parity error.

[root@d-mpk12-53-238 root]# ipmitool -H 129.146.53.95 -U root -P changeme -I lan sel list -v

SEL Record ID : 0100 Record Type : 00 Timestamp : 01/10/2002 20:16:16 Generator ID : 0001 EvM Revision : 04 Sensor Type : Critical Interrupt Sensor Number : 00 Event Type : Sensor-specific Discrete Event Direction : Assertion Event Event Data : 04ff00 Description : PCI PERR

Page 70

60 Sun Fire X4140, X4240, and X4440 Servers Diagnostics Guide • August 2008

FIGURE D-3 DMI Log Screen, PCI Parity Error

■ The BIOS displays the following messages and freezes (during POST or DOS):

■ NMI EVENT!!

■ System Halted due to Fatal NMI!

■ The Linux NMI trap catches the interrupt and reports the following NMI

“confusion report” sequence:

Aug 5 05:15:00 d-mpk12-53-159 kernel: Uhhuh. NMI received for unknown reason 2d on CPU 0. Aug 5 05:15:00 d-mpk12-53-159 kernel: Uhhuh. NMI received for unknown reason 2d on CPU 1. Aug 5 05:15:00 d-mpk12-53-159 kernel: Dazed and confused, but trying to continue Aug 5 05:15:00 d-mpk12-53-159 kernel: Do you have a strange power saving mode enabled? Aug 5 05:15:00 d-mpk12-53-159 kernel: Uhhuh. NMI received for unknown reason 3d on CPU 1. Aug 5 05:15:00 d-mpk12-53-159 kernel: Dazed and confused, but trying to continue Aug 5 05:15:00 d-mpk12-53-159 kernel: Do you have a strange power saving mode enabled? Aug 5 05:15:00 d-mpk12-53-159 kernel: Uhhuh. NMI received for unknown reason 3d on CPU 0. Aug 5 05:15:00 d-mpk12-53-159 kernel: Dazed and confused, but trying to continue Aug 5 05:15:00 d-mpk12-53-159 kernel: Do you have a strange power saving mode enabled? Aug 5 05:15:00 d-mpk12-53-159 kernel: Dazed and confused, but trying to continue Aug 5 05:15:00 d-mpk12-53-159 kernel: Do you have a strange power saving mode enabled?

Page 71

Appendix D Error Handling 61

Note – The Linux system reboots, but does not inform the BIOS of this incident.

Handling of System Errors (SERR)

This section lists facts and considerations about how the server handles system errors (SERR).

■ System error handling works through the HyperTransport Synch Flood Error

mechanism on 8111 and 8131.

■ The following events happen during BIOS POST:

■ POST reports any previous system errors at the bottom of screen. See

FIGURE D-4 for an example.

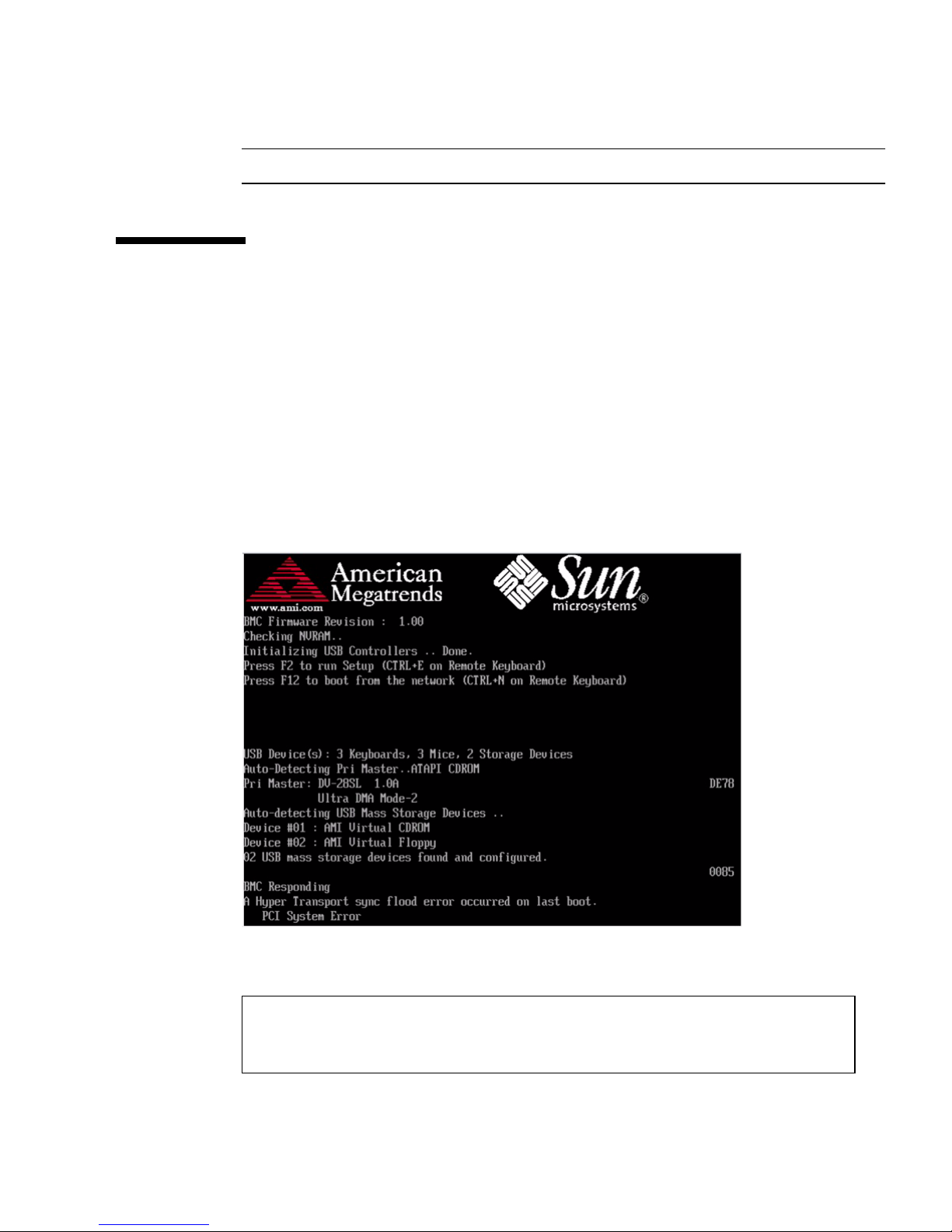

FIGURE D-4 POST Screen, Previous System Error Listed

■ SERR and Hypertransport Synch Flood Error are logged in DMI and the SP

SEL. See the following sample output:

SEL Record ID : 0a00 Record Type : 00 Timestamp : 08/10/2005 06:05:32 Generator ID : 0001

Page 72

62 Sun Fire X4140, X4240, and X4440 Servers Diagnostics Guide • August 2008

■ FIGURE D-5 shows an example DMI log screen from the BIOS Setup Page with a

system error.

FIGURE D-5 DMI Log Screen with Error

EvM Revision : 04 Sensor Type : Critical Interrupt Sensor Number : 00 Event Type : Sensor-specific Discrete Event Direction : Assertion Event Event Data : 05ffff Description : PCI SERR

Page 73

Appendix D Error Handling 63

Handling Mismatching Processors

This section lists facts and considerations about how the server handles mismatching processors.

■ The BIOS performs a complete POST.

■ The BIOS displays a report of any mismatching CPUs, as shown in the following

example:

■ No SEL or DMI event is recorded.

■ The system enters Halt mode and the following message is displayed:

AMIBIOS(C)2003 American Megatrends, Inc. BIOS Date: 08/10/05 14:51:11 Ver: 08.00.10 CPU : AMD Opteron(tm) Processor 254, Speed : 2.4 GHz Count : 3, CPU Revision, CPU0 : E4, CPU1 : E6 Microcode Revision, CPU0 : 0, CPU1 : 0 DRAM Clocking CPU0 = 400 MHz, CPU1 Core0/1 = 400 MHz Sun Fire Server, 1 AMD North Bridge, Rev E4 1 AMD North Bridge, Rev E6 1 AMD 8111 I/O Hub, Rev C2 2 AMD 8131 PCI-X Controllers, Rev B2 System Serial Number : 0505AMF028 BMC Firmware Revision : 1.00 Checking NVRAM.. Initializing USB Controllers .. Done. Press F2 to run Setup (CTRL+E on Remote Keyboard) Press F12 to boot from the network (CTRL+N on Remote Keyboard) Press F8 for BBS POPUP (CTRL+P on Remote Keyboard)

******** Warning: Bad Mix of Processors ********* Multiple core processors cannot be installed with single core processors. Fatal Error... System Halted.

Page 74

64 Sun Fire X4140, X4240, and X4440 Servers Diagnostics Guide • August 2008

Hardware Error Handling Summary

TABLE D-1 summarizes the most common hardware errors that you might encounter

with these servers.

TABLE D-1 Hardware Error Handling Summary

Error Description Handling

Logged (DMI Log or SP SEL) Fatal?

SP failure The SP fails to boot

upon application of system power.

The SP controls the system reset, so the system may power on, but will not come out of reset.

• During power up, the SP's boot loader turns on the power LED.

• During SP boot, Linux startup, and SP sanity check, the power LED blinks.

• The LED is turned off when SP management code (the IPMI stack) is started.

• At exit of BIOS POST, the LED goes to STEADY ON state.

Not logged Fatal

SP failure SP boots but fails

POST.

The SP controls the system RESET, so the system will not come out of reset.

Not logged Fatal

BIOS POST failure

Server BIOS does not pass POST.

There are fatal and non-fatal errors in POST. The BIOS does detect some errors that are announced during POST as POST codes on the bottom right corner of the display on the serial console and on the video display. Some POST codes are forwarded to the SP for logging.

The POST codes do not come out in sequential order and some are repeated, because some POST codes are issued by code in add-in card BIOS expansion ROMs.

In the case of early POST failures (for example, the BSP fails to operate correctly), BIOS just halts without logging.

For some other POST failures subsequent to memory and SP initialization, the BIOS logs a message to the SP’s SEL.

Page 75

Appendix D Error Handling 65

Single-bit DRAM ECC error

With ECC enabled in the BIOS Setup, the CPU detects and corrects a single-bit error on the DIMM interface.

The CPU corrects the error in hardware. No interrupt or machine check is generated by the hardware. The polling is triggered every half-second by SMI timer interrupts and is done by the BIOS SMI handler.

The BIOS SMI handler starts logging each detected error and stops logging when the limit for the same error is reached. The BIOS's polling can be disabled through a software interface.

SP SEL Normal

operation

Single four-bit DRAM error

With CHIP-KILL enabled in the BIOS Setup, the CPU detects and corrects for the failure of a four-bit-wide DRAM on the DIMM interface.

The BIOS SMI handler starts logging each detected error and stops logging when the limit for the same error is reached. The BIOS's polling can be disabled through a software interface.

SP SEL Normal

operation

Uncorrectable DRAM ECC error

The CPU detects an uncorrectable multiple-bit DIMM error.

The “sync flood” method is used to prevent the erroneous data from being propagated across the Hypertransport links. The system reboots, the BIOS recovers the machine check register information, maps this information to the failing DIMM (when CHIPKILL is disabled) or DIMM pair (when CHIPKILL is enabled), and logs that information to the SP.

The BIOS will halt the CPU.

SP SEL Fatal

Unsupported DIMM configuration

Unsupported DIMMs are used, or supported DIMMs are loaded improperly.

The BIOS displays an error message, logs an error, and halts the system.

DMI Log SP SEL

Fatal

HyperTranspor t link failure

CRC or link error on one of the Hypertransport Links.

Sync floods on HyperTransport links, the machine resets itself, and error information gets retained through reset.

The BIOS reports, A Hyper Transport

sync flood error occurred on last boot, press F1 to continue.

DMI Log SP SEL

Fatal

TABLE D-1 Hardware Error Handling Summary (Continued)

Error Description Handling

Logged (DMI Log or SP SEL) Fatal?

Page 76

66 Sun Fire X4140, X4240, and X4440 Servers Diagnostics Guide • August 2008

PCI SERR, PERR

System or parity error on a PCI bus.

Sync floods on HyperTransport links, the machine resets itself, and error information gets retained through reset.

The BIOS reports, A Hyper Transport

sync flood error occurred on last boot, press F1 to continue.

DMI Log SP SEL

Fatal

BIOS POST Microcode Error

The BIOS could not find or load the CPU Microcode Update to the CPU. The message most likely appears when a new CPU is installed in a motherboard with an outdated BIOS. In this case, the BIOS must be updated.

The BIOS displays an error message, logs the error to DMI, and boots.

DMI Log Non-fatal

BIOS POST CMOS Checksum Bad

CMOS contents failed the Checksum check.

The BIOS displays an error message, logs the error to DMI, and boots.

DMI Log Non-fatal

Unsupported CPU configuration

The BIOS supports mismatched frequency and steppings in CPU configuration, but some CPUs might not be supported.

The BIOS displays an error message, logs the error, and halts the system.

DMI Log Fatal

Correctable error

The CPU detects a variety of correctable errors in the MCi_STATUS registers.

The CPU corrects the error in hardware. No interrupt or machine check is generated by the hardware. The polling is triggered every half second by SMI timer interrupts, and is done by the BIOS SMI handler.

The SMI handler logs a message to the SP SEL if the SEL is available, otherwise SMI logs a message to DMI. The BIOS's polling can be disabled through software SMI.

DMI Log SP SEL

Normal operation

Single fan failure

Fan failure is detected by reading tach signals.

The Front Fan Fault, Service Action Required, and individual fan module LEDs are lit.

SP SEL Non-fatal

TABLE D-1 Hardware Error Handling Summary (Continued)

Error Description Handling

Logged (DMI Log or SP SEL) Fatal?

Page 77

Appendix D Error Handling 67

Multiple fan failure

Fan failure is detected by reading tach signals.

The Front Fan Fault, Service Action Required, and individual fan module LEDs are lit.

SP SEL Fatal

Single power supply failure

When any of the AC/DC PS_VIN_GOOD or PS_PWR_OK signals are deasserted.

Service Action Required, and Power Supply Fault LEDs are lit.

SP SEL Non-fatal

DC/DC power converter failure

Any POWER_GOOD signal is deasserted from the DC/DC converters.

The Service Action Required LED is lit, the system is powered down to standby power mode, and the Power LED enters standby blink state.

SP SEL Fatal

Voltage above/below threshold

The SP monitors system voltagesand detects voltage above or below a given threshold.

The Service Action Required LED and Power Supply Fault LED blink.

SP SEL Fatal

High temperature

The SP monitors CPU and system temperatures, and detects temperatures above a given threshold.

The Service Action Required LED and System Overheat Fault LED blink. The motherboard is shut down above the specified critical level.

SP SEL Fatal

Processor thermal trip

The CPU drives the THERMTRIP_L signal upon detecting an overtemp condition.

CPLD shuts down power to the CPU. The Service Action Required LED and System Overheat Fault LED blink.

SP SEL Fatal

Boot device failure

The BIOS is not able to boot from a device in the boot device list.

The BIOS goes to the next boot device in the list. If all devices in the list fail, an error message is displayed, retry from beginning of list. SP can control/change boot order.

DMI Log Non-fatal

TABLE D-1 Hardware Error Handling Summary (Continued)

Error Description Handling

Logged (DMI Log or SP SEL) Fatal?

Page 78

68 Sun Fire X4140, X4240, and X4440 Servers Diagnostics Guide • August 2008

Page 79

Index

BIOS

changing POST options, 28 event logs, 21 POST code checkpoints, 33 POST codes, 31 POST overview, 25 redirecting console output for POST, 26

Bootable Diagnostics CD, 8

comments and suggestions, x component inventory

viewing with ILOM SP GUI, 48 console output, redirecting, 26 correctable errors, handling, 56

diagnostic software

Bootable Diagnostics CD, 8

SunVTS, 7 DIMMs

error handling, 12

fault LEDs, 15

isolating errors, 18

population rules, 11

emergency shutdown, 4 error handling

correctable, 56

DIMMs, 12

hardware errors, 64 mismatching processors, 63 parity errors, 59 system errors, 61

uncorrectable errors, 53 event logs, BIOS, 21 external inspection, 3 external LEDs, 37

faults, DIMM, 15 FRU inventory

viewing with ILOM SP GUI, 48

gathering service visit information, 2 general troubleshooting guidelines, 2 graceful shutdown, 4 guidelines for troubleshooting, 2

hardware errors, handling, 64

ILOM SP GUI

general information, 43

serial connection, 44

time stamps, 47

viewing component inventory, 48

viewing sensors, 50

viewing SP event log, 45 inspection

Page 80

70 Sun Fire X4140, X4240, and X4440 Servers Diagnostics Guide • August 2008

external, 3 internal, 4

Integrated Lights-Out Manager Service Processor,

See ILOM SP GUI internal inspection, 4 isolating DIMM ECC errors, 18

LEDs

external, 37 LEDs, ports, and slots illustrated, 38, 39 locations of ports, slots, and LEDs (illustration), 38,

mismatching processors, error handling, 63

parity errors, handling, 59 PERR, 59 population rules for DIMMs, 11 ports, slots, and LEDs illustrated, 38, 39 POST

changing options, 28

code checkpoints, 33

codes table, 31

overview, 25

redirecting console output, 26 Power button, 4, 5 Power button location, 4, 5 power off procedure, 4 power problems, troubleshooting, 3 power-on self test, see POST processors mismatched, error, 63

redirecting console output, 26 related documentation, viii

safety guidelines, vii sensors

viewing with ILOM SP GUI, 50 serial connection to ILOM SP, 44 SERR, 61

Service Processor system event log, See SP SEL service visit information, gathering, 2 shutdown procedure, 4 slots, ports, and LEDs illustrated, 38, 39 SP event log

viewing with ILOM SP GUI, 45

SP SEL

time stamps, 47

SunVTS

Bootable Diagnostics CD, 8 documentation, 8 logs, 9 overview, 7

system errors, handling, 61

third-party Web sites, ix time stamps in ILOM SP SEL, 47 troubleshooting

guidelines, 2

typographic conventions, ix

uncorrectable errors, handling, 53
