Sun Fire™ X4170, X4270 and
X4275 Servers
Getting Started Guide
This guide describes the minimum steps you must perform to power on and boot your server for the first time.
Detailed installation information can be found in the Sun Fire X4170, X4270, and X4275 Servers Installation Guide,
which is available at the Sun documentation web sites for the individual servers. Refer to the section
“Documentation for This Product” at the end of this document for a list of documentation for your system.
Contents
The Sun FireTMX4170, X4270, and X4275 Servers are shipped with safety documentation and the components
that you ordered for your configuration. Optional components or rack installation equipment might be packaged
and shipped separately.
Documentation and Media Kit
The Documentation and Media Kit is an orderable option for your system. It contains installation
documentation, the Tools and Drivers CD/DVD, Sun Installation Assistant CD/DVD, and the SunVTS CD/
DVD. You can order the Documentation and Media Kit at any time, using the following marketing part number:
X5900A.
You also can download the documentation and software that are included in the Documentation and Media Kit
from these sites:
■ For documentation:
■ http://docs.sun.com/app/docs/prod/sf.x4170
■ http://docs.sun.com/app/docs/prod/sf.x4270
■ http://docs.sun.com/app/docs/prod/sf.x4275
■ For software:
■ http://www.sun.com/servers/x64/x4170/downloads.jsp
■ http://www.sun.com/servers/x64/x4270/downloads.jsp
■ http://www.sun.com/servers/x64/x4275/downloads.jsp
1
Page 2
Safety and Compliance Information
Before performing an installation, refer to the following documents for safety information regarding the Sun Fire
X4170, X4270, and X4275 Servers:
■ Important Safety Information for Sun Hardware Systems – Printed document included in the ship kit.
■ Sun Fire X4170, X4270, and X4275 Servers Safety and Compliance Guide – Online at Sun documentation site.
▼ Install Optional Components
Before installing the server into the rack, you must first install any optional components that you ordered with
the server, such as DIMMs, PCIe cards, and so on. Refer to the Sun Fire X4170, X4270, and X4275 Servers
Installation Guide for the instructions on installing optional components.
▼ Mount the System in a Rack
For rackmounting instructions, refer to the documents included with the rail kit, the service label on the server,
and to the Sun Fire X4170, X4270, and X4275 Servers Installation Guide.
▼ Connect the Cables and Apply Standby Power to the Server
1. Connect a serial cable between the server’s SER MGT port (FIGURE 1) and a serial terminal device.
This connection provides your initial communication with the SP. The device must be set up to communicate
using 9600 baud, 8 bit, no parity, 1 stop bit. A null modem configuration is needed, meaning the transmit and
receive signals are reversed (crossed over) for DTE to DTE communications. You can use the supplied RJ-45
crossover adapter with a standard RJ-45 cable to achieve the null modem configuration. (
Sun Fire X4170 Server. The locations of the back panel connectors and ports are the same on the Sun Fire
X4270 and X4275 Servers.)
FIGURE 1 shows the

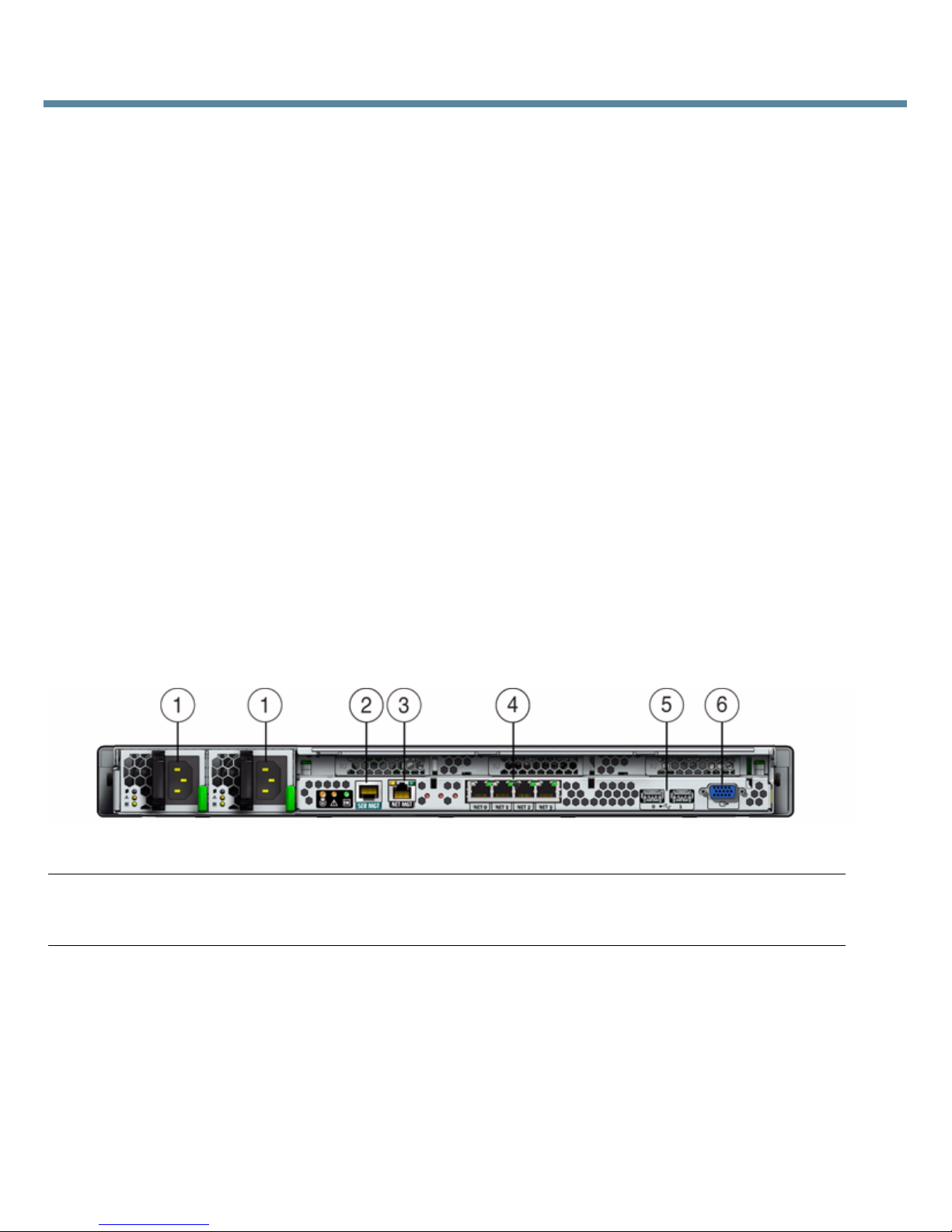

FIGURE 1 Back Panel of Server (Server Connections)
Figure Legend
1 AC power connectors 4 Gigabit Ethernet ports NET 0, 1, 2, 3 (Intel)
2 Serial management (SER MGT)/RJ-45 serial port 5 USB 2.0 ports (0, 1)
3 Service processor network management (NET MGT) port 6 HD15 video connector (analog VGA)
2. (Optional) Connect an Ethernet cable between the server’s NET MGT port and the network to which
future connections to the SP will be made.
After the initial configuration of the system using the SER MGT port, communication with the SP is usually
performed through this Ethernet interface.
3. Connect an Ethernet cable between one of the server’s NET ports (NET 0, 1, 2, or 3) and the network to
which the server will communicate.
2
Page 3
4. Connect the power cords to AC power connectors and, to enhance redundancy, to separate power sources.
When power is applied, the SP initializes and the Power/OK LED flashes (
FIGURE 2 and FIGURE 3). After a
few minutes, the SP Login prompt appears on the terminal device. Note that the server is not initialized or
powered on yet. For more information on connectivity options, refer to the Sun Fire X4170, X4270, and X4275
Servers Installation Guide.
At this point, standby power is supplied only to the service processor and power supply fans. Do not apply
main power to the rest of the server until you are ready to install a platform operating system. In standby
power mode, the Power/OK LED on the server’s front panel flashes. (
FIGURE 2 shows the Sun Fire X4170
Server. Sun Fire X4270 Server front panel controls are at the same location as Sun Fire X4170 controls.
FIGURE 3 shows the Sun Fire X4275 Server.)

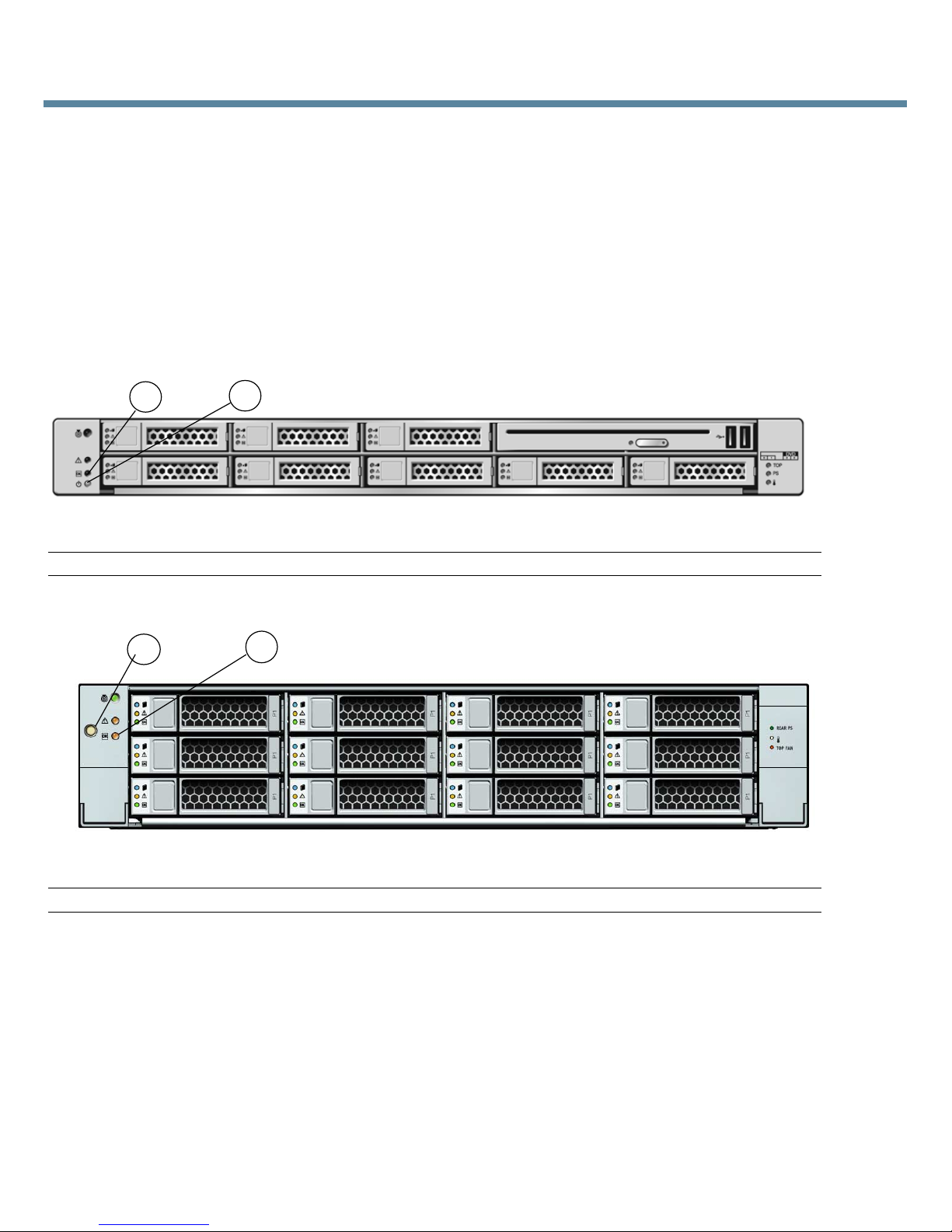

FIGURE 2 Sun Fire X4170 Server Front Panel Controls
1 2
Figure Legend
1 Power/OK LED 2 Power Button
FIGURE 3 Sun Fire X4275 Server Front Panel Controls
1
Figure Legend
1 Power Button 2 Power/OK LED
2
▼ Connect to ILOM and Configure an IP Address
There are three methods for connecting to the Integrated Lights Out Manager (ILOM) SP to perform initial setup
and configure an IP address:
■ Connect to ILOM using a serial connection
■ Connect to ILOM using an Ethernet connection (DHCP)
■ Connect to ILOM using an Ethernet connection (static IP address)
3
Page 4
For information about managing Sun systems using ILOM, go to: http://www.sun.com/
systemmanagement/index.jsp
Refer to the Sun Fire X4170, X4270, and X4275 Servers Installation Guide and the Sun Integrated Lights Out Manager
2.0 User’s Guide or the Sun Integrated Lights Out Manager (ILOM) 3.0 Documentation Collection for instructions on
using ILOM to configure and manage the server.
▼ Apply Main Power to the Server
Use this procedure to apply main power to the server.
Caution – Do not operate the server without all fans, component heatsinks, air baffles, and the cover
installed. Severe damage to server components can occur if operated without adequate cooling
mechanisms.
1. Verify that the power cord has been connected (
2. Use a non-metallic stylus to press and release the recessed Power button on the front panel.
When main power is applied to the full server, the Power/OK LED lights and remains on.
FIGURE 1) and that standby power is on.
Note – The first time the server powers on, the power-on self-test (POST) can take up to 1 minute to complete.
3. Continue with initial software setup tasks, as described in the Sun Fire X4170, X4270, and X4275 Servers
Installation Guide.
▼ Update Firmware
Sun highly recommends that you use the Sun Installation Assistant (SIA) to easily install updated firmware, a
supported Linux or Windows operating system, and the latest hardware drivers. SIA is available in the
Documentation and Media Kit and online at http://www.sun.com/systemmanagement/sia.jsp. Also refer
to the Sun Installation Assistant for Windows and Linux User’s Guide (820-3357) at http://docs.sun.com/app/
docs/prod/install.x64svr#hic.
To update ILOM firmware and system BIOS without using SIA, refer to the Sun Integrated Lights Out Manager 2.0
User’s Guide at http://docs.sun.com/app/docs/prod/int.lights.mgr20#hic or the Sun Integrated
Lights Out Manager (ILOM) 3.0 Documentation Collection at http://docs.sun.com/app/docs/prod/
int.lights.mgr30#hic.
All firmware and drivers are located on the Tools and Drivers CD/DVD, which is part of the Documentation
and Media Kit. You also can download the software on the Tools and Drivers CD/DVD from the Sun software
download sites (see links in the following table).
▼ Set Up the Platform Operating System and Driver Software
After configuring the ILOM SP with network settings, you can configure a preinstalled or supported operating
system (OS).
The following table provides additional references for installing an operating system, system device drivers,
firmware, and patches.
4
Page 5
Operating
system: Read this document:
For installation information,
go to:
For latest software
releases (tools, drivers,
firmware, SIA), go to:
For patch information,
go to:
Preinstalled
Solaris OS
Solaris OS Sun Fire X4170, X4270,
OpenSolaris
VMware
(ESX)
Windows • Windows or Linux:
Linux • Redhat: https://
Sun Fire X4170, X4270,
and X4275 Servers
Installation Guide
and X4275 Servers Linux,
VMware, and Solaris OS
Installation Guide
Sun Installation
Assistant for Windows
and Linux User’s Guide
• Windows: Sun Fire
X4170, X4270, and
X4275 Servers
Windows OS
Installation Guide
• Linux:
Sun Fire X4170,
X4270, and X4275
Servers Linux,
VMware, and Solaris
OS Installation Guide
http://www.sun.com/
software/
preinstall/
http://www.sun.com/
software/solaris
http://
www.vmware.com/
• http://
www.sun.com/
systemmanagement/
sia.jsp
• http://
www.sun.com/
servers/x64/
x4170/os.jsp
• http://
www.sun.com/
servers/x64/
x4270/os.jsp
• http://
www.sun.com/
servers/x64/
• http://
www.sun.com/
servers/x64/
x4170/
downloads.jsp
• http://
www.sun.com/
servers/x64/
x4270/
downloads.jsp
• http://
www.sun.com/
servers/x64/
x4275/
downloads.jsp
• Windows or Linux:
Use SIA for
automatic
firmware update
and driver
installation
• See the Sun Fire
X4170, X4270, and
X4275 Servers Product
Notes
• http://
sunsolve.sun.com
http://
www.vmware.com/
download/
http://
update.microsoft.
com/
www.redhat.com/
apps/download/
• SUSE: http://
download.novell.
com/index.jsp
x4275/os.jsp
▼ Register the System
1. Locate the serial number for your system on the EZ label or on the customer information sheet that came
with the system.
2. Go to the following web site to register your system:
http://www.sun.com/service/warranty/index.xml#reg
Documentation for This Product
The following table lists the documentation and the approximate order of the tasks that you might perform
when installing a new system. The most up-to-date versions of the documents are at the Sun web sites:
■ http://docs.sun.com/app/docs/prod/sf.x4170
■ http://docs.sun.com/app/docs/prod/sf.x4270
■ http://docs.sun.com/app/docs/prod/sf.x4275
5
Page 6
For translated versions of the documentation, go to the http://docs.sun.com web site, then select your
language to access the documentation set in your language.
Task Document Type Part Number
Review safety information. Safety and Compliance Guide 820-5832
Important Safety Information for Sun Hardware 816-7190
Review known issues and workarounds. Product Notes 820-5831
Install the server into rack. Set up and configure
Installation Guide 820-5827
hardware. Configure the preinstalled Solaris OS.
(Optional) Install and configure the Solaris,
Linux, or Windows OS.
Manage server accounts, monitor alerts, set
remote access and redirection, and view
component status and event logs.
Set BIOS and RAID settings. Service
Linux, VMware, and Solaris OS Installation Guide 820-5828
Windows OS Installation Guide 820-5829
Sun ILOM 2.0 Documentation:
app/docs/prod/int.lights.mgr20#hic
Sun ILOM 3.0 Documentation:
app/docs/prod/int.lights.mgr30#hic
http://docs.sun.com/
http://docs.sun.com/
Service Manual 820-5830
components.
Sun Contact Information
Topic URL
Technical support http://www.sun.com/service/contacting
Submitting comments on this document http://www.sun.com/hwdocs/feedback
Please include the title and part number of your document with your feedback:
Sun Fire X4170, X4270, and X4275 Servers Getting Started Guide (820-5833-11)
Driver and firmware updates See “Set Up the Platform Operating System and Driver Software.”
multiple
documents
multiple
documents
