Sun Blade™ T6300 Server Module
Installation Guide
Part No. 820-0275-10
April 2007, Revision A
Page 2
Please
Recycle
Copyright 2007Sun Microsystems,Inc., 4150 Network Circle, SantaClara, California95054, U.S.A. All rights reserved.
Sun Microsystems, Inc.has intellectual property rights relating to technologythat isdescribed in this document. Inparticular, and without
limitation, theseintellectual propertyrights may include one ormore ofthe U.S. patents listed athttp://www.sun.com/patentsand one or
more additional patents orpending patent applications in theU.S. and in other countries.
This documentand the product to which it pertainsare distributedunder licenses restricting their use,copying, distribution,and
decompilation. Nopart of the product or of thisdocument may be reproduced in any formby anymeans without priorwritten authorizationof
Sun andits licensors, if any.
Third-party software, including fonttechnology, iscopyrighted andlicensed from Sun suppliers.
Parts ofthe productmay be derived from BerkeleyBSD systems,licensed from the University ofCalifornia. UNIXis a registered trademark in
the U.S.and in other countries, exclusivelylicensed throughX/Open Company,Ltd.
Sun, SunMicrosystems, theSun logo, docs.sun.com, OpenBoot, Java,Sun Blade, J2EE, JumpStart, SunBluePrints, and Solaris are trademarks or
registered trademarks of SunMicrosystems, Inc.in the U.S. and inother countries.
All SPARCtrademarks areused under license and are trademarksor registeredtrademarks ofSPARCInternational, Inc. in the U.S.and in other
countries. Products bearingSPARCtrademarks arebased upon an architecture developed by SunMicrosystems, Inc.
The OPENLOOK and Sun™ Graphical UserInterface was developed by SunMicrosystems, Inc.for its users and licensees.Sun acknowledges
the pioneeringefforts ofXerox inresearching anddeveloping the concept of visualor graphical user interfaces forthe computer industry.Sun
holds anon-exclusive license from Xeroxto the Xerox GraphicalUser Interface,which license also covers Sun’slicensees who implement OPEN
LOOK GUIsand otherwise comply with Sun’swritten license agreements.
U.S. GovernmentRights—Commercial use.Government users are subject tothe SunMicrosystems, Inc. standard license agreement and
applicable provisions ofthe FAR and its supplements.
DOCUMENTATION IS PROVIDED “AS IS” AND ALL EXPRESS OR IMPLIED CONDITIONS, REPRESENTATIONS AND WARRANTIES,
INCLUDING ANYIMPLIED WARRANTY OFMERCHANTABILITY,FITNESS FOR A PARTICULAR PURPOSE OR NON-INFRINGEMENT,
ARE DISCLAIMED, EXCEPT TO THE EXTENT THAT SUCH DISCLAIMERS ARE HELD TO BE LEGALLY INVALID.
Copyright 2007Sun Microsystems,Inc., 4150 Network Circle, SantaClara, Californie95054, États-Unis. Tous droits réservés.
Sun Microsystems, Inc.possède les droits de propriété intellectuels relatifs àla technologiedécrite dans ce document. Enparticulier, et sans
limitation, cesdroits depropriété intellectuelspeuvent inclure un ou plusieursdes brevetsaméricains listés sur le site
http://www.sun.com/patents, unou lesplusieurs brevets supplémentaires ainsi que les demandesde breveten attente aux les États-Uniset
dans d’autres pays.
Ce documentet le produit auquel il se rapportesont protégéspar un copyright et distribuéssous licences, celles-ci en restreignent l’utilisation,
la copie,la distribution, et la décompilation.Aucune partie de ce produit oudocument nepeut être reproduite sousaucune forme, parquelque
moyen quece soit, sans l’autorisation préalableet écrite de Sun etde sesbailleurs de licence,s’il yen a.
Tout logicieltiers, satechnologie relative aux polices decaractères, comprise,est protégépar un copyright et licenciépar des fournisseurs de
Sun.
Des partiesde ceproduit peuventdériver dessystèmes BerkeleyBSD licenciéspar l’Université de Californie. UNIX est une marque déposée aux
États-Unis etdans d’autrespays, licenciée exclusivement par X/OpenCompany,Ltd.
Sun, SunMicrosystems, lelogo Sun, docs.sun.com, OpenBoot, Java,Sun Blade, J2EE, JumpStart, SunBluePrints, et Solaris sont desmarques de
fabrique oudes marquesdéposées de Sun Microsystems, Inc.aux États-Uniset dans d’autres pays.
Toutes lesmarques SPARCsont utiliséessous licence et sont desmarques defabrique ou desmarques déposéesde SPARCInternational, Inc.
aux États-Uniset dans d’autres pays. Les produits portantles marquesSPARCsont basés sur une architecture développée par Sun
Microsystems, Inc.
L’interfaceutilisateur graphiqueOPEN LOOK et Sun™ aété développée par Sun Microsystems,Inc. pourses utilisateurs etlicenciés. Sun
reconnaît les efforts depionniers deXerox dans la recherche et le développementdu conceptdes interfaces utilisateurvisuelles ougraphiques
pour l’industrieinformatique. Sun détient une licensenon exclusivede Xerox sur l’interface utilisateurgraphique Xerox,cette licence couvrant
également leslicenciés de Sun implémentant lesinterfaces utilisateur graphiques OPEN LOOKet seconforment en outre auxlicences écritesde
Sun.
LA DOCUMENTATION EST FOURNIE “EN L’ÉTAT” ET TOUTES AUTRES CONDITIONS, DÉCLARATIONS ET GARANTIES EXPRESSES
OU TACITES SONT FORMELLEMENT EXCLUES DANS LA LIMITE DE LA LOI APPLICABLE, Y COMPRIS NOTAMMENT TOUTE
GARANTIE IMPLICITE RELATIVE À LA QUALITÉ MARCHANDE, À L’APTITUDE À UNE UTILISATION PARTICULIÈRE OU À
L’ABSENCE DE CONTREFAÇON.
Page 3
iii
Contents
Preface v
1. Before You Begin the Installation 1
Hardware Overview 1
Physical Specifications 2
Environmental Requirements 2
Front Panel Features 3
Dongle Cable 4
Remote Manageability With ALOM CMT 5
2. Installation and Configuration 7
Handling the Module 7

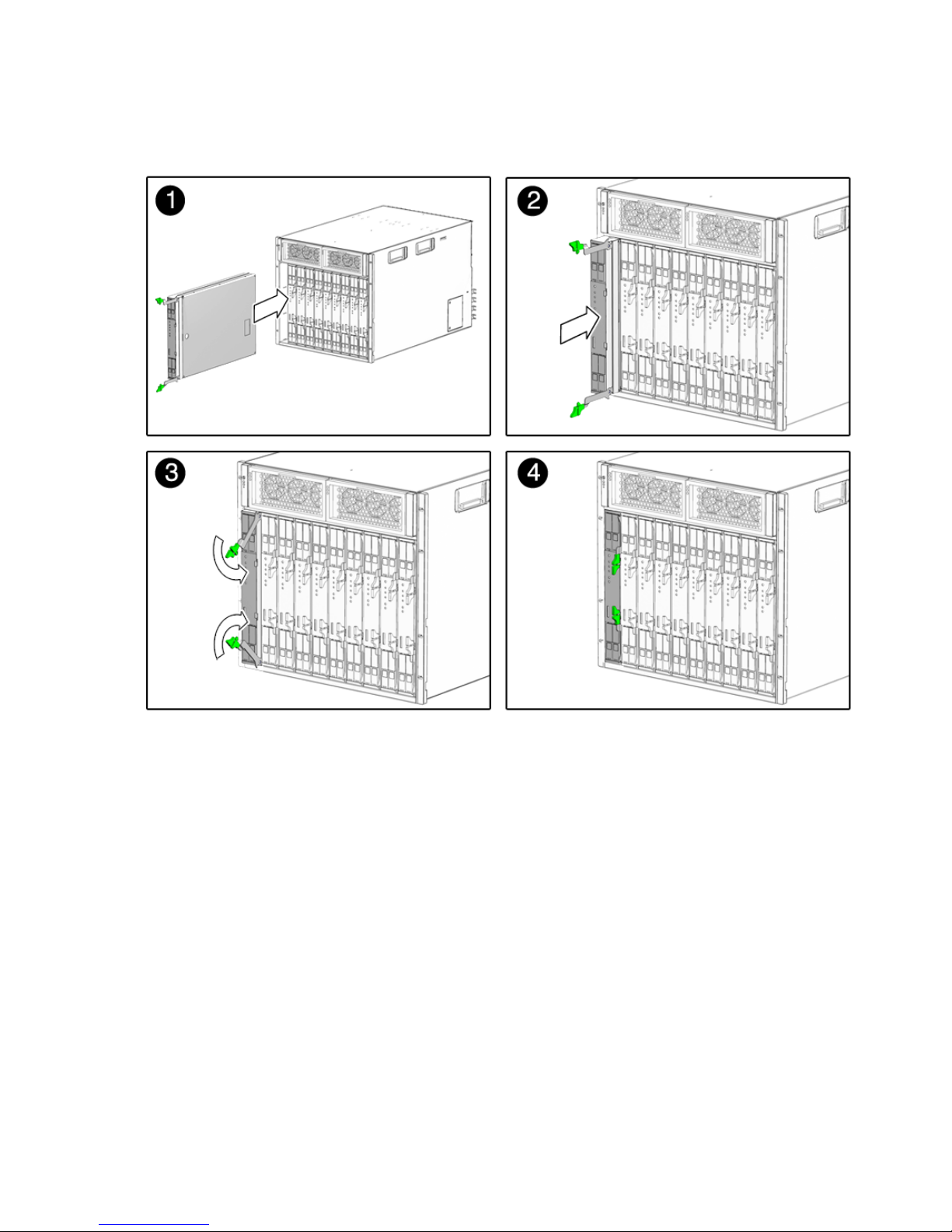

Installing the Module Into the Chassis 8
▼ To Install the Module 8
Powering On the Server Module 10
▼ To Power On the Server Module 10
Installing an Operating System on a Hard Drive 10
JumpStart Server Installation 11
JumpStart Server Configuration 11
Page 4
iv Sun Blade T6300 Server Module Installation Guide • April 2007
Page 5
v
Preface
This guide includes general information about the Sun Blade™ T6300 server module
and instructions for installing the server module into the Sun Blade T6000 chassis.
Using UNIX Commands
This document might not contain information about basic UNIX®commands and
procedures such as coping files, listing directories, and configuring devices. Refer to
the following for this information:
■ Software documentation that you received with your system
■ Solaris™ Operating System documentation, which is at:
http://docs.sun.com
Page 6
vi Sun Blade T6300 Server Module Installation Guide • April 2007
Shell Prompts
Typographic Conventions
Shell Prompt
C shell machine-name%
C shell superuser machine-name#
Bourne shell and Korn shell $
Bourne shell and Korn shell superuser #
Typeface
*
* The settings on your browser might differ from these settings.
Meaning Examples
AaBbCc123 The names of commands, files,
and directories; on-screen
computer output
Edit your.login file.
Use ls -a to list all files.
% You have mail.
AaBbCc123 What you type, when contrasted
with on-screen computer output
%
su
Password:
AaBbCc123 Book titles, new words or terms,
words to be emphasized.
Replace command-line variables
with real names or values.
Read Chapter 6 in the User’s Guide.
These are called class options.
You must be superuser to do this.
To delete a file, type rm filename.
Page 7
Preface vii
Related Documentation
The documents listed as online are available at:
http://www.sun.com/documentation/
Application Title Part Number Format Location
Late breaking news Sun Blade T6300 Server
Module Product Notes
820-0278 HTML
and PDF
Online
Administration Sun Blade T6300 Server
Module Administration
Guide
820-0277 HTML
and PDF
Online
Service Sun Blade T6300 Server
Module Service Manual
820-0276 HTML
and PDF
Online
Safety and
compliance
Sun Blade T6300 Server
Module Safety and
Compliance Manual
820-0279 HTML
and PDF
Online
ALOM Advanced Lights Out
Management (ALOM) CMT
v1.3 Guide
819-7981 HTML
and PDF
Online
Page 8
viii Sun Blade T6300 Server Module Installation Guide • April 2007
Documentation, Support, and Training
Third-Party Web Sites
Sun is not responsible for the availability of third-party web sites mentioned in this
document. Sun does not endorse and is not responsible or liable for any content,
advertising, products, or other materials that are available on or through such sites
or resources. Sun will not be responsible or liable for any actual or alleged damage
or loss caused by or in connection with the use of or reliance on any such content,
goods, or services that are available on or through such sites or resources.
Sun Welcomes Your Comments
Sun is interested in improving its documentation and welcomes your comments and
suggestions. You can submit your comments by going to:
http://www.sun.com/hwdocs/feedback
Please include the title and part number of your document with your feedback:
Sun Blade T6300 Server Module Installation Guide, part number 820-0275-10
Sun Function URL
Documentation http://www.sun.com/documentation/
Support http://www.sun.com/support/
Training http://www.sun.com/training/
Page 9
1
CHAPTER
1
Before You Begin the Installation
This chapter includes general information to help you become familiar with the
hardware and software features of the Sun Blade T6300 server module.
This chapter contains the following topics:
■ “Hardware Overview” on page 1
■ “Physical Specifications” on page 2
■ “Environmental Requirements” on page 2
■ “Front Panel Features” on page 3
■ “Dongle Cable” on page 4
■ “Remote Manageability With ALOM CMT” on page 5
Hardware Overview
The Sun Blade T6300 server module includes the following hardware features:
■ One 6- or 8-core, 32-thread CPU, up to 1.4 GHz
■ Eight DIMM slots that support up to 32 Gbytes of memory
■ One dual gigabit Ethernet controller
■ One SAS/SATA controller
■ One to four SAS/SATA drives (optional)
■ Two USB ports connected to dongle cable (the dongle cable is optional)
■ One DB9 port connected to the dongle cable
■ One RJ-45 serial virtual console port connected to the dongle cable
Page 10
2 Sun Blade T6300 Server Module Installation Guide • April 2007
Physical Specifications
The Sun Blade T6300 server module is approximately 12.6 x 19.5 inches in a 1U form
factor. The server module plugs in to a 10U chassis. The chassis provides cooling
through six redundant fans and 12V power to each module. In addition to 12V
power, the chassis provides 3.3 VAUX to each module to power the local FRU ID
EEPROM. This power enables the chassis management module (CMM) to query
each module slot prior to 12V and fan application to validate that there is sufficient
power and cooling to support the number and type of modules installed in the
chassis.
Environmental Requirements
TABLE 1-1 includes the environmental requirements that are specific to the Sun Blade
T6300 server module.
TABLE 1-1 Sun Blade T6300 Server Module Environmental Requirements
Condition Requirement
Operating temperature 5˚C to 35˚C noncondensing
Nonoperating temperature -40˚C to 65˚C
Operating humidity 10% to 90% noncondensing (27˚C max. wet bulb)
Nonoperating humidity 93% noncondensing (38˚ C max. wet bulb)
Operating altitude 3000 meters at 35˚C
Nonoperating altitude 12,000 meters
Page 11
Chapter 1 Before You Begin the Installation 3
Front Panel Features
This section contains an illustration of the front panel, along with descriptions of the
features.

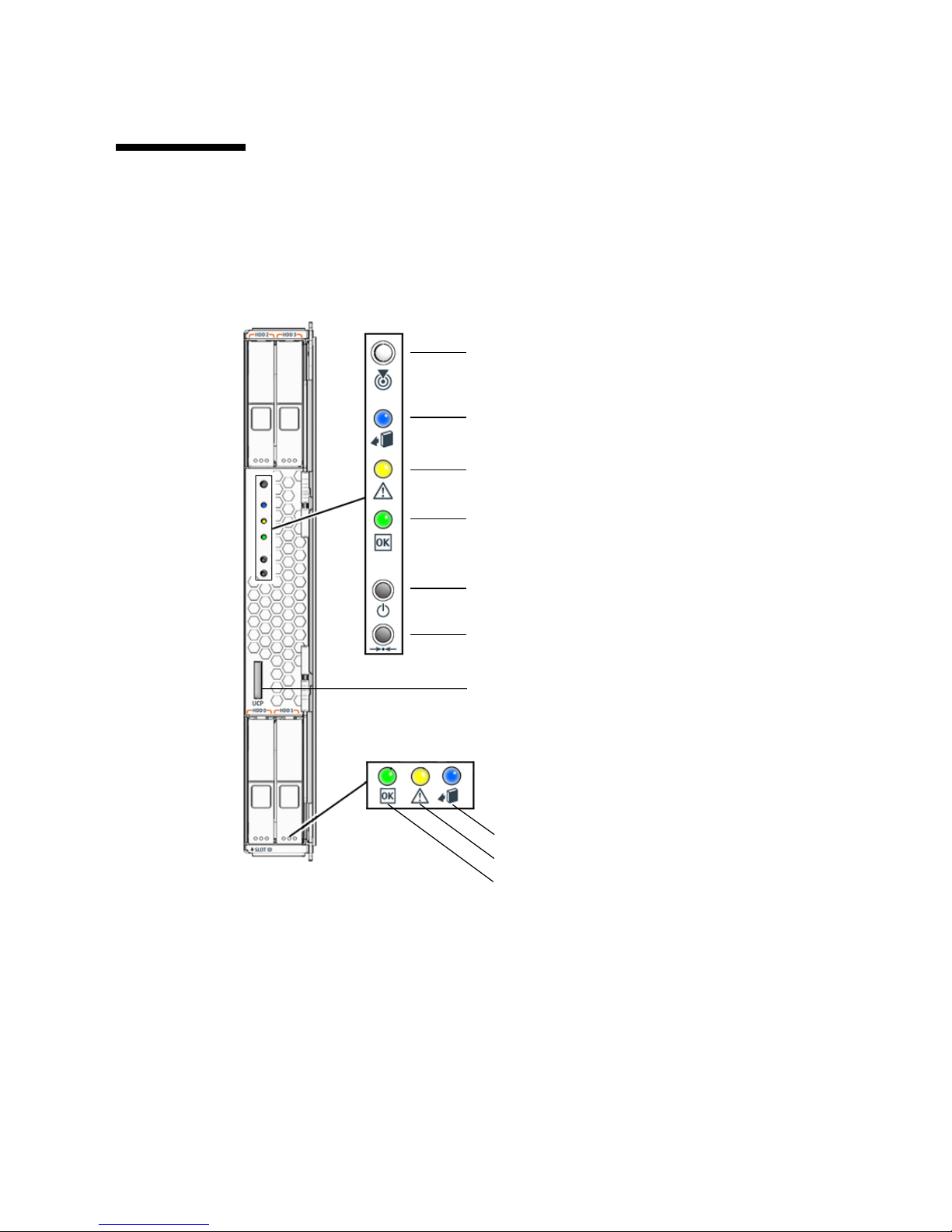

FIGURE 1-1 Sun Blade T6300 Server Module Front Panel
Universal connector port
Locator LED
Ready to Remove LED
Service Action Required LED
OK LED
Power button
Reset button (nonfunctional)
Drive OK LED
Fault LED (not used)
Drive Ready to Remove LED
Page 12
4 Sun Blade T6300 Server Module Installation Guide • April 2007
Dongle Cable
You can order a dongle cable with the Sun Blade T6300 server module, or you can
use the dongle cable that shipped with the Sun Blade T6000 chassis.
FIGURE 1-2
shows the connections on the dongle cable.

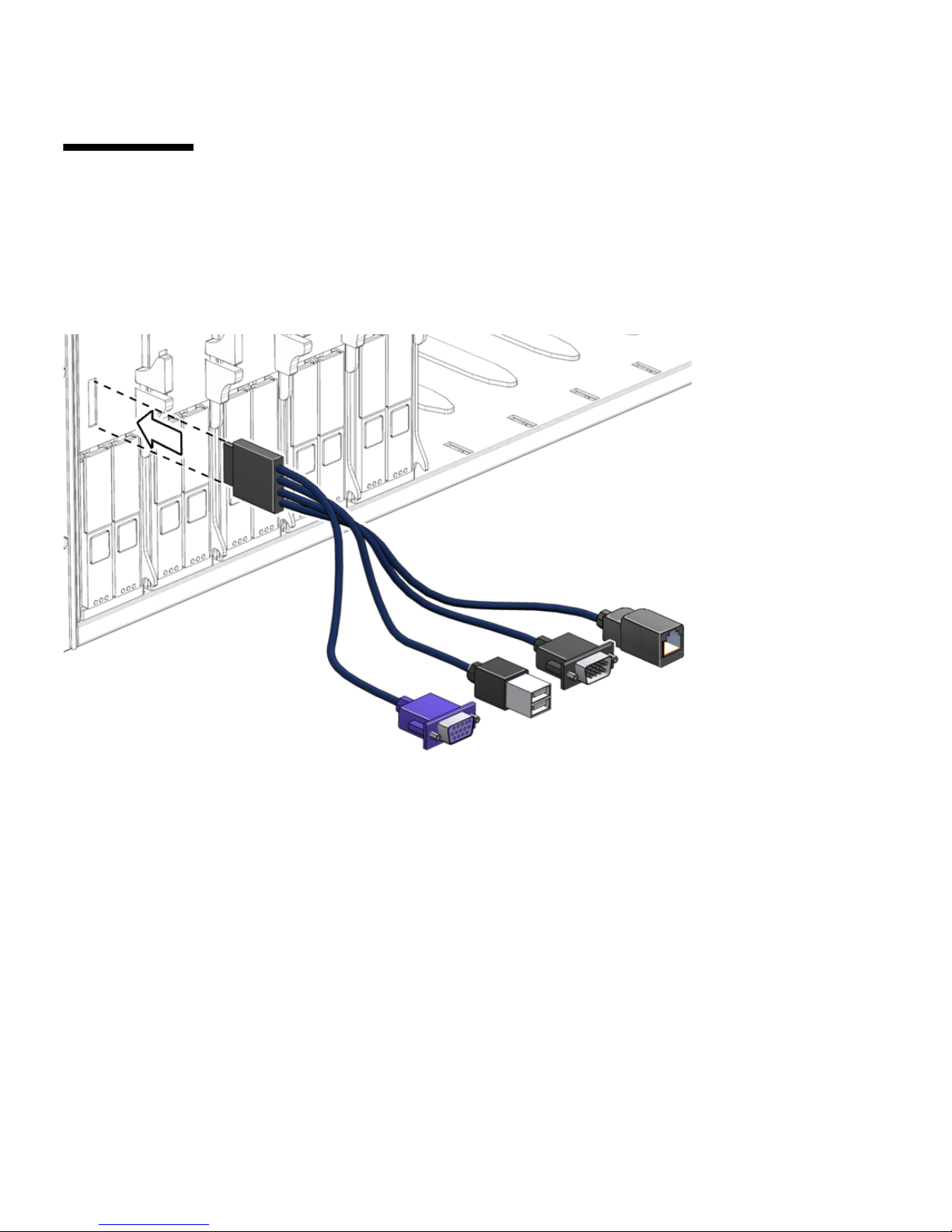

FIGURE 1-2 Dongle Cable Connections
Dual USB
Virtual console
DB9 serial
Video (not supported)
Page 13
Chapter 1 Before You Begin the Installation 5
Remote Manageability With ALOM
CMT
The Sun Advanced Lights Out Management (ALOM CMT) feature is a system
controller that enables you to remotely manage and administer the Sun Blade T6300
server module.
The ALOM CMT software is preinstalled as firmware, and initializes as soon as you
apply power to the system. You can customize ALOM CMT to work with your
particular installation.
ALOM CMT enables you to monitor and control your server over a network, or by
using a dedicated serial port for connection to a terminal or terminal server. ALOM
CMT provides a command-line interface that you can use to remotely administer
geographically distributed or physically inaccessible machines. In addition, ALOM
CMT enables you to run diagnostics (such as POST) remotely that would otherwise
require physical proximity to the server’s serial port.
You can configure ALOM CMT to send email alerts of hardware failures, hardware
warnings, and other events related to the server or to ALOM CMT. The ALOM CMT
circuitry runs independently of the server, using the server’s standby power.
Therefore, ALOM CMT firmware and software continue to function when the server
operating system goes offline or when the server is powered off. ALOM CMT
monitors the following Sun Blade T6300 server module components:
■ CPU temperature conditions
■ Disk drive status
■ Fan speed and status
■ Voltage conditions
For information about configuring and using the ALOM system controller, refer to
the Advanced Lights Out Management (ALOM) CMT v1.3 Guide (819-7981).
Page 14
6 Sun Blade T6300 Server Module Installation Guide • April 2007
Page 15
7
CHAPTER
2
Installation and Configuration
After you have familiarized yourself with the features and components of the Sun
Blade T6300 server module, use the instructions in this chapter to install the server
into the chassis.
This chapter contains the following topics:
■ “Handling the Module” on page 7
■ “Installing the Module Into the Chassis” on page 8
■ “Powering On the Server Module” on page 10
■ “Installing an Operating System on a Hard Drive” on page 10
Handling the Module
Electronic equipment is susceptible to damage by static electricity. Use a grounded
antistatic wriststrap, footstrap, or equivalent safety equipment to prevent
electrostatic damage (ESD) when you install the Sun Blade T6300 server module.
Caution – To protect electronic components from electrostatic damage, which can
permanently disable the system or require repair by Sun service technicians, place
components on an antistatic surface, such as an antistatic discharge mat, an antistatic
bag, or a disposable antistatic mat. Wear an antistatic grounding strap connected to a
metal surface on the chassis when you work on system components.
Page 16
8 Sun Blade T6300 Server Module Installation Guide • April 2007
Installing the Module Into the Chassis
This section contains instructions for installing the module into the chassis.
Note – The following instructions assume that you have connected a terminal to a
terminal server, connected the terminal server to the chassis, and set up the network
management port on the chassis. If not, refer to the Sun Blade T6000 Chassis
Installation Guide for instructions on how to set up the network management port.
▼ To Install the Module
1. Ensure that you have the MAC address and serial number from the labels on the
shipping container and server module.
2. Locate the desired slot in the chassis.
3. Remove the filler panel if applicable.
4. Attach the dongle cable to the server module.
5. Attach an serial cable from the terminal server to the virtual console connector on
the dongle cable.
You must connect the terminal server to the dongle cable before you insert the server
module so that you can see the boot messages for the ALOM CMT software.
6. Position the server module vertically so that the ejectors are on the right.
The following illustration shows the server module being inserted into the chassis.
Page 17
Chapter 2 Installation and Configuration 9
FIGURE 2-1 Inserting the Sun Blade T6300 Server Module Into the Chassis
7. Push the server module into the slot until the module is about two inches from the
chassis front.
8. Push the ejectors down until they snap into place.
The server module goes into standby mode and the ALOM CMT system controller
initializes as soon as you insert the server module into the chassis.
Page 18
10 Sun Blade T6300 Server Module Installation Guide • April 2007
Powering On the Server Module
After the system controller boots, the system controller login prompt is displayed on
the serial console. Use the instructions in this section to log in to the system
controller and to power on the server module.
▼ To Power On the Server Module
1. Log in to the system controller as the default admin user.
2. Press Enter at the password promt.
By default, the server module is shipped with no password for the admin account.
Before you power on the server module, you should set the password with the
password command.
3. Use the password command to set the admin password.
4. Issue the poweron -c command.
You see an sc> alert message on the system console. This indicates that the system
has reset. After you issue the poweron command, the CPU and memory controllers
initialize, and eventually the OpenBoot™ PROM firmware initializes. After a
number of system messages, you will see the ok prompt.
Installing an Operating System on a
Hard Drive
The basic configuration of the Sun Blade T6300 server module ships with or without
empty hard drives. If you ordered an optional hard drive and want to install the
Solaris OS on the hard drive in slot 0, you must install the operating system from
your network.
sc> password new-password
Page 19
Chapter 2 Installation and Configuration 11
For instructions on how to install the operating system from the network, refer to the
Solaris 10 6/06 Installation Guide: Network-Based Installations. You can obtain this guide
at:
http://docs.sun.com/
JumpStart Server Installation
You can use a JumpStart™ server to install the OS. A JumpStart server consists of
several components:
■ Install client – The target system to be installed or upgraded.
■ Boot server – The network providing a failsafe operating system to the installing
client.
The boot image is architecture independent, providing basic operating system
services to all hardware supported by that operating system release. The Boot
Server provides RARP, TFTP and bootparam services.
■ Configuration server – A system that helps client systems determine unique
profile information.
Partition sizes, lists of software components to install, begin and finish scripts,
and more are specified in a profile served by the configuration server.
■ Install server – The source of the software packages to be installed on the client.
Note – The boot server, configuration server, and install server can be one server.
They do not need to be physically separate servers.
JumpStart Server Configuration
Specific instructions on how to configure a JumpStart server are out of the scope of
this document. However, configuring the JumpStart server consists of the following
tasks:
1. Load the Solaris OS
2. Create the configuration server
3. Create the configuration files
4. Verify the configuration file syntax
5. Share the installation directory
Page 20
12 Sun Blade T6300 Server Module Installation Guide • April 2007
6. Start the NFS server
7. Configure the client access
The configuration and use of the JumpStart server depends on the configuration of
your network. For a full explanation of these steps and instructions on how to
configure the JumpStart server, refer to the following documents:
■ Configuring JumpStart Servers to Provision Sun x86-64 Systems by Pierre Reynes,
Network Systems Group, Sun BluePrints™ OnLine, February 2005
■ Building a JumpStart Infrastructure by Alex Noordergraaf, Enterprise Engineering,
Sun BluePrints OnLine, April 2001
You can obtain these documents from the following site:
http://www.sun.com/blueprints
Loading...
