eWAY™ JDBC/ODBC ADAPTER USER’S GUIDE

Release 5.1.2

Copyright © 2006 Sun Microsystems, Inc., 4150 Network Circle, Santa Clara, California 95054, U.S.A. All rights reserved. Sun Microsystems, Inc. has intellectual property rights relating to technology embodied in the product that is described in this document. In particular, and without limitation, these intellectual property rights may include one or more of the U.S. patents listed at http://www.sun.com/patents and one or more additional patents or pending patent applications in the U.S. and in other countries. U.S. Government Rights - Commercial software. Government users are subject to the Sun Microsystems, Inc. standard license agreement and applicable provisions of the FAR and its supplements. Use is subject to license terms. This distribution may include materials developed by third parties. Sun, Sun Microsystems, the Sun logo, Java, Sun Java Composite Application Platform Suite, SeeBeyond, eGate, eInsight, eVision, eTL, eXchange, eView, eIndex, eBAM, eWay, and JMS are trademarks or registered trademarks of Sun Microsystems, Inc. in the U.S. and other countries. All SPARC trademarks are used under license and are trademarks or registered trademarks of SPARC International, Inc. in the U.S. and other countries. Products bearing SPARC trademarks are based upon architecture developed by Sun Microsystems, Inc. UNIX is a registered trademark in the U.S. and other countries, exclusively licensed through X/Open Company, Ltd. This product is covered and controlled by U.S. Export Control laws and may be subject to the export or import laws in other countries. Nuclear, missile, chemical biological weapons or nuclear maritime end uses or end users, whether direct or indirect, are strictly prohibited. Export or reexport to countries subject to U.S. embargo or to entities identified on U.S. export exclusion lists, including, but not limited to, the denied persons and specially designated nationals lists is strictly prohibited.

Copyright © 2006 Sun Microsystems, Inc., 4150 Network Circle, Santa Clara, California 95054, Etats-Unis. Tous droits réservés. Sun Microsystems, Inc. détient les droits de propriété intellectuels relatifs à la technologie incorporée dans le produit qui est décrit dans ce document. En particulier, et ce sans limitation, ces droits de propriété intellectuels peuvent inclure un ou plus des brevets américains listés à l'adresse http://www.sun.com/patents et un ou les brevets supplémentaires ou les applications de brevet en attente aux Etats - Unis et dans les autres pays. L'utilisation est soumise aux termes de la Licence. Cette distribution peut comprendre des composants développés par des tierces parties. Sun, Sun Microsystems, le logo Sun, Java, Sun Java Composite Application Platform Suite, Sun, SeeBeyond, eGate, eInsight, eVision, eTL, eXchange, eView, eIndex, eBAM et eWay sont des marques de fabrique ou des marques déposées de Sun Microsystems, Inc. aux Etats-Unis et dans d'autres pays. Toutes les marques SPARC sont utilisées sous licence et sont des marques de fabrique ou des marques déposées de SPARC International, Inc. aux Etats-Unis et dans d'autres pays. Les produits portant les marques SPARC sont basés sur une architecture développée par Sun Microsystems, Inc. UNIX est une marque déposée aux Etats-Unis et dans d'autres pays et licenciée exclusivement par X/Open Company, Ltd. Ce produit est couvert à la législation américaine en matière de contrôle des exportations et peut être soumis à la règlementation en vigueur dans d'autres pays dans le domaine des exportations et importations. Les utilisations, ou utilisateurs finaux, pour des armes nucléaires, des missiles, des armes biologiques et chimiques ou du nucléaire maritime, directement ou indirectement, sont strictement interdites. Les exportations ou réexportations vers les pays sous embargo américain, ou vers des entités figurant sur les listes d'exclusion d'exportation américaines, y compris, mais de manière non exhaustive, la liste de personnes qui font objet d'un ordre de ne pas participer, d'une façon directe ou indirecte, aux exportations des produits ou des services qui sont régis par la législation américaine en matière de contrôle des exportations et la liste de ressortissants spécifiquement désignés, sont rigoureusement interdites.

Part Number: 819-7387-10

Version 20061006184430

JDBC/ODBC eWay Adapter User’s Guide 2 Sun Microsystems, Inc.

Contents

Chapter 1

Introducing the JDBC/ODBC eWay 7

About Java Database Connectivity (JDBC) 7

JDBC Drivers 7

Type I: JDBC-ODBC Bridge 8 Type One Driver 8 Type II: Partial Java driver 9 Type Two Driver 9 Pure Java driver for database middleware 10 Type Three Driver 10 Type Four Driver: Direct-to-database pure Java driver 11

About the JDBC/ODBC eWay 13

What’s New in This Release 13

About This Document 14

JDBC eWay Javadoc 14

Scope 14 Intended Audience 15 Text Conventions 15

Introducing the JDBC/ODBC eWay

Welcome to the Sun SeeBeyond eWay™ JDBC/ODBC Adapter User’s Guide. This document includes information about installing, configuring, and using the Sun Java Composite Application Platform Suite JDBC/ODBC eWay™ Adapter, referred to as the JDBC eWay throughout this guide.

This chapter provides an overview of database connectivity (JDBC) and open database connectivity (ODBC) APIs. This chapter also introduces the JDBC/ODBC eWay.

What’s In This Chapter

 About Java Database Connectivity (JDBC) on page 7

 About the JDBC/ODBC eWay on page 13

 What’s New in This Release on page 13

 About This Document on page 14

 Related Documents on page 15

Chapter 1

 Sun Microsystems, Inc. Web Site on page 15

 Documentation Feedback on page 15

1.1 About Java Database Connectivity (JDBC)

Java Database Connectivity (JDBC) is an implementation of the Java programming language that dictates how databases communicate with each other. Through a standardized application programming interface (API), connectivity from database management systems (DBMS) to a wide range of SQL databases is accomplished. By deploying database drivers laced with JDBC technology, it is possible to connect to any database -- even in a heterogeneous environment -- and access tables, tabular data, flat files and more. When using JDBC, Java programmers have the ability to request connections to a database, send queries to the database using SQL statements, and receive results for advanced processing.

1.1.1 JDBC Drivers

To connect with individual databases, JDBC requires drivers for each database. Those drivers come in four varieties. Driver types 1 and 2 are typically intended for programmers that write applications. Driver types 3 and 4 are typically used by

JDBC/ODBC eWay Adapter User’s Guide 7 Sun Microsystems, Inc.

Chapter 1 Section 1.1

Introducing the JDBC/ODBC eWay About Java Database Connectivity (JDBC)

database and middleware vendors. The various driver types are described in the following sections:

 “Type I: JDBC-ODBC Bridge” on page 8

 “Type II: Partial Java driver” on page 9

 “Pure Java driver for database middleware” on page 10

 “Type Four Driver: Direct-to-database pure Java driver” on page 11

Type I: JDBC-ODBC Bridge

This combination provides JDBC access via ODBC drivers. ODBC binary code--and in many cases, database client code--must be loaded on each client machine that uses a JDBC-ODBC Bridge. A product called SequeLink from Data Direct Technologies provides a driver that supports some ODBC drivers (for example Microsoft Access).

Type one drivers provide JDBC access via one or more Open Database Connectivity (ODBC) drivers. ODBC, which predates JDBC, is widely used by developers to connect to databases in a non-Java environment.

Pros: A good approach for learning JDBC. May be useful for companies that already have ODBC drivers installed on each client machine — typically the case for Windowsbased machines running productivity applications. May be the only way to gain access to some low-end desktop databases.

Cons: Not for large-scale applications. Performance suffers because there's some overhead associated with the translation work to go from JDBC to ODBC. Doesn't support all the features of Java. User is limited by the functionality of the underlying ODBC driver.

Type One Driver

A JDBC/ODBC bridge provides JDBC API access through one or more ODBC drivers. Some ODBC native code and in many cases native database client code must be loaded on each client machine that uses this type of driver.

Figure 1 Typical Type 1 Driver Configuration

JDBC/ODBC eWay Adapter User’s Guide 8 Sun Microsystems, Inc.

Chapter 1 Section 1.1

Introducing the JDBC/ODBC eWay About Java Database Connectivity (JDBC)

The pros and cons for using this type of driver are as follows:

Pros

 Allows access to almost any database since the database ODBC drivers are readily

available

Cons

 Performance is degraded since the JDBC call goes through the bridge to the ODBC

driver then to the native database connectivity interface. The results are then sent back through the reverse process

 Limited Java feature set

 May not be suitable for a large-scale application

Type II: Partial Java driver

This type of driver converts JDBC calls into calls on the client API for Oracle, Sybase, Informix, DB2, or other DBMS. Note that, like the bridge driver, this style of driver requires that some binary code be loaded on each client machine.

This type of driver converts the calls that a developer writes to the JDBC application programming interface into calls that connect to the client machine's application programming interface for a specific database, such as IBM, Informix, Oracle or Sybase.

Pros: Performance is better than that of Type 1, in part because the Type 2 driver contains compiled code that's optimized for the back-end database server's operating system.

Cons: User needs to make sure the JDBC driver of the database vendor is loaded onto each client machine. Must have compiled code for every operating system that the application will run on. Best use is for controlled environments, such as an intranet.

Type Two Driver

A native-API partly Java technology-enabled driver converts JDBC calls into calls on the client API for DBMSs. Like the bridge driver, this style of driver requires that some binary code be loaded on each client machine. An example of this type of driver is the Oracle Thick Driver, which is also called OCI (see JDBC/ODBC Drivers on page 117 regarding JDBC eWay support of Oracle drivers).

JDBC/ODBC eWay Adapter User’s Guide 9 Sun Microsystems, Inc.

Chapter 1 Section 1.1

Introducing the JDBC/ODBC eWay About Java Database Connectivity (JDBC)

Figure 2 Typical Type 2 Driver Configuration

The pros and cons for using this type of driver are as follows:

Pros

 Allows access to almost any database since the databases ODBC drivers are readily

available

 Offers significantly better performance than the JDBC/ODBC Bridge

 Limited Java feature set

Cons

 Applicable Client library must be installed

 Type 2 driver shows lower performance than type 3 or 4

Pure Java driver for database middleware

This style of driver translates JDBC calls into the middleware vendor's protocol, which is then translated to a DBMS protocol by a middleware server. The middleware provides connectivity to many different databases.

This driver translates JDBC calls into the middleware vendor's protocol, which is then converted to a database-specific protocol by the middleware server software.

Pros: Better performance than Types 1 and 2. Can be used when a company has multiple databases and wants to use a single JDBC driver to connect to all of them. Server-based, so no need for JDBC driver code on client machine. For performance reasons, the back-end server component is optimized for the operating system on which the database is running.

Cons: Needs some database-specific code on the middleware server. If the middleware must run on different platforms, a Type 4 driver might be more effective.

Type Three Driver

A net-protocol fully Java-enabled driver translates JDBC API calls into a DBMSindependent net protocol which is then translated to a DBMS protocol by a server. This net server middleware is able to connect all of its Java technology-based clients to many

JDBC/ODBC eWay Adapter User’s Guide 10 Sun Microsystems, Inc.

Chapter 1 Section 1.1

Introducing the JDBC/ODBC eWay About Java Database Connectivity (JDBC)

different databases. Many mainframe legacy non-relational databases use this kind of driver.

Figure 3 Typical Type 3 Middleware Driver Configuration

The pros and cons for using this type of driver are as follows:

Pros

 Allows access to almost any database since the databases ODBC drivers are readily

available

 Offers significantly better performance than the JDBC/ODBC Bridge and Type 2

Drivers

 Advanced Java feature set

 Scalable

 Caching

 Advanced system administration

 Does not require applicable database client libraries

Cons

 Requires a separate JDBC middleware server to translate specific native-

connectivity interface.

Type Four Driver: Direct-to-database pure Java driver

This style of driver converts JDBC calls into a network protocol that sends the converted packets--in a proprietary format--to be used directly by DBMSs, thus allowing a direct call from the client machine to the DBMS server and providing a practical solution for intranet access. This type of driver has become very popular recently and is supported by most database software vendors. All JDBC drivers from Data Direct Technologies (driver vendor) are Type 4 drivers.

Pros: Better performance than Types 1 and 2. No need to install special software on client or server.

JDBC/ODBC eWay Adapter User’s Guide 11 Sun Microsystems, Inc.

Chapter 1 Section 1.1

Introducing the JDBC/ODBC eWay About Java Database Connectivity (JDBC)

Cons: Not optimized for server operating system, so the driver can't take advantage of operating system features. (The driver is optimized for the database and can take advantage of the database vendor's functionality.) User needs a different driver for each different database.

A native-protocol fully Java technology-enabled driver converts JDBC technology calls into the network protocol used by DBMSs directly. This allows a direct call from the client machine to the DBMS server.

Figure 4 Typical Type 4 Driver Configuration

The pros and cons for using this type of driver are as follows:

Pros

 Allows access to almost any database since the databases ODBC drivers are readily

available

 Offers significantly better performance than the JDBC/ODBC Bridge and Type 2

Drivers

 Scalable

 Caching

 Advanced system administration

 Superior performance

 Advance Java feature set

 Does not require applicable database client libraries

Cons

 Each database will require a driver

JDBC/ODBC eWay Adapter User’s Guide 12 Sun Microsystems, Inc.

Chapter 1 Section 1.2

Introducing the JDBC/ODBC eWay About the JDBC/ODBC eWay

1.2 About the JDBC/ODBC eWay

This document describes how to install and configure the JDBC/ODBC eWay. The JDBC/ODBC eWay enables the eGate system to exchange data with external databases. The Sun Java Composite Application Platform Suite (Java CAPS) contains many database eWays. You should use those eWays to interface with the databases they support. The JDBC/ODBC eWay should only be used when you have a driver or a database that is not supported by those eWays.

The JDBC/ODBC eWay uses Java Collaborations to interact with one or more external databases. By using a Java Collaboration Service it is possible for eGate components such as eWay Adapters to connect to external databases and execute business rules.

1.3 What’s New in This Release

The Sun SeeBeyond eWay JDBC Adapter includes the following changes and new features:

New for Version 5.1.2

 WebLogic Support: Supports automatic deployment of EAR files to WebLogic

Application Server version 9.1.

New for Version 5.1.1

 This is a maintenance release. No new features.

New for Version 5.1.0

 Version Control: An enhanced version control system allows you to effectively

manage changes to the eWay components.

 Multiple Drag-and-Drop Component Mapping from the Deployment Editor: The

Deployment Editor now allows you to select multiple components from the Editor’s component pane, and drop them into your Environment component.

 Support to read configuration parameters from LDAP at runtime.

 Connection Retry Support: Allows you to specify the number of attempts to

reconnect, and the interval between retry attempts, in the event of a connection failure.

 Relaunchable OTD Support: An OTD can be rebuilt and saved (under the same

name) then relaunched back to the same Java Collaboration or BPEL. This allows you to change the metadata in an OTD without having to completely recreate the business logic from scratch.

 Editable OTD Support: An existing OTD can be edited and saved using the OTD

Wizard. This allows you to make minor changes to an OTD without having to completely recreate the OTD from scratch. The OTD is then rebuilt, saved, and then relaunched back to the same Java Collaboration or BPEL.

JDBC/ODBC eWay Adapter User’s Guide 13 Sun Microsystems, Inc.

Chapter 1 Section 1.4

Introducing the JDBC/ODBC eWay About This Document

 Connectivity Map Generator: Generates and links your Project’s Connectivity Map

components using a Collaboration or Business Process.

Many of these features are documented further in the Sun SeeBeyond eGate™ Integrator User’s Guide or the Sun SeeBeyond eGate™ Integrator System Administration Guide.

1.4 About This Document

This document includes the following chapters:

 Chapter 1 “Introducing the JDBC/ODBC eWay”: Provides an overview

description of the product as well as high-level information about this document.

 Chapter 2 “Installing the JDBC/ODBC eWay”: Describes the system requirements

and provides instructions for installing the JDBC eWay.

 Chapter 3 “Setting Properties of the JDBC/ODBC eWay”: Provides instructions for

configuring the eWay to communicate with JDBC drivers.

 Chapter 4 “Using the JDBC/ODBC eWay Database Wizard”: Provides instructions

for creating Object Type Definitions to be used with the JDBC eWay.

 Chapter 5 “Using JDBC/ODBC Operations”: Provides instructions on using JDBC

database eWay operations in BPEL and JCD.

 Chapter 6 “Implementing the JDBC/ODBC eWay Sample Projects”: Provides

instructions for installing and running the sample Projects.

 Appendix A “JDBC/ODBC Drivers”: Provides instructions for installing and

running database drivers.

JDBC eWay Javadoc

A JDBC eWay Javadoc is also provided that documents the Java methods available with the JDBC eWay. The Javadoc is uploaded with the eWay’s documentation file (JDBCeWayDocs.sar) and downloaded from the Documentation tab of the Sun Java Composite Application Platform Suite Installer. To access the full Javadoc, extract the Javadoc to an easily accessible folder, and double-click the index.html file.

1.4.1 Scope

This user’s guide provides a description of the JDBC eWay Adapter. It includes directions for installing the eWay, configuring the eWay properties, and implementing the eWay’s sample Projects. This document is also intended as a reference guide, listing available properties, functions, and considerations. For a reference of available JDBC eWay Java methods, see the associated Javadoc.

JDBC/ODBC eWay Adapter User’s Guide 14 Sun Microsystems, Inc.

Chapter 1 Section 1.5

Introducing the JDBC/ODBC eWay Related Documents

1.4.2 Intended Audience

This guide is intended for experienced computer users who have the responsibility of helping to set up and maintain a fully functioning Java Composite Application Platform Suite system. This person must also understand any operating systems on which the Java Composite Application Platform Suite will be installed (Windows and UNIX), and must be thoroughly familiar with Windows-style GUI operations.

1.4.3 Text Conventions

The following conventions are observed throughout this document.

Table 1 Text Conventions

Text Convention Used For Examples

Bold Names of buttons, files, icons,

parameters, variables, methods, menus, and objects

Monospaced Command line arguments, code

samples; variables are shown in

bold italic

Blue bold

Blue underlined

1.5 Related Documents

Hypertext links within document

Hypertext links for Web addresses (URLs) or email addresses

The following Sun documents provide additional information about the Sun Java Composite Application Platform Suite product:

 Sun SeeBeyond eGate™ Integrator User’s Guide

 Sun Java Composite Application Platform Suite Installation Guide

 Click OK.  On the File menu, click Exit.  Select the eGate.sar file.

java -jar filename.jar

See

Text Conventions on page 15

http://www.sun.com

1.6 Sun Microsystems, Inc. Web Site

The Sun Microsystems web site is your best source for up-to-the-minute product news and technical support information. The site’s URL is:

http://www.sun.com

JDBC/ODBC eWay Adapter User’s Guide 15 Sun Microsystems, Inc.

Chapter 1 Section 1.7

Introducing the JDBC/ODBC eWay Documentation Feedback

1.7 Documentation Feedback

We appreciate your feedback. Please send any comments or suggestions regarding this document to:

CAPS_docsfeedback@sun.com

JDBC/ODBC eWay Adapter User’s Guide 16 Sun Microsystems, Inc.

Installing the JDBC/ODBC eWay

This chapter describes how to install the JDBC/ODBC eWay.

What’s in this Chapter

 Installing the JDBC eWay on page 17

 ICAN 5.0 Project Migration Procedures on page 19

 Installing Enterprise Manager eWay Plug-Ins on page 21

2.1 Installing the JDBC eWay

The Java Composite Application Platform Suite Installer, referred to throughout this guide as the Suite Installer, is a web-based application that is used to select and upload core products, composite applications, and add-on files (eWays) during the installation process. The following section describes how to install the components required for this eWay.

Chapter 2

Refer to the readme for the latest information on:

 Supported Operating Systems

 System Requirements

 External System Requirements

The JDBC eWay Readme is uploaded with the eWay’s documentation file (JDBCeWayDocs.sar) and can be accessed from the Documentation tab of the Suite Installer.

Note: When the Repository is running on a UNIX operating system, the eWays are loaded

from the Suite Installer running on a Windows platform connected to the Repository server using Internet Explorer.

JDBC/ODBC eWay Adapter User’s Guide 17 Sun Microsystems, Inc.

Chapter 2 Section 2.1

Installing the JDBC/ODBC eWay Installing the JDBC eWay

2.1.1 Installing the JDBC eWay on an eGate supported system

Follow the directions for installing the Sun Java Composite Application Platform Suite in the Sun Java Composite Application Platform Suite Installation Guide. After you have installed Core Products, do the following:

1 From the Sun Java Composite Application Platform Suite Installer’s Select Sun

Java Composite Application Platform Suite Products Installed table (Administration tab), click the Click to install additional products link.

2 Expand the eWay option.

3 Select the products for your Sun Java Composite Application Platform Suite and

include the following:

 File eWay (the File eWay is used by most sample Projects)

 JDBCeWay

To upload the JDBC eWay User’s Guide, Help file, Javadoc, Readme, and sample Projects, expand the Documentation option and select JDBCeWayDocs.

4 Once you have selected all of your products, click Next in the top-right or bottom-

right corner of the Select Sun Java Composite Application Platform Suite Products to Install box.

5 From the Selecting Files to Install box, locate and select your first product’s SAR

file. Once you have selected the SAR file, click Next. Your next selected product appears. Follow this procedure for each of your selected products. The Installation Status window appears and installation begins after the last SAR file has been selected.

6 Once your product’s installation is finished, continue installing the Sun Java

Composite Application Platform Suite as instructed in the Sun Java Composite Application Platform Suite Installation Guide.

Adding the eWay to an Existing Sun Java Composite Application Platform Suite Installation

If you are adding the eWay to an existing Sun Java Composite Application Platform Suite installation, do the following:

1 Complete steps 1 through 4 above.

2 Once your product’s installation is complete, open the Enterprise Designer and

select Update Center from the Tools menu. The Update Center Wizard appears.

3 For Step 1 of the wizard, simply click Next.

4 For Step 2 of the wizard, click the Add All button to move all installable files to the

Include in Install field, then click Next.

5 For Step 3 of the wizard, wait for the modules to download, then click Next.

6 The wizard’s Step 4 window displays the installed modules. Review the installed

modules and click Finish.

JDBC/ODBC eWay Adapter User’s Guide 18 Sun Microsystems, Inc.

Chapter 2 Section 2.2

Installing the JDBC/ODBC eWay ICAN 5.0 Project Migration Procedures

7 When prompted, restart the IDE (Integrated Development Environment) to

complete the installation.

After Installation

Once you install the eWay, it must then be incorporated into a Project before it can perform its intended functions. See the eGate Integrator User’s Guide for more information on incorporating the eWay into an eGate Project.

2.1.2 Extracting the Sample Projects and Javadocs

The JDBC eWay includes sample Projects and Javadocs. The sample Projects are designed to provide you with a basic understanding of how certain database operations are performed using the eWay, while Javadocs provide a list of classes and methods exposed in the eWay.

Steps to extract the Javadoc include:

1 Click the Documentation tab of the Sun Java Composite Application Platform Suite

Installer, then click the Add-ons tab.

2 Click the JDBC eWay Adapter link. Documentation for the JDBC eWay appears in

the right pane.

3 Click the icon next to Javadoc and extract the ZIP file.

4 Open the index.html file to view the Javadoc.

Steps to extract the Sample Projects include:

1 Click the Documentation tab of the Sun Java Composite Application Platform Suite

Installer, then click the Add-ons tab.

2 Click the JDBC eWay Adapter link. Documentation for the JDBC eWay appears in

the right pane.

3 Click the icon next to Sample Projects and extract the ZIP file. Note that the

JDBC_eWay_Sample.zip file contains two additional ZIP files for each sample

Project.

Refer to “Importing a Sample Project” on page 73 for instructions on importing the sample Project into your repository via the Enterprise Designer.

2.2 ICAN 5.0 Project Migration Procedures

This section describes how to transfer your current ICAN 5.0.x Projects to the Sun Java Composite Application Platform Suite 5.1.2. To migrate your ICAN 5.0.x Projects to the Sun Java Composite Application Platform Suite 5.1.2, do the following:

Export the Project

1 Before you export your Projects, save your current ICAN 5.0.x Projects to your

Repository.

JDBC/ODBC eWay Adapter User’s Guide 19 Sun Microsystems, Inc.

Chapter 2 Section 2.2

Installing the JDBC/ODBC eWay ICAN 5.0 Project Migration Procedures

2 From the Project Explorer, right-click your Project and select Export from the

shortcut menu. The Export Manager appears.

3 Select the Project that you want to export in the left pane of the Export Manager and

move it to the Selected Projects field by clicking the Add to Select Items (arrow) button, or click All to include all of your Projects.

4 In the same manner, select the Environment that you want to export in the left pane

of the Export Manager and move it to the Selected Environments field by clicking the Add to Select Items (arrow) button, or click All to include all of your Environments.

5 Browse to select a destination for your Project ZIP file and enter a name for your

Project in the ZIP file field.

6 Click Export to create the Project ZIP file in the selected destination.

Install Java CAPS 5.1.2

1 Install Java CAPS 5.1.2, including all eWays, libraries, and other components used

by your ICAN 5.0 Projects.

2 Start the Java CAPS 5.1.2 Enterprise Designer.

Import the Project

1 From the Java CAPS 5.1.2 Enterprise Designer’s Project Explorer tree, right-click the

Repository and select Import Project from the shortcut menu. The Import Manager appears.

2 Browse to and select your exported Project file.

3 Click Import. A warning message, “Missing APIs from Target Repository,” may

appear at this time. This occurs because various product APIs were installed on the ICAN 5.0 Repository when the Project was created that are not installed on the Java CAPS 5.1.2 Repository. These APIs may or may not apply to your Projects. You can ignore this message if you have already installed all of the components that correspond to your Projects. Click Continue to resume the Project import.

4 Close the Import Manager after the Project is successfully imported.

Deploy the Project

1 A new Deployment Profile must be created for each of your imported Projects.

When a Project is exported, the Project’s components are automatically “checked in” to Version Control to write-protected each component. These protected components appear in the Explorer tree with a red padlock in the bottom-left corner of each icon. Before you can deploy the imported Project, the Project’s components must first be “checked out” of Version Control from both the Project Explorer and the Environment Explorer. To “check out” all of the Project’s components, do the following:

A From the Project Explorer, right-click the Project and select Version Control >

Check Out from the shortcut menu. The Version Control - Check Out dialog box

appears.

B Select Recurse Project to specify all components, and click OK.

JDBC/ODBC eWay Adapter User’s Guide 20 Sun Microsystems, Inc.

Chapter 2 Section 2.3

Installing the JDBC/ODBC eWay Installing Enterprise Manager eWay Plug-Ins

C Select the Environment Explorer tab, and from the Environment Explorer, right-

click the Project’s Environment and select Version Control > Check Out from the shortcut menu.

D Select Recurse Environment to specify all components, and click OK.

2 If your imported Project includes File eWays, these must be reconfigured in your

Environment prior to deploying the Project.

To reconfigure your File eWays, do the following:

A From the Environment Explorer tree, right-click the File External System, and

select Properties from the shortcut menu. The Properties Editor appears.

B Set the inbound and outbound directory values, and click OK. The File External

System can now accommodate both inbound and outbound eWays.

3 Deploy your Projects.

Note: Only projects developed on ICAN 5.0.2 and later can be imported and migrated

successfully into the Sun Java Composite Application Platform Suite.

2.3 Installing Enterprise Manager eWay Plug-Ins

The Sun SeeBeyond Enterprise Manager is a Web-based interface you use to monitor and manage your Sun Java Composite Application Platform Suite applications. The Enterprise Manager requires an eWay specific “plug-in” for each eWay you install. These plug-ins enable the Enterprise Manager to target specific alert codes for each eWay type, as well as start and stop the inbound eWays.

The Sun Java Composite Application Platform Suite Installation Guide describes how to install Enterprise Manager. The Sun SeeBeyond eGate Integrator System Administration Guide describes how to monitor servers, Services, logs, and alerts using the Enterprise Manager and the command-line client.

The eWay Enterprise Manager Plug-ins are available from the List of Components to

Download under the Sun Java Composite Application Platform Suite Installer’s Downloads tab.

There are two ways to add eWay Enterprise Manager plug-ins:

 From the Sun SeeBeyond Enterprise Manager

 From the Sun Java Composite Application Platform Suite Installer

To add plug-ins from the Enterprise Manager

1 From the Enterprise Manager’s Explorer toolbar, click configuration.

2 Click the Web Applications Manager tab, go to the Auto-Install from Repository

sub-tab, and connect to your Repository.

3 Select the application plug-ins you require, and click Install. The application plug-

ins are installed and deployed.

JDBC/ODBC eWay Adapter User’s Guide 21 Sun Microsystems, Inc.

Chapter 2 Section 2.3

Installing the JDBC/ODBC eWay Installing Enterprise Manager eWay Plug-Ins

To add plug-ins from the Sun Java Composite Application Platform Suite Installer

1 From the Sun Java Composite Application Platform Suite Installer’s Downloads

tab, select the Plug-Ins you require and save them to a temporary directory.

2 From the Enterprise Manager’s Explorer toolbar, click configuration.

3 Click the Web Applications Manager tab and go to the Manage Applications sub-

tab.

4 Browse for and select the WAR file for the application plug-in that you

downloaded, and click Deploy. The plug-ins is installed and deployed.

2.3.1 Viewing Alert Codes

You can view and delete alerts using the Enterprise Manager. An alert is triggered when a specified condition occurs in a Project component. The purpose of the alert is to warn the administrator or user that a condition has occurred.

To View the eWay Alert Codes

1 Add the eWay Enterprise Manager plug-in for this eWay.

2 From the Enterprise Manager’s Explorer toolbar, click configuration.

3 Click the Web Applications Manager tab and go to the Manage Alert Codes sub-

tab. Your installed eWay alert codes display under the Results section. If your eWay alert codes are not displayed under Results, do the following:

A From the Install New Alert Codes section, browse to and select the eWay alert

properties file for the application plug-in that you added. The alert properties files are located in the alertcodes folder of your Sun Java Composite Application Platform Suite installation directory.

B Click Deploy. The available alert codes for your application are displayed under

Results. A listing of the eWay’s available alert codes is displayed in Table 2.

Table 2 Alert Codes for the JDBC/ODBC eWay

Alert Code\Description Description Details User Actions

DBCOMMON-CONNECTFAILED000001=Failed to connect to database {0} on host {1}. Reason: The Pooled connection could not be allocated: [{2}]

DBCOMMON-CONNECTFAILED000002=Operation failed because of a database connection error. Reason: [{0}]

Occurs during the initial database connection establishment.

Occurs while retrieving a connection from the database or the connection pool.

 Database is down; start your

database.

 External configuration information

is invalid. You may need to verify the following:

 Server name  Database name  User  Password  Port

 Verify that the database has not

terminated with unexpected errors.

JDBC/ODBC eWay Adapter User’s Guide 22 Sun Microsystems, Inc.

Chapter 2 Section 2.3

Installing the JDBC/ODBC eWay Installing Enterprise Manager eWay Plug-Ins

Alert Code\Description Description Details User Actions

DBCOMMON-CONNECTFAILED000005=Connection handle not usable. Reason:[{0}]

DBCOMMON-XARESOURCEFAILED000001=Unable to get XAResource for the database. Reason: [{0}]

DBCOMMON-XACONNECTFAILED000001=Failed to connect to database {0} on host {1}. The XA connection could not be allocated: Reason [{2}]

DBCOMMON-XASTARTFAILED000001=Unable to perform XAStart for the connection. Reason: [{0}]

DBCOMMON-XAENDFAILED000001=XAEnd failed. Reason: [{0}]

DBCOMMON-CANNOT-GETISOLATION-LEVEL=Unable to get isolationLevel for the transaction. Reason: [{0}]

The connection in the pool is stale and is not usable.

Could not obtain XAResource for the connection.

Occurs during the initial database connection establishment.

A connection error has occurred which caused XASTART to fail.

Error occurred during commit on XA connection.

Could not read transaction isolation information of the connection.

 Probably a database restart

occurred causing the connection to be stale, retry the operation after the database is up.

 Check if the database supports XA

and has been configured for Distributed Transaction Support.

 Check if the database is

configured for XA and if the database is running.

 External configuration information

is invalid. You may need to verify the following:

 Server name  Database name  User  Password  Port

 Check if the database is running,

and there are no network issues.

 Look for the detailed error

mentioned in the alert for the appropriate action.

 Transaction isolation is one of the

following constants:

 Connection.TRANSACTION_REA

D_UNCOMMITTED

 Connection.TRANSACTION_REA

D_COMMITTED

 Connection.TRANSACTION_REPE

ATABLE_READ

 Connection.TRANSACTION_SERI

ALIZABLE

 Connection.TRANSACTION_NO

Note: Confirm with the

vendor that the getIsolation() method of the connection is implemented correctly.

For information on Managing and Monitoring alert codes and logs, as well as how to view the alert generated by the project component during runtime, see the Sun SeeBeyond eGate™ Integrator System Administration Guide.

JDBC/ODBC eWay Adapter User’s Guide 23 Sun Microsystems, Inc.

Chapter 2 Section 2.3

Installing the JDBC/ODBC eWay Installing Enterprise Manager eWay Plug-Ins

Note: An alert code is a warning that an error has occurred. It is not a diagnostic. The user

actions noted above are just some possible corrective measures you may take. Refer to the log files for more information. For information on Managing and Monitoring alert codes and logs, see the Sun SeeBeyond eGate Integrator System Administration Guide.

JDBC/ODBC eWay Adapter User’s Guide 24 Sun Microsystems, Inc.

Chapter 3

Setting Properties of the JDBC/ODBC eWay

This chapter describes how to set the properties of the JDBC/ODBC eWay.

What’s In This Chapter

 Creating and Configuring a JDBC eWay on page 25

 Configuring the eWay Connectivity Map Properties on page 25

 Configuring the eWay Environment Properties on page 29

 eWay Connectivity Map Properties on page 30

 eWay Environment Properties on page 31

3.1 Creating and Configuring a JDBC eWay

All eWays contain a unique set of default configuration parameters. After the eWays are established and a JDBC External System is created in the Project’s Environment, the eWay parameters are modified for your specific system. The JDBC eWay configuration parameters are modified from two locations:

 Connectivity Map: These parameters most commonly apply to a specific

component eWay, and may vary from other eWays (of the same type) in the Project.

 Environment Explorer : These parameters are commonly global, applying to all

eWays (of the same type) in the Project. The saved properties are shared by all eWays in the JDBC External System window.

 Collaboration or Business Process: JDBC eWay properties may also be set from

your Collaboration or Business Process, in which case the settings will override the corresponding properties in the eWay’s Connectivity Map configuration. Any properties that are not overridden retain their configured default settings.

3.2 Configuring the eWay Connectivity Map Properties

When you connect an External Application to a Collaboration, Enterprise Designer automatically assigns the appropriate eWay to the link. Each eWay is supplied with a list of eWay connections (transaction support levels) from which to choose.

Transaction support levels provided by the JDBC eWay include:

JDBC/ODBC eWay Adapter User’s Guide 25 Sun Microsystems, Inc.

Chapter 3 Section 3.2

Setting Properties of the JDBC/ODBC eWay Configuring the eWay Connectivity Map Properties

 Outbound JDBC eWay

 Outbound JDBC XA eWay

 Outbound JDBC non-Transactional eWay

To configure the eWay properties:

1 On the Enterprise Designer’s Connectivity Map, double-click the JDBC eWay icon.

The eWay Connections window appears.

Figure 5 Connectivity Map with Components

JDBC eWay

2 Select a parameter from the list and click OK.

Figure 6 Template window

The choices to make are as follows:

 Outbound JDBC non-Transactional eWay: Also referred to as NoTransaction,

this support level indicates that the Collaboration does not support transactions. This means that when a transaction aborts, there is no ability to roll back any changes to the previous update.

 Outbound JDBC XA-eWay: Also referred to as XATransaction, this support

level allows two-phase commit. This means that the transaction, when aborted, will roll back all changes when one of the updates fails. The update could occur in the database eWay or other eWays that support XA. Additionally, the Collaboration can contain only the database eWay, or a combination of database eWay and other eWays that support XA.

JDBC/ODBC eWay Adapter User’s Guide 26 Sun Microsystems, Inc.

Chapter 3 Section 3.2

Setting Properties of the JDBC/ODBC eWay Configuring the eWay Connectivity Map Properties

 Outbound JDBC eWay: Also referred to as LocalTransaction, this support level

is opposite to NoTransaction, and this means that the transaction, when The Properties window opens, displaying the default properties for the eWay.

3 The Properties window opens, displaying the default properties for the eWay.

Figure 7 Outbound eWay Properties

3.2.1 Transaction Support Levels Between Different Versions

The types of transaction support levels used in Java CAPS 5.1.0 may be different from the support levels used in Java CAPS 5.1.2. Projects that are imported from a Java CAPS 5.1.0 version can potentially display different results, depending on whether the 5.1.0 Java Collaboration Definition (JCD) included multiple (insert/ update/delete) operations. This only affects non-XA transactions. If you are using an XA transaction, then you can skip this section.

Example:

In 5.1.0, five new records are to be inserted into a table. If the last record fails to insert (such as when a duplicate key exists), all previous records will have been inserted. This is the behavior of NoTransaction support.

JDBC/ODBC eWay Adapter User’s Guide 27 Sun Microsystems, Inc.

Chapter 3 Section 3.2

Setting Properties of the JDBC/ODBC eWay Configuring the eWay Connectivity Map Properties

In 5.1.2, five new records are to be inserted into a table. If one of the records fails to insert (such as when a duplicate key exists), the other four records will not be inserted. This is the behavior of the LocalTransaction.

In order to achieve the same result as in 5.1.0 versions, you can choose the method below:

A In the Connectivity Map, delete the link to the database external application,

then reconnect the link and select NoTransaction.

B Fill in the NoTransaction property for the database external system under the

Environment.

C Rebuild the Project.

The following charts identifies what transaction support levels changed between

5.0.5 and 5.1.2, and 5.1.0 and 5.1.2, respectively. Note that there are no changes

when migrating from ICAN version 5.0.5 and Java CAPS 5.1.2.

Figure 8 Transaction Support Levels

ICAN Version 5.0.5 Java CAPS 5.1.2

Outbound Informix eWay

(LocalTransaction)

Outbound Informix XA

eWay

(XATransaction)

Outbound Informix eWay

(LocalTransaction)

Outbound Informix XA

eWay

(XATransaction)

Java CAPS 5.1.0 Java CAPS 5.1.2

Outbound Informix eWay

(LocalTransaction)

Outbound Informix XA

eWay

(XATransaction)

Outbound Informix non-

Transaction eWay

(NoTransaction)

Outbound Informix XA

eWay

(XATransaction)

Under the scenario noted above, if you want 5.1.2 behavior for a LocalTransaction, then set your eWay connection to be Outbound JDBC/ODBC non-Transactional eWay (NoTransaction).

JDBC/ODBC eWay Adapter User’s Guide 28 Sun Microsystems, Inc.

Chapter 3 Section 3.3

Setting Properties of the JDBC/ODBC eWay Configuring the eWay Environment Properties

3.3 Configuring the eWay Environment Properties

The eWay Environment Configuration properties contain parameters that define how the eWay connects to and interacts with other eGate components within the Environment. When you create a new JDBC External System, you may configure the type of External System required.

Available External System properties include:

 Inbound JDBC eWay

 Outbound JDBC eWay

 Outbound JDBC non-Transactional eWay

 Outbound JDBC XA eWay

To Configure the Environment Properties:

1 In Enterprise Explorer, click the Environment Explorer tab.

2 Expand the Environment created for the JDBC Project and locate the JDBC External

System.

Note: For more information on creating an Environment, see the “Sun SeeBeyond eGate

Integrator Tutorial”.

3 Right-click the External System created for the JDBC Project and select Properties

from the list box. The Environment Configuration Properties window appears.

JDBC/ODBC eWay Adapter User’s Guide 29 Sun Microsystems, Inc.

Chapter 3 Section 3.4

Setting Properties of the JDBC/ODBC eWay eWay Connectivity Map Properties

Figure 9 JDBC eWay Environment Configuration

4 Click on any folder to display the default configuration properties for that section.

5 Click on any property field to make it editable.

After modifying the configuration properties, click OK to save the changes.

3.4 eWay Connectivity Map Properties

The eWay Connectivity Map consists of the following properties categories.

Outbound eWay Configuration Sections Include:

 Connectivity Map Outbound eWay Properties on page 31

Outbound non-Transactional eWay Configuration Settings Include:

 Connectivity Map Outbound non-Transactional eWay Properties on page 31

JDBC/ODBC eWay Adapter User’s Guide 30 Sun Microsystems, Inc.

Chapter 3 Section 3.5

Setting Properties of the JDBC/ODBC eWay eWay Environment Properties

Outbound XA eWay Configuration Settings Include:

 Connectivity Map Outbound XA eWay Properties on page 31

3.4.1 Connectivity Map Outbound eWay Properties

The Outbound eWay Properties include outbound parameters used by the external database.

Table 3 Outbound eWay—JDBC Connector Settings

Name Description Required Value

Description The description of the database. A valid string.

3.4.2 Connectivity Map Outbound non-Transactional eWay

Properties

The Outbound non-Transactional eWay Properties include outbound parameters used by the external database.

Table 4 Outbound non-Transactional eWay—JDBC Connector Settings

Name Description Required Value

Description The description of the database. Any valid string.

3.4.3 Connectivity Map Outbound XA eWay Properties

The Outbound XA eWay Properties include outbound parameters used by the external database.

Table 5 Outbound XA eWay—JDBC Connector Settings

Name Description Required Value

Description The description of the database. Any valid string.

3.5 eWay Environment Properties

eWay External System properties must be configured from within the Environment. Until you have successfully configured all eWays for your Java CAPS project, your project cannot be properly executed. The following list identifies the JDBC eWay properties. There are four eWay connection types that the JDBC/ODBC eWay implements.

Property Categories Configured in the Logical Host Environment

 Inbound JDBC eWay Properties on page 32

JDBC/ODBC eWay Adapter User’s Guide 31 Sun Microsystems, Inc.

Chapter 3 Section 3.5

Setting Properties of the JDBC/ODBC eWay eWay Environment Properties

 Outbound JDBC eWay Properties on page 32

 Outbound non-Transactional JDBC eWay Properties on page 35

 Outbound XA JDBC eWay Properties on page 37

3.5.1 Inbound JDBC eWay Properties

Before deploying your eWay, you will need to set the Environment properties. The Inbound JDBC eWay includes the following configuration section:

 Parameter Settings

Details for the Inbound JDBC eWay Parameter Settings are listed in Table 6.

Table 6 Inbound JDBC eWay—Parameter Settings

Name Description Required Value

Description The description of the database. A valid string.

ClassName Displays the Java class in the JDBC driver

that is used to implement the Driver Manager interface. Change this as needed for your driver.

URL This is the JDBC URL required to gain

access to the database. The URL usually starts with jdbc; followed by <subprotocol> and ends with information that identifies the data source, as follows: jdbc:<driver>:<data-sourcename>[;<attribute-name>=<attributevalue>]

A valid class name. See

JDBC/ODBC Drivers

on page 117 for some of the popular drivers you can use with this eWay.

The applicable JDBC URL. See

JDBC/ODBC Drivers

on page 117 for some of the popular drivers you can use with this eWay.

If you do not select URL in the connection method this parameter is ignored. For more information on the JDBC URL, please consult the documentation of your specific driver.

User Specifies the user name the eWay uses to

connect to the database.

Password Specifies the password used to access the

database.

3.5.2 Outbound JDBC eWay Properties

Any valid string.

The Outbound JDBC eWay includes the following configuration sections:

 JDBC Connector Settings

 Connection Retry Settings

JDBC/ODBC eWay Adapter User’s Guide 32 Sun Microsystems, Inc.

Chapter 3 Section 3.5

Setting Properties of the JDBC/ODBC eWay eWay Environment Properties

JDBC Connector Settings

Details for the JDBC Connector Settings used by the external database are detailed in Tab le 7 .

Table 7 Outbound JDBC eWay—JDBC Connector Settings

Name Description Required Value

Description The description of the database. A valid string. The configured default

is JDBC Connection Pool Datasource.

ClassName Specifies the Java class in the JDBC

driver that is used to implement the

ConnectionPoolDataSource, XADataSource interface. Change as

needed for your driver.

ClassNamefor OtherInterfaces

ServerName This setting specifies the host name

For Sun Java Composite Application Platform Suite components such as eTL that do not use ConnectionPoolDataSource, use this entry to enter the name of the driver class. This entry is not used by the JDBC eWay.

of the external database server.

A valid class name. For example: com.ibm.as400.access.AS400JDBCCon nectionPoolDataSource See

JDBC/ODBC Drivers on

page 117 for some of the popular drivers you can use with this eWay.

A valid class name.

Any valid string.

PortNumber Specifies the I/O port number on

which the server is listening for connection requests.

DatabaseName Specifies the name of the database

instance.

User Specifies the user name the eWay

uses to connect to the database.

Password Specifies the password used to

access the database.

DriverProperties The Connection Pool DataSource

implementation may need to execute additional methods to assure a successful run. The additional methods will need to be identified in the Driver Properties. You must ensure that the driver is installed on both the Logical Host machine and the Enterprise Designer machine.

Delimiter This is the delimiter character to be

used in the DriverProperties prompt.

A valid port number.

Any valid string.

Set the driver properties according to driver vendor's instruction. For example: setDefTdpName#DBSQL##setWorkspa ce#Navigator##

The default is #.

JDBC/ODBC eWay Adapter User’s Guide 33 Sun Microsystems, Inc.

Chapter 3 Section 3.5

Setting Properties of the JDBC/ODBC eWay eWay Environment Properties

Table 7 Outbound JDBC eWay—JDBC Connector Settings (Continued)

Name Description Required Value

DataSource name

MinPoolSize Specifies the minimum number of

MaxPoolSize Specifies the maximum number of

Specifies the name of the

XADataSource or ConnectionPoolDataSource

implementation, to which the DataSource object delegates behind the scenes when there is connection pooling or distributed transaction management being done.

physical connections the pool should keep available at all times. 0 (zero) indicates that there is no maximum.

The pool size you set depends on the transaction volume and response time of the application. If the pool size is too big, you may end up with too many connections with the database.

physical connections the pool should keep available at all times. 0 (zero) indicates that there is no maximum.

The name of the XADataSource or ConnectionPoolDataSource implementation. This property is Optional. In most cases, leave this box empty.

A valid numeric value. The default is 0.

A valid numeric value. The default is

10.

If the pool size is too big, you may end up with too many connections with the database. The pool size depends on the transaction volume and response time.

MaxIdleTime Specifies the maximum number of

seconds that a physical connection may remain unused before it is closed. 0 (zero) indicates that there is no limit.

A valid numeric value. The default is 0.

Connection Retry Settings

Details for the Connection Retry Settings used by the external database are detailed in Tab le 8 .

Table 8 Outbound JDBC eWay—Connection Retry Settings

Name Description Required Value

ConnectionRetries Specifies the number of retries to

establish a connection upon failure to acquire one.

A valid numeric value. The default is 0.

JDBC/ODBC eWay Adapter User’s Guide 34 Sun Microsystems, Inc.

Chapter 3 Section 3.5

Setting Properties of the JDBC/ODBC eWay eWay Environment Properties

Table 8 Outbound JDBC eWay—Connection Retry Settings (Continued)

Name Description Required Value

ConnectionRetryInterval Specifies the milliseconds of pause

before each attempt to reaccess the database. This setting is used in conjunction with the 'Connection Retries' setting.

For example: In the event that the eWay cannot connect to the Database, the eWay will try to reconnect to the database 10 times in 5 seconds apart when the Connection Retries is 10 and the Connection Retry Interval is 5000

3.5.3 Outbound non-Transactional JDBC eWay Properties

A valid numeric value. The default is 1000.

The Outbound non-Transactional JDBC eWay includes the following configuration sections:

 JDBC Connector Settings

 Connection Retry Settings

JDBC Connector Settings

Details for the JDBC Connector Settings used by the external database are detailed in Tab le 9 .

Table 9 Outbound non-Transactional eWay —JDBC Connector Settings

Name Description Required Value

Description The description of the database. A valid string. The configured default

is JDBC non-Transactional Connection Pool Datasource.

ClassName Specifies the Java class in the JDBC

driver that is used to implement the

ConnectionPoolDataSource/ XADataSource interface. Change as

needed for your driver.

ClassNamefor OtherInterfaces

ServerName This setting specifies the host name

For Sun Java Composite Application Platform Suite components that do not use ConnectionPoolDataSource, use this entry to enter the name of the driver class. This class will not be used by the eWay.

of the external database server.

A valid class name. For example:

com.ddtek.jdbcx.sequelink.SequeLin kDataSource.

A valid class name.

Any valid string.

JDBC/ODBC eWay Adapter User’s Guide 35 Sun Microsystems, Inc.

Chapter 3 Section 3.5

Setting Properties of the JDBC/ODBC eWay eWay Environment Properties

Table 9 Outbound non-Transactional eWay —JDBC Connector Settings (Continued)

Name Description Required Value

PortNumber Specifies the I/O port number on

which the server is listening for connection requests.

DatabaseName Specifies the name of the database

instance.

User Specifies the user name the eWay

uses to connect to the database.

Password Specifies the password used to

access the database.

DriverProperties The Connection Pool DataSource

Delimiter This is the delimiter character to be

used in the DriverProperties prompt.

DataSource name

Specifies the name of the

XADataSource or ConnectionPoolDataSource

implementation, to which the DataSource object delegates behind the scenes when there is connection pooling or distributed transaction management being done.

A valid port number.

Any valid string.

Set the driver properties according to driver vendor's instruction. For example: setDefTdpName#DBSQL##setWorkspa ce#Navigator##

The default is #.

The name of the XADataSource or ConnectionPoolDataSource implementation. This property is Optional. In most cases, leave this box empty.

MinPoolSize Specifies the maximum number of

A valid numeric value. The default is 0.

physical connections the pool should keep available at all times. 0 (zero) indicates that there is no maximum.

The pool size you set depends on the transaction volume and response time of the application. If the pool size is too big, you may end up with too many connections with the database.

JDBC/ODBC eWay Adapter User’s Guide 36 Sun Microsystems, Inc.

Chapter 3 Section 3.5

Setting Properties of the JDBC/ODBC eWay eWay Environment Properties

Table 9 Outbound non-Transactional eWay —JDBC Connector Settings (Continued)

Name Description Required Value

MaxPoolSize Specifies the maximum number of

physical connections the pool should keep available at all times. 0 (zero) indicates that there is no maximum.

If the pool size is too big, you may end up with too many connections with the database. The pool size depends on the transaction volume and response time.

MaxIdleTime Specifies the maximum number of

seconds that a physical connection may remain unused before it is closed. 0 (zero) indicates that there is no limit.

Connection Retry Settings

Details for the Connection Retry Settings used by the external database are detailed in Tab le 1 0.

Table 10 Outbound non-Transactional eWay—Connection Retry Settings

A valid numeric value. The default is

10.

A valid numeric value. The default is 0.

Name Description Required Value

ConnectionRetries Specifies the number of retries to

establish a connection upon failure to acquire one.

ConnectionRetryInterval Specifies the milliseconds of pause

before each attempt to reaccess the database. This setting is used in conjunction with the 'Connection Retries' setting.

3.5.4 Outbound XA JDBC eWay Properties

The Outbound XA JDBC eWay includes the following configuration sections:

 JDBC Connector Settings

A valid numeric value. The default is 0.

A valid numeric value. The default is 1000.

JDBC/ODBC eWay Adapter User’s Guide 37 Sun Microsystems, Inc.

Chapter 3 Section 3.5

Setting Properties of the JDBC/ODBC eWay eWay Environment Properties

 Connection Retry Settings

JDBC Connector Settings

Details for the JDBC Connector Settings used by the external database are detailed in Tab le 11 .

Table 11 Outbound XA JDBC eWay—JDBC Connector Settings

Name Description Required Value

Description The description of the database. A valid string. The configured default

is JDBC XA Datasource.

ClassName Specifies the Java class in the JDBC

driver that is used to implement the

ConnectionPoolDataSource or XADataSource interface. Change as

needed for your driver.

A valid class name. For example: com.attunity.jdbc.NvXADataSource

ClassNamefor OtherInterfaces

ServerName This setting specifies the host name

PortNumber Specifies the I/O port number on

DatabaseName Specifies the name of the database

User Specifies the user name the eWay

Password Specifies the password used to

DriverProperties The DataSource implementation may

Delimiter This is the delimiter character to be

For Sun Java Composite Application Platform Suite components that do not use ConnectionPoolDataSource, use this entry to enter the name of the driver class. This class will not be used by the eWay.

of the external database server.

which the server is listening for connection requests.

instance.

uses to connect to the database.

access the database.

need to execute additional methods to assure a successful run. The additional methods will need to be identified in the Driver Properties. You must ensure that the driver is installed on both the Logical Host machine and the Enterprise Designer machine.

used in the DriverProperties prompt.

A valid class name.

Any valid string.

A valid port number.

Any valid string.

Set the driver properties according to driver vendor's instruction. For example: setDefTdpName#DBSQL##setWorkspa ce#Navigator##

The default is #.

JDBC/ODBC eWay Adapter User’s Guide 38 Sun Microsystems, Inc.

Chapter 3 Section 3.5

Setting Properties of the JDBC/ODBC eWay eWay Environment Properties

Table 11 Outbound XA JDBC eWay—JDBC Connector Settings (Continued)

Name Description Required Value

DataSource name

MinPoolSize Specifies the maximum number of

MaxPoolSize Specifies the maximum number of

Specifies the name of the XADataSource implementation, to which the DataSource object delegates behind the scenes when there is connection pooling or distributed transaction management being done.

physical connections the pool should keep available at all times. 0 (zero) indicates that there is no maximum.

The pool size you set depends on the transaction volume and response time of the application. If the pool size is too big, you may end up with too many connections with the database.

physical connections the pool should keep available at all times. 0 (zero) indicates that there is no maximum.

The name of the XADataSource implementation. This property is Optional. In most cases, leave this box empty.

A valid numeric value. The default is 0.

A valid numeric value. The default is

10.

If the pool size is too big, you may end up with too many connections with the database. The pool size depends on the transaction volume and response time.

MaxIdleTime Specifies the maximum number of

seconds that a physical connection may remain unused before it is closed. 0 (zero) indicates that there is no limit.

A valid numeric value. The default is 0.

Connection Retry Settings

Details for the Connection Retry Settings used by the external database are detailed in Tab le 1 2.

Table 12 Outbound XA JDBC eWay—Connection Retry Settings

Name Description Required Value

ConnectionRetries Specifies the number of retries to

establish a connection upon failure to acquire one.

A valid numeric value. The default is 0.

JDBC/ODBC eWay Adapter User’s Guide 39 Sun Microsystems, Inc.

Chapter 3 Section 3.5

Setting Properties of the JDBC/ODBC eWay eWay Environment Properties

Table 12 Outbound XA JDBC eWay—Connection Retry Settings (Continued)

Name Description Required Value

ConnectionRetryInterval Specifies the milliseconds of pause

before each attempt to reaccess the database. This setting is used in conjunction with the 'Connection Retries' setting.

A valid numeric value. The default is 1000.

JDBC/ODBC eWay Adapter User’s Guide 40 Sun Microsystems, Inc.

Chapter 4

Using the JDBC/ODBC eWay Database Wizard

This chapter describes how to use the JDBC eWay Database Wizard to build OTDs.

What’s In This Chapter:

 About the Database OTD Wizard on page 41

 Creating a New JDBC OTD on page 41

 Steps to Edit an Existing JDBC OTD on page 56

4.1 About the Database OTD Wizard

The Database OTD Wizard generates OTDs by connecting to external data sources and creating corresponding Object Type Definitions. The OTD Wizard can create OTDs based on any combination of Tables and Stored Procedures or Prepared SQL Statements.

Field nodes are added to the OTD based on the Tables in the external data source. Java method and parameter nodes are added to provide the appropriate JDBC functionality. For more information about the Java methods, refer to your JDBC developer’s reference.

The OTD Wizard allows the addition and removal of columns/nodes in an OTD. Nodes with the same name and type as existing nodes are allowed by the wizard, but should not be created, and will result in generic code generation errors upon activation of the OTD.

Note: Database OTDs are not messagable. For more information on messagable OTDs, see

the eGate Integrator User’s Guide.

4.2 Creating a New JDBC OTD

The following steps are required to create a new OTD for the JDBC Adapter.

 Select Wizard Type on page 42

JDBC/ODBC eWay Adapter User’s Guide 41 Sun Microsystems, Inc.

Chapter 4 Section 4.2

Using the JDBC/ODBC eWay Database Wizard Creating a New JDBC OTD

 Connect To Database on page 42

 Select Database Objects on page 43

 Select Tables/Views/Aliases on page 44

 Select Procedures on page 48

 Add Prepared Statement on page 52

 Specify the OTD Name on page 55

 Review Selections on page 55

4.2.1 Select Wizard Type

Select the type of wizard required to build an OTD in the New Object Type Definition Wizard.

Steps Required to Select the JDBC Database OTD Wizard Include:

On the Project Explorer tree, right click the Project and select New > Object Type Definition from the shortcut menu. The Select Wizard Type page appears, displaying the available OTD wizards. See Figure 10.

Figure 10 OTD Wizard Selection

4.2.2 Connect To Database

1 From the New Object Type Definition Wizard window, select JDBC Database and

click the Next button. The New Wizard - JDBC Database window appears.

JDBC/ODBC eWay Adapter User’s Guide 42 Sun Microsystems, Inc.

Chapter 4 Section 4.2

Using the JDBC/ODBC eWay Database Wizard Creating a New JDBC OTD

2 Enter the JDBC database connection information in the Connection Information

frame.

Required Database Connection Fields include:

 Driver Jar Files – the location of the driver JAR file.

 Driver Java Class Name – the name of the Driver Manager Class.

 URL Connection String – the URL connection string for the driver.

 User name – a valid JDBC database username.

 Password – a password for the user name noted above.

Figure 11 Database Connection Information

4.2.3 Select Database Objects

Select the type of JDBC database objects you want included in the OTD.

Steps Required to Select Database Objects Include:

1 When selecting Database Objects, you can select any combination of Ta b le s , Views,

Procedures, or Prepared Statements you would like to include in the OTD file. Click Next to continue. See Figure 12.

Note: Views are read-only and are for informational purposes only.

JDBC/ODBC eWay Adapter User’s Guide 43 Sun Microsystems, Inc.

Chapter 4 Section 4.2

Using the JDBC/ODBC eWay Database Wizard Creating a New JDBC OTD

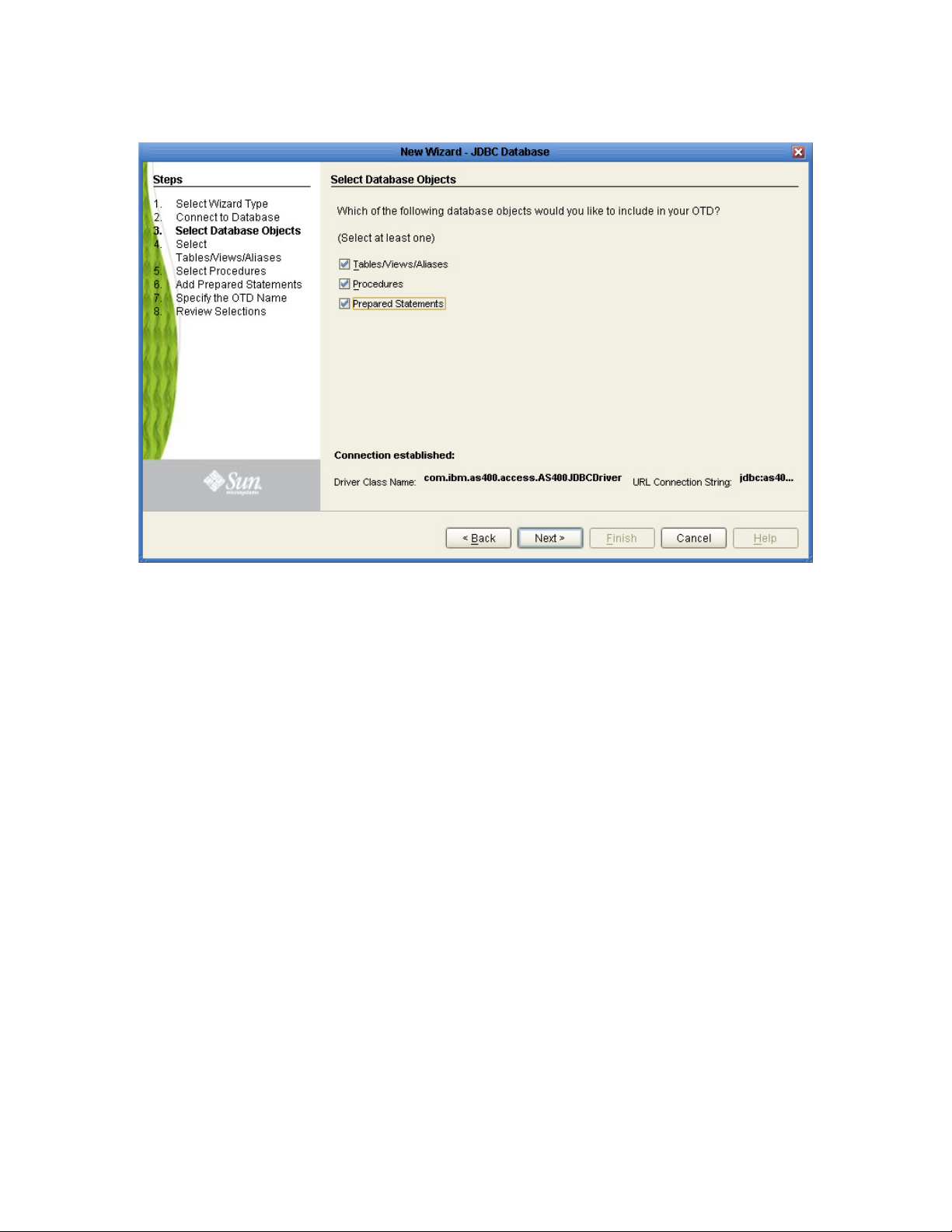

Figure 12 Select Database Objects

4.2.4 Select Tables/Views/Aliases

Select the types of tables, views, or aliases required in the OTD.

Steps Required to Select Table/Views/Aliases Include:

1 In the Select Tables/Views/Aliases window, click Add. See Figure 13.

JDBC/ODBC eWay Adapter User’s Guide 44 Sun Microsystems, Inc.

Chapter 4 Section 4.2

Using the JDBC/ODBC eWay Database Wizard Creating a New JDBC OTD

Figure 13 Select Tables/Views/Aliases

2 In the Add Tables window, select if your selection criteria will include table data,

view only data, both, and/or system tables.

3 From the Table/View Name drop down list, select the location of your database

table and click Search. See Figure 14.

JDBC/ODBC eWay Adapter User’s Guide 45 Sun Microsystems, Inc.

Chapter 4 Section 4.2

Using the JDBC/ODBC eWay Database Wizard Creating a New JDBC OTD

Figure 14 Database Wizard - All Schemes

4 Select the table of choice and click OK.

The table selected is added to the Selected Tables/Views/Aliases section. See Figure 15.

JDBC/ODBC eWay Adapter User’s Guide 46 Sun Microsystems, Inc.

Chapter 4 Section 4.2

Using the JDBC/ODBC eWay Database Wizard Creating a New JDBC OTD

Figure 15 Selected Tables/Views/Aliases window with a table selected

5 In the Selected Tables/Views/Aliases section, review the table(s) you have selected.

To make changes to the selected Table or View, click Change. If you do not wish to make any additional changes, click Next to continue.

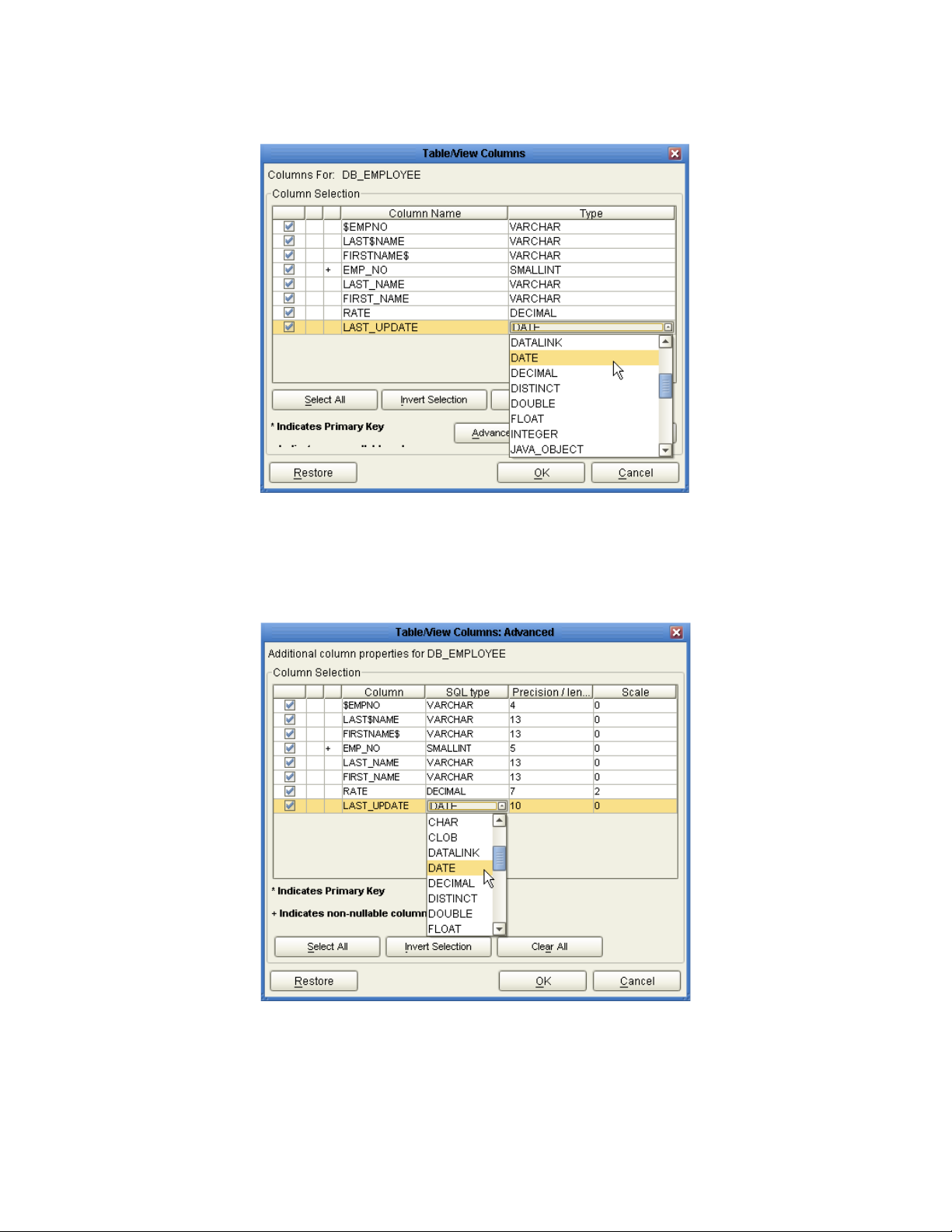

6 In the Tab le/ Vie w Co lum ns window, you can select or deselect your table columns.

You can also change the data type for each table by highlighting the data type and selecting a different one from the drop down list. If you would like to change any of the tables columns, click Change. See Figure 16.

The data type is usually listed as Other when the driver cannot detect the data type. In these situations we recommend changing the data type to one that is more appropriate for the type of column data.

JDBC/ODBC eWay Adapter User’s Guide 47 Sun Microsystems, Inc.

Chapter 4 Section 4.2

Using the JDBC/ODBC eWay Database Wizard Creating a New JDBC OTD

Figure 16 Table/View Columns

7 Click Advanced to change the data type, percision/length, or scale. Once you have

finished your table choices, click OK. In general, you will not need to make any changes. See Figure 17.

Figure 17 Table/View Columns — Advanced

4.2.5 Select Procedures

Select the type of stored procedures required in your OTD.

JDBC/ODBC eWay Adapter User’s Guide 48 Sun Microsystems, Inc.

Chapter 4 Section 4.2

Using the JDBC/ODBC eWay Database Wizard Creating a New JDBC OTD

Steps Required to Select Stored Procedures Include:

1 On the Select Procedures and specify Resultset and Parameter Information

window, click Add.

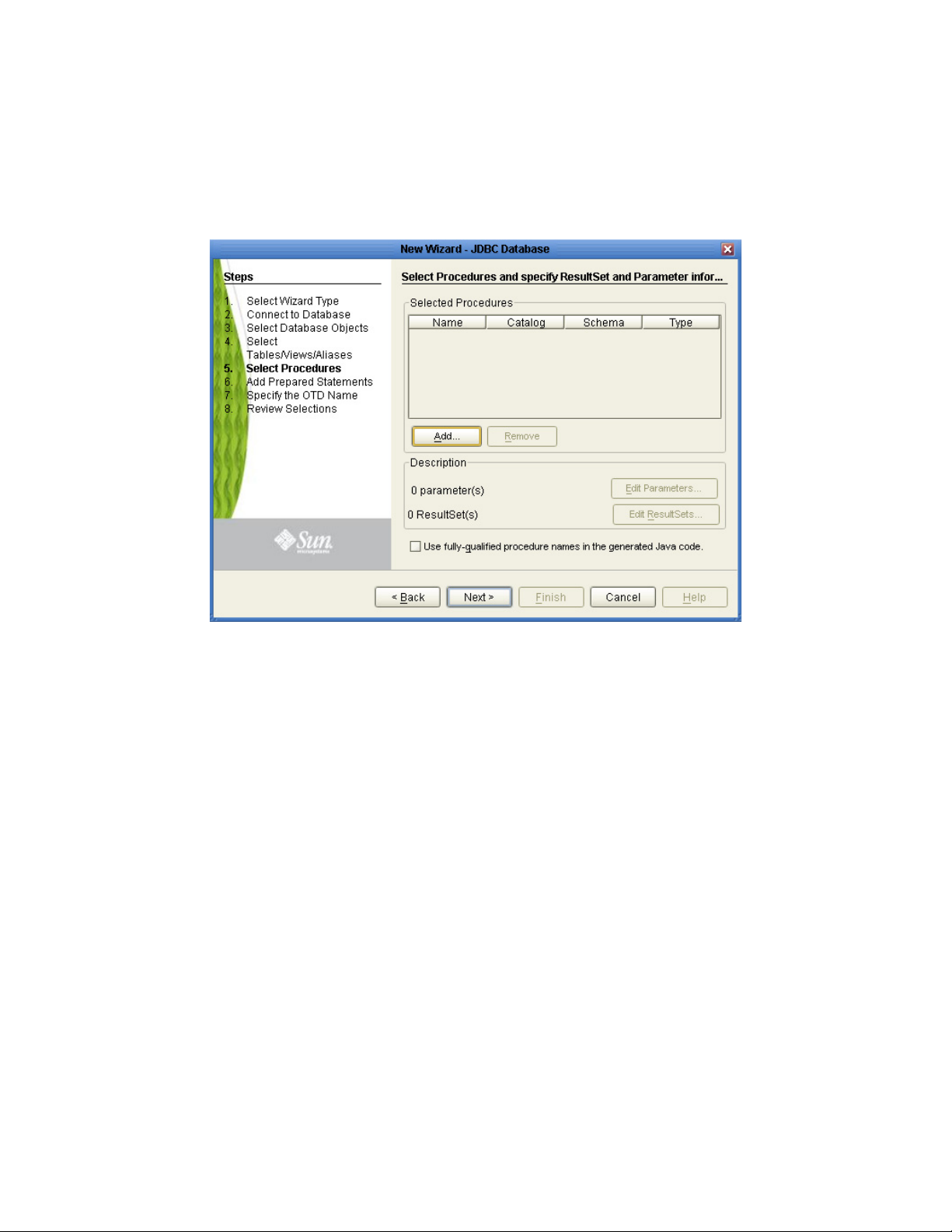

Figure 18 Select Procedures and specify Resultset and Parameter Information

2 On the Select Procedures window, enter the name of a Procedure or select a schema

from the drop down list. Click Search. Wildcard characters can also be used.

3 In the resulting Procedure Selection list box, select a Procedure. Click OK.

JDBC/ODBC eWay Adapter User’s Guide 49 Sun Microsystems, Inc.

Chapter 4 Section 4.2

Using the JDBC/ODBC eWay Database Wizard Creating a New JDBC OTD

Figure 19 Add Procedures

4 On the Select Procedures and specify Resultset and Parameter Information

window click Edit Parameters to make any changes to the selected Procedure. See Figure 20.

Figure 20 Procedure Parameters

5 To restore the data type, click Restore. When finished, click OK.

6 To select how you would like the OTD to generate the nodes for the Resultset click

Edit Resultsets.

JDBC/ODBC eWay Adapter User’s Guide 50 Sun Microsystems, Inc.

Chapter 4 Section 4.2

Using the JDBC/ODBC eWay Database Wizard Creating a New JDBC OTD

7 Click Add to add the type of Resultset node you would like to generate.

Figure 21 Edit Resultset

The DBWizard provides three different ways to generate the ResultSet nodes of a Stored Procedure. They are "By Executing", "Manually", and "With Assistance" modes.

By Executing Mode “By Executing” mode executes the specified Stored

Procedure with default values to generate the ResultSet(s). Depending on the business logic of the Stored Procedure, zero or more ResultSets can be returned from the execution. In the case that there are multiple ResultSets and "By Executing" mode does not return all ResultSets, one should use the other modes to generate the ResultSet nodes.

With Assistance Mode "With Assistance" mode allows users to specify a query

and execute it to generate the ResultSet node. To facilitate this operation, the DBWizard tries to retrieve the content of the specified Stored Procedure and display it. However, content retrieval is not supported by all types of Stored Procedures. We can roughly classify Stored Procedures into two types: SQL and external. SQL Stored Procedures are created using CREATE PROCEDURE SQL statements while external Stored Procedures are created using host languages (e.g. Java). Since external Stored Procedures do not store their execution plans in the database, content retrieval is impossible. When using "Assist" mode, highlight the execute statement up to and including the table name(s) before executing the query.

JDBC/ODBC eWay Adapter User’s Guide 51 Sun Microsystems, Inc.

Chapter 4 Section 4.2

Using the JDBC/ODBC eWay Database Wizard Creating a New JDBC OTD

Manually Mode "Manually" mode is the most flexible way to generate

the result set nodes. It allows users to specify the node name, original column name and data type manually. One drawback of this method is that users need to know the original column names and data types. This is not always possible. For example, the column name of 3*C in this query.

SELECT A, B, 3*C FROM table T

is generated by the database. In this case, "With Assistance" mode is a better choice. If you modify the ResultSet generated by the “Execute” mode of the Database Wizard you need to make sure the indexes match the Stored Procedure. This assures your ResultSet indexes are preserved.

8 On the Select Procedures and specify Resultset and Parameter Information

window click Next to continue.

Note: Not all drivers and databases support stored procedures or stored procedures with

ResultSets. You may contact the driver’s vendor for more information.

4.2.6 Add Prepared Statement

Add a Prepared Statement object to your OTD.

Steps Required to Add Prepared Statements Include:

Note: When using a Prepared Statement, the ‘ResultsAvailable()’ method will always

return true. Although this method is available, you should not use it with a ‘while’ loop. Doing so would result in an infinite loop at runtime and will stop all of the system’s CPU. If it is used, it should only be used with the ‘if’ statement.

1 On the Add Prepared Statements window, click Add.

JDBC/ODBC eWay Adapter User’s Guide 52 Sun Microsystems, Inc.

Chapter 4 Section 4.2

Using the JDBC/ODBC eWay Database Wizard Creating a New JDBC OTD

Figure 22 Prepared Statement

2 Enter the name of a Prepared Statement or create a SQL statement by clicking in the

SQL Statement window. When finished creating the statement, click Save As giving the statement a name. This name will appear as a node in the OTD. Click OK. See Figure 23.

Figure 23 Prepared SQL Statement

3 On the Add Prepared Statement window, the name you assigned to the Prepared

Statement appears. To edit the parameters, click Edit Parameters. You can change the datatype by clicking in the Type field and selecting a different type from the list.

4 Click Add if you want to add additional parameters to the Statement or highlight a

row and click Remove to remove it. Click OK. Figure 24.

JDBC/ODBC eWay Adapter User’s Guide 53 Sun Microsystems, Inc.

Chapter 4 Section 4.2

Using the JDBC/ODBC eWay Database Wizard Creating a New JDBC OTD

5 To edit Resultset Columns, click Edit Resultset Columns. The ResultSet Columns

window appears. See Figure 25.

Figure 24 Edit the Prepared Statement Parameters

Figure 25 ResultSet Columns

6 Click Add to add a new ResultSet column. Both the Name and Type are editable.

7 Click OK to return to the Add Prepared Statements window.

JDBC/ODBC eWay Adapter User’s Guide 54 Sun Microsystems, Inc.

Chapter 4 Section 4.2

Using the JDBC/ODBC eWay Database Wizard Creating a New JDBC OTD

4.2.7 Specify the OTD Name

Specify the name that your OTD will display in the Enterprise Designer Project Explorer.

Steps Required to Specify the OTD Name:

1 Enter a name for the OTD. The OTD contains the selected tables and the package

name of the generated classes. See Figure 26.

Figure 26 Naming an OTD

2 Click Next.

4.2.8 Review Selections

Review the selections made for the new OTD.

Steps Required to Review Your OTD Selections:

1 View the summary of the OTD. If you find you have made a mistake, click Back and

correct the information.

2 If you are satisfied with the OTD information, click Finish to begin generating the

OTD. See Figure 27.

The resulting OTD appears on the Enterprise Designer’s Project Explorer.

JDBC/ODBC eWay Adapter User’s Guide 55 Sun Microsystems, Inc.

Chapter 4 Section 4.3

Using the JDBC/ODBC eWay Database Wizard Steps to Edit an Existing JDBC OTD

Figure 27 Database Wizard - Summary

4.3 Steps to Edit an Existing JDBC OTD

You can edit any database OTD you create directly from the Enterprise Designer Project Explorer.

Steps to Edit the OTD from the Enterprise Designer Include:

1 Unlock the OTD. To do this, right-click the OTD in the Project Explorer and select

Ver s io n C on t r ol > Check Out from the menu.

The Version Control - Check Out window appears.

2 Select the OTD you want to check out, then click Check Out.

3 From the Project Explorer, right-click the OTD again and select Edit from the menu.

The JDBC Database Connection Information wizard appears.

4 Enter the connection information as described in “Connect To Database” on

page 42, and click Next.

5 Step through each of the wizard steps and click Finish to save your changes.

Note: You must verify during project activation or at runtime that no errors are generated

after editing an OTD. Errors could occur if you delete a database object that is included in a Collaboration.

JDBC/ODBC eWay Adapter User’s Guide 56 Sun Microsystems, Inc.

Using JDBC/ODBC Operations

Database operations in the JDBC eWay are used to access the JDBC database. Database operations are either accessed through Activities in BPEL, or through methods called from a JCD Collaboration.

What’s in This Chapter

 JDBC eWay Database Operations (BPEL) on page 57

 JDBC eWay Database Operations (JCD) on page 59

5.1 JDBC eWay Database Operations (BPEL)

Within a BPEL business process, the JDBC eWay uses BPEL Activities to perform basic outbound database operations, including:

 Insert

Chapter 5

 Update

 Delete

 SelectOne

 SelectMultiple

 SelectAll

In addition to these outbound operations, the JDBC eWay also employs the inbound Activity ReceiveOne within a Prepared Statement OTD.

The ability to perform any of the above methods using a table OTD may not be possible with all third-party drivers. You have to use a Prepared Statement to perform such an operation. Check with the respective driver’s vendor for further information. This feature is known as Updatable ResultSet.

5.1.1 Activity Input and Output

The Sun SeeBeyond Enterprise Designer – Business Rules Designer includes Input and Output columns to map and transform data between Activities displayed on the Business Process Canvas.

JDBC/ODBC eWay Adapter User’s Guide 57 Sun Microsytems, Inc.

Chapter 5 Section 5.1

Using JDBC/ODBC Operations JDBC eWay Database Operations (BPEL)

Figure 28 displays the business rules between the FileClient.write and otdJDBC.Db_employeeDelete Activities. In this example, the whereClause appears

on the Input side.

Figure 28 Input and Output Between Activities

The following table lists the expected Input and Output of each database operation Activity.

Table 13 JDBC.ODBC Operations

eInsight Operations Activity Input Activity Output

SelectAll where() clause (optional) Returns all rows that fit the

condition of the where() clause.

JDBC/ODBC eWay Adapter User’s Guide 58 Sun Microsytems, Inc.

Chapter 5 Section 5.2

Using JDBC/ODBC Operations JDBC eWay Database Operations (JCD)

Table 13 JDBC.ODBC Operations (Continued)

eInsight Operations Activity Input Activity Output

SelectMultiple number of rows

where() clause (optional)

SelectOne where() clause (optional) Returns the first row that fits

Insert definition of new item to be inserted Returns status.

Update where() clause Returns status.

Delete where() clause Returns status.

Returns the number of rows specified that fit the condition of the where() clause, and the number of rows to be returned.

For example: If the number of rows that meet the condition are 5 and the number of available rows are 10, then only 5 rows will be returned.

Alternately, if the number of rows that meet the condition are 20, but if the number of available rows are 10, then only 10 rows are returned.

the condition of the where() clause.

5.2 JDBC eWay Database Operations (JCD)

The same database operations are also used in the JCD, but appear as methods to call from the Collaboration.

Tables, Views, and Stored Procedures are manipulated through OTDs. Methods to call include:

 insert()

 insertRow()

 update(String sWhere)

 updateRow()

 delete(String sWhere)

 deleteRow()

 select(String where)

The ability to perform any of the above methods using a table OTD may not be possible with all third-party drivers. You have to use a Prepared Statement to perform such an

JDBC/ODBC eWay Adapter User’s Guide 59 Sun Microsytems, Inc.

Chapter 5 Section 5.2

Using JDBC/ODBC Operations JDBC eWay Database Operations (JCD)

operation. Check with the respective driver’s vendor for further information. This feature is known as Updatable ResultSet.

Note: Refer to the Javadoc for a full description of methods included in the JDBC eWay.

5.2.1 The Table

A table OTD represents a database table. It consists of fields and methods. Fields correspond to the columns of a table while methods are the operations that you can apply to the OTD. This allows you to perform Query, Update, Insert, and Delete SQL operations in a table. The ability to update via a ResultSet is called “Updatable ResultSet”, which is a feature supported by this eWay.

By default, the Table OTD has UpdatableConcurrency and ScrollTypeForwardOnly. Normally you do not have to change the default setting.

The type of result returned by the select() method can be specified using:

 SetConcurrencytoUpdatable

 SetConcurrencytoReadOnly

 SetScrollTypetoForwardOnly

 SetScrollTypetoScrollSensitive

 SetScrollTypetoInsensitive

The Query (Select) Operation

To perform a query operation on a table:

1 Execute the select() method with the “where” clause specified if necessary.

2 Loop through the ResultSet using the next() method.

3 Process the return record within a while() loop.

For example:

package prjJDBC_JCDjcdALL;

public class jcdTableSelect {

public com.stc.codegen.logger.Logger logger;

public com.stc.codegen.alerter.Alerter alerter;

public com.stc.codegen.util.CollaborationContext collabContext;

public com.stc.codegen.util.TypeConverter typeConverter;

JDBC/ODBC eWay Adapter User’s Guide 60 Sun Microsytems, Inc.

Chapter 5 Section 5.2

Using JDBC/ODBC Operations JDBC eWay Database Operations (JCD)

{ FileClient_1.setText( "Selecting record(s) from db_employee table via table select .." ); FileClient_1.write(); otdJDBC_1.getDB_EMPLOYEE().select( input.getText() ); while (otdJDBC_1.getDB_EMPLOYEE().next()) { otdOutputDTD_DBemployee_1.setEmpNo( typeConverter.shortToString( otdJDBC_1.getDB_EMPLOYEE().getEMP_NO(), "#", false, "" ) ); otdOutputDTD_DBemployee_1.setLastname( otdJDBC_1.getDB_EMPLOYEE().getLAST_NAME() ); otdOutputDTD_DBemployee_1.setFirstname( otdJDBC_1.getDB_EMPLOYEE().getFIRST_NAME() ); otdOutputDTD_DBemployee_1.setRate( otdJDBC_1.getDB_EMPLOYEE().getRATE().toString() ); otdOutputDTD_DBemployee_1.setLastDate( typeConverter.dateToString( otdJDBC_1.getDB_EMPLOYEE().getLAST_UPDATE(), "yyyy-MM-dd hh:mm:ss", false, "" ) ); FileClient_1.setText( otdOutputDTD_DBemployee_1.marshalToString() ); FileClient_1.write(); } FileClient_1.setText( "Done table select." ); FileClient_1.write(); }

}

The Insert Operation

To perform an insert operation on a table:

1 Execute the insert() method. Assign a value to a field.

2 Insert the row by calling insertRow()

This example inserts an employee record.

package prjJDBC_JCDjcdALL;

public class jcdInsert {

public com.stc.codegen.logger.Logger logger;

public com.stc.codegen.alerter.Alerter alerter;

public com.stc.codegen.util.CollaborationContext collabContext;

public com.stc.codegen.util.TypeConverter typeConverter;

public void receive( com.stc.connector.appconn.file.FileTextMessage input, com.stc.connector.appconn.file.FileApplication FileClient_1, dtd.otdInputDTD_1394195520.DBemployees otdInputDTD_DBemployees_1, dtd.otdOutputDTD882991309.DBemployee otdOutputDTD_DBemployee_1, otdJDBC.OtdJDBCOTD otdJDBC_1 ) throws Throwable { FileClient_1.setText( "Inserting records into db_employee table .." ); FileClient_1.write();

JDBC/ODBC eWay Adapter User’s Guide 61 Sun Microsytems, Inc.

Chapter 5 Section 5.2

Using JDBC/ODBC Operations JDBC eWay Database Operations (JCD)

otdInputDTD_DBemployees_1.unmarshalFromString( input.getText() ); for (int i1 = 0; i1 < otdInputDTD_DBemployees_1.countX_sequence_A(); i1 += 1) { otdJDBC_1.getInsert_Ps().setEmp_no( typeConverter.stringToShort( otdInputDTD_DBemployees_1.getX_sequence_A( i1 ).getEmpNo(), "#", false, 0 ) ); otdJDBC_1.getInsert_Ps().setLast_name( otdInputDTD_DBemployees_1.getX_sequence_A( i1 ).getLastname() ); otdJDBC_1.getInsert_Ps().setFirst_name( otdInputDTD_DBemployees_1.getX_sequence_A( i1 ).getFirstname() ); otdJDBC_1.getInsert_Ps().setRate( new java.math.BigDecimal( otdInputDTD_DBemployees_1.getX_sequence_A( i1 ).getRate() ) ); otdJDBC_1.getInsert_Ps().setLast_update( typeConverter.stringToSQLDate( otdInputDTD_DBemployees_1.getX_sequence_A( i1 ).getLastDate(), "yyyyMM-dd hh:mm:ss", false, "" ) ); otdJDBC_1.getInsert_Ps().executeUpdate(); } FileClient_1.setText( "Done Insert." ); FileClient_1.write(); }

}

The Update Operation

To perform an update operation on a table:

1 Execute the update() method.

2 Using a while loop together with next(), move to the row that you want to update.

3 Assign updating value(s) to the fields of the table OTD

4 Update the row by calling updateRow().

package prjJDBC_JCDjcdALL;

public class jcdUpdate {

public com.stc.codegen.logger.Logger logger;

public com.stc.codegen.alerter.Alerter alerter;

public com.stc.codegen.util.CollaborationContext collabContext;

public com.stc.codegen.util.TypeConverter typeConverter;

public void receive( com.stc.connector.appconn.file.FileTextMessage input, otdJDBC.OtdJDBCOTD otdJDBC_1, dtd.otdOutputDTD882991309.DBemployee otdOutputDTD_DBemployee_1, dtd.otdInputDTD_1394195520.DBemployees otdInputDTD_DBemployees_1, com.stc.connector.appconn.file.FileApplication FileClient_1 ) throws Throwable { FileClient_1.setText( "Update the Rate and Last_update fields using Prepared Statement.. " ); FileClient_1.write();

JDBC/ODBC eWay Adapter User’s Guide 62 Sun Microsytems, Inc.

Chapter 5 Section 5.2

Using JDBC/ODBC Operations JDBC eWay Database Operations (JCD)

otdJDBC_1.getUpdate_Ps().setEmp_no( typeConverter.stringToShort( input.getText(), "#", false, 0 ) ); otdJDBC_1.getUpdate_Ps().executeUpdate(); FileClient_1.setText( "Done Update." ); FileClient_1.write(); }

}

The Delete Operation

To perform a delete operation on a table:

1 Execute the delete() method.

In this example DELETE an employee.

package prjJDBC_JCDjcdALL;

public class jcdDelete {

public com.stc.codegen.logger.Logger logger;

public com.stc.codegen.alerter.Alerter alerter;

public com.stc.codegen.util.CollaborationContext collabContext;

public com.stc.codegen.util.TypeConverter typeConverter;

public void receive( com.stc.connector.appconn.file.FileTextMessage input, dtd.otdInputDTD_1394195520.DBemployees otdInputDTD_DBemployees_1, otdJDBC.OtdJDBCOTD otdJDBC_1, dtd.otdOutputDTD882991309.DBemployee otdOutputDTD_DBemployee_1, com.stc.connector.appconn.file.FileApplication FileClient_1 ) throws Throwable { FileClient_1.setText( "Delete record .." ); FileClient_1.write(); otdJDBC_1.getDB_EMPLOYEE().delete( input.getText() ); FileClient_1.setText( "Done delete." ); FileClient_1.write(); }

}

5.2.2

The Stored Procedure

A Stored Procedure OTD represents a database stored procedure. Fields correspond to the arguments of a stored procedure while methods are the operations that you can apply to the OTD. It allows you to execute a stored procedure. Remember that while in the Collaboration Editor you can drag and drop nodes from the OTD into the Collaboration Editor.

JDBC/ODBC eWay Adapter User’s Guide 63 Sun Microsytems, Inc.

Chapter 5 Section 5.2

Using JDBC/ODBC Operations JDBC eWay Database Operations (JCD)

Executing Stored Procedures

The OTD represents the Stored Procedure “LookUpGlobal” with two parameters, an inbound parameter (INLOCALID) and an outbound parameter (OUTGLOBALPRODUCTID). These inbound and outbound parameters are generated by the Database Wizard and are represented in the resulting OTD as nodes. Within the Transformation Designer, you can drag values from the input parameters, execute the call, collect data, and drag the values to the output parameters.

Steps for executing the Stored Procedure include:

1 Specify the input values.

2 Execute the Stored Procedure.

3 Retrieve the output parameters if any.

For example:

package Storedprocedure;

public class sp_jce {

public com.stc.codegen.logger.Logger logger;

public com.stc.codegen.alerter.Alerter alerter;

public void receive( com.stc.connector.appconn.file.FileTextMessage input,com.stc.connector.appconn.file.FileApplication FileClient_1,employeedb.Db_employee employeedb_with_top_db_employee_1,insert_DB.Insert_DBOTD insert_DB_1 ) throws Throwable { employeedb_with_top_db_employee_1.unmarshalFromString( input.getText() );

insert_DB_1.getInsert_new_employee().setEmployee_no( java.lang.Integer.parseInt( employeedb_with_top_db_employee_1.getEmployee_no() ) );

insert_DB_1.getInsert_new_employee().setEmployee_Lname( employeedb_with_top_db_employee_1.getEmployee_lname() );

insert_DB_1.getInsert_new_employee().setEmployee_Fname( employeedb_with_top_db_employee_1.getEmployee_fname() );

insert_DB_1.getInsert_new_employee().setRate( java.lang.Float.parseFloat( employeedb_with_top_db_employee_1.getRate() ) );

insert_DB_1.getInsert_new_employee().setUpdate_date( java.sql.Timestamp.valueOf( employeedb_with_top_db_employee_1.getUpdate_date() ) );

insert_DB_1.getInsert_new_employee().execute();

insert_DB_1.commit();

FileClient_1.setText( "procedure executed" );

JDBC/ODBC eWay Adapter User’s Guide 64 Sun Microsytems, Inc.

Chapter 5 Section 5.2

Using JDBC/ODBC Operations JDBC eWay Database Operations (JCD)

FileClient_1.write(); }

}

Manipulating the ResultSet and Update Count Returned by Stored Procedure

For Stored Procedures that return ResultSets and Update Count, the following methods are provided to manipulate the ResultSet:

 enableResultSetOnly

 enableUpdateCountsOnly

 enableResultSetandUpdateCounts

 resultsAvailable

 next

 getUpdateCount

 available

Many drivers do not support manipulating ResultSets in a Stored Procedure. It is recommended that you use specific eWay Adapters for Oracle, SQL Server, Sybase, DB2, and so forth, to peform such operations.

JDBC stored procedures do not return records as ResultSets. Instead, the records are returned through output reference cursor parameters. Reference Cursor parameters are essentially ResultSets.

The resultsAvailable() method, added to the PreparedStatementAgent class, simplifies the whole process of determining whether any results, be it Update Counts or ResultSets, are available after a stored procedure has been executed. Although JDBC provides three methods (getMoreResults(), getUpdateCount(), and getResultSet()) to access the results of a stored procedure call, the information returned from these methods can be quite confusing to the inexperienced Java JDBC programmer and they also differ between vendors. You can simply call resultsAvailable() and if Boolean true is returned, you can expect either a valid Update Count when getUpdateCount() is called and/or the next ResultSet has been retrieved and made available to one of the ResultSet nodes defined for the Stored Procedure OTD, when that node’s available() method returns true.

Frequently, Update Counts information that is returned from a Stored Procedures is insignificant. You should process returned ResultSet information and avoid looping through all of the Update Counts. The following three methods control exactly what information should be returned from a stored procedure call. The enableResultSetsOnly() method, added to the PreparedStatement Agent class allows only ResultSets to be returned and thus every resultsAvailable() called only returns Boolean true if a ResultSet is available. Likewise, the enableUpdateCountsOnly() causes resultsAvailable() to return true only if an Update Count is available. The default case of enableResultsetsAndUpdateCount() method allows both ResultSets and Update Counts to be returned.

JDBC/ODBC eWay Adapter User’s Guide 65 Sun Microsytems, Inc.

Chapter 5 Section 5.2

Using JDBC/ODBC Operations JDBC eWay Database Operations (JCD)

Collaboration usability for a stored procedure ResultSet

The Column data of the ResultSets can be dragged-and-dropped from their nodes to the Business Rules. Below is a code snippet that can be generated by the Collaboration Editor:

while (getSPIn().getSpS_multi().resultsAvailable()) { if (getSPIn().getSpS_multi().getUpdateCount() > 0) { System.err.println("Updated "+getSPIn().getSpS_multi().getUpdateCount()+" rows"); }

if (getSPIn().getSpS_multi().getNormRS().available()) { while (getSPIn().getSpS_multi().getNormRS().next()) { System.err.println("Customer Id = "+getSPIn().getSpS_multi().getNormRS().getCustomerId()); System.err.println("Customer Name = "+getSPIn().getSpS_multi().getNormRS().getCustomerName()); System.err.println(); } System.err.println("==="); } else if (getSPIn().getSpS_multi().getDbEmployee().available()) { while (getSPIn().getSpS_multi().getDbEmployee().next()) { System.err.println("EMPNO = "+getSPIn().getSpS_multi().getDbEmployee().getEMPNO()); System.err.println("ENAME = "+getSPIn().getSpS_multi().getDbEmployee().getENAME()); System.err.println("JOB = "+getSPIn().getSpS_multi().getDbEmployee().getJOB()); System.err.println("MGR = "+getSPIn().getSpS_multi().getDbEmployee().getMGR()); System.err.println("HIREDATE = "+getSPIn().getSpS_multi().getDbEmployee().getHIREDATE()); System.err.println("SAL = "+getSPIn().getSpS_multi().getDbEmployee().getSAL()); System.err.println("COMM = "+getSPIn().getSpS_multi().getDbEmployee().getCOMM()); System.err.println("DEPTNO = "+getSPIn().getSpS_multi().getDbEmployee().getDEPTNO()); System.err.println(); } System.err.println("==="); } }

Note: resultsAvailable() and available() cannot be indiscriminately called because each

time they move ResultSet pointers to the appropriate locations.

After calling "resultsAvailable()", the next result (if available) can be either a ResultSet or an UpdateCount if the default "enableResultSetsAndUpdateCount()" was used.

Because of limitations imposed by some DBMSs, it is recommended that for maximum portability, all of the results in a ResultSet object should be retrieved before OUT

JDBC/ODBC eWay Adapter User’s Guide 66 Sun Microsytems, Inc.

Chapter 5 Section 5.2

Using JDBC/ODBC Operations JDBC eWay Database Operations (JCD)

parameters are retrieved. Therefore, you should retrieve all ResultSet(s) and Update Counts first followed by retrieving the OUT type parameters and return values.

The following list includes specific ResultSet behavior that you may encounter:

 The method resultsAvailable() implicitly calls getMoreResults() when it is called

more than once. You should not call both methods in your java code. Doing so may result in skipped data from one of the ResultSets when more than one ResultSet is present.

 The methods available() and getResultSet() can not be used in conjunction with

multiple ResultSets being open at the same time. Attempting to open more the one ResultSet at the same time closes the previous ResultSet. The recommended working pattern is:

 Open one ResultSet (ResultSet_1) and work with the data until you have

completed your modifications and updates. Open ResultSet_2, (ResultSet_1 is now closed) and modify. When you have completed your work in ResultSet_2, open any additional ResultSets or close ResultSet_2.

 If you modify the ResultSet generated by the Execute mode of the Database Wizard,

you need to assure the indexes match the stored procedure. By doing this, your ResultSet indexes are preserved.

 Generally, getMoreResults does not need to be called. It is needed if you do not

want to use our enhanced methods and you want to follow the traditional JDBC calls on your own.

The DBWizard Assistant expects the column names to be in English when creating a ResultSet.

Prepared Statement

A Prepared Statement OTD represents a SQL statement that has been compiled. Fields in the OTD correspond to the input values that users need to provide.

Prepared statements can be used to perform insert, update, delete and query operations. A prepared statement uses a question mark (?) as a place holder for input. For example:

insert into EMP_TAB(Age, Name, Dept No) value(?, ?, ?)

To execute a prepared statement, set the input parameters and call executeUpdate() and specify the input values if any.

getPrepStatement().getPreparedStatementTest().setAge(23); getPrepStatement().getPreparedStatementTest().setName(‘Peter Pan’); getPrepStatement().getPreparedStatementTest().setDeptNo(6); getPrepStatement().getPreparedStatementTest().executeUpdate();

Batch Operations

To achieve better performance, consider using a bulk insert if you have to insert many records. This is the “Add Batch” capability. The only modification required is to include the addBatch() method for each SQL operation and then the executeBatch() call to

JDBC/ODBC eWay Adapter User’s Guide 67 Sun Microsytems, Inc.

Chapter 5 Section 5.2

Using JDBC/ODBC Operations JDBC eWay Database Operations (JCD)

submit the batch to the database server. Batch operations apply only to Prepared Statements.

Not all drivers support batch operations. Check with the respective driver’s vendor for further information.

getPrepStatement().getPreparedStatementTest().setAge(45); getPrepStatement().getPreparedStatementTest().setName(‘Harrison Ford’); getPrepStatement().getPreparedStatementTest().setDeptNo(7); getPrepStatement().getPreparedStatementTest().addBatch(); getPrepStatement().getPreparedStatementTest().executeBatch();

JDBC/ODBC eWay Adapter User’s Guide 68 Sun Microsytems, Inc.

Implementing the JDBC/ODBC eWay Sample Projects

This chapter provides an introduction to the JDBC eWay components, and information on how these components are created and implemented in a Sun Java Composite Application Platform Suite Project. Sample Projects are designed to provide an overview of the basic functionality of the JDBC eWay by identifying how information is passed between eGate and supported external databases.

It is assumed that you understand the basics of creating a Project using the Enterprise Designer. For more information on creating an eGate Project, see the eGate Tutorial and the eGate Integrator User’s Guide.

What’s in This Chapter

 About the JDBC eWay Sample Projects on page 69

 Running the Sample Projects on page 72

 Running the SQL Script on page 73

Chapter 6

 Importing a Sample Project on page 73

 Building and Deploying the prjJDBC_JCD Sample Project on page 74

 Building and Deploying the prjJDBC_BPEL Sample Project on page 95

6.1 About the JDBC eWay Sample Projects

The JDBC eWay JDBC_eWay_Sample.zip file contains two sample Projects that provide basic instruction on using JDBC operations in the Java Collaboration Definition (JCD), or the Business Process Excecution Language (BPEL) Projects.

The prjJDBC_JCD sample Project uses input files to pass data into Collaborations. There are four Collaborations that demonstrate the Insert, Update, and Table Select operations, and two Collaboration to demonstrate Prepared Statements (Select and Update). Results are written out to an output file.

The prjJDBC_BPEL sample Project uses input files to pass data into business process. There are four business processes that demonstrate the Insert, Update, Delete, and Select operations. Results are written out to an output file.

JDBC/ODBC eWay Adapter User’s Guide 69 Sun Microsystems, Inc.

Chapter 6 Section 6.1

Implementing the JDBC/ODBC eWay Sample Projects About the JDBC eWay Sample Projects

Figure 29 Database project flow

Both the prjJDBC_JCD and prjJDBC_BPEL sample Projects demonstrate how to:

 Select employee records from a database using a prepared statement.

 Select employee records from the db_employee table.

 Insert employee records into the db_employee table.

 Update an employee record in the db_employee table.

 Delete an employee record from the db_employee table.

In addition to the sample Projects, the JDBC510_SAMPLE_projects.zip file also includes seven sample input trigger files and nine sample output files, as follows:

Sample input files

 TriggerInsert.in.~in (for JCE projects only)

 TriggerBpPsInsert.in.~in (for BPEL projects only)

 TriggerDelete.in.~in

 TriggerPsUpdate.in.~in (for JCE projects only)

 TriggerBpUpdate.in.~in (for BPEL projects only)

 TriggerPsSelect.in.~in (for JCE projects only)

 TriggerTableSelect.in.~in

Sample output JCD files

 JCE_Insert_output().dat

 JCE_Delete_output().dat

 JCE_PsUpdate_output().dat

 JCE_PsSelect_output().dat

 JCE_TableSelect_output().dat

Sample output BPEL files

 BPEL_PsInsert_output().dat

 BPEL_Delete_output().dat

 BPEL_Update_output().dat

JDBC/ODBC eWay Adapter User’s Guide 70 Sun Microsystems, Inc.

Chapter 6 Section 6.1

Implementing the JDBC/ODBC eWay Sample Projects About the JDBC eWay Sample Projects

 BPEL_TableSelect_output().dat

6.1.1 Sample Project Data

Data used for the sample Projects are contained within a table called db_employee. The table has the following columns:

Table 14 Sample Project Data - db_employee Table

Column Name Data Type Data Length

emp_no INTEGER 10

last_name VARCHAR 30

first_name VARCHAR 30

rate FLOAT 15

last_update TIMESTAMP 19

6.1.2 Operations Used in the JDBC Sample Projects

The following database operations are used in both the JCD and BPEL sample projects:

 Insert

 Update

 Delete

 Select

Assigning Operations in JCD

Database operations are listed as methods in the JCD. Perform the following steps to access these methods:

1 Create a Collaboration that contains an OTD using JDBC.

2 Right-click the OTD listed in your Collaboration and then select Select Method to

Call from the shortcut menu.

3 Browse to and select a method to call.

Assigning Operations in BPEL

You can associate an eInsight Business Process Activity with the eWay, both during the system design phase and during runtime. To make this association:

1 Select the desired receive or write operation under the eWay in the Enterprise

Explorer.

2 Drag the operation onto the eInsight Business Process canvas.

The operation automatically changes to an Activity with an icon identifying the component that is the basis for the Activity.

JDBC/ODBC eWay Adapter User’s Guide 71 Sun Microsystems, Inc.

Chapter 6 Section 6.2

Implementing the JDBC/ODBC eWay Sample Projects Running the Sample Projects

At run time, the eInsight engine invokes each step in the order that you defined in the Business Process. Using the engine’s Web Services interface, the Activity in turn invokes the eWay. You can open a file specified in the eWay and view its contents before and after the Business Process is executed.

Note: Inbound database eWays are only supported within BPEL Collaborations.

6.1.3 About the eInsight Engine and eGate Components

You can deploy an eGate component as an Activity in an eInsight Business Process. Once you have associated the desired component with an Activity, the eInsight engine can invoke it using a Web Services interface.

Examples of eGate components that can interface with eInsight in this way are:

 Object Type Definitions (OTDs)

 An eWay

 Collaborations

Using the eGate Enterprise Designer and eInsight, you can add an Activity to a Business Process, then associate that Activity with an eGate component, for example, an eWay. When eInsight run the Business Process, it automatically invokes that component via its Web Services interface.

6.1.4 Sample Projects Drivers

Sample Projects included with this eWay were built using the AS/400 JDBC Toolbox Driver (jt400.jar). You must get this or a different driver from a third-party vendor and install and configure the eWay as per the vendors specification, using the vendor's specific driver jar file and appropriate driver specific parameters such as driver class name, URL connection string, and so forth.

The JAR file for the driver you select must be copied to the following folder:

<JavaCAPS51>\logicalhost\is\domains\domain1\lib

where <JavaCAPS51> is the directory where the Sun Java Composite Application Platform Suite is installed.

When using any driver to build OTDs, be sure to include the absolute path of the locally installed JAR file in the Database Connection Information window. See Figure

11 on page 43.

6.2 Running the Sample Projects

The following steps are required to run the sample Projects that are contained in the JDBCeWayDocs.sar file.

1 Run the SQL script.

JDBC/ODBC eWay Adapter User’s Guide 72 Sun Microsystems, Inc.

Chapter 6 Section 6.3

Implementing the JDBC/ODBC eWay Sample Projects Running the SQL Script

The script creates the tables and records required by the sample Project.

2 Import the sample Projects.

3 Build, deploy, and run the sample Projects.

You must do the following before you can run an imported sample Project:

 Create an Environment

 Configure the eWays

 Create a Deployment Profile

 Create and start a domain

 Deploy the Project

4 Check the output.

6.3 Running the SQL Script

The data used for both the JCD and BPEL sample Projects are contained within a table called db_employee. You create this table by using the SQL statement JDBC_sample_script.sql, that is included in the sample Project. Note that you must use a database tool to run the script.

Following is the SQL statement designed for the sample Projects.

drop table db_employee go create table db_employee ( EMP_NO int, LAST_NAME varchar(30), FIRST_NAME varchar(30), RATE float, LAST_UPDATE datetime) go

The sample Projects provided with the JDBC eWay use input files to pass predefined data or conditions into the Collaboration or BPEL business process, which then transforms the database contents, and delivers the ResultSet.

6.4 Importing a Sample Project

Sample eWay Projects are included as part of the installation CD-ROM package. To import a sample eWay Project to the Enterprise Designer do the following:

1 Extract the samples from the Sun Java Composite Application Platform Suite

Installer to a local file.

Sample files are uploaded with the eWay’s documentation SAR file, and then downloaded from the Installer’s Documentation tab. The JDBC_eWay_Sample.zip file contains the various sample Project ZIP files.

JDBC/ODBC eWay Adapter User’s Guide 73 Sun Microsystems, Inc.

Chapter 6 Section 6.5

Implementing the JDBC/ODBC eWay Sample Projects Building and Deploying the prjJDBC_JCD Sample Project

Note: Make sure you save all unsaved work before importing a Project.

2 From the Enterprise Designer’s Project Explorer pane, right-click the Repository

and select Import Project from the shortcut menu. The Import Manager appears.

Figure 30 Import Manager Dialog Box

3 Browse to the directory that contains the sample Project ZIP file. Select the sample

file and click Import.

Click Close after successfully importing the sample Project.

6.5 Building and Deploying the prjJDBC_JCD Sample

Project

This section provides step-by-step instructions for manually creating the prjJDBC_JCD sample Project.

Steps required to create the sample project

 Creating a Project on page 75

 Creating the OTDs on page 75

 Creating a Connectivity Map on page 76

JDBC/ODBC eWay Adapter User’s Guide 74 Sun Microsystems, Inc.

Chapter 6 Section 6.5

Implementing the JDBC/ODBC eWay Sample Projects Building and Deploying the prjJDBC_JCD Sample Project

 Creating the Collaboration Definitions (Java) on page 78

 Create the Collaboration Business Rules on page 81

 Binding the eWay Components on page 87

 Creating an Environment on page 88

 Configuring the eWays on page 89

 Creating the Deployment Profile on page 92

 Creating and Starting the Domain on page 93

 Building and Deploying the Project on page 94

 Running the Sample on page 94

6.5.1 Creating a Project

The first step is to create a new Project in the Enterprise Designer.

1 Start the Enterprise Designer.

2 From the Project Explorer tree, right-click the Repository and select New Project. A

new Project (Project1) appears on the Project Explorer tree.

3 Right-click Project1 and select Rename from the shortcut menu. Rename the Project

(for this sample, prjJDBC_JCD).

6.5.2 Creating the OTDs

The sample Project requires three OTDs to interact with the JDBC eWay. These OTDs include:

 JDBC Database OTD

 Inbound DTD OTD

 Outbound DTD OTD

Steps required to create a JDBC Database OTD:

1 Right-click your new Project in the Enterprise Designer’s Project Explorer, and

select New > Object Type Definition.

The New Object Type Definition Wizard window appears.

2 Select the JDBC Database OTD Wizard from the list of OTD Wizards and click

Next.

3 Enter the connection information for the JDBC database. Connection fields include:

 Driver Jar Files

 Driver Java Class Name

 URL Connection String

 User name

 Password

JDBC/ODBC eWay Adapter User’s Guide 75 Sun Microsystems, Inc.

Chapter 6 Section 6.5

Implementing the JDBC/ODBC eWay Sample Projects Building and Deploying the prjJDBC_JCD Sample Project

4 Click Next, and select the types of database object you want to include in the

sample Project. For our example, select the following:

 Tables/Views/Aliases

 Prepared Statements

5 Click Add to select tables from the JDBC database. The Add Tables window

appears.

6 Search for or Type in the name of the database. In this example we use the

DB_EMPLOYEE table. Click Select when the database appears in the Results selection frame. Click OK to close the Add Tables window

7 Click Next the Add Prepared Statements Wizard appears.

8 Click Add, the Add Prepared Statement window appears. Enter the following:

 Prepared Statement Name: Select_ps

 SQL Statement:

select * from db_employee where emp_no > ? order by emp_no

Note: In this example, the SQL statement includes the ? placeholder for input. This

placeholder represents the value for the Where Clause.

9 Click the OK button to close the Prepared Statement window, and then click Next

on the Prepared Statements Wizard window.

10 Enter an OTD name. In this example, use otdJDBC.

11 Click Next and review your settings, then click Finish to create the OTD.

Steps required to create inbound and outbound DTD OTDs include:

1 Right-click your new Project in the Enterprise Designer’s Project Explorer, and

select New > Object Type Definition.

The New Object Type Definition Wizard window appears.

2 Select DTD from the list of OTD Wizards and click Next.

3 Browse to and then select a DTD file. For this example, select one of the following

DTD files from the sample Project, and then click Next.

 otdInputDTD.dtd

 otdOutputDTD.dtd

4 The file you select appears in the Select Document Elements window. Click Next.

Click Finish to complete the DTD based OTD. Repeat this process again to create the second DTD file.

6.5.3 Creating a Connectivity Map

The Connectivity Map provides a canvas for assembling and configuring a Project’s components.

JDBC/ODBC eWay Adapter User’s Guide 76 Sun Microsystems, Inc.

Chapter 6 Section 6.5

Implementing the JDBC/ODBC eWay Sample Projects Building and Deploying the prjJDBC_JCD Sample Project

Steps required to create a new Connectivity Map:

1 From the Project Explorer tree, right-click the new prjJDBC_JCD Project and select

New > Connectivity Map from the shortcut menu.

2 The New Connectivity Map appears and a node for the Connectivity Map is added

under the Project, on the Project Explorer tree labeled CMap1.

Create four additional Connectivity Maps—CMap2, CMap3. CMap4, and CMap5— and rename them as follows:

 cmDelete

 cmInsert

 cmPsSelect

 cmTableSelect

 cmPsUpdate

The icons in the toolbar represent the available components used to populate the Connectivity Map canvas.

Populating the Connectivity Map

Add the Project components to the Connectivity Map by dragging the icons from the toolbar to the canvas.

Each Connectivity Map in the prjJDBC_JCD sample Project requires the following components:

 File External Application (2)

 JDBC External Application

 Service

Any eWay added to the Connectivity Map is associated with an External System. To establish a connection to JDBC, first select JDBC as an External System to use in your Connectivity Map.

Steps required to select a JDBC External System:

1 Click the External Application icon on the Connectivity Map toolbar.

2 Select the external systems necessary to create your Project (for this sample, JDBC

and File). Icons representing the selected external systems are added to the Connectivity Map toolbar.

3 Rename the following components and then save changes to the Repository:

 File1 to FileClientIN

 File2 to FileClientOUT

 JDBC1 to esJDBCOUT

4 Rename each Connectivity Map Service to match the intended operation, as for

example:

 jcdDelete

JDBC/ODBC eWay Adapter User’s Guide 77 Sun Microsystems, Inc.

Chapter 6 Section 6.5

Implementing the JDBC/ODBC eWay Sample Projects Building and Deploying the prjJDBC_JCD Sample Project

 jcdInsert

 jcdPsSelect

 jcdTableSelect

 jcdPsUpdate

6.5.4 Creating the Collaboration Definitions (Java)

The next step is to create Collaborations using the Collaboration Definition Wizard (Java). Since the sample Project includes five database operations, you must create five

separate Collaboration Definitions (Java), or JCDs. Once you create the Collaboration Definitions, you can write the Business Rules of the Collaborations using the Collaboration Editor.

JCDs required for the prjJDBC_JCD sample include:

 jcdDelete

 jcdInsert

 jcdPsSelect

 jcdTableSelect

 jcdPsUpdate

jcdDelete Collaboration

Steps required to create the jcdDelete Collaboration:

1 From the Project Explorer, right-click the sample Project and select New >

Collaboration Definition (Java) from the shortcut menu. The Collaboration Definition Wizard (Java) appears.

2 Enter a Collaboration Definition name (for this sample jcdDelete) and click Next.

3 For Step 2 of the wizard, from the Web Services Interfaces selection window,

double-click Sun SeeBeyond > eWays > File > FileClient > receive. The File Name field now displays receive. Click Next.

4 For Step 3 of the wizard, from the Select OTDs selection window, double-click

prjJDBC_JCD > otdALL > otdJDBC. The otdJDBC OTD is added to the Selected OTDs field.

5 Click the Up One Level button twice to return to the Repository. Double-click Sun

SeeBeyond > eWays > File > FileClient. The Selected OTDs field now lists the FileClient OTD.

6 Click Finish. The Collaboration Editor with the new jcdDelete Collaboration

appears in the right pane of the Enterprise Designer.

JDBC/ODBC eWay Adapter User’s Guide 78 Sun Microsystems, Inc.

Chapter 6 Section 6.5

Implementing the JDBC/ODBC eWay Sample Projects Building and Deploying the prjJDBC_JCD Sample Project

jcdInsert Collaboration

Steps required to create the jcdInsert Collaboration:

1 From the Project Explorer, right-click the sample Project and select New >

Collaboration Definition (Java) from the shortcut menu. The Collaboration Definition Wizard (Java) appears.

2 Enter a Collaboration Definition name (for this sample jcdInsert) and click Next.

3 For Step 2 of the wizard, from the Web Services Interfaces selection window,

double-click Sun SeeBeyond > eWays > File > FileClient > receive. The File Name field now displays receive. Click Next.

4 For Step 3 of the wizard, from the Select OTDs selection window, double-click

prjJDBC_JCD > otdALL > otdJDBC. The otdJDBC OTD is added to the Selected OTDs field.

5 In the same window, double-click otdInputDTD_DBemployees. The

otdInputDTD_DBemployees OTD is added to the Selected OTDs field.

Note: The otdOutputDTD_DBemployees OTD is created from the otdInputDTD.dtd that

is included in the Sample Project.

6 Click the Up One Level button twice to return to the Repository. Double-click Sun

SeeBeyond > eWays > File > FileClient. The Selected OTDs field now lists the FileClient OTD.

7 Click Finish. The Collaboration Editor with the new jcdInsert Collaboration

appears in the right pane of the Enterprise Designer.

jcdPsSelect Collaboration

Steps required to create the jcdPsSelect Collaboration:

1 From the Project Explorer, right-click the sample Project and select New >

Collaboration Definition (Java) from the shortcut menu. The Collaboration Definition Wizard (Java) appears.

2 Enter a Collaboration Definition name (for this sample jcdPsSelect) and click Next.

3 For Step 2 of the wizard, from the Web Services Interfaces selection window,

double-click Sun SeeBeyond > eWays > File > FileClient > receive. The File Name field now displays receive. Click Next.

4 For Step 3 of the wizard, from the Select OTDs selection window, double-click

prjJDBC_JCD > otdALL > otdJDBC. The otdJDBC OTD is added to the Selected OTDs field.

5 In the same window, double-click otdOutputDTD_DBemployee. The

otdOutputDTD_DBemployee OTD is added to the Selected OTDs field.

Note that the otdOutputDTD_DBemployee OTD is created from the otdOutputDTD.dtd that is included in the Sample Project.

JDBC/ODBC eWay Adapter User’s Guide 79 Sun Microsystems, Inc.

Chapter 6 Section 6.5

Implementing the JDBC/ODBC eWay Sample Projects Building and Deploying the prjJDBC_JCD Sample Project

6 Click the Up One Level button twice to return to the Repository. Double-click Sun

SeeBeyond > eWays > File > FileClient. The Selected OTDs field now lists the FileClient OTD.

7 Click Finish. The Collaboration Editor with the new jcdPsSelect Collaboration

appears in the right pane of the Enterprise Designer.

jcdTableSelect Collaboration

Steps required to create the jcdTableSelect Collaboration:

1 From the Project Explorer, right-click the sample Project and select New >

Collaboration Definition (Java) from the shortcut menu. The Collaboration Definition Wizard (Java) appears.

2 Enter a Collaboration Definition name (for this sample jcdTableSelect) and click

Next.

3 For Step 2 or the wizard, from the Web Services Interfaces selection window,

double-click Sun SeeBeyond > eWays > File > FileClient > receive. The File Name field now displays receive. Click Next.

4 For Step 3 of the wizard, from the Select OTDs selection window, double-click

prjJDBC_JCD > otdALL > otdJDBC. The otdJDBC OTD is added to the Selected OTDs field.

5 In the same window, double-click otdOutputDTD_DBemployee. The

otdOutputDTD_DBemployee OTD is added to the Selected OTDs field.

Note: The otdOutputDTD_DBemployee OTD is created from the otdOutputDTD.dtd

that is included in the Sample Project.

6 Click the Up One Level button twice to return to the Repository. Double-click Sun

SeeBeyond > eWays > File > FileClient. The Selected OTDs field now lists the FileClient OTD.

7 Click Finish. The Collaboration Editor with the new jcdTableSelect Collaboration

appears in the right pane of the Enterprise Designer.

jcdPsUpdate Collaboration

Steps required to create the jcdPsUpdate Collaboration:

1 From the Project Explorer, right-click the sample Project and select New >

Collaboration Definition (Java) from the shortcut menu. The Collaboration Definition Wizard (Java) appears.

2 Enter a Collaboration Definition name (for this sample jcdPsUpdate) and click Next.

3 For Step 2 of the wizard, from the Web Services Interfaces selection window,

double-click Sun SeeBeyond > eWays > File > FileClient > receive. The File Name field now displays receive. Click Next.

JDBC/ODBC eWay Adapter User’s Guide 80 Sun Microsystems, Inc.

Chapter 6 Section 6.5

Implementing the JDBC/ODBC eWay Sample Projects Building and Deploying the prjJDBC_JCD Sample Project

4 For Step 3 of the wizard, from the Select OTDs selection window, double-click

prjJDBC_JCD > otdALL > otdJDBC. The otdJDBC OTD is added to the Selected OTDs field.

5 Click the Up One Level button twice to return to the Repository. Double-click Sun

SeeBeyond > eWays > File > FileClient. The Selected OTDs field now lists the FileClient OTD.

6 Click Finish. The Collaboration Editor with the new jcdPsUpdate Collaboration

appears in the right pane of the Enterprise Designer.

6.5.5 Create the Collaboration Business Rules

The next step in the sample is to create the Business Rules of the Collaboration using the Collaboration Editor.

Creating the jcdDelete Business Rules

The jcdDelete Collaboration implements the Input Web Service Operation to read the TriggerDelete.in file and then delete a record. The Collaboration also writes a message to JCD_Delete_output0.dat to confirm a deleted record.

Note: The where clause in the business rule reads the trigger value as a placeholder for

input. This permits you to modify the query to select a specific record. Also note that all records are deleted from the database when the TriggerDelete.in file is empty.

The jcdDelete Collaboration contains the Business Rules displayed in Figure 31.

Figure 31 jcdDelete Business Rules

Creating the jcdInsert Business Rules

The jcdInsert Collaboration implements the Input Web Service Operation to read the TriggerInsert.in. file. It then unmarshals data from the input data into the otdInputDTD_DBEmployees OTD, calls the otdJDBC OTD, and inserts records into

the database via a For Loop. The Collaboration also writes a message to JCD_Insert_output0.dat to confirm an inserted record.

The jcdInsert Collaboration contains the Business Rules displayed in Figure 32.

JDBC/ODBC eWay Adapter User’s Guide 81 Sun Microsystems, Inc.

Chapter 6 Section 6.5

Implementing the JDBC/ODBC eWay Sample Projects Building and Deploying the prjJDBC_JCD Sample Project

Figure 32 jcdInsert Business Rules

Sample code from the jcdInsert Includes:

package prjJDBC_JCDjcdALL; public class jcdInsert {

public com.stc.codegen.logger.Logger logger; public com.stc.codegen.alerter.Alerter alerter; public com.stc.codegen.util.CollaborationContext collabContext;

public com.stc.codegen.util.TypeConverter typeConverter; public void receive( com.stc.connector.appconn.file.FileTextMessage input, com.stc.connector.appconn.file.FileApplication FileClient_1, dtd.otdInputDTD_1394195520.DBemployees otdInputDTD_DBemployees_1, dtd.otdOutputDTD882991309.DBemployee otdOutputDTD_DBemployee_1, otdJDBC.OtdJDBCOTD otdJDBC_1 ) throws Throwable {

\\ Writes out a message stating records are being inserted.

table .." ); FileClient_1.write();

\\ Unmarshals data from the input XML data into the otdInputDTD_DBEmployees OTD.

input.getText() );

\\ Calls the otdJDBC OTD, and inserts multiple records into the database via a For Loop. The first insert() method opens the table ResultSet for insert operations, while the insertRow() method inserts records into the table ResultSet.

FileClient_1.setText( "Inserting records into db_employee

otdInputDTD_DBemployees_1.unmarshalFromString(

otdInputDTD_DBemployees_1.countX_sequence_A(); i1 += 1) {

for (int i1 = 0; i1 <

otdJDBC_1.getInsert_Ps().setEmp_no( typeConverter.stringToShort(

JDBC/ODBC eWay Adapter User’s Guide 82 Sun Microsystems, Inc.

Chapter 6 Section 6.5

Implementing the JDBC/ODBC eWay Sample Projects Building and Deploying the prjJDBC_JCD Sample Project

otdInputDTD_DBemployees_1.getX_sequence_A( i1 ).getEmpNo(), "#", false, 0 ) ); otdJDBC_1.getInsert_Ps().setLast_name( otdInputDTD_DBemployees_1.getX_sequence_A( i1 ).getLastname() ); otdJDBC_1.getInsert_Ps().setFirst_name( otdInputDTD_DBemployees_1.getX_sequence_A( i1 ).getFirstname() ); otdJDBC_1.getInsert_Ps().setRate( new java.math.BigDecimal( otdInputDTD_DBemployees_1.getX_sequence_A( i1 ).getRate() ) ); otdJDBC_1.getInsert_Ps().setLast_update( typeConverter.stringToSQLDate( otdInputDTD_DBemployees_1.getX_sequence_A( i1 ).getLastDate(), "yyyyMM-dd hh:mm:ss", false, "" ) ); otdJDBC_1.getInsert_Ps().executeUpdate();

\\ Writes a message to confirm the inserted records.

} FileClient_1.setText( "Done Insert." ); FileClient_1.write();

}

Creating the jcdPsSelect Business Rules

The jcdPsSelect Collaboration implements the Input Web Service Operation to read the TriggerPsSelect.in file. It then copies the database resultset (as noted in the prepared

statement query) into the otdInputDTD_DBEmployee OTD and selects all available records from the database. The Collaboration also writes a message to JCD_PsSelect_output0.dat to confirm when records are selected, or when no records are available.

The jcdPsSelect Collaboration contains the Business Rules displayed in Figure 33.

JDBC/ODBC eWay Adapter User’s Guide 83 Sun Microsystems, Inc.

Chapter 6 Section 6.5

Implementing the JDBC/ODBC eWay Sample Projects Building and Deploying the prjJDBC_JCD Sample Project

Figure 33 jcdPsSelect Business Rules

Sample code from the jcdPsSelect Includes:

package prjJDBC_JCDjcdALL;

public class jcdPsSelect {

public com.stc.codegen.logger.Logger logger; public com.stc.codegen.alerter.Alerter alerter; public com.stc.codegen.util.CollaborationContext collabContext;

public com.stc.codegen.util.TypeConverter typeConverter; public void receive( com.stc.connector.appconn.file.FileTextMessage input, otdJDBC.OtdJDBCOTD otdJDBC_1, dtd.otdOutputDTD882991309.DBemployee otdOutputDTD_DBemployee_1, com.stc.connector.appconn.file.FileApplication FileClient_1 ) throws Throwable {

\\ Writes out a message stating records are being selected.

FileClient_1.setText( "Selecting record(s) from db_employee table via Prepared Statement select .." );

\\ Copies the database resultset into the otdInputDTD_DBEmployee OTD and selects all available records from the database. The executeQuery() method executes the prepared statement query, while the resultsAvailable() method ensures all rows are retrieved in the while loop.

otdJDBC_1.getSelect_ps().setEmp_no( Short.parseShort( "0" ) ); otdJDBC_1.getSelect_ps().executeQuery(); if (otdJDBC_1.getSelect_ps().resultsAvailable()) { while (otdJDBC_1.getSelect_ps().get$Select_psResults().next()) {

FileClient_1.write();

JDBC/ODBC eWay Adapter User’s Guide 84 Sun Microsystems, Inc.

Chapter 6 Section 6.5

Implementing the JDBC/ODBC eWay Sample Projects Building and Deploying the prjJDBC_JCD Sample Project

otdOutputDTD_DBemployee_1.setEmpNo( Integer.toString( otdJDBC_1.getSelect_ps().get$Select_psResults().getEMP_NO() ) ); otdOutputDTD_DBemployee_1.setLastname( otdJDBC_1.getSelect_ps().get$Select_psResults().getLAST_NAME() ); otdOutputDTD_DBemployee_1.setFirstname( otdJDBC_1.getSelect_ps().get$Select_psResults().getFIRST_NAME() ); otdOutputDTD_DBemployee_1.setRate( otdJDBC_1.getSelect_ps().get$Select_psResults().getRATE().toString() ); otdOutputDTD_DBemployee_1.setLastDate( otdJDBC_1.getSelect_ps().get$Select_psResults().getLAST_UPDATE().toSt ring() ); FileClient_1.setText( otdOutputDTD_DBemployee_1.marshalToString() ); FileClient_1.write(); } } else { FileClient_1.setText( "No record found!" ); FileClient_1.write(); }

\\ Writes a message to JCD_PsSelect_output0.dat to confirm when records are selected, or when no records are available.

FileClient_1.setText( "Done Select" ); FileClient_1.write(); } }

Creating the jcdTableSelect Business Rules

The jcdTableSelect Collaboration implements the Input Web Service Operation to read the TriggerTableSelect.in file. It then copies the database resultset into the otdInputDTD_DBEmployee OTD and selects all available records from the database that meet a certain criteria. The Collaboration also writes a message to JCD_TableSelect_output0.dat to confirm when records are selected, or when no records are available.

Note: The where clause in the business rule reads the trigger value as a placeholder for

input. This permits you to modify the query to select a specific record. Also note that all records are selected from the database when the TriggerTableSelect.in file is empty.

The jcdTableSelect Collaboration contains the Business Rules displayed in Figure 34.

JDBC/ODBC eWay Adapter User’s Guide 85 Sun Microsystems, Inc.

Chapter 6 Section 6.5

Implementing the JDBC/ODBC eWay Sample Projects Building and Deploying the prjJDBC_JCD Sample Project

Figure 34 jcdTableSelect Business Rules

Sample code from the jcdTableSelect Includes:

package prjJDBC_JCDjcdALL; public class jcdTableSelect {

public com.stc.codegen.logger.Logger logger;

public com.stc.codegen.alerter.Alerter alerter;

public com.stc.codegen.util.CollaborationContext collabContext;

public com.stc.codegen.util.TypeConverter typeConverter;

\\ Writes out a message stating records are being selected.

FileClient_1.setText( "Selecting record(s) from db_employee table via table select .." ); FileClient_1.write();

\\ Copies the database resultset into the otdInputDTD_DBEmployee (XML OTD) and selects all available records from the database that meet a certain criteria. Checking the next() method ensures all rows are retrieved in the while loop.

otdJDBC_1.getDB_EMPLOYEE().select( input.getText() ); while (otdJDBC_1.getDB_EMPLOYEE().next()) { otdOutputDTD_DBemployee_1.setEmpNo( typeConverter.shortToString( otdJDBC_1.getDB_EMPLOYEE().getEMP_NO(), "#", false, "" ) ); otdOutputDTD_DBemployee_1.setLastname( otdJDBC_1.getDB_EMPLOYEE().getLAST_NAME() ); otdOutputDTD_DBemployee_1.setFirstname( otdJDBC_1.getDB_EMPLOYEE().getFIRST_NAME() );

JDBC/ODBC eWay Adapter User’s Guide 86 Sun Microsystems, Inc.

Chapter 6 Section 6.5

Implementing the JDBC/ODBC eWay Sample Projects Building and Deploying the prjJDBC_JCD Sample Project

otdOutputDTD_DBemployee_1.setRate( otdJDBC_1.getDB_EMPLOYEE().getRATE().toString() ); otdOutputDTD_DBemployee_1.setLastDate( typeConverter.dateToString( otdJDBC_1.getDB_EMPLOYEE().getLAST_UPDATE(), "yyyy-MM-dd hh:mm:ss", false, "" ) );

\\ marshals XML data from the output data into the otdOutputDTD_DB_Employee_1.marshallToString() method.

FileClient_1.setText( otdOutputDTD_DBemployee_1.marshalToString() ); FileClient_1.write(); }

\\ Writes a message to confirm when records are selected, or when no records are available.

FileClient_1.setText( "Done table select." ); FileClient_1.write(); } }

Creating the jcdUpdate Business Rules

The jcdUpdate Collaboration implements the Input Web Service Operation to read the TriggerUpdate.in. file and then update a particular record. The Collaboration also writes a message to JCD_Update_output0.dat to confirm an updated record.

Note: The where clause in the business rule reads the trigger value as a placeholder for

input. This permits you to modify the query to select a specific record. Also note that all records are selected from the database when the TriggerUpdate.in file is empty.

The jcdUpdate Collaboration contains the Business Rules displayed in Figure 35.

Figure 35 jcdTableUpdate

6.5.6 Binding the eWay Components

The final step in creating a Connectivity Map is binding the eWay components together.

JDBC/ODBC eWay Adapter User’s Guide 87 Sun Microsystems, Inc.

Chapter 6 Section 6.5

Implementing the JDBC/ODBC eWay Sample Projects Building and Deploying the prjJDBC_JCD Sample Project

Steps required to bind eWay components together:

1 Double-click a Connectivity Map—in this example cmDelete—in the Project

Explorer tree. The cmDelete Connectivity Map appears in the Enterprise Designers canvas.

2 Drag and drop the jcdDelete Collaboration from the Project Explorer to the

jcdDelete Service. The Service icon “gears” change from red to green.

3 Double-click the jcdDelete Service. The jcdDelete Binding dialog box appears.

4 Map the input FileClient (under Implemented Services) to the FileClientIN (File)

External Application. To do this, click on FileSender in the jcdDelete Binding dialog box, and drag the cursor to the FileClientIN External Application in the Connectivity Map. A link is now visible between FileClientIN and jcdDelete.

5 From the jcdDelete Binding dialog box, map otdJDBC_1 (under Invoked Services)

to the esJDBCOUT External Application.

6 From the jcdDelete Binding dialog box, map FileClient_1 to the FileClientOUT

External Application, as seen in Figure 36.

Figure 36 Connectivity Map - Associating (Binding) the Project’s Components

7 Minimize the jcdDelete Binding dialog box by clicking the chevrons in the upper-

right corner.

8 Save your current changes to the Repository, and then repeat this process for each of

the other Connectivity Maps.

6.5.7 Creating an Environment

Environments include the external systems, Logical Hosts, Integration Servers and message servers used by a Project and contain the configuration information for these components. Environments are created using the Enterprise Designer’s Environment Editor.

JDBC/ODBC eWay Adapter User’s Guide 88 Sun Microsystems, Inc.

Chapter 6 Section 6.5

Implementing the JDBC/ODBC eWay Sample Projects Building and Deploying the prjJDBC_JCD Sample Project

Steps required to create an Environment:

1 From the Enterprise Designer’s Enterprise Explorer, click the Environment

Explorer tab.

2 Right-click the Repository and select New Environment. A new Environment is

added to the Environment Explorer tree.

3 Rename the new Environment to envJDBCProj.

4 Right-click envJDBCProj and select New > JDBC External System. Name the

External System esJDBC. Click OK. esJDBC is added to the Environment Editor.

5 Right-click envJDBCProj and select New > File External System. Name the

External System esFileClient. Click OK. esFileClient is added to the Environment Editor.

6 Right-click envJDBCProj and select New > Logical Host. The LogicalHost1 box is

added to the Environment and LogicalHost1 is added to the Environment Editor tree.

7 Right-click LogicalHost1 and select New > Sun SeeBeyond Integration Server. A

new Integration Server (IntegrationSvr1) is added to the Environment Explorer tree under LogicalHost1. See Figure 37.

Figure 37 Environment Editor - envJDBCProj

8 Save your current changes to the Repository.

6.5.8 Configuring the eWays

eWays facilitate communication and movement of data between the external applications and the eGate system. Each Connectivity Map in the prjJDBC_JCD sample Project uses three eWays that are represented as nodes between the External Applications and the Business Process. See Figure 38.

JDBC/ODBC eWay Adapter User’s Guide 89 Sun Microsystems, Inc.

Chapter 6 Section 6.5

Implementing the JDBC/ODBC eWay Sample Projects Building and Deploying the prjJDBC_JCD Sample Project

You must configure eWay properties in both the Connectivity Map and the Environment Explorer.

Figure 38 eWays in the cmDelete Connectivity Map

eaJDBCOUT eWay

FileClientIN eWay

FileClientOUT eWay

Configuring the eWay Properties

Steps required to configure the eWay properties:

1 Double-click the FileClientIN eWay on each of the Connectivity Maps and modify

the properties for your system, as seen in Table 15. Click OK to close the Properties Editor.

Table 15 FileClientIN eWay Property Settings

Connectivity Map Property Name Required Value

cmDelete Input file name TriggerDelete.in

cmInsert Input file name TriggerInsert.in

cmPsSelect Input file name TriggerPsSelect.in

cmTableSelect Input file name TriggerTableSelect.in

cmUpdate Input file name TriggerUpdate.in

2 Double-click the FileClientOUT eWay on each of the Connectivity Maps and

modify the properties for your system, as seen in Table 16. Click OK to close the Properties Editor.

Table 16 FileClientOUT eWay Property Settings

Connectivity Map Property Name Required Value

cmDelete Output file name JCD_Delete_output%d.dat

cmInsert Output file name JCD_Insert_output%d.dat

cmPsSelect Output file name JCD_PsSelect_output%d.dat

cmTableSelect Output file name JCD_TableSelect_output%d.dat

JDBC/ODBC eWay Adapter User’s Guide 90 Sun Microsystems, Inc.

Chapter 6 Section 6.5

Implementing the JDBC/ODBC eWay Sample Projects Building and Deploying the prjJDBC_JCD Sample Project

Table 16 FileClientOUT eWay Property Settings (Continued)

Connectivity Map Property Name Required Value

cmUpdate Output file name JCD_Update_output%d.dat

Configuring the Environment Explorer Properties

Steps required to configure the Environment Explorer properties:

1 From the Environment Explorer tree, right-click the JDBC External System

(esJDBC in this sample), and select Properties. The Properties Editor opens to the JDBC eWay Environment configuration.

2 Modify the JDBC eWay Environment configuration properties for your system, as

seen in Table 17, and click OK.

Table 17 JDBC eWay Environment Properties

Section Property Name Required Value

Configuration > Inbound JDBC eWay > JDBC Connector settings

3 From the Environment Explorer tree, right-click the File External System

(esFileClient in this sample), and select Properties. The Properties Editor opens to the File eWay Environment configuration.

4 Modify the File eWay Environment configuration properties for your system, as

seen in Table 18, and click OK.

ServerName Enter the host name of the

database server being used.

DatabaseName Enter the name of the particular

database that is being used on the server.

User Enter the user account name for

the database.

Password Enter the user account password

for the database.

JDBC/ODBC eWay Adapter User’s Guide 91 Sun Microsystems, Inc.

Chapter 6 Section 6.5

Implementing the JDBC/ODBC eWay Sample Projects Building and Deploying the prjJDBC_JCD Sample Project

Table 18 File eWay Environment Properties

Section Property Name Required Value

Configuration > Inbound File eWay > Parameter Settings

Configuration > Outbound File eWay > Parameter Settings

Directory Enter the directory that contains

Directory Enter the directory where output

Configuring the Integration Server

You must set your SeeBeyond Integration Server Password property before deploying your Project.

the input files (trigger files included in the sample Project).

Trigger files include:

 TriggerDelete.in.~in  TriggerInsert.in.~in  TriggerPsSelect.in.~in  TriggerTableSelect.in.~in  TriggerPsUpdate.in.~in

files are written. In this sample Project, the output files include:

 JCD_Delete_output0.dat  JCD_Insert_output0.dat  JCD_PsSelect_output0.dat  JCD_TableSelect_output0.dat  JCD_PsUpdate_output0.dat

1 From the Environment Explorer, right-click IntegrationSvr1 under your Logical

Host, and select Properties from the shortcut menu. The Integration Server

Properties Editor appears.

2 Click the Password property field under Sun SeeBeyond Integration Server

Configuration. An ellipsis appears in the property field.

3 Click the ellipsis. The Password Settings dialog box appears.

4 Enter STC as the Specific Value and as the Confirm Password, and click OK.

5 Click OK to accept the new property and close the Properties Editor.

For more information on deploying a Project see the Sun SeeBeyond Java™ Composite Application Platform Suite Deployment Guide.

6.5.9 Creating the Deployment Profile

A Deployment Profile is used to assign services and message destinations to the Integration Server and message server. Deployment profiles are created using the Deployment Editor.

JDBC/ODBC eWay Adapter User’s Guide 92 Sun Microsystems, Inc.

Chapter 6 Section 6.5

Implementing the JDBC/ODBC eWay Sample Projects Building and Deploying the prjJDBC_JCD Sample Project

Steps required to create the Deployment Profile:

1 From the Enterprise Explorer’s Project Explorer, right-click the prjJDBC_JCD

Project and select New > Deployment Profile.

2 Enter a name for the Deployment Profile (for this sample dpJDBC_JCD). Select

envJDBCProj as the Environment and click OK.

3 From the Deployment Editor toolbar, click the Automap icon. The Project’s

components are automatically mapped to their system windows. See Figure 39.

Figure 39 Deployment Profile

6.5.10 Creating and Starting the Domain

To build and deploy your Project, you must first create a domain. A domain is an instance of a Logical Host. After the domain is created, the Project is built and then deployed.

Note: You are only required to create a domain once when you install the Sun Java

Composite Application Platform Suite.

JDBC/ODBC eWay Adapter User’s Guide 93 Sun Microsystems, Inc.

Chapter 6 Section 6.5

Implementing the JDBC/ODBC eWay Sample Projects Building and Deploying the prjJDBC_JCD Sample Project

Steps required to create and start the domain:

1 Navigate to your <JavaCAPS51>\logicalhost directory (where <JavaCAPS51> is

the location of your Sun Java Composite Application Platform Suite installation).

2 Double-click the domainmgr.bat file. The Domain Manager appears.

3 If you have already created a domain, select your domain in the Domain Manager

and click the Start an Existing Domain button. Once your domain is started, a green check mark indicates that the domain is running. Your domain will continue to run unless you shut it down.

4 If there are no existing domains, a dialog box indicates that you can create a domain

now. Click Yes. The Create Domain dialog box appears.

5 Make any necessary changes to the Create Domain dialog box and click Create. The

new domain is added to the Domain Manager. Select the domain and click the Start an Existing Domain button. Once your domain is started, a green check mark

indicates that the domain is running.

For more information about creating and managing domains see the eGate Integrator System Administration Guide.

6.5.11 Building and Deploying the Project

The Build process compiles and validates the Project’s Java files and creates the Project EAR file.

Build the Project

1 From the Deployment Editor toolbar, click the Build icon.

2 If there are any validation errors, a Validation Errors pane will appear at the bottom

of the Deployment Editor and displays information regarding the errors. Make any necessary corrections and click Build again.

3 After the Build has succeeded you are ready to deploy your Project.

Deploy the Project

1 From the Deployment Editor toolbar, click the Deploy icon. Click Yes when the

Deploy prompt appears.

2 A message appears when the project is successfully deployed. You can now test

your sample.

6.5.12 Running the Sample

Additional steps are required to run the deployed sample Project.

Steps required to run the sample Project:

1 Rename one of the trigger files included in the sample Project from

<filename>.in.~in to <filename>.in to run the corresponding operation.

The File eWay polls the directory every five seconds for the input file name (as defined in the Inbound File eWay Properties window). The JCD then transforms the

JDBC/ODBC eWay Adapter User’s Guide 94 Sun Microsystems, Inc.

Chapter 6 Section 6.6

Implementing the JDBC/ODBC eWay Sample Projects Building and Deploying the prjJDBC_BPEL Sample Project

data, and the File eWay sends the output to an Output file name (as defined in the outbound File eWay Properties window).

The Where Clause defined in the business rule recognizes the trigger as a placeholder for input, allowing a set condition, such as emp_no = 100, to determine the type of output data.

You can modify the following input files to view different output.

 TriggerTableSelect.in

 TriggerDelete.in

 TriggerPsUpdate.in

Having no content in these files causes the operation to read all records.

2 Verify the output data by viewing the sample output files. See About the JDBC

eWay Sample Projects on page 69 for more details on the types of output files used

in this sample Project. The output files may change depending on the number of times you execute the sample Project, the input file, and also the content of your database table.

6.6 Building and Deploying the prjJDBC_BPEL Sample

Project

The following provides step-by-step instructions for manually creating the prjJDBC_BPEL sample Project.

Steps required to create the sample project include:

 Creating a Project on page 95

 Creating the OTDs on page 96

 Creating the Business Process on page 97

 Creating the Connectivity Map on page 107

 Creating an Environment on page 109

 Configuring the eWays on page 110

 Creating the Deployment Profile on page 113

 Creating and Starting the Domain on page 114

 Building and Deploying the Project on page 115

 Running the Sample Project on page 115

6.6.1 Creating a Project

The first step is to create a new Project in the Enterprise Designer.

1 Start the Enterprise Designer.

JDBC/ODBC eWay Adapter User’s Guide 95 Sun Microsystems, Inc.

Chapter 6 Section 6.6

Implementing the JDBC/ODBC eWay Sample Projects Building and Deploying the prjJDBC_BPEL Sample Project

2 From the Project Explorer tree, right-click the Repository and select New Project. A

new Project (Project1) appears on the Project Explorer tree.

3 Right-click Project1 and select Rename from the shortcut menu. Rename the Project

(for this sample, prjJDBC_BPEL).

6.6.2 Creating the OTDs

The sample Project requires three OTDs to interact with the JDBC eWay. These OTDs include:

 JDBC Database OTD

 Inbound DTD OTD

 Outbound DTD OTD

Steps required to create a JDBC Database OTD include:

1 Right-click your new Project in the Enterprise Designer’s Project Explorer, and

select New > Object Type Definition.

The New Object Type Definition Wizard window appears.

2 Select the JDBC Database OTD Wizard from the list of OTD Wizards and click

Next.

3 Enter the connection information for the JDBC database. Connection fields include:

 Driver Jar Files

 Driver Java Class Name

 URL Connection String

 User name

 Password

4 Click Next, and select the types of database object you want to include in the

sample Project. For this example, select the following:

 Tables/Views/Aliases

 Prepared Statements

5 Click Add to select tables from the JDBC database. The Add Tables window

appears.

6 Search for or type in the name of the database. In this example we use the

DB_EMPLOYEE table. Click Select when the database appears in the Results selection frame. Click OK to close the Add Tables window

7 Click Next the Add Prepared Statements Wizard appears.

8 Click Add, the Add Prepared Statement window appears. Enter the following:

 Prepared Statement Name: Select_ps

 SQL Statement:

select * from db_employee where emp_no > ? order by emp_no

JDBC/ODBC eWay Adapter User’s Guide 96 Sun Microsystems, Inc.

Chapter 6 Section 6.6

Implementing the JDBC/ODBC eWay Sample Projects Building and Deploying the prjJDBC_BPEL Sample Project

Note: In our example, the SQL statement includes the ? placeholder for input. This

placeholder represents the value for the Where Clause.

9 Click the OK button to close the Prepared Statement window, and then click Next

on the Prepared Statements Wizard window.

10 Enter an OTD name. In this example, we use otdJDBC.

11 Click Next and review your settings, then click Finish to create the OTD.

Steps required to create inbound and outbound DTD OTDs:

1 Right-click your new Project in the Enterprise Designer’s Project Explorer, and

select New > Object Type Definition.

The New Object Type Definition Wizard window appears.

2 Select DTD from the list of OTD Wizards and click Next.

3 Browse to and then select a DTD file. For our example, select one of the following

DTD files from the sample Project, and then click Next.

 otdInputDTD.dtd

 otdOutputDTD.dtd

4 The file you select appears in the Select Document Elements window. Click Next.

5 Click Finish to complete the DTD based OTD. Repeat this process again to create

the second DTD file.

6.6.3 Creating the Business Process

Steps required to create the Business Process include:

 Creating the business process flow

 Configuring the modeling elements

Creating the Business Process Flow

The business process flow contains all the BPEL elements that make up a business process.

Steps to create a business process flow include:

1 Right-click your new Project in the Enterprise Designer’s Project Explorer, and

select New > Business Process from the shortcut menu. The eInsight Business Process Designer appears and BusinessProcess1 is added to the Project Explorer tree. Rename BusinessProcess1 to bpelPsInsert.

2 Create three additional business processes and rename them as follows:

 bpelUpdate

 bpelDelete

 bpTableSelect

3 Add the following Activities to the Business Process Designer canvas.

JDBC/ODBC eWay Adapter User’s Guide 97 Sun Microsystems, Inc.

Chapter 6 Section 6.6

Implementing the JDBC/ODBC eWay Sample Projects Building and Deploying the prjJDBC_BPEL Sample Project

Table 19 Business Process Activities

Business Process Activity

bpelPsInsert  FileClient.Receive

 FileClient.Write  otdInputDTD_DBemployees.unmarshal  otdJDBC.Insert_PsPSInsert  FileClient.Write

bpelUpdate  FileClient.receive

 FileClient.write  otdJDBC.DB_EMPLOYEEUpdate  FileClient.write

bpelDelete  FileClient.receive

 FileClient.write  otdJDBC.DB_EMPLOYEEDelete  FileClient.write

bpelTableSelect  FileClient.receive

 FileClient.write  otdJDBC.DB_EMPLOYEESelectAll  otdInputDTD_DBemployees.marshal  FileClient.write  FileClient.write

Configuring the bpelPsInsert Modeling Elements

Business Rules, created between the Business Process Activities, allow you to configure the relationships between the input and output Attributes of the Activities using the Business Process Designer’s Business Rule Designer.

Once you have connected the modeling elements together, begin adding the business processes necessary to facilitate the Insert operation. See Figure 40 for an illustration of how all the modeling elements appear when connected.

Note: Review the eInsight Business Process Manager User’s Guide for a more detailed

description of the steps required to connect and add business rules to a modeling elements in a business process.

JDBC/ODBC eWay Adapter User’s Guide 98 Sun Microsystems, Inc.

Chapter 6 Section 6.6

Implementing the JDBC/ODBC eWay Sample Projects Building and Deploying the prjJDBC_BPEL Sample Project

Figure 40 bpelPsInsert Business Process

Steps required to configure the bpelPsInsert business process:

1 Configure the business rule between the FileClient.receive and FileClient.write

Activities, as seen in Figure 41.

Figure 41 bpelPsInsert Business Rule # 1

2 Configure the business rule between the FileClient.write Activity and

otdInputDTD_DBemployees.unmarshal Activity, as seen in Figure 42.

Figure 42 bpelPsInsert Business Rule # 2

3 Configure the business rule between otdInputDTD_DBemployees.unmarshal and

the otdJDBC.Insert_psPSInsert Activity, as seen in Figure 43.

JDBC/ODBC eWay Adapter User’s Guide 99 Sun Microsystems, Inc.

Chapter 6 Section 6.6

Implementing the JDBC/ODBC eWay Sample Projects Building and Deploying the prjJDBC_BPEL Sample Project

Figure 43 bpelPsInsert Business Rule # 3

4 Configure the business rule between the otdJDBC.Insert_psPSInsert Activity and

the FileClient.write Activity, as seen in Figure 44.

Figure 44 bpelPsInsert Business Rule # 4

Configuring the bpelUpdate Modeling Elements

The bpelUpdate business process describes how to update a record in the JDBC database using the Business Process Designer.

Once you have connected the modeling elements together, begin adding the business processes necessary to facilitate the Update operation. Figure 45 illustrates how all the modeling elements appear when connected.

Note: The where clause in the business rule reads the trigger value as a placeholder for

input. This permits you to modify the query to select a specific record. Also note that all records are selected from the database when the TriggerUpdate.in file is empty.

JDBC/ODBC eWay Adapter User’s Guide 100 Sun Microsystems, Inc.

Sun Microsystems eWay JDBC-ODBC User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Contents

Introducing the JDBC/ODBC eWay

1.1 About Java Database Connectivity (JDBC)

1.1.1 JDBC Drivers

Type I: JDBC-ODBC Bridge

Type One Driver

Type II: Partial Java driver

Type Two Driver

Pure Java driver for database middleware

Type Three Driver

Type Four Driver: Direct-to-database pure Java driver

1.2 About the JDBC/ODBC eWay

1.3 What’s New in This Release

1.4 About This Document

JDBC eWay Javadoc

1.4.1 Scope

1.4.2 Intended Audience

1.4.3 Text Conventions

1.5 Related Documents

1.6 Sun Microsystems, Inc. Web Site

1.7 Documentation Feedback

Installing the JDBC/ODBC eWay

2.1 Installing the JDBC eWay

2.1.1 Installing the JDBC eWay on an eGate supported system

Adding the eWay to an Existing Sun Java Composite Application Platform Suite Installation

After Installation

2.1.2 Extracting the Sample Projects and Javadocs

2.2 ICAN 5.0 Project Migration Procedures

2.3 Installing Enterprise Manager eWay Plug-Ins

2.3.1 Viewing Alert Codes

Setting Properties of the JDBC/ODBC eWay

3.1 Creating and Configuring a JDBC eWay

3.2 Configuring the eWay Connectivity Map Properties

3.2.1 Transaction Support Levels Between Different Versions

3.3 Configuring the eWay Environment Properties

3.4 eWay Connectivity Map Properties

3.4.1 Connectivity Map Outbound eWay Properties

3.4.3 Connectivity Map Outbound XA eWay Properties

3.5 eWay Environment Properties

3.5.1 Inbound JDBC eWay Properties

3.5.2 Outbound JDBC eWay Properties

JDBC Connector Settings

Connection Retry Settings

3.5.3 Outbound non-Transactional JDBC eWay Properties

JDBC Connector Settings

Connection Retry Settings

3.5.4 Outbound XA JDBC eWay Properties

JDBC Connector Settings

Connection Retry Settings

Using the JDBC/ODBC eWay Database Wizard

4.1 About the Database OTD Wizard

4.2 Creating a New JDBC OTD

4.2.1 Select Wizard Type

4.2.2 Connect To Database

4.2.3 Select Database Objects

4.2.4 Select Tables/Views/Aliases

4.2.5 Select Procedures

4.2.6 Add Prepared Statement

4.2.7 Specify the OTD Name

4.2.8 Review Selections

4.3 Steps to Edit an Existing JDBC OTD

Using JDBC/ODBC Operations

5.1 JDBC eWay Database Operations (BPEL)

5.1.1 Activity Input and Output

5.2 JDBC eWay Database Operations (JCD)

5.2.1 The Table

The Query (Select) Operation

The Insert Operation

The Update Operation

The Delete Operation

The Stored Procedure

Executing Stored Procedures

Manipulating the ResultSet and Update Count Returned by Stored Procedure

Prepared Statement

Batch Operations

Implementing the JDBC/ODBC eWay Sample Projects
