Sun Microsystems Enterprise 3500 Installation Manual

A Sun Microsystems, Inc.

Business

901 San Antonio Road

Palo Alto, , CA 94303-4900

Part No: 805-2629-10
Revision A, April 1998

Sun Enterprise 3500 System
Installation Guide

USA 650 960-1300 fax [phone]

Sun Enterprise 3500 System
Installation Guide

Part No: 805-2629-10
Revision A, April 1998

Copyright 1998 Sun Microsystems, Inc. 901 San Antonio Road, Palo Alto, California 94303-4900 U.S.A. All rights reserved.
All rights reserved. This product or document is protected by copyright and distributed under licenses restricting its use, copying,

distribution, and decompilation. No part of this product or document may be reproduced in any form by any means without prior written
authorization of Sun and its licensors, if any.

®

Portions of this product may be derived from the UNIX
licensed from the University of California. UNIX is a registered trademark in the United States and in other countries and is exclusively
licensed by X/Open Company Ltd. Third-party software, including font technology in this product, is protected by copyright and licensed
from Sun’s suppliers. RESTRICTED RIGHTS: Use, duplication, or disclosure by the U.S. Government is subject to restrictions of FAR

52.227-14(g)(2)(6/87) and FAR 52.227-19(6/87), or DFAR 252.227-7015(b)(6/95) and DFAR 227.7202-3(a).
Sun, Sun Microsystems, the Sun logo, and Solaris are trademarks or registered trademarks of Sun Microsystems, Inc. in the United States

and in other countries. All SPARC trademarks are used under license and are trademarks or registered trademarks of SPARC International,
Inc. in the United States and in other countries. Products bearing SPARC trademarks are based upon an architecture developed by Sun
Microsystems, Inc.

The OPEN LOOK
acknowledges the pioneering efforts of Xerox Corporation in researching and developing the concept of visual or graphical user interfaces
for the computer industry. Sun holds a nonexclusive license from Xerox to the Xerox Graphical User Interface, which license also covers

®

and Sun

TM

Graphical User Interfaces were developed by Sun Microsystems, Inc. for its users and licensees. Sun

system, licensed from Novell, Inc., and from the Berkeley 4.3 BSD system,

Sun’s licensees who implement OPEN LOOK GUIs and otherwise comply with Sun’s written license agreements.
THIS PUBLICATION IS PROVIDED “AS IS” WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING,

BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE, OR
NON-INFRINGEMENT.

Copyright 1998 Sun Microsystems, Inc., 901 San Antonio Road, Palo Alto, Californie 94303-4900 U.S.A. Tous droits réservés.
Ce produit ou document est protégé par un copyright et distribué avec des licences qui en restreignent l’utilisation, la copie et la

décompilation. Aucune partie de ce produit ou de sa documentation associée ne peut être reproduite sous aucune forme, par quelque
moyen que ce soit, sans l’autorisation préalable et écrite de Sun et de ses bailleurs de licence, s’il y en a.

Des parties de ce produit pourront être derivées du système UNIX
l’Université de Californie. UNIX est une marque enregistrée aux Etats-Unis et dans d’autres pays, et licenciée exclusivement par X/Open
Company Ltd. Le logiciel détenu par des tiers, et qui comprend la technologie relative aux polices de caractères, est protégé par un
copyright et licencié par des fournisseurs de Sun.

®

licencié par Novell, Inc. et du système Berkeley 4.3 BSD licencié par

Sun, Sun Microsystems, le logo Sun, et Solaris sont des marques déposées ou enregistrées de Sun Microsystems, Inc. aux Etats-Unis et
dans d’autres pays. Toutes les marques SPARC, utilisées sous licence, sont des marques déposées ou enregistrées de SPARC International,
Inc. aux Etats-Unis et dans d’autres pays. Les produits portant les marques SPARC sont basés sur une architecture développée par Sun
Microsystems, Inc.

Les utilisateurs d’interfaces graphiques OPEN LOOK
licenciés. Sun reconnaît les efforts de pionniers de Xerox Corporation pour la recherche et le développement du concept des interfaces
d’utilisation visuelle ou graphique pour l’industrie de l’informatique. Sun détient une licence non exclusive de Xerox sur l’interface
d’utilisation graphique, cette licence couvrant aussi les licenciés de Sun qui mettent en place les utilisateurs d’interfaces graphiques OPEN

®

et SunTMont été développés de Sun Microsystems, Inc. pour ses utilisateurs et

LOOK et qui en outre se conforment aux licences écrites de Sun.
CETTE PUBLICATION EST FOURNIE "EN L’ETAT" SANS GARANTIE D’AUCUNE SORTE, NI EXPRESSE NI IMPLICITE, Y COMPRIS,

ET SANS QUE CETTE LISTE NE SOIT LIMITATIVE, DES GARANTIES CONCERNANT LA VALEUR MARCHANDE, L’APTITUDE DES
PRODUITS A REPONDRE A UNE UTILISATION PARTICULIERE OU LE FAIT QU’ILS NE SOIENT PAS CONTREFAISANTS DE
PRODUITS DE TIERS.

Please

Recycle

Contents

Preface vi

1. Preparing for Installation 1

Unpacking and Preparing the System 2

Shipping and Storing the System 3
Preparing the Electrical Circuits 3
Preparing the Air Conditioning 3
Preparing the Ethernet Network 4
Preparing the Area 5
Using the User Naming Area 6

2. Cabling the System 9

Preparing the System for Cabling 9
Installing the Fiber Cable Organizer 9

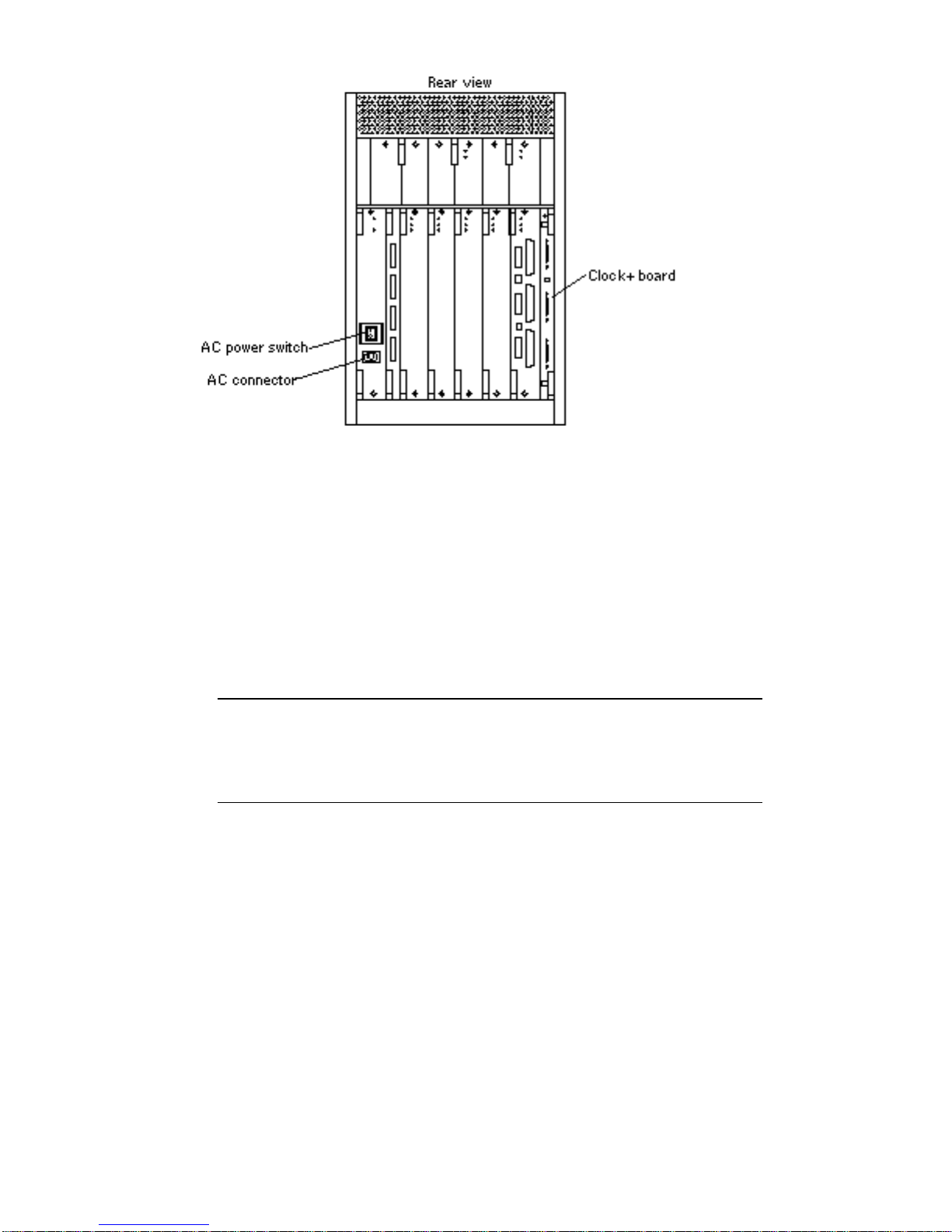

Connecting the Power Cord 11
Connecting the Network Cable to the System 14
Connecting the System to the Network 15
Connecting an ASCII Terminal 18
Connecting the Fiber Cable to the I/O+ Board 20
Connecting the Fiber Cable to the Interface Board and the I/O+ Board 21

Wrapping the Fiber Cable on the Organizer 22

Contents iv

Connecting External SCSI Devices 25

3. Powering the System On and Off 27

Using JumpStart Automatic Installation 27
Powering On the System 28

Reading Boot Messages 31
Interpreting Status LED Patterns 32

Powering Off the System 33

4. Software 35

Operating System Software and Patches 35

Solaris 2.6 - Patch 105375-04 35
Solstice SyMON Software 35
Dynamic Reconfiguration 36
CPU Over Temperature Safeguard (COS) 36

A. Regulatory Agency Compliance Statements 37

FCC, DOC, and VCCI Class Notices 37

FCC Class A Notice 37

DOC Class A Notice – Avis DOC, Classe A 38

VCCI 39
Declaration of Conformity 40

Index 41

v

Sun Enterprise 3500 System Installation Guide ♦ Revision A, April 1998

Preface

The Sun Enterprise 3500 System Installation Guide provides installation instructions
for the factory-configured 5-slot system. These instructions are for an experienced
system administrator with networking knowledge.

UNIX Commands

This document may not contain information on basic UNIX®commands and
procedures such as shutting down the system, booting the system, and configuring
devices.

See one or more of the following for this information:

4

Solaris 2.x Handbook for SMCC Peripherals, which contains SolarisTM2.x software
commands

4

AnswerBookTMonline documentation for the Solaris 2.x software environment

4

Other software documentation that you received with your system

Typographic Conventions

Preface vi

TABLE P–1 Typographic Conventions

Typeface or
Symbol Meaning Examples

AaBbCc123

AaBbCc123

AaBbCc123

The names of commands, files, and
directories; on-screen computer
output.

What you type, when contrasted
with on-screen computer output.

Book titles, new words or terms,
words to be emphasized.

Command-line variable; replace
with a real name or value.

Edit your .login file.
Use ls -a to list all files.

% You have mail.

% su

Password:

Read Chapter 6 in the User’s Guide.
These are called class options.
You must be root to do this.
To delete a file, type rm filename.

Shell Prompts

TABLE P–2 Shell Prompts

Shell Prompt

C shell

C shell superuser

Bourne shell and Korn shell

Bourne shell and Korn shell superuser

vii Sun Enterprise 3500 System Installation Guide ♦ Revision A, April 1998

machine_name%

machine_name#

$

#

Related Documentation

TABLE P–3 Related Documents

Application Title Part Number

Service
Software

Options

Sun Enterprise 3500 System Reference Manual
SMCC SPARC Hardware Platform Guide
Solstice SyMON User’s Guide 802-5355
Dynamic Reconfiguration User’s Guide for Sun Enterprise

Systems
Sun Enterprise Expansion Cabinet Installation and Service

Manual
Sun Enterprise 6/5/4/3x00 Board Installation Guide 805-4007
4 Mbyte UltraSPARC II Installation Guide 805-1150
Sun Enterprise 6/5/4/3x00 Systems SIMM Installation Guide
SBus+ and Graphics+ I/O Boards (100 MB/sec Fibre

Channels) for Sun Enterprise 6/5/4/3x00 Systems
PCI+ I/O Board Installation and Component Replacement for

Sun Enterprise 6/5/4/3x00 Systems
Sun Enterprise Peripheral Power Supply/AC Installation

Guide
Sun Enterprise 3500 Auxiliary Peripheral Power Supply

Installation Guide
Sun Enterprise 3500 Fiber Cable Organizer Installation Guide
Sun Enterprise 3500 Interface Board Installation Guide
Sun Enterprise Peripheral Power Supply Installation Guide 802-5033
Sun Enterprise Power/Cooling Module (PCM) Installation

Guide

805-2630
802-5341

805-3530

805-4009

802-5032
805-2704

805-1372

802-5033

805-4012

805-4010
805-4011

802-6244

viii

Ordering Sun Documents

SunDocsSM is a distribution program for Sun Microsystems technical
documentation. Contact SunExpress for easy ordering and quick delivery. You can
find a listing of available Sun documentation on the World Wide Web.

TABLE P–4 SunExpress Contact Information

Country Telephone Fax

Belgium 02-720-09-09 02-725-88-50

Canada 1-800-873-7869 1-800-944-0661

France 0800-90-61-57 0800-90-61-58

Germany 01-30-81-61-91 01-30-81-61-92

Holland 06-022-34-45 06-022-34-46

Japan 0120-33-9096 0120-33-9097

Luxembourg 32-2-720-09-09 32-2-725-88-50

Sweden 020-79-57-26 020-79-57-27

Switzerland 0800-55-19-26 0800-55-19-27

United Kingdom 0800-89-88-88 0800-89-88-87

United States 1-800-873-7869 1-800-944-0661

World Wide Web: http://www.sun.com/sunexpress/

Sun Documentation on the Web

The docs.sun.com web site enables you to access Sun technical documentation on
the World Wide Web. You can browse the docs.sun.com archive or search for a
specific book title or subject at http://docs.sun.com.

ix

Sun Enterprise 3500 System Installation Guide ♦ Revision A, April 1998

Sun Welcomes Your Comments

We are interested in improving our documentation and welcome your comments and
suggestions. You can email your comments to us at [e-mail]. Please
include the part number of your document in the subject line of your email.

Notes, Cautions, and Warnings

Caution - This equipment contains lethal voltage. Accidental contact with

centerplane, card cage, and drive areas can result in serious injury or death.

Caution - Improper handling by unqualified personnel can cause serious damage to

this equipment. Unqualified personnel who tamper with this equipment may be held
liable for any resultant damage to the equipment.

Individuals who remove any outer panels or open covers to access this equipment
must observe all safety precautions and ensure compliance with skill level
requirements, certification, and all applicable local and national laws.

Procedures contained in this document must be performed by qualified
service-trained maintenance providers.

Note - Before you begin, carefully read each of the procedures in this manual. If you

have not performed similar operations on comparable equipment, do not attempt to
perform these procedures.

x

xi Sun Enterprise 3500 System Installation Guide ♦ Revision A, April 1998

CHAPTER 1

Preparing for Installation

This chapter describes how to prepare your site for the Sun Enterprise 3500 server
system.

The tasks for installing the system are:
Unpacking the server
Preparing the site
Preparing the server
Cabling
Powering on
Using the software

Note - For information about physical specifications, electrical specifications, and

environmental requirements, refer to Appendix A “Specifications,” in the Sun
Enterprise 3500 System Reference Manual (part number 805-2630).

1

Figure 1–1 Enterprise 3500 System

Unpacking and Preparing the System

Note - Inspect all shipping cartons for evidence of physical damage. If a shipping

carton is damaged, request that the carrier’s agent be present when the carton is
opened. Keep all contents and packing material for the agent’s inspection.

If the system is already unpacked, go to “Preparing the Electrical Circuits” on page 3.

Caution - The system can weigh up to 185 lbs (84 kg). To prevent personal injury,

two people are needed to lift the system safely. The rear support bracket is designed
to support the system weight only when the system is stationary, on a flat surface.
Do not attempt to lift the system by grasping the support bracket.

Tools

4

#2 Phillips screwdriver

4

System key for front door and key switch (packed in a bag in the accessory box)

2

Sun Enterprise 3500 System Installation Guide ♦ Revision A, April 1998

Follow the graphical instructions on the shipping container to remove the system
from the container. Remove the system key (for front door and key switch), and
power cord from the shipping container. These are needed to power on the system.

Note - Any unpacking instructions printed on the outside of the shipping carton

take precedence over information in this section.

Shipping and Storing the System

Save the original shipping containers and packing materials in case you need to store
or ship your system.

If you cannot store the shipping materials, recycle or dispose of the materials
properly. Consult your local recycling authority for information.

Preparing the Electrical Circuits

In planning where to place your equipment, remember that each of the following
items requires access (by way of a separate power cord) to a power outlet:

4

Enterprise 3500 system

4

External peripherals

4

Monitor used for diagnostics

The Enterprise 3500 system uses nominal input voltages of 100-120 VAC or 200-220
VAC. Sun products are designed to work with single-phase power systems having a
grounded neutral conductor.

To reduce the risk of electrical shock, do not plug Sun products into another type of
power source. Contact your facilities manager or a qualified electrician if you are
unsure what type of power is supplied to your building.

Preparing the Air Conditioning

For the most reliable system operation:

4

The room should have sufficient air conditioning capacity to support the cooling
needs of the entire system.

Preparing for Installation 3

4

The air conditioning system should have controls that prevent excessive
temperature changes.

Refer to Appendix A “Specifications,” in the Sun Enterprise 3500 System Reference
Manual for environmental information.

Preparing the Ethernet Network

The Enterprise 3500 system follows the IEEE standard for 10/100BASE-T Ethernet
(twisted-pair) or MII (Media Independent Interface).

Twisted-pair cables used with Sun Microsystems products have RJ-45 connectors that
resemble the smaller RJ-11 connectors used for modular telephone cables. For
twisted-pair cable length, see Table 2–1.

A MII to AUI converter cable, available from Sun, enables the 10/100 Mbps Ethernet
interface to run over 10 Mbps coaxial Ethernet networks. Other MII Ethernet
connectivity products are available from third parties.

Figure 1–2 and Figure 1–3 illustrate types of network cables and possible
implementations of 10/100BASE-T Ethernet.

Set up the network using Sun or third-party components. To obtain the best results,
read any applicable manufacturer instructions. Be aware that Sun Microsystems
cannot guarantee the performance of any components that are not purchased from
Sun.

Figure 1–2 Types of Network Cables Used

4

Sun Enterprise 3500 System Installation Guide ♦ Revision A, April 1998
