Sun Microsystems CP3240 User Manual

Sun Netra™CP3240 Switch
Installation Guide
Sun Microsystems, Inc. www.sun.com
Part No. 820-3251-13 September 2009, Revision A
Submit comments about this document at: http://www.sun.com/hwdocs/feedback
Copyright ©2009 SunMicrosystems, Inc.,4150 NetworkCircle, Santa Clara, California 95054, U.S.A. All rights reserved.
Sun Microsystems,Inc. hasintellectual property rightsrelating totechnology embodiedin theproduct that is described in this document. In particular,and withoutlimitation, theseintellectual property rights may include one or more ofthe U.S.patents listedat http://www.sun.com/patents and one or more additionalpatents orpending patentapplications inthe U.S.and inother countries.
This distributionmay includematerials developedby thirdparties.
Parts ofthe productmay bederived from BerkeleyBSD systems,licensed fromthe Universityof California.UNIX isa registered trademarkin the U.S.and inother countries,exclusively licensedthrough X/OpenCompany, Ltd.
Sun, SunMicrosystems, the Sun logo, Solaris,Netra andthe Netra logo are trademarksor registered trademarksof SunMicrosystems, Inc., orits subsidiaries, inthe U.S.and othercountries.
Products covered byand informationcontained inthis servicemanual arecontrolled by U.S. Export Control laws and may be subject to the export orimport lawsin othercountries. Nuclear, missile, chemical biological weapons or nuclear maritime end uses or end users, whether direct orindirect, are strictly prohibited. Exportor reexport to countries subject to U.S. embargo orto entitiesidentified onU.S. exportexclusion lists, including,but notlimited to,the deniedpersons andspecially designatednationals listsis strictlyprohibited.
Use ofany spareor replacement CPUsis limitedto repairor one-for-one replacementof CPUsin products exportedin compliancewith U.S. export laws.Use ofCPUs asproduct upgradesunless authorizedby theU.S. Governmentis strictlyprohibited.
DOCUMENTATION IS PROVIDED "AS IS" AND ALL EXPRESS OR IMPLIED CONDITIONS, REPRESENTATIONS AND WARRANTIES, INCLUDING ANY IMPLIED WARRANTY OFMERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE OR NON-INFRINGEMENT, ARE DISCLAIMED, EXCEPT TO THE EXTENT THAT SUCH DISCLAIMERS ARE HELD TO BE LEGALLY INVALID.
Copyright ©2009 SunMicrosystems, Inc.,4150 NetworkCircle, Santa Clara, California 95054, Etats-Unis. Tous droits réservés.
Sun Microsystems,Inc. détientles droits depropriété intellectuelsrelatifs à la technologie incorporée dans le produit qui est décrit dans ce document. Enparticulier,et cesans limitation,ces droits de propriété intellectuellepeuvent inclure un ou plus des brevetsaméricains listésà l’adresse http://www.sun.com/patents et un ou les brevets supplémentaires oules applicationsde brevet enattente auxEtats -Unis etdans les autres pays.
Cette distributionpeut comprendre descomposants développéspar destierces parties.
Des partiesde ceproduit pourront êtredérivées dessystèmes BerkeleyBSD licenciéspar l’Universitéde Californie.UNIX estune marque déposée auxEtats-Unis etdans d’autrespays etlicenciée exclusivementpar X/OpenCompany, Ltd.
Sun, SunMicrosystems, lelogo Sun,Solaris, Netraet lelogo Netrasont desmarques de fabrique ou des marques déposées de Sun Microsystems, Inc.,ou sesfiliales, auxEtats-Unis etdans d’autres pays.
Ce produitest soumisà lalégislation américaineen matière decontrôle desexportations etpeut êtresoumis àla règlementationen vigueur dans d’autrespays dansle domainedes exportationset importations.Les utilisations, ouutilisateurs finaux,pour desarmes nucléaires, des missiles, desarmes biologiqueset chimiquesou dunucléaire maritime,directement ou indirectement, sont strictement interdites. Les exportations oureexportations versles payssous embargo américain,ou versdes entitésfigurant surles listesd’exclusion d’exportation américaines, ycompris, maisde manièrenon exhaustive,la listede personnesqui fontobjet d’unordre de ne pas participer, d’une façon directe ou indirecte,aux exportationsdes produits oudes servicesqui sontrégis parla législationaméricaine enmatière decontrôle desexportations et la listede ressortissantsspécifiquement désignés,sont rigoureusement interdites.L’utilisation de pièces détachées ou d’unités centrales de remplacement estlimitée auxréparations ouà l’échangestandard d’unités centrales pour les produits exportés, conformément à la législation américaine enmatière d’exportation.Sauf autorisationpar les autorités des Etats-Unis, l’utilisation d’unités centrales pour procéder à des mises à jourde produitsest rigoureusement interdite.
LA DOCUMENTATION EST FOURNIE "EN L’ETAT" ET TOUTES AUTRES CONDITIONS, DECLARATIONS ET GARANTIES EXPRESSES OU TACITES SONT FORMELLEMENTEXCLUES, DANSLA MESUREAUTORISEE PARLA LOIAPPLICABLE, YCOMPRIS NOTAMMENT TOUTE GARANTIE IMPLICITE RELATIVE A LA QUALITE MARCHANDE, A L’APTITUDE A UNE UTILISATION PARTICULIERE OU A L’ABSENCE DE CONTREFACON.
Please
Recycle
Please
Recycle

Contents

Preface xix
1. Getting Started 1–1
1.1 System Requirements 1–2
1.1.1 Connectivity 1–2
1.1.1.1 Hub Connectivity 1–2
1.1.2 Electrical and Environmental 1–2
1.2 Unpacking 1–4
1.3 Handling Switches 1–4
1.4 Connectors 1–5
1.5 Jumper Options 1–5
1.6 Switch and RTM Faceplates 1–6
1.6.1 Base 10/100/1000 Uplink Ports (RJ-45) 1–7
1.6.2 10/100 Management Port (RJ-45) 1–7
1.6.3 Serial Management Port (RJ-45) 1–7
1.7 RTM Airflows 1–7
1.7.1 RTM Airflow Requirements 1–7
1.7.2 RTM Pressure Drop Versus Airflows (Impedence Curves) 1–8
1.8 Removing and Installing Switches 1–10
1.8.1 Removing a Switch Set 1–10
v
1.8.1.1 Removing a Switch From the Front of the Server 1–11
1.8.1.2 Removing a Rear Transition Module for a Switch 1–13
1.8.2 Installing a Switch Set 1–14
1.8.2.1 Installing the Rear Transition Module for a Switch 1–14
1.8.2.2 Installing a Switch 1–14
1.9 Switch LEDs 1–15
1.9.1 ATCA Board Status LEDs 1–15
1.9.2 Hot-Swap LED 1–16
2. Overview 2–1
2.1 Features 2–2
2.1.1 General 2–2
2.1.2 Base Interface 2–3
2.1.3 Fabric Gigabit Interface 2–4
2.1.4 AMC Sites 2–5
2.2 Switch Components 2–6
2.2.1 Broadcom StrataXGS 3 BCM56503 Ethernet Switch 2–6
2.2.2 Broadcom StrataXGS 3 BCM56800 Ethernet Switch 2–6
2.2.3 Broadcom BCM5464R and BCM5461S 10/100/1000Base-T Ethernet PHY 2–6
2.2.4 Freescale PowerQUICC II MPC8247 Communications Processor 2–7
2.2.5 Pigeon Point BMR-H8S-AMCc AdvancedTCA IPMI Subsystem 2–7
2.3 Protocols, RFCs, and MIBs Support 2–8
2.3.1 FASTPATH Switching 2–8
2.3.1.1 Additional Layer 2 Functionality 2–9
2.3.1.2 System Facilities 2–9
2.3.1.3 Switching MIBs 2–10
2.3.1.4 Routing MIBs 2–10
vi Sun Netra CP3240 Switch Installation Guide • September 2009
2.3.2 FASTPATH Routing 2–11
2.3.3 FASTPATH Quality of Service 2–12
2.3.3.1 DiffServ 2–12
2.3.3.2 Access Control Lists (ACLs) 2–12
2.3.3.3 Class of Service (CoS) 2–13
2.3.3.4 Quality of Service MIBs 2–13
2.3.4 FASTPATH Multicast 2–13
2.3.4.1 Multicast MIBs 2–14
2.3.5 FASTPATH IPv6 Routing 2–14
2.3.5.1 IPv6 Routing MIBs 2–15
2.3.6 FASTPATH Management 2–15
2.3.6.1 SSL 3.0 and TLS 1.0 2–16
2.3.6.2 SSH 1.5 and 2.0 2–16
2.3.6.3 Additional Management Features 2–16
2.4 Functional Diagrams and Port Maps 2–17
2.4.1 Switch 2–17
2.4.2 Rear Transition Modules (RTM)s 2–18
2.4.2.1 Copper RTM 2–19
2.4.2.2 Fiber Optic RTM 2–21
2.4.3 Base Fabric Switch Subsystem 2–23
2.4.4 Expansion Fabric Switch Subsystem 2–24
2.4.5 AdvancedMC Sites 2–25
2.4.5.1 AMC Port Maps 2–26
2.4.5.2 AMC Module Support by Site 2–30
2.4.5.3 AMC Port Restrictions for RTMs 2–30
3. Configuring Jumper Settings 3–1
3.1 Jumper Settings 3–2
3.1.1 P4 Cross-Connect Control 3–2
Contents vii
3.1.2 P6(1-2) Fabric Zero Reset Configuration Word 3–3
3.1.3 P6(3-4) Base Zero Reset Configuration Word 3–3
3.1.4 P8(1-2) Base Write Protect 3–3
3.1.5 P8(3-4) Fabric Write Protect 3–4
3.1.6 P9 IPMC Firmware Program 3–4
3.1.7 P10(1-2) IPMC Reset 3–4
3.1.8 P10(3-4) IPMC FWE 3–5
3.1.9 P11(1-2) Forced-Board Enable 3–5
3.1.10 P11(3-4) IPMC Board Reset 3–5
3.1.11 P12(1-2) and P12 (3-4) EMI Ground to Logic Ground 3–6
3.1.12 P13 Serial Direction 3–6
3.2 Jumper Locations 3–7
4. Configuring Switch Software 4–1
4.1 IPMI Firmware Sensors 4–2
4.1.1 State Sensors 4–2
4.1.2 Threshold Sensors 4–4
4.2 uBoot 4–5
4.2.1 uBoot Console 4–5
4.2.2 E-Keying Control in uBoot 4–6
4.2.3 Serial-Baud Rate Control in uBoot 4–7
4.3 Linux 4–7
4.3.1 e-Keying 4–7
4.3.2 e-Keying Bypass 4–8
4.3.3 ATCA LEDs 4–8
4.4 Serial Select 4–8
4.5 Serial Location 4–9
4.5.1 Changing Serial Location from UBoot 4–9
4.5.2 Changing Serial Location from FASTPATH 4–9
viii Sun Netra CP3240 Switch Installation Guide • September 2009
4.6 Boot Sequence 4–10
4.6.1 Boot Utility Menu 4–11
4.6.1.1 Load Code Update Package using TFTP/FTP 4–12
4.6.1.2 Erase Current Configuration 4–12
4.6.1.3 Erase Permanent Storage 4–12
4.6.1.4 Select Boot Method 4–12
4.6.1.5 Start Diagnostic Application 4–13
4.7 Primary and Backup Flash 4–13
4.8 Dual Firmware Images 4–13
4.8.1 Booting the Non-Active Image 4–13
4.8.2 Updating the Non-Active Image 4–14
4.8.3 Fabric 1G/10G Auto-negotiation 4–14
4.9 Network Boot 4–14
4.10 FASTPATH 4–18
4.10.1 Management Options 4–18
4.10.1.1 CLI 4–18
4.10.2 Basic CLI Commands 4–19
4.10.3 Logins and Prompts 4–20
4.10.3.1 CLI Defaults 4–20
4.10.3.2 Web Interface Defaults 4–20
4.10.3.3 SNMP Defaults 4–21
4.10.4 Secure Remote Access 4–21
4.10.4.1 SSH and SSL/TLS Keys 4–21
4.10.4.2 Enabling SSH and SSL 4–21
4.10.5 Default Settings 4–22
4.10.6 Port Ordering 4–22
4.11 Firmware Updates 4–24
4.11.1 Firmware List 4–24
Contents ix
4.11.2 Firmware Upgrades 4–24
4.12 Fiber Optic RTM Configuration 4–25
4.12.1 Module Support 4–25
4.12.2 Backplane Ports Versus RTM Optical Ports 4–25
4.12.3 10G Configuration for RTM Optical Port 4–25
4.12.4 1G Configuration for RTM Optical Port 4–26
A. Environment Specifications A–1
A.1 Electrical and Environmental A–2
A.1.1 Absolute Maximum Ratings A–2
A.1.2 Normal Operating Ranges A–2
A.2 Reliability A–3
A.3 Mechanical A–3
A.3.1 Board Dimensions and Weight A–3
B. Connectors B–1
B.1 Connector Assignments B–2
B.2 Connector Locations (Topside) B–3
B.3 ATCA Zone 2 P20 ZD Connector (J5) B–5
B.4 ATCA Zone 2 P21 ZD Connector (J4) B–6
B.5 ATCA Zone 2 P22 ZD Connector (J3) B–6
B.6 ATCA Zone 2 P23 ZD Connector (J2) B–7
B.7 ATCA Zone 2 P24 ZD Connector (J1) B–8
B.8 Serial RJ-45 Connector (J13 Top) B–8
B.9 Serial Cable B–9
B.10 10/100/1000Base-T RJ-45 Connector (J13 3rd, J13 Bottom) B–10
B.11 10/100Base-TX RJ-45 Connector (J13 2nd) B–10
B.12 ATCA Zone 3 RTM Connector Top (J8) B–11
B.13 ATCA Zone 3 RTM Connector (J7-Middle) B–11
x Sun Netra CP3240 Switch Installation Guide • September 2009
B.14 ATCA Zone 3 RTM Connector (J6-Bottom) B–12
C. Datasheet Reference C–1
D. Agency Certifications D–1
D.1 CE Certification D–1
D.2 NEBS/ETSI D–1
D.3 Safety D–2
D.4 Emissions Test Regulations D–3
D.4.1 EN 50081-1 Emissions D–3
D.4.2 EN 55024 Immunity D–3
D.5 Regulatory Information D–4
D.5.1 D.4.1FCC (USA) D–4
D.5.2 Industry Canada (Canada) D–5
Index Index–1
Contents xi
xii Sun Netra CP3240 Switch Installation Guide • September 2009

Figures

FIGURE 1-1 Switch and RTM Faceplates 1–6
FIGURE 1-2 Netra CP3240H-RTM-CU Airflow (Pa) 1–8
FIGURE 1-3 Netra CP3240H-RTM-CU Airflow (InchesH20) 1–8
FIGURE 1-4 Netra CP3240H-RTM-OP Airflow (Pa) 1–9
FIGURE 1-5 Netra CP3240H-RTM-OP Airflow (InchesH20) 1–9
FIGURE 1-6 Front Cable Management Bracket in Lower Position 1–11
FIGURE 1-7 Injector/Ejector on the Switch (Open Position) 1–12
FIGURE 2-1 Switch Functional Block Diagram 2–17
FIGURE 2-2 Copper RTM Functional Block Diagram 2–19

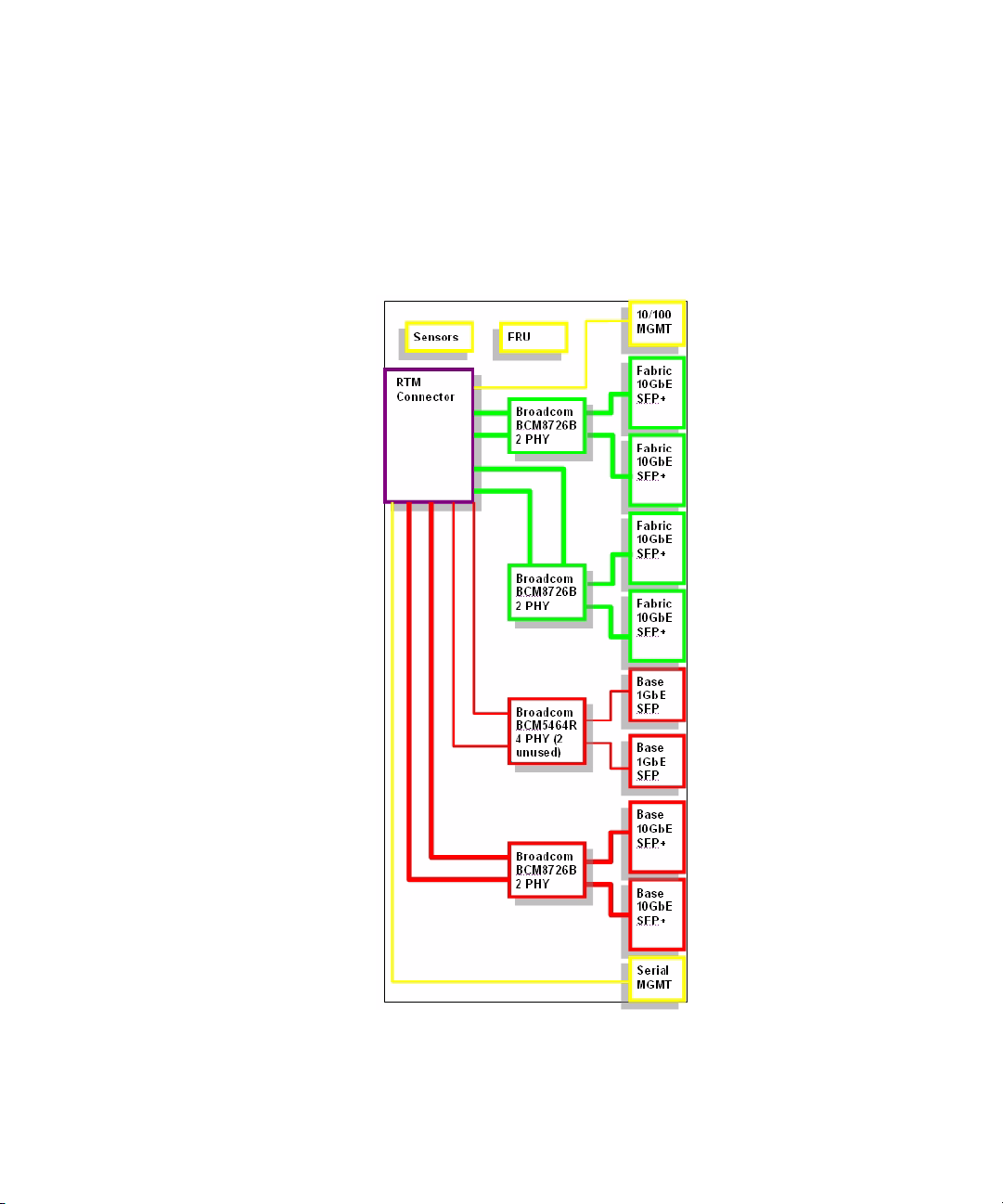

FIGURE 2-3 Fiber Optic RTM Functional Block Diagram 2–21
FIGURE 2-4 Base Fabric Switch Subsystem 2–23
FIGURE 2-5 Expansion Fabric Switch Subsystem 2–24
FIGURE 2-6 AMC Port Map Diagram 2–26

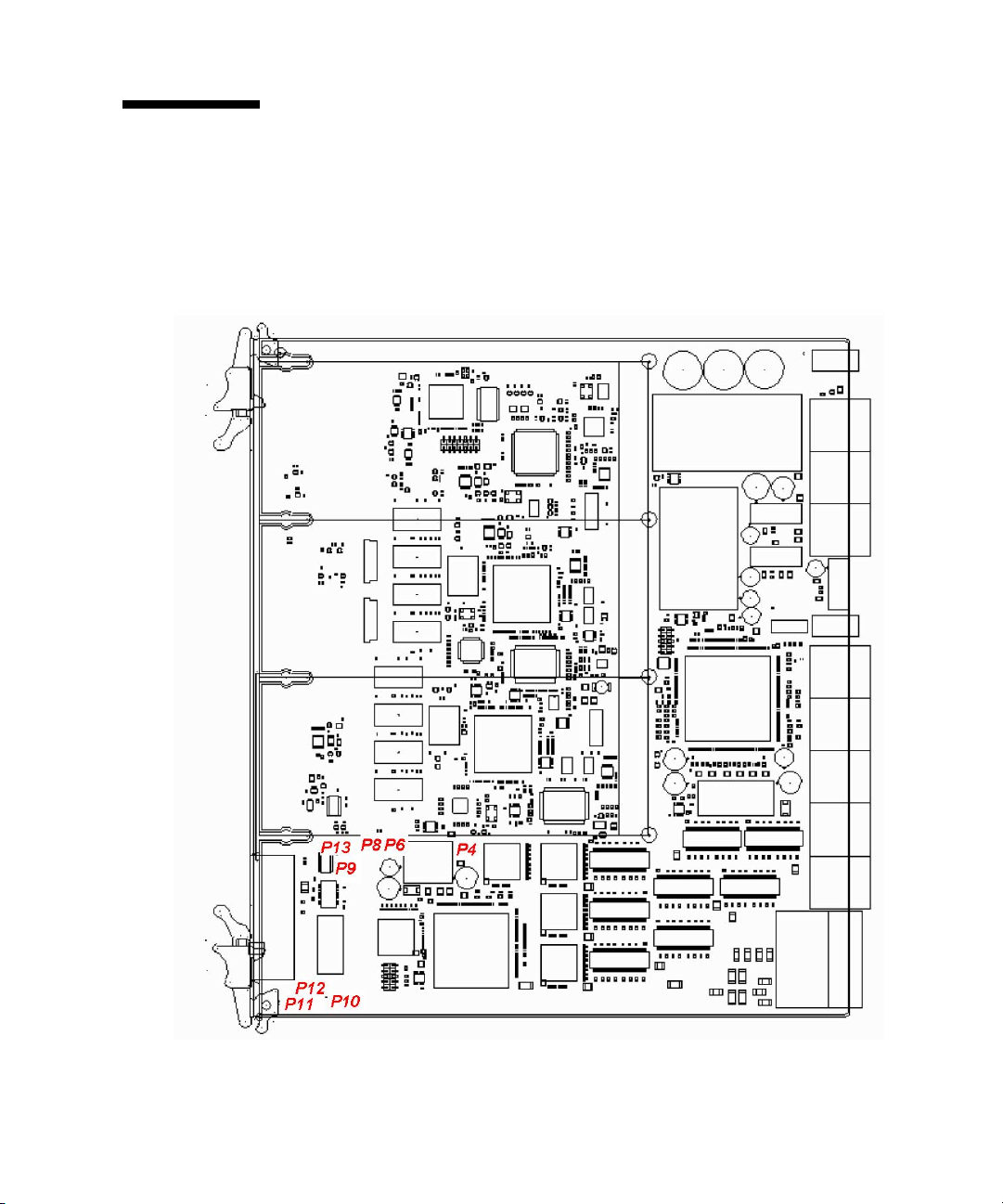

FIGURE 3-1 Switch Jumper Locations 3–7
FIGURE A-1 PCB Dimensions A–4
FIGURE B-1 Connector Locations (Topside) B–3
FIGURE B-2 ATCA Zone 1 Connector (J9) B–5
xiii
xiv Sun Netra CP3240 Switch Installation Guide • September 2009

Tables

TABLE 1-1 Power Requirements 1–2
TABLE 1-2 Airflow Requirements 1–7
TABLE 1-3 ATCA Board Status LEDs 1–15
TABLE 1-4 Hot-Swap LED States 1–16
TABLE 2-1 Switch External Ports 2–18
TABLE 2-2 Zone 3 RTM Ports 2–18
TABLE 2-3 Copper RTM External Ports 2–20
TABLE 2-4 Copper RTM Port Restrictions 2–20
TABLE 2-5 Fiber Optic External RTM Ports 2–22
TABLE 2-6 Fiber Optic RTM Port Restrictions 2–22
TABLE 2-7 AMC Ethernet Port Availability 2–27
TABLE 2-8 AMC Site 1: AMC.0 Mid-size, AMC.2 Type E1, AMC.2 Type 5 (Optional), LED Module
Support 2–27
TABLE 2-9 AMC Site #2 AMC.0 Mid-Size, AMC.2 Type E1, AMC.2 Type 5, Double module support, LED
Module Support 2–28
TABLE 2-10 AMC Site 3: AMC.0 Mid-size, AMC.2 Type E1, Master Clock Generator Support, LED
Support 2–29
TABLE 2-11 AMC Modules by Site 2–30
TABLE 2-12 AMC Port Restrictions for Copper RTMs 2–30
TABLE 2-13 AMC Port Restrictions for Fiber Optic RTMs 2–30
TABLE 3-1 Switch Configuration Jumper Settings 3–2
TABLE 3-2 P4 Cross-Connect Jumper Settings 3–2
xv
TABLE 3-3 P6 (1-2) Fabric Zero Reset Jumper Settings 3–3
TABLE 3-4 P6 (3-4) Base Zero Reset Jumper Settings 3–3
TABLE 3-5 P8 (1-2) Base Write-Protect Jumper Settings 3–3
TABLE 3-6 P8 (3-4) Fabric Write Protect Jumper Settings 3–4
TABLE 3-7 P9 IPMC Firmware Program Jumper Settings 3–4
TABLE 3-8 P10 (1-2) IPMC Reset Jumper Settings 3–4
TABLE 3-9 P10 (3-4) IPMC FWE Reserved Jumper Settings 3–5
TABLE 3-10 P11 (1-2) Forced-Board Enable Jumper Settings 3–5
TABLE 3-11 P11 (3-4) IPMC Board Reset Jumper Settings 3–5
TABLE 3-12 P12 (1-2) and P12 (3-4) Grounding Jumper Settings 3–6
TABLE 3-13 P13 Serial Direction Jumper Settings 3–6
TABLE 4-1 IPMI State Sensors 4–2
TABLE 4-2 0 4–2
TABLE 4-3 IPMI Sensor Logic 4–3
TABLE 4-4 IPMI Thresold Sensors 4–4
TABLE 4-5 uBoot Console Commands 4–6
TABLE 4-6 Basic CLI Commands 4–19
TABLE 4-7 Port Order List 4–22
TABLE A-1 Absolute Maximum Electrical and Temperature Ratings A–2
TABLE A-2 Normal Operating Electrical and Temperature Ratings A–2
TABLE A-3 Board Dimensions and Weight A–3
TABLE B-1 Connector Assignments B–2
TABLE B-2 ATCA Zone 1 Connector (J9) Pins B–4
TABLE B-3 ATCA Zone 2 P20 ZD Connector (J5) B–5
TABLE B-4 ATCA Zone 2 P21 ZD Connector (J4) B–6
TABLE B-5 ATCA Zone 2 P22 ZD Connector (J3) B–6
TABLE B-6 ATCA Zone 2 P23 ZD Connector (J2) B–7
TABLE B-7 ATCA Zone 2 P24 ZD Connector (J1) B–8
TABLE B-8 Serial RJ-45 Connector (J13-Top) B–8
TABLE B-9 Minimum Serial Cable Pinouts B–9
xvi Sun Netra CP3240 Switch Installation Guide • September 2009
TABLE B-10 10/100/1000Base-T RJ-45 Connector (J13-3rd and Bottom) B–10
TABLE B-11 10/100Base-TX RJ-45 Connector (J13-2nd) B–10
TABLE B-12 ATCA Zone 3 RTM Connector (J8-Top)) B–11
TABLE B-13 ATCA Zone 3 RTM Connector (J7-Middle) B–11
TABLE B-14 ATCA Zone 3 RTM Connector (J6-Bottom) B–12
Tables xvii
xviii Sun Netra CP3240 Switch Installation Guide • September 2009

Preface

The Sun Netra CP3240 Switch Installation Guide describes the installation and configuration of the Sun Netra CP3240 switch. This guide also includes information about software, environment specifications, connectors, and certifications.
Before You Read This Document
Obtain and read the following documents:
Sun Netra CP3x40 Switch Safety and Compliance Manual (820-3505)
Sun Netra CP3240 Switch Product Notes (820-3260)
xix
How This Document Is Organized
Chapter 1 provides unpacking instructions and initial setup information for the
switch. It provides information and procedures needed to install and make the Sun Netra CP3240 switch operational.
Chapter 2 introduces the key features of the switch. This chapter includes a product
definition, a list of product features, and a functional block diagram with a brief description of each block. This chapter can be used to compare the features of the switch against the needs of a specific application.
Chapter 3 describes the jumper settings on the switch. This chapter details factory
default settings and provides information about tailoring the board to the needs of specific applications.
Chapter 4 describes the software packages running on the switch. This section serves
as a primer for using the software on the switch.
Appendix A contains the electrical, environmental, and mechanical specifications for
the switch.
Appendix B This appendix provides a connector location illustration and connector
pin out tables. A detailed description and pin out for each connector is given.
Appendix C provides links to websites with information about many of the devices
and technologies used in the switch.
Appendix D presents UL, CE, and FCC agency approval and certification
information for the switch.
xx Sun Netra CP3240 Switch Installation Guide • September 2009
Typographic Conventions
Typeface Meaning Examples
AaBbCc123 The names of commands, files,
and directories; on-screen computer output
AaBbCc123 What you type, when contrasted
with on-screen computer output
AaBbCc123 Book titles, new words or terms,
words to be emphasized. Replace command-line variables with real names or values.
Note – Characters display differently depending on browser settings. If characters
do not display correctly, change the character encoding in your browser to Unicode UTF-8.
Edit your.login file.
Use ls -a to list all files.
% You have mail.
su
%
Password:
Read Chapter 6 in the User ’s Guide.
These are called class options.
Yo u must be superuser to do this.
To delete a file, type rm filename.
Preface xxi
Related Documentation
The following table lists the documentation for this product. The online documentation is available at:
http://docs.sun.com/app/docs/prod/cp3240.switch?l=en#hic
Application Title Part Number Format Location
Latest information
Ponter doc Sun Netra CP3240 Switch Getting
Usage Sun Netra CP3240 Switch User’s
Reference Sun Netra CP3240 Switch Software
AMC Ponter doc
AMC Installation
AMC Installation
AMC Reference
Safety Sun Netra CP3x40 Switch Safety
Sun Netra CP3x40 Switch Product Notes
Started Guide
Guide
Reference Manual
Sun Netra CP3240 Advanced Mezzanine Card Getting Started Guide
Sun Netra CP3240 Advanced Mezzanine Card 10G Copper User’s Guide
Sun Netra CP3240 Advanced Mezzanine Card 10G Optic User’s Guide
Sun Netra CP3240 Advanced Mezzanine Card LED User’s Guide
and Compliance Manual
820-3260-xx PDF Online
820-3254-xx Printed Shipping Kit
820-3252-xx PDF Online
820-3253-xx PDF Online
820-7260-xx Printed Shipping Kit
820-7261-xx PDF Online
820-7262-xx PDF Online
820-7263-xx PDF Online
820-3505-xx PDF Online
The following table lists the documentation that is related to this product. The online documentation is available at:
http://docs.sun.com/app/docs/prod/n900.srvr#hic
xxii Sun Netra CP3240 Switch Installation Guide • September 2009
.
Application Title Part Number Format Location
Latest information
Pointer Doc Netra CT 900 Server Getting Started
Overview Netra CT 900 Server Overview 819-1174-xx PDF Online
Installation Netra CT 900 Server Installation
Service Netra CT 900 Server Service Manual 819-1176-xx PDF Online
Administration Netra CT 900 Server Administration
Programming Netra CT 900 Software Developer’s
Safety Netra CT 900 Server Safety and
Setup Netra CT 900 Server Hardware
Safety Important Safety Information for
Netra CT 900 Server Product Notes 819-1180-xx PDF Online
819-1173-xx Printed Shipping kit
Guide
819-1175-xx PDF Online
Guide
819-1177-xx PDF Online
and Reference Manual
819-1178-xx PDF Online
Guide
819-1179-xx PDF Online
Compliance Guide
819-1647-xx PDF Online
Setup Guide
816-7190-xx Printed Shipping kit
Sun Hardware Systems
Third-Party Web Sites
Sun is not responsible for the availability of third-party web sites mentioned in this document. Sun does not endorse and is not responsible or liable for any content, advertising, products, or other materials that are available on or through such sites or resources. Sun will not be responsible or liable for any actual or alleged damage or loss caused by or in connection with the use of or reliance on any such content, goods, or services that are available on or through such sites or resources.
Sun Welcomes Your Comments
Sun is interested in improving its documentation and welcomes your comments and suggestions. You can submit your comments by going to:
Preface xxiii
http://www.sun.com/hwdocs/feedback
Please include the title and part number of your document with your feedback:
Sun Netra CP3240 Switch Installation Guide, part number 820-3251-13.
xxiv Sun Netra CP3240 Switch Installation Guide • September 2009
CHAPTER
1

Getting Started

This chapter provides information and procedures needed to install and make the Sun Netra CP3240 switch operational. This chapter should be read before using the board.
In addition to this chapter, refer to the following safety documentation:
Netra CP3X20 Switch Safety and Compliance Manual (820-3505)
Important Safety Information for Sun Hardware Systems (816-7190)
Caution – When the system is plugged in, energy hazards are present on the
midplane. Do not reach into the enclosure.
Caution – Static electricity can damage electronic components. Wear a wrist strap
grounded through one of the system’s ESD ground jacks when removing and replacing hot-swappable components.
This chapter contains the following topics:
Section 1.1, “System Requirements” on page 1-2
Section 1.2, “Unpacking” on page 1-4
Section 1.3, “Handling Switches” on page 1-4
Section 1.4, “Connectors” on page 1-5
Section 1.5, “Jumper Options” on page 1-5
Section 1.6, “Switch and RTM Faceplates” on page 1-6
Section 1.7, “RTM Airflows” on page 1-7
Section 1.8, “Removing and Installing Switches” on page 1-10
Section 1.9, “Switch LEDs” on page 1-15
1-1

1.1 System Requirements

The following sections briefly describe the minimum system requirements and the configurable features. Links are provided to other chapters and appendices containing more detailed information.

1.1.1 Connectivity

The switch can work in any AdvancedTCA shelf. It is mainly designed to be used as hub blade, however, it can also operate a node or a full-mesh blade.
1.1.1.1 Hub Connectivity
In AdvancedTCA. the hub board defines the system, so it is important that it be put in the correct slot. In all shelves there are two slots specifically designated for hub boards, logical slots 1 and 2. If the slots are not labeled, these slots are easily identifiable because they have a larger number of Zone 2 connectors than the other slots (the only slots with all five Zone 2 connectors).
Base is always routed in a dual star. This means every node slot has a Base channel routed to each of the hub slots. Independent of how the Fabric is used, a hub board is always needed for Base. If full mesh node boards are used in a full mesh shelf, a hub board is not needed for Fabric.

1.1.2 Electrical and Environmental

The switch has the following power requirements:
TABLE 1-1 Power Requirements
State Power in Watts (W)
Idle, no AMCs 45W
All ports linked with RTM, no AMCs 72W
All ports linked with RTM, heavy traffic, no AMCs 78W
Designed max power with 15W RTM, and 100W shared for all AMC sites
1-2 Sun Netra CP3240 Switch Installation Guide • September 2009
200W
The 48VDC has a tolerance of 0VDC to 75VDC without damage. The switch will operate when 48VDC is 36VDC to 72VDC, inclusive.
Caution – Any input voltage outside the range of 0VDC to 75VDC can damage the
switch.
The switch requires air flow. A minimum of 100 LFM should be kept on the board at all times. If an RTM is being used, active RTM cooling is not required.
Caution – None of the integrated chips junction temperature should exceed 125˚C.
The switch requires air flow to meet this requirement. Testing should be done in your shelf to find the quantity of air flow needed. 100 LFM is the recommended minimum quantity of air flow.
The switch might contain materials that require regulation upon disposal. Please dispose of this product in accordance with local rules and regulations. For disposal or recycling information, please contact your local authorities or the Electronic Industries Alliance at http://www.eiae.org/.
Chapter 1 Getting Started 1-3

1.2 Unpacking

Check the shipping carton for damage. If the shipping carton or contents are damaged, notify the carrier and Sun. Retain the shipping carton and packing material for inspection by the carrier. Obtain authorization before returning any product to Sun. Refer to the Netra CP3240 Switch Getting Started Guide (820-3254) for return instructions.
Caution – This board must be protected from static discharge and physical shock.
Never remove any of the socketed parts except at a static-free workstation. Use the anti-static bag shipped with the product to handle the board. Wear a wrist strap grounded through one of the system's ESD ground jacks when installing or servicing system components.

1.3 Handling Switches

Caution – The system is sensitive to static electricity. To prevent damage to the
assembly, always connect an antistatic wrist strap between you and the system.
Caution – Do not flex the switches; the surface-mounted components can break if
the switch is bent.
To minimize the amount of switch flexing, observe the following precautions:
When removing a switch from an electrostatic discharge bag, keep it vertical until
you place the switch on the electrostatic discharge mat.
Do not place a switch on a hard surface. Use a cushioned antistatic mat. The
switch connectors and components have very thin pins that bend easily.
Be careful of small parts located on the component side of a switch.
Do not use an oscilloscope probe on the components. The soldered pins are easily
damaged or shorted by the probe point.
Transport a switch in an antistatic bag.
1-4 Sun Netra CP3240 Switch Installation Guide • September 2009
Caution – The heat sinks on a switch can be damaged by incorrect handling. Do not
touch the heat sinks while installing or removing a switch. Hold a switch only by the edges. If a heat sink is loose or broken, obtain a replacement switch.
Caution – The heat sinks on a switch can be damaged by improper packaging.
When storing or shipping a switch, ensure that the heat sinks have sufficient protection.

1.4 Connectors

The switch includes several connectors to interface to application-specific devices. Refer to the Chapter B for complete connector descriptions and pin outs.

1.5 Jumper Options

The switch provides several jumper configuration options for features. Location figures and descriptions are provided in Chapter 3.
Chapter 1 Getting Started 1-5

1.6 Switch and RTM Faceplates

The following shows the Sun Netra CP3240 switch and the copper RTM (XCP3240H-RTM-CU-Z) and the fiber optic RTM (XCP3240H-RTM-OP-Z).
FIGURE 1-1 Switch and RTM Faceplates
Copper RTM Fiber Optic
Switch Faceplate
RTM
1-6 Sun Netra CP3240 Switch Installation Guide • September 2009

1.6.1 Base 10/100/1000 Uplink Ports (RJ-45)

There are two front panel Base 10/100/1000Base-T Ethernet uplink ports on the faceplate. They are ports number 18 and 19 on the Base network.

1.6.2 10/100 Management Port (RJ-45)

There is a 10/100 management Ethernet port on the faceplate. This port can be used to manage the Base and Fabric. This port and the 10/100 management port on the RTM can be used at the same time.

1.6.3 Serial Management Port (RJ-45)

There is a RS-232 serial management port on the faceplate. This port can be used to manage the Base and Fabric. See Section 4.4, “Serial Select” on page 4-8 for information about how to switch between managing the Base and the Fabric.

1.7 RTM Airflows

1.7.1 RTM Airflow Requirements

The following chart provides the RTM airflow requirements. No alarms are triggered at any of the listed temperatures for the given airflow.
TABLE 1-2 Airflow Requirements
Watts m3/min CFM
Power Level
25 0.07 0.07 0.14 0.14 2.5 2.5 5 5
25˚C 28˚C 40˚C 55˚C 25˚C 28˚C 40˚C 55˚C
Chapter 1 Getting Started 1-7

1.7.2 RTM Pressure Drop Versus Airflows (Impedence Curves)

The following graphs plot the impedance curves for the RTMs, per PICMG 3.0 requirements.
FIGURE 1-2 Netra CP3240H-RTM-CU Airflow (Pa)
FIGURE 1-3 Netra CP3240H-RTM-CU Airflow (InchesH
1-8 Sun Netra CP3240 Switch Installation Guide • September 2009
2
0)
FIGURE 1-4 Netra CP3240H-RTM-OP Airflow (Pa)
FIGURE 1-5 Netra CP3240H-RTM-OP Airflow (InchesH20)
Chapter 1 Getting Started 1-9

1.8 Removing and Installing Switches

This section describes how to remove and install switches.
If you are hot-swapping the rear transition module for a switch, you must remove the switch from the front of the system before removing the rear transition module from the rear of the system. Do not remove the rear transition module without first removing the accompanying switch from the front.

1.8.1 Removing a Switch Set

Following are the instructions for removing a switch and, if necessary, the accompanying rear transition module.
1-10 Sun Netra CP3240 Switch Installation Guide • September 2009
1.8.1.1 Removing a Switch From the Front of the Server
1. Move the front cable management bracket to the lower position (FIGURE 1-6).
FIGURE 1-6 Front Cable Management Bracket in Lower Position
2. Disengage the injector/ejector mechanisms at the top and bottom of the board to notify software that the board is about to be removed. Wait for the Hot-Swap LED to light.
FIGURE 1-7 shows the proper way to remove or insert a hot-swappable board into a
system.
Chapter 1 Getting Started 1-11
FIGURE 1-7 Injector/Ejector on the Switch (Open Position)
injector/ejector mechanism
3. Disconnect all cables connected to the switch.
4. Loosen the two board retention screws that fasten the board to the enclosure.
5. Open the ejectors fully, rotating the handles outward until the board disengages from the midplane.
6. Slide the board evenly out of the enclosure.
7. Determine if you are going to replace the rear transition module.
If you are going to replace the rear transition module, go to “Removing a Rear
Transition Module for a Switch” on page 1-13.
If you are not going to replace the rear transition module, you must install a
replacement switch or a filler panel to maintain the enclosures shielding and cooling performance. Refer to Section 1.8.2.2, “Installing a Switch” on page 1-14.
1-12 Sun Netra CP3240 Switch Installation Guide • September 2009
Note – As long as the switch is removed from the slot, and the system is running
with only the single remaining switch, you do not have redundancy for that component. Both switches must be installed and running to have redundancy for that component.
1.8.1.2 Removing a Rear Transition Module for a Switch
1. Remove the switch from the front of the server, if you have not already done so.
Refer to “Removing a Switch From the Front of the Server” on page 1-11 for those instructions. Do not remove the rear transition module until you have first removed the switch.
Note – Opening the handle on the RTM shuts down both the RTM and the switch.
2. Disconnect any cables connected to the rear transition module for the switch.
3. Loosen any retention screws that fasten the module to the enclosure.
4. Open the ejectors fully, rotating the handles outward until the board disengages from the midplane.
5. Slide the module evenly out of the enclosure.
6. Install a replacement rear transition module or a filler panel to maintain the enclosure’s shielding and cooling performance.
Refer to Section 1.8.2.1, “Installing the Rear Transition Module for a Switch” on
page 1-14.
Caution – Failure to cover all rear panel slots with rear transition modules or filler
panels can negatively impact the cooling of the system.
Chapter 1 Getting Started 1-13

1.8.2 Installing a Switch Set

If you have a rear-access server, you must install the rear transition module before installing the front switch.
If you want to install the rear transition module, go to Section 1.8.2.1, “Installing
the Rear Transition Module for a Switch” on page 1-14.
If you want to install a switch, go to Section 1.8.2.2, “Installing a Switch” on
page 1-14.
1.8.2.1 Installing the Rear Transition Module for a Switch
1. Choose an appropriate slot for the rear transition module.
Rear transition modules must be installed inline behind the accompanying front board. For example, if the accompanying front board is installed in slot 7, its rear transition module must be installed at the back of the system in slot 7.
2. Remove the filler panel, if necessary.
3. Prepare the rear transition module by opening its injector/ejector handles.
4. Carefully align the edges of the board with the guides in the slot.
Look into the enclosure to verify correct alignment of the rails in the guides.
Caution – Do not force the module into the slot. If it does not fit properly, check to
ensure that you have the correct matching RTM for the switch.
5. Keeping the board aligned in the guides, slide the board in until the injector/ejector mechanisms engage the retention bar.
6. Simultaneously push in the board and rotate the injector/ejector handles to their closed positions (rotate inward) to seat the midplane connectors.
7. Tighten the board retention screws to anchor the board in the shelf.
8. Connect the cables to the rear transition module.
1.8.2.2 Installing a Switch
1. Locate the switch slots.
The switches can be inserted only in slot 7 or slot 8 in the Netra CT 900 server.
2. Move the front cable management bracket to the lower position (
3. Remove the filler panel, if necessary.
1-14 Sun Netra CP3240 Switch Installation Guide • September 2009
FIGURE 1-6).
4. Prepare the switch by opening its injector/ejector handles (FIGURE 1-7).
5. Carefully align the edges of the board with the guides in the slot.
Look into the enclosure to verify correct alignment of the rails in the guides.
6. Keeping the board aligned in the guides, slide the board in until the injector/ejector mechanisms engage the retention bar.
7. Simultaneously push in the board and rotate the injector/ejector handles to their closed positions (rotate inward) to seat the midplane connectors.
If system power is on, the Hot-Swap LED should light up. The Hot-Swap LED should blink for several seconds, and then go off. If the Hot-Swap LED does not go off after several seconds, push harder on the injector/ejector handles to verify that they are pushed in all the way.
8. Tighten the board retention screws to anchor the board in the shelf.
9. Connect the cables to the switch.

1.9 Switch LEDs

The following sections give the status information for all of the LEDs on the switch.
“ATCA Board Status LEDs” on page 1-15
“Hot-Swap LED” on page 1-16

1.9.1 ATCA Board Status LEDs

TABLE 1-3 describes the three LEDs defined by ATCA to monitor board status.
TABLE 1-3 ATCA Board Status LEDs
LED Color Normal Operation Description
OOS Red Off Out of service. This LED lights on a critical switch
error, such that the board should be removed.
OK Green On This LED is lit when the switch is booted and
switching
A Amber Off Minor Error/User Defined. This LED can be defined
by the user via software applicatons.
Chapter 1 Getting Started 1-15
Note that both the OOS and MINOR LEDs are lit when the board is powered but not booted. This includes all Hot-Swap states M1 through M3. Refer to “Hot-Swap LED”
on page 1-16.

1.9.2 Hot-Swap LED

This blue LED communicates the Hot-Swap status of the switch. TABLE 1-4 shows the different states of the Hot-Swap LED.
TABLE 1-4 Hot-Swap LED States
Order Visible State State Description
1 Solid M1 FRU Inactive The Intelligent Platform
2 Blinking (from solid) M2 Activation
3 Off M3-M4 Active The IPMI microcontroller has
4 Blinking (from off) M5-M6
Back to 1
Request
Deactivation Request
Management Interface (IPMI) microcontroller is booted, but the payload is not. The bottom latch is not fully closed.
The IPMI microcontroller has requested permission to boot the payload from the shelf management controller.
received permission to boot the payload, and has done so. This should be the state under normal operation.
The IPMI microcontroller has requested permission to shut down the payload. Opening the bottom latch activates this state.
Note – A board should be hot-swapped only when the LED is solid blue.
1-16 Sun Netra CP3240 Switch Installation Guide • September 2009
CHAPTER
2

Overview

This chapter introduces the key features of the switch and RTMs. This chapter includes a product definition, a list of product features, and functional block diagrams with brief descriptions. This chapter can be used to compare the features of the switch against the needs of a specific application.
This chapter contains the following topics:
Section 2.1, “Features” on page 2-2
Section 2.2, “Switch Components” on page 2-6
Section 2.3, “Protocols, RFCs, and MIBs Support” on page 2-8
Section 2.4, “Functional Diagrams and Port Maps” on page 2-17
2-1

2.1 Features

Part of Sun’s ATCA platform, the Sun Netra CP3240 switch complies with PICMG
3.0 R2.0 ECN002 and PCIMG 3.1 Option 1 and Option 9. The Sun Netra CP3240 switch implements two separate switched networks on a single PCB. By separating the Base and Fabric networks, the Sun Netra CP3240 switch provides a separate control plane and data plane. It provides 1Gigabyte Ethernet switching on the 3.0 Base Fabric, and the 3.1 Expansion Fabric provides 1Gigabyte/10Gigabyte Ethernet switching. Both of these networks are fully managed with the robust FASTPATH management suite. Both networks support Layer 2 switching as well as Layer 3 routing.
The Sun Netra CP3240 switch can host three AdvancedMC mid-size modules. A variety of different AMC types can be used, including AMC.1, AMC.2, and AMC.3. Netra CP3240 switch supports connectivity to three AMCs and to RTMs with multiple 10Gigabyte-Ethernet links.
The XCP3240H-RTM-CU-Z (copper) and XCP3240H-RTM-OP-Z (fiber optic) are Sun’s RTMs that are paired with the Sun Netra CP3240 switch.
The following sections briefly outline the features of the Sun Netra CP3240 switch.

2.1.1 General

PICMG 3.0 AdvancedTCA form factor
PICMG 3.0 R2.0 ECN002 compliant
PICMG 3.0 compliant 10/100/1000Base-T Ethernet Base Fabric hub board
PICMG 3.1 Option 1 (1000Base-BX) and Option 9 (10GBase-BX4) compliant
Ethernet Expansion Fabric hub board
Two separate subsystems providing two separate networks on a single PCB
14-slot shelf supported
Manage both switches with a single serial port and Ethernet management port
Low power < 100 watts under heavy load (without AMCs)
Operates with or without an RTM
Changeable RTM to support different technologies (for example, RJ-45 versus SFP,
XFP versus CX4)
AdvancedTCA and AdvancedMC IPMI support with Pigeon Point Systems
BMR-H8S-AMCc Board Manager
Dual-image IPMI firmware
2-2 Sun Netra CP3240 Switch Installation Guide • September 2009

2.1.2 Base Interface

Broadcom BCM56503-based design
Full gigabit non-blocking, wire-speed switching/routing
Layer 2 switching
Layer 3 routing
27 ports:
14 10/100/1000Base-T Ethernet ports for node slots
1 10/100/1000Base-T Ethernet port for redundant switch
2 10/100/1000Base-T Ethernet ports for front panel access
2 10/100/1000Base-T Ethernet ports for rear panel access (with RTM)
3 1000Base-BX Ethernet ports for AMC sites (AMC.2 Type E1 compliant)
1 10/100/1000Base-T Ethernet port primary shelf manager
1 10/100Base-TX Ethernet port for redundant shelf manager (cross-connect)
1 10GBase-BX4 Ethernet port to the redundant hub board via the Update
Channel
2 10GBase-CX4 Ethernet ports for rear-panel access (with RTM)
400MHz Freescale MPC8247 control CPU
256MB PC100 SDRAM
64MB on-board flash
Hardware redundant flash for guaranteed flash recovery
10/100BaseTX out-of-band management Ethernet port
Front- and rear-access RJ-45 serial management port
Full IPv6 support
L2 and L3 Multicast support
Chapter 2 Overview 2-3

2.1.3 Fabric Gigabit Interface

Broadcom BCM56800-based design
Full gigabit non-blocking, wire-speed switching/routing
Layer 2 switching
Layer 3 routing
20 total ports:
14 10GBase-BX4 Ethernet ports for node slots
1 10GBase-BX4 Ethernet port for redundant switch
1 10GBase-BX4 for AMC site (AMC.2 Type 5)
4 10GBase-CX4 for rear-panel access (with RTM)
Auto-negotiation between 1GbE (1000Base-BX 3.1 Option 1) and 10GbE
(10GbEBase-BX4 3.1 Option 9)
400MHz Freescale MPC8247 control CPU
256MB PC100 SDRAM
64MB on board flash
Hardware redundant flash for guaranteed flash recovery
10/100BaseTX out-of-band RJ-45 management Ethernet port
Front- and rear-access RJ-45 serial management port
Full IPv6 support
L2 and L3 multicast support
2-4 Sun Netra CP3240 Switch Installation Guide • September 2009

2.1.4 AMC Sites

Site 1 1000Base-BX to 3.0 network (AMC port 0) is ethernet port 22
Site 2 1000Base-BX to 3.0 network (AMC port 0) is ethernet port 23
Site 2 10GBase-BX to 3.1 network (AMC port 8-11) is ethernet port 16
Site 3 1000Base-BX to 3.0 network (AMC port 0) is ethernet port 24
Site 1: AMC.0 Mid-size, AMC.2 Type E1
1000Base-BX to 3.0 network (AMC port 0)
AMC ports 4-7 connected to AMC site 2
SAS/SATA ports routed between AMCs (AMC port 2-3)
Site 2: AMC.0 Mid-size, AMC.2 Type 5 and E1
10GBase-BX4 to 3.1 network (AMC port 8-11)
1000Base-BX to 3.0 network (AMC port 0)
AMC ports 4-7 connected to AMC site 1
SAS/SATA ports routed between AMCs (AMC port 2-3)
Site 3: AMC.0 Mid-size, AMC.2 Type E1
1 1000Base-BX to 3.0 network (AMC port 0)
SAS/SATA ports routed between AMCs (AMC port 2-3)
Update channel support for redundant master clock generators (AMC port 15)
PCI-E Fabric clock support
Chapter 2 Overview 2-5

2.2 Switch Components

The following sections list and describe key components of the Sun Netra CP3240 switch.

2.2.1 Broadcom StrataXGS 3 BCM56503 Ethernet Switch

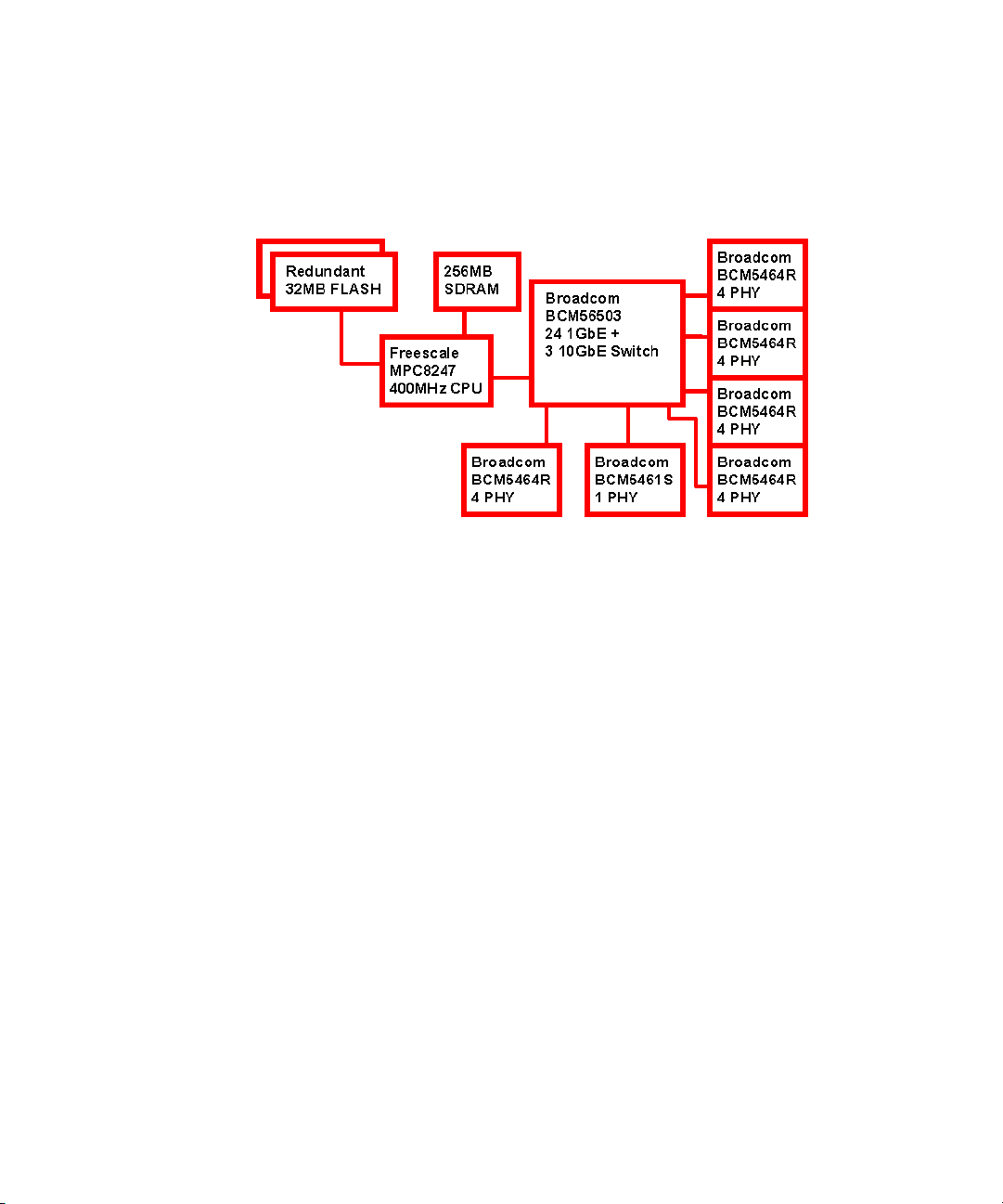

The Sun Netra CP3240 switch uses Broadcom StrataXGS 3 BCM56503 for Base Ethernet switching/routing. This chip is an Ethernet switch with 24 1Gigabyte ports and 3 10Gigabyte ports. It provides non-blocking, wire-speed switching and routing on all ports under 100% load. The BCM56503 features many advanced features presented to the user via the FASTPATH software. See the Section 4.10, “FASTPATH”
on page 4-18 for more information.

2.2.2 Broadcom StrataXGS 3 BCM56800 Ethernet Switch

The Sun Netra CP3240 switch uses Broadcom StrataXGS 3 BCM56800 for Fabric Ethernet switching/routing. This chip is an Ethernet switch with 20 10Gigabyte ports. It provides non-blocking, wire-speed switching and routing on all ports under 100% load. The BCM56800 features many advanced features presented to the user via the FASTPATH software. See Section 4.10, “FASTPATH” on page 4-18 for more information.

2.2.3 Broadcom BCM5464R and BCM5461S 10/100/1000Base-T Ethernet PHY

Quad and single ports respectively, the Broadcom PHYs provide the physical interfacing for 10/100/1000Base-T. They are low-power devices and provide features such as jumbo frames support, auto-MDIX, and cable testing.
2-6 Sun Netra CP3240 Switch Installation Guide • September 2009

2.2.4 Freescale PowerQUICC II MPC8247 Communications Processor

The Freescale MPC8247 is a microprocessor designed for maximum flexibility. It features a dual core architecture with a PPC G2 LE core and a RISC core controlling the peripherals. Running at 400MHz with only 1 watt of power, the MPC8247 provides high performance with incredibly low power consumption. Paired with the 256MB PC100 SDRAM and 64MB flash, the CPU subsystem of the Sun Netra CP3240 switch is more than enough to handle the switching application and future upgrades.

2.2.5 Pigeon Point BMR-H8S-AMCc AdvancedTCA IPMI Subsystem

The Sun Netra CP3240 switch uses the near-industry standard Pigeon Point Systems BMR-H8S-AMCc for dedicated IPMI management. It controls all interaction between the Sun Netra CP3240 switch and the shelf management controller. It fully supports the PICMG 3.0 R2.0 ECN002 and the AMC.0 R2.0 specifications. The BMC-H8S-AMCc provides all required management for the AMC modules, in addition to the voltage monitoring, temperature monitoring, e-Keying, and other services it provides for the Sun Netra CP3240 switch. Pigeon Point Systems is the leading provider of IPMI firmware for AdvancedTCA, and the firmware has been thoroughly tested to be fully compliant with the specification.
Chapter 2 Overview 2-7

2.3 Protocols, RFCs, and MIBs Support

The Sun Netra CP3240 switch features Level7 FastPath 2340 switching software, version 4.4.4 and newer. This software provides layer 2 switching, quality of service, IPv4 routing, IPv6 routing, and IP multicast.

2.3.1 FASTPATH Switching

IEEE 802.1ab—Link Level Discovery
IEEE 802.1D—Spanning Tree
IEEE 802.1p—Ethernet Priority with User Provisioning and Mapping
IEEE 802.1Q—Virtual LANs with Port-based VLANs
IEEE 802.1S—Multiple Spanning Tree
IEEE 802.1v—Protocol-based VLANs
IEEE 802.1W—Rapid Spanning Tree
IEEE 802.1X—Port-based Authentication
IEEE 802.3—10 Base-T
IEEE 802.3ab—1000 Base-T
IEEE 802.3ac—VLAN Tagging
IEEE 802.3ad—Link Aggregation
IEEE 802.3ae—10 Gigabyte
IEEE 802.3u—100 Base-T
GARP—Generic Attribute Registration Protocol: Clause 12, 802.1D-2004
GMRP—Dynamic L2 Multicast Registration: Clause 10, 802.1D-2004
GVRP—Dynamic VLAN Registration: Clause 11.2, 802.1Q-2003
IEEE 802.3x—Flow Control
draft-ietf-magma-snoop-10.txt—Considerations for IGMP and MLD Snooping
Switches
2-8 Sun Netra CP3240 Switch Installation Guide • September 2009
2.3.1.1 Additional Layer 2 Functionality
Broadcast/Multicast/Unknown Unicast storm recovery
Double VLAN/vMAN tagging
DHCP filtering
Jumbo Ethernet frames
Many-to-one port mirroring (Tx, Rx, both)
Static MAC filtering
MAC-based VLANs
IP subnet-based VLANs
Port description
Protected ports
Network and host DoS attack suppression
2.3.1.2 System Facilities
Event and Error Logging Facility
Run-time and configuration download capability
PING utility
XMODEM
RFC 768—UDP
RFC 783—TFTP
RFC 791—IP
RFC 792—ICMP
RFC 793—TCP
RFC 951—BootP
RFC 1321—Message Digest Algorithm
RFC 1534—Interoperation between BootP and DHCP
RFC 2030—Simple Network Time Protocol (SNTP) V4 for IPv4, IPv6, and OSI
RFC 2131—DHCP client/server
RFC 2132—DHCP options and BootP vendor extensions
RFC 2865—RADIUS client
RFC 2866—RADIUS accounting
RFC 2868—RADIUS attributes for Tunnel protocol support
RFC 2869—RADIUS extensions
rfc2869bis—RADIUS support for Extensible Authentication Protocol (EAP)
Chapter 2 Overview 2-9
RFC 3164—BSD Syslog protocol
RFC 3396—Encoding long options in the Dynamic Host Configuration Protocol
(DHCPv4)
RFC 3580—802.1X RADIUS usage guidelines
2.3.1.3 Switching MIBs
RFC 1213 — MIB-II
RFC 1493 — Bridge MIB
RFC 1643 — Ethernet-like MIB
RFC 2233 — The Interfaces Group MIB using SMI v2
RFC 2618 — RADIUS authentication client MIB
RFC 2620 — RADIUS accounting MIB
RFC 2674 — VLAN MIB
RFC 2737—Entity MIB version 2
RFC 2819—RMON groups 1, 2, 3 and 9
RFC 3291—Textual conventions for Internet Network Addresses
RFC 3635—Definitions of managed objects for the Ethernet-like interface types
IEEE 802.1X MIB (IEEE802.1-PAE-MIB)
IEEE 802.3AD MIB (IEEE802.3-AD-MIB)
FASTPATH Enterprise MIBs supporting switching features
2.3.1.4 Routing MIBs
RFC 1724—RIP v2 MIB extension
RFC 1850—OSPF MIB
RFC 2096—IP forwarding table MIB
RFC 2787—VRRP MIB
RFC 2863—The Interfaces Group MIB
FASTPATH Enterprise MIBs supporting routing features
2-10 Sun Netra CP3240 Switch Installation Guide • September 2009

2.3.2 FASTPATH Routing

RFC 826—Ethernet ARP
RFC 894—Transmission of IP Datagrams over Ethernet networks
RFC 896—Congestion control in IP/TCP networks
RFC 919—IP Broadcast
RFC 922—IP Broadcast in the presence of subnets
RFC 950—IP subnetting
RFC 1027—Using ARP to implement Transparent Subnet Gateways (proxy ARP)
RFC 1058—RIP v1
RFC 1256—ICMP router discovery messages
RFC 1321—Message Digest Algorithm
RFC 1765—OSPF database overflow
RFC 1812—Requirements for IP version 4 routers
RFC 2082—RIP-2 MD5 authentication
RFC 2131—DHCP relay
RFC 2328—OSPFv2 (FASTPATH supports Broadcast interfaces.)
RFC 2453—RIP v2
RFC 3046—DHCP/BootP relay
RFC 3101—OSPF “Not So Stubby Area” (NSSA) option
RFC 3768—Virtual Router Redundancy Protocol
Route redistribution across RIP and OSPF
VLAN routing
Weighted static routes
Chapter 2 Overview 2-11

2.3.3 FASTPATH Quality of Service

2.3.3.1 DiffServ
RFC 2474—Definition of the Differentiated Services field (DS field) in the IPv4
and IPv6 headers
RFC 2475—Architecture for differentiated services
RFC 2597—Assured Forwarding PHB Group
RFC 3246—Expedited forwarding PHB (Per-Hop Behavior)
RFC 3260—New terminology and clarifications for DiffServ
Optional policy attributes:
Assign matching traffic flow to a specific queue
Redirect or mirror (flow-based mirroring) matching traffic flow to a specific port
2.3.3.2 Access Control Lists (ACLs)
Permit/Deny actions for inbound or outbound IP traffic classification based on:
Type of Service (TOS) or Differentiated Services (DS) DSCP field
Source IP address
Destination IP address
TCP/UDP source port
TCP/UDP destination port
IP protocol number
Permit/Deny actions for inbound or outbound Layer 2 traffic classification based on:
Source MAC address
Destination MAC address
Ethertype
802.1p user priority (outer and/or inner VLAN tag)
VLAN identifier value or range (outer and/or inner VLAN tag)
Optional rule attributes:
Assign matching traffic flow to a specific queue
Redirect or mirror (flow-based mirroring) matching traffic flow to a specific port
Generate trap log entries (ACL logging) containing rule hit counts
2-12 Sun Netra CP3240 Switch Installation Guide • September 2009
2.3.3.3 Class of Service (CoS)
Direct user configuration of the following:
IP DSCP to traffic-class mapping
Interface trust mode: 802.1p, IP DSCP, or untrusted
Interface traffic-shaping rate
Minimum and maximum bandwidth per queue
Strict priority versus weighted (WRR/WFQ) scheduling per queue
Tail drop versus weighted random early detection (WRED) queue depth
management
2.3.3.4 Quality of Service MIBs
RFC 3289—MIB for the Differentiated Services Architecture (read-only)
Private MIBs for full configuration of DiffServ, ACL, and CoS functionality

2.3.4 FASTPATH Multicast

RFC 1112—Host Extensions for IP multicasting
RFC 2236—IGMPv2
RFC 2362—PIM-SM
RFC 2365—Administratively scoped boundaries
RFC 3376—IGMPv3
IP multicast traceroute
Draft-ietf-pim-v2-dm-03—PIM-DM
Draft-ietf-idmr-dvmrp-v3-10—DVMRP
Static RP configuration
Draft-holbrook-idmr-igmpv3-ssm-08.txt—IGMPv3/MLDv2 for SSM
Draft ietf-magma-igmp-proxy-06.txt—IGMP/MLD-based multicast forwarding
(IGMP/MLD Pproxying)
Draft ietf-smm-arch-06.txt—Source specific multicast for IP
Draft ietf-magma-igmpv3-and-routing-05.txt—IGMPv3 and Multicast Routing
Protocol interaction
Chapter 2 Overview 2-13
2.3.4.1 Multicast MIBs
RFC 2932—IPv4 multicast routing MIB
RFC 2933—IGMP MIB
RFC 2934—PIM MIB for IPv4
Draft-ietf-magma-mgmd-mib-03.txt—Multicast Group Membership Discovery
MIB
Draft-ietf-idmr-dvmrp-mib-11.txt—DVMRP MIB
IANA-RTP-PROTO-MIB
FASTPATH Enterprise MIBs supporting multicast features

2.3.5 FASTPATH IPv6 Routing

RFC 1981—Path MTU for IPv6
RFC 2373—IPv6 addressing
RFC 2460—IPv6 protocol specification
RFC 2461—Neighbor discovery
RFC 2462—Stateless autoconfiguration
RFC 2463—ICMPv6
RFC 2464—IPv6 over Ethernet
RFC 2711—IPv6 router alert
RFC 2740—OSPFv3 (FASTPATH supports Broadcast and Point-to-Point
interfaces.)
RFC 2893—Transition mechanisms for IPv6 hosts and routers (6over4 configured)
RFC 3315—DHCPv6 (stateless + relay)
RFC 3484—Default address selection for IPv6
RFC 3493—Basic Socket Interface for IPv6
RFC 3513—Addressing architecture for IPv6
RFC 3542—Advanced Sockets API for IPv6
RFC 3587—IPv6 Global Unicast Address format
RFC 3736—Stateless DHCPv6
Dual IPv4/IPv6 TCP/IP stack
2-14 Sun Netra CP3240 Switch Installation Guide • September 2009
2.3.5.1 IPv6 Routing MIBs
RFC 2465—IPv6 MIB
RFC 2466—ICMPv6 MIB
FASTPATH Enterprise MIBs supporting IPv6 features

2.3.6 FASTPATH Management

RFC 854—Telnet
RFC 855—Telnet option specifications
RFC 1155—SMI v1
RFC 1157—SNMP
RFC 1212—Concise MIB definitions
RFC 1867—HTML/2.0 forms with file upload extensions
RFC 1901—Community based SNMP v2
RFC 1908—Coexistence between SNMP v1 and SNMP v2
RFC 2068—HTTP/1.1 protocol as updated by draft-ietf-http-v11-spec-rev-03
RFC 2271—SNMP framework MIB
RFC 2295—Transparent content negotiation
RFC 2296—Remote variant selection; RSVA/1.0 state management cookies
draft-ietf-http-state-mgmt-05
RFC 2570—Introduction to SNMPv3
RFC 2576—Coexistence between SNMP v1, v2 and v3
RFC 2578—SMI v2
RFC 2579—Textual conventions for SMI v2
RFC 2580—Conformance statements for SMI v2
RFC 3410—Introduction and applicability statements for Internet-Standard
Management Framework
RFC 3411—Architecture for describing SNMP management frameworks
RFC 3412—Message processing and dispatching for SNMP
RFC 3413—SNMP applications
RFC 3414—User-based security model for SNMP v3
RFC 3415—View-based access control model for SNMP
RFC 3416—Version 2 of the protocol operations for SNMP
Chapter 2 Overview 2-15
RFC 3417—Transport mappings for SNMP
RFC 3418—MIB for SNMP
Configurable management VLAN
2.3.6.1 SSL 3.0 and TLS 1.0
RFC 2246—TLS protocol, version 1.0
RFC 2346—AES Ciphersuites for transport layer security
RFC 2818—HTTP over TLS
2.3.6.2 SSH 1.5 and 2.0
Draft-ietf-secsh-transport-16—SSH Transport Layer Protocol
Draft-ietf-secsh-userauth-17—SSH Authentication Protocol
Draft-ietf-secsh-connect-17—SSH Connection Protocol
Draft-ietf-secsh-architecture-14—SSH protocol architecture
Draft-ietf-secsh-publickeyfile-03—SECSH Public Key File format
Draft-ietf-secsh-dh-group-exchange-04—Diffie-Hellman Group Exchange for the
SSH Transport Layer Protocol
HTML 4.0 Specification—December, 1997
Java and Java Script 1.3
2.3.6.3 Additional Management Features
Industry Standard CLI with the following features:
Scripting capability
Command completion
Context sensitive help
User password encryption
Multi-session Telnet server
TACACS+
Dual firmware image support
2-16 Sun Netra CP3240 Switch Installation Guide • September 2009

2.4 Functional Diagrams and Port Maps

2.4.1 Switch

FIGURE 2-1 Switch Functional Block Diagram
Chapter 2 Overview 2-17
TABLE 2-1 Switch External Ports
Front Panel Port Type Fiber Optic AMC Module Logical Port Comments
RJ-45 #1 Serial RS-232 RS-232 RJ-45
RJ-45 #2 Management 10/100 Base T RJ-45
RJ-45 #3 Base 1GBE 10/100/1000Base T RJ-45 Base - 18 Standard I/F is copper
RJ-45 #4 Base 1GBE 10/100/1000Base T RJ-45 Base - 19 Standard I/F is copper

2.4.2 Rear Transition Modules (RTM)s

The Sun Netra CP3240 switch supports RTMs through ATCA Zone 3 connectors (see
TABLE 2-2). The Sun Netra CP3240 switch was designed to support multiple RTM
designs.
4 Fabric 10Gigabyte, 2 Base 10Gigabyte, 2 Base 1Gigabyte, AMC I/O, and management ports are run to the RTM. Several voltage rails are supplied, and all of the signals needed to design an ECN002 compliant RTM are present.
TABLE 2-2 Zone 3 RTM Ports
Base Ports 1G Infrastructure 10G Infrastructure
Base Port 20 1G SGMII None
Base Port 21 1G SGMII None
Base Port 26 None 10G XAUI
Base Port 27 None 10G XAUI
Fabirc Port 17 1G SGMII 10G XAUI
Fabirc Port 18 1G SGMII 10G XAUI
Fabirc Port 19 1G SGMII 10G XAUI
Fabirc Port 20 1G SGMII 10G XAUI
The Sun Netra CP3240 switch is paired with either a copper or fiber optic RTM. The following sections describe each RTM.
2-18 Sun Netra CP3240 Switch Installation Guide • September 2009
2.4.2.1 Copper RTM
The XCP3240H-RTM-CU-Z is the Sun Netra CP3240 switch’s copper RTM pairing. This RTM supports all the ports the Sun Netra CP3240 switch provides using 10GBase-CX4 for the 10Gigabyte and 10/100/1000Base-T for the 1Gigabyte ports.
FIGURE 2-2 Copper RTM Functional Block Diagram
Chapter 2 Overview 2-19
TABLE 2-3 Copper RTM External Ports
Port Type RTM Module Logical Port Comments
Base 10GBE XAUI CX4 Base - 27
Base 10GBE XAUI CX4 Base - 26
Base 1GBE 10/100/1000Base T RJ-45 Base - 20 Standard I/F is copper
Base 1GBE 10/100/1000Base T RJ-45 Base - 21 Standard I/F is copper
Management 10/100 Base T RJ-45
Serial RS-232 RS-232 RJ-45
Fabric 10GBE XAUI CX4 Fabric - 17
Fabric 10GBE XAUI CX4 Fabric - 18
Fabric 10GBE XAUI CX4 Fabric - 19
Fabric 10GBE XAUI CX4 Fabric - 20
TABLE 2-4 Copper RTM Port Restrictions
Port 1G Infrastructure 1G Port 10G Infrastructure 10G Port
Base Port 20 SERDES 1000Base-T RJ45 None None
Base Port 21 SERDES 1000Base-T RJ45 None None
Base Port 26 None None XAUI 10GBase-CX4
Base Port 27 None None XAUI 10GBase-CX4
Fabirc Port 17 None None XAUI 10GBase-CX4
Fabirc Port 18 None None XAUI 10GBase-CX4
Fabirc Port 19 None None XAUI 10GBase-CX4
Fabirc Port 19 None None XAUI 10GBase-CX4
Fabirc Port 20 None None XAUI 10GBase-CX4
2-20 Sun Netra CP3240 Switch Installation Guide • September 2009
2.4.2.2 Fiber Optic RTM
The XCP3240H-RTM-OP-Z is the Sun Netra CP3240 switch’s fiber optic RTM pairing. This RTM supports all the ports the Netra CP3240 switch provides using 10GBase-X for the 10Gigabyte and 1000Base-X for the 1Gigabyte ports.
FIGURE 2-3 Fiber Optic RTM Functional Block Diagram
Chapter 2 Overview 2-21
TABLE 2-5 Fiber Optic External RTM Ports
Port Type Fiber Optic RTM Module Logical Port Comments
Management 10/100 Base T RJ-45 Not a module, 10/100Base T
Base 10GBE 10GBase-X SFP+ Base - 27 Cannot Support 1G Operation
Base 10GBE 10GBase-X SFP+ Base - 26 Cannot Support 1G Operation
Base 1GBE 1000Base-X SFP Base - 20 Can Support 1G SFP Copper
Base 1GBE 1000Base-X SFP Base - 21 Can Support 1G SFP Copper
Serial RS-232 10GBase-X SFP+ Fabric - 17 Can Support 1G SFP Copper
Fabric 10GBE 10GBase-X SFP+ Fabric - 18 Can Support 1G SFP Copper
Fabric 10GBE 10GBase-X SFP+ Fabric - 19 Can Support 1G SFP Copper
Fabric 10GBE 10GBase-X SFP+ Fabric - 20 Can Support 1G SFP Copper
Serial RS-232 Serial RS232 RJ-45 Not a module, RS232 Serial
Note – For enabling 1G operation of Fabric ports 17-20, see Section 4.12, “Fiber
Optic RTM Configuration” on page 4-25.
TABLE 2-6 Fiber Optic RTM Port Restrictions
Port 1G Infrastructure 1G Port 10G Infrastructure 10G Port
Base Port 20 SERDES SFP LX SX None None
Base Port 21 SERDES SFP LX SX None None
Base Port 26 None None XAUI SFP+ LX SX LRM
Base Port 27 None None XAUI SFP+ LX SX LRM
Fabric Port 17 SERDES SFP LX SX XAUI SFP+ LX SX LRM
Fabric Port 18 SERDES SFP LX SX XAUI SFP+ LX SX LRM
Fabric Port 19 SERDES SFP LX SX XAUI SFP+ LX SX LRM
Fabric Port 20 SERDES SFP LX SX XAUI SFP+ LX SX LRM
2-22 Sun Netra CP3240 Switch Installation Guide • September 2009

2.4.3 Base Fabric Switch Subsystem

FIGURE 2-4 Base Fabric Switch Subsystem
PICMG 3.0 AdvancedTCA defines 10/100/1000Base-T Ethernet over the Base Fabric, called “Base” in this guide. The Base is designed to be the control plane for the shelf. Scaling from 10Mbps to 1000Mbps, the Base interface can accommodate a wide variety of node boards. The Base interface on the Sun Netra CP3240 switch is based around three main components: the Broadcom BCM56503, the Broadcom BCM5464x, and the Freescale MPC8247.
Chapter 2 Overview 2-23

2.4.4 Expansion Fabric Switch Subsystem

FIGURE 2-5 Expansion Fabric Switch Subsystem
PICMG 3.0 AdvancedTCA provides an agnostic mesh on the backplane called the Expansion Fabric. This interface is the data plane in the shelf. The Expansion Fabric is called “Fabric” in this guide. This fabric can be several different technologies defined by AdvancedTCA sub-specifications. The Sun Netra CP3240 switch is designed to comply with PICMG 3.1 Ethernet/Fibre Channel for AdvancedTCA Systems, options 1 and option 9. That means the Sun Netra CP3240 switch provides a single 1/10Gigabyte port to each node board.
The Fabric uses 10GBase-BX4 Ethernet to provide connectivity between boards though the backplane. The Fabric can scale down to 1Gigabyte and work with 1000Base-BX boards. The Fabric subsystem is based around two main components: the Broadcom BCM56800 and the Freescale MPC8247.
2-24 Sun Netra CP3240 Switch Installation Guide • September 2009

2.4.5 AdvancedMC Sites

PICMG AdvancedMC AMC.0 defines hot-swappable daughter cards to be used in PICMG architectures. The Sun Netra CP3240 switch supports three AMC sites so that the functionality of the Sun Netra CP3240 switch can be expanded. AMC.2 (Ethernet) AMCs are supported with direct connections to the Base and Fabric subsystems. Other types of AMCs, such as AMC.1 (PCI-Express) or AMC.3 (SAS/SATA), can be used as well. Nearly any type of AMC can be supported, because the Sun Netra CP3240 switch connects the AMCs sites directly together on certain ports.
Chapter 2 Overview 2-25
2.4.5.1 AMC Port Maps
FIGURE 2-6 AMC Port Map Diagram
2-26 Sun Netra CP3240 Switch Installation Guide • September 2009
TABLE 2-7 AMC Ethernet Port Availability
Slot Location 1G Infrastructure 10G Infrastructure
AMC 1 Top 1G Base SGMII None
AMC 2 Middle 1G Base SGMII XAUI from BCM56800 Fabric Port 16
AMC 3 Bottom 1G Base SGMII None
TABLE 2-8 AMC Site 1: AMC.0 Mid-size, AMC.2 Type E1, AMC.2 Type 5 (Optional),
LED Module Support
Port Type Connected
0 GB Base (3.0) switch
1 Any Not connected
2 Any Port 3 of AMC #3, usually used for SAS/SATA
3 Any Port 3 of AMC #2, usually used for SAS/SATA
4 Any Ports 4-7 of AMC #2, usually used for PCIE
5
6
7
8 Not connected
9
10
11
12 Custom LED board support
13 Not connected
14 Not connected
15 Not connected
17 Any RTM for future use
18 Any RTM for future use
19 Any RTM for future use
20 Any RTM for future use
TCLK1 CLK IN FPGA and Zarlink
Chapter 2 Overview 2-27
TABLE 2-8 AMC Site 1: AMC.0 Mid-size, AMC.2 Type E1, AMC.2 Type 5 (Optional),
LED Module Support (Continued)
TCLK2 CLK OUT FPGA and Zarlink
TCLK3 CLK IN FPGA and Zarlink
TCLK4 CLK OUT FPGA and Zarlink
FCLK 100MHz 100MHz
TABLE 2-9 AMC Site #2 AMC.0 Mid-Size, AMC.2 Type E1, AMC.2 Type 5, Double
module support, LED Module Support
Port Type Connected
0 GbE Base (3.0) switch
1 Any Port 1 of AMC #3, usually used for GbE
2 Any Port 2 of AMC #3, usually used for SAS/SATA
3 Any Port 3 of AMC #1, usually used for SAS/SATA
4 Any Ports 4-7 of AMC #1, usually used for PCIE
5
6
7
8 10GbE Fabric (3.1) switch.
9
10
11
12 custom LED board support
13 Not connected
14 Not connected
15 Not connected
17 Any RTM for future use
18 Any RTM for future use
19 Any RTM for future use
20 Any RTM for future use
TCLK1 CLK IN FPGA & Zarlink
TCLK2 CLK OUT FPGA & Zarlink
TCLK3 CLK IN FPGA & Zarlink
TCLK4 CLK OUT FPGA & Zarlink
FCLK PCIE CLK 100MHz
2-28 Sun Netra CP3240 Switch Installation Guide • September 2009
TABLE 2-10 AMC Site 3: AMC.0 Mid-size, AMC.2 Type E1, Master Clock Generator
Support, LED Support
Port Type Connected
0 GB Base (3.0) switch
1 Any Port 1 of AMC #2, usually used for GB
2 Any Port 2 of AMC #2, usually used for SAS/SATA
3 Any Port 2 of AMC #1, usually used for SAS/SATA
4 Not connected
5 Not connected
6 Not connected
7 Not connected
8 Not connected
9 Not connected
10 Not connected
11 Not connected
12 custom LED board support
13 Not connected
14 Not connected
15 Any Update channel, usually used for clock sync
17 Any RTM for future use
18 Any RTM for future use
19 Any RTM for future use
20 Any RTM for future use
TCLK1 CLK IN FPGA and Zarlink
TCLK2 CLK OUT FPGA and Zarlink
TCLK3 CLK IN FPGA and Zarlink
TCLK4 CLK OUT FPGA and Zarlink
FCLK 100MHz 100MHz
Chapter 2 Overview 2-29
2.4.5.2 AMC Module Support by Site
TABLE 2-11 AMC Modules by Site
AMC Module
Site 1 (top most when the board is vertical) Site 2 (middle)
Site 3 (bottom most site when the board is ver tical)
AMC10G-XFP No* Yes No
AMC10G-CX4 No* Yes No
AMCLED001 Yes Yes Yes
PCI-Express AMC Yes Yes No
1G Common Options
Ye s Ye s Ye s
Ethernet AMC
10G Fat Pipe Ethernet AMC No* Yes No
2.4.5.3 AMC Port Restrictions for RTMs
The following tables list AMC port restrictions for RTMs
TABLE 2-12 AMC Port Restrictions for Copper RTMs
1G Infrastructure 1G Base Ports 10G Infrastructure 10G Fabric Ports
BCM5464R Copper PHY Port2210/100/1000 BaseT/RJ-45 XAUI Pass through 10G Fabric XAUI CX4
BCM5464R Copper PHY Port2310/100/1000 BaseT/RJ-45 None None
BCM5464R Copper PHY Port2410/100/1000 BaseT/RJ-45 None None
Front panel Base Port 18 J13 3rd BCM5464R Copper PHY
Front panel Base Port 19 J13 Bottom BCM5464R Copper PHY
TABLE 2-13 AMC Port Restrictions for Fiber Optic RTMs
1G Infrastructure 1G Base Ports 10G Infrastructure 10G Fabric Ports
SERDES SFP - LX SX SFP+ LRM
SERDES SFP - LX SX None
SERDES SFP - LX SX None
10/100/1000 BaseT/RJ-45
10/100/1000 BaseT/RJ-45
2-30 Sun Netra CP3240 Switch Installation Guide • September 2009
CHAPTER
3

Configuring Jumper Settings

This chapter describes jumper settings for configuring the switch. Other configuration options are software controlled. Software configuration options are described in Chapter 4.
This chapter contains the following topics:
Section 3.1, “Jumper Settings” on page 3-2
Section 3.2, “Jumper Locations” on page 3-7
3-1

3.1 Jumper Settings

The following jumper settings are available for configuring the switch. Each of jumper settings is described in the subsections.
TABLE 3-1 Switch Configuration Jumper Settings
Jumper Default Purpose
P4 L2 Cross Connect Control
P6(1-2) OFF Fabric Zero Reset Configuration Word
P6(3-4) OFF Base Zero Reset Configuration Word
P8(1-2) OFF Base Write Protect Disable
P8(3-4) OFF Fabric Write Protect Disable
P9 OFF IPMC Firmware Write
P10(1-2) OFF IPMC Disable
P10(3-4) OFF IPMC FWE
P11(1-2) OFF Forced Board Enable
P11(3-4) OFF IPMC Board Reset Disable
P12 OFF EMI Ground to Logic Ground
P13 OFF Serial Direction

3.1.1 P4 Cross-Connect Control

This jumper is used to control ShMC cross connect. ShMC cross connect is the ability to connect to two ShMCs at 10/100 each rather than use a single 10/100/1000 for a single ShMC. The first ShMC port is number 1 on the Base. The second ShMC port is number 17 on the Base.
TABLE 3-2 P4 Cross-Connect Jumper Settings
P4 Default Function
OFF Software control of cross connect.
1-2 Default Force cross connect enabled, base channel 1 is two 10/100BaseTX
ports.
3-4 No cross connect; base channel 1 is 10/100/1000Base-T.
3-2 Sun Netra CP3240 Switch Installation Guide • September 2009

3.1.2 P6(1-2) Fabric Zero Reset Configuration Word

This jumper is used to configure the Fabric Gigabyte CPU to use the default Reset Configuration Word, or use the one in the flash.
TABLE 3-3 P6 (1-2) Fabric Zero Reset Jumper Settings
P6(1-2) Default Function
ON Use default Reset Configuration Word (all zeros)
OFF Default Use Reset Configuration Word in flash

3.1.3 P6(3-4) Base Zero Reset Configuration Word

This jumper is used to configure the Base CPU to use the default Reset Configuration Word, or use the one in the flash.
TABLE 3-4 P6 (3-4) Base Zero Reset Jumper Settings
P6(3-4) Default Function
ON Use default Reset Configuration Word (all zeros)
OFF Default Use Reset Configuration Word in flash

3.1.4 P8(1-2) Base Write Protect

This jumper configures write protection on the Base reset configuration word.
TABLE 3-5 P8 (1-2) Base Write-Protect Jumper Settings
P8(1-2) Default Function
ON Disable the write protection of the Base reset configuration word
OFF Default Write protect the Base reset configuration word
Chapter 3 Configuring Jumper Settings 3-3

3.1.5 P8(3-4) Fabric Write Protect

This jumper configures write protection on the Fabric reset configuration word.
TABLE 3-6 P8 (3-4) Fabric Write Protect Jumper Settings
P8(3-4) Default Function
ON Disable the write protection of the Fabric reset configuration word
OFF Default Write protect the Fabric reset configuration word

3.1.6 P9 IPMC Firmware Program

These jumpers configure IPMC firmware write actions via the debug serial port.
TABLE 3-7 P9 IPMC Firmware Program Jumper Settings
P4 Default Function
OFF Default Normal operation
1-2 Install to program IPMC firmware via the debug serial port
3-4 Install to program IPMC firmware via the debug serial port

3.1.7 P10(1-2) IPMC Reset

This jumper configures the IPMI subsystem reset function.
TABLE 3-8 P10 (1-2) IPMC Reset Jumper Settings
P10 (1-2) Default Function
ON Disable IPMI subsystem (hold it in reset)
OFF Default Enable IPMI subsystem
3-4 Sun Netra CP3240 Switch Installation Guide • September 2009

3.1.8 P10(3-4) IPMC FWE

These are reserved and should be left configured for the default setting.
TABLE 3-9 P10 (3-4) IPMC FWE Reserved Jumper Settings
P10 (3-4) Default Function
ON
OFF Default Normal operation

3.1.9 P11(1-2) Forced-Board Enable

This jumper controls whether the switch is forced on when it is powered up, or if the IPMI subsystem controls the power up of the switch. Forcing power to the board is not enough for the board to boot. The board could still be held in reset. Configre P11 (3-4) jumper setting as well to bring the board out of reset.
TABLE 3-10 P11 (1-2) Forced-Board Enable Jumper Settings
P11 (1-2) Default Function
ON Force power on. Use this to run without a ShMC.
OFF Default IPMI controls power to the board.

3.1.10 P11(3-4) IPMC Board Reset

This jumper configres the IPMI to send a reset signal that will reset the entire board
TABLE 3-11 P11 (3-4) IPMC Board Reset Jumper Settings
P11 (3-4) Default Function
ON IPMI subsystem cannot reset the switch. Use this to run without a
ShMC.
OFF Default IPMI subsystem can reset the switch and hold it in reset.
Chapter 3 Configuring Jumper Settings 3-5

3.1.11 P12(1-2) and P12 (3-4) EMI Ground to Logic Ground

The switch and the entire AdvancedTCA shelf separate the ground of the chassis itself from digital ground for EMI protection. This jumper configures the two grounds.
TABLE 3-12 P12 (1-2) and P12 (3-4) Grounding Jumper Settings
P12 (1-2) (3-4) Default Function
OFF Default Separate EMI ground and logic ground.
1-2 Connect EMI ground to logic ground.
3-4 Connect EMI ground to logic ground.

3.1.12 P13 Serial Direction

The front panel serial port and the RTM serial port are mutually exclusive; only one can be used at a time. The serial port can be forced to the front or the RTM, or it can be controlled by the software.
TABLE 3-13 P13 Serial Direction Jumper Settings
P13 Default Function
OFF Default Software control of serial direction.
1-2 Front serial port active; RTM serial port disabled.
3-4 Front serial port disabled; RTM serial port active.
3-6 Sun Netra CP3240 Switch Installation Guide • September 2009

3.2 Jumper Locations

FIGURE 3-1 shows the locations of the jumper settings.
FIGURE 3-1 Switch Jumper Locations
Chapter 3 Configuring Jumper Settings 3-7
3-8 Sun Netra CP3240 Switch Installation Guide • September 2009
CHAPTER
4

Configuring Switch Software

This chapter describes how to configure the switch software.
The switch incorporates four main software components:
IPMI firmware, which runs on a separate microcontroller.
uBoot loads the boot for the system. It can be compared to a BIOS on a node
board.
Operating system (OS), which uses Monta Vista 3.1 Pro, based on the 2.4.20 Linux
kernel.
LVL7 Systems’ FASTPATH software, which provides all of the management and
control features of the switch.
The IPMI firmware, uBoot, and OS are covered in this chapter. FASTPATH is described, however, for detailed information and command syntax, refer to the Netra CP3240 Switch Command Reference Manual (820-3253).
This chapter contains the following topics:
Section 4.1, “IPMI Firmware Sensors” on page 4-2
Section 4.2, “uBoot” on page 4-5
Section 4.3, “Linux” on page 4-7
Section 4.4, “Serial Select” on page 4-8
Section 4.5, “Serial Location” on page 4-9
Section 4.6, “Boot Sequence” on page 4-10
Section 4.7, “Primary and Backup Flash” on page 4-13
Section 4.8, “Dual Firmware Images” on page 4-13
Section 4.9, “Network Boot” on page 4-14
Section 4.10, “FASTPATH” on page 4-18
Section 4.11, “Firmware Updates” on page 4-24
Section 4.12, “Fiber Optic RTM Configuration” on page 4-25
4-1

4.1 IPMI Firmware Sensors

This section describes the IPMI firmware sensors.

4.1.1 State Sensors

TABLE 4-1 IPMI State Sensors
Sensor Name Type Description Discrete States Returned
FRU 0
TABLE 4-2
0
HOT_SWAP
1 RTM hotswap State hotswap discrete
2 AMC 0
hotswap
3 AMC 1
hotswap
4 AMC 2
hotswap
5 IPMB physical State IPMB Link sensor Defined in ATCA spec.
6 BMC Watchdog State Watchdog timer Discrete, Watchdog 2 (per the
11 RTM Presence State Rear Module
12 Base Early* State Base firmware
13 Base Full* State Base firmware
14 Base Good* State Base firmware
15 Fabric Early* State Fabric firmware
16 Fabric Full* State Fabric firmware
17 Fabric Good* State Fabric firmware
State hotswap discrete
state
state
State hotswap discrete
state
State hotswap discrete
state
State hotswap discrete
state
Present Signal
signal
signal
signal
signal
signal
signal
M state, per ATCA spec
M state, per ATCA spec
M state, per ATCA and AMC spec
M state, per ATCA and AMC spec
M state, per ATCA and AMC spec
IPMI spec)
State 01h = Device absent, 02h = Device present
Asserted indicates Uboot prompt
Asserted indicates Linux has booted
Asserted indicates FASTPATH has loaded
Asserted indicates Uboot prompt
Asserted indicates Linux has booted
Asserted indicates FASTPATH has loaded
4-2 Sun Netra CP3240 Switch Installation Guide • September 2009
*These sensors represent the software state of the switch.
The following tables lists the logic that drives these sensors.
TABLE 4-3 IPMI Sensor Logic
State Timeout Failover Condition Early Full Good
Initial power-on state 5 sec Uboot corrupted or
erased
uBoot initial state 5 sec Uboot finds no
uBoot console n/a Failover timer stops 1 0 0
Linux booted 90 sec Soft-off now occurs 0 1 0
Linux boot menu n/a Failover timer stops
(user interruption)
FASTPATH booted 90 sec Timer stops if this
state is reached in time
Critical code update n/a An update is in
progress; the failover time stops
001
000
110
011
111
Chapter 4 Configuring Switch Software 4-3

4.1.2 Threshold Sensors

TABLE 4-4 IPMI Thresold Sensors
Sensor Name Type Description Units
# Minor Major Critical Minor Major Critical
7 +12.0V Thresh +12V
Volts 11.016 10.21 9.02 13.45 13.72 13.77
Lower Thresholds
Upper Thresholds
main power
8 +3.3V Thresh +3.3V line Volts 3.126 3.02 2.914 3.563 3.654 3.805
9 +2.5V Thresh +2.5V line Volts 2.308 2.202 2.106 2.701 2.808 2.904
10 +1.25V Thresh +1.25V
Volts 1.156 1.009 0.7546 1.5582 1.754 1.9502
line
o
18 Base
CPU
Thresh Base CPU
Temp
C n/a n/a n/a 60 70 80
Temp
o
19 RTM
temp
Thresh RTM
Temperatu
C n/a n/a n/a 55 65 75
re
o
20 Fabric
CPU
Thresh Fabric
CPU Temp
C n/a n/a n/a 60 70 80
Temp
21 +1.5V Thresh +1.5V line Volts 1.4014 1.303 1.1074 1.6072 1.7052 1.9012
22 +1.8V Thresh +1.8V line Volts 1.656 1.509 1.303 1.9502 2.107 2.303
23 +1.0V Thresh +1.0V line Volts 0.902 0.706 0.51 1.1074 1.303 1.509
24 +1.2V Thresh +1.2V line Volts 1.107 1.009 0.804 1.303 1.4014 1.607
25 Site 1
Pwr Cur
26 Site 1
Pwr
27 Site 1MPThresh AMC Slot
Thresh AMC Slot
current sense
Thresh AMC Slot
+12V
Amps n/a n/a n/a 5.5 6.023 6.517
Volts n/a n/a n/a 13.048 13.44 13.608
Volts n/a n/a n/a 3.456 3.514 3.6 Managem ent Pwr
28 Site 2
Pwr Cur
29 Site 2
Pwr
Thresh AMC Slot
current sense
Thresh AMC Slot
+12V
Amps n/a n/a n/a 5.5 6.023 6.517
Volts n/a n/a n/a 13.048 13.44 13.608
4-4 Sun Netra CP3240 Switch Installation Guide • September 2009
TABLE 4-4 IPMI Thresold Sensors (Continued)
Sensor Name Type Description Units
30 Site 2MPThresh AMC Slot
Managem ent Pwr
31 Site 3
Pwr Cur
32 Site 3
Pwr
33 Site 3MPThresh AMC Slot
Thresh AMC Slot
current sense
Thresh AMC Slot
+12V
Managem ent Pwr
Volts n/a n/a n/a 3.456 3.514 3.6
Amps n/a n/a n/a 5.5 6.023 6.517
Volts n/a n/a n/a 13.048 13.44 13.608
Volts n/a n/a n/a 3.456 3.514 3.6

4.2 uBoot

uBoot is the boot loader. Much like a BIOS, it brings the system to a usable state for the operating system (OS) to boot. It also performs a POST of the CPU subsystem. It can be used as a recovery console if the firmware image becomes corrupt or a firmware update fails. Several important environment variables are stored in uBoot, only some of which should ever be changed, namely noekey and baudrate.
Lower Thresholds
Upper Thresholds

4.2.1 uBoot Console

To get to a uBoot console, you must prevent the switch from booting into the OS. Shown here is an example of the start of a boot sequence.
CPU: 400 MHz DRAM: 256 MB FLASH: 64 MB, Base, Primary Flash
### JFFS2 loading 'image1' to 0x400000 Scanning JFFS2 FS: . done. ### JFFS2 load complete: 10026940 bytes loaded to 0x400000 Booting ... Loading Ramdisk to 0fdf6000, end 0ff8d551 ... OK
Press any key before ### JFFS2 loading 'image1' to 0x400000 appears.
Chapter 4 Configuring Switch Software 4-5
There is only a one-second delay to press a key.
When the uBoot prompt is displayed, you can then enter any of the following commands.
TABLE 4-5 uBoot Console Commands
Command Result
print or printenv
set
<variable>
or setenv
save or saveenv
Shows the current environment variables.
Followed by an environment variable, this command changes the environment variable.
Writes the variables to flash. You must save the changes if you want them to persist through a reset.

4.2.2 E-Keying Control in uBoot

See the Section 4.3.1, “e-Keying” on page 4-7 for a description of e-Keying, and how it is supported.
To disable e-Keying, use the noekey environment variable.
List the ports to be disabled separated by only commas.
set noekey 1,2,3,4
Or use the word all to disable e-Keying completely.
set noekey all
To re-enable e-Keying clear the variable.
set noekey
After changing the environment variables you must always save if you would like the change to persist though a reset.
4-6 Sun Netra CP3240 Switch Installation Guide • September 2009

4.2.3 Serial-Baud Rate Control in uBoot

You can change the serial baud rate from within FASTPATH, the boot menu, or in uBoot. Changing it in uBoot is the only method that allows it to persist through a reset. Only standard baud rates are accepted.
Note – Change the baud rate on the Fabric first, then on the Base. If the baud rate
on the Fabric and Base do not match, the Fabric will not be accessible. If the Fabric is not accessible, change the baud rate on the Base until the Fabric is accessible.
To change the baud rate in uBoot, enter the command as in the following example.
set baudrate <115200>
After changing the rate, you must save if you would like the change to persist though a reset.

4.3 Linux

The switch uses Linux as an operating system. The Monta Vista 3.1 Pro 2.4.20 kernel is used. There are no settings to change, and the OS is completely transparent to the user.

4.3.1 e-Keying

e-Keying is implemented as a Linux driver. The CPUs for both Base and Fabric have a direct connection to the IPMI controller, which is used to communicate e-Keying messages. The CPU is interrupted when an e-Keying event occurs. The driver handles these interrupts and disables ports based on the information it receives. This disables the port at the PHY level. e-Keying can be ignored by creating a uBoot environment variable as described in the Section 4.2.2, “E-Keying Control in uBoot”
on page 4-6.
Chapter 4 Configuring Switch Software 4-7

4.3.2 e-Keying Bypass

e-Keying can be ignored by creating a uBoot environment variable as described in
Section 4.2.2, “E-Keying Control in uBoot” on page 4-6. When e-Keying is bypassed,
ports are no longer enabled or disabled based on the e-Keying state. The e-Keying information is still shared with the shelf manager as usual, but now ports are enabled regardless if the shelf manager enables them or not.

4.3.3 ATCA LEDs

The ATCA LEDs can be turned on from several sources, one of which is a Linux driver. Both the Base and Fabric drive these LEDs. The red OOS LED is driven until FASTPATH has loaded, at which point the green Healthy LED is driven. The OOS LED signals are “OR” so that if one or more are active, the LED is on. The Healthy LED signals are “AND.” The Base and Fabric must be booted into FASTPATH as well as several hardware conditions must be met for this LED to be on.

4.4 Serial Select

A single-serial port is provided to control both CPUs. The ` key, usually in the upper left key on the keyboard and the same key as ~, can be used to switch between controlling the Base (3.0) and the Fabric (3.1). The ` key works in uBoot, Linux, the BCM debug shell, and FASTPATH.
When you switch between Base and Fabric [Base] or [Fabric] is printed to the console so that you know which one you are currently controlling.
(switch Base) # (and then ENTER is pressed here) (switch Base) #[Fabric] (and then ENTER is pressed here) (switch Fabric) #[ Base ] (switch Base) # User:
4-8 Sun Netra CP3240 Switch Installation Guide • September 2009

4.5 Serial Location

The switch supports running its serial port to both the front panel and the RTM. It does not support both the front panel and RTM at the same time. You must configure the port to go to the location needed. By default, the port is routed to the front panel.

4.5.1 Changing Serial Location from UBoot

In this example, the serial port direction is to the RTM.
CODE EXAMPLE 4-1 Serial Port Change from uBoot
CPU: 400 MHz DRAM: 256 MB FLASH: 64 MB, Base, Primary Flash
Use the [`] key above the TAB key to switch between BASE and FABRIC. [Break UBoot by pressing a key when the switch boots] => set console rtm [set console to front for the front panel] => save Saving Environment to Flash... Un-Protected 1 sectors Erasing Flash... . done Erased 1 sectors Writing to Flash... done Protected 1 sectors => boot

4.5.2 Changing Serial Location from FASTPATH

In this example, the serial port direction is changed to the RTM. Note that the change is instantaneous and lasts though a reboot.
CODE EXAMPLE 4-2 Serial Port Change from FASTPATH
configure lineconfig serial location rtm [set location to front for the front panel]
Chapter 4 Configuring Switch Software 4-9

4.6 Boot Sequence

The following is an example of a boot sequence.
CODE EXAMPLE 4-3 Boot Sequence Example
CPU: 400 MHz DRAM: 256 MB FLASH: 64 MB, Base, Primary Flash
### JFFS2 loading 'image1' to 0x400000 Scanning JFFS2 FS: . done. ### JFFS2 load complete: 10026500 bytes loaded to 0x400000 Booting ... Loading Ramdisk to 0fdf6000, end 0ff8d4c2 ... OK
Mounting /dev/mtdblock2 at /mnt/fastpath...done. Mounting tmpfs at /mnt/application...done.
***************************************************************** *** * Use the [`] key above the TAB to switch between BASE and FABRIC. * ***************************************************************** ***
switch, Base, Primary Flash, image1
Select startup mode. If no selection is made within 5 seconds, the Application will start automatically...
--- Main Menu ---
1 - Start Switch Application 2 - Display Utility Menu Select (1, 2):
Extracting Application from image1.....done
Loading Application...done. SOC unit 0 attached to PCI device BCM56503_B2
FASTPATH starting...started!
(Unit 1)>
User:
4-10 Sun Netra CP3240 Switch Installation Guide • September 2009
The switch takes approximately 50 seconds to boot to a console and be fully functional.

4.6.1 Boot Utility Menu

There is a utility menu that can be used before FASTPATH boots. During boot there is a two-option menu displayed for five seconds. This menu allows access to the utility menu if you press number 2 and Enter.
CODE EXAMPLE 4-4 Boot Utility Menu Access
switch, Base, Primary Flash, image2
--- Utility Menu ---
1 - Start Switch Application 2 - Load Code Update Package using TFTP/FTP 3 - Load Code Update Package using XMODEM/YMODEM/ZMODEM 4 - Copy Primary Flash to Backup Flash 5 - Select Serial Speed 6 - Retrieve Error Log using TFTP 7 - Retrieve Error Log using XMODEM/YMODEM/ZMODEM 8 - Erase Current Configuration 9 - Erase Permanent Storage 10 - Select Boot Method 11 - Activate Backup Image 12 - Start Diagnostic Application 13 - Reboot
Select option (1-13):
Most of the options are self explanatory based on their names. The following sections describe some of the options more fully.
Chapter 4 Configuring Switch Software 4-11
4.6.1.1 Load Code Update Package using TFTP/FTP
FASTPATH can be updated from within FASTPATH itself, but it can also be updated from this menu.
The update image must be on a TFTP server or FTP server.
The server must be on the same network as the out-of-band management port.
You need to have the IP of the server, the desired IP of the board being updated,
the gateway (if needed), and the file name.
Note – DHCP can be used to obtain an IP for the switch during this update. Enter
dhcp as the IP address. This entry begins the update and provides status information as it is updating.
4.6.1.2 Erase Current Configuration
This is the same as clear config from within FASTPATH. This option can be used if the switch is in an unknown state, and restoring the default settings is desired.
4.6.1.3 Erase Permanent Storage
This command completely erases FASTPATH, any log files, and any configurations. It does not erase uBoot or Linux. Use of this command is never recommended. Updates can safely be installed without running this option, and configurations and log files are preserved.
4.6.1.4 Select Boot Method
The switch supports three boot methods:
from the local image on the flash
from an image over the network
from an image over the serial port
The default option is booting from the flash. See Section 4.9, “Network Boot” on
page 4-14 for more information.
4-12 Sun Netra CP3240 Switch Installation Guide • September 2009
4.6.1.5 Start Diagnostic Application
This option boots the Broadcom diag shell, currently SDK version 5.4.1. This environment is provided as is, with no support. Several commands provided in this shell are not supported and will not work. This shell is provided mainly for debug, testing, and diagnostics purposes. This shell has many low-level tests, and low-level register access. It can be used to check the integrity of particular boards. Help is provided in the shell with ?? and commands followed by a single question mark. Some commands of interest are TestList and TestRun.

4.7 Primary and Backup Flash

The switch features hardware flash redundancy. If the switch fails to boot from the primary flash for any reason, the onboard IPMC will reset the board and attempt to boot out of the backup flash. No user interaction is required.
The switch backup flash comes preprogrammed with default settings. You can change what is loaded on the backup flash by using the Copy Primary Flash to Backup Flash command from the utility menu.

4.8 Dual Firmware Images

The switch supports dual firmware images of the Base and Fabric software. While this feature does not provide high availability (the hardware redundant flash provides that), it does provide a way to store two copies of the firmware on the switch. This allows you to switch between firmware, as needed.

4.8.1 Booting the Non-Active Image

Which image is active can be changed several ways.
From the boot menu, the Activate Backup Image option can be used.
From within FASTPATH the boot system command in combination with the update bootcode commands can be used.
Chapter 4 Configuring Switch Software 4-13

4.8.2 Updating the Non-Active Image

All of the update methods supported by the active image (image1 by default) are also supported for the non-active image (image2).

4.8.3 Fabric 1G/10G Auto-negotiation

The Fabric networks support both 1Gigabyte and 10Gigabyte operation. No configuration is required to put the switch into either a 1Gigabyte or 10Gigabyte mode. The switch will dynamically connect at the appropriate speed.

4.9 Network Boot

The switch supports network booting. This feature can be used to test updates to FASTPATH without installing them. Updates containing changes to uBoot, Linux, or the IPMC must be installed to the flash before they can be used.
1. Setup a TFTP server on the update network.
Tftpd is the standard TFTP server for Linux and Solaris.
For Windows, Solarwinds (
http://www.solarwinds.net) offers a free TFTP server.
2. Place the update image on the TFTP server.
It will have a .tgz file extension.
3. Connect to the serial management port of the network to be updated, and connect the MGMT port to the update network.
4. Reboot the switch using the reboot button, hotswap handle, or reload command.
5. As the switch boots, press number 2 to enter the Utility Menu.
6. Press number 8 to change the boot method.
7. Press number 3 to select network as the boot method.
8. Enter the information for your TFTP server.
For host IP, you can enter dhcp if you would like to use DHCP to obtain a valid IP address.
4-14 Sun Netra CP3240 Switch Installation Guide • September 2009
9. Press number 1 to boot the system.
CODE EXAMPLE 4-5 Example Console Output
CPU: 400 MHz DRAM: 256 MB FLASH: 64 MB, Base, Primary Flash
### JFFS2 loading 'image1' to 0x400000 Scanning JFFS2 FS: . done. ### JFFS2 load complete: 10026500 bytes loaded to 0x400000 Booting ... Loading Ramdisk to 0fdf6000, end 0ff8d4c2 ... OK
Mounting /dev/mtdblock2 at /mnt/fastpath...done. Mounting tmpfs at /mnt/application...done.
***************************************************************** *** * Use the [`] key above the TAB to switch between BASE and FABRIC. * ***************************************************************** ***
switch, Base, Primary Flash, image1
Select startup mode. If no selection is made within 5 seconds, the Application will start automatically...
--- Main Menu ---
1 - Start Switch Application 2 - Display Utility Menu Select (1, 2): 2
***************************************************************** *** * Use the [`] key above the TAB to switch between BASE and FABRIC. * ***************************************************************** ***
switch, Base, Primary Flash, image1
--- Utility Menu ---
1 - Start Switch Application 2 - Load Code Update Package using TFTP/FTP 3 - Load Code Update Package using XMODEM/YMODEM/ZMODEM 4 - Copy Primary Flash to Backup Flash 5 - Select Serial Speed
Chapter 4 Configuring Switch Software 4-15
CODE EXAMPLE 4-5 Example Console Output (Continued)
6 - Retrieve Error Log using TFTP 7 - Retrieve Error Log using XMODEM/YMODEM/ZMODEM 8 - Erase Current Configuration 9 - Erase Permanent Storage 10 - Select Boot Method 11 - Activate Backup Image 12 - Start Diagnostic Application 13 - Reboot
Select option (1-13): 10
Current Boot Method: FLASH
1 - Flash Boot 2 - Network Boot 3 - Serial Boot 4 - Exit without change Select option (1-4): 2 Enter Server IP []:10.10.3.199 Enter Host IP (# or dhcp) []:dhcp Enter Transfer Method (tftp or ftp) [ftp]: Enter Filename []:/switch.1.0.1.0.stk Accept changes? Press(Y/N): y
***************************************************************** *** * Use the [`] key above the TAB to switch between BASE and FABRIC. * ***************************************************************** ***
switch, Base, Primary Flash, image1
--- Utility Menu ---
1 - Start Switch Application 2 - Load Code Update Package using TFTP/FTP 3 - Load Code Update Package using XMODEM/YMODEM/ZMODEM 4 - Copy Primary Flash to Backup Flash 5 - Select Serial Speed 6 - Retrieve Error Log using TFTP 7 - Retrieve Error Log using XMODEM/YMODEM/ZMODEM 8 - Erase Current Configuration 9 - Erase Permanent Storage 10 - Select Boot Method 11 - Activate Backup Image 12 - Start Diagnostic Application 13 - Reboot
4-16 Sun Netra CP3240 Switch Installation Guide • September 2009
CODE EXAMPLE 4-5 Example Console Output (Continued)
Select option (1-13): 1 Creating tmpfs filesystem on tmpfs for download...done. Bringing up eth0 interface...done. HOST IPADDR=10.10.2.246 Transferring '/switch.1.0.1.0.stk' from '10.10.3.199' via ftp...done. Bringing down eth0 interface...done. Extracting Application...done. Destroying tmpfs filesystem on tmpfs...done. Loading Application...done. SOC unit 0 attached to PCI device BCM56503_B2
FASTPATH starting...started!
(Unit 1)>
User:
10. Use option 8 of the Utility Menu to change the boot method back to flash, when desired.
Chapter 4 Configuring Switch Software 4-17

4.10 FASTPATH

The switch features LVL7 Systems’ FASTPATH 2340 software, version 4.4. FASTPATH is a software package providing the robust management needed to control a modern switch-router. This section serves as a quick primer on using FASTPATH on the switch. FASTPATH is not covered in detail in this guide, but is covered in the Netra CP3240 Switch Command Reference Manual (820-3253).

4.10.1 Management Options

The switch can be controlled by a CLI, a web interface, and through SNMP. All management interfaces, other than serial, can be enabled or disabled, provided over both the out-of-band management port and/or any in-band ports, and be limited to certain in-band ports.
4.10.1.1 CLI
The switch provides an industry standard CLI. The CLI is provided over the serial port, telnet and SSH. This section only describes some basic commands. For detailed command syntax, refer to the Netra CP3240 Switch Command Reference Manual (820-3253).
The CLI is mode based. It works similarly to a console in Linux or Windows. Commands are grouped under modes, and those commands only work when the user is in the current mode. There are very few global commands.
To return to one mode higher than the current mode, use exit.
For example to shutdown port 17, switch to enable mode, configure mode, interface 17 mode, then issue the shutdown command. Use exit to return to configure mode, and exit again to return to enable mode.
Many commands have a no form. The no form is used to disable the command. With the previous example, to re-enable port 17, once you are in the interface 17 mode, you would issue the no shutdown command.
4-18 Sun Netra CP3240 Switch Installation Guide • September 2009

4.10.2 Basic CLI Commands

TABLE 4-6 Basic CLI Commands
Command Function Mode
enable Switch to privilege mode. You must be in enabled
mode for most options.
show port all Show status of the ports. privilege
show interface ethernet 0/x Show detailed statistics on port 0/x. privilege
clear counters Clear all statistics. privilege
clear config Restore the default configuration. privilege
show running-config Show the current configuration of the switch.
This command shows everything that is not set to the default value. The output is a script that can be copied to a file for later use, or for another switch.
copy system:running-config nvram:startup-config
serviceport protocol dhcp Use DHCP on the out-of band port. Only one of
serviceport protocol none Use user assigned IP NOTE: the same command
serviceport ip <ip> <netmask>
<gateway>
network parms <ip> <netmask> <gateway>
show network View the in-band management settings. privilege
show serviceport View the out-of-band management settings. privilege
serial baudrate Change the serial baudrate. privilege
vlan database Switch to vlan database mode. Create and delete
vlan x Create a VLAN with number x. vlan
exit Return to one mode higher.
configure Switch to configure mode. You must be in
Save the current configuration though a reboot. privilege
the serviceport and network can use DHCP. To enable DHCP on one, you must disable it on the other. The same command works for network.
works for network.
Force an IP for serviceport. privilege
Force an IP for network. privilege
VLANs here.
configure mode to change most settings.
default
privilege
privilege
privilege
privilege
privilege
Chapter 4 Configuring Switch Software 4-19
TABLE 4-6 Basic CLI Commands (Continued)
interface 0/x Switch to interface mode. You must be in
interface mode to change most port specific settings.
vlan participation include x Add interface to VLAN x. interface
vlan pvid x Change interface’s pvid to VLAN x. interface
configure

4.10.3 Logins and Prompts

FASTPATH supports multiple users with different security levels. By default, there is one admin user with no password. In the CLI, privilege mode is password-protected separately from the default mode, but also has a default of no password.
4.10.3.1 CLI Defaults
A CLI is provided on the serial console, telnet console, and SSH console. The serial
console is always enabled. The telnet console is enabled by default. SSH is disabled by default.
Username:admin
Password: >enable Password:
#
The prompts always show the current mode. Here are a few examples.
default mode # privilege mode # configure mode (interface 0/2) # interface 0/2 mode
4.10.3.2 Web Interface Defaults
The username and password are the same as the CLI. The web interface is enabled by default. Java is enabled by default. HTTPS is disabled by default.
4-20 Sun Netra CP3240 Switch Installation Guide • September 2009
4.10.3.3 SNMP Defaults
SNMP is enabled by default. The default read-only community string is public. The default read-write community string is private.

4.10.4 Secure Remote Access

4.10.4.1 SSH and SSL/TLS Keys
The switch supports SSH for a secure CLI console as well as SSL/TLS for secure HTTP. By default, SSH and SSL are disabled. The switch cannot generate its own keys. Keys must be generated on an external PC, and uploaded to the switch via TFTP. Once the keys are on the switch, SSH and HTTPS must be enabled to be used.
4.10.4.2 Enabling SSH and SSL
First, the certifications and keys must be uploaded to the switch using a command such as the following:
copy tftp://<ip>/<file> <location>
Upload the following files to the switch:.
File Location
rsa1.key nvram:sshkey-rsa1
rsa2.key nvram:sshkey-rsa2
dsa.key nvram:sshkey-dsa
dh512.pem nvram:sslpem-dhweak
dh1024.pem nvram:sslpem-dhstrong
server.pem nvram:sslpem-server
rootcert.pem nvram:sslpem-root
Enable secure access (SSH/Telnet) and disable non-secure access (SSL/HTTP).
ip ssh configure
Chapter 4 Configuring Switch Software 4-21
lineconfig no transport input telnet
exit
ip http secure-server no ip http server

4.10.5 Default Settings

The switch comes configured with a default configuration. This configuration boots the board to Layer 2 switching. This configuration is very basic and should be updated for your environment. The default settings are as follows:
every port is in VLAN 1
every port is configured in switching mode
management interfaces are enabled
spanning-tree is enabled on every port
everything else is disabled
The settings of the switch can be checked with the show running-config command. This command shows how the current configuration is different than the default configuration. This command can be very useful because the output is in script format. This output can be backed up or copied to another switch.

4.10.6 Port Ordering

The ports are ordered the same way as the ATCA channels. The ATCA specification allows for backplanes to be routed differently. This means that logical slots and physical slots often do not match.
The switch supports an abstraction layer that allows the port order to be changed. This allows vendors to match logical slots and physical slots independent of routing. Contact Sun if you would like a non-standard port order. Sun’s port ordering is shown in the following table for shelves with middle hub slots, that is, slots 7 and 8.
TABLE 4-7 Port Order List
Shelf Physical Slot Base Port Fabric Port
11312
21110
4-22 Sun Netra CP3240 Switch Installation Guide • September 2009
