Sun Fire™V440 Server

Installation Guide

Sun Microsystems, Inc. 4150 Network Circle Santa Clara, CA 95054 U.S.A. 650-960-1300

Part No. 816-7727-10 July 2003, Revision A

Submit comments about this document at: http://www.sun.com/hwdocs/feedback

Copyright 2003 Sun Microsystems,Inc., 4150 Network Circle, Santa Clara, California 95054, U.S.A. All rights reserved. Sun Microsystems,Inc. has intellectual property rights relating to technology embodied in the product that is described in this document. In

particular,and without limitation, these intellectual property rights may include one or more of the U.S. patents listed at http://www.sun.com/patents and one or more additional patents or pending patent applications in the U.S. and in other countries.

This document and the productto which it pertains are distributed under licenses restricting their use, copying, distribution, and decompilation. No part of the product or of this document may be reproduced in any form by any means without prior written authorization of Sun and its licensors, if any.

Third-partysoftware, including font technology,is copyrighted and licensed from Sun suppliers. Parts of the productmay be derived from Berkeley BSD systems, licensed from the University of California. UNIX is a registeredtrademark in

the U.S. and in other countries, exclusively licensed through X/Open Company,Ltd. Sun, Sun Microsystems,the Sun logo, Solaris, OpenBoot, AnswerBook2, docs.sun.com, SunSolve Online, and Solaris JumpStart are trademarks

or registeredtrademarks of Sun Microsystems, Inc. in the U.S. and in other countries. All SPARC trademarks areused under license and are trademarks or registered trademarks of SPARCInternational, Inc. in the U.S. and in other

countries. Productsbearing SPARCtrademarks are based upon an architecture developed by Sun Microsystems,Inc. The OPEN LOOK and Sun™ Graphical User Interface was developed by Sun Microsystems, Inc. for its users and licensees. Sun acknowledges

the pioneering effortsof Xerox in researching and developing the concept of visual or graphical user interfaces for the computer industry.Sun holds a non-exclusive license fromXerox to the Xerox Graphical User Interface, which license also covers Sun’s licensees who implement OPEN LOOK GUIs and otherwise comply with Sun’s written license agreements.

U.S. Government Rights—Commercialuse. Government users are subject to the Sun Microsystems, Inc. standard license agreementand applicable provisionsof the FAR and its supplements.

DOCUMENTATION IS PROVIDED "AS IS" AND ALL EXPRESS OR IMPLIED CONDITIONS, REPRESENTATIONS AND WARRANTIES, INCLUDING ANY IMPLIED WARRANTYOF MERCHANTABILITY,FITNESS FOR A PARTICULARPURPOSE OR NON-INFRINGEMENT, ARE DISCLAIMED, EXCEPT TO THE EXTENT THAT SUCH DISCLAIMERS ARE HELD TO BE LEGALLY INVALID.

Copyright 2003 Sun Microsystems,Inc., 4150 Network Circle, Santa Clara, California 95054, Etats-Unis. Tousdroits réservés. Sun Microsystems,Inc. a les droits de propriété intellectuels relatants à la technologie incorporée dans le produitqui est décrit dans ce

document. En particulier,et sans la limitation, ces droitsde propriété intellectuels peuvent inclure un ou plus des brevets américains énumérés à http://www.sun.com/patents et un ou les brevets plus supplémentaires ou les applications de brevet en attente dans les Etats-Unis et dans les autrespays.

Ce produitou document est protégé par un copyright et distribué avec des licences qui en restreignent l’utilisation, la copie, la distribution, et la décompilation. Aucune partie de ce produit ou document ne peut être reproduite sous aucune forme, parquelquemoyen que ce soit, sans l’autorisation préalable et écrite de Sun et de ses bailleurs de licence, s’il y ena.

Le logiciel détenu par des tiers, et qui comprend la technologie relative aux polices de caractères, est protégé par un copyright et licencié par des fournisseurs de Sun.

Des parties de ce produit pourront être dérivées des systèmes Berkeley BSD licenciés par l’Université de Californie. UNIX est une marque déposée aux Etats-Unis et dans d’autres pays et licenciée exclusivement par X/Open Company,Ltd.

Sun, Sun Microsystems,le logo Sun, Solaris, OpenBoot, AnswerBook2, docs.sun.com, SunSolve Online, et Solaris JumpStart sont des marques de fabrique ou des marquesdéposées de Sun Microsystems, Inc. aux Etats-Unis et dans d’autres pays.

Toutes les marquesSPARCsont utilisées sous licence et sont des marques de fabrique ou des marques déposées de SPARCInternational, Inc. aux Etats-Unis et dans d’autrespays. Les produits protant les marques SPARCsont basés sur une architecturedéveloppée par Sun Microsystems,Inc.

L’interfaced’utilisation graphique OPEN LOOK et Sun™ a été développée par Sun Microsystems,Inc. pour ses utilisateurs et licenciés. Sun reconnaîtles efforts de pionniers de Xerox pour la rechercheet le développment du concept des interfaces d’utilisation visuelle ou graphique pour l’industrie de l’informatique. Sun détient une license non exclusive do Xerox sur l’interface d’utilisation graphique Xerox, cette licence couvrant également les licenciées de Sun qui mettent en place l’interface d ’utilisation graphique OPEN LOOK et qui en outre se conforment aux licences écrites de Sun.

LA DOCUMENTATION EST FOURNIE "EN L’ÉTAT" ET TOUTES AUTRES CONDITIONS, DECLARATIONS ET GARANTIES EXPRESSES OU TACITESSONT FORMELLEMENT EXCLUES, DANS LA MESURE AUTORISEEPARLA LOI APPLICABLE, Y COMPRIS NOTAMMENT TOUTE GARANTIE IMPLICITE RELATIVE A LA QUALITE MARCHANDE, A L’APTITUDE A UNE UTILISATION PARTICULIERE OU A L’ABSENCE DE CONTREFAÇON.

Please

Recycle

Preface v

1. Preparing for Installation 1

About the Parts Shipped to You 1 Verify All Parts 2 Transfer Online Documentation 3 Plan the Installation 3 What Next 4

2. Installing a Sun Fire V440 Server Into a 4-Post Cabinet 5

Checklist of 4-Post Rackmounting Tasks 6 Inventory for 4-Post Rackmounting 7 Tools Required for Rackmounting 8 Attach the Inner Glides to the Chassis 9 Prepare the Cabinet 10 Locate the Mounting Holes 11 Install the Slide Assemblies 13 Install the Server Into the Cabinet 16 What Next 19 Install the Cable Management Arm 20

Contents iii

Secure the Cords and Cables to the Cable Management Arm 25 Install Optional Components 28 Connecting the Cords and Cables 29 Connect the Power Cords to the Server 30 Connect Twisted-Pair Ethernet Cables 32 Restore the Cabinet 34 What Next 34

3. Setup and Power-On Procedures 35

Set Up a System Console Device 35

About Connecting the Server to a Terminal Server 36

▼ How to Access the System Console via a Terminal Server 38 ▼ How to Access the System Console via an Alphanumeric Terminal 38 ▼ How to Access the System Console via tip Connection 39

Prepare to Configure the Primary Network Interface 41 Power On the Server 42

▼ How to Power On via the Power Button 43 ▼ How to Power On via the poweron Command 44

Install the Solaris Operating Environment and Additional Software 47 What Next 48

A. Background and Reference 49

System LEDs 49 Serial Port Connector 51

Serial Port Connector Diagram 51 Serial Port Connector Signals 51

4-Post Cabinet Requirements 52

iv Sun Fire V440 Server Installation Guide • July 2003

Preface

The Sun Fire V440 Server Installation Guide provides instructions, some background information, and reference material to help you install a new Sun Fire™ V440 server. Instructions in Chapters 1 and 3 assume that a system administrator who is experienced with the Solaris However, you do not need Solaris operating environment experience to follow instructions in Chapter 2, which detail the installation of the Sun Fire V440 server into a 4-post cabinet.

How This Book Is Organized

This guide is organized into three chapters and one appendix. Chapter 1 illustrates the contents of the Sun Fire V440 server ship kit, provides

guidelines for planning the installation, and lists the documentation included on the Sun Fire V440 Server Documentation CD.

Chapter 2 provides instructions for installing the Sun Fire V440 server into a 4-post cabinet, installing the cable management arm, and routing the cables and cords into the cable management arm.

™

operating environment is performing the installation.

Chapter 3 provides instructions for powering on the server and for installing the Solaris operating environment and additional software.

Appendix A includes background information about the system console and additional technical specifications, including those for connectors and for the rack.

Using UNIX Commands

This document might not contain information on basic UNIX®commands and procedures such as shutting down the system, booting the system, and configuring devices.

See one or more of the following for this information:

■ Solaris Handbook for Sun Peripherals

■ AnswerBook2

■ Other software documentation that you received with your system

™

online documentation for the Solaris operating environment

Typographic Conventions

Typeface

AaBbCc123 The names of commands, files,

AaBbCc123 What you type, when

AaBbCc123 Book titles, new words or terms,

* The settings on your browser might differ from these settings.

Meaning Examples

Edit your .login file. and directories; on-screen computer output

contrasted with on-screen computer output

words to be emphasized. Replace command-line variables with real names or values.

Use ls -a to list all files.

% You have mail.

% su

Password:

Read Chapter 6 in the User’s Guide.

These are called class options.

To delete a file, type rm filename.

vi Sun Fire V440 Server Installation Guide • July 2003

System Prompts

Type of Prompt Prompt

C shell machine-name% C shell superuser machine-name# Bourne shell and Korn shell $ Bourne shell and Korn shell superuser # ALOM system controller sc> OpenBoot firmware ok OpenBoot Diagnostics obdiag>

Accessing Sun Documentation

You can view, print, or purchase a broad selection of Sun documentation, including localized versions, at:

http://www.sun.com/documentation

Note – For important safety, compliance, and conformity information regarding the

Sun Fire V440 server, see the Sun Fire V440 Server Safety and Compliance Guide, part number 816-7731, on the Documentation CD or online at the above location.

Contacting Sun Technical Support

If you have technical questions about this product that are not answered in this document, go to:

http://www.sun.com/service/contacting

Sun Welcomes Your Comments

Sun is interested in improving its documentation and welcomes your comments and suggestions. You can submit your comments by going to:

http://www.sun.com/hwdocs/feedback

Please include the title and part number of your document with your feedback: Sun Fire V440 Server Installation Guide, part number 816-7727-10.

viii Sun Fire V440 Server Installation Guide • July 2003

CHAPTER

Preparing for Installation

This chapter includes a description of the components of the Sun Fire V440 server, a list of documents on the Documentation CD, and a set of questions that the system administrator must answer before installing the server software.

This chapter contains the following sections:

■ “About the Parts Shipped to You” on page 1

■ “Verify All Parts” on page 2

■ “Transfer Online Documentation” on page 3

■ “Plan the Installation” on page 3

About the Parts Shipped to You

Standard components of Sun Fire V440 servers are installed at the factory. However, if you ordered options such as a PCI card and monitor, these will be shipped to you separately.

In addition, you should have received the Solaris™ Media Kit and documentation for all appropriate system software.

Check that you have received everything you ordered.

Note – Inspect the shipping carton for evidence of physical damage. If a shipping

carton is damaged, request that the carrier’s agent be present when the carton is opened. Keep all contents and packing material for the agent’s inspection.

Verify All Parts

● Verify that you have received all the parts of your system.

See the illustration below to identify most of the parts shipped with the system. (Not shown in the illustration is the RJ-45/DB-9 adapter, which is also shipped with the system.)

Documentation CD

Ship kit carton

R a

a c

c k

A l

i g

g n

Use

t e

e n

n e

T m

this side f

l a

rack installation

e t

4 post

Mounti

ng Hole

Ship Kit

System keys

RJ-45 cable

RJ-45/DB-25 adapter

Screws, nuts, washers (4 packs)

Grounding strap

Cable management arm

Inner glides

Slide assemblies

Rackmounting kit carton

2 Sun Fire V440 Server Installation Guide • July 2003

Transfer Online Documentation

The Sun Fire V440 Server Documentation CD is included in the ship kit. See the booklet included with the CD for instructions on transferring the documentation to disk or viewing the documentation directly from the CD.

In addition to this guide, the following documents are included on the Sun Fire V440 Server Documentation CD:

■ Sun Fire V440 Server Safety Information

■ Sun Fire V440 Server Product Notes

■ Sun Fire V440 Server Using Online Documentation

■ Sun Fire V440 Server Administration Guide

■ Sun Fire V440 Server Diagnostics and Troubleshooting Guide

■ Sun Fire V440 Server Parts Installation and Removal Guide

■ Sun Advanced Lights Out Manager (ALOM) 1.1 Online Help

■ Sun Fire V440 Server 2-Post Rackmounting Guide

■ Sun Fire V440 Server Safety and Compliance Guide

Plan the Installation

The Sun Fire V440 server is a general-purpose server. How you set up your server depends on what you want it to do.

This set of installation procedures is intended to be as “generic” as possible, to accommodate the variety of uses to which you can apply the server. Even so, you need to make certain decisions to complete the procedures. If you need background information to help you answer the following two questions, see the Sun Fire V440 Server Administration Guide.

■ On which network or networks do you intend to operate the server?

You need to provide specific networking information about the server when you install the Solaris operating environment.

■ How do you want to use and configure the server’s internal disks?

■ What software do you intend to load?

Software included in the Solaris Media Kit or other software products can impose certain disk space or disk partitioning requirements. Refer to the documentation accompanying the Solaris software to determine those requirements.

Chapter 1 Preparing for Installation 3

Note – Be sure to use a supported version of the Solaris operating environment. See

the Sun Fire V440 Server Product Notes for more information.

What Next

Install the server into a cabinet, following instructions in Chapter 2.

4 Sun Fire V440 Server Installation Guide • July 2003

CHAPTER

Installing a Sun Fire V440 Server Into a 4-Post Cabinet

This chapter shows you how to install a Sun Fire V440 server into a 4-post Sun™ StorEdge Expansion Cabinet or other Electronic Industries Association (EIA)-compliant 19-inch (48.26-cm) wide rack. If you are installing a Sun Fire V440 server into a 2-post rack, refer to the 2-post rackmounting instructions that are included on the Documentation CD in the Ship kit.

Note – To install a server into an EIA-compliant 19-inch wide rack with mounting

holes sized for U.S. dimension screws, use 10-32 screws and 8-32 screws to attach the slide assemblies to the rack. The rackmounting kit includes 8-32 and 10-32 screws and washers.

To install a server into an EIA-compliant 19-inch wide rack with mounting holes sized for metric dimension screws, use M4 or M6 screws—depending on your rack model—to attach the slide assemblies to the rack. The rackmounting kit includes M4 and M6 screws and washers.

The service label on the top cover of the server illustrates the rackmounting steps in a convenient graphical overview. However, the instructions in this guide are more detailed.

This chapter contains the following procedures and information:

■ “Checklist of 4-Post Rackmounting Tasks” on page 6

■ “Inventory for 4-Post Rackmounting” on page 7

■ “Tools Required for Rackmounting” on page 8

■ “Attach the Inner Glides to the Chassis” on page 9

■ “Prepare the Cabinet” on page 10

■ “Locate the Mounting Holes” on page 11

■ “Install the Slide Assemblies” on page 13

■ “Install the Server Into the Cabinet” on page 16

■ “Install the Cable Management Arm” on page 20

■ “Secure the Cords and Cables to the Cable Management Arm” on page 25

■ “Install Optional Components” on page 28

■ “Connecting the Cords and Cables” on page 29

■ “Connect the Power Cords to the Server” on page 30

■ “Connect Twisted-Pair Ethernet Cables” on page 32

■ “Restore the Cabinet” on page 34

For a detailed list of 4-post cabinet requirements, turn to the section, “4-Post Cabinet Requirements” on page 52.

Checklist of 4-Post Rackmounting Tasks

Step Task Refer to This Section

1 Install the inner glides on the

chassis.

2 Prepare the cabinet. “Prepare the Cabinet” on page 10 3 Locate the mounting holes. “Locate the Mounting Holes” on page 11 4 Install the slide assemblies into

the cabinet.

5 Install the server into the cabinet. “Install the Server Into the Cabinet” on

6 Install the cable management arm. “Install the Cable Management Arm” on

7 Secure the cords and cables to the

cable management arm.

8 Install optional components. “Install Optional Components” on page 28 9 Connect the power cords. “Connect the Power Cords to the Server” on

10 Connect a twisted-pair Ethernet

(TPE) cable.

11 Restore the cabinet. “Restore the Cabinet” on page 34

“Attach the Inner Glides to the Chassis” on page 9

“Install the Slide Assemblies” on page 13

page 16

page 20 “Secure the Cords and Cables to the Cable

Management Arm” on page 25

page 30 “Connect Twisted-Pair Ethernet Cables” on

page 32

6 Sun Fire V440 Server Installation Guide • July 2003

Inventory for 4-Post Rackmounting

You need one 4-post rackmounting kit for each Sun Fire V440 server you intend to install into a cabinet. The 4-post rackmounting kit is included with the server. You also need this document and the Rack Alignment template from the ship kit.

Back

Inner glides (2)

Slide assemblies (2)

Front

Cable management arm

Rack Alignment template

Speed pin

M4 screws (8) M6 screws (12)

Documentation CD (Installation Guide)

M6 washers (12) 10-32 screws (12) 10-32 washers (12)

8-32 screws (2)

8-32 nuts (2)

Chapter 2 Installing a Sun Fire V440 Server Into a 4-Post Cabinet 7

The plastic bags of hardware contain screws and nuts that are shown below in actual size.

M410-32 8-32 M6 8-32 10-32M6

Any screws not used for rackmounting are spares.

Note – Bar nuts are required (but not included) for non-threaded cabinets. See the

instructions provided with your cabinet for more information.

Tools Required for Rackmounting

■ Phillips No. 2 screwdriver (Use to tighten 10-32 and M6 screws.)

■ Set of appropriate Allen wrenches to remove the side panels on some cabinets

■ Adjustable wrench to tighten the nuts on the mounting brackets

8 Sun Fire V440 Server Installation Guide • July 2003

Attach the Inner Glides to the Chassis

● Attach the inner glides to the chassis using four M4 screws for each inner glide.

Position the straight end of each inner glide toward the front of the server. Align the second hole on the inner glide with the first hole on the chassis.

Chapter 2 Installing a Sun Fire V440 Server Into a 4-Post Cabinet 9

Prepare the Cabinet

1. Open and remove, if applicable, the front and back doors of the cabinet.

See the instructions provided with your cabinet.

2. Stabilize the cabinet by extending its anti-tip legs or bolting the cabinet securely to the floor.

See the instructions provided with your cabinet and read “4-Post Cabinet Requirements” on page 52.

The following illustration shows two anti-tip legs. Note that some cabinets have only one such leg.

3. Remove the side panels from the cabinet, if applicable.

See the instructions provided with your cabinet. Removing the side panels can improve access to the areas where you will install nuts and screws when securing the server in the cabinet.

10 Sun Fire V440 Server Installation Guide • July 2003

Locate the Mounting Holes

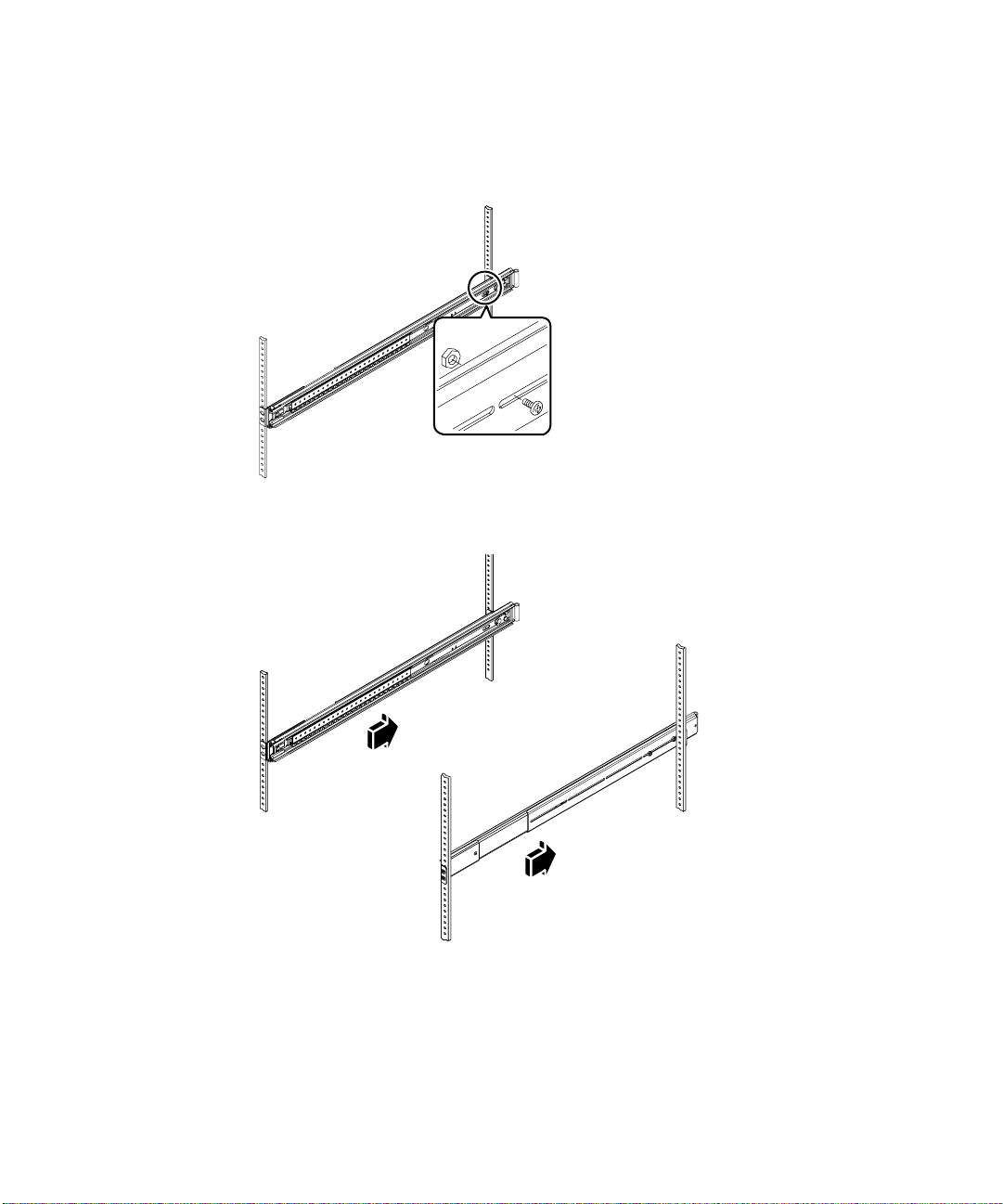

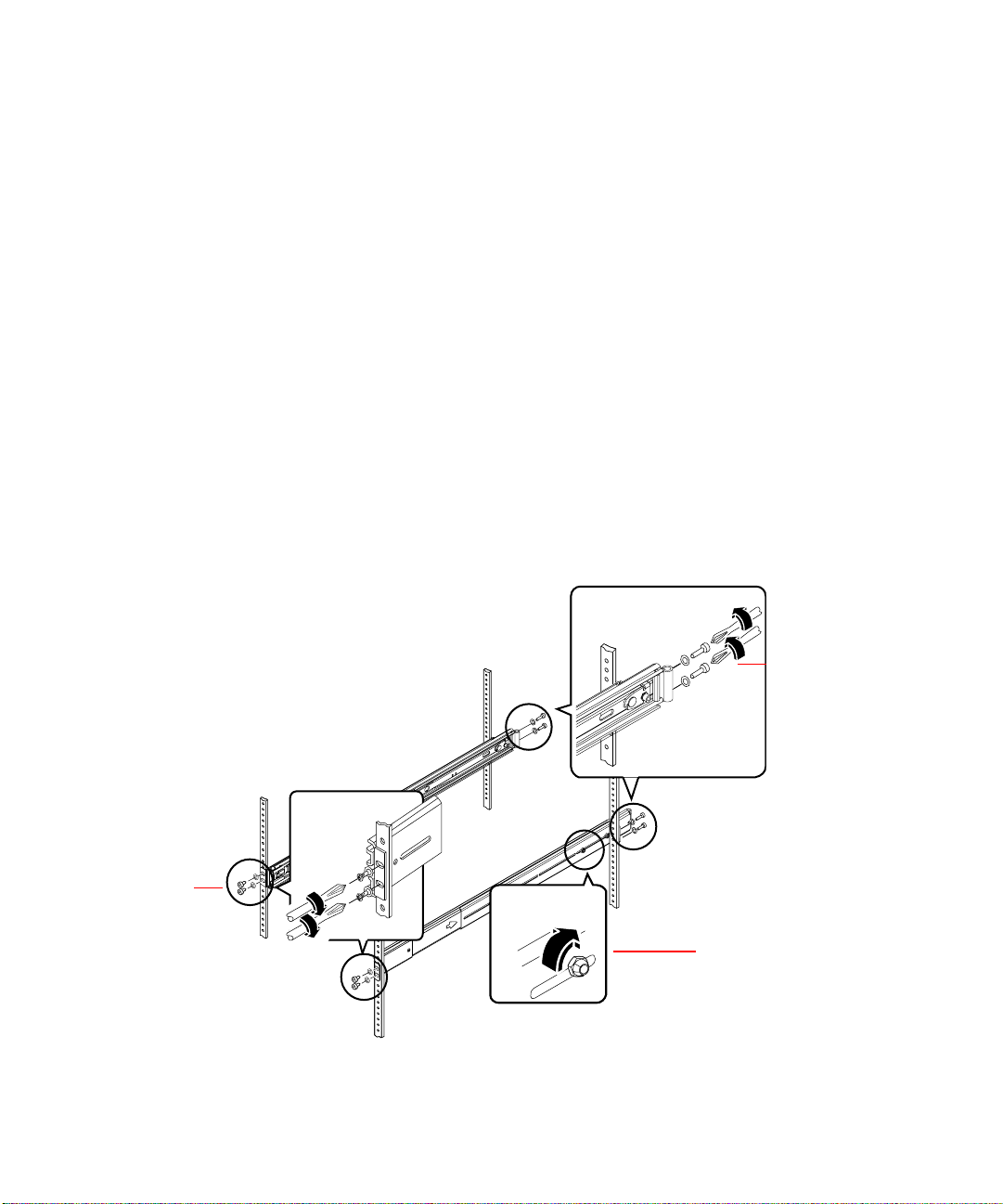

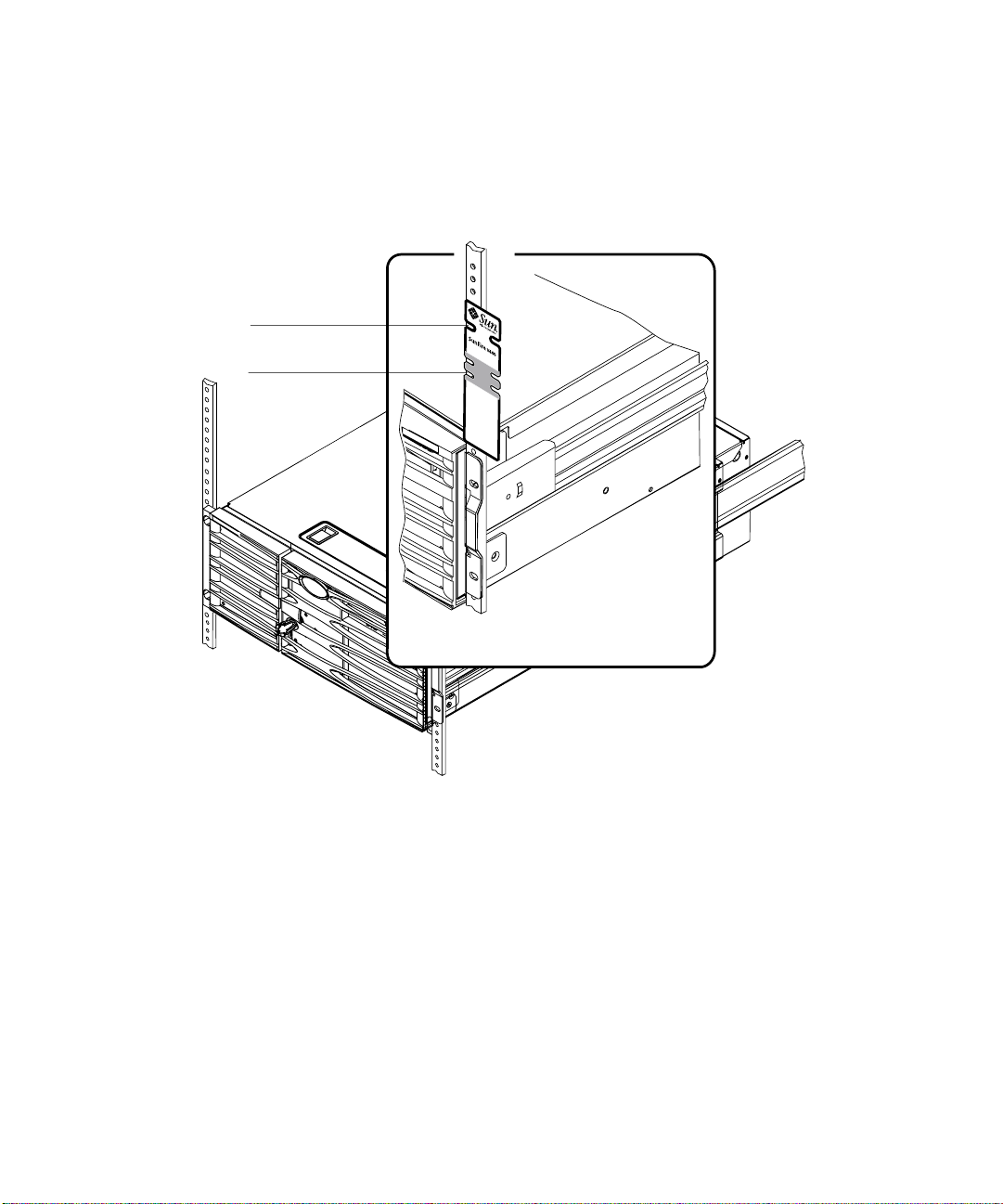

● Locate and mark the rack rail holes that you will use to attach each slide assembly.

You can either count the holes on the vertical rack rails or use the Rack Alignment template included with your documentation set. Make sure that each slide assembly is installed at the same height front-to-back and side-to-side in the rack.

The Rack Alignment template is four rack units (7.00 inch/17.78 cm) tall. You use the Rack Alignment template to ensure that the server is correctly placed within standard rack unit spacing, in which the top of the system is defined to be midway between a set of holes separated by 0.5 inch (1.27 cm).

One side of the Rack Alignment template is for 4-post rackmounting and the other is for 2-post rackmounting. For 2-post rackmounting instructions, refer to the Sun Fire V440 Server 2-Post Rackmounting Guide included on your Documentation CD.

The 4-post mounting holes on the Rack Alignment template are for mounting the slide assembly brackets to the vertical rack rails. The upper and lower retainer screw openings in the template locate the chassis bracket screws that secure the server in the rack after the server is installed.

The following figure shows both sides of the Rack Alignment template.

Chapter 2 Installing a Sun Fire V440 Server Into a 4-Post Cabinet 11

+ 43 hidden pages
