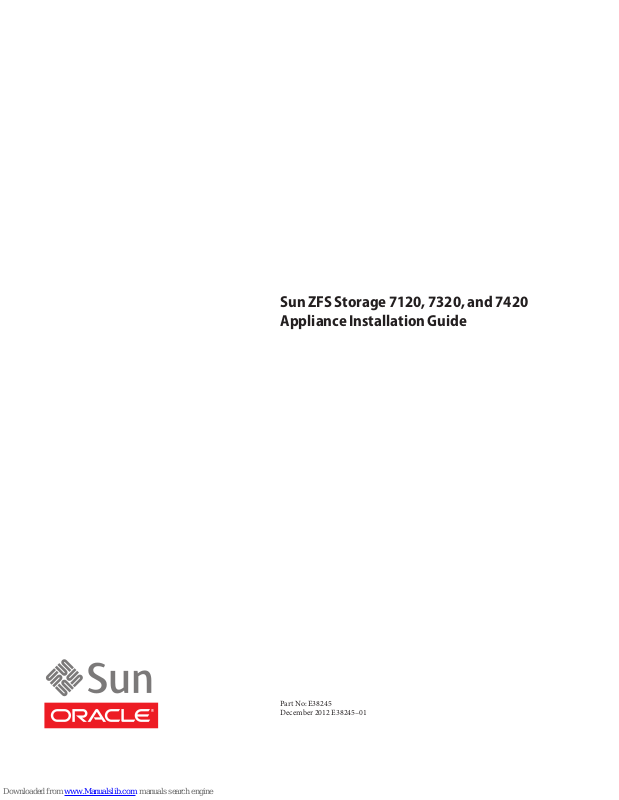

Sun ZFS Storage 7120, 7320, and 7420 Appliance Installation Guide

Part No: E38245 December 2012 E38245–01

This software and related documentation are provided under a license agreement containing restrictions on use and disclosure and are protected by intellectual property laws. Except as expressly permitted in your license agreement or allowed by law, you may not use, copy, reproduce, translate, broadcast, modify, license, transmit, distribute, exhibit, perform, publish or display any part, in any form, or by any means. Reverse engineering, disassembly, or decompilation of this software, unless required by law for interoperability, is prohibited.

The information contained herein is subject to change without notice and is not warranted to be error-free. Ifyou nd any errors, please report them to us in writing.

If this is software or related documentation that is delivered to the U.S. Government or anyone licensing it on behalf of the U.S. Government, the following notice is applicable:

U.S. GOVERNMENT END USERS. Oracle programs, including any operating system, integrated software, any programs installed on the hardware, and/or documentation, delivered to U.S. Government end users are "commercial computer software" pursuant to the applicable Federal Acquisition Regulation and agency-specic supplemental regulations. As such, use, duplication, disclosure, modication, and adaptation of the programs, including any operating system, integrated software, any programs installed on the hardware, and/or documentation, shall be subject to license terms and license restrictions applicable to the programs. No other rights are grantedto the U.S. Government.

This software or hardware is developed for general use in a variety of information management applications. It is not developed or intended for use in any inherently dangerous applications, including applications that may create a risk of personal injury. If you use this software or hardware in dangerous applications, then you shall be responsible to take all appropriate fail-safe, backup, redundancy, and other measures to ensure its safe use. Oracle Corporation and its aliates disclaim any liability for any damages caused by use of this software or hardware in dangerous applications.

Oracle and Java are registered trademarks of Oracle and/or its aliates. Other names may be trademarks of their respective owners.

Intel and Intel Xeon are trademarks or registered trademarks of Intel Corporation. All SPARC trademarks are used under license and are trademarks or registered trademarks of SPARC International, Inc. AMD, Opteron, the AMD logo, and the AMD Opteron logo are trademarks or registered trademarks of Advanced Micro Devices. UNIX is a registered trademark of The Open Group.

This software or hardware and documentation may provide access to or information on content, products, and services from third parties. Oracle Corporation and its aliates are not responsible for and expressly disclaim all warranties of any kind with respect to third-party content, products, and services. Oracle Corporation and its aliates will not be responsible for any loss, costs, or damages incurred due to your access to or use of third-party content, products, or services.

Ce logiciel et la documentation qui l’accompagnesont protégés par les lois sur la propriété intellectuelle. Ils sont concédés sous licence et soumis à des restrictions d’utilisation et de divulgation. Sauf disposition de votre contrat de licence ou de la loi, vous ne pouvez pas copier, reproduire, traduire, diuser, modier, breveter, transmettre, distribuer, exposer, exécuter, publier ou acher le logiciel, même partiellement, sous quelque forme et par quelque procédé que ce soit. Par ailleurs, il est interdit de procéder à toute ingénierie inverse du logiciel, de le désassembler ou de le décompiler, excepté à des ns d’interopérabilité avec des logiciels tiers ou tel que prescrit par la loi.

Les informations fournies dans ce document sont susceptibles de modication sanspréavis. Par ailleurs, Oracle Corporation ne garantit pas qu’elles soient exemptes d’erreurs et vous invite, le cas échéant, à lui en faire part par écrit.

Si ce logiciel, ou la documentation qui l’accompagne,est concédé sous licence au Gouvernement des Etats-Unis, ou à toute entité qui délivre la licence de ce logiciel ou l’utilise pour le compte du Gouvernement des Etats-Unis, la notice suivante s’applique :

Ce logiciel ou matériel a été développé pour un usage général dans le cadre d’applications de gestion des informations. Ce logiciel ou matériel n’est pas conçu ni n’est destiné à être utilisé dans des applications à risque, notamment dans des applications pouvant causer des dommages corporels. Si vous utilisez ce logiciel ou matériel dans le cadre d’applications dangereuses, il est de votre responsabilité de prendre toutes les mesures de secours, de sauvegarde, de redondance et autres mesures nécessaires à son utilisation dans des conditions optimales de sécurité. Oracle Corporation et ses aliés déclinent toute responsabilité quant aux dommages causés par l’utilisation de ce logiciel ou matériel pour ce type d’applications.

Oracle et Java sont des marques déposées d’OracleCorporation et/ou de ses aliés.Tout autre nom mentionné peut correspondre à des marques appartenant à d’autrespropriétairesqu’Oracle.

Intel Xeon sont des marques ou des marques déposées d'Intel Corporation. Toutes les marques SPARCsontutilisées sous licence et sont des marques ou des marques déposées de SPARC International, Inc. AMD, Opteron, le logo AMD et le logo AMD Opteron sont des marques ou des marques déposées d'Advanced Micro Devices. UNIX est une marque déposée d'The Open Group.

Ce logiciel ou matériel et la documentation qui l'accompagne peuvent fournir des informations ou des liens donnant accès à des contenus, des produits et des services émanant de tiers. Oracle Corporation et ses aliés déclinent toute responsabilité ou garantie expresse quant aux contenus, produits ou services émanant de tiers. En aucun cas, Oracle Corporation et ses aliés ne sauraient être tenus pour responsables des pertes subies, des coûts occasionnés ou des dommages causés par l'accès à des contenus, produits ou services tiers, ou à leur utilisation.

121219@25097

Contents

Preface .....................................................................................................................................................7

1 Introduction ...........................................................................................................................................9

Overview ..................................................................................................................................................9

Introduction ....................................................................................................................................9

2 Installation ............................................................................................................................................13

Installation ........................................................................................................................................... 13

Introduction ................................................................................................................................. 13

Overview ............................................................................................................................................... 14

Precautions ................................................................................................................................... 14

Prerequisites ................................................................................................................................. 14

Controller, Cabinet and Disk Shelf Installation Tasks ............................................................ 15

7x20 Controllers .................................................................................................................................. 15

7x20 Controller Installation Tasks ............................................................................................. 15

Prerequisites ................................................................................................................................. 15

Tools and Equipment Needed .................................................................................................... 16

Tasks .............................................................................................................................................. 16

DE2 24C ................................................................................................................................................ 29

Precautions ................................................................................................................................... 29

Prerequisites ................................................................................................................................. 30

Tools and Equipment Needed .................................................................................................... 30

Tasks .............................................................................................................................................. 30

DE2 24P ................................................................................................................................................ 37

Precautions ................................................................................................................................... 37

Prerequisites ................................................................................................................................. 37

Tools and Equipment Needed .................................................................................................... 38

Tasks .............................................................................................................................................. 38

Sun Disk Shelf ...................................................................................................................................... 45

Precautions ................................................................................................................................... 45

Prerequisites ................................................................................................................................. 45

Tools and Equipment Needed .................................................................................................... 45

Tasks .............................................................................................................................................. 46

3 Cabling ..................................................................................................................................................51

Cabling .................................................................................................................................................. 51

Cabling Diagrams ........................................................................................................................ 51

7120 Cabling ........................................................................................................................................ 52

Connecting Sun Disk Shelves/J4x00s to the Sun ZFS Storage 7120 ....................................... 52

7320 Cabling ........................................................................................................................................ 54

Connecting Sun Disk Shelves/J4x00s to the Sun ZFS Storage 7320 ....................................... 54

7320 Cluster Cabling ........................................................................................................................... 56

Connecting Sun Disk Shelves/J4x00s to the Sun ZFS Storage 7320 Cluster ......................... 56

7420 Cabling pt.1 ................................................................................................................................. 58

Connecting Sun Disk Shelves/J4x00s to the Sun ZFS Storage 7420 (2 HBAs) ...................... 58

7420 Cabling pt.2 ................................................................................................................................. 60

Connecting Sun Disk Shelves/J4x00s to the Sun ZFS Storage 7420 (3 HBAs) ...................... 60

7420 Cabling pt.3 ................................................................................................................................. 62

Connecting Sun Disk Shelves/J4x00s to the Sun ZFS Storage 7420 (4 HBAs) ...................... 62

7420 Cabling pt.4 ................................................................................................................................. 65

Connecting Sun Disk Shelves/J4x00s to the Sun ZFS Storage 7420 (5 HBAs) ...................... 65

7420 Cabling pt.5 ................................................................................................................................. 68

Connecting Sun Disk Shelves/J4x00s to the Sun ZFS Storage 7420 (6 HBAs) ...................... 68

7420 Cluster Cabling pt.1 ................................................................................................................... 71

Connecting Sun Disk Shelves/J4x00s to the Sun ZFS Storage 7420 Cluster (2 HBAs) ........ 71

7420 Cluster Cabling pt.2 ................................................................................................................... 74

Connecting Sun Disk Shelves/J4x00s to the Sun ZFS Storage 7420 Cluster (3 HBAs) ........ 74

7420 Cluster Cabling pt.3 ................................................................................................................... 77

Connecting Sun Disk Shelves/J4x00s to the Sun ZFS Storage 7420 Cluster (4 HBAs) ........ 77

7420 Cluster Cabling pt.4 ................................................................................................................... 80

Connecting Sun Disk Shelves/J4x00s to the Sun ZFS Storage 7420 Cluster (5 HBAs) ........ 80

7420 Cluster Cabling pt.5 ................................................................................................................... 83

Contents

Sun ZFS Storage 7120, 7320, and7420 Appliance Installation Guide • December2012E38245–014

Connecting Sun Disk Shelves/J4x00s to the Sun ZFS Storage 7420 Cluster (6 HBAs) ........ 83

DE2-24 .................................................................................................................................................. 87

Connecting DE2 Enclosures to the Sun ZFS Storage 7120 ..................................................... 87

DE2-24 .................................................................................................................................................. 89

Connecting DE2 Enclosures to the Sun ZFS Storage 7320 ..................................................... 89

DE2-24 .................................................................................................................................................. 91

Connecting DE2 Enclosures to the Sun ZFS Storage 7320 Cluster ........................................ 91

DE2-24x2 .............................................................................................................................................. 93

Connecting DE2 Enclosures to the Sun ZFS Storage 7420 (2 HBAs) .................................... 93

DE2-24x3 .............................................................................................................................................. 95

Connecting DE2 Enclosures to the Sun ZFS Storage 7420 (3 HBAs) .................................... 95

DE2-24x4 .............................................................................................................................................. 97

Connecting DE2 Enclosures to the Sun ZFS Storage 7420 (4 HBAs) .................................... 97

DE2-24x5 ............................................................................................................................................ 100

Connecting DE2 Enclosures to the Sun ZFS Storage 7420 (5 HBAs) .................................. 100

DE2-24x6 ............................................................................................................................................ 103

Connecting DE2 Enclosures to the Sun ZFS Storage 7420 (6 HBAs) .................................. 103

DE2-24x2 ............................................................................................................................................ 106

Connecting DE2 Enclosures to the Sun ZFS Storage 7420 Cluster (2 HBAs) ..................... 106

DE2-24x3 ............................................................................................................................................ 109

Connecting DE2 Enclosures to the Sun ZFS Storage 7420 Cluster (3 HBAs) ..................... 109

DE2-24x4 ............................................................................................................................................ 112

Connecting DE2 Enclosures to the Sun ZFS Storage 7420 Cluster (4 HBAs) ..................... 112

DE2-24x5 ............................................................................................................................................ 115

Connecting DE2 Enclosures to the Sun ZFS Storage 7420 Cluster (5 HBAs) ..................... 115

DE2-24x6 ............................................................................................................................................ 118

Connecting DE2 Enclosures to the Sun ZFS Storage 7420 Cluster (6 HBAs) ..................... 118

HBA Expansion pt.1 .......................................................................................................................... 122

Expanding from 2 to 3 HBAs .................................................................................................... 122

HBA Expansion pt.2 .......................................................................................................................... 126

Expanding from 3 to 4 HBAs .................................................................................................... 126

HBA Expansion pt.3 .......................................................................................................................... 131

Expanding from 4 to 5 HBAs .................................................................................................... 131

HBA Expansion pt.4 .......................................................................................................................... 135

Expanding from 5 to 6 HBAs .................................................................................................... 135

Contents

4 PoweringOn and Conguringthe System .................................................................................... 141

Power .................................................................................................................................................. 141

Powering On and Conguring the Appliance ........................................................................ 141

Tasks ............................................................................................................................................ 142

Next Steps .................................................................................................................................... 144

Initial ................................................................................................................................................... 144

Initial Conguration .................................................................................................................. 144

Prerequisites ............................................................................................................................... 145

Summary ..................................................................................................................................... 145

BUI ............................................................................................................................................... 146

CLI ............................................................................................................................................... 146

Update ................................................................................................................................................ 151

Post-Installation Controller Update ........................................................................................ 151

Glossary .............................................................................................................................................. 153

Contents

Sun ZFS Storage 7120, 7320, and7420 Appliance Installation Guide • December2012E38245–016

Preface

The Sun ZFS Storage 7x20 Appliance Installation Guide contains installation, cabling and initial conguration documentation for Oracle's Sun ZFS Storage 7120, 7320, 7420 appliances.

This documentation is also available while using the appliance Browser User Interface (BUI), accessible via the Help button. The appliance documentation may be updated using the System Upgrade procedure documented in the System Service Manual.

Who Should Use This Book

This guide is for users and system administrators who install and use the Sun ZFS Storage 7x20 NAS appliances.

Related Documentation

Refer to the following documentation for administration information, hardware overviews, service procedures and software update notes.

■

Administration Guide, Analytics Guide and Service Manual (http://www.oracle.com/ technetwork/documentation/)

Access to Oracle Support

Oracle customers have access to electronic support through My Oracle Support. For information, visit

http://www.oracle.com/pls/topic/lookup?ctx=acc&id=info or visit

http://www.oracle.com/pls/topic/lookup?ctx=acc&id=trs if you are hearing impaired.

Introduction

Overview

Introduction

The Sun ZFS Storage 7000 family of products provide ecient le and block data services to clients over a network, and a rich set of data services that can be applied to the data stored on the system.

Controllers

■

7120

■

7320

■

7420

Legacy platforms: 7110 | 7210 | 7310 | 7410

Expansion Storage

■

Disk Shelves

Legacy platforms: J4400/J4500

CHAPTER 1

Protocols

Sun ZFS Storage appliances include support for a variety of industry-standard client protocols, including:

■

SMB

■

NFS

■

HTTP and HTTPS

■

WebDAV

■

iSCSI

■

SRP

■

iSER

■

FTP

■

SFTP

Key Features

Sun ZFS Storage systems also include new technologies to deliver the best storage price/performance and unprecedented observability of your workloads in production, including:

■

Analytics, a system for dynamically observing the behavior of your system in real-time and viewing data graphically

■

The ZFS Hybrid Storage Pool, composed of optional Flash-memory devices for acceleration of reads and writes, low-power, high-capacity disks, and DRAM memory, all managed transparently as a single data hierarchy

Data Services

To manage the data that you export using these protocols, you can congure your Sun ZFS Storage system using the built-in collection of advanced data services, including:

LICENSE NOTICE: Remote Replication and Cloning may be evaluated free of charge,

but each feature requires that an independent license be purchased separately for use in production. After the evaluation period, these features must either be licensed or deactivated. Oracle reserves the right to audit for licensing compliance at any time. For details, refer to the "Oracle Software LicenseAgreement ("SLA") and Entitlement for Hardware Systems with Integrated Software Options."

■

RAID-Z (RAID-5 and RAID-6), mirrored, and striped disk congurations

■

Unlimited read-only and read-write snapshots, with snapshot schedules

■

Data deduplication

■

Built-in data compression

■

Remote replication of data for disaster recovery

■

Active-active clustering for high availability (7310, 7320, 7410, and 7420)

Overview

Sun ZFS Storage 7120, 7320, and7420 Appliance Installation Guide • December2012E38245–0110

■

Thin provisioning of iSCSI LUNs

■

Virus scanning and quarantine

■

NDMP backup and restore

Availability

To maximize the availability of your data in production, Sun ZFS Storage appliances include a complete end-to-end architecture for data integrity, including redundancies at every level of the stack. Key features include:

■

Predictive self-healing and diagnosis of all system hardware failures: CPUs, DRAM, I/O cards, disks, fans, power supplies

■

ZFS end-to-end data checksums of all data and metadata, protecting data throughout the stack

■

RAID-6 (double- and triple-parity) and optional RAID-6 across disk shelves

■

Active-active clustering for high availability (7310, 7320, 7410, and 7420)

■

Link aggregations and IP multipathing for network failure protection

■

I/O Multipathing between the controller and disk shelves

■

Integrated software restart of all system software services

■

Phone-Home of telemetry for all software and hardware issues

■

Lights-out Management of each system for remote power control and console access

Browser User Interface (BUI)

The browser user interface

The BUI is the graphical tool for administration of the appliance. The BUI provides an intuitive environment for administration tasks, visualizing concepts, and analyzing performance data.

Overview

Chapter 1 • Introduction 11

The management software is designed to be fully featured and functional on a variety of web browsers.

Direct your browser to the system using either the IP address or host name you assigned to the NET-0 port during initial conguration as follows: https://ipaddress:215 or https://hostname:215. The login screen appears.

The online help linked in the top right of the BUI is context-sensitive. For every top-level and second-level screen in the BUI, the associated help page appears when you click the Help button.

Command Line Interface (CLI)

The CLI is designed to mirror the capabilities of the BUI, while also providing a powerful scripting environment for performing repetitive tasks. The following sections describe details of the CLI. When navigating through the CLI, there are two principles to be aware of:

■

Tab completion is used extensively: if you are not sure what to type in any given context, pressing the Tab key will provide you with possible options. Throughout the documentation, pressing Tab is presented as the word "tab" in bold italics.

■

Help is always available: the help command provides context-specic help. Help on a particular topic is available by specifying the topic as an argument to help, for example help commands. Available topics are displayed by tab-completing the help command, or by typing help topics.

You can combine these two principles, as follows:

dory:> help tab builtins commands general help properties script

Overview

Sun ZFS Storage 7120, 7320, and7420 Appliance Installation Guide • December2012E38245–0112

Installation

Introduction

This section addresses how to physically install the system chassis into a rack, connect controllers in a high-availability cluster, and expand storage. The following topics are described.

■

Overview

■

Controllers

■

7x20 family

■

Expansion Storage

■

Oracle Storage Drive Enclosure DE2-24C

■

Oracle Storage Drive Enclosure DE2-24P

■

Sun Disk Shelf

■

Cabling

■

Powering on

■

Initial conguration

CHAPTER 2

Overview

Precautions

Observe the following cautions when installing any Sun ZFS Storage 7x20 controller or cabinet.

■

Always load equipment into a rack from the bottom up so that it will not become top-heavy and tip over. Deploy the anti-tip bar to the prevent the rack from tipping during equipment installation.

■

Ensure that the temperature in the rack does not exceed the controller's maximum ambient rated temperatures. Consider the total airow requirements of all equipment installed in the rack to ensure that the equipment is operated within its specied temperature range.

■

For best results, only qualied Oracle service personnel should perform cluster installation and conguration. Contact Oracle Service for assistance.

Prerequisites

Refer to the Quick Setup poster that shipped with the product or the following hardware service sections for an overview of your system controller or cabinet.

■

7120 Overview - view component diagrams and specications

■

7320 Overview - view component diagrams and specications, and cluster options

■

7420 Overview - view component diagrams, specications, and cluster options

If you intend to install disk shelves into the same rack, refer to the Disk Shelf Installation section for how to install them into the bottom of your rack.

Legacy platform overviews are provided in the 7110 Overview, 7210 Overview, 7310 Overview, 7410 Overview online sections.

For controller installation, check that your rack is compatible with the slide rail and cable management assembly options as follows:

■

The structure is a four-post rack with mounting at both front and back. Two-post racks are not compatible.

■

The horizontal opening and unit vertical pitch conforms to ANSI/EIA 310-D-1992 or IEC 60927 standards.

■

The distance between the front and back mounting planes is between 24 in and 36 in (610 mm to 915 mm).

■

The distance to the front cabinet door, providing clearance depth in front of the front mounting plane, is at least 1 in (25.4 mm).

Overview

Sun ZFS Storage 7120, 7320, and7420 Appliance Installation Guide • December2012E38245–0114

■

The distance to the back cabinet door, providing clearance depth behind the front mounting plane, is at least 31.5 in (800 mm) with the cable management assembly, or 27.5 in (700 mm) without the cable management assembly.

■

The distance between structural supports and cable troughs, providing clearance width between the front and back mounting planes, is at least 18 in (456 mm).

For cabinet installation, you will need a total distance of at least 15 ft/4.5 m for safe maneuvering when you roll the cabinet o the shipping pallet.

Controller, Cabinet and Disk Shelf InstallationTasks

The following sections provide installation tasks with enumerated steps.

■

7x20 controller installation tasks

■

Disk shelf installation tasks

■

7x10 controller installation tasks (see online section)

7x20 Controllers

7x20 Controller Installation Tasks

This section provides enumerated steps for installing the Sun ZFS Storage 7120, 7320 or 7420 controllers into a rack using the rail assembly in the rack mount kit. Note that if your rack mount kit shipped with installation instructions, use those instructions instead.

Observe the following cautions:

■

Always load equipment into a rack from the bottom up so that it will not become top-heavy and tip over. Deploy the anti-tip bar to the prevent the rack from tipping during equipment installation.

■

Ensure that the temperature in the rack will not exceed the controller's maximum ambient rated temperatures. Consider the total airow requirements of all equipment installed in the rack to ensure that the equipment is operated within its specied temperature range.

Prerequisites

Refer to the Quick Setup poster that shipped with the product or the following sections for an overview of your controller.

■

7120 Overview - view component diagrams and specications

■

7320 Overview - view component diagrams and specications

7x20 Controllers

Chapter 2 • Installation 15

■

7420 Overview - view component diagrams and specications

Tools and Equipment Needed

To install the system, you need the following tools:

■

No. 2 Phillips screwdriver

■

ESD mat and grounding strap

■

Pencil, stylus, or other pointed device, for pushing front panel buttons

You also need a system console device, such as one of the following:

■

Sun workstation

■

ASCII terminal

■

Terminal server

■

Patch panel connected to a terminal server

Tasks

7x20 ControllersTasks

▼

Installing Mounting Bracketson the Controller Chassis

If the mounting brackets are shipped inside the slide rails, you must remove them before beginning this procedure, as follows.

■

Unpack the slide rails and locate the slide rail lock at the front of the assembly.

■

Squeeze and hold the tabs at top and bottom of the lock (1) while you pull the mounting bracket out to the stop.

■

Push the mounting bracket release button toward the front of the mounting bracket (2) while withdrawing the bracket from the assembly.

The following graphic illustrates the procedure for disassembling the 7120/7320 rail kit.

7x20 Controllers

Sun ZFS Storage 7120, 7320, and7420 Appliance Installation Guide • December2012E38245–0116

The following graphic illustrates the procedure for disassembling the 7420 rail kit.

7x20 Controllers

Chapter 2 • Installation 17

Position a mountingbracket against the chassis so that the slide rail lock is at the front of the chassis, and the keyed openings on the mounting bracket are alignedwith the locating pins on the side of the chassis.

The following graphic illustrates how to attach the 7120/7320 mounting brackets.

7x20 Controllers

Sun ZFS Storage 7120, 7320, and7420 Appliance Installation Guide • December2012E38245–0118

The following graphic illustrates how to attach the 7420 mounting brackets.

With the heads of the four chassis locatingpins protruding though the four keyedopenings in the mounting bracket,pull the mounting-bracket toward the front of the chassis until the mounting-bracket clip locks into place with an audible click.

Verify that all mounting pins aresecurely fastened to the chassis.

Repeat to install the remaining mounting bracket on the other side of the chassis.

▼

Installing the ControllerChassis into the Rack Slide Rails

This procedure requires a minimum of two people because of the weight of the chassis. Attempting this procedure alone could result in equipment damage or personal injury. Always load equipment into rack from the bottom up.

7x20 Controllers

Chapter 2 • Installation 19

If you areusing a universal 19-inch cabinet, snap an M6 square cage nut into the top and bottom holes of the location whereyou will be installing the rail plate as shown.

Position a sliderail assembly in your rack so that thebrackets at each end of the slide rail assembly are on the outsideof the front and backrack posts. The followinggraphic illustrates

7x20 Controllers

Sun ZFS Storage 7120, 7320, and7420 Appliance Installation Guide • December2012E38245–0120

the rail assembly brackets.

Attach each slide rail assembly to the rack posts, but do not tightenthe screws completely.3

7x20 Controllers

Chapter 2 • Installation 21

From the front of the rack, set the proper width of the railswith the rail-width spacer (1).

Tighten the screwson the brackets.

Remove the spacerand conrm that the rails are attached tightly to the rack.

7x20 Controllers

Sun ZFS Storage 7120, 7320, and7420 Appliance Installation Guide • December2012E38245–0122

If your rack includes an anti-tip foot, extend it from the bottom of the rack.

Lower the rack stabilization feet if you have not already done so.

Push the slide rails into the slide rail assemblies in the rack as far as possible.

7x20 Controllers

Chapter 2 • Installation 23

Raise the chassis so that the back ends of the mounting bracketsare aligned with the slide rail and insertthe chassis into the slide rails, pushing the chassis slowly, until the mounting brackets meet the slide rail stops(~12 in or 30 cm).You will hear an audible click.

The following graphic illustrates the 7120/7320 chassis insertion and slide rail locks usage.

7x20 Controllers

Sun ZFS Storage 7120, 7320, and7420 Appliance Installation Guide • December2012E38245–0124

The following graphic illustrates 7420 chassis insertion.

▼

Installing the Cable Management Assembly

This procedure is completed from the back of the equipment rack.

7x20 Controllers

Chapter 2 • Installation 25

Attach the cable management assembly (CMA) rail extension to the left slide railuntil the extension locks into place.

Insert the CMA mounting bracket connector intothe right slide rail until the connector locks

into place.

7x20 Controllers

Sun ZFS Storage 7120, 7320, and7420 Appliance Installation Guide • December2012E38245–0126

Insert the right CMA slide rail connector (1) into the right slide rail assembly (2) until the connector locks into place.

7x20 Controllers

Chapter 2 • Installation 27

Insert the left CMA slide rail connector (1) intothe rail extension on theleft slide rail assembly (2) until the connector locks into place.

7x20 Controllers

Sun ZFS Storage 7120, 7320, and7420 Appliance Installation Guide • December2012E38245–0128

After you install and route the cables throughthe assembly, attach the hook and loop straps (1) to secure the cables. Then attach the right andleft outer latches to support the assembly.

DE2 24C

Precautions

Observe the following cautions when installing the Oracle Storage Drive Enclosure DE2-24C into a rack using the supplied rail kit. Note that if your rail kit shipped with installation instructions, use those instructions instead.

■

Always load equipment into a rack from the bottom up so that it will not become top-heavy and tip over. Deploy the anti-tip bar to prevent the rack from tipping during equipment installation.

■

Do not remove a component if you do not have an immediate replacement. The disk shelf must not be operated without all components in place.

DE2 24C

Chapter 2 • Installation 29

■

Do not lift the disk shelf by the handles on the power supply with fan modules; they are not designed to take the weight.

Prerequisites

Refer to the following section for an overview of your disk shelf.

■

Disk Shelf Overview - view component diagrams and specications

Tools and Equipment Needed

To install the shelf, you need the following tools:

■

Phillips head No. 2 screwdriver that is a minimum of 4 inches long.

■

A mechanical lift is highly recommended because the chassis can weigh approximately 110 lbs (50 kg). At least three people are required: two to install the shelf and one spotter to engage the rails.

■

If a mechanical lift is not available, remove the power supply with fan modules to reduce the weight, see Disk Shelf Maintenance Procedures for instructions.

Use one of the following racks for the disk shelf:

■

Sun Rack II 1042/1242 cabinet

■

Any 19-inch wide, 4-post, EIA-compatible rack or cabinet with a front-to-back depth between vertical cabinet rails of 61 cm to 91 cm (24 in. to 36 in.). The cabinet can have threaded or unthreaded cabinet rails. Threaded cabinets must be M6 or 10-32 cabinets. Cabinets must be able to support the weight of all equipment contained within them.

Position the rack where the shelf is to be installed adjacent to the rack where the controller is installed, if separate. Stabilize the cabinet and lock the casters. To facilitate access, remove doors from cabinets.

Tasks

Installing the Disk Shelf into the Rack Slide Rails

1. The Oracle Storage Drive Enclosure DE2-24C requires four standard mounting units (4RU) of vertical space in the cabinet. Starting at the bottom of the cabinet, locate the appropriate rack unit (RU) height. Install disk shelves below controllers to prevent the rack from tipping.

DE2 24C

Sun ZFS Storage 7120, 7320, and7420 Appliance Installation Guide • December2012E38245–0130
