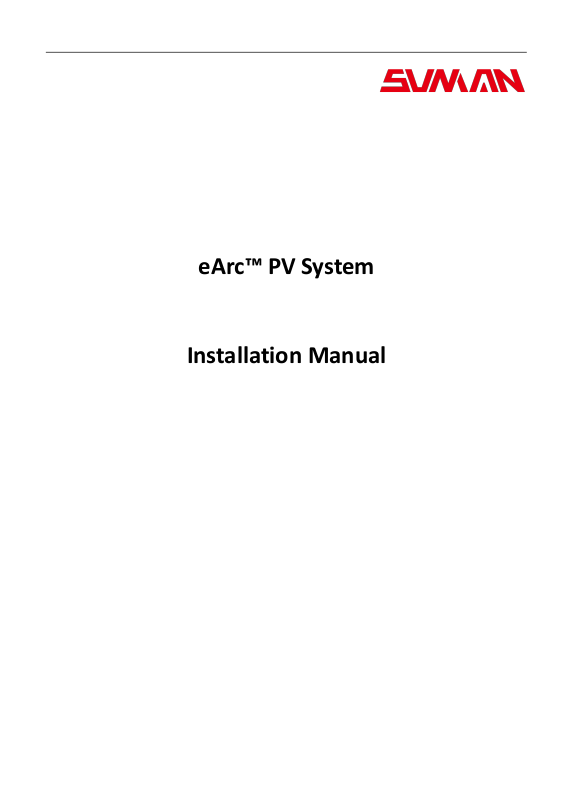

Sunman eArc Installation Manual

eArc™ PV System

Installation Manual

Contents

Purpose of this guide Features & Benefits Notices General safety Handling safety Installation safety Fire safety Production Identification Mechanical Installation Grounding Electrical installation Disclaimer of liability Products Data

Purpose of this guide

• This guide contains information regarding the installation and safe handling of Sunman (Zhenjiang) Company Limited eArc PV system. Sunman (Zhenjiang) Company Limited referred to as “SUNMAN”.

• Installers must read and understand this guide prior to installation. For any questions, please contact

SUNMAN’s Customer Service Department “or our local representatives” for more detailed information. Installers should follow all safety precautions described in this guide as well as local codes when installing a eArc.

• Before installing a solar photovoltaic system, installers should familiarize themselves with its

mechanical and electrical requirements. Keep this guide in a safe place for future reference (care and maintenance) and in case of sale or disposal of eArc.

• SUNMAN’s eArc are tested and certified for installations worldwide. Different regions may have

different regulations for solar PV installations.

www.sunman-energy.com

version 2019A page 1 / 18

Features & Benefits

• Flexible layouts

• eArcTM PV system can be installed at any shape roofs, which has integrated appearance with buildings.

• Maximization installation quantity of eArc at any kinds roof.

• Quick installation

• Ultra-thin and light to save inatallation labor by a large margin.

www.sunman-energy.com

version 2019A page 2 / 18

Notices

This manual contains important installation instructions for the core hardware components required

for eArcTM PV System PV arrays.

Warranty Warnings

“WARRANTY VOID IF NON-SUNMAN-CERTIFIED HARDWARE IS ATTACHED TO eArcTM PV System.”

For Further Information

For additional technical support documentation, please visit the Support page of the SUNMAN web site at www.sunman-energy.com

www.sunman-energy.com

version 2019A page 3 / 18

General safety

• eArc that fall under this application class may be used in system operation at more than 50V DC or

240W, where general contact access is anticipated. eArc are qualified for safety under IEC 61730-2 and within this application class are considered to meet the requirements for Safety Class II.

• eArc are qualified for Application Class A(IEC 61730-1).

• Installing solar photovoltaic systems requires specialized skills and knowledge. Installation should only

be performed by qualified personnel.

• Installers should assume all risks of injury that might occur during installation, including, but not limited

to, the risk of electric shock.

• One single eArc may generate more than 30V DC when exposed to direct sunlight. Contact with a DC

voltage of 30V or more is potentially hazardous.

• Do not disconnect during load connection.

• Photovoltaic solar eArc convert light energy to direct current electrical energy. They are designed for

outdoor use. eArc can be ground mounted, mounted on rooftops, vehicles or boats. The proper design of support structures lies within the responsibility of the system designers and installers.

• Do not use mirrors or other magnifiers to concentrate sunlight onto eArc.

• When installing the system, abide to all local, regional and national statutory regulations. Obtain a

building permit if necessary.

• eArc electrical characteristics are within ±10% of the indicated values of Isc, Voc and Pmax under

standard test conditions (Irradiance of 1000W/m², AM 1.5 spectrum, a cell temperature of 25℃ ).

• Only use equipment, connectors, wiring and support frames suitable for solar electrical systems.

• “Always use fall protection equipment when working from heights of 6 feet （183cm）or above”.

Follow Occupational Safety and Health Act (OSHA) or local governing safety regulations regarding fall protection. (UL only)

Handling safety

• Do not lift eArc by grasping eArc’ junction box or electrical leads.

• Do not stand, step or walk on any side of eArc.

• Do not drop eArc or allow objects to fall on eArc.

• Do not place any heavy objects on eArc.

• Be cautious when placing eArc down onto a surface, particularly when placing it in a corner.

• Inappropriate transport and installation may break eArc and void the warranty.

• Do not attempt to disassemble eArc, and do not remove any attached nameplates or components from

eArc.

www.sunman-energy.com

version 2019A page 4 / 18

• Do not apply paint or adhesive to eArc’ top surface.

• To avoid damage to the front cover and backsheet, do not scratch, “dent” or hit the front cover and

backsheet.

• Do not drill holes in the ribs of SMA series. This may compromise the frame strength, cause corrosion

of the ribs and void the warranty.

• Do not scratch the anodized coating of the ribs (except for grounding connection). It may cause

corrosion of the ribs or compromise the ribs strength.

• A panel with broken front plate or torn back sheet cannot be repaired and must not be used since

contact with any panel surface or the ribs can cause an electric shock.

• Work only under dry conditions, and use only dry tools. Do not handle panels under wet conditions

unless wearing appropriate protective equipment.

• When storing uninstalled panels outdoors for any period of time, always cover the panels and ensure

that the front cover faces down “on a soft flat surface” to prevent water from collecting inside the panel and causing damage to exposed connectors.

Installation safety

• Never open electrical connections or unplug connectors while the circuit is under load.

• Contact with electrically charged parts of the panels, such as terminals, can result in burns, sparks and

lethal shock whether or not the panel is connected.

• Do not touch eArc unnecessarily during installation. The front surface and the ribs may be hot; there is

a risk of burns and electric shock.

• Do not work in the rain, snow or in windy conditions.

• Avoid exposing cables to direct sunlight in order to prevent insulation degradation.

• Keep children well away from the system while transporting and installing mechanical and electrical

components.

• Completely cover eArc with an opaque material during installation to prevent electricity from being

generated.

• Do not wear metallic rings, watchbands, earrings, nose rings, lip rings or other metallic objects while

installing or troubleshooting photovoltaic systems.

• Use only insulated tools that are approved for working on electrical installation.

• Follow the safety regulations for all other system components, including wires and cables, connectors,

charging regulators, inverters, storage batteries, rechargeable batteries, etc.

• Under normal conditions, a photovoltaic eArc is likely to experience conditions that produce more

current and/or voltage than reported at standard test conditions. Accordingly, the values of Isc and Voc marked on this eArc should be multiplied by a factor of 1.25 when determining component voltage

www.sunman-energy.com

version 2019A page 5 / 18
