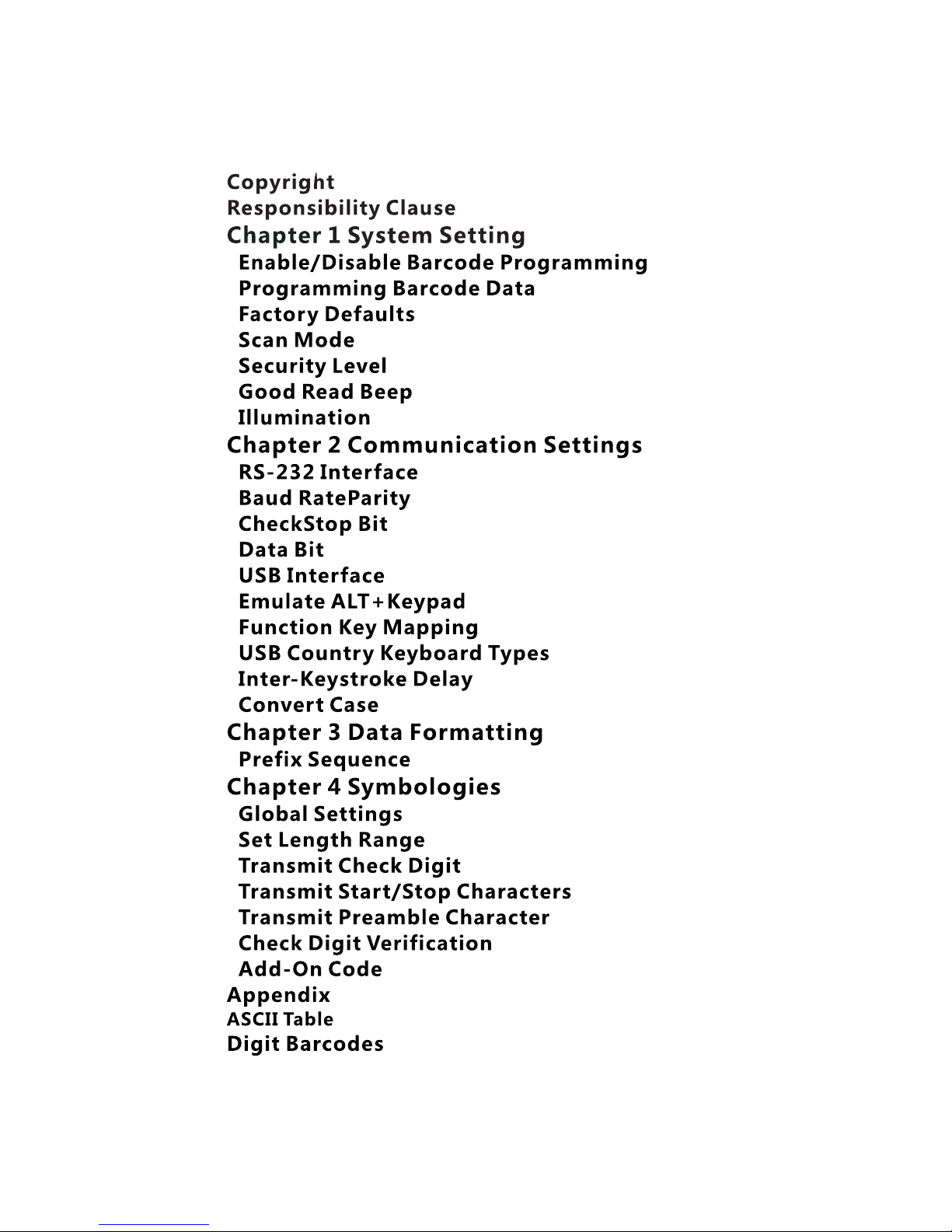

CONTENTS
...............................................
................................
.......
......................
.....................................
.............................................
.........................................
.....................................
...........................................
.....................................
......................................
.........................................
.................................................
.........................................
...............................
.............................
....................
..............................
..........................................
......................................
.......................................
....................................
...............................
.................
....................
...........................
.........................................
................................................
...............................................
.........................................
1
1
2
2
3
4
13
14
15
17
17
19
19
20
22
23
23
28
29
33
42
60
65
85
87
88
98
107
124
120
Copyright
All right reserved by our company, reprint,copy or
sales of this manual are forbidden without our
company permission.
Responsibility Clause
We are not responsibility for errors,omissions and
variation without notice.
1
Chapter 1 System Setting
Enable/Disable Barcode Programming
Programming Barcode Data
*Enter Setup
Exit Setup
W010F00
W010F01
2
Scanning the Enter Setup/Exit Setup barcode can
enable barcode programming. After barcode
programming is enabled, you can scan a number
of programming barcodes to configure your
scanner. Barcode programming is on by default.
In real application, programming barcodes hardly
overlap witnh on- programming barcodes, so it
is unnecessary to d isable programming each
time you finish the configuration.
*Do Not Transmit
W060F06
W060F00
Programming Barcode Data
Transmit Programming
Barcode Data
Factory Defaults
WFFD980
Restore All Factor y
Defaults
3
Scanning the following barcode can restore
the scanner to the factory defaults.
You may need to reset your scanner when:
1. scanner is not properly configured so that it
fails to decode barcodes;
2. you forget previous configuration and want
to avoid its impact;
3. functions that are rarely used have been
enabled for the time being.
Scan Mode
Example: Set the decode session timeout to 5s
1. Scan the Enter Setup barcode.
2. Scan the Decode Session Timeout barcode.
3. Scan the numeric barcode “5”. (See the Digit
Barcodes section in Appendix)
4. Scan the Save barcode. (See the Save/Cancel
Barcodes section in Appendix)
5. Scan the Exit Setup barcode.
*Manual Mode
W030000
Decode Session Timeout
M00031D
4
Decode Session Timeout: This parameter sets the
maximum time decode session continues during a
scan attempt. It is programmable in 1s increments
from 1s to 255s. The default timeout is 15s. If the
parameter is set to 0, the decode session timeout is
infinite.
Manual Mode:A trigger pull activates a decode
session. The decode session continues until the
barcode is decoded or the trigger is released or
the decode session timeout expires.
Continuous Mode
Continuous Mode
Continuous Mode: A trigger press activates the
scanner to scan and decode at user-specified
inter vals, i.e. the timeout between decodes. Each
decode session lasts until barcode is decoded or
the decode session timeout expires. To
suspend/resume the operation, simply press
the trigger. By default, the scanner rereads
same barcode with no delay.
Decode Session Timeout: This parameter sets the
maximum time decode session continues during a
scan attempt. It is programmable in 1s increments
from 1s to 255s. The default timeout is 15s. If the
parameter is set to 0, the decode session timeout is
infinite.
Example: Set the decode session timeout to 5s
1. Scan the Enter Setup barcode.
2. Scan the Decode Session Timeout barcode.
3. Scan the numeric barcode “5”. (See the Digit
Barcodes section in Appendix)
4. Scan the Save barcode. (See the Save/Cancel
Barcodes section in Appendix)
5. Scan the Exit Setup barcode.
Decode Session Timeout
M00031D
W030002
5
Timeout between Decodes
Timeout between Decodes:This parameter sets
the timeout between decode sessions. When a
decode session ends, next session will not
happen until the timeout between decodes
expires. It is programmable in 0.1s increments
from 0.0s to 25.5s. The default timeout is 1.0s.
Example: Set the timeout between decodes to 5s
1. Scan the Enter Setup barcode.
2. Scan the Timeout between Decodes barcode.
3. Scan the numeric barcodes “5” and “0”.
(See the Digit Barcodes section in Appendix)
4. Scan the Save barcode. (See the Save/Cancel
Barcodes section in Appendix)
5. Scan the Exit Setup barcode.
M00031C
6
Reread Delay
*Reread Same Barcode
Reread Same Barcode
with a Delay
Reread Delay sets the time period before the
scanner can read the same barcode a second time.
It protects against accidental rereads of the
same barcode. This parameter is programmable
in 0.1s increments from 0.1s to 25.5s. The default
delay is 3.0s. If the parameter is set to 0, the delay
is infinite.
Note: This parameter only applies when the Reread
Same Barcode with a Delay is enabled.
Example: Set the reread delay to 5s
1. Scan the Enter Setup barcode.
2. Scan the Reread Delay barcode.
3. Scan the numeric barcodes “5” and “0”.
(See the Digit Barcodes section in Appendix)
4. Scan the Save barcode. (See the Save/Cancel
Barcodes section in Appendix)
5. Scan the Exit Setup barcode.
M00031E
W100A00
with No Delay
W100A10
7
Sense Mode
Decode Session Timeout
Sense Mode
Sense Mode: The scanner activates a decode
session ever y time when it detects a change in
ambient illumination and meets the requirement
of the image stabilization timeout. Decode
session continues until barcode is decoded or
the decode session timeout expires. A trigger
pull can also activate a decode session. By
default, the scanner rereads same barcode with
no delay.
Decode Session Timeout: This parameter sets the
maximum time decode session continues during a scan
attempt. It is programmable in 1s increments from 1s to
255s. The default timeout is 15s. If the parameter is set
to 0, the decode session timeout is infinite.
Example: Set the decode session timeout to 5s
1. Scan the Enter Setup barcode.
2. Scan the Decode Session Timeout barcode.
3. Scan the numeric barcode “5”. (See the Digit
Barcodes section in Appendix)
4. Scan the Save barcode. (See the Save/Cancel
Barcodes section in Appendix)
5. Scan the Exit Setup barcode.
W030003
M00031D
8
Image Stabilization
Image Stabilization Timeout: The scanner
waits for the image stabilization timeout
to expire before activating a decode session
ever y time it detects a change in ambient
illumination. This parameter is programmable
in 0.1s increments from 0.0s to 25.5s. The
default timeout is 0.4s.
Example: Set the Image Stabilization Timeout
to 5s
1. Scan the Enter Setup barcode.
2. Scan the Image Stabilization Timeout
barcode.
3. Scan the numeric barcodes “5” and “0”.
(See the Digit Barcodes section in Appendix)
4. Scan the Save barcode. (See the
Save/Cancel Barcodes section in Appendix)
5. Scan the Exit Setup barcode.
Reread Delay sets the time period before the
scanner can read the same barcode a second time.
It protects against accidental rereads of the
same barcode. This parameter is programmable
in 0.1s increments from 0.1s to 25.5s. The default
delay is 3.0s. If the parameter is set to 0, the delay is
infinite.
Note: This parameter only applies when the
Reread Same Barcode with a Delay is enabled.
Reread Delay
M00031B
Timeout
M00031E
9
*Reread Same Barcode
with No Delay
Reread Same Barcode with No Delay: The scanner
is allowed to reread same barcode, ignoring the
Reread Same Barcode with a Delay: The scanner
is not allowed to reread same barcode before the
reread delay expires.
To disable rereads of same barcode, enable the
Reread Same Barcode with a Delay and set the delay
to 0.
Example: Set the reread delay to 5s
1. Scan the Enter Setup barcode.
2. Scan the Reread Delay barcode.
3. Scan the numeric barcodes “5” and “0”.
(See the Digit Barcodes section in Appendix)
4. Scan the Save barcode. (See the Save/Cancel
Barcodes section in Appendix)
5. Scan the Exit Setup barcode.
W100A00
Reread Same Barcode
with a Delay
W100A10
10
Sensitivity: This parameter specifies the degree
of acuteness of the scanner ’s response to
changes in ambient illumination. The higher the
sensitivity, the lower requirement in illumination
change to trigger the scanner. You can select an
appropriate degree of sensitivity that fits the
ambient environment.
High Sensitivity
Medium Sensitivity
* Low Sensitivity
Custom Sensitivity
WFF0305
WFF0310
WFF0330
M00031A
11
Sensitivity levels range from 0 to 255. The smaller
the number, the higher the sensitivity.
Command Trigger Mode
Command Trigger Mode
Command Trigger Mode: Decode session is
activated by a host command. The decode
session continues until the barcode is decoded or
the decode session time out expires.
Decode Session Timeout: This parameter sets the
maximum time decode session continues during a
scan attempt. It is programmable in 1s increments
from 1s to 255s. The default timeout is 15s. If the
parameter is set to 0, the decode session timeout
is infinite.
Decode Session Timeout
W030001
M00031D
12

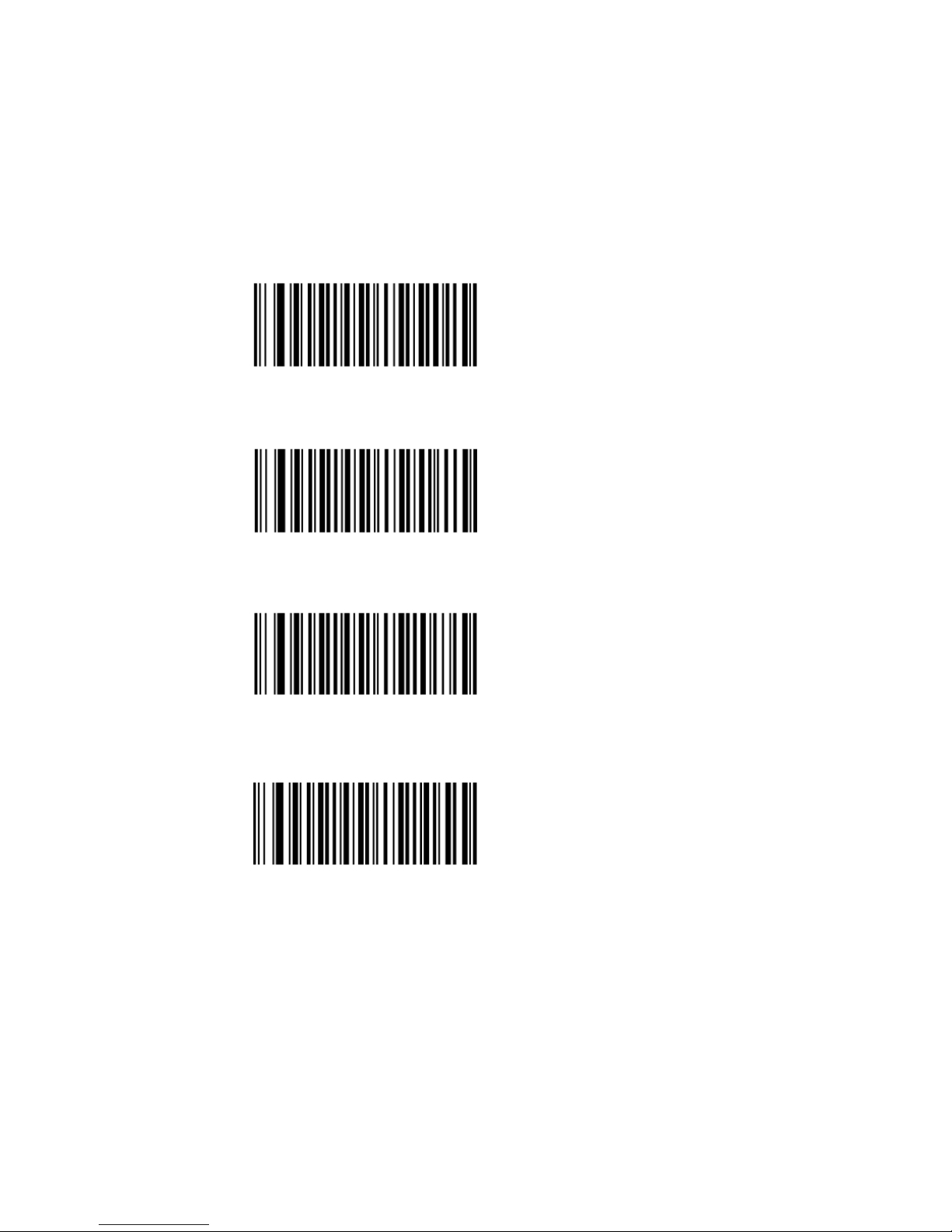

Security Level
Set Security Level to 0
Set Security Level to 1
Set Security Level to 2
Set Security Level to 3
This parameter specifies the number of times to
decode a barcode during a scan attempt. The
higher the security level, the lower the error rate
and decoding efficiency.
W030A00
W030A01
W030A02
W030A03
13

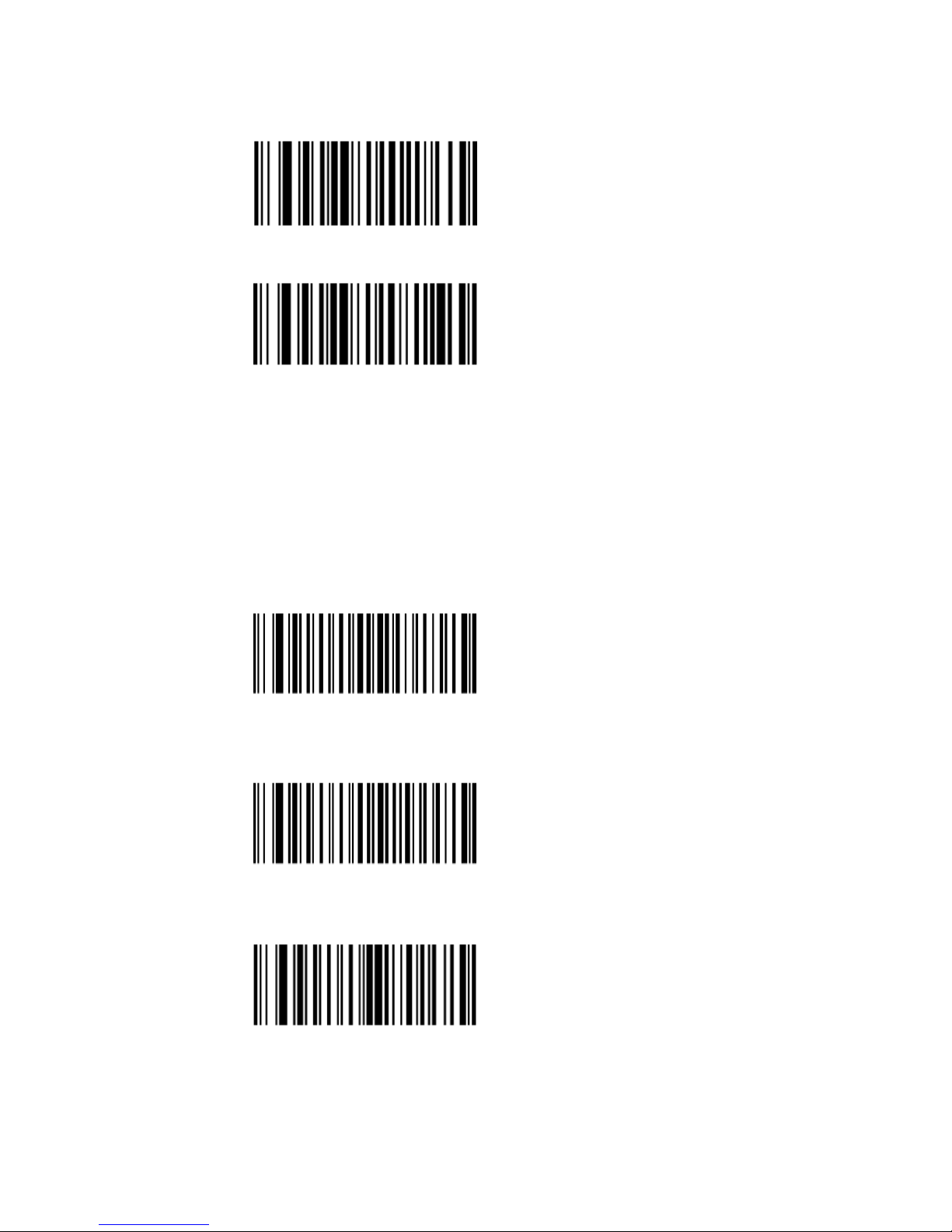

Good Read Beep
*Good Read Beep On
Good Read Beep Off
Good Read Beep Frequency
Low
*Medium
High
W041200
W041204
WFF10DA
WFF104B
WFF1025
14
Good Read Beep Duration
40ms
*80ms
120ms
WFF111F
WFF111E
WFF111D
Decode Result Notification
*Enable Decode Result
Disable Decode Result
W203120
Notification
W203100
Notification
15

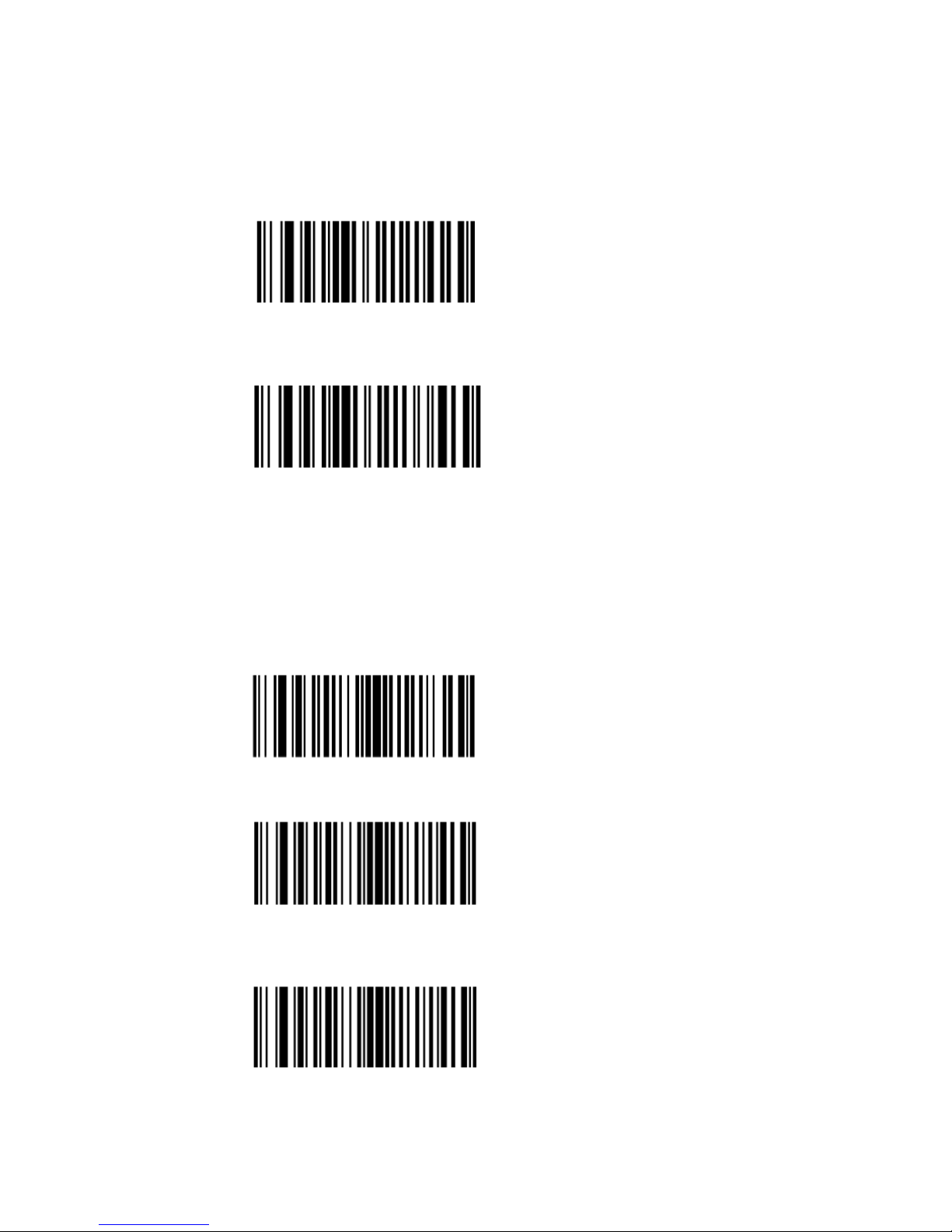

Other Settings
You can change the following parameter
settings temporarily and the changes will be
lost when you power down or reboot the scanner.
Silent Mode On
*Silent Mode Off
W400000
W400040
Note: This feature is only applicable to decode
beep and will be automatically disabled when
the scanner is powered down or rebooted.
Illumination
Off
Always On
On When Scanning
W0C0000
W0C0004
W0C0008
16
Chapter 2 Communication Settings
Introduction
RS-232 Interface
The scanner provides an RS-232 interface, a USB
interface and a PS/2 interface (hardware version:
V2 or higher) to communicate with the host
device. The host device can receive scanned data
and send commands to control the scanner or to
access/alter the configuration information of the
scanner via the RS-232 or USB or PS/2 interface.
Serial communication interface is usually used to
connect the scanner to a host device (like PC,
POS). When the scanner is connected to a host
device through its RS-232 interface, you need
to set communication parameters to match the
host device.
Baud Rate
*9600
WFFD9D3
WFFD9D0
1200
2400
WFFD9D1
17
19200
38400
57600
14400
115200
4800
WFFD9D2
WFFD9D4
WFFD9D5
WFFD9D6
WFFD9D7
WFFD9D8
18

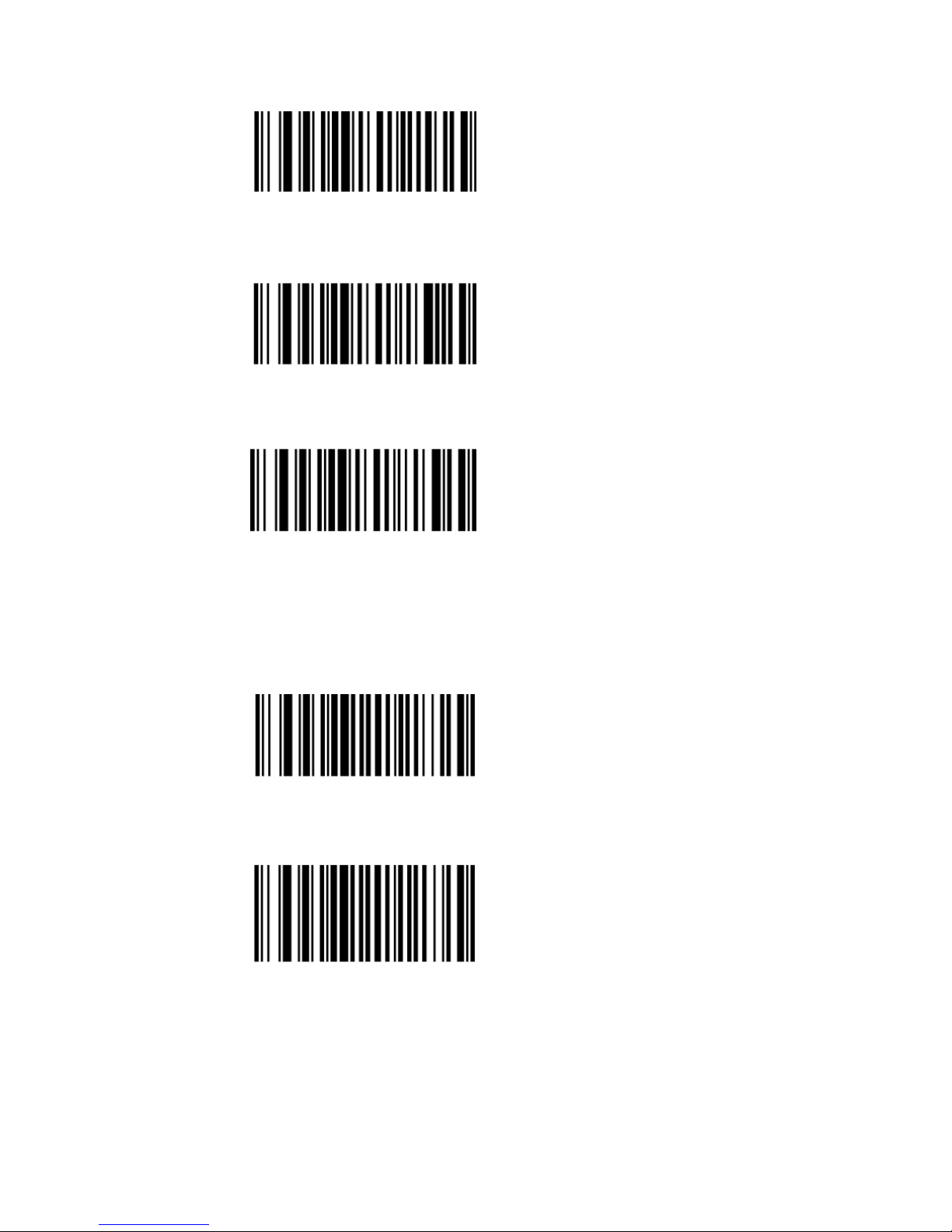

Parity Check
Stop Bit
*Stop Bit
2 Stop Bits
*None
Even Parity
Odd Parity
W062900
W062906
W062904
W012900
W012901
19

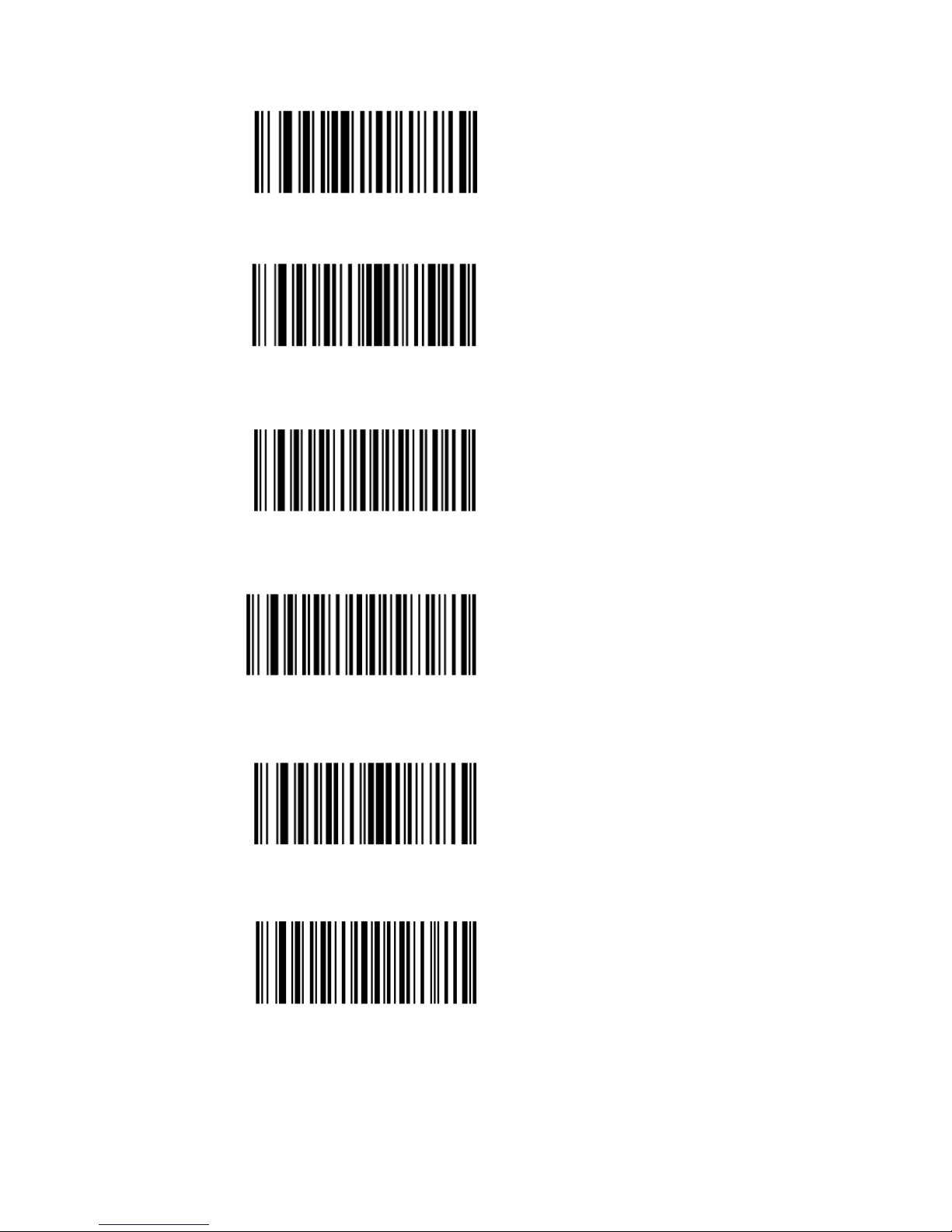

Data Bit
8 Data Bits
*8 Data Bits, No Parity,
8 Data Bits, Even Parity,
8 Data Bits, Odd Parity,
8 Data Bits,No Parity,
8 Data Bits, Even Parity ,
W0F290E
W0F2908
W082908
W0F290C
W0F2909
W0F290F
2 Stop Bits
2 Stop Bits
1 Stop Bit
1 Stop Bit
1 Stop Bit
20
7 Data Bits, Even Parity,
7 Data Bits, Odd Parity,
7 Data Bits, Even Parity,
7 Data Bits, Odd Parity,
8 Data Bits, Odd Parity,
7 Data Bits
W0F290D
W082900
W0F2906
W0F2904
W0F2907
W0F2905
2 Stop Bits
1 Stop Bit
1 Stop Bit
2 Stop Bits
2 Stop Bits
21

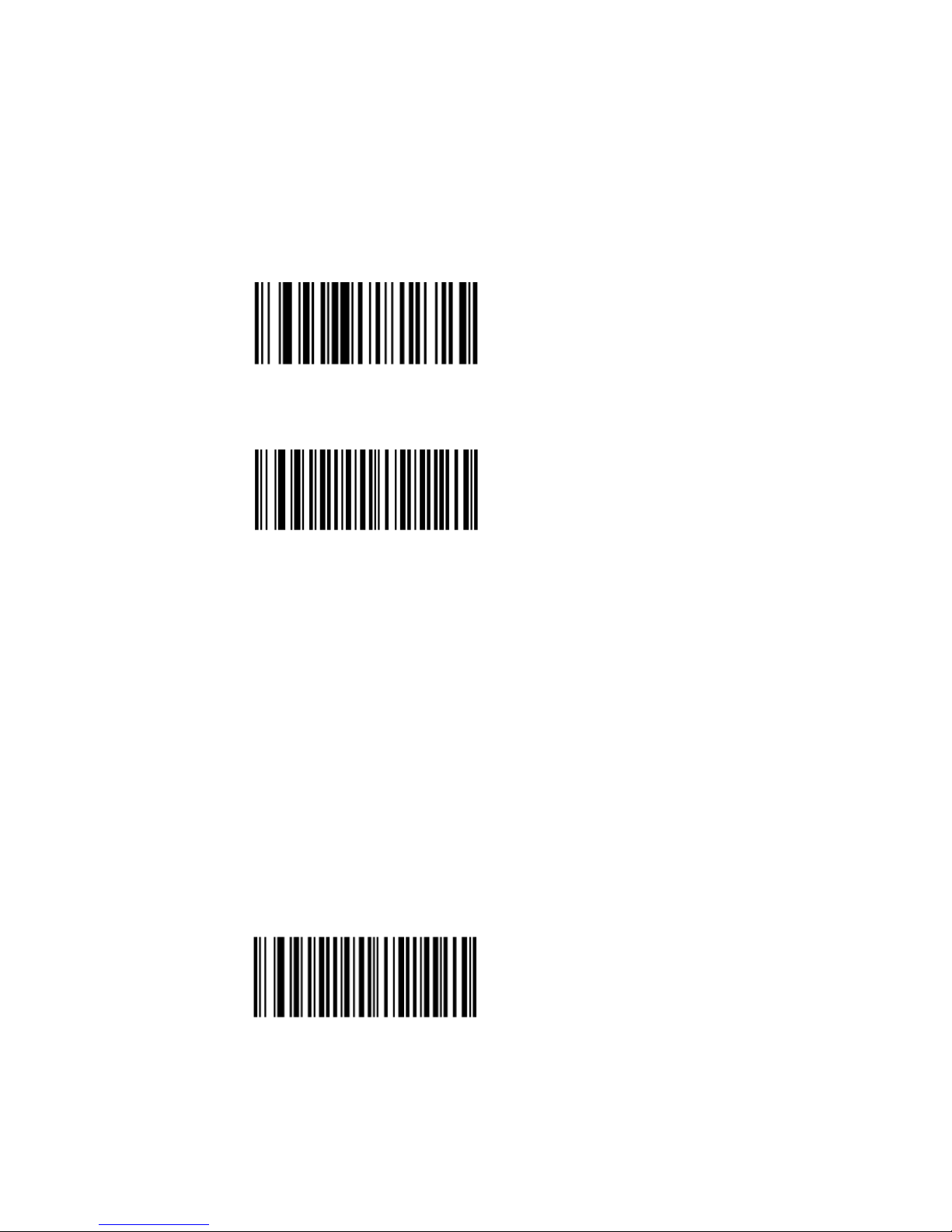

USB Interface
* KBWUSB HID-
When the scanner is connected to a host device
through its USB interface, USB HID-KBW is enabled
by default. User can switch between options – USB
DATAPIPE, USB HID-KBW, USB COM Port Emulation
and HID-POS, upon actual need.
*Standard Keyboard
W070901
W031A00
Emulate ALT+Keypad
When Emulate ALT+Keypad is enabled, any ASCII
character (0x00 - 0xFF) is sent over the numeric
keypad no matter which keyboard type is selected.
Since sending a character involves multiple
keystroke emulations, this method appears less
efficient.
1. ALT Make
2. Enter the number corresponding to the ASCII
character on the keypad.
3. ALT Break
W031A03
Emulate ALT+Keypad
22
Function Key Mapping
Function Key Mapping
When Function Key Mapping is enabled, function
character (0x00 - 0x1F) are sent as ASCII sequences
over the numeric keypad.
1. CTRL Make
2. Press function key (Refer to the ASCII Function
Key Mapping Table on the following page)
USB Country Keyboard Types
Keyboard layouts vary from country to countr y.
All suppor ted keyboard types are listed below.
*1 -U.S.
2 -Belgium
WFF1900
WFF1901
23
W031A01
5-Czech
6-Denmark
7-Finland
8-France
WFF1902
WFF1903
WFF1904
WFF1905
WFF1906
WFF1907
3-Brazil
4-Canada
24

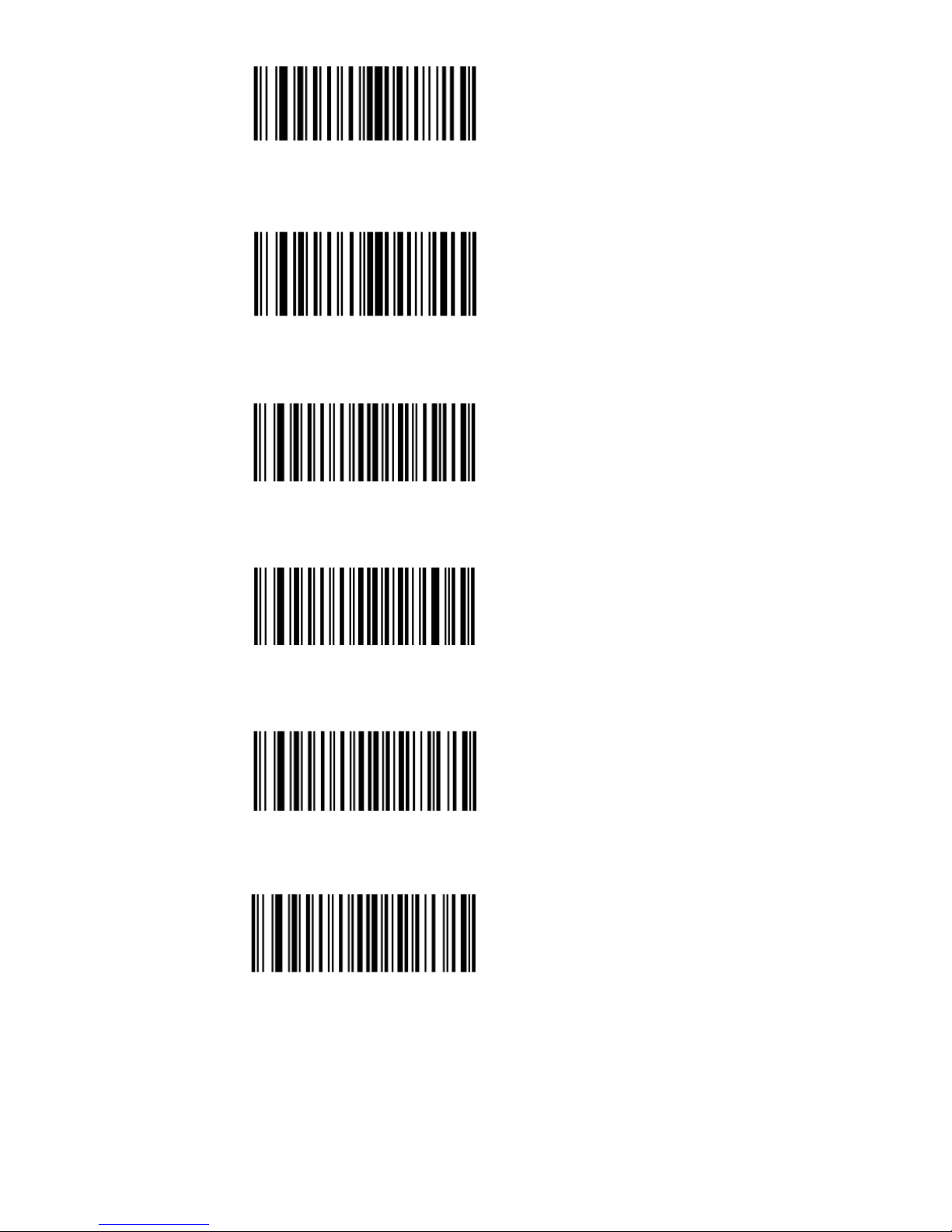

9-Austria
10-Greece
11-Hungary
12-Israel
WFF1908
WFF1909
WFF190A
WFF190B
13-Italy
14-Latin America
WFF190C
WFF190D
25
16-Norway
WFF190E
15-Netherland
WFF190F
17-Poland
WFF1910
WFF1911
18-Portugal
19-Romania
20-ussia
WFF1912
WFF1913
26

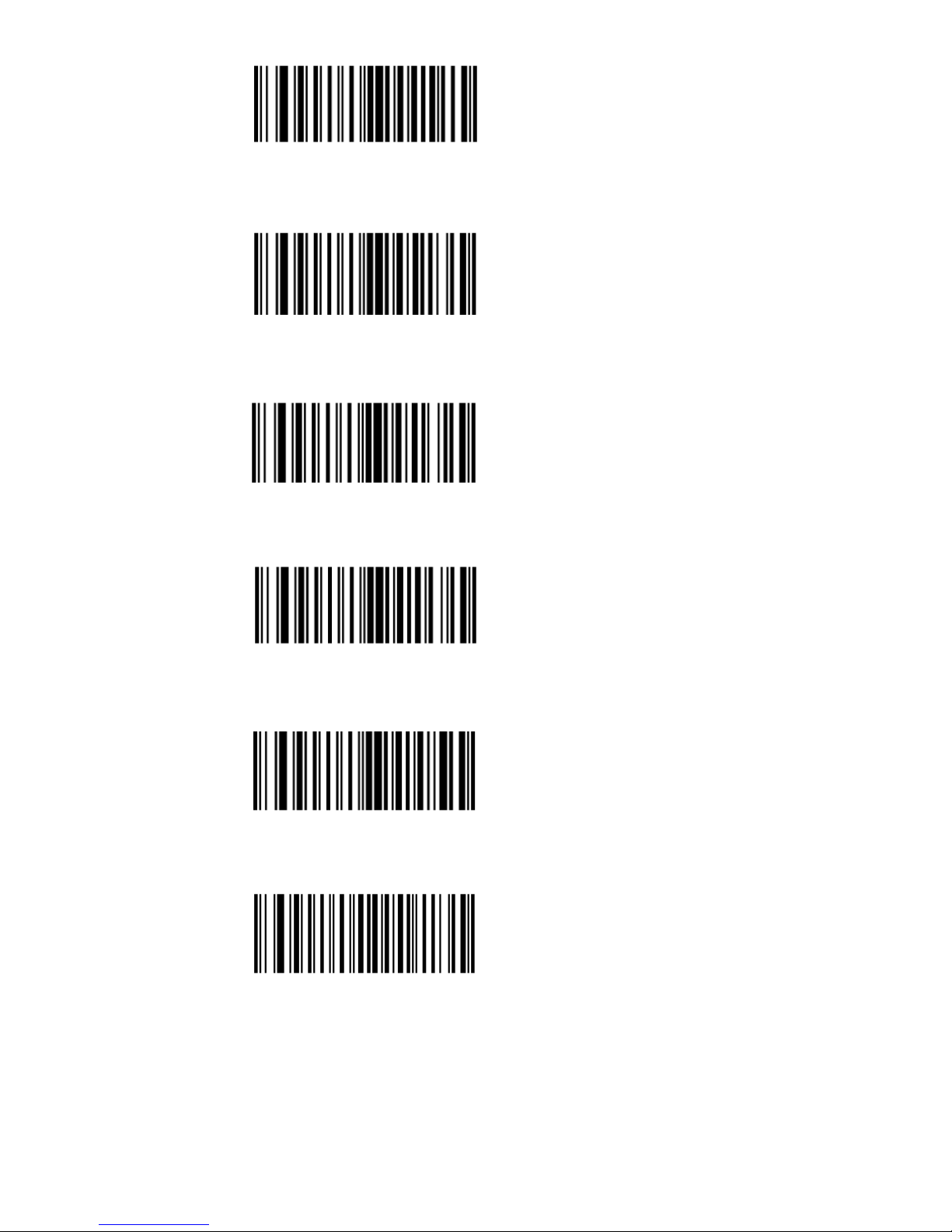

WFF1915
WFF1916
WFF1917
WFF1918
21-Slovakia
23-Sweden
22-Spain
24-Switzerland
25-Turkey1
26-Turkey2
WFF1919
WFF191A
27

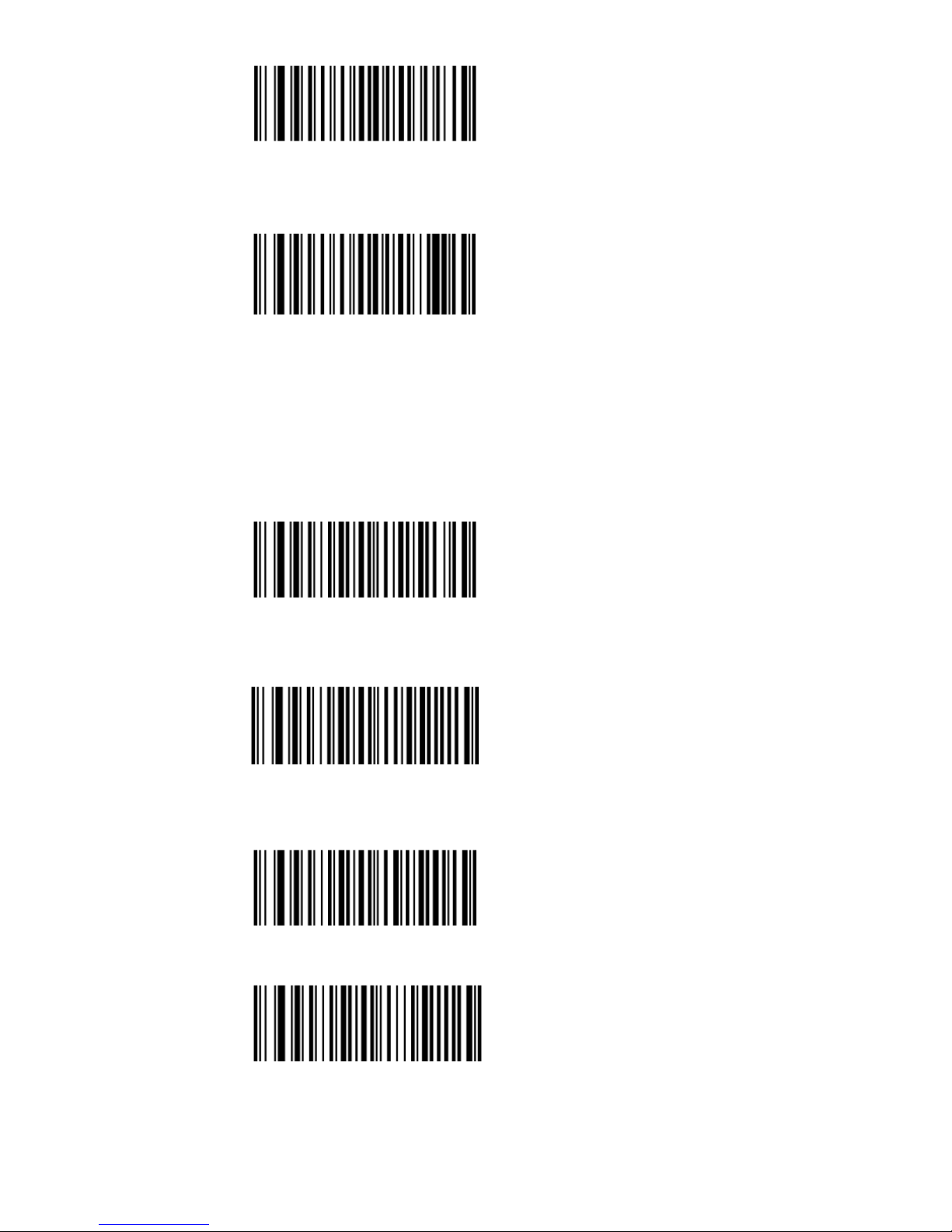

27-UK
28-Japan
WFF191B
WFF191C
Inter-Keystroke Delay
This parameter specifies the delay between
emulated keystrokes.
*No Delay
Short Delay (5ms)
Medium Delay (10ms)
Long Delay (15ms)
WC01A00
WC01A40
WC01A80
WC01AC0
28

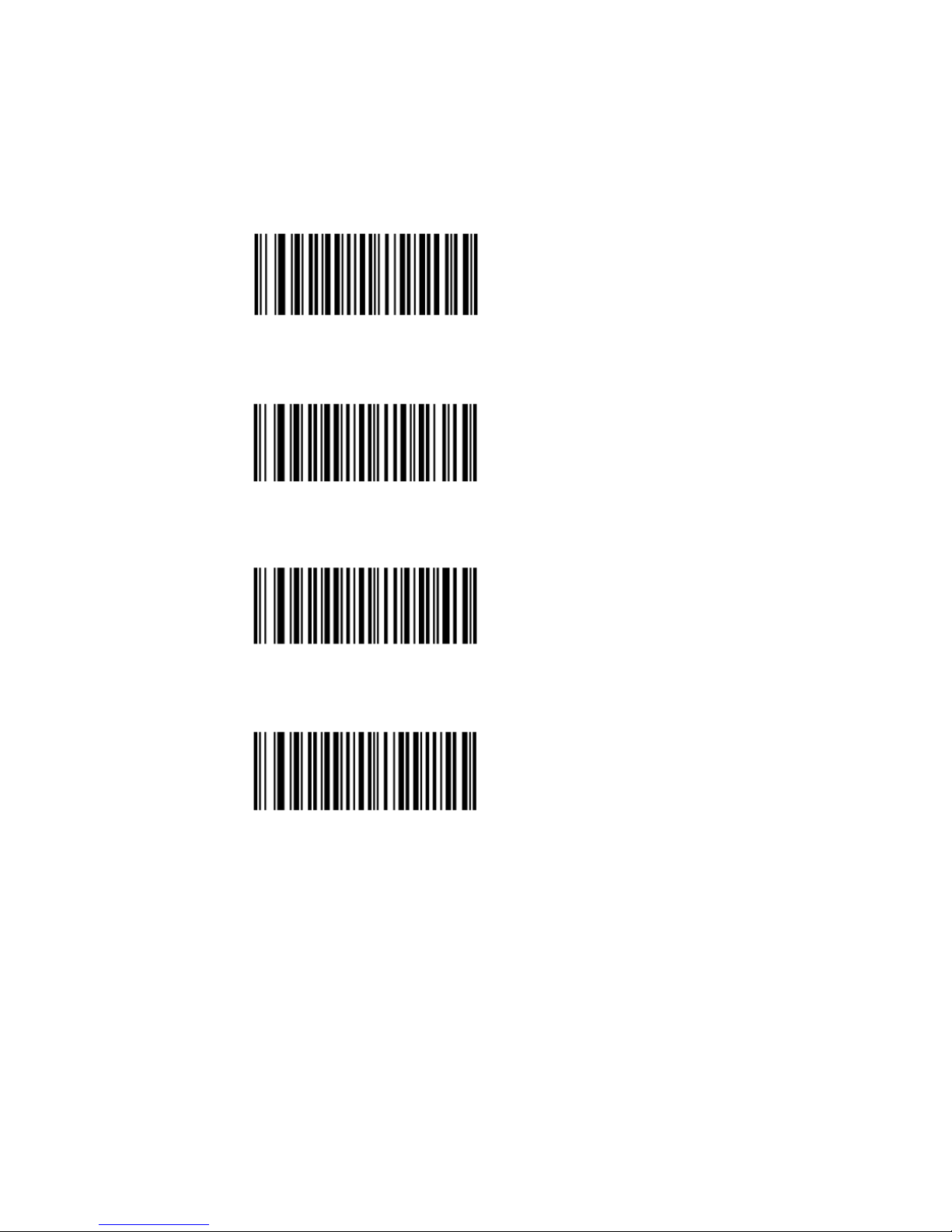

Convert Case
No Case Conversion
Convert All to Lower Case
This parameter is valid when the Standard
Keyboard or Function Key Mapping is enabled.
W381A00
W381A20
Convert All to Upper Case
W381A30
W381A08
Invert Upper and Lower
Case Characters
29
Emulate Numeric Keypad
Emulate Numeric Keypad
*Do Not Emulate
When this feature is disabled, sending barcode
data is emulated as keystroke(s) on main keyboard.
To enable this feature, scan the Emulate Numeric
Keypad barcode. Sending a number (0-9) is
emulated as keystroke on numeric keypad, whereas
sending other character like “+”, “_”, “*” ,
“/” and “.” is still emulated as keystroke on
main keyboard. However, this feature is influenced
by the state of the Num Lock key on the host: if the
Num Lock light on the host is ON, numbers are sent
over numeric keypad, if it is OFF, numbers are sent
over main keyboard.
Note: Make sure the Num Lock light of the Host
is turned ON when using this feature.Emulate
ALT+Keypad ON prevails over Emulate Numeric
Keypad.
W041A04
W041A00
Numeric
Keypad
30

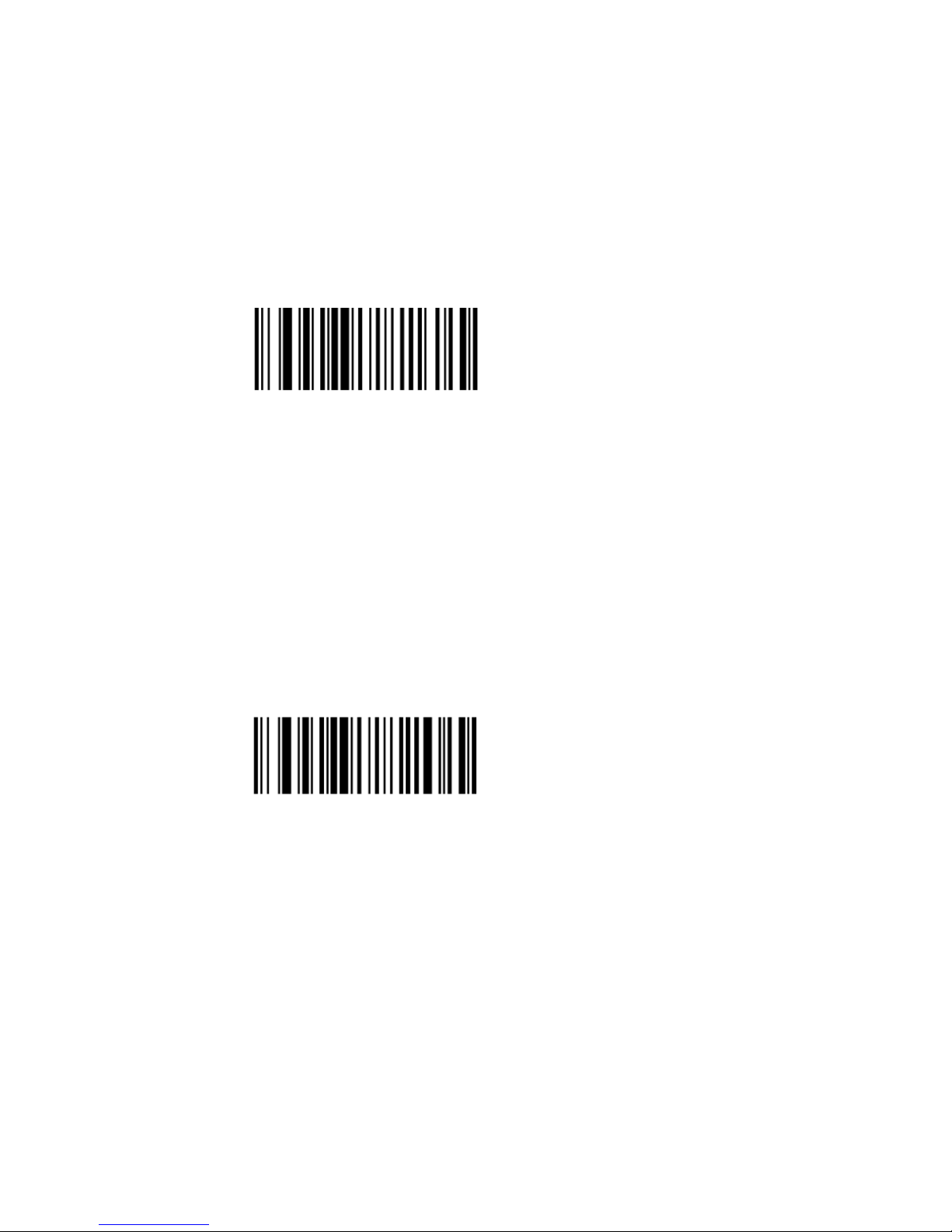

USB COM Port Emulation
USB COM Port
Emulation
This feature allows the host to receive data in
the way as a serial port does. However, you
need to set communication parameters on the
scanner to match the Host requirements. A
driver is required for this feature.
USB DataPipe
A driver is required when using this protocol to
communicate with the scanner .
USB Data Pipe
W070902
W070900
31

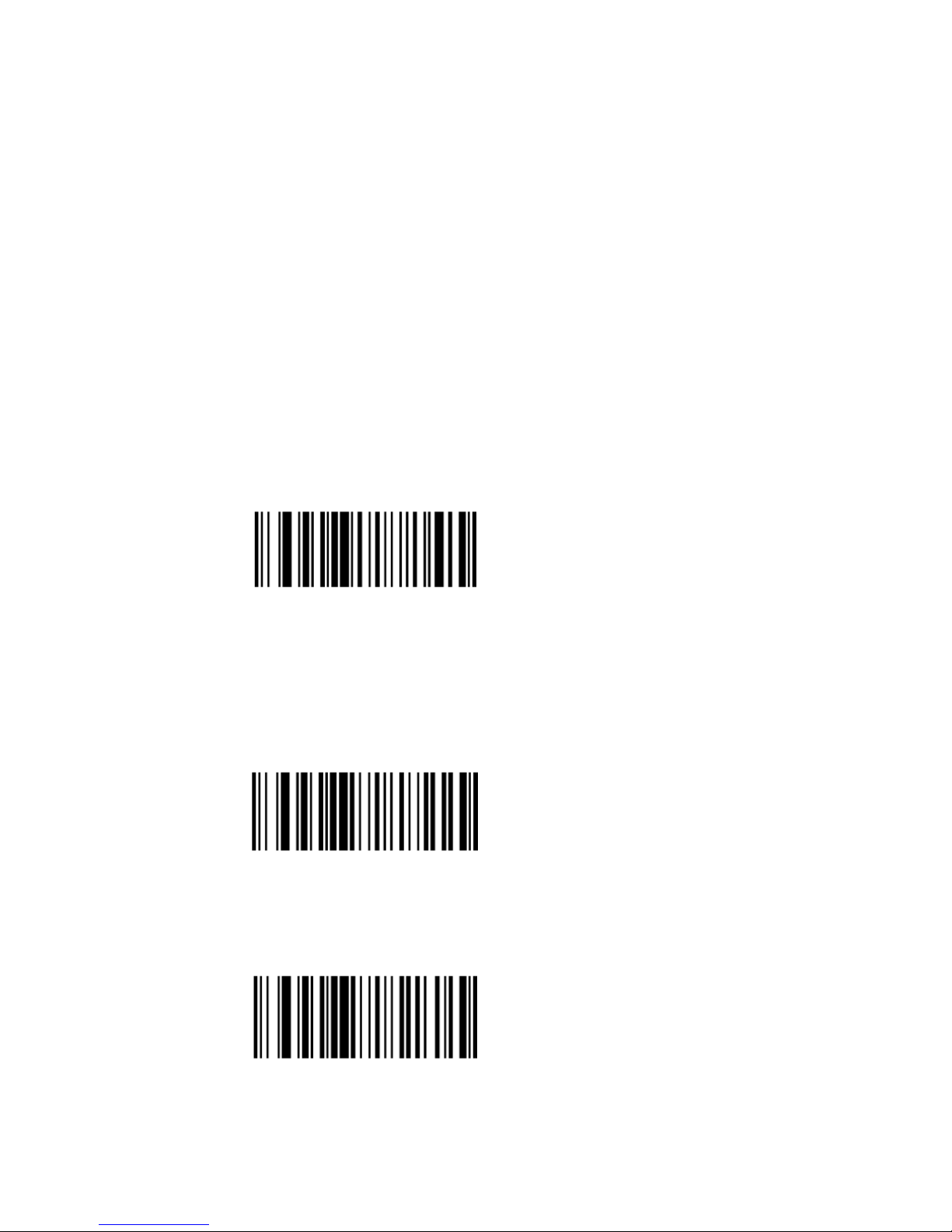

Features:
HID-POS
The HID-POS interface is recommended for
new application programs. It can send up to
56 characters in a single USB repor t and
appears more efficient than USB HID-KBW.
HID based, no custom driver required.
Way more efficient in communication than
USB HID-KBW and traditional RS-232 interface.
Note: HID-POS does not require a custom
driver. However, a HID interface on Windows
98 does. All HID interfaces employ standard
driver provided by the operating system. Use
defaults when installing the driver.
HID-POS
W070903
PS/2 Interface (Hardware Version: V2 or higher)
When the scanner is connected to a host device
through its PS/2 interface, users need to scan the
following barcode to enable the PS/2 port.
W100910
PS 2-KBW/
RS-232
To switch from PS/2 to RS-232, scan the barcode
below.
W100900
32
Chapter 3 Data Formatting
Introduction
Prefix Sequence
Custom+Code ID
After a successful barcode read, a string
containing numbers, letters or symbols will be
returned.
In real applications, barcode data may be
found insufficient for your needs. You may
wish to include additional information such as
barcode type, data acquisition time or delimiter
in data being scanned.
Adding extra information to printed barcodes
does not seem like a sensible solution since
that will increase the barcode size and make
them inflexible. Instead, we come up with the
idea of appending prefix and suffix to the data
without making any change to barcodes. We will
show you how to conduct the configuration in
the following sections.
Note: Customized data: <Prefix> <Data><Suffix>
<Terminating Character>
W013100
*Code ID+Custom
+AIM ID
W013101
+ AIM ID
33

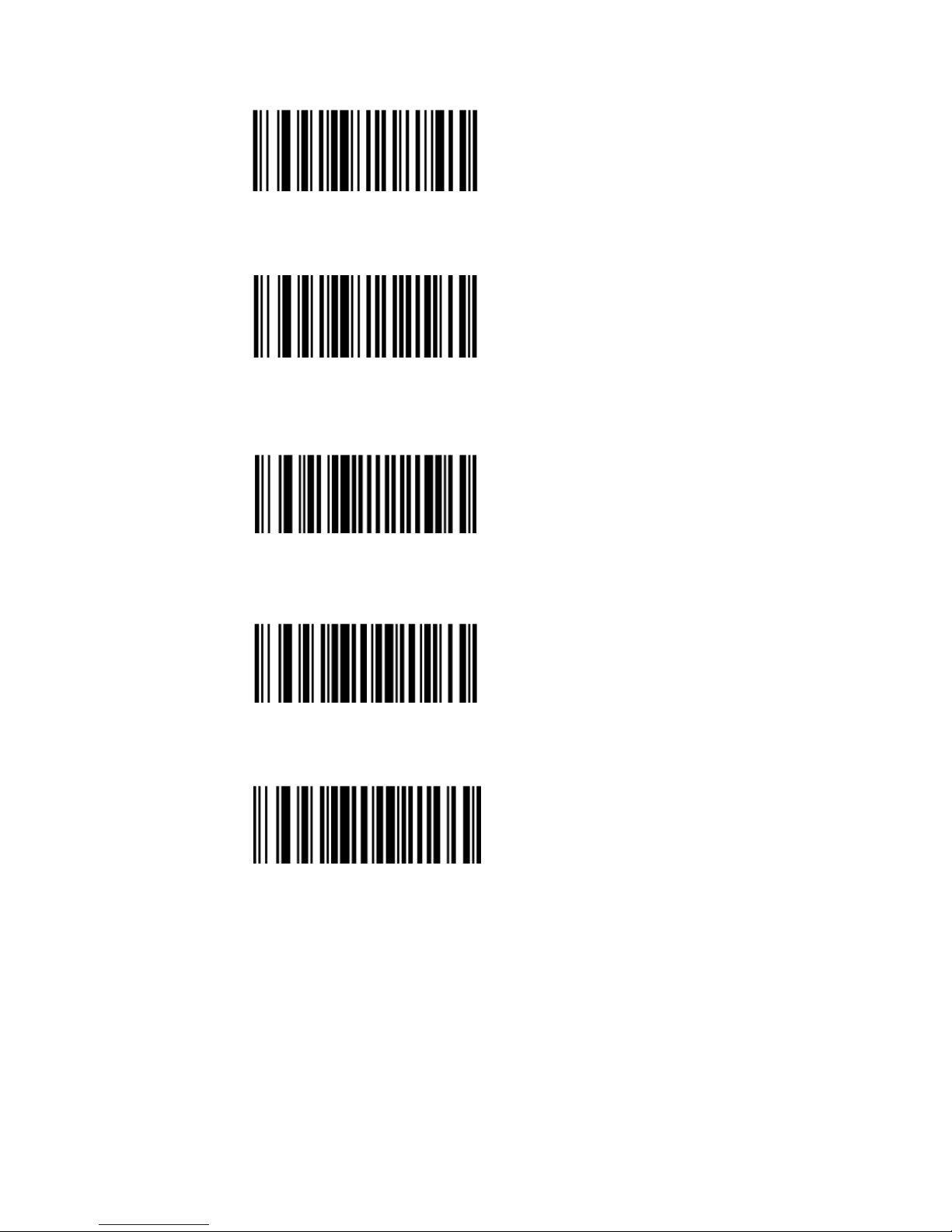

Prefix
Enable Custom Prefix
* able Custom PrefixDis
Set Custom Prefix
W043104
W043100
W000100
Enable PrefixAIM ID
* PrefixDisable AIM ID
W186018
W186000
34
Enable CODE ID Prefix
Restore All Default
W023102
W023100
*Disable CODE ID Prefix
WFFD9C2
Code IDs
Set Code ID Barcodes
M002000
M002001
Set Code 128 Code ID
Set 128 Code IDUCC/EAN-
M002002
Set Code IDAIM 128
35

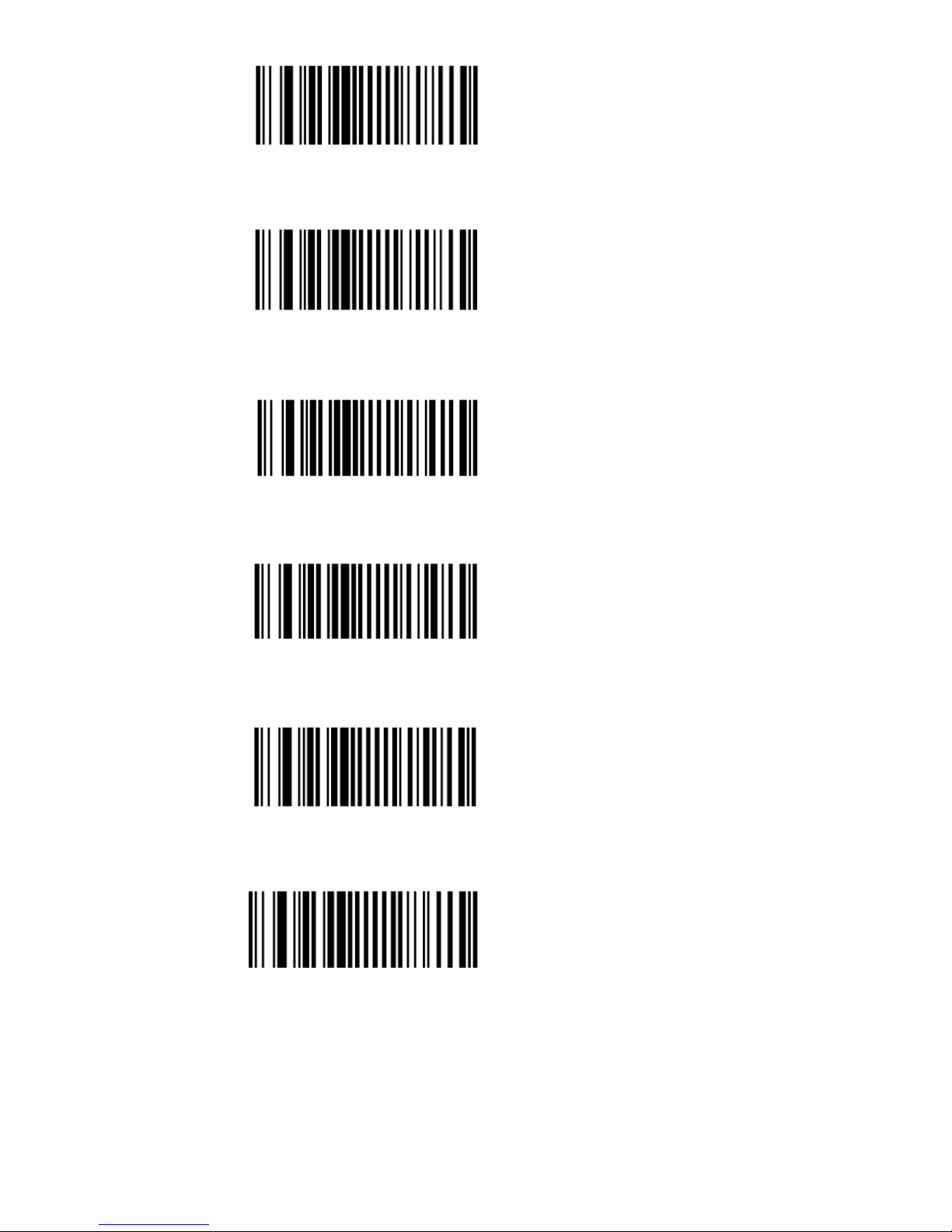

M002004
M002005
M002006
Set EAN-8 Code ID
Set EAN-13 Code ID
Set ISSN Code ID
Set ISBN Code ID
Set UPC-E Code ID
M002007
M002008
M002009
Set UPC-A Code ID
36

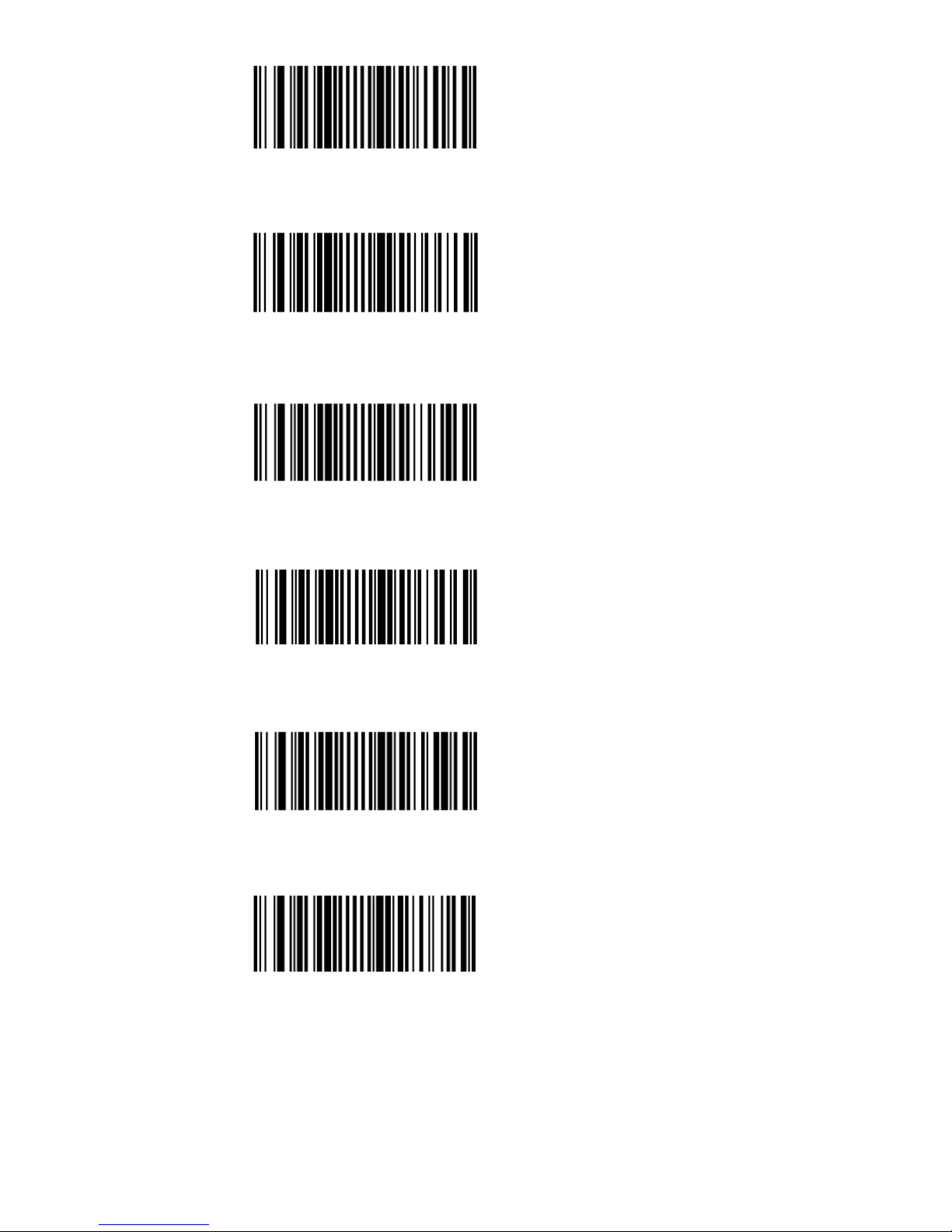

M00200B
M00200C
M00200D
M00200E
M00200F
Set Interleaved 2
Set ITF-6 Code ID
Set Matrix 2 of 5 Code ID
Set Deutsche 12 Code ID
Set Deutsche 14 Code ID
Set ITF-14 Code ID
of 5Code ID
M00200A
37
M002010
M002011
M002012
M002013
M002014
M002015
Set Industrial 25 Code ID
Set Code 11 Code ID
Set Code 93 Code ID
Set Codabar Code ID
Set Code 39 Code ID
Set Standard 25 Code ID
38
M000216
M000217
M000218
M000219
M00021A
Set RSS-Expand Code ID
Set RSS-Limited Code ID
Set RSS-14 Code ID
Set MSI-Plessey Code ID
Set Plessey Code ID
39

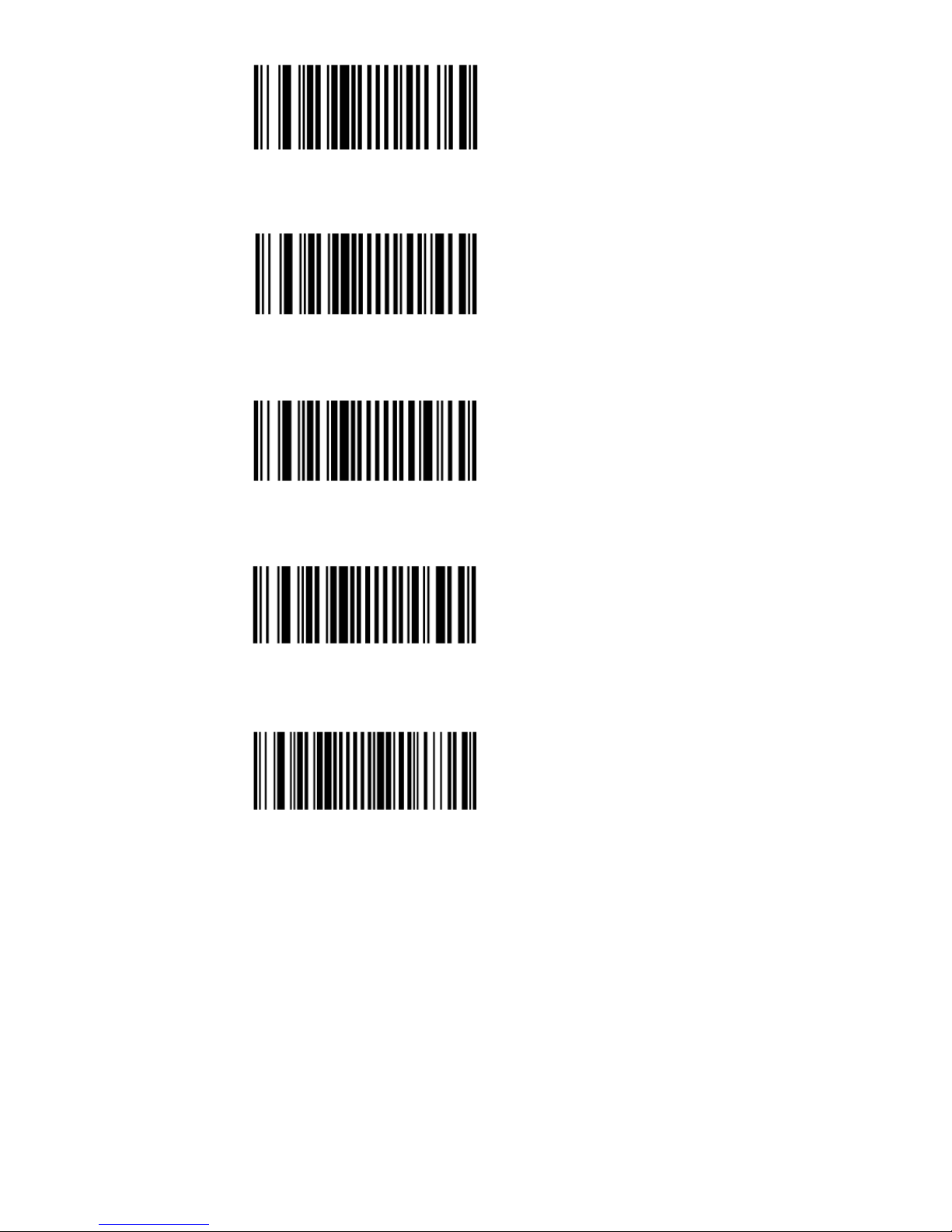

Suffix
W083108
W083100
M000101
W103110
W103100
Disable Terminating
*Enable Terminating
Set Custom Suffix
*Disable Custom Suffix
Enable Custom Suffix
Character Suffix
Character Suffix
40
WFFD9C3
WFFD9C4
WFFD9C5
M000102
Terminating
Terminating
Terminating
Set Terminating
Character 0x0D
Character
Character 0x0A
Character
0x0D,0x0A
Suffix
41
Chapter 4 Symbologies
Ever y symbology (barcode type) has its own
unique attributes.This chapterprovides
programming barcodes for configuring the
scanner so that it can identify various barcode
symbologies. It is recommended to disable
those that are rarely used to increase the
efficiency of the scanner.
Introduction
Global Settings
Enable All Symbologies
Disable All Symbologies
WFFD981
WFFD982
Restore the Factory Defaults
*Enable Code 128
Disable Code 128
WFFD990
W016101
of Code 128
W016100
42
WFFD991
W036203
W036200
W036201
Restore the Factory Defaults
Enable UCC/EAN-128
Disable UCC/EANI-128
Decode as Code 128
Restore the Factory Defaults
Enable AIM128
WFFD992
W036302
of UCC/EAN-128
of AIM128
43
W036300
W036301
* AIM128Disable
Decode as Code 128
Restore the Factory Defaults
*Enable EAN-8
DisableEAN-8
WFFD994
W016500
W016501
of EAN-8
44
Restore the Factory Defaults
Enable ISSN
*Disable ISSN
Decode as EAN-13
WFFD966
W036702
W036700
W036701
of ISSN
45
WFFD997
W036802
W036800
W036801
Restore theFactory Defaults
Enable ISBN
*Disable ISBN
Decode as EAN-13
Restore the Factory Defaults
*Enable UPC-A
WFFD999
W036B02
of ISBN
of UPC-A
46
W036B00
W036B01
Disable UPC-A
Decode as EAN-13
Restore the Factory Defaults
*Enable Interleaved 2 of 5
Disable nterleaved 2 of 5I
WFFD99A
W016C01
W016C00
of Interleaved 2 Of 5
47
WFFD99B
W036D01
W036D02
W036D0A
Restore the Factory Defaults
Disable ITF-6
Enable ITF-6 But Do Not
Enable ITF-6 and Transmit
Restore theFactoryDefaults
Disable ITF-14
WFFD99C
W036E01
of ITF-6
Transmit Check Digit
Check Digit
of ITF-14
48
W036E02
W036E0A
Enable ITF-14 But Do Not
Enable ITF-14 and Transmit
Restore the FactoryDefaults
Disable Deutsche 14
Enable Deutsche14 But
Enable Deutsche 14 and
WFFD99D
W036F01
W036F02
W036F0A
Check Digit
Transmit Check Digit
of Deutsche 14
Do Not Transmit Check Digit
Transmit Check Digit
49
Restore the Factory Defaults
Disable Deutsche 12
Enable Deutsche 12 But
Enable Deutsche 12 and
WFFD99E
W037001
W0B7002
W0B700A
Restore the Factory Defaults
*Enable Matrix 2 of 5
WFFD99F
W017101
of Deutsche 12
Do Not Transmit Check Digit
Transmit Check Digit
of Matrix 2 of 5
50
W017100
Disable Matrix 2 of 5
Restore the Factory Defaults
* Industrial 25Enable
Disable Industrial 25
WFFD9A0
W017201
W017200
Restore the Factory Defaults
*Enable Standard 25
WFFD9A1
W017301
of Industrial 25
of Standard 25
51
W017300
Disable Standard 25
Restore the Factory Defaults
*Enable Code 39
Disable Code 39
WFFD922
W017401
W017400

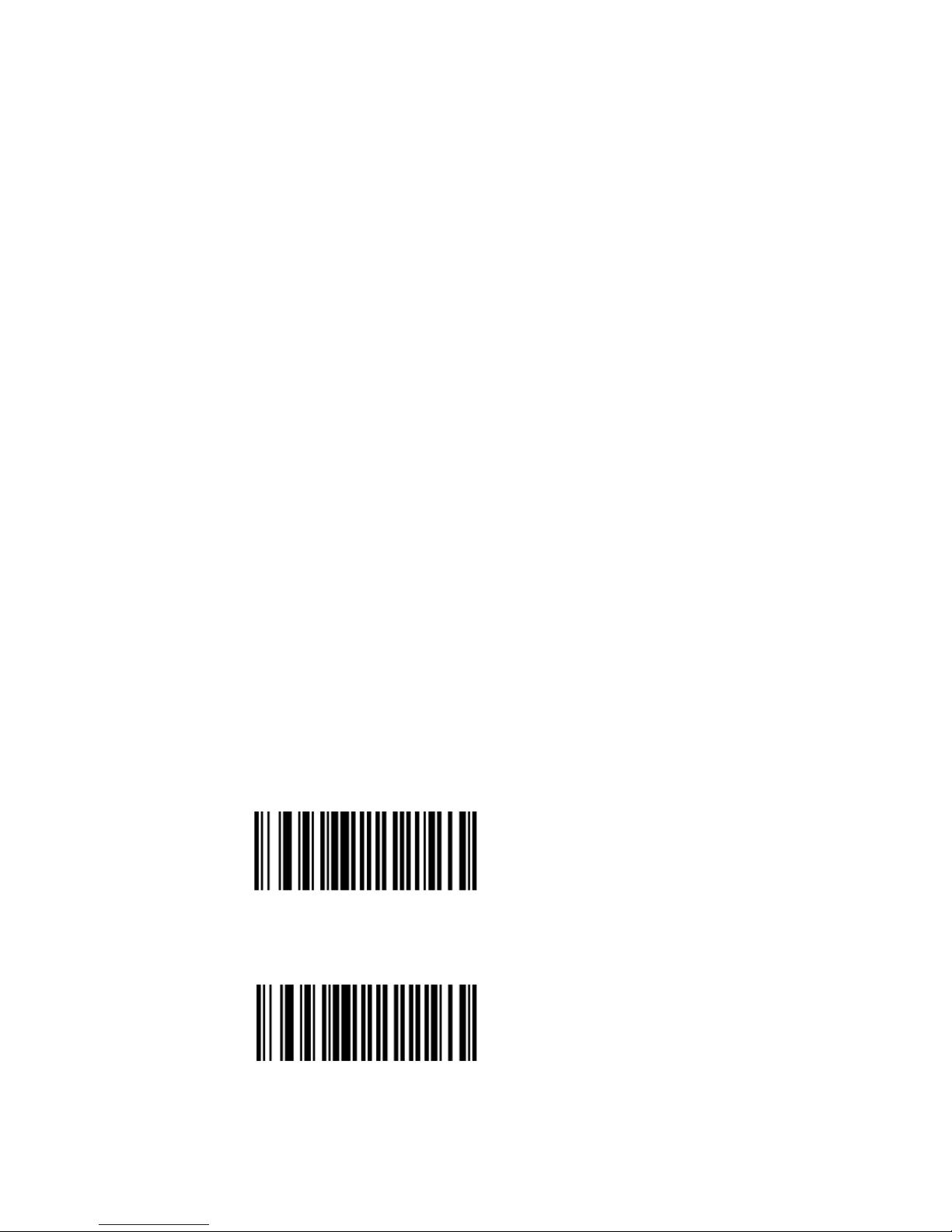

*Enable Code 39 Full ASCII
Disable Code 39 Full ASCII
W207402
W207400
of Code 39
52
WFFD9A3
W017501
W017500
Restore the Factory
*Enable Codabar
Disable Codabar
Restore the Factory Defaults
*Enable Code 93
Disable Code 93
WFFD9A4
W017601
W017600
Defaults of Codabar
of Code 93
53
WFFD9A5
W017701
W017700
Restore the Factory Defaults
Enable Code 11
*Disable Code 11
Restore the Factory Defaults
Enable Plessey
*Disable Plessey
WFFD9A6
W017801
W017800
of Plessey
of Code 11
54
WFFD9A7
W017901
W017900
Restore the Factory Defaults
Enable MSI-Plessey
*Disable MSI-Plessey
WFFD9A8
W017A01
W017A00
Restore the Factory Defaults
*Enable RSS-14
Disable RSS-14
of MSI-Plessey
of RSS-14
55
WFFD9A9
W017B01
W017B00

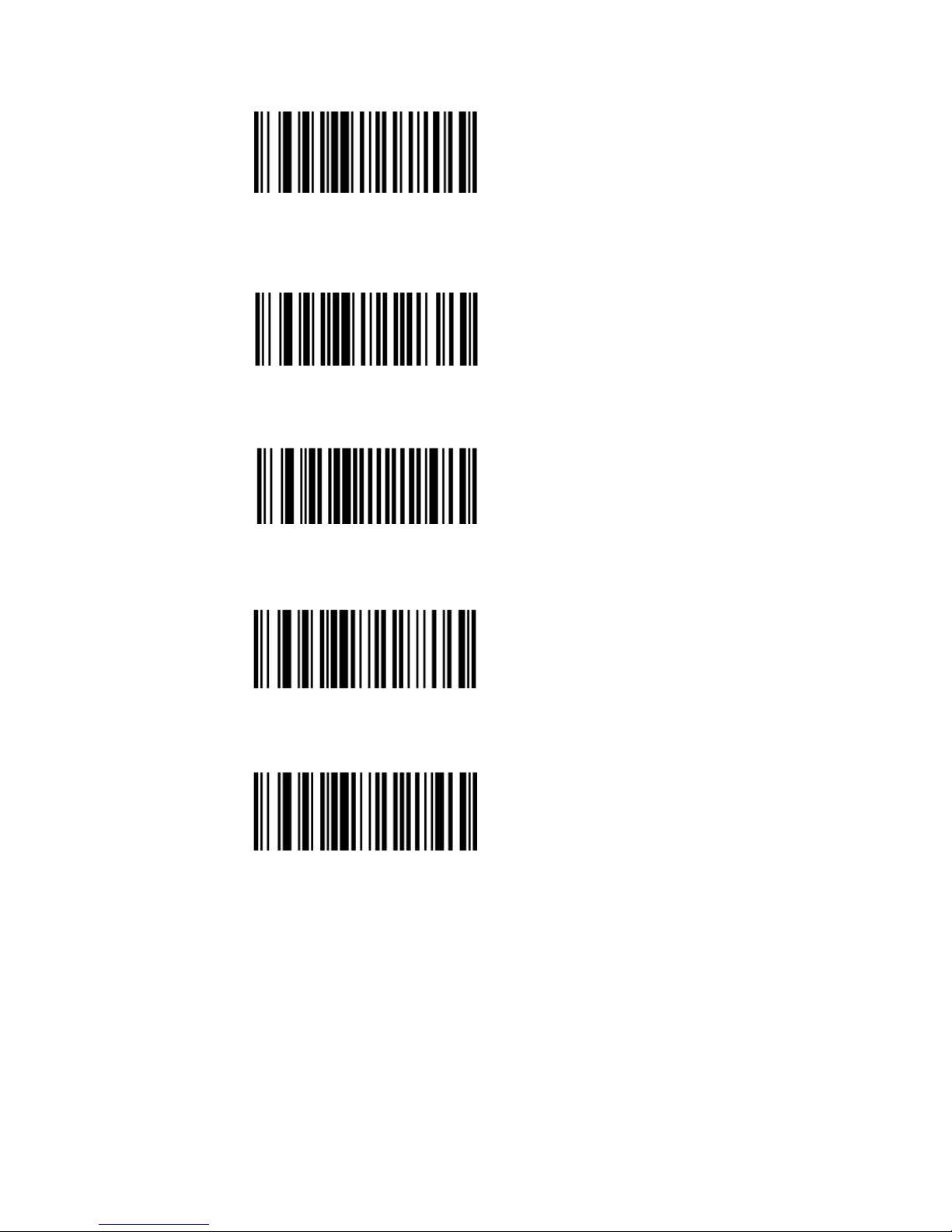

Restore the Factory Defaults
*Enable RSS-Limited
Disable RSS-Limited
Restore the Factory Defaults
*Enable RSS-Expand
Disable RSS-Expand
WFFD9AA
W017C01
W017C00
of RSS-Limited
of RSS Expand
56
C06540
C06500
C06580
WFFD995
W016601
W016600

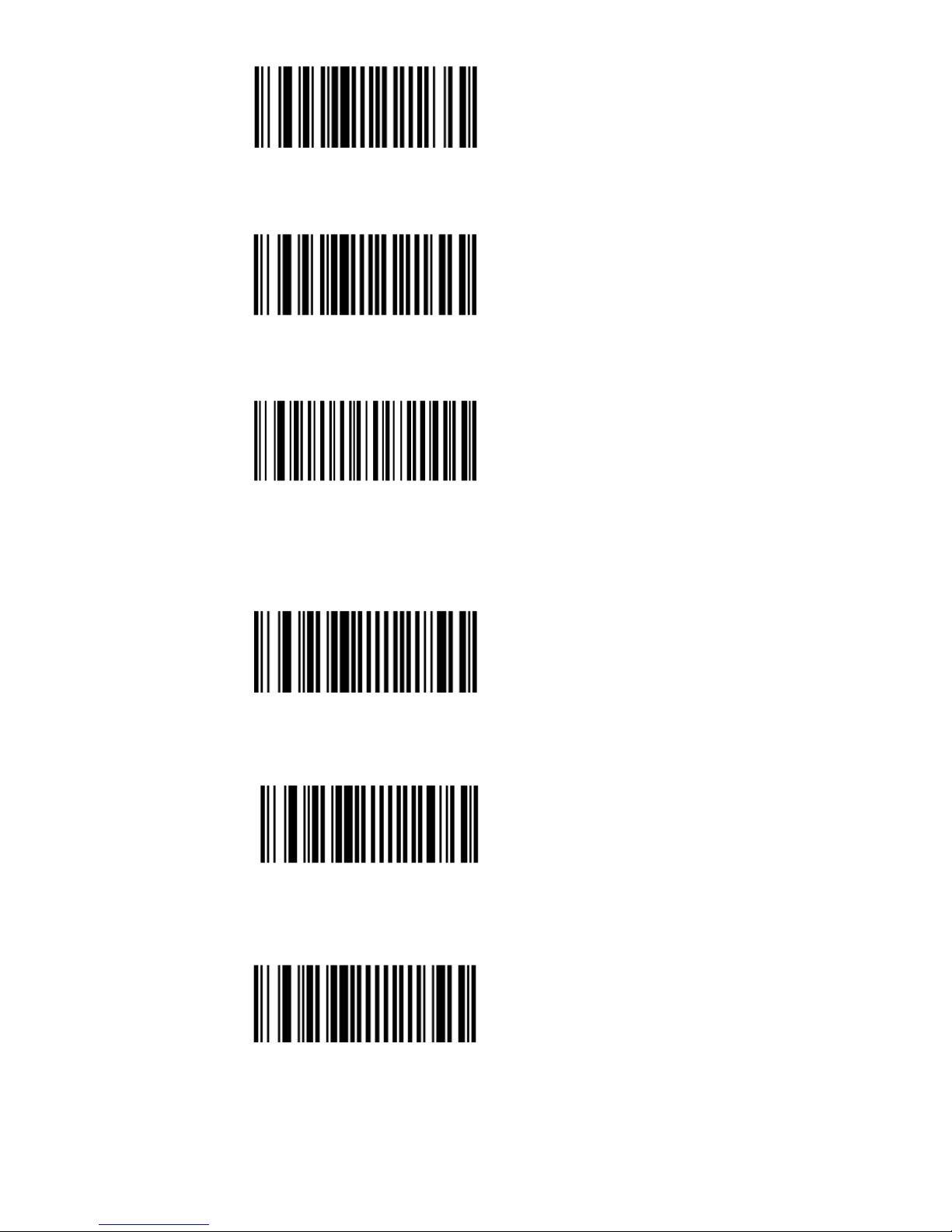

Enable EAN-8 Zero Extend
*Disable EAN-8 Zero Extend
Convert EAN-8 to EAN-13
Restore the Factory Defaults
*Enable EAN-13
Disable EAN-13
W
W
W
of EAN-13
57

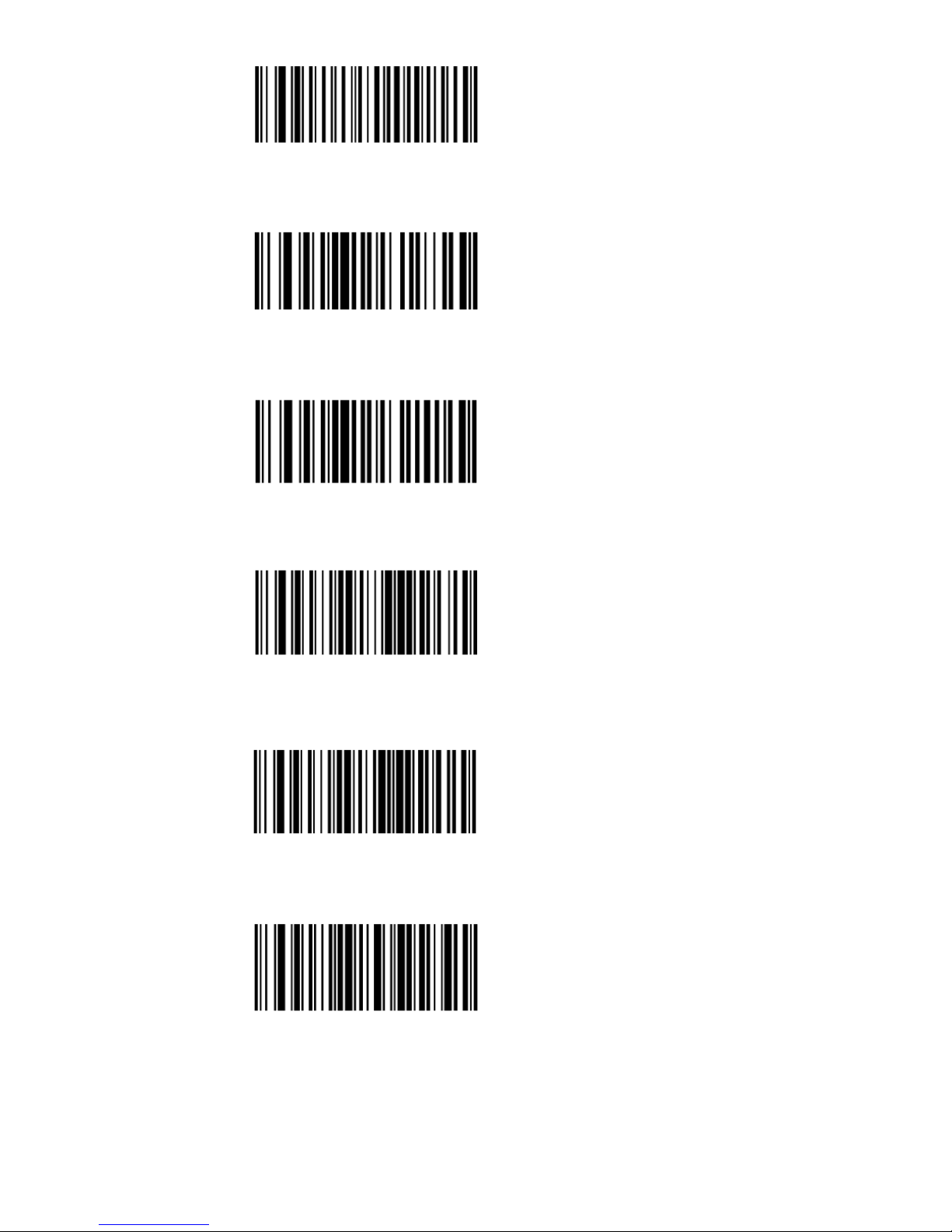

W016900
W016901
WFFD998

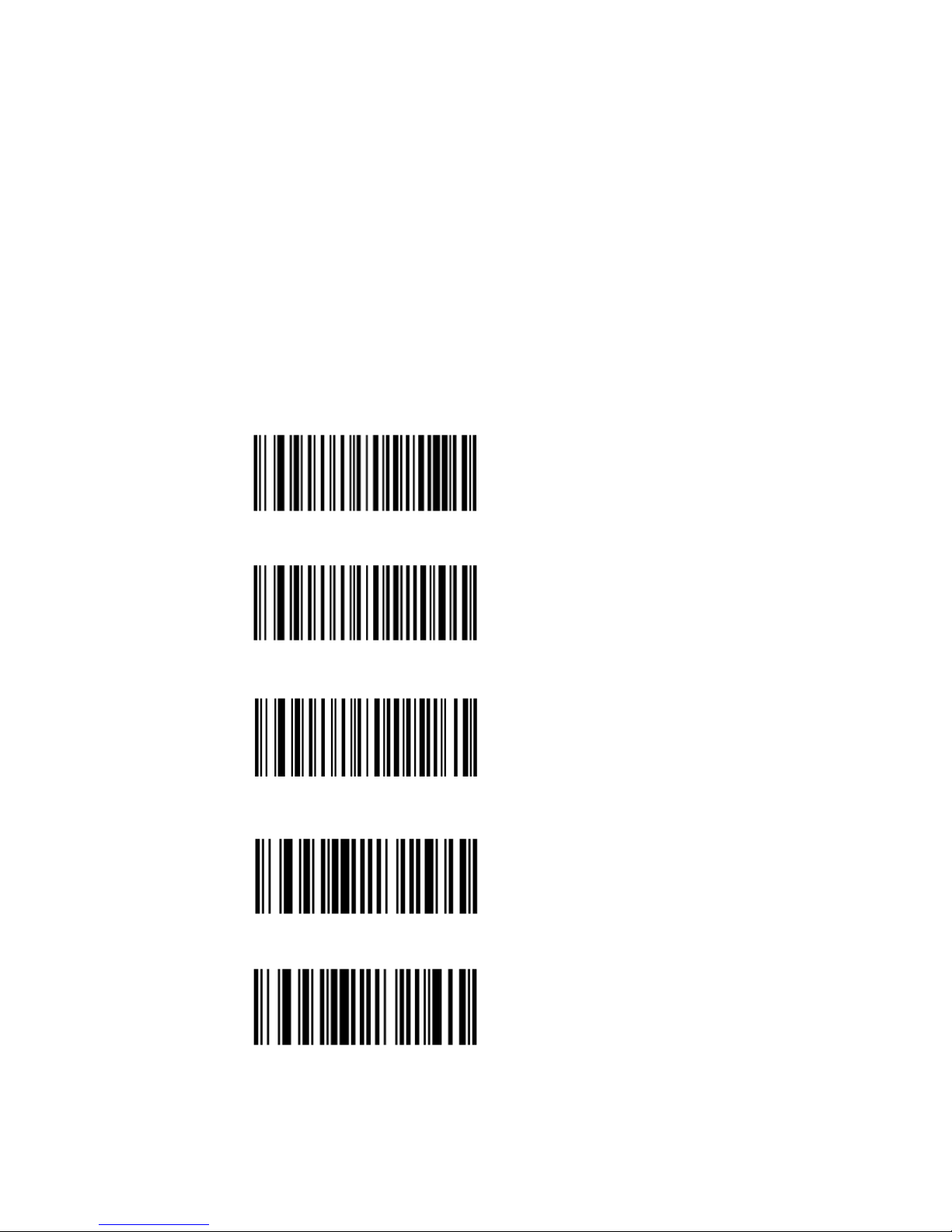

Restore the Factory Defaults
*Enable UPC-E
Disable UPC-E
Enable UPC-E Extend
*Disable UPC-E Extend
Convert UPC-E to UPC-A
C06940
W
C06900
W
C06980
W
of UPC-E
58
*Enable Code 39 Full ASCII
Disable Code 39 Full ASCII
W207400
W207420
59

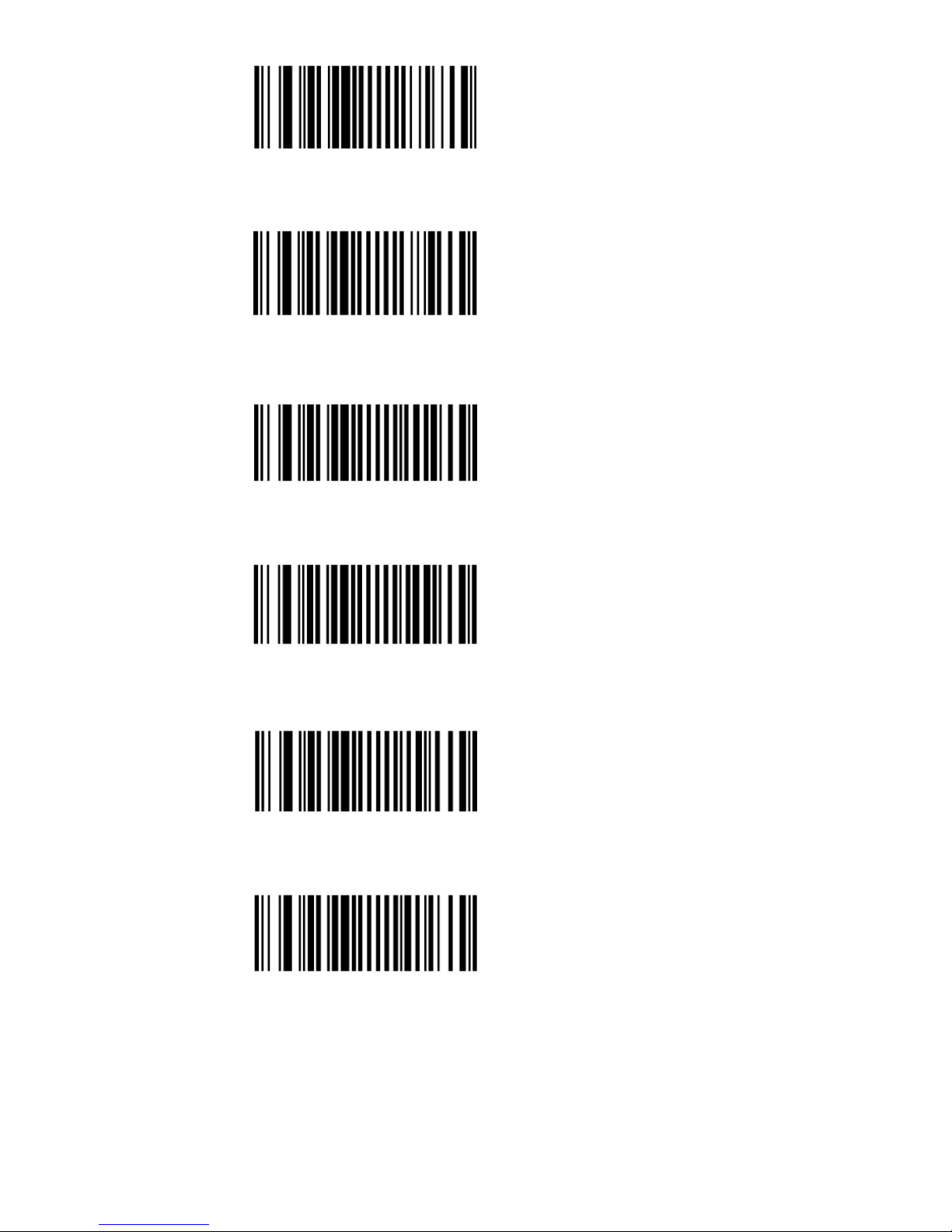

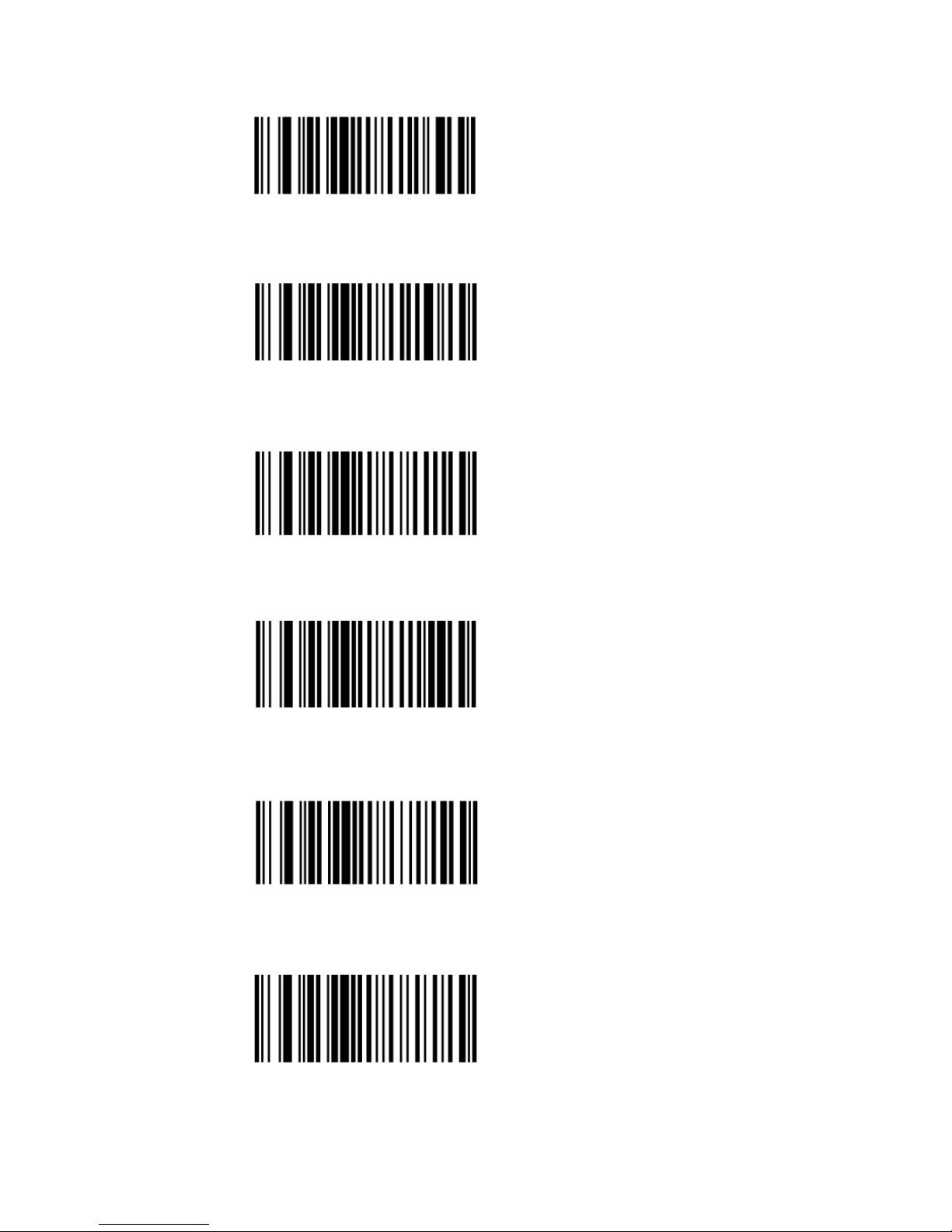

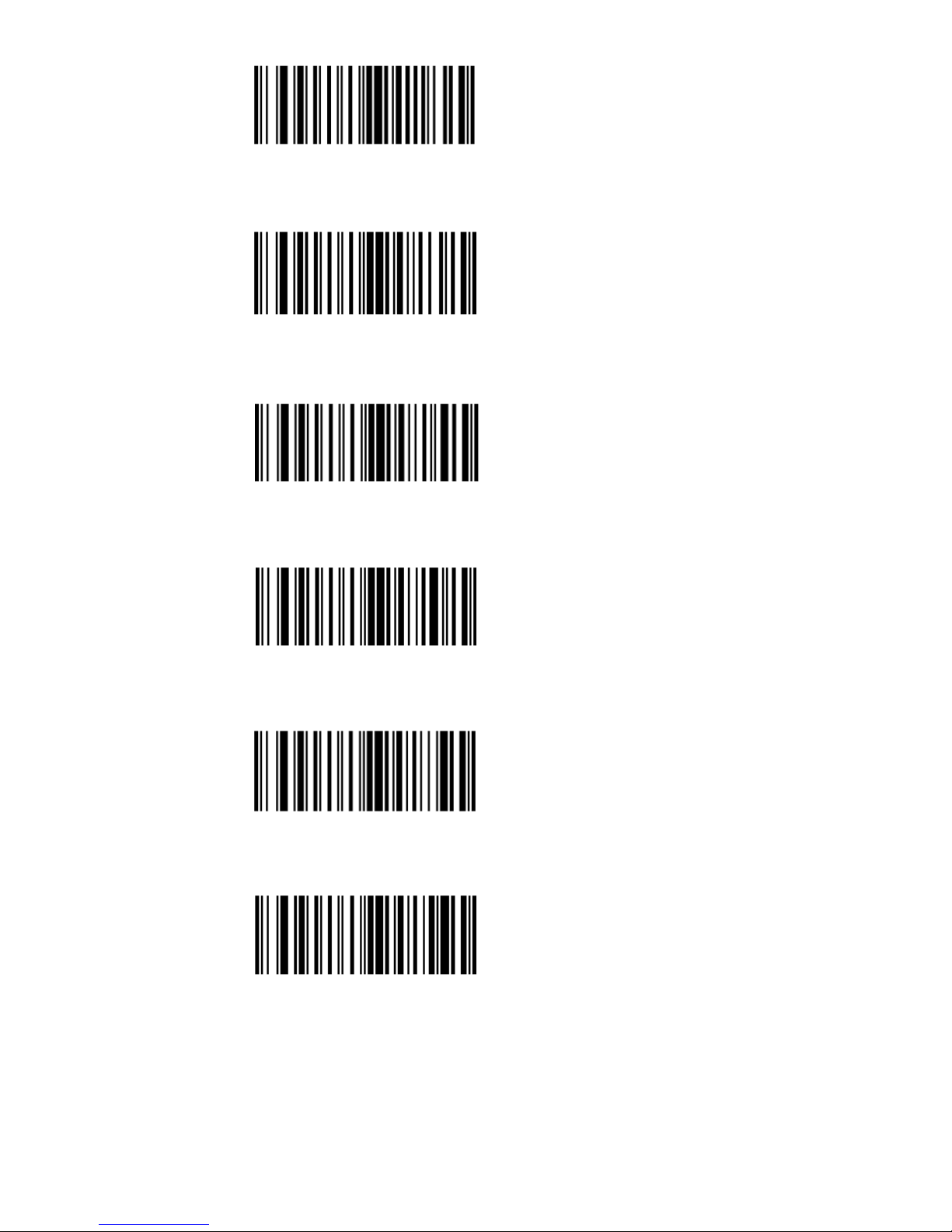

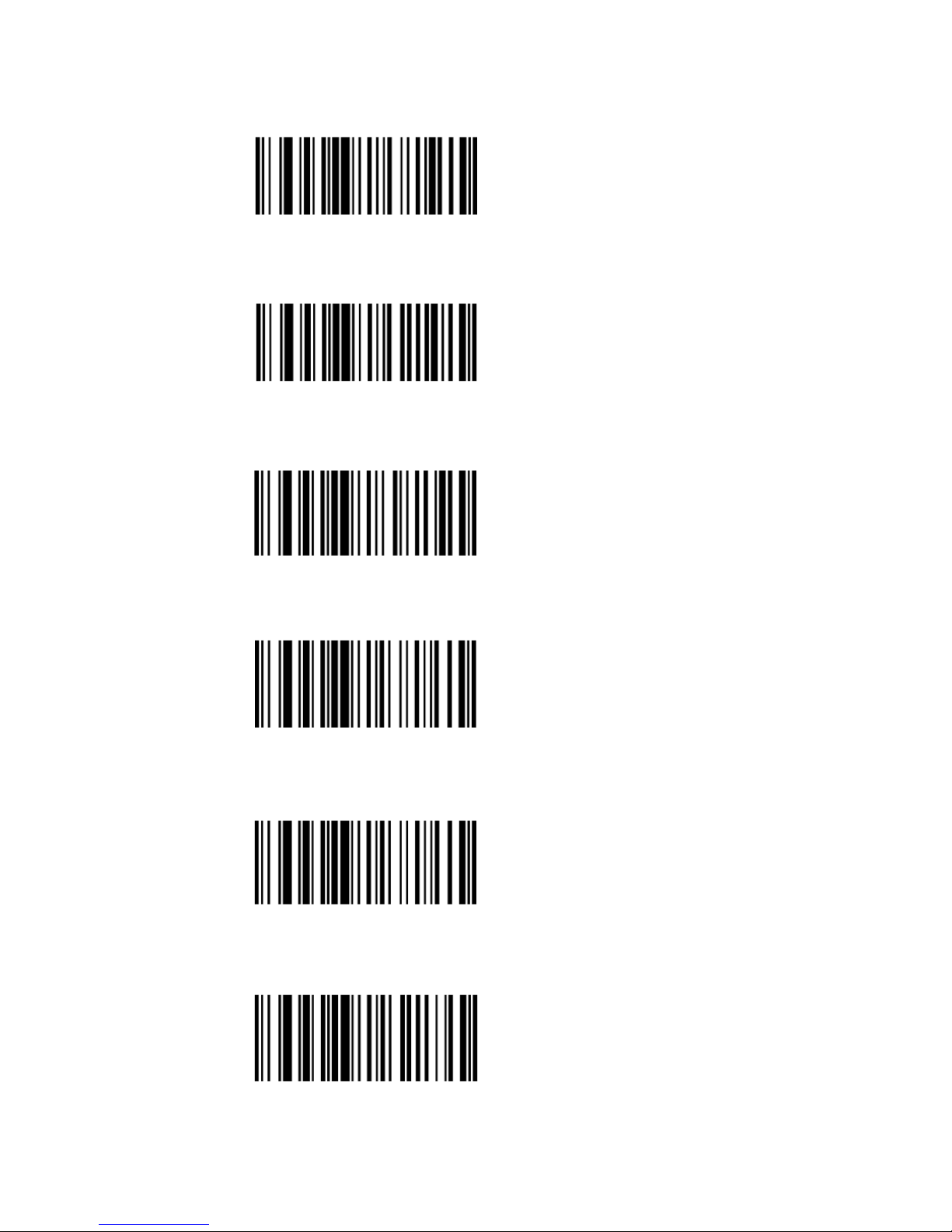

Set Length Range
M000301
M000300
M000303
M000302
M000305
M000304
Set the Minimum Length
Set the Maximum Length
Set the Minimum Length
Set the Maximum Length
Set the Minimum Length
Set the Maximum Length
for AIM 128
for AIM 128
for UCC/EAN-128
for UCC/EAN-128
for Code 128
for Code 128
60

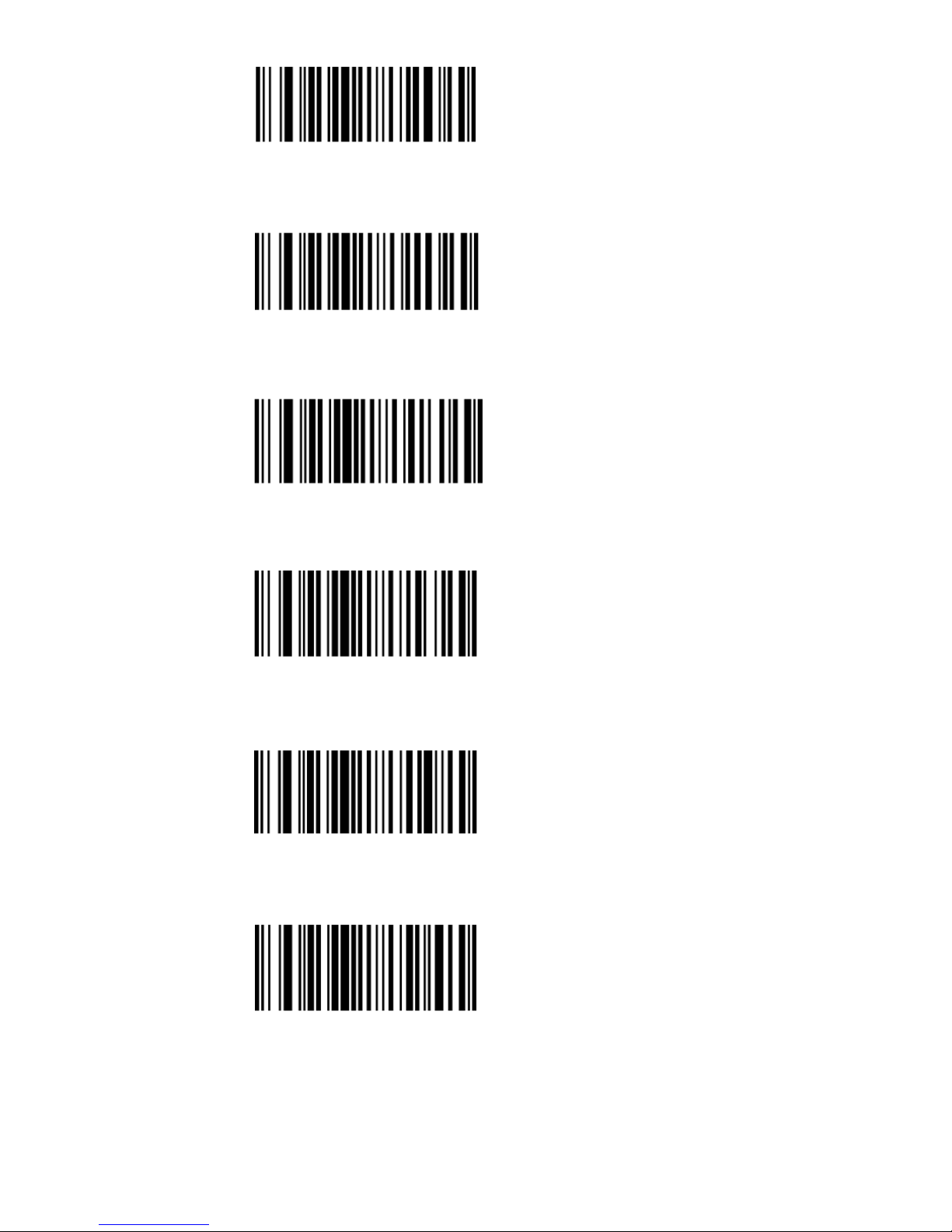

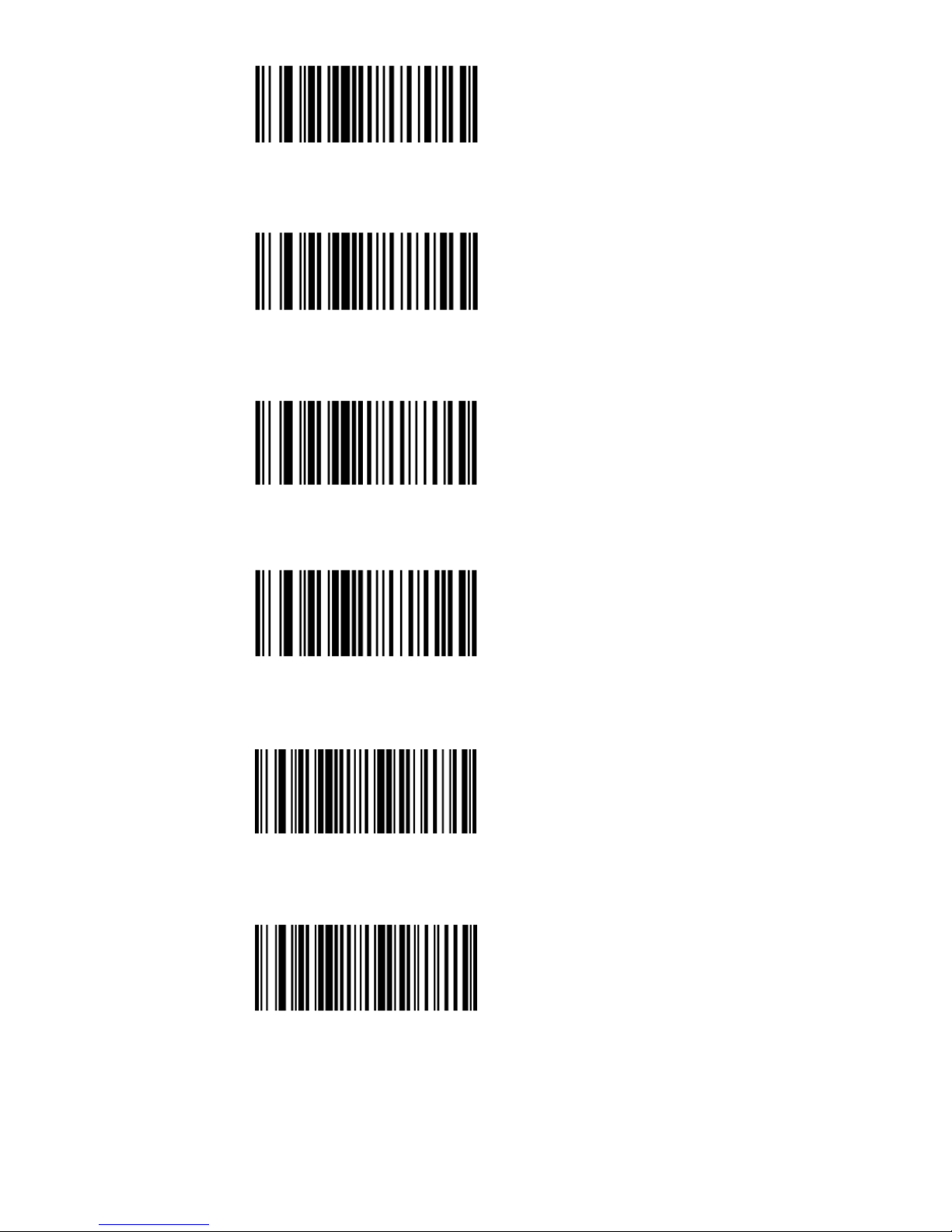

M000307
M000306
M000309
M000308
M00030B
M00030A
Set the Minimum Length for
Set the Maximum Length for
Set the Minimum Length
Set the Maximum Length
Set the Minimum Length
Set the Maximum Length
Interleaved 2 of 5
Interleaved 2 of 5
for Matrix 2 of 5
for Matrix 2 of 5
for Industrial 25
for Industrial 25
61
M00030D
M00030C
M00030F
M00030E
M000311
M000310
Set the Minimum Length
Set the Maximum Length
Set the Minimum Length
Set the Maximum Length
Set the Minimum Length
Set the Maximum Length
for Industrial 25
for Industrial 25
for Code 39
for Code 39
for Codabar
for Codabar
62
M000313
M000312
M000315
M000314
M000317
M000316
Set the Minimum Length
Set the Maximum Length
for Code 93
Set the Minimum Length
Set the Maximum Length
Set the Minimum Length
Set the Maximum Length
for Code 93
for Code 11
for Code 11
for Plessey
for Plessey
63
M000319
M000318
Set the Minimum Length
Set the Maximum Length
Example: Set the scanner to decode MSIPlessey barcodes containing between 8 and
12 characters.
1. Scan the Enter Setup barcode.
2. Scan the Set the Minimum Length barcode.
3. Scan the numeric barcode “8”. (See the
Digit Barcodes section in Appendix)
4. Scan the Save barcode. (See the Save/Cancel
Barcodes section in Appendix)
5. Scan the Set the Maximum Length barcode.
6. Scan the numeric barcode “1”.
7. Scan the numeric barcode “2”.
8. Scan the Save barcode.
9. Scan the Exit Setup barcode.
for MSI-Plessey
for MSI-Plessey
64
W046504
W046500
W046604
W046600
W046904
W046900

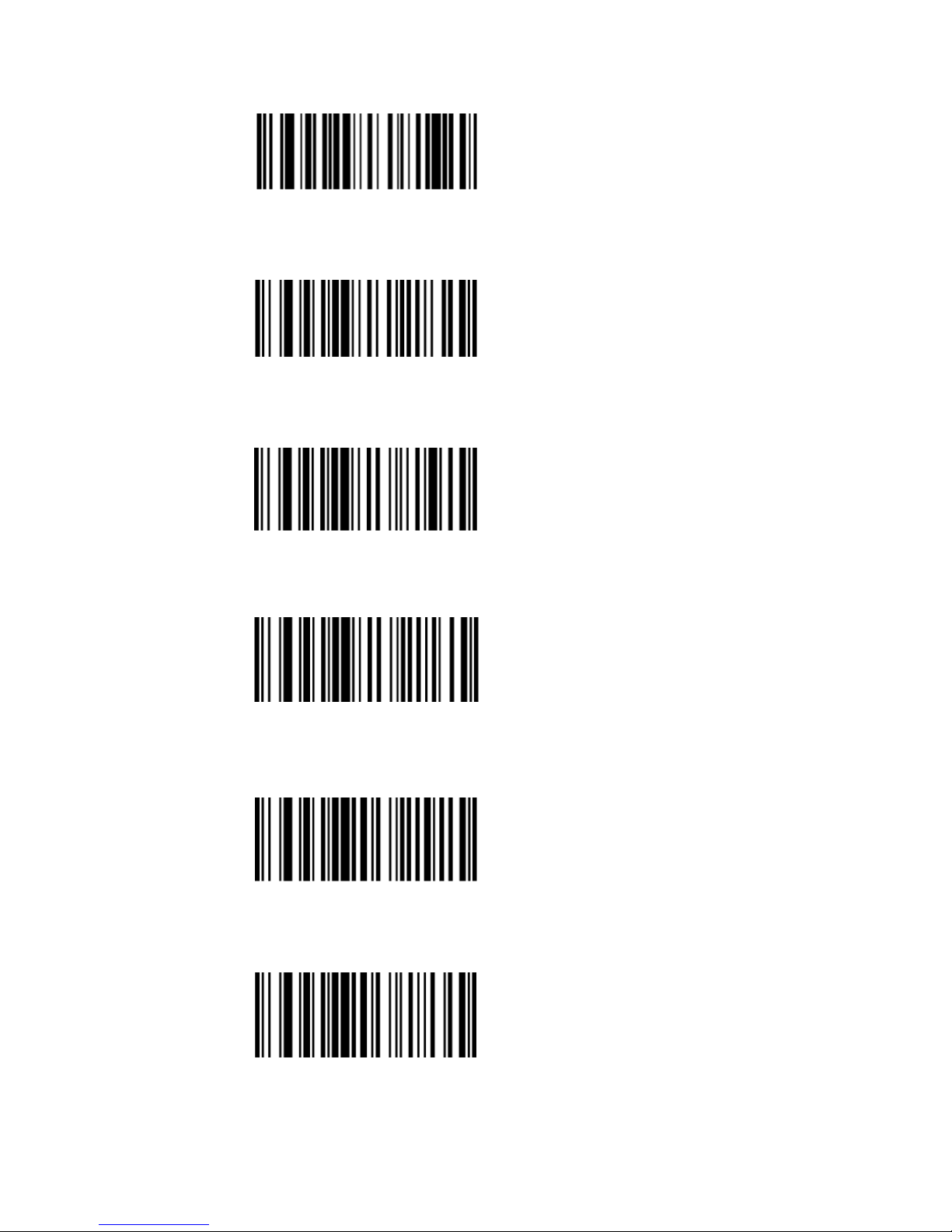

* 8 Check DigitTransmit EAN-
Do Not Transmit EAN-8
* 13 Check DigitTransmit EAN-
Do Not Transmit EAN-13
* E Check DigitTransmit UPC-
Do Not Transmit UPC-E
Check Digit
Check Digit
Check Digit
Transmit Check Digit
65
W086B00
W086B08
*Transmit UPC-A Check Digit
Do Not Transmit UPC-A
Check Digit Verification
A check digit is optional for Interleaved 2 of 5 and
can be added as the last digit. It is a calculated
value used to verify the integrity of the data.
Disable: The scanner transmits Interleaved 2 of 5
barcodes as is.
Do Not Transmit Check Digit After Verification:
The scanner checks the integrity of all Interleaved
2 of 5 barcodes to verify that the data complies
with the check digit algorithm. Barcodes passing
the check will be transmitted except the last digit,
whereas those failing it will not be transmitted.
Transmit Check Digit After Verification: The
scanner checks the integrity of all Interleaved 2
of 5 barcodes to verify that the data complies
with the check digit algorithm. Barcodes passing
the check will be transmitted, whereas those
failing it will not be transmitted.
Example: Set the scanner for check digit
Interleaved 2 of 5.
Check Digit
66

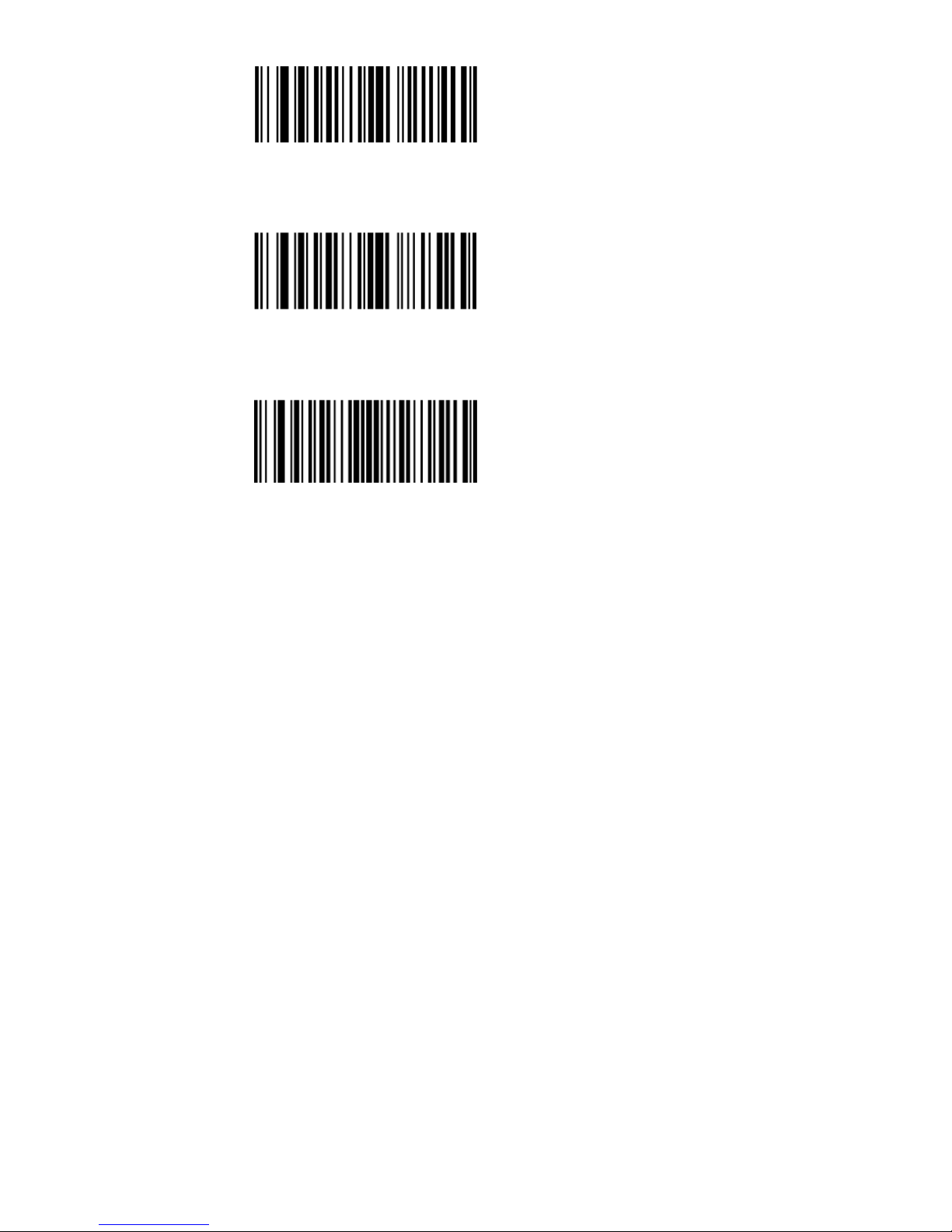

W0C6C00
Disable
W0C6C04
Do Not Transmit Check Digit
After Verification
Transmit Check Digit
W0C6C0C
After Verification
67
A check digit is optional for Matrix 2 of 5 and
can be added as the last digit. It is a calculated
value used to verify the integrity of the data.
Disable: The scanner transmits Matrix 2 of 5
barcodes as is.
Do Not Transmit Check Digit After Verification:
The scanner checks the integrity of all Matrix 2
of 5 barcodes to verify that the data complies
with the check digit algorithm. Barcodes
passing the check will be transmitted except the
last digit, whereas those failing it will not be
transmitted.
Transmit Check Digit After Verification: The
scanner checks the integrity of all Matrix 2 of 5
barcodes to verify that the data complies
with the check digit algorithm . Barcodes
passing the check will be transmitted,
whereas those failing it will not be transmitted.
*Disable
Do Not Transmit Check Digit
Transmit Check Digit
W0C7100
W0C7104
W0C710C
After Verification
After Verification
68
A check digit is optional for Industrial 25 and
can be added as the last digit. It is a
calculatedvalue used to verify the integrity of
the data.
Disable: The scanner transmits Industrial 25
barcodes as is.Do Not Transmit Check Digit
After Verification: The scanner checks the
integrity of all Industrial 25 barcodes to verify
that the data complies with the check digit
algorithm. Barcodes passing the check will
be transmitted except the last digit, whereas
those failing it will not be transmitted.
Transmit Check Digit After Verification: The
scanner checks the integrity of all Industrial 25
barcodes to verify that the data complies
with the check digit algorithm. Barcodes
passing the check will be transmitted,
whereas those failing it will not be transmitted.
*Disable
Do Not Transmit Check Digit
Transmit Check Digit
After Verification
After Verification
W0C7200
W0C7204
W0C720C
69
A check digit is optional for Standard 25 and can be
added as the last digit. It is a calculated value used to
verify the integrity of the data.
Disable: The scanner transmits Standard 25 barcodes
as is.
Do Not Transmit Check Digit After Verification: The
scanner checks the integrity of all Standard 25
barcodes to verify that the data complies with the
check digit algorithm. Barcodes passing the check
will
be transmitted except the last digit, whereas those
failing it will not be transmitted.
Transmit Check Digit After Verification: The scanner
checks the integrity of all Standard 25 barcodes
to verify that the data complies with the check digit
algorithm .Barcodes passing the check will be
transmitted, whereas those failing it will not be
transmitted.
*Disable
Do Not Transmit Check Digit
Transmit Check Digit
W0C7300
W0C7304
W0C730C
After Verification
After Verification
70
*Disable
Do Not Transmit Check Digit
Transmit Check Digit
W187400
W187408
W187418
After Verification
After Verification
71
A check digit is optional for Code 39 and can be
added as the last digit. It is a calculated value used
to verify the integrity of the data.
Disable: The scanner transmits Code 39 barcodes
as is.
Do Not Transmit Check Digit After Verification:
The scanner checks the integrity of all Code 39
barcodes to verify that the data complies with the
check digit algorithm. Barcodes passing the check
will be transmitted except the last digit, whereas
those failing it will not be transmitted.
Transmit Check Digit After Verification: The
scanner checks the integrity of all Code 39
barcodes to verify that the data complies with
the check digit algorithm. Barcodes passing
the check will be transmitted, whereas those
failing it will not be transmitted.
A check digit is optional for Codabar and can be
added as the last digit. It is a calculated value
used to verify the integrity of the data.
Disable: The scanner transmits Codabar barcodes
as is.
Do Not Transmit Check Digit After Verification:
The scanner checks the integrity of all Codabar
barcodes to verify that the data complies with the
check digit algorithm. Barcodes passing the
check will be transmitted except the last digit,
whereas those failing it will not be transmitted.
Transmit Check Digit After Verification: The
scanner checks the integrity of all Codabar
barcodes to verify that the data complies with
the check digit algorithm. Barcodes passing the
check will be transmitted, whereas those failing
it will not be transmitted.
*Disable
Do Not Transmit Check Digit
Transmit Check Digit
After Verification
After Verification
W607560
W607520
W607500
72
Check digits are optional for Code 93 and can be
added as the last two digits, which are calculated
valuesused to verify the integrity of the data.
Disable: The scanner transmits Code 93 barcodes as is.
Do Not Transmit Check Digit After Verification: The
scanner checks the integrity of all Code 93 barcodes
to verify that the data complies with the check digit
algorithm. Barcodes passing the checks will be
transmitted except the last two digits, whereas those
failing them will not be transmitted.
Transmit Check Digit After Verification: The scanner
checks the integrity of all Code 93 barcodes to
verify that the data complies with the check digit
algorithm. Barcodes passing the checks will be
transmitted, whereas those failing them will not be
transmitted.
Disable
*Do Not Transmit Check Digit
Transmit Check Digit
After Verification
After Verification
W0C7600
W0C7604
W0C760C
73
Check digits are optional for Plessey and can be
added as the last one or two digits, which are
calculated values used to verify the integrity of
the data.
Disable: The scanner transmits Plesseybarcodes
as is.
Do Not Transmit Check Digit After Verification:
The scanner checks the integrity of all Plessey
barcodes to verify that the data complies with
the check digit algorithm. Barcodes passing the
checks will be transmitted except the last two
digits, whereas those failing them will not be
transmitted.
Transmit Check Digit After Verification: The
scanner checks the integrity of all Plessey
barcodes to verify that the data complies with
the check digit algorithm. Barcodes passing
the checks will be transmitted, whereas those
failing them will not be transmitted.
Disable
*Do Not Transmit Check Digit
Transmit Check Digit
After Verification
After Verification
W0C7800
W0C7804
W0C780C
74
Disable
W0C7904
W0C7900
W0C7908
W0C790C
*One Check Digit,MOD10
Two Check Digits,
Two Check Digits,
MOD10/MOD10
MOD10/MOD11
75
Check digits are optional for Code
11 and can be added as the last
one or two digits, which are
calculated values used to verify the
integrity of the data.
If the Disable option is enabled,
the scanner transmits Code 11
barcodes as is.
Transmit Check Digit
*Do Not Transmit Check Digit
W107910
W107900

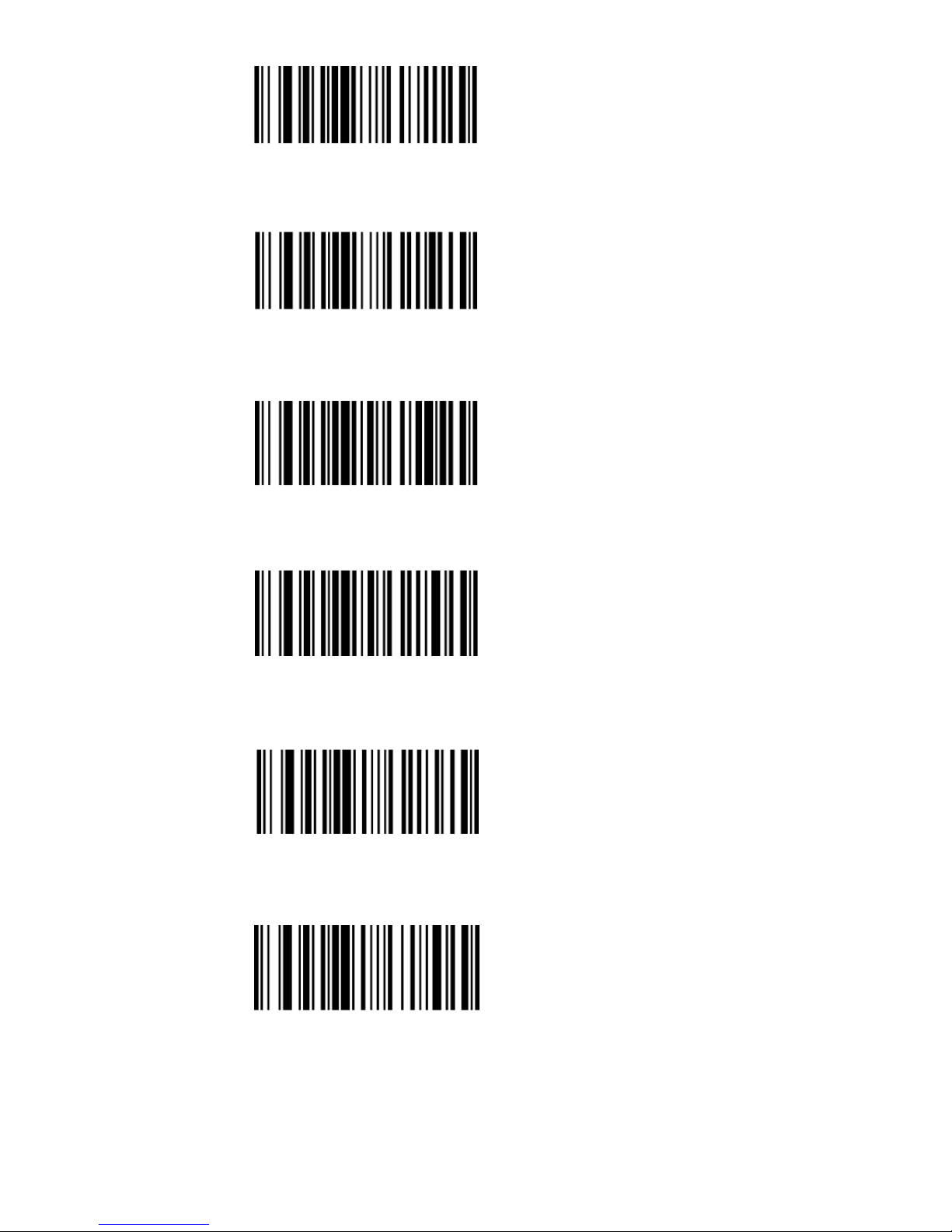

Add-On Code
An EAN-8 barcode can be augmented with a twodigit or five-digit add-on code to form a new

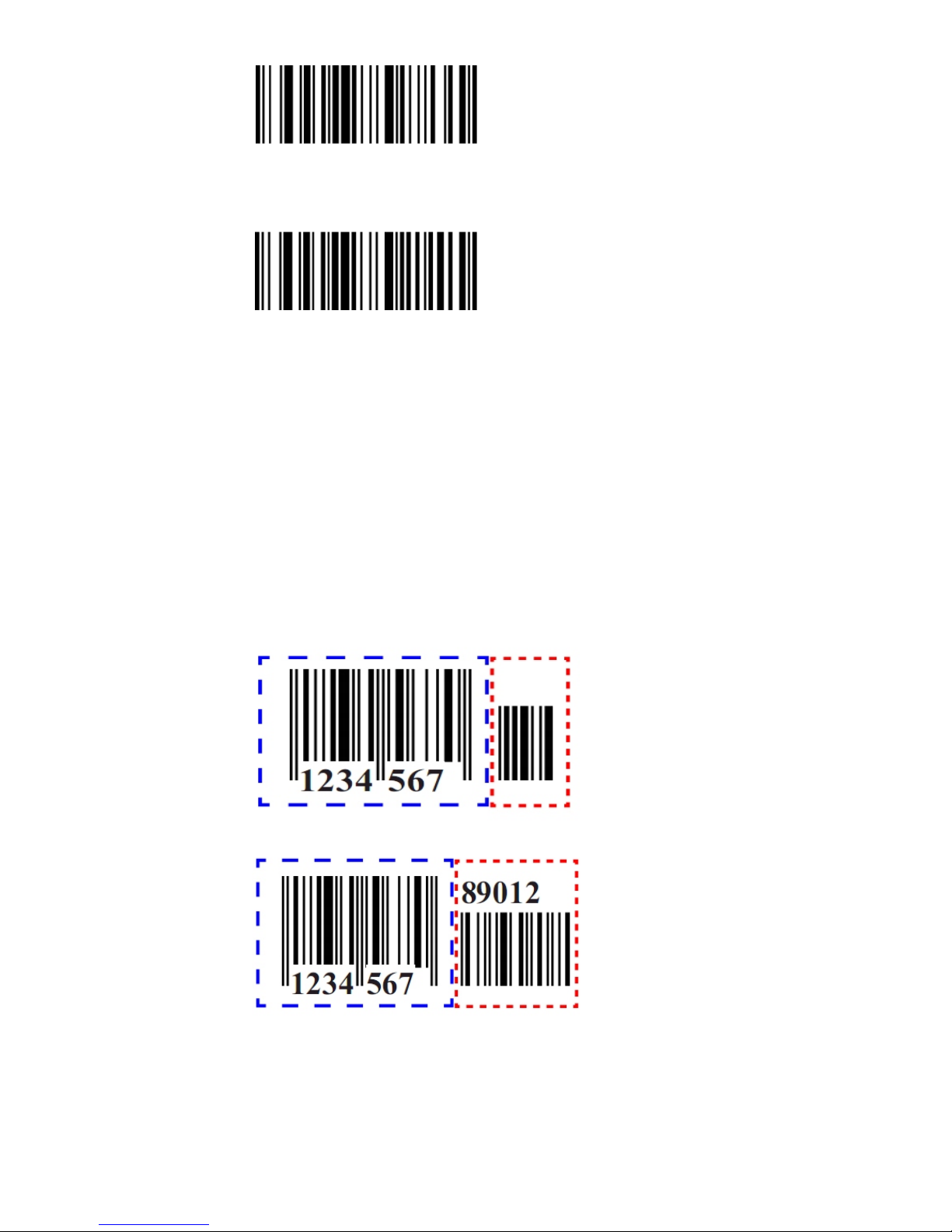

one. In the examples below, the part surrounded
by blue dotted line is an EAN-8 barcode while the
part circled by red dotted line is add-on code.
76
W106510
W106500
W206520
W206500
Enable 2-Digit Add-On Code
*Disable 2-Digit Add-On Code
Enable 5-Digit Add-On Code
*Disable 5-Digit Add-On Code
EAN-8 Add-On Code Required
* 8 Add-On Code EAN-
W086508
W086500
Not Required
77
Enable 2-Digit Add-On Code/ Enable 5-Digit
Add-On Code: The scanner decodes a mix of
EAN-8 barcodes with and without 2-digit/5-digit
add-on codes.
Disable 2-Digit Add-On Code/ Disable 5-Digit
Add-On Code: The scanner decodes EAN-8
and ignores the add-on code when presented with
an EAN-8 plus add-on barcode. It can also decode

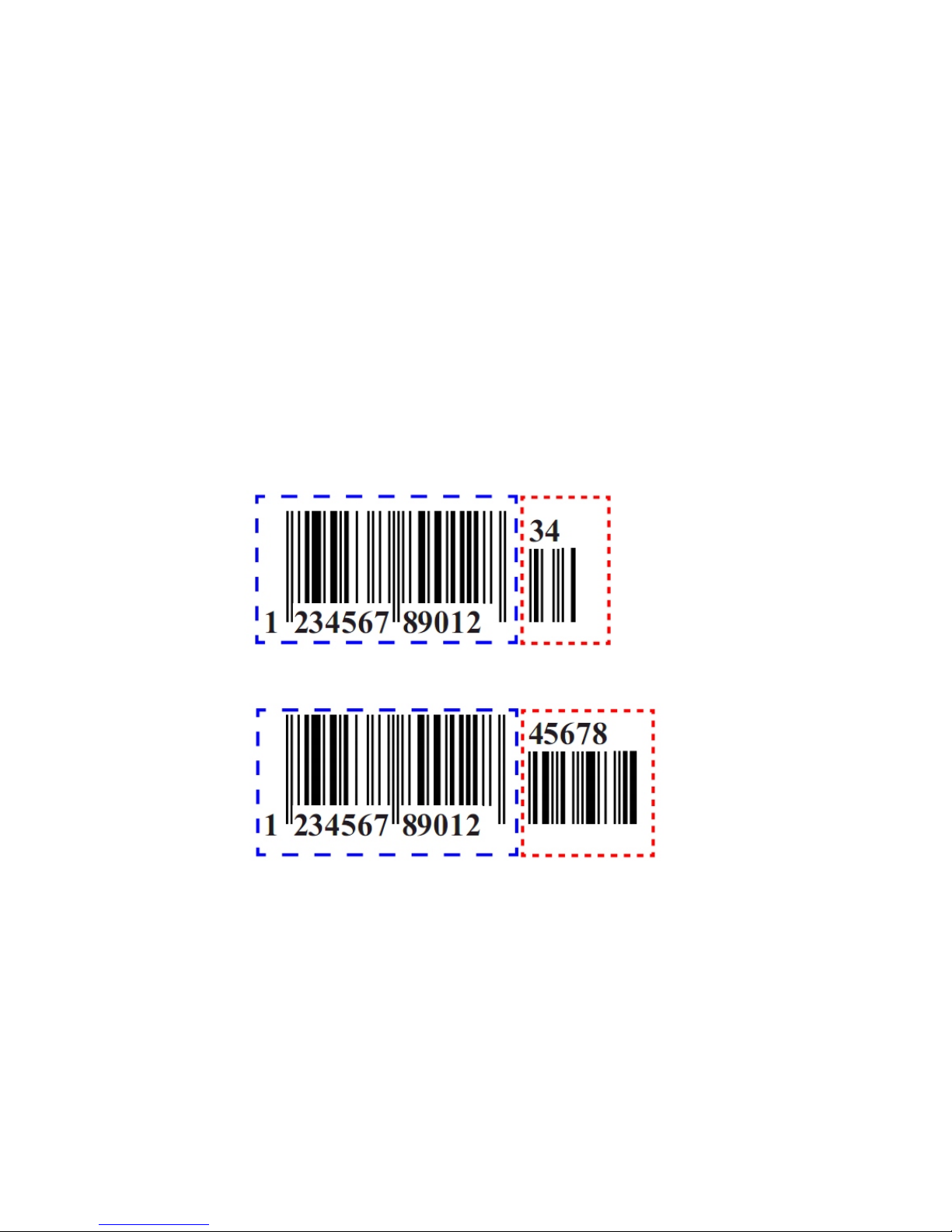

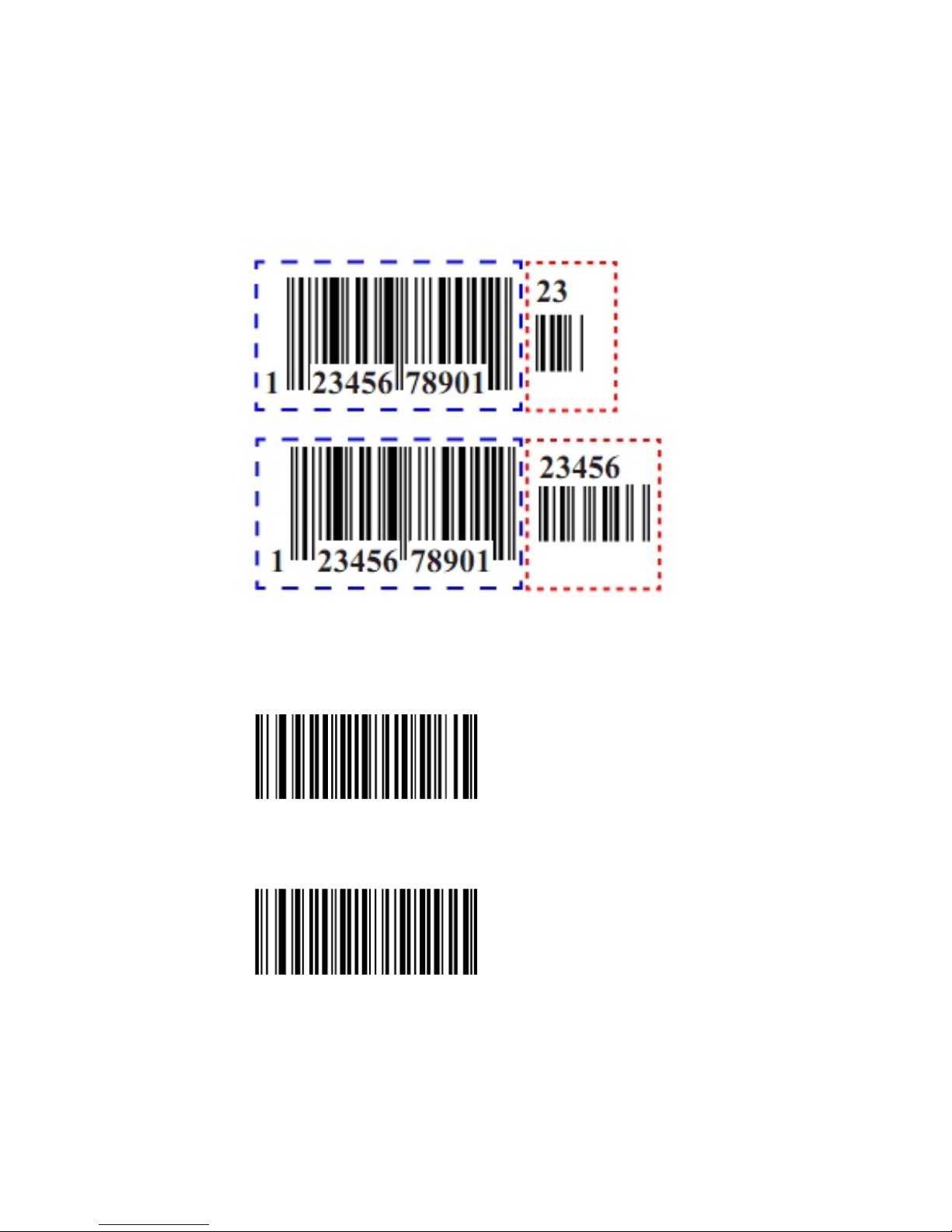

An EAN-13 barcode can be augmented with a
two-digit or five-digit add-on code to form a new
one. In the examples below, the part surrounded
by blue dotted line is an EAN-13 barcode while
the part circled by red dotted line is add-on code.
78
Enable 2-Digit Add-On Code
*Disable 2-Digit Add-On Code
Enable 5- Digit Add-On Code
*Disable 5-Digit Add-On Code
W106610
W106600
W206620
W206600
EAN-13 Add-On Code Required
*EAN-13 A On Code dd-
W086608
W086600
Not Required
79
Enable 2-Digit Add-On Code/ Enable 5-Digit
Add-On Code: The scanner decodes a mix of
EAN-13 barcodes with and without 2-digit/5-digit
add-on codes.
Disable 2-Digit Add-On Code/ Disable 5-Digit
Add-On Code: The scanner decodes EAN-13
and ignores the add-on code when presented
with an EAN-13 plus add-on barcode. It can
also decode EAN-13 barcodes without add-on
codes.

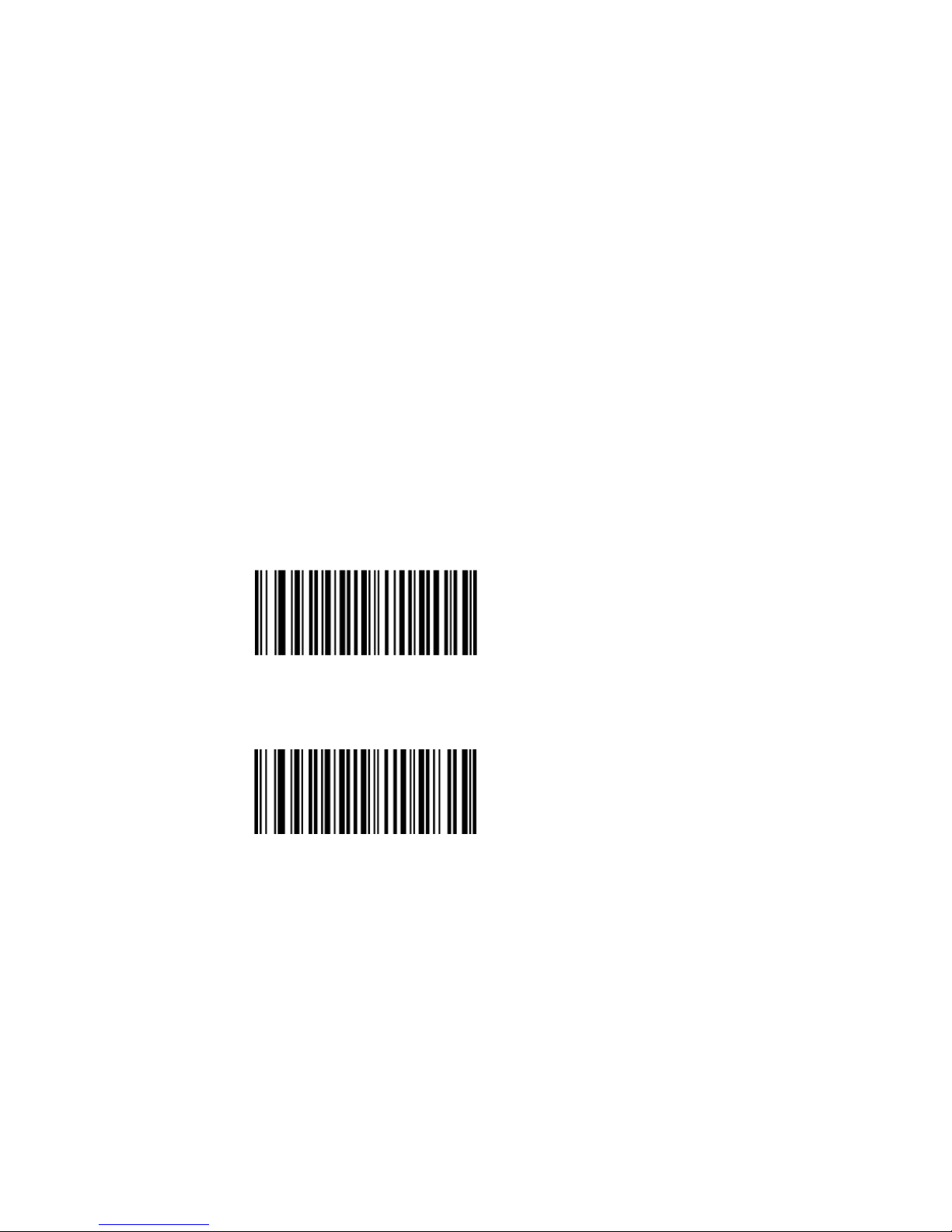

Transmit System Character
Do Not Transmit System
*Transmit System Character
W306A10
W306A20
Character
80
The first character of UPCcharacter
E barcode is the system

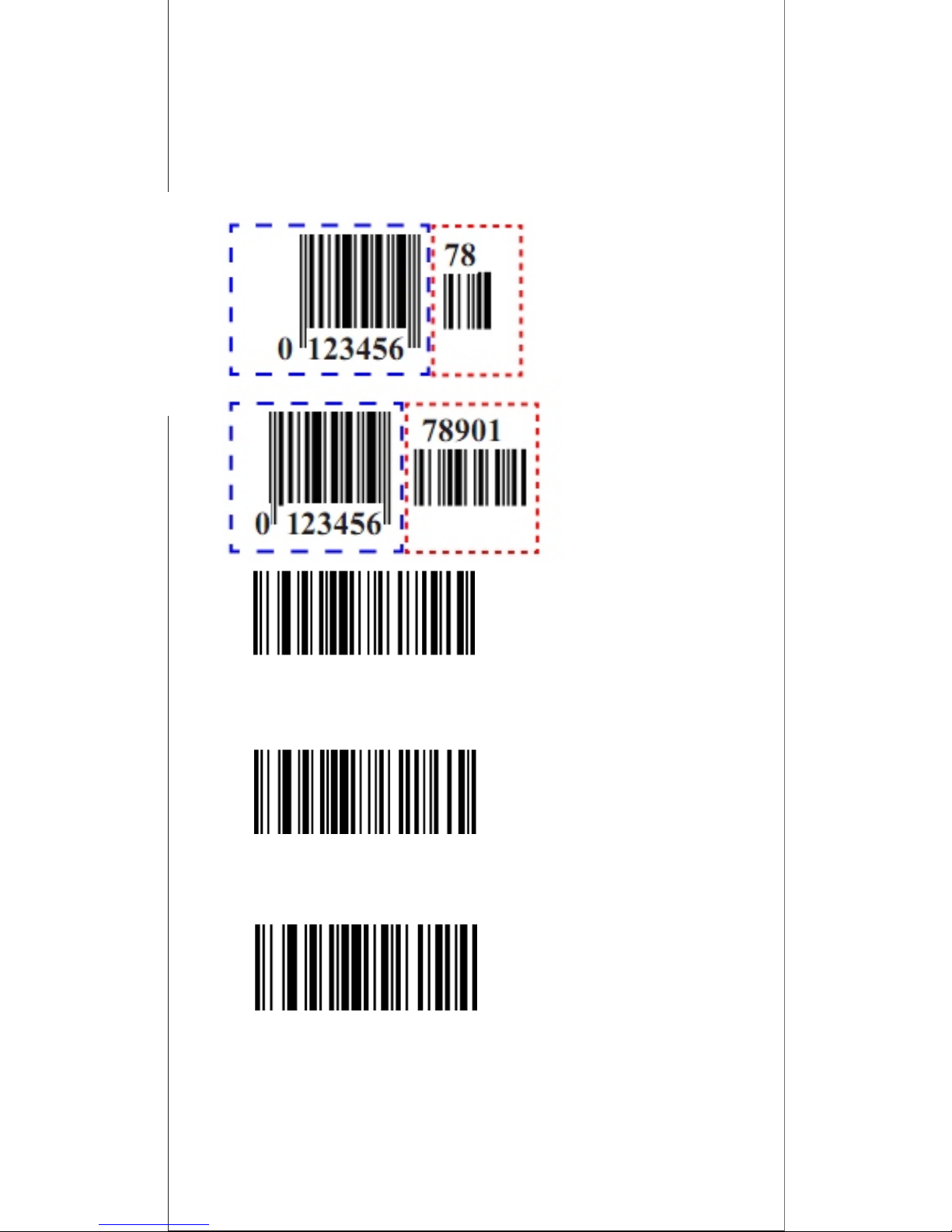

A UPC-E barcode can be augmented with a twodigit or five-digit add-on code to form a new one.
In the examples below, the part surrounded by
blue dotted line is a UPC-E barcode while the part
circled by red dotted line is add-on code.
Enable 2-Digit Add-On Code
*Disable 2-Digit-Add-On Code
Enable 5-Digit Add-On Code
W106910
W106900
W206920
81
W206900
*Disable 5-Digit Add-On Code
Enable 2-Digit Add-On Code/ Enable 5-Digit
Add-On Code: The scanner decodes a mix of
UPC-E barcodes with and without 2-digit/5-digit
add-on codes.
Disable 2-Digit Add-On Code/ Disable 5-Digit
Add-On Code: The scanner decodes UPC-E
and ignores the add-on code when presented
with a UPC-E plus add-on barcode. It can also
decode UPC-Ebarcodes without add-on codes.
This parameter is only valid when Enable 2-Digit
Add-On Code and/or Enable 5-Digit Add-On
Code is selected.
W086908
W086900
UPC-E Add-On Code Required
*UPC-E Add-On Code
Not Required
82
A UPC-A barcode can be augmented with a twodigit or five-digit add-on code to form a new one.
In the examples below, the part surrounded by
blue dotted line is a UPC-A barcode while the part
circled by red dotted line is add-on code.
Enable 2-Digit Add-On Code
*Disable 2 Digit Add-On Code
W206B20
W206B00
83

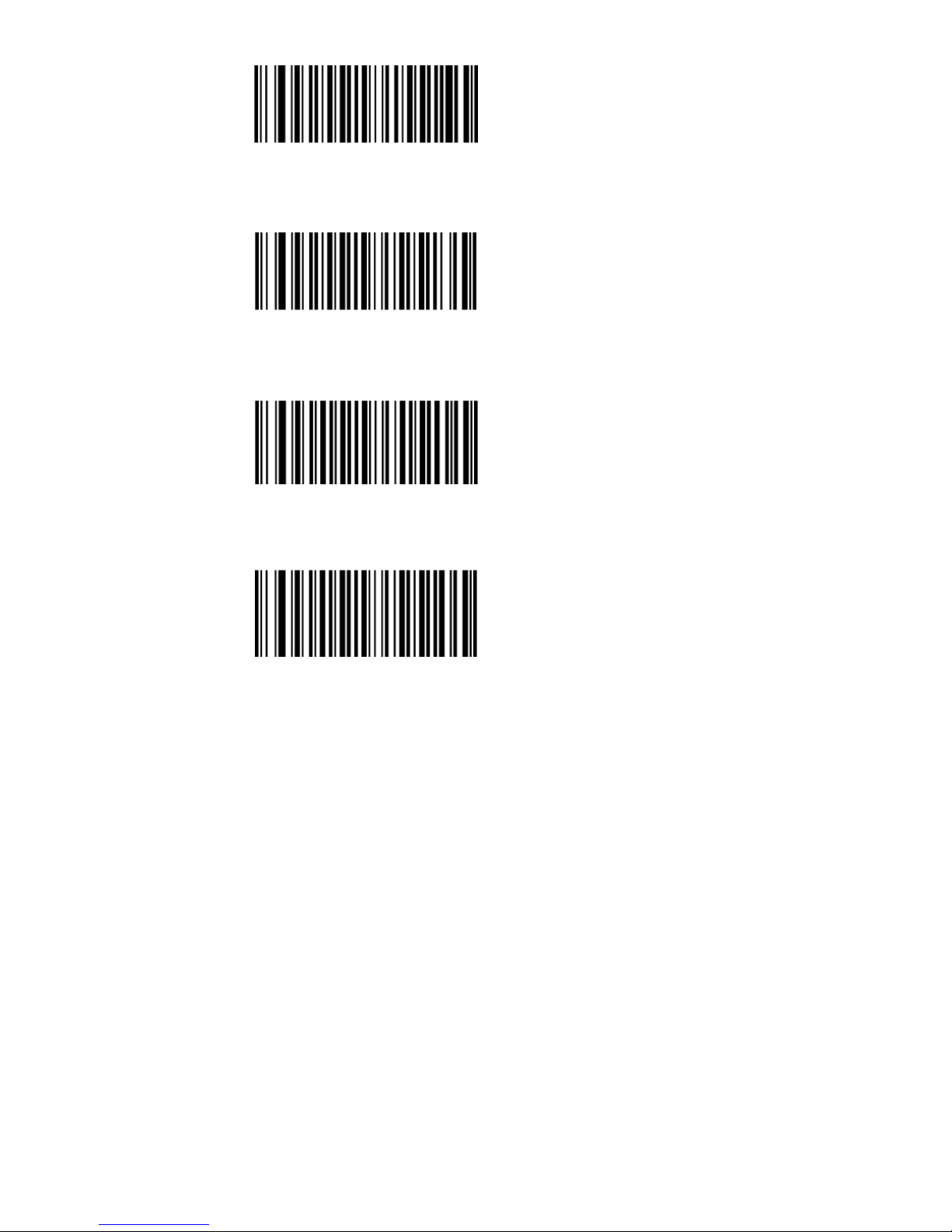

Enable 5-Digit Add-On Code
*Disable5-Digit Add-On Code
W206B40
W206B00
UPC-A Add-On Code Required
*UPC-A Add-On Code
Enable 2-Digit Add-On Code/ Enable 5-Digit
Add-On Code: The scanner decodes a mix of
UPC-Abarcodes with and without 2-digit/5-digit
add-on codes.
Disable 2-Digit Add-On Code/ Disable 5-Digit
Add-On Code: The scanner decodes UPC-A
and ignores the add-on code when presented
with a UPC-A plus add-on barcode. It can also
decode UPC-A barcodes without add-on codes.
W106B10
W106B00
Not Required
This parameter is only valid when Enable 2-Digit
Add-On Code and/or Enable 5-Digit Add-On Code
is selected.
84
Transmit Start/Stop Characters
*Do Not Transmit Start/Stop
Transmit Start/Stop Characters
DO Not Transmit Start/Stop
*ABCD/ABCD as the Start/
ABCD/TN*E as the Start/
W047404
W047400
W047504
W047500
W187500
W187508
code39
Characters code39
Characters
Stop CharacterS
Stop Characters
Transmit Start/Stop Characters
85

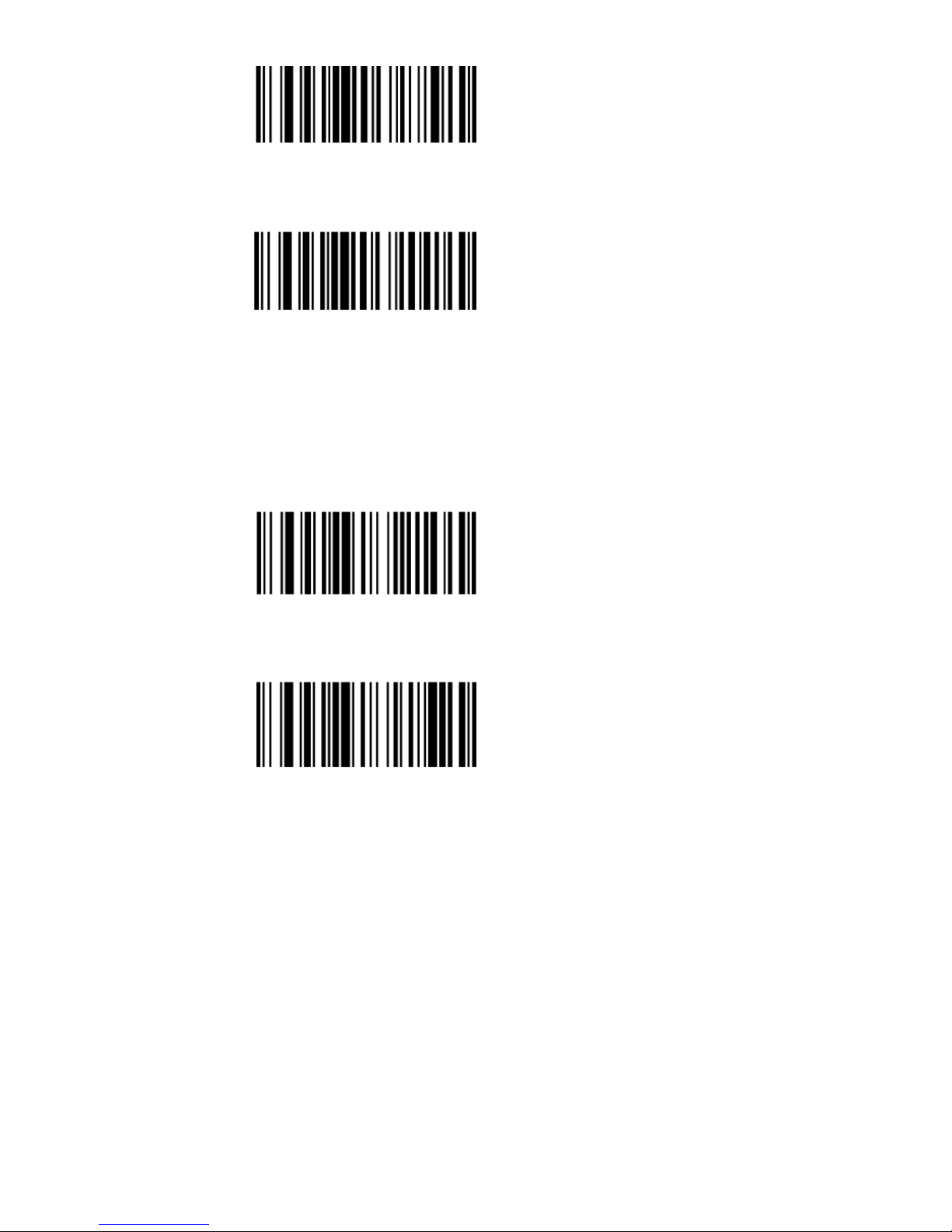

abcd/abcd as the Start/
abcd/tn*e as the Start/
W187510
W187518
Stop Characters
Stop Characters
Set ISBN Format
*ISBN-13
ISBN-10
W086800
W086808
86

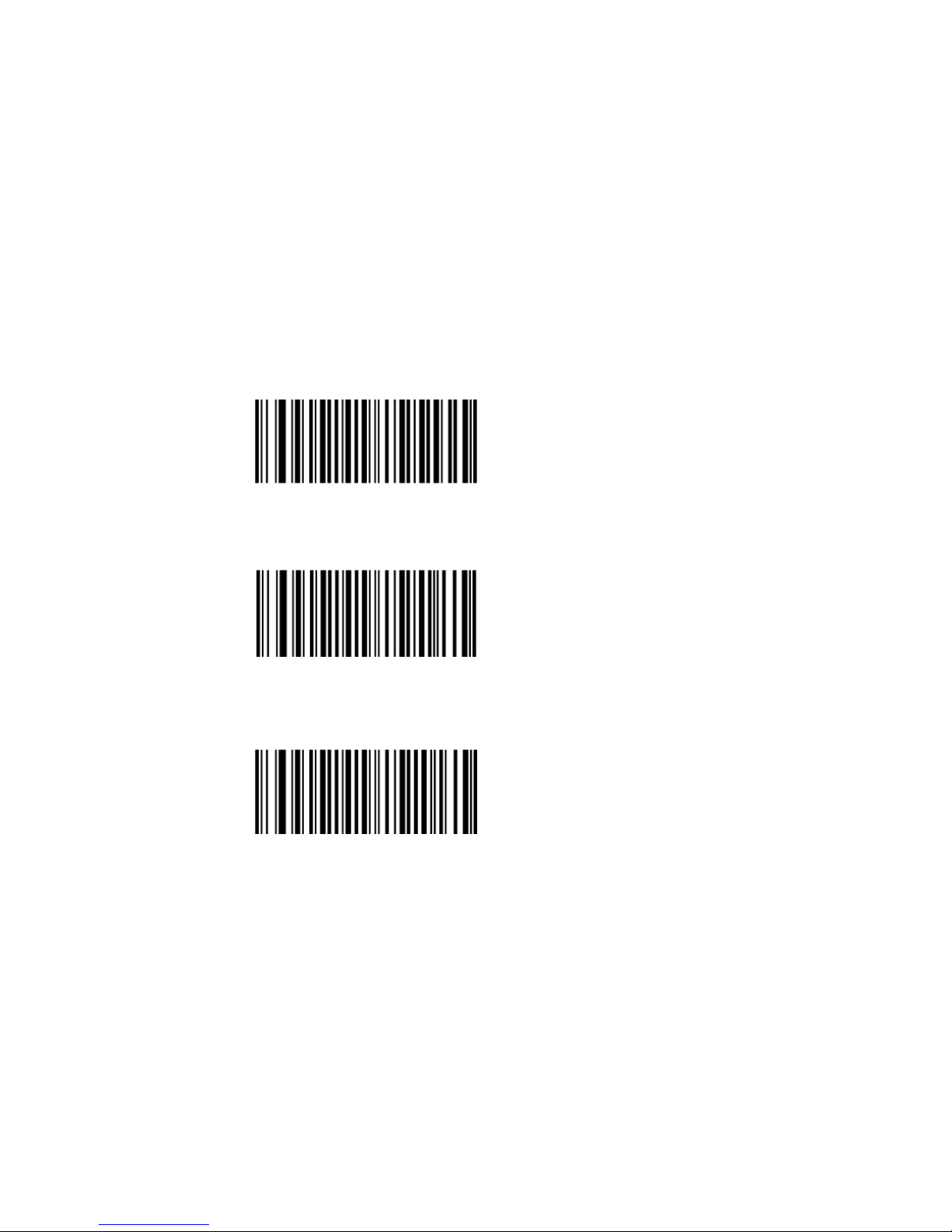

Transmit Preamble Character
Preamble characters (Countr y Code and System
Character) can be transmitted as part of a UPCAbarcode. Select one of the followingoptions for
transmitting UPC-Apreamble to the host device:
transmit system character only, transmit system
character and countrycode ("0" for USA), or
transmit no preamble.
No Preamble
*System Character
System Character &
W036A01
W036A02
W036A00
Country Code
87

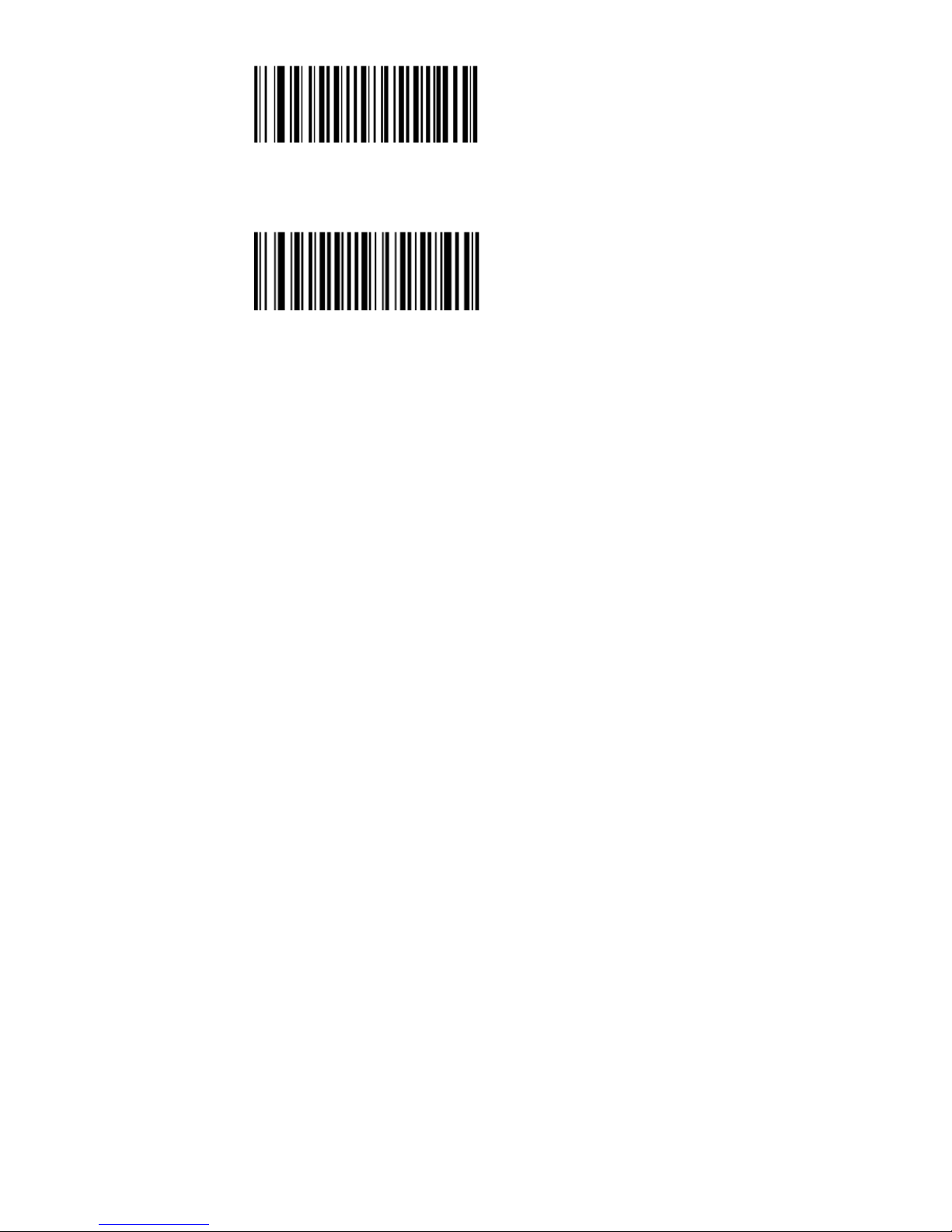

W086B00
W086B08
*Transmit UPC-A Check Digit
Do Not Transmit UPC-A

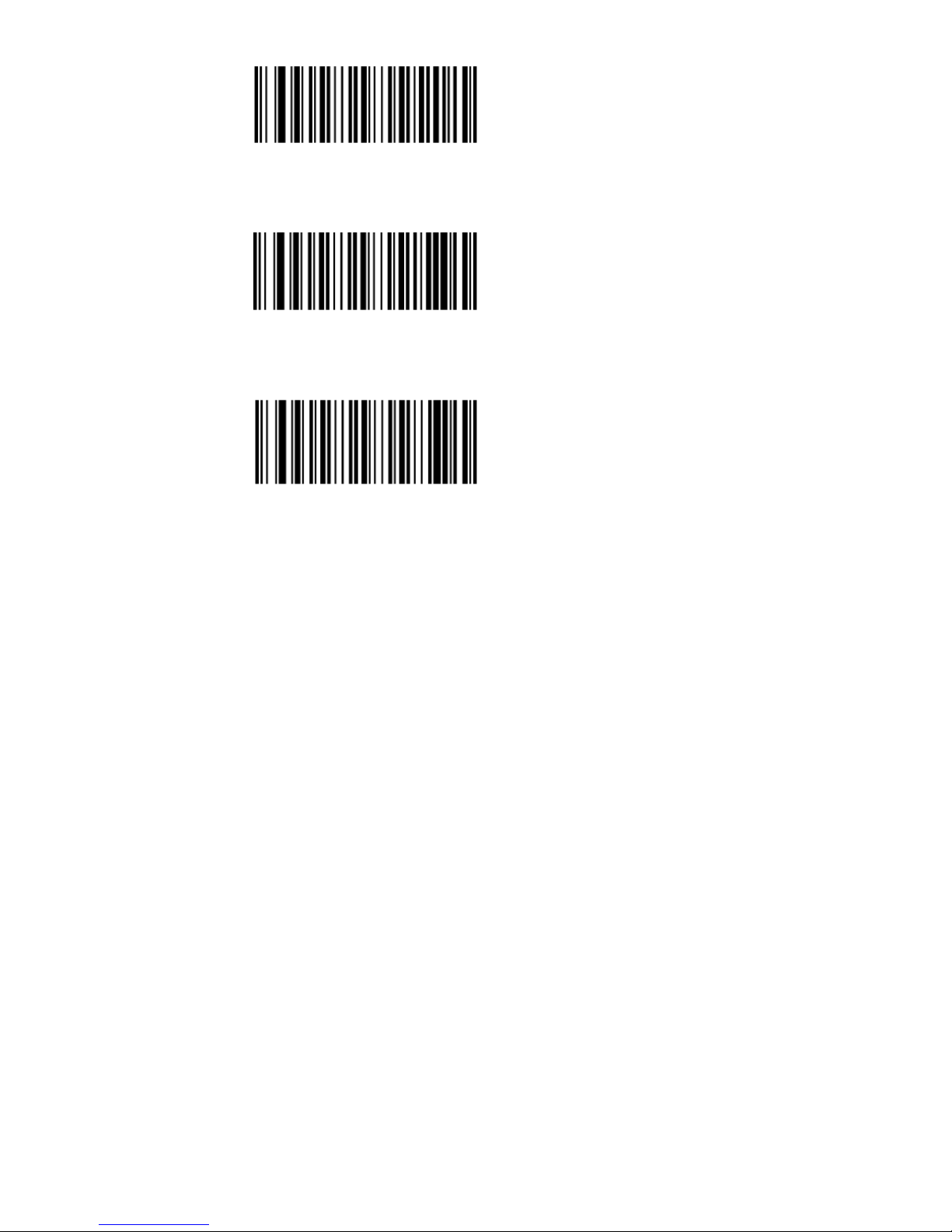

Check Digit Verification
A check digit is optional for Interleaved 2 of 5 and
can be added as the last digit. It is a calculated
value used to verify the integrity of the data.
Disable: The scanner transmits Interleaved 2 of 5
barcodes as is.
Do Not Transmit Check Digit After Verification:
The scanner checks the integrity of all Interleaved
2 of 5 barcodes to verify that the data complies
with the check digit algorithm. Barcodes passing
the check will be transmitted except the last digit,
whereas those failing it will not be transmitted.
Transmit Check Digit After Verification: The
scanner checks the integrity of all Interleaved
2 of 5 barcodes to verify that the data complies
with the check digit algorithm. Barcodes passing
the check will be transmitted, whereas those
failing it will not be transmitted.
Interleaved 2 of 5
Check Digit
88
Disable
Do Not Transmit Check Digit
Transmit Check Digit
W0C6C00
W0C6C04
W0C6C0C
Matrix 2 of 5
A check digit is optional for Matrix 2 of 5 and can
be added as the last digit. It is a calculated value
used to verify the integrity of the data.
Disable: The scanner transmits Matrix 2 of 5
barcodes as is.
Do Not Transmit Check Digit After Verification:
The scanner checks the integrity of all Matrix 2 of
5 barcodes to verify that the data complies with
the check digit algorithm. Barcodes passing the
check will be transmitted except the last digit,
whereas those failing it will not be transmitted.
Transmit Check Digit After Verification: The
scanner checks the integrity of all Matrix 2 of 5
barcodes to verify that the data complies with
the check digit algorithm . Barcodes passing
the check will be transmitted, whereas those
failing it will not be transmitted.
After Verification
After Verification
89
* Disable
Do Not Transmit Check Digit
Transmit Check Digit
W0C7100
W0C7104
W0C710C
Industrial 25
A check digit is optional for Industrial 25 and can
be added as the last digit. It is a calculated value
used to verify the integrity of the data.
Disable: The scanner transmits Industrial 25
barcodes as is.
Do Not Transmit Check Digit After Verification:
The scanner checks the integrity of all Industrial
25 barcodes to verify that the data complies with
the check digit algorithm. Barcodes passing the
check will be transmitted except the last digit,
whereas those failing it will not be transmitted.
Transmit Check Digit After Verification: The
scanner checks the integrity of all Industrial 25
barcodes to verify that the data complies with
the check digit algorithm. Barcodes passing
the check will be transmitted, whereas those
failing it will not be transmitted.
After Verification
After Verification
90
*Disable
W0C7200
W0C7204
W0C720C

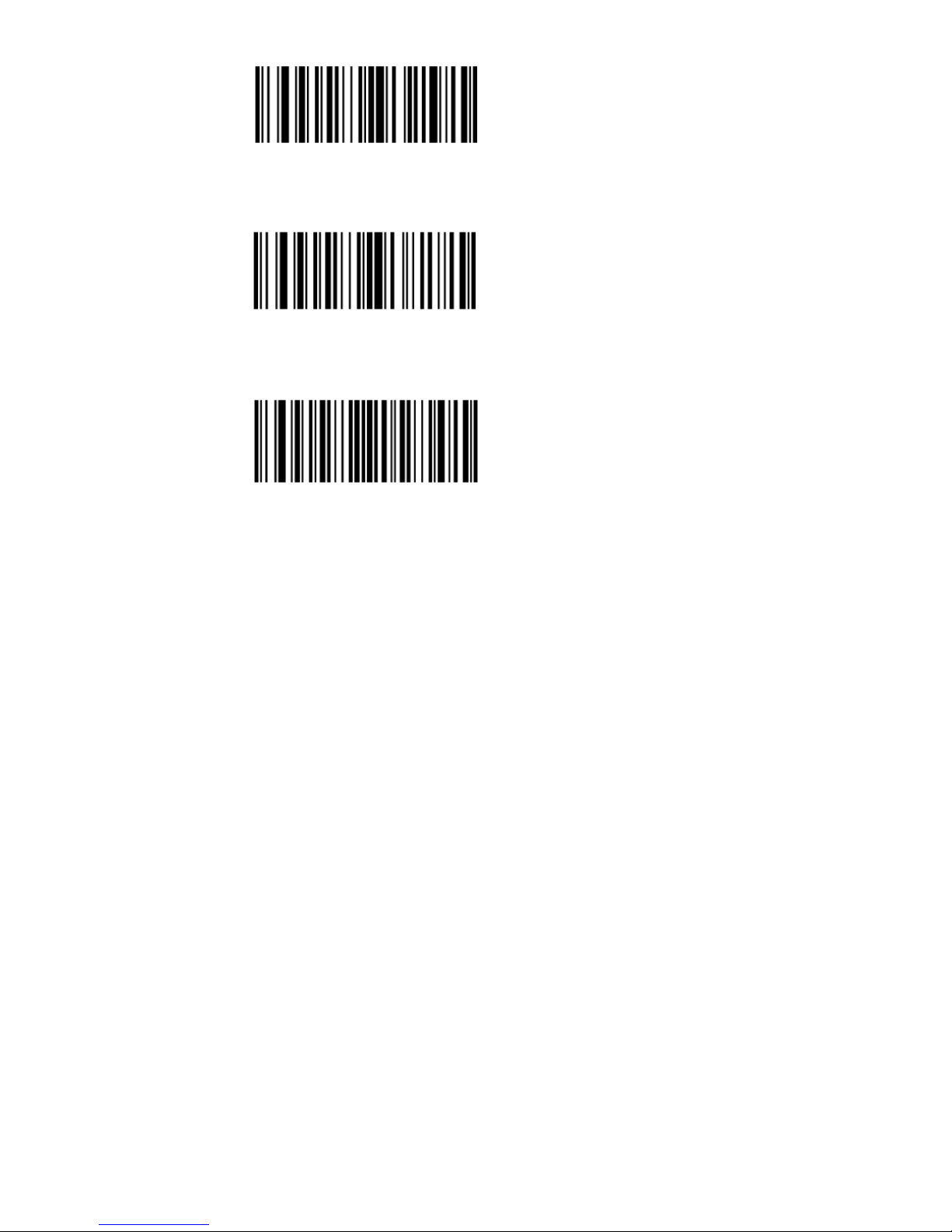

Standard 25
A check digit is optional for Standard 25 and can
be added as the last digit. It is a calculated value
used to verify the integrity of the data.
Disable: The scanner transmits Standard 25
barcodes as is.
DoNot Transmit Check Digit After Verification:
The scanner checks the integrity of all Standard 25
barcodes to verify that the data complies with the
check digit algorithm. Barcodes passing the check
will be transmitted except the last digit, whereas
those failing it will not be transmitted.
Transmit Check Digit After Verification: The
scanner checks the integrity of all Standard 25
barcodes to verify that the data complies with
the check digit algorithm . Barcodes passing
the check will be transmitted, whereas those
failing it will not be transmitted.
Do Not Transmit Check Digit
Transmit Check Digit
After Verification
After Verification
91
*Disable
W0C7300
W0C7304
W0C730C
Code 39
A check digit is optional for Code 39 and can be
added as the last digit. It is a calculated value
used to verify the integrity of the data.
Disable: The scanner transmits Code 39 barcodes
as is.
Do Not Transmit Check Digit After Verification:
The scanner checks the integrity of all Code 39
barcodes to verify that the data complies with the
check digit algorithm. Barcodes passing the check
will be transmitted except the last digit, whereas
those failing it will not be transmitted.
Transmit Check Digit After Verification: The
scanner checks the integrity of all Code 39
barcodes to verify that the data complies with
the check digit algorithm. Barcodes passing
the check will be transmitted, whereas those
failing it will not be transmitted.
Do Not Transmit Check Digit
Transmit Check Digit
After Verification
After Verification
92
W187400
W187408
W187418

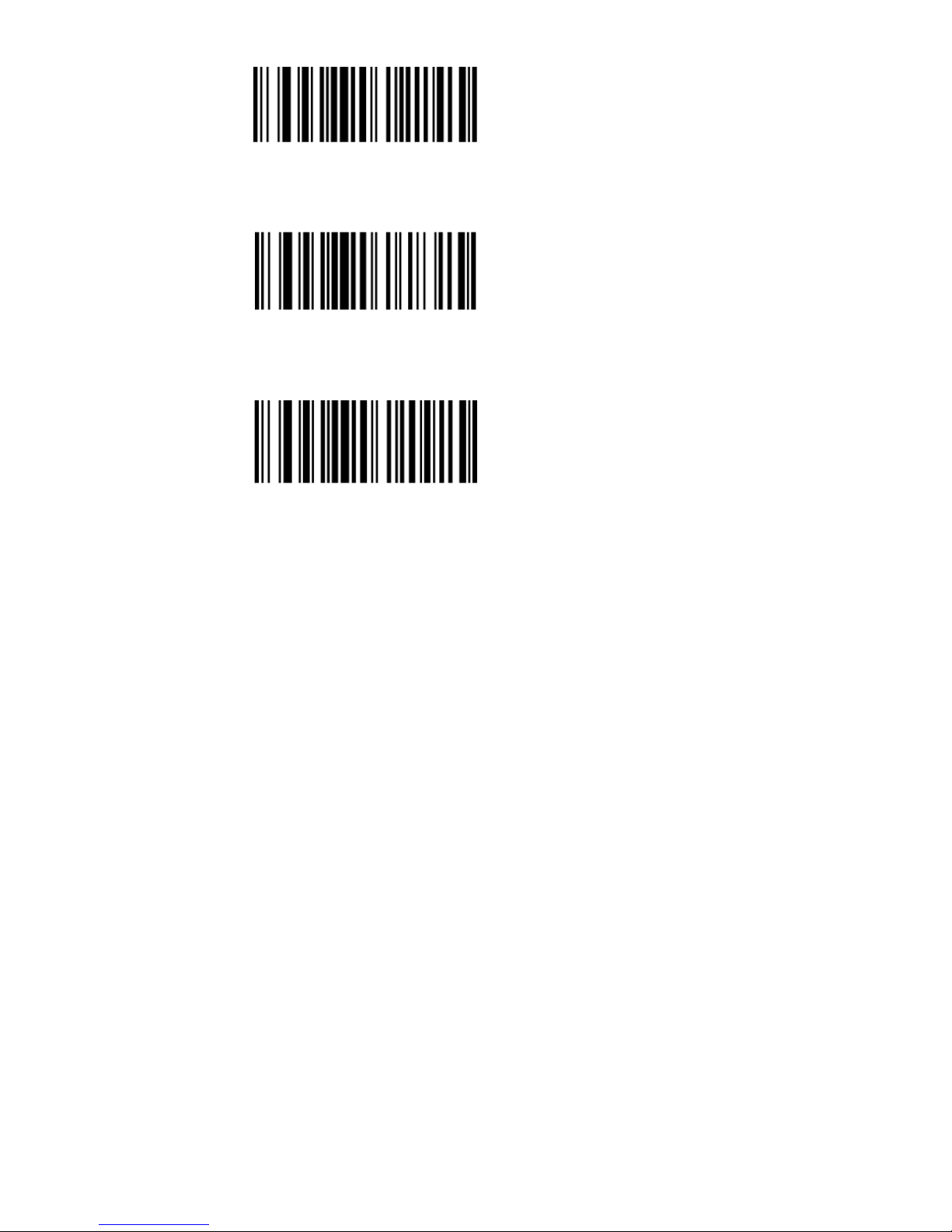

Codabar
A check digit is optional for Codabar and can be
added as the last digit. It is a calculated value used
to verify the integrity of the data.
Disable: The scanner transmits Codabar barcodes
as is.
Do Not Transmit Check Digit After Verification:
The scanner checks the integrity of all Codabar
barcodes to verify that the data complies with the
check digit algorithm. Barcodes passing the check
will be transmitted except the last digit, whereas
those failing it will not be transmitted.
Transmit Check Digit After Verification: The
scanner checks the integrity of all Codabar
barcodes to verify that the data complies with
the check digit algorithm. Barcodes passing
the check will be transmitted, whereas those
failing it will not be transmitted.

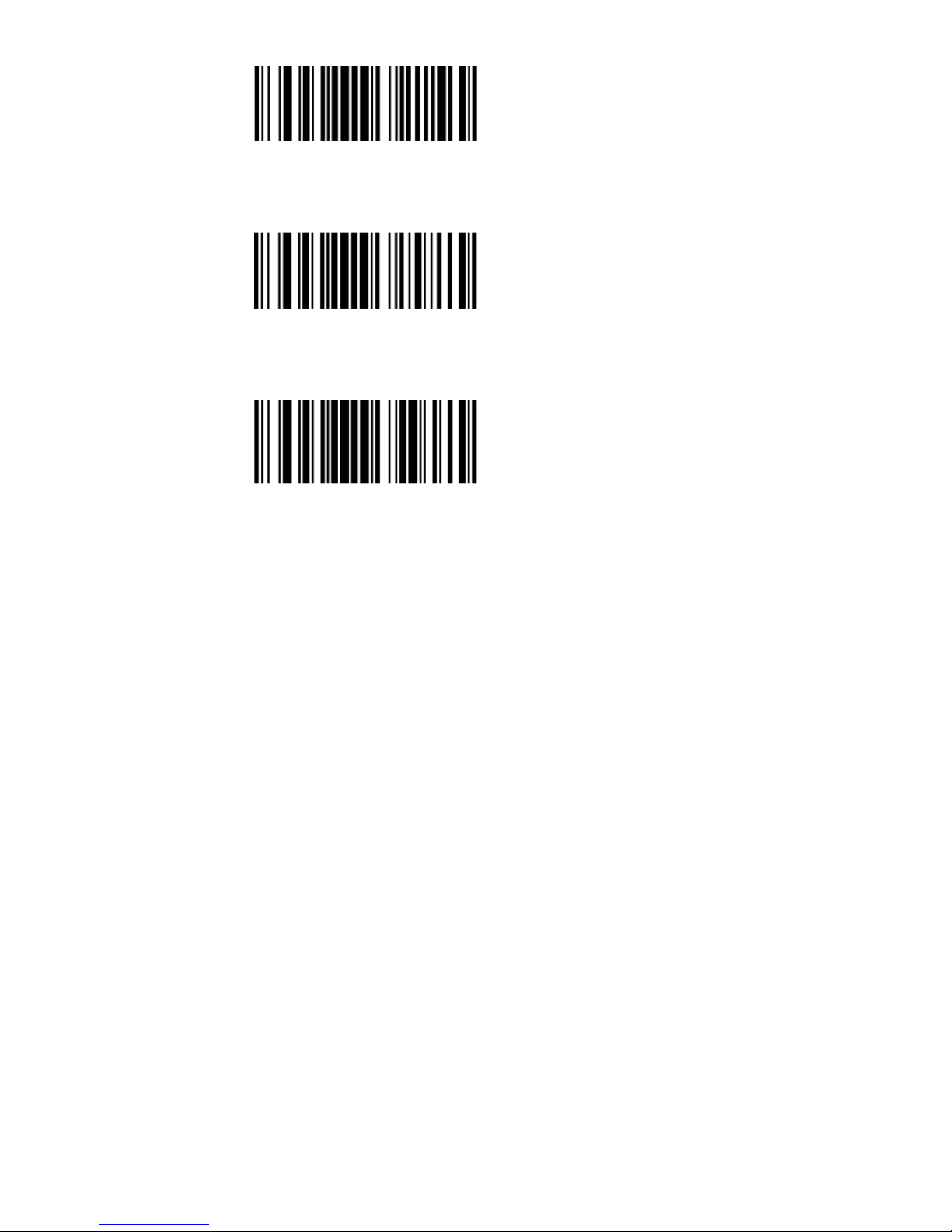

*Disable
Do Not Transmit Check Digit
Transmit Check Digit
After Verification
After Verification
93
W607500
W607520
W607560
Code 93
Check digits are optional for Code 93 and can be added
as the last two digits, which are calculated values used
to verify the integrity of the data.
Disable: The scanner transmits Code 93 barcodes as is.
Do Not Transmit Check Digit After Verification: The
scanner checks the integrity of all Code 93 barcodes to
verify that the data complies with the check digit
algorithm. Barcodes passing the checks will be
transmitted except the last two digits, whereas those
failing them will not be transmitted.
Transmit Check Digit After Verification: The scanner
checks the integrity of all Code 93 barcodes to verif y
that the data complies with the check digit
algorithm. Barcodes passing the checks will be
transmitted, whereas those failing them will not be
transmitted.
*Disable
Do Not Transmit Check Digit
Transmit Check Digit
After Verification
After Verification
94
W0C7600
W0C7604
W0C760C
Plessey
Check digits are optional for and can be added as
the last one or two digits, which are calculated
values used to verify the integrity of the data.
Disable: The scanner transmits Plessey barcodes
as is.
Do Not Transmit Check Digit After Verification:
The scanner checks the integrity of all Plessey
barcodes to verify that the data complies with the
check digit algorithm. Barcodes passing the
checks will be transmitted except the last two
digits, whereas those failing them will not be
transmitted.
Transmit Check Digit After Verification: The
scanner checks the integrity of all Plessey
barcodes to verify that the data complies with
the check digit algorithm. Barcodes passing
the checks will be transmitted, whereas those
failing them will not be transmitted.
Disable
*Do Not Transmit Check Digit
Transmit Check Digit
After Verification
After Verification
95
W0C7800
W0C7804
W0C780C

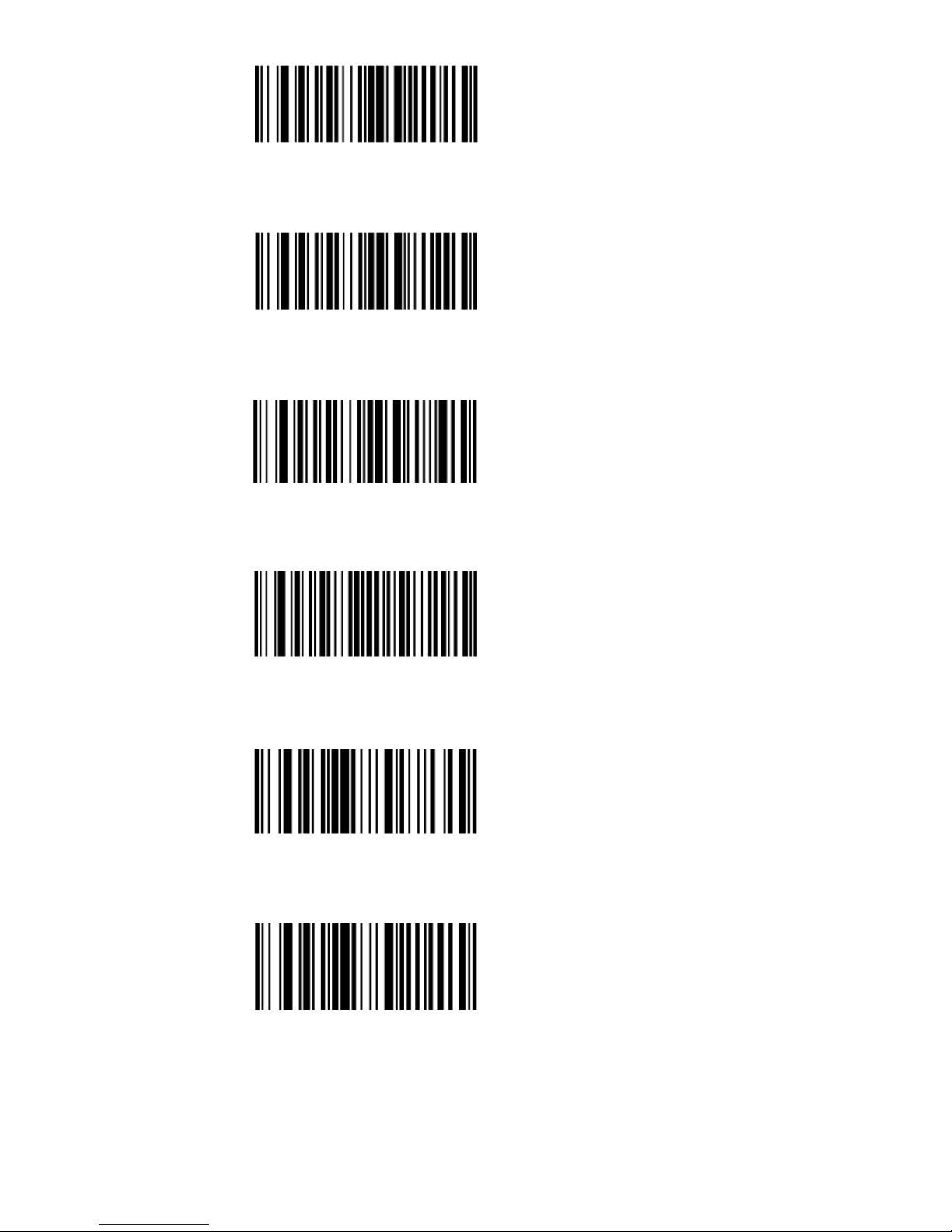

Code 11
Check digits are optional for Code 11 and can be
added as the last one or two digits, which are
calculated values used to verify the integrity of
the data.
If the Disable option is enabled, the scanner
transmits Code 11 barcodes as is.
Disable
Transmit Check Digit
After Verification
After Verification
96
Disable
*One Check Digit,MOD10
Two Check Digits,
Two Check Digits,
Transmit Check Digit
*Do Not Transmit Check Digit
W0C7900
W0C7904
W0C7908
W0C790C
W0C7910
W0C7900
MOD10/MOD10
MOD10/MOD
97

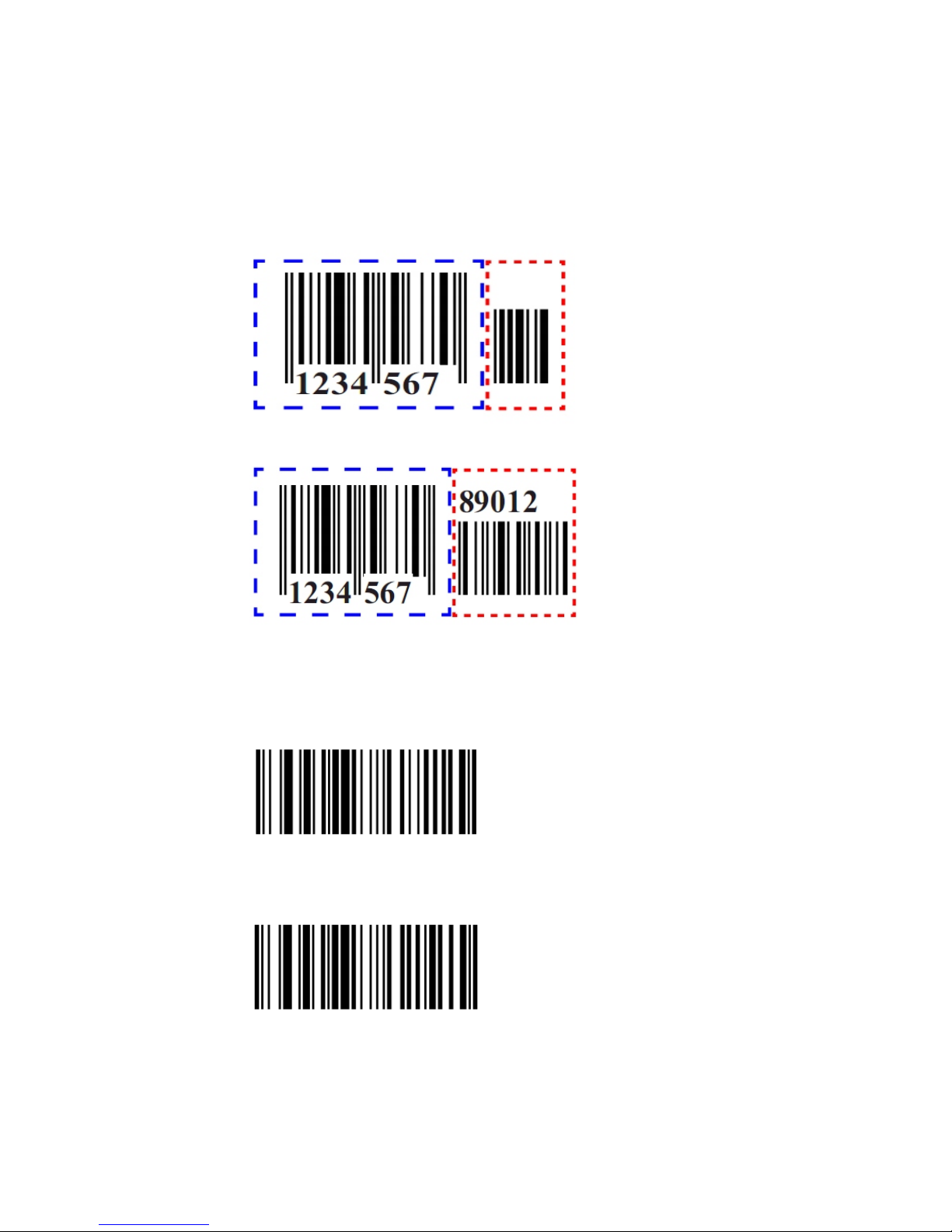

Add-On Code
An EAN-8 barcode can be augmented with a two-digit
or five-digit add-on code to form a new one. In the
examples below, the par t surrounded by blue dotted
line is an EAN-8 barcode while the part circled by red
dotted line is add-on code.
Enable 2-Digit Add-On Code
*Disable 2-Digit Add-On Code
W106510
W106500
98
Loading...
