Sunlux XL-3100, XL-3956 Series User Manual

Download
XL-3100
2D Barcode Scanner
User's Manual
V1.0
Table of Contents
Revision History ............................................................................................................................................... -3-
Chapter 1 Getting Started .................................................................................................................................. 1
Configuring the XL-3100 … ..................................................................................................................... 2
Barcode Programming ...................................................................................................................... 2
Command Programming .................................................................................................................. 2
Read Register ............................................................................................................................ 3
Write Register ............................................................................................................................ 7
Save Register Data in EEPROM ............................................................................................. 11
Relationship between Programming Command and Serial Command .................................. 12
Registers ................................................................................................................................. 14
Chapter 2 Communication Interfaces ............................................................................................................ 27
Baud Rate ....................................................................................................................................... 28
USB DATAPIPE .............................................................................................................................. 29
USB HID-KBW ................................................................................................................................ 29
Standard Keyboard ................................................................................................................. 30
Emulate ALT+Keypad ............................................................................................................. 30
Function Key Mapping ............................................................................................................. 31
ASCII Function Key Mapping Table ........................................................................................ 32
USB Country Keyboard Types ................................................................................................ 33
Beep on Unknown Character .................................................................................................. 36
Inter-Keystroke Delay .............................................................................................................. 36
Caps Lock ................................................................................................................................ 37
Convert Case ........................................................................................................................... 38
Emulate Numeric Keypad........................................................................................................ 39
USB COM Port Emulation .............................................................................................................. 40
HID-POS ......................................................................................................................................... 40
Access the Scanner with Your Program ................................................................................. 41
Acquire Scanned Data ............................................................................................................ 41
VID/PID .................................................................................................................................... 41
Chapter 3 Scan Mode ....................................................................................................................................... 42
Decode Session Timeout ............................................................................................................... 43
Timeout between Decodes ............................................................................................................. 44
Decode Session Timeout ............................................................................................................... 45
Timeout between Decodes ............................................................................................................. 46
Image Stabilization Timeout ........................................................................................................... 46
Sensitivity ........................................................................................................................................ 47
Decode Session Timeout ............................................................................................................... 48
Chapter 4 Illumination & Aiming..................................................................................................................... 50
Chapter 5 Notification ...................................................................................................................................... 52
Good Read Beep Frequency .......................................................................................................... 53
Good Read Beep Duration ............................................................................................................. 53
Chapter 6 Data Formatting .............................................................................................................................. 55
Chapter 7 Symbologies ................................................................................................................................... 58
Enable/Disable All Symbologies ..................................................................................................... 58
Enable/Disable 1D Symbologies .................................................................................................... 58
Enable/Disable 2D Symbologies .................................................................................................... 58
Video Reverse ................................................................................................................................ 59
Code 128 ........................................................................................................................................ 60
Restore Factory Defaults......................................................................................................... 60
Enable/Disable Code 128........................................................................................................ 60
UCC/EAN-128 (GS1-128) .............................................................................................................. 61
Restore Factory Defaults......................................................................................................... 61
Enable/Disable UCC/EAN-128 ................................................................................................ 61
AIM 128 ........................................................................................................................................... 62
Restore Factory Defaults......................................................................................................... 62
Enable/Disable AIM 128 .......................................................................................................... 62
EAN-8 ............................................................................................................................................. 63
Restore Factory Defaults......................................................................................................... 63
Enable/Disable EAN-8 ............................................................................................................. 63
Transmit Check Digit ............................................................................................................... 63
Add-On Code ........................................................................................................................... 64
Add-On Code Required ........................................................................................................... 65
EAN-8 Extension ..................................................................................................................... 65
EAN-13 ........................................................................................................................................... 66
Restore Factory Defaults .......................................................................................................... 66
Enable/Disable EAN-13 ........................................................................................................... 66
Transmit Check Digit ............................................................................................................... 66
Add-On Code ........................................................................................................................... 67
Add-On Code Required ........................................................................................................... 68
ISSN ................................................................................................................................................ 69
Restore Factory Defaults......................................................................................................... 69
Enable/Disable ISSN ............................................................................................................... 69
ISBN ................................................................................................................................................ 70
Restore Factory Defaults......................................................................................................... 70
Enable/Disable ISBN ............................................................................................................... 70
Set ISBN Format ..................................................................................................................... 70
UPC-E ............................................................................................................................................. 71
Restore Factory Defaults......................................................................................................... 71
Enable/Disable UPC-E ............................................................................................................ 71
Transmit Check Digit ............................................................................................................... 71
Add-On Code ........................................................................................................................... 72
Add-On Code Required ........................................................................................................... 73
Transmit System Character .................................................................................................... 73
UPC-E Extension .................................................................................................................... 73
UPC-A ............................................................................................................................................. 74
Restore Factory Defaults......................................................................................................... 74
Enable/Disable UPC-A ............................................................................................................ 74
Transmit Check Digit ............................................................................................................... 74
Add-On Code ........................................................................................................................... 75
Add-On Code Required ........................................................................................................... 76
Transmit Preamble Character ................................................................................................. 76
Interleaved 2 of 5 ............................................................................................................................ 77
Restore Factory Defaults......................................................................................................... 77
Enable/Disable Interleaved 2 of 5 ........................................................................................... 77
Check Digit Verification ........................................................................................................... 78
Transmit Appended “0” ............................................................................................................ 79
ITF-6 ............................................................................................................................................... 80
ITF-14 ............................................................................................................................................. 81
Matrix 2 of 5 .................................................................................................................................... 82
Restore Factory Defaults......................................................................................................... 82
Enable/Disable Matrix 2 of 5 ................................................................................................... 82
Check Digit Verification ........................................................................................................... 83
Industrial 25 .................................................................................................................................... 84
Restore Factory Defaults......................................................................................................... 84
Enable/Disable Industrial 25 ................................................................................................... 84
Check Digit Verification ........................................................................................................... 85
Standard 25 .................................................................................................................................... 86
Restore Factory Defaults......................................................................................................... 86
Enable/Disable Standard 25 ................................................................................................... 86
Check Digit Verification ........................................................................................................... 87
Code 39 .......................................................................................................................................... 88
Restore Factory Defaults......................................................................................................... 88
Enable/Disable Code 39.......................................................................................................... 88
Transmit Start/Stop Character ................................................................................................ 88
Check Digit Verification ........................................................................................................... 89
Enable/Disable Code 39 Full ASCII ........................................................................................ 89
Codabar .......................................................................................................................................... 90
Restore Factory Defaults......................................................................................................... 90
Enable/Disable Codabar ......................................................................................................... 90
Check Digit Verification ........................................................................................................... 91
Transmit Start/Stop Character ................................................................................................ 91
Start/Stop Character Format ................................................................................................... 92
Code 93 .......................................................................................................................................... 93
Restore Factory Defaults......................................................................................................... 93
Enable/Disable Code 93.......................................................................................................... 93
Check Digit Verification ........................................................................................................... 94
Code 11 .......................................................................................................................................... 95
Restore Factory Defaults......................................................................................................... 95
Enable/Disable Code 11.......................................................................................................... 95
Check Digit Verification ........................................................................................................... 96
Plessey ........................................................................................................................................... 97
Restore Factory Defaults......................................................................................................... 97
Enable/Disable Plessey ........................................................................................................... 97
Check Digit Verification ........................................................................................................... 98
MSI-Plessey .................................................................................................................................... 99
Restore Factory Defaults......................................................................................................... 99
Enable/Disable MSI-Plessey ................................................................................................... 99
Check Digit Verification ......................................................................................................... 100
RSS-14 ......................................................................................................................................... 101
Restore Factory Defaults....................................................................................................... 101
Enable/Disable RSS-14 ......................................................................................................... 101
Transmit Application Identifier “01” ....................................................................................... 101
RSS-Limited .................................................................................................................................. 102
Restore Factory Defaults....................................................................................................... 102
Enable/Disable RSS-Limited ................................................................................................. 102
Transmit Application Identifier “01” ....................................................................................... 102
RSS-Expand ................................................................................................................................. 103
Restore Factory Defaults....................................................................................................... 103
Enable/Disable RSS-Expand ................................................................................................ 103
PDF417 ......................................................................................................................................... 104
Restore Factory Defaults....................................................................................................... 104
Enable/Disable PDF417 ........................................................................................................ 104
Data Matrix.................................................................................................................................... 105
Restore Factory Defaults....................................................................................................... 105
Enable/Disable Data Matrix ................................................................................................... 105
Rectangular Barcodes ........................................................................................................... 105
Mirror Images ........................................................................................................................ 106
QR Code ....................................................................................................................................... 107
Restore Factory Defaults....................................................................................................... 107
Enable/Disable QR Code ...................................................................................................... 107
Micro QR ............................................................................................................................... 107
Mirrored Micro QR ................................................................................................................. 108
Appendix ......................................................................................................................................................... 109
Program the Decode Session Timeout ........................................................................................ 123
Program the Timeout between Decodes ...................................................................................... 123
Program the Image Stabilization Timeout .................................................................................... 123
Program the Sensitivity Level ....................................................................................................... 124
Chapter 1 Getting Started
Introduction
The XL-3100supports all mainstream 1D as well as PDF417, QR Code (QR1, QR2, Micro QR), Data Matrix and GS1-DataBarTM(RSS) (RSS-Limited, RSS-14, RSS-14 Stacked and RSS-Expand).
The XL-3100 can read barcodes on virtually any medium - paper, plastic card, mobile phones and LCD displays. It provides an ideal solution for both emerging mobile phone-based barcode applications, like coupons, e-tickets and boarding passes, and traditional applications.
TheXL-3100’s instant power on/off feature along with ultra low power consumption brings greater efficiency and convenience in barcode scanning applications.
1
About This Guide
This guide provides programming instructions for the XL-3100. Users can configure the XL-3100 by scanning the programming barcodes included in this manual.
The XL-3100 has been properly configured for most applications and can be put into use without further configuration. Users may check the Factory Defaults Table in Appendix for reference. Throughout the manual, programming barcodes marked with asterisks (**) are factory default values.
Barcode Scanning
Powered by area-imaging technology，the XL-3100 features fast scanning and accurate decoding. Barcodes rotated at any angle can still be read with ease. When scanning a barcode, simply center the aiming pattern projected by the XL-3030-Mover the barcode.
Configuring the XL-3100
There are two ways to configure the engine: barcode programming and command programming.
Barcode Programming
The XL-3100 can be configured by scanning programming barcodes. All user programmable features/ options are described along with their programming barcodes/commands in the following sections.
2
Command Programming
Besides the barcode programming method, the XL-3100 can also be configured by serial commands sent from the host device. Note that communication parameters on the engine and the host must match so that two devices can communicate with each other. The default settings of the engine are 9600bps, no parity check, 8 data bits, 1 stop bit, and no flow control. The engine uses 8-bit registers.
Read Register
The read command is used to read the contents of 1 to 256 contiguous registers in the engine.
Syntax: {Prefix1} {Types} {Lens} {Address} {Datas} {FCS}
Prefix1 : 0x7E 0x00 Types : 0x07 Lens : 0x01 Address: 0x0000~0x00FF, starting register address. Datas : 0x00~0xFF, number of registers to be read. When Datas=0x00, 256 contiguous
registers are to be read.
FCS : CRC-CCITT checksum, 2 bytes.
Computation sequence: Types+ Lens+Address+Datas; polynomial: X16+X12+X5+1 (0x1021), initial value: 0x0000.
The following C language program is provided for reference.
3
unsigned int crc_cal_by_bit(unsigned char* ptr, unsigned int len) { unsigned int crc = 0; while(len-- != 0) { for(unsigned char i = 0x80; i != 0; i /= 2) { crc *= 2; if((crc&0x10000) !=0) crc ^= 0x11021; if((*ptr&i) != 0) crc ^= 0x1021; } ptr++; } return crc; }
4
Reply: {Prefix2} {Types} {Lens} {Datas} {FCS}
1) Success message: Prefix2 : 0x02 0x00 Types : 0x00 (success) Lens : The number of data returned. If Lens=0x00, that means values of 256 contiguous
registers are returned. Datas : 0x00~0xFF, data that are returned. FCS : CRC-CCITT checksum.
2) CRC check failure message: Prefix2 : 0x02 0x00 Types : 0x01 (CRC check failure) Lens : 0x01 Datas : 0x00 FCS : CRC-CCITT checksum (0x04 0x01)
3) Invalid command message: Prefix2 : 0x02 0x00 Types : 0x03 (invalid command) Lens : 0x01 Datas : 0x00 FCS : CRC-CCITT checksum (0x6A 0x61)
5
Example:
Read the content (0x3E) of register 0x000A
1) Read operation succeeds:
Command sent: 0x7E 0x00 0x07 0x01 0x00 0x0A 0x01 0xEE 0x8A Message received: 0x02 0x00 0x00 0x01 0x3E 0xE4 0xAC
2) CRC check fails:
Command sent: 0x7E 0x00 0x07 0x01 0x00 0x0A 0x01 0x11 0x22 Message received: 0x02 0x00 0x01 0x01 0x00 0x04 0x01
3) Situations that may cause the engine to respond with an invalid command message: Command sent is
shorter than the required length, or the third byte is not sent out within 400ms after the first two bytes
“0x7e 0x00” are sent
Command sent: 0x7E 0x00 0x07 0x01 0x00 0x0A 0x01 Message received:0x02 0x00 0x03 0x01 0x00 0x6A 0x61
6
Write Register
The write command is used to write contiguous registers (1 to 256 registers) in the engine.
Syntax: {Prefix1} {Types} {Lens} {Address} {Datas} {FCS}
Prefix1 : 0x7E 0x00 (2 bytes) Types : 0x08 (1 byte) Lens : 0x00~0xFF (1 byte), byte count, i.e. number of registers written. When Lens=0x00, 256
contiguous registers are to be written. Address : 0x0000~0xFFFF (2 bytes), starting register address. Datas : 0x00~0xFF (1~256 bytes), data to be written into the register(s) FCS : CRC-CCITT checksum, 2 bytes.
Computation sequence: Types+ Lens+Address+Datas; polynomial: X16+X12+X5+1 (0x1021), initial value: 0x0000.
The following C language program is provided for reference.
7
unsigned int crc_cal_by_bit(unsigned char* ptr, unsigned int len) { unsigned int crc = 0; while(len-- != 0) { for(unsigned char i = 0x80; i != 0; i /= 2) { crc *= 2; if((crc&0x10000) !=0) crc ^= 0x11021; if((*ptr&i) != 0) crc ^= 0x1021; } ptr++; } return crc; }
8
Reply: {Prefix2} {Types} {Lens} {Datas} {FCS}
1) Success message: Prefix2 : 0x02 0x00 Types : 0x00 (success) Lens : 0x01 Datas : 0x00 FCS : CRC-CCITT checksum (0x33 0x31)
2) CRC check failure message: Prefix2 : 0x02 0x00 Types : 0x01 (CRC check failure) Lens : 0x01 Datas : 0x00 FCS : CRC-CCITT checksum (0x04 0x01)
3) Invalid command message: Prefix2 : 0x02 0x00 Types : 0x03 (invalid command) Lens : 0x01 Datas : 0x00 FCS : CRC-CCITT checksum (0x6A 0x61)
9
Example:
Write 0x3E into register 0x000A
1) Write operation succeeds:
Command sent: 0x7E 0x00 0x08 0x01 0x00 0x0A 0x3E 0x4C 0xCF Message received: 0x02 0x00 0x00 0x01 0x00 0x33 0x31
2) CRC check fails:
Command sent: 0x7E 0x00 0x08 0x01 0x00 0x0A 0x3E 0x11 0x22 Message received: 0x02 0x00 0x01 0x01 0x00 0x04 0x01
3) Situations that may cause the engine to respond with an invalid command message: Command sent is
shorter than the required length, or the third byte is not sent out within 400ms after the first two bytes
“0x7e 0x00” are sent
Command sent: 0x7E 0x00 0x08 0x01 0x00 0x0A 0x3E Message received: 0x02 0x00 0x03 0x01 0x00 0x6A 0x61
10
Save Register Data in EEPROM
The save command is used to save register data into an external EEPROM. Syntax: {Prefix1} {Types} {Lens} {Address} {Datas} {FCS}
Prefix1 : 0x7E 0x00 Types : 0x09 Lens : 0x01 Address: 0x0000 Datas : 0x00 FCS : CRC-CCITT checksum (0xDE 0xC8)
Reply: {Prefix2} {Types} {Lens} {Datas} {FCS}
1) Success message: Prefix2 : 0x02 0x00 Types : 0x00 (success) Lens : 0x01 Datas : 0x00 FCS : CRC-CCITT checksum (0x33 0x31)
2) CRC check failure message: Prefix2 : 0x02 0x00 Types : 0x01 (CRC check failure) Lens : 0x01 Datas : 0x00 FCS : CRC-CCITT checksum (0x04 0x01)
11
3) Invalid command message: Prefix2 : 0x02 0x00 Types : 0x03 (invalid command) Lens : 0x01 Datas : 0x00 FCS : CRC-CCITT checksum (0x6A 0x61)
12
Relationship between Programming Command and Serial Command
1st Char
2nd Char ~3rd Char
4th Char~5th Char
6th Char~7th Char
Remark
CMD
BITPOSITION
ADDR
DATA
“W”
“00”~“FF”
“00”~“FF”
“00”~“FF”
Write a value (DATA) to the specified bits (BITPOSITION) of the register (ADDR).
1. Program general parameter with serial command
A programming command (i.e. the characters under programming barcode) contains 7 characters. The function of each character is described in the table below.
Note:1. CMD: Command type.
2. ADDR: Address of register to be written.
3. BITPOSITION: Bit(s) the value is written to. For example, if only bit 3 is to be written, the BITPOSITION should be “08”; if all bits are to be written, the BITPOSITION should be “FF”.
4. DATA: Value written to the BITPOSITION.
The ADDR and DATA in programming command correspond to Address and Datas in serial command, respectively:
1) If BITPOSITION=”FF”, the values of ADDR and DATA can be used directly in the write command. e.g., programming command: WFFD9D8 (write value 0xD8 to register 0x00D9)
serial command sent : 0x7E 0x00 0x08 0x01 0x00 0xD9 0xD8 0x91 0x53 reply received : 0x02 0x00 0x00 0x01 0x00 0x33 0x31
2) If BITPOSITION≠”FF”, users need to read the register content, calculate the value (Datas) and then write the value into the register, as shown in the following example.
e.g., programming command: W030002 (write value 0x02 to bit1and bit0 of register 0x0000)
Step 1: Read the content of register 0x0000.
serial command sent : 0x7E 0x00 0x07 0x01 0x00 0x00 0x01 0x01 0x41
13
reply received : 0x02 0x00 0x00 0x01 0xD4 0xB8 0xC8
Feature
Serial Command
Program the sensitivity level
0x7E 0x00 0x08 0x01 0x00 0x03 0xTT 0xSS 0xSS
Program the image stabilization timeout
0x7E 0x00 0x08 0x01 0x00 0x04 0xTT 0xSS 0xSS
Program the timeout between decodes
0x7E 0x00 0x08 0x01 0x00 0x05 0xTT 0xSS 0xSS
Program the decode session timeout
0x7E 0x00 0x08 0x01 0x00 0x06 0xTT 0xSS 0xSS
Step 2: Calculate the value written to the register.
Datas = (0xD4 & (! 0x03)) + 0x02 = 0xD5
Step 3: Write the value into the register.
serial command sent : 0x7E 0x00 0x08 0x01 0x00 0x00 0xD5 0xEF 0x41 reply received : 0x02 0x00 0x00 0x01 0x00 0x33 0x31
2. Program special parameter with serial command
The serial commands used for programming the following parameters are practically irrelevant to their programming commands.
Note: Red: Address of register.
Blue: Value written to register. For example, to set the sensitivity level to 10, 0xTT should be 0x0A.
Pink: CRC checksum calculated.
3. Save register data in EEPROM
Scanning a programming barcode can change register value and save register data in EEPROM as well. As for command programming, it requires a write command and a save command to perform these two tasks. To save register data in an external EEPROM, users need to send the save command to the engine.
save command sent: 0x7E 0x00 0x09 0x01 0x00 0x00 0xDE 0xC8
reply received : 0x02 0x00 0x00 0x01 0x00 0x33 0x31
14
Registers
Register
0x0000
Bit
Feature
Bit 7
1: Good read LED on 0: Good read LED off
Bit 6
1: Disable the mute mode 0: Enable the mute mode
Bit 5-4
Aiming: 00: OFF 01: Normal 10/11: Always ON
Bit 3-2
Illumination: 00: OFF 01: Normal 10/11: Always ON
Bit 1-0
Scan Mode: 00: Manual Mode 01: Command Trigger Mode 10: Continuous Mode 11: Sense Mode
Register
0x0002
Bit
Feature
Bit 7
1: Enable CODE ID prefix for all symbologies 0: Disable CODE ID prefix for all symbologies
Bit 6
1: Enable decode result notification 0: Disable decode result notification
Bit 5
Reserved
Bit 4
1: Video reverse ON 0: Video reverse OFF
Bit 3-0
Reserved
Register
0x0004
Bit
Feature
Bit 7-0
Image Stabilization Timeout: 0x00-0xFF: 0.0-25.5s
Register
0x0005
Bit
Feature
Bit 7-0
Timeout between Decodes: 0x00-0xFF: 0.0-25.5s
Register
0x0006
Bit
Feature
Bit 7-0
Decode Session Timeout: 0x00-0xFF: 0.0-25.5s
15
Register
0x0009
Bit
Feature
Bit 7-0
Good Read Beep Frequency 0xDA: Low 0x4B: Medium 0x25: High
Register
0x000A
Bit
Feature
Bit 7-0
Good Read Beep Duration 0x1F: 40ms 0x3E: 80ms 0x5D: 120ms
Register
0x000C
Bit
Feature
Bit 7-4
Reserved
Bit 3
1: Enable Data Matrix 0: Disable Data Matrix
Bit 2
1: Enable 1D symbologies 0: Disable 1D symbologies
Bit 1
1: Enable AIM ID prefix for PDF417 0: Disable AIM ID prefix for PDF417
Bit 0
1: Enable PDF417 0: Disable PDF417
Register
0x000D
Bit
Feature
Bit 7
1: Enable QR Code 0: Disable QR Code
Bit 6-2
Reserved
Bit 1-0
00: USB DATAPIPE 01: USB HID-KBW 10: USB COM Port Emulation 11: HID-POS
Register
0x000E
Bit
Feature
Bit 7-4
Reserved
Bit 3
1: Beep on unknown character 0: Do not beep on unknown character
Bit 2
1: Good read beep on 0: Good read beep off
Bit 1-0
Reserved
16
Register
0x0010
Bit
Feature
Bit 7-5
Reserved
Bit 4-3
00: Disable AIM ID prefix for 1D symbologies 01: Allow to enable/disable AIM ID prefix for individual 1D symbology 10/11: Enable AIM ID prefix for 1D symbologies
Bit 2-0
Reserved
Register
0x0011
Bit
Feature
Bit 7
1: Enable AIM ID prefix for ISSN 0: Disable AIM ID prefix for ISSN Note: Bit4 and Bit3 of register 0x0010 must be set to “01” in order for this parameter to function.
Bit 6
1: Enable ISSN 0: Disable ISSN
Bit 5
1: Enable EAN-13 5-digit add-on code 0: Disable EAN-13 5-digit add-on code
Bit 4
1: Enable EAN-13 2-digit add-on code 0: Disable EAN-13 2-digit add-on code
Bit 3
1: EAN-13 add-on code required 0: EAN-13 add-on code not required
Bit 2
1: Transmit EAN-13 check digit 0: Do not transmit EAN-13 check digit
Bit 1
1: Enable AIM ID prefix for EAN-13 0: Disable AIM ID prefix for EAN-13 Note: Bit4 and Bit3 of register 0x0010 must be set to “01” in order for this parameter to function.
Bit 0
1: Enable EAN-13 0: Disable EAN-13
Register
0x0012
Bit
Feature
Bit 7
Reserved
Bit 6
1: Transmit Code 93 check digit 0: Do not transmit Code 93 check digit Note: Code 93 check digit verification must be enabled for this parameter to function.
Bit 5
1: Enable Code 93 check digit 0: Disable Code 93 check digit
Bit 4
1: Enable AIM ID prefix for Code 93 0: Disable AIM ID prefix for Code 93 Note: Bit4 and Bit3 of register 0x0010 must be set to “01” in order for this parameter to function.
Bit 3
1: Enable Code 93 0: Disable Code 93
Bit 2
ISBN Format 1: ISBN-10 0: ISBN-13
Bit 1
1: Enable AIM ID prefix for ISBN 0: Disable AIM ID prefix for ISBN Note: Bit4 and Bit3 of register 0x0010 must be set to “01” in order for this parameter to function.
Bit 0
1: Enable ISBN 0: Disable ISBN
17
Register
0x0013
Bit
Feature
Bit 7
Reserved
Bit 6
1: Enable EAN-8 zero extend 0: Disable EAN-8 zero extend
Bit 5
1: Enable EAN-8 5-digit add-on code 0: Disable EAN-8 5-digit add-on code
Bit 4
1: Enable EAN-8 2-digit add-on code 0: Disable EAN-8 2-digit add-on code
Bit 3
1: EAN-8 add-on code required 0: EAN-8 add-on code not required
Bit 2
1: Transmit EAN-8 check digit 0: Do not transmit EAN-8 check digit
Bit 1
1: Enable AIM ID prefix for EAN-8 0: Disable AIM ID prefix for EAN-8 Note: Bit4 and Bit3 of register 0x0010 must be set to “01” in order for this parameter to function.
Bit 0
1: Enable EAN-8 0: Disable EAN-8
Register
0x0014
Bit
Feature
Bit 7
Reserved
Bit 6
1: Enable UPC-E 5-digit add-on code 0: Disable UPC-E 5-digit add-on code
Bit 5
1: Enable UPC-E 2-digit add-on code 0: Disable UPC-E 2-digit add-on code
Bit 4
1: UPC-E add-on code required 0: UPC-E add-on code not required
Bit 3
1: Transmit UPC-E system character 0: Do not transmit UPC-E system character
Bit 2
1: Transmit UPC-E check digit 0: Do not transmit UPC-E check digit
Bit 1
1: Enable AIM ID prefix for UPC-E 0: Disable AIM ID prefix for UPC-E Note: Bit4 and Bit3 of register 0x0010 must be set to “01” in order for this parameter to function.
Bit 0
1: Enable UPC-E 0: Disable UPC-E
Register
0x0015
Bit
Feature
Bit 7
1: Enable UPC-E extend 0: Disable UPC-E extend
Bit 6
1: Enable UPC-A 5-digit add-on code 0: Disable UPC-A 5-digit add-on code
Bit 5
1: Enable UPC-A 2-digit add-on code 0: Disable UPC-A 2-digit add-on code
Bit 4
1: UPC-A add-on code required 0: UPC-A add-on code not required
Bit 3
1: Transmit UPC-A preamble character 0: Do not transmit UPC-A preamble character
Bit 2
1: Transmit UPC-A check digit 0: Do not transmit UPC-Acheck digit
Bit 1
1: Enable AIM ID prefix for UPC-A 0: Disable AIM ID prefix for UPC-A Note: Bit4 and Bit3 of register 0x0010 must be set to “01” in order for this parameter to function.
Bit 0
1: Enable UPC-A 0: Disable UPC-A
18
Register
0x0016
Bit
Feature
Bit 7
1: Transmit AIM 128 check digit in the format of “~nnn” (nnn: ASCII decimal value of check digit) 0: Do not transmit AIM 128 check digit
Bit 6
1: FNC1 character in AIM 128 transmitted as “~” (ASCII value: 126) 0: FNC1 character in AIM 128 transmitted as GS (ASCII value: 29)
Bit 5
1: Enable AIM ID prefix for AIM 128 0: Disable AIM ID prefix for AIM 128 Note: Bit4 and Bit3 of register 0x0010 must be set to “01” in order for this parameter to function.
Bit 4
1: Enable AIM 128 0: Disable AIM 128
Bit 3
1: Transmit Code 128 check digit in the format of “~nnn” (nnn: ASCII decimal value of check digit) 0: Do not transmit Code 128 check digit
Bit 2
1: FNC1 character in Code 128 transmitted as “~” (ASCII value: 126) 0: FNC1 character in Code 128 transmitted as GS (ASCII value: 29)
Bit 1
1: Enable AIM ID prefix for Code 128 0: Disable AIM ID prefix for Code 128 Note: Bit4 and Bit3 of register 0x0010 must be set to “01” in order for this parameter to function.
Bit 0
1: Enable Code 128 0: Disable Code 128
Register
0x0017
Bit
Feature
Bit 7
Reserved
Bit 6
1: Transmit programming barcode data (FNC3 Code 128) 0: Do not transmit programming barcode data (FNC3 Code 128)
Bit 5
1: Enable AIM ID prefix for FNC3 Code 128 0: Disable AIM ID prefix for FNC3 Code 128 Note: Bit4 and Bit3 of register 0x0010 must be set to “01” in order for this parameter to function.
Bit 4
1: Enable FNC3 Code 128 0: Disable FNC3 Code 128
Bit 3
1: Transmit UCC/EAN-128 check digit in the format of “~nnn” (nnn: ASCII decimal value of check
digit)
0: Do not transmit UCC/EAN-128 check digit
Bit 2
1: FNC1 character in UCC/EAN-128 transmitted as “~” (ASCII value: 126) 0: FNC1 character in UCC/EAN-128 transmitted as GS (ASCII value: 29)
Bit 1
1: Enable AIM ID prefix for UCC/EAN-128 0: Disable AIM ID prefix for UCC/EAN-128 Note: Bit4 and Bit3 of register 0x0010 must be set to “01” in order for this parameter to function.
Bit 0
1: Enable UCC/EAN-128 0: Disable UCC/EAN-128
19
Register
0x0018
Bit
Feature
Bit 7
1: Transmit ITF-14 check digit 0: Do not transmit ITF-14 check digit
Bit 6
1: Enable AIM ID prefix for ITF-14 0: Disable AIM ID prefix for ITF-14 Note: Bit4 and Bit3 of register 0x0010 must be set to “01” in order for this parameter to function.
Bit 5
1: Enable ITF-14 0: Disable ITF-14
Bit 4
1: Transmit appended “0” of Interleaved 2 of 5 0: Do not transmit appended “0” of Interleaved 2 of 5
Bit 3
1: Transmit Interleaved 2 of 5 check digit 0: Do not transmit Interleaved 2 of 5 check digit Note: Interleaved 2 of 5 check digit verification must be enabled for this parameter to function.
Bit 2
1: Enable Interleaved 2 of 5 check digit 0: Disable Interleaved 2 of 5 check digit
Bit 1
1: Enable AIM ID prefix for Interleaved 2 of 5 0: Disable AIM ID prefix for Interleaved 2 of 5 Note: Bit4 and Bit3 of register 0x0010 must be set to “01” in order for this parameter to function.
Bit 0
1: Enable Interleaved 2 of 5 0: Disable Interleaved 2 of 5
Register
0x0019
Bit
Feature
Bit 7
Reserved
Bit 6
1: Transmit Industrial 2 of 5 check digit 0: Do not transmit Industrial 2 of 5 check digit Note: Industrial 2 of 5 check digit verification must be enabled for this parameter to function.
Bit 5
1: Enable Industrial 2 of 5 check digit 0: Disable Industrial 2 of 5 check digit
Bit 4
1: Enable AIM ID prefix for Industrial 2 of 5 0: Disable AIM ID prefix for Industrial 2 of 5 Note: Bit4 and Bit3 of register 0x0010 must be set to “01” in order for this parameter to function.
Bit 3
1: Enable Industrial 2 of 5 0: Disable Industrial 2 of 5
Bit 2
1: Transmit ITF-6 check digit 0: Do not transmit ITF-6 check digit
Bit 1
1: Enable AIM ID prefix for ITF-6 0: Disable AIM ID prefix for ITF-6 Note: Bit4 and Bit3 of register 0x0010 must be set to “01” in order for this parameter to function.
Bit 0
1: Enable ITF-6 0: Disable ITF-6
20
21
Register
0x001A
Bit
Feature
Bit 7
1: Transmit Standard 2 of 5 check digit 0: Do not transmit Standard 2 of 5 check digit Note: Standard 2 of 5 check digit verification must be enabled for this parameter to function.
Bit 6
1: Enable Standard 2 of 5 check digit 0: Disable Standard 2 of 5 check digit
Bit 5
1: Enable AIM ID prefix for Standard 2 of 5 0: Disable AIM ID prefix for Standard 2 of 5 Note: Bit4 and Bit3 of register 0x0010 must be set to “01” in order for this parameter to function.
Bit 4
1: Enable Standard 2 of 5 0: Disable Standard 2 of 5
Bit 3
1: Transmit Matrix 2 of 5 check digit 0: Do not transmit Matrix 2 of 5 check digit Note: Matrix 2 of 5 check digit verification must be enabled for this parameter to function.
Bit 2
1: Enable Matrix 2 of 5 check digit 0: Disable Matrix 2 of 5 check digit
Bit 1
1: Enable AIM ID prefix for Matrix 2 of 5 0: Disable AIM ID prefix for Matrix 2 of 5 Note: Bit4 and Bit3 of register 0x0010 must be set to “01” in order for this parameter to function.
Bit 0
1: Enable Matrix 2 of 5 0: Disable Matrix 2 of 5
Register
0x001B
Bit
Feature
Bit 7
1: Enable AIM ID prefix for RSS-Expand 0: Disable AIM ID prefix for RSS-Expand Note: Bit4 and Bit3 of register 0x0010 must be set to “01” in order for this parameter to function.
Bit 6
1: Enable RSS-Expand 0: Disable RSS-Expand
Bit 5
1: Transmit RSS-Limited application identifier 0: Do not transmit RSS-Limited application identifier
Bit 4
1: Enable AIM ID prefix for RSS-Limited 0: Disable AIM ID prefix for RSS-Limited Note: Bit4 and Bit3 of register 0x0010 must be set to “01” in order for this parameter to function.
Bit 3
1: Enable RSS-Limited 0: Disable RSS-Limited
Bit 2
1: Transmit RSS-14 application identifier 0: Do not transmit RSS-14 application identifier
Bit 1
1: Enable AIM ID prefix for RSS-14 0: Disable AIM ID prefix for RSS-14 Note: Bit4 and Bit3 of register 0x0010 must be set to “01” in order for this parameter to function.
Bit 0
1: Enable RSS-14 0: Disable RSS-14
Register
0x001C
Bit
Feature
Bit 7-6
Reserved
Bit 5
1: Enable Code 39 Full ASCII 0: Disable Code 39 Full ASCII
Bit 4
1: Transmit Code 39 check digit 0: Do not transmit Code 39 check digit Note: Code 39 check digit verification must be enabled for this parameter to function.
Bit 3
1: Enable Code 39 check digit 0: Disable Code 39 check digit
Bit 2
1: Transmit Code 39 start/stop characters 0: Do not transmit Code 39 start/stop characters
Bit 1
1: Enable AIM ID prefix for Code 39 0: Disable AIM ID prefix for Code 39 Note: Bit4 and Bit3 of register 0x0010 must be set to “01” in order for this parameter to function.
Bit 0
1: Enable Code 39 0: Disable Code 39
Register
0x001D
Bit
Feature
Bit 7-6
Reserved
Bit 5
1: Transmit Code 11 check digit 0: Do not transmit Code 11 check digit Note: Code 11 check digit verification must be enabled for this parameter to function.
Bit 4-2
Code 11 Check Digit Verification: 000: Disable 001: One check digit, MOD11 010: Two check digits, MOD11/MOD11 011: Two check digits, MOD11/MOD9 100: One check digit, MOD11 (Len <= 11); two check digits, MOD11/MOD11 (Len > 11) 101: One check digit, MOD11 (Len <= 11); two check digits, MOD11/MOD9 (Len > 11)
Bit 1
1: Enable AIM ID prefix for Code 11 0: Disable AIM ID prefix for Code 11 Note: Bit4 and Bit3 of register 0x0010 must be set to “01” in order for this parameter to function.
Bit 0
1: Enable Code 11 0: Disable Code 11
22
Register
0x001E
Bit
Feature
Bit 7-6
Reserved
Bit 5
1: Transmit Codabar check digit 0: Do not transmit Codabar check digit Note: Code 39 check digit verification must be enabled for this parameter to function.
Bit 4
1: Enable Codabar check digit 0: Disable Codabar check digit
Bit 3-2
Codabar Start/Stop Character Format: 00: ABCD/ABCD 01: ABCD/TN*E 10: abcd/abcd 11: abcd/tn*e
Bit 1
1: Transmit Codabar start/stop characters 0: Do not transmit Codabar start/stop characters
Bit 0
1: Enable Codabar 0: Disable Codabar
Register
0x001F
Bit
Feature
Bit 7
Reserved
Bit 6
1: Transmit MSI-Plessey check digit 0: Do not transmit MSI-Plessey check digit Note: MSI-Plessey check digit verification must be enabled for this parameter to function.
Bit 5-4
MSI-Plessey Check Digit Verification: 00: Disable 01: One check digit, MOD10 10: Two check digits, MOD10/MOD10 11: Two check digits, MOD10/MOD11
Bit 3
1: Enable MSI-Plessey 0: Disable MSI-Plessey
Bit 2
1: Transmit Plessey check digit 0: Do not transmit MSI-Plessey check digit Note: Plessey check digit verification must be enabled for this parameter to function.
Bit 1
1: Enable Plessey check digit 0: Disable Plessey check digit
Bit 0
1: Enable Plessey 0: Disable Plessey
23
Register
0x0020
Bit
Feature
Bit 7-3
Reserved
Bit 2
1: Enable AIM ID prefix for MSI-Plessey 0: Disable AIM ID prefix for MSI-Plessey Note: Bit4 and Bit3 of register 0x0010 must be set to “01” in order for this parameter to function.
Bit 1
1: Enable AIM ID prefix for Plessey 0: Disable AIM ID prefix for Plessey Note: Bit4 and Bit3 of register 0x0010 must be set to “01” in order for this parameter to function.
Bit 0
1: Enable AIM ID prefix for Codabar 0: Disable AIM ID prefix for Codabar Note: Bit4 and Bit3 of register 0x0010 must be set to “01” in order for this parameter to function.
Register
0x002B，0x2A
Bit
Feature
Bit 15-13
Reserved
Bit 12-0
0x09C4: Baud rate 1200 0x04E2: Baud rate 2400 0x0271: Baud rate 4800 0x0139: Baud rate 9600 0x00D0: Baud rate 14400 0x009C: Baud rate 19200 0x004E: Baud rate 38400 0x0034: Baud rate 57600 0x001A: Baud rate 115200
Register
0x004A
Bit
Feature
Bit 7-5
Reserved
Bit 4
0: 752*480 image 1: 640*480 image
Bit 3-2
00: Decode unmirrored Data Matrix only 01: Decode mirrored Data Matrix only 10/11: Decode both
Bit 1
1: Decode Data Matrix starting with the character whose ASCII value is 129 0: Do not decode Data Matrix starting with the character whose ASCII value is 129
Bit 0
1: Decode Data Matrix with FNC1 0: Do not decode Data Matrix with FNC1
24
Register
0x004B
Bit
Feature
Bit 7-2
Reserved
Bit 1
1: Decode rectangular Data Matrix 0: Do not decode rectangular Data Matrix
Bit 0
Reserved
Register
0x0060
Bit
Feature
Bit 7
Reserved
Bit 6-5
Terminating Character Suffix: 00/11: CR (0x0D) 01: CRLF (0x0D,0x0A) 10: TAB (0x09)
Bit 4
Reserved
Bit 3
1: Caps Lock ON 0: Caps Lock OFF
Bit 2-1
00: Standard Keyboard 01: Emulate ALT+Keypad 10/11: Function Key Mapping
Bit 0
1: Enable terminating character suffix 0: Disable terminating character suffix
Register
0x006B
Bit
Feature
Bit 7-0
USB country keyboard types 00: U.S. 01: Belgium 02: Brazil 03: Canada 04: Czech 05: Denmark 06: Denmark 07: France 08: Austria 09: Greece 0A: Hungary 0B: Israel 0C: Italy 0D: Latin America 0E: Netherland 0F: Norway 10: Poland 11: Portugal 12: Romania 13: Russia 15: Slovakia 16: Spain 17: Sweden 18: Switzerland 19: Turkey1 1A: Turkey2 1B: UK 1C: Japan
25
Register
0x006F
Bit
Feature
Bit 7-6
Inter-keystroke delay 00: No delay 01: Short delay (5ms) 10: Medium delay (10ms) 11: Long delay (15ms)
Bit 5-4
Convert case 00: No case conversion 10: Convert All to Upper Case 11: Convert All to Lower Case
Bit 3
Reserved
Bit 2
1: Emulate numeric keypad 0: Do not emulate numeric keypad
Bit 1-0
Reserved
Register
0x008A
Bit
Feature
Bit 7-1
Reserved
Bit 0
1: Visible Code ID (original+0x40) 0: Original Code ID
Register
0x0099
Bit
Feature
Bit 7-4
Reserved
Bit 3
1: Decode mirrored Micro QR 0: Do not decode mirrored Micro QR
Bit 2
1: Enable Micro QR 0: Disable Micro QR
Bit 1
1: Enable AIM ID prefix for QR 0: Disable AIM ID prefix for QR
Bit 0
Reserved
26

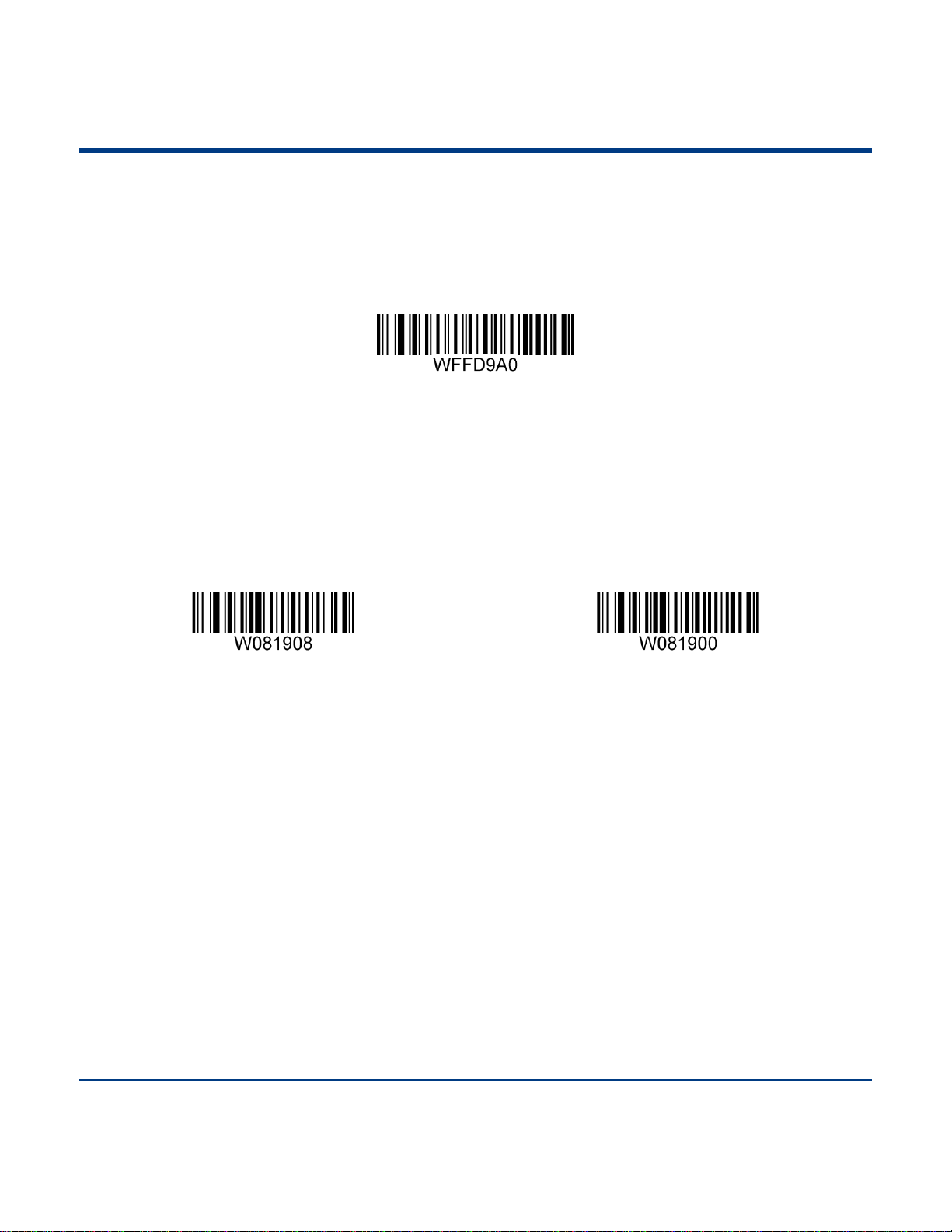

Programming Barcode Data
Transmit Programming Barcode Data
Restore All Factory Defaults
Programming barcode data (e.g. WFFD980) can be transmitted to the Host. To enable this feature, scan the barcode below. After the feature is enabled, programming barcodes will be handled as non-programming barcodes and they cannot be used to configure the scan engine. The barcode data will be sent to the Host when a programming barcode is scanned and decoded. By default, the XL-3100 does not transmit programming barcode data.
After the engine is powered down and re-energized, this feature will be automatically disabled (i.e. the engine does not transmit programming barcode data) and the ability of programming barcodes to configure the engine will be restored.
Factory Defaults
Scanning the following barcode can restore the engine to the factory defaults. See Appendix A: Factory Defaults Table for more information.
Note: Use this feature with discretion.
27
Chapter 2 Communication Interfaces
Parameter
Factory Default
Serial Communication
Standard TTL-232
Baud Rate
9600
Parity Check
None
Number of Data Bits
8
Number of Stop Bits
1
Hardware Flow Control
None
The XL-3100 provides a TTL-232 interface and a USB interface to communicate with the host device. The host device can receive scanned data and send commands to control the engine or to access/alter the configuration information of the engine via the TTL-232 or USB interface.
TTL-232 Interface
Serial communication interface is usually used to connect the engine to a host device (like PC, POS). When the XL-3100 is connected to a host device through its TTL-232 interface, serial communication is enabled by default. However, to ensure smooth communication and accuracy of data, you need to set communication parameters (including baud rate, parity check, data bit and stop bit) to match the host device.
The serial communication interface provided by the engine is based on TTL signals. TTL-232 can be used for most application architectures. For those requiring RS-232, an external conversion circuit is needed.
Default serial communication parameters are listed below, among which only baud rate can be altered.
28
Baud Rate
** 9600
1200
19200
2400
38400
4800
57600
14400
115200
Baud rate is the number of bits of data transmitted per second. Set the baud rate to match the Host requirements.
29
USB Interface
** USB DATAPIPE
USB HID-KBW
When the XL-3100 is connected to a host device through its USB interface, USB DATAPIPE is enabled by default. User can switch between options – USB DATAPIPE, USB HID-KBW, USB COM Port
Emulation and HID-POS, upon actual need.
USB DATAPIPE
A driver is required when using this protocol to communicate with the engine.
USB HID-KBW
When the engine is connected to the Host via a USB connection, you can enable the USB HID-KBW
feature by scanning the barcode below. Then the engine’s transmission will be simulated as USB keyboard input. The Host receives keystrokes on the virtual keyboard. It works on a Plug and Play basis and no driver is required.
30
Standard Keyboard
** Standard Keyboard
Emulate ALT+Keypad
When the USB HID-KBW feature is enabled, the engine selects Standard Keyboard by default. Besides that, the other two options are provided: Emulate ALT+Keypad and Function Key Mapping.
Emulate ALT+Keypad
When Emulate ALT+Keypad is enabled, any ASCII character (0x00 - 0xFF) is sent over the numeric keypad no matter which keyboard type is selected. Since sending a character involves multiple keystroke emulations, this method appears less efficient.
1. ALT Make
2. Enter the number corresponding to the ASCII character on the keypad.
3. ALT Break
Note: It is recommended to turn on the Num Lock light on the host when using this feature.
31
Function Key Mapping
Function Key Mapping
When Function Key Mapping is enabled, function character (0x00 - 0x1F) are sent as ASCII sequences over the numeric keypad.
1. CTRL Make
2. Press function key (Refer to the ASCII Function Key Mapping Table on the following page)
3. CTRL Break
32
ASCII Function Key Mapping Table
ASCII Value
（HEX）
Function Key
ASCII Value
（HEX）
Function Key
00 2 10 P 01 A 11 Q 02 B 12 R 03 C 13 S 04 D 14
T
05 E 15
U
06 F 16 V 07 G 17 W 08 H 18 X 09 I 19 Y 0A J 1A Z 0B K 1B [ 0C L 1C \ 0D M 1D ] 0E N 1E 6 0F O 1F
.
33
USB Country Keyboard Types
** 1 - U.S.
2 - Belgium
3 - Brazil
4 - Canada
5 - Czech
6 - Denmark
7 - Finland
8 - France
Keyboard layouts vary from country to country. All supported keyboard types are listed below. The default setting is US keyboard.
34
35
9 - Austria
10 - Greece
11 - Hungary
12 - Israel
13 - Italy
14 - Latin America
15 - Netherland
16 - Norway
17 - Poland
18 - Portugal
19 - Romania
20 - Russia
21 - Slovakia
22 - Spain
23 - Sweden
24 - Switzerland
25 - Turkey1
26 - Turkey 2
27 - UK
28 - Japan
36

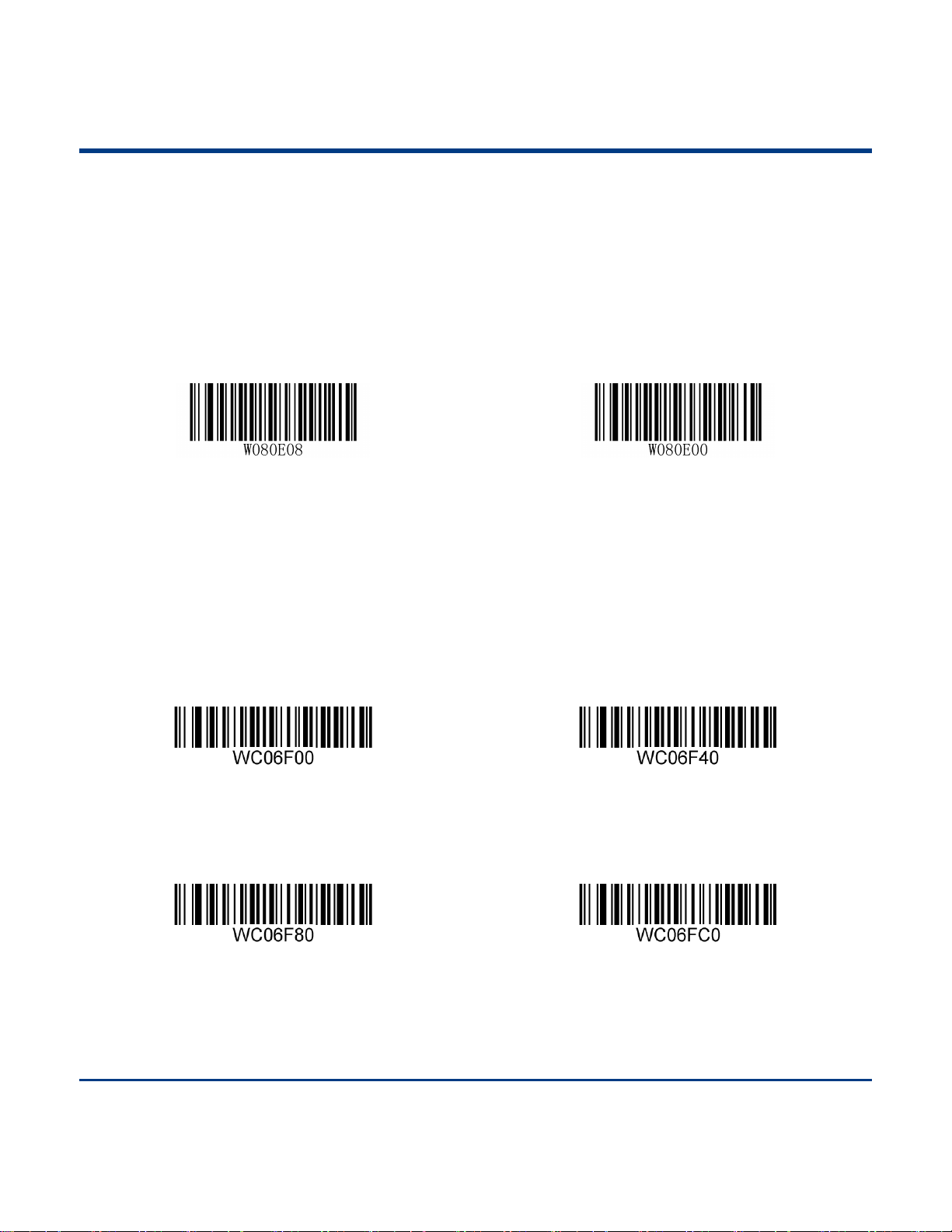

Beep on Unknown Character
** Beep on Unknown Character
Do Not Beep on Unknown Character
** No Delay
Short Delay (5ms)
Medium Delay (10ms)
Long Delay (15ms)
Due to the differences in keyboard layouts, some characters contained in barcode data may be unavailable on the selected keyboard. As a result, the engine fails to transmit the unknown characters.
Scan the appropriate barcode below to enable or disable the emission of beep when an unknown character is detected.
Inter-Keystroke Delay
This parameter specifies the delay between emulated keystrokes.
37
Caps Lock
** Caps Lock OFF
Caps Lock ON
The Caps Lock ON option can invert upper and lower case characters contained in barcode data. This
inversion occurs regardless of the state of Caps Lock key on the Host’s keyboard.
Note: Emulate ALT+Keypad ON/ Convert All to Upper Case/ Convert All to Lower Case prevails over Caps Lock ON.
Example: When the Caps Lock ON is selected, barcode data “AbC” is transmitted as “aBc”.
38
Convert Case
** No Case Conversion
Convert All to Lower Case
Convert All to Upper Case
Scan the appropriate barcode below to convert all bar code data to your desired case.
Example: When the Convert All to Lower Case feature is enabled, barcode data “AbC” is transmitted as “abc”.
39
Emulate Numeric Keypad
Emulate Numeric Keypad
** Do Not Emulate Numeric Keypad
When this feature is disabled, sending barcode data is emulated as keystroke(s) on main keyboard. To enable this feature, scan the Emulate Numeric Keypad barcode. Sending a number (0-9) is emulated
as keystroke on numeric keypad, whereas sending other character like “+”, “_”, “*” , “/” and “.” is still
emulated as keystroke on main keyboard. However, this feature is influenced by the state of the Num Lock key on the host: if the Num Lock light on the host is ON, numbers are sent over numeric keypad, if it is OFF, numbers are sent over main keyboard.
Note: Make sure the Num Lock light of the Host is turned ON when using this feature.
Emulate ALT+Keypad ON prevails over Emulate Numeric Keypad.
40
USB COM Port Emulation
USB COM Port Emulation
HID-POS
If you connect the engine to the Host via a USB connection, the USB COM Port Emulation feature allows the Host to receive data in the way as a serial port does. However, you need to set communication parameters on the engine to match the Host requirements. A driver is required for this feature.
HID-POS
The HID-POS interface is recommended for new application programs. It can send up to 56 characters in a single USB report and appears more efficient than USB HID-KBW.
Features:
HID based, no custom driver required. Way more efficient in communication than USB HID-KBW and traditional RS-232 interface.
Note: HID-POS does not require a custom driver. However, a HID interface on Windows 98 does. All HID interfaces employ standard driver provided by the operating system. Use defaults when installing the driver.
41
Access the Scanner with Your Program
Bit
Byte 7 6 5 4 3 2 1 0
0
Report ID = 0x02
1
Barcode Length
2-57
Decoded Data (1-56)
58-61
Reserved (1-4)
62
0x00
63 - - - - - -
-
Decoded
Data
Product
Interface
PID (Hex)
PID (Dec)
USB DATAPIPE
8001
32769
USB HID-KBW
8003
32771
USB COM Port Emulation
8006
32774
HID-POS
8010
32784
1. Use CreateFile to access the engine as a HID device.
2. Use ReadFile to deliver the scanned data to the application program.
3. Use WriteFile to send data to the engine.
For detailed information about USB and HID interfaces, go to www.USB.org.
Acquire Scanned Data
After a barcode is decoded, the engine sends an input report as below:
VID/PID
USB uses VID (Vendor ID) and PID (Product ID) to identify and locate a device. The VID is assigned by USB Implementers Forum. vendor ID is 1EAB (Hex). A range of PIDs are used for each product family. Every PID contains a base number and interface type (keyboard, COM port, etc.).
XL-3100
42
Chapter 3 Scan Mode
**Manual Mode
Manual Mode
Manual Mode (default): A trigger pull activates a decode session. The decode session continues until the
barcode is decoded or the trigger is released.
43
Continuous Mode
Continuous Mode
Decode Session Timeout
Continuous Mode: The engine automatically activates a decode session. The decode session continues
until the barcode is decoded or the decode session timeout expires. When a decode session is completed, the engine waits until the timeout between decodes expires and then starts next session. The engine continues to work in this pattern if the following situation does not happen: no barcode is presented to the engine or passed in front of it in a decode session, the engine will automatically suspend barcode reading. Pressing the trigger can suspend/resume barcode reading.
Decode Session Timeout
This parameter sets the maximum time decode session continues during a scan attempt. It is programmable in 0.1s increments from 0.1s to 25.5s. The default timeout is 5.0s. If the parameter is set to 0, the engine scans and decodes barcode continuously. To learn how to program this parameter, see Appendix E: Parameter Programming Examples.
44
Timeout between Decodes
Timeout between Decodes
This parameter sets the timeout between decode sessions. When a decode session ends, next session will not happen until the timeout between decodes expires. It is programmable in 0.1s increments from
0.1s to 25.5s. The default timeout is 1.0s. To learn how to program this parameter, see Appendix E: Parameter Programming Examples.
45
Sense Mode
Sense Mode
Decode Session Timeout
Sense Mode: The engine waits for the image stabilization timeout to expire before activating a decode
session every time it detects a change in ambient illumination. Decode session continues until the barcode is decoded or the decode session timeout expires. After a decode session ends, the engine waits for the timeout between decodes to expire before beginning to monitor ambient illumination. If no barcode is presented to the engine or passed in front of it in a decode session, the engine will automatically suspend barcode reading and start to monitor ambient illumination.
In the Sense mode, a trigger pull can also activate a decode session. The decode session continues until the barcode is decoded or the trigger is released. When the session ends, the engine will continue to monitor ambient illumination.
Decode Session Timeout
This parameter sets the maximum time decode session continues during a scan attempt. It is programmable in 0.1s increments from 0.1s to 25.5s. The default timeout is 5.0s. If the parameter is set to 0, the engine scans and decodes barcode continuously. To learn how to program this parameter, see Appendix E: Parameter Programming Examples.
46
Timeout between Decodes
Timeout between Decodes
Image Stabilization Timeout
After a decode session ends, the engine waits for the timeout between decodes to expire before beginning to monitor ambient illumination. This parameter is programmable in 0.1s increments from 0.1s to 25.5s. The default timeout is 1.0s. To learn how to program this parameter, see Appendix E: Parameter Programming Examples.
Image Stabilization Timeout
The engine waits for the image stabilization timeout to expire before activating a decode session every time it detects a change in ambient illumination. This parameter is programmable in 0.1s increments from
0.1s to 25.5s. The default timeout is 0.4s. To learn how to program this parameter, see Appendix E: Parameter Programming Examples.
47
Sensitivity
High Sensitivity
** Medium Sensitivity
Low Sensitivity
Custom Sensitivity
Sensitivity specifies the degree of acuteness of the engine’s response to changes in ambient illumination. The higher the sensitivity, the lower requirement in illumination change to trigger the engine. You can select an appropriate degree of sensitivity that fits the ambient environment. The default setting is Medium Sensitivity.
Sensitivity levels range from 0 to 255. The smaller the number, the higher the sensitivity. Users can select a desired sensitivity level that helps achieve greater efficiency. To learn how to program
this parameter, see Appendix E: Parameter Programming Examples.
48
Command Trigger Mode
Command Trigger Mode
Decode Session Timeout
Command Trigger Mode: Decode session is activated by a host command (i.e. set the bit0 of register
0x0002 to “1”). The decode session continues until the barcode is decoded or the decode session timeout expires.
Decode Session Timeout
This parameter sets the maximum time decode session continues during a scan attempt. It is programmable in 0.1s increments from 0.1s to 25.5s. The default timeout is 5.0s. If the parameter is set to 0, the engine scans and decodes barcode continuously. To learn how to program this parameter, see Appendix E: Parameter Programming Examples.
49
IR Trigger Mode
By default, theXL-3030-M switches to the IR Trigger scan mode (indicated by beeper) when holding down the trigger for over 10 seconds. In this scan mode, the trigger distance is up to 26cm, but it can be altered to meet customerization needs. After the engine is powered down or re-energized, it will switch back to the previous scan mode. Holding down the trigger over 10 seconds again can enable the engine to exit the IR Trigger scan mode (indicated by beeper) and switch back to the previous scan mode.
50
Chapter 4 Illumination & Aiming
** Normal
OFF
Always ON
Illumination
A couple of illumination options are provided to improve the lighting conditions during every image capture:
Normal (default): Illumination LED is turned on during image capture. Always ON: Illumination LED keeps ON after the engine is powered on. OFF: Illumination LED is OFF all the time.
51
Aiming
** Normal
OFF
Always ON
When scanning/capturing image, the engine projects an aiming beam which allows positioning the target barcode within its field of view and thus makes decoding easier.
Normal (default): The engine projects an aiming beam only during barcode scanning/capture. Always ON: Aiming beam is constantly ON after the engine is powered on. OFF: Aiming beam is OFF all the time.
52
Chapter 5 Notification
Enable Mute Mode
**Disable Mute Mode
** Good Read Beep On
Good Read Beep Off
Mute Mode
Scanning the Enable Mute Mode can turn off all notification beeps. By default, mute mode is disabled.
Good Read Beep
53
Good Read Beep Frequency
Low
** Medium
High
40ms
**80ms
120ms
Good Read Beep Duration
54
Good Read LED
** Good Read LED On
Good Read LED Off
Enable Decode Result Notification
** Disable Decode Result Notification
Decode Result Notification
When enabled, if a barcode does not decode, “F” is transmitted; if a barcode is decoded, “S” is appended to the barcode data as the most left character.
55
Chapter 6 Data Formatting
Enable AIM ID Prefix
** Disable AIM ID Prefix
In many applications, barcode data needs to be edited and distinguished from one another. Usually AIM ID and Code ID can be used as identifiers, but in some special cases terminating character
suffix like Carriage Return or Line Feed can also be the alternative. The engine can be configured to transmit barcode data in the following format:
[“F”/ “S”] + [Code ID] + [AIM ID] + [DATA] + [terminating character]
Note: [DATA] must be transmitted while user can decide whether to transmit any of the rest parts.
[“F”/ “S”]: decode result notification.
AIM ID Prefix
AIM (Automatic Identification Manufacturers) IDs define symbology identifiers and data carrier identifiers. For the details, see Appendix B: AIM ID Table. If AIM ID prefix is enabled, the engine will add the symbology identifier before the scanned data after decoding.
56
CODE ID Prefix
Enable CODE ID Prefix
** Disable CODE ID Prefix
** Original CODE ID
Visible CODE ID
Code ID can also be used to identify barcode type. For more information, refer to Appendix C: Code ID Table.
User can choose to transmit original CODE ID or visible CODE ID by scanning the appropriate barcode below.
57
Terminating Character Suffix
** Disable Terminating Character Suffix
Append CR
Append CRLF
Append TAB
A terminating character such as carriage return (CR) or carriage return/line feed pair (CRLF) or horizontal tab (TAB) can be used to mark the end of data.
58
Chapter 7 Symbologies
Enable All Symbologies
Disable All Symbologies
Enable 1D Symbologies
Disable 1D Symbologies
Enable 2D Symbologies
Disable 2D Symbologies
Global Settings
Enable/Disable All Symbologies
If all symbologies are disabled, the engine can only identify programming barcodes.
Enable/Disable 1D Symbologies
Enable/Disable 2D Symbologies
59
Video Reverse
Regular Barcode
Inverse Barcode
Video Reverse ON
** Video Reverse OFF
Regular barcode: Dark image on a bright background. Inverse barcode: Bright image on a dark background. The examples of regular barcode and inverse barcode are shown below.
Video Reverse is used to allow the engine to read barcodes that are inverted.
Video Reverse ON: Read both regular barcodes and inverse barcodes. Video Reverse OFF (default): Read regular barcodes only.
The engine shows a slight decrease in scanning speed when Video Reverse is ON.
60
1D Symbologies
Restore the Factory Defaults of Code 128
** Enable Code 128
Disable Code 128
Code 128
Restore Factory Defaults
Enable/Disable Code 128
61
UCC/EAN-128 (GS1-128)
Restore the Factory Defaults of UCC/EAN-128
** Enable UCC/EAN-128
Disable UCC/EAN-128
Restore Factory Defaults
Enable/Disable UCC/EAN-128
62
AIM 128
Restore the Factory Defaults of AIM 128
** Enable AIM 128
Disable AIM 128
Restore Factory Defaults
Enable/Disable AIM 128
63
EAN-8
Restore the Factory Defaults of EAN-8
** Enable EAN-8
Disable EAN-8
** Transmit EAN-8 Check Digit
Do Not Transmit EAN-8 Check Digit
Restore Factory Defaults
Enable/Disable EAN-8
Transmit Check Digit
EAN-8 is 8 digits in length with the last one as its check digit used to verify the integrity of the data.
64
Add-On Code
Enable 2-Digit Add-On Code
** Disable 2-Digit Add-On Code
Enable 5-Digit Add-On Code
** Disable 5-Digit Add-On Code
An EAN-8 barcode can be augmented with a two-digit or five-digit add-on code to form a new one. In the examples below, the part surrounded by blue dotted line is an EAN-8 barcode while the part circled by red dotted line is add-on code.
Enable 2-Digit Add-On Code/ Enable 5-Digit Add-On Code: The engine decodes a mix of EAN-8 barcodes with and without 2-digit/5-digit add-on codes.
Disable 2-Digit Add-On Code/ Disable 5-Digit Add-On Code: The engine decodes EAN-8 and ignores the add-on code when presented with an EAN-8 plus add-on barcode. It can also decode EAN-8 barcodes without add-on codes.
65
Add-On Code Required
EAN-8 Add-On Code Required
** EAN-8 Add-On Code Not Required
Enable EAN-8 Zero Extend
** Disable EAN-8 Zero Extend
When EAN-8 Add-On Code Required is selected, the engine will only read EAN-8 barcodes that contain add-on codes.
EAN-8 Extension
Disable EAN-8 Zero Extend: Transmit EAN-8 barcodes as is. Enable EAN-8 Zero Extend: Add five leading zeros to decoded EAN-8 barcodes to extend to13 digits.
66
EAN-13
Restore the Factory Defaults of EAN-13
** Enable EAN-13
Disable EAN-13
** Transmit EAN-13 Check Digit
Do Not Transmit EAN-13 Check Digit
Restore Factory Defaults
Enable/Disable EAN-13
Transmit Check Digit
EAN-13 is 13 digits in length with the last one as its check digit used to verify the integrity of the data.
67
Add-On Code
Enable 2-Digit Add-On Code
** Disable 2-Digit Add-On Code
Enable 5-Digit Add-On Code
** Disable 5-Digit Add-On Code
An EAN-13 barcode can be augmented with a two-digit or five-digit add-on code to form a new one. In the examples below, the part surrounded by blue dotted line is an EAN-13 barcode while the part circled by red dotted line is add-on code.
Enable 2-Digit Add-On Code/ Enable 5-Digit Add-On Code: The engine decodes a mix of EAN-13 barcodes with and without 2-digit/5-digit add-on codes.
Disable 2-Digit Add-On Code/ Disable 5-Digit Add-On Code: The engine decodes EAN-13 and ignores the add-on code when presented with an EAN-13 plus add-on barcode. It can also decode EAN-13 barcodes without add-on codes.
68
Add-On Code Required
EAN-13 Add-On Code Required
** EAN-13 Add-On Code Not Required
When EAN-13 Add-On Code Required is selected, the engine will only read EAN-13 barcodes that contain add-on codes.
69
ISSN
Restore the Factory Defaults of ISSN
Enable ISSN
** Disable ISSN
Restore Factory Defaults
Enable/Disable ISSN
70
ISBN
Restore the Factory Defaults of ISBN
** Enable ISBN
Disable ISBN
** ISBN-13
ISBN-10
Restore Factory Defaults
Enable/Disable ISBN
Set ISBN Format
71
UPC-E
Restore the Factory Defaults of UPC-E
** Enable UPC-E
Disable UPC-E
** Transmit UPC-E Check Digit
Do Not Transmit UPC-E Check Digit
Restore Factory Defaults
Enable/Disable UPC-E
Transmit Check Digit
UPC-E is 8 digits in length with the last one as its check digit used to verify the integrity of the data.
72
Add-On Code
Enable 2-Digit Add-On Code
** Disable 2-Digit Add-On Code
Enable 5-Digit Add-On Code
** Disable 5-Digit Add-On Code
A UPC-E barcode can be augmented with a two-digit or five-digit add-on code to form a new one. In the examples below, the part surrounded by blue dotted line is a UPC-E barcode while the part circled by red dotted line is add-on code.
Enable 2-Digit Add-On Code/ Enable 5-Digit Add-On Code: The engine decodes a mix of UPC-E barcodes with and without 2-digit/5-digit add-on codes.
Disable 2-Digit Add-On Code/ Disable 5-Digit Add-On Code: The engine decodes UPC-E and ignores the add-on code when presented with a UPC-E plus add-on barcode. It can also decode UPC-E barcodes without add-on codes.
73
Add-On Code Required
UPC-E Add-On Code Required
** UPC-E Add-On Code Not Required
Transmit System Character “0”
** Do Not Transmit System Character “0”
Enable UPC-E Extend
**Disable UPC-E Extend
When UPC-E Add-On Code Required is selected, the engine will only read UPC-E barcodes that contain add-on codes.
Transmit System Character
The first character of UPC-E barcode is the system character “0”.
UPC-E Extension
Disable UPC-E Extend: Transmit UPC-E barcodes as is. Enable UPC-E Extend: Extend UPC-E barcodes to make them compatible in length to UPC-A.
74
UPC-A
Restore the Factory Defaults of UPC-A
** Enable UPC-A
Disable UPC-A
** Transmit UPC-A Check Digit
Do Not Transmit UPC-A Check Digit
Restore Factory Defaults
Enable/Disable UPC-A
Transmit Check Digit
UPC-A is 13 digits in length with the last one as its check digit used to verify the integrity of the data.
75
Add-On Code
Enable 2-Digit Add-On Code
** Disable 2-Digit Add-On Code
Enable 5-Digit Add-On Code
** Disable 5-Digit Add-On Code
A UPC-A barcode can be augmented with a two-digit or five-digit add-on code to form a new one. In the examples below, the part surrounded by blue dotted line is a UPC-A barcode while the part circled by red dotted line is add-on code.
Enable 2-Digit Add-On Code/ Enable 5-Digit Add-On Code: The engine decodes a mix of UPC-A barcodes with and without 2-digit/5-digit add-on codes.
Disable 2-Digit Add-On Code/ Disable 5-Digit Add-On Code: The engine decodes UPC-A and ignores the add-on code when presented with a UPC-A plus add-on barcode. It can also decode UPC-A barcodes without add-on codes.
76
Add-On Code Required
UPC-A Add-On Code Required
** UPC-A Add-On Code Not Required
Transmit Preamble Character “0”
** Do Not Transmit Preamble Character “0”
When UPC-A Add-On Code Required is selected, the engine will only read UPC-A barcodes that contain add-on codes.
Transmit Preamble Character
Note: The preamble character “0” usually does not appear in printed UPC-A barcodes.
77
Interleaved 2 of 5
Restore the Factory Defaults of Interleaved 2 of 5
** Enable Interleaved 2 of 5
Disable Interleaved 2 of 5
Restore Factory Defaults
Enable/Disable Interleaved 2 of 5
78
Check Digit Verification
** Disable
Do Not Transmit Check Digit After Verification
Transmit Check Digit After Verification
A check digit is optional for Interleaved 2 o 5 and can be added as the last digit. It is a calculated value used to verify the integrity of the data.
Disable: The engine transmits Interleaved 2 of 5 barcodes as is. Do Not Transmit Check Digit After Verification: The engine checks the integrity of all Interleaved 2 of 5
barcodes to verify that the data complies with the check digit algorithm. Barcodes passing the check will be transmitted except the last digit, whereas those failing it will not be transmitted.
Transmit Check Digit After Verification: The engine checks the integrity of all Interleaved 2 of 5 barcodes to verify that the data complies with the check digit algorithm. Barcodes passing the check will be transmitted, whereas those failing it will not be transmitted.
79
Transmit Appended “0”
** Transmit Appended “0”
Do Not Transmit Appended “0”
If an Interleaved 2 of 5 barcode contains an odd number of characters, a leading zero must be appended. Scan the appropriate barcode to choose whether to transmit the appended “0”.
80
ITF-6
Restore the Factory Defaults of ITF-6
** Disable ITF-6
Enable ITF-6 But Do Not Transmit Check Digit
Enable ITF-6 and Transmit Check Digit
ITF-6 is a special kind of Interleaved 2 of 5 with a length of 6 characters and the last character as the check character.
Note: It is advisable not to enable ITF-6 and Interleaved 2 of 5 at the same time.
81
ITF-14
Restore the Factory Defaults of ITF-14
Disable ITF-14
Enable ITF-14 But Do Not Transmit Check Digit
** Enable ITF-14 and Transmit Check Digit
ITF-14 is a special kind of Interleaved 2 of 5 with a length of 14 characters and the last character as the check character.
Note: It is advisable not to enable ITF-14 and Interleaved 2 of 5 at the same time.
82
Matrix 2 of 5
Restore the Factory Defaults of Matrix 2 of 5
** Enable Matrix 2 of 5
Disable Matrix 2 of 5
Restore Factory Defaults
Enable/Disable Matrix 2 of 5
83
Check Digit Verification
** Disable
Do Not Transmit Check Digit After Verification
Transmit Check Digit After Verification
84
Industrial 25
Restore the Factory Defaults of Industrial 25
** Enable Industrial 25
Disable Industrial 25
Restore Factory Defaults
Enable/Disable Industrial 25
85
Check Digit Verification
** Disable
Do Not Transmit Check Digit After Verification
Transmit Check Digit After Verification
86
Standard 25
Restore the Factory Defaults of Standard 25
** Enable Standard 25
Disable Standard 25
Restore Factory Defaults
Enable/Disable Standard 25
87
Check Digit Verification
** Disable
Do Not Transmit Check Digit After Verification
Transmit Check Digit After Verification
88
Code 39
Restore the Factory Defaults of Code 39
** Enable Code 39
Disable Code 39
Transmit Start/Stop Character
** Do Not Transmit Start/Stop Character
Restore Factory Defaults
Enable/Disable Code 39
Transmit Start/Stop Character
89
Check Digit Verification
** Disable
Do Not Transmit Check Digit After Verification
Transmit Check Digit After Verification
Enable Code 39 Full ASCII
** Disable Code 39 Full ASCII
Enable/Disable Code 39 Full ASCII
The engine can be configured to identify all ASCII characters by scanning the appropriate barcode below.
90
Codabar
Restore the Factory Defaults of Codabar
** Enable Codabar
Disable Codabar
Restore Factory Defaults
Enable/Disable Codabar
91
Check Digit Verification
** Disable
Do Not Transmit Check Digit After Verification
Transmit Check Digit After Verification
** Transmit Start/Stop Character
Do Not Transmit Start/Stop Character
Transmit Start/Stop Character
92
Start/Stop Character Format
** ABCD/ABCD as the Start/Stop Character
ABCD/TN*E as the Start/Stop Character
abcd/abcd as the Start/Stop Character
abcd/tn*e as the Start/Stop Character
